BSPORT-B1-M - Smartwatch BRIGMTON - Free user manual and instructions

Product Type	Smartwatch / Activity Tracker
Brand	Brigmton
Model	BSPORT-B1-M
Connectivity	Bluetooth
Display	Digital LED (time, date, icons)
Sensors	Heart rate monitor (optical), accelerometer
Main Functions	Steps, distance, heart rate, sleep tracking, notifications, sedentary alert
Notification Types	Calls, SMS, WhatsApp, alarms, sedentary alert
Additional Features	Anti-loss, remote camera trigger
Compatibility	Android 4.4+ and iOS 8.8+
App	Brigmton (available on Google Play and App Store)
Battery Type	Rechargeable lithium-ion
Battery Capacity	200 mAh (estimated)
Charging Method	USB (remove strap, connect center body)
Charging Time	Approximately 2 hours
Battery Life	Up to 7 days (typical use)
Controls	Single button (press and hold for on/off, brief press to cycle screens)
Dimensions (Watch Face)	Approx. 40 mm diameter
Weight	Approx. 40 g
Materials	Plastic body, silicone band
Certifications	EMC directives (EN55032, EN55024, etc.)
Maintenance	Keep sensor clean and in contact with skin; avoid bright light during heart rate measurement

Frequently Asked Questions - BSPORT-B1-M BRIGMTON

How do I pair the BSPORT-B1-M with my phone?

Download the Brigmton app from Google Play or the App Store. Open the app, go to Settings, select 'My device' (iOS) or 'Search device' (Android), and press to connect. Ensure Bluetooth is enabled.

Is the smartwatch water-resistant?

The manual does not specify an IP rating, but it is recommended to avoid immersion. The device can withstand sweat and light splashes, but not swimming or showering.

How do I charge the watch?

Remove the strap from the watch body. Connect the center body (the metal contacts) to a USB power source using the included cable. Charge fully before first use.

Why is the heart rate measurement inaccurate?

Ensure the sensor is clean and tight against your skin. Avoid bright light sources during measurement. The measurement is informational and may vary with movement or improper fit.

How do I enable notifications on the watch?

In the app, go to Settings and activate notifications for calls, SMS, and apps like WhatsApp. Ensure the watch is connected via Bluetooth. The watch will vibrate on incoming notifications.

What should I do if the screen doesn't turn on?

First, charge the watch for at least 30 minutes. If still off, press and hold the button for 3-5 seconds to turn it on. If unresponsive, try resetting by connecting to the charger.

How do I track my sleep?

The watch automatically detects sleep when you go to bed. It records sleep duration and quality. Data can be viewed in the app under the sleep section.

Can I use the watch without the app?

Yes, basic functions like time, steps, and heart rate work independently. However, for notifications, detailed data, and settings, the app is required.

How do I reset the watch?

There is no dedicated reset button. To reset, go to the app settings and unpair the device, then turn the watch off and on. Alternatively, let the battery drain completely.

How long does the battery last?

Typical battery life is up to 7 days with normal use, including step tracking and occasional heart rate measurements. Heavy use may reduce it to 3-4 days.

USER MANUAL BSPORT-B1-M BRIGMTON

Abstract curved white shape on white background, no text or symbols present

BRIGMTON

surfing technology

Black fitness tracker with digital display showing time 09:25 and date 10:50 (no text-heavy elements)

Line drawing showing a smartwatch cable and its internal connector, both connected to a power bank (no text or symbols present)

FUNCIONAMIENTO

Google Play

iOS

Abstract curved white shape on white background, no text or symbols present

BRIGMTON

surfing technology

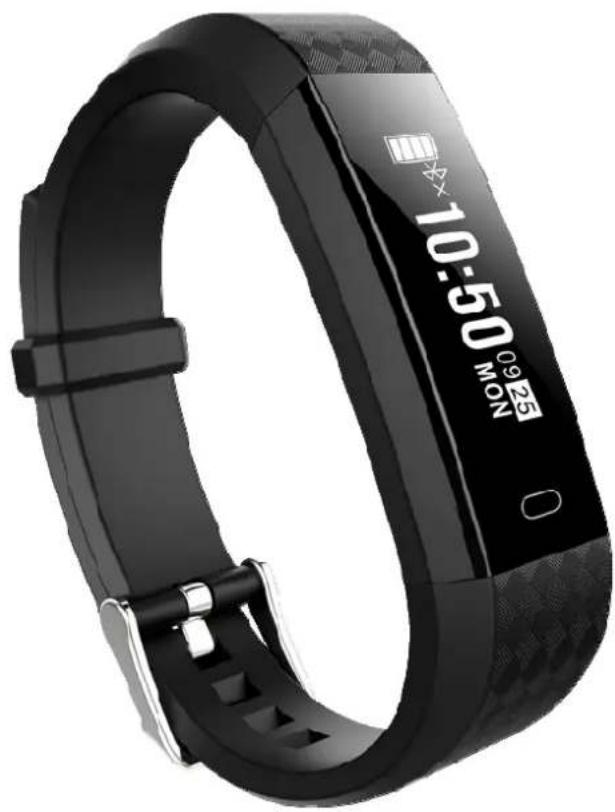

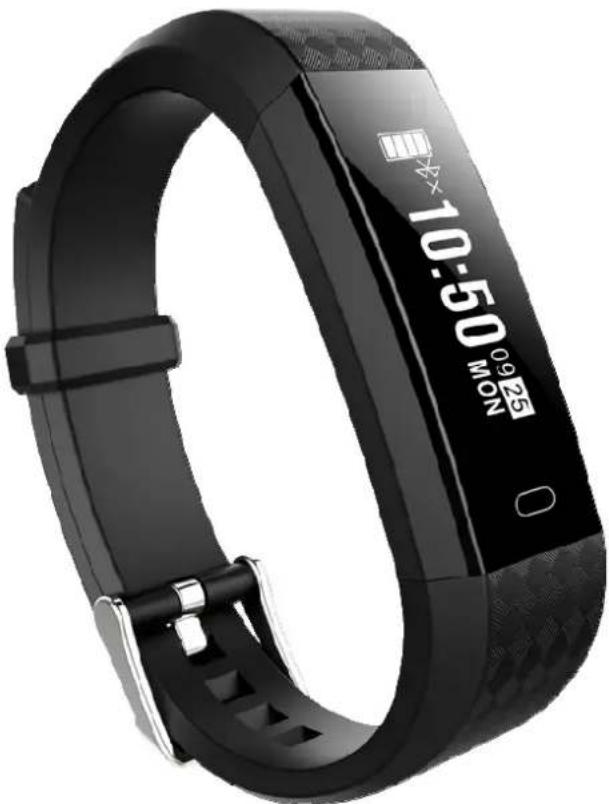

Black fitness tracker with digital display showing time 10:50 MON (no text or symbols on the device itself)

INSTRUCTION MANUAL

SPORT BRACELET - BLUETOOTH PULSOMETER

BSPORT-B1-N-A-M-O

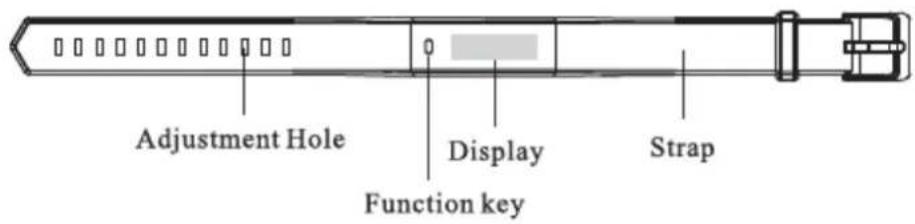

CONTROLS

Adjust the bracelet as indicated:

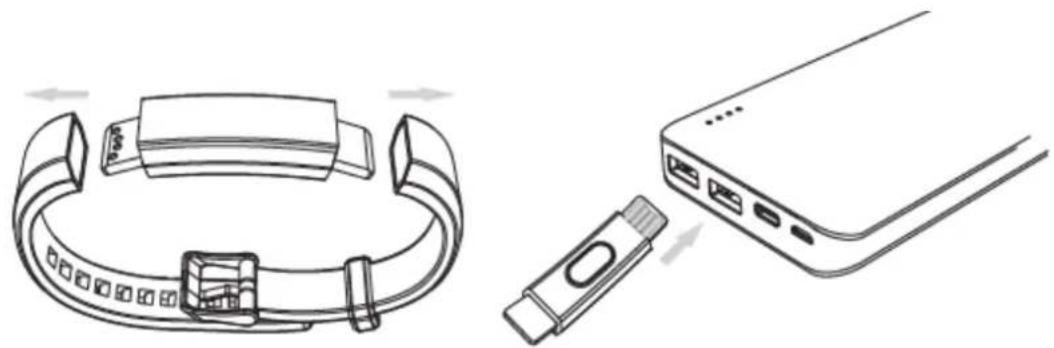

BATTERY CHARGE

Check that the battery level is correct before using for the first time. To charge, remove the strap and connect the center body to a USB power source.

Line drawing showing a smartwatch cable and its internal connector, both connected to a power bank (no text or symbols present)

HOW TO USE

Press and hold the button to turn on. Press and hold the button to turn off:

Briefly press the button, in the on mode, to turn on the screen. If you do not press the bracelet again, it will switch to screen off mode.

Press again to go through each of the function screens.

APPLICATION

Scan any of the following QR codes, according to your operating system:

Google Play

iOS

Note: Android 4.4 or later / IOS 8.8 or later.

CONNECTION TO SMARTPHONE

Always connect the unit to the application at the beginning, to avoid erroneous measurements.

To connect the bracelet open the application, press the "Settings" button, select "My device" (in IOS) or "Search device" (in Android) and press to connect.

FUNCTIONS OF THE APPLICATION

- To start, enter the personal information in the "Settings" menu.

- NOTIFICATIONS: this function will be available when the notifications are activated in the application and the wristband and the Smartphone are correctly connected. The bracelet will vibrate when you receive a notification. Notifications may be for incoming calls, SMS, application notifications such as WhatsApp, alarms and sedentary alert.

Note: For Android devices you must allow the application to continue running in the background.

OTHER FUNCTIONS

Among other functions you can find the one to add other notifications, anti-loss function, remote trigger, etc.

SCREENs

CLOCK

STEPS

DISTANCIE

HEART RATE

Press and hold to start / stop the beat count.

If you connect the bracelet with the Application, press START to start.

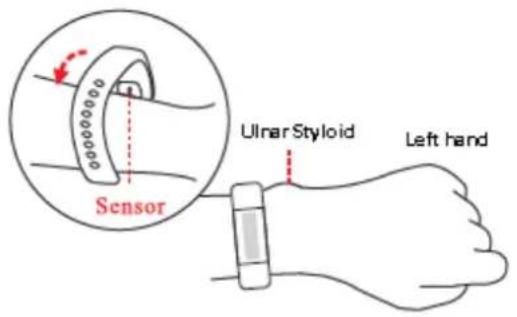

Notes: The sensor must be clean and completely in contact with the skin.

Avoid external lights that affect the measurement. The measurement is totally informative.

SLEEP MODE

When you go to bed the bracelet will enter sleep mode, indicating the hours of sleep and the quality of it.

"Features can change without notice"

BRIGMTON

surfing technology

IMPORTED

FERSON ELECTRÓNICA, S.A.

CIF: A-41111881

SANTA CLARA DE CUBA 12

SEVILLA

ESPAÑA

DECLARATION OF CONFORMITY

Ferson Electrónica, S.A. declares under our responsibility that the equipment meets the requirements indicated in the following directives:

ECM DIRECTIVES

EN55032-2015

EN55024:2010/A1:2015

EN61000-3-2:2014

EN61000-3-3: 2013

EN50581:2012

EN62321: 2008

EN14582: 2007

IEC62321-4-5:2013

EPA3540C:1996

EPA8270D: 2007

EN14372:2004

Description of apparatus:

Model BRIGMTON BSPORT-B1

Wireless device

BRIGMTON

surfing technology
