USER MANUAL SNMP Box PowerPlus

This SNMP Web card can provide web server to monitor and manage multiple UPSs in a networked environment including LAN and INTERNET. It can detect temperature and humidity for the environment via connecting to EMD (Environmental Monitoring Device).

Integrated with Shutdown Wizard, it can not only prevent data loss from power outage and safely shutdown systems, but also store programming data and scheduled shut down the UPS. All UPS warning and fault event records can be kept in SNMP web card.

Integrated with ViewPower Pro software, it can monitor and remote access all distributed SNMP web card in a LAN or INTERNET. For the detailed operations, please check user manual of ViewPower Pro.

1.2 Features

▶ Open monitor via Web Browser.
➢ Offer SNMP MIB to monitor UPS status.
➢ Automatically detect and exchange 10M/100M Fast Ethernet.
➢ Support wake-on-LAN function.
Supported protocol such as TCP/IP, UDP, SNMP, SMTP, SNTP, HTTP and so on.
- Integrated with Shutdown Wizard, it can prevent data loss from power outage and safely shut down systems.
➢ Support to record and export event log, including UPS warnings, faults and EMD warnings.

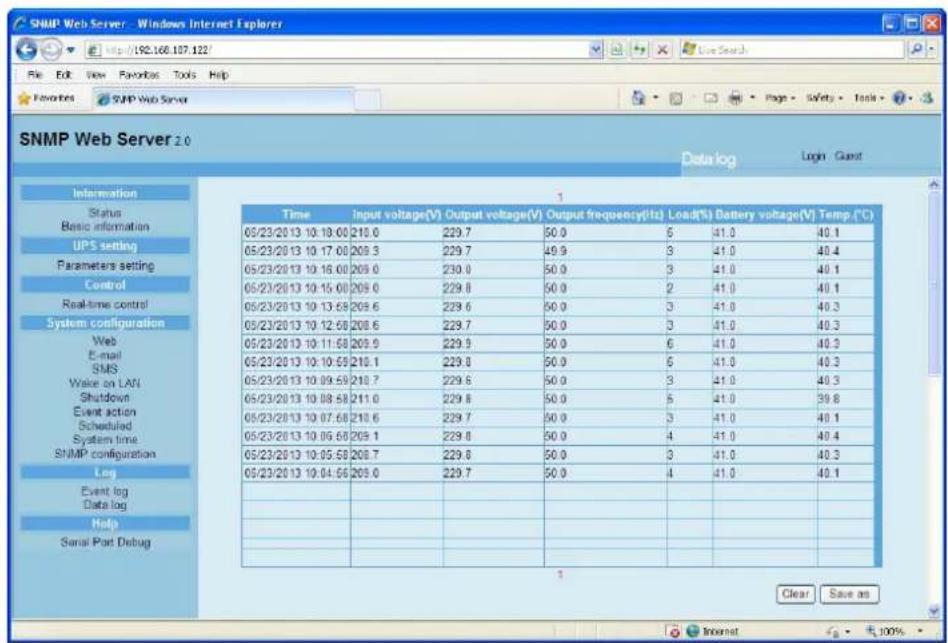

➢ Support to record and export data log.
➢ Support daily reports for event log and data log.
➢ Scheduled UPS on/off and battery test.

1.3 Overlook

Diagram of a computer motherboard with labeled components including ports, connectors, and memory chips

Labeled diagram of a green electronic circuit board with numbered components

① Ethernet port (10/100Base-T)
②Sensor port
③Golden finger: connects to UPS slot
④Ethernet port status LEDs

SNMP I

SNMP II (Only for 3-phase online UPS)

Technical diagram of an electronic device with labeled components including ports 1, 2, 3, 4, and 5

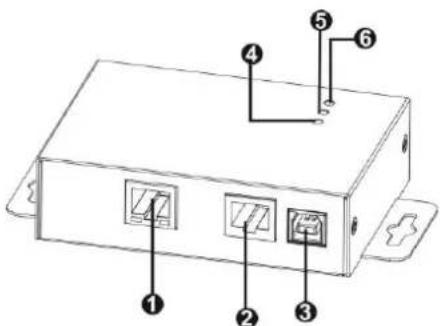

① Ethernet port(10/100Base-T)
②RS-232 port
③5Vdc DC input
④ Data receiving indicator
⑤ Data transmission indicator
⑥Power indicator

Ethernet port status LEDs:

100M LED (Green)	Flash	Port is operating at 100Mbit/s
	Off	Card is not connected to the network
10M LED (Yellow)	Flash	Port is operating at 10Mbit/s
	Off	Card is not connected to the network

1.4 Installation and Connection

Installation

If using SNMP card, please follow below steps to install SNMP card first:

Step 1: Remove the cover of intelligent slot on the back panel of UPS and retain the screws

Step 2: Slide the card into the open slot and secure with the screws from step 1. (see chart 1-1)

Four-panel image showing front and back views of a server rack unit with ports, ventilation, and internal components (no visible text or labels)

Chart 1-1

Refer to chart 1-2 for connecting the SNMP web card and chart 1-3 for connecting SNMP box.

If using SNMP card:

Plug Ethernet cable to the Ethernet port (RJ-45) on the SNMP card. Use one more Ethernet cable. Connect one end to the sensor port on the SNMP card and the other end to the optional environmental monitoring device.

If using SNMP box:

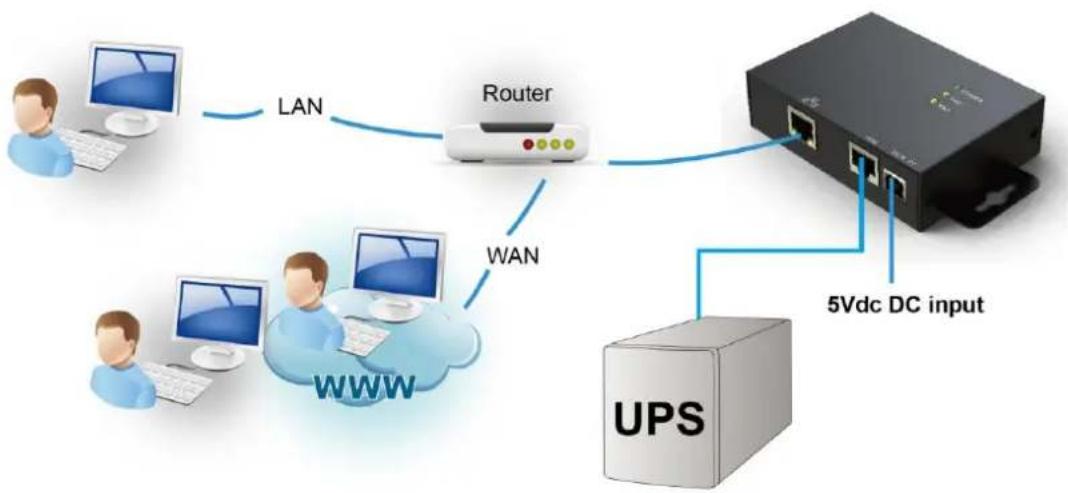

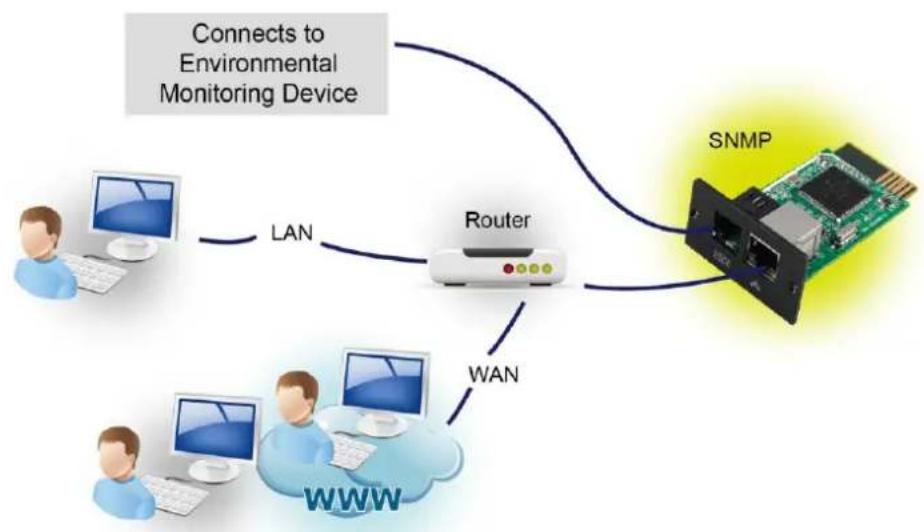

Use one Ethernet cable to connect to Ethernet port (①) of the box. Use one RJ45 cable to connect to RS-232 port (②) of the box and RS-232 port of the UPS. Then, use bundled USB cable to connect to USB port (③) of the box and 5V DC USB power source.

Chart 1-2

Chart 1-3

1.5 Configuration

a) Please install SNMP web manager wizard in your PC. After software is installed successfully, the Installer will leave a shortcut icon on your desktop.

Chart 1-4

b) Enter specific IP address to search all SNMP devices in LAN. (The

SNMP web manager will automatically collect the IP address from sever by default via a DHCP server. It will apply default IP address of 192.168.102.230, default subnet mask as 255.255.255.0, and default gateway as 0.0.0.0 without a DHCP server.

SIMP Web Manager System Settings Language Help IP address MAC address 192.168.107.79 00-00-5E-00-10-23 SIMP status: 1 SIMP reset enable Use system time: 06/17/2012 16:42:01 Apply 192.168.107 Scan Add Del Basic Info IP settings Online upgrade System manager Static trap address IP address 192.168.107.79 MAC address 00-00-5E-00-10-23 Output window [16:42:00] 192.168.107.79 Online successfully.

Chart 1-5

c) User can modify IP setting, online upgrade, password management, and static trap address setting in SNMP Web Manager interface. It is necessary to enter password for any medications. The default password is 12345678.

Please check SNMP Web Manager User Manual for detailed configuration.

1.6 Monitoring

There are two ways to monitor:

a) Double click the selected device from the device list (refer to Chart 1-5) to open web page as Chart 1-6.

SNMP Web Server - Windows Internet Explorer File Edit View Favorites Tools Help Favorites SNMP Web Server SNMP Web Server 2.0 Status Login Administrator Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug UPS information UPS mode Line Mode UPS temp 39.8 °C Auto reboot true Converter mode false ECO Mode false Bypass when UPS is off false Bypass not allowed false Fault type UPS warning Input information Input voltage 213.7 V Input frequency 50.0 Hz Output information Output voltage 229.8 V Output frequency 49.9 Hz Output current 0.2 A Load level 4 % Battery information Battery voltage 41.0 V Battery capacity 100 % Remaining backup time 999 Min EMD information EMD temp 26.1 °C Humidity 63.7 % javascript: Internet 100%

Chart 1-6

b) Installed ViewPower Pro software to monitor SNMP web card. Refer to Chart 1-7.

Please check ViewPower Pro User Manual for detailed monitoring.

Configuration Schedule View Format Language Help User type Guest Login Graphic view List view Unassigned (192.168.103.166_SNMPPO1_00000000000000) UPS information: Line mode Input information: 238.3V/50.0Hz Output information: 229.8V/50.0Hz Battery information: 41.0V/100% null(192.168.103.165_SNMPPO1_0000000000001) Disconnected null(192.168.103.164_SNMPPO2_0000000000002) Disconnected null(192.168.103.163_SNMPPO1_0000000000003) Disconnected null(192.168.103.162_SNMPPO0_000000000004) Disconnected null(192.168.103.161_SNMPPO3_000000000005)

Chart 1-7

2. SNMP web card GUI

SNMP web card GUI includes function menu, login section and main screen. Refer to Chart 2-1:

SNMP Web Server - Windows Internet Explorer File Edit View Favorites Tools Help F Preferences SNMP Web Server SNMP Web Server 2.0 A Status D B Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug C UPS Information UPS mode Line Mode UPS temp: 39.6 °C Auto reboot true Converter mode false ECO Mode false Bypass when UPS is off false Bypass not allowed false Fault type UPS warning Input information Input voltage: 213.7 V Input frequency: 50.0 Hz Output Information Output voltage: 229.8 V Output frequency: 49.9 Hz Output current: 0.2 A Load level: 4 % Battery information Battery voltage: 41.0 V Battery capacity: 100 % Remaining backup time: 999 Min EMD information EMD temp.: 26.1 °C Humidity: 63.7 % Invarproj: Internet 100%

Chart 2-1

A .SNMP web card GUI version
B .Function Menu

It offers complete tool-set for navigation and setting the GUI.

C. Main Screen

It will display information and/or control alternatives according to function menu selected.

D. Login section

It shows user type for current login user. The default password for administrator is "12345678".

3. Function Menu

3.1 Information

3.1.1. Status

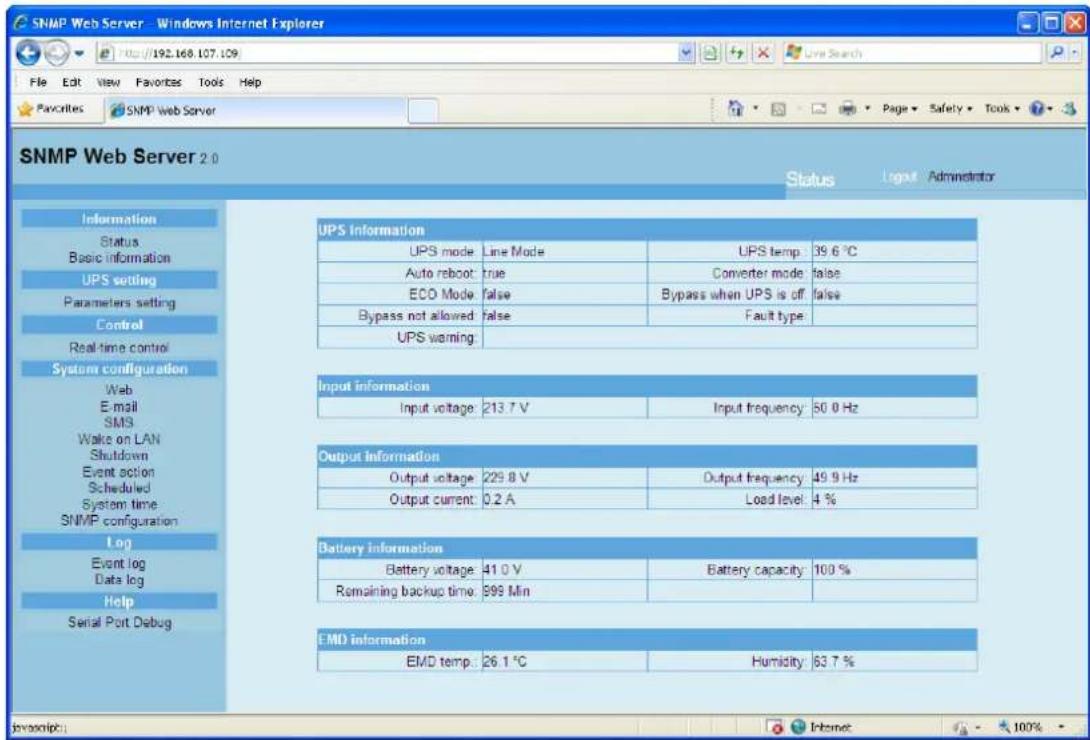

Select Information >> Status. Refer to Chart 3-1. It's shown real-time monitored UPS data including input, output, UPS, battery information and environmental information in table format.

SNMP Web Server - Windows Internet Explorer File Edit View Favorites Tools Help Pavlovites SNMP Web Server SNMP Web Server 2.0 Status Login Administrator Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug UPS Information UPS mode Line Mode UPS temp: 39.6 °C Auto reboot true Converter mode false ECO Mode False Bypass when UPS is off false Bypass not allowed false Fault type UPS warning Input information Input voltage 213.7 V Input frequency: 50.0 Hz Output information Output voltage 229.8 V Output frequency: 49.9 Hz Output current 0.2 A Load level: 4 % Battery information Battery voltage 41.0 V Battery capacity: 100 % Remaining backup time 999 Min EMD information EMD temp: 26.1 °C Humidity: 63.7 % Invar script: Internet 100%

Chart 3-1

3.1.2. Basic information

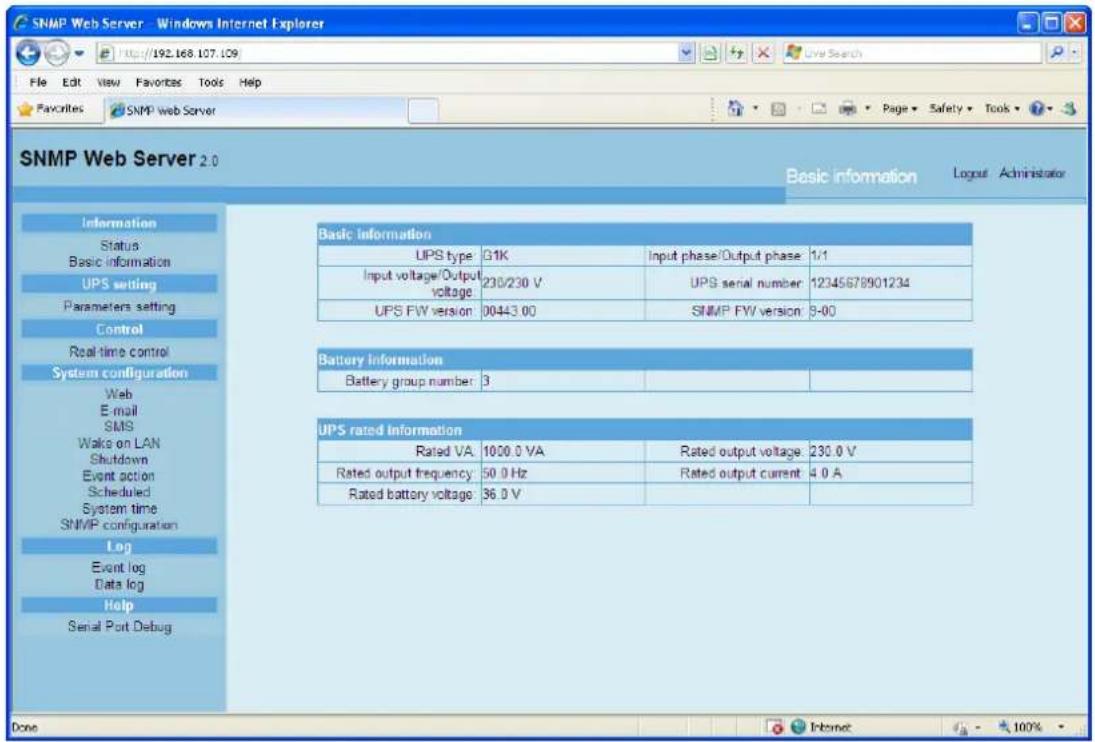

Select Information>>Basic information. It includes UPS basic information, battery information and UPS rated information. Refer to Chart 3-2.

SNMP Web Server - Windows Internet Explorer File Edit View Favorites Tools Help Favorites SNMP web server SNMP Web Server 2.0 Basic information Logout Administrator Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug Basic information UPS type G1K Input phase/Output phase 1/1 Input voltage/Output voltage 230/230 V UPS serial number 12345678901234 UPS FW version 00443.00 SNMP FW version 3-00 Battery information Battery group number 3 UPS rated information Rated VA 1000.0 VA Rated output voltage 230.0 V Rated output frequency 50.0 Hz Rated output current 4.0 A Rated battery voltage 36.0 V

Chart 3-2

3.2 UPS setting

3.2.1 Parameters setting

Some UPS functions can be set and changed via software. Parameter setting includes backup time setting for programmable outlet (P1), battery number setting, voltage and frequency range setting for bypass mode and voltage range setting for ECO mode.

Select UPS setting >> Parameters setting. Refer to Chart 3-4.

SNMP Web Server - Windows Internet Explorer File Edit View Favorites Tools Help Favorites SNMP Web Server SNMP Web Server 2.0 Parameters setting Layout Administrator Information Status Basic information UPS setting Parameters setting Control Real time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug Alarm control: Enable Disable Apply Alarm at bypass mode: Enable Disable Apply Alarm at battery mode: Enable Disable Apply Auto reboot: Enable Disable Apply Bypass when UPS is off: Enable Disable Apply Converter mode: Enable Disable Apply ECO mode: Enable Disable Apply Advanced ECO mode: Enable Disable Apply Green power function: Enable Disable Apply Cold start: Enable Disable Apply Bypass not allowed: Enable Disable Apply Battery deep-discharge protection: Enable Disable Apply Site fault detection: Enable Disable Apply P1 programmable outlet control: Enable Disable Apply Outlet setting Backup time for P1(battery) mode) 0 Min Apply Battery numbers setting Numbers in parallel 3 Apply Voltage and frequency range for bypass mode Maximum voltage: 264 V Apply Minimum voltage: 170 V Apply Maximum frequency: 53 Hz Apply Minimum frequency: 47 Hz Apply Voltage range for ECO mode Maximum voltage: 242 V Apply Minimum voltage: 218 V Apply Default Done Internet 100%

Chart 3-4

Note: Different UPSs may access different parameter setting.

1. Select the functions by clicking "Enable" or "Disable" button. Change the numbers by clicking up-down arrows or modify the numbers directly in the number column.
2. Click "Apply" button to save the settings. Each function setting is saved by clicking "Apply" button in each section.
3. Click "Default" button to recover the default setting.

Note: Any functions which are not supported by UPS will not be able to access.

➢ Alarm Control: If enabled, UPS alarm will be activated. Vice versa.

Alarm at bypass mode: If enabled, UPS alarms when it's working at bypass mode. Vice versa.
Alarm at battery mode: If disabled, UPS will not alarm when it's working at battery mode. Vice versa.
Auto reboot: If enabled, UPS will auto recover when AC is recovering. Vice versa.
Bypass when UPS is off: If enabled, AC will directly provide power to connected devices when UPS is off. Vice versa.
Converter mode: If enabled, the UPS will operate in converter mode. Vice versa.
ECO mode: If enabled, the UPS will operate in ECO mode when input voltage is within acceptable range. Vice versa.
Battery open status check: If enabled, the monitored UPS will check if the battery connection is ok or not when UPS is turned on.

➢ Cold start: If disabled, the UPS can be turned on only when AC is normally connected to UPS. Vice versa.
Bypass not allowed: If enabled, the UPS will not transfer to bypass mode under any conditions. If disabled, the UPS will be allowed to transfer to bypass mode according to UPS internal setting.
Battery deep-discharge protection: If enabled, the monitored UPS shuts down in accordance with the condition of battery and load on battery mode to protect battery. Vice versa.
Site fault detection: If enabled, the monitored UPS will beep when the input neutral and hot wires are reversed. Vice versa.
P1 Programmable outlet control (battery mode): If enabled, when UPS is running at battery mode, it will cut off P1 outlets after backup setting time arrives. If disabled, UPS will provide continuous power to P1 outlets until the battery is running out.
➢ Outlet setting: Users can set limited backup time for P1 outlets when UPS is on battery mode.
Battery numbers setting: Set battery numbers in parallel.
Voltage and frequency range for bypass mode: Set acceptable voltage and frequency range in bypass mode
Maximum and minimum voltage: When UPS is on bypass mode and input voltage is out of setting range, UPS will enter battery mode.
Maximum and minimum frequency: When UPS is on bypass mode and input frequency is out of setting range, UPS will enter battery mode.
Voltage range for ECO mode: Set acceptable voltage range for ECO mode.

3.3 Control

3.3.1. Real-time control

Select Control >> Real-time control. Refer to Chart 3-5.

SNMP Web Server - Windows Internet Explorer File Edit View Favorites Tools Help Favorites SNMP Web Server SNMP Web Server 2.0 Real-time control Login Administrator Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug Alarm control On Off UPS turn on/off On Off Battery self-test 10-second self-test Start Cancel Deep discharge test Start Cancel Minute self-test: 0.2 Min Start Cancel Done Internet 100%

Chart 3-5

You can real-time control the UPS by executing following operation:

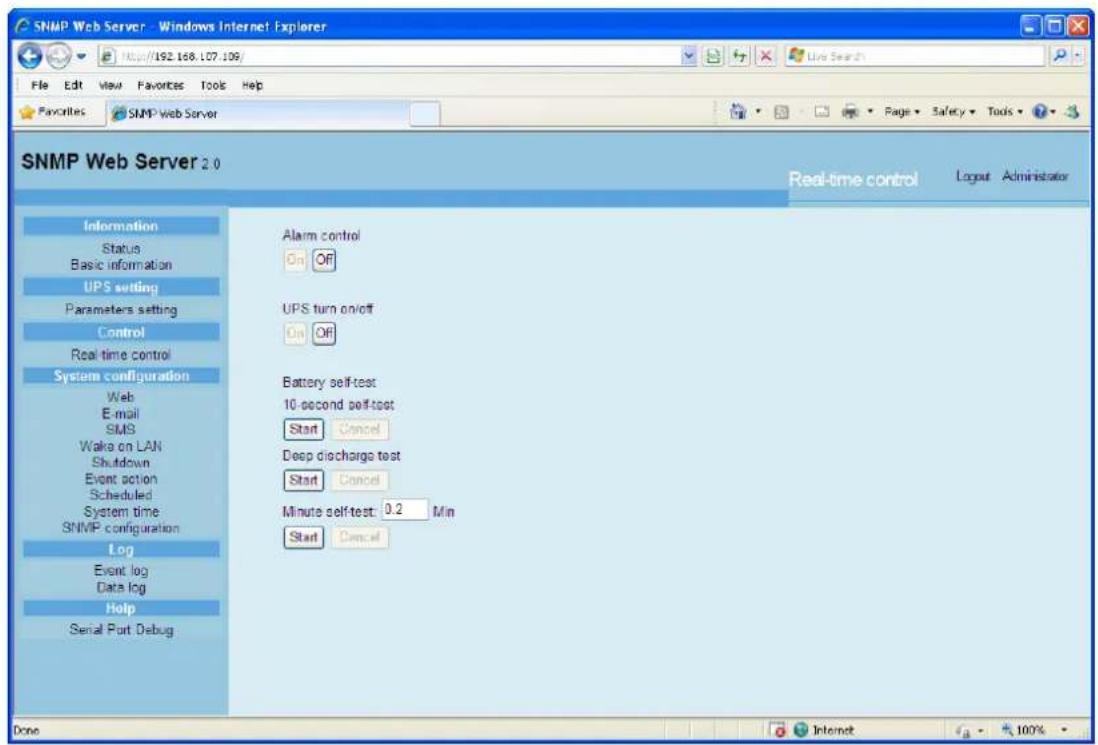

UPS turn On/Off: Click "On" to turn on the UPS and "Off" to turn off the UPS immediately.
Battery Self-Test: It offers three types of battery self-test: 10-second self-test, deep discharge test, and self-defined self-test. Simply clicking "Start" button from each type. It will execute the self-test immediately.

3.4. System configuration

3.4.1. Web user

It configures the authority to access SNMP web card. Please enter access ID and password in each column. There is no any limitation to access control in default setting. Refer to Chart 3-6.

SNMP Web Server - Windows Internet Explorer File Edit View Favorites Tools Help Favorites SNMP Web Server SNMP Web Server 2.0 Web Login Administrator Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug User Account User Name Password Permission Operation user No Access Apply Delete No Access No Access Apply Delete No Access No Access Apply Delete Done Internet 100%

Chart 3-6

If SNMP Manager pops up with "Authentication Required" windows, please provide default values as above:

User Name: user

Password: [leave empty]

Authentication Required A username and password are being requested by http://172.40.2.232. The site says: "test" User Name: Password: OK Cancel

3.4.2. E-mail

It's allowed to send alarm mail by SMTP server. To use this function, the e-mail service must be correctly configured. All values in this function page are default empty. This action can't be executed without the SMTP information, e-mail account and password. Besides, the sender account should be allowed for SMTP/POP3 forwarding.

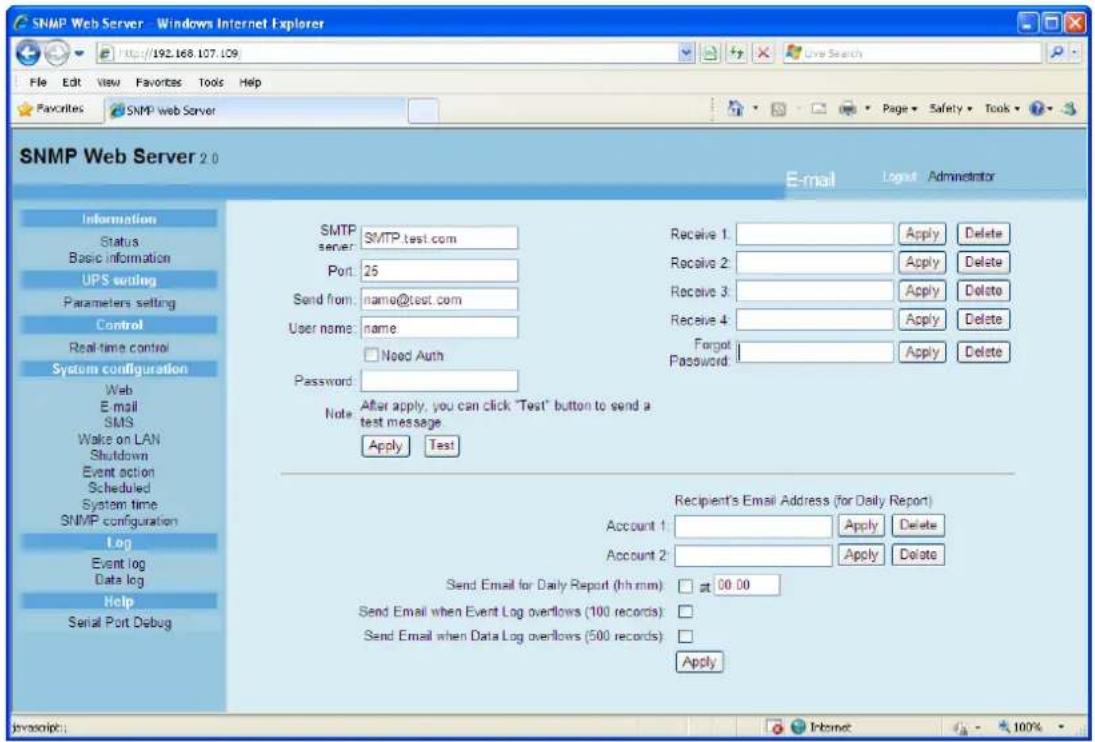

Select System Configuration >> E-mail. Refer to Chart 3-7

SNMP Web Server - Windows Internet Explorer File Edit View Favorites Tools Help Favorites SNMP web Server SNMP Web Server 2.0 E-mail Login Administrator Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug SMTP server: SMTPtest.com Port: 25 Send from: [e-mail] User name: name Need Auth Password: Note: After apply, you can click "Test" button to send a test message Apply Test Receive 1: Apply Delete Receive 2: Apply Delete Receive 3: Apply Delete Receive 4: Apply Delete Forgot Password: Apply Delete Recipient's Email Address (for Daily Report) Account 1: Apply Delete Account 2: Apply Delete Send Email for Daily Report (hh mm): at 00.00 Send Email when Event Log overflows (100 records): Send Email when Data Log overflows (500 records) Apply

Chart 3-7

1. Enter SMTP server, SMTP port, sender's E-mail address, user name and password. Click checkbox of "Need Auth" for password verify.

2. Enter correct e-mail accounts in Receive list. Then, click "Apply" to add into receivers list. Click "Delete" button to delete e-mail account.

3. Click "Apply" to save the changes. The "Test" button can be used to send a test e-mail to all receivers to confirm correct operation. When the test e-mails are successfully sent to specific recipients, it will pop up a successful message on operated PC. Otherwise, it will pop up a failure dialog to indicate there is an error for parameter setting.

4. You may decide who will receive daily report e-mail at specific duration. Please enter recipient's Email Address and timer into columns. Then, click "Apply" button to set up this action. You also can configure who will receive alarm e-mail when event log exceeds 100 or data log exceeds 50 records. Please click checkbox of selections.

3.4.3. SMS

This function is required to have service software available such as ViewPower Pro. In the event of an alarm condition occurring, a message about UPS status will be sent to the specified users via mobile phone. Refer to Chart 3-8.

SNMP Web Server - Windows Internet Explorer http://192.168.107.109 File Edit View Favorites Tools Help Favorites SNMP Web Server SNMP Web Server 2.0 SMS Layout Administrator Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug SMS server: 192 168.107 11 Port: 41222 Account name: Password: Note: After apply, you can click "Test" button to send a test message Apply Test Receive: 1. Receive: 2. Receive: 3. Receive: 4. Apply Delete Apply Delete Apply Delete Apply Delete Done Internet 100%

Chart 3-8

3.4.4. Wake on LAN

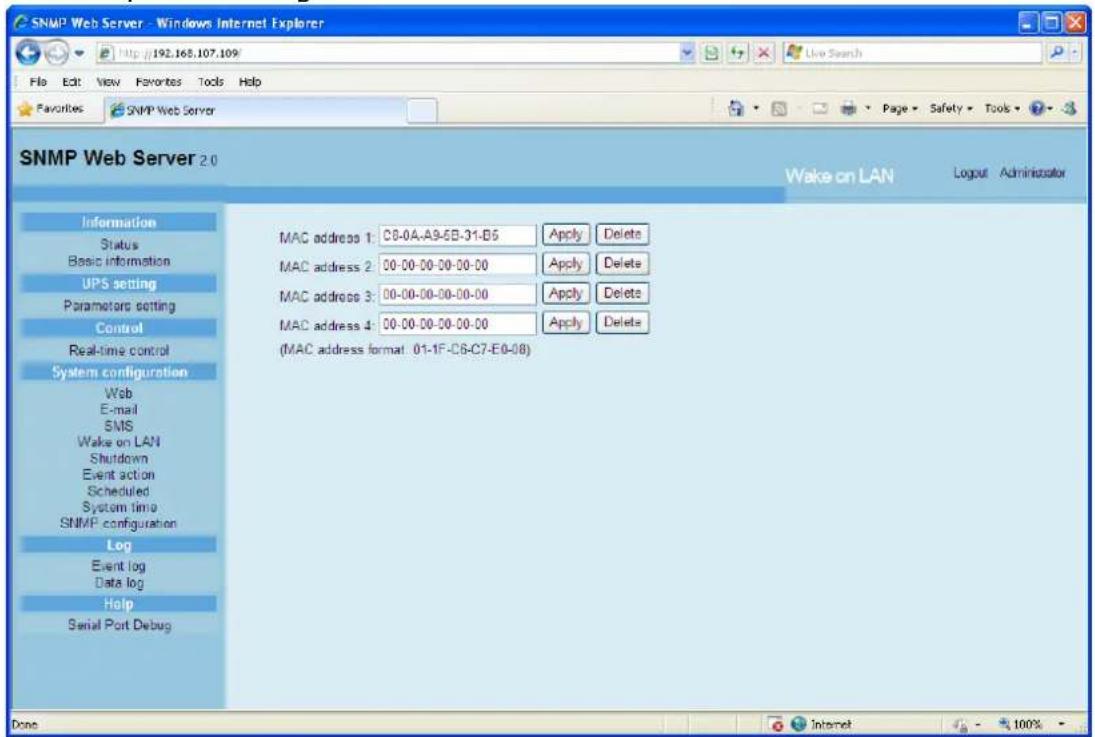

It's to remotely wake on specific PCs in LAN when these PCs are supported to Wake-on-LAN (WOL) via a magic packet.

Select System Configuration >> Wake on LAN. Refer to Chart 3-9.

SNMP Web Server - Windows Internet Explorer File Edit View Favorites Tools Help SNMP Web Server SNMP Web Server 2.0 Wake on LAN Logout Administrator Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug MAC address 1: C8-0A-A9-5B-31-B6 Apply Delete MAC address 2: 00-00-00-00-00-00 Apply Delete MAC address 3: 00-00-00-00-00-00 Apply Delete MAC address 4: 00-00-00-00-00-00 Apply Delete (MAC address format: 01-1F-C8-C7-E0-08) Done Internet 100%

Chart 3-9

After MAC addresses of remote PCs are entered into address column, it will allow to remote control the PCs. However, it's also required to have

hardware support for remote PCs to implement this function.

3.4.5. Shutdown

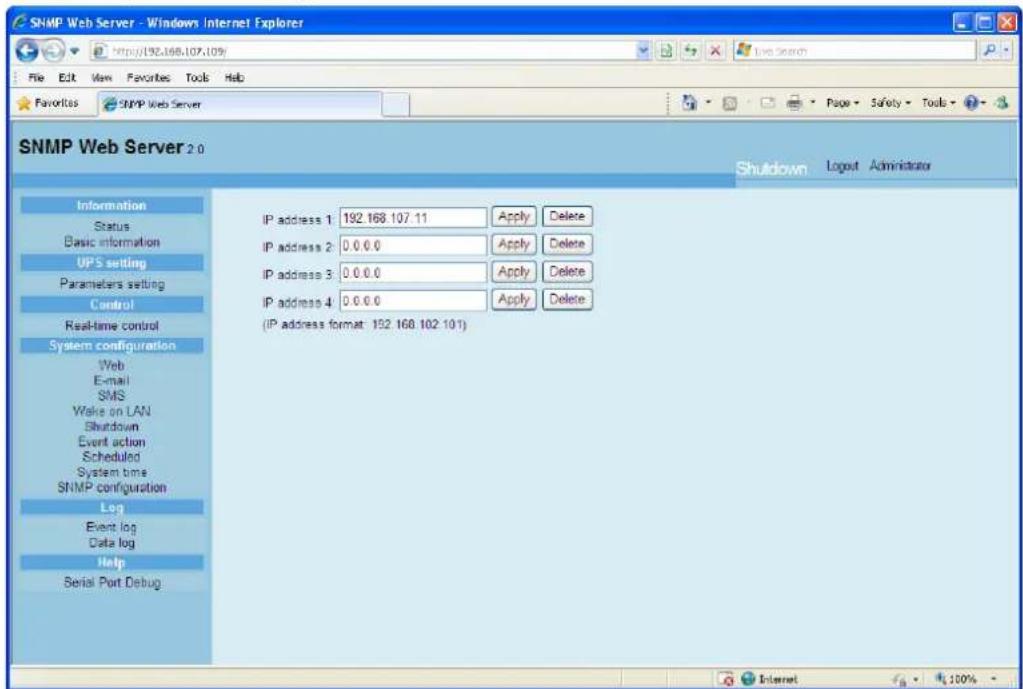

It is to remotely shut down specific PCs with Shutdown Wizard. This function is only available to integrate with Shutdown Wizard. Please also check user manual of Shutdown Wizard for the details.

Select System Configuration >> Shutdown. Refer to Chart 3-10.

SNMP Web Server - Windows Internet Explorer File Edit View Favorites Tools Help Favorites SNMP Web Server SNMP Web Server 2.0 Shutdown Logout Administrator Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug IP address 1: 192.168.107.11 Apply Delete IP address 2: 0.0.0.0 Apply Delete IP address 3: 0.0.0.0 Apply Delete IP address 4: 0.0.0.0 Apply Delete (IP address format: 192.168.102.101)

Chart 3-10

3.4.6. Event action

This function is only available to integrate with Shutdown Wizard. Please also check user manual of Shutdown Wizard for the details.

Select System Configuration >> Event action. Refer to Chart 3-11.

SNMP Web Server - Windows Internet Explorer File Edit View Favorites Tools Help Favorites SNP Web Server SNMP Web Server 2.0 Event action Log: Guest Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug Shutdown the PC while battery mode. Apply Time needed for shutting down the PC 120 Sec. The PC should: ○ Shutdown ○ Go to sleep ○ Also power off the UPS after shutting down the PC. Shutdown UPS output after 1000 Sec. Shutdown the PC while low battery. Apply ○ Wake on LAN while AC recovery. Apply ○ Send E-mail while any UPS's event occurs. Apply ○ Send SMS while any UPS's event occurs. Apply EMD alarming temperature upper limit. PC Apply EMD alarming humidity upper limit. % Apply Data record interval 60 Sec. Apply

Chart 3-11

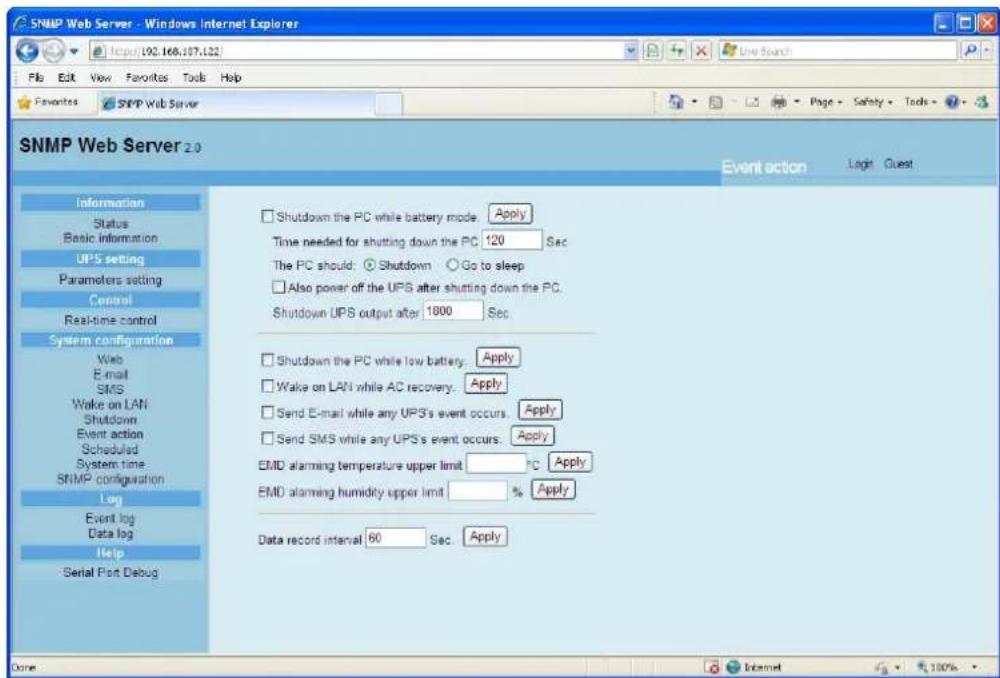

• Shutdown the PC while battery mode: When selected, integrated with Shutdown Wizard, local PC will shut down while UPS works on battery mode.
• Time needed for shutting down the PC: Enter the delay time to shut down the operating system.

• The PC should:

• Shutdown: When clicking the checkbox, the selected system will shut down. The default setting is clicked.

• Sleep mode: When clicking the checkbox, selected system will suspend the system instead of a normal shutdown. But this function is only supported by Windows 2000 or higher on supported hardware.

- Also power off the UPS after shutting down the PC: When click the checkbox, monitored UPS will turn off after local system shuts down. The UPS shutdown time will be later than system complete shutdown time. Users can choose to shut down the system without shutting down the UPS.

• Shutdown UPS output after xx sec: It will cut off UPS output after monitored UPS works on battery mode for xx sec.
• Shutdown the PC while low battery: When clicking this checkbox, local PC will shut down when monitored UPS battery is running low.
• Wake on LAN while AC recovery: When clicking this checkbox, the local PC will be wake on LAN while AC recovery.
• Send E-mail while any UPS event occurs: When clicking this checkbox, it will send alarm E-mail when any event occurs on the local UPS.
• Send SMS while any UPS event occurs: When clicking this checkbox, in

the event of an alarm condition occurring, a message about UPS status will be sent to the specified users via mobile phone.

• EMD alarming temperature upper limit: Set up alarm for high temperature point. If detected temperature is beyond setting value, it will send alarm message.
  ● EMD alarming humidity upper limit: Set up alarm for high humidity point. If detected humidity is beyond setting value, it will send alarm message.
  ● Data record interval xx sec: Data log record the data per xx sec.

3.4.7. Scheduled

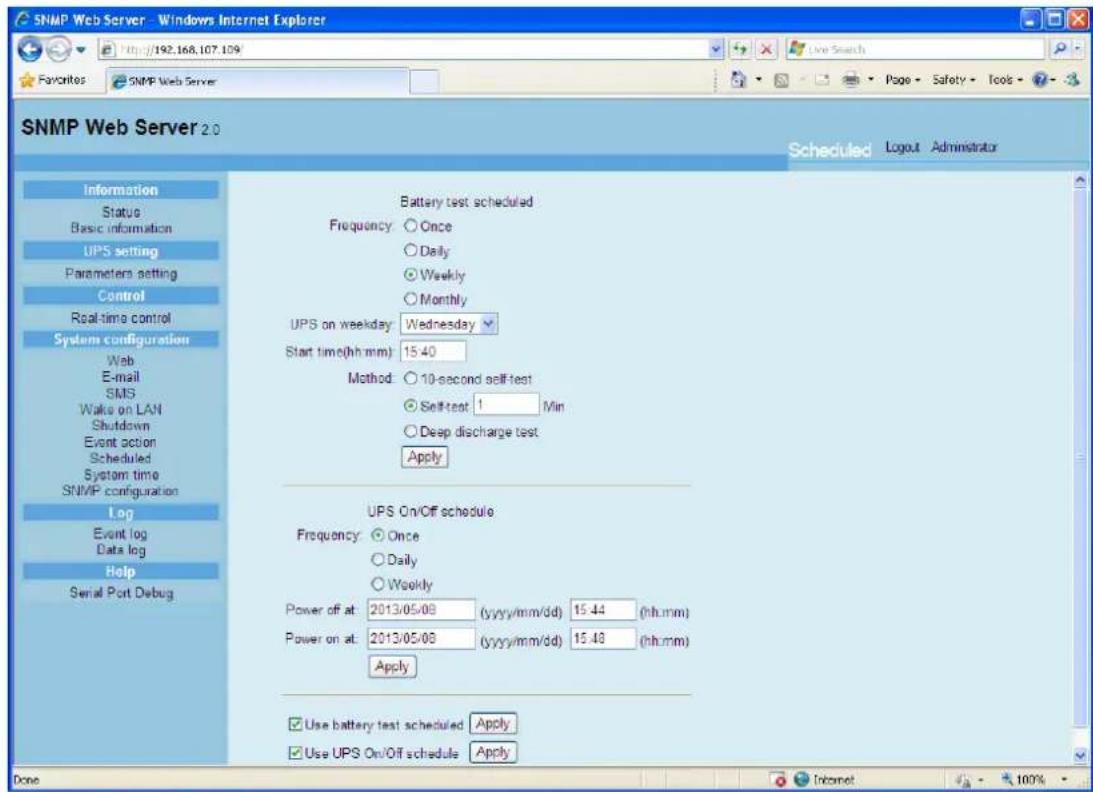

Select System Configuration >> Scheduled. Refer to Chart 3-12.

SNMP Web Server - Windows Internet Explorer http://192.168.107.109 Favorites SNMP Web Server SNMP Web Server 2.0 Scheduled Logout Administrator Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Walks on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug Battery test scheduled Frequency: Once Daily Weekly Monthly UPS on weekday: Wednesday Start time(hh:mm) 15.40 Method: 10-second self-test Self-test 1 Min Deep discharge test Apply UPS On/Off schedule Frequency: Once Daily Weekly Power off at: 2013/05/08 (yyyy/mm/dd) 15.44 (hh:mm) Power on at: 2013/05/08 (yyyy/mm/dd) 15.48 (hh:mm) Apply Use battery test scheduled Apply Use UPS On/Off schedule Apply Done Internet 100%

Chart 3-12

• Scheduled battery self-test: Scheduled battery self-test can be executed once, daily, weekly, or monthly. Users can select UPS and time parameters. It is recommended to set only one action in the same time. If multiple actions have been applied at the same time, some of these actions may be ignored. Any action will be ignored when the action is not supported by the UPS.
• Scheduled UPS on/off: Scheduled UPS on/off can be executed once, daily, weekly. Users can select UPS and time parameters. It is recommended to set only one action in the same time. If multiple actions have been applied at the same time, some of these actions may be

ignored. Any action will be ignored when the action is not supported by the UPS.

3.4.8. System time

Select System Configuration >> System time. Refer to Chart 3-13.

SNMP Web Server - Windows Internet Explorer File Edit View Favorites Tools Help Favorites SNMP Web Server SNMP Web Server 2.0 System time Login Guest Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug Automatic time correction interval 12 Hours Time server time net gov Time Zone(Relative to GMT) GMT Applying daylight saving time No Adjust now >> System Time (mm/dd/yyyy hh:mm:ss) 05/23/2013 10:15:07 Apply Auto Restart System for Every (0: Disable) 0 Minute(s) Apply Manual Restart System After 30 Seconds Apply

Chart 3-13

● Automatic time correction interval
● Time server: The SNTP server IP address or domain name.
● Time Zone (Relative to GMT)
- Applying daylight saving time
- System Time (mm/dd/yyyy hh:mm:ss): It is to set up SNMP web local host time
● Auto Restart system for Every (0: Disable): XX Minute(s)
- Manual Restart system after 30 Seconds.: When click "Apply" button, SNMP will restart after 30 seconds.

3.4.9. SNMP configuration

Setting SNMP web card basic information such as set IP address, password, trap IP address, SNMP UDP port and Restore the factory settings.

Note: Some operations will cause SNMP to reboot. It's normal operation.

Select System Configuration >> SNMP configuration. Refer to Chart 3-14.

SNMP Web Server - Windows Internet Explorer File Edit View Favorites Tools Help SNMP Web Server SNMP Web Server 2.0 SNMP configuration Layout Administrator Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug System will reboot when this item has been Applied. IP address Automatically obtain IP address Use a static IP address IP address: 192.168.107.109 Subnet mask: 255.255.256.0 Default gateway: 192.168.107.254 DNS: 192.168.100.235 Apply Password Old password: New password: Confirm password: Apply Trap IP address Trap IP address 1: 0.0.0.0 Apply Delete Trap IP address 2: 0.0.0.0 Apply Delete Trap IP address 3: 0.0.0.0 Apply Delete Done Internet 100%

Chart 3-14

- IP address: There are two methods to obtain IP address

1. Automatically obtain IP address (DHCP, default)
2. Manually configure IP address

The system will default automatically obtain IP addresses. If there is no this kind of service provided in LAN, the default IP will display as "192.168.102.230", Net mask as "255.255.255.0" and default gateway as "0.0.0.0".

• Password: Modify the password. The length of password is 8\~15 digits.
• Trap IP address: The SNMP device could provide 4 static trap addresses.
• SNMP UDP port: You may change SNMP port and trap port.
• Restore the factory settings

Note: The system will default automatically obtain IP addresses and default Password is 12345678.

3.5. Log

3.5.1. Event log

In the Event Log window, it lists all history events and can be saved as .csv file. The event log includes UPS warnings, fault info and EMD warnings. Refer to Chart 3-15.

Select Log >> Event log.

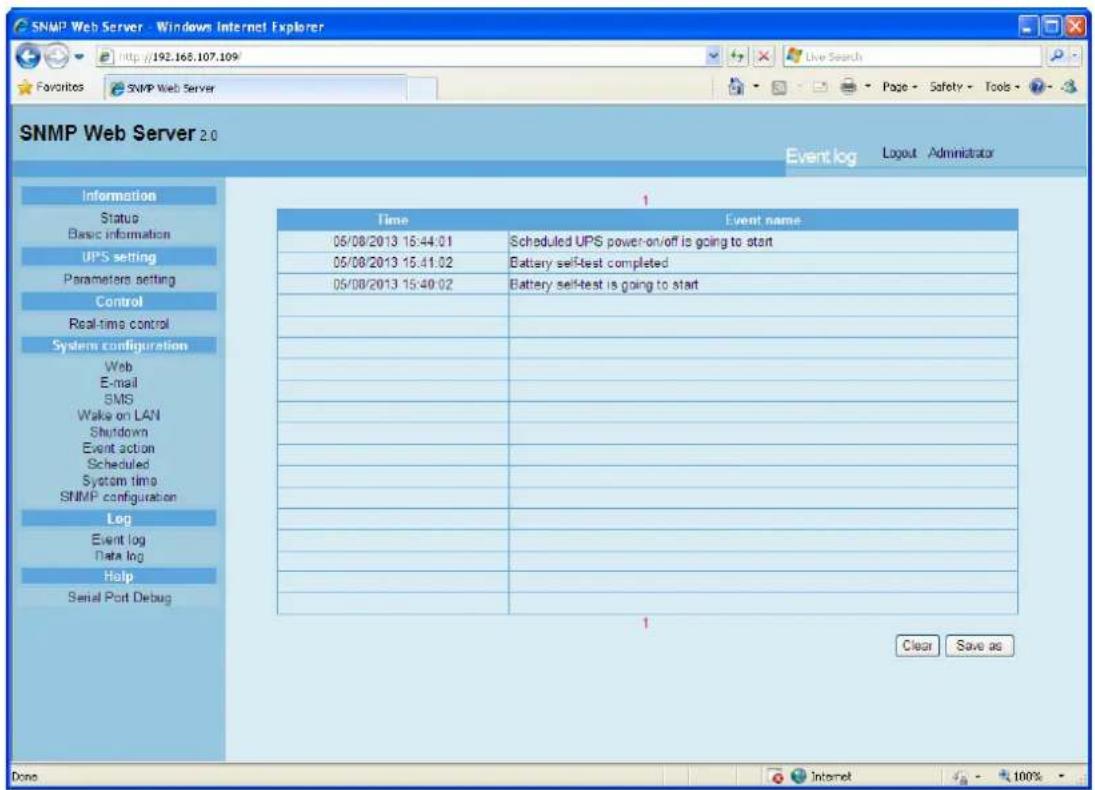

SNMP Web Server - Windows Internet Explorer http://192.168.107.109 Favorites SNMP Web Server SNMP Web Server 2.0 Event log Logout Administrator Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug Time Event name 05/08/2013 15:44:01 Scheduled UPS power-on/off is going to start 05/08/2013 15:41:02 Battery self-test completed 05/08/2013 15:49:02 Battery self-test is going to start Clear Save as 1

Chart 3-15

3.5.2. Data Log

In the Data Log window, it will list all history logs and can be save as .csv file. Refer to Chart 3-16.

Select Log >> Data log.

SNMP Web Server - Windows Internet Explorer File Edit View Favorites Tools Help Favorites SNMP Web Server SNMP Web Server 2.0 Data log Login Guest Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug 1 Time Input voltage(V) Output voltage(V) Output frequency(fz) Load(%) Battery voltage(V) Temp (°C) 05/23/2013 10:18:00 218.0 229.7 50.0 6 41.0 40.1 05/23/2013 10:17:00 209.3 229.7 49.9 3 41.0 40.4 05/23/2013 10:16:00 209.0 230.0 50.0 3 41.0 40.1 05/23/2013 10:15:00 209.0 229.8 50.0 2 41.0 40.1 05/23/2013 10:13:59 209.6 229.6 50.0 3 41.0 40.3 05/23/2013 10:12:58 208.6 229.7 50.0 3 41.0 40.3 05/23/2013 10:11:58 209.9 229.9 50.0 6 41.0 40.3 05/23/2013 10:10:59 218.1 229.8 50.0 6 41.0 40.3 05/23/2013 10:09:59 218.7 229.6 50.0 3 41.0 40.3 05/23/2013 10:08:58 211.0 229.8 50.0 6 41.0 39.8 05/23/2013 10:07:58 218.6 229.7 50.0 3 41.0 40.1 05/23/2013 10:06:58 209.1 229.8 50.0 4 41.0 40.4 05/23/2013 10:05:58 208.7 229.8 50.0 3 41.0 40.3 05/23/2013 10:04:56 209.0 229.7 50.0 4 41.0 40.1 Clear Save an Internet

Chart 3-16

3.6. Help

3.6.1. Serial Port Debug

It's to test communication condition between SNMP card and device.

Select Log >> Event log. Refer to Chart 3-17.

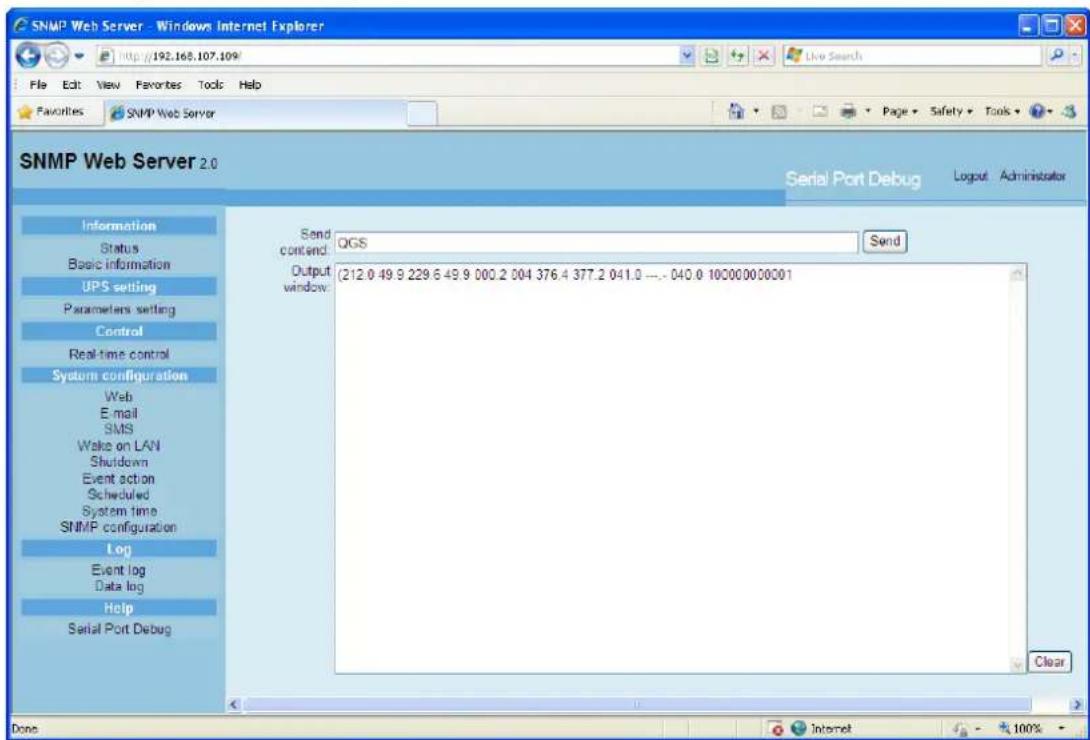

SNMP Web Server - Windows Internet Explorer File Edit View Favorites Tools Help Favorites SNMP Web Server SNMP Web Server 2.0 Serial Port Debug Logout Administrator Information Status Basic information UPS setting Parameters setting Control Real-time control System configuration Web E-mail SMS Wake on LAN Shutdown Event action Scheduled System time SNMP configuration Log Event log Data log Help Serial Port Debug Send contend: QGS Send Output window: (212.0 49.9 229.6 49.9 000.2 004 376.4 377.2 041.0 --- 040.0 100000000001 Clear Done Internet 100%

Chart 3-17
