USER MANUAL ZHHCG Ergotron

ASSEMBLY INSTRUCTIONS

Zido® 8" Handle

3D rendering of a medical or hospital stand with four wheels and a vertical pole, set against a plain white circular background (no text or symbols)

Product Part#

Zido Handle 8" ZHHSB

NOTE: Shown on a Zido Pole Cart, sold separately.

ANTHRO

Technology Furniture ^a

- Font and Friendship

Anthro Corporation® | 10450 SW Manhasset Dr. | Tualatin, OR 97062

Toll-free: 800.325.3841 | Fax: [phone] | email: [e-mail] | anthro.com

Outside the U.S. | Tel: [phone] | Fax: [phone]

Rev A, August 2010

Technical diagram of a mechanical assembly with numbered components and dashed lines indicating assembly or alignment.

WELCOME

Thank you for purchasing the Zido 8" Handle. If you have any questions or if we can help you in any way, please contact us at 800.325.3841.

TOOLS

A 1/8" Hex Key is provided for this assembly. You'll also use the 5/32" hex Anthro driver which came with your Zido cart.

A 3/8" socket, nut driver, or wrench is required but not provided.

PARTS LIST

Before beginning assembly of your Zido 8" Handle, please review the parts list to verify that your shipment is complete.

The fastener quantities listed here are the minimum required for your assembly. You may receive a few extras.

Product Quantity Part Number

01	Zido 8" Handle Bracket 1 225-2986-00
02	Zido 8" Handle Support 1 225-2985-00
03	Zido 8" Handle Tube 1 125-5337-00
04	Zido 8" Handle Wrap 1 175-5275-00(Not shown; installed on the tube at the factory.)
05	1/2" Self-threading Screws 3 325-5464-00
06	1/2" Flat-head Screws 4 325-5193-00
07	2" Button-head Screws 2 325-5034-00
08	10-24 Nylock Nut 4 325-5186-00
09	1/8" Hex Key 1 375-5015-00(Not shown.)

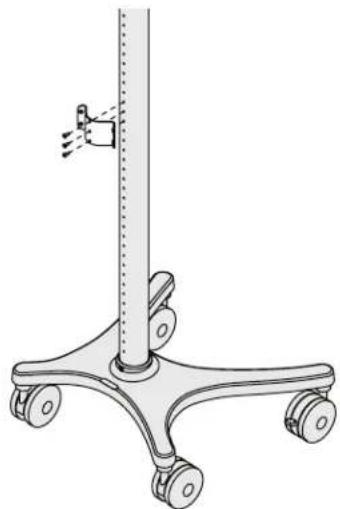

STEP 1

Install the Handle Bracket

■ Select the installation point for the handle.
■ Align the handle Bracket with the holes on the column or Extension Tube.
■ Install the Handle Bracket with three 1/2" Self-threading Screws.

Self-threading Screw 325-5464-00

Technical line drawing of a medical support structure with four legs and a vertical column (no text or symbols)

STEP 2

Install the Handle Support

■ Align the Handle Support with the Handle Bracket so that the curved side is on the bottom and the flat side is on top.
■ Feed one 1/2" Button-head Screw through the Handle Support and the Handle Bracket and loosely capture with a Nylock Nut. Repeat for the remaining three screws and nuts, then tighten. Use the provided 1/8" Hex Key and your own 3/8" socket, nut driver, or wrench to tighten the fasteners.

1/2" Flat-head Screw 325-5193-00

Nylock Nuts 325-5186-00

Diagram of a cable or clamp mechanism with dashed lines indicating motion, no text or symbols present

STEP 3

Install the Handle Tube

■ Align the Handle Tube with the holes on the support.
■ Using the 5/32" hex Anthro driver (it came with your cart), loosely attach with two 2" button-head screws.
■ Tighten all the screws on the support, the bracket, and then on the tube.

Line drawing of a hexagonal bolt with threaded shaft (no text or symbols)

2" Button-head Screw 325-5034-00

Technical line drawing of a mechanical clamp or bracket assembly with two cylindrical components and alignment lines (no text or symbols)

ANTHRO

Technology Furniture ^a

—Fast and Friendly

Anthro Corporation® | 10450 SW Manhasset Dr. | Tualatin, OR 97062

Toll-free: 800.325.3841 | Fax: [phone] | email: [e-mail] | anthro.com

Outside the U.S. | Tel: [phone] | Fax: [phone]

3D rendering of a medical or laboratory stand with four wheels and a vertical pole, set against a plain white circular background (no text or symbols)

300-5472-00

Warranty:

The Zido Handle 8" has a Lifetime Warranty.

Notices:

Technology Furniture and Zido are trademarks of Anthro Corporation. Anthro reserves the right to modify the design and specifications without prior notice.
