Installation guide

TABLE OF CONTENTS

SAFETY WARNINGS....3

600 WIDE EXPLODED VIEW....4

800 WIDE EXPLODED VIEW....5

SWITCHING DOOR HANDING 6

STABILIZING....7

BAYING THE ENCLOSURE....8

SIDE PANEL 9

RACK MOUNT ADJUSTMENT 10

Installation guide

1. SAFETY WARNINGS

This manual contains important instructions that you should follow during installation and maintenance of the RE Series Enclosure. Please read all instructions before operating the equipment and save this manual for future reference.

1. WARNING! RE Series enclosure components can be very heavy. It is recommended that several people take part in the unpacking process. When lifting heavy components or electronic equipment, ensure that all safety regulations are observed.
2. WARNING! The enclosure must be stabilized before installing any roll-out type accessory, component or electronic device. Failure to stabilize prior to installing equipment may cause the enclosure to tip over.
3. WARNING! First, load the heaviest electronic devices and accessories into the bottom of the enclosure to prevent the enclosure from becoming top-heavy.
4. WARNING! Never extend more than one roll-out type electronic device or accessory from a stabilized enclosure at a time. Do not sit, stand, or climb on any extended roll-out type electronic device or accessory. Never extend a roll-out type electronic device or accessory component from an enclosure rack that is supported by casters. Doing so may cause a stabilized enclosure rack to tip over.
5. WARNING! It is the customer's responsibility to ensure that the floor has a structural load capacity that will safety bear the weight of the RE series Enclosure and installed components.
6. WARNING! There must be an uninterruptable safety earth ground from the main power source to the Power Distribution Unit's (PDU) power cord set. Whenever it is likely that ground has been impaired, disconnect the PDU's power cord until the ground has been restored.
7. WARNING! High leakage current may be present. Grounding connection essential before connecting supply.
8. WARNING! Rack is intended to be used with equipment complying with IEC 60950. Use with non-compliant equipment may result in electrical hazard.
9. WARNING! A grounding kit is pre-installed on RE Series enclosures. The installer is responsible for grounding the enclosure to the building electrical system. Additional equipment can be electronically bonded to the rack's frame using additional grounding points.

Installation guide

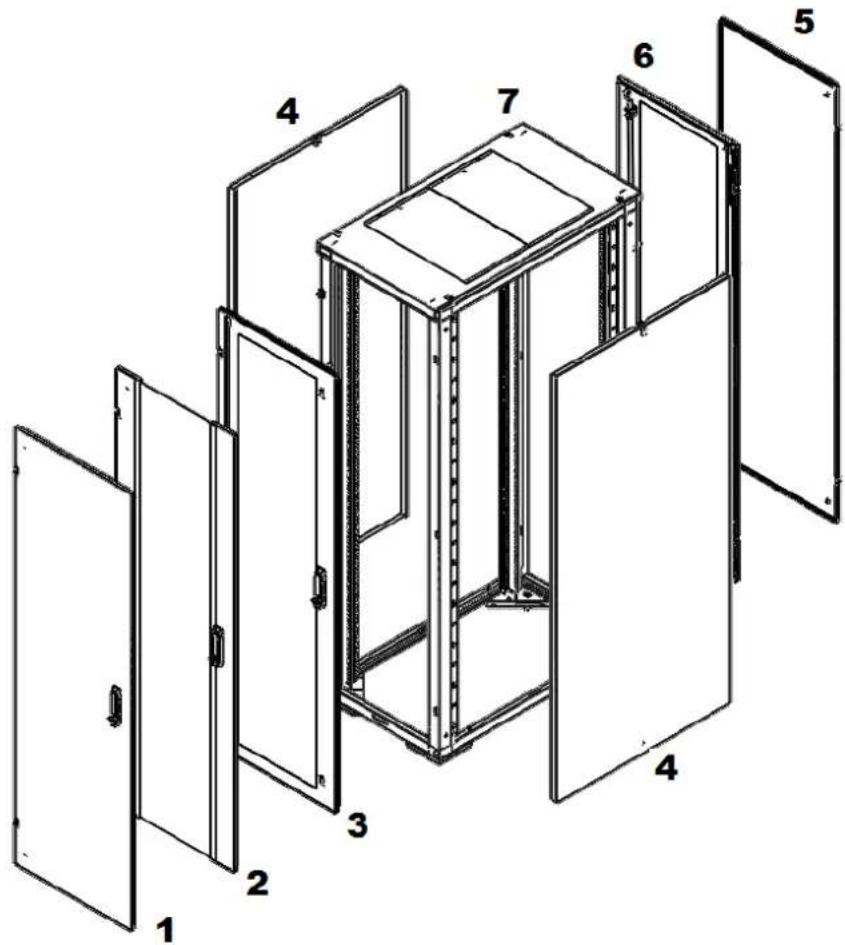

2. 600 WIDE EXPLODED VIEW

Technical diagram of a multi-level cabinet or enclosure with numbered components from 1 to 7

ITEM DESCRIPTION

1 Steel door assy option
2 Glass door assy option
3 Vented door assy option
4 Side panel
5 Steel door supplied with vented front door
6 Vented door supplied with glass/steel front door
7 Enclosure frame

Installation guide

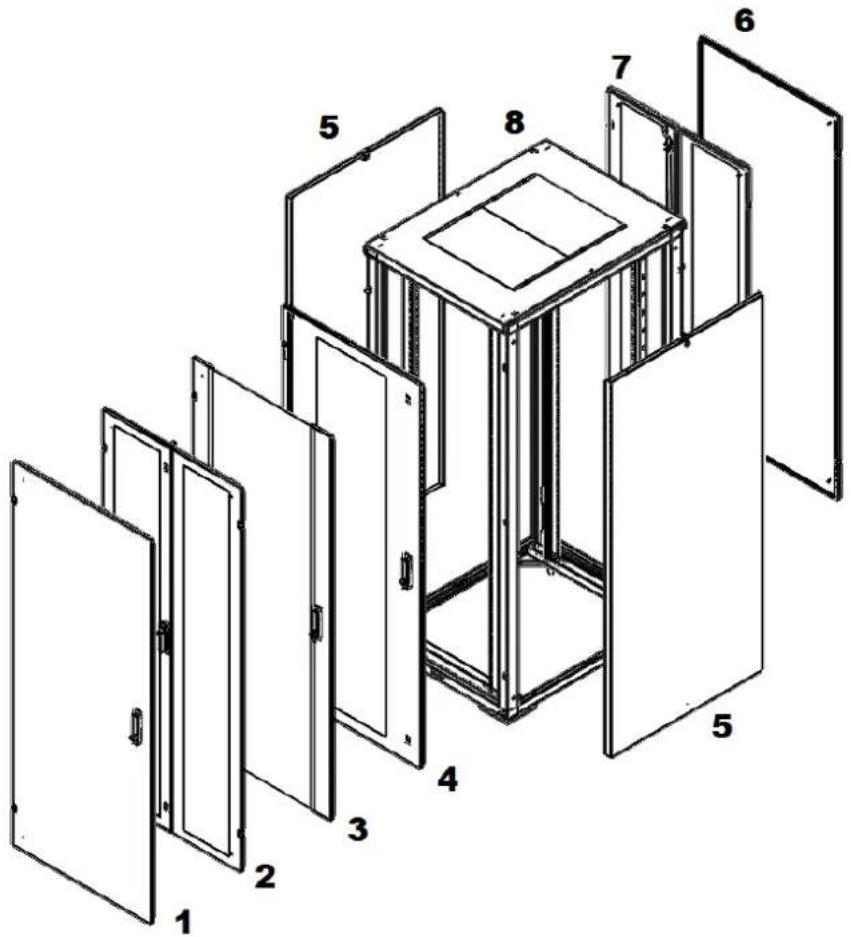

3. 800 WIDE EXPLODED VIEW

Exploded view diagram of a multi-panel cabinet or enclosure with numbered components from 1 to 8

ITEM DESCRIPTION

1 Steel door assy option
2 Double Vented door assy option
3 Glass door assy option
4 Vented door assy option
5 Side panel
6 Steel door supplied with vented/double front door
7 Double vented door supplied with glass/steel front door
8 Enclosure frame

Installation guide

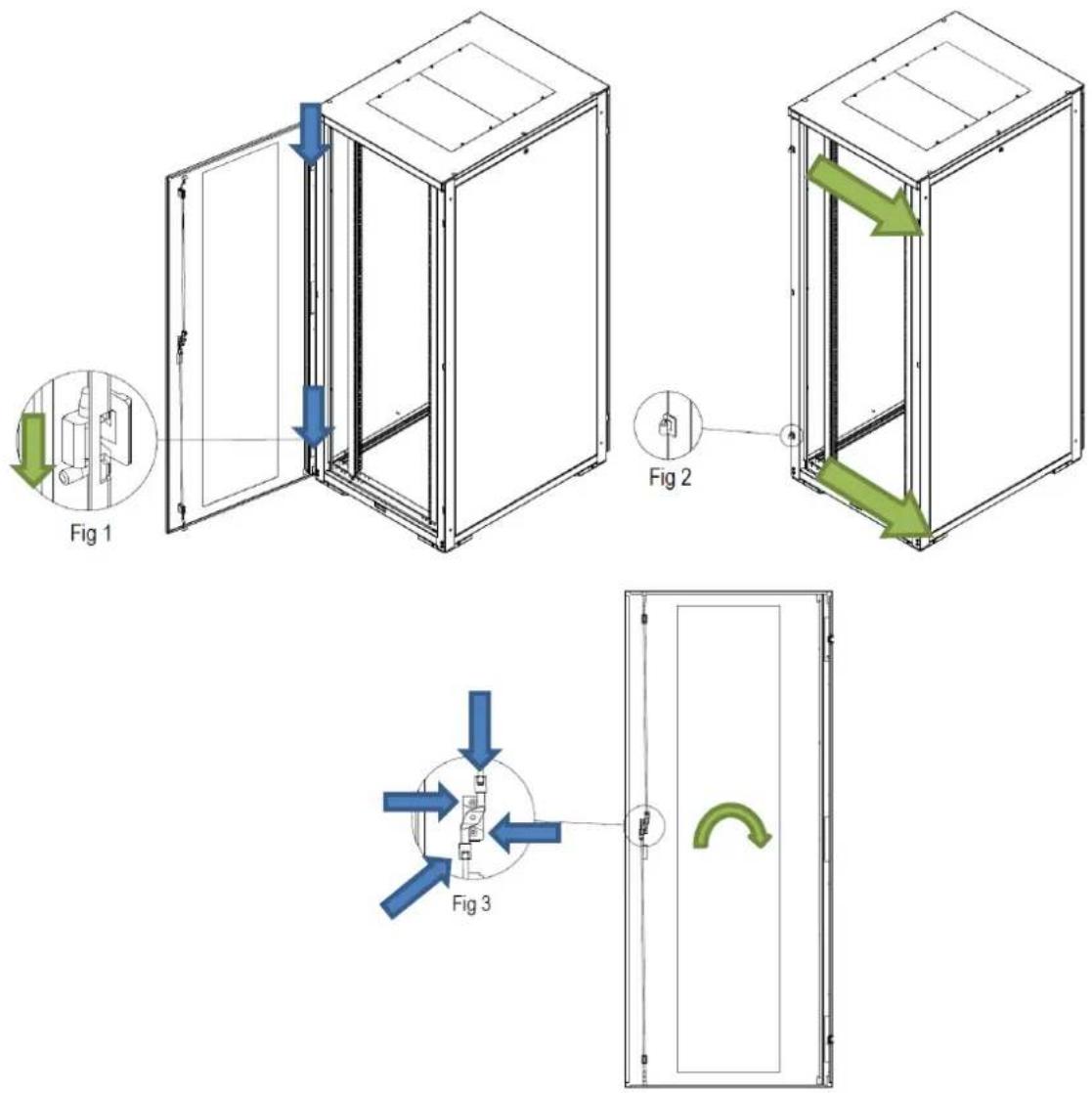

4. SWITCHING DOOR HANDING

1. Remove the two hinge pins (Fig 1).
2. Remove the hinge section from the enclosure frame (Fig 2).
3. Re-install the two hinge sections to the opposite side of enclosure frame (Fig 2).
4. Rotate the door 180 degrees.
5. Re-install the three hinge pins (Fig 1).
6. Loosen the two screws which secure the locking rods (Fig 3).
7. Remove the two screws on the back of the door lock and fixing plate (Fig 3).
8. Remove and rotate the door handle 180 degrees.
9. Replace the fixing plate and two screws (Fig 3).
10. Tighten the two screws which secure the locking rods (Fig 3).

Fig 1 Fig 2 Fig 3

Installation guide

5. STABILIZING

Each enclosure is equipped with four leveling feet (Fig 1).

Use a 13 mm spanner to adjust the leveling feet. Ensure that each foot is in firm contact with the floor. Using a level, adjust the leveling feet as required to level the enclosure. For enclosures that have casters, extend the leveling feet so that the casters are approximately 3 mm off the floor.

Technical line drawing of a cabinet with an inset showing a close-up of the interior structure (no text or symbols present)

Installation guide

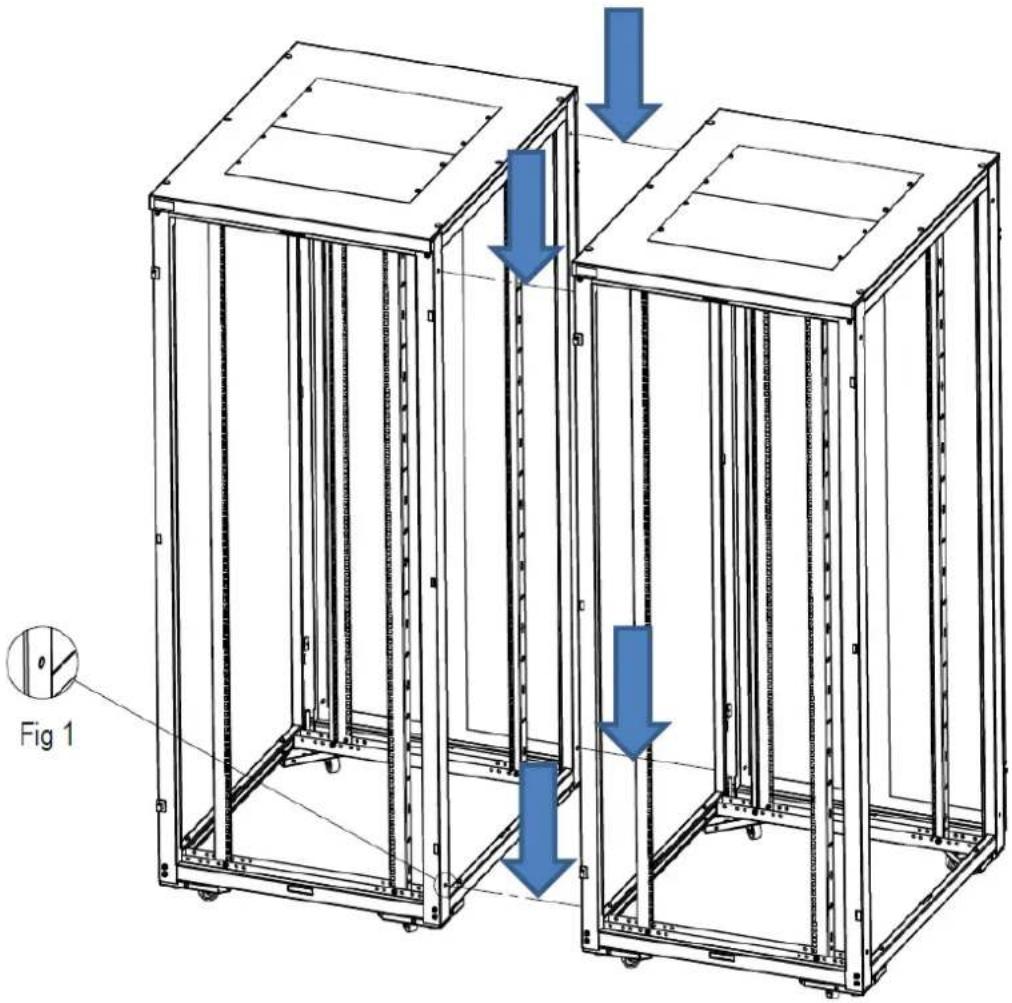

1. Remove 4 blanking grommits per enclosure (Fig 1).
2. Position and level the adjacent enclosure frames. Ensure that the frames are precisely aligned both vertically and front-to-back.
3. Bolt the adjacent frames together with the four nuts and bolts included in the baying kit, part number NRA BTK.

Technical line drawing of two modular server racks with blue directional arrows indicating movement or force (no text or symbols present)

IMAGE WITH DOORS AND SIDE PANELS REMOVED

Installation guide

7. SIDE PANEL

Removal of side panel

1. Unlock the side panel with the key supplied (Fig 1).
2. Tilt the panel to clear the upper flange.
3. Lift the panel upwards to clear two locating pins (Fig 2).

Reinstall side panel

1. Align the two holes on the bottom of the side panel with the two pins on the enclosure frame. (Fig 2)
2. Then lower the side panel on to the pins.
3. Lock the side panel with the key supplied (Fig 1).

Fig 1 Fig 2

Installation guide

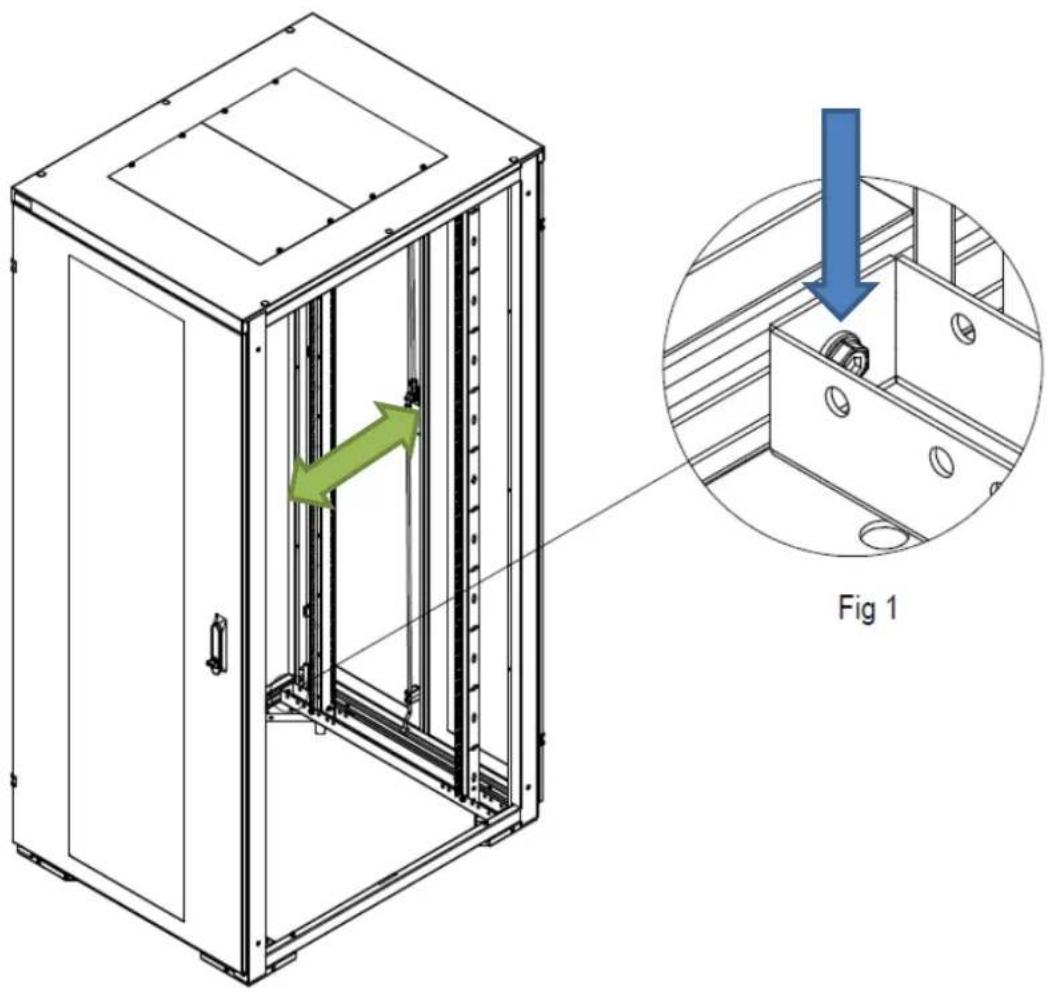

8. RACK MOUNT ADJUSTMENT

1. Loosen the four bolts using a 5mm Allen key, do not remove the bolt (Fig 1).
2. Slide rails to desired location.
3. Ensuring the rails are vertical, tighten the bolt with 5mm Allen key (Fig 1).

Technical line drawing of a server cabinet with internal components and a magnified inset showing internal structure (no text or symbols)

Installation guide
