USER MANUAL DM12-1005-2 Ergotron

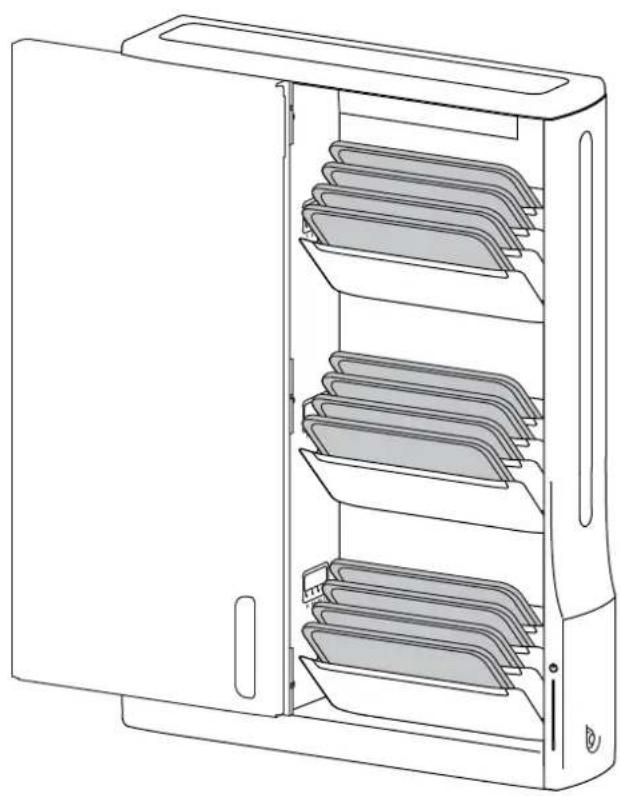

Tablet Charging Wall Mount 12

Line drawing of a rectangular electronic device casing with mounting holes and a side panel (no text or symbols)

Line drawing of a computer tower cabinet with multiple shelves and ventilation slots (no text or symbols)

Includes Show & Stow™ technology.

For the latest User Installation Guide please visit: www.ergotron.com

User's Guide - English

Hazard Symbols Review

These symbols alert users of a safety condition that demands attention. All users should be able to recognize and understand the significance of the following Safety Hazards if encountered on the product or within the documentation. Children who are not able to recognize and respond appropriately to Safety Alerts should not use this product without adult supervision!

Symbol Signal Word Level of Hazard

	NOTE	A NOTE indicates important information that helps you make better use of this product.
	CAUTION	A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
	WARNING	A WARNING indicates either potential for property damage, personal injury, or death.
	ELECTRICAL	An Electrical indicates an impending electrical hazard which, if not avoided, may result in personal injury, fire and/or death.

Safety

WARNING: Because surfaces vary widely and the ultimate mounting method is out of Ergotron's control, it is imperative that you consult with appropriate engineering, architectural or construction professional to ensure that your Ergotron mounting solution is mounted properly to handle applied loads.

CAUTION: Make sure the wall mount bracket is level, fl ush and snug to the wall surface. DO NOT OVER-TIGHTEN THE BOLTS.

≤ 44.4 lbs. (20.1 kg)

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

Components

1	[1x]	1x		5x
2		1x 2x	[5xx5]
3			1x

Pure technical line drawing of a mechanical bracket with holes (no text or symbols)

Tools Needed

Wood STUD HOLLOW WALL Ø 3/16" (5 mm) Ø 1/2" (13 mm) CONCRETE Ø 3/8" (10 mm) 10mm Stud Finder

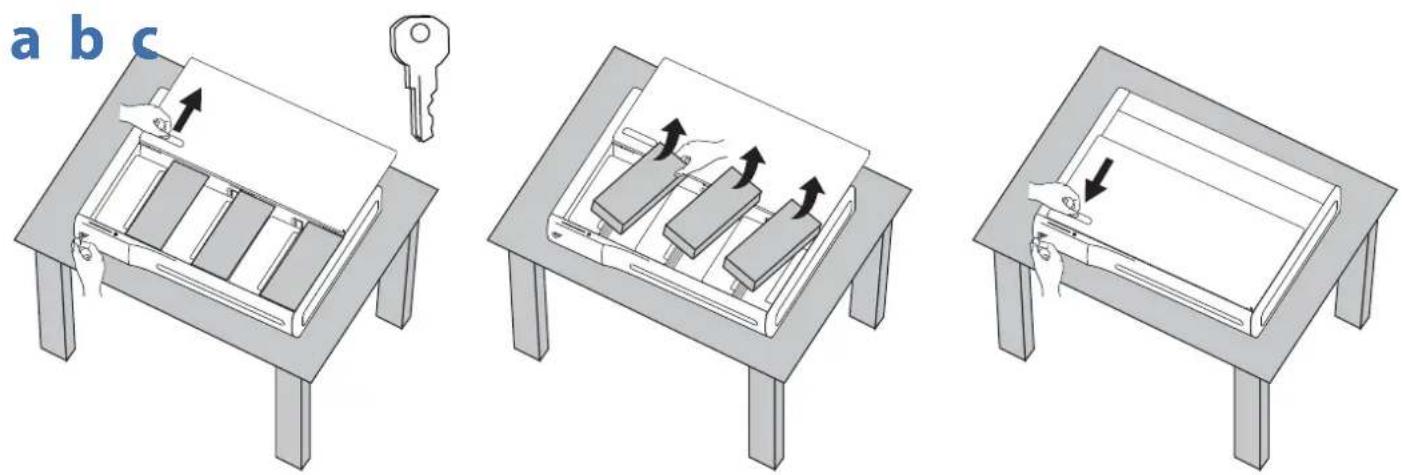

1 REMOVE INTERNAL PACKAGING

a b c

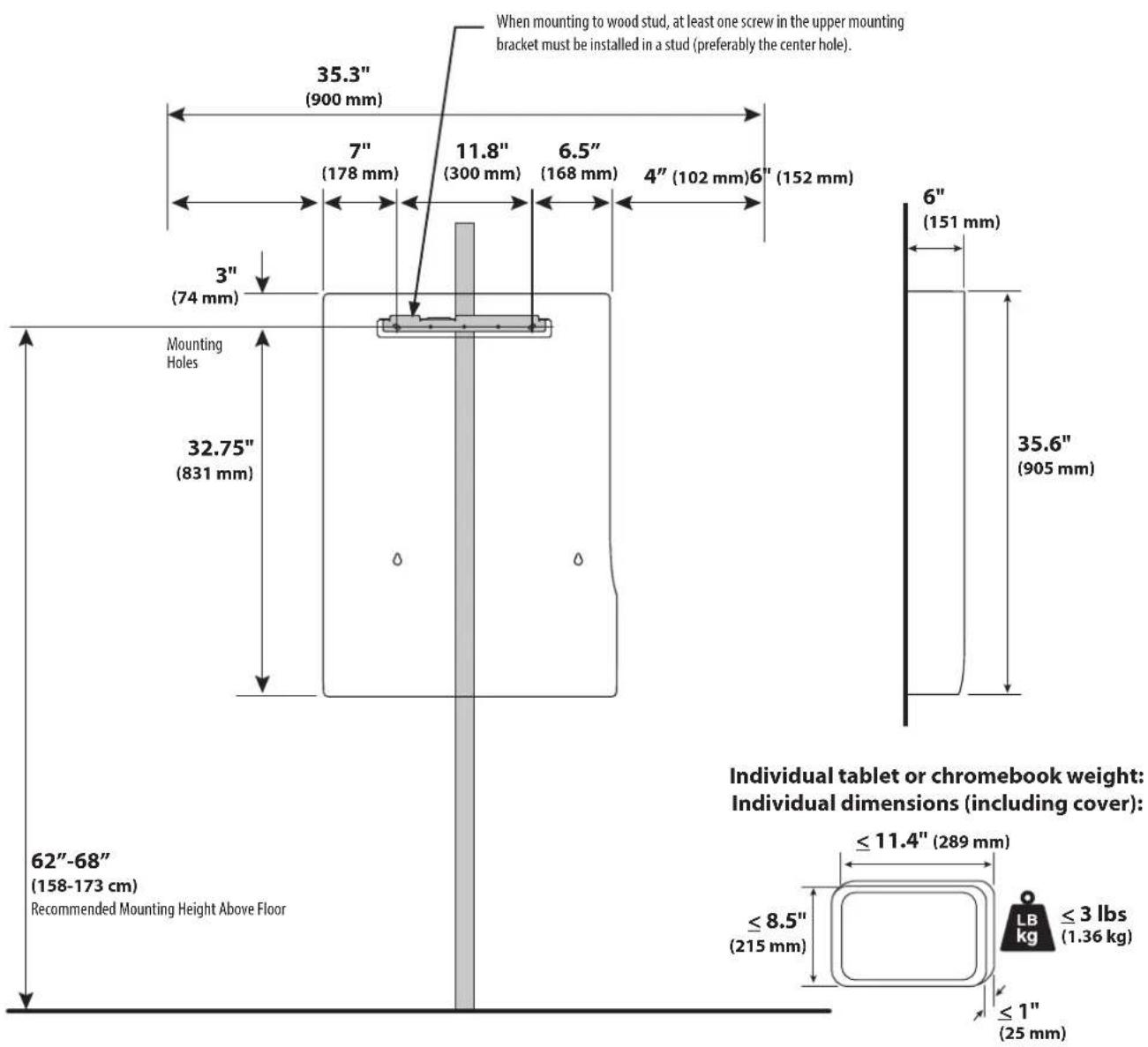

2 MOUNTING CONSIDERATIONS

Space Requirements:

When mounting to wood stud, at least one screw in the upper mounting bracket must be installed in a stud (preferably the center hole). 35.3" (900 mm) 7" (178 mm) 11.8" (300 mm) 6.5" (168 mm) 4" (102 mm)6" (152 mm) 3" (74 mm) Mounting Holes 32.75" (831 mm) 6" (151 mm) 35.6" (905 mm) 62"-68" (158-173 cm) Recommended Mounting Height Above Floor ≤ 11.4" (289 mm) ≤ 8.5" (215 mm) ≤ 3 lbs (1.36 kg) ≤ 1" (25 mm) Individual tablet or chromebook weight: Individual dimensions (including cover):

3 WOOD STUD HOLLOW WALL CONCRETE ≤5/8" (≤16 mm) 2" (51mm) 4" (102mm) 5 ≥4" (≥102mm) ≤5/8" (≤16 mm) 8

2" (51mm) 4" (102mm) ≤5/8" (≤16 mm)

a First Choose a Hole Option:

The stud can be located at one of fi ve mounting holes on the top bracket. While the fi rst option (center hole of bracket) is recommended, you should consult with a construction professional to confi rm which method is best suited for your particular situation.

After you decide on a Hole Option, follow attachment instructions on the following page.

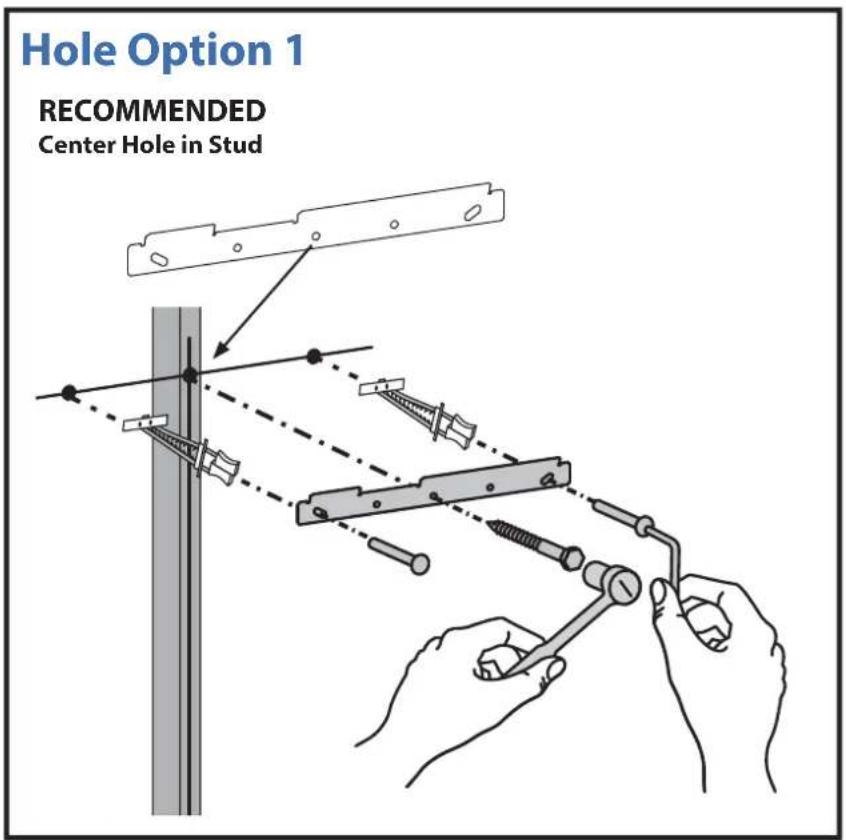

Hole Option 1 RECOMMENDED Center Hole in Stud

Hole Option 2
Extreme Left Hole in Stud

Technical diagram showing hands using a tool to adjust or install a mechanical component, with dashed lines indicating alignment or adjustment points.

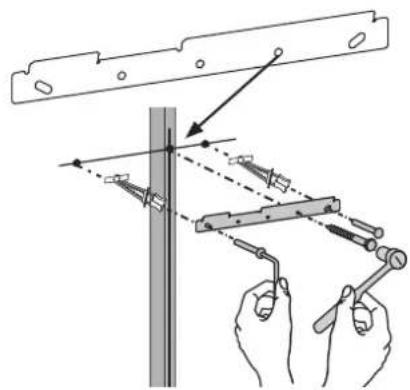

Hole Option 3 Hole Option 4

Extreme Right Hole in Stud

Technical diagram showing hands using a tool to adjust or install a mechanical component, with labeled parts and directional arrows.

Middle Right Hole in Stud

Technical diagram showing hands using a tool to measure a vertical structure with alignment guides

Hole Option 5

Middle Left Hole in Stud

Technical diagram showing hands using a tool to adjust or install a metal bracket, with arrows indicating direction of movement.

2" (51mm) 4" (102mm) ≤5/8" (≤16 mm)

b

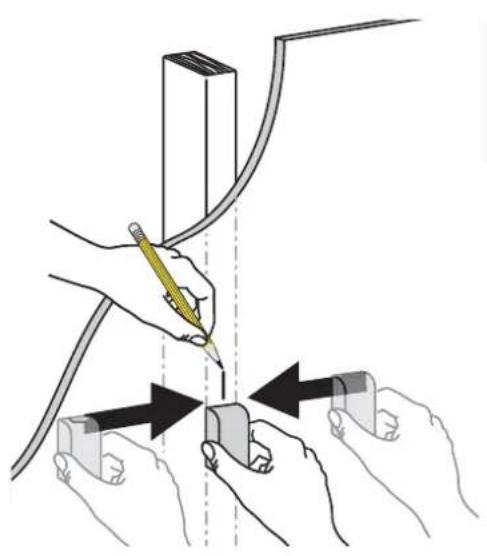

Find stud and draw a mark. Put a mark on the stud 62"-68" (158-173 cm) from floor.

Illustration of hands using a tool to adjust or install a component, with arrows indicating movement (no text or symbols present)

62"-68" (158-173 cm)

d

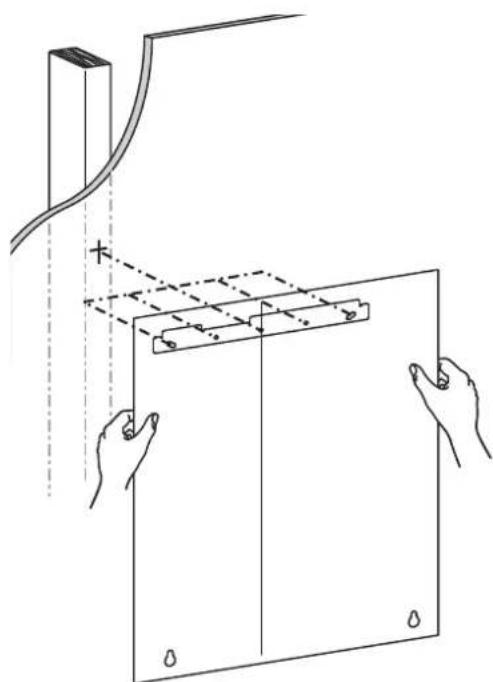

Place template on wall lining up the chosen hole with the stud and the mark 62"-68" (158-173 cm) from floor.

Diagram showing hands holding a rectangular panel with a ruler and a vertical line above, no text or symbols present

e
Secure template to wall.

62"-68" (158-173 cm) 7

2" (51mm) 4" (102mm) ≤5/8" (≤16 mm)

1. Drill the three holes for the top bracket that correspond with the hole option determined on previous page.
2. Drill the bottom two holes.

62"-68" (158-173 cm)

NOTE: Use the ∅ 3/16" (5 mm) drill bit when drilling directly into the wood stud. Use the ∅ 1/2" (13 mm) drill bit when drilling into the hollow wall for the anchors. Use hollow wall anchors where ever a screw does not get inserted directly into the wood stud.

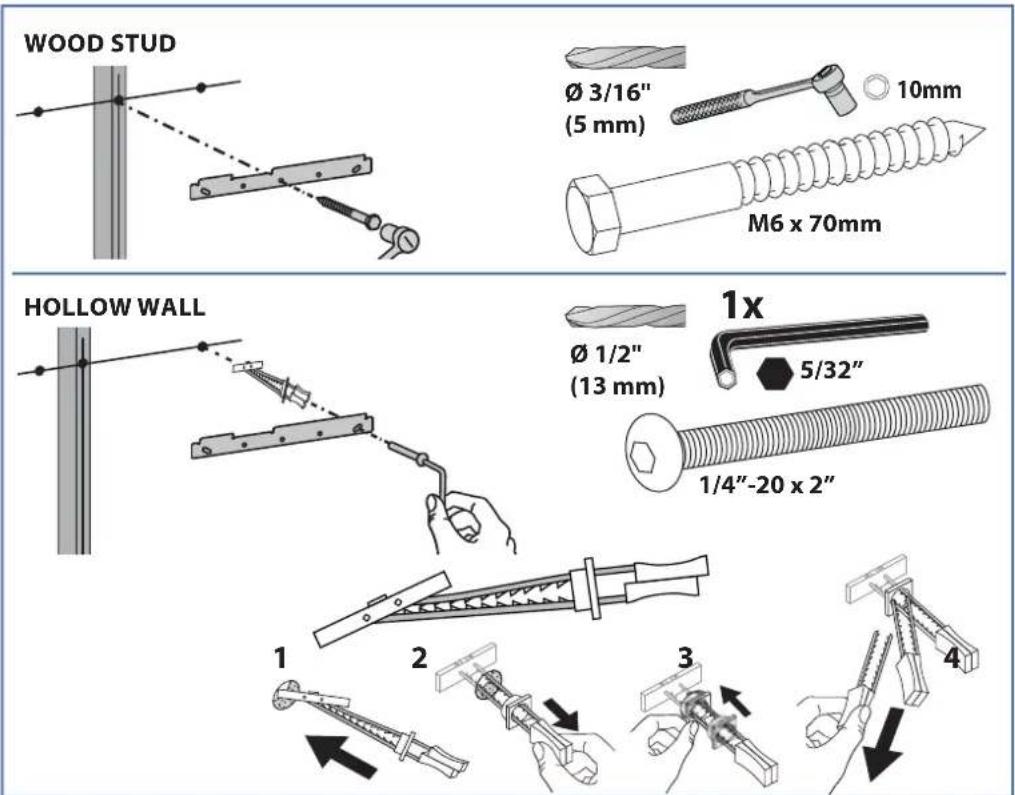

WOOD STUD Ø 3/16" (5 mm) 10mm M6 x 70mm HOLLOW WALL Ø 1/2" (13 mm) 1x 5/32" 1/4"-20 x 2" 1 2 3 4

g

Line drawing of a hand holding a tool over a curved panel or sheet (no text or symbols)

h

Insert anchors then attach bracket to wall according to the hole option determined on previous page. Verify wall bracket is level before tightening screws.

Diagram illustrating a mechanical assembly or clamp operation with hands holding pins and rods, accompanied by an open book labeled '9'.

≥4" (≥102mm) ≤5/8" (≤16 mm)

CONCRETE

a Put a mark on the wall 62"-68" (158-173 cm) from floor.

62"-68" (158-173 cm)

b Secure template to the wall lining up the chosen mounting holes with the mark 62"-68" (158-173 cm) from floor.

62"-68" (158-173 cm)

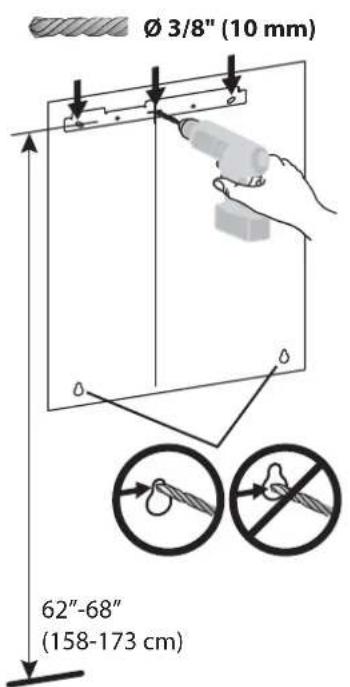

C Drill the top 3 holes, then the bottom two holes.

Ø 3/8" (10 mm) 62"-68" (158-173 cm)

3-1/8" (80 mm)

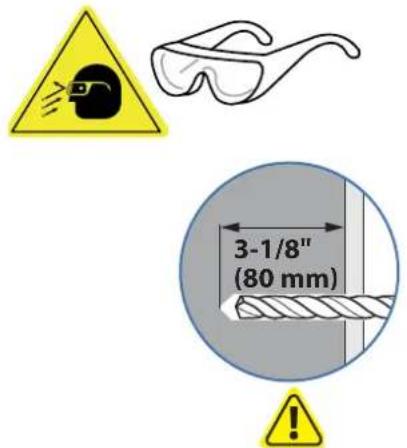

WARNING:
Mounting holes must be at least 3-1/8" (80mm) deep and must be located within solid concrete, not mortar or covering material. If you drill into an area of concrete that is not solid, reposition mounting holes until both anchors can be fully inserted into solid concrete!

d

Simple line drawing of a hand holding a tool over a curved panel or casing, with no text or symbols present.

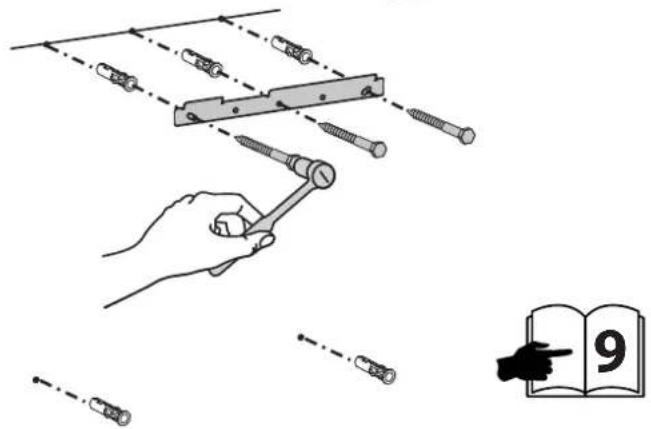

e Insert anchors into holes, then attach mounting bracket. Verify wall bracket is level before tightening screws.

WARNING: Anchors that are not fully set in solid concrete will not support the applied load resulting in an unstable, unsafe condition which could lead to personal injury and/or property damage. Consult a construction professional if you have any doubt about what this means in regard to your particular situation.

5x M6 x 70mm 10mm

Diagram illustrating a mechanical assembly with screws and rods, showing alignment and assembly steps, alongside an open book with the number 9.

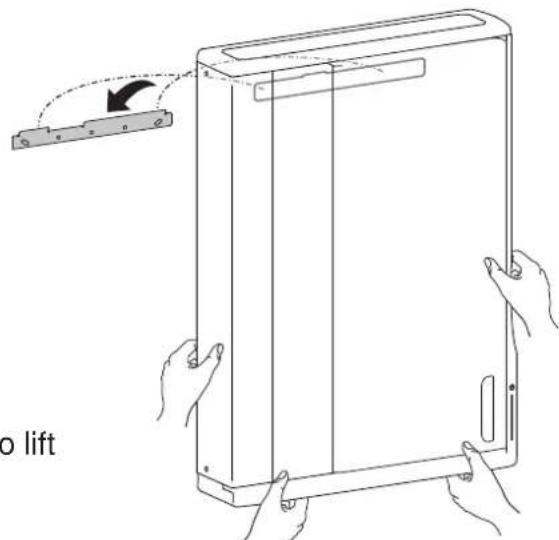

4 Hang unit onto top bracket.

Warning symbol showing a person lifting a box with an exclamation mark, indicating caution or hazard.

Warning: 2 people are required to lift this product.

o lift

Line drawing of a rectangular electronic device with vertical panel and side ports (no text or symbols)

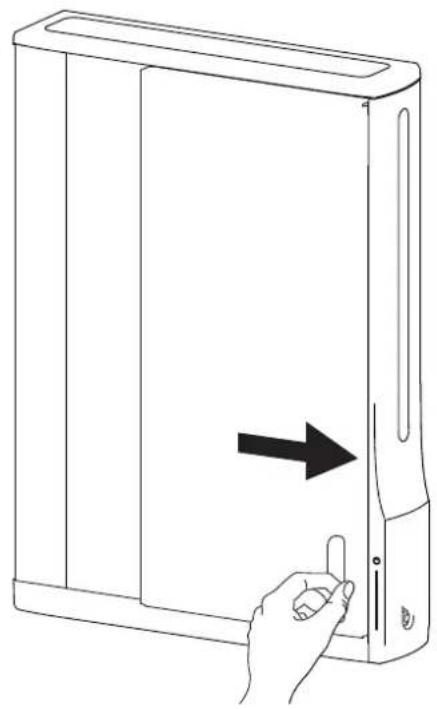

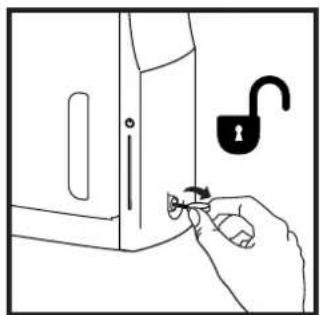

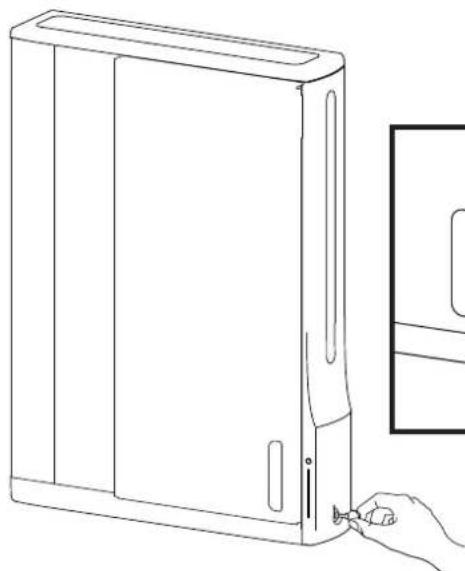

5 a. Remove two screws on left side. Save screws for reattaching cover. b. Unlock door by turning key 180° clockwise.

Line drawing of a rectangular device with a hand holding a tool, showing internal structure and mounting points (no text or symbols)

b

Line drawing of a desktop computer tower with a hand inserting a cable to its side panel (no text or symbols)

Line drawing of a hand holding a key inserted into a door, with an open padlock symbol nearby (no text or labels)

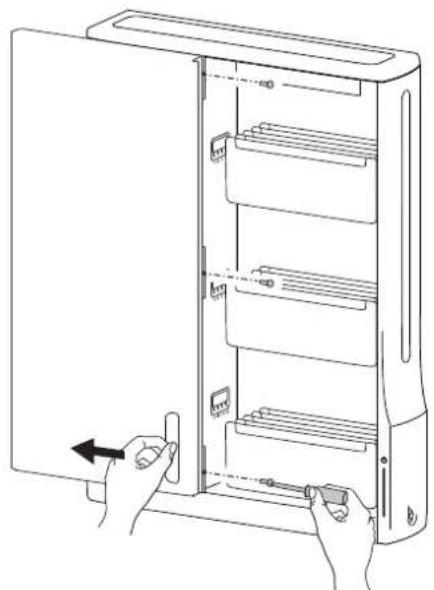

6 a. Open door and remove these 3 screws. Save screws for reattaching cover. b. Remove left cover

a

Line drawing of hands inserting a device into a rack cabinet (no text or symbols)

b

Diagram showing two hands holding a rectangular panel with an arrow indicating leftward movement (no text or symbols)

Line drawing of a multi-tiered refrigerator unit with open door and internal shelves (no text or symbols)

7

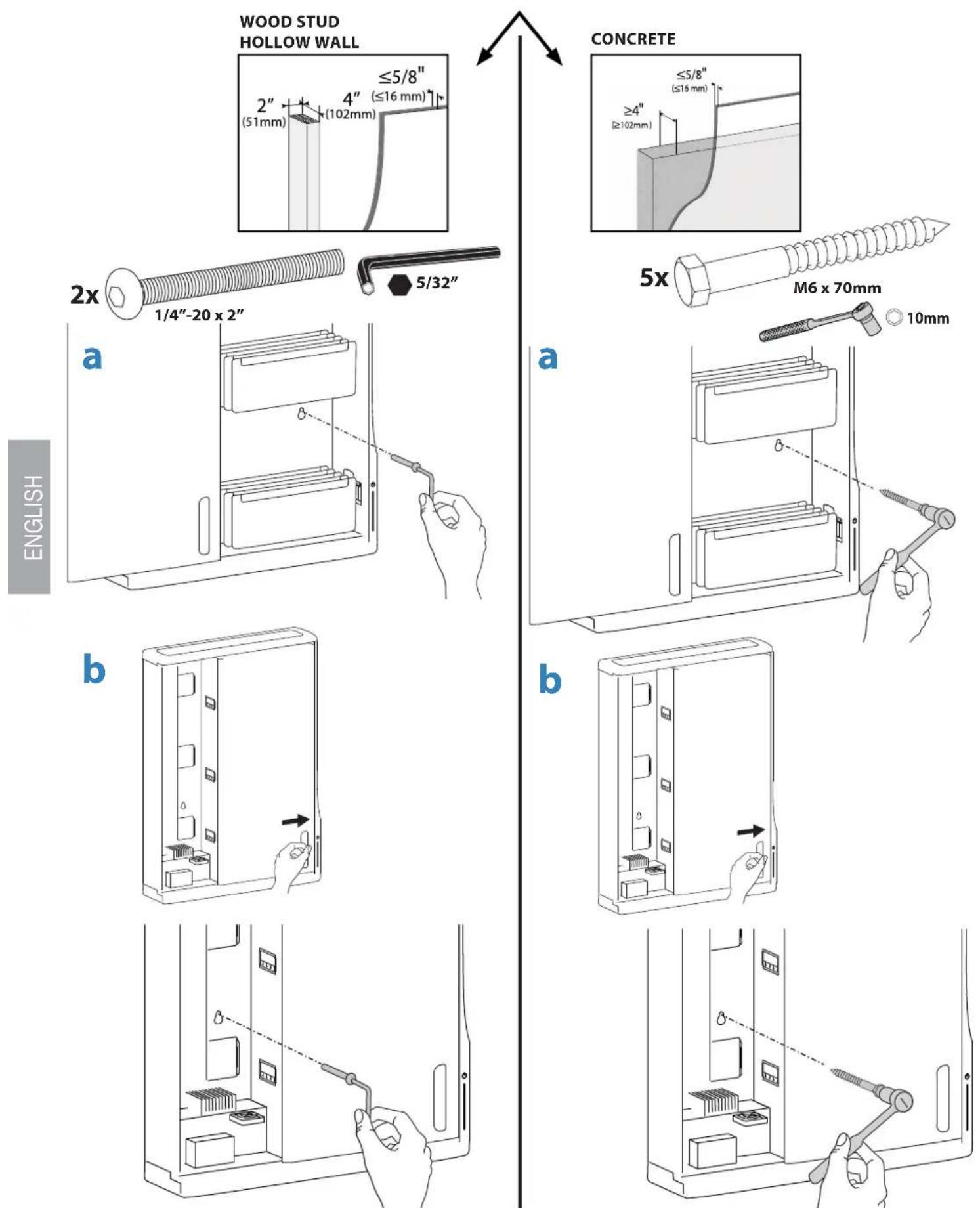

a. Secure unit to wall by inserting screw through back wall and into bottom right wall anchor. b. Close door, then insert screw through back wall and into bottom left wall anchor.

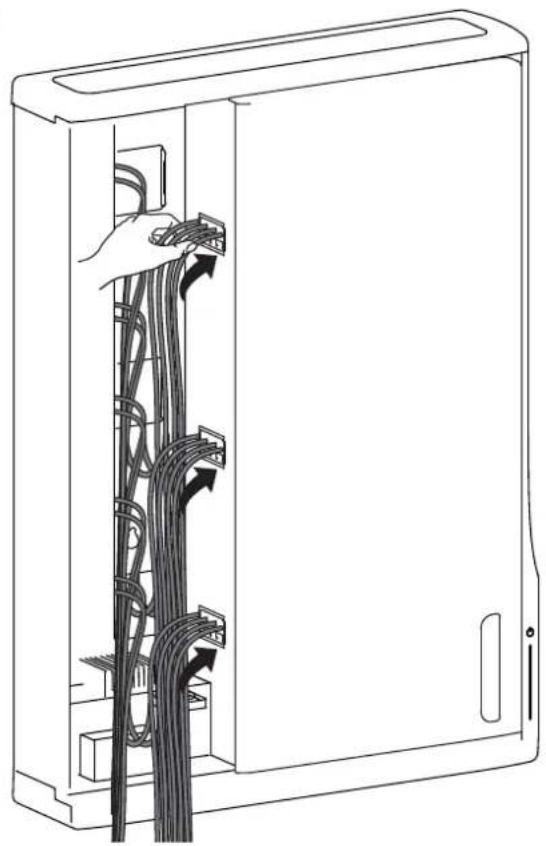

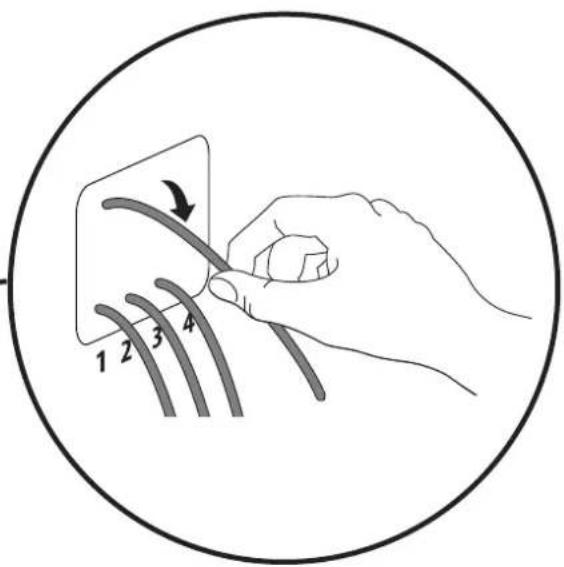

8 a. Plug in all the tablet power cables into the outlets inside. b. Route cables through the access holes. c. Open door an pull cables through the access holes.

a

Line drawing of hands operating a server rack with connected components, showing internal wiring and a directional arrow (no text or symbols)

b

Line drawing of a server rack with cable connections and a hand inserting cables (no text or symbols)

C

Diagram of a computer rack with hand operating the door, showing cable routing and scroll arrows (no text or symbols)

1 2 3 4

9

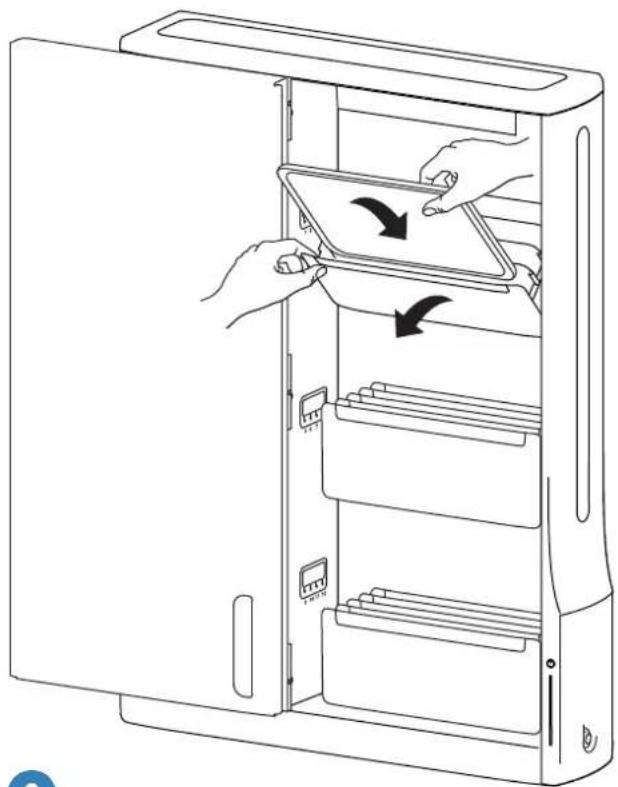

Pull out tablet tray and insert tablet.

NOTE: Tablet should be positioned so power plug is at top or left side.

Line drawing of a computer tower cabinet with two hands inserting a tablet into the case (no text or symbols)

Three identical diagrams showing a stack of rectangular objects with a coiled cable, arranged vertically (no text or symbols)

10

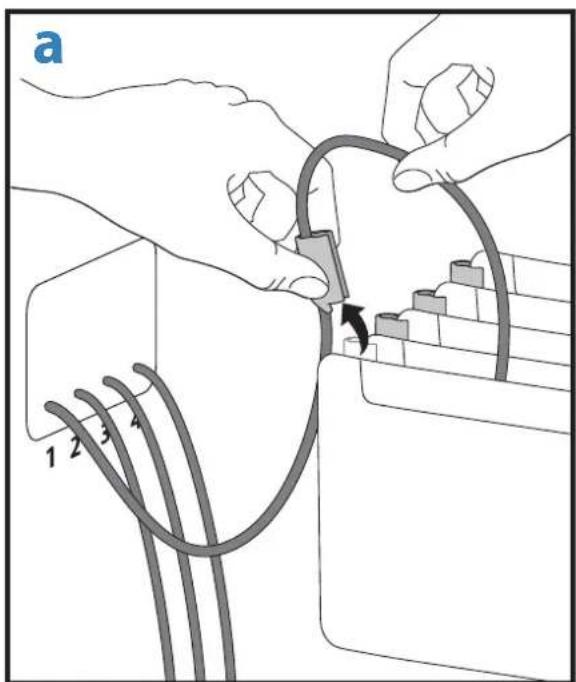

a. Slide cable clip off of tablet slot and route cable through clip, then reattach cable clip. NOTE: Leave enough slack in cable to plug into tablet.

b. Plug tablet cables into tablets. NOTE: When tablet is removed, store unconnected cable in the appropriate tablet slot.

a 1 2 3 4

Line drawing of a hand inserting a component into a refrigerator drawer (no text or symbols)

11 Tie up excess cable with velcro cable ties.

ss cable with velcro cable ties. NOTE: Keep cables away from power system components that might get hot during operation.

12 a. Attach left cover with 2 screws saved from removal of cover. b. Open door and attach 3 inside screws saved from removal of left cover

Line drawing of a device interior with hand operating a tool, showing part assembly and storage (no text or symbols)

Line drawing of a refrigerator interior with hands holding a tool, showing internal shelves and door (no text or symbols)

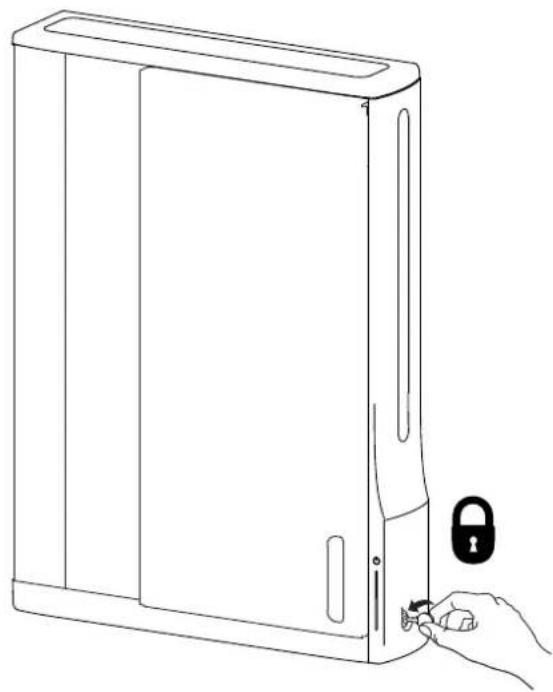

13

a. Close door.
b. Lock door by turning key 180° counterclockwise.

a

Line drawing of a hand pressing a button on a computer tower (no text or symbols)

b

Line drawing of a desktop computer with a hand holding a key inserted into the front panel (no text or symbols)

14

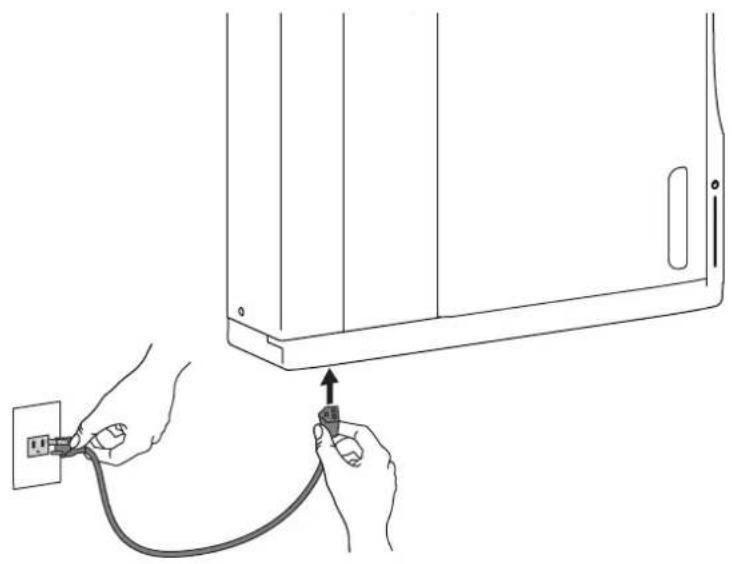

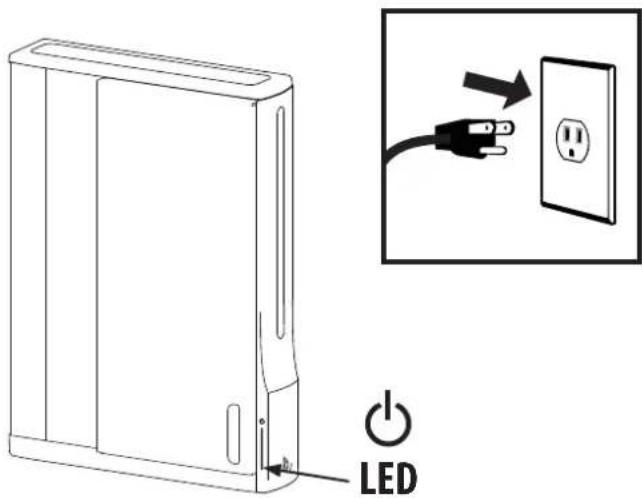

Plug power cable into bottom power jack and then into wall outlet to start charging.

Line drawing of hands connecting a wall-mounted device to a cable, showing electrical connections (no text or symbols)

Tablet Charging

LED

To begin charging the tablets, plug in the power cord.

The power cord is used to turn the power on and off. Charging occurs whenever the power cord is connected to an outlet.

NOTE: The power cord acts as the connect/disconnect device switching power off and on. The socket outlet shall be installed near the equipment and shall be easily accessible.

Power Indicator – Communicates charge status with the following signals:

Light Description
Off No power to the module.
On - solid Tablets or Chromebooks are charging.

Specifications

Dimensions

26.4"W x 35.6"H x 5.9"D (669 x 905 x 151 mm)

Weight (w/o equipment)

64.5 lbs (29.3 kg)

Rated weight capacity

44.4 lb (20.1 kg)

Maximum tablet or chromebook size

Individual dimensions (including cover): up to 11.4" H x 8.5" W x 1.0" D (290 x 216 x 25 mm) Individual tablet or chromebook weight: up to 3 lb (1.4 kg)

Cooling/ventilation

One 12V DC continuous operation fan

Shipping dimensions

40.9" x 28.9" x 8.4" (1040 x 735 x 214 mm)

Shipping weight

77 lb (34.9 kg)

Power system

Part number Power System DM12-1005-1 Input: 100-120V\~, 12A, 50/60 Hz DM12-1005-2 Input: 220-240V\~, 8A, 50/60 Hz DM12-1005-3 Input: 220-240V\~, 8A, 50/60 Hz DM12-1005-4 Input: 220-240V\~, 8A, 50/60 Hz DM12-1005-5 Input: 220-240V\~, 8A, 50/60 Hz DM12-1005-6 Input: 100-120V\~, 12A, 50/60 Hz

Environmental

Temperature range: Operating 0° to 30°C (32° to 86°F) Storage -40° to 60°C (-40° to 140°F) Relative humidity (maximum): Operating 10%–90% (non condensing) Storage 5%–95% (non condensing) Altitude (maximum): 2000 m (6,562 ft)

Compatibility:

Tablets and chromebooks

Cleaning and Maintenance

	Equipment Electric SafetyThere are specific risks associated with the use of equipment having power cables. You must be aware of, and avoid these risks when this product is located in close proximity to children.
	WARNING: Failure to observe the following Electrical Safety notices can result in fi re or death by electric shock.
	Electrical cables can be hazardous. Misuse can result in fi re or death by electrical shock.Double Pole / Neutral FusingInspect power cables thoroughly before each use.Do not use cables that are damaged.Insert the plug completely into the outlet.Grasp the plug to remove from the outlet.Do not unplug by pulling on the cable.Do not use excessive force to make connections.Do not plug the cable into an extension cable.Do not remove, bend or modify any metal prongs or pins of cable.Do not drive, drag or place objects over the cable.Do not walk on the cable.Avoid overheating. Uncoil the cable and do not cover it with any material.Do not run cable through doorways, holes in ceilings, walls or floors.
	Keep this product away from water.Do not use when wet.Do not place this product in close proximity to fl ammable liquids or gases.
	This product is intended for use only with loading as indicated. Use with loads greater than indicated may result in instability causing possible injury.
	The power cord acts as the connect/disconnect device switching power off and on. The socket outlet shall be installed near the equipment and shall be easily accessible.
	CAUTION: Changes or Modifications not expressly approved by Ergotron could void the user's authority to operate the equipment.
	Use SafetyThere are specific risks associated with the use of this product (for charging or storage). You must be aware of, and avoid these risks when this product is located in close proximity to children.
	WARNING: Failure to observe the following Use Safety notices may result in serious personal injury or equipment damage.
	Only Adults should use this product.Do not allow anyone to climb or hang on this product.Do not block the fans and vent openings. To prevent overheating, leave at least 102 mm (4-inch) clearance around fans and vents.This product is designed to be used indoors only.Do not use this product to store equipment other than what has been noted in this guide.Do not use this product to store liquids or cleaning supplies.Do not place heavy objects on this product.- The maximum weight capacity is 44.4 lbs (20.1 kg).

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation.

CAN ICES-3(A) / NMB-3(A).

この装置は、クラスA情報技術装置です。

この装置を家庭環境で使用す

Service and Warranty

For service and warranty visit www.ergotron.com

For local customer care phone numbers visit: http://contact.ergotron.com

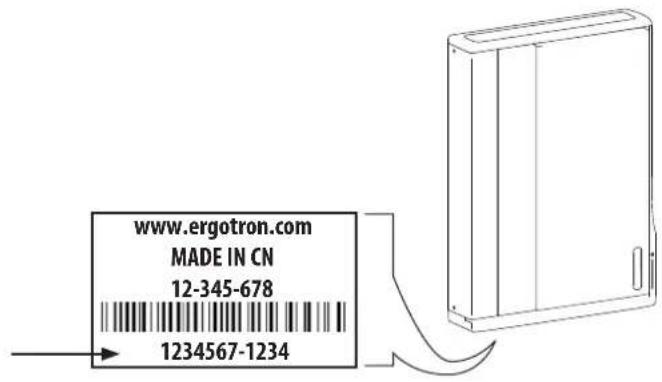

NOTE: When contacting customer service, reference the serial number.

www.ergotron.com MADE IN CN 12-345-678 1234567-1234

ERGOTRON

While Ergotron, Inc. makes every effort to provide accurate and complete information on the installation and use of its products, it will not be held liable for any editorial errors or omissions (including those made in the process of translation from English to another language), or for incidental, special or consequential damages of any nature resulting from furnishing this instruction and performance of equipment in connection with this instruction. Ergotron, Inc. reserves the right to make changes in the product design and/or product documentation without notification to its users. For the most current product information, or to know if this document is available in languages other than those herein, please contact Ergotron. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written consent of Ergotron, Inc., 1181 Trapp Road, Eagan, Minnesota, SS121, USA Patents Pending and Patented U.S. & Foreign. Ergotron is a registered trademark of Ergotron, Inc.
