USER MANUAL ZGCSCG Ergotron

ASSEMBLY INSTRUCTIONS

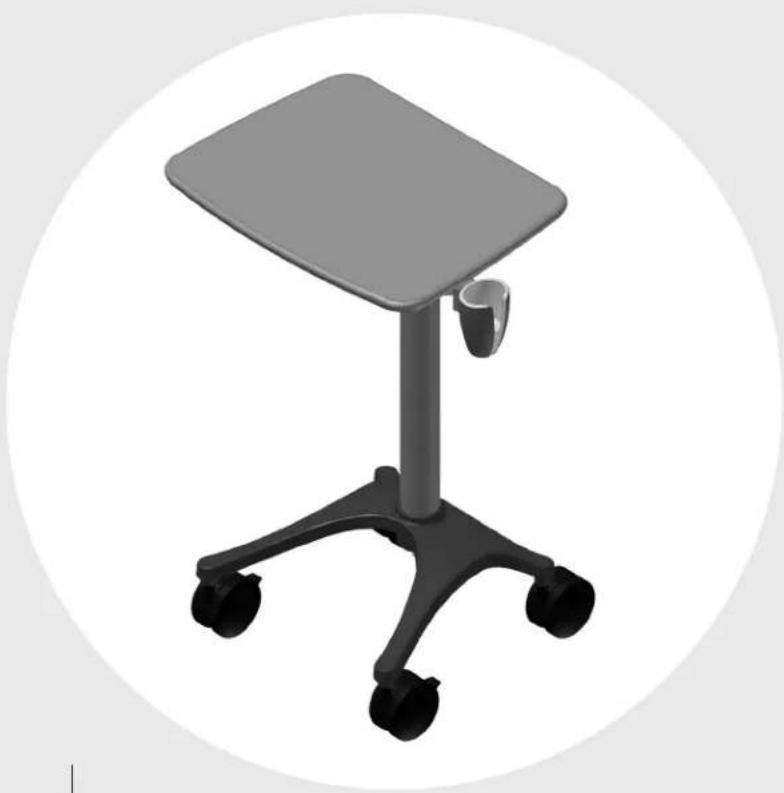

Zido™ Gel Cup/Probe Holders

3D rendering of a simple office chair with four legs and wheels, no text or symbols visible

Product Part#

Zido Gel Cup/Probe Holder Small ZGCSSB

Zido Gel Cup/Probe Holder Large ZGCLSB

NOTE: The Zido Base Unit is not included.

ANTHRO

Technology Furniture®

- Fast and Friendly!

Anthro Corporation® | 10450 SW Manhasset Dr. | Tualatin, OR 97062

Toll-free: 800.325.3841 | Fax: [phone] | email: [e-mail] | anthro.com

Outside the U.S. | Tel: [phone] | Fax: [phone]

Rev A November 2014

01 02 03

WELCOME

Thank you for purchasing Zido Gel Cup/Probe Holder!

If you have any questions or if we can help you in any way, please contact us at 800.325.3841.

PARTS LIST

Before beginning assembly of your Zido accessory, please review the parts list to verify that your shipment is complete.

A 5/32" hex driver (provided with your Zido cart) is required for this assembly.

A 1/8" drill bit and electric drill are also required.

Product Quantity Part Number

01 Zido Gel Cup/Probe Holder Bracket 1 225-2657-00
02 3/4" MDF Wood Screws 2 325-5575-00
03 Long Gel Cup/Probe Holder 1 175-5243-00
04 Short Gel Cup/Probe Holder (not shown) 1 175-5244-00

STEP 1

Install the Bracket

■ Select the installation location. Place the mounting bracket on the bottom of the shelf at the desired location so that the side with four holes is against the shelf.
■ Using the Mounting Bracket as a template, mark the drill points through the two larger bracket holes onto the bottom of the shelf.

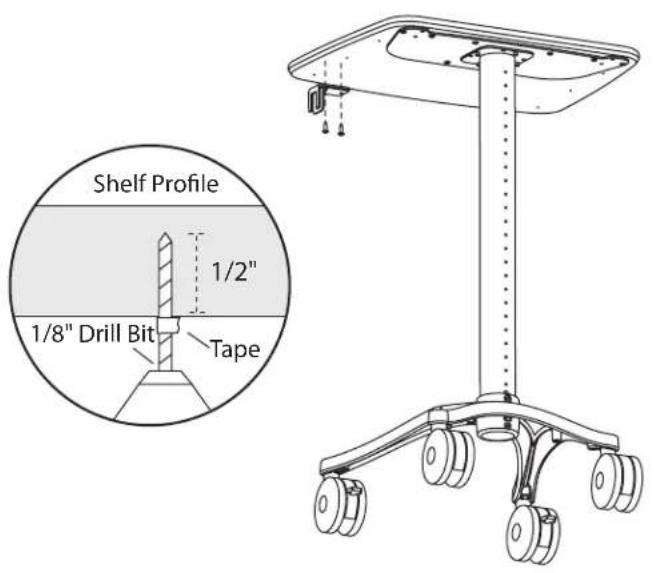

- Drill the screw holes using a 1/8" drill bit. Because the shelf is 3/4" thick, only drill the hole 1/2" deep. (Mark your drill bit with masking tape to be sure you don't drill too far.)
■ Install the bracket onto the shelf using two 3/4" MDF wood screws.

3/4" Button Hd PB Screw 325-5575-00

Shelf Profile 1/2" 1/8" Drill Bit Tape

STEP 2

Install the Holder

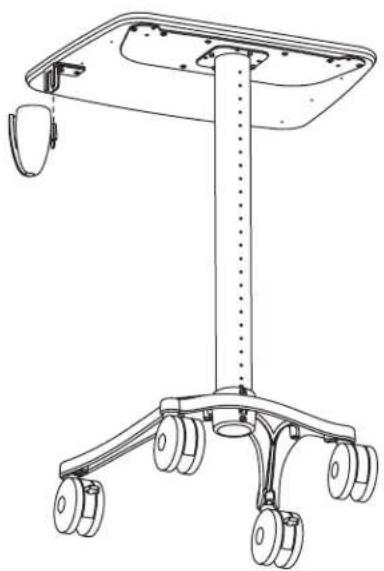

■ Slide the Gel Cup/Probe Holder over the bracket until it clicks into place.

Line drawing of a medical office chair with four wheels and a vertical post (no text or symbols)

CONGRATULATIONS! YOUR HOLDER ASSEMBLY IS COMPLETE!
