USER MANUAL 97-851 Ergotron

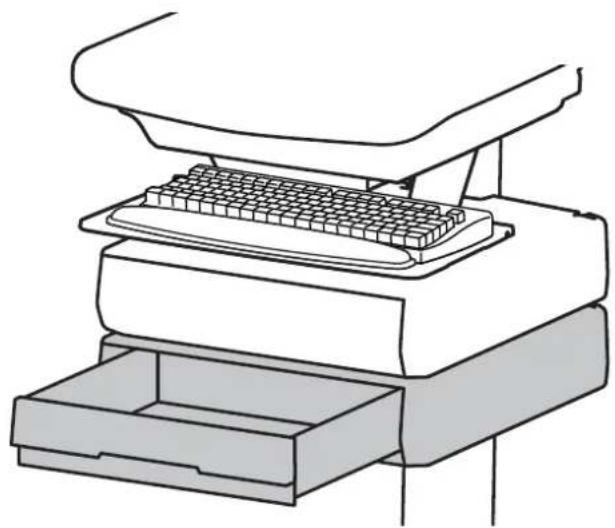

StyleView® SV43/44 Supplemental Drawer

Line drawing of a computer printer with a grid-patterned keyboard and open drawer (no text or symbols)

Total weight capacity per drawer. Total weight capacity per drawer.

2.5" (64 mm) θ

10.5" (267 mm) 12.5"

(315 mm)

or

Line drawing of a desktop computer with keyboard and drive base (no text or symbols)

≤0.25 lbs (0.1 kg) < 2 lbs (1 kg)

10.5" (267 mm) 3.75"

(96 mm)

For the latest User Installation Guide please visit: www.ergotron.com

User's Guide - English Guía del usuario - Español Manuel de l'utilisateur - Français Gebruikersgids - Deutsch Benutzerhandbuch - Nederlands Guida per l'utente - Italiano Användarhandbok - svenska ユーザーガイド：日本語

用户指南：汉语

© 2014 Ergotron, Inc. All rights reserved.

While Ergotron, Inc. makes every effort to provide accurate and complete information on the installation and use of its products, it will not be held liable for any editorial errors or omissions (including those made in the process of translation from English to another language), or for incidental, special or consequential damages of any nature resulting from furnishing this instruction and performance of equipment in connection with this instruction. Ergotron, Inc. reserves the right to make changes in the product design and/or product documentation without notification to its users. For the most current product information, or to know if this document is available in languages other than those herein, please contact Ergotron. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written consent of Ergotron, Inc., 1181 Trapp Road, Eagan, Minnesota, 55121, USA Patents Pending and Patented U.S. & Foreign. Ergotron is a registered trademark of Ergotron, Inc.

www.ergotron.com

USA 1-800-888-8458

Europe [phone]

China 86-769-86018920

Americas Sales and

Corporate Headquarters

EMEA Sales

St. Paul, MN USA

[phone]

[phone]

www.ergotron.com

[e-mail]

Amersfoort, The Netherlands

[phone]

www.ergotron.com

[e-mail]

APAC Sales

Worldwide OEM Sales

Tokyo, Japan

www.ergotron.com

www.ergotron.com

[e-mail]

[e-mail]

Simple line drawing of a mechanical device inside a circle (no text or symbols)

Prohibition sign with crossed-out robot and battery symbols, indicating no use or prohibition

CAUTION:

Close worksurface before opening drawers.

Open only one drawer at a time.

Do Not push cart when drawers or worksurface are open.

When adding more than 3 drawer rows to a LiFe cart, max loading is:

LCD: 11 lbs (5 kg)

CPU: 10 lbs (4.5 kg)

Keyboard/mouse: 2 lbs (0.9 kg)

Worksurface: 0 lbs (0 kg)

Drawer contents: 2 lbs (0.9 kg) max per drawer row

Failure to follow these instructions may cause the cart to be unstable.

WARNING

IMPACT HAZARD!

MOVING PARTS CAN CRUSH AND CUT.

Minimize Lift Tension BEFORE:

- Removing Mounted Equipment.

- Shipping Cart

- Storing Cart

To Minimize Lift Tension

1. Lower worksurface to lowest position.

2. Turn adjustment nut at top of riser

counterclockwise until it stops

(Adjustment may require 40-60 revolutions).

Failure to heed this warning may result in

serious personal injury or property damage!

For More information and instructions refer to product

guide at http://4support.ergotron.com or cont Ergotron Customer Care at 1-800-888-8458.

822-052

A

1 Drawer 3 Drawers 1x 3x or 1x 3x 9x

2 1x 2x M4 x 12mm

Illustration of three different types of screwdrivers: a toolbox, a screwdriver with a plus symbol, and a 14mm (9/16") electric drill (no text or symbols on the objects themselves)

1

a Turn off all mounted equipment.

Diagram showing a hand pointing at a device with a circled number 1, likely indicating a step or instruction in a machine tool.

b Disconnect Power System from power source.

Simple line drawing of a toy car connected to a cable with a hand holding a cable (no text or symbols)

C Turn power system off by holding down the AC Outlet Power button for 1 - 3 seconds. Power light will shut off.

d Disconnect Power from Drawer.

Powered Carts

Non-Powered Carts

Line drawing of a hand holding a small object into a container with an arrow indicating rotation (no text or symbols)

ON OFF

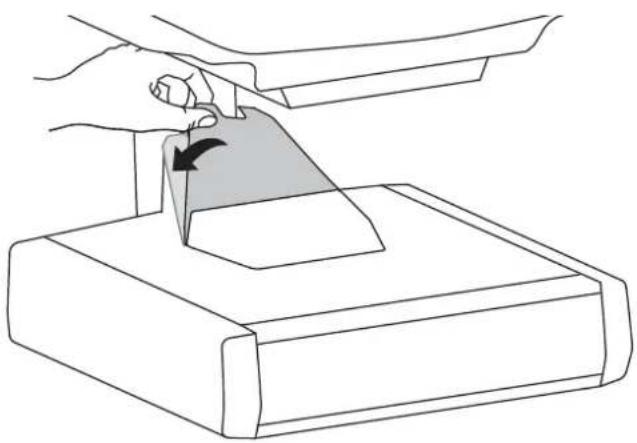

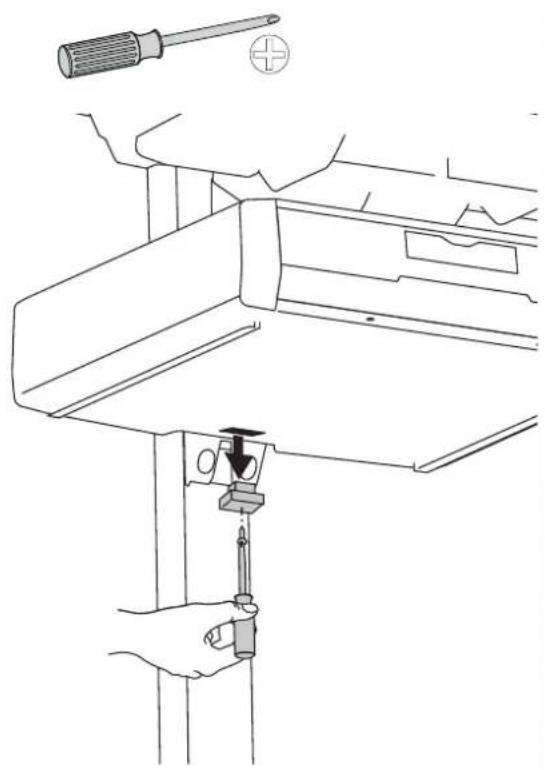

2 Remove plug cover.

Line drawing of a hand using a screwdriver to lift a mechanical component (no text or symbols)

3 Slide the drawer only half way onto the bottom tracks of the top drawer.

Technical line drawing of a mechanical assembly with hands installing components (no text or symbols)

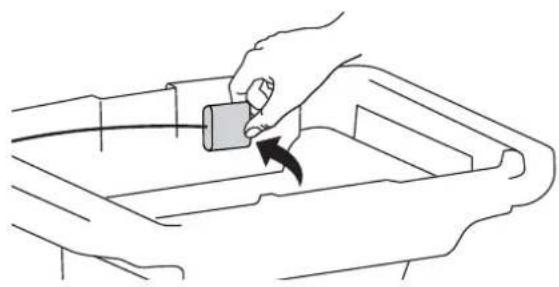

4 a Plug the cable on the bottom drawer into the jack on the bottom of the drawer above it.

Line drawing of hands connecting a cable to a structural frame (no text or symbols)

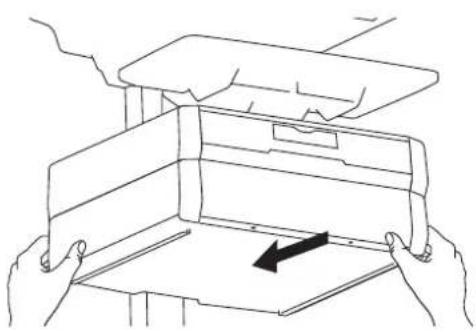

b Slide the drawer completely onto the bottom tracks of the top drawer.

Line drawing of hands holding a device with an arrow indicating direction (no text or symbols)

5

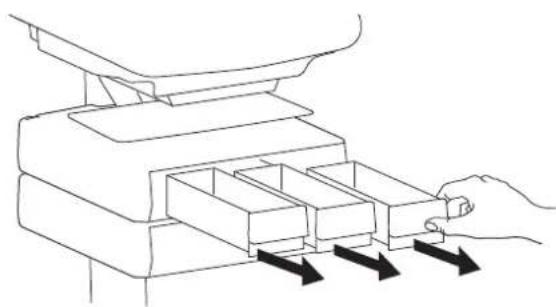

Remove the top drawer(s).

Line drawing of a hand pressing down an open mechanical component with multiple compartments (no text or symbols)

Line drawing of a hand pressing down on a stack of books (no text or symbols)

6

Secure the bottom drawer by attaching the two screws.

Line drawing of a hand using a pipette to press down an open mechanical device (no text or symbols)

2x

M4 x 12mm

7

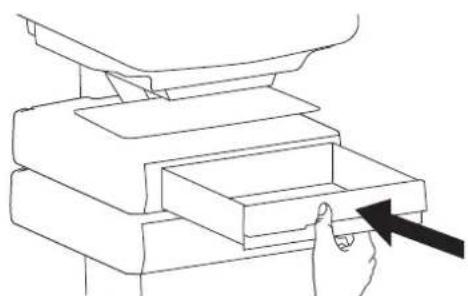

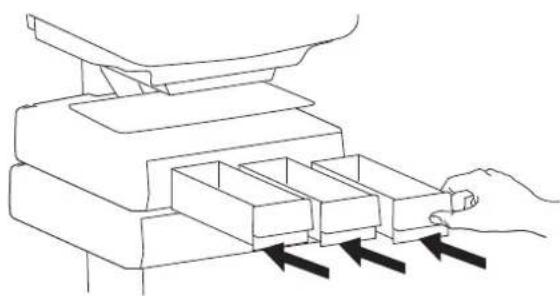

Replace the top drawer(s).

Line drawing of a hand inserting a box into a multi-compartment container (no text or symbols)

Line drawing of a hand inserting a card into a stack of books (no text or symbols)

8

a

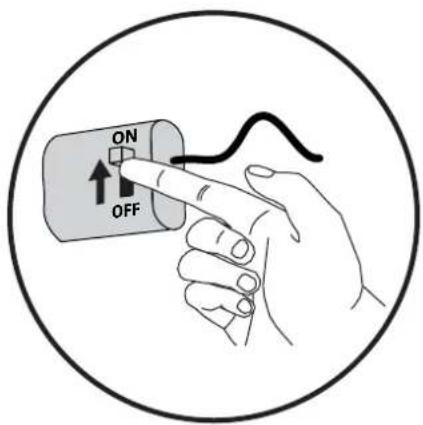

Reconnect drawer power.

Powered Carts

Diagram showing connection between a device and its internal network ports, with labeled connectors and arrows indicating connection paths.

Non-Powered Carts

Line drawing of a hand holding a small object into a container with an arrow indicating rotation (no text or symbols)

ON OFF

b

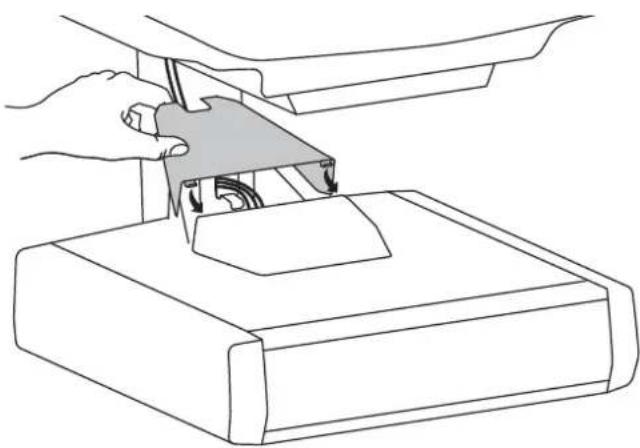

Replace top cover on drawer.

Line drawing of a hand using a tool to press or install electronic components on a device (no text or symbols present)

Line drawing of a hand pressing down on a mechanical component with a curved arrow indicating motion (no text or symbols)

Adjustment

It is important that you adjust this product according to the weight of the mounted equipment as described in the following steps. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation.

Adjustments should move smoothly and easily through the full range of motion and stay where you set it. If adjustments are difficult and do not stay in the desired position, follow the instructions to loosen or tighten the tension to create a smooth, easy adjustment motion. Depending on your product and the adjustment, it may take several turns to notice a difference.

Lift – Up and down Release Brake to move riser.

Follow these instructions to tighten or loosen tension. 14mm (9/16") NOTE: Adjustment may require 40 - 60 revolutions.

NOTE: Adding more than 3 rows of drawers per cart may mean balanced lift adjustment of the cart may not be possible without reducing weight of LCD, laptop, CPU, and/or drawer contents.

10

1x

NOTE: User should change Master Personal Identification Number (PIN) upon receipt of cart.

Ensure that the main power system batteries are installed and functioning. The power does not need to be turned on at the power system user interface.

Lost Master PIN

Contact Ergotron Customer Care for instructions.

All PINs may vary in length from 4 – 7 digits. Number of PINs possible:

- Carts using StyleLink will store up to 1,000 PINs on the cart

- Carts not using StyleLink will store up to 100 PINs on the cart

- Ergotron recommends the following for choosing PIN digit length (assumes less than 1 in 25 chance of guessing random User PIN):

Max number of User PINs >50, 5+digit length recommended

Max number of User PINs >300, 6+digit length recommended

For maximum security use PIN length of 7

Line drawing of a printer with a blue arrow indicating motion (no text or symbols)

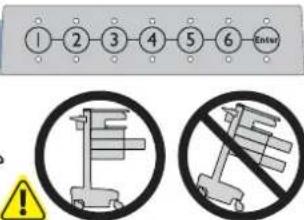

1 2 3 4 5 6 Enter No Sign

CAUTION: Close worksurface before opening drawers. Open only one drawer at a time. Do Not push cart when drawers or worksurface are open. Failure to follow these instructions may cause the cart to be unstable.

Set-up Master PIN for the First Time (Default Master PIN: 12345)

Contact Ergotron Customer Care for instructions if Master PIN is lost.

1. Enter default Master PIN (1-2-3-4-5) then press ENTER.
2. Press 5 for Master PIN Entry mode
3. Enter new Master PIN and press Enter (LEDs will blink green if PIN is accepted)
4. Master PIN entry mode will exit after 5 seconds of inactivity (LEDs blink red twice)

Master PIN Mode Menu

Enter Master PIN and then select one of the below numbers to enter that mode

1. User PIN Entry Mode
2. Pharmacy PIN Entry/Change Mode
3. Master Pin Change Mode

Programming User PINS

1. Enter Master PIN and press ENTER for Mode Menu.
2. Press 1 for User PIN Entry Mode.
3. Input new User PIN and press ENTER (All LEDs blink green if PIN is accepted). You may enter multiple USER PINs consecutively.
4. User PIN entry mode will exit after 5 seconds of inactivity (LEDs blink red twice).

NOTE: User PIN cannot be the same as a Master PIN or Pharmacy PIN. Once maximum User PIN storage is exceeded, the oldest User PIN will be over written.

Programming Pharmacy PIN

1. Enter Master PIN and press ENTER for Mode Menu
2. Press 2 for Pharmacy PIN Entry Mode
3. Input Pharmacy PIN and press ENTER (all LEDs blink green in PIN is accepted).
4. Pharmacy PIN entry mode will exit after 5 seconds of inactivity (LEDs blink red twice).

Note: System will hold 1 Pharmacy PIN. Pharmacy PIN allows all drawers to unlock at the same time. Drawers should then be opened at least slightly as the system will auto-lock after 10 seconds. All LEDs will flash green until system auto-locks. Once a drawer is opened the corresponding LED for that row will light solid until it is placed back into its original location.

Unlock Drawer (2 methods): NOTE: All Drawers in row must be closed before a new row can be unlocked.

• Enter User PIN (only numbers for available drawer rows flash green), then press desired drawer row number*.
  • Key - turn clockwise 1/4 turn

*Drawer Row Numbers:

Illustration showing a hand pressing down on a keyboard with numbered keys and a key inserted into the press.

Lock Drawer:

- Wait 4 seconds for lock to engage automatically.

NOTE: Always ensure drawer is pushed in all the way and engaged with lock.

Drawer Troubleshooting

• No LEDs on keypad when pressing any number:

• Verify DC cable is connected from cart battery harness to controller.
• Verify keypad cable is connected to controller.
• Verify circuit breakers are not tripped and 5A fuse is installed in battery harness.

- Drawer selection not available when User PIN is entered:

• Check to make sure drawer cable is installed securely.
• Remove power from drawer system for 10 seconds and re-apply.

• LEDs flash red/green after User PIN in entered:

- Battery charge is low, check to make sure USB charging cable is plugged into computer and computer is ON.

LEDs/Alarm Meaning:

1,2,3,4, or 5 LED ON green: Corresponding Drawer is open.

1,2,3,4, or 5 LED flashing red and alarm sounding: Corresponding Drawer is open longer than 20 seconds. Mute alarm by pressing flashing button corresponding to open drawer.

All available drawer numbers flashing green: Waiting for drawer selection (see Unlock Drawer).

All LEDs flashing green: Pharmacy mode, all drawers are unlocked.

All LEDs blink red twice: PIN entry rejected/exit current mode after 5 seconds timeout.

All LEDs blink green 3 times: PIN entry accepted.

All LEDs flashing red: Firmware update in progress.

All LEDs flashing red/green: System power ON or low battery condition.
