AquaDuo P 070 - Lawn mower KING - Free user manual and instructions

Brand	KING
Model	AquaDuo P 070
Product Type	Rechargeable Hair Trimmer / Hair Clipper
Power Supply	Mains adaptor 20-240V, 50Hz; rechargeable battery pack
Battery Type	Double rechargeable battery pack (Ni-MH or similar)
Cutting Length Range	3 - 15 mm with adjustable guide comb
Wet/Dry Use	Yes, shaving head can be rinsed under water; trimmer not immersible
Indicator Light	Charge control indicator (does not go out when fully charged)
On/Off Switch	Sliding switch
Attachments Included	Guide comb (3-15mm), charging stand
Cleaning	Detachable shaving head; brush out and oil regularly
Oiling	Apply 1-2 drops of non-corroding oil between cutting teeth periodically
Replacement Parts	Shaving head, comb attachments, mains adaptor (original accessories)
Safety Features	Do not immerse in water; keep away from children; sharp blades
Dimensions (approx)	15 x 5 x 4 cm (estimate)
Weight (approx)	250 g (estimate)
Disposal	Remove battery pack before disposal; recycle batteries separately

Frequently Asked Questions - AquaDuo P 070 KING

How do I charge the hair trimmer for the first time?

Before first use, fully charge the trimmer. Slide the On/Off switch downwards, insert the mains adaptor plug into the power jack, then plug into a socket. The indicator light will stay on during charging and will not go out when fully charged.

Can I use the trimmer while it is charging?

Yes, you can use the trimmer connected to the mains adaptor even if the battery is depleted. Simply plug in as described for charging.

How do I adjust the cutting length?

Use the guide comb. Press the closure latch and slide the comb up or down to set the desired length (3-15 mm). The set length is indicated on the scale of the appliance.

Is the trimmer waterproof?

The shaving head can be rinsed under running water, but the trimmer body and charging stand must never be immersed in water or other liquids. Always unplug before cleaning.

How do I clean the hair trimmer?

Remove the guide comb. Press the shaving head backward and lift it off. Brush out the shaving head insert. You can rinse the shaving head under water. Reinsert by aligning the latch with the groove and pressing until it clicks.

How often should I oil the blades?

Oil the cutting teeth from time to time if you use the trimmer regularly. Apply one to two drops of non-corroding oil (e.g., sewing machine oil) between the teeth, turn on briefly to distribute, then wipe off excess.

What should I do if the trimmer becomes weak shortly after charging?

The battery may need conditioning. Allow the battery to fully discharge, then recharge fully. Repeat this cycle a couple of times. If still weak, clean and oil the shaving head or replace it with a new original part.

Can I replace the shaving head myself?

Yes. Switch the trimmer off. Remove the old shaving head by pressing it backward and lifting. Attach the new one by inserting the latch into the groove and pressing until it clicks. Only use original accessories.

How do I dispose of the trimmer when it's no longer usable?

Remove the double rechargeable battery pack by unscrewing the casing. Dispose of the battery at a designated collection point or retailer that accepts rechargeable batteries. The remaining parts can be disposed of according to local regulations.

What safety precautions should I take?

Keep the trimmer away from children. Do not use if the power cord or adaptor is damaged. Never immerse in water. Do not attempt to open the appliance; have repairs done by an authorized dealer. Only use the supplied mains adaptor.

USER MANUAL AquaDuo P 070 KING

king

P 070

AquaDuo

Saç Kesme Makinası

Hair Cutting Machine

GARANTI

king

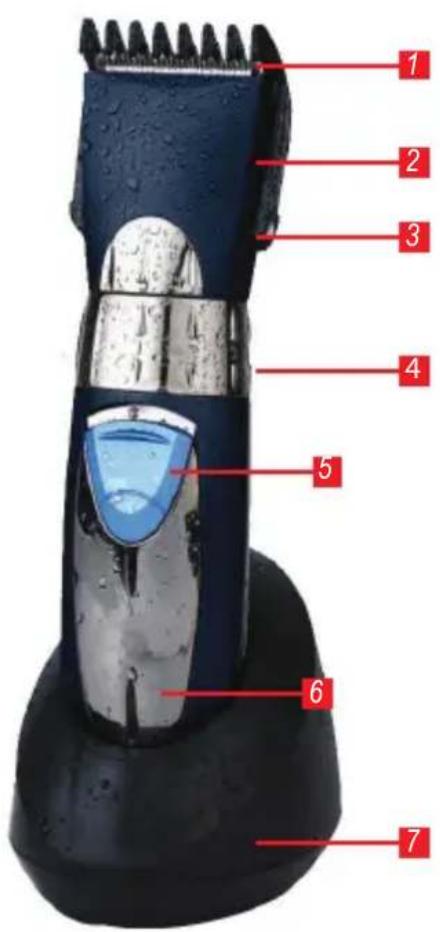

MAIN PARTS

1. Cutting head
2. Hair trimmer
3. Detachable blade
4. Cutting length control wheel
5. On/Off switch
6. Indicator light charge control
7. Charging stand

king

IMPORTANT SAFETY INSTRUCTIONS

RECHARGEABLE HAÍR TRÍMMER:

■ This hair is designed to shorten and trim hair and beards. Do not use the hair trimmer to cut artificial hair.

HAZARD TO CHILDREN:

• Keep children away from this product because they often under estimate to ricks involved in handling electrical equipment. There is considerable danger of cutting yourself with the sharp shaving head.
  ■ Small parts cen be highly dangereus if swallowed. Therefore, keep the hair trimmer and accessories out of the reach of infants.

ELECTRICAL HAZARDS.

■ Clean the shaving head by rinsing it off under water tap. However the hair trimmer itself must not be immersed in water. The power card and mains adaptor must not come into contact with water or other liquids, there is a risk of elektric shock. Therefore, never use the hair trimmer over a filled sin kor while having a bath. If the trimmer or charging station should fall into the water, immediately pull the mains adaptor out the socket.

■ Unplug the trimmer if you do not plan to use it four a longer period of time, if the trimmer malfunctions during use, during thunderstorms and when cleaning.
■ Do not use if the trimmer, power cord or mains adaptor show any signs of damage.
■ Do not attempt open the appliance. Only have repairs made to the trimmer the power cord or mains adaptor by an authorized dealer. Improper repairs may expose the user to considerable hazards.
■ Only use the mains adaptor supplied with the trimmer or an adaptor with the same technical features otherwise the appliance could be damaged.
■ Only plug the mains adaptor into a properly installed 20-240V – 50Hz. Socket Other causes of injury
■ The appliance includes a double rechargeable battery pack. It must not be dis mantled exposed to an open flame or short circuried.
■ Do not operate the appliance if the attachment is damaged. The shaving head is very sharp be very careful when you use the appliance without the attachment.

RISK OF INJURY CAUTION-DAMAGE TO THE HAIR TRIMMER

■ Only use original accessories. Never at attempt to sharpen the cutting head yourself. Only cut natural hair with the trimmer.

Never expose the trimmer to temperatures below 10 C or higher than +40C for longer periods of time.

king

LOADING THE RECHARGEABLE BATTERY

■ Before first time use, the trimmer must be fully charged

1.Slide the On/ Off switch downwards.
2. Insert the plug of tme mains adaptor into the power jack of the hair trimmer.
3. Plug the mains adaptor into a power socket outlet.
■ The indicator light with not go out when the rechargeable battery is loaded
■ Note about the rechargeable battery:
■ The rechargeable battery does not have its full capacity from the start. To obtain the maximum charge capacit, the battery should be used until the batteries are completely flat. The batteries should then fully recharged. To increase the life of the rechargeable batteries this charging and discharging procedure should be repeated approximately twice a year.
■ Using the trimmer without charging the batteries before hand Mains electricity ( via the mains adaptor) can also be used to power the trimmer

1. Connect the hair trimmer as described in the section. Loading the recharge able battery
2. Umplug the adaptor after use.
   ■ Tips and hints concerning use
   ■ This function evens out unevenlydistributed hair volume.

GUIDE COMB

■ Use the guide comb to shorten hair evenly to a length of 3 – 15mm. To set the desired lenght press the closure latch of the guide comb and slide it either upwards or downwards.
■ The set length is indicated on the scale of the appliance.
■ Shapiang the beard and shaving the back of the neck is done without attachments

1. Remove the attachment

2. Draw the cutting head at a low angle along skin without applying pressure.

CLEANING AND CARE

1. Remove the comb attachment
2. Press the shaving head towards the back and remove it.
3. Brush out shaving head insert.
4. Reinsert the shaving head by inserting the latch of the shaving head into the groove of the casing.
5. Press the shaving head back into the casing until it engages audibly.
6. Wet/ dry design for use in shower and easy cleaning

Oiling the shaving head.

Oil the shaving head from time to time if you use the trimmer regularly. Use non-corroding oil, for example sewing machien oil.

king

1. Remove the comb attachment used.
2. Apply one to two drops of oil between the cuiting teeth.
3. Turn the trimmer briefly on and then off again to distribute the oil.
4. Remove any excess oil by wiping witch a cloth.
5. Replacing the shaving head.
6. Only use original accessories. Accessories such as the shaving head mains adaptor and comb attachments are available at specialist shops. Never attempt to sharpen the shaving head yourself. Switch the trimmer off.
7. Change the shaving head as described in cleaning the shaving head.

Power becomes weak after a brief period.

Loud the rechargeable battery pack if necessary operate the trimmer with the mains adaptor clean and oil the shaving head or replace with a new one.

DISPOSAL

Dispose of the packaging in the proper manner

If you wish to dispose of the appliance turno out the screw and remove the double rechargeable battery pack. Afterwards the appliance is destroyed. Special containers are provided for disposing of rechargecablo batteries at shops selling them public collection points. Details are available from your local authority.

king

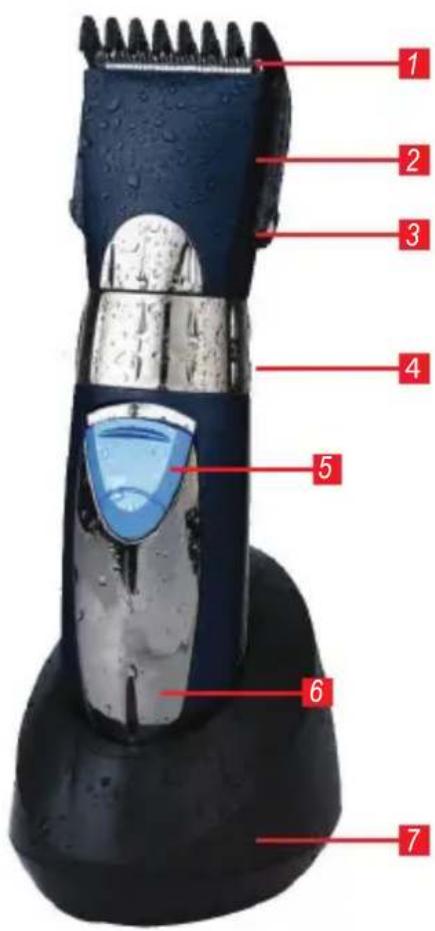

PARÇALARI

king

king

king

TEMİZLİK VE BAKIM

king

نموزج لا

الشعر مكتات

تعليمات الاستخدام

king

1. مند العجز في محول.

king

SATIŞ SONRASI SERVİS
