Product Type	Forensic Field Kit Case/Bag
Brand	CRU (WiebeTech)
Model	Field Kit J-1
Case Type	Pelican 1500 hard case
External Dimensions	470 mm L x 357 mm W x 176 mm H
Weight (empty)	Approximately 11 lbs (5 kg)
Color Options	Black or Orange
Material	Polypropylene case with custom foam interior
Watertight Rating	Up to 30 feet depth
Included Items	Forensic UltraDock v4 (write-blocking), Notebook DriveDock v4, MrTool plug removal tool, cables (FireWire 800/400, USB, eSATA), AC power adapters, protective hard drive bottom plates, v4 adapter set (SATA, PATA, 1.8" drives, media cards)
Primary Function	Forensic data acquisition and write-blocking for hard drives and media
Host Interface Options	eSATA, FireWire 800/400, USB
Drive Compatibility	SATA, PATA, 1.8" Toshiba/Hitachi ZIF, Disk-on-Module, media cards
Write-Blocking	Yes, built-in on Forensic UltraDock; verify before use
Power Supply	Included AC power adapters for docks
Warranty	Write-blockers: 2-year limited; other items: 1-year limited; 90 days free phone support
Support Contact	Email: [e-mail]; Phone: [phone] (toll free) or [phone]
Intended Use	Forensic investigations, data recovery
Customization	Custom foam with lid organizer for accessories
Maintenance	Clean with dry cloth; avoid liquids; store in dry environment

Frequently Asked Questions - Field Kit J-1 CRU

What is the CRU Field Kit J-1?

The CRU Field Kit J-1 is a forensic field kit housed in a durable Pelican 1500 case. It includes write-blocking docks, cables, and adapters for acquiring data from a wide range of hard drives and media.

What items are included in the Field Kit J-1?

The kit includes a Forensic UltraDock v4 (write-blocking), Notebook DriveDock v4, MrTool plug removal tool, multiple cables (FireWire 800/400, USB, eSATA), AC power adapters, protective hard drive bottom plates, and a set of v4 adapters for SATA, PATA, 1.8' drives, and media cards.

How do I verify the write-blocking function?

Connect a known good formatted drive with data to the Forensic UltraDock. Attempt to transfer files to the drive. After dismounting and remounting, the written files should not appear. If they do, contact support.

What are the dimensions and weight of the Field Kit J-1?

External dimensions are 470 mm L x 357 mm W x 176 mm H. Empty weight is approximately 11 lbs (5 kg).

Is the Field Kit J-1 waterproof?

Yes, the Pelican 1500 case is designed to remain watertight up to 30 feet underwater, protecting the equipment inside.

Can I carry the Field Kit J-1 on an airplane?

Yes, the Pelican 1500 case is acceptable as carry-on baggage on major airlines, but check with your airline for size restrictions.

How should I clean and maintain the kit?

Clean the case and foam with a soft dry cloth. Avoid using liquids or solvents. Store in a cool, dry place when not in use.

What is the warranty coverage for the Field Kit J-1?

Write-blockers have a 2-year limited warranty; other products (docks, adapters, case) have a 1-year limited warranty. Phone support is free for 90 days; email support is available after.

How do I contact technical support?

Email [e-mail] or call [phone] (toll free) or [phone]. Fax: [phone].

What is the difference between the J-0, J-1, and J-2 models?

The J-0 is a basic version with fewer docks and cables. The J-1 adds more accessories and a lid organizer. The J-2 includes a Drive eRazer Pro for hard drive sanitization.

USER MANUAL Field Kit J-1 CRU

Revised June 11, 2010

(Models: A-0, A-3, A-4, B-0, B-3, B-4, F-3, F-4, J-0, J-1, J-2)

Forensic Device User Advisory

Your Forensic Field Kit contains one or more Forensic units. These units are write-blocked so nothing can be written to the source drive connected to them.

Prior to first use, please verify that the write-blocking function of these products is working properly. This is easily done: attach a known good formatted drive, and verify that the drive mounts properly on your computer. Use a drive that has data on it that you are willing to overwrite. Transfer files to the drive. The files will appear to transfer to the drive. Thereafter, dismount the drive and remount the drive. The files that you wrote to the drive should not appear after the drive is remounted. If they do appear, there is a problem with your Forensic Device, and you should contact our support department for further instructions.

WiebeTech support may be reached at: [phone] (toll free) [phone] (international) [phone] (fax) [e-mail] (email

Using the devices in your Forensic Field Kit

The descriptions in each graph contain lists of items found in each kit model and type. For instructions on using these various items, please refer to each item's separate user manual (found on WiebeTech's Products & Information CD).

Table of Contents

Forensic Field Kit “A” models 2
Forensic Field Kit “B” models 3
Forensic Field Kit “F” models 4
Forensic Field Kit “J” models 5
Technical Specifications 6

WiebeTech

Forensic Field Kit A

PelicanTM 1400 case & custom foam	√ √	√ √	√ √	√ √	√ √	√
Forensic ComboDockTM v4	√	√ √	√
Forensic UltraDockTM v4	√				√ √	√
MrToolTM (plug removal tool)	√	√ √	√ √	√ √	√ √	√
FireWire 800 cable	√	√ √	√ √	√ √	√ √	√
FireWire 400 cable	√	√ √	√ √	√ √	√ √	√
USB cable	√	√ √	√ √	√ √	√ √	√
eSATA cable	√				√ √	√
Protective hard drive bottom plate	√	√ √	√ √	√ √	√ √	√
AC power adapter and cord	√	√ √	√ √	√ √	√ √	√
v4 adapter for SATA drives	√	√ √	√
v4 adapter for 2.5" PATA drives	√	√ √	√	√ √	√ √	√
v4 adapter for 1.8" Toshiba drives	√		√	√ √	√ √	√
v4 adapter for 1.8" Hitachi ZIF drives	√		√	√ √	√ √	√
v4 adapter for various media cards	√		√	√ √	√ √	√
v4 adapter for 1.8" Toshiba ZIF drives	√			√ √	√ √	√
v4 adapter for Disk-on-Module drives	√			√ √	√ √	√
USB WriteBlockerTM		√				√

* no longer available

Features

- Field Kit "A" is WiebeTech's most portable kit for data acquisition in the field. It uses a small Pelican 1400 case, so it's light weight and is acceptable as carry-on baggage on every major airline.

- Contains a slot for a Forensic UltraDock™, WiebeTech's most versatile tool for write-blocking in the field. Forensic UltraDock features native SATA & PATA drive connections, four different host connection options (eSATA, FireWire 800, FireWire 400, and USB), and two power input options.

- Contains slots for each of WiebeTech's v4 Combo Adapters. When used with Forensic UltraDock these adapters add compatibility with many types of drives and media.

- Contains a slot for USB WriteBlocker, the simplest tool for acquiring data from USB mass storage devices such as thumb drives.

Black plastic hard-shell case with handle and metal clasp (no visible text or symbols)

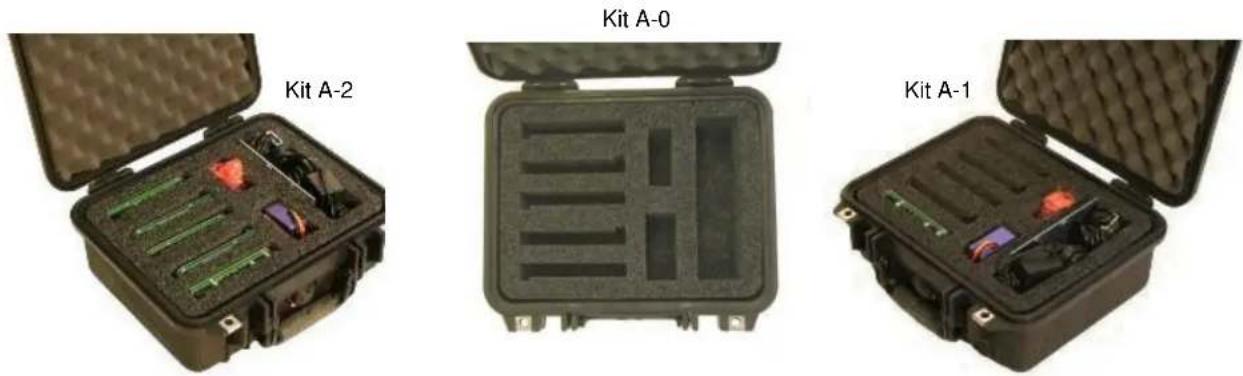

Three different types of mechanical or electronic enclosures labeled Kit A-0, Kit A-1, and Kit A-2, each shown in open and closed views with internal components.

WiebeTech

Forensic Field Kit B

PelicanTM 1450 case & custom foam	√ √	√ √	√ √	√ √	√ √	√
Forensic ComboDockTM v4	√	√ √	√
ComboDockTM v4 (read/write model)	√		√
Forensic UltraDockTM v4	√			√ √	√
UltraDockTM v4 (read/write model)		√				√
MrToolTM (plug removal tool)	√	√ √	√ √	√ √	√
FireWire 800 cable	√	√ √	√√ √	√ √	√√
FireWire 400 cable	√	√ √	√ √	√ √	√√
USB cable	√	√ √	√√ √	√ √	√√
eSATA cable	√			√ √	√√
Protective hard drive bottom plate	√	√ √	√√ √	√ √	√√
AC power adapter and cord	√	√ √	√√ √	√ √	√√
v4 adapter for SATA drives	√	√ √	√
v4 adapter for 2.5" PATA drives	√	√ √	√	√ √	√
v4 adapter for 1.8" Toshiba drives	√	√ √	√ √	√ √	√
v4 adapter for 1.8" Hitachi ZIF drives	√	√ √	√ √	√ √	√
v4 adapter for various media cards	√	√ √	√ √	√
v4 adapter for 1.8" Toshiba ZIF drives	√	√ √	√ √	√ √	√
v4 adapter for Disk-on-Module drives	√	√ √	√ √	√ √	√

* no longer available

Features

• Field Kit "B" is another very portable kit for data acquisition in the field. It uses a Pelican 1450 case, which is the roomiest kit still considered acceptable as carry-on baggage on every major airline.
• Contains a slot for a Forensic UltraDock™, WiebeTech's most versatile tool for write-blocking in the field. Forensic UltraDock features native SATA & PATA drive connections, four different host connection options (eSATA, FireWire 800, FireWire 400, and USB), and two power input options. Also contains a slot for a second dock.
• Contains slots for each of WiebeTech's v4 Combo Adapters, with a few extra slots for future expansion. When used with Forensic UltraDock these adapters add compatibility with many types of drives and media.

Black plastic case with handle and side panel, no visible text or symbols

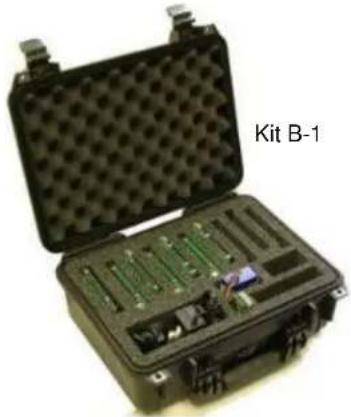

Open black plastic case with internal components, labeled 'Kit B-1' (no other text or symbols visible)

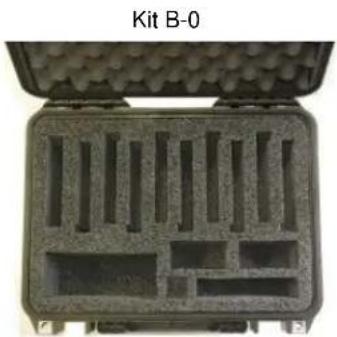

Open black plastic container with internal compartments, labeled 'Kit B-0' above (no other text or symbols visible)

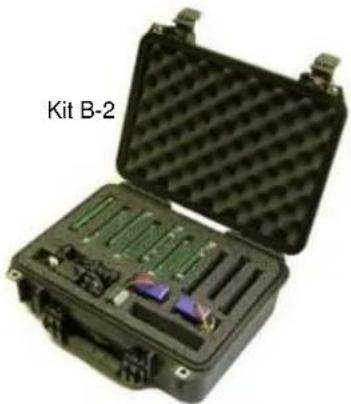

Open black plastic hard-shell case with internal compartments and a purple component, labeled 'Kit B-2' (no other text or symbols visible)

Forensic Field Kit F

PelicanTM 1450 case & custom foam	√ √	√
Forensic UltraDockTM v4	√ √	√
FireWire 800 cable	√ √	√
FireWire 400 cable	√ √	√
USB cable	√ √	√
eSATA cable	√ √	√
AC power adapter	√ √	√
Power cable with US plug	√ √	√
Power cable with UK plug	√ √	√
Power cable with Euro plug	√ √	√
Protective hard drive bottom plate	√ √	√
MrToolTM (plug removal tool)	√ √	√
v4 adapter for 2.5" PATA drives	√ √	√
v4 adapter for 1.8" Toshiba drives	√ √	√
v4 adapter for 1.8" Hitachi ZIF drives	√ √	√
v4 adapter for various media cards	√ √	√
v4 adapter for 1.8" Toshiba ZIF drives	√ √	√
v4 adapter for Disk-on-Module drives	√ √	√
USB WriteBlocker	√	√

Kit F3

Kit F4

Features

• Field Kit "F" is a portable kit for data acquisition in the field. It uses a Pelican 1450 case, which is the roomiest kit still considered acceptable as carry-on baggage on every major airline.
• Contains a slot for a Forensic UltraDock™, WiebeTech's most versatile tool for write-blocking in the field. Forensic UltraDock features native SATA & PATA drive connections, four different host connection options (eSATA, FireWire 800, FireWire 400, and USB), and two power input options. Also contains a slot for a second dock.
• Contains slots for each of WiebeTech's v4 Combo Adapters, with a few extra slots for future expansion. When used with Forensic UltraDock these adapters add compatibility with many types of drives and media.

Black plastic hard case with handle and metal casing (no visible text or symbols)

Black-and-white photo of a medical device case with internal components and a central control panel, surrounded by electronic components (no visible text or symbols)

Forensic Field Kit J

PelicanTM 1500 case & custom foam	√ √	√ √	√
Forensic UltraDockTM v4	-	√√ √	√√
UltraDockTM v4 (read/write model)	-	√√ √	√√
Forensic Notebook DriveDockTM v4	-	√√ √	√√
Drive eRazerTM Pro SE	-	- √	√
MrToolTM (plug removal tool)	-	√ √	√
FireWire 800 cables	-	√√√√√√ √	√√√√√√
FireWire 400 cables		√√√√ √	√√√√
FireWire 800 to 400 cables	-	√√ √	√√
USB cables	-	√√√√ √	√√√√
eSATA cables	-	√√√√ √	√√√√
Protective hard drive bottom plates	-	√√√√ √	√√√√√
AC power adapters and cords	-	√√√√√√ √	√√√√√√√
v4 adapter for SATA drives	-	-	√
v4 adapter for 2.5" PATA drives	-	√ √	√
v4 adapter for 1.8" Toshiba drives	-	√ √	√
v4 adapter for 1.8" Hitachi ZIF drives	-	√ √	√
v4 adapter for various media cards	-	√ √	√
v4 adapter for 1.8" Toshiba ZIF drives	-	√ √	√
v4 adapter for Disk-on-Module drives	-	√ √	√

Features

• Field Kit J is WiebeTech's most comprehensive field kit, with all the tools you need to acquire data from a very wide range of drive types. No other forensic kit packs so much equipment into such a small space.
• Includes slots for up to seven docks, plus slots for all of WiebeTech's combo adapters. When used with Forensic UltraDock or Drive eRazer products, these adapters add compatibility with many types of drives and media.
• WiebeTech's only field kit with a custom lid organizer for holding all the accessories needed for the kit's various tools.
• Uses a durable Pelican 1500 case, which is designed to remain watertight up to 30ft underwater and is virtually indestructible. The custom foam is engineered to fit snuggly against your fragile equipment so that if the case is dropped or jostled the equipment will be safe.
• J-2 model includes a Drive eRazer Pro for hard drive sanitization. WiebeTech's Drive eRazer is an easy-to-use solution for erasing every bit of data from a hard drive.
• Optional black or orange Pelican case.

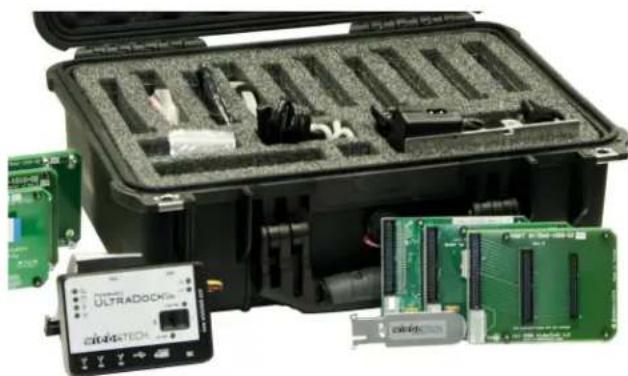

Black plastic hard case with visible internal components and mounting brackets (no text or symbols)

WiebeTech

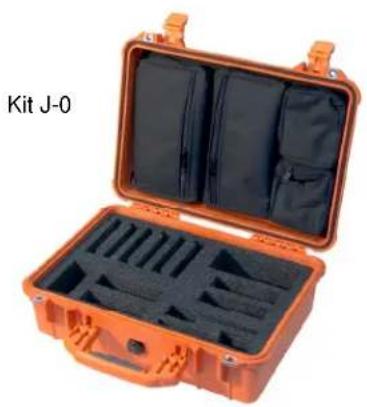

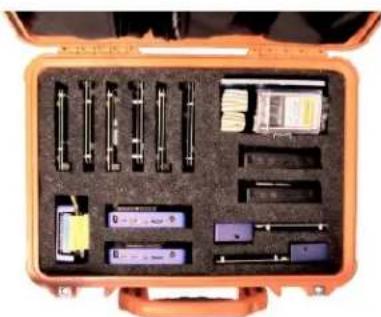

Orange plastic case with black compartments and internal compartments, labeled 'Kit J-0' (no other text or symbols visible)

Kit J-2

Open orange case containing various electronic components and modules (no visible text or labels)

Technical Specifications

Product name & Part #	Forensic Field Kit A-0 (31310-0000-0000)Forensic Field Kit A-3 (31310-0000-0003)Forensic Field Kit A-4 (31310-0000-0004)Forensic Field Kit B-0 (31310-0000-0005)Forensic Field Kit B-3 (31310-0000-0008)Forensic Field Kit B-4 (31310-0000-0009)Forensic Field Kit F3 (31400-2409-0008)Forensic Field Kit F4 (31400-2409-0009)Forensic Field Kit J-0 Orange (31310-0000-0045)Forensic Field Kit J-1 Orange (31310-0000-0046)Forensic Field Kit J-2 Orange (31310-0000-0047)Forensic Field Kit J-0 Black (31310-0000-0048)Forensic Field Kit J-1 Black (31310-0000-0049)Forensic Field Kit J-2 Black (31310-0000-0050)
Case Weights (empty)	Kit A-0: 5 poundsKit B-0: 7 poundsKit J-0: 11 pounds
External Dimensions	Kit A: 339mm L x 295mm W x 152mm HKit B: 406mm L x 330mm W x 174mm HKit F: 406mm L x 330mm W x 174mm HKit J: 470mm L x 357mm W x 176mm H
Warranty	Write-blockers have a 2-year limited warranty. Other products (read/write docks, adapters, accessories, case, etc.) have a 1-year limited warranty. See warranty statement for details and limitations. WiebeTech offers 90 days of free phone support (1-866-744-8722). After 90 days, email support is available [e-mail].

RTX, ComboDock, UltraDock, MrTool, and Drive eRazer are trademarks of CRU Acquisitions Group, LLC.

Pelican is a trademark of Pelican Products, Inc.

Other marks are the property of their respective owners.

© 2008, 2010 CRU Acquisitions Group, LLC. All rights reserved.

If you have any questions or problems, please contact [e-mail] for technical support. If you are interested in purchasing more WiebeTech products, check our website or contact [e-mail]. We appreciate being able to serve you!
