Field Kit J-3 - Bag CRU - Free user manual and instructions

Product Type	Forensic Field Kit (Bag/Transport Case)
Brand	WiebeTech (CRU Acquisitions Group)
Model	Field Kit J-3
Case Model	Pelican 1500
External Dimensions	470 mm (L) x 357 mm (W) x 176 mm (H)
Weight (Empty)	Approximately 11 lb (5 kg)
Water Resistance	Watertight up to 30 ft (9 m) underwater
Drop Protection	Virtually indestructible case with custom foam
Primary Function	Portable data acquisition and write-blocking for forensic analysis
Included Devices	Forensic UltraDock v4, various v4 adapters (SATA, PATA, 1.8" drives, media cards), cables (FireWire 800/400, USB, eSATA), AC power adapters, MrTool plug removal tool, protective hard drive bottom plates
Additional Features (J-3 specific?)	Custom lid organizer for accessories; supports up to 7 docks; compatible with Drive eRazer Pro (sanitization)
Host Connections	eSATA, FireWire 800, FireWire 400, USB
Power Input	AC power adapter (included) with multiple region plugs
Warranty (Write-Blockers)	2-year limited warranty
Warranty (Other Components)	1-year limited warranty
Technical Support	90 days free phone support (866-744-8722); email support at [e-mail]
Material	Pelican case: high-impact plastic; foam: custom cut polyethylene
Color Options	Black or Orange

Frequently Asked Questions - Field Kit J-3 CRU

How do I verify that the write-blocking function is working?

Attach a known good formatted drive that contains data you are willing to overwrite. Transfer files to the drive; they will appear to transfer. Dismount and remount the drive. If the files do not appear after remounting, the write-block is working. If they do appear, contact support at [e-mail].

What drive types are supported by the Field Kit J-3?

The kit includes adapters for SATA, PATA (2.5"), 1.8" Toshiba and Hitachi ZIF drives, various media cards, and Disk-on-Module drives. The Forensic UltraDock natively supports SATA and PATA connections.

What host connections does the Forensic UltraDock v4 support?

The UltraDock v4 offers four host connection options: eSATA, FireWire 800, FireWire 400, and USB.

What is the weight of the Field Kit J-3 case?

The empty Pelican 1500 case weighs approximately 11 lb (5 kg). Packed weight will be higher depending on contents.

Is the case waterproof?

Yes, the Pelican 1500 case is designed to remain watertight up to 30 ft (9 m) underwater.

Can I carry the Field Kit J-3 on an airplane?

The Pelican 1500 case (470 x 357 x 176 mm) is likely acceptable as carry-on baggage on most airlines, but always check with your airline for current size restrictions.

How should I clean the case and components?

Wipe the Pelican case with a damp cloth and mild detergent. Avoid harsh chemicals. Foam can be cleaned with compressed air or gentle vacuuming. Electronic components should be dusted with a soft brush.

What is the warranty period for the Field Kit J-3?

Write-blockers have a 2-year limited warranty. Other items (docks, adapters, case) have a 1-year limited warranty. Phone support is free for 90 days; email support thereafter.

Are there different color options for the case?

Yes, the Field Kit J series is available in both black and orange Pelican case options.

Can I use the Field Kit J-3 with Drive eRazer Pro for data sanitization?

Yes, the J-3 model is compatible with WiebeTech's Drive eRazer Pro, which provides secure erasure of all data from hard drives.

USER MANUAL Field Kit J-3 CRU

Revised June 11, 2010

(Models: A-0, A-3, A-4, B-0, B-3, B-4, F-3, F-4, J-0, J-1, J-2)

Forensic Device User Advisory

Your Forensic Field Kit contains one or more Forensic units. These units are write-blocked so nothing can be written to the source drive connected to them.

Prior to first use, please verify that the write-blocking function of these products is working properly. This is easily done: attach a known good formatted drive, and verify that the drive mounts properly on your computer. Use a drive that has data on it that you are willing to overwrite. Transfer files to the drive. The files will appear to transfer to the drive. Thereafter, dismount the drive and remount the drive. The files that you wrote to the drive should not appear after the drive is remounted. If they do appear, there is a problem with your Forensic Device, and you should contact our support department for further instructions.

WiebeTech support may be reached at: [phone] (toll free) [phone] (international) [phone] (fax) [e-mail] (email

Using the devices in your Forensic Field Kit

The descriptions in each graph contain lists of items found in each kit model and type. For instructions on using these various items, please refer to each item's separate user manual (found on WiebeTech's Products & Information CD).

Table of Contents

Forensic Field Kit “A” models 2
Forensic Field Kit “B” models 3
Forensic Field Kit “F” models 4
Forensic Field Kit “J” models 5
Technical Specifications 6

WiebeTech

Forensic Field Kit A

PelicanTM 1400 case & custom foam	√ √	√ √	√ √	√ √	√ √	√
Forensic ComboDockTM v4	√	√ √	√
Forensic UltraDockTM v4	√				√ √	√
MrToolTM (plug removal tool)	√	√ √	√ √	√ √	√ √	√
FireWire 800 cable	√	√ √	√ √	√ √	√ √	√
FireWire 400 cable	√	√ √	√ √	√ √	√ √	√
USB cable	√	√ √	√ √	√ √	√ √	√
eSATA cable	√				√ √	√
Protective hard drive bottom plate	√	√ √	√ √	√ √	√ √	√
AC power adapter and cord	√	√ √	√ √	√ √	√ √	√
v4 adapter for SATA drives	√	√ √	√
v4 adapter for 2.5" PATA drives	√	√ √	√	√ √	√ √	√
v4 adapter for 1.8" Toshiba drives	√		√	√ √	√ √	√
v4 adapter for 1.8" Hitachi ZIF drives	√		√	√ √	√ √	√
v4 adapter for various media cards	√		√	√ √	√ √	√
v4 adapter for 1.8" Toshiba ZIF drives	√			√ √	√ √	√
v4 adapter for Disk-on-Module drives	√			√ √	√ √	√
USB WriteBlockerTM		√				√

* no longer available

Features

- Field Kit "A" is WiebeTech's most portable kit for data acquisition in the field. It uses a small Pelican 1400 case, so it's light weight and is acceptable as carry-on baggage on every major airline.

- Contains a slot for a Forensic UltraDock™, WiebeTech's most versatile tool for write-blocking in the field. Forensic UltraDock features native SATA & PATA drive connections, four different host connection options (eSATA, FireWire 800, FireWire 400, and USB), and two power input options.

- Contains slots for each of WiebeTech's v4 Combo Adapters. When used with Forensic UltraDock these adapters add compatibility with many types of drives and media.

- Contains a slot for USB WriteBlocker, the simplest tool for acquiring data from USB mass storage devices such as thumb drives.

Black plastic hard-shell case with handle and metal clasp (no visible text or symbols)

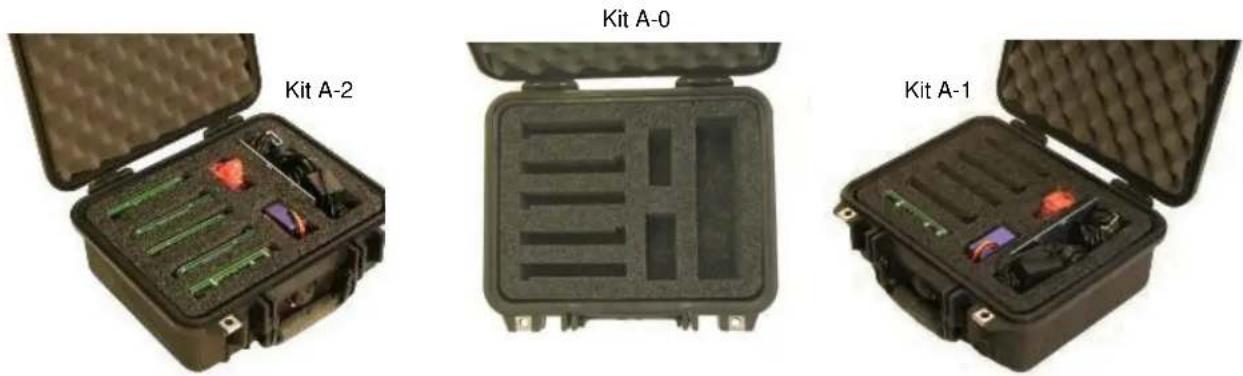

Three different types of mechanical or electronic enclosures labeled Kit A-0, Kit A-1, and Kit A-2, each shown in open and closed views with internal components.

WiebeTech

Forensic Field Kit B

PelicanTM 1450 case & custom foam	√ √	√ √	√ √	√ √	√ √	√
Forensic ComboDockTM v4	√	√ √	√
ComboDockTM v4 (read/write model)	√		√
Forensic UltraDockTM v4	√			√ √	√
UltraDockTM v4 (read/write model)		√				√
MrToolTM (plug removal tool)	√	√ √	√ √	√ √	√
FireWire 800 cable	√	√ √	√√ √	√ √	√√
FireWire 400 cable	√	√ √	√ √	√ √	√√
USB cable	√	√ √	√√ √	√ √	√√
eSATA cable	√			√ √	√√
Protective hard drive bottom plate	√	√ √	√√ √	√ √	√√
AC power adapter and cord	√	√ √	√√ √	√ √	√√
v4 adapter for SATA drives	√	√ √	√
v4 adapter for 2.5" PATA drives	√	√ √	√	√ √	√
v4 adapter for 1.8" Toshiba drives	√	√ √	√ √	√ √	√
v4 adapter for 1.8" Hitachi ZIF drives	√	√ √	√ √	√ √	√
v4 adapter for various media cards	√	√ √	√ √	√
v4 adapter for 1.8" Toshiba ZIF drives	√	√ √	√ √	√ √	√
v4 adapter for Disk-on-Module drives	√	√ √	√ √	√ √	√

* no longer available

Features

• Field Kit "B" is another very portable kit for data acquisition in the field. It uses a Pelican 1450 case, which is the roomiest kit still considered acceptable as carry-on baggage on every major airline.
• Contains a slot for a Forensic UltraDock™, WiebeTech's most versatile tool for write-blocking in the field. Forensic UltraDock features native SATA & PATA drive connections, four different host connection options (eSATA, FireWire 800, FireWire 400, and USB), and two power input options. Also contains a slot for a second dock.
• Contains slots for each of WiebeTech's v4 Combo Adapters, with a few extra slots for future expansion. When used with Forensic UltraDock these adapters add compatibility with many types of drives and media.

Black plastic hard case with handle and metal casing (no visible text or symbols)

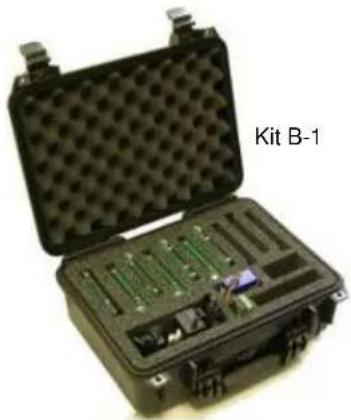

Open black plastic case with internal components, labeled 'Kit B-1' (no other text or symbols visible)

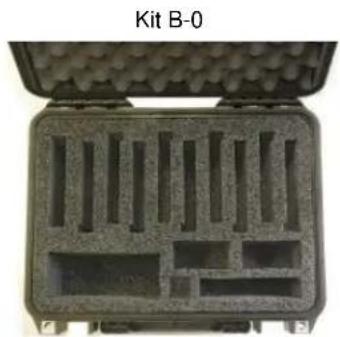

Open black plastic container with multiple internal compartments, labeled 'Kit B-0' at top (no other text or symbols visible)

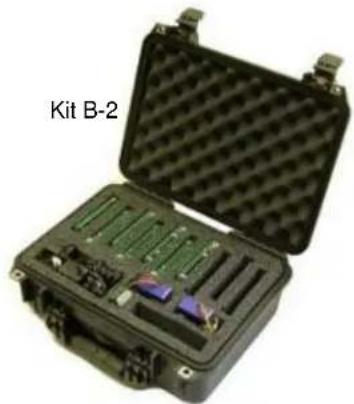

Open black hard-shell case containing electronic components, labeled 'Kit B-2' (no other text or symbols visible)

Forensic Field Kit F

PelicanTM 1450 case & custom foam	√ √	√
Forensic UltraDockTM v4	√ √	√
FireWire 800 cable	√ √	√
FireWire 400 cable	√ √	√
USB cable	√ √	√
eSATA cable	√ √	√
AC power adapter	√ √	√
Power cable with US plug	√ √	√
Power cable with UK plug	√ √	√
Power cable with Euro plug	√ √	√
Protective hard drive bottom plate	√ √	√
MrToolTM (plug removal tool)	√ √	√
v4 adapter for 2.5" PATA drives	√ √	√
v4 adapter for 1.8" Toshiba drives	√ √	√
v4 adapter for 1.8" Hitachi ZIF drives	√ √	√
v4 adapter for various media cards	√ √	√
v4 adapter for 1.8" Toshiba ZIF drives	√ √	√
v4 adapter for Disk-on-Module drives	√ √	√
USB WriteBlocker	√	√

Kit F3

Kit F4

Features

• Field Kit "F" is a portable kit for data acquisition in the field. It uses a Pelican 1450 case, which is the roomiest kit still considered acceptable as carry-on baggage on every major airline.
• Contains a slot for a Forensic UltraDock™, WiebeTech's most versatile tool for write-blocking in the field. Forensic UltraDock features native SATA & PATA drive connections, four different host connection options (eSATA, FireWire 800, FireWire 400, and USB), and two power input options. Also contains a slot for a second dock.
• Contains slots for each of WiebeTech's v4 Combo Adapters, with a few extra slots for future expansion. When used with Forensic UltraDock these adapters add compatibility with many types of drives and media.

Black plastic hard case with handle and metal casing (no visible text or symbols)

Black-and-white photo of a medical device case with internal components and a central control panel, surrounded by electronic circuit boards (no visible text or symbols)

Forensic Field Kit J

PelicanTM 1500 case & custom foam	√ √	√ √	√
Forensic UltraDockTM v4	-	√√ √	√√
UltraDockTM v4 (read/write model)	-	√√ √	√√
Forensic Notebook DriveDockTM v4	-	√√ √	√√
Drive eRazerTM Pro SE	-	- √	√
MrToolTM (plug removal tool)	-	√ √	√
FireWire 800 cables	-	√√√√√√ √	√√√√√√
FireWire 400 cables		√√√√ √	√√√√
FireWire 800 to 400 cables	-	√√ √	√√
USB cables	-	√√√√ √	√√√√
eSATA cables	-	√√√√ √	√√√√
Protective hard drive bottom plates	-	√√√√ √	√√√√√
AC power adapters and cords	-	√√√√√√ √	√√√√√√√
v4 adapter for SATA drives	-	-	√
v4 adapter for 2.5" PATA drives	-	√ √	√
v4 adapter for 1.8" Toshiba drives	-	√ √	√
v4 adapter for 1.8" Hitachi ZIF drives	-	√ √	√
v4 adapter for various media cards	-	√ √	√
v4 adapter for 1.8" Toshiba ZIF drives	-	√ √	√
v4 adapter for Disk-on-Module drives	-	√ √	√

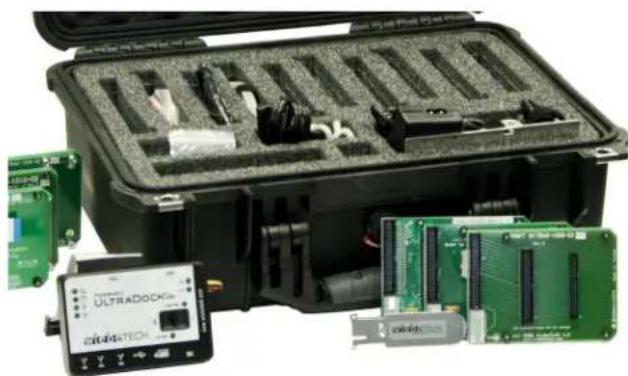

Features

• Field Kit J is WiebeTech's most comprehensive field kit, with all the tools you need to acquire data from a very wide range of drive types. No other forensic kit packs so much equipment into such a small space.
• Includes slots for up to seven docks, plus slots for all of WiebeTech's combo adapters. When used with Forensic UltraDock or Drive eRazer products, these adapters add compatibility with many types of drives and media.
• WiebeTech's only field kit with a custom lid organizer for holding all the accessories needed for the kit's various tools.
• Uses a durable Pelican 1500 case, which is designed to remain watertight up to 30ft underwater and is virtually indestructible. The custom foam is engineered to fit snuggly against your fragile equipment so that if the case is dropped or jostled the equipment will be safe.
• J-2 model includes a Drive eRazer Pro for hard drive sanitization. WiebeTech's Drive eRazer is an easy-to-use solution for erasing every bit of data from a hard drive.
• Optional black or orange Pelican case.

Black plastic hard case with visible internal components and mounting brackets (no text or symbols)

WiebeTech

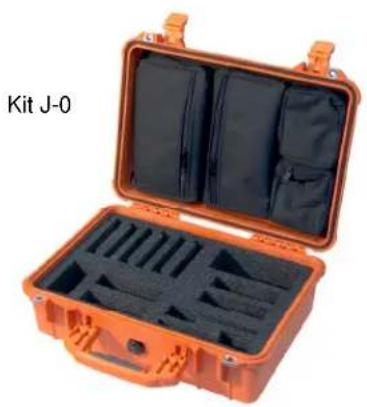

Orange plastic case with black compartments and internal compartments, labeled 'Kit J-0' (no other text or symbols visible)

Kit J-2

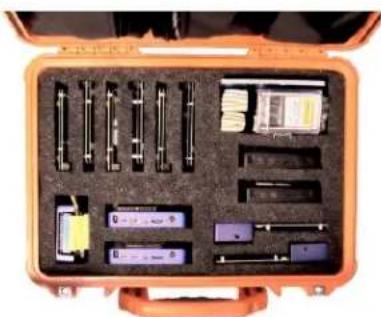

Open orange case containing various electronic components and modules (no visible text or labels)

Technical Specifications

Product name & Part #	Forensic Field Kit A-0 (31310-0000-0000)Forensic Field Kit A-3 (31310-0000-0003)Forensic Field Kit A-4 (31310-0000-0004)Forensic Field Kit B-0 (31310-0000-0005)Forensic Field Kit B-3 (31310-0000-0008)Forensic Field Kit B-4 (31310-0000-0009)Forensic Field Kit F3 (31400-2409-0008)Forensic Field Kit F4 (31400-2409-0009)Forensic Field Kit J-0 Orange (31310-0000-0045)Forensic Field Kit J-1 Orange (31310-0000-0046)Forensic Field Kit J-2 Orange (31310-0000-0047)Forensic Field Kit J-0 Black (31310-0000-0048)Forensic Field Kit J-1 Black (31310-0000-0049)Forensic Field Kit J-2 Black (31310-0000-0050)
Case Weights (empty)	Kit A-0: 5 poundsKit B-0: 7 poundsKit J-0: 11 pounds
External Dimensions	Kit A: 339mm L x 295mm W x 152mm HKit B: 406mm L x 330mm W x 174mm HKit F: 406mm L x 330mm W x 174mm HKit J: 470mm L x 357mm W x 176mm H
Warranty	Write-blockers have a 2-year limited warranty. Other products (read/write docks, adapters, accessories, case, etc.) have a 1-year limited warranty. See warranty statement for details and limitations. WiebeTech offers 90 days of free phone support (1-866-744-8722). After 90 days, email support is available [e-mail].

RTX, ComboDock, UltraDock, MrTool, and Drive eRazer are trademarks of CRU Acquisitions Group, LLC.

Pelican is a trademark of Pelican Products, Inc.

Other marks are the property of their respective owners.

© 2008, 2010 CRU Acquisitions Group, LLC. All rights reserved.

If you have any questions or problems, please contact [e-mail] for technical support. If you are interested in purchasing more WiebeTech products, check our website or contact [e-mail]. We appreciate being able to serve you!
