USER MANUAL Round Steel (450x122) JILONG

IMPORTANT SAFETY RULES

READ, UNDERSTAND, AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING AND USING THIS PRODUCT!

Round Steel Frame Pool

OWNER'S MANUAL FOR FOLLOWING SIZES:

TYPE A: -Φ12'x39"(Φ3.6m x 99 cm)
-Φ12'x48"(Φ3.6mx 1.22m)
-Φ15'x42"(Φ4.5mx 1.06m)
-Φ15'x48"(Φ4.5m x 1.22m)
-Φ18'x48"(Φ5.4mx 1.22m)

TYPE B: -Φ10'x30"(Φ3m x 76 cm)

-Φ12'x30"(Φ3.6mx76 cm)

-Φ12'x32"(Φ3.6mx80 cm)

-Φ15'x36"(Φ4.5mx90 cm)

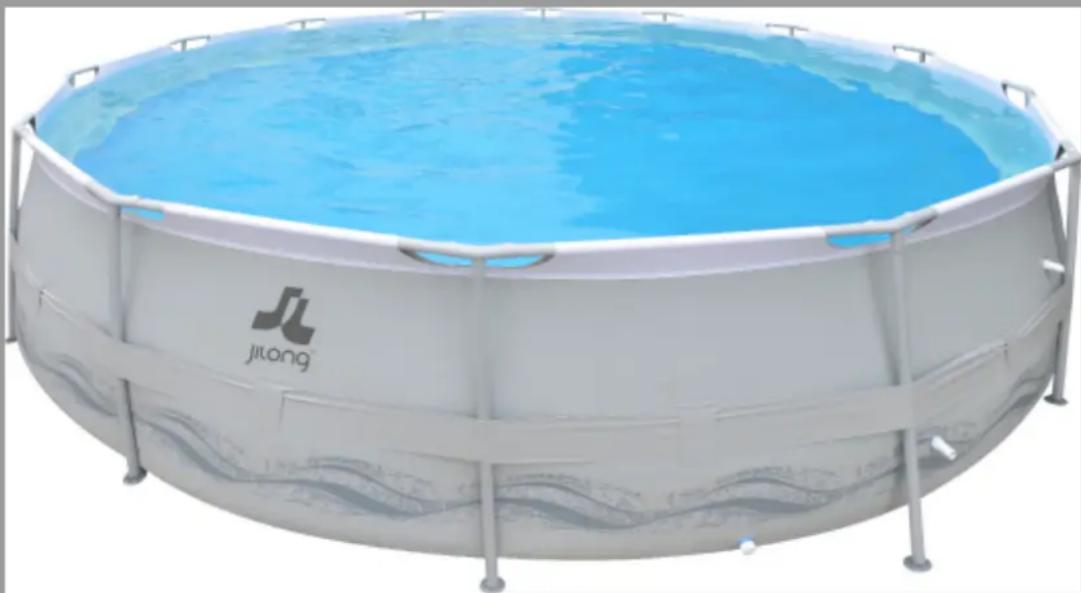

Large cylindrical water tank with blue interior and metal frame, no visible text or symbols on the tank itself.

Drawing for illustration purpose only. Actual product may vary. Not to scale.

STOP!

DO NOT RETURN PRODUCT TO STORE

FILL THE POOL WITH WATER----10

DISASSEMBLY AND STORAGE 11

IN-SEASON POOL MAINTENANCE AND WATER CARE----12

TROUBLE SHOOTING 13

LIMITED WARRANTY 14

PART1-IMPORTANT SAFETY RULES

WARNING: To enhance the enjoyment of your pool and protect the safety of those in and around the pool, ALWAYS STRICTLY OBSERVE the following safety and maintenance instructions:

1). It is the responsibility of the pool owner to identify and obey all local and state laws pertaining to above ground swimming pool safety PRIOR to set-up or use of the pool. These include, but are not limited to, laws on: decks, fences, barriers, covers, pool ladders, lighting, and required safety equipment. Please consult your local authorities to ensure compliance.
2). Do not allow unattended Children in the pool. Always make sure that at least one responsible adult is supervising all Children and those who do not know how to swim AT ALL TIMES. Never swim / bathe in the pool alone.
3). NEVER permit diving or jumping into the pool. Never enter the pool from any decks or other raised surfaces. The water level in your pool is extremely shallow and is not suitable for these activities. Failure to heed these instructions can result in serious injury or even death.
4). Do not permit Children or adults to engage in any “rough-housing” or other aggressive sports or activity in or around the pool. Failure to observe this guideline can result in serious injury for those in and around the pool area.
5). Always maintain the proper pool safety equipment in an easily accessible area adjacent to your pool. Clearly post emergency phone numbers as well as safety advisories and rules (such as "No Jumping or Diving" and "Do Not Swim Alone"). Do not allow bathers in the pool unless the area is sufficiently bright or lighted.
6). All filtrations are in agreement with the installation standard NF C 15-100 that specify that all electric appliances located within 3.50 m for the pond and with a free access should have a low voltage supply of 12V. All electrical appliance supplied with 220V must be located at least at 3.50 meter from the edge of the pond. Consult the manufacturer for any change of one or several elements to the filtration system.(For France Market)
7). the safety of your children is up to you! The risk is greatest when children are younger than 5 years old. The accidents do not only happen to others! Be ready to face it!
8). Watch and act:

PART1-IMPORTANT SAFETY RULES

• Supervision of children must be close and constant;
• Designate one responsible for security;
• Strengthen monitoring when there are multiple users in the pool;
• Teach your children to swim as soon as possible;
• Wet neck, arms and legs before entering the water;
• Learn lifesaving, especially those specific to children;
• Forbid diving or jumping in front of young children;
• Forbid running and violent games around the pool;
• Do not allow access to the pool without a shirt or bra for a child not knowing how to swim and not accompanied in the water;
• Do not leave toys near unmonitored pool;
• Keep water clear and healthy;
• Store water treatment products out of reach of children;

9). Plan:

- Phone near the pool accessible to not leave your children unattended when you call;

- Buoy and pole near the pool;

10). Moreover, some devices may contribute to security:

- Barrier whose portal will be constantly kept closed (e g a hedge cannot be regarded as a protective barrier);

- Manual or automatic cover properly positioned and secured protection;

- Electronic sensor to detect or drop in service and operational, but not a substitute for close supervision;

11). Accident:

- Remove the child from the water as quickly as possible;

- Call for help immediately and follow the advice that given to you;

- Replace wet clothes with warm blankets;

12). Store and view pool numbers of first aid:

- Fire: (18 for France);

- EMS: (15 for France);

- Poison Center.

13). Prohibit access to the pool for the deterioration or the system (s) filter;

16). Warning: Never put the empty swimming pool in the open air.

PREVENT DROWNING

WARNING

Closely watch children who are in or near this pool. Children under 5 are at highest risk for drowning.

Stay away from drains & suction fittings

WARNING

Your hair, body & jewelry can get sucked into drain. You could be held under water & drown!

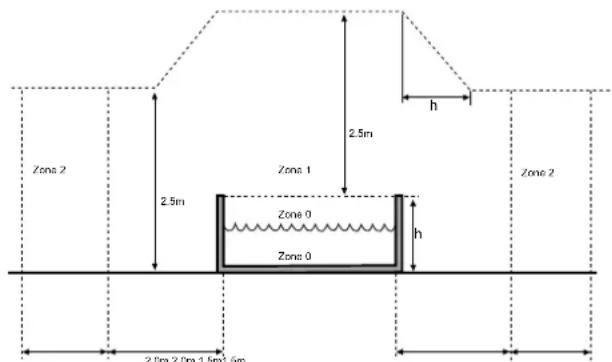

Zone 2 2.5m Zone 1 2.5m Zone 0 Zone 0 h Zone 2 2.0m 2.0m 1.5m 1.5m

NO DIVING!

WARNING

You can break your neck and be paralyzed!

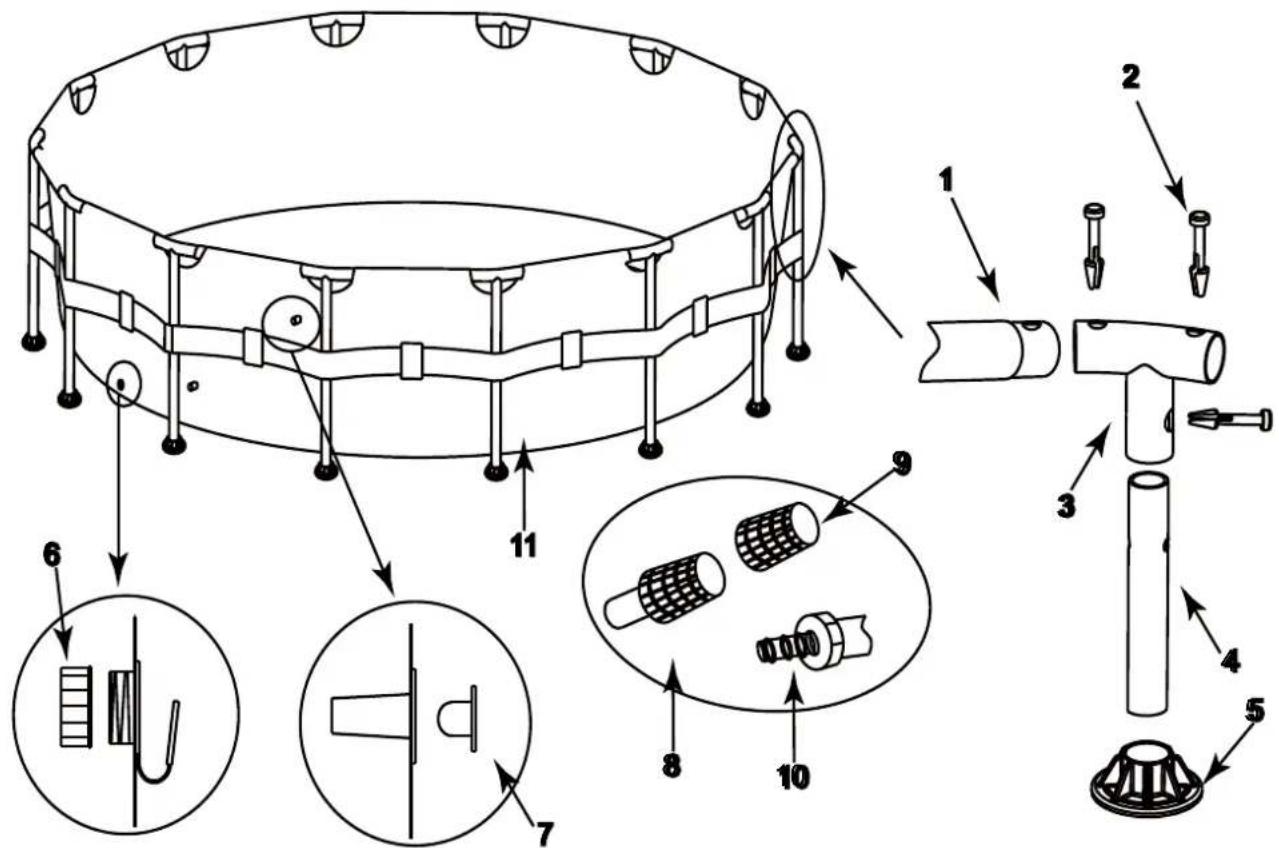

PART2-PART REFERENCE

Technical diagram of a mechanical device with numbered components and exploded views, including a drum, clamps, and a base.

TYPE A

Before assembling your pool, layout and review the contents to become familiar with all the parts you will be using during the assembly:

NOTE: Drawing for illustration purpose only. Actual product may vary. Not to scale.

	Φ12'x39"(Φ3.6m x 99 cm)			Φ12'x48"(Φ3.6m x 1.22m)				Φ15'x42"(Φ4.5m x 1.06m)
NO.	NAME QUANTITY		SERIAL NUMBER	QUANTITY	SERIAL NUMBER	QUANTITY	SERIAL NUMBER	QUANTITY	SERIAL NUMBER
1	Horizontal Beam A	10 29	0570 10	290448 10	393066	12 290574
2	PVC Pin	30 29	0181 30	290181 30	290181	36 290181
3	Joint	10 29	0572 10	290450 10	393068	12 290575
4	Vertical Leg	10 29	0571 10	290202 10	393067	12 290576
5	Vertical Leg Cap	10 29	0573 10	290186 10	393069	12 290573
6	Drainage Valve Cover	1	290366	1	290366	1	290366	1	290367
7	Stopper	2	290311	2	290311	2	290311	2	290311
8	Hole Strainer A	2	290312	2	290312	2	290312	2	290312
9	Hole Strainer B	///////	///
10	Drainage Valve Connector	1	290364	1	290364	1	290364	1	290365
11	Pool Liner	1	011467	1	011426	1	393070	1	011468
	Color	WOODEN BLUE		GREY		WOODEN

PART2-PART REFERENCE

Technical diagram of a mechanical device with numbered components and exploded views, including a drum, clamps, and a base.

TYPE A

Before assembling your pool, layout and review the contents to become familiar with all the parts you will be using during the assembly:

NOTE: Drawing for illustration purpose only. Actual product may vary. Not to scale.

	Φ15'x48"(Φ4.5m x 1.22m)			Φ18'x48"(Φ5.4m x 1.22 m)
NO.	NAME QUANTITY	TITY	SERIAL NUMBER	QUANTITY	SERIAL NUMBER	QUANTITY	SERIAL NUMBER	QUANTITY	SERIAL NUMBER
1	Horizontal Beam A	12	290577	14	290201	14	290581	14	393076
2	PVC Pin	36	290181	42	290181	42	290181	42	290181
3	Joint	12	290586	14	290184	14	290583	14	393077
4	Vertical Leg	12	290202	14	290202	14	290582	14	393067
5	Vertical Leg Cap	12	290186	14	290186	14	290573	14	393069
6	Drainage Valve Cover	1	290367	1	290367	1	290367	1	290367
7	Stopper	///////	///
8	Hole Strainer A	////////	///
9	Hole Strainer B	2	290368	2	290368	2	290368	2	290368
10	Drainage Valve Connector	1	290365	1	290365	1	290365	1	290365
11	Pool Liner	1	011469	1	011222	1	011471	1	393078
	Color	BLUE		BLUE		GREY		GREY

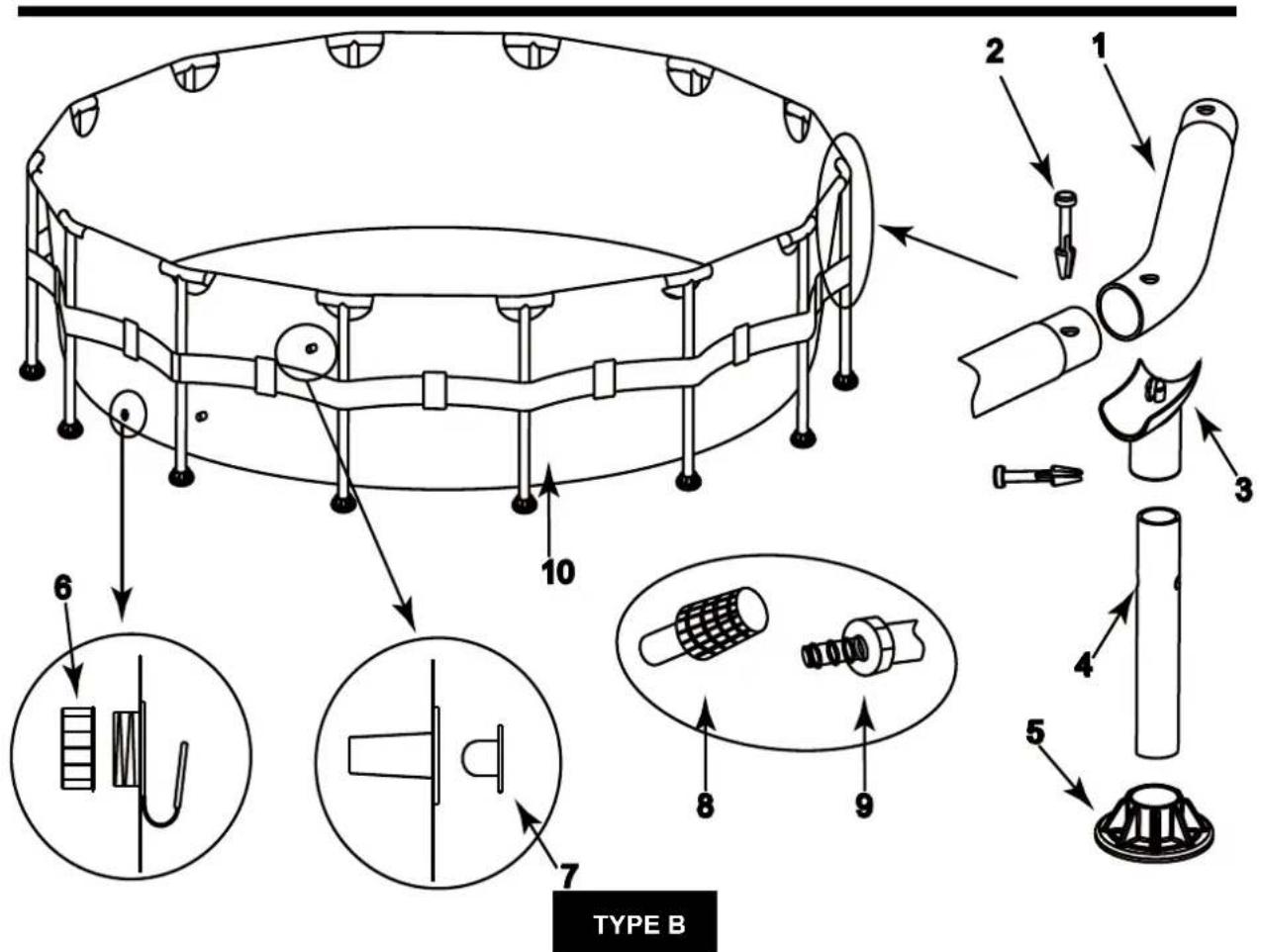

PART2-PART REFERENCE

TYPE B

Before assembling your pool, layout and review the contents to become familiar with all the parts you will be using during the assembly:

NOTE: Drawing for illustration purpose only. Actual product may vary. Not to scale.

	Φ10'x30"(Φ3m x 76 cm)			Φ10'x30"(Φ3m x 76 cm)		Φ15'x36"(Φ4.5m x 90 cm)
NO.	NAME	QUANTITY	SERIAL NUMBER	QUANTITY	SERIAL NUMBER	QUANTITY	SERIAL NUMBER
1	Horizontal Beam A	8 290187	8 393001	12 290199
2	PVC Pin	8 290181	8 290181	12 290181
3	Joint	8 290317	8 393002	12 290183
4	Vertical Leg	8 290188	8 393003	12 290200
5	Vertical Leg Cap	8 290185	8 393006	12 290186
6	Drainage Valve Cover	1 290366	1 290366	1 290367
7	Stopper	2	290311	2	290311	2	290311
8	Hole Strainer	2 290312	2 290312	2 290312
9	Drainage Valve Connector	1 290364	1 290364	1 290365
10	Pool Liner	1 011219	1 393004	1 011221
	Color	BLUE		WOODEN		BLUE

PART2-PART REFERENCE

TYPE B

Before assembling your pool, layout and review the contents to become familiar with all the parts you will be using during the assembly:

NOTE: Drawing for illustration purpose only. Actual product may vary. Not to scale.

	Φ12'x30"(Φ3.6m x 76 cm)					Φ12'x30"(Φ3.6m x 76 cm)			Φ12'x32"(Φ3.6m x 80 cm)
NO.	NAME	QUANTITY		SERIALNUMBER		QUANTITY		SERIALNUMBER	QUANTITY	SERIALNUMBER
1	HorizontalBeam A	10	290	197	10	393	071	10	290	197
2	PVC Pin	10	290	181	10	290	181	10	290	181
3	Joint	10	290	318	10	393	072	10	290	318
4	Vertical Leg	10	290	188	10	393	073	10	290	198
5	Vertical LegCap	10	290	185	10	393	074	10	290	185
6	DrainageValve Cover	1	29036	6	1	290366	1	290366
7	Stopper	2	29031	1	2	290311	2	290311
8	Hole Strainer	2	29031	2	2	290312	2	290312
9	DrainageValveConnector	1	29036	4	1	290364	1	290364
10	Pool Liner	1	01142	7	1	393075	1	011220
	Color BLUE				GREY			BLUE

PART3-SITE SELECTION

WARNING: Pools installed on inadequately level surfaces are subject to leaking, forming irregularities, or collapse, which can result in property damage or serious injury for those in or around the pool area!

WARNING: Do not use sand during setup process. If it appears that there is a need for use of a “leveling agent”, then your set-up site is likely unsuitable. FAILURE TO OBEY THIS WARNING MAY RESULT IN SERIOUS PERSONAL INJURY.

CAUTION: Please choose your set-up area carefully, as lawn and other desirable vegetation underneath the ground cloth(If applicable) will die. Furthermore, try to avoid setting the ground cloth(If applicable)in areas prone to aggressive plant and weed species, as they may grow through the ground cloth(If applicable).

CAUTION: The pool must be accessible to a 110 or 230-volt AC outlet protected by a Ground Fault Circuit Interrupter (GFCI). The pool should be set no closer than 10 ft. to the power source, but no further than the length of the filter pump cord. Under no circumstances should an extension cord be used to extend the range of the connection.

It is absolutely essential to select a suitable site for your pool BEFORE attempting to fill it with any water. Please select a set-up site which strictly conforms to the following guidelines:

Guide1. Ensure that the area is firm, flat (no bumps or mounds of earth) and extremely level, with a grade not exceeding 3^ of slope at any point in the set-up area.

Guide2. Make sure that the area you have selected to set-up the pool is completely free of sticks, stones, sharp objects or other foreign debris.

Guide3. Select an area that is not directly underneath overhead power lines or trees. Additionally, make sure that the pool set-up area does not contain underground utility pipes, lines, or cables or any kind.

Guide4. If a ground cloth is provided with your pool kit, its use is highly recommended. The ground cloth will help protect the pool liner from damage due to weed growth, sharp objects, and debris.

Guide5. If at all possible, choose an open location on your property that is exposed to direct sunlight. This will help to warm your pool.

Flat,Level Ground-CORRECT

Bumpy, Sloping Ground-INCORRECT

Simple line drawing of a container with vertical bars and grass at the base (no text or symbols)

Simple line drawing of a grassy container with vertical supports and a +3° angle indicator (no text or symbols)

IMPORTANT: Do not start assembly if any pieces are missing. For replacement pieces call the Consumer Service telephone number in your area.

The number of persons required for installation: 2 adult at least.

Total installation time except the time for site preparation and water filling :

30 minutes for size 10' × 30'' / 12' × 30'' / 12' × 32'' / 12' × 39'' / 12' × 48''

60 minutes for size 15' × 36'' / 15' × 42'' / 15' × 48'' / 18' × 48''

Step1. ACCOUNT FOR ALL PARTS.

Remove all the parts from the carton(s) and place them on the ground in the location where they are to be assembled. Check each part according to "PART REFERENCE". Make sure all the pieces to be assembled are accounted for.

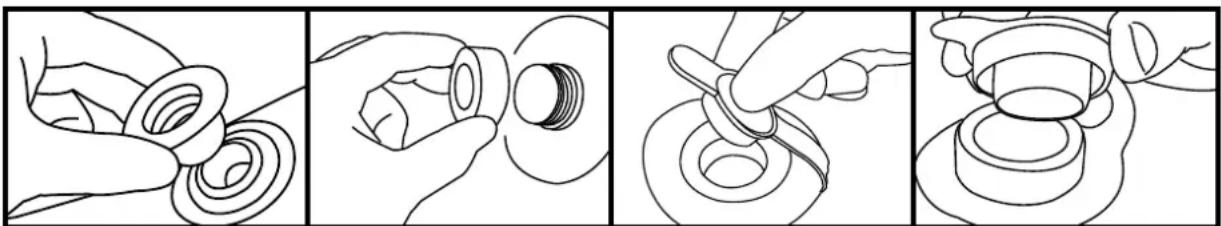

Step2. INSTALL DRAIN VALVES COVER AND STOPPER

Make sure that outer drain plug is inserted into the outer drain cap and drain valve cover is screwed on tightly. Plug the connection holes with the stoppers. (The out drain plug changes according to different size of pool.)

Four-panel line drawing showing hands holding circular components, with no text or symbols present.

STOPPER Out Drain Plug A Out Drain Plug BDrain Vavle Cover

Step3. INSTALL HORIZONTAL BEAM

BEAM A

BEAM A

For all kinds of pool, the combination is A-A.

Slide combined beams into sleeve, the hole on the beams should face outwards.

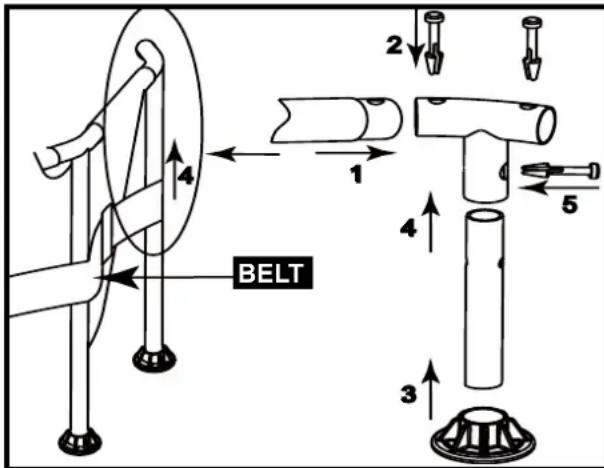

Step4. INSTALL T-JOINT(FOR TYPE A)

BELT 1 2 3 4 5

1. Use the connection end of the T-Joint to connect the adjacent horizontal tubes.
2. Insert the Pin into the hole of connected horizontal tube and T-Joint firmly.
3. Install the vertical leg cap onto the vertical leg.
4. Insert the vertical leg into the T-Joint through the belt.
5. Insert the pin into the hole of T-Joint and Vertical Leg.

TIP: If you can't find the hole on the horizontal tube or vertical leg please rotate the tubes until the pin meets the hole.

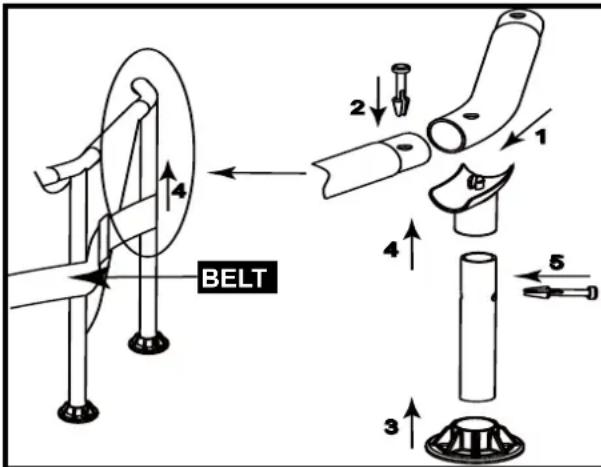

Step5. INSTALL T-JOINT(FOR TYPE B)

BELT 1 2 3 4 5

1. Use the connection end of the T-Joint to connect the adjacent horizontal tubes.
2. Insert the Pin into the hole of connected horizontal tube and T-Joint firmly.
3. Install the vertical leg cap onto the vertical leg.
4. Insert the vertical leg into the T-Joint through the belt.
5. Insert the pin into the hole of T-Joint and Vertical Leg.

TIP: If you can't find the hole on the horizontal tube or vertical leg please rotate the tubes until the pin meets the hole.

PART5-FILL THE POOL WITH WATER

WARNING: Do not leave pool unattended while filling with water.

WARNING: If more than 1\~2 inches of water collects on any one side before you start filling in the center. The pool is not level enough, and must be corrected! You shall pull out the drain plug, release the water completely, disassemble the pool completely, locate the pool on a plane surface, repeat set up instruction.

WARNING: DO NOT OVERFILL as this could cause the pool to collapse. In times of heavy rainfall you may need to empty some of the water to ensure the level is correct.

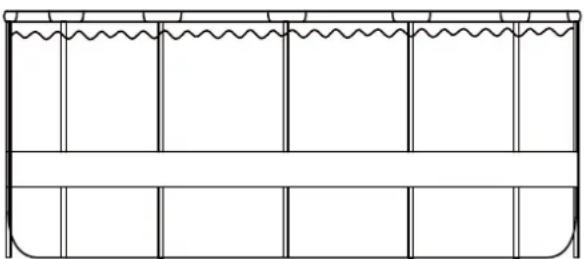

Pure technical line drawing of a structural frame with wavy top and horizontal bars (no text or symbols)

1. Make sure the drain fitting is plugged securely and the cap is in place. Start filling the pool with water. After about 1-inch of water is on the bottom, stop filling and smooth wrinkles out of the bottom of the pool. Pull the outer wall out from the top edge, all around the bottom of the pool, so that it fills evenly.
2. Continueue filling the pool until water level.

PART6-DISASSEMBLY AND STORAGE

WARNING: Do not let your children stand at downfold and face the water outlet during the drainage. The water current may sweep your children.

WARNING: Pool should be stored at places where is cool and dry, with no sharp object surroued, or no heavy objects lying above, which may cause damage to the pool.

Step1. If you have a filter pump, make sure that the electricity source to the filter pump has been disconnected.

Step2. Check to ensure that the out drain plug is firmly inserted on the inside of the pool.

Step3. Attach your garden hose to the drainage valve connector, and placing the other end of the hose in an area where the water can drain safely, such as a storm drain or street gutter. Remember that because water always finds its own level, the end of the hose must be lower in elevation than the pool to ensure complete drainage.

Step4. If you have a filter pump, insert the stopper into the inlet and outlet fixtures, on inside of pool, and then disconnect the filter pump hoses.

Step5. Attach the drainage valve connector to the drain outlet by turning connector in a clockwise direction.

Step6. Open the out drain plug on the inside of the pool and the water will begin to drain immediately.

Step7. Disconnect the hose and drainage valve connector when finished.

Step8. Replace the out drain plug on the inside of the pool.

Step9. Be sure that the pool liner is completely dry before folding the pool for long-term storage. Leaving the pool exposed to sunlight for a few hours will clean and speed the drying process and make it easier to fold the pool for storage. (Never attempt to fold or stow a pool that is not completely dry as this could lead to a proliferation of mold or mildew build-up during the time the pool is in storage.)

Step10. Remember, proper off-season storage is critical to protect your investment in your pool. (especially in winter) Once drained and dry, your pool should be carefully folded and wrapped in a ground cloth (if available) or other similar protective tarp-like material. The pool and all applicable accessories such as the pump, cover, ground cloth, ladder, hoses, clamps, and hardware should be kept together and stored indoors, in a reasonably warm, dry and weatherproof location.

FOLDING INSTRUCTION

Before folding, it's better to dry all parts and pool completely by lying them in the sun for one hour or so.(PIC.1). And then, spread some talcum powder to prevent the vinyl from sticking together.

Step1. Please fold the protrusion sides inside to gain rectangle shape.(PIC.2).

Step2. Fold each half of the rectangle to gain a smaller rectangle shape.(PIC.3).

Step3. Fold each ends backwards. (PIC.4).

Step4. Fold the rest ends together to create an ultimate rectangle one.(PIC.5).

TIPS1. Please remove air inside to make the folded pool thin and flat during each folding.

TIPS2. The original packing can be used for storage.

Simple line drawing of a fruit or vegetable with layered sections (no text or symbols)

Simple line drawing of a symmetrical geometric shape with no text or symbols

Simple line drawing of a folded paper or sheet with vertical lines and a horizontal line (no text or symbols)

Simple line drawing of a folded skirt or pleated fabric (no text or symbols)

PIC.1 PIC.3 PIC.4PIC.2

Simple line drawing of a folded paper or sheet (no text or symbols)

PIC.5

PART7-IN-SEASON POOL MAINTENANCE AND WATER CARE

WARNING: If applicable, the filter pump included with your pool is designed to remove dirt and other small particles from your pool water. However, to maintain pool water that is perfectly clear, algae free, and safe from harmful bacteria, it is VERY IMPORTANT TO ENGAGE IN A CONSISTENT REGIMEN OF CHEMICAL TREATMENT. Contact your local pool supply retailer for guidance on the safe and effective use of chlorine, shock, algaecide and other such chemicals.

WARNING: To avoid skin and eye irritation or even injury to bathers, never add chemicals to the pool while it is occupied. Never add any chemicals or substances to your pool if you cannot verify the exact quantity or type to add to the water. Consult a pool supply retailer for specific instructions and guidelines concerning the use of chemicals in your pool.

WARNING: It is highly recommended that pool owners frequently test their pool water to ensure that the pH and chlorine concentration in the water is optimal for safe and enjoyable bathing throughout the season. Please consult your pool supply retailer to find a suitable testing kit and instructions on its use.

WARNING: Non-respect of the maintenance rules may result in serious hazards for health and especially for the children.

This product is designed to be storable, seasonal pools. If you live in a temperate area in which the pool will not be in use year-round, it is STRONGLY RECOMMENDED that you drain your pool, clean and dry it thoroughly, and store it in a protected area for the off-season. This will help extend the life of your pool and prevent a safety hazard from developing while the pool is not in use. During the season of use of the pool kit, the filtration system (if applicable) must be put into service each day, long enough to ensure at least a complete renewal of the volum of water.

In order to keep your pool water clean and hygienic all season long please closely adheres to the following guidelines:

1. The proper and consistent use of basic pool chemicals are required to maintain the proper pH balance in your pool water. Furthermore, the application of chemicals will help prevent the growth of harmful bacteria or algae in your pool, and assist your filter-pump in keeping your water crystal clear. Chemicals that your pool may require include but are not limited to:

1) Tabular, Granular, or Liquid Chlorine: Disinfects pool water and inhibits algae growth.

2) PH Adjusting Chemicals: These are used to correct PH level and make water more or less acidic.

3) Algaecides: These chemicals are formulated to remove algae.

4) "Shock" (Super chlorinator): Eliminates certain organic and other combination compounds that can affect water clarity. In order to obtain specific details on the use of chemicals, please consult a local pool supply retailer and provide them with the volume of water in your specific pool, and if desired, a sample of your pool water. This will enable them to properly instruct you on: 1) which chemicals to purchase, 2) what quantities of chemicals to purchase, and 3) how to use specific chemicals safely and effectively.

1. Never let chlorine come into direct contact with the pool liner until it has completely dissolved. This means that granular or tabulated chlorine is first dissolved in a bucket of water before applying to pool water, and likewise, liquid chlorine is slowly and evenly poured into pool water from various locations around perimeter of pool.

DANGER: NEVER add water to chemicals. INSTEAD, always add chemicals to water. Also, never mix separate chemicals together, rather, add chemicals to the pool separately and allow them to circulate throughout the pool before adding additional types of chemicals.

1. We recommend that you purchase a test kit, and frequently test your pool water to make sure that your PH balance and chlorine levels are optimal. Your local pool supply retailer can provide information on purchasing and using a test kit that is most suitable for your needs. NOTE: Excessive chlorine levels or low (acidic) pH levels can damage your pool liner, so please take corrective action as soon as possible if testing reveals either condition.

The tasks of removing larger debris from your pool and keeping the inside of the pool liner clean are simplified by using a Prompt Set Pool Maintenance Kit, which includes a leaf skimmer and garden hose powered vacuum. Maintenance Kits are included as a bonus feature in larger pool systems, and can also be purchased separately as an accessory. Please contact

PART7-IN-SEASON POOL MAINTENANCE AND WATER CARE

your local after sale service center if you want to get advice on any repair during the life of the pool kit.

1. If applicable, check your filter-pump cartridge every two weeks (or more frequently during periods of heavy usage) to verify whether it needs to be cleaned or replaced. If your cartridge is no longer white in color, attempt to spray it clean with a strong blast of water from your garden hose. If your cartridge cannot be cleaned in this manner, the cartridge must be replaced. Failure to frequently clean and/or replace your cartridges will affect the effectiveness of your filter pump and could shorten its useful life.
2. If your pool system included a cover, try to keep your pool covered at all times when not in use. This will help keep the wind and other elements from depositing dirt and debris in your pool, and will also prevent excess rainwater from overfilling your pool.
3. Remind your family and friends to always hose or rinse off any dirt or tanning oil from their hands, feet, and body prior to entering the pool.
4. It's necessary to monitor the bolts and hardware of the pool (eg. rust stain) when possible.
5. Once your pool has been filled with water for the season, take note if your pool becomes overfilled due to rainwater or accidental overfill. If this should occur, it is important to drain or bale out the excess water as soon as possible. If it is an inflatable ring pool, the water level should never be higher than the bottom edge of the inflatable ring.

PART8-TROUBLE SHOOTING

PROBLEM	DESCRIPTION CAUSE REMEDY
FILLEDPOOLIS NOTROUND	·Pool has taken on an oval, rectangular or “egg-like” shape.·Pool appears to slope to one side or pool water depth is uneven.	·Wrinkles in bottom of liner were not adequately smoothed out prior to filling.·Side walls were not properly “pushed out” as pool was filled, causing circumference of top ring to be outside that of the pool's side walls.·Pool is resting on bumpy or sloping ground.	·Drain pool to a 1” water depth and then smooth out as many wrinkles as possible.·Drain pool to a 1” water depth and then push out side walls until they are outside of the circumference of the top ring.·Make sure ground underneath pool is very flat, level and free of any mounds of soil.
COLOREDWATER	·Water turns blue, brown, or black when first treated with chlorine.	·The chlorine is oxidizing minerals in your water. This commonly occurs with water from different sources.	·Adjust pH to recommended level.·Run filter until water is clear.·Regularly clean cartridge.
PARTICALSSUSPENDEDIN WATER	·Water looks “milky” or cloudy.	·“Hard Water” caused by an elevated pH.·Chlorination is inadequate.·Foreign debris in water.·Bathers are not cleaning their feet prior to entering pool.	·Adjust pH. Check with a swimming pool supply retailer for correct water treatment.·Ensure proper chlorine level.·Clean or replace your filter.·Spray off dirt with a high-pressure hose before entry.
PERSISTENTLOW WATERLEVEL	·Pool appears to be losing water on a daily basis.	·Tear or hole in pool liner.·Tear or hole in a filter pump hose.·Hose clamps are too loose.·Evaporation from high summer temperatures.	·Locate damage and repair with the included patch kit.·Repair or replace hoses.·Tighten all hose clamps.·Keep pool covered when not in use.
ALGAE	·Water has greenish tint.·Green, brown or black spots appear on pool liner.·Pool bottom is slippery and/or an unpleasant odor is present.	·Algae is present.	·Apply “shock” treatment (super-chlorinator). Check pH and adjust to an appropriate level per your local pool supply retailer.·Vacuum or lightly scrub pool liner.·Test water often to maintain proper chlorine levels.
POOLWATERIS COOL	·Water is not warming to a comfortable swimming temperature.	·Pool was set up in an excessively shady or tree lined area.·Heat is escaping from pool water.	·Relocate pool to a more open location where it can get maximum exposure to sunlight during peak daylight hours.·Keep your pool covered whenever it is not in use.

PART9-LIMITED WARRANTY

We warrant all components contained in this Prompt Set™ Pool/SPA Pool (excluding the filter pump unit) against defects in materials and workmanship under normal use and service, for a period of 90 days from the date of purchase for the original owner only.

If any of the components have been consumer-replaced, damaged, or misused, the corresponding warranty on those components is invalidated. In this situation, you will be advised of the cost of replacement parts and processing instructions.

If a verifiable manufacturing defect is found during the relevant time period, we agree to repair or replace at its option any product under warranty provided proper proof of purchase is presented.

This limited warranty is not valid if the product is used for commercial purposes, or if the damage is caused by an accident, an act of God, consumer misuse, neglect or abuse, vandalism, improper use of chemicals, exposure to extreme weather conditions or negligence during product set up or disassembly.

We cannot be held responsible for the cost of installation, labor, or transportation expenses incurred due to the replacement of defective parts. This limited warranty, furthermore, does not cover any unauthorized alterations to the product.

Model	apacity Pump Ladder
JL016026NG/NN/ND/NF/NC	10' × 30''( 3m × 76cm) 11	58Gal(4383L)
JL016026N	10' × 30''( 3m × 76cm) 11	58Gal(4383L) × x
JL017452NG/NN/ND/NF/NC	10' × 30''( 3m × 76cm) 11	58Gal(4383L)
JL016027NG/NN/ND/NE/NF	12' × 32''( 3.6m × 80 cm) 20	56Gal(7783L)
JL016027N	12' × 32''( 3.6m × 80 cm) 20	56Gal(7783L) × x
JL010135NG/NN/ND/NE/NF/NC/E	15' × 36''( 4.5m × 90 cm) 32	12Gal(12157L)
JL010135N	15' × 36''( 4.5m × 90 cm) 32	12Gal(12157L) × x
JL017236NG/NN/ND/NF/NC	12' × 30''( 3.6m × 76 cm)	1617Gal(6125L)
JL017236N	12' × 30''( 3.6m × 76 cm)	1617Gal(6125L) × x
JL017499NG/NF/NN/ND/NC	12' × 30''( 3.6m × 76 cm)	1617Gal(6125L)
JL017499N	12' × 30''( 3.6m × 76 cm)	1617Gal(6125L) × x
JL017261NG/NN/ND/NF/NC	12' × 39''( 3.6m × 99 cm)	1991Gal(7526L)
JL017261N	12' × 39''( 3.6m × 99 cm)	1991Gal(7526L) × x
JL017261-1NG/NN/ND/NF/NC	12' × 39''( 3.6m × 99 cm)	1991Gal(7526L)
JL011261NG/NN/ND/NF	12' × 48''( 3.6m × 1.22m)	3168Gal(11992L)
JL011261N	12' × 48''( 3.6m × 1.22m)	3168Gal(11992L) × x
JL017498NG/NN/ND/NF	12' × 48''( 3.6m × 1.22m)	3168Gal(11992L)
JL017498N	12' × 48''( 3.6m × 1.22m)	3168Gal(11992L) × x
JL017262NG/NN/ND/NF/NC	15' × 42''( 4.5m × 1.06m)	3636Gal(13745L)
JL017262N	15' × 42''( 4.5m × 1.06m)	3636Gal(13745L) × x
JL017262-1NG/NN/ND/NF/NC	15' × 42''( 4.5m × 1.06m)	3636Gal(13745L)
JL017263NG/NN/ND/NF/NC	15' × 48''( 4.5m × 1.22m)	4030Gal(15233L)
JL017263N	15' × 48''( 4.5m × 1.22m)	4030Gal(15233L) × x
JL017271NG/NN/ND/NF/NC	18' × 48''( 5.4m × 1.22m)	6031Gal(22827L)
JL017271N	18' × 48''( 5.4m × 1.22m)	6031Gal(22827L) × x
JL017271-1NG/NF	18' × 48''( 5.4m × 1.22m)	6031Gal(22827L)
JL016093NG/NN/ND/NF/NC	18' × 48''( 5.4m × 1.22m)	6031Gal(22827L)
JL017500NG/NN/ND/NF/NC	18' × 48''( 5.4m × 1.22m)	6031Gal(22827L)
JL017500N	18' × 48''( 5.4m × 1.22m)	6031Gal(22827L) × x
