USER MANUAL PSI27600 Profilo

steam iron ProFiLO OptiMaxx 2700 W®

KULLANIM KILAVUZU

BUHARLI ÜTÜ

3-7

USER MANUAL

STEAM IRON

8-12

A 3 11 9 5 4 12 2 7 8 6 3 2 1 PROFLO OptiMaxx 2700 W1 10 13 14

B ①2 3

Three-step sequence showing hand press application on a device, with numbered steps and directional arrows indicating process flow.

TR

Congratulations on your choice of our appliance, and welcome among the users of PROFiLO products.

In order to achieve best possible results we recommend using exclusively original PROFiLO accessories. They have been specially designed for this product.

We urge that you read this user's manual carefully. Special attention needs to be paid to the safety precautions. Please save this manual so it can be referred to in the future use of the product.

Important safety and proper handling instructions

Always keep these basic safety instruction during ironing:

DANGER! / WARNING! Health hazard

- The iron must be used and rested on a stable surface.

- The plug must be removed from the socket-outlet before the water reservoir is filled with water.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The filling aperture must not be opened during use.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

• The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
  • Empty the tank after each usage.
• If any part of the iron is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid a hazard.
• It can be refurbished by qualified staff only. Improper refurbishment can cause serious hazard for the user. In case of any defects, please contact service desk.
• Do not use the appliance when it is damaged or performs abnormally.
• Do not touch the iron rest during or just after ironing. It is hot!

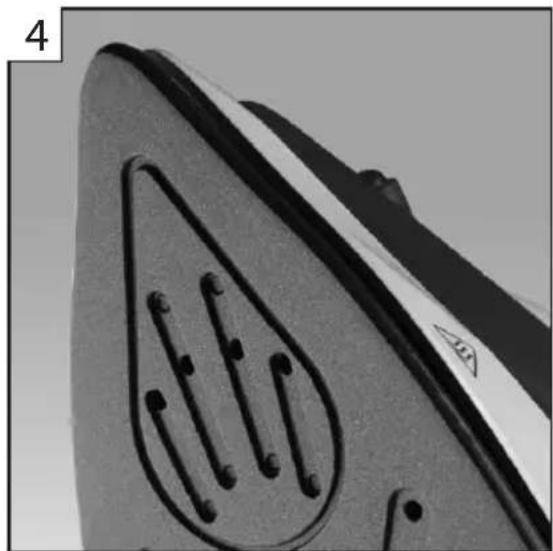

  • Do not touch the surfaces marked

with symbol △ during or just after ironing. It is hot (Please refer to the following figure 1 and figure 2).

Caution: Hot surface! Figure 1: Right side Figure 2: Left side

• The appliance generates high temperature. Use it carefully and warn other users against possible hazard.
• Keep special care when ironing in presence of children. Do not allow to touch the iron during ironing.

- Do not allow children to perform cleaning and user maintenance when they are without supervision.

- Never iron and clothes or fabrics that are being worn by human or pets.

• Never direct the steam to human or pets.
• The iron must not be left unattended while it is connected to the supply mains.

CAUTION!

Not observance can result in damage to possessions

• Remove any protective films or stickers from the sole plate and the cabinet.
• Unwind and straighten the power cord before usage.
• Fill the water using included vessel for water.
• Keep the power cord away from the soleplate.
• Make sure that the voltage on the rating plate corresponds to that of your power grid.
  ● Always connect the iron to a suitable mains supply outletm (AC only), with grounding, which voltage complies with the voltage indicated on the appliance nameplate.
• Do not use an extension power cord set without grounding!
• Do not add perfume, vinegar or other chemical liquids into the water tank; they can damage the appliance seriously.
• Do not immerse the appliance in water or any other liquid.
• Do not wrap the power cord around the unit for storage until it has cooled down completely.
• Do not attempt to open the cabinet or dismantle any parts from the appliance.
  The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• If you do not use the iron, even for short time, switch it off, turning Temperature Dial in anti-clockwise direction to "MIN".
• If you are not going to use the iron even for a short period of time, turn off the steam function by setting the steam control to position.
  Use "SELF CLEANING" function at least once a month.

SUGGESTION

Information on the product and suggestions for its use

- The iron is intended for domestic usage only and you can use it solely according to herewith manual.

Hints for ironing

① Sort out the articles to be ironed according to the type of fabric. This will minimize the frequency of temperature adjustment for different garments.
② Test ironing a small area on the backside or inside the garment if you are unsure about the type of fabric. Start with a low temperature and increase gradually.
③ Wait for about three minutes before ironing heat sensitive fabrics. Temperature adjustment needs certain time to reach the required level no matter it is higher or lower.
④ Delicate fabrics such as silk, wool, velour, etc. are best ironed with an ironing cloth to prevent shine marks.
⑤ You may need a few times of press to activate the spray, burst and vertically burst function.
⑥ Read the garment labels and follow the manufacturer's ironing instructions which are often shown by symbols similar to the following:

Temperature settings
	AcetateElastics	PolyamidePolypropylen
	PolyesterSilkTriacetate	ViscoseWool
	CottonLinen

Technical data

The iron technical parameters are included at the name plate.

PSI21600, PSI23600: 220-240V V, Power: 2000 W ÷ 2400 W. Water tank nominal capacity: 300 ml.

PSI27600: 220-240V, Power: 2300 W ÷ 2700 W. Water tank nominal capacity: 300 ml.

Sole plate – ceramic.

The iron is I class appliance, equipped with supplying cord and plug with grounding.

PROFiLO iron meets the requirements of effective standards.

This device complies with Commission Regulation (EC) no. 1275/2008 on eco-design requirements.

The appliance meets the requirements of the following directives:

- Electrical equipment designed for use within specific voltage limits (LVD) – 2006/95/EC.

– Electro-Magnetic Compatibility (EMC) – 2004/108/EC.

The product is marked with C€ symbol on the name plate.

Features

① Spray Nozzle
2 Water Tank Cover
3 Steam Control
4 Spray Button
5 Steam Burst Button
6 Auto-Off Light (for iron model PSI23600, PSI27600)
7 Bend Protector
8 Power Cord
9 Heater Light
10 Water tank
11 Temperature Dial
12 Self-Clean Button
13 Soleplate
14 Water Cup

Before first use

① Unwind and straighten the Power Cord.
② Fill the tank with water. See the "FILLING THE IRON WATER" section.
③ Plug in the unit.

First use

① Proceed as described in the "Before first use" section.
② Turn the Temperature Dial clockwise to “●●●”.
③ The Heater Light will come on.

The light will go off once the required temperature is reached.

④ Set the Steam Control to position.
⑤ Place the iron in horizontal position or press the steam burst button. Steam will come out of the holes in the soleplate.

The iron is ready for use.

⑥ Begin first time ironing with an old towel.

iThe iron will stop steaming once the water tank is empty.

Ironing

Always follow the ironing instructions on garment's care label.

FILLING THE IRON WITH WATER

Unplug the unit.

① Set the Steam Control to 🔒 position and lift the Water Tank Cover.
② Using the supplied water cup, fill the tank with water below the "max" level.

For best ironing results, it is recommended to use fresh demineralised or distilled water.

Do not use chemically descaled water or any other liquids.

Never exceed the side of the water tank.

③ Close the Water Tank Cover.

DRY IRONING

① Unwind and straighten the Power Cord.
② Plug in the unit.
③ Set the Steam Control to position.
④ Turn the Temperature Dial to “●”, “●●” or “●●●”.
⑤ The Heater Light will come on.

iThe light will go off once the required temperature is reached.

The iron is ready for use.

STEAM IRONING

① Proceed as described in the "Before first use" section.
② Turn the Temperature Dial to “●●” or “●●●”.

For optimum steam quality, do not set the Temperature Dial to “•” position for steam ironing.

iThe light will go off once the required temperature is reached.

③ The Heater Light will come on.

The iron is ready for use.

④ Use the Steam Control to set the required amount of steam.

SPRAYING

This function can be used any time without affecting any other settings.

① Fill the water tank. See the "FILLING THE IRON WITH WATER" section.
② Aim the nozzle at the garment.
③ Press the Spray Button.

the iIt may be necessary to press the spray button a few times to start spraying.

STEAM BURST

This function ensures extra amount of steam to remove stubborn wrinkles (creases) from the ironed fabrics.

① Proceed as described in "Before first use" section.
② Turn the Temperature Dial to “●●” or “●●●”.
③ The Heater Light will come on.

The light will go off once the required temperature is reached.

The iron is ready for use.

④ Press the Steam Burst Button – steam will burst from the holes of the soleplate.

⑤ For stubborn wrinkles, wait a few seconds and press Steam Burst button again.

Most wrinkles can be removed within presses.

It may be necessary to press the Steam Burst Button a few times to engage this function.

For optimum steam quality, do not p Steam Burst Button more than three times after the heater light goes off.

STEAM BURST IN VERTICAL POSITION

This function provides extra amount of steam for removing creases from delicate fabrics in hanging position (hanging curtains or other hanging fabrics).

The steam generated by the iron has high temperature. Never use the appliance for ironing clothes or fabrics while they are being worn by people or pets. Never aim the steam at people or pets.

① Proceed as described in the "Before First Use" section.

② Turn the Temperature Dial to “●●●”.

③ The Heater Light will come on.

iThe light will go off once the required temperature is reached.

The iron is ready for use.

④ Hold the iron between 15 and 30 centimetres away from the garment.

⑤ Press the Steam Burst Button - steam will shoot from the holes of the soleplate.

⑥ For Stubborn wrinkles, wait a few seconds before pressing the Steam Burst Button again.

Do not press the steam burst button when the light is on. Additional steam can be generated only when the light goes out.

Most wrinkles can be removed within presses.

It may be necessary to press the Steam Burst Button several times to start this function.

For optimum steam quality, do not Steam Burst Button more than three times in a row.

When ironing delicate fabrics (synthetics, silk, velvet etc.), keep the iron a few away from the garment to prevent damage.

centime

ENDING THE IRONING

① Turn the Temperature Dial counter-clockwise to "MIN" position. The will turn off.

② Set the steam control to position.

three Unplug the unit.

④ Empty the water tank. See "Emptying The Water Tank".

⑤ When the iron has cooled completely, store it vertically in a safe place.

Emptying The Water Tank

Set the Steam Control to position.

Unplug the unit.

① Hold the iron upside down and shake it gently to remove the remaining water.

② When the soleplate is still hot, press the Steam Burst Button to drain the water tank.

Press the Spray Button to release any remaining water. Before storing the iron, make sure the Steam Control is set to position.

Additional Functions

ANTI SCALE SYSTEM

The appliance has a build-in anti-limescale container.

It is designed to reduce the build-up of limescale which occurs during steam ironing.

The build-in anti-scale cartridge prolongs the service life of the iron. However, it not completely stop the natural process of limescale build-up.

SELF CLEANING

This function provides for removal of scale and mineral built-up in the Steam Chamber. The performance of the iron largely depends on the water hardness and the frequency of performing the self-cleaning process. It is recommended to perform self-cleaning at least once a month or more regularly.

① Fill the water tank as described in "Fill with water" section. Fill the water tank halfway.

three Place the iron in an upright position.

③ Connect the iron to a suitable power source.

④ Turn the Temperature Dial clockwise to “●●●”.

⑤ Heater indicator light will come on.

s The light will go off once the required temperature is reached.

The iron is ready for use.

⑥ Wait for one more cycle. The light will go on and off.
⑦ Turn the Temperature Dial counter-clockwise to "MIN" position.
⑧ Unplug the unit.
⑨ Hold the iron horizontally over a sink.
⑩ Press and hold the Self-Cleaning Button.
⑪ Steam and boiling water will flow out of the holes on the soleplate, washing away the scales and minerals accumulated inside the steam chamber.
⑫ Sway the iron gently until the water tank is empty.
⑬ Release the Self-Cleaning Button when self cleaning is complete.
14 Place the iron on a flat and level surface and allow it to cool down completely.
⑮ Wipe the soleplate with a cold damp cloth.

e water flowing out of the soleplate is very hot. Take extra care when performing the self-clean operation.

ANTI DRIP (type PSI23600, PSI27600)

The anti-drip system is designed to prevent water leaking from the soleplate when the iron is not sufficiently hot.

When engaged, the anti drip system may produce a clicking sound, particularly during heat-up or when the iron is cooling down. This is normal and indicates that the system is working correctly.

AUTO OFF (type PSI23600, PSI27600)

The iron has an auto-off feature in vertical and horizontal position which activates automatically when the appliance is plugged in and left unattended.

① The iron will shut-off automatically after about 30 seconds of inactivity if left on its soleplate (in horizontal position) and after about 8 minutes in vertical position.
② The Auto-Off Light will pulse (flash) which indicates that the iron is in the automatic shot-off mode.
③ Move the unit to continue ironing. The iron will go back to the previous settings and will heat-up again.

iron will revert to the previous each time it is used (moved). The heat-up for about 60 seconds up to the temperature set with the temperature dial.

Cleaning And Maintenance

Unplug the appliance.

Before cleaning, allow the iron to cool completely.
Use a soft cloth and mild detergent for cleaning the iron.
For cleaning the housing, do not use abrasive cleaning agents such as emulsions, creams, pastes, etc. They may remove graphic symbols, such as scales, markings, warning signs, etc.

Never use sharp or rough objects to remove the deposits from the soleplate.

Never use any abrasive, vinegar or descaling agents to clean the soleplate.

Ecology – environment protection

Each user can protect the natural environment. It is neither difficult nor expensive.

In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Do not dispose the appliance with the municipal waste!

settings

iron will

The manufacturer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.

Black and white photo of an iron (£) being heated by a large smoke plume, no text or symbols visible

Diagram showing particle flow around a curved surface with directional arrows indicating movement (no text or symbols)

Electric iron with attached cable and power plug, no visible text or symbols on the device itself

Close-up of a mechanical component with a circular feature and internal lines, no visible text or symbols
