USER MANUAL IC-SW-8T KLIPSCH
Thank you for purc ha sin g your
Klipsch IC-SW-8T in-ceiling subwoofer.
The IC-SW-8T in-ceiling speaker is designed for music reinforcement applications. Unobtrusive, these loudspeakers are engineered for easy, versatile installation.
The IC-SW-8T features a transformer-less design for 70.7V/100V distributed-line systems. Some of the benefits of this design are: Elimination of transformer saturation at high output levels, elimination of transformer insertion losses, improved bandwidth (particularly at low frequencies), and improves power transfer to the loudspeaker at low frequencies. For applications where 4 ohm mono or 8 ohm stereo operation is required, the mode of operation can be selected by using an optional connection located on the back input terminal and by properly setting the rotary switch located under the grill.
Before installing your speakers take a moment to check the contents of the cartons and make sure nothing has been damaged in transit.
Conte nt s Descri ption Q
UANTITY
| Speaker Module | 1 |
| Grille | 1 |
| Reinforcement Ring | 1 |
| Rails | 2 |
| Cardboard Cutout Template and Paint Mask | 1 |
| Screws (Attach Rails to Reinforcement Ring) | 2 |
| ^3/8 " Adapter Fittings | 1 |
| ^1/2 " Adapter Fittings | 1 |
Installation Guidelines
The IC-SW-8T includes a tilebridge for use when installing the loudspeaker into suspended ceilings or wherever additional reinforcement of the ceiling material is required. The tilebridge and loudspeaker are designed such that installation may be accomplished where access above the ceiling is not possible or may be difficult.
Installation

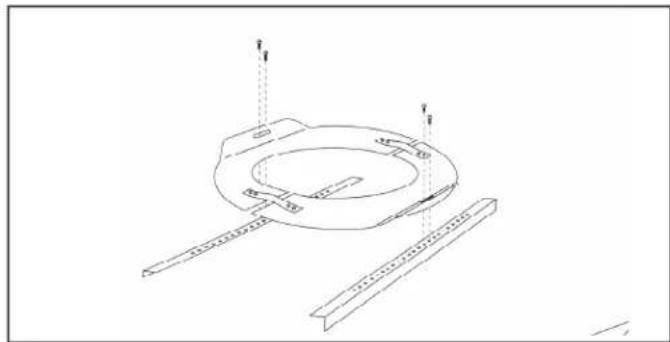

- The tilebridge is composed of three parts—a reinforcement ring and two rails. The two rails should be attached to the reinforcement ring using the two included screws as shown below.
Caution: Be sure to comply with any and all building codes in your area.
IC-SW-8T
12 ^1/2 "Round

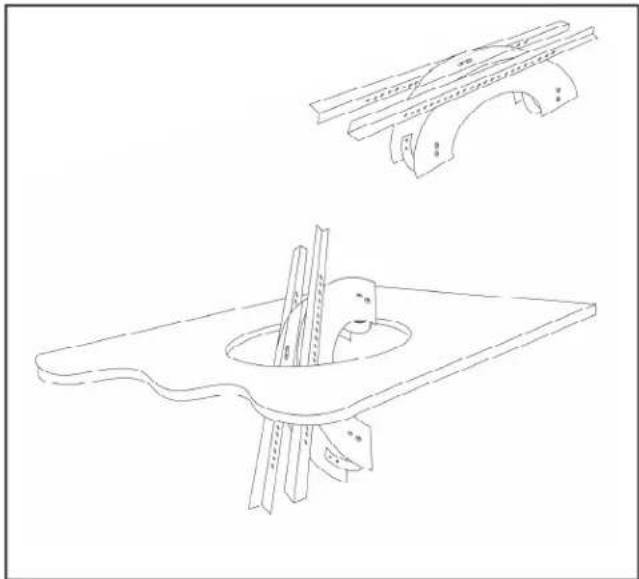

- To install the tilebridge, fold the rail side of the ring back upon itself using the spring tensioner on the reinforcement ring to allow insertion into the cutout hole. Once it is inserted into the cutout hole, release the reinforcement ring such that it unfolds back to its normal position. Position tilebridge over cutout hole.
Caution: When connecting 70V or 100V distributed line systems, take care to ensure proper terminal connection. Connection to the low impedance terminal could result in speaker damage, amplifier damage, or both.
For low impedance, stereo applications, the switch should be set to 8 ohms stereo.
For low impedance, mono applications, the switch should be set to 4 ohm mono.
In all cases, please make sure the speaker wires are connected to the appropriate terminal on the back.
- Using the flat of your hand, insert grille into speaker frame making sure it is securely seated and flush.
Seis mic Tab
A seismic tab, located on the back of the speaker, is used as a secondary security point. Some construction codes may require its use. To utilize the seismic tab, run a support wire from a secure point in the ceiling and attach it to the tab. Be sure to consult the construction codes in your area. Klipsch recommends the use of this tab in all installations as a secondary means of support.
I C - S W - 8 T SPECIFICATIONS
| FREQUENCY RESPONSE | 53-129HZ ± 4dB |
| CONT. POWER HAND. | 150W (27V) |
| CALC MAX CONT. OUTPUT | 111dB |
| SENSITIVITY 2.83 V/1 M | 92dB |
| COVERAGE | n/a |
| DI | n/a |
| Q | na |
| NOMINAL IMPE DANCE | 6 Ohms (4.85 Minimum @145 Hz) |
| TRANS DUCERS | One 8" woofer and One 8" drone, Polypropylene cone |
| ENCLOSED TUNING | Bandpass Enclosure (Drone Loaded) |
| ENCLOSURE MATERIAL | Baffle: ABS Plastic, Cans: Formed Steel |
| INPUT CONNECTORS | 4 point Terminal Strip |
| POWER CONSUMPTION | At 70V Input: 60WAt 100V Input:120W |
| SWITCH TAPS | 70/100V, 4 Ohm Mono, 8 Ohm Stereo |
| HEIGHT | 13.625" (34.6075cm) |
| DIAMETER 14.125" (35.8775cm) | |
| WEIGHT | 23lbs. |
| SHIPPING WEIG HT | 30lbs. |
