Product Type	15.6-inch LCD Monitor
Model Number	160E1SB1
Display Technology	TFT LCD with anti-glare polarizer, hard coated
Resolution (Native)	1366 x 768 at 60Hz
Pixel Pitch	0.252 x 0.252 mm
Display Colors	16.7 million
Viewing Area (Diagonal)	15.6 inches (396 mm)
Effective Viewing Area	344.2 x 193.5 mm
Vertical Refresh Rate	56 Hz – 76 Hz
Horizontal Frequency	30 kHz – 60 kHz
Video Dot Rate	140 MHz
Input Signal	Analog VGA (D-Sub), separate sync, composite sync, sync on green
Power Consumption (Typical)	< 20 W (Active), < 0.5 W (Sleep/Off)
Power Supply	100 – 240 VAC, 50/60 Hz
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	20% to 80% RH
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Tilt Range	-5° to 20°
VESA Mount	75 x 75 mm compatible
Cabinet Color	Black
Weight (Approximate)	Not specified in manual; typical 15.6" LCD ~ 2.5 kg
Dimensions (Approximate)	Not specified in manual; typical 15.6" monitor ~ 370 x 300 x 170 mm
Plug and Play	VESA DDC2B, compatible with Windows 95/98/2000/Me/XP/Vista
Energy Star Compliant	Yes
Pixel Defect Policy	Bright dots: up to 3; dark dots: up to 5; total dot defects: up to 5

Frequently Asked Questions - 160E1SB1 PHILIPS

What is the recommended resolution for the Philips 160E1SB1 monitor?

The recommended and maximum resolution is 1366 x 768 at 60Hz.

Why is there no flicker on an LCD monitor?

LCDs do not flicker like CRTs because they use a constant backlight and each pixel is controlled individually. The refresh rate is less relevant, and flicker from voltage changes is undetectable.

How do I clean the LCD screen?

Use a soft, dry cloth for normal cleaning. For stubborn dirt, use isopropyl alcohol. Do not use ethyl alcohol, ethanol, acetone, or ammonia-based liquids.

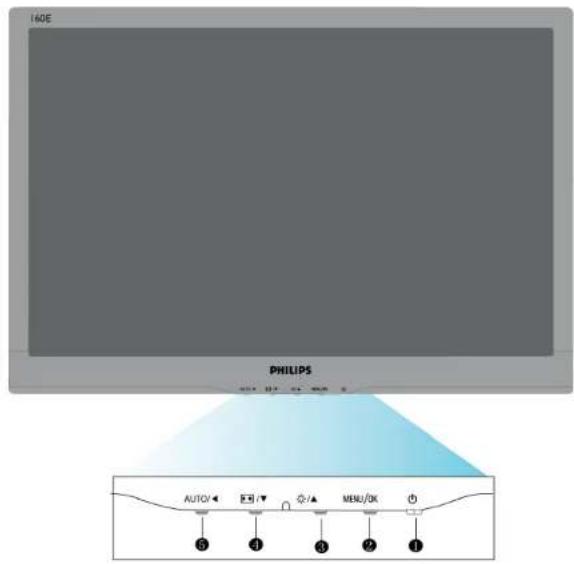

What is the Auto function button for?

The AUTO button automatically adjusts the screen position, phase, and clock settings for optimal image quality without navigating the OSD menu.

My monitor shows 'Cannot display this video mode'. What should I do?

Set your PC to the recommended mode: 1366 x 768 at 60Hz. If the issue persists, connect an older monitor to adjust settings, then reconnect the Philips monitor.

What is the power consumption in sleep mode?

In sleep (amber LED) or switch off mode, the monitor consumes less than 0.5 W.

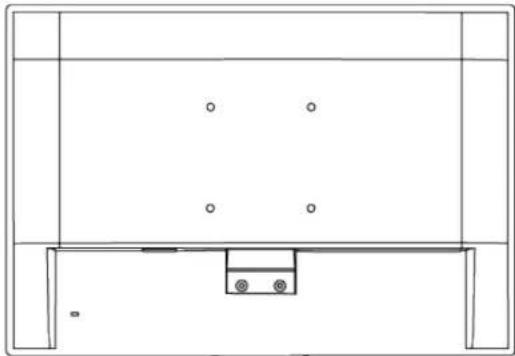

Can I mount this monitor on a wall?

Yes, it supports a 75 x 75 mm VESA mount. Remove the base by unscrewing three screws to access the mounting holes.

How do I adjust color settings?

Press MENU, select 'Color', then choose from presets: 6500K (red-white), 9300K (blue-white), User Define (custom RGB), or sRGB for accurate color exchange.

What is the pixel defect warranty?

Philips allows up to 3 bright sub-pixels, 5 dark sub-pixels, and a total of 5 dot defects across all types. Exceeding these qualifies for repair or replacement.

How do I install the monitor driver?

Insert the CD-ROM, navigate to the driver folder (e.g., /PC/drivers/), and follow instructions for your Windows version. The .inf and .icm files enable Plug and Play.

USER MANUAL 160E1SB1 PHILIPS

Philips LCD Monitor Electronic User's Manual

Home	safety and troubleshooting	about this manual	product information	installing your monitor	on-screen display	customer care and warranty	glossary	download & print

Safety and Troubleshooting Information

• Safety Precautions and Maintenance
• FAQs
• Troubleshooting
  • Regulatory Information
  • Other Related Information

Safety and Troubleshooting Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

Operation:

• Keep the monitor out of direct sunlight and away from stoves or any other heat source.
• Remove any object that could fall into ventilation holes or prevent proper cooling of the monitor's electronics.
  • Do not block the ventilation holes on the cabinet.
  When positioning the monitor, make sure the power plug and outlet are easily accessible.
• If turning off the monitor by detaching the power cable or DC power cord, wait for 6 seconds before attaching the power cable or DC power cord for normal operation.
• Please use approved power cord provided by Philips all the time. If your power cord is missing, please contact with your local service center. (Please refer to Customer Care Consumer Information Center)
  • Do not subject the LCD monitor to severe vibration or high impact conditions during operation.
  • Do not knock or drop the monitor during operation or transportation.

Maintenance:

• To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your monitor, grasp the frame to lift; do not lift the monitor by placing your hand or fingers on the LCD panel.
  • Unplug the monitor if you are not going to use it for an extensive period of time.
• Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be wiped with a dry cloth when the power is off. However, never use organic solvent, such as, alcohol, or ammonia-based liquids to clean your monitor.
  • To avoid the risk of shock or permanent damage to the set, do not expose the monitor to dust, rain, water, or excessive moisture environment.
  • If your monitor gets wet, wipe it with dry cloth as soon as possible.
• If foreign substance or water gets in your monitor, please turn the power off immediately and disconnect the power cord. Then, remove the foreign substance or water, and send it to the maintenance center.
  Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or

fil e: / / / R/ 160E1 CD MANUAL-20081225 / I cd/ manual / ENGLISH 160E1 / saf et y/ saf et y. † m (第 1 / 2 页) 2008 - 12 - 26 19 : 11 : 34

Safety and Troubleshooting Information

extreme cold.

- In order to maintain the best performance of your monitor and use it for a longer lifetime, please use the monitor in a location that falls within the following temperature and humidity ranges.

Temperature: 0-40°C 32-104°F

Humidity: 20-80% RH

Service:

The casing cover should be opened only by qualified service personnel.
- If there is any need for any document for repair or integration, please contact with your local service center. (please refer to the chapter of "Consumer Information Center")
• For transportation information, please refer to "Physical Specifications".
• Do not leave your monitor in a car/trunk under direct sun light.

Consult a service technician if the monitor does not operate normally, or you are not sure what procedure to take when the operating instructions given in this manual have been followed.

RETURN TO TOP OF THE PAGE

RQs ( Frequently y Asked Questions)

• Safety and Troubleshooting
• General FAQs
• Screen Adjustments
• Compatibility with Other Peripherals
• LCD Panel Technology
  • Ergonomics, Ecology and Safety Standards
• Troubleshooting
  • Regulatory Information
  • Other Related Information

FAQs (Frequently Asked Questions)

General FAQs

Q: When I install my monitor what should I do if the screen shows 'Cannot display this video mode'?

A: Recommended video mode for Philips 15.6": 1366 x 768 @60Hz.

1. Unplug all cables, then connect your PC to the monitor that you used previously.
2. In the Windows Start Menu, select Settings/Control Panel. In the Control Panel Window, select the Display icon. Inside the Display Control Panel, select the 'Settings' tab. Under the setting tab, in box labeled 'desktop area', move the slider to 1366 x 768 pixels (15.6").
3. Open 'Advanced Properties' and set the Refresh Rate to 60Hz, then click OK.
4. Restart your computer and repeat step 2 and 3 to verify that your PC is set at 1366 x 768@60Hz (15.6").
5. Shut down your computer, disconnect your old monitor and reconnect your Philips LCD monitor.
6. Turn on your monitor and then turn on your PC.

Q: What does 'refresh rate' mean in connection with an LCD monitor?

A: The refresh rate is of much less relevance for LCD monitors. LCD monitors display a stable, flicker-free image at 60Hz. There is no visible difference between 85Hz and 60Hz.

Q: What are the .inf and .icm files on the CD-ROM? How do I install the drivers (.inf and .icm)?

A: These are the driver files for your monitor. Follow the instructions in your user manual to install the drivers. Your computer may ask you for monitor drivers (.inf and .icm files) or a driver disk when you first install your monitor. Follow the instructions to insert the ( companion CD-ROM) included in this package. Monitor drivers (.inf and .icm files) will be installed automatically.

RQs ( Frequently y Asked Questions)

Q: How do I adjust the resolution?

A: Your video card/graphic driver and monitor together determine the available resolutions. You can select the desired resolution under Windows® Control Panel with the "Display properties".

Q: What if I get lost when I am making monitor adjustments?

A: Simply press the MENU button, then select 'Reset' to recall all of the original factory settings.

Q: What is the Auto function?

A: The AUTO adjustment key restores the optimal screen position, phase and clock settings by pressing of a single button – without the need to navigate through OSD (On Screen Display) menus and control keys.

Note: Auto function is available in selected models only.

Q: My Monitor has no power (Power LED does not light up). What should I do?

A: Make sure the AC power cord is connected between the monitor and AC outlet, and click a key on keyboard/mouse to wake up the PC.

Q: Will the LCD monitor accept an interlaced signal under PC models?

A: No. If an Interlace signal is used, the screen displays both odd and even horizontal scanning lines at the same time, thus distorting the picture.

Q: What does the Refresh Rate mean for LCD?

A: Unlike CRT display technology, in which the speed of the electron beam is swept

fil e: / / / R/ 160E1 CD WMUAL-20081225 / I cd/ manual / ENGLISH 160E1 / saf et y/ saf_f aq. t m (第 2 / 6 页) 2008 - 12 - 26 19 : 11 : 47

RQs ( Frequently y Asked Questions)

from the top to the bottom of the screen determines flicker, an active matrix display uses an active element (TFT) to control each individual pixel and the refresh rate is therefore not really applicable to LCD technology.

Q: Will the LCD screen be resistant to scratches?

A: A protective coating is applied to the surface of the LCD, which is durable to a certain extent (approximately up to the hardness of a 2H pencil). In general, it is recommended that the panel surface is not subject to any excessive shocks or scratches.

Q: How should I clean the LCD surface?

A: For normal cleaning, use a clean, soft cloth. For extensive cleaning, please use isopropyl alcohol. Do not use other solvents such as ethyl alcohol, ethanol, acetone, hexane, etc.

Q: Can I change the color setting of my monitor?

A: Yes, you can change your color setting through OSD control as the following procedures,

1. Press "MENU" to show the OSD (On Screen Display) menu
2. Press "Arrow" to select the option "color" then press "MENU" to enter color setting, there are five settings as below.

a. 6500K; this setting features the panel closed to red-white color tone. b. 9300K; this setting features the panel closed to blue-white color tone. c. User Define; the user can choose his/her preference color setting by adjusting red, green, blue color. d. sRGB; this is a standard setting for ensuring correct exchange of colors between different device (e.g. digital cameras, monitors, printers, scanners, etc.)

^* A measurement of the color of light radiated by an object while it is being heated. This measurement is expressed in terms of absolute scale, (degrees Kelvin). Lower Kevin temperatures such as 2004K are red; higher temperatures such as 9300K are blue. Neutral temperature is white, at 6504K.

RDS ( Frequently y Asked Questions)

Q: Can the Philips LCD Monitor be mounted on the wall?

A: Yes. Philips LCD monitors have this optional feature. For standard VESA mount holes on the rear cover allows the user to mount the Philips monitor on most of the VESA standard arms or accessories. We recommend to contact your Philips sales representative for more information.

RETURN TO TOP OF THE PAGE

Screen Adjustments

Q: How do LCDs compare to CRTs in terms of radiation?

A: Because LCDs do not use an electron gun, they do not generate the same amount of radiation at the screen surface.

RETURN TO TOP OF THE PAGE

Compatibility with other Peripherals

Q: Are Philips LCD monitors Plug-and-Play?

A: Yes, the monitors are Plug-and-Play compatible with Windows® 95, 98, 2000, XP and Vista.

RETURN TO TOP OF THE PAGE

LCD Panel Technology

Q: What is a Liquid Crystal Display?

A: A Liquid Crystal Display (LCD) is an optical device that is commonly used to display ASCII characters and images on digital items such as watches, calculators, portable game consoles, etc. LCD is the technology used for displays in notebooks and other small computers. Like light-emitting diode and gas-plasma technologies,

fil e: / / / R/ 160E1 CD VMUL-20081225 / I cd/ manual / ENGLISH 160E1 / saf et y/ saf_f aq. t m (第 4 / 6 页) 2008 - 12 - 26 19 : 11 : 47

RQs ( Frequently y Asked Questions)

LCD allows displays to be much thinner than cathode ray tube (CRT) technology. LCD consumes much less power than LED and gas-displays because it works on the principle of blocking light rather than emitting it.

Q: What differentiates passive matrix LCDs from active matrix LCDs?

A: An LCD is made with either a passive matrix or an active matrix display grid. An active matrix has a transistor located at each pixel intersection, requiring less current to control the luminance of a pixel. For this reason, the current in an active matrix display can be switched on and off more frequently, improving the screen refresh time (your mouse pointer will appear to move more smoothly across the screen, for example). The passive matrix LCD has a grid of conductors with pixels located at each intersection in the grid.

Q: What are the advantages of TFT LCD compared with CRT?

A: In a CRT monitor, a gun shoots electrons and general light by colliding polarized electrons on fluorescent glass. Therefore, CRT monitors basically operate with an analog RGB signal. A TFT LCD monitor is a device that displays an input image by operating a liquid crystal panel. The TFT has a fundamentally different structure than a CRT: Each cell has an active matrix structure and independent active elements. A TFT LCD has two glass panels and the space between them is filled with liquid crystal. When each cell is connected with electrodes and impressed with voltage, the molecular structure of the liquid crystal is altered and controls the amount of inlet lighting to display images. A TFT LCD has several advantages over a CRT, since it can be very thin and no flickering occurs because it does not use the scanning method.

Q: Why is vertical frequency of 60Hz optimal for an LCD monitor?

A: Unlike a CRT monitor, the TFT LCD panel has a fixed resolution. For example, an XGA monitor has 1024x3 (R, G, B) x 768 pixels and a higher resolution may not be available without additional software processing. The panel is designed to optimize the display for a 65MHz dot clock, one of the standards for XGA displays. Since the vertical/horizontal frequency for this dot clock is 60Hz/48kHz, the optimum frequency for this monitor is 60Hz.

Q: What kind of wide-angle technology is available? How does it work?

A: The TFT LCD panel is an element that controls/displays the inlet of a backlight using the dual-refraction of a liquid crystal. Using the property that the projection of inlet light refracts toward the major axis of the liquid element, it controls the direction

fil a: / / / R/ 160E1 CD IMUAL-20081225 / I cd/ manual / ENGLISH 160E1 / saf et y/ saf_f aq. it m (第 5/6 页) 2008-12-26 19:11:47

RQs ( Frequently y Asked Questions)

of inlet light and displays it. Since the refraction ratio of inlet light on liquid crystal varies with the inlet angle of the light, the viewing angle of a TFT is much narrower than that of a CDT. Usually, the viewing angle refers to the point where the contrast ration is 10. Many ways to widen the viewing angle are currently being developed and the most common approach is to use a wide viewing angle film, which widens the viewing angle by varying the refraction ratio. IPS (In Plane Switching) or MVA (Multi Vertical Aligned) is also used to give a wider viewing angle.

Q: Why is there no flicker on an LCD Monitor?

A: Technically speaking, LCDs do flicker, but the cause of the phenomenon is different from that of a CRT monitor -- and it has no impact of the ease of viewing. Flickering in an LCD monitor relates to usually undetectable luminance caused by the difference between positive and negative voltage. On the other hand, CRT flickering that can irritate the human eye occurs when the on/off action of the fluorescent object becomes visible. Since the reaction speed of liquid crystal in an LCD panel is much slower, this troublesome form of flickering is not present in an LCD display.

Q: Why is an LCD monitor virtually low of Electro Magnetic Interference?

A: Unlike a CRT, an LCD monitor does not have key parts that generate Electro Magnetic Interference, especially magnetic fields. Also, since an LCD display utilizes relatively low power, its power supply is extremely quiet.

RETURN TO TOP OF THE PAGE

Troubl esheot ing

• Safety and
  Troubleshooting
  • FAQs
• Common Problems
• Imaging Problems
  • Regulatory Information
  • Other Related Information

Troubleshooting

This page deals with problems that can be corrected by a user. If the problem still persists after you have tried these solutions, contact Philips customer service representative.

Common Problems
Having this problem Check these items
No Picture(Power LED not lit)	Make sure the power cord is plugged into the power outlet and into the back of the monitor.First, ensure that the power button on the front of the monitor is in the OFF position, then press it to the ON position.
No Picture(Power LED is amber or yellow)	Make sure the computer is turned on.Make sure the VGA cable is properly connected to your computer.Check to see if the monitor cable has bent pins.The Energy Saving feature may be activated
Screen saysATTENTIONCHECK CABLE CONNECTION	Make sure the monitor cable is properly connected to your computer. (Also refer to the Quick Set-Up Guide).Check to see if the monitor cable has bent pins.Make sure the computer is turned on.
AUTO button not working properly	The Auto Function is designed for use on standard Macinto or IBM-compatible PCs running Microsoft Windows.It may not work properly if using nonstandard PC or video card.
ImagIng Problems
Display position is incorrect	Press the Auto button.Adjust the image position using the Phase/Clock of More Settings in OSD Main Controls.
Image vibrates on the screen	Check that the VGA cable is properly connected to the graphics board or PC.

Troubl esnot ing

Vertical flicker appears

• Press the Auto button.
• Eliminate the vertical bars using the Phase/Clock of More Settings in OSD Main Controls.

Horizontal flicker appears

• Press the Auto button.
• Eliminate the vertical bars using the Phase/Clock of More Settings in OSD Main Controls.

The screen is too bright or too dark

An after-image appears

An after-image remains after the power has been turned off.

Green, red, blue, dark, and white dots remains

For further assistance, refer to the Consumer Information Centers list and contact Philips customer service representative.

RETURN TO TOP OF THE PAGE

Troubl esoot ing

fill a://?/160E1 CD NHUK-20081225/I cd manual / EGLISH 160E1/saf at y/saf_troub. it m(第3/3页)2008-12-26 19:11:54

Regul at cry. Information

• Recycling Information for Customers
Waste Electrical and Electronic
Equipment-WEEE
* CE Declaration of Conformity
• Energy Star Declaration
• Federal Communications Commission (FCC) Notice (U.S. Only)
* FCC Declaration of Conformity
• Commission Federale de la
Communication (FCC Declaration)
• EN 55022 Compliance (Czech Republic Only)
* MIC Notice (South Korea Only)
• Polish Center for Testing and Certification Notice
• North Europe (Nordic Countries) Information
• BSMI Notice (Taiwan Only)
. Ergonomie Hinweis (nur
Deutschland)
• Philips End-of-Life Disposal
• Information for UK only
• China RoHS
- Troubleshooting
• Other Related Information
* Frequently Asked Questions (FAQs)

Regulatory Information

Model ID: 160E1

Model No: MWE1160T

Recycling Information for Customers

Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities.

From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors.

There is currently a system of recycling up and running in the European countries, such as The Netherlands, Belgium, Norway, Sweden and Denmark.

In U.S.A., Philips Consumer Electronics North America has contributed funds for the Electronic Industries Alliance (EIA) Electronics Recycling Project and state recycling initiatives for end-of-life electronics products from household sources. In addition, the Northeast Recycling Council (NERC) - a multi-state non-profit organization focused on promoting recycling market development - plans to implement a recycling program.

In Asia Pacific, Taiwan, the products can be taken back by Environment Protection Administration (EPA) to follow the IT product recycling management process, detail can be found in web site www.epa.gov.tw

The monitor contains parts that could cause damage to the nature environment. Therefore, it is vital that the monitor is recycled at the end of its life cycle.

For help and service, please contact Consumers Information Center or F1rst Choice Contact Information Center in each country or the following team of Environmental specialist can help.

Mrs. Argent Chan- Environment manager

Philips Consumer Lifestyle

E-mail: [e-mail]

Tel: [phone]

Mr. Maarten ten Houten - Senior Environmental Consultant

Philips Consumer Electronics

E-mail: [e-mail]

Tel: [phone]

Mr. Delmer F. Teglas

Philips Consumer Electronics North America

E-mail: [e-mail]

Tel: [phone]

RETURN TO TOP OF THE PAGE

Regul at cry Information

Waste Electrical and Electronic Equipment-WEEE

Attention users in European Union private households

This marking on the product or on its packaging illustrates that, under European Directive 2002/96/EG governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection. To determine the locations for dropping off such waste electrical and electronic, contact your local government office, the waste disposal organization that serves your household or the store at which you purchased the product.

RETURN TO TOP OF THE PAGE

Energy Star Declaration

This monitor is equipped with a function for saving energy which supports the VESA Display Power Management (DPM) standard. This means that the monitor must be connected to a computer which supports VESA DPM. Time settings are adjusted from the system unit by software.

VESA State LED Indicator Power Consumption

Normal operation ON (Active) Green < 20W (typ.)

Power Saving

Alternative 2

One step

OFF (Sleep) Amber < 0.5 W

Switch Off Off < 0.5 W

As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

We recommend you switch off the monitor when it is not in use for a long time.

RETURN TO TOP OF THE PAGE

Federal Communications Commission (FCC) Notice (U.S. Only)

Regul at cry. Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device.

To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture.

THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.

RETURN TO TOP OF THE PAGE

FCC Declaration of Conformity

Trade Name: Philips

Philips Consumer Electronics North America

P.O. Box 671539

Responsible Party: Marietta, GA 30006-0026

1-888-PHILIPS (744-5477)

Declaration of Conformity for Products Marked with FCC Logo, United States Only

Trade Name Model Number

Tested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Regul at cry. Information

RETURN TO TOP OF THE PAGE

Commission Federale de la Communication (FCC Declaration)

EN 55022 Compliance (Czech Republic Only)

This device belongs to category B devices as described in EN 55022, unless it is specifically stated that it is a Class A device on the specification label. The following applies to devices in Class A of EN 55022 (radius of protection up to 30 meters). The user of the device is obliged to take all steps necessary to remove sources of interference to telecommunication or other devices.

Polish Center for Testing and Certification Notice

The equipment should draw power from a socket with an attached protection circuit (a three-prong

II e: / : / F: 160 E1 CD MUNL-20081225 / I cd/ manual / ENGLISH 160 E1 / sal el y/ reg s/ reg ul at. H m (第 4 / 9 页) 2008 - 12 - 26 19 : 12 : 02

Regul at cry. Information

socket). All equipment that works together (computer, monitor, printer, and so on) should have the same power supply source.

The phasing conductor of the room's electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).

To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible.

A protection mark "B" confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/E-06251.

North Europe (Nordic Countries) Information

Placering/Ventilation

WARNING:

FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÄTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS.

Regul at cry. Information

Placering/Ventilation

ADVARSEL:

S∅RG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE.

Paikka/Ilmankierto

VAROITUS:

SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA.

BSMI Notice (Taiwan Only)

符合乙類資訊產品之標準

RETURN TO TOP OF THE PAGE

Regul at cry. Information

End-of-Life Disposal

Your new monitor contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.

Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer.

(For customers In Canada and U.S.A.)

This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations.

For additional information on recycling contact www.eia.org (Consumer Education Initiative)

RETURN TO TOP OF THE PAGE

Information for UK only

WARNING - THIS APPLIANCE MUST BE GROUNDING.

Important:

This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:

1. Remove fuse cover and fuse.
2. Fit new fuse which should be a BS 1362 5A.A.S.T.A. or BSI approved type.
3. Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin plug fitted in its place.

Regul at cry. Information

If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A.

Note: The severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13A socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured in accordance with the following code:

BLUE - "NEUTRAL" ("N")

BROWN - "LIVE" ("L")

GREEN & YELLOW - "GROUND" ("G")

1. The GREEN AND YELLOW wire must be connected to the terminal in the plug which is marked with the letter "G" or by the Ground symbol 12 or coloured GREEN or GREEN AND YELLOW.
2. The BLUE wire must be connected to the terminal which is marked with the letter "N" or coloured BLACK.
3. The BROWN wire must be connected to the terminal which marked with the letter "L" or coloured RED.

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the three wires.

Diagram of a battery pack with colored wires and connectors (no text or symbols)

RETURN TO TOP OF THE PAGE

China RoHS

The People's Republic of China released a regulation called "Management Methods for Controlling Pollution by Electronic Information Products" or commonly referred to as China RoHS. All products including CRT and LCD monitor which are produced and sold for China market have to meet China

II e: / : / F: 160 E1 CD MXNL-20081225 / I cd/ manual / ENGLISH 180 E1 / sal el y/ regs/ regul at . ll m (第 8 / 9 页) 2008 - 12 - 26 19 : 12 : 02

Regul at cry. Information

RoHS request.

中国大陆RoHS

• Safety and Troubleshooting
• FAQs
• Troubleshooting
  • Regulatory Information
  • Information for Users in the U.S
  • Information for Users Outside the U.S

Other Related Information

Information for Users in the U. S.

For units set at 115 V :

Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord a maximum of 15-feet long and a parallel blade, grounding type attachment plug rated 15 A, 125 V.

For units set at 230 V:

Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord a maximum of 15-feet long and a tandem blade, grounding type attachment plug rated 15 A, 250 V.

Information for Users outside the U.S.

For units set at 230 V:

Use a Cord Set consisting of a minimum 18 AWG cord and grounding type attachment plug rated 15 A, 250 V. The Cord Set should have the appropriate safety approvals for the country in which the equipment will be installed and / or be marked HAR.

RETURN TO TOP OF THE PAGE

About This I anual

• About This Guide
• Notational Descriptions

About This Manual

About This Guide

This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the LCD monitor's features, setup, operation and other important information. Its contents are identical to the information in our printed version.

It includes the following sections:

• Safety and Troubleshooting Information provides tips and solutions for common problems as well as other related information you may need.
• About This Electronic User's Manual gives an overview of information included, along with notation icon descriptions and other documentation for your reference.
  Product Information gives an overview of the monitor's features as well as the technical specifications for this monitor.
  • Installing Your Monitor describes the initial setup process and gives an overview of how to use the monitor.
  • On-Screen Display provides information on adjusting the settings on your monitor.
• Customer Care and Warranty contains a list of worldwide Philips Consumer Information Centers along with help desk phone numbers and information on the warranty applicable to your product.
  • Glossary defines technical terms.
• Download and Print Option transfers this entire manual to your hard drive for easy reference.

RETURN TO TOP OF THE PAGE

Notational Descriptions

The following subsections describe notational conventions used in this document.

Notes, Cautions and Warnings

About This I anual

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks contain notes, cautions or warnings. They are used as follows:

NOTE: This icon indicates important information and tips that help you make better use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either potential damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how to avoid the problem.

Some warnings may appear in alternate formats and may not be accompanied by an icon. In such cases, the specific presentation of the warning is mandated by the relevant regulatory authority.

RETURN TO TOP OF THE PAGE

All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV

Product Information

• Lead-free Product
• Technical Specifications
• Resolution & Preset Modes
  • Philips Pixel Defect Policy
• Automatic Power Saving
• Physical Specification
• Pin Assignment
• Product Views
• Physical Function

Product Information

Lead-free Product

Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment. Philips complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment. With Philips, you can be confident that your display device does not harm the environment.

Technical Specifications\*

LCD PANEL
• Type TFT LCD
• Screen size 15.6" visual
• Pixel Pitch 0.252 x 0.252 mm
• LCD Panel type	1366 x 768 pixelsR.G.B. vertical stripeAnti-glare polarizer, hard coated
• Effective viewing area 344.2 x 193.5 mm
• Display Colors 16.7m
SCANNING
• Vertical refresh rate 56 Hz-76 Hz
• Horizontal Frequency 30 kHz - 60 kHz

Product Information

VIDEO
• Video dot rate 140 MHz
• Input impedance
- Video	75 ohm
- Sync	2.2K ohm
• Input signal levels 0.7 Vpp
• Sync input signal	Separate syncComposite syncSync on green
• Sync polarities Positive and negative

* This data is subject to change without notice.

RETURN TO TOP OF THE PAGE

Resolution & Preset Modes

A. Maximum Resolution

- For 160E1

1366 x 768 at 60Hz (analog input)

B. Recommended Resolution

- For 160E1

1366 x 768 at 60Hz (analog input)

Product Information

8 factory preset modes:

H. freq (kHz) Resolution V. freq (Hz)
31.47 720*400 70.09
31.47 640*480 59.94
37.50 640*480 75.00
37.88 800*600 60.32
46.88 800*600 75.00
48.36 1024*768 60.00
60.02 1024*768 75.03
47.71	1366 * 768	59.79

RETURN TO TOP OF THE PAGE

Automatic Power Saving

If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature:

Power Management Definition
VESA Mode	Video	H-sync	V-sync	Power Used LED color
Active	ON	Yes	Yes	< 20 W (typ.)	Green Amber
Sleep	OFF	No	No	< 0.5 W
Switch Off	OFF	-	-	< 0.5 W	Off

This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

RETURN TO TOP OF THE PAGE

Product Information

Physical Specifications

• Tilt -5° ~ 20°
• Power supply 100 ~ 240 VAC, 50/60 Hz
• Power consumption <35 W* (typ.)
• Temperature	0°C to 40°C (operating)-20°C to 60°C (storage)
• Relative humidity 20% to 80%
• System MTBF 50K hours (CCFL 50K hours)
• Cabinet color 160E1SB: Black

RETURN TO TOP OF THE PAGE

Pin Assignment

The 15-pin D-sub connector (male) of the signal cable:

Pin No.	Assignment
1	Red video input
2	Green video input/SOG
3	Blue video input
4	Sense (GND)
5	Cable detect (GND)
6	Red video ground
7	Green video ground
8	Blue video ground

Pin No.	Assignment
9	DDC + 5 V
10	Logic ground
11	Ground
12	Serial data line (SDA)
13	H. Sync / H+V. Sync
14	V. Sync
15	Data clock line (SCL)

file:///F/160E1 CD WUAL-20081225/I cd/ manual / EKLISV 160E1 / product / product. hm (第 4 / 6 页)2008-12-26 19:12:39

Product Information

RETURN TO TOP OF THE PAGE

Product Views

Follow the links to see various views of the monitor and its components.

Front View Product Description

RETURN TO TOP OF THE PAGE

Physical Function

Tilt

file:///F/160E1 CD WUAL-20081225/I cd/ manual / ENGLISH 160E1 / product / product. mm(第 5/6 页)2008-12-26 19:12:39

Product Information

RETURN TO TOP OF THE PAGE

file:///F/160E1 CD WUAL-20081225/I cd/ manual / EKLISV 160E1 / product / product. mm(第 6/6 页)2008-12-26 19:12:39

Philips Pixel Defect Policy

• Product Features
  • Technical Specifications
  • Resolution & Preset Modes
  • Automatic Power Saving
  • Physical Specification
• Pin Assignment
• Product Views

Philips Pixel Defect Policy

Philips' Flat Panel Monitors Pixel Defect Policy

Philips strives to deliver the highest quality products. We use some of the industry's most advanced manufacturing processes and practice stringent quality control. However, pixel or sub pixel defects on the TFT LCD panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains the different types of pixel defects and defines acceptable defect levels for each type. In order to qualify for repair or replacement under warranty, the number of pixel defects on a TFT LCD panel must exceed these acceptable levels. For example, no more than 0.0004% of the sub pixels on a 19" XGA monitor may be defective. Furthermore, Philips sets even higher quality standards for certain types or combinations of pixel defects that are more noticeable than others. This policy is valid worldwide.

Pixels and Sub pixels

A pixel, or picture element, is composed of three sub pixels in the primary colors of red, green and blue. Many pixels together form an image. When all sub pixels of a pixel are lit, the three colored sub pixels together appear as a single white pixel. When all are dark, the three colored sub pixels together appear as a single black pixel. Other combinations of lit and dark sub pixels appear as single pixels of other colors.

Types of Pixel Defects

Pixel and sub pixel defects appear on the screen in different ways. There are two categories of pixel defects and several types of sub pixel defects within each category.

Bright Dot Defects Bright dot defects appear as pixels or sub pixels that are always lit or 'on'. That is, a bright dot is a sub-pixel that stands out on the screen when the monitor displays a dark pattern. There are three types of bright dot defects:

Philips Pixel Defect Policy

One lit red, green or blue sub pixel

Two adjacent lit sub pixels:
- Red + Blue = Purple
- Red + Green = Yellow
- Green + Blue = Cyan (Light Blue)

Three adjacent lit sub pixels (one white pixel)

A red or blue bright dot must be more than 50 percent brighter than neighboring dots while a green bright dot is 30 percent brighter than neighboring dots.

Black Dot Defects Black dot defects appear as pixels or sub pixels that are always dark or 'off'. That is, a dark dot is a sub-pixel that stands out on the screen when the monitor displays a light pattern. There are two types of black dot defects:

One dark sub pixel Two or three adjacent dark sub pixels

Proximity of Pixel Defects

Because pixel and sub pixels defects of the same type that are near to one another may be more noticeable, Phillips also specifies tolerances for the proximity of pixel defects.

Pixel Defect Tolerances

In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.

BRIGHT DOT DEFECTS ACCEPTABLE LEVEL
MODEL	160E1

He: / / 160E1 CD INUAL-20081225/ I cd/ manual / ENGLISH 160E1 / product / pixel . Itm(第 2/3 页)2008-12-26 19:12:43

Filips Pixel Defect Policy

1 lit subpixel 3
2 adjacent lit subpixels 1
3 adjacent lit subpixels (one white pixel) 0
Distance between two bright dot defects* >15mm
Total bright dot defects of all types 3

BLACK DOT DEFECTS ACCEPTABLE LEVEL
MODEL	160E1
1 dark subpixel 5
2 adjacent dark subpixels 2
3 adjacent dark subpixels 0
Distance between two black dot defects*	>15mm
Total black dot defects of all types 5

TOTAL DOT DEFECTS ACCEPTABLE LEVEL
MODEL	160E1
Total bright or black dot defects of all types 5

Note:

* 1 or 2 adjacent sub pixel defects = 1 dot defect

RETURN TO TOP OF THE PAGE

Inst al l ing four LCD lon it or

• Front View Produt Description
- Connecting to Your PC
• The Base
- Getting Started
• Optimizing Performance

Installing Your LCD Monitor

Front View Product Description

1 To switch monitor's power On and Off
2 MENU / OK To access OSD menu/ Confirm
3 To adjust brightness of the display
4 / auto picture control switching in wide and 4:3 format.
5 AUTO ▶ Automatically adjust the horizontal position, vertical position, phase and clock settings.

Return to previous OSD level.

RETURN TO TOP OF THE PAGE

Inst al l ing four LCD lon it or

Rear View

1 Kensington anti-thief lock

2 AC power input

3 VGA input

RETURN TO TOP OF THE PAGE

Optimizing Performance

• For best performance, ensure that your display settings are set at 1366 x 768, 60Hz.

Note: You can check the current display settings by pressing the 'MENU' button once. The current display mode is shown in OSD main controls called RESOLUTION.

fill e: / / / ?/ 160 E1 CD WJKL-20081225 / I cd manual / ENGLISH 160 E1 / install / install . hm (第 2 /3 页) 2008 - 12 - 26 19 : 12 : 52

Inst al l ing 'our LCD lonit or

RETURN TO TOP OF THE PAGE

fill e: / / / ?/ 160 E1 CD WJKL- 20081225 / I cd/ manual / ENGLISH 160 E1 / install / install . hm (第 3 / 3 页) 2008 - 12 - 26 19 : 12 : 52

Connecting to your PC

• Front View Product Description
• Accessory Pack
• Connecting to Your PC
• Getting Started
• Optimizing Performance
  • The base

Connecting to Your PC

Accessory Pack

Unpack all the parts.

Power cord

VGA cable

EDFU pack

RETURN TO TOP OF THE PAGE

Connecting to your PC

Connecting to Your PC

1) Connect the power cord to the back of the monitor firmly.

2) Connect to PC

(a) Turn off your computer and unplug its power cable.
(b) Connect the monitor signal cable to the video connector on the back of your computer.
(c) Plug the power cord of your computer and your monitor into a nearby outlet.

Connecting to your PC

(d) Turn on your computer and monitor. If the monitor displays an image, installation is complete.

RETURN TO TOP OF THE PAGE

• Front View Product Description
• Accessory Pack
• Connecting to your PC
• Getting Started
• Optimizing Performance
• Remove the Base

The Base

Remove the Base

Condition:

• for VESA standard mounting applications

Remove the 3 screws and then remove the base from the LCD monitor.

Note: This monitor accepts a 75 mmx75mm VESA-Compliant mounting interface.

The Base

Top-down schematic of a room layout with furniture and fixtures (no text or symbols)

RETURN TO TOP OF THE PAGE

Getting Started

Your LCD Monitor :

• Front View Product Description
• Setting Up and Connecting Your Monitor
• Getting Started
• Optimizing Performance

Getting Started

Getting Started

Use the information file (.inf) for Windows® 95/98/2000/Me/XP/Vista or later

The built-in VESA DDC2B feature in Philips Monitors supports Plug & Play requirements for Windows® 95/98/2000/Me/XP/Vista. This information file (.inf) should be installed in order that your Philips monitor can be enabled from the 'Monitor' dialog box in Windows® 95/98/2000/Me/XP/Vista and the Plug & Play application can be activated. The installation procedure based on Windows® 95 OEM Release 2, 98, 2000, Me, XP and Vista is specified as follows.

For Windows® 95

1. Start Windows® 95
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select the 'Monitor' button, point to 'Change...' then click on 'Have Disk...'.
6. Click on the 'Browse...' button, select the appropriate drive F: (CD-ROM Drive) then click on the 'OK' button.
7. Click on the 'OK' button then select your monitor model and click on 'OK'.
8. Click on the 'Close' button.

For Windows® 98

1. Start Windows® 98
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select the 'Monitor' button, point to 'Change...' then click on 'Next'
6. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want.' then click on 'Next' and then click on 'Have Disk...'.
7. Click on the 'Browse...' button, select the appropriate drive F: (CD-ROM Drive) then click on the 'OK' button.
8. Click on the 'OK' button then select your monitor model and click on the 'Next' button.
9. Click on the 'Finish' button then the 'Close' button.

For Windows® 2000

1. Start Windows® 2000

Getting Started

1. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
2. Double click on the 'Display' Icon.
3. Select the 'Settings' tab then click on 'Advanced...'.
4. Select 'Monitor'

- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

- If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below.

1. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.
2. Select 'Display a list of the known drivers for this device so that I can choose a specific driver', then click on 'Next' and then click on 'Have disk...'.
3. Click on the 'Browse...' button then select the appropriate drive F: (CD-ROM Drive).
4. Click on the 'Open' button, then click on the 'OK' button.
5. Select your monitor model and click on the 'Next' button.
6. Click on the 'Finish' button then the 'Close' button.

If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.

For Windows® Me

1. Start Windows® Me
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select the 'Monitor' button, then click on 'Change...' button.
6. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button.
7. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click on 'Next' and then click on 'Have Disk...'.
8. Click on the 'Browse...' button, select the appropriate drive F: (CD-ROM Drive) then click on the 'OK' button.
9. Click on the 'OK' button, select your monitor model and click on the 'Next' button.
10. Click on 'Finish' button then the 'Close' button.

For Windows® XP

1. Start Windows® XP
2. Click on the 'Start' button and then click on 'Control Panel'.
3. Select and click on the category 'Printers and Other Hardware'
4. Click on the 'Display' Item.
5. Select the 'Settings' tab then click on the 'Advanced' button.
6. Select 'Monitor' tab

- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

- If the 'Properties' button is active, click on 'Properties' button.

Please follow the steps below.

1. Click on the 'Driver' tab and then click on 'Update Driver...' button.
2. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.
3. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.

fil a: / / / 160E1 CD IMUAL-20081225 / I cd manual / ENGLISH 160E1 / install / gt_start . h m (第 2/3 页) 2008-12-26 19:13:12

Getting Started

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive).
   1 1. Click on the 'Open' button, then click the 'OK' button.
   1 2 . Select your monitor model and click on the 'Next' button.
2. If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message, please click on the 'Continue Anyway' button.
   1 3. Click on the 'Finish' button then the 'Close' button.
   1 4 . Click on the 'OK' button and then the 'OK' button again to close the Display_Properties dialog box.

For Windows® Vista

1. Start Windows® Vista
2. Click the Start button; select and click on 'Control Panel'.
3. Select and click on 'Hardware and Sound'
4. Choose 'Device Manager' and Click on 'Update device drivers'.
5. Select 'Monitor' and then right click on 'Generic PnP Monitor'.
6. Click on 'Update Driver Software'.
7. Select 'Browse my computer for driver software'.
8. Click the 'Browse' button and choose the drive in which you've placed the disk. Example: (CD-ROM Drive:\Lcd\PC\drivers').
9. Click the 'Next' button.
10. Wait few minutes for installing the driver, and then click 'Close' button.

If your Windows® 95/98/2000/Me/XP/Vista version is different or you need more detailed installation information, please refer to your Windows® 95/98/2000/Me/XP/Vista user's manual.

RETURN TO TOP OF THE PAGE

On- Screen Display

• Description of the On-Screen Display
• The OSD Tree

On-Screen Display

Description of the On Screen Display

What is the On-Screen Display?

This is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance of the monitors directly through an on-screen instruction window. The user interface provides user-friendliness and ease-of-use when operating the monitor.

Basic and simple instruction on the control keys.

When you press the MENU/OK button on the front control of your monitor, the On-Screen Display (OSD) Main Controls window will pop up and you can then start making adjustments to your monitor's various features. Use the ▲▼ keys to make your adjustments.

RETURN TO TOP OF THE PAGE

fil e: / / / R/ 160E1 CD MANUAL-20081225//cd/manual/ENGLISH 160E1/osd/osddesc. mm(第1/3页)2008-12-26 19:13:22

On- Screen Display

The OSD Tree

Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on.

On - Screen Display

RETURN TO TOP OF THE PAGE

fill e: / / / R/ 160E1 CD MANUAL-20081225 / I cd/ manual / ENGLISH 160E1 / osd/ osddesc. It m (第 3 / 3 页) 2008 - 12 - 26 19 : 13 : 22

Customer Care & Warranty

Customer Care & Warranty

PLEASE SELECT YOUR COUNTRY/AREA TO REVIEW DETAILS OF YOUR WARRANTY COVERAGE

WESTERN EUROPE: Austria • Belgium • Denmark • France • Germany • Greece • Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden • Switzerland • Spain • United Kingdom

EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Slovakia • Slovenia • Turkey

LATIN AMERICA: Antilles • Argentina • Brasil • Chile • Colombia • Mexico • Paraguay • Peru • Uruguay • Venezuela

NORTH AMERICA: Canada • USA

PACIFIC: Australia • New Zealand

ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea • Malaysia • Pakistan • Philippines • Singapore • Taiwan • Thailand

AFRICA: Morocco • South Africa

MIDDLE EAST: Dubai • Egypt

Your Philips Warranty

Your Philips Warranty

Thank you for purchasing this Philips monitor.

All Philips monitors are designed and manufactured to high standards and deliver high-quality performance, ease of use and ease of installation. Should you encounter any difficulties while installing or using this product, please contact the Philips helpdesk directly to benefit from your Philips Warranty. This two-year service warranty entitles you to a swap model on-site if your monitor turns out to be faulty or defective.

What is covered?

The Philips Warranty applies within Andorra, Austria, Belgium, Cyprus, Denmark, France, Germany, Greece, Finland, Ireland, Italy, Liechtenstein, Luxembourg, Monaco, the Netherlands, Norway, Portugal, Sweden, Switzerland, Spain and the United Kingdom and only for monitors originally designed, manufactured, approved and/or authorized for usage within these countries.

Warranty coverage begins as from the day you buy your monitor. For two years thereafter, your monitor will be swapped by at least an equivalent monitor in case of defects provided for under the warranty coverage.

The swap monitor remains yours and Philips keeps the defective/original monitor. For the swap monitor the warranty period remains equal to that of your original monitor, being 24 months as from the purchase date of your original monitor.

What is excluded?

The Philips Warranty applies provided the product is handled properly for its intended use, in accordance with its operating instructions and upon presentation of the original invoice or cash receipt, indicating the date of purchase, dealer's name and model and production number of the product.

The Philips Warranty may not apply if:

• The documents have been altered in any way or made illegible;
- The model or production number on the product has been altered, deleted, removed or made illegible;
• Repairs or product modifications and alterations have been executed by unauthorized service organizations or persons;
• Damage is caused by accidents including but not limited to lightning, water or fire, misuse or neglect;
- Reception problems caused by signal conditions or cable or antenna systems outside the unit;
• Defects caused by abuse or misuse of the monitor;

Your Philips Warranty

• Product requires modification or adaptation to enable it to comply with local or national technical standards, which apply in countries for which the product was not originally designed, manufactured, approved and/or authorized. Therefore always check whether a product can be used in a specific country.
  Note that products that are not originally designed, manufactured, approved and/or authorized for usage within the Philips Warranty countries, do not apply to the Philips Warranty. In these cases the Philips global warranty terms are valid.

Just a click away

In case of any problems, we advise you to read the operating instructions carefully or go to the www.philips.com/support website for additional support.

Just a phone call away

In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully or go to the www.philips.com/support website for additional support before contacting the Philips helpdesk.

To solve your problem quickly, please prepare the following details before contacting the Philips helpdesk:

• Philips type number
• Philips serial number
• Purchase date (copy of purchase may be required)
• PC environment Processor:
286/386/486/Pentium Pro/Internal memory
Operating system (Windows, DOS, OS/2, Apple Macintosh)
Fax/Modem/Internet program?
• Other cards installed

Having the following information available will also help speed up the process:

• Your proof of purchase indicating: date of purchase, dealer name, model and product serial number.
• The full address to which the faulty monitor has to be collected and the swap model should be delivered.

Philips' customer help desks are located worldwide. Click here to access the Philips Warranty Contact Information.

Or you can reach us via:

Website: http://www.philips.com/support

'our Philips Warranty

fill e: / / / R/ 160E1 CD MANUAL-20081225/ I cd/ manual / ENGLISH warranty/ war_1 st. h m(第3/3页)2008-12-26 19:13:31

Philips Warranty Contact Information

Philips Warranty Contact Information

Country Code Telephone number Tariff

Austria [phone] € 0.07

Belgium [phone] € 0.06

Denmark [phone] Local call tariff

Finland [phone] Local call tariff

France [phone] € 0.09

Germany [phone] € 0.09

Greece [phone] Local call tariff

Ireland [phone] Local call tariff

Italy [phone] € 0.08

Luxembourg [phone] Local call tariff

The Netherlands [phone] € 0.10

Norway [phone] Local call tariff

Portugal [phone] Local call tariff

Spain [phone] € 0.10

Sweden [phone] Local call tariff

Switzerland [phone] Local call tariff

United Kingdom [phone] Local call tariff

Your Guarantee in Central and Eastern Europe

Dear Customer,

Thank you for purchasing this Philips product, which has been designed and manufactured to the highest quality standards. If, unfortunately, something should go wrong with this product Philips guarantees free of charge labor and replacement parts during a period of 24 months from date of purchase.

What is covered?

This Philips Guarantee in Central and Eastern Europe applies within Czech Republic, Hungary, Slovakia, Slovenia, Poland, Russia and Turkey and only for monitors originally designed, manufactured, approved and/or authorized for usage within these countries. Warranty coverage begins as from the day you buy your monitor. For 2 years thereafter, your monitor will be serviced in case of defects provided for under the warranty coverage.

What is excluded?

The Philips guarantee applies provided the product is handled properly for its intended use, in accordance with its operating instructions and upon presentation of the original invoice or cash receipt, indicating the date of purchase, dealer's name and model and production number of the product.

The Philips guarantee may not apply if:

• the documents have been altered in any way or made illegible;
- the model or production number on the product has been altered, deleted, removed or made illegible;
• repairs or product modifications and alterations have been executed by unauthorized service organizations or persons;
• damage is caused by accidents including but not limited to lightning, water or fire, misuse or neglect.
• Reception problems caused by signal conditions or cable or antenna systems outside the unit:
• Defects caused by abuse or misuse of the monitor;
- Product requires modification or adaptation to enable it to comply with local or national technical standards, which apply in countries for which the product was not originally designed, manufactured, approved and/or authorized. Therefore always check whether a product can be used in a specific country.

Please note that the product is not defective under this guarantee in the case where modifications become necessary in order for the product to comply with local or national technical standards which apply in countries for which the product was not originally designed and/or manufactured. Therefore always check whether a product can be used in a specific country.

Just a click away

Your Guarantee in Central and Eastern Europe

In case of any problems, we advise you to read the operating instructions carefully or go to the www.philips.com/support website for additional support.

Just a phone call away

In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting our dealers or Information Centers

In case your Philips product is not working correctly or is defective, please contact your Philips dealer or directly the Philips Service and Consumer Information Centers

Website: http://www.philips.com/support

Consumer Information Centers

Consumer Information Centers

Antilles • Argentina • Australia • Bangladesh • Brasil • Canada • Chile • China • Colombia • Belarus • Bulgaria • Croatia • Czech Republic • Estonia • Dubai • Hong Kong • Hungary • India • Indonesia • Korea • Latvia • Lithuania • Malaysia • Mexico • Morocco • New Zealand • Pakistan • Paraguay • Peru • Philippines • Poland • Romania • Russia • Serbia & Montenegro • Singapore • Slovakia • Slovenia • South Africa • Taiwan • Thailand • Turkey • Ukraine • Uruguay • Venezuela

Eastern Europe

BELARUS

Technical Center of JV IBA

M. Bogdanovich str. 155

BY - 220040 Minsk

Tel: [phone]

BULGARIA

LAN Service

140, Mimi Balkanska Str.

Office center Translog

1540 Sofia, Bulgaria

Tel: [phone]

www.lan-service.bg

CZECH REPUBLIC

Xpectrum

Lužná 591/4

CZ - 160 00 Praha 6 Tel: [phone]

Shevchenko street 32

UA - 49030 Dnepropetrovsk

Tel: [phone]

www.csp-comel.com

Latin America

ANTILLES

Philips Antillana N.V.

Kaminda A.J.E. Kusters 4

Zeelandia, P.O. box 3523-3051

Willemstad, Curacao

Phone: [phone]

Fax : [phone]

ARGENTINA

Philips Antillana N.V.

Vedia 3892 Capital Federal

CP: 1430 Buenos Aires

Phone/Fax: [phone]

BRASIL

Phone:[phone] (toll free)

Fax : [phone]-4104

MEXICO

Consumer Information Centre

Norte 45 No.669

Col. Industrial Vallejo

C.P.02300,-Mexico,D.F.

Phone: [phone]

Fax : [phone]

PARAGUAY

Markham, Ontario L6C 2S3

Phone: [phone]

Pacific

AUSTRALIA

Philips Consumer Electronics

Consumer Care Center

Level 1, 65 Epping Rd

North Ryde NSW 2113

Phone: [phone]

Fax : [phone]

Consumer Information Centers

NEW ZEALAND

Philips New Zealand Ltd.

Consumer Help Desk

2 Wagener Place, Mt.Albert

P.O. box 1041

Auckland

Phone: [phone] (toll free)

Fax:[phone]

Asia

BANGLADESH

Philips Service Centre

100 Kazi Nazrul Islam

Avenue Kawran Bazar C/A

Dhaka-1215

Phone: [phone]

Fax : [phone]

CHINA

SHANGHAI

Rm 1007, Hongyun Building, No. 501 Wuning road,

200063 Shanghai P.R. China

Phone: [phone]

Fax: [phone]

HONG KONG

Philips Electronics Hong Kong Limited

Consumer Service

Unit A, 10/F. Park Sun Building

103-107 Wo Yi Hop Road

Kwai Chung, N.T.

Hong Kong

Phone: [phone]

Fax: [phone]

Consumer Information Centers

INDIA

Phone: [phone] ext: 2765

Fax: [phone]

BOMBAY

Philips India

Customer Relation Centre

Bandbox House

254-D Dr. A Besant Road, Worli

Bombay 400 025

CALCUTTA

Customer Relation Centre

7 justice Chandra Madhab Road

Calcutta 700 020

MADRAS

Customer Relation Centre

3, Haddows Road

Madras 600 006

NEW DELHI

Customer Relation Centre

68, Shivaji Marg

New Dehli 110 015

INDONESIA

Philips Group of Companies in Indonesia

Consumer Information Centre

JI.Buncit Raya Kav. 99-100

12510 Jakarta

Phone: [phone] ext: 2100

Fax : [phone]

Consumer Information Centers

KOREA

Philips Consumer Service

Jeong An Bldg. 112-2

Banpo-dong, Seocho-Ku

Seoul, Korea

Customer Careline: 080-600-6600

Phone: [phone]

Fax : [phone]

MALAYSIA

After Market Solutions Sdn Bhd,

Philips Authorised Service Center,

Lot 6, Jalan 225, Section 51A,

46100 Petaling Jaya,

Selangor Darul Ehsan,

Malaysia

Phone: [phone] 3695

Fax: [phone]

Customer Careline: 1800-880-180

PAKISTAN

Philips Consumer Service

Mubarak manzil,

39, Garden Road, Saddar,

Karachi-74400

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

Website: www.philips.com.pk

PHILIPPINES

PHILIPS ELECTRONICS & LIGHTING, INC.

Consumer Electronics

48F PBCOM tower

6795 Ayala Avenue cor VA Rufino St.

Salcedo Village

1227 Makati City, PHILS

Phone: [phone], Domestic Toll Free: 1-800-10-PHILIPS or 1-800-10-744 5477

Fax: [phone]

Consumer Information Centers

SINGAPORE

Accord Customer Care Solutions Ltd

Authorized Philips Service Center

Consumer Service

620A Lorong 1 Toa Rayoh

Singapore 319762

Tel: [phone]

Fax: [phone]

TAIWAN

Philips Taiwan Ltd.

Consumer Information Centre

13F, No. 3-1 Yuan Qu St., Nan Gang Dist.,

Taipei 115, Taiwan

Phone: [phone]

Fax : [phone]

THAILAND

Philips Electronics (Thailand) Ltd.

26-28th floor, Thai Summit Tower

1768 New Petchburi Road

Khwaeng Bangkapi, Khet Huaykhwang

Bangkok10320 Thailand

Tel: [phone]

E-mail: cic [e-mail]

Africa

MOROCCO

Philips Electronique Maroc

304,BD Mohamed V

Casablanca

Phone: [phone]

Fax : [phone]

Consumer Information Centers

SOUTH AFRICA

PHILIPS SA (PTY) LTD

Customer Care Center

195 Main Road

Martindale, Johannesburg

P.O. box 58088

Newville 2114

Telephone: [phone]

Fax: [phone]

E-mail: [e-mail]

Middle East

DUBAI

Philips Middle East B.V.

Consumer Information Centre

P.O.Box 7785

DUBAI

Phone: [phone]

Fax : [phone]

Your International Guarantee

Dear Customer,

Thank you for purchasing this Philips product which has been designed and manufactured to the highest quality standards.

If, unfortunately, something should go wrong with this product Philips guarantees free of charge labor and replacement parts irrespective of the country where it is repaired during a period of 12 months from date of purchase. This international Philips guarantee complements the existing national guarantee obligations to you of dealers and Philips in the country of purchase and does not affect your statutory rights as a customer.

The Philips guarantee applies provided the product is handled properly for its intended use, in accordance with its operating instructions and upon presentation of the original invoice or cash receipt, indicating the date of purchase, dealer's name and model and production number of the product.

The Philips guarantee may not apply if:

• the documents have been altered in any way or made illegible;
- the model or production number on the product has been altered, deleted, removed or made illegible;
• repairs or product modifications and alterations have been executed by unauthorized service organizations or persons;
- damage is caused by accidents including but not limited to lightning, water or fire, misuse or neglect.

Please note that the product is not defective under this guarantee in the case where modifications become necessary in order for the product to comply with local or national technical standards which apply in countries for which the product was not originally designed and/or manufactured. Therefore always check whether a product can be used in a specific country.

In case your Philips product is not working correctly or is defective, please contact your Philips dealer. In the event you require service whilst in another country a dealer address can be given to you by the Philips Consumer Help Desk in that country, the telephone and fax number of which can be found in the relevant part of this booklet.

In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting your dealer. If you have questions which your dealer cannot answer or any related question please contact the Philips Consumer Information Centers or via:

Website: http://www.philips.com

International Guarantee

fil e: / / / R/ 160E1 CD MMUL-20081225 / I cd/ manual / ENGLISH warranty/ war_intl . itm(第 2 / 2 页)2008 - 12 - 26 19 : 14 : 30

United States Guarant ce

Your Philips F1rst Choice Warranty(USA)

Thank you for purchasing this Philips monitor.

All Philips monitors are designed and manufactured to high standards and deliver high-quality performance, ease of use and ease of installation. Should you encounter any difficulties while installing or using this product, please contact Philips directly to benefit from your Philips First Choice Warranty. This three-year service warranty entitles you to a swap model on-site within 48 hours of your call being received within the first year of purchase. If you have any problems with your monitor within the second or third year of purchase, we will repair it after it has been sent to the service provider at your expense and returned to you within five working days, free of charge.

LIMITED WARRANTY (Computer Monitor)

Click here to access the Warranty Registration Card.

Three Years Free Labor / Three Years Free Service on Parts / One Year Exchange*

*Product will be exchanged with a new or renewed to original specifications unit within two business days for the first year. This product must be shipped in at your expense for service during years two and three.

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase. Attach it to this owner's manual and keep both nearby.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For three years thereafter, all parts will be repaired or replaced, and labor is free. After three years from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the original product expires, the warranty on all replaced and repaired products and parts also expires.

WHAT IS EXCLUDED?

fil e: / / / R/ 1 6 0 E1 CD WMJL-2 0 0 8 1 2 2 5 / I cd/ manual / ENGLISH warranty/ war_usa. htm (第 1 /4 页) 2 0 0 8 - 1 2 - 2 6 19 : 14 : 3 6

United States Guarant ce

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.
- product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics.
• reception problems caused by signal conditions or cable or antenna systems outside the unit.
- a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.
- incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)
- the model or production number on the product has been altered, deleted, removed or made illegible.

Where IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

Where CAN I GET MORE INFORMATION?

For more information, contact the Philips Customer Care Center by calling [phone] (U.S.A. customers only) or [phone].

Before Requesting Service...

Please check your owner's manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS...

Contact the Philips Customer Care Center phone number listed below for product assistance and procedures for servicing:

Philips Customer Care Center

[phone] or [phone]

fil e: / / / R/ 160E1 CD MANUAL-20081225 / I cd manual / ENGLISH warranty / war_usa. htm (第 2 /4 页) 2008 - 12 - 26 19 : 14 : 36

United States Guarant ce

(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

[phone]

Three years free parts and three years free labor will be provided at Philips Canada depot or any one of its authorized service centers.

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

REMEMBER... Please record the model and serial numbers found on the product below.

MODEL #

SERIAL #

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

Before contacting Philips, please prepare the following details so we can solve your problem quickly.

• Philips type number
• Philips serial number
• Purchase date (copy of purchase may be required)
• PC environment Processor:

286/386/486/Pentium Pro/Internal memory
Operating system (Windows, DOS, OS/2, Apple Macintosh)
Fax/Modem/Internet program?

United States Guarantee

• Other cards installed
Having the following information available will also help speed up the process:
- Your proof of purchase indicating: date of purchase, dealer name, model and product serial number.
• The full address to which the swap model should be delivered.

Just a phone call away

Philips' customer help desks are located worldwide. Within the U.S. you can contact Philips customer care Monday-Friday from 8:00 AM-9:00 PM Eastern Time (ET) and on Saturdays from 10:00 AM-5:00 PM ET hrs by using one of the contact phone numbers.

For more information on this and more great Philips products visit our website at:

Website: http://www.philips.com

Glossary

ABCDEFGHIJKLMNOPQRSTUVWXYZ

A

Active matrix

This is a kind of liquid crystal display structure in which switching transistors are attached to each pixel to control the on/off voltage. It produces a brighter and sharper display with a broader viewing angle than a passive matrix display. Also refer to TFT (thin film transistor).

Amorphous silicon (a-Si)

A semiconductor material that is used to make the thin film transistors (TFTs) layer of an active matrix LCD.

Aspect ratio

The width-to-height ratio of the active area of a display. In general, most monitors have an aspect ratio of 4:3. Wide monitors or TVs have an aspect ratio of 16:9 or 16:10.

B

Backlight

el ossary

The light source for a transmissive LCD. There are two techniques used in nowadays LCD designs. Most TFT LCD panels use CCFLs (cold cathode fluorescent light) and a diffuser panel directly behind the liquid crystal layer. New technology using Light Emitting Diodes (LED) are still under development.

Brightness

The dimension of color that is referred to an achromatic scale, ranging from black to white, also called lightness or luminous reflectance. Because of confusion with saturation, the use of this term should be discouraged.

C

CCFL(cold cathode fluorescent light)

These are the fluorescent light tubes providing the light for the LCD module. These tubes are generally very thin, approximately 2 mm in diameter.

Chromaticity

That part of color specification, which does not involve illuminance. Chromaticity is two-dimensional and specified by pairs of numbers such as dominant wavelength and purity.

CIE (Commission International de l'Eclairage)

The International Commission on Illumination, the primary international organization concerned with color and color measurement.

Color temperature

A measurement of the color of light radiated by an object while it is being heated. This measurement is expressed in terms of absolute scale, (degrees Kelvin). Lower Kelvin temperatures such as 2400^ K are red; higher temperatures such as 9300^ K are blue. Neutral temperature is white, at 6504^ K. Philips monitors generally offers 9300^ K, 6500^ K, and user define.

Contrast

The luminance variation between light and dark areas in an image.

el ossary

Contrast ratio

The ratio of luminance between the brightest white pattern and the darkest black pattern.

RETURN TO TOP OF THE PAGE

D

D-SUB

A VGA Analog input connector. Your monitor comes with a D-Sub cable.

Digital Visual Interface (DVI)

The Digital Visual Interface (DVI) specification provides a high-speed digital connection for visual data types that is display technology independent. The interface is primarily focused at providing a connection between a computer and its display device. The DVI specification meets the needs of all segments of the PC industry (workstation, desktop, laptop, etc.) and will enable these different segments to unite around one monitor interface specification.

The DVI interface enables:

1. Reduce signal loss and video noise in signal due to less signal conversion.
2. Independent from display technology, and can be used on LCD, Plasma, LCOS, etc.
3. Plug and play through hot plug detection, EDID and DDC2B.
4. Digital and Analog support in a single connector (DVI-I only).

RETURN TO TOP OF THE PAGE

E

Energy Star Computers Program

An energy conservation program launched by the US Environmental Protection Agency (EPA), promotes the manufacture and marketing of energy-efficient office automation equipment.

fil a: / / / R/ 160E1 CD MANUAL-20081225 / I cd/ manual / ENGLISH 160E1 / gl ossary/ glossary. it m(第3/9页)2008-12-26 19:14:47

el ossary

Companies joining this program, must be willing to commit themselves to manufacture one or more products capable of going into a low -power state (< 30 W) either after a period of inactivity, or after a predetermined time selected by the user.

RETURN TO TOP OF THE PAGE

G

Gamma

Screen luminance as a function of video voltage approximately follows a mathematical power function of the input video signal, the exponent of which is called gamma.

Grayscale

An achromatic scale ranging from black through a series of successively lighter grays to white. Such a series may be made up of steps, which appear to be equally distant from one another. If the Analog/ Digital converter is 8 bit, then the monitor can display at most 2^8 = 256 levels. For a color monitor, R.G.B. each color had 256 levels. Thus, total color can display is 256 × 256 × 256 = 16.7 million.

H

Hue

The main attribute of a color that distinguishes it from other colors. For example, a color may have a green, yellow, or purple hue. Color defined as having hue are known as chromatic colors. White, black, and grays possess no hue.

1

IPS (In Plane Switching)

el ossary

A technique of improving the viewing angle of an LCD where the liquid crystal molecules are switched in the plane of the LCD layer rather than vertical to it.

L

LCD (liquid crystal display)

A display composed of liquid crystal suspended between two transparent sheets. The display is composed thousands of pixels which can be turned on or off with electrical stimulation. Thus, colorful images/texts can be generated.

Liquid crystal

The compound found in liquid crystal displays. Liquid crystal reacts predictably when electrically stimulated. This makes it the ideal compound to turn LCD pixels "on" or "off." Liquid crystal is sometimes abbreviated as LC.

Luminance

A measure of the brightness or luminous intensity of light, usually expressed in units of Candelas per square meter (cd/m2) or foot Lamberts. 1 fL=3.426 cd/m2.

RETURN TO TOP OF THE PAGE

N

Nit

A unit of luminance equal to 1 cd/m2 or 0.292 ftL.

P

el ossary

Pixel

PICTure Element; the smallest element on a computerized CRT or LCD image, and hence a display.

Polarizer

A light filter which only allows light waves of a certain rotation through. Polarized material with perpendicular filtering is used in LCDs to enclose the liquid crystal. The liquid crystal is then used as the medium which twists the light waves 90^ in order to allow the light to pass through or not.

R

Refresh rate

The number of times per second the screen is refreshed or redrawn. This number is usually stated in Hz (Hertz) or cycles per second. A rate of 60 Hz is equal to 60 tomes per second.

S

sRGB

sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital cameras, monitors, printers, scanners, etc.)

Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen.

Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD.

To do so, open the OSD by pressing the OK button on the front of your monitor. Move the down button to go to Color and press OK again. Use the right button to go to sRGB. Then move the down button and press OK again to exit the OSD.

After this, please do not change the brightness or contrast setting of your monitor. If you change either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K.

Other:

USB plug: An upstream and a downstream USB plug is provide for user's convenience.

T

TFT(thin film transistor)

Usually made from amorphous silicon (a-Si) and used as a switch to a charge storage device located below each sub-pixel on an active matrix LCD.

U

USB or Universal Serial Bus

A smart plug for PC peripherals. USB automatically determines resources (like driver software and bus bandwidth) required by peripherals. USB makes necessary resources available without user intervention.

• USB eliminates "case anxiety" -- the fear of removing the computer case to install add-on peripherals. USB also eliminates adjustment of complicated IRQ settings when installing new peripherals.
• USB does away with "port gridlock." Without USB, PCs are normally limited to one printer, two Com port devices (usually a mouse and modem), one Enhanced Parallel Port add-on (scanner or video camera, for example) and a joystick. More and more peripherals for multimedia computers arrive on the market every day. With USB, up to 127 devices can run simultaneously on a computer.
• USB permits "hot plug-in." There's no need to shut down, plug in, reboot and run set-up to install peripherals. And no need to go through the reverse process to unplug a device.

In short, USB transforms today's "Plug-and-Pray" into true Plug-and-Play!

Hub

A Universal Serial Bus device that provides additional connections to the Universal Serial Bus.

Hubs are a key element in the plug-and-play architecture of USB. The Figure shows a typical hub. Hubs serve to simplify USB connectivity from the user's perspective providing low cost and complexity.

Hubs are wiring concentrators and enable the multiple attachment characteristics of USB. Attachment points are referred to as ports. Each hub converts a single attachment point into multiple attachment points. The architecture supports concatenation of multiple hubs.

el ossary

The upstream port of a hub connects the hub towards the host. Each of the other downstream ports of a hub allows connection to another hub or function. Hubs can detect, attach and detach at each downstream port and enable the distribution of power to downstream devices. Each downstream port can be individually enabled and configured at either full or low speed. The hub isolates low speed ports from full speed signaling.

A hub consists of two portions: the Hub Controller and Hub Repeater. The repeater is a protocol-controlled switch between the upstream port and downstream ports. It also has hardware support for reset and suspend/resume signaling. The controller provides the interface registers to allow communication to/from the host. Hub specific status and control commands permit the host to configure a hub and to monitor and control its ports.

Device

A logical or physical entity that performs a function. The actual entity described depends on the context of the reference. At the lowest level, device may refer to a single hardware component, as in a memory device. At a higher level, it may refer to a collection of hardware components that perform a particular function, such as a Universal Serial Bus interface device. At an even higher level, device may refer to the function performed by an entity attached to the Universal Serial Bus; for example, a data/FAX modem device. Devices may be physical, electrical, addressable, and logical.

Downstream

The direction of data flow from the host or away from the host. A downstream port is the port on a hub electrically farthest from the host that generates downstream data traffic from the hub. Downstream ports receive upstream data traffic.

el ossary

Upstream

The direction of data flow towards the host. An upstream port is the port on a device electrically closest to the host that generates upstream data traffic from the hub. Upstream ports receive downstream data traffic.

RETURN TO TOP OF THE PAGE

V

Vertical refresh rate

Expressed in Hz, it is the number of frames (complete pictures) written to the screen every second.

RETURN TO TOP OF THE PAGE

Download and Print

• Installing your LCD monitor driver
- Download and Printing Instructions

Download and Print

Installing Your LCD monitor driver

System requirements:

PC running Windows 95, Windows® 98, Windows® 2000, Windows® Me, Windows® XP, Windows® Vista or later
• Find your driver ".inf/.icm/.cat" at : /PC/drivers/

Read the "Readme.txt" file before installing.

This page provides an option to read the manual in .pdf format. PDF files can be downloaded into your hard disk, then viewed and printed with Acrobat Reader or through your browser.

If you do not have Adobe® Acrobat Reader installed, click on the link to install the application. Adobe® Acrobat Reader for PC / Adobe® Acrobat Reader for Apple Macintosh.

To view some documentation (.pdf files), you must have the Adobe Acrobat Reader program installed on your computer. If it is not installed, you will receive an error message. For your convenience, Adobe Acrobat Reader installers for the languages listed below, are included on this CD. Click on your Language below, to install the Adobe Reader for your Language. Note: Only the English installer includes the features for searching Adobe .pdf files and accessibility support. Installers for other languages, with these additional features, can be downloaded from the Adobe Web site.

Download instructions:

To download the file:

1. Click-and-hold your mouse over the icon below. (Windows® 95/98/2000/Me/XP/Vista users right-click)

Download

160E1.pdf

1. From the menu that appears, choose 'Save Link As...', 'Save Target As...' or 'Download Link to Disk'.

2. Choose where you would like to save the file; click 'Save' (if prompted to save as either 'text' or

fill e: / / / R/ 160E1 CD MANUAL-20081225/ I cd/ manual / ENGLISH downl oad/ downl oad. it m(第 1 / 2 页)2008 - 12 - 26 19 : 14 : 51

Download and Print

'source', choose 'source').

Printing instructions:

To print the manual:

With the manual file open, follow your printer's instructions and print the pages you need.

RETURN TO TOP OF THE PAGE
