USER MANUAL ZBX0HW69465 TURTLE BEACH

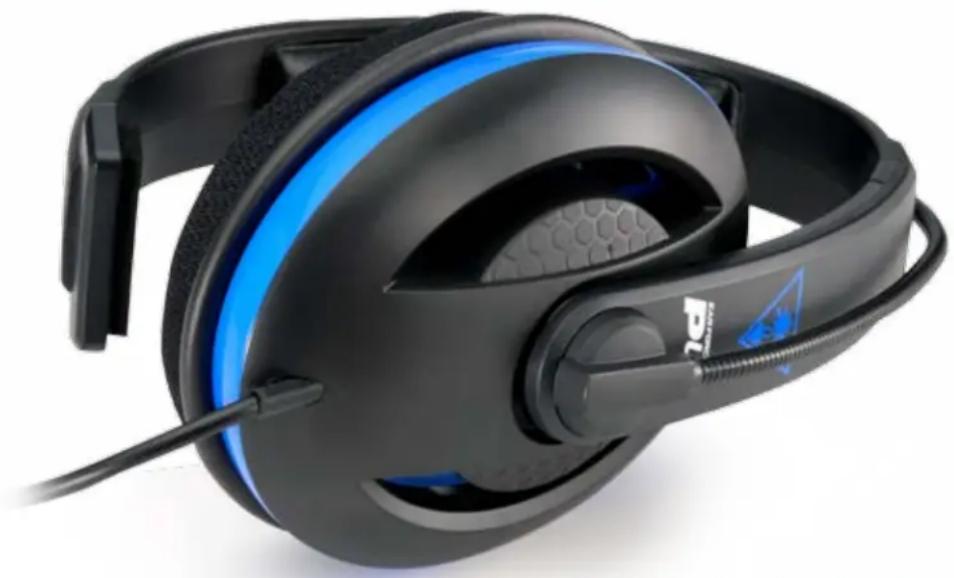

Black and blue headboard with a connected audio jack against a solid blue background (no text or symbols visible)

Congratulations on your purchase of the Ear Force® P4c headset from Turtle Beach. The P4c works with your PS4®, PC or Mac® and all of your favorite mobile devices. Welcome to the Turtle Beach Audio Advantage!

For our Knowledgebase and Technical Support Contact info please visit: http://www.turtlebeach.com/support

Close-up of a black and blue headboard with a cable, showing ear structure and branding (no readable text or symbols)

Table of Contents

What's in the box? P4

About the P4c Headset P5

Inline Controls P6

PS4 ^® Setup P7

PC/Mac® Setup P8

Mobile Device Setup P9

Specifications P10

Important Safety Information P11

Compliance/Conformity P12

Warranty P15

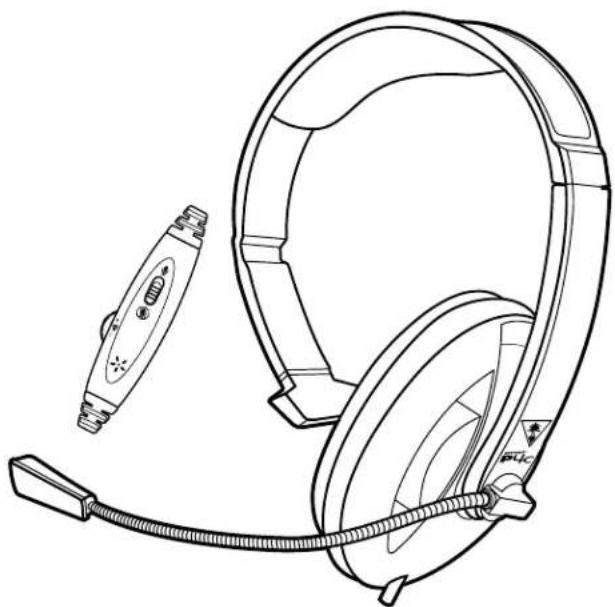

What's in the Box?

Line drawing of a headband headset with attached cable and connector (no text or symbols)

TURTLE BEACH

Ear Force P4c Headset Turtle Beach Stickers

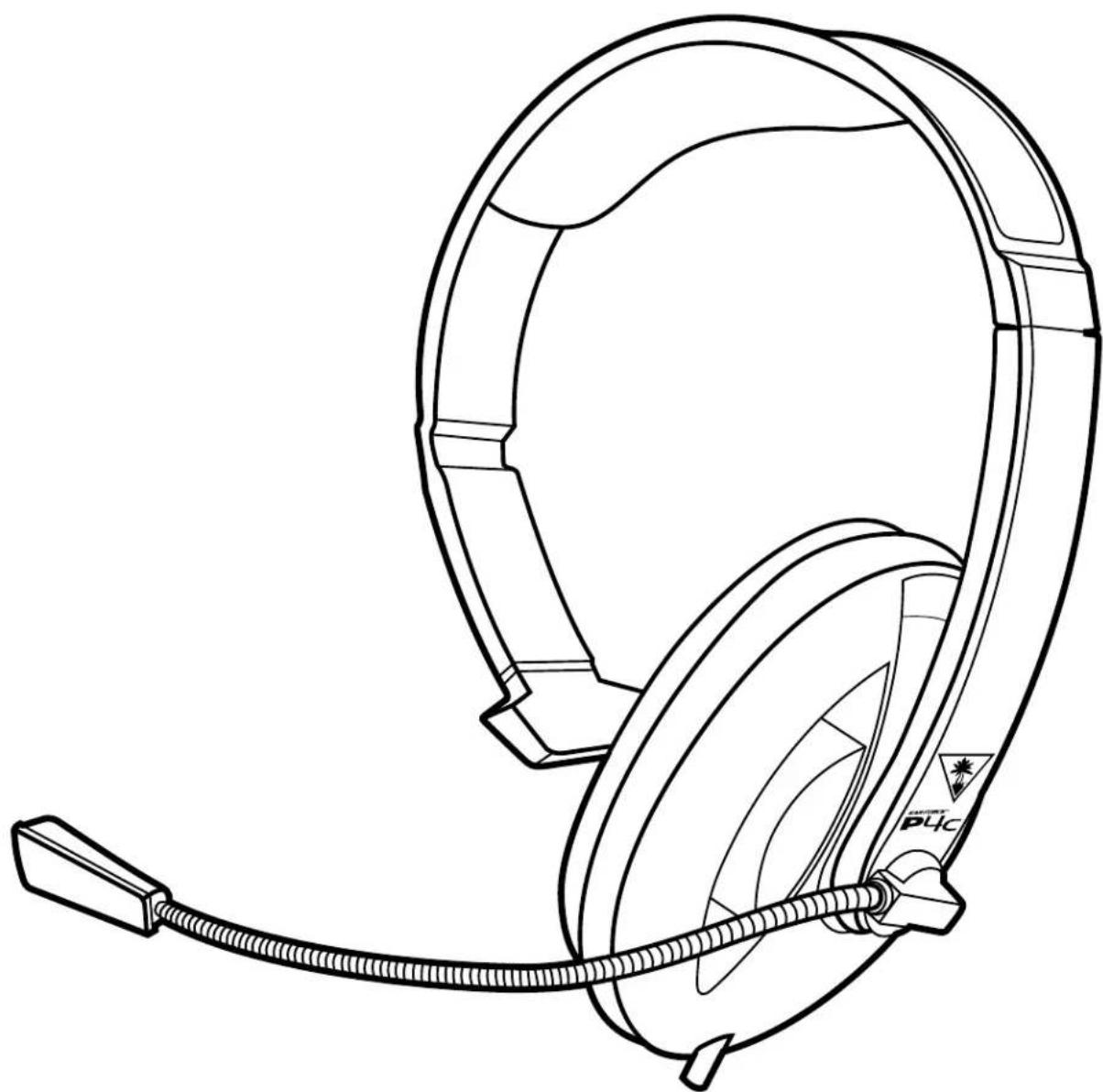

About the P4C Headset

The Turtle Beach P4C enhances your PSN® gaming experience, allowing you to communicate and strategize with your teammates more accurately and more comfortably than a standard communicator. The P4C features a unique slotted ear cup design that lets you hear external sounds and chat at the same time, so you'll never miss out on the action.

Line drawing of a dual-camera headset with attached cable, no text or symbols present

Inline Controls

1. Master Volume

Adjusts the master volume of the incoming chat audio.

Line drawing of a handheld electronic device with speaker, microphone, and fan symbols (no text or labels)

2. Mic Switch

Switch to MUTE to mute the microphone.

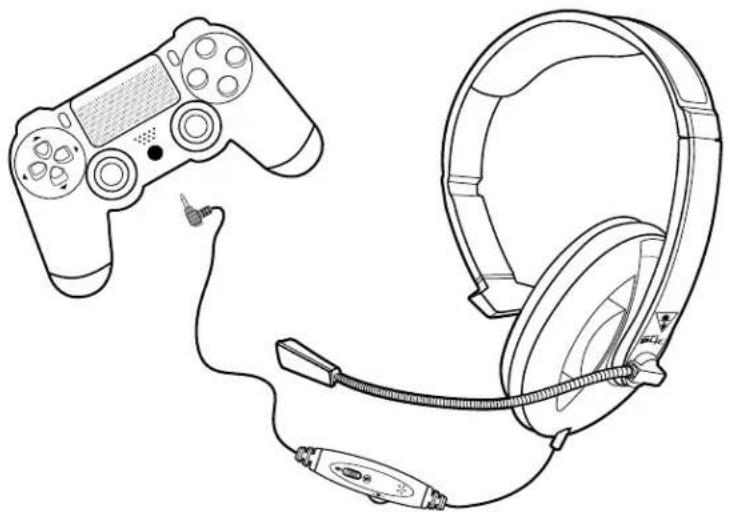

PS4® Setup

Insert the 3.5mm headset connector into jack on the bottom of your Dual Shock 4 PS4 Controller.

Line drawing of a game controller and headset with cable, no text or symbols present

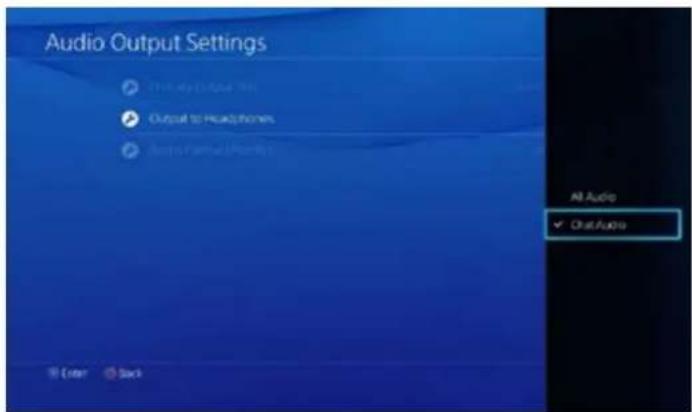

Audio Output Settings ✓ All Audio ✓ ChatAudio

Go to Settings > Sound and Screen > Audio Output > Settings > Output to Headphones. Select "Chat Audio"

Headset and Headphones Volume Control [headphones] Enter Bass User

If your chat volume is either too loud or too soft: Go to Settings > Devices > Audio Devices > Headsets and Headphones > Volume Control (Headphones) and change the audio level to your liking.

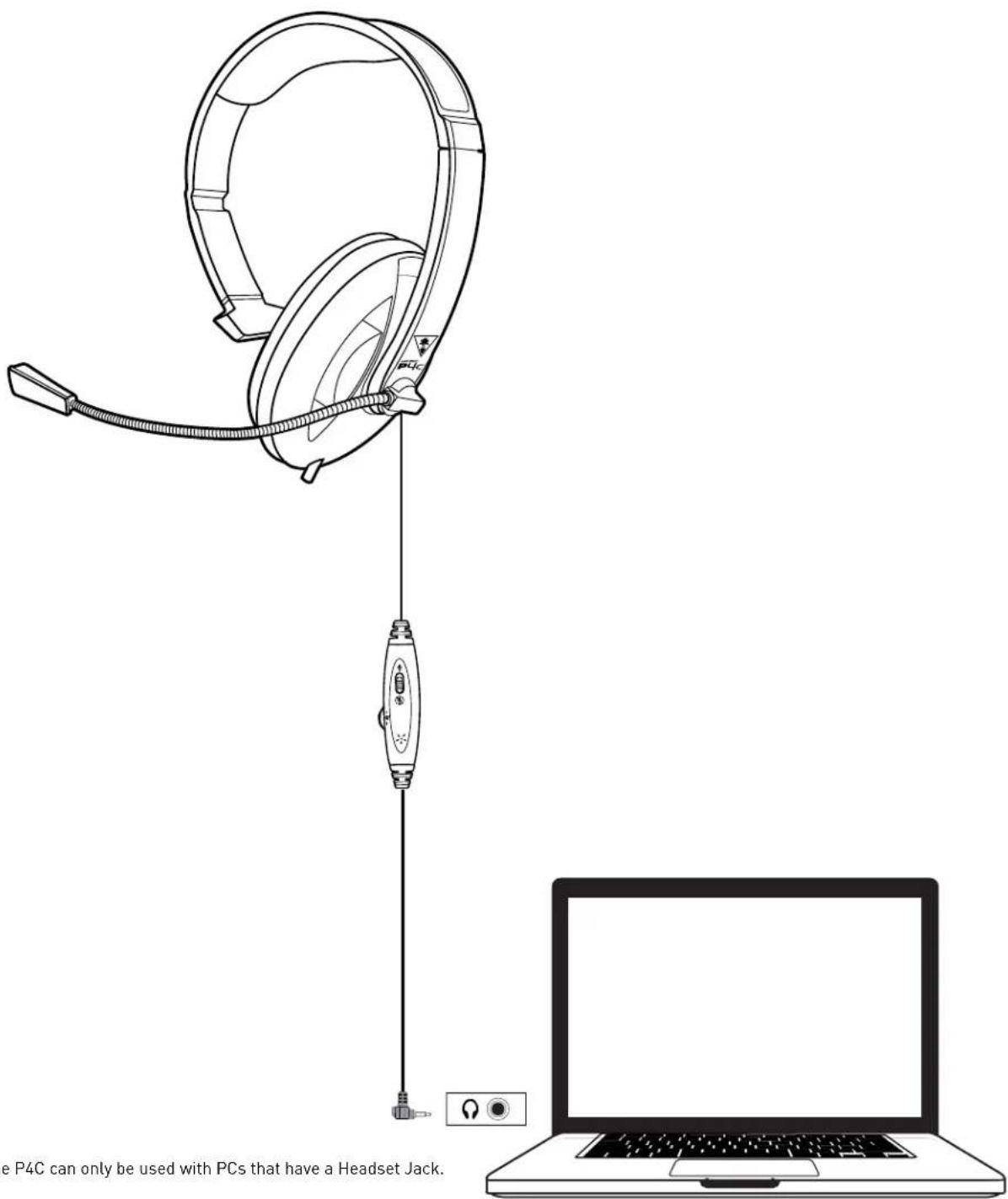

PC/Mac® Setup

Insert the 3.5mm headset connector into the Headset Jack on your PC/Mac.

e P4C can only be used with PCs that have a Headset Jack.

*Note: The P4C can only be used with PCs that have a Headset Jack.

Mobile Device Setup

Insert the 3.5mm headset connector into the Headset Jack on your Phone.

Line drawing of a mobile ear with attached microphone and connector, showing no text or symbols

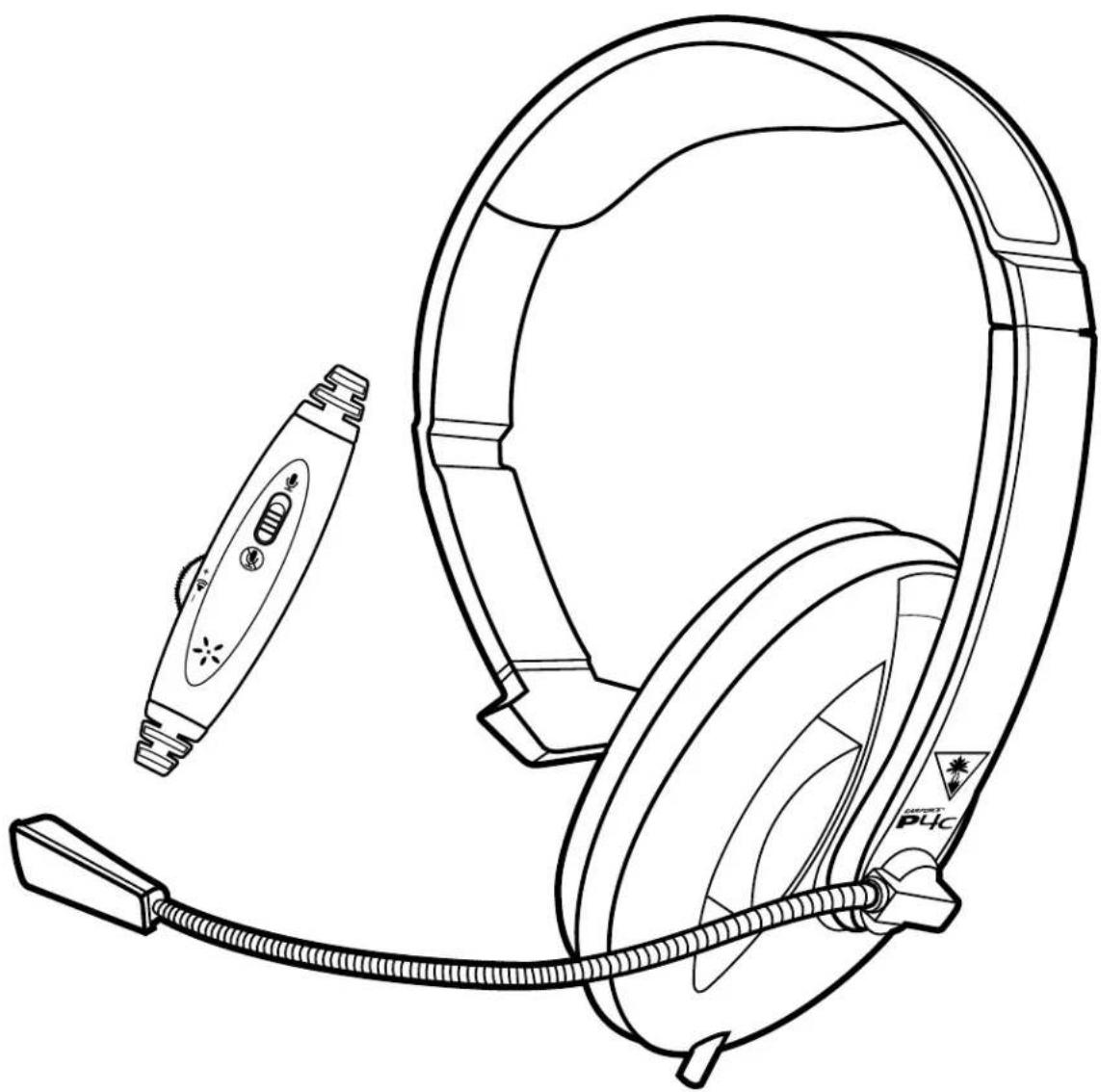

Specifications

• Speaker: 40mm diameter speaker
• Frequency Response: 20Hz - 20kHz
• Condenser Microphone Frequency Response: 50Hz - 15kHz
• Connection: PS4 controller with 3.5mm input jack

Line drawing of a P4C headset with attached cable and connector (no text or symbols)

Important Safety Information

To avoid potential damage to the device, always disconnect all cables before transporting it.

WArNiNG: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time, so it is important to keep the volume at a safe level. Over time, your ears adapt to loud volume levels, so a level that may not cause initial discomfort can still damage your hearing. If you experience ringing in your ears after listening with the headset, it means the volume is set too loud.

The louder the volume, the less time it takes to affect your hearing. So, please take care to listen at moderate levels.

• Before placing a headset on your ears, turn the volume down completely, then slowly increase it to a comfortable level.
• Turn down the volume if you can't hear people speaking near you.
• Avoid turning up the volume to block out noisy surroundings.

Regulatory Compliance Statements for the EAR FORCE P4c Model

Federal Communications Commission (FCC) Compliance Notices

Class B Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Canadian ICES Statements

Canadian Department of Communications Radio Interference Regulations

This digital apparatus does not exceed the Class B limits for radio-noise emissions from a digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003.

European Union and European Fair Trade Association (EFTA) Regulatory Compliance

This equipment may be operated in the countries that comprise the member countries of the European Union and the European Fair Trade Association. These countries, listed below, are referred to as The European Community throughout this document:

AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE,, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY, SWITZERLAND

Declaration of Conformity

Marking by Marking by this symbol: CE

indicates compliance with the Essential Requirements of the EMC Directive of the European Union (2004/108/EC). This equipment meets the following conformance standards:

Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 (T-Mark License)

Also Licensed for Standards:

IEC 60950-1: 2005 (2nd Edition) + Am 1: 2009 (CB Scheme Report/Certificate),

UL 60950-1: 2007 R12.11 (NRTL License),

CAN/CSA-C22.2 No. 60950-1-07 + A1: 2011 (SCC License)

EN 50332-1: 2000, EN 50332-2: 2003

Additional licenses issued for specific countries available on request

Emissions: EN 55022: 2010, CISPR: 2008

Also Licensed for Standards: FCC Part 15 Subpart B: 2010, ICES-003: 2004,

CNS 13438: 2006, VCCI V-3/2011.04

Immunity: EN 55024: 2010, EN 55024: 2010,

EN61000-4-2: (2008-12), EN61000-4-3: (2010-04), EN 61000-4-8: (2009-09)

These products are licensed, as required, for additional country specific standards for the International Marketplace. Additional issued licenses available upon request.

Environmental: Low Voltage Directive 2006/95/EC, RoHS 2011/65/EU,

REACH 2006/1907/EC, WEEE 2002/96/EC, Packaging 94/62/EC

Warning!

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case, the user may be required to take appropriate measures.

Achtung!

This symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

Japan Compliance Statement

This is a Class B product based on the standard of the VCCI Council. If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

Korean Compliance Statement

B급 기기(가정용 방송통신기자재)

(Broadcasting Communication Equipment for Home Use)

As an electromagnetic wave equipment for home use (Class B), this equipment is intended to use mainly for home use and may be used in all areas.

LIMITED ONE YEAR WARRANTY FOR TURTLE BEACH PRODUCTS:

Voyetra Turtle Beach, Inc. ("VTB") warrants to the original end-user purchaser ("Purchaser") that the retail Turtle Beach hardware product herein ("Product") will be free of defects in materials and workmanship for a period of one year from the date of purchase by the Purchaser ("Warranty Period"). Any Extended Warranty or Service Plans purchased through a Retail store are not honored by VTB. The Warranty refers to the repair/ replacement of a defective product during this period and not a refund.

This limited warranty is extended only to the original Purchaser of a new product, which was not sold "AS IS". It is not transferable or assignable to any subsequent purchaser. This limited warranty is applicable only in the country or territory where the Product was purchased from an authorized VTB retailer and does not apply to a Product that has been purchased as used or refurbished or was included as part of a non-VTB product.

WARRANTY SERVICE:

In the USA and CANADA Warranty Service is provided by our Turtle Beach USA offices and in all other Countries it is provided by our local International Distributors when available. Refurbished/Recertified products are sold on an AS IS basis with a 90-day Warranty or less in accordance with each vendor's policy.

VTB does not warrant uninterrupted or error-free operation of the Product and is under no obligation to support the Product for all computer operating systems or future versions of such operating systems.

If a defect should occur during the Warranty Period, Purchaser must contact VTB to obtain a Return Merchandise Authorization ("RMA") number on the basis of the dated purchase receipt. Purchaser will be responsible for shipping costs incurred in returning the defective Product to an authorized VTB service center, or to the repair facility located at VTB's corporate headquarters. VTB will not be responsible for other products or accessories included with the defective Product sent to VTB. The RMA number must be clearly indicated on the outside of the package. Packages without an RMA number will be refused by VTB or its representatives and returned to sender at the sender's expense.

In the event of a defect, Purchaser's sole and exclusive remedy, and VTB's sole liability, is expressly limited to the correction of the defect by adjustment, repair, or replacement of the Product at VTB's sole option and expense. VTB owns all Products it has replaced and all parts removed from repaired Products. VTB uses new and reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If VTB repairs or replaces a product, the original Warranty Period is not extended, however, VTB warrants that repaired or replacement parts will be free from defects in material and workmanship for a period of thirty (30) days from the date of repair or replacement, or for the remainder of the Warranty Period, whichever is greater.

This warranty does not apply to any Product that has had its serial number altered, removed or defaced, or any Product damage caused by shipping, improper storage, accident, problems with electrical power, abuse, misuse, neglect, ordinary wear, acts of God (e.g. flood), failure to follow directions, improper maintenance, use not in accordance with product instructions, unauthorized modification or service of the Product or damage resulting from the use of the Product with hardware, software or other products not provided by or specifically recommended by VTB.

NOTES:

• Replacement Parts and accessories that are subject to “wear and tear” such as earpads, mic foam covers, talkback cables, etc. have a three (3) month Warranty.
• Replacement Parts for Discontinued Products are sold on an AS IS basis, they are not supported and come with a 30 day Warranty.

THIS LIMITED WARRANTY IS PURCHASER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. TO THE EXTENT PERMITTED BY APPLICABLE LAW, VTB HEREBY DISCLAIMS THE APPLICABILITY OF ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR USE FOR THE PRODUCT. IF SUCH A DISCLAIMER IS PROHIBITED BY APPLICABLE LAW, THE IMPLIED WARRANTY IS LIMITED TO THE DURATION OF THE FOREGOING LIMITED WRITTEN WARRANTY.

IN NO EVENT SHALL VTB BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, OR DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOST PROFITS, DATA, OR LOSS OF USE, ANY THIRD PARTY CLAIMS, AND ANY INJURY TO PROPERTY OR BODILY INJURY (INCLUDING DEATH) TO ANY PERSON, ARISING FROM OR RELATING TO THE USE OF THIS PRODUCT OR ARISING FROM BREACH OF THE WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR STRICT LIABILITY, EVEN IF VTB HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

This warranty supersedes all prior agreements or understandings, oral or written, relating to the Product, and no representation, promise or condition not contained herein will modify these terms. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights. You may also have other rights, which vary from state to state. Any action or lawsuit for breach of warranty must be commenced within eighteen (18) months following the purchase of the Product.

EXCLUSIONS FROM LIMITED WARRANTY:

This Limited Warranty shall not apply and VTB has no liability under this Limited Warranty if the Turtle Beach Product:

• is used for commercial purposes such as "LAN, Call Centers" (including rental or lease);
• is modified or tampered with;
• is damaged by Acts of God, power surge, misuse, abuse, negligence, accident, wear and tear, mishandling, misapplication, or other causes unrelated to defective materials or workmanship;
• serial number is defaced, altered or removed;
• is not used in accordance with the documentation and use instructions; or
• is repaired, modified or altered by other than authorized repair centers.
• is no longer available because it was discarded.

TURTLE BEACH™

WIRED

For: PS4™ I PC* I Mac® I Mobile

*PC must have 3.5mm-4pole jack

Watch Turtle Beach product training videos at: Product supp

youtube.com/TurtleBeachVideos

ranty information:

TurtleBeach.com/support
