TP-219HD, XGA/HD Line Transmitter/Switcher

TP-220HD, XGA/HD Line Receiver/DA

Contents

1 Introduction 1
2 Getting Started 1
2.1 Quick Start 2
3 Overview 3
3.1 About the Power Connect Feature 3
3.2 Shielded Twisted Pair (STP)/Unshielded Twisted Pair (UTP) 4
4 Your XGA/HD Line Transmitter/Switcher and Receiver/DA 5
4.1 Your TP-219HD 5
4.2 Your TP-220HD 7
5 Connecting the TP-219HD and TP-220HD 8
5.1 Connecting an HD System 11
5.2 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 11
6 Technical Specifications 12

Figures

Figure 1: TP-219HD XGA/HD Line Transmitter/Switcher 5

Figure 2: TP-219HD (Underside Panel) 6

Figure 3: TP-220HD XGA/HD Line Receiver/DA 7

Figure 4: TP-220HD (Underside Panel) 8

Figure 5: Connecting the TP-219HD/TP-220HD XGA System 10

Figure 6: Connecting an HD Source 11

Figure 7: CAT 5 PINOUT 11

Tables

Table 1: TP-219HD XGA/HD Line Transmitter/Switcher Features 5

Table 2: TP-219HD (Underside Panel) Features 6

Table 3: TP-220HD XGA/HD Line Receiver/DA Features 7

Table 4: TP-220HD (Underside Panel) Features 8

Table 5: CAT 5 PINOUT 11

Table 6: Technical Specifications of the TP-219HD and TP-220HD Setup 12

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better! Our 1,000-plus different models now appear in 11 groups ^1 that are clearly defined by function.

Thank you for purchasing the Kramer TOOLS TP-219HD XGA/HD Line Transmitter/Switcher and Kramer TOOLS TP-220HD XGA/HD Line Receiver/DA which are ideal for:

• Presentation and multimedia applications
• Long range graphics distribution for schools, hospitals, security, and stores

The package includes the following:

• TP-219HD and/or TP-220HD
• Power supply (12V DC)
- This user manual ^2

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual
• Use Kramer high performance high-resolution cables ^3

2.1 Quick Start

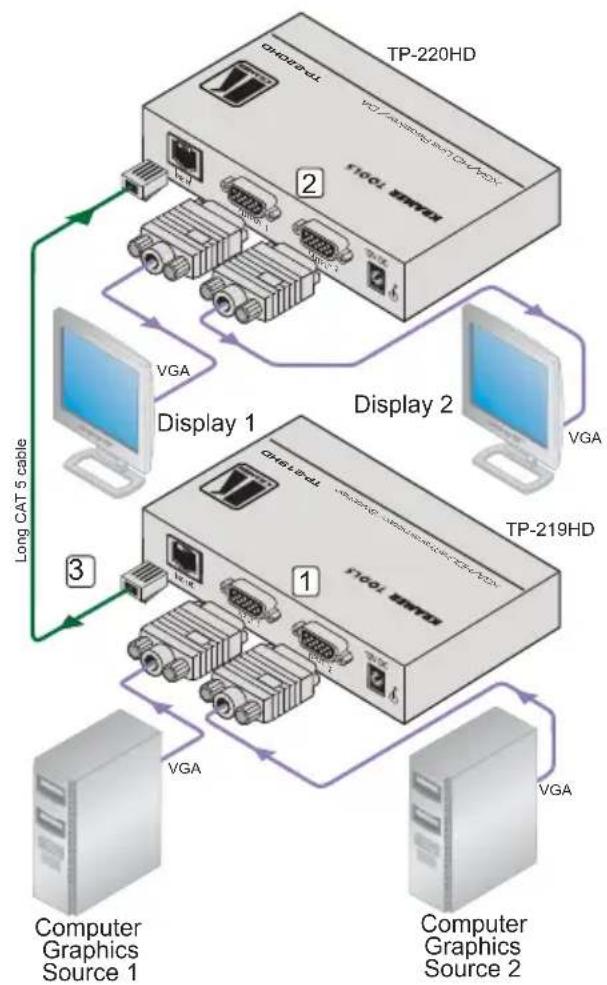

This quick start chart summarizes the basic setup and operation steps.

Step 1: Connect the inputs and outputs - see section 5

TP-219HD: Connect the inputs
2 TP-22OHD: Connect the outputs
3 Connect the TP-219 to the TP-220 via the CAT 5 cable

Step 2: Connect the power

Step 3: Select the input - see section 5

If required:

○ Adjust the EQ. and LEVEL on the RP-220HD
O Set the SYNC Polarity switches on the undersides of the units

3 Overview

The TP-219HD is a high-performance twisted pair transmitter for computer graphics signals with resolutions ranging from VGA through UXGA and higher as well as HDTV signals up to 1080p. It takes one of two inputs as selected by the user and converts it to a twisted pair signal.

The TP-220HD is a high-performance twisted pair receiver for computer graphics signals with resolutions ranging from VGA through UXGA and higher as well as HDTV signals up to 1080p. It converts a twisted pair signal back into two identical signals in the original format.

The TP-219HD XGA/HD Line Transmitter/Switcher:

• Has a transmission range of more than 300 feet (more than 100 meters)
• Includes two XGA ^1 /YUV ^2 inputs on 15-pin HD connectors
• Features an INPUT SELECTOR button to select between INPUT 1 and INPUT 2
• Can change the polarity of encoding H and V Sync for XGA graphics
• Can power or be powered by the receiver over the same CAT 5 cable (see section 3.1)
• Is 12V DC fed

The TP-220HD XGA/HD Line Receiver/DA:

• Has two XGA/YUV ^2 outputs on 15-pin HD connectors
• Can change the polarity of decoding H and V Sync for XGA graphics
• Includes EQ. and LEVEL controls
• Can power or be powered by the transmitter over the same CAT 5 cable (see section 3.1)
• Is 12V DC fed

3.1 About the Power Connect Feature

The Power Connect feature applies as long as the cable can carry power. This feature is available when using STP cable and the distance does not exceed 50m on standard CAT 5 cable. For longer distances, heavy gauge cable should be used ^3 . For units which are connected via RJ-45 connectors, make sure that the shield of the STP cable is connected to the metal casing

of the connectors on both ends of the cable. For units which are connected via terminal block connectors, the shield of the STP cable must be connected to a ground terminal on the units at both ends (use the ground terminal of the power supply connection if necessary).

For a CAT 5 cable exceeding a distance of 50m, separate power supplies should be connected to the transmitter and to the receiver simultaneously.

3.2 Shielded Twisted Pair (STP)/Unshielded Twisted Pair (UTP)

We recommend that you use Shielded Twisted Pair (STP) cable. There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is intended for analog signals where skewing is not an issue. For cases where there is skewing, our UTP skew-free cable, Kramer BC-XTP, may be used. Bear in mind, though, that we advise using STP cables where possible, since the compliance to electromagnetic interference was tested using those cables.

Although Unshielded Twisted Pair (UTP) cable might be preferred for long range applications, the UTP cable should be installed far away from electric cables, motors and so on, which are prone to create electrical interference. However, since the use of UTP cable might cause inconformity to electromagnetic standards, Kramer does not commit to meeting the standard with UTP cable.

To achieve the best performance:

• Use only good quality connection cables ^1 to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables).
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality and position your Kramer products away from moisture, excessive sunlight and dust

Caution: No operator serviceable parts inside unit Warning: Use only the Kramer Electronics input power wall adapter that is provided with the unit Warning: Disconnect power and unplug unit from wall before installing or removing the device or servicing unit

4 Your XGA/HD Line Transmitter/Switcher and Receiver/DA

This section describes the:

• TP-219HD XGA/HD – Line Transmitter/Switcher, see section 4.1
• TP-220HD XGA/HD – Line Receiver/DA, see section 4.2

4.1 Your TP-219HD

Figure 1 and Table 1 define the TP-219HD:


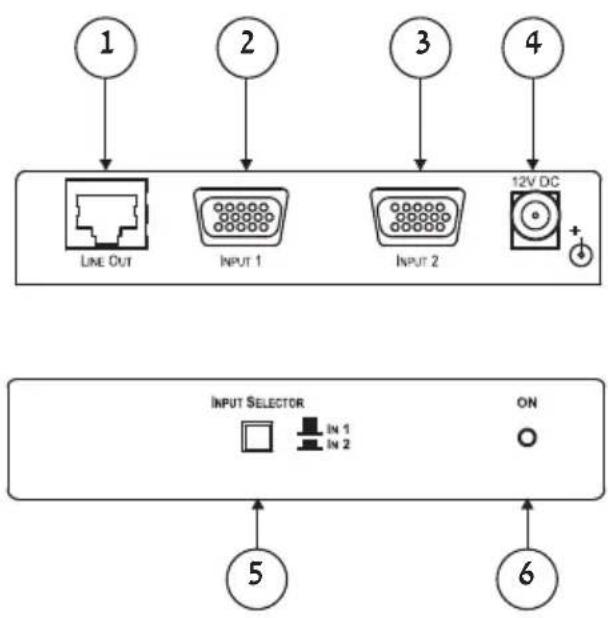

Figure 1: TP-219HD XGA/HD Line Transmitter/Switcher

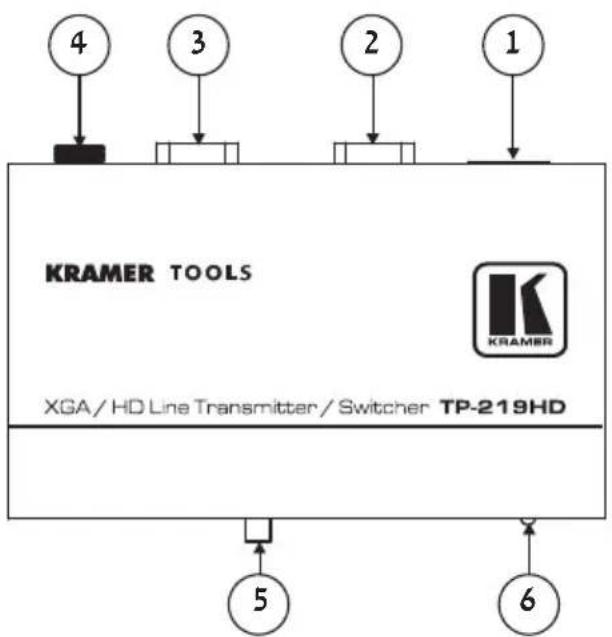

Table 1: TP-219HD XGA/HD Line Transmitter/Switcher Features

# Feature Function
1	LINE OUT RJ-45 Connector	Connect ^1 to the LINE IN RJ-45 connector on the TP-220HD
2	INPUT 1 15-pin HD Connector	Connect to the first XGA/HD source
3	INPUT 2 15-pin HD Connector	Connect to the second XGA/HD source
4	12V DC	+12V DC connector for powering the unit
5	INPUT SELECTOR button	Press to select IN 2; release to select IN 1
6 ON LED Illuminates when receiving power

Figure 2 and Table 2 define the TP-219HD underside panel:

Figure 2: TP-219HD (Underside Panel)

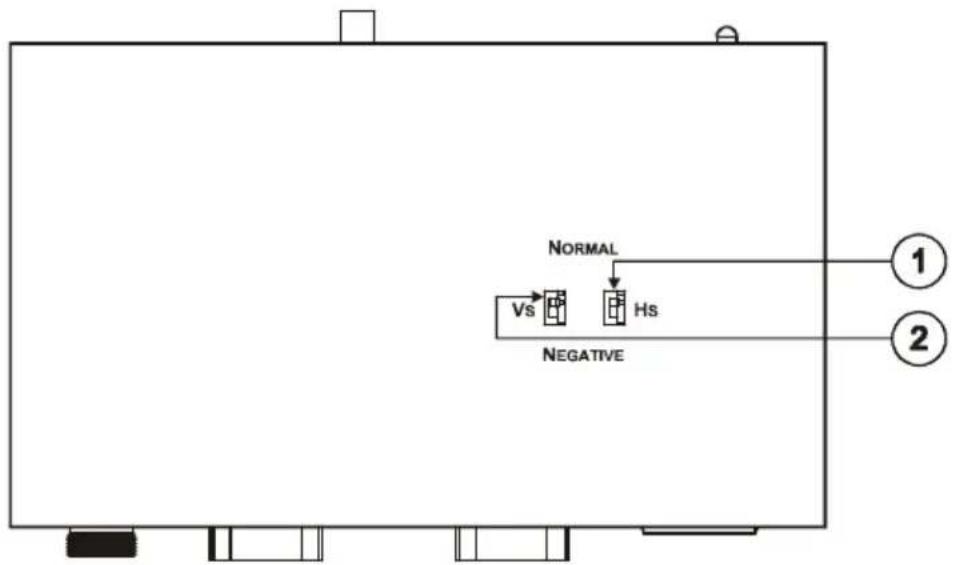

Table 2: TP-219HD (Underside Panel) Features

# Feature Function
1 HS	Switch	Slide the switch up (to NORMAL) to retain the polaritySlide the switch down ^1 to change the HS polarity to NEGATIVE polarity ^2
2	VS Switch	Slide the switch up (to NORMAL) to retain the polaritySlide the switch down ^1 to change the VS polarity to NEGATIVE polarity ^2

4.2 Your TP-220HD

Figure 3 and Table 3 define the TP-220HD:

Figure 3: TP-220HD XGA/HD Line Receiver/DA

Table 3: TP-220HD XGA/HD Line Receiver/DA Features

#	Feature Function
1	LINE IN RJ-45 Connector	Connect ^1 to the LINE OUT RJ-45 connector on the TP-219HD
2	OUTPUT 1 15-pin HD Connector	Connect to the first XGA/HD acceptor
3	OUTPUT 2 15-pin HD Connector	Connect to the second XGA/HD acceptor
4	12V DC	+12V DC connector for powering the unit
5	EQ. Trimmer Adjust	^2 the cable compensation equalization level
6	LEVEL Trimmer	Adjust ^2 the output signal level
7	ON LED Illuminates when receiving	power

Figure 4 and Table 4 define the TP-220HD underside panel:

Figure 4: TP-220HD (Underside Panel)

Table 4: TP-220HD (Underside Panel) Features

# Feature Function
1 HS Switch Slide	the switch up ^1 (to INVERTED) to invert the HS polaritySlide the switch down (to NORMAL) to retain the polarity
2 VS Switch Slide	the switch up ^1 (to INVERTED) to invert the VS polaritySlide the switch down (to NORMAL) to retain the polarity

5 Connecting the TP-219HD and TP-220HD

You can use the TP-219HD XGA/HD – Line Transmitter/Switcher with the TP-220HD XGA/HD – Line Receiver/DA to configure an XGA/HD DA system. This will let you transmit one selected computer graphics/HD signal to two displays via long line CAT 5 UTP cabling.

To connect the TP-219HD to the TP-220HD, as the example in Figure 5 illustrates, do the following:

1. On the TP-219HD, connect

- An XGA ^3 source (for example, Computer Graphics Source 1) to the INPUT 1 15-pin HD connector

- An XGA ^3 source (for example, Computer Graphics Source 2) to the INPUT 2 15-pin HD connector

1. If necessary, set the HS and VS switches on the TP-219HD underside ^4 .

2. On the TP-220HD, connette:

3. OUTPUT 1 15-pin HD connector to an XGA ^2 acceptor (for example, Display 1)

4. OUTPUT 2 15-pin HD connector to an XGA ^2 acceptor (for example, Display 2)

5. If necessary, set the HS and VS switches on the TP-220HD underside ^3 .

6. Connect the LINE OUT RJ-45 connector on the TP-219HD to the LINE IN RJ-45 connector on the TP-220HD, via CAT 5 cabling, see section 5.2.
7. Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity on both ^4 the TP-219HD and the TP-220HD (not shown in Figure 5).

The selected signal from the XGA/HD source is transmitted via CAT 5 cable, decoded and converted at the OUTPUT 1 and OUTPUT 2 15-pin HD connectors to the XGA acceptors simultaneously.
    subgraph_TP-220HD["TP-220HD"]
        A["RAMS TOOLS"] --> B["Display 1"]
        B --> C["Computer Graphics Source 1"]
        B --> D["RAMS TOOLS"]
        E["RAMS TOOLS"] --> F["Display 2"]
        F --> G["Computer Graphics Source 2"]
        F --> H["RAMS TOOLS"]
    end
    A -->|VGA| B
    E -->|VGA| F
    G -->|VGA| H
    style TP-220HD fill:#f9f,stroke:#333
    style TP-219HD fill:#f9f,stroke:#333
    style Display 1 fill:#ccf,stroke:#333
    style Display 2 fill:#ccf,stroke:#333
    style Long CAT 5 cable fill:#cfc,stroke:#333

Figure 5: Connecting the TP-219HD/TP-220HD XGA System

5.1 Connecting an HD System

When connecting a high definition source, as illustrated in Figure 6, use a breakout cable such as the Kramer C-GM/3RVF. If you have a VGA to a 5BNC cable, use the RGB wires only.

XGA Connector PINOUT

PIN | Signal

1 | Pr 2 | Y 3 | Pb CHS.12.01 XGA Connector PINOUT SET Top Box Source

Figure 6: Connecting an HD Source

You can also connect an HD acceptor (for example, a plasma display) using the same PINOUT.

5.2 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Conne ctors

Table 5 and Figure 7 define the UTP CAT 5 PINOUT, using a straight pin to pin cable with RJ-45 connectors:

Table 5: CAT 5 PINOUT

EIA /TIA 568A EIA /TIA 568B
PIN Wire Color PIN Wire Color
1 Green / White 1 Orange / White
2 Green 2		Orange
3 Orange / White 3 Green / White
4 Blue 4		Blue
5 Blue / White 5 Blue / White
6 Orange		6 Green
7 Brown / White		7 Brown / White
8 Brown		8 Brown
Pair 1	4 and 5	Pair 1 4 and 5
Pair 2	3 and 6	Pair 2 1 and 2
Pair 3	1 and 2	Pair 3 3 and 6
Pair 4	7 and 8	Pair 4 7 and 8

Figure 7: CAT 5 PINOUT

12345678 12 45 78 36

6 Technical Specifications

Table 6 includes the technical specifications ^1 .
Table 6: Technical Specifications of the TP-219HD and TP-220HD Setup

TP-219HD TP-220HD
INPUTS: 2 XGA/HD on 15-pin HD connectors 1 CAT 5 IN on an RJ-45 connector
OUTPUTS: 1 CAT 5 OUT on an RJ-45 connector 2 XGA/HD on 15-pin HD connectors
MAX. OUTPUT LEVEL: 1.5Vpp
RESOLUTION: Up to UXGA, up to 1080p
DIFF. GAIN: 2.3%
DIFF. PHASE: 0.2°
K-FACTOR:	0.1%
S/N RATIO: 70dB @5MHz
CROSSTALK (all hostile):	-45dB
CONTROLS: Input selector button Level: -9.2dB		to +2.1dBEQ.: 0 to +29.5dB @50MHz
COUPLING:	AC	DC ^2
POWER SOURCE:	12V, 300mA, when feeding TP-220HD	12V, 300mA, when feeding TP-219HD
DIMENSIONS:	12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95") W, D, H
WEIGHT:	0.3 kg. (0.67 lbs.) approx. each
ACCESSORIES:	Power supply

LIMITED WARRANTY

Kramer Electronics (hereafter Kramerants this product free from defects in material and workmanship under the following terms.

HOW LONG ISTHE WARRANTY

Labor and parts are warranted for seven years from the date of the first customer purchase.

WHO IS PROTECTED?

Only the first purchase customer may enforce this warranty.

WHAT IS COVERED AND WHAT IS NOT COVERED

Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty:

1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID IF TeamRERE, stopped has otherwise, interfered with.
3. Damage, deterioration or malfunction resulting from:

i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product

WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR

We will pay labor and material expenses for covered items. We will not pay for the following:

1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.

HOW YOU CAN GET WARRANTY SERVICE

1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.

LIMITATION OF IMPLIED WARRANTIES

All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to the length of this warranty.

EXCLUSION OF DAMAGES

The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for:

1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.

NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.

This equipment has been tested to determine compliance with the requirements of:

EN-50081: "Electromagnetic compatibility (EMC);

generic emission standard.

Residential, commercial and light industry"

EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.

Part 1: Residential, commercial and light industry environment".

CFR-47: FCC* Rules and Regulations:

Part 15: "Radio frequency devices

Subpart B Unintentional radiators"

CAUTION!

Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
Use the supplied DC power supply to feed power to the machine.
☒ Please use recommended interconnection cables to connect the machine to other components.

* FCC and CE approved using STP cable (for twisted pair products)

For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found.

We welcome your questions, comments and feedback.

Warning symbol image with exclamation mark inside triangle

Caution

Safety Warning:

Disconnect the unit from the power supply before opening/servicing.

ISO 9001:2008 ICC Institute of Quality & Control Certified Quality Management System

CE

P/N:

2900-000208

Rev:
