USER MANUAL TP-142 Kramer

XGA/Audio Line Transmitter

TP-142

XGA/Audio Line Receiver

TP-141, TP-142 Quick Start Guide

This guide helps you install and use your product for the first time. For more detailed information, go to http://www.kramerelectronics.com/support/product_downloads.asp to download the latest manual or scan the QR code on the left.

Step 1: Check what's in the box

TP-141, TP-142 XGA/Audio Line

Transmitter/Receiver

1 Power supply (12V DC)

4 Rubber feet

1 Quick Start sheet

Save the original box and packaging materials in case you need to return your TP-141, TP-142 for service.

Step 2: Install the TP-141, TP-142

Attach the rubber feet and place on a table or mount the TP-141, TP-142 in a rack (using an optional RK-3T rack mount).

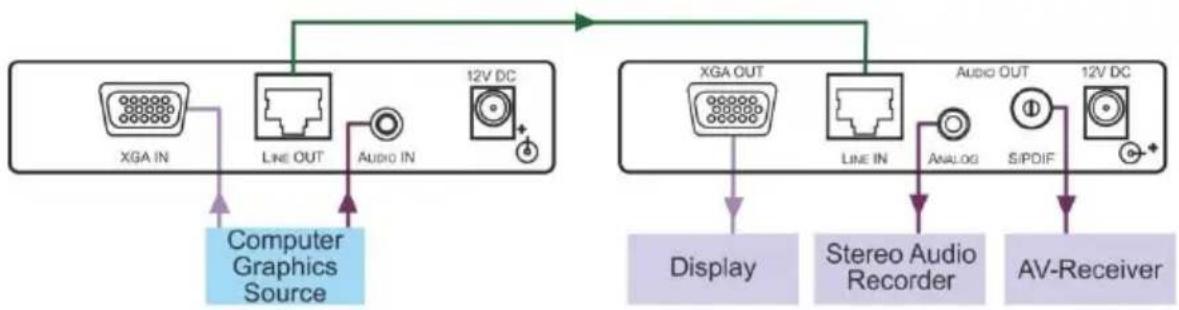

Step 3: Connect the inputs and outputs

Always switch off the power on each device before connecting it to your TP-141, TP-142.

Always use Kramer high-performance cables for connecting AV equipment to the TP-141, TP-142.

Step 4: Connect the power

Connect the 12V DC power adapter/s to the TP-141, TP-142 and plug the adapter/s into the mains electricity.

Step 5: Operate the TP-141, TP-142

If required on the TP-142, adjust the EQ and LEVEL trimmers, set the SYNC polarity switches and set the XGA/VIDEO switch.

LEVEL

EQ

©

0

XGA VIDEO

Contents

1 Introduction 1

2 Getting Started 2

2.1 Achieving the Best Performance 2
2.2 Safety Instructions 3
2.3 Recycling Kramer Products 3

3 Overview 4

3.1 About the Power Connect™ Feature 4
3.2 Shielded Twisted Pair (STP)/Unshielded Twisted Pair (UTP) 5
3.3 Defining the TP-141 XGA/Audio Line Transmitter 6
3.4 Defining the TP-142 XGA/Audio Line Receiver 7

4 Connecting the TP-141, TP-142 9

4.1 Wiring the TP LINE IN / LINE OUT RJ-45 Connectors 11

5 Technical Specifications 12

Figures

Figure 1: TP-141 XGA/Audio Line Transmitter 6
Figure 2: TP-142 XGA/Audio Line Receiver 7
Figure 3: Connecting the TP-141, TP-142 10
Figure 4: TP PINOUT 11

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products.

Congratulations on purchasing your Kramer TP-141 XGA/Audio Line Transmitter, and TP-142 XGA/Audio Line Receiver, which is ideal for the following typical applications:

• Presentation and multimedia applications
• Long-range graphics distribution for schools, hospitals, security, and stores

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Do not secure the cables in tight bundles or roll the slack into tight coils
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality
• Position your Kramer products away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics input power wall adapter that is provided with the unit

Warning: Disconnect the power and unplug the unit from the wall before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

3 Overview

The TP-141 and TP-142 are a high-immunity, extended-range twisted pair transmitter and receiver for computer graphics video and unbalanced stereo audio signals.

The TP-141 converts computer graphics video and audio inputs to twisted pair signals, and the TP-142 converts the twisted pair signals back into computer graphics video, unbalanced stereo and S/PDIF digital audio signals. Together the TP-141 and TP-142 form a computer graphics video/audio line transmitter/receiver system.

More specifically, the products feature:

• Highest immunity from any kind of interference
  • Resolution up to UXGA
• HDTV compatibility
• Simultaneous unbalanced stereo and S/PDIF (24-bit 48kHz) audio outputs (TP-142)
  • Level (gain) and EQ (peaking) controls (TP-142)
  • System range up to 250m (750ft)
• Power Connect™ System - Only one unit in a system, the transmitter or the receiver, needs to be connected to a power source when the devices are within 50m (150ft) of each other

Note: The TP-141 and TP-142 are not compatible with existing Kramer TP units such as the TP-121, TP-122, and so on.

3.1 About the Power Connect™ Feature

The Power Connect feature applies as long as the cable can carry power. This feature is available when using STP cable and the distance does not exceed 50m (164ft) on standard CAT 5 cable. For longer distances, heavier gauge cable should be used (TP cable is still suitable for the video/audio transmission, but not for feeding the power at these distances). For units which are connected via RJ-45

connectors, make sure that the shield of the STP cable is connected to the metal casing of the connectors on both ends of the cable. For units which are connected via terminal block connectors, the shield of the STP cable must be connected to a ground terminal on the units at both ends (use the ground terminal of the power supply connection if necessary).

For a TP cable exceeding a distance of 50m, separate power supplies should be connected to the transmitter and to the receiver simultaneously.

3.2 Shielded Twisted Pair (STP)/Unshielded Twisted Pair (UTP)

We recommend that you use Shielded Twisted Pair (STP) cable, and stress that the compliance to electromagnetic interference was tested using STP cable. There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is intended for analog signals where skewing is not an issue.

In cases where there is skewing, our Unshielded Twisted Pair (UTP) skew-free cable, Kramer BC-XTP, may be advantageous, and UTP cable might also be preferable for long range applications. In any event when using UTP cable, it is advisable to ensure that the cable is installed far away from electric cables, motors and so on, which are prone to create electrical interference.

3.3 Defining the TP-141 XGA/Audio Line Transmitter

The TP-141 is an XGA/stereo audio line transmitter that receives an XGA signal and an unbalanced stereo analog audio signal, codes them, and transmits them over CAT 5 cable to a TP-142 receiver. Figure 1 defines the TP-141.

1 ON XGA / Audio Line Transmitter TP-141 2 3 4 5 XGA IN LINE OUT AUDIO IN 12V DC

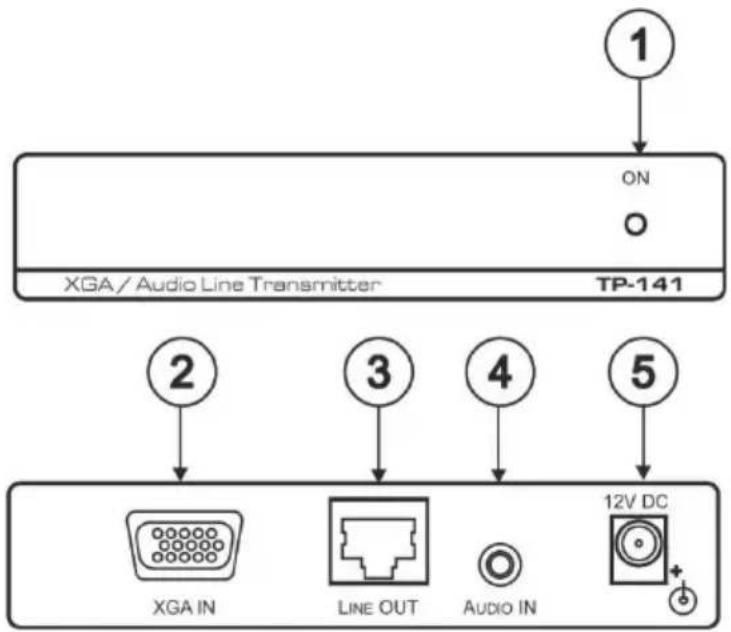

Figure 1: TP-141 XGA/Audio Line Transmitter

#	Feature	Function
1	ON LED	Illuminates when receiving power
2	XGA IN 15-pin HD Connector	Connect to the XGA source
3	LINE OUT RJ-45 Connector	Connects to the LINE IN RJ-45 connector on the TP-142 XGA/Audio Line Receiver
4	AUDIO IN 3.5mm Mini Jack	Connects to the audio source
5	12V DC	+12V DC connector for powering the unit

3.4 Defining the TP-142 XGA/Audio Line Receiver

The TP-142 is an XGA/audio line receiver that receives the coded CAT 5 signal transmitted by a TP-141, decodes it and converts it to XGA, stereo analog and S/PDIF digital audio outputs. Figure 2 defines the TP-141.

Front 1 2 3 4 LINK LEVEL EQ. ON XGA/Audio Line Receiver TP-142 Back⑤ 6 7 8 9 XGA OUT AUDIO OUT 12V DC LINE IN ANALOG S/PDIF + Underside 10 11 12 RoHS Polarity Hs + Vs - XGA Video

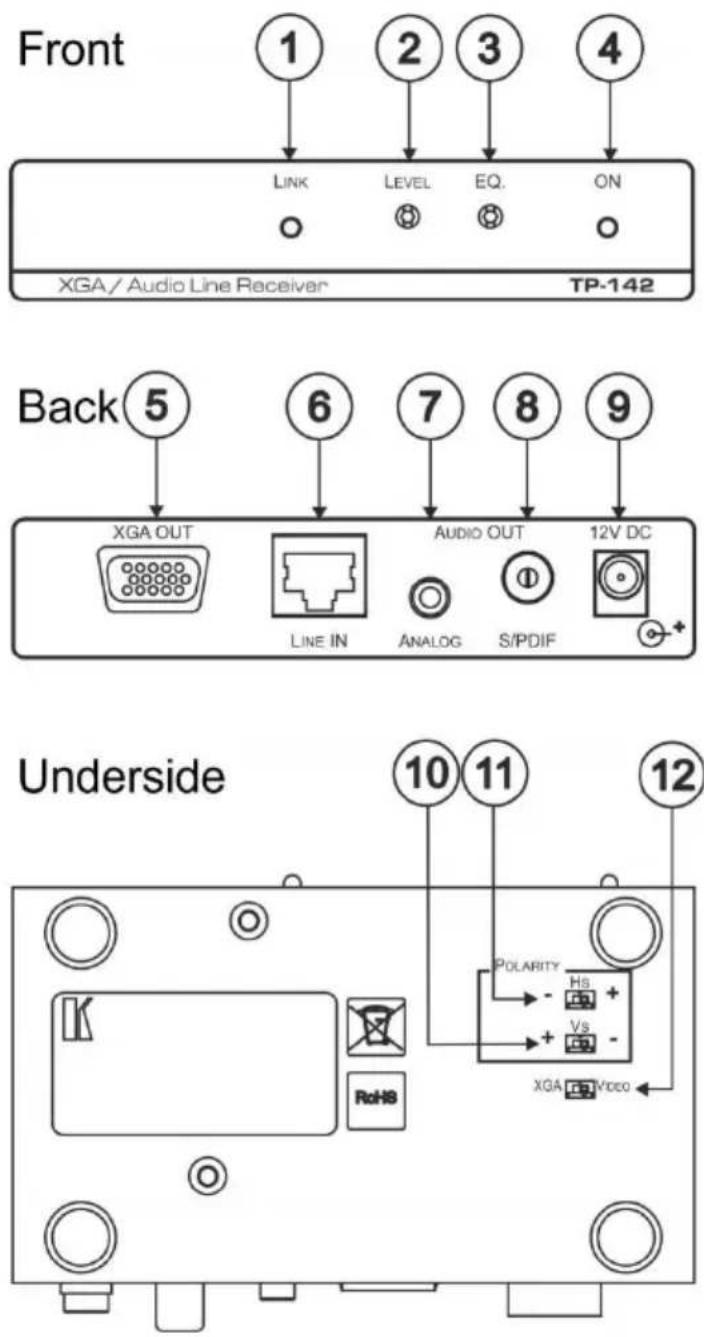

Figure 2: TP-142 XGA/Audio Line Receiver

#	Feature	Function
1	LINK LED	Illuminates when receiving the correct input signal
2	LEVEL Trimmer	Adjusts the output signal level
3	EQ. Trimmer	Adjusts the cable compensation equalization levelDegradation and VGA/XGA signal loss can result from using long cables (due to stray capacitance), sometimes leading to a total loss of sharpness in high-resolution signals.Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level.
4	ON LED	Illuminates when receiving power
5	XGA OUT 15-pin HD Connector	Connects to the XGA acceptor
6	LINE IN RJ-45 Connector	Connects to the TP-141
7	AUDIO OUT ANALOG 3.5mm Mini Jack	Connects to the analog audio acceptor
8	AUDIO OUT S/PDIF RCA Connector	Connects to the digital audio acceptor
9	12V DC	+12V DC connector for powering the unit
10	VS Switch	To set V SYNC to positive polarity, slide the switch to the right; to set the V SYNC to negative polarity, slide the switch to the leftBy default, both switches are set to the left (for a negative V SYNC and H SYNC polarity)
11	HS Switch	To set H SYNC to positive polarity, slide the switch to the right; to set the H SYNC to negative polarity, slide the switch to the left
12	XGA/VIDEO Switch	To set for any video signal, such as HDTV, slide the switch to VIDEO; to set for a computer graphics signal, slide the switch to XGA

4 Connecting the TP-141, TP-142

Always switch off the power to each device before connecting it to your TP-141, TP-142. After connecting your TP-141, TP-142, connect its power and then switch on the power to each device.

You can use the TP-141 and TP-142 to configure an XGA / Audio Line-to-Twisted Pair Transmitter and Receiver system.

To connect the TP-141 XGA/Audio Line Transmitter with the TP-142 XGA/Audio Line Receiver, as illustrated in Figure 3, do the following:

1. On the TP-141, connect the XGA source (for example, the graphics card of a laptop) to the XGA INPUT 15-pin HD (F) connector.
2. Connect an audio source to the AUDIO IN 3.5mm mini jack, for example, using a Kramer C-GMA/GMA cable (VGA 15-pin HD (M) +audio jack to VGA 15-pin HD (M) +audio jack). Alternatively, you can connect an XGA source to the XGA INPUT 15-pin HD (F) connector, and a separate audio source to the AUDIO IN 3.5mm mini jack.

Cables are not supplied. The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

1. On the TP-142, connect the XGA OUT 15-pin HD (F) connector to the XGA acceptor (for example, a display).
2. Connect the AUDIO OUT S/PDIF RCA connector to the digital audio acceptor (for example, an AV receiver).
3. Connect the ANALOG 3.5mm mini jack to the analog audio acceptor (for example, a stereo audio recorder).
4. Connect the LINE OUTPUT RJ-45 connector on the TP-141 to the LINE IN RJ-45 connector on the TP-142, via CAT 5 (UTP or STP) cabling, (see connector pinouts in Section 4.1).
5. Connect the 12V DC power adapter to the power socket of either the TP-141 or the TP-142 and connect the adapter to the mains electricity. The Power Connect feature feeds power to the second device. If the second device does not power on due to a long line, connect a 12V DC power adapter to the second device as well.

8. If required, On the TP-142:

■ Set the XGA/VIDEO switch to XGA
- With a small screwdriver, adjust the video output signal level and/or cable compensation equalization level
- Set the H SYNC and V SYNC switches, on the underside

By default, both switches are set to the left (for negative V SYNC and H SYNC polarity)


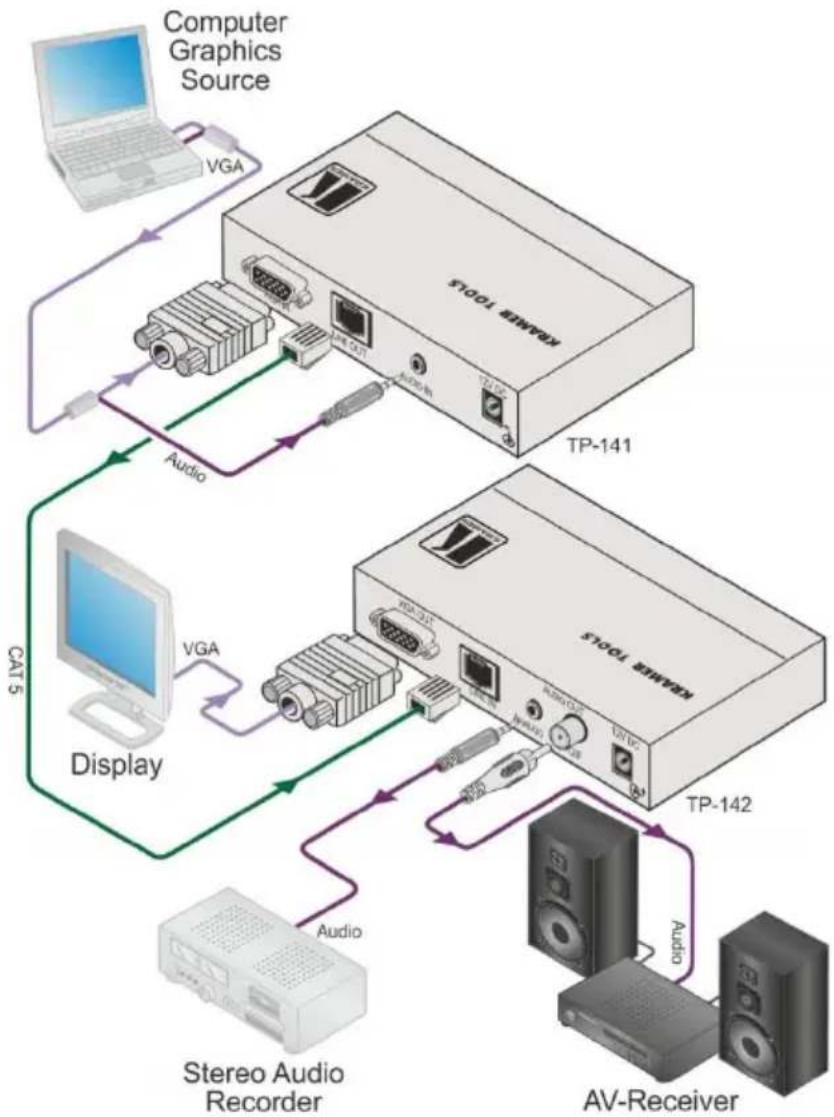

Figure 3: Connecting the TP-141, TP-142

4.1 Wiring the TP LINE IN / LINE OUT RJ-45 Connectors

This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors.

EIA /TIA 568B
PIN	Wire Color
1	Orange / White
2	Orange
3	Green / White
4	Blue
5	Blue / White
6	Green
7	Brown / White
8	Brown

Figure 4: TP PINOUT

12345678 12 45 78 36 15342038

5 Technical Specifications

	TP-141	TP-142
INPUTS:	Video: 1 computer graphics video on a 15-pin HD connectorAudio: 1 audio analog 3.5mm mini jack	1 RJ-45 LINE IN connector
OUTPUTS:	1 RJ-45 OUT connector	Video: 1 computer graphics video on a 15-pin HD connectorAudio: 1 audio S/PDIF RCA connector,1 audio analog 3.5mm mini jack
MAX. OUTPUT LEVEL:		Video: 1V, Audio: 2.5V
CONTROLS:		Level: -7.5dB to +4.4dBEQ: 0dB to +33dBm, (130m) @50MHz
BANDWIDTH (-3dB):	Audio: 20Hz–20kHz @0.5dBFor the transmitter/receiver pair
RESOLUTION:	Up to UXGA
S/N RATIO:	Audio: <-80dB
TOTAL GAIN:	Audio: Analog/analog: 0dB, Analog/SPDIF: -12dBFS
COUPLING:	AC
TND+N:	Audio: <0.01%
POWER CONSUMPTION:	12V DCTP-141: 180mA non-power feeding, 750mA power feeding;TP-142: 320mA non-power feeding, 570mA power feeding.
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F)
HUMIDITY:	10% to 90%, RHL non-condensing
DIMENSIONS:	12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95"), W, D, H
WEIGHT:	0.3kg (0.67lbs) approx.
ACCESSORIES:	Power supply
Specifications are subject to change without notice at http://www.kramerelectronics.com
