USER MANUAL 670R Kramer

HDMI Optical Receiver

670T, 670R Quick Start Guide

This guide helps you install and use your product for the first time. For more detailed information, go to http://www.kramerelectronics.com/support/product_downloads.asp to download the latest manual or scan the QR code on the left.

Step 1: Check what's in the box

670T, 670R HDMI

Optical Transmitter/Receiver

1 Power supply per unit (5V DC)

4 Rubber feet

1 Quick Start sheet

Illustration of a cardboard box with an open lid and a small emblem on the front panel (no text or symbols)

Save the original box and packaging materials in case you need to return your 670T, 670R for service.

Step 2: Install the 670T, 670R

Attach the rubber feet and place on a table or mount the 670T, 670R in a rack (using an optional RK-3T rack mount).

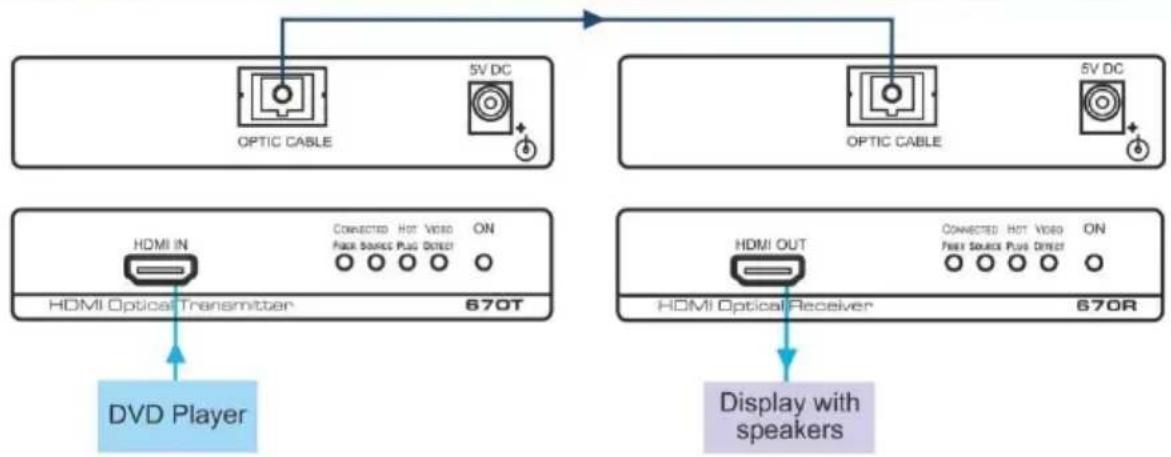

Step 3: Connect the inputs and outputs

Always switch off the power on each device before connecting it to your 670T, 670R.

Always use Kramer high-performance cables for connecting AV equipment to the 670T, 670R.

Step 4: Connect the power

Connect the 5V DC power adapter to the 670T, 670R and plug the adapter into the mains electricity.

Contents

1 Introduction 1
2 Getting Started 2

2.1 Achieving the Best Performance 2
2.2 Safety Instructions 3
2.3 Recycling Kramer Products 3

3 Overview 4

3.1 Defining the 670T, 670R HDMI Optical Transmitter/Receiver
4 Connecting the 670T, 670R 7
5 Technical Specifications 9

Figures

Figure 1: 670T HDMI Optical Transmitter 5
Figure 2: 670R HDMI Optical Receiver 6
Figure 3: Connecting the 670T/670R Transmitter/Receiver System 8

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products.

Congratulations on purchasing your Kramer 670T, 670R HDMI Optical Transmitter/Receiver, which is ideal for the following typical applications:

• Home theater, presentation and multimedia applications
- Long range multimedia distribution for cinemas, stores, and entertainment centers
• Video production and broadcast facilities
• Retail stores and other point-of-sale systems

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Do not secure the cables in tight bundles or roll the slack into tight coils
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality
• Position your Kramer 670T, 670R away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics input power wall adapter that is provided with the unit

Warning: Disconnect the power and unplug the unit from the wall before installing

Warning: Avoid direct eye exposure into the optic connectors when powered, although this product is regulated strictly enough to operate under the Laser Class 3R for eye safety

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

3 Overview

The 670T converts the HDMI signal to an optical signal, and the 670R converts the optical signal back into an HDMI signal. Together, the 670T and 670R form an HDMI transmitter/receiver over multimode fiber system.

The 670T and 670R pair features:

• A transmission range of 1700m (more than 5570ft) over an optical cable
- Regulation in accordance with Class 3R Laser Eye Safety in compliance with ANSI Z136 and IEC 60825-1:2007
- Transmission of four TMDS video channels as well as one low-speed channel for passing HDCP, EDID and a Hot Plug Detect (HPD) signal over one multimode fiber
- A maximum data rate of 3.5Gbps per graphic channel (suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions)
- HDCP compliance
- 5V DC power adapters
- Kramer DigiTOOLS ^ enclosures

3.1 Defining the 670T, 670R HDMI Optical Transmitter/Receiver

This section describes the:

• 670T HDMI Optical Transmitter, see Section 3.1.1
• 670R HDMI Optical Receiver, see Section 3.1.2

3.1.1 Your 670T HDMI Optical Transmitter

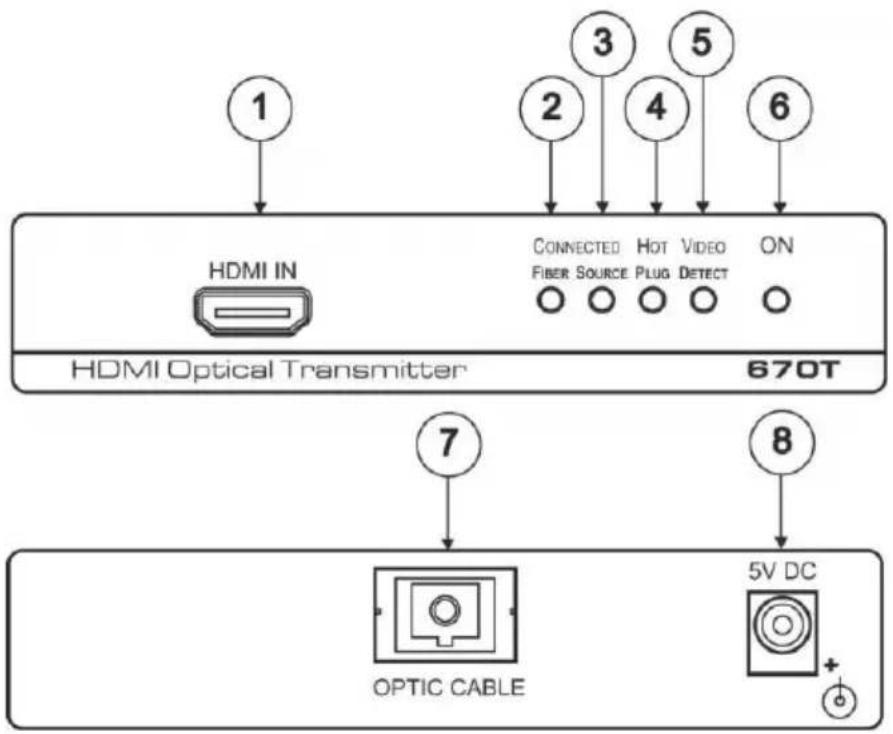

Figure 1 defines the 670T HDMI Optical Transmitter.

1 HDMI IN CONNECTED HOT VIDEO ON FIBER SOURCE PLUG DETECT HDMI Optical Transmitter 670T 7 OPTIC CABLE 8 5V DC

Figure 1: 670T HDMI Optical Transmitter

#	Feature		Function
1	HDMI IN Connector		Connects to the HDMI source
2	CONNECTED LEDs	FIBER	Illuminates when the fiber optic cable is connected
3		SOURCE	Illuminates when a source is connected
4	HOT PLUG LED		Indicates a connected display on the receiver side
5	VIDEO DETECT LED		Indicates a valid video signal on the transmitter side
6	ON LED		Illuminates when receiving power
7	OPTIC CABLE Connector		Connect to the optical connector on the 670R (remove dust cap prior to use)
8	5V DC		+5V DC connector for powering the unit

3.1.2 Your 670R HDMI Optical Receiver

Figure 2 defines the 670R HDMI Optical Receiver.

1 HDMI OUT CONNECTED HOT VIDEO ON FIBER SOURCE PLUG DETECT HDMI Optical Receiver 670R 7 OPTIC CABLE 8 5V DC

Figure 2: 670R HDMI Optical Receiver

#	Feature		Function
1	HDMI OUT Connector		Connects to the HDMI acceptor
2	CONNECTED LEDs	FIBER	Lights when the fiber optic cable is connected
3		SOURCE	Lights when a source is connected
4	HOT PLUG LED		Indicates a connected display on the receiver side
5	VIDEO DETECT LED		Indicates a valid video signal on the transmitter side
6	ON LED		Illuminates when receiving power
7	OPTIC CABLE Connector		Connect to the optical connector on the 670T (remove dust cap prior to use)
8	5V DC		+5V DC connector for powering the unit

4 Connecting the 670T, 670R

Always switch off the power to each device before connecting it to your 670T, 670R. After connecting your 670T, 670R, connect its power and then switch on the power to each device.

Avoid direct eye exposure into the optic connectors when powered, although this product is regulated strictly enough to operate under the Laser Class 3R for eye safety

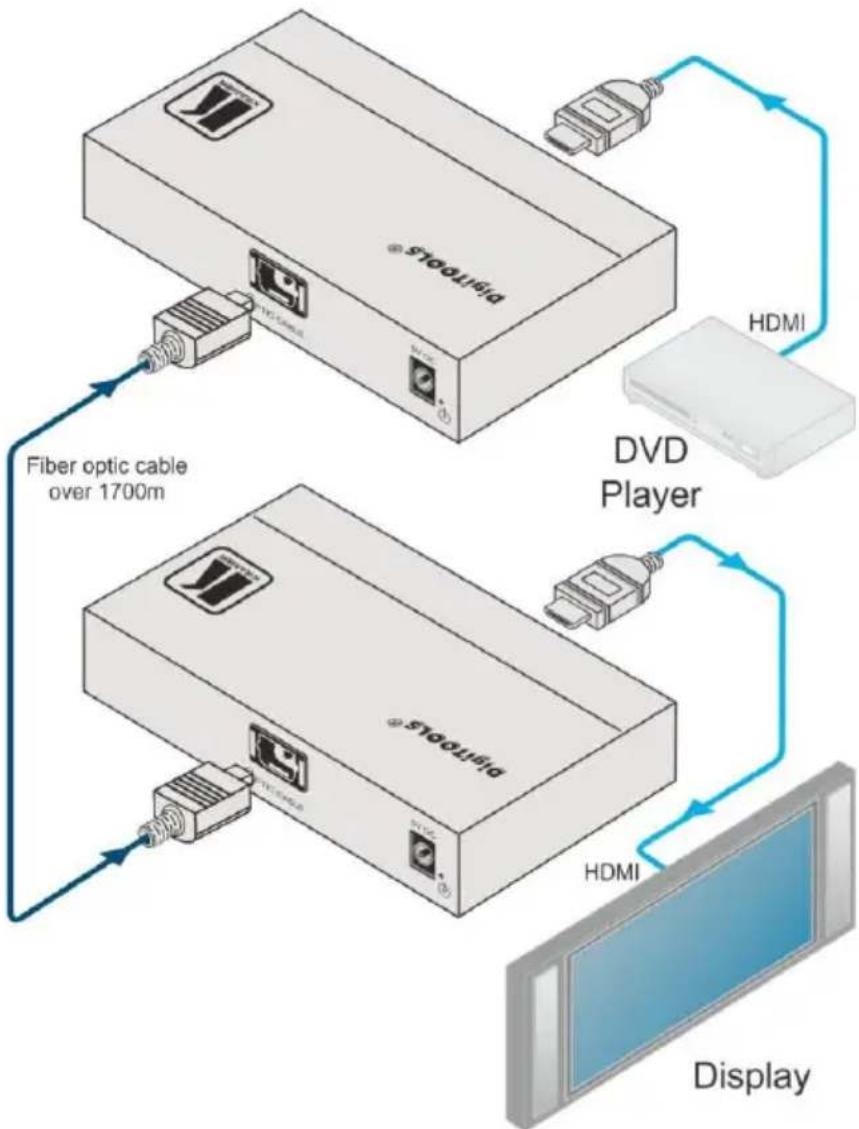

To connect the 670T and 670R, as illustrated in the example in Figure 3, do the following:

1. Connect an HDMI source (for example a DVD player) to the HDMI IN connector.
2. Connect the HDMI OUT connector to an HDMI acceptor (for example, an LCD display).
3. Remove the dust caps and connect the OPTIC CABLE connector of the 670T to the OPTIC CABLE connector of the 670R, via optic OM3 cabling with SC connectors (maximum range of 1700 meters (over 5570ft)).
4. Connect the 5V DC power adapter to the power socket on each unit and connect the adapter to the mains electricity (not shown in Figure 3).

Figure 3: Connecting the 670T/670R Transmitter/Receiver System

5 Technical Specifications

	670T	670R
INPUTS:	HDMI Connector	1 optical connector
OUTPUTS:	1 optical connector	HDMI Connector
BANDWIDTH:	Supports up to 3.5Gbps bandwidth per graphic channel
COMPLIANCE WITH HDMI STANDARD:	Supports HDMI using fiber optic communication links and DDC2B
EXTENSION LIMIT:	1700m (>5570 feet) for 1080p/60Hz
FIBER-OPTIC CONNECTION:	SC connectors for multimode (OM3) fiber cable (not supplied with the unit)
INSERTION LOSS FROM TRANSMITTER TO RECEIVER:	Must not exceed 10dB
INDICATOR LEDs:	Video, source, acceptor fiber and on LEDs
POWER CONSUMPTION:	5V DC, 250mA	5V DC, 400mA
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F)
HUMIDITY:	10% to 90%, RHL non-condensing
DIMENSIONS:	12cm x 7.95cm x 2.76cm (4.7" x 3.1" x 1.08") W, D, H
WEIGHT:	0.3kg (0.67lbs) approx. each
ACCESSORIES:	2 power supplies (5V/2A), 2 bracket installation kits
Specifications are subject to change without notice at http://www.kramerelectronics.com
