USER MANUAL PT-1SPDIF Kramer

Kramer Electronics, Ltd.

KRAMER

USER MANUAL

Models:

PT-1SPDIF, Digital Audio Converter

PT-2SPDIF, Digital Audio Converter

Contents

1 Introduction 1

2 Getting Started 1

2.1 Quick Start 1

3 Overview 3

4 Your PT-1SPDIF / PT-2SPDIF 3

4.1 Your PT-1SPDIF Digital Audio Converter 4

4.2 Your PT-2SPDIF Digital Audio Converter 4

5 Connecting the PT-1SPDIF / PT-2SPDIF 5

5.1 Connecting the PT-1SPDIF Digital Audio Converter 5

5.2 Connecting the PT-2SPDIF Digital Audio Converter 6

6 Technical Specifications 7

Figures

Figure 1: PT-1SPDIF 4

Figure 2: PT-2SPDIF 4

Figure 3: Connecting the PT-1SPDIF Digital Audio Converter 5

Figure 4: Connecting the PT-2SPDIF Digital Audio Converter 6

Tables

Table 1: PT-1SPDIF Features 4

Table 2: PT-2SPDIF Features 4

Table 3: Technical Specifications of the PT-1SPDIF Digital Audio Converter 7

Table 4: Technical Specifications of the PT-2SPDIF Digital Audio Converter 7

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better! Our 1,000-plus different models now appear in 11 groups ^1 that are clearly defined by function.

Congratulations on purchasing your Kramer PT-1SPDIF and/or PT-2SPDIF Digital Audio Converter. The PT-1SPDIF and PT-2SPDIF are ideal for:

• Professional audio applications
• Consumer audio applications

The package includes the following items:

• PT-1SPDIF or PT-2SPDIF
• Power adapter (12V DC Input)
- This user manual ^2

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
  • Review the contents of this user manual
• Use Kramer high performance high resolution cables ^3

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

Step 1: Connect the Input/output - see section 5

Step 2: Connect the power

3 Overview

The PT-1SPDIF is a high quality digital audio converter that accepts a digital audio S/PDIF input and converts it to an optical TosLink® audio output.

The PT-2SPDIF is a high quality digital audio converter that accepts an optical TosLink® audio input and converts it to a digital audio S/PDIF.

The PT-1SPDIF and PT-2SPDIF output the same data stream as the input, without any conversion. In this way all existing and even future audio formats are supported. Both are:

• 12V DC fed
  • Housed in a small enclosure

Achieving the best performance means:

• Connecting only good quality connection cables, thus avoiding interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Avoiding interference from neighboring electrical appliances that may adversely influence signal quality and positioning your PT-1SPDIF and/or PT-2SPDIF in a location free from moisture and away from excessive sunlight and dust

Caution:

No operator serviceable parts inside unit

Warning:

Use only the Kramer Electronics input power wall adapter that is provided with the unit

Warning:

Disconnect power and unplug unit from wall before installing or removing the device or servicing unit

4 Your PT-1SPDIF / PT-2SPDIF

This section describes the:

• PT-1SPDIF (see section 4.1)
• PT-2SPDIF (see section 4.2)

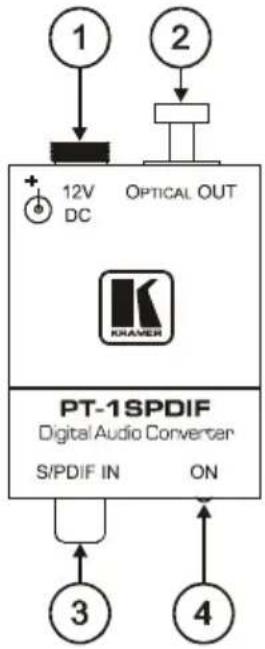

4.1 Your PT-1SPDIF Digital Audio Converter

Figure 1 and Table 1 define the PT-1SPDIF Digital Audio Converter:

1 2 12V DC OPTICAL OUT KRAMER PT-1SPDIF Digital Audio Converter S/PDIF IN ON 3 4

Figure 1: PT-1SPDIF

Table 1: PT-1SPDIF Features

# Feature Function
1	12V DC	+12V DC connector for powering the unit
2	OPTICAL TosLink® OUT Connector	Connect to the digital audio acceptor
3	S/PDIF IN (coaxial) RCA Connector	Connect to the digital audio source
4	ON LED Illuminates when receiving power

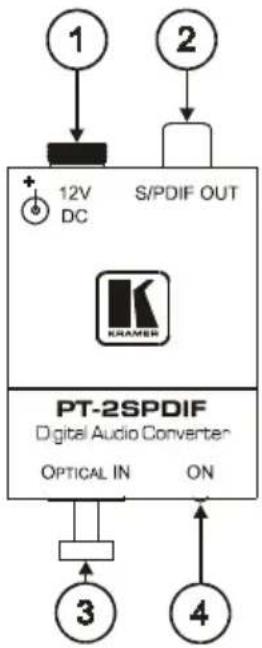

4.2 Your PT-2SPDIF Digital Audio Converter

Figure 2 and Table 2 define the PT-2SPDIF Digital Audio Converter:

1 2 12V DC S/PDIF OUT KRAMER PT-2SPDIF Digital Audio Converter OPTICAL IN ON 3 4

Figure 2: PT-2SPDIF

Table 2: PT-2SPDIF Features

# Feature Function
1	12V DC	+12V DC connector for powering the unit
2	S/PDIF OUT (coaxial) RCA Connector	Connect to the digital audio acceptor
3	OPTICAL TosLink® IN Connector	Connect to the digital audio source
4	ON LED Illuminates when receiving power

5 Connecting the PT-1SPDIF / PT-2SPDIF

This section describes the:

• PT-1SPDIF (see section 5.1)

• PT-2SPDIF (see section 5.2)

5.1 Connecting the PT-1SPDIF Digital Audio Converter

To connect the PT-1SPDIF Digital Audio Converter, as the example in Figure 3 illustrates, do the following ^1 :

1. Connect the digital audio source (for example, the digital audio from a DVD player) to the S/PDIF IN (coaxial) RCA connector.

2. Connect the OPTICAL TosLink® OUT connector to the digital audio acceptor (for example, a home theater amplifier).

3. Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity.

Figure 3: Connecting the PT-1SPDIF Digital Audio Converter

5.2 Connecting the PT-2SPDIF Digital Audio Converter

To connect the PT-2SPDIF Digital Audio Converter, as the example in Figure 4 illustrates, do the following ^1 :

1. Connect the digital audio source (for example, the digital audio from a DVD player) to the OPTICAL TosLink® IN connector.

2. Connect the S/PDIF OUT (coaxial) RCA connector to the digital audio acceptor (for example, a home theater amplifier).

3. Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity.

Figure 4: Connecting the PT-2SPDIF Digital Audio Converter

6 Technical Specifications

Table 3 and Table 4 define the technical specifications ^1 :
Table 3: Technical Specifications of the PT-1SPDIF Digital Audio Converter

INPUT: 1 S/PDIF (digital audio) on an RCA connector

OUTPUT: 1 Optical (digital audio) on a Toslink® connector

SAMPLING: 32kHz to 192kHz

POWER SOURCE: 12 VDC 50mA

DIMENSIONS: 4.27cm x 2.2cm x 5.64cm (1.68" x 0.87" 2.22"), W, D, H

WEIGHT: 0.3kg (0.67lbs) approx.

ACCESSORIES: Power supply

OPTIONS: Kramer cables

Table 4: Technical Specifications of the PT-2SPDIF Digital Audio Converter

INPUT: 1 Optical (digital audio) on a Toslink® connector

OUTPUT: 1 S/PDIF (digital audio) on an RCA connector

SAMPLING: 32kHz to 192kHz

POWER SOURCE: 12 VDC 90mA

DIMENSIONS: 4.27cm x 2.2cm x 5.64cm (1.68" x 0.87" 2.22"), W, D, H

WEIGHT: 0.3kg (0.67lbs) approx.

ACCESSORIES: Power supply

OPTIONS: Kramer cables

LIMITED WARRANTY

Kramer Electronics (hereafter Kwarants this product free from defects in material and workmanship under the following terms.

HOW LONG IS THE WARRANTY

Labor and parts are warranted for seven years from the date of the first customer purchase.

WHO IS PROTECTED?

Only the first purchase customer may enforce this warranty.

WHAT IS COVERED AND WHAT IS NOT COVERED

Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty:

1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site www.kramerelectronics.com.

2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID IF TAMPERED sticker has been tornreattached, removed or otherwise interfered with.

3. Damage, deterioration or malfunction resulting from:

i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product

WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR

We will pay labor and material expenses for covered items. We will not pay for the following:

1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.

HOW YOU CAN GET WARRANTY SERVICE

1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.

LIMITATION OF IMPLIED WARRANTIES

All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to the length of this warranty.

EXCLUSION OF DAMAGES

The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for:

1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.

NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.

This equipment has been tested to determine compliance with the requirements of:

EN-50081: "Electromagnetic compatibility (EMC);

generic emission standard.

Residential, commercial and light industry"

EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.

Part 1: Residential, commercial and light industry environment".

CFR-47: FCC* Rules and Regulations:

Part 15: "Radio frequency devices

Subpart B Unintentional radiators"

CAUTION!

Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes of modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
Use the supplied DC power supply to feed power to the machine.
☒ Please use recommended interconnection cables to connect the machine to other components.

* FCC and CE approved using STP cable (for twisted pair products)

For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback.
