DS-GTC-402-3 - Docking Station Havis - Free user manual and instructions

Product Type	Docking Station
Brand	Havis
Model	DS-GTC-402-3
Compatible Devices	Getac T800 Rugged Tablet
Dimensions (H x W x D)	8.1 x 7.0 x 3.5 in (20.7 x 17.8 x 8.9 cm)
Weight	1.6 lbs (0.75 kg)
Input Voltage	19.0 V DC
Power Supply	Bundled Lind 95W power supply (LPS-116 equivalent)
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-51°C to 71°C (-60°F to 160°F)
Port Replication	Full replication of tablet ports; includes antenna pass-through
Mounting	VESA compatible (M4 screws)
Locking Mechanism	Key lock for theft deterrence
Included Accessories	Hardware kit (screws, washers, zip ties), 2 keys, power supply
Certifications	CE, RoHS, EN 50498
Color	Black
Material	Plastic and metal
Installation	Requires #2 Phillips screwdriver; torque screws to 20 in-lbs
Safety Warnings	Do not mount in airbag deployment zone; do not dock while powered on

Frequently Asked Questions - DS-GTC-402-3 Havis

Can I connect the DS-GTC-402-3 directly to a vehicle battery?

No. You must use a certified automotive-grade 95W power supply (Havis LPS-116 or equivalent) that provides a regulated 19VDC output. Direct connection will cause permanent damage not covered under warranty.

How do I dock the Getac T800 tablet?

Ensure the docking station is unlatched by pushing the Barrel Lock button. Lower the tablet (landscape) into the bottom, then pivot top toward the Locator Pin. Press the Latch Handle until you hear a click. Optionally lock with the supplied key.

Can I dock or undock while the tablet is powered on?

No. Always power off the tablet completely. Docking or undocking in On, Standby, Hibernate, or Sleep modes can cause permanent damage.

What tools are needed for installation?

You need a #2 Phillips screwdriver. The hardware kit includes M4 screws, split lock washers, and flat washers. Torque screws to 20 in-lbs (2.3 Nm).

Does the docking station charge the tablet battery?

Yes, but only when the ambient temperature is between 0°C and 50°C (32°F to 122°F). Refer to the Getac T800 manual for more details.

How do I secure cables?

Use the included zip ties and the strain relief points on the bottom of the dock. Create a service loop to avoid tension and tie off to a stationary part of the mounting system.

Can I use this dock with other tablets?

No. The DS-GTC-402-3 is specifically designed for the Getac T800 Rugged Tablet and is not compatible with other models.

What is the antenna pass-through for?

Models DS-GTC-401-3, DS-GTC-402-3, and DS-GTC-403-3 have antenna pass-through ports (labeled A, B, C) to connect external antennas for improved signal reception.

How do I clean the docking station?

Unplug the device before cleaning. Use a soft, dry cloth. Do not use liquids or abrasive cleaners. Avoid moisture, steam, and dust.

What should I do if the latch does not release?

Push down on the Barrel Lock button and release quickly. If the latch hook does not fully extend, gently lift the front of the latch hook to release.

USER MANUAL DS-GTC-402-3 Havis

Owner's Manual Havis Docking Station For Getac T800 Rugged Tablet

DS-GTC-400 Series

DS-GTC-401

DS-GTC-402

DS-GTC-403

DS-GTC-401-3

DS-GTC-402-3

DS-GTC-403-3

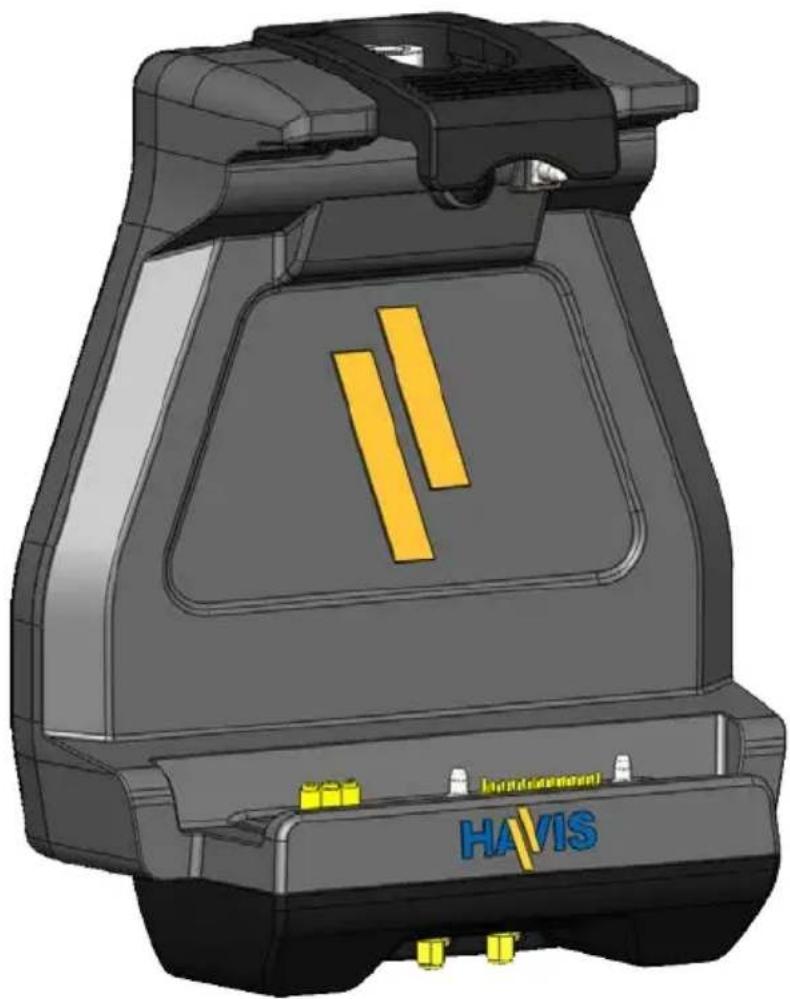

3D CAD model of a mechanical device with yellow and blue components, labeled 'HAVIS' and 'Intelligent', no readable text or symbols beyond branding.

Havis is pleased to provide this Owner's Manual to aid in the proper installation and use of the DS-GTC-400 Series Docking Station for the Getac T800 Rugged Tablet.

For questions regarding the set-up of your DS-GTC-400 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information.

This Owner's Manual applies to the following Part Numbers:

DS-GTC-401

DS-GTC-402

DS-GTC-403

DS-GTC-401-3

DS-GTC-402-3

DS-GTC-403-3

WARNING

• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE AIRBAG DEPLOYMENT ZONE.
  • DO NOT USE COMPUTER WHILE DRIVING.

CAUTION

• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
• DO NOT DOCK OR UNDOCK YOUR COMPUTER UNLESS IT IS POWERED OFF. DOCKING OR UNDOCKING WITH YOUR COMPUTER IN ON, STANDBY, HIBERNATION, OR SLEEP MODES CAN CAUSE PERMANENT DAMAGE.
• FOR THE DS-GTC-401, DS-GTC-401-3, DS-GTC-402 & DS-GTC-402-3 DOCKING STATIONS: DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires a certified, automotive grade, Getac approved 95W power source rated for a continuous, regulated 19VDC output (Havis Part Number LPS-116 or equivalent). Failure to comply with this requirement will cause product damage that is NOT repairable and is NOT covered under warranty.
• FOR THE DS-GTC-403 & DS-GTC-403-3 DOCKING STATION: DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: The Getac T800 tablet requires a certified, Getac approved power source rated for a continuous, regulated 19VDC output. Failure to comply with this requirement will cause product damage that is NOT repairable and is NOT covered under warranty.

NOTICE

• FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY (DS-GTC-402, DS-GTC-402-3) REFER TO THE SUPPLIED LIND POWER SUPPLY REFERENCE GUIDE.
- WHEN TABLET IS DOCKED, THE BATTERY WILL ONLY CHARGE BETWEEN 0°C to 50°C (32°F to 122°F). PLEASE REFER TO GETAC T800 OWNER'S MANUAL FOR MORE INFORMATION.

Specifications 3

Parts Included 4

Port Replication Capability 5

Antenna Identification....5

Installation 6

Cable Management 7

Operation - Docking 8

Operation - Undoing 10

Precautions

• Do not place metal objects or containers of liquid on top of the Docking Station
• If a malfunction occurs, immediately unplug the Power Supply and remove the laptop
• Use only the specified Power Supply (Part # LPS-116) with this Docking Station
• Do not store the Docking Station where water, moisture, steam, dust, etc. are present
• Do not connect cables into ports other than what they are specified for
• Do not leave the Docking Station in a high temperature environment (greater than 85^, 185^ ) for a long period of time

Specifications

Power Supply Input 19.0V DC-In
Dimensions 8.1” (20.7 cm)	H x 7.0” (17.8 cm) W x 3.5” (8.9 cm) D
Weight 1.6 lbs (0.75 kg)
Operating Environment -20°C to 60°C (-4°F to 140°F)
Storage Environment -51°C to 71°C (-60°F to 160°F)

EC DECLARATION OF CONFORMITY in accordance with EN 50498

Manufacturers Name: Havis, Inc.

Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974 USA

Declares under our sole responsibility that the product:

Product name: Havis Docking Station For Getac T800 Fully Rugged Tablet Model: DS-GTC-40X, where 'X' may be any alphanumeric character and which describes product options. May be followed by any alphanumeric characters which describe product options.

Product Options: This declaration covers all options of the above product which bear the CE Marking.

Is in conformity with the following standards or other normative documents:

Automotive EMC Directive EN 50498:2010, Electromagnetic compatibility (EMC) - 2004/108/EC: Product family standard for aftermarket electronic equipment in vehicles Directive 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)

Supplementary Information:

The product herewith complies with the requirements of the Automotive EMC Directive 2004/108/EC, Annex I, 6.5, 6.6, 6.8, and 6.9. This product requires the use of a recommended e-Marked automotive power supply when used within vehicles.

Plymouth twp, MI, USA August 21, 2014 Bruce Jonik, Director of Engineering, Havis, Inc.

Docking Station

Hardware Kit

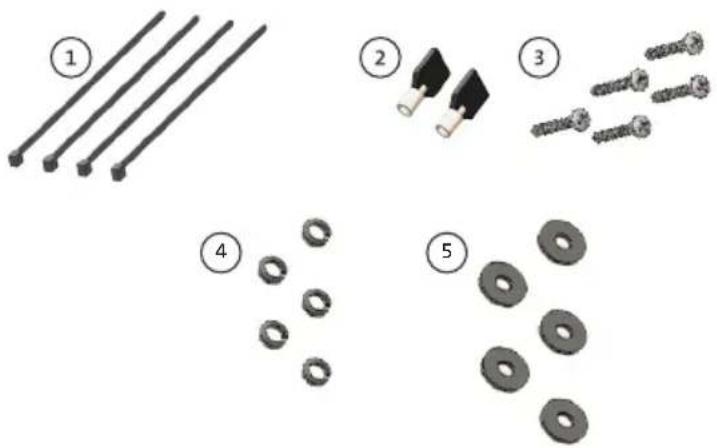

This Hardware Kit includes:

1. Zip Ties (4)
2. Keys (2)
3. M4 x 0.7 x 20mm long Pan Head Screws (5)
4. Split Lock Washers (5)
5. Washers, M4 (5)

Tools required for installation:

- #2 Phillips

(For M4 Pan Head Screws)

Five labeled diagrams showing different types of mechanical components: rods, screw, washers, and washers (no text or symbols present)

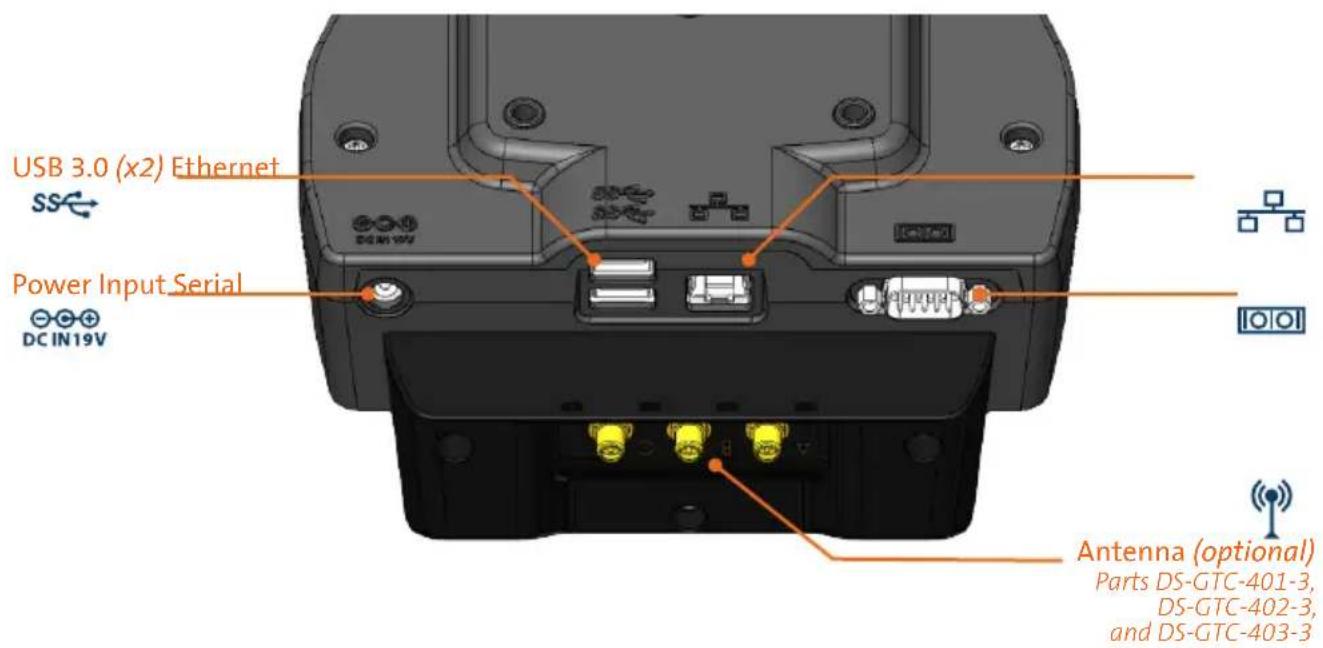

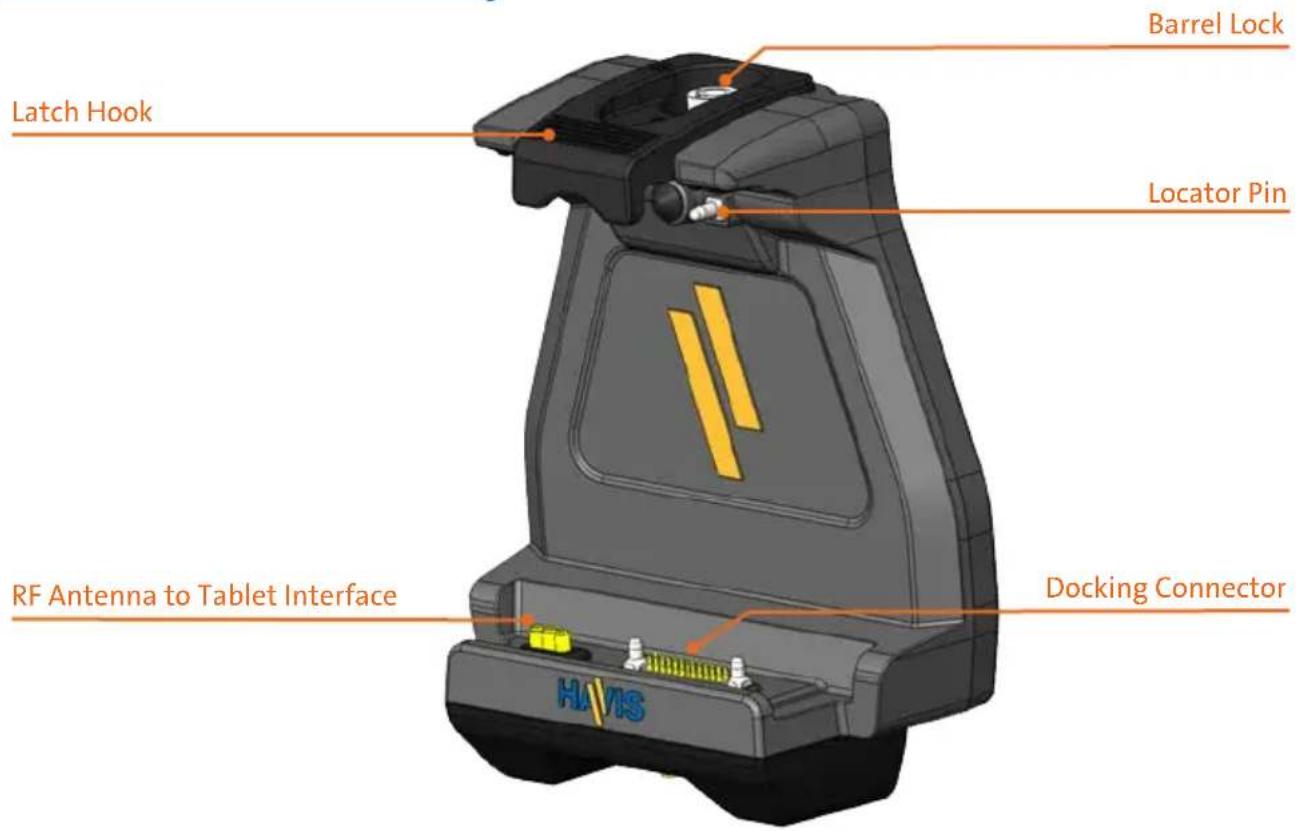

Port Replication Capability

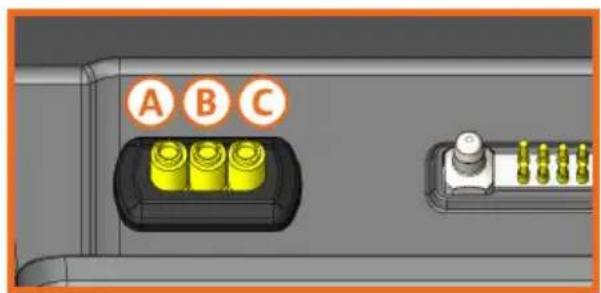

Antenna Identification (DS-GTC-401-3, DS-GTC-402-3, & DS-GTC-403-3)

Close-up of a black electronic device rear panel with three gold connector ports labeled A, B, and C (no additional text or symbols visible)

Tablet InterfaceDownward Facing Antenn

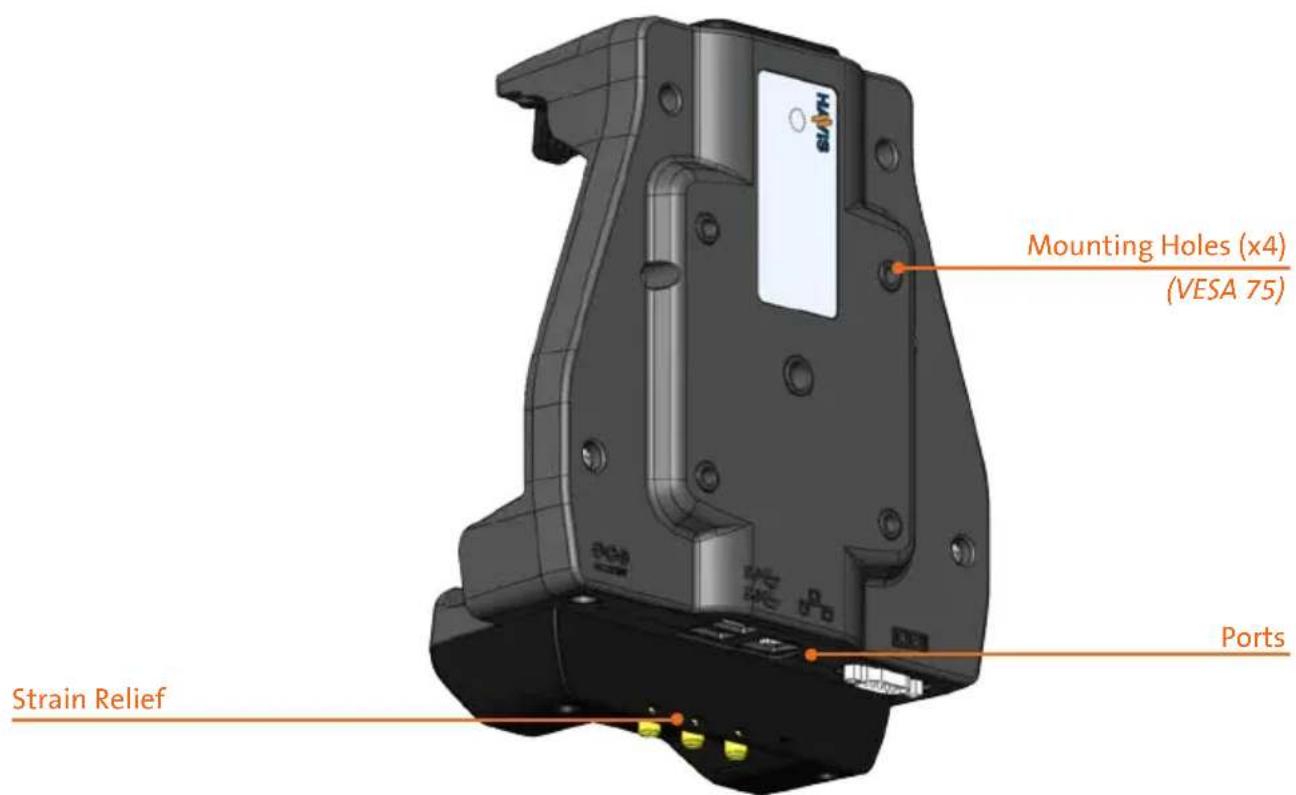

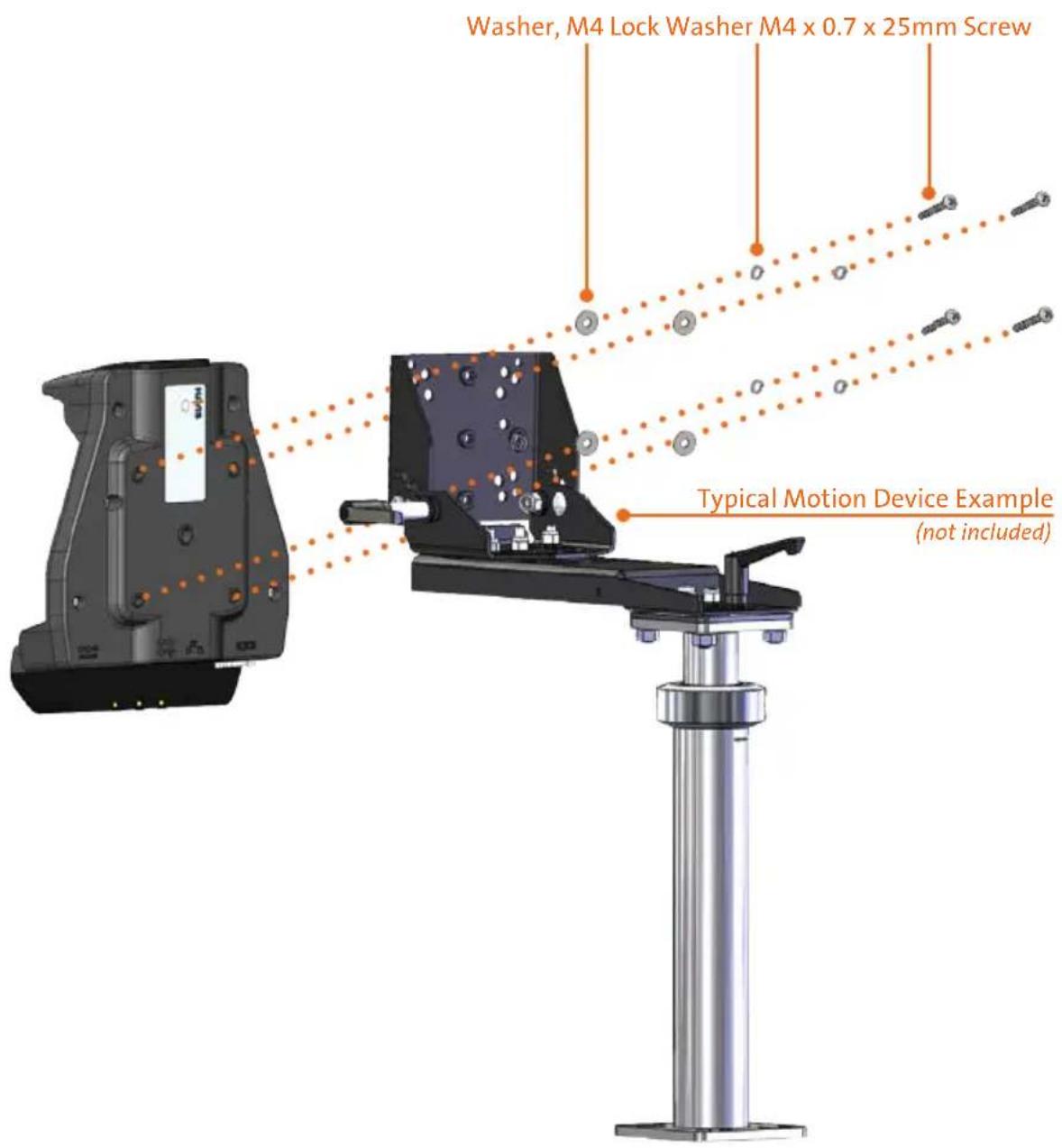

1) Install the Docking Station to the Motion Device using four (4) M4 x 0.7 x 20mm long Pan Head Screws (Hardware Kit Item 3), four (4) Split Lock Washers (Hardware Kit Item 4), and four (4) Washers, M4 (Hardware Kit Item 5). Torque screws to 20 in-lbs (2.3Nm) ± 10%.

1) Tip the Docking Station to a position that is comfortable to work with.
2) Install all cables that are necessary for computing needs.

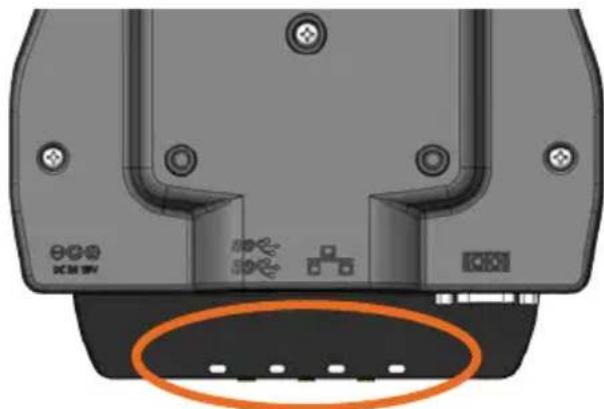

3) Use Zip Ties (Hardware Kit Item 1) and the Strain Relief Points on the bottom of the Docking Station to secure cables and reduce risk of accidental disconnects.

Top-down view of a mechanical component with mounting holes and a highlighted circular feature (no text or symbols)

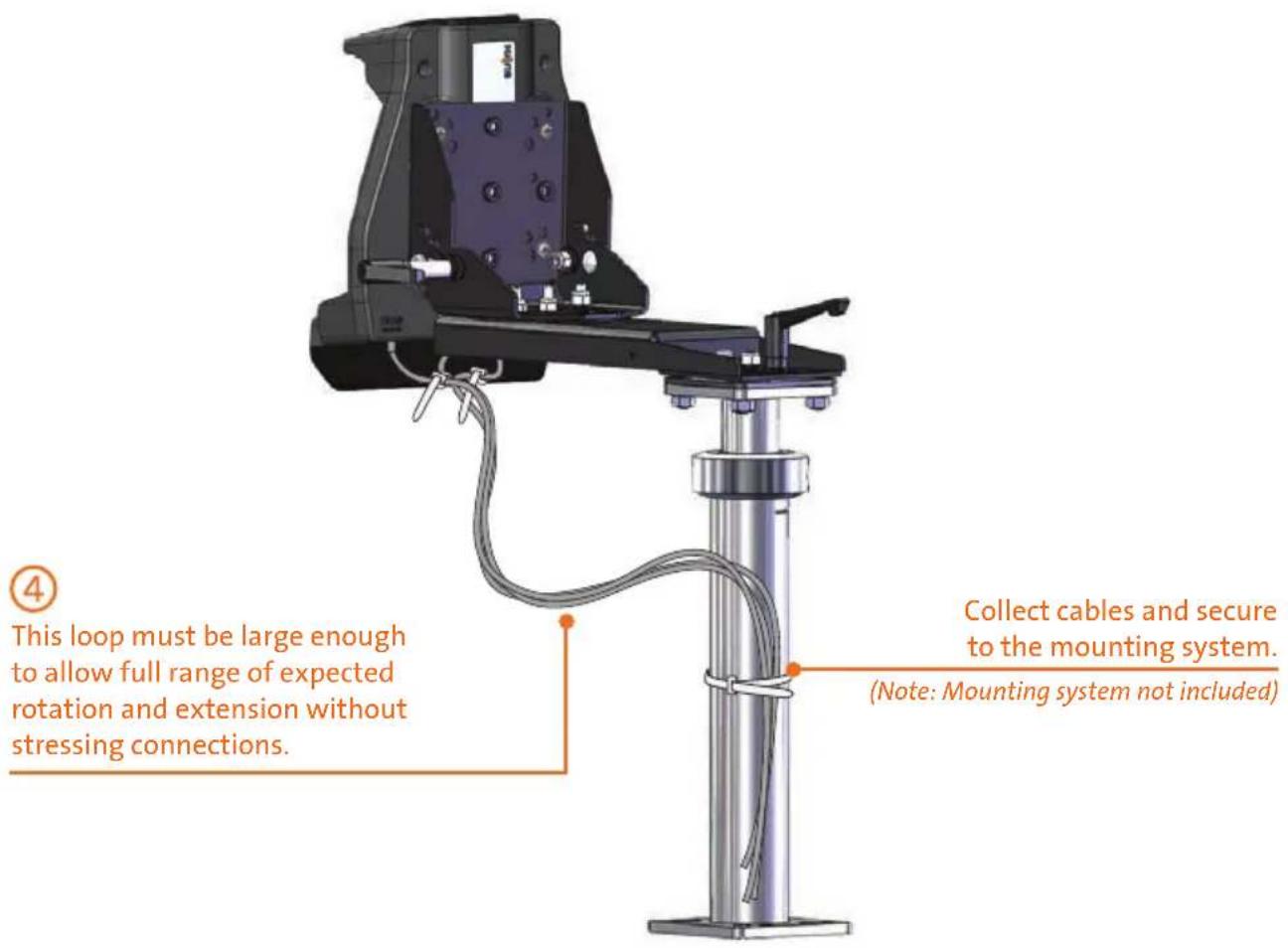

4) Create a service loop with cables to ensure that no tension is on the connectors and to enable intended motion.
5) Tie off cables onto a stationary part of the mounting system.

CAUTION

DO NOT FORCE TABLET ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK ALIGNMENT OF TABLET ON DOCKING STATION.

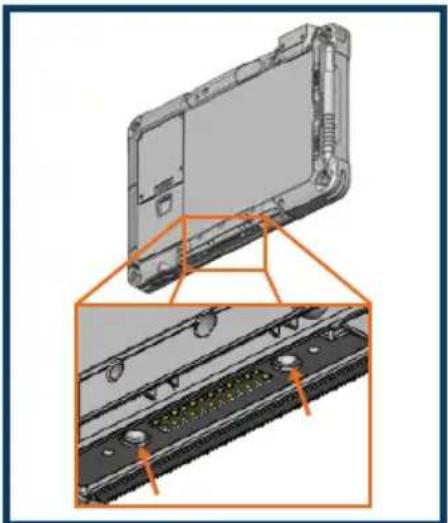

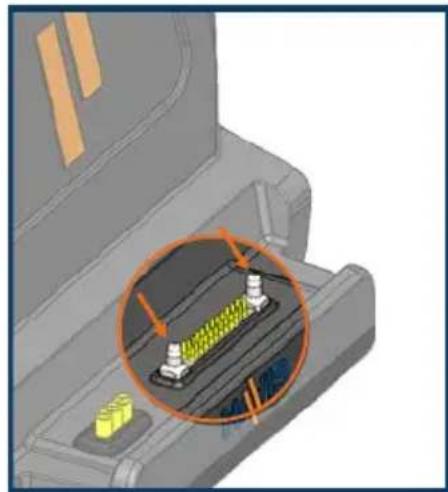

NOTE: Ensure a proper connection by aligning the tablet's Alignment Sockets with the Docking Station's Alignment Posts

3D mechanical component diagram showing a connector with highlighted internal structure (no text or symbols)

Alignment Posts
DS-GTC-400 Series Docking Station

3D CAD model of a laptop with an orange zoomed-in section showing internal components (no text or symbols visible)

Alignment Sockets
Bottom of Getac T800 Rugged Tablet

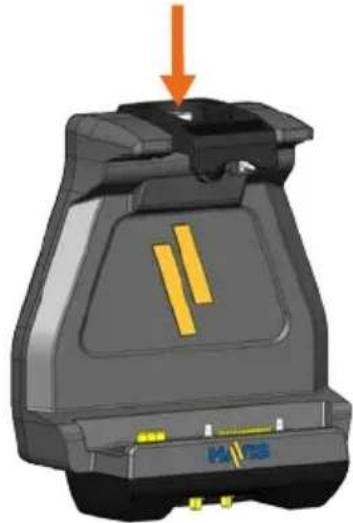

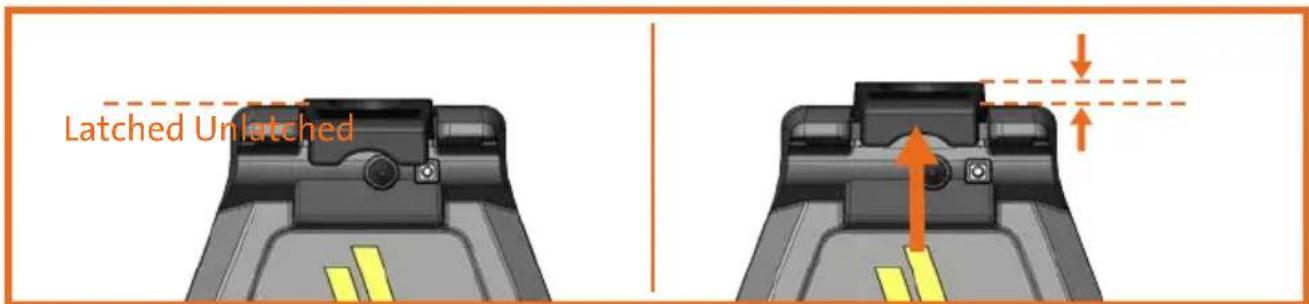

1) Docking Station must be unlatched before docking your tablet. Push down on the Barrel Lock button and release slowly. Without a tablet present you may have to lift up lightly on the front of the Latch Hook to fully release.

3D model of a mechanical device with orange arrow indicating downward motion (no text or symbols)

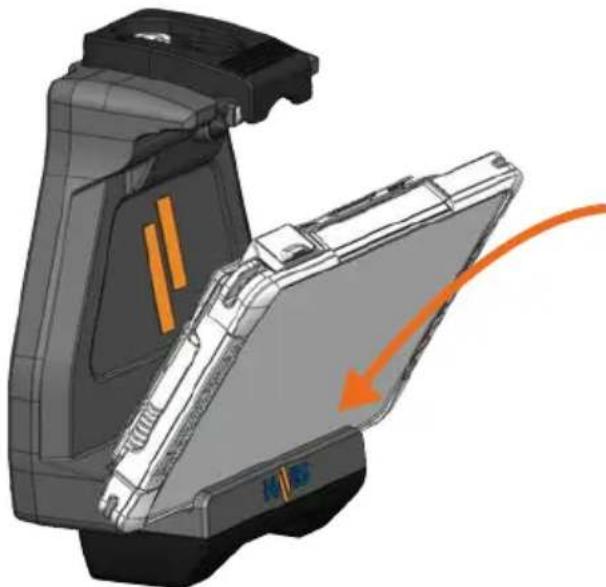

2) Hold tablet in landscape orientation, with bottom mounted docking connector angled toward Docking Station. Lower tablet into the bottom of the Docking Station.

3D diagram of a device interior showing internal components and an orange arrow indicating flow or movement (no text or symbols)

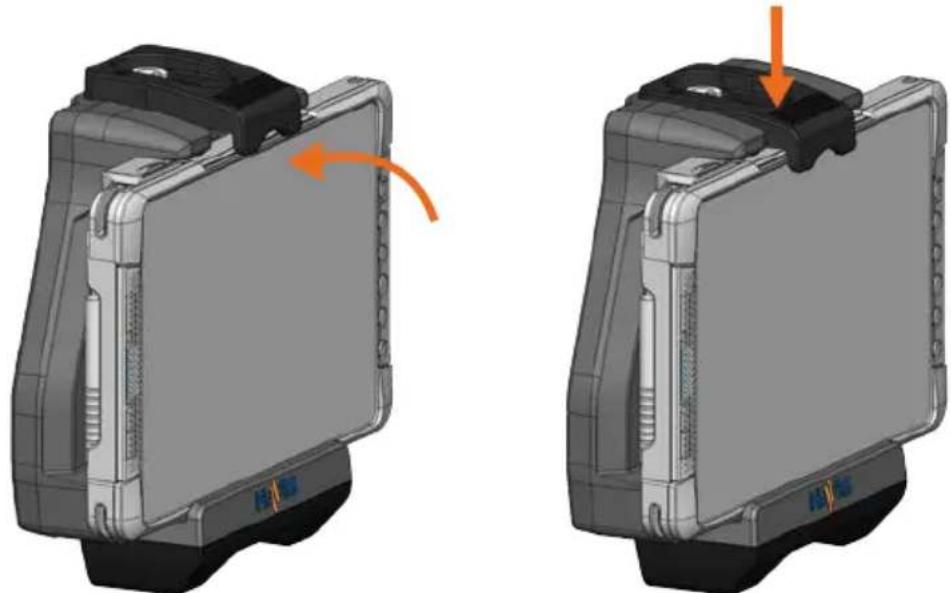

3) Pivot tablet so the top aligns with the Locator Pin at the top of the Docking Station. Depress the Latch Handle to secure tablet in place. You will hear an audible click when Latch Hook is fully engaged.

3D mechanical component diagrams showing a device with orange arrows indicating rotation or movement (no text or symbols)

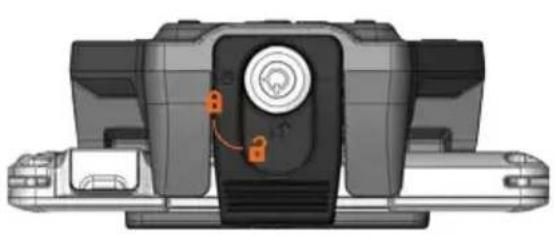

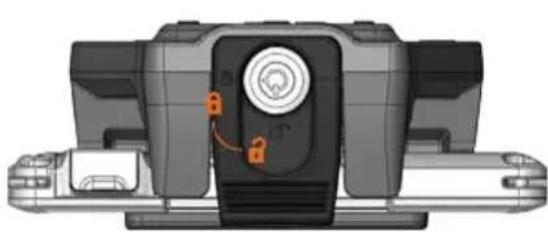

4) For theft deterrence, secure tablet by locking Docking Station with supplied key (Hardware Kit Item 2).

3D mechanical component diagram showing a central knob with orange control buttons (no text or symbols)

Close-up of a black mechanical component with a circular dial and orange arrows indicating rotation or adjustment (no text or symbols)

1) If previously locked, unlock Docking Station using supplied key.

3D mechanical component diagram showing internal components with orange arrows indicating flow or movement (no text or symbols)

Close-up of a mechanical component with orange arrows indicating rotation or adjustment (no text or symbols visible)

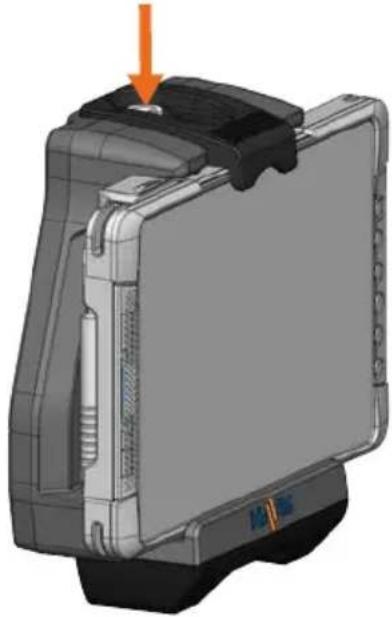

2) Secure tablet to avoid inadvertent ejection from Docking Station. Push down on the Barrel Lock button and release quickly taking care not to obstruct the travel of the Latch Hook. If the Latch Hook does not extend fully to its unlatched position, lift up lightly on the front of the Latch Hook to fully release.

3D model of a mechanical device with an orange arrow pointing to a component (no visible text or symbols)

3D mechanical component diagram showing a device with an orange arrow indicating upward motion (no text or symbols present)

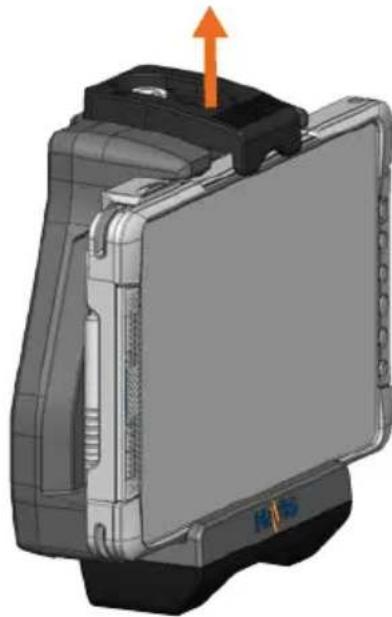

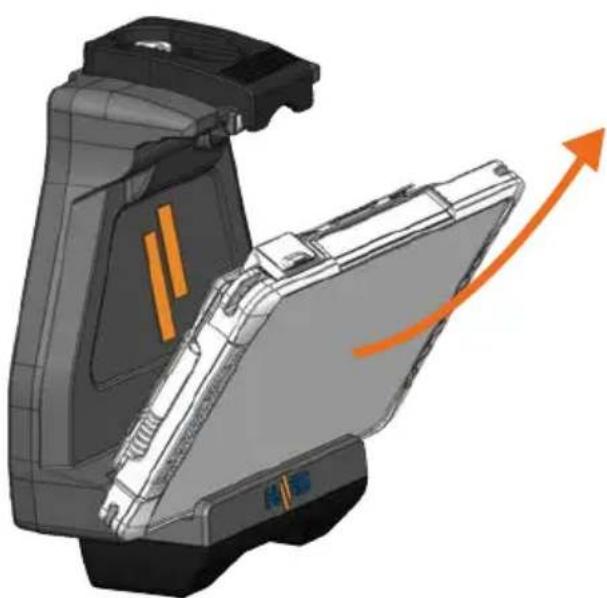

3) Once unlatched grab both sides of tablet, rock the top forward and carefully lift out of Docking Station, top end first.

3D diagram of a device interior with an orange arrow indicating direction, showing internal components and a blue control panel (no text or symbols)

Havis offers a wide variety of accessory products specifically for use with the DS-GTC-400 Series Docking Station. For more information or to order, please visit www.havis.com.

Black electronic device with two cables and a power adapter, no visible text or symbols

LPS-116

95W Power Supply

External in-vehicle power supply and cable for Getac T800 Rugged Tablet with cigarette lighter adaptor.

Metal bracket with four holes, isolated on white background (no text or symbols)

DS-DA-218

Desktop Stand for Tablet Docking Stations

Durable stand for mounting tablet Docking Stations for use in the home or office.

Close-up of a metallic key with a handle and circular base (no text or symbols visible)

DS-DA-502

Replacement Keys

Set of two (2) replacement keys for DS-GTC-400

Series Docking Stations.
