USER MANUAL R300WN22OP5E StarTech.com
Outdoor 300Mbps Wireless N Access Point - 2T2R 5GHz
R300WN22OP5 / R300WN22OP5G / R300WN22OP5E
For the most up-to-date information, please visit: www.startech.com
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This Class [B] digital apparatus complies with Canadian ICES-003.
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Instruction Manual
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
Table of Contents
Introduction......2
Packaging Contents 2
System Requirements....2
Product Overview ....3
Rear View....3
Connection Ports....4
LED Indicators....5
Installation 5
Hardware Installation 6
Operation 6
Specifications....12
Technical Support 13
Warranty Information....13
Introduction
Packaging Contents
• 1 x Outdoor Access Point
- 1 x PoE Injector
- 1 x Metal Hose Clamp
- 1 x Power Adapter
• 1 x Instruction Manual
System Requirements
- A networked computer system with a Java-enabled web browser (for configuration)
- Cat 5 (or better) network cabling from PoE Injector to Wireless AP and PoE Injector to LAN Switch/router (no more than 100m total)
- Mounting screws / anchors for wall mounting PoE Injector and/or Wireless AP
Product Overview

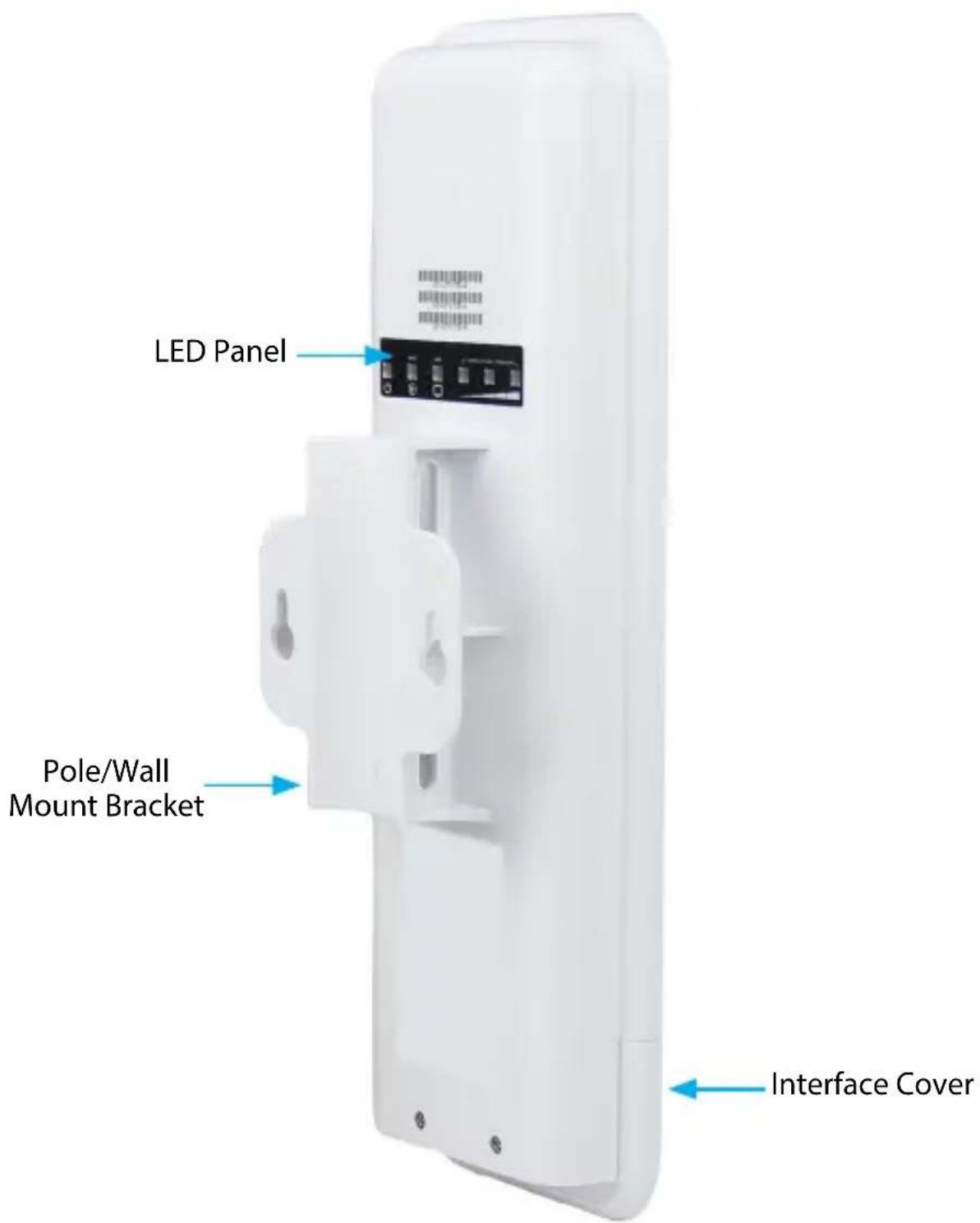

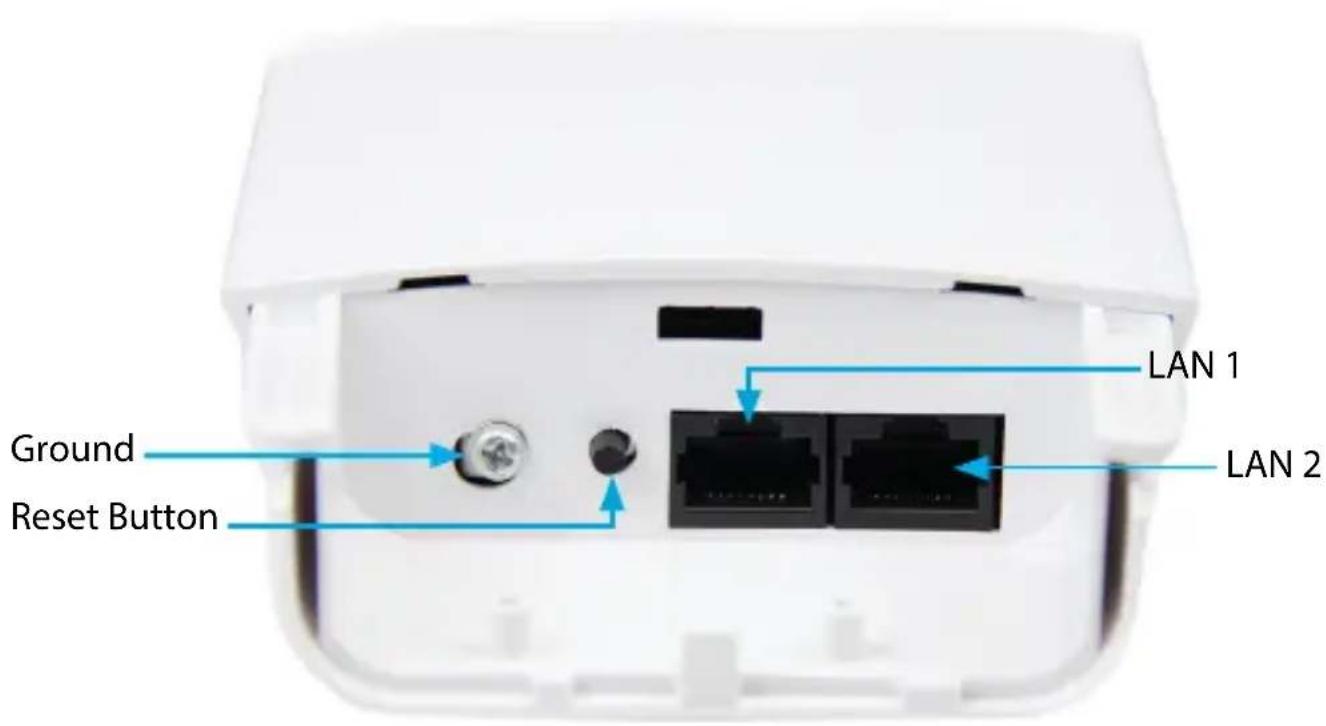

Rear View

Connection Ports

| Interface Description | |
| Reset Button Press continually for 5 ~ 10 seconds to reset the device to factory defaults | |
| LAN 1 Allows LAN connection through a Category 5 (or better) cable. Supports auto-sensing for 10/100Mbps speeds and half/ full duplex | |
| LAN 2 Allows LAN connection through a Category 5 (or better) cable. Supports auto-sensing for 10/100Mbps speeds and half/ full duplex |
Note: The reset button on the PoE injector will only work if plugged into the LAN 1 port.

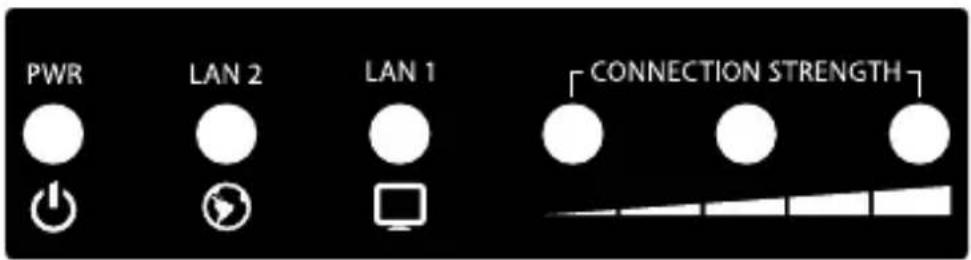

LED Indicators

Indicator State Description
| PWR | ON The device is powered on | |
| OFF The device is powered off | ||
| LAN 2 | ON Link detected | |
| OFF No link detected | ||
| Flashing Data is being transmitted / received on the LAN 2 interface | ||
| LAN 1 | ON Link detected | |
| OFF No link detected | ||
| Flashing Data is being transmitted / received on the LAN 1 interface | ||
| Wifi Activity Indicators | ON Wireless client(s) are connected. Shows signal strength for best connected client/AP | |
| OFF No connected wireless client(s) | ||
Installation
Preparing Your Site
- Determine the location for the included PoE injector and mount using the appropriate screws/anchors for the material you are mounting to (not included).
- Determine the location for the Wireless AP. If you are pole-mounting the AP, use the included clamp to secure the device. If you are wall mounting the AP, use the appropriate screws/anchors for the material you are mounting to (not included).
- Prepare/purchase the required length of Ethernet cabling to go from the PoE Injector to your LAN Switch or router, and from PoE Injector to the AP.
Note: The total length of Ethernet cabling from the Wireless AP to your LAN switch or router should not exceed 100m
Hardware Installation
- Connect the included power adapter to an available wall outlet and the DC jack on the PoE injector.
- Connect an Ethernet cable from the LAN port of the PoE Injector to your LAN switch or router.
- Connect a second Ethernet cable from the PoE port of the PoE Injector, the other end of this cable will connect to the AP as instructed in the following steps.
- Slide the bottom cover of the unit down to remove it and expose the ports.
- Connect the Ethernet cable from the PoE port of the PoE Injector, to the LAN port on the AP (farthest from the reset button).

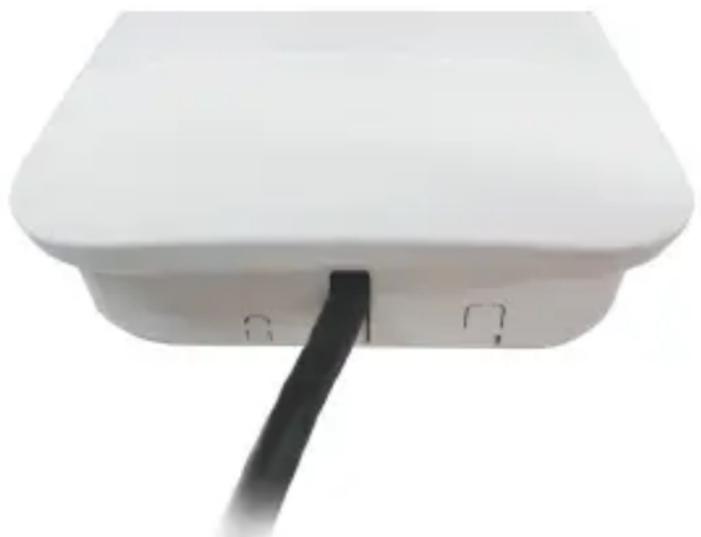

- Slide the cover back on as shown.
Operation
The following steps outline the basic configuration for the AP. For details on the Advanced configuration options available, please visit www.StarTech.com/R300WN22OP5 for the full manual
Default Settings
Default IP Address: 192.168.1.200
Default subnet mask: 255.255.255.0
Web / Telnet User Name: admin
Web / Telnet Password: admin
- Configure a system to be on the same LAN as the AP (192.168.1.xxx, where xxx is 1 – 254, except 200).
- Open a web browser and enter the IP address 192.168.1.200 into the address bar, then press Enter.
- Enter the default username / password (admin / admin) and press Enter.

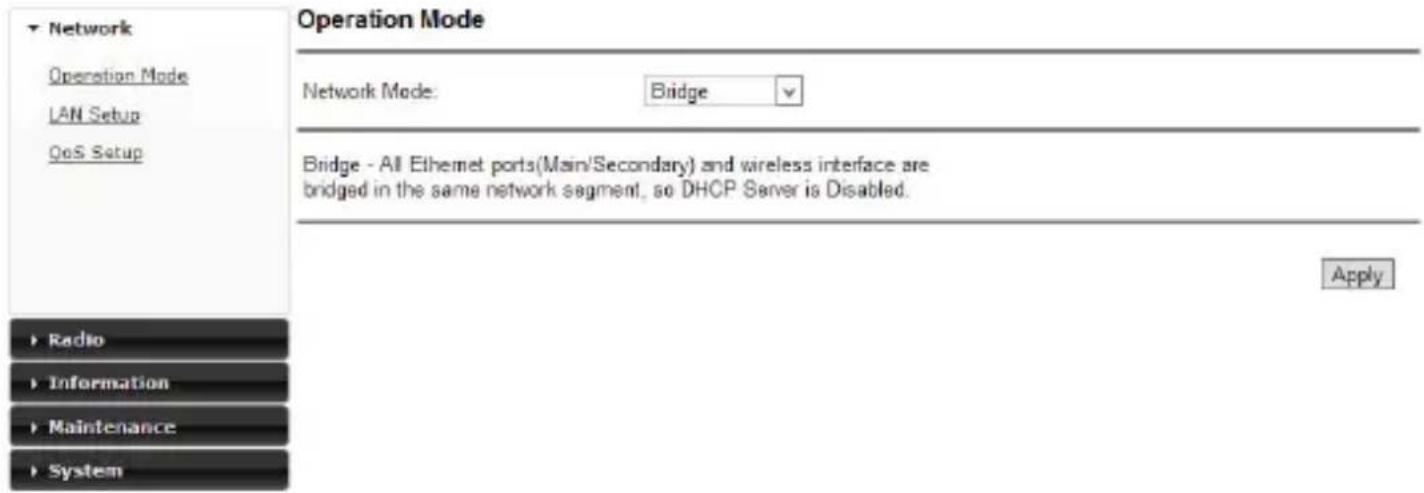

- Click on the Operation Mode link from the left column to select your desired Network and IP Mode as applicable to your network (described below). Then click the Apply button.
Note: The Save button will preserve your changes as you move from screen to screen, while the Apply button will reboot the device to put all of the changes into effect (approx. 60 seconds)

Network Mode IP Mode Description
| Bridged N/A | Disables Network Address Translation (NAT) and bridges the Wireless AP and LAN ports together | |
| Wireless ISP | Static | Connects to an external wireless network (Wireless ISP) and rebroadcasts as an internal wireless network (WLAN). |
| DHCP | ||
| PPPoE | *See Wireless ISP section below for instructions on this mode |
Note: Depending on the modes you choose, applicable settings will be enabled/disabled automatically.

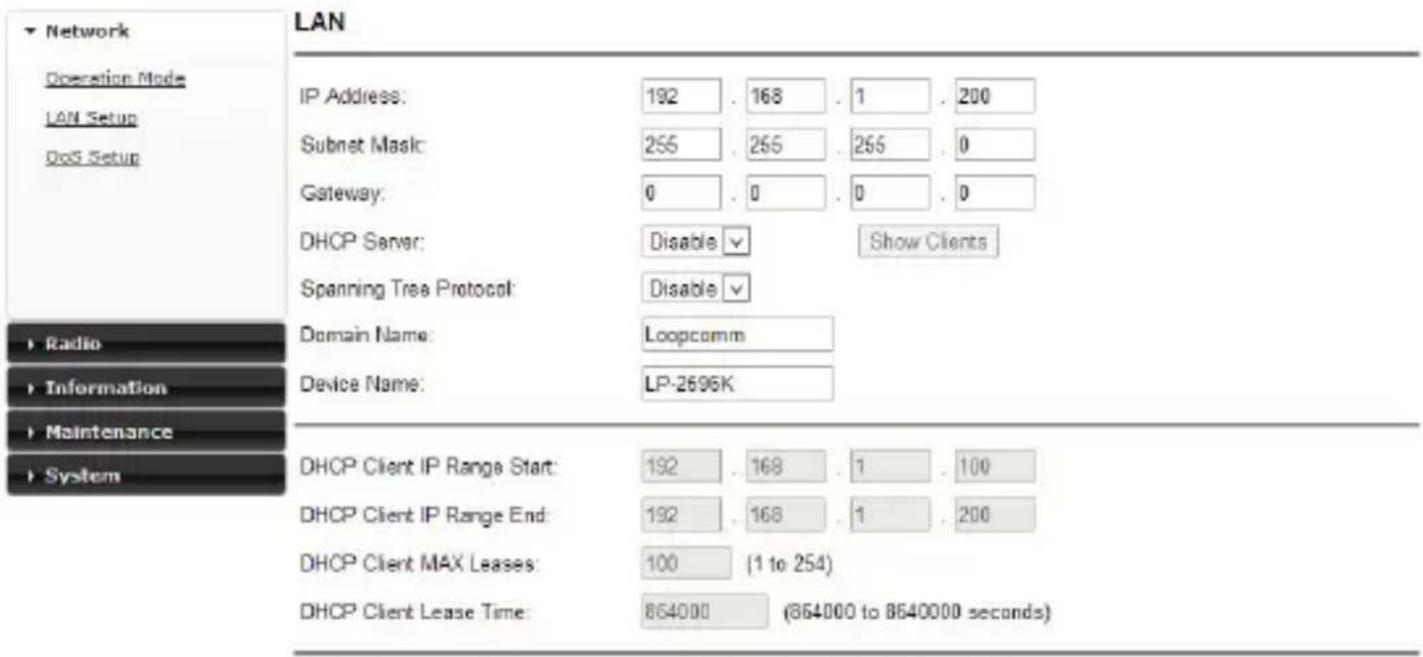

- Click on the LAN Setup link from the left column and configure your desired IP Address and DHCP settings for the LAN. Then click the Save button.

Apply

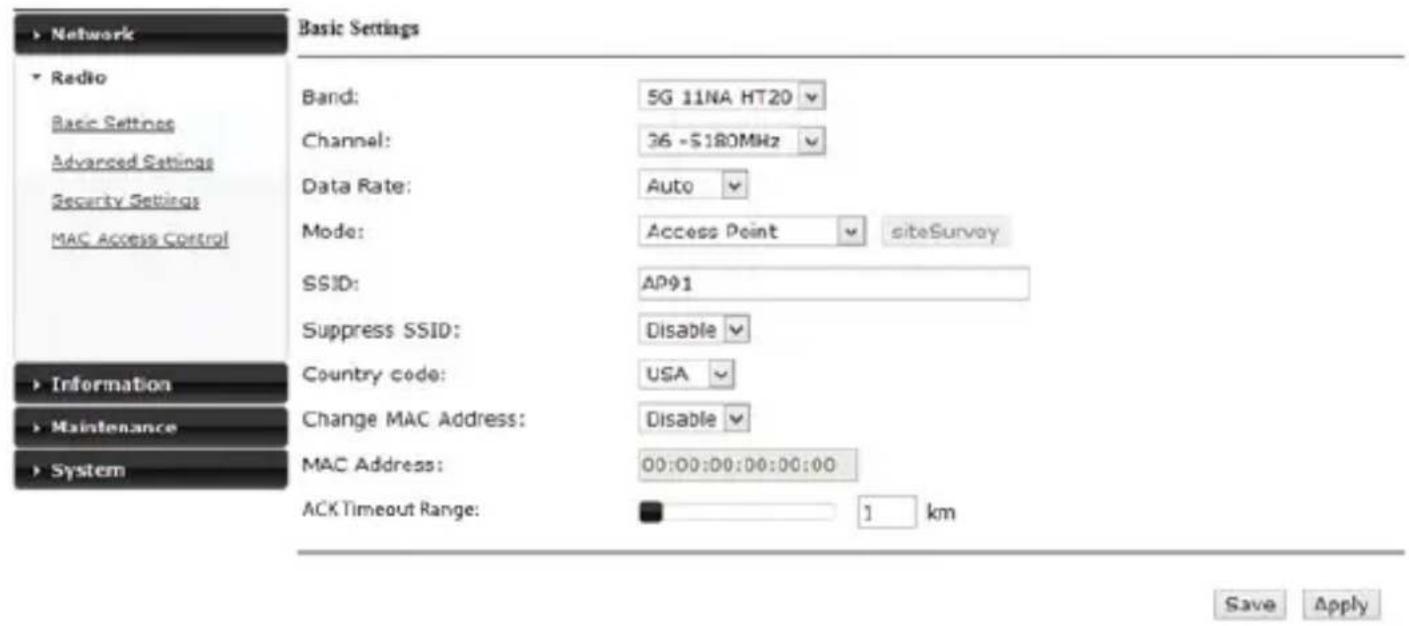

- Select Radio from the left column to configure your Basic wireless settings such as the SSID, Radio Mode and Transmit Range. Then click the Save button.

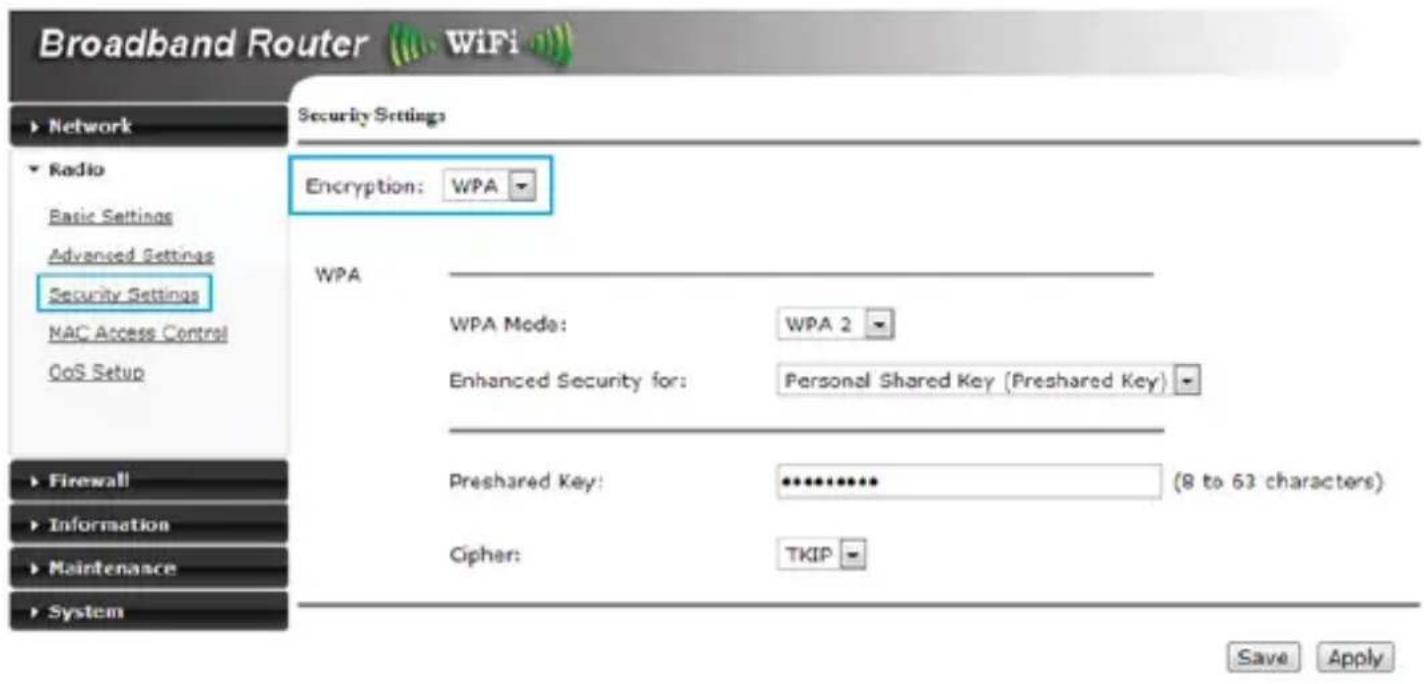

- Once you have configured the Basic Settings, select Security Settings from the left column and choose your desired encryption type and security key. Then click the Save button.

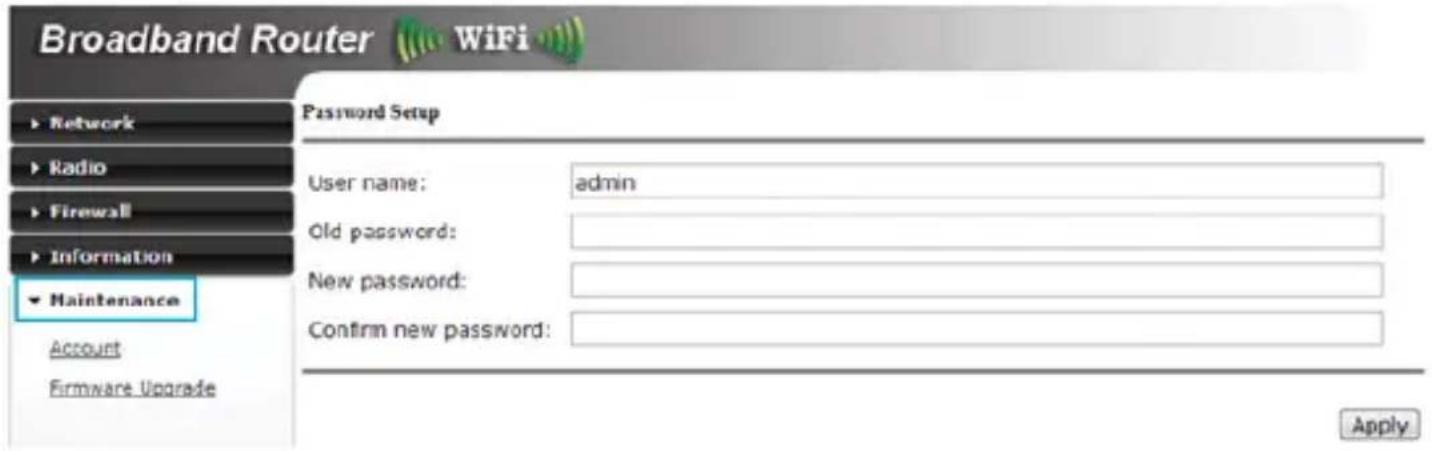

- To restrict access to the web interface of your AP, it is also recommended to configure a password, which can be done by selecting Maintenance from the left column of the web interface. Then click the Apply button to reboot the device and apply all changes made in previous steps.

Wireless ISP (WISP) Mode
When using the AP in Wireless ISP mode, settings should be configured as follows.
- Select Network and then Operation Mode from the left column of the web interface.
- Set your Network Mode to "Wireless ISP", and then click the Apply button.

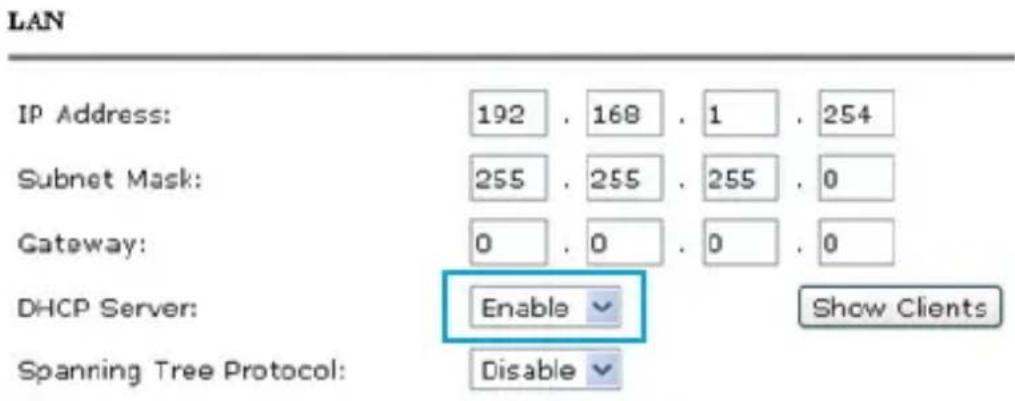

- Select LAN Setup from the left column and change the DHCP Server option to "Enable", configure your desired DHCP range settings, and then click the Save button.

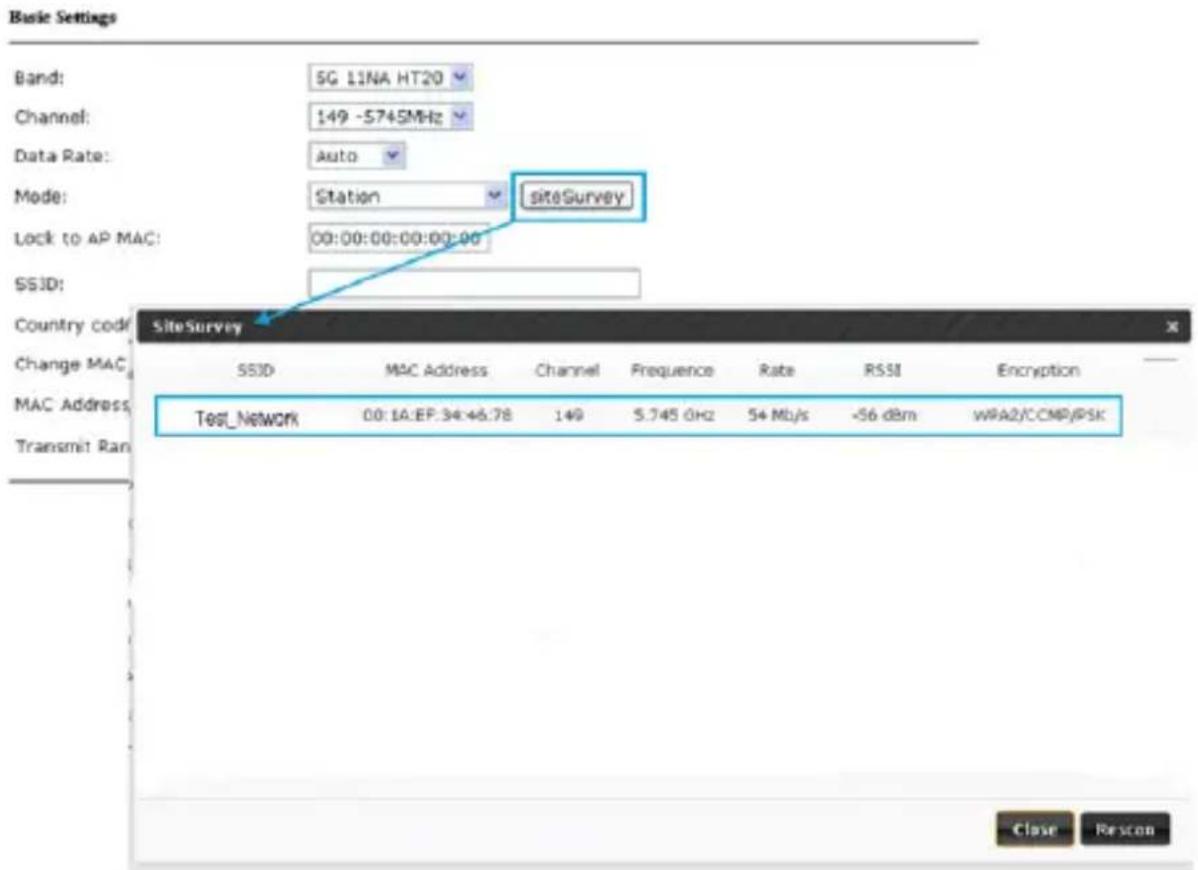

- Select Radio from the left column (Basic Settings) and change the Mode to "Station", and then click the Save button.
- Click the Site Survey button to bring up a list of available networks and select the network you would like the AP to re-broadcast.

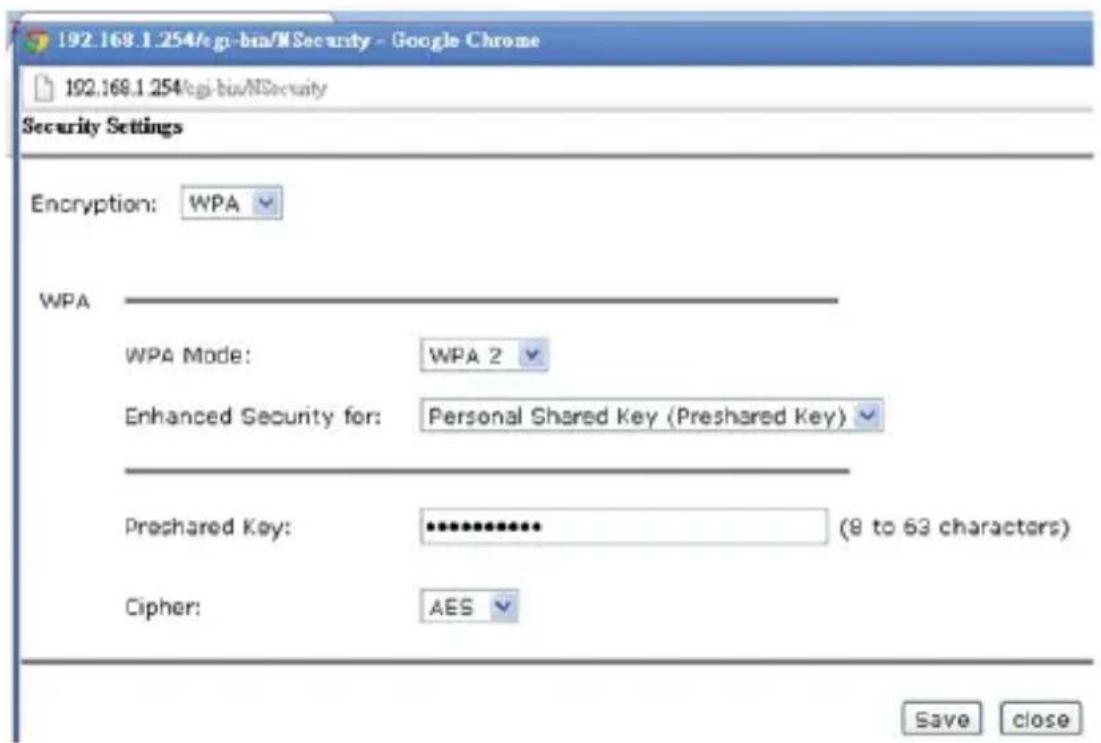

- Selecting your desired network will bring up another window where you can enter the security key for the network you have chosen, then click the Save and Close buttons.

- Once complete, click the Apply button to reboot the AP and put all modified settings into effect.

Specifications
Supported Wireless Standards IEEE802.11 a/n
Chipset Atheros - AR9344
Connectors 2 x RJ45 Ethernet Female
Antenna Configuration 2x2:2 (TxR:s)
Antenna Type 14dBi Dual Polarization Directional Antenna
Wireless Frequency Range 5.150GHz \~ 5.850GHz
Wireless Bandwidth 20/40MHz
Wireless Encryption Supported
64/128 bit WEP
WPA(TKIP with IEEE 802.1x)
WPA2(AES with IEEE 802.1x)
WPA -PSK
Maximum Wireless Distance 3km*
Maximum Data Transfer Rate
802.11n : (40MHz) : up to 300Mbps
802.11n : (20MHz) : up to 144Mbps
RJ45 Ethernet: 10/100 Mbps
Enclosure Material Plastic
Operating Temperature 0°C to 70°C (32°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 95% @ 55°C
Dimensions 282 x 80 x 55 mm
Note: The effective distance will vary based on the transmitting power of the connecting wireless device(s).
Technical Support
StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
