USER MANUAL Dock 2TB G-TECHNOLOGY

Three silver server units with ventilation grilles and drive bays against a blue dotted background (no text or symbols visible)

PRODUCT guide

Blue circular logo with a white stylized 'G' symbol (no text or numbers)

G-Technology™

G-Technology™

Mac Storage Solutions designed for the pros -- and perfect for you!

G-Technology offers premium external storage solutions for content creators. Our complete portfolio delivers unmatched performance, reliability and style designed for Mac or PC users. With our ever-expanding offerings, you choose which storage solution is best for you — whether you're capturing footage or data, transferring it, editing it, or sharing it. From general storage for music to high-performance solutions for intensive video editing — we've got you covered!"

ALL G-TECHNOLOGY PRODUCTS

CARRY A 3-YEAR LIMITED WARRANTY

G Index

Pg Product USB FW* GigE Thunderbolt eSATA						mini-SAS	RAID Enabled	Enterprise class** (Disk Drive)
4 G-DOCK evTM with Thunderbolt				√
5 G-DRIVE ev	√
6 G-DRIVE ev PLUS	√
7 G-SPEED eS PRO							√†	√
8 G-SPEED eS					√		√†	√
9 G-SPEED Q	√	√			√		√	√
10 G-RAID with Thunderbolt				√			√
11 G-RAID	√	√					√
12 G-RAID mini	√	√			√		√
13 G-DRIVE	√	√
14 G-DRIVE mini	√	√
15 G-DRIVE mobile	√	√
16 G-DRIVE mobile USB	√
17 G-DRIVE slim	√
18 G-CONNECT	√		√

* Compatible with FireWire 800 and 400 with included cable.
“Used in extreme “enterprise” environments such as multiuser computer systems, server applications, and tiered storage arrays.
^1 When used with optional RAID controller. Available at g-technology.com.

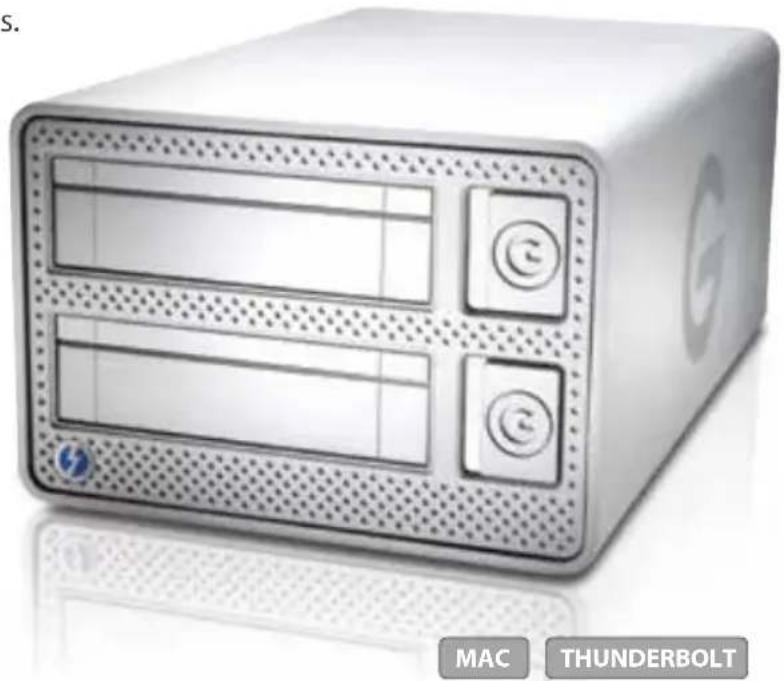

G | DOCKev™

With Thunderbolt™

Fully Swappable Dual-Bay Storage System

Designed with the flexibility to accommodate unique workflows, now you can seamlessly transfer and store all your digital content with one system. The G-DOCK ev with Thunderbolt is the hub of the Evolution Series, which ships with two removable G-DRIVE ev hard drives.

The portable standalone G-DRIVE ev hard drives are your go-to devices in the field, with plug-and-play USB 3.0 connectivity and transfer speeds up to 136MB/s. Back at your workstation, insert the drives into the G-DOCK ev

and transfer your content with the ultra fast, high-performance Thunderbolt interface. Have a need for speed? The G-DRIVE ev PLUS packs fast transfer rates up to 250MB/s.

Exterior view of a beige server rack with two ports and control buttons, labeled 'MAC THUNDERBOLT' at the bottom (no other text or symbols)

G DRIVE® ev

USB 3.0 hard drive for use with G-DOCK ev or as a stand alone device

The ruggedized* G-DRIVE ev hard drive is the new go-to device for seamless plug-and-play USB 3.0 connectivity in the field. Use it alone onsite, then insert the drive into the G-DOCK ev back at your workstation to transfer your content with the ultra-fast, high-performance Thunderbolt interface.

Designed to work with the Evolution Series. The G-DRIVE streamlines your capture, transfer, and distribution process. Have a need for speed? The G-DRIVE ev PLUS is also part of the Evolution Series, packing fast transfer rates up to 250MB/s.

Exterior view of a silver networking device with ventilation grilles and ports (no visible text or symbols)

G DRIVE® ev PLUS

A high-speed USB 3.0 hard drive for use with G-DOCK ev or as a stand-alone device

G-DRIVE ev PLUS packs fast transfer rates up to 250MB/s for those who have a need for speed. As a stand-alone storage device—or as part of G-Technology's Evolution Series—these portable G-DRIVE ev hard drives are sure to become your go-to devices in the field.

You'll seamlessly transfer and store all your digital content with plug and play USB 3.0 connectivity. Back at your workstation, insert the drive into the G-DOCK ev and transfer your content with the ultra fast, high-performance Thunderbolt interface.

Exterior view of a silver networking device with ventilation grilles and a circular logo on the front (no visible text or symbols)

7200RPM

MACP

USB

G | SPEED™ eS PRO

High-Performance, Fail-Safe RAID Solutions for HD/2K Production

G-SPEED eS PRO provides professional content creators better than Fibre-Channel performance for demanding post production applications. G-SPEED eS PRO features mini-SAS connectivity for very high performance operation. When used with an optional PCIe RAID controller, a single G-SPEED eS PRO enclosure with four hot-swappable Enterprise-class 7200 RPM SATA drives supports real-time playback of 10-bit uncompressed 1080/60i with over 400MB/sec performance. Two G-SPEED eS PRO units in protected mode (RAID 5) achieve close to 1000MB/sec performance and support two simultaneous streams of uncompressed 10-bit HD or a single 2K DPX sequence. G-SPEED eS PRO is simply the most cost-effective desktop RAID storagesolutiondesignedspecificallyfor high-end post.

Enterprise-Class Hard Drives!

Up to 16TB!

7200RPM

MACP

mini-

AS

G | SPEED™ eS

High-Performance eSATA RAID Storage for SD/HD Production

G-SPEED eS RAID solutions provide professional content creators with outstanding performance, high storage capacity and fail-safe operation at an unprecedented low cost per gigabyte. The compact and whisper quiet G-SPEED eS features a 3Gbit eSATA interface and four hot-swappable Enterprise-class 7200 RPM SATA drives. When used with the G-Technology PCIe x4 RAID controller (sold separately), a single G-SPEED eS supports up to four simultaneous streams of ProRes422 HQ or one stream of uncompressed 1080/60i. As many as four G-SPEED eS enclosures can be attached to a single workstation, providing up to 64TB of high-performance RAID protected storage. The G-Technology PCIe x4 RAID controller supports RAID 0, 1, 5, and JBOD, and is configured and monitored via a full-featured Web GUI.

Enterprise-Class Hard Drives!

Up to 16TB! 7200RPM MAC P eSAT

G | SPEED™ Q

Highly Versatile Quad Interface 4-Bay RAID Storage

G-SPEED Q provides content creators a high-performance, quad-interface, 4-bay RAID solution for every type of digital asset. Equipped with 3Gbit eSATA, FireWire 800, FireWire 400*, and USB 2.0, the quiet and stylish G-SPEED Q features an internal RAID controller, solid all-aluminum enclosure with (4) hot-swappable Enterprise-class hard disk drive modules, and quiet cooling fan technology. The internal RAID controller supports RAID 0 for maximum performance or RAID 5 for data protection. G-SPEED Q's small footprint and portability make it perfect for applications where high capacity and RAID protection is very important.

*Via included FireWire 800 to FireWire 400 cable

Enterprise-Class Hard Drives!

G8500 Up to 16TB! 7200RPM MAC P1 USB eSATAFW

GRAID

With Thunderbolt™

Ultra-Fast, High-Performance RAID with Thunderbolt Technology

G-RAID with Thunderbolt, features the most powerful, flexible I/O technology ever introduced for the Mac. At double the data transfer rates of USB 3.0 and over 12 times faster than Firewire 800, no other I/O interface can match the raw speed of Thunderbolt now available in G-Technology's leading RAID 0 solution.

Up to 8TB!

DESIGN & ENGINEERING SHOWCASE HONORS INNOVATIONS INTERNATIONAL CES® 2012

7200RPM

MAC

THUNDERBOLT

GRAID®

Professional High-Performance Dual-Drive Storage System

G-RAID is designed specifically for professional content creation applications and features USB and FireWire for universal connectivity and industry-leading performance. It uses the latest-generation chipset and supports simultaneous playback of multiple layers of HDV, DVCPRO HD, and ProRes 422 HQ with the leading video editing applications. G-RAID is capable of delivering up to 250MB/second transfer rates when connected to any Mac or PC via USB 3.0. The thermo-regulated "smart" fan keeps G-RAID cool and the editing suite quiet.

Front view of a modern portable electronic device with a perforated grille and a central logo (no visible text or symbols on the device body)

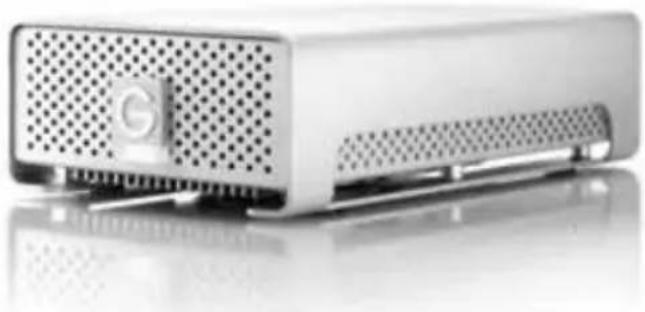

G-RAID mini is the perfect companion for video and still shooters or editors working on location. Out of the box, G-RAID mini is set up in RAID 0 (Performance mode), with its two 7200 RPM drives working together for the performance you need to edit the most popular compressed HD formats. Using the included software utility, the G-RAID mini can be configured in RAID 1 (Protected mode), giving you the peace of mind that your digital video or images are protected while on the road. Plus, G-RAID mini is FireWire bus-powered.

Exterior view of a silver hard drive with perforated grille and front panel (no visible text or symbols)

G DRIVE®

Professional-Strength External Hard Drive

G-DRIVE storage solutions offer the ultimate in flexibility by providing high-speed USB and FireWire connectivity all in a single desktop unit. G-DRIVE is the perfect high-performance solution for storage-intensive applications, including audio/video editing, digital photography, music libraries, and high-speed

data backup. The system features a fanless cooling system and the latest 7200 RPM drive with up to 64MB of cache. G-DRIVE supports professional audio/video and music production tools, including Final Cut Pro ^® , Logic Studio ^® , and Pro Tools ^® .

Up to 4TB!

High-Speed Portable Drive

G-DRIVE mini is the perfect storage solution for those who demand the highest performance possible from their mobile storage device. Featuring a 7200 RPM hard disk, G-DRIVE mini is designed specifically with the content creator in mind. The all-aluminum enclosure protects your valuable data from the bumps and bruises encountered on the road, and the

system is bus-powered, eliminating the need to carry an external AC adapter. The drive features high-speed USB and FireWire, and a built-in heat sink silently dissipate heat.

Front view of a silver portable electronic device with a grid-patterned speaker grille and a central 'G' logo (no readable text or symbols)

G DRIVE mobile

Portable USB and FireWire Drive

G-DRIVE mobile features USB and FireWire® interfaces, exceptional throughput performance, and up to 1TB capacity – making it the perfect storage option for laptop users. Since it works with Time Machine right out of the box, backing up important documents, music, digital video and photos is easy.

Also G-DRIVE mobile is bus-powered, so forget about adding an external AC power supply to your laptop case.

Exterior view of a silver rectangular door with a circular button (no text or symbols)

G DRIVE mobile USB

Portable USB Drive

Perfect for on-the-go laptop users. G-DRIVE mobile USB is stylish, thin, aluminum storage that works with Time Machine. Easy to set up, with storage capacities up to 1TB using 5400 RPM drives, you'll find it perfect for storing your most important documents, music, digital video and photos. Also, G-DRIVE mobile USB is bus powered so when you're out and about you don't need to add an external AC power supply to your laptop case.

Exterior view of a silver rectangular electronic device with a circular button on top (no text or symbols visible)

5400RPM

MACP

USB

G DRIVE ^® slim

Ultra-Slim USB Drive

Ideal for any laptop user, the G-DRIVE slim is the ultra-slim, ultra-stylish portable solution for videos, photos, music and more. Featuring a USB interface, G-DRIVE slim is a laptop user's sleekest answer to superior data storage.

G-DRIVE slim stores and backs up your prized digital content in a smart, simple way. It's slender, lightweight aluminum case packs plenty of storage for photos, digital videos, music and more. And its ready to work with Time Machine right out of the box.

Exterior view of a silver hard drive with a G logo on the front panel (no text or symbols beyond the logo)

5400RPM

MACP

USB

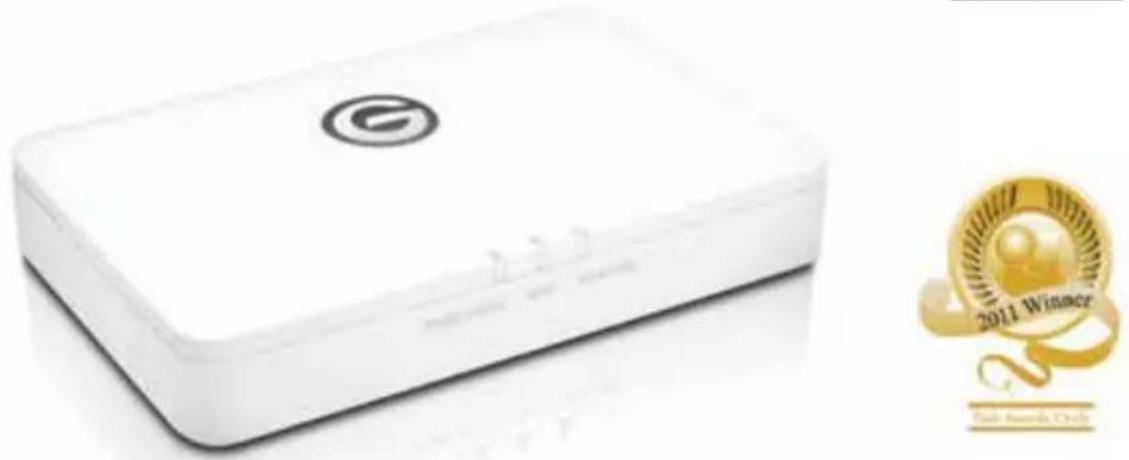

G CONNECT™

Wireless Storage for iPad®, iPhone® and Android™

G-CONNECT wireless storage for your iPad, iPhoneandAndroid.Streamcontentto

5 devices at once, or even access the Internet ^1 . Use it for on-the-go access to content that's not loaded on your tablet or smartphone, including your favorite movies, music, photos and documents. Loading content from a computer or laptop to the G-CONNECT is fast and easy.

Supporting 5+ users, G-CONNECT is ideal for home, dorm room, office, or hotel. iPad, iPhone and Android apps are available for quick and easy access. And password protection means you always have control of your content.

White electronic device with 'e' logo and gold 2011 Winter Award badge (no visible text or symbols on device body)

Top ten reasons to own a G-Technology product!

• Designed for maximum performance and reliability
• Integrated hard drive cooling technology
  • Recyclable all aluminum enclosures
• Stylish product design
• G-SPEED® solutions built with enterprise-class drives
  • Features high-performance hard disk drives
  • Proven brand with deep roots supporting content creation professionals
• Solutions specifically designed for content creation applications
• Comprehensive product offerings – storage solutions that support HDV to 4K
• Out-of-box plug and play on Mac OS®

Row of serverless computer hardware units including desktops and networking equipment (no visible text or labels)

Blue circular logo with a stylized white 'G' symbol (no text or numbers)

G-Technology™

g-technology.com

facebook.com/GTechnology twitter.com/GTechStorage

g-technology.tumblr.com

One gigabyte (GB) is equal to 1 billion bytes, and one terabyte (TB) equals 1,000 GB (1 trillion bytes). Accessible capacity will vary from the stated capacity due to formatting and partitioning of the hard drive, the computer's operating system, and other factors.

Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries.

The streaming performance of the G-CONNECT is based upon expected available network bandwidth in real-world conditions. Traffic on the local network or the presence of other wireless interference may result in less-than-perfect playback of content. While no explicit limits are placed on the number of devices, limiting the number of devices simultaneously using the G-CONNECT is suggested so that the user experience remains positive.

Design by G-Technology in California. G-CONNECT, G-DRIVE, G-RAID, G-SPEED, G-DOCK ev, G-DRIVE ev, Evolution Series, and G-Technology are trademarks of HGST, a Western Digital company. Apple, Mac, FireWire, MacBook Pro, Time Machine and the Mac logo are trademarks of Apple, Inc. Other trademarks are the property of their respective owners. ©2013 G-Technology. All rights reserved. R0 03/13
