USER MANUAL H-CMD4029 HYUNDAI

Two glossy spheres with reflections, no text or symbols present

MULTIMEDIA DVD/CD/MP3

RECEIVER

WITH BUILT-IN 3" TFT DISPLAY

МУЛЬТИМЕДИЙНЫЙ

DVD/CD/MP3-РЕСИВЕР CO

ВСТРОЕННЫМ

3" TFT-ДИСПЛЕЕМ

Table of contents

Dear customer!

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents 2

Before you start 3

Utilization of the product 3

Important safeguards 3

Installation/Connection 4

Installation 4

General notes 4

Din Front/Rear-Mount 4

1. DIN front-mount (Method A) 4

Dismantling the unit 5

Trim frame installation 5

1. DIN rear-mount (Method B) 5

Detachable control panel 5

Anti-theft system 6

Connection 6

Connection diagram 6

ISO connection table 6

Using the ISO connector 7

Parking wire connection 7

Operation 8

Control elements 8

Front panel 8

Inner panel 8

Remote controller 9

Changing battery 9

General operations 10

Turning on/off 10

Volume control 10

Mute function 10

Setting the sound characteristics 10

Setting other characteristics 10

Mode setting 11

AUX jack 11

Radio operations 11

Band selection 11

Manual/Auto tuning 12

Programming preset stations 12

Auto memory store 12

Preset scan 12

RDS function 12

AF (Alternative Frequencies) function ... 12

TA (Traffic Alarm)/TP function 12

PTY (Program Type) 13

Disc/USB/SD/MMC operations 13

USB/SD/MMC notes 13

Insert/Eject discs 13

Inserting a memory card/USB device ... 13

Play/pause 13

MP3/DivX/JPEG file playback 13

Stop playback 14

Selecting tracks 14

Fast forward/rewind 14

A-B segment repeat 14

Repeat playback 14

Intro playback 14

Goto 14

Random playback 14

Programming playback 14

OSD function 14

Zooming in/out 15

PBC function 15

Changing angle 15

Selecting audio language 15

Selecting subtitle language 15

Selecting audio channel 15

Menu navigation.... 15

ID3 tag information 15

System setup.... 15

System setup 15

Language setup 16

Audio setup 16

Video setup 16

Digital setup 17

General information 18

Handling compact discs 18

Cleaning discs 18

Cleaning the unit body 18

Accessories 18

Troubleshooting guide 19

Specification 20

Utilization of the product

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important safeguards

• Read carefully through the manual to familiarize yourself with this unit.
• Keep this manual handy as a reference for operating procedures and precautions. Do not allow persons who have not read through this manual to use this unit.

- "CLASS 1 LASER PRODUCT"

This product contains a laser diode of higher class than 1. Laser beams from the optical pickup are dangerous to the eyes. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

- Do not allow this unit to come into contact with liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids or dust. Protect this unit from moisture.

- Make sure that foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.

- The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature.

- Using the unit with the temperature that goes beyond the operation temperature greatly

decreases the operation resource of the screen and other components of the unit and can result in an outage.

• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please ensure it before installation.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Let a qualified technician check the system.

- Keep the volume low enough so that you can hear sounds from outside the vehicle.

- Should this product fail to operate properly, contact your dealer or nearest service center.

Installation

General notes

• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.
• Before finally installing the unit, connect the wiring and make sure that the unit works properly.
• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
• Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
• If installation angle exceeds 30^ from horizontal, the unit may not perform properly.
• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

Din Front/Rear-Mount

This unit can be properly installed either from 'Front' (conventional DIN Front-mount) or 'Rear' (DIN Rear-mount installation, utilizing threaded screw Holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

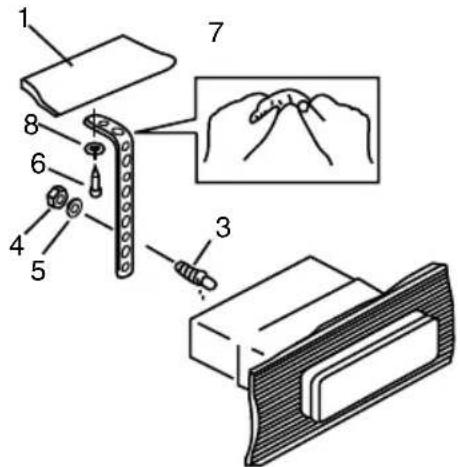

1. DIN front-mount (Method A)

1. Car dashboard
2. Sleeve
3. Screw
4. Nut (5 mm)
5. Spring washer
6. Screw (5 x 25 mm)
7. Metal strap
8. Flat washer

1 182 53 2 3

1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation.
2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as shown in the picture. You can bend the strap to the needed angle with your hands.
4. Make the necessary wire connections. Ensure the connections are correct.
5. Install the unit into the sleeve until the side locks are fixed.

Technical diagram showing labeled parts of a mechanical assembly with numbered annotations

Dismantling the unit

a - Trim frame
b – Frame uninstall direction
c - Release key insertion

Technical diagram illustrating a mechanical process with labeled parts and a magnified view of the tool's tip.

1. Switch off the unit and detach the front panel.
2. Insert your fingers into the groove in the front side of the trim frame (apply some effort to detach the frame). Pull the frame to detach it.
3. Insert the supplied release keys into the both sides of the unit body to click, as shown in the picture. To extract the unit from the dashboard, pull the release keys or the unit body to pull it out. Before detaching the unit, ensure it is not fixed with the metal strap.

Trim frame installation

To install the trim frame, press it to the unit body and push it to fix it in place. This should be done before installing the front panel; otherwise you are not able to install the trim frame. When the trim frame being installed, the side with the groove should face down and fixed first.

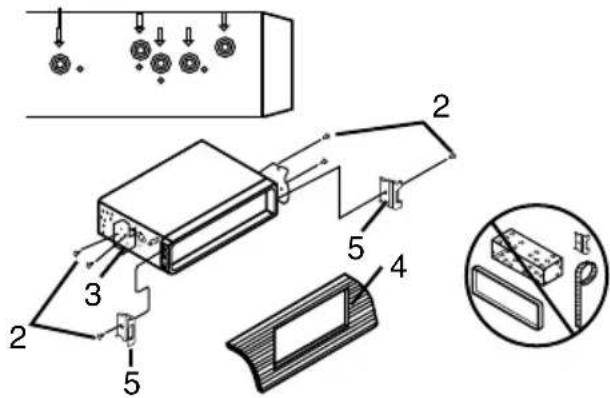

2. DIN rear-mount (Method B)

For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets.

1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.
2. Screw.
3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).

The outer trim frame and mounting sleeve are not used for method of installation.

Technical diagram of a device with numbered components and exploded view, including parts labeled 2 through 5.

Detachable control panel

Insert the left locker of the body into the fixing hole on the side of the panel, then insert the right locker into the right hole of the panel. Press on the upper part of the panel until a click.

To detach the front panel, press OPEN button. Hold the panel at 45 degree angle and push it to the left to detach the right locker. Then detach the left locker.

The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks. The rear connector that connects the main unit and the control panel is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

Anti-theft system

The front panel of this unit can be stored in the included protective case when not in used and carried away when you leave the vehicle to deter theft.

Switch off the power of the unit. Detach the front panel, then put it to the protective case and take it with you.

Connection

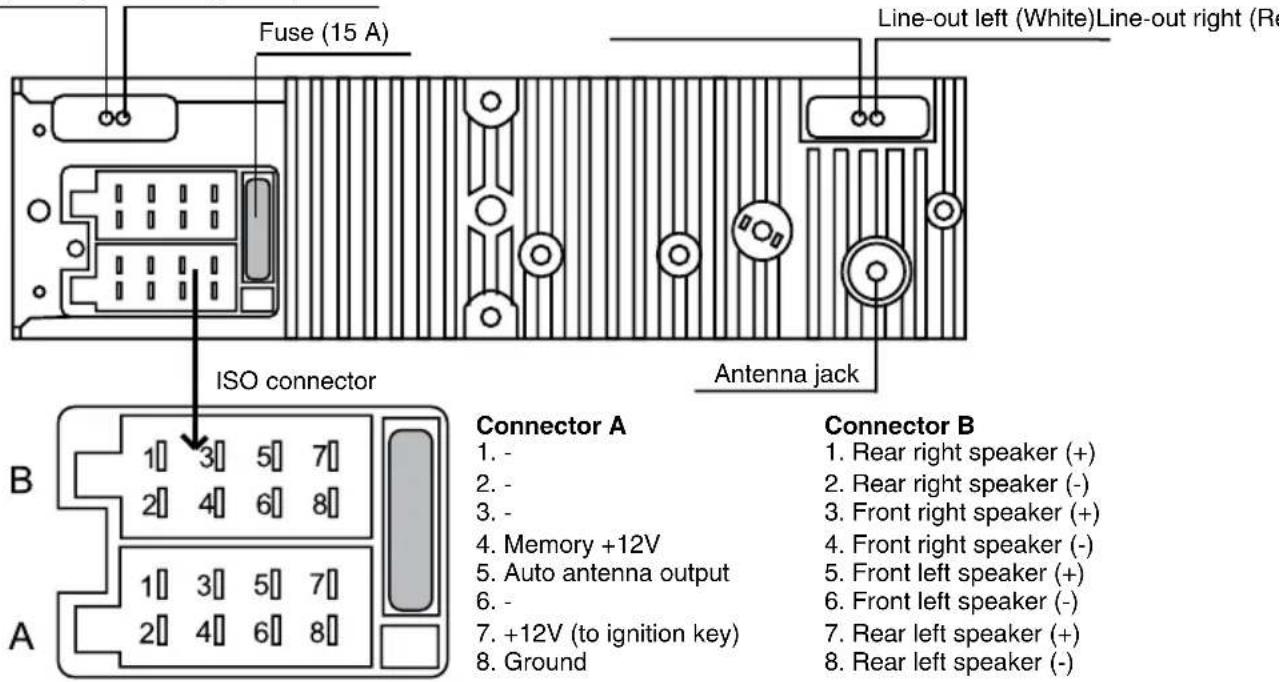

Connection diagram

Parking (Brown) Video out (Yellow)

Fuse (15 A) Line-out left (White)Line-out right (Re ISO connector Antenna jack B 1 3 5 7 2 4 6 8 1 3 5 7 2 4 6 8 A Connector A 1. - 2. - 3. - 4. Memory +12V 5. Auto antenna output 6. - 7. +12V (to ignition key) 8. Ground Connector B 1. Rear right speaker (+) 2. Rear right speaker (-) 3. Front right speaker (+) 4. Front right speaker (-) 5. Front left speaker (+) 6. Front left speaker (-) 7. Rear left speaker (+) 8. Rear left speaker (-)

ISO connection table

Location	Function
	Connector A Connector B
1 - Rear right (+) - Purple
2 - Rear right (-) - Purple/Black
3 - Front right (+) - Grey
4 Battery +12V/Yellow Front right (-) - Grey/Black
5 Power antenna/Blue Front left (+) - White
6 - Front left (-) - White/Black
7 Ignition key (+12V)/Red Rear left (+) - Green
8 Ground/Black Rear left (-) - Green/Black

Power antenna wire is intended for power supply of the antenna and for remote control of an additional amplifier.

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

Two-step diagram showing a connector assembly process: one with internal components and arrows indicating assembly direction, the other with hands holding pins (no text or symbols)

1. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.

Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table above for speaker and power cable connections.

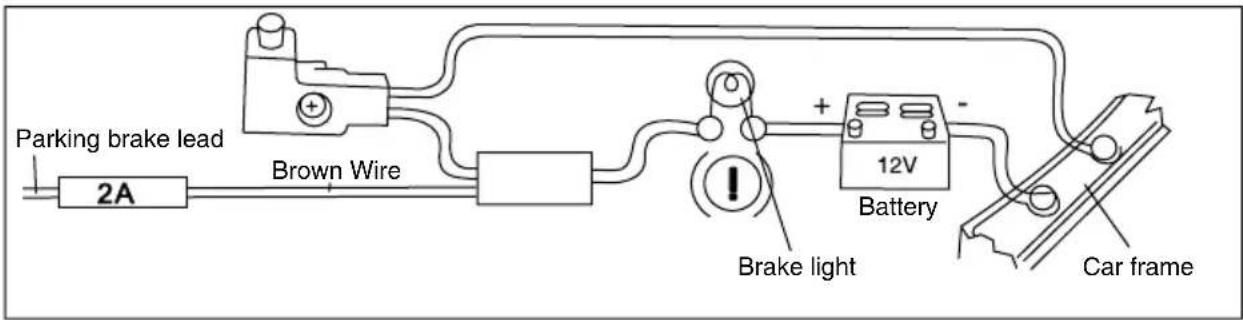

Parking wire connection

Parking brake lead 2A Brown Wire + - 12V Battery Brake light Car frame

If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be controlled by driving status. When the car is moving ahead, if the video is played, the screen shows warning and blank screen. The warning screen will prevent the driver from watching images.

Control elements

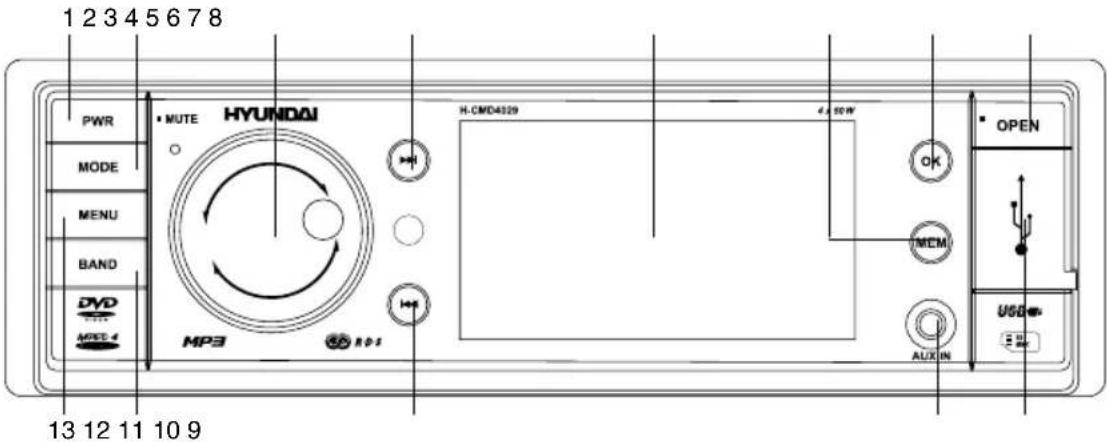

Front panel

1. PWR/MUTE button
2. MODE button
3. VOLUME knob
4. ▶ button
5. Display

6. MEM button

7. OK button

8. OPEN button
9. USB slot
10. AUX in jack
11. Button
12. BAND button
13. MENU button

1 2 3 4 5 6 7 8 PWR MUTE HYUNDAI MODE MENU BAND DVD MP3 H-CMD4329 4.50W OK MEM AUX IN OPEN USB 13 12 11 10 9

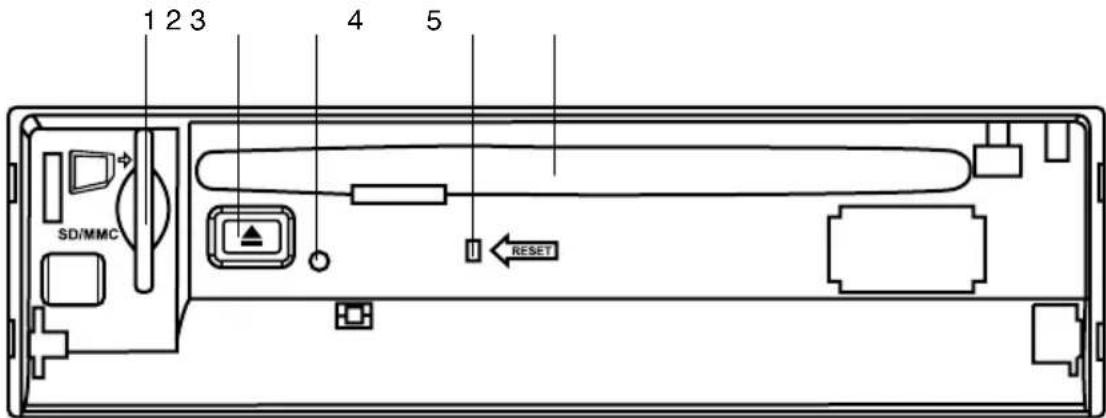

Inner panel

1 2 3 4 5 SD/MMC RESET

1. SD/MMC memory card slot
2. EJECT button
3. Panel status indicator
4. RESET button (hole)
5. Disc slot

Pressing RESET hole will erase the

clock setting and stored stations.

Panel status indicator lights up when you slide the panel down, flashes when you remove the panel.

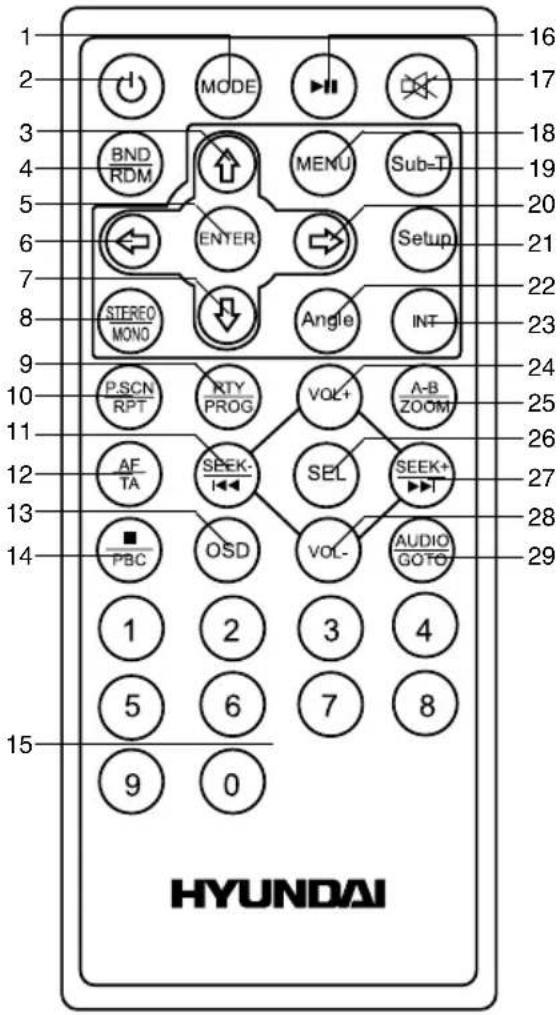

Remote controller

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 MODE BND RDM ENTER STEERO MONO TYPE PROG SEEK- OSD MODE MENU Setup Angle VOL+ SEL VOL- AUDIO GOTO 1 2 3 4 5 6 7 8 HYUNDAI

1. MODE button
2. POWER button
3. UP cursor button
4. BND/RDM button
5. ENTER button
6. LEFT cursor button
7. DOWN cursor button
8. STEREO/MONO button
9. PTY/PROG button
10. P.SCN/RPT button
11. SEEK-/button
12. AF/TA button
13. OSD button
14. PBC button
15. MODE button
16. POWER button
17. UP cursor button
18. BND/RDM button
19. ENTER button
20. LEFT cursor button
21. DOWN cursor button
22. STEREO/MONO button
23. PTY/PROG button
24. P.SCN/RPT button
25. SEEK-/button
26. AF/TA button
27. OSD button

28. PBC button

29. Digit buttons

30. ▶ button
31. MUTE button
32. MENU button
33. SUB-T button
34. RIGHT cursor button
35. SETUP button
36. ANGLE button
37. INT button
38. VOL+ button
39. A-B/ZOOM button
40. SEL button
41. SEEK+/button
42. VOL- button
43. AUDIO/GOTO button

Changing the battery

1. Press the catch and at the same time pull out the battery tray.
2. Insert the 1 x lithium battery, type CR 2025 3 V with (+) mark facing up. Insert the battery tray into the remote control.

General operations

Turning on/off

Press any button (except OPEN button) to turn on the unit. Press and hold PWR/MUTE button on the panel or POWER button on the RC to switch the unit off.

After the unit is off, the volume level and radio current settings will be memorized, and when you turn the unit on it will resume the stored status you previously set. To protect your ear from too loud sound, the unit volume level will turn to 20 automatically when you turn the unit on if current volume level setting is above 20 when your turn the unit off.

Volume control

Rotate VOLUME regulator or press VOL+/VOL- buttons on the RC to adjust the volume level.

Mute function

Press PWR/MUTE button on the panel or MUTE button on the RC to turn the sound off. Press it again or adjust the volume to turn the sound on.

Setting the sound characteristics

• Press SEL button on the RC to enter the audio setting menu consisting of following items: Bass =>Treble => Balance => Fader => EQ.
• Press UP/DOWN cursor buttons on the RC or rotate VOLUME regulator on the panel to select a setting. Press ENTER button on the RC or OK button on the panel to confirm the selected setting. Press LEFT/RIGHT cursor buttons on the RC or rotate VOLUME regulator on the panel to adjust the setting.
• Press SEL button again to confirm and return to current mode.

If turning off the power all the settings of each mode will be saved. If turning off the ACC power all the settings will reset to default values. If you don't adjust setting within several seconds after selecting the desired setting, the unit will automatically return to the current mode.

Setting other characteristics

• Press MENU button to enter the setting mode.
• In the menu press UP/DOWN cursor buttons on the RC or rotate VOLUME knob on the panel to select a setting page. Press ENTER button or LEFT cursor button on the RC or press OK button on the panel to go to the selected page.
• In the selected page press UP/DOWN cursor buttons on the RC or rotate VOLUME knob on the panel to select a setting. Press ENTER button on the RC or OK button on the panel to adjust the selected setting.
  • After you performed the adjustment, press MENU button to return to the setting page. Press MENU button again to quit setting menu.
• Following setting pages are available:

AUDIO (available in Radio, Disc, USB and Card modes):

Bass: support 10 levels. Default level is 0.

Treble: support 10 levels. Default level is 0.

Balance: support 10 levels for each left and right channel. Default is left equal to right.

Fader: support 10 levels for each front and rear channel. Default is front equal to rear.

EQ: DSP OFF => FLAT => CLASSICS => POP => ROCK.

PICTURE (available in Disc, USB and Card mode):

Red: Adjust level of red color. Support 50 levels. Default level is 25.

Green: Adjust level of green color. Support 50 levels. Default level is 25.

Blue: Adjust level of blue color. Support 50 levels. Default level is 25.

Brightness: Support 50 levels. Default level is 25.

Contrast: Support 50 levels. Default level is 25.

Sharpness: Support 15 levels. Default level is 10.

Screen: Adjust screen size: 16:9 - 4:3 - FULL.

Color reset: Resume color default status. (Select YES or NO by cursor buttons, and press OK or ENTER button).

RDS SETUP (available in Radio, Disc, USB and Card modes):

TA: Seek/Alarm. In TA SEEK mode, the unit will seek for traffic announcement program when TA is pressed; in TA ALARM mode, no TA/TP is displayed and the alarm is set off.

PI: Mute/Sound. PI sound refers to the reception noise when the AF function tries to scan alternative frequency.

RETUNE: Long/Short. RETUNE refers to the time period the unit allows for radio scan when reception is interrupted. "S" represents a time period of 30 seconds and "L" represents a time period of 90 seconds.

MASK: DPI/ALL. During MASK DPI mode, the unit will mask only the AF which has different PI, this is the default mode; during MASK ALL mode, the unit will mask the AF which has different PI and no RDS signal with high field strength.

EON TA: DX/Local. If you want to receive information from local stations only, select EON TA LOC mode. Otherwise, select EON TA DX mode.

REG : REG ON (the receiver accepts regional variants of the tuned station with REG icon turned on), and REG OFF (the receiver ignores regional variants).

TA VOL: Adjust level of TA volume, support 50 levels. Default level is 0.

EXPERT (available in Radio, Disc, USB and Card modes):

DX: Set radio station search by DX or LOCAL mode. When the LOCAL function is on, the local stations (stations with weak radio signal) can be played. When DX is on, both local and distant stations (stations with strong radio signal) can be played.

Stereo: Set radio reception at STEREO or MONO mode. Improvement of reception of distant stations can be done by selecting mono mode, which may cut down some reception noise. To select stereo or mono you can also press STEREO/MONO button on the RC.

Beep: BEEP ALL (beep sound will be heard when buttons are pressed), BEEP 2ND (beep sound will be heard when buttons are pressed and held) and BEEP OFF (no beep sound for button pressing).

Loud: Set loudness on or off. LOUD function is to emphasize the bass output.

Backlight: Set OSD backlight: MID => HIGH => LOW.

OSD color: Set OSD color: Dark Blue => Violet => Light blue.

CLOCK (available in Radio, Disc, USB and Card modes):

Clock: Select ON to show the current time on the display.

Clock hour: Set 12-/24-hour time mode.

Clock adjust: Set the current time.

Mode setting

Press MODE button to select between unit operation modes: TUNER => Disc => USB => Card => AUX.

Disc, USB and CARD modes will only show on the display when a disc, a USB device or a memory card is inserted into the unit.

AUX jack

AUX-in jack is intended for connecting an external audio or video equipment to amplify the sound. If connection is made correctly, the audio signal from the external source will be translated through the acoustics of the head unit. This enables to adjust the volume and quality of the sounding. For example, you can connect an MP3-player to listen to tracks using the car acoustic system.

Radio operations

Band selection

Press repeatedly BAND button on the panel or RDM/BAND button on the RC to select your desired radio band in RADIO mode: FM1, FM2, FM3 (OIRT), MW. In each set of the bands you can store up to 6 preset stations, making total 24 preset memory stations.

Manual/automatic tuning

Manual tuning: To find a station, select a band first, then press and hold buttons on the RC until MANUAL appears on the display or press SEEK+/SEEK- to enter manual tuning, then press these buttons repeatedly to search for the needed frequency upward or downward.

Automatic tuning: To find a station, select a band first, then press and hold 🐘 buttons on the panel or press 🐘 buttons on the RC, the automatic downward/upward search will start. It will play when a station is found.

Programming preset stations

- To store a station: Select a band (if needed); find a station by manual/automatic tuning. Then press MEM button and rotate VOLUME knob to choose a memory position (1-6), and finally press OK button to confirm. Or, after finding a station, press and hold a number button (1-6) on the RC to save the station in the corresponding memory position.

- To recall a station: Select a band (if needed); Press /buttons on the panel. Or press a number button (1-6) on the RC to call the station saved in the corresponding position.

Auto memory store

Select a band, press and hold RPT/P.SCAN button on the RC to enter auto store mode. The radio will automatically store 6 stations to the 6 preset memories of the current band. To stop auto store, press this button again.

During auto station preset, the unit will search and store stations with the strong signal first, and then weaker signal stations until the memories are full.

Preset scan

Select a band, press RPT/P.SCAN button on the RC to scan all preset stations in the memories of the current band, each preset scan for 5 seconds. To stop preset scan, press the button again.

RDS function

RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either.

AF (Alternative Frequencies) function

Press and hold AF/TA button on the RC to turn on AF function. If the AF function is on, the display will show "AF".

When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station with the same PI (Program Identification) as the current station but with stronger signal strength, so that you do not have to retune the stations when driving between different transmitter coverage areas. When AF symbol is on, it means RDS information is received; when AF symbol is flashing, it means RDS information is not yet received. If RDS service is not available in your area, turn off the AF mode.

TA (Travel Announcement) / TP (Travel Program Identification)

Enable or disable TA mode by pressing and holding OK button on the front panel or by pressing AF/TA button on the RC. Default setting is OFF.

When TA function is activated, it will search the station with TA information automatically. If there is no TA information, it will search the station with TP information automatically, if there is no TP information either, it will return to the previous station after searching.

When receiving the station with TP information but without TA information, TP icon is on and TA icon keeps blinking; when receiving the station with TP and TA information, both TP and TA icons are on.

When playing in other mode and TA information is received, it will change to the radio mode automatically. After playing over, it will return to the previous mode. To ignore the TA information, press AF/TA button on the RC or press and hold OK button on the panel.

PTY (Program Type) (for FM radio)

This radio will allow you to select the type of program required, and will search for a station broadcasting that type of program.

Press PTY/PROG button on the RC repeatedly to show the various program type lists. In each list, press 1 - 6 number buttons to choose different programs available.

When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected. If no buttons are pressed within several seconds, previously selected PTY is searched. During 1 loop, if desired PTY is not found, the unit will return to previous mode. Press PTY/PROG button on the RC to switch the PTY function off.

Disc/USB/SD/MMC operations

USB/SD/MMC notes

USB format supports 2.0. Capacity: up to 8 Gb.

For correct and satisfactory operation, licensed SD/MMC memory cards of famous brands should be used with this unit. Avoid using memory cards of unknown brands. Capacity: up to 8 Gb.

Insert/Eject disc

• Open the front panel. Press EJECT button and insert a disc into the disc slot with label side up. The disc will be automatically loaded into the unit. Close the front panel.
• Open the front panel and press EJECT button to eject the disc from the slot. If the disc is not removed from the slot within several seconds, it will be automatically loaded into the slot again. When the disc is ejected and removed, the unit will automatically switch to another mode.

Inserting an SD/MMC card/USB device

Open the front panel and insert an SD/MMC memory card into the card slot. Open the USB slot cover on the front panel and insert a USB into the USB slot. Then the playing mode will be changed into Card or USB mode automatically. The first card/USB device track playback will start.

When SD/MMC card and USB device are both inserted, the playing mode will be changed into the mode of the device inserted later.

Play/pause

The unit will automatically play from the first sound track recorded on a disc/SD/MMC/USB device. To ensure good system performance, wait until the unit finishes reading the disc/device information before proceeding. Press

▶ button on the RC to pause playback, press it again to resume playback.

MP3/DivX/JPEG file playback

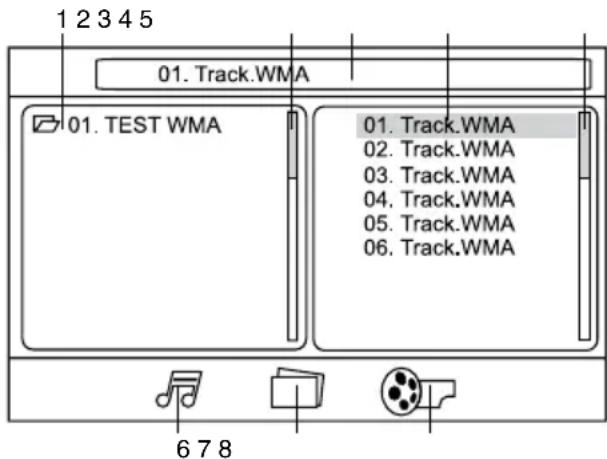

When you insert a storage containing MP3/DivX/JPEG file, the screen will show following interface:

1 2 3 4 5 01. Track.WMA 01. TEST WMA 01. Track.WMA 02. Track.WMA 03. Track.WMA 04. Track.WMA 05. Track.WMA 06. Track.WMA 6 7 8

1. Storage folder list

2. Scroll bar

3. Current playback info

4. Current folder content (current file is highlighted)

5. Scroll bar

6. Audio track selection

7. Image file selection

8. Video file selection

Use cursor buttons to navigate in the

interface and press ENTER button to confirm your selection.

Manufacturer guarantees regular playback of licensed discs only. Some AVI files cannot be played due to their parameters and recording conditions. Video files more than 2 Gb having AVI extension can be played partially.

Stop playback

During playback of a disc/USB/SD/MMC card, press ■PBC button on the RC to stop the playback. Press ▶button on the RC to start playback again. Playback will resume from the point it was stopped at. If you press ■PBC button on the RC twice, playback will stop completely and can be resumed only from the beginning of the disc.

Selecting tracks

During playback press SEEK- button on the RC or button on the panel to play the previous track. Press SEEK+ button on the RC or button on the panel to play the next track. Press number buttons (0-9) on the RC to select the desired track/chapter.

Fast forward/rewind

Press and hold repeatedly SEEK- or SEEK+ buttons on the RC or press repeatedly buttons on the panel for fast backward or forward playing correspondingly. With each pressing playback speed will increase. While fast playback, press button on the RC to resume normal speed.

When fast backward/forward playback reaches the previous or next track, the unit will resume normal playback.

A-B segment repeat

Press A-B/ZOOM button to set point A, press one more time to set point B and start A-B repeating. Press this button one more time to cancel the repeating function.

Repeat playback

Press P.SCAN/RPT button repeatedly for repeat playing in different modes: track/chapter repeat, folder repeat, disc repeat, repeat cancel (depending on the format used).

Intro playback

Press INT button on the RC to activate introduction function. Several initial seconds of each track will be played. Press the button again to cancel intro playback.

GOTO

Press and hold AUDIO/GOTO button to show the playback parameters for the current chapter/track/time (track/title/chapter number or time). Press cursor buttons to navigate between the parameters and use number buttons to input needed settings. Press OK button on the panel or ENTER button on the RC to start playback from the set number or time.

Random playback

Press BND/RDM button on the RC to activate random playing mode. Press one more time to return to normal playing.

Programming the playback

• Press PTY/PROG button to open program menu.
• Use cursor buttons to select the program position and use number buttons to input the desired track/title/chapter (depending on the disc type).
• Press ▶ button on the RC to start program play, or move the cursor to select PLAY and press ENTER button on the RC or OK button on the panel to play.
• Move the cursor to CLEAR, press ENTER button on the RC or OK button on the panel to delete the programmed list. Press PTY/PROG button to quit programming.

OSD (On Screen Display) function

Press and hold OSD button on the RC repeatedly to show current playback information, such as number of track/chapter/title, current track/chapter/title time elapsed/

remaining, total track/chapter/title time remaining (depending on the disc type).

Zooming in/out

During playback of video or images on disc/USB/SD/MMC, press and hold repeatedly A-B/ZOOM button on the RC, the picture will be zoomed in the sequence: ZOOM2 => ZOOM3 => ZOOM4 => ZOOM1/2 => ZOOM1/3 => ZOOM1/4 => Normal.

PBC (Playback Control) function (for VCD only)

This function is only available for the VCD with PBC function.

Press and hold ■PBC button on the RC to set PBC on/off; when PBC is off, the screen will show PBC menu if you switch PBC on. If the menu consists of a list of titles, you can select a desired one using number buttons on the RC.

Changing angle (for DVD only)

Press ANGLE button on the RC to playback images at different camera angles. If a disc doesn't support multi-angle playback, this function will not work.

Selecting audio language (for DVD only)

During DVD disc playback, press AUDIO/GOTO button on the RC repeatedly to select the audio language to listen. This function will not work if a disc does not support multi-language audio (if ON is selected in Audio Type setting).

Selecting subtitle language (for DVD)

If your DVD disc supports multi-language subtitle, press SUB-T button on the RC repeatedly to switch among disc-supported languages.

Selecting sound channel (for VCD only)

During VCD disc playback press AUDIO/GOTO button on the RC to select the channel: Mono L => Mono R => MIX Mono => Stereo (if OFF is selected in Audio Type setting).

Menu navigation (for DVD only)

Press and hold MENU button on the RC to activate the disc menu list on the screen. Choose the desired item. Press ENTER button or ▶|| button on the RC or OK button on the panel to confirm the selected item and start playing.

Title and menu are only available if the disc has these functions.

ID3 Tag function

If a MP3 file has ID3 tag information in the supported ID3 format, such information will be displayed on the LCD while playback

System setup

Press SETUP button on the RC to display setup screen, use LEFT/RIGHT cursor buttons and ENTER button to select the desired setup page: System, Language, Audio, Video, Digital. In the selected page select an option using UP/DOWN cursor buttons, then press RIGHT cursor button to go to setting list. Use UP/DOWN cursor buttons to select the needed setting. Press ENTER button on the RC or OK button on the panel to confirm.

System setup

SYSTEM SETUP

TV SYSTEMAUDIO TYPEAUTO PLAYVIDEOTV TYPEPASSWORDDRATINGDEFAULT

TV system

Select the TV system in the setting menu (NTSC, PAL, PAL-60, AUTO).

Audio type

Set ON for audio language selection or OFF

for audio channel selection.

Auto play

Set ON or OFF autoplay.

Video

Interlace-YUV.

TV type

Select TV type to watch wide screen movies.

4:3 PS: For 4:3 TV, left and right edges will be cut.

4:3 LB: For 4:3 TV, black bars will appear on top and bottom.

16:9: For 16:9 wide screen TV.

Password

Original password is 0000.

Rating

The rating of the disc is from 1 to 8:

1 (KID SAFE) with the most limits when playing.

8 (ADULT) with the least limits when playing.

Original setting: 8.

The rating can be selected only under the password unlocked status, and the limits can be worked only under the password locked status.

Default

If this item is selected, the unit will return to original setting.

Language setup

LANGUAGE SETUP

OSD LANGUAGEAUDIO LANGSUBTITLE LANGMENU LANGDIVX [R] VOD

OSD language

Select the language to be used for the on-screen display.

Audio language

Select the language to be used for the audio. You can select a preferred audio from those included in the disc.

Subtitle language

Select the language to be used for the Subtitles. You can select a preferred subtitle from those included in the disc.

Menu language

Select the language to be used for the disc Menu. You can select a preferred audio from those included in the disc.

DivX [R] VOD

Not applicable.

Audio setup

AUDIO SETUP

KEY

Key

Select key up/down according to your preference.

Video setup

VIDEO SETUP

BRIGHTNESSCONTRASTHUESATURATIONSHARPNESS

Set a parameter with UP/DOWN cursor buttons: Brightness, Contrast, Hue, Saturation, Sharpness.

Digital setup

DIGITAL SETUP

DYNAMIC RANGEDUAL MONO

Dynamic range

When you select the compressed mode as "line out", select it to adjust the compression proportion and get the different compressed effect. When select FULL, the audio signal is minimum; when select OFF, the audio signal is maximum.

Dual mono

Select the audio channel from STEREO, MONO L, MONO R and MIX MONO.

Handling compact discs

• Do not insert anything other than a CD into the CD loading slot.
• Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player.
• Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface.
• Store discs in their cases when not in use.
• Do not expose discs to direct sunlight, high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature (such as leaving the discs in your car during summertime) can wrap a disc.
• Do not attach labels, write on or apply chemicals to the surface of the discs.
• Do not touch the recorded surface of the discs.
• Use 12-cm CDs. Use only conventional, fully circular discs. Do not use shaped discs.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Illustration of a hand holding a small object with directional arrows, crossed by a diagonal line (no text or symbols)

Cleaning the unit body

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Accessories

1. Receiver 1 pc
2. Front panel 1 pc
3. Protective case.... 1 pc
4. ISO adaptor set 1 pc
5. Remote controller 1 pc
6. Mounting parts:

Nut 5 mm.... 1 pc
Spring washer.... 1 pcs
Plain washer.... 1 pcs
Bolt 4 pcs
Screw 1 pc
Metal strap.... 1 pc
Release key 2 pcs
Mounting collar.... 1 pc
Trim frame.... 1 pc
Rubber cushion 1 pc

1. Instruction manual 1 pc
2. Warranty card 1 pc
3. Consumer information .... 1 pc

Troubleshooting

Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer.

Symptom Cause Solution
No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.
No sound Volume is in minimum. Adjust volume to a desired level.
Bad sound quality The installation angle is more than 30 degrees.		Adjust the installation angle to less than 30 degrees.
Disc cannot be loaded or ejected	The unit already contains a disc.	Remove the disc in the player then put a new one.
	Moisture condensation. Leave the unit idle for an hour, then retry.
Disc cannot be read	The disc is inserted upside down.	Insert the compact disc with the label side facing upward.
	Compact disc is extremely dirty or defective.	Clean the disc or try to play a new one.
	Temperature inside the car is too high.	Cool off until the ambient temperature returns to normal.
Buttons do not work	The built-in microcomputer is not operating properly.	Reset the unit with the help of RESET button.
	Front panel is not properly fix into its place.	Install the front panel properly.
The radio does not work	The antenna cable is not connected.	Insert the antenna cable properly.
The radio station automatic tuning does not work	The signals are too weak. Select stations manually.

Specifications

General

Power supply 12 V DC

Current consumption max. 10 A

Maximum power output 4 x 50 W

Dimensions 178 x 50 x 175 mm

Temperature range -10

$$ ^ {0} \mathrm{C} - + 6 0 ^ {0} \mathrm{C} $$

Mounting angle 0 - +/-30

0

Display

Display 3" TFT

PAL/NTSC support +

Aspect ratio 16:9

Resolution 320 (RGB) x 240

Brightness 250 cd/m

2

Contrast 400:1

View angle 120

0

FM stereo radio

Frequency range 65.0 - 74.0/87.5 - 108.0 MHz

Presettable stations 18

Usable sensitivity <15 dB

MW Section

Frequency range 522 kHz-1620 kHz

Presetable stations 6

Player

Storage support DVD/DVD±R/DVD±RW, CD/CD-R/CD-RW, USB, SD/MMC

Format support DVD-video/DVD-audio/SVCD/VCD/CDDA/

HDCD/MP3/Picture-CD/Photo-CD/JPEG/

MPEG4 (DivX/XviD)

Electronic shock protection 8 sec DVD, 40 sec Audio-CD, 120 sec for MP3

Specifications are subject to change without notice. Dimensions are approximate.

Technical diagram showing labeled parts of a mechanical assembly with numbered annotations

Снятие устройства

Technical diagram of a device with numbered components and exploded view, including labeled parts and a magnified inset showing a component being cut.

Diagram showing two stages of connector assembly: one with internal components and arrows indicating connection, the other with hands holding a terminal block (no text or symbols)
