KF2385XNHE - Refrigerator Cylinda - Free user manual and instructions

Product Type	Refrigerator-freezer combination
Model	KF2385XNHE
Brand	Cylinda
Total Net Volume	Approx. 300 L (estimated)
Refrigerator Volume	Approx. 210 L (estimated)
Freezer Volume	Approx. 90 L (estimated)
Energy Efficiency Class	E (estimated, based on typical models)
Annual Energy Consumption	Approx. 230 kWh (estimated)
Climate Class	Tropical (T) to Extended Temperate (SN)
Refrigerant	R600a (isobutane)
Voltage / Frequency	220-240 V / 50 Hz
Cooling Technology	New Generation Cooling (fan-assisted No-Frost)
Defrost	Automatic in both compartments
Super Freeze Mode	Yes
Ioniser / Air Purifier	Natural Ion Tech (optional)
Maxi-fresh Preserver	Yes (ethylene filter, optional)
Chiller Shelf	Yes
Adjustable Door Shelves	Yes (6 heights)
Adjustable Glass Shelves	Yes
Humidity Control	Yes (crisper)
LED Lighting	Yes
Door Reversible	Yes (on models without front handles)
Noise Level	Approx. 40 dB (estimated)
Weight	Approx. 65 kg (estimated)
Dimensions (H x W x D)	Approx. 186 x 60 x 65 cm (estimated)
Warranty	2 years (typical, check local)
Country of Manufacture	Not specified

Frequently Asked Questions - KF2385XNHE Cylinda

What should I do when I first plug in the refrigerator?

After installation, wait at least 4 hours before connecting the appliance to the power supply, especially if it was transported horizontally. Then, allow it to run empty for up to 24 hours to reach the optimal temperature. Avoid opening the door frequently during this period.

How do I activate Super Freeze mode?

Press and hold the freezer temperature setting button for 3 seconds. The super freeze symbol will light up and a beep will confirm activation. This mode is ideal for freezing large quantities of fresh food and will automatically cancel after 24 hours or when the freezer reaches a sufficiently low temperature.

Why is there water or frost inside the refrigerator?

This is usually due to high humidity or frequent door openings. Ensure all food is covered, containers are dry before placing them, and the door gaskets are clean and intact. The appliance performs automatic defrosting; water drains to an evaporation container at the back.

How do I clean the refrigerator?

Disconnect the power before cleaning. Use a solution of lukewarm water and bicarbonate of soda. Clean the condenser with a broom at least twice a year. Do not use abrasive products, detergents, or pour water into the appliance. Wash accessories separately with soap and water.

What does error code E08 mean?

E08 indicates low voltage (below 170 V). This is not a device failure but a protection feature for the compressor. Ensure the power supply is stable. If the warning persists, contact an authorised technician.

Can I change the door opening direction?

On models without front handles, the door can be reversed. For models with handles fixed on the front, it is not possible. Contact an authorised service agent for assistance.

What is the recommended temperature for the fridge and freezer?

The default settings are +4 °C for the fridge and -18 °C for the freezer. Adjust according to your needs, but keep the fridge between 0-8 °C and the freezer at -18 °C or lower for optimal food preservation.

How can I save energy with this refrigerator?

Install it away from heat sources and direct sunlight. Allow hot food to cool before placing it inside. Keep doors closed as much as possible. Thaw frozen food in the fridge compartment to help cool it. Clean the condenser twice a year and ensure door gaskets are tight.

What foods should not be stored in the refrigerator?

Potatoes, onions, and garlic should not be stored in the refrigerator. Also, avoid placing glass bottles in the ice-making compartment as they may burst. Do not store explosive or flammable materials.

How long does frozen food last in the freezer?

Storage times vary: beef and lamb up to 8 months, poultry 4-6 months, fish 2-4 months, vegetables 8-12 months. Always check packaging and follow recommended times. Once thawed, food should be cooked and never refrozen.

USER MANUAL KF2385XNHE Cylinda

Simple line drawing of a kitchen appliance with oven, refrigerator, and washing machine (no text or symbols)

KF2385XNHE

Innehåll

INNAN DU ANVÄNDER APPARATEN 3

PLACERA MATEN I KYLEN....21

Kylutrymme....21

Frysutrymme....22

TRANSPORT OCH FLYTTNING....27

TIPS FÖR ATT SPARA ENERGL....32

TEKNISKA DATA....33

INFORMATION FÖR TESTINSTITUT....34

KUNDVÅRD OCH SERVICE 35

Allmänna varningar

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Cartoon illustration of an electric plug with a sad face and plug, emitting exhaust smoke (no text or symbols)

Illustration of hands performing a cable stripping operation with a broken wire (no text or symbols)

Cartoon illustration of a character inside a door, showing facial expression (no text or symbols)

Simple line drawing of a hand holding a smiling face icon next to a crossed-out nozzle (no text or symbols)

Cartoon illustration of a smiling container character holding a bag labeled 'KG', with no readable text or symbols beyond the label.

Diagram of two coiled heat exchanger-like structures with internal components (no text or labels)

Simple line drawing of a hand holding a smiling emoji next to a square (no text or symbols)

Technical line drawing of a multi-level mechanical or architectural structure with no visible text or symbols

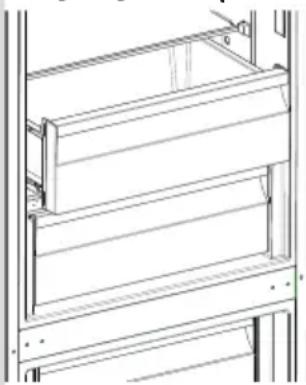

Kylhylla (I vissa modeller)

Technical line drawing of a multi-level metal shelf or rack structure (no text or symbols)

Technical line drawing of a mechanical cabinet or rack with a red directional arrow indicating compression or movement (no text or symbols present)

Technical line drawing of a structural bracket or frame assembly (no text or symbols)

Fig. -1

Justerbar dörrhylla

Technical line drawing of a mechanical assembly with two parallel plates and a vertical load arrow (no text or symbols)

Fig.-2

Line drawing of a bottled water bottle mounted on a shelf with metal brackets (no text or symbols)

Fig. -1

Justerbar glashylla

Diagram of a multi-level storage or rack system with directional arrows indicating movement (no text or symbols)

Fig. -2

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Simple line drawing of a hand holding a smiling emoji on a square (no text or symbols)

Simple line drawing of a hand using a tool to clean or store items (no text or symbols)

Cartoon illustration of a smiling refrigerator with a spoon, accompanied by a bottle and cup (no text or symbols)

Simple line drawing of a refrigerator with a red X mark on the door (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs, accompanied by two baby bottles (no text or symbols)

Avfrostning

Simple line drawing of two children holding a large rectangular object (no text or symbols)

SE

28

INNAN DU KALLAR PÅ SERVICE EFTER

FÖRSÄLJNING

Kolla varningarna;

INNAN DU KALLAR PÅ SERVICE EFTER FÖRSÄLJNING

INNAN DU KALLAR PÅ SERVICE EFTER FÖRSÄLJNING

Old and out-of-order fridges.... 43

Safety warnings....43

Installing and operating your fridge.... 44

Before Using your Fridge....45

Information about New Generation Cooling Technology...... 46

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS .... 47

THE VARIOUS FUNCTION AND POSSIBILITIES ...... 49

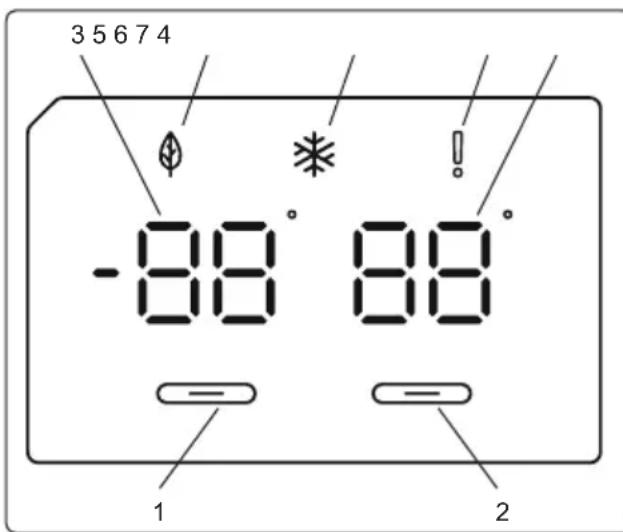

Display and Control Panel 49

Operating your Fridge Freezer 49

Freezer Temperature Settings 49

Cooler Temperature Settings....49

Super Freeze Mode 49

Warnings about Temperature Adjustments 51

Accessories 52

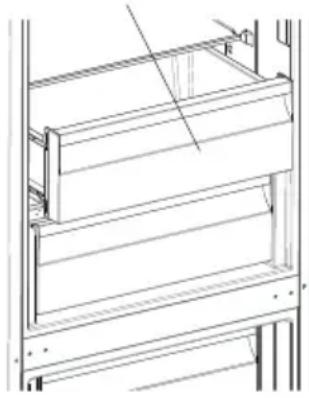

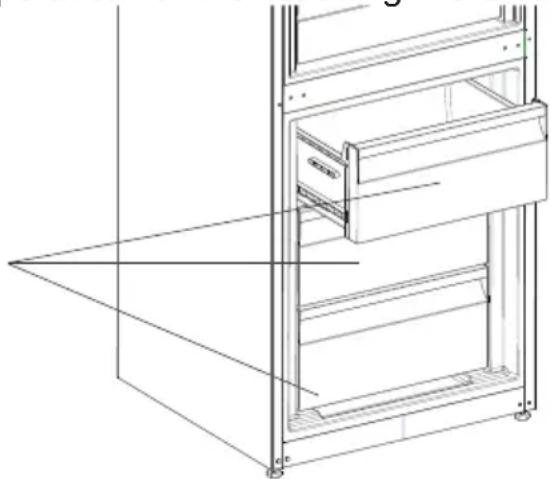

Freezer box....52

Chiller Shelf 53

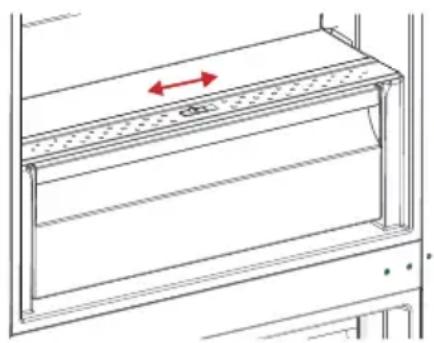

Humidity Controller 53

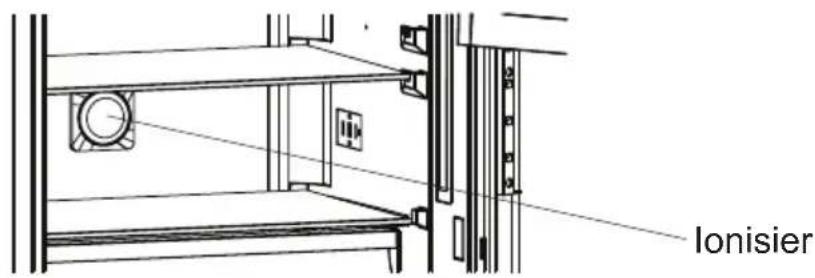

Natural Ion Tech / Ionisier 54

Maxi-fresh preserver....54

Adjustable Door Shelf....55

Adjustable Glass Shelf....55

CLEANING AND MAINTENANCE....56

Defrosting 57

ARRANGING FOOD IN THE APPLIANCE......58

Refrigerator compartment....58

Freezer compartment 59

TRANSPORTATION AND CHANGING OF INSTALLATION

POSITION....64

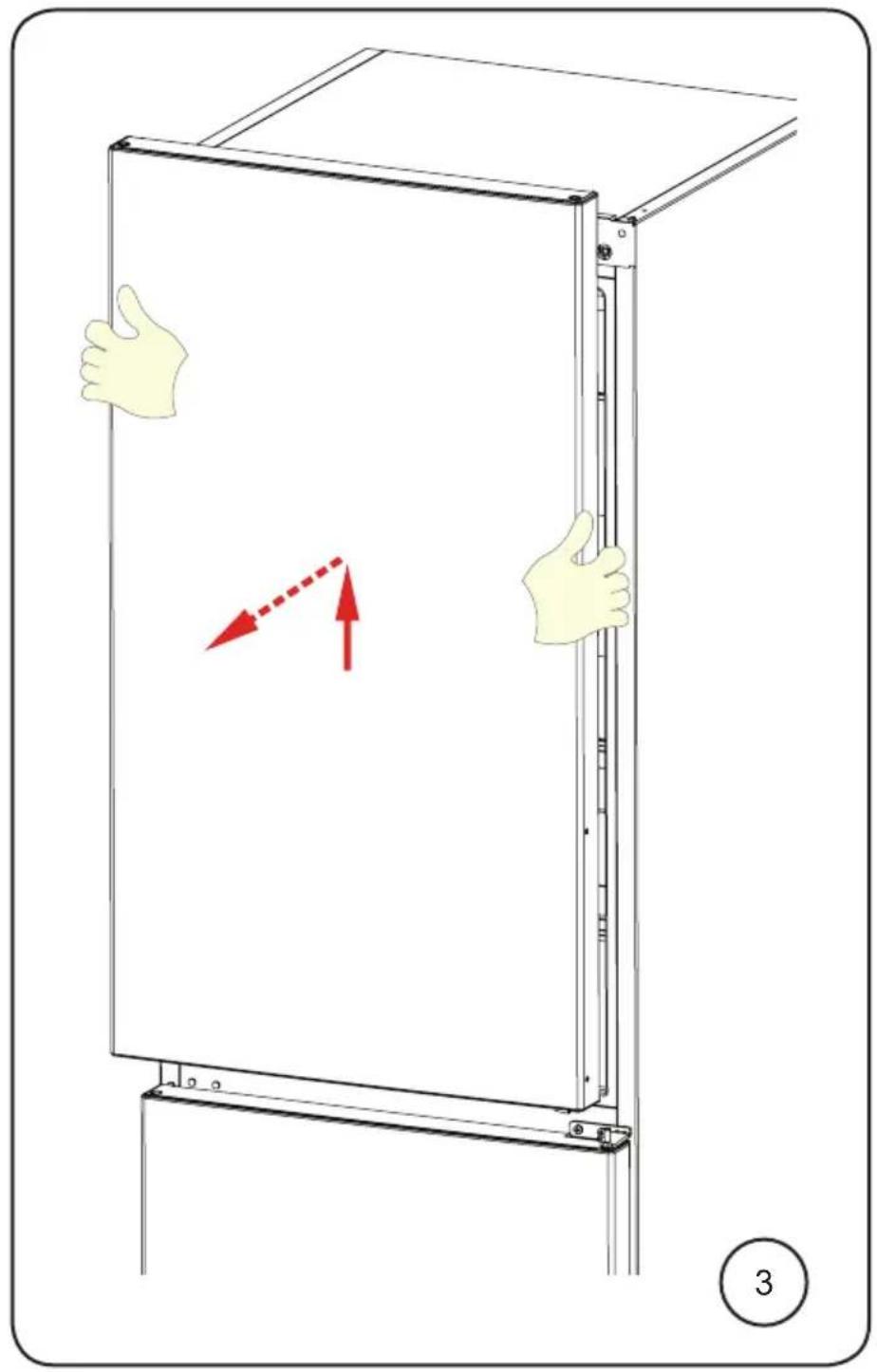

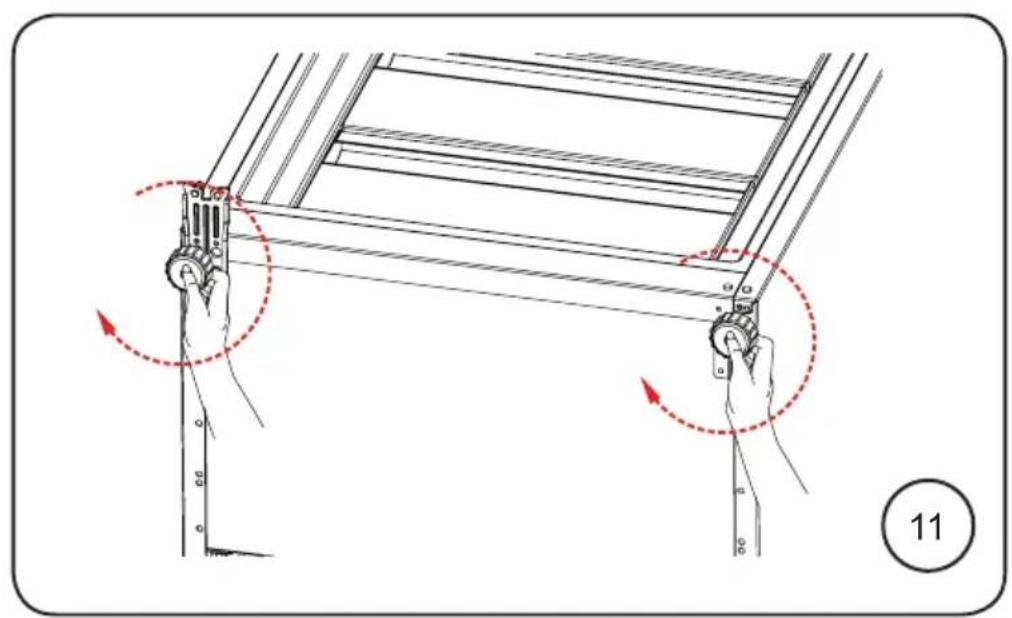

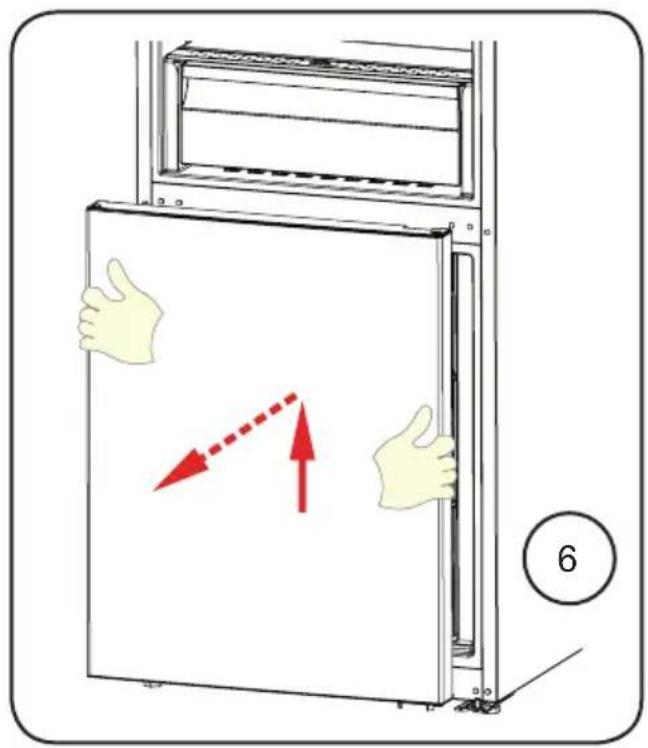

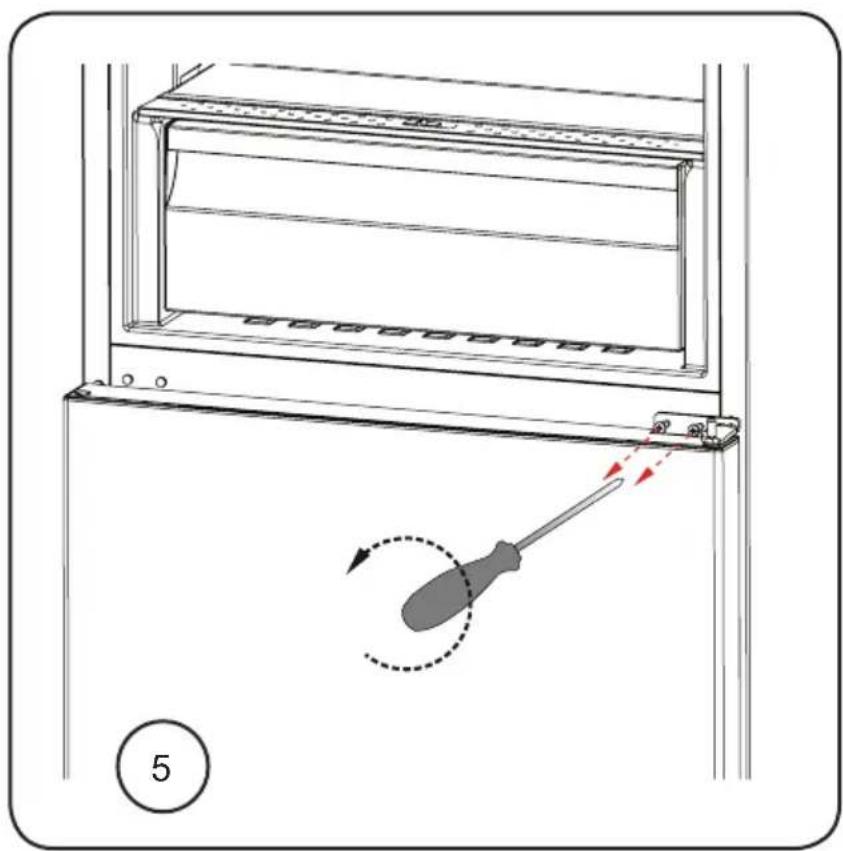

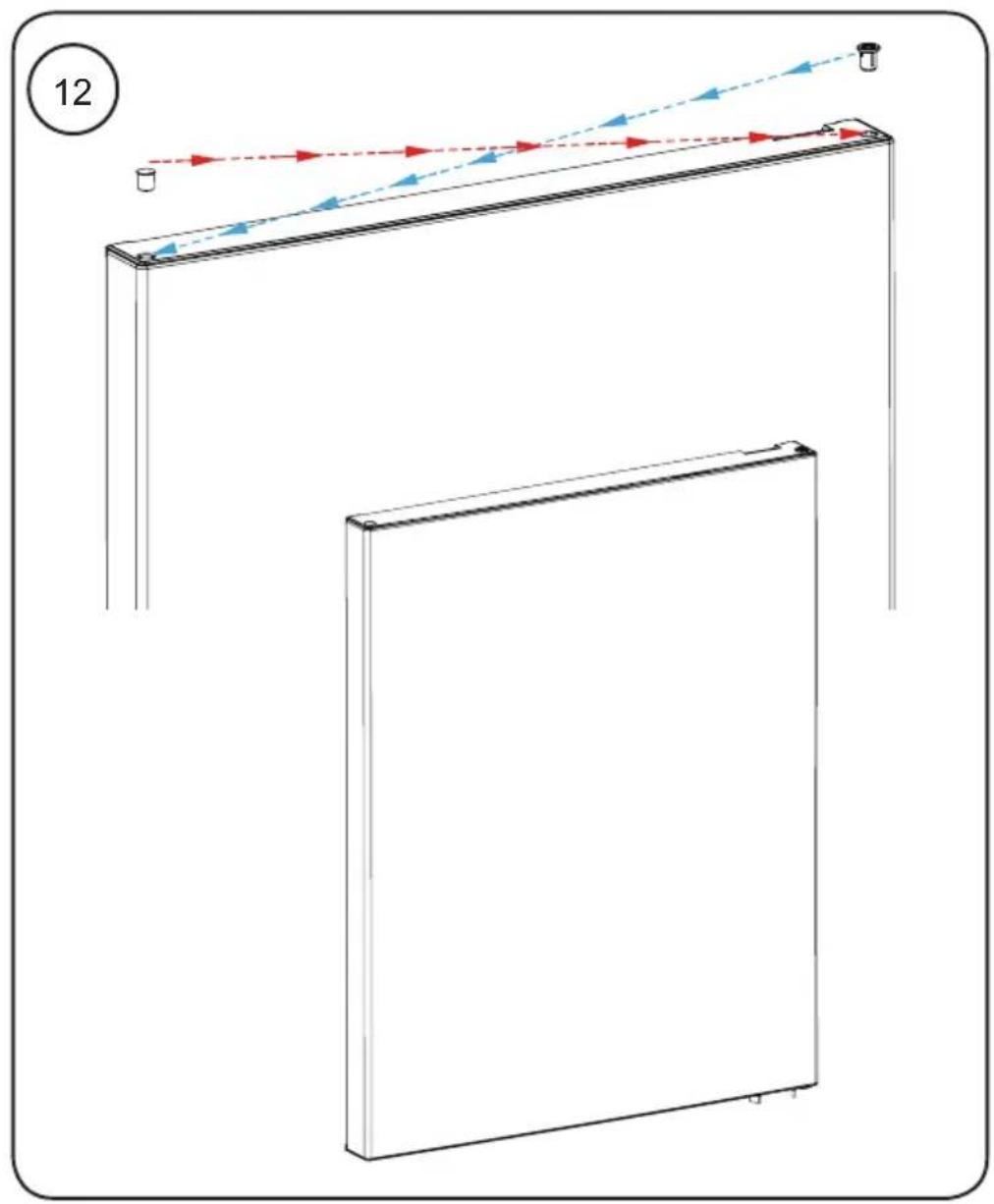

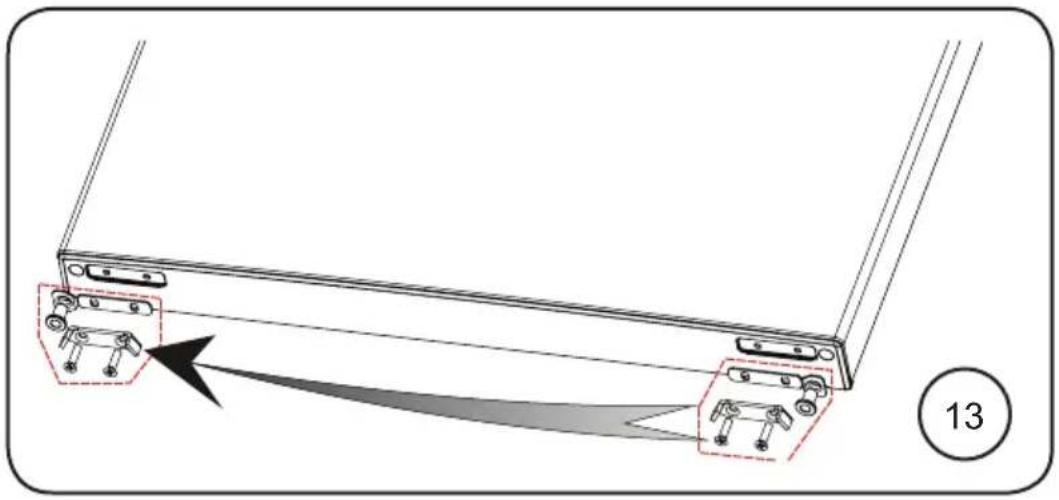

Repositioning the door....64

BEFORE CALLING YOUR AFTER SALES SERVICE...65

TIPS FOR SAVING ENERGY......69

TECHNICAL DATA....70

INFORMATION FOR TEST INSTITUTES....71

CUSTOMER CARE AND SERVICE....72

The operating instructions apply to several models. Differences may therefore occur.

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions:

If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

BEFORE USING THE APPLIANCE

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to be used in household and domestic applications such as:

• staff kitchen areas in shops, offices and other working environments.

• farm houses and by clients in hotels, motels and other residential type environments.
• bed and breakfast type environments;
• catering and similar non-retail applications.

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 10 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

BEFORE USING THE APPLIANCE

• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Please ask your municipal authority about the disposal of the WEEE reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing food. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case.

Safety warnings

• Do not connect your fridge freezer to the mains electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

Illustration of three hands holding ropes and connecting wires, showing different cable configurations (no text or symbols)

Symbol of a trash bin crossing over a weight, with no text or labels present.

Cartoon illustration of an electric plug with a sad face and warning symbol (no text or labels)

Cartoon illustration of a character with arms and legs emerging from a door (no text or symbols)

Simple line drawing of a hand holding a smiling face, a phone icon with a crossed-out prohibition symbol, and a small figure (no text or symbols present)

Simple line drawing of a bottle, a bucket, and a spray bottle (no text or symbols)

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Do not place glass bottles or beverage cans in the ice-making compartment as they can burst as the contents freeze.
• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after you have taken them out of the ice-making compartment.
• Do not re-freeze frozen goods after they have melted. This may cause health issues such as food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.
• Secure any accessories in the fridge during transportation to prevent damage to the accessories.
• Do not use plug adapter.

Installing and operating your fridge

Before using your fridge, you should pay attention to the following points:

• The operating voltage for your fridge is 220-240 V at 50Hz.
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge where it will not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

• Your fridge should never be used outdoors or exposed to rain.

• Do not place anything on your fridge, and install your fridge in a suitable place so that at least 5 cm of free space is available above it.

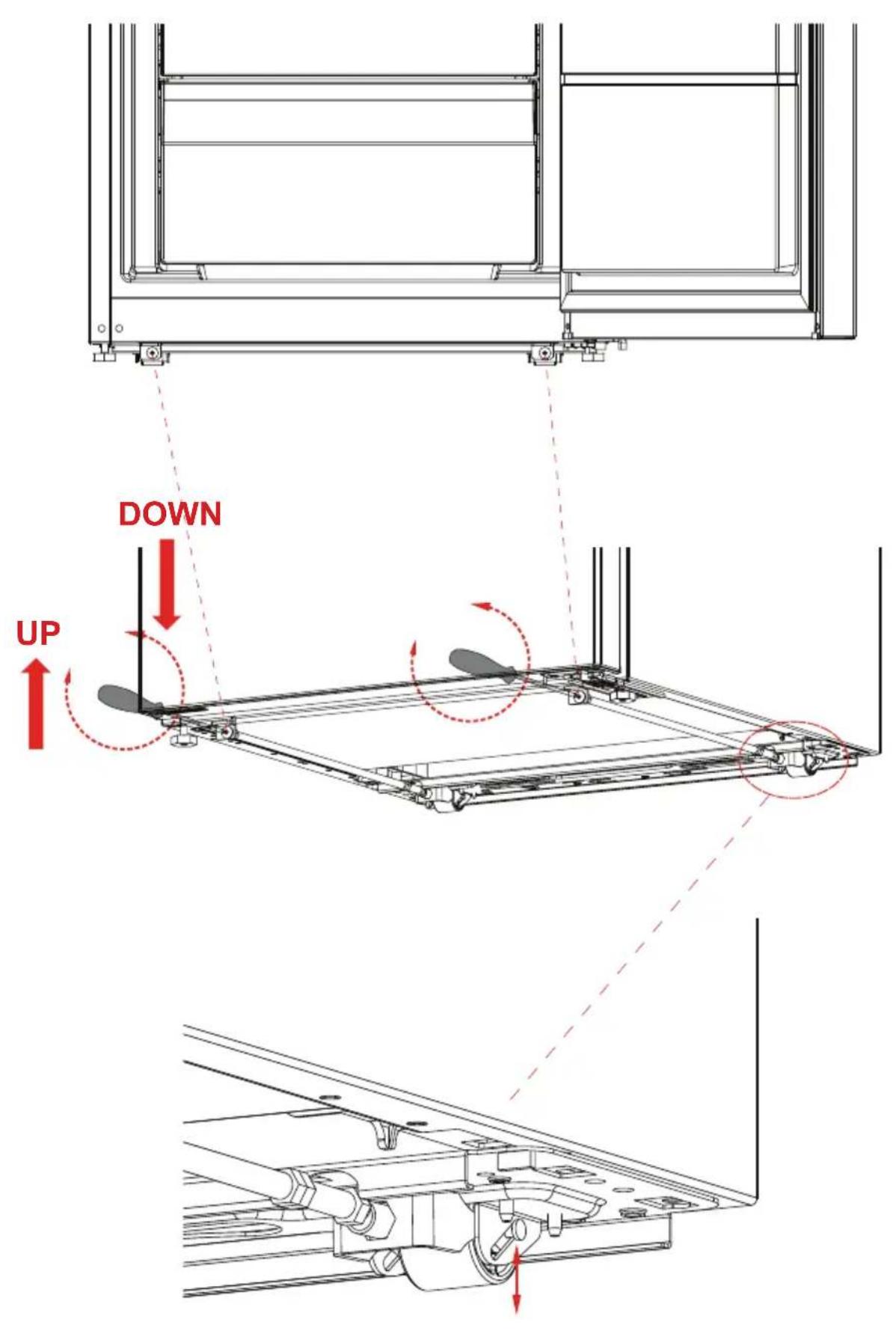

• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This should be done before placing food in the fridge.
• Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge after cleaning.
• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90° (as shown in the figure) to prevent the condenser from touching the wall.

Before Using your Fridge

• At first installation if the product has been transported in horizontal position or after reversing the door hanging, wait at least 4 hours before connecting the appliance to the power supply.
• Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

Cartoon illustration of a distressed container with a bag labeled 'KG' and a sad face (no text or symbols beyond the label)

Diagram of two coiled heat exchangers with a person inside, no text or symbols present

Simple line drawing of a hand holding a smiling square electrical outlet (no text or symbols)

Information about New Generation Cooling Technology

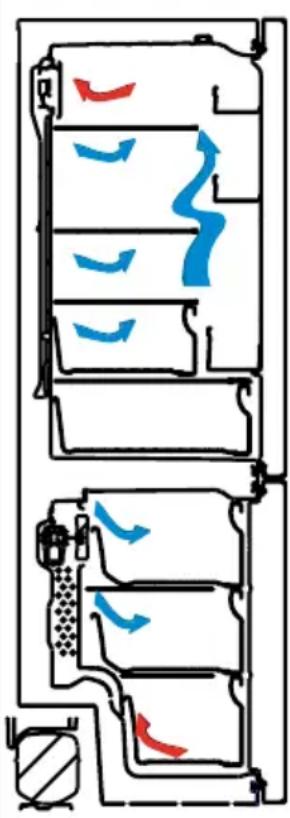

Fridges with new generation cooling technology have a different working system than static fridges. In normal fridges, humid air that enters into fridge and the water vapor that comes out from the foods, accumulates frost formation in freezer compartment. In order to melt this frost, in other words defrost, the fridge has to be stopped. During the stopping period, to keep the foods cold, user has to extract the food to outside of fridge and user has to clear the ice during this period.

In the fridges with new generation cooling technology, situation in the freezer compartment is completely different. With the aid of fan, cold and dry air is blown out through many points into the freezer compartment. As a result of the homogenously blown cold air, even in the spaces between shelves, foods are frozen equally and correctly. On the other hand there will be no frost formation.

In the refrigerator compartment, there will be nearly same configuration with freezer compartment. Air, that is emitted with the fan, located at the top of refrigerator compartment, is cooled while passing through the gap behind the air duct. At the same time, air is blown out through the holes on the air duct so that cooling process is successfully completed in the refrigerator compartment. Holes on the air duct are designed such that the air distribution becomes homogenous in this compartment.

As there is no air passage between freezer and refrigerator compartment, there will be no odor mixing.

As a result of these, your fridge with new generation cooling technology, gives you, ease of use beside the huge volume and esthetic appearance.

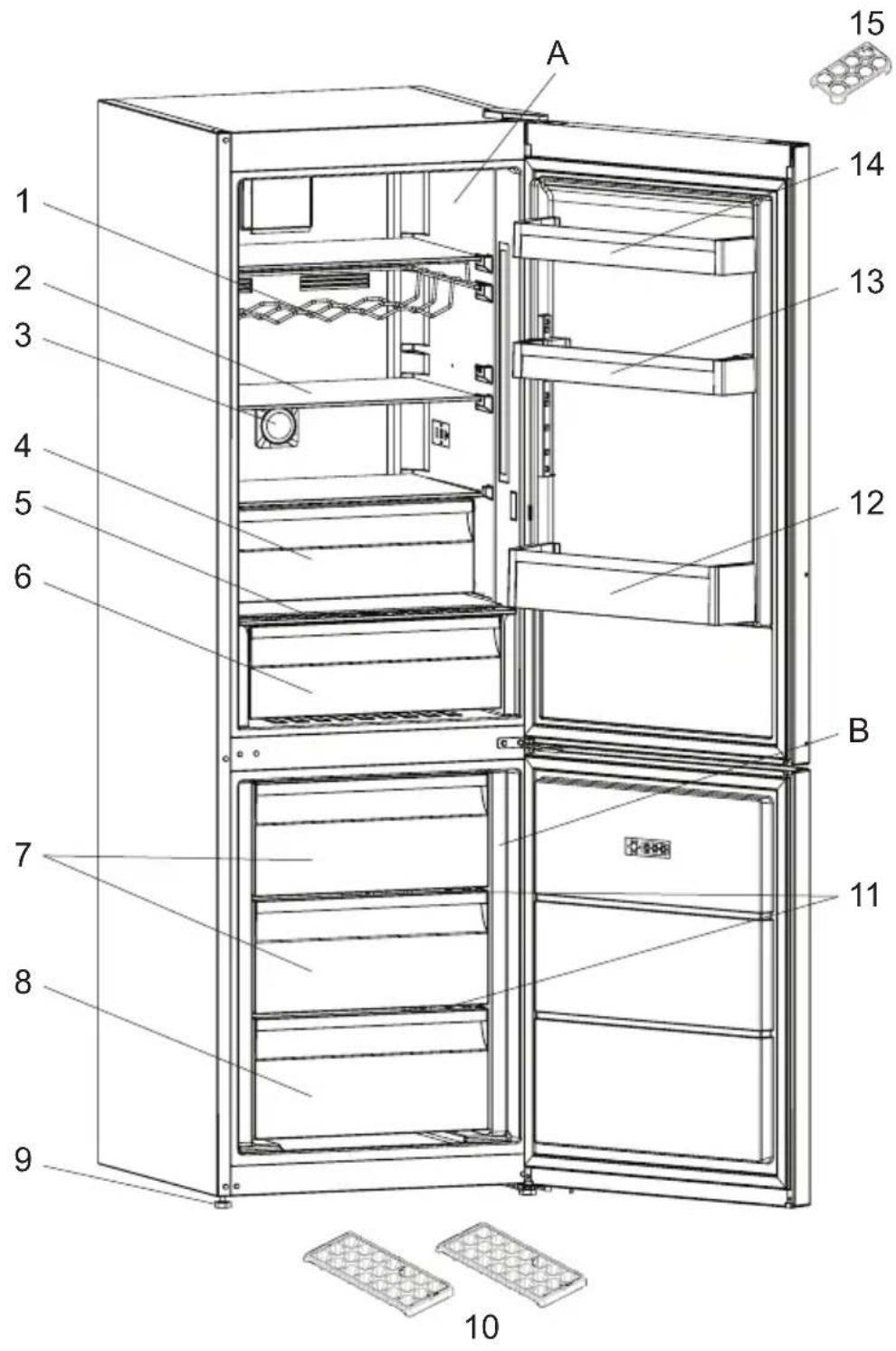

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

EN 47

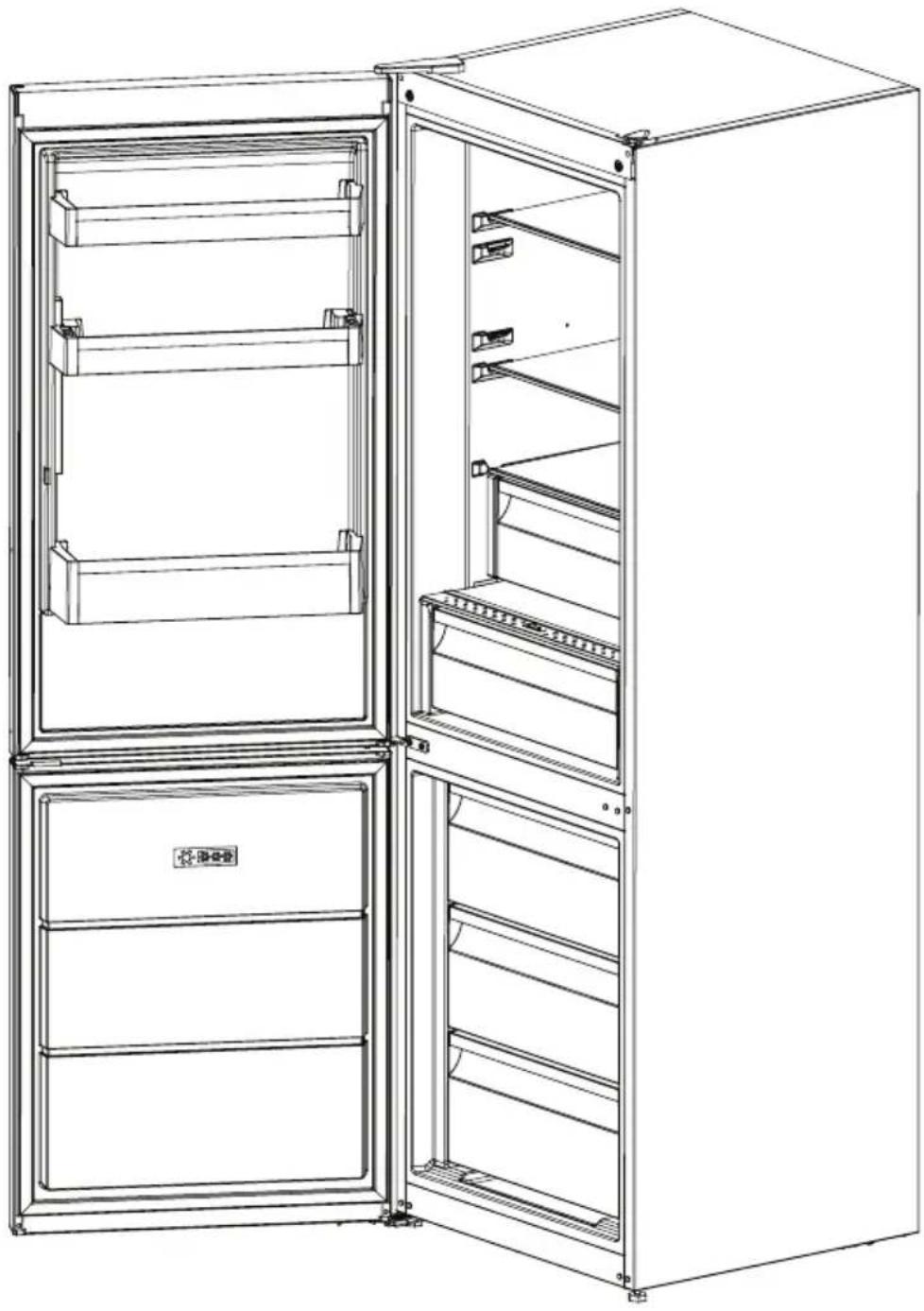

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

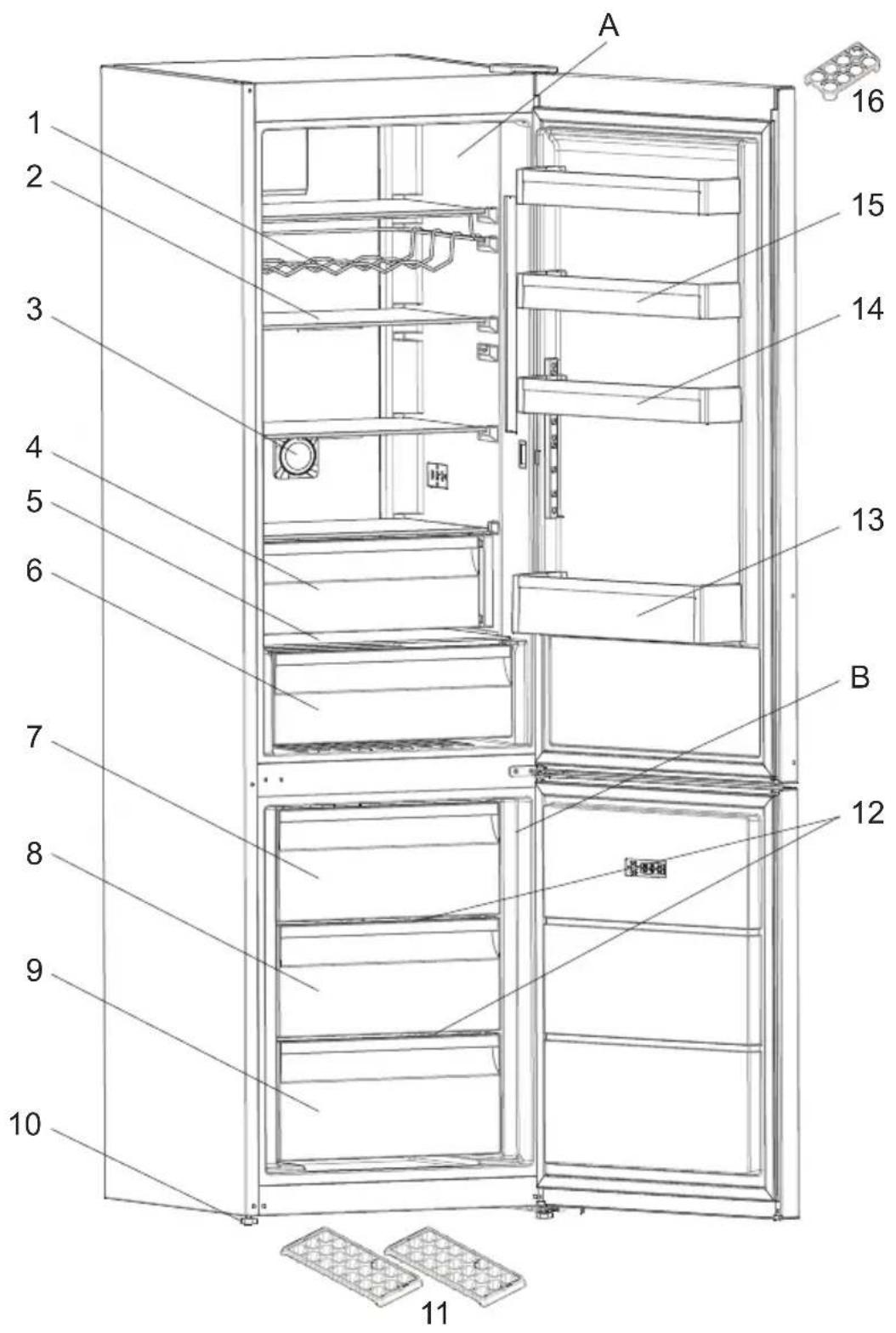

A) Fridge compartment
B) Freezer compartment

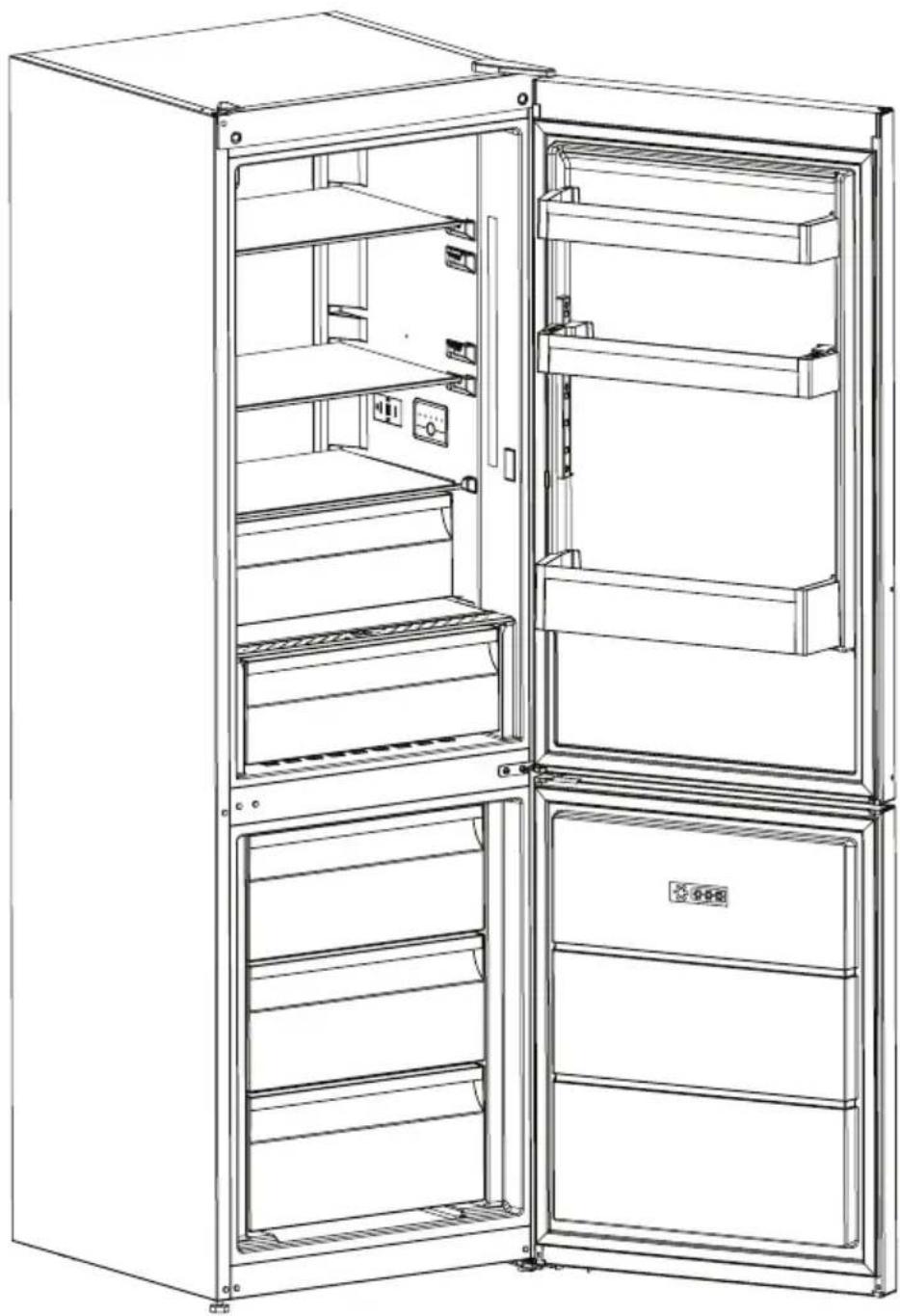

1) Wine rack *
2) Fridge shelves
3) Ionisier *
4) Chiller *
5) Crisper cover
6) Crisper
7) Freezer top basket
8) Freezer middle basket
9) Freezer bottom basket
10) Leveling feet
11) Ice trays
12) Freezer glass shelves
13) Bottle shelf
15) Upper door shelves
16) Egg holder

14) Adjustable door shelf * / Door shelf

* In some models

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

General notes:

Fresh Food Compartment (Fridge): Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.

Freezer Compartment (Freezer): Most Efficient use of energy is ensured in the configuration with the drawers and bins are on stock position.

Display and Control Panel

Using the Control Panel

1. Enables the setting of the freezer.
2. Enables the setting of the cooler.
3. Freezer set value screen.
4. Cooler set value screen.
5. Economy mode symbol.
6. Super freeze symbol.
7. Alarm symbol.

Operating your Fridge Freezer

Lighting (If available)

When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.

Once you have plugged in the product, all symbols will be displayed for 2 seconds and the initial values will be shown as -18 °C on the freezer adjustment indicator, and +4 °C on the fridge adjustment indicator.

Freezer Temperature Settings

• The initial temperature value for the freezer setting indicator is -18^ .
• Press the freezer set button once.

When you first press the button, the previous value will blink on the screen.

- Whenever you press the same button, a lower temperature will be set (-16 °C, -18 °C, -20 °C, -22 °C or -24 °C).

- If you continue to press the button, it will restart from -16 °C.

NOTE: Eco mode gets activated automatically when the temperature of the freezer compartment is set to -18^ C.

Cooler Temperature Settings

• The initial temperature value for the cooler setting indicator is +4^ .
• Press the cooler button once.
• Whenever you press the button, a lower temperature will be set (+8 °C, +6 °C, +5 °C, +4 °C, or +2 °C).
• If you continue to press the button, it will restart from +8 °C.

Super Freeze Mode

Purpose

- To freeze a large quantity of food that cannot fit on the fast freeze

• shelf.
  • To freeze prepared foods.
  • To freeze fresh food quickly to retain freshness.

How to use

To enable the super freeze mode, press and hold the freezer temperature setting button for 3 seconds. Once the super freeze mode has been set, the super freeze symbol on the indicator will be lit and the machine will beep to confirm the mode has been switched on.

During Super Freeze Mode:

• The temperature of the Cooler may be adjusted. In this case, Super Freeze mode will continue.
• Economy mode cannot be selected.
• Super Freeze mode can be cancelled in the same way it is selected.

Notes:

• The maximum amount of fresh food (in kilograms) that can be frozen within 24 hours is shown on the appliance label.
• For optimal appliance performance in maximum freezer capacity, activate super freeze mode 3 hours before you put fresh food into the freezer.

Super freeze mode will automatically cancel after 24 hours, depending on the environmental temperature or when the freezer sensor reaches a ciently low temperature.

Warnings about Temperature Adjustments

• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.
• Do not pass to another adjustment before completing an adjustment.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.
• This appliance is designed for use at an ambient temperature within the 10°C - 43°C range.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

Important installation instructions

This appliance is designed to work in difficult climate conditions (up to 43 degrees C or 110 degrees F) and is powered with ‘Freezer Shield’ technology which ensures that the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So you may then install your appliance in an unheated room without having to worry about frozen food in the freezer being spoilt. When the ambient temperature returns to normal, you may continue using the appliance as usual.

Accessories

Freezer box

The freezer box allows foods are maintained more regularly.

Removing The freezer box;

• Pull the box out as far as possible
• Pull the front of box up and out.

! Make the inverse of the same operation for the resetting the sliding compartment.

Note: Always Keep the handle of box while removing the box.

Freezer boxes

Technical line drawing of a multi-level elevator cabinet with structural ribs and mounting feet (no text or symbols)

Chiller Shelf

Technical line drawing of a multi-level shelving unit with no visible text or symbols

(In some models)

Keeping food in the Chiller compartment instead of the freezer or refrigerator compartment allows food retain freshness and flavour longer, while preserving its fresh appearance. When chiller tray becomes dirty, remove it and wash it with water.

(Water freezes at 0^ C, but foods containing salt or sugar freeze at temperature lower than that)

Normally people use the chiller compartment for raw fish, lightly pickled, rice, etc...

Do not put foods you want to freeze or ice trays in order to make ice.

Removing the Chiller shelf

• Pull the chiller shelf out toward you by sliding on rails.
• Pull the chiller shelf up from rail to remove.

Humidity Controller

When the humidity controller in the closed position, it allows fresh fruit and vegetables to be stored longer.

In case of the crisper is totally full, the fresh dial is located in front of crisper, should be opened. By means of this the air in the crisper and humidity rate will be controlled and endurance life will be increased.

Technical line drawing of a cabinet or rack with a red directional arrow indicating movement (no text or symbols)

If you see any condensation on glass shelf, humidity control should be taken into the open positions.

THE VARIOUS FUNCTION AND POSSIBILITIES

Natural Ion Tech / Ionisier (In some models)

Natural Ion Tech spreads negative ions which neutralize particles of unpleasant smell and dust in the air.

By removing these particles from the air in the refrigerator, Natural Ion Tech improves air quality and eliminates odours.

• This feature is optional. It may not exist on your product.
• The location of your ioniser device may vary from product to product.

Maxi-fresh preserver (In some models)

Maxi Fresh Preserver technology helps to remove ethylene gas (a bioproduct released naturally from fresh foods) and unpleasant odors from the crisper. In this way, food stays fresh for a longer time.

Diagram of a heat exchanger or cooling unit with cooling fins and airflow direction arrow (no text or labels)

- Maxi Fresh Preserver must be cleaned once in a year. The filter should be waited for 2 hours at 65^ C in a oven.

- To clean the filter, please remove the back cover of the filter box by pulling it in the direction of the arrow.

- The filter should not be washed with water or any detergent.

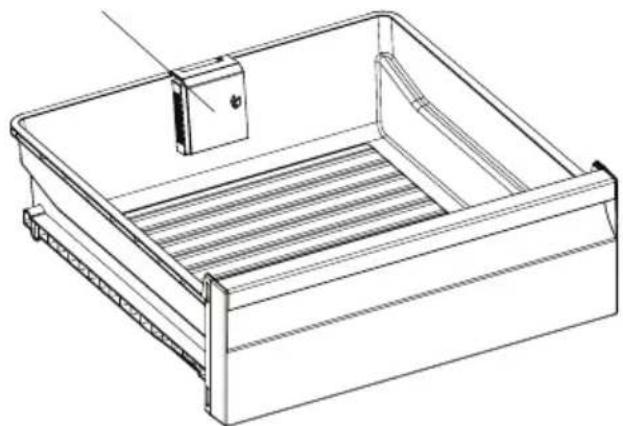

Line drawing of a rectangular electronic device with a leaf symbol on the cover (no text or labels)

Maxi Fresh Preserver

Line drawing of a rectangular storage tray with internal compartments and a small inset component (no text or symbols)

Adjustable Door Shelf (In some models)

Six different height adjustments can be made to provide storage areas that you need by adjustable door shelf.

To change the position of adjustable door shelf ;

Hold the bottom of the shelf and pull the buttons on the side of the door shelf direction of arrow (Fig.1).

Position door shelf the height you need by moving up and down. After you get the position that you want the door shelf, release the buttons on the side of the door shelf (Fig.2) Before releasing the door shelf, move up down and make sure the door shelf is fixed.

Note: Before moving door shelf is loaded, you must hold the shelf by supporting the bottom. Otherwise, door shelf could fall off the rails due to the weight. So damage may occur on the door shelf or rails.

Adjustable Glass Shelf (In some models)

Adjustable glass shelf mechanism provides higher storage spaces with a simple movement. To cover the glass shelf, push it.

You can load your food as you want in the resulting extra space. To bring the shelf in its original position, pull it toward you.

Technical line drawing of a structural bracket assembly (no text or symbols)

Figure -1

Technical line drawing of a structural frame with vertical and horizontal beams (no text or symbols)

Figure -2

Line drawing of a bottled water bottle mounted on a shelf with metal racks (no text or symbols)

Figure -1

Diagram of a mechanical assembly with two parallel plates and directional arrows indicating motion (no text or symbols)

Figure -2

Visual and text descriptions on the accessories section may vary according to the model of your appliance.

Simple line drawing of a hand holding a smiling face icon next to a rounded square (no text or symbols)

Cartoon illustration of a hand pouring liquid from a container into a bag (no text or symbols)

Cartoon illustration of a smiling refrigerator with a spoon, accompanied by a smaller bottle and cup (no text or symbols)

Simple line drawing of an open refrigerator with a red X symbol crossed out (no text or symbols present)

Cartoon illustration of a smiling refrigerator with a bandaged bottle nearby (no text or symbols)

- Disconnect the unit from the power supply before cleaning.

- Do not clean the appliance by pouring water.

• Make sure that no water enters the lamp housing and other electrical components.

- The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

- Clean the accessories separately with soap and water Do not clean them in the dishwasher.

Cartoon illustration of a smiling refrigerator with arms and legs giving thumbs up, accompanied by a mortar and pestle (no text or symbols)

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plugto the mains supply with dry hands.

- Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

THE POWER SUPPLY MUST BE DISCONNECTED.

Defrosting

Your refrigerator performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container behind your refrigerator and evaporates there.

• Make sure you have disconnected the plug of your refrigerator before cleaning the vaporisation container.
• Remove the vaporisation container from its position by removing the screws as indicated. Clean it with soapy water at specific time intervals. This will prevent odours from forming.

Replacing LED Lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

Refrigerator compartment

• For normal operating conditions, adjusting the temperature value of the cooler partition of the fridge to 4°C will be enough.
• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.
• Arrange the meat and cleaned fish(wrapped in packages or sheets of plastic) which you will use in 1-2 days, in the bottom section of the refrigerator compartment(that is above the crisper) as this is the coldest section and will ensure the best storing conditions.
• You can put the fruits and vegetables into crisper without packing.
• For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to +4 °C.
• The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.
• Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.
• Meat, fish, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)
• To prevent cross contamination, meat products and fruit vegetables are not stored together.
• Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors.

Some recommendations have been specified below for the placement and storage of your food in the cooling compartment.

NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

Food	Maximum Storing time	Where to place in the fridge department
Vegetables and fruits	1 week Vegetable bin
Meat and fish 2 - 3	Days	Wrapped in plastic foil or bags or in a meat container (on the glass shelf)
Fresh cheese 3 - 4	Days In special door shelf
Butter and margarine	1 week In special door shelf
Bottled products milk and yoghurt	Until the expiry date recommended by the producer	In special door shelf
Eggs 1 month In the egg shelf
Cooked food All shelves

Freezer compartment

• Please use the deep freeze compartment of your refrigerator for storing the frozen food for a long time and for producing ice.
• To get maximum capacity for freezer compartment, please just use glass shelves for upper and middle section. For bottom section, please use lower basket.
• Please do not place the food you shall newly freeze nearby the already frozen food.
• You should freeze the food to be frozen (meat, minced meat, fish, etc.) by dividing them into portions in such a way that they can be consumed once.
• Please do not refreeze the frozen food once they are thawed. It may pose a danger for your health since it might cause problems such as food poisoning.
• Do not place the hot meals in your deep freeze before they become cold. You would cause the other food frozen beforehand in the deep freeze to become putrefied.
• When you buy frozen food, makes sure that they were frozen under appropriate conditions and the package is not torn.

• While storing the frozen food, the storage conditions on the package should certainly be observed. If there is not any explanation, the food must be consumed within the shortest time possible.

• If there had been humidification in the frozen food package and it has a foul smell, the food might have been stored under unsuitable conditions previously and gone rotten. Do not purchase this type of foods!

• The storage durations of frozen food change depending on the ambient temperature, the frequent opening and closing of the doors, thermostat settings, food type and the time elapsed from the purchase time of the food to the time it is placed into the freezer. Always abide by the instructions on the package and never exceed the indicated storage duration.
• During long lasting power failures, please do not open the door of the deep freeze compartment. During longer power failures, do not refreeze your food and consume them as soon as possible.

Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It's quite normal! After reaching equilibrium condition, the door will be opened easily.

Important note:

• Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed they must NEVER be re-frozen.
• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, the frozen food should be added little amount of spices or the desired spice should be added after the food has been thawed.
• The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat.
• The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags.

Some recommendations have been specified on pages 29, 30 and 31 for the placement and storage of your food in the deep freeze compartment.

Meat and fish Preparation		Maximum Storing time (month)
Steak Wrapping in a foil 6 - 8
Lamb meat Wrapping in a foil 6 - 8
Veal roast Wrapping in a foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat	In packages without using spices	1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami	Should be packaged even if it has membrane
Chicken and turkey Wrapping in a foil 4 - 6
Goose and Duck Wrapping in a foil 4 - 6
Deer, Rabbit, Wild Boar	In 2.5 kg portions and as fillets	6 - 8
Fresshwater fishes (Salmon, Carp, Crane, Siluroidea)	After cleaning the bowels and scales of the fish, wash and dry it; and if necessary, cut the tail and head.	2
Lean fish; bass, turbot, flounder		4
Fatty fishes (Tunny, Mackarel, bluefish, anchovy)		2 - 4
Shellfish Cleaned and in bags 4 - 6
Caviar	In its package, aluminium or plastic container	2 - 3
Snail	In salty water, aluminum or plastic container	3

Note: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not cooked after being thawed, it should never be frozen again.

Vegetables and Fruits	Preparation	Maximum Storing time (months)
String beans and beans	Wash and cut to small pieces and boil in water	10 - 13
Beans Hull and wash and boil in water 12
Cabbage Cleaned and boil in water 6 - 8
Carrot	Clean and cut to slices and boil in water	12
Pepper	Cut the stem, cut into two pieces and remove the core and boil in water	8 - 10
Spinach Washed and boil in water 6 - 9
Cauliflower	Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while	10 - 12
Eggplant Cut to pieces of 2cm after washing 10 - 12
Corn	Clean and pack with its stem or as sweet corn	12
Apple and pear Peel and slice 8 - 10
Apricot and Peach	Cut into two pieces and remove the stone	4 - 6
Strawberry and Blackberry	Wash and hull 8 - 12
Cooked fruits	Adding 10 % of sugar in the container	12
Plum, cherry, sourberry	Wash and hull the stems 8 - 12

Dairy Products	Preparation	Maximum Storing time (months)	Storing Conditions
Packet (Homogenize) Milk	In its own packet	2 - 3	Pure Milk – In its own packet
Cheese-excluding white cheese	In slices 6 - 8		Original package may be used for short storing period. It should be wrapped in foil for longer periods.
Butter, margarine	In its package 6

	Maximum Storing time (months)	Thawing time in room temperature (hours)	Thawing time in oven (minutes)
Bread 4 - 6 2	-3 4-5 (220-225 °C)
Biscuits 3 - 6	1 - 1,5 5-8 (190-200 °C)
Pastry 1 - 3	2 - 3 5-10 (200-225 °C)
Pie 1 - 1,5 3	4 5-8 (190-200 °C)
Phyllo dough	2 - 3 1 - 1,5	5-8 (190-200 °C)
Pizza 2 - 3 2	-4 15-20 (200 °C)

Simple line drawing of two children playing a board game (no text or symbols)

Transportation and Changing of Installation Position

• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.
• Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper...) should be taken out or fixed with bands in order to prevent them from getting damaged.

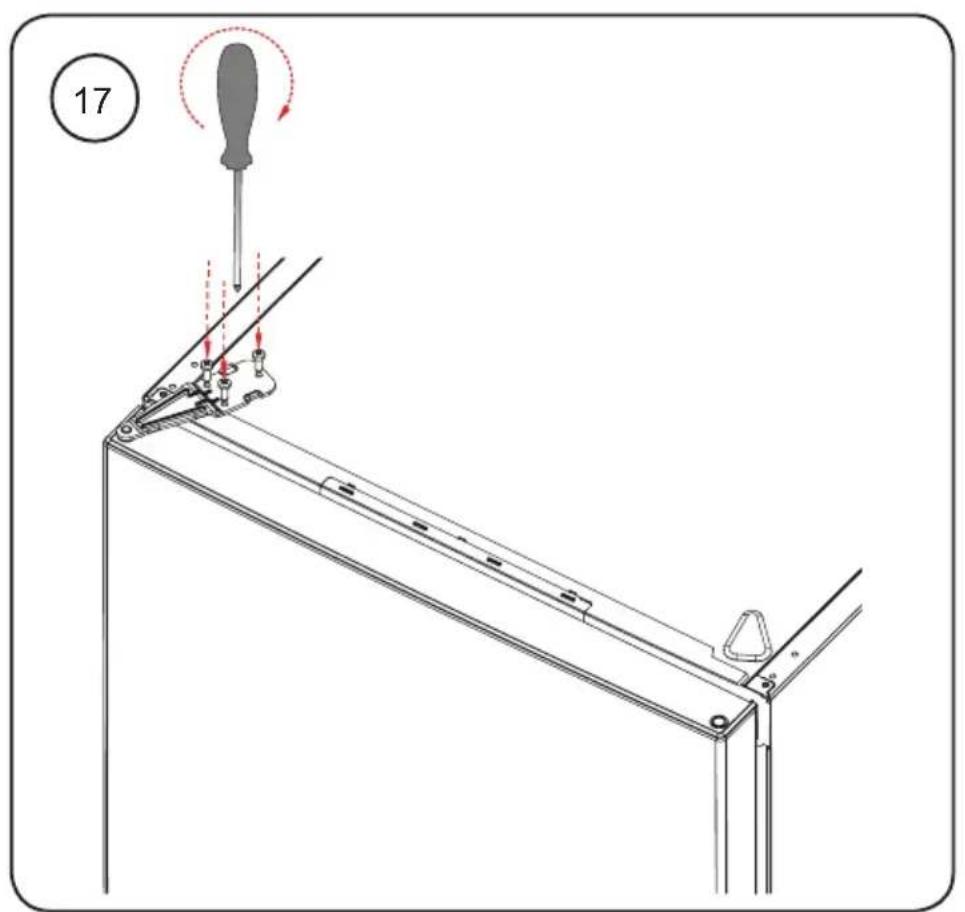

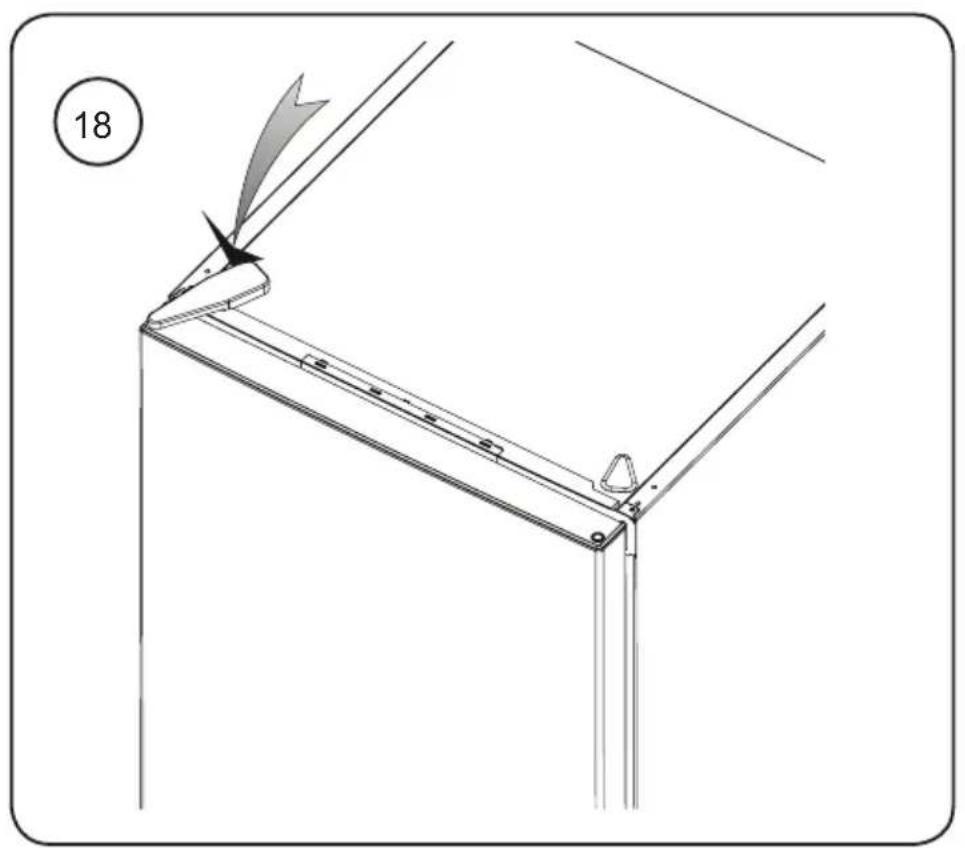

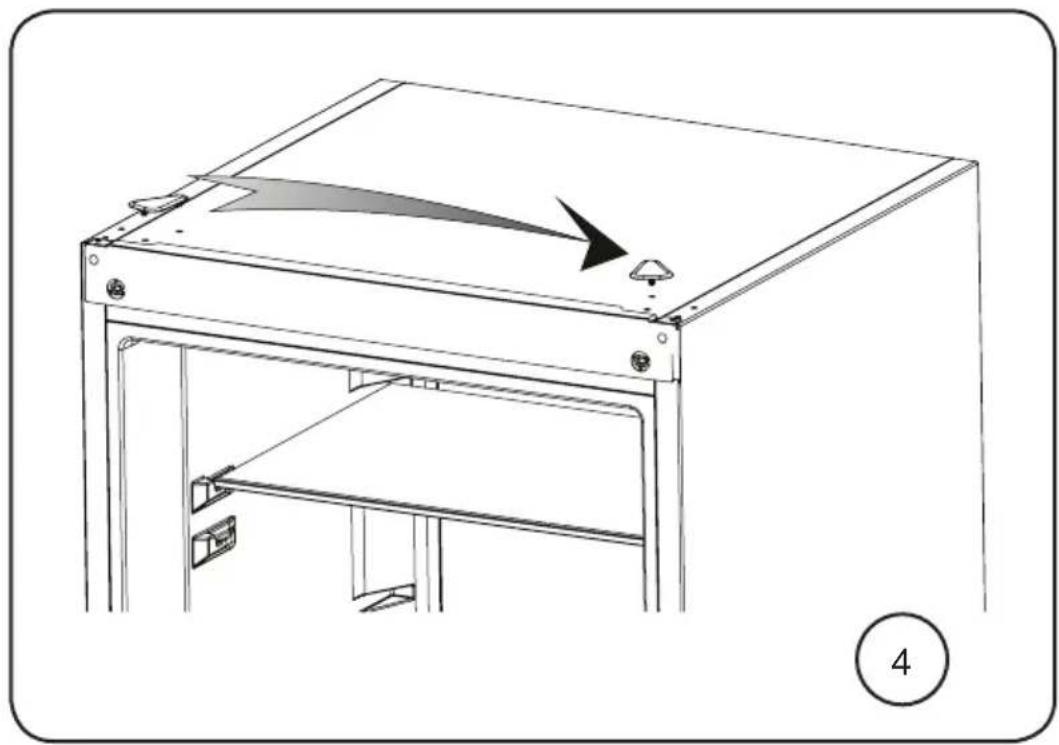

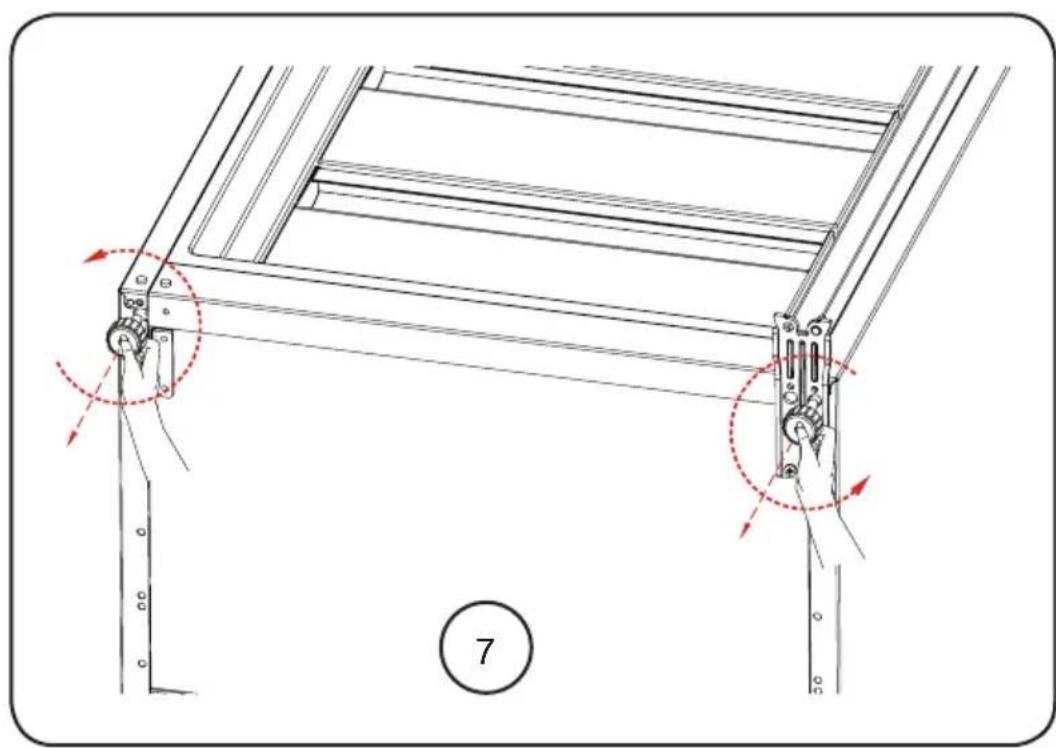

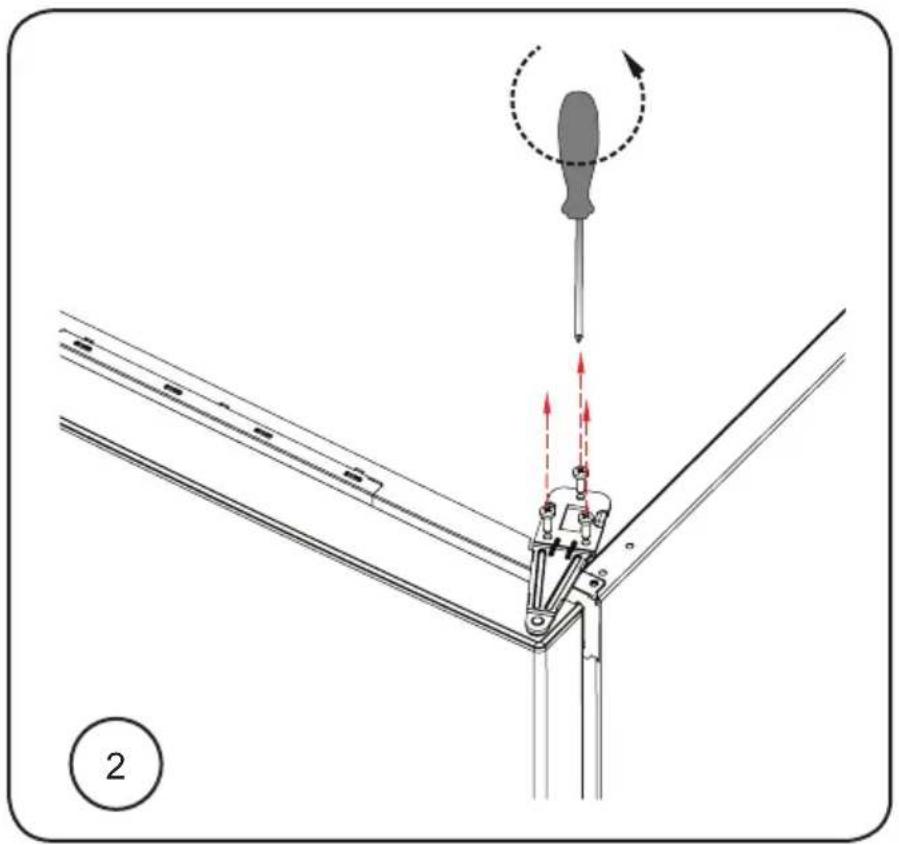

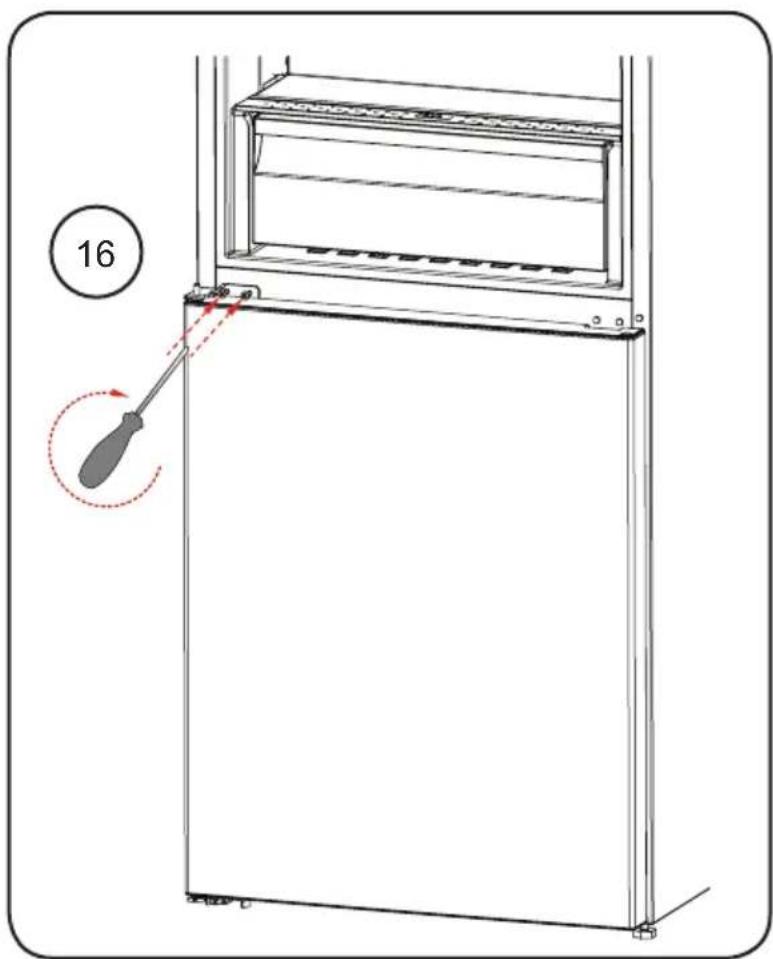

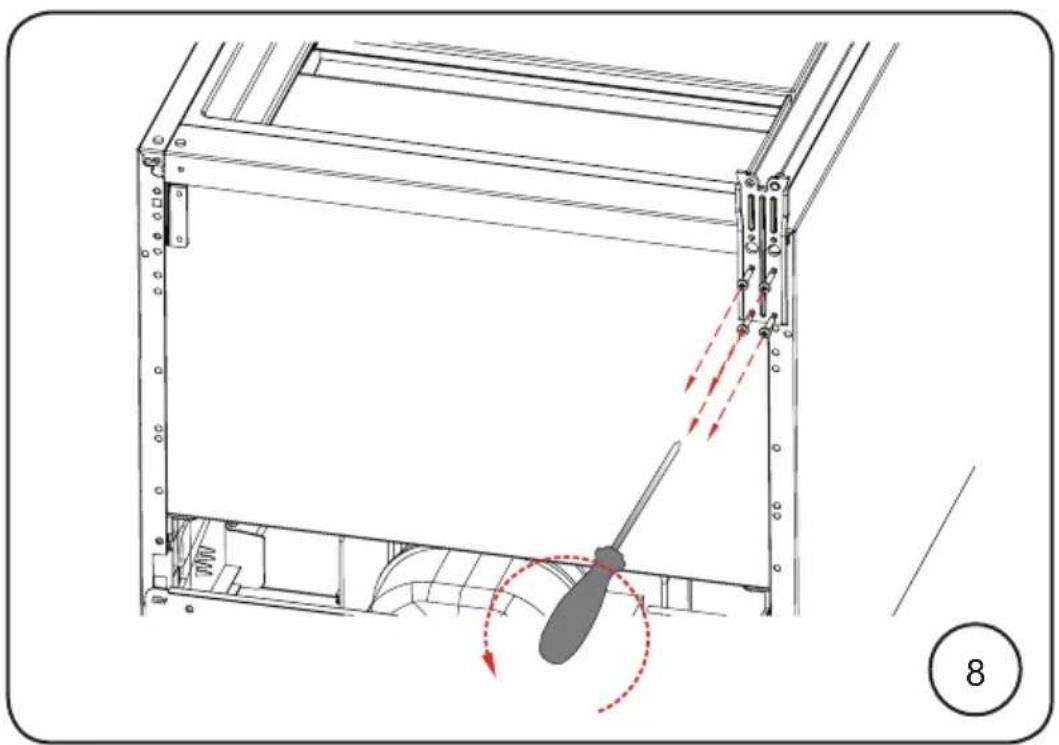

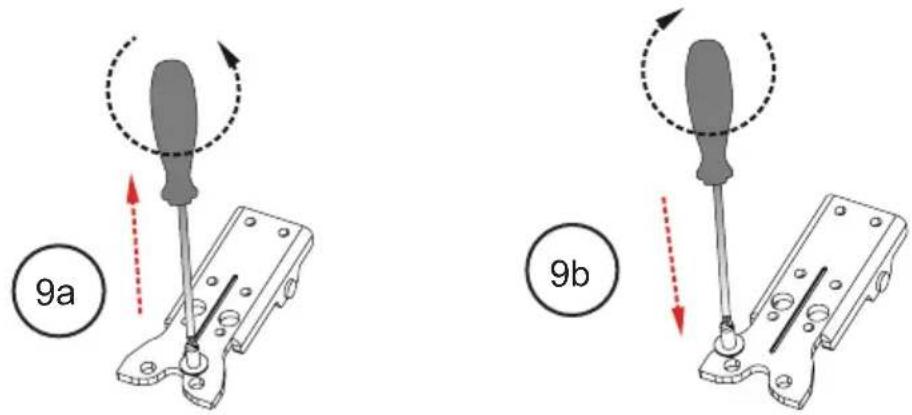

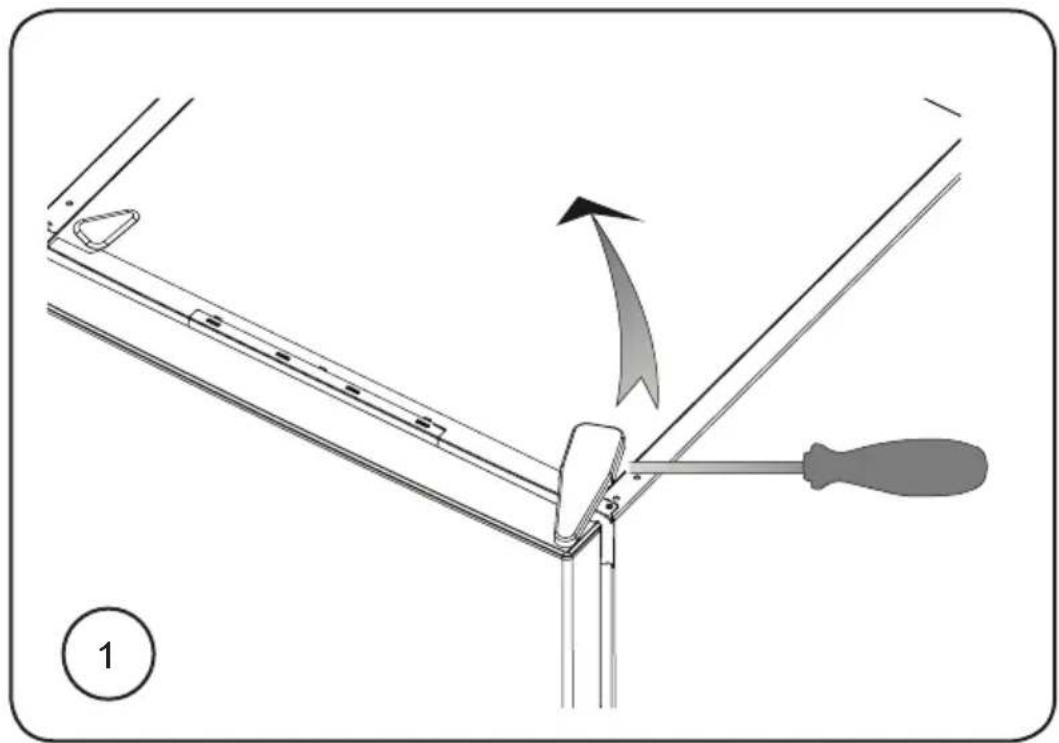

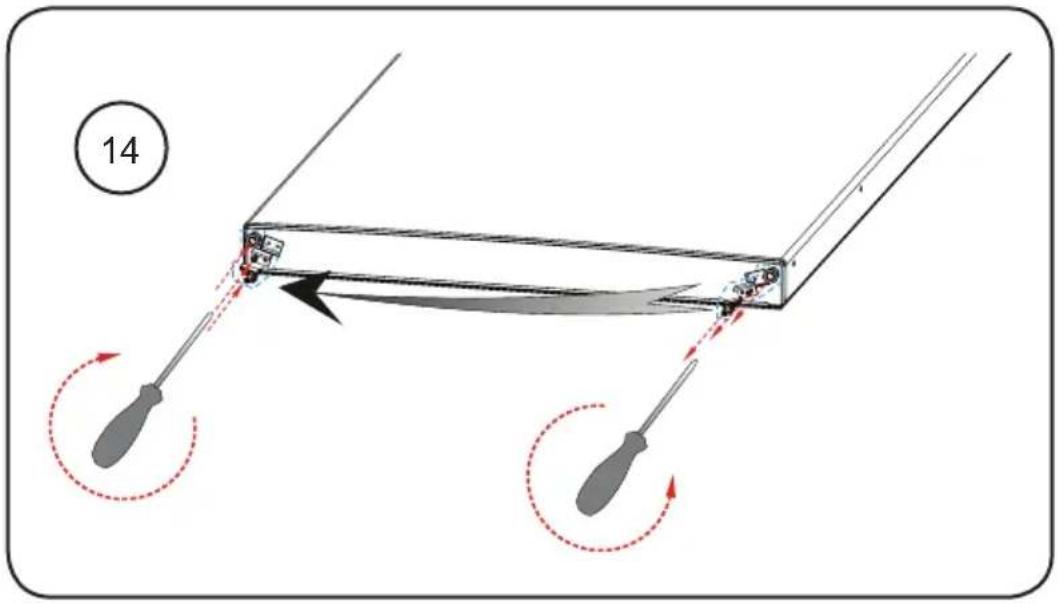

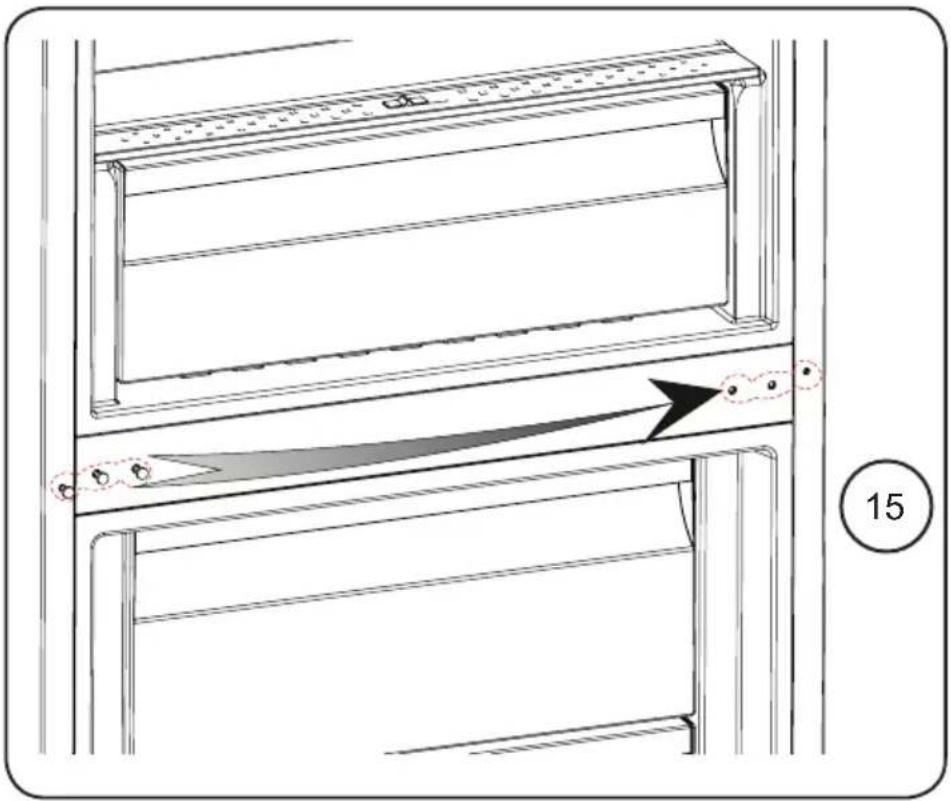

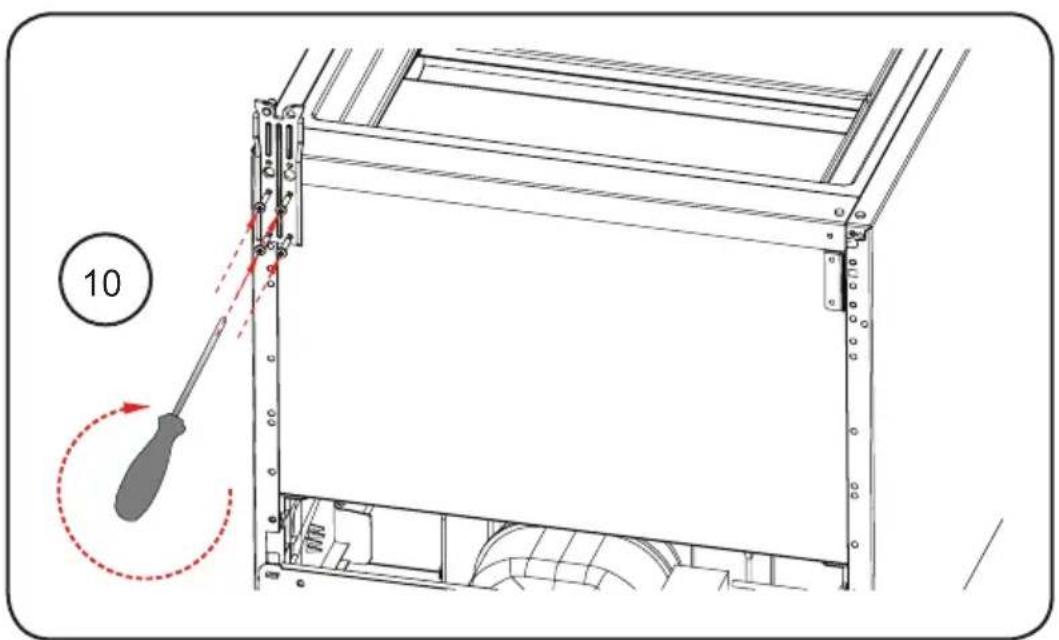

Repositioning the door

• It is not possible to change the opening direction of your refrigerator door, if the door handle on your refrigerator is installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your refrigerator may be changed, you should contact the nearest Authorised Service Agent to have the opening direction changed.

BEFORE CALLING YOUR AFTER SALES SERVICE

Check Warnings;

Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. Warning codes are displayed in the Freezer and Cooler Indicators.

ERROR TYPE MEANING WHY WHAT TO DO
E01 Sensor warning			Call Service for assistance as soon as possible.
E02 Sensor warning			Call Service for assistance as soon as possible.
E03 Sensor warning			Call Service for assistance as soon as possible.
E06 Sensor warning			Call Service for assistance as soon as possible.
E07 Sensor warning			Call Service for assistance as soon as possible.
E08 Low Voltage Warning		Power supply to the device has dropped to below 170 V.	- This is not a device failure, this error helps to prevent damages to the compressor.- The voltage needs to be increased back to required levelsIf this warning continues an authorised technician needs to be contacted.
E09	Freezer compartment is not cold enough	Likely to occur after long term power failure.	1. Set the freezer temperature to a colder value or set Super Freeze. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Remove any products which have thawed/defrosted during this error. They can be used within a short period of time.3. Do not add any fresh produce to the freezer compartment until the correct temperature has been reached and the error is no longer.If this warning continues an authorised technician needs to be contacted.

ERROR TYPE MEANING WHY WHAT TO DO

E10	Fridge compartment is not cold enough	Likely to occur after:- Long term power failure.- Hot food has been left in the fridge.	1. Set the fridge temperature to a colder value or set Super Cool. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Please empty the location at the front area of air duct channel holes and avoid putting food close to the sensor.If this warning continues an authorised technician needs to be contacted.
E11	Fridge compartment is too cold	Various	1. Check is Super Cool mode is activated2. Reduce the fridge compartment temperature3. Check to see if vents are clear and not cloggedIf this warning continues an authorised technician needs to be contacted.

If your fridge is not operating;

• Is there a power failure?
- Is the plug connected to the socket correctly?
- Is the fuse of the socket to which the plug is connected or the main fuse blown?
- Is there any failure at the socket? To check this, plug your refrigerator to a socket this is surely operating.

If your fridge is not cooling enough;

• Is the temperature adjustment right?
- Is the door of your fridge opened frequently and left open for a long while?
• Is the door of fridge closed properly?
- Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?
• Is your fridge filled excessively?
- Is there adequate distance between your fridge and the rear and side walls?

- Is the ambient temperature within the range of values specified in the operating manual?

If the food in your refrigerator compartment is over cooled

• Is the temperature adjustment right?
- Are there many food recently put inside the freezer compartment? If so, your fridge may over cool the food inside the refrigerator compartment as it will operate longer to cool these food.

If your fridge is operating too loudly;

To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;

• Is your appliance stable? Are the legs adjusted?
• Is there anything behind your fridge?
- Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case.
- Are the items placed on your fridge vibrating?

Normal Noises;

Cracking (Ice cracking) Noise:

• During automatic defrosting.
- When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking: Heard when the thermostat switches the compressor on/off.

Compressor noise (Normal motor noise): This noise means that the compressor operates normally Compressor may cause more noise for a short time when it is activated.

Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system.

Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air Blowing Noise (Normal fan noise): This noise can be heard in No-Frost fridge during normal operation of the system due to the circulation of air.

If humidity builds up inside the fridge;

• Are all food packed properly? Are the containers dried before placing them in the fridge?
• Are the fridge doors opened frequently? Humidity of the room gets in the fridge when the doors are opened. Humidity build up will be faster when you open the doors more frequently, especially if the humidity of the room is high.

If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door gaskets broken or torn?
  • Is your fridge on a level surface?

If the edges of fridge cabinet that the door joint contact are warm;

Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal.

IMPORTANT NOTES:

• Compressor protection function will be activated after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell.
• If the problem persists after you have followed all the instructions above, please consult to the nearest authorized service.
• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.

TIPS FOR SAVING ENERGY

EN 69

1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2. Allow warm food and drinks to cool down outside the appliance.
3. When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. This will help to save energy. If the frozen food is put out, it results in a waste of energy.
4. Cover drinks or other liquids when placing them in the appliance. Otherwise humidity increases in the appliance. Therefore, the working time gets longer. Also covering drinks and other liquids helps to preserve smell and taste.
5. Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
6. Keep the covers of the different temperature compartments (crisper, chiller ...etc) closed
7. Door gasket must be clean and pliable. Replace gaskets if worn.

TECHNICALDATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

INFORMATION FOR TEST INSTITUTES

EN 71

Appliance for any EcoDesign verification shall be compliant with EN 62552.

Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at Chapter 2. Please contact the manufacturer for any other further information, including loading plans.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.

The information can be found on the rating plate. Subject to change without notice.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Visit our website to:

www.cylinda.se

Line drawing of a double refrigerator with open doors and shelves (no text or symbols)

Diagram of a mechanical assembly with a tool and lever, showing a step-like process (no text or symbols)

Technical diagram showing a screwdriver inserted into a bracket with red arrows indicating motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating motion or force direction (no text or symbols present)

Diagram of a refrigerator with a screwdriver and directional arrow indicating rotation (no text or symbols)

Technical diagram of a mechanical assembly with two components and red dashed arrows indicating motion, labeled with number 7 (no text or symbols on the diagram itself)

Technical diagram of a mechanical assembly with a screwdriver and red motion arrows indicating movement (no text or symbols)

Diagram showing two hands adjusting a ladder frame with red dashed arrows indicating motion (no text or symbols)

Diagram showing two rectangular panels with blue and red arrows indicating direction, no text or symbols present

Diagram of a mechanical assembly with two components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a door frame with a highlighted section and directional arrow (no text or symbols)

Technical line drawing of a mechanical bracket assembly with no visible text or symbols

Line drawing of a double-door refrigerator with open doors and internal shelves (no text or symbols)

Service

Vi har service i hela Sverige/ Nationwide service in Sweden

Besök www.cylinda.se / Visit www.cylinda.se

Ring 0771-25 25 00 (endast lokaltaxa) / Call 0771-25 25 00

Uppge / Declare

Maskintyp / Model code

Serienummer / Serial number

Inköpsdatum / Purchase date

Problembeskrivning / Problem description
