KI1188SE - Fridge Cylinda - Free user manual and instructions

Product Type	Freestanding Refrigerator
Model	KI1188SE
Brand	Cylinda
Total Net Capacity	280 L
Refrigerator Net Capacity	200 L
Freezer Net Capacity	80 L
Energy Class	A+
Annual Energy Consumption	220 kWh
Climate Class	N/ST
Noise Level	42 dB
Dimensions (HxWxD)	1800 x 600 x 600 mm
Weight	60 kg
Power Supply	220-240 V, 50 Hz
Refrigerant	R600a
Main Functions	Adjustable thermostat, reversible door, automatic defrost, LED lighting
Shelves	4 glass shelves, 1 vegetable drawer, 1 dairy compartment
Freezer	3 drawers, ice cube tray, freezing capacity 4 kg/24h
Maintenance & Cleaning	Clean interior with mild detergent, wipe door seals regularly, defrost freezer annually
Safety Features	Child lock, overheating protection, stable base
Spare Parts & Reparability	Replaceable door gaskets, thermostats, shelves; authorized service centers
General Information	Includes user manual in multiple languages, 2-year warranty

Frequently Asked Questions - KI1188SE Cylinda

How do I install the Cylinda KI1188SE refrigerator?

Place the refrigerator on a level floor away from heat sources. Allow 5 cm clearance around for ventilation. Connect to a grounded outlet.

What is the temperature setting for the fridge and freezer?

Recommended fridge temperature is 4°C and freezer -18°C. Adjust via the thermostat dial inside.

How to defrost the freezer?

Unplug the appliance, remove food, and leave the freezer door open. Do not use sharp tools to remove ice.

Why is my refrigerator not cooling properly?

Check if the door is closed properly, thermostat is set correctly, and ventilation grilles are not blocked. Also ensure the condenser coils are clean.

How to clean the KI1188SE?

Use a soft cloth with mild soapy water. Avoid abrasive cleaners. Clean the door seals regularly with a damp cloth.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions on hinge swapping.

What type of refrigerant is used?

The R600a refrigerant is used, which is environmentally friendly. Disposal must follow local regulations.

Is there a child lock feature?

Yes, the KI1188SE includes a child lock to prevent unintentional temperature changes. Activate it via the control panel.

How to replace a broken shelf?

Contact Cylinda customer service or an authorized dealer to order a replacement glass shelf. Ensure the correct size.

What is the warranty period?

The Cylinda KI1188SE comes with a standard 2-year warranty. Extended warranty options may be available.

USER MANUAL KI1188SE Cylinda

Simple line drawing of a kitchen appliance with oven, refrigerator, and washing machine (no text or symbols)

KI1188SE

INNAN KYLSKÅPET TAS I BRUK....3

INNAN DU RINGER EFTER SERVICE ....12

Symbol of a trash bin with crossed lines indicating no waste or plastic, no text or labels present.

Illustration of four hands holding wires, illustrating a cable termination procedure (no text or symbols present)

Cartoon illustration of an angry plug with a lightning bolt, no text or symbols present

Cartoon illustration of a person peeking out of a door, arms outstretched (no text or symbols)

Illustration of a hand holding a smiling face, a block with a crossed-out hand, and a prohibition symbol (no text or labels)

Simple line drawing of a smiling face on a square object and a hand touching it (no text or symbols)

DEL 2. OLIKA FUNKTIONER OCH MÖJLIGHETER

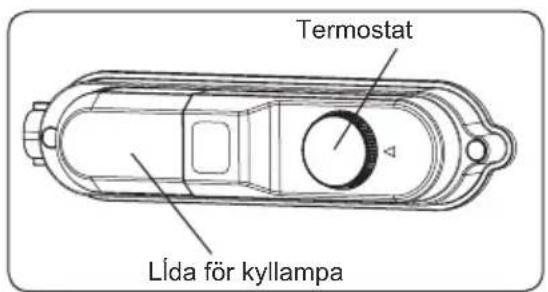

Termostat

Cartoon illustration of a hand washing a tooth near a rectangular object (no text or symbols)

Cartoon illustration of a smiling refrigerator with a hand pointing at it, next to a small bottle and a cup (no text or symbols)

Diagram of a multi-tiered storage unit with red X marks indicating no text or symbols

Cartoon illustration of a smiling book character and two small figures with ropes nearby (no text or symbols)

STRÖMKÄLLAN MÅSTE KOPPLAS UR.

Avfrostning

Simple line drawing of a metal beam or support structure with a notch (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

DEL 6. INNAN DU RINGER EFTER SERVICE

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT Operating the system correctly

Index

BEFORE USING THE APPLIANCE ....18

General warnings....18

Old and Out-Of-Order Fridges ......21

Safety warnings....21

Installing and operating your fridge....22

Before using your fridge....22

HOW TO OPERATE THE APPLIANCE....23

Thermostat setting 23

Warnings about temperature adjustments 23

FOOD STORAGE IN THE APPLIANCE....24

CLEANING AND MAINTENANCE....25

Defrosting....26

TRANSPORTATION AND CHANGING OF INSTALLATION

POSITION 26

BEFORE CALLING YOUR AFTER SALES SERVICE......27

Tips for saving energy....28

THE PARTS OF THE APPLIANCE AND THE

COMPARTMENTS......29

TECHNICAL DATA....30

INFORMATION FOR TEST INSTITUTES....30

CUSTOMER CARE AND SERVICE....30

BEFORE USING THE APPLIANCE

General warnings

Read this user manual carefully.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

⚠ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the instructions.

⚠️ If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and domestic applications such as:

-staff kitchen areas in shops, offices and other working environments.
-farm houses and by clients in hotels, motels and other residential type environments.
-bed and breakfast type environments;
-catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 10 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is

given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Old and Out-Of-Order Fridges

- If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

- Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Disposal of your old appliance

Pure diagram of a trash bin with no text, numbers, or symbols

This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local authority, domestic waste disposal service or the shop you have purchased the product from.

Please ask your local authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.

- This appliance is produced to be used in houses and it is only suitable for cooling / storing food. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case.

Safety warnings

- Do not connect your fridge to the mains electricity supply using an extension lead.

- Do not plug in damaged, torn or old plugs.

- Do not pull, bend or damage the cord.

Illustration showing three different techniques for connecting wires, no text or symbols present

- This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.

- Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.

- Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge and make sure that their tops are tightly closed.

- Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

• Secure any accessories in the fridge during transportation to prevent damage to the accessories.
• Do not use plug adapter.

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

• The operating voltage for your fridge is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

- Before connecting your Fridge Freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend that you consult a qualified electrician for assistance.

- The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

- Place your fridge where it will not be exposed to direct sunlight.

- Your fridge should never be used outdoors or exposed to rain.

- Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

- When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

- Do not place heavy items on the appliance.

- Clean the appliance thoroughly, especially the interior, before use (see Cleaning and Maintenance).

Cartoon illustration of a distressed container with arms and legs, holding a paper labeled 'KG' (no text or symbols beyond the label)

- The installation procedure into the kitchen unit is given in the Installation Manual. This product is intended to be used in proper kitchen units only.

- Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge after cleaning.

Before using your fridge

- When using your fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.

- Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

HOW TO OPERATE THE APPLIANCE

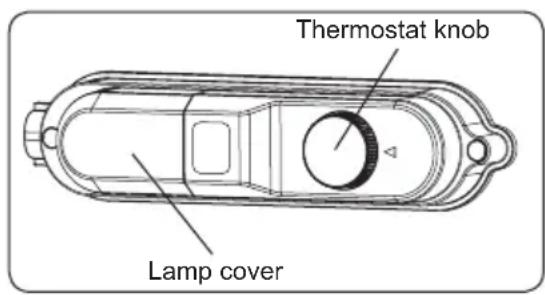

Thermostat setting

• The thermostat automatically regulates the inside temperature of the fridge. By rotating the knob from position 1 to 5, colder temperatures can be obtained.
• The “•” position shows thermostat is closed and no cooling will take place.
• For short-term storage of food in the fridge,

you can set the knob between minimum and medium positions (1-3).

- For long-term storage of food in the fridge, you can set knob to the medium position (3-4).

Note that: The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the fridge. If required, change the temperature setting.

• When you first switch on the appliance, you should ideally try to run it without any food in for 24 hours and not open the door. If you need to use it straight away, try not to store a large quantity of food inside it.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting in order not to damage the compressor.

LARDERS (without star rating): Larders (coolers) do not have a freezer compartment but can cool down to 4 - 6°C.

Warnings about temperature adjustments

• It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.
• This appliance is designed for use at an ambient temperature within the 16°C - 43°C range.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

FOOD STORAGE IN THE APPLIANCE

• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.
• We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.
• Store loose fruit and vegetable items in the crisper containers.
• Store loose fruit and vegetables in the crisper.
• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana, peach, apricot, fig etc.).
• Do not put wet vegetables into the refrigerator.
• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.
• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.
• Do not put food in front of the air flow passage.
• Consume packaged foods before the recommended expiry date.

NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

- For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to +4 °C.

- The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.

- Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.

- Meat, fish, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)

- To prevent cross contamination, meat products and fruit vegetables are not stored together.

- Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors.

The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment.

Food Maximum storage time How and where to store
Vegetables and fruits 1 week Vegetable bin
Meat and fish 2 - 3 days		Wrap in plastic foil, bags, or in a meat container and store on the glass shelf
Fresh cheese 3 - 4 days On the designated door shelf
Butter and margarine 1 week On the designated door shelf
Bottled products e.g. milk and yoghurt	Until the expiry date recommended by the producer	On the designated door shelf
Eggs	1 month	On the designated egg shelf
Cooked food	2 days	All shelves

PART 4. CLEANING AND MAINTENANCE

- Disconnect the unit from the power supply before cleaning.

- Do not clean the appliance by pouring water.

- Make sure that no water enters the lamp housing and other electrical components.

- The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

- Clean the accessories separately with soap and water Do not clean them in the dishwasher.

Diagram of a refrigerator with no text, numbers, or symbols present

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plugto the mains supply with dry hands.

- Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

Illustration of a hand cleaning a car grille with a tool (no text or symbols)

THE POWER SUPPLY MUST BE DISCONNECTED.

Defrosting

Technical line drawing of a mechanical component with an inset showing a magnified view of a hand holding a tool (no text or symbols present)

• Defrosting occurs automatically in the fridge during operation; the water is collected by the evaporation tray and evaporates automatically.
• The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the fridge instead of flowing out.
• You can also clean the drain hole by pouring 12 glass of water down it.

Replacing LED Lighting

If your fridge has LED lighting contact the help desk as this should be changed by authorized personnel only.

PART 5. TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and changing of Installation position

• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.

- Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper...) should be taken out or fixed with bands in order to prevent them from getting damaged.

Carry your fridge in the upright position.

Simple line drawing of two children playing a large board (no text or symbols)

BEFORE CALLING YOUR AFTER SALES SERVICE

If your fridge is not working properly, it may be a minor problem, therefore check the following.

The appliance does not operate,

Check if:

• There is a power failure.
- The mains plug is not plugged in properly, or is loose.
- The thermostat setting is on position “•”.
- The socket is defective. To check this, plug in another appliance that you know is working into the same socket.

The appliance performs poorly,

Check if:

• You have overloaded the appliance.
  • The door is not closed properly.
• There are not enough ventilation ducts in the kitchen unit as mentioned in the installation manual.

If there is noise:

The cooling gas which circulates in the fridge circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If you hear different sounds, check if:

• The appliance is installed firmly as described in the installation manual.
• Objects on the appliance are vibrating.

If there is water in the lower part of the fridge,

Check if:

The drain hole for water is not clogged (use defrost drain plug to clean the drain hole).

Recommendations

• When there is no power, to prevent any damage to the compressor, you should unplug the refrigerator. You should delay plugging in 5 – 10 minutes after power is restored.
• If you unplug the refrigerator for any reason you should wait at least 5 min to replug. This will avoid damage to the refrigerator's components.
• The cooling unit of your refrigerator is hidden at the rear of the appliance. Therefore, water droplets or icing may form on the rear surface of your fridge due to the operation of the compressor at specified intervals. This is normal, there is no need to perform a defrosting operation unless the icing is excessive.
• If you do not intend to use your fridge for a long time (e.g. in summer holidays), turn the thermostat to the «•» position. After defrosting, clean your fridge and leave the door open to prevent humidity and smells.
• If the problem persists after you have followed all the instructions above, please consult to the nearest Authorised Service Centre.

- The appliance you have purchased is designed for domestic use and can only be used at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.

Tips for saving energy

1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2. Allow warm food and drinks to cool down outside the appliance.
3. Cover drinks or other liquids when placing them in the appliance. Otherwise humidity increases in the appliance. Therefore, the working time gets longer. Also covering drinks and other liquids helps to preserve smell and taste.
4. Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
5. Keep the covers of the different temperature compartments (crisper, chiller ...etc) closed
6. Door gasket must be clean and pliable. Replace gaskets if worn.

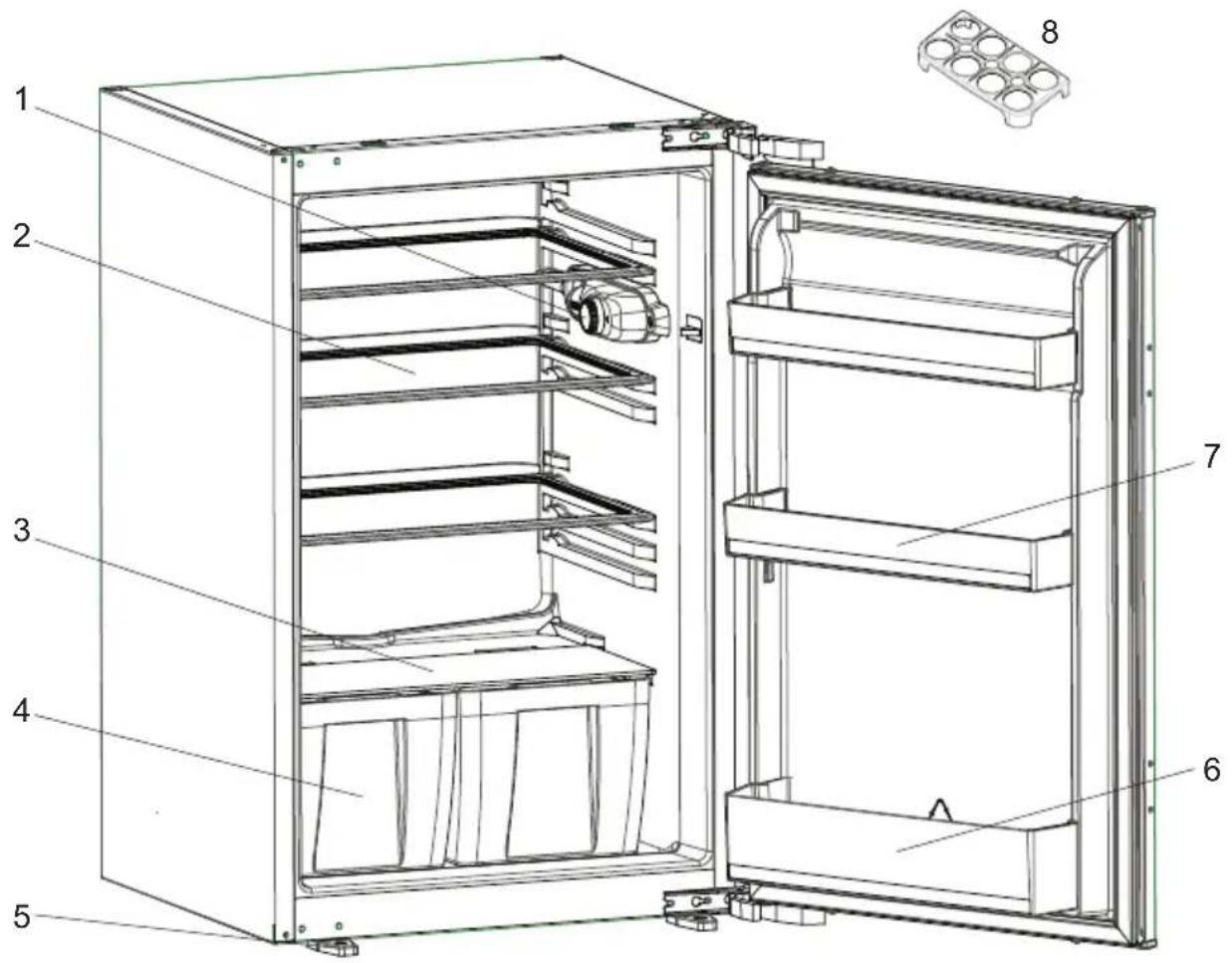

PART 7. THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1. Thermostat knob
2. Fridge shelves
3. Crisper cover
4. Crispers
5. Left & Right feet
6. Bottle shelf
7. Door shelves
8. Egg holder

General notes:

Fresh Food Compartment (Fridge):

Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.

TECHNICAL DATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

INFORMATION FOR TEST INSTITUTES

Installation and preparation of the appliance for any EcoDesign verification shall be compliant with EN 62552. Please contact the manufacturer for any other further information, including loading plans.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.

The information can be found on the rating plate. Subject to change without notice.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Visit our website to:

www.cylinda.se

Service

Vi har service i hela Sverige/ Nationwide service in Sweden

Besök www.cylinda.se / Visit www.cylinda.se

Ring 0771-25 25 00 (endast lokaltaxa) / Call 0771-25 25 00

Uppge / Declare

Maskintyp / Model code

Serienummer / Serial number

Inköpsdatum / Purchase date

Problembeskrivning / Problem description
