EBL-D1552G(BK) - Blender Elba - Free user manual and instructions

Product Type	Blender
Model	EBL-D1552G(BK)
Brand	Elba
Color	Black
Capacity	1.5 L
Power	600 W
Voltage	220-240 V, 50/60 Hz
Speed Settings	2 speeds + pulse
Jar Material	Plastic (BPA-free)
Blade Material	Stainless steel
Dimensions (HxWxD)	40 x 16 x 16 cm
Weight	2.5 kg
Cord Length	1.0 m
Dishwasher Safe Parts	Removable jar and lid (top rack)
Safety Features	Overload protection, non-slip feet, lock lid
Repairability Index	7.5 / 10
Spare Parts Available	Jar, blades, seal ring, lid
Warranty	2 years

Frequently Asked Questions - EBL-D1552G(BK) Elba

How do I clean the blender?

After use, fill the jar halfway with warm water and a drop of dish soap. Run the blender on pulse for 30 seconds, then rinse thoroughly. The jar and lid are dishwasher safe (top rack).

Can I blend hot liquids?

Allow hot liquids to cool to at least 60°C before blending. Never blend boiling liquids as pressure buildup may cause the lid to pop off.

The blender stops suddenly during use. What should I do?

This may be due to overload protection. Unplug the blender and let it cool for 15 minutes. Reduce the load and try again.

Can I crush ice with this blender?

Yes, use the pulse function in short bursts. Add ice cubes gradually and do not exceed the maximum capacity.

How to replace the blender jar?

Ensure the blender is unplugged. Lift the jar straight up from the base. To install, align the jar's base with the drive coupling and press down until it locks.Spare jars can be ordered from Elba.

Why does my blender leak from the bottom?

Check the seal ring under the jar. If damaged or not seated properly, replace it. Ensure the jar is correctly assembled.

What is the maximum capacity for dry ingredients?

For dry blending (e.g., grains), do not exceed 1 liter to avoid overloading the motor.

Can I use the blender to make hot soup?

Yes, but only if the soup is cooled to 60°C first. For hot soup, consider using an immersion blender instead.

How often should I replace the blades?

Blades should be replaced if they become dull or damaged. Under normal use, they last 1-2 years. Replacement blade sets are available.

Is the blender BPA-free?

Yes, the jar and all plastic parts are made from BPA-free materials, safe for food contact.

USER MANUAL EBL-D1552G(BK) Elba

Black and white photo of a ElBA blender with handle and control panel (no visible text or symbols)

ELBA

BLENDER

IMPORTANT SAFEGUARDS

When using this appliance, basic precautions should always be followed, including the following:

1. Read all instructions before using.
2. Do not operate the appliance with damaged power cord or plug, after the appliance malfunction, or if it is dropped or damaged in any manner. Return the appliance to the nearest authorized dealer or after-sales service centre for examination, repair, electrical or mechanical adjustment.
3. Do not use the appliance if the plug, the mains cord or other parts are damaged.
4. Do not let the power cord hang over edge of table or counter or hot surface.
5. Do not place the appliance on or near hot gas or electric burner, or in a heated oven.
6. Do not leave the appliance unattended while operating.
7. Do not touch the cutting edges of the blender blade unit when you clean it. They are very sharp and you could easily cut your fingers on them.
8. Do not operate the appliance for more than 3 minutes continuously at a time. If you have not finished processing after 3 minutes, switch off the appliance and let it cool down before you operate it again.
9. To prevent failure of the appliance, make sure that no food or liquids enter the connection point between the blade unit interface and the motor base.
10. To prevent spillage, do not put more than 1.0 litres of liquid in the glass jar, especially when you process at a "HIGH" speed.
11. Never reach into the glass blender with your fingers or an object while the appliance is running.
12. Never use any accessories or parts from other manufacturers or that ELBA does not specifically recommended.
13. Oversized foods or metal utensils must not be inserted into the glass jar as they may cause fire or risk of electric shock.
14. If foods stick to the wall of the glass jar, switch off the appliance and unplug it. Use a spatula to remove the foods from the wall.
15. Always make sure the jar cover is properly closed/assembled on the glass jar and the lid is inserted properly in the jar cover before you switch on the appliance.
16. Never immerse motor base in water or any other liquids nor rinse it under the tap. Use only a moist cloth to clean the motor base.
17. Close supervision is necessary when your appliance is being used near children or infirm persons.
18. Always unplug the appliance before you assemble, dissemble or make adjustment to any parts of the blender.
19. Do not operate the appliance for other than its intended use.
20. Do not use this appliance outdoors.
21. This appliance is for domestic use only.
22. This appliance is not intended for used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
23. Children should be supervised to ensure that they do not play with the appliance.
24. Save these instructions for future reference.

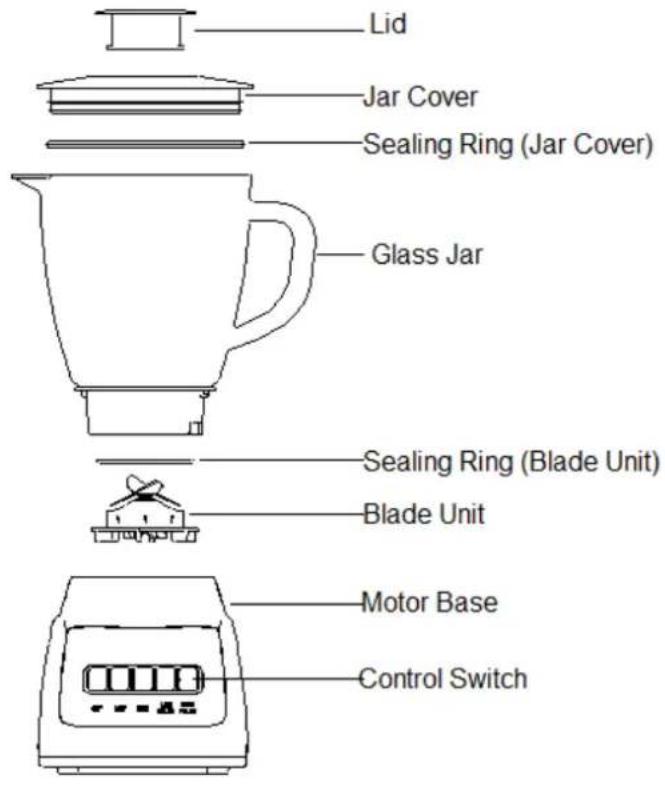

PRODUCT DESCRIPTION

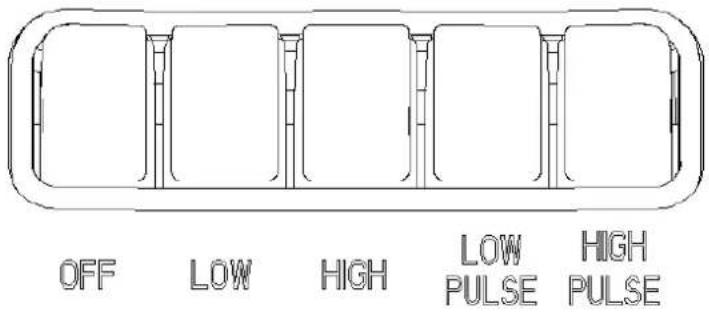

CONTROL PANEL

Control switch	Descriptions
OFF	No power at this stage.
LOW	This switch is best for mixing soft ingredients, preparing milkshake, and for easy cleaning. For cleaning, insert some clean water (never above the maximum level) to clean the glass.
HIGH	Best speed for preparing puree, smoothie and iced drink.
LOW PULSE	To dice, chop and prepare salsa.
HIGH PULSE	To grind, crush ice and grate.

SAFETY LOCK

This feature ensures that you can only switch on the appliance if you have properly assembled the glass jar on the motor base. When the glass jar is correctly assembled on the motor base, the jar seating will push the built-in safety lock on the motor base until it function.

* When moving or handling the blender, the whole unit cannot be tilted in order to prevent the glass jar from falling down.

OPERATING THE APPLIANCE

1. Unpack the appliance and place it on a flat horizontal counter top. Check all the parts whether all in good condition.
2. Clean the removable parts before using including the lid, jar cover and glass jar.
3. Make sure that the control switch is not pressed at "LOW", "HIGH", "LOW PULSE" or "HIGH PULSE" position.
4. Peeled or cored the fruits or vegetables and then cut it into small dices. Insert the ingredients into the glass jar. Usually, certain amount of purified water has to be added to facilitate the smooth running of the appliance. The proposition of the food and water should be 2:3. The amount of mixture should not exceed the maximum level as indicated on the jar.

WARNING: Never use boiling water or any other liquids to mix into the ingredients.

NOTE: Never let the appliance to operate empty.

1. Close the glass jar with jar cover. Mount the lid into the jar cover.
2. Insert the glass jar onto the motor base and secure it tightly until it clicks.
3. Power on the appliance and select the desired switch.
4. Press any switch at the control panel according to the food that needed to be blend (refer to the control panel descriptions) for guideline.
5. For quick or delicate blending tasks, press the "LOW PULSE" or "HIGH PULSE" and hold for a few seconds and then release, the appliance will reset to off position automatically. Operate several times until obtaining the result you wanted.
6. If you want to add ingredients while blending, slowly remove the lid from the jar cover and place the ingredients through the lid.

Technical line drawing of a mechanical component with a red arrow indicating direction (no text or symbols)

1. Always switch off the appliance by setting the control switch to "OFF" position before you open the jar cover.
2. To crush ice, add up to 6 ice cubes. If more ice is needed, remove the lid and add cubes one by one through the lid opening. When crushing ice or hard food, keep one hand firmly on the glass jar cover.
3. After the blending process is finished, press the "OFF" switch and power off the appliance. Unplug the plug from wall outlet after use.

TIPS FOR USING THE BLENDER

1. To achieve the best result when pureeing solid ingredients, place small portions into glass jar one by one instead of placing a large quantity all at once.
2. If you are processing solid ingredients, cut them into small pieces (2-3cm) first before putting them into the glass jar.
3. When mixing solid ingredients start off with a small amount of liquid. Gradually add more liquid through the opening of the lid.
4. Always place your hand on top of the blender when operating the appliance.
5. The function for "LOW PULSE" and "HIGH PULSE" are designed for short-time blending (a few seconds), which makes it easy to control the blending results.
6. Do not operate the appliance for more than 3 minutes continuously at a time. If you have not finished processing after 3 minutes, switch off the appliance and let it cool down before you operate it again.

CLEANING AND MAINTENANCE

1. Firstly, pour some warm soupy water into the glass jar. With the jar covered, press the "LOW" switch and let it operates for a few seconds and then empty the glass jar.
2. Unplug the appliance. Cleaning should only be carried out when the appliance is switched off and the plug is removed from the wall outlet.

NOTE: After the blending process, wash the removable parts immediately. Do not let the food or any other liquids dry on the jar assemble as this will make the cleaning difficult and residue accumulated may harden or degrade the sealing rings as time passes.

1. Remove the glass jar from the motor base by turning the glass jar anti-clockwise (figure 1).
2. Hold the jar handle and then remove the jar cover from the glass blender. Then, remove the lid for the jar cover (figure 2).
3. Reverse the glass jar and unlock the blade unit by turning clock-wise. After that, remove the seal ring (blade unit) (figure 3).
4. Wash the glass jar, blade unit and seal ring. Brush the blade with warm soupy water then rinse thoroughly under the tap. Beware of sharp blade and handle with care. Do not immerse the blade unit in water or any other liquids. Leave it dry upside down and away from children.
5. Wipe the motor base with a soft damp cloth and dry thoroughly. Remove the stubborn spots by rubbing with non-abrasive cleaner. If liquids spill on the motor base, first power off the appliance and remove the plug, wipe with a damp cloth and dry thoroughly.

CAUTION: Never immerse motor base in water or any other liquids nor rinse it under the tap. Use only a moist cloth to clean the motor base.

(Figure 1)

Simple line drawing of a blender with an upward arrow (no text or symbols)

(Figure 2)

(Figure 3)

Simple line drawing of a kitchen sink, a pitcher, and a small house (no text or symbols)

(Figure 4)

ENVIRONMENT-FRIENDLY DISPOSAL

You can help to protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.
