USER MANUAL SUB-PWRCORD-908 EATON

Reference Guide and Pricebook

Prices effective January 1, 2012

Eaton 9E

OVERVIEW OF REVISIONS

ADDED:

UPDATED:

REMOVED:

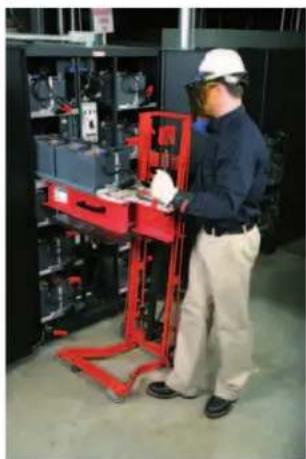

BATTERY REPLACEMENT

PRODUCT REGISTRATION

• Titles within the table of contents are linked to page
• To return to the TOC at anytime, click the blue TOC button in the upper-left corner of €
• Each section is also bookmarked for easy navigation

REFERENCE GUIDE AND PRICEBOOK

Table of Contents

Introduction

Input Plug and Output Receptacle Chart.... 3

Ordering Information, Parts, Accessories and Current List Pricing

Eaton Power Distribution, Monitoring and Enclosures

ePDUs 5
Eaton Automatic Transfer Switches 8
Eaton HotSwap Maintenance Bypass (MBP) 8
ePDU Cables 9
Eclipse Surge Suppressors 11
Enclosures....12
Environmental Rack Monitor (ERM) 13

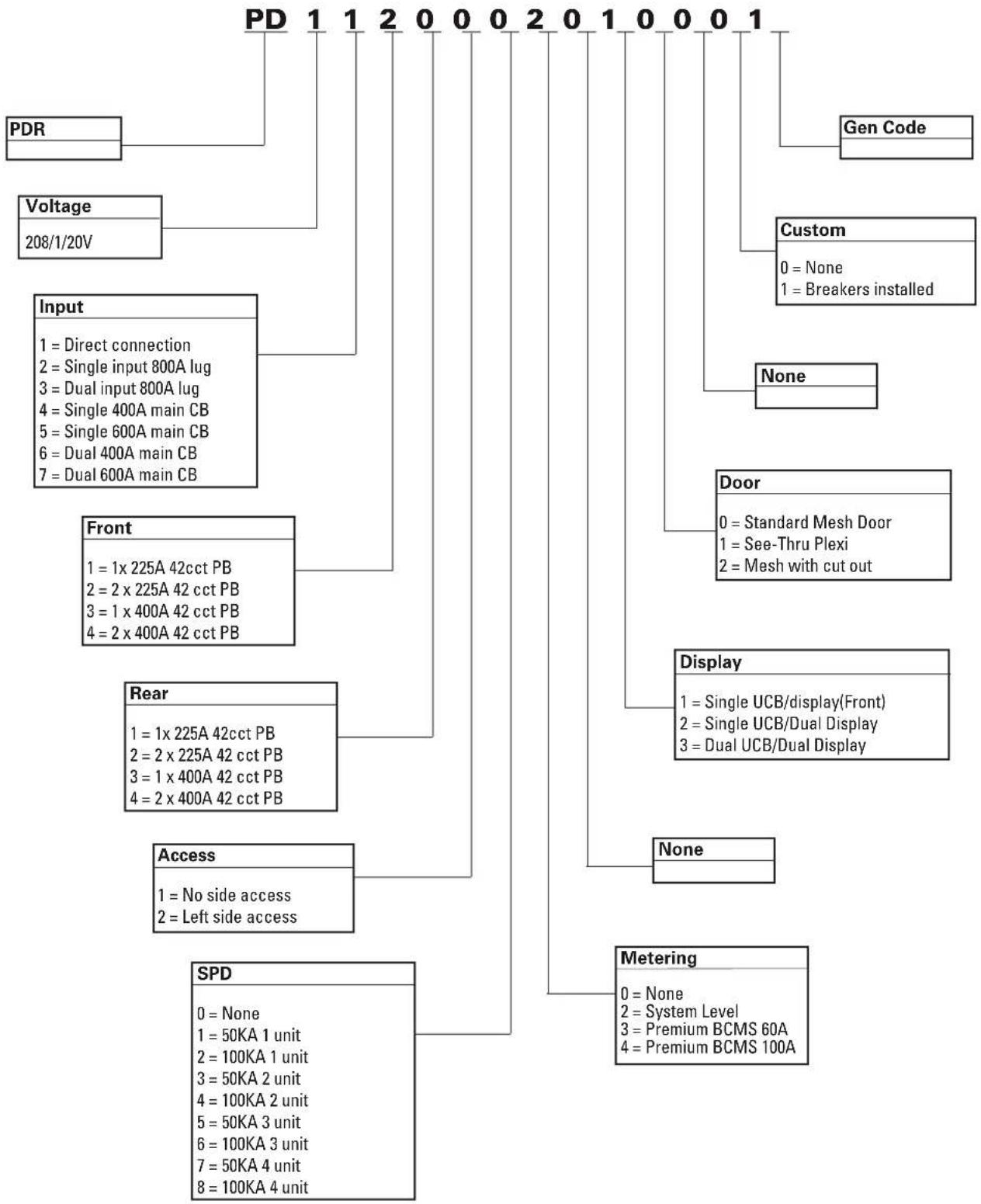

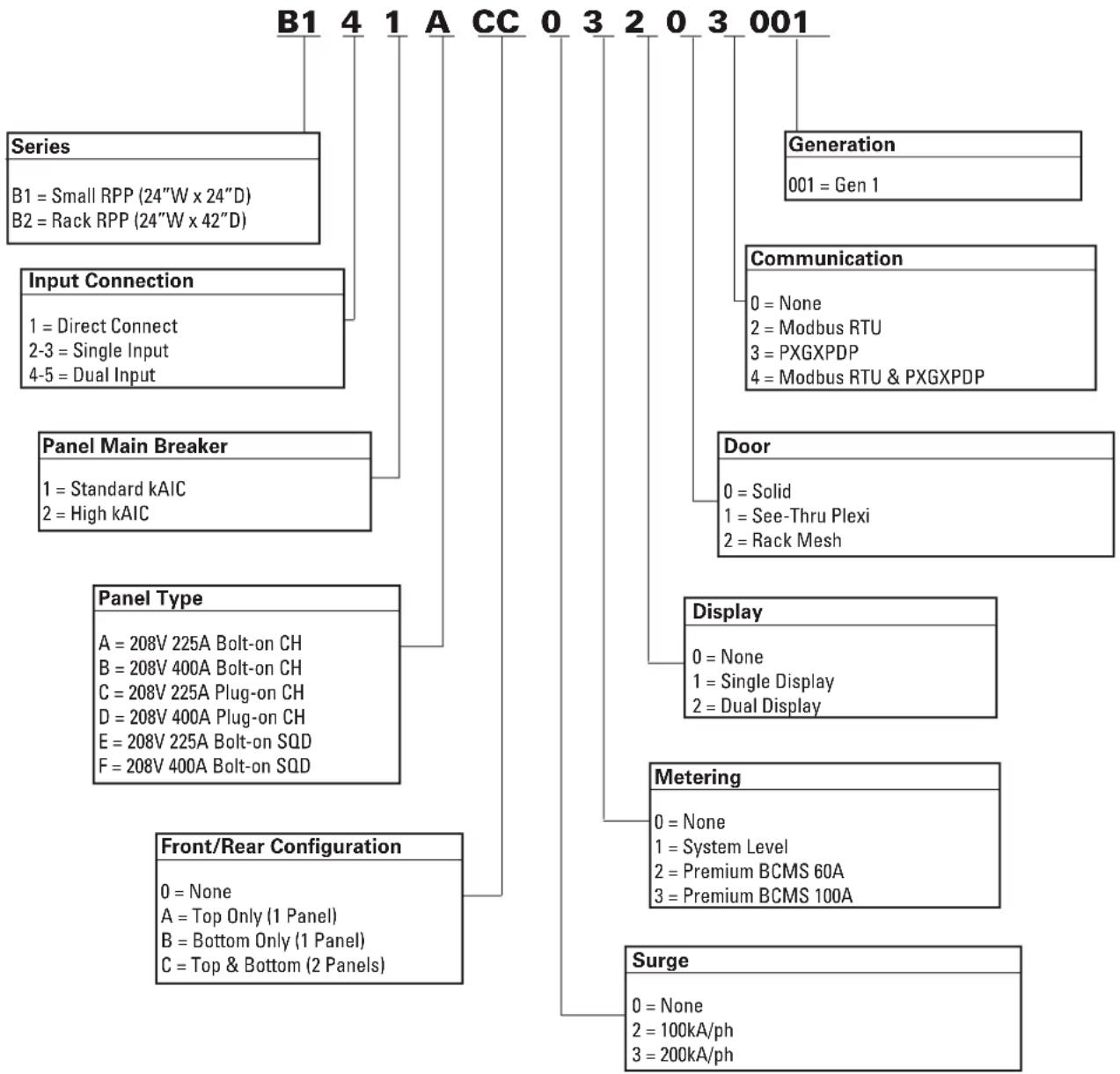

Remote Power Panel (RPP) 15
Power Distribution Rack (PDR) 19
Eaton Branch Circuit Breakers 21

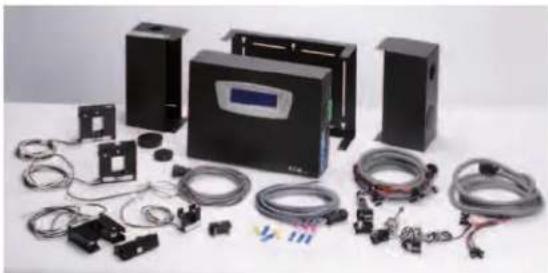

Eaton Energy Management System Upgrade Kit.... 22

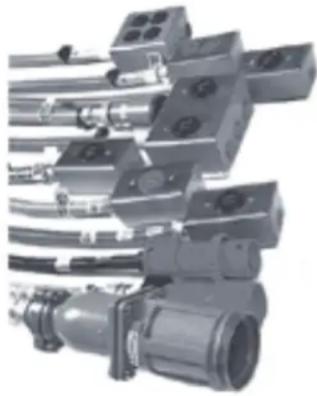

UL Listed Power Distribution Cables 23

Single-phase Products

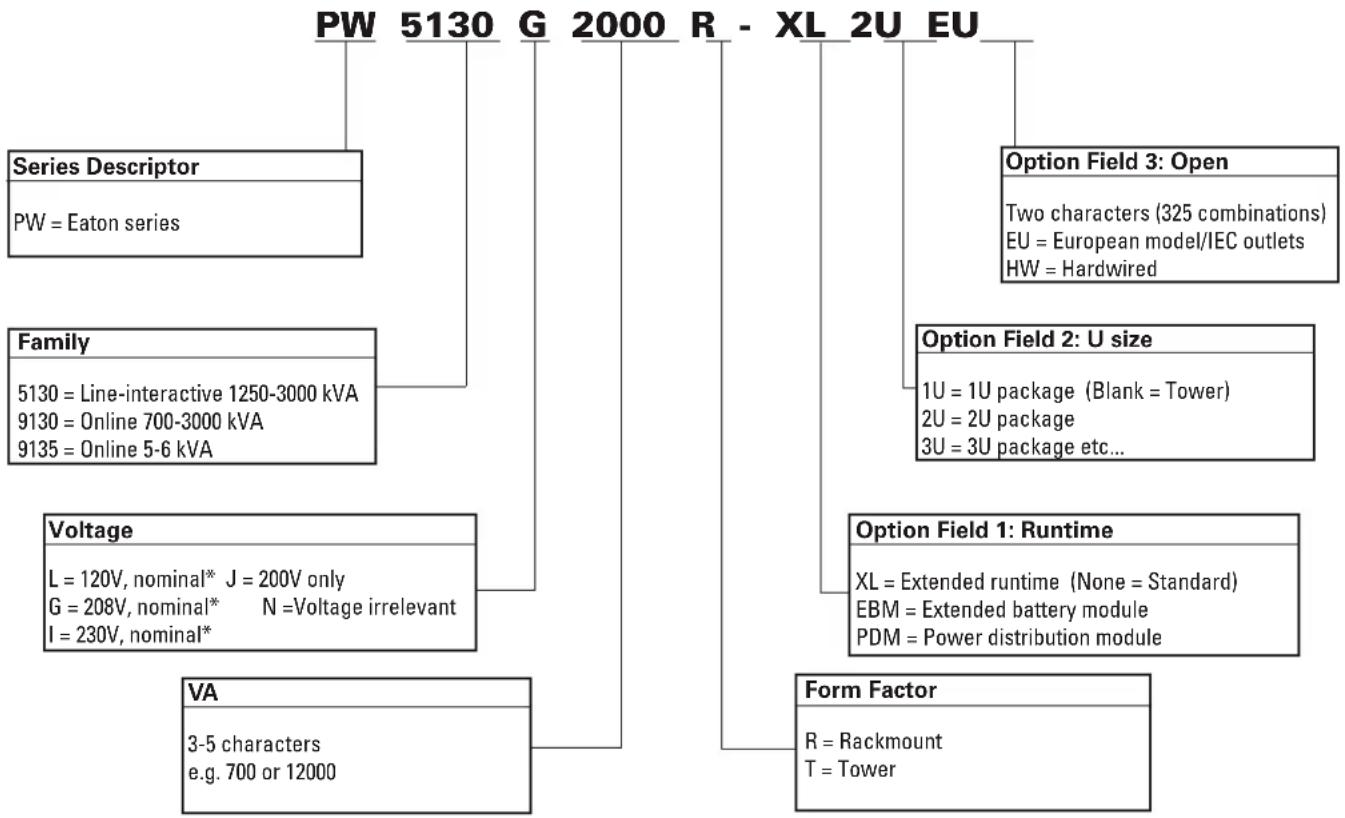

Catalog Number Ordering Instructions for Single-phase Products.... 26

Single-phase (Standby)

Eaton 3105 UPS (500–700 VA) 27
Eaton 3S UPS (550–750 VA)....28

Single-phase (Line-interactive)

Eaton 5110 UPS (500–1500 VA) 29
Eaton 5115 UPS Tower (500–1400 VA) 31
Eaton 5115 UPS Rack (500–1500 VA) 33

Eaton Evolution UPS (650–2000 VA) 35

Eaton 5125 UPS Tower (1000–2200 VA) 38
Eaton 5130 UPS Rack/Tower (1250–3000 VA) 39

Eaton 5PX UPS Rack/Tower (1000–3000 VA) 41

Eaton Evolution S UPS (1250–3000 VA) 43

Eaton 5125 UPS Rack (5000–6000 VA) 45

Single-phase (Online)

Eaton EX UPS (700–3000 VA) 47
Eaton 9130 UPS Rack (700–3000 VA) 51
Eaton 9130 UPS Tower (700–3000 VA) 54
Eaton 9135 UPS Rack/Tower (5000–6000 VA)...... 57

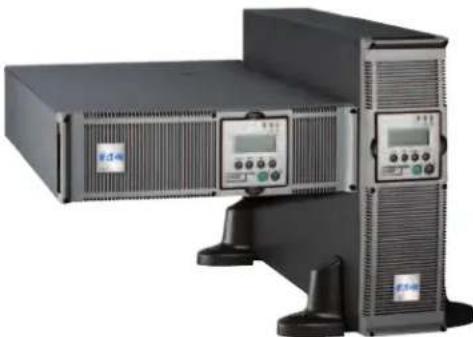

Eaton MX UPS (5000 VA, upgradeable to 20,000 VA) 59
Eaton 9140 UPS Rack (7.5–10 kVA) 62

Eaton EX RT UPS (5–11 kVA) 64

Eaton 9155 UPS (8–15 kVA) 67
Eaton 9170+ UPS Rack/Tower (3–18 kVA)....71

(table of contents continued on next page)

REFERENCE GUIDE AND PRICEBOOK

Table of Contents (continued)

Ordering Information, Parts, Accessories and Current List Pricing (continued)

Series FERRO

Eaton FERRUPS FE UPS 60 Hz (500–3100 VA) 76
Eaton FERRUPS UPS Rack Series (1.4 kVA–7 kVA) 78
Eaton FERRUPS UPS External Options & Accessories 80

DC Power System

Eaton Enterprise DC Power System 82
Eaton Access DC Power System 84
Eaton DV2 DC Power System 88
Eaton Matrix 2000 Standalone Inverter 90

Three-phase (Double-conversion)

Eaton BladeUPS (12–60 kW) 91
Eaton 9355 UPS (10–15 kVA) 101
Eaton 9355 UPS (20–30 kVA) 104
Eaton Emergency Lighting UPS (10–30 kVA) 107
Eaton 9E UPS (20–60 kVA) 108
Eaton 9390IT UPS (40–160 kVA) 113

Additional Products

Ultra-isolator Noise Suppressors 118
Power Conditioners 119

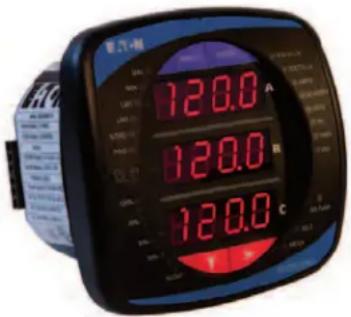

Metering Products 122

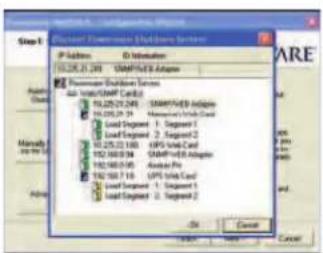

Software Products 135
Connectivity Products 138
PSPD Series 142
PSPV Series 147
Surge Protection Devices 148
Distributed Surge Protection.... 150

Services

Single-phase Service Plans Overview 151
Single-phase Service Plans 152
Three-phase Service Plans Overview 153
Three-phase Service Plans 153
Time and Material Service Rate Schedule 159
eNotify Remote Monitoring 160
Eaton UPS Batteries 160

RMA Policy and Product Warranties

Sales Returned Merchandise Authorization (RMA) Policy 161
Product Warranty Statements 162

Notes: Due to continuing product improvement programs, all specifications and prices are subject to change without notice.

With the exception of batteries, any UPS parts or parts kit pricing that is included in this reference guide is based on a concurrent purchase of a new unit(s). Pricing for parts or parts kits purchases made separately from a concurrent unit purchase must be obtained from the Eaton Customer Support Center at 800.356.5737.

RECEPTACLE CHART

Input Plug and Output Receptacle Chart

5-15R 5-15P 5-20R 5-20P

L5-20R L5-20P L5-30R L5-30P

6-15R 6-15P L6-20R L6-20P

Close-up of a white electrical socket with black wires and a small arched component (no text or symbols visible)

Circular mechanical component with blue concentric ring and black outer ring (no visible text or symbols)

L6-30R L6-30P L14-30R L14-30P

Circular mechanical component with orange and black concentric rings (no visible text or symbols)

Close-up of a black and white electrical plug with three leads (no visible text or symbols)

IEC-320-C13 (female)

IEC-320-C14 (male)

IEC-320-C19 (female)

IEC-320-C20 (male)

IEC-309, 16A IEC-309, 32A

Close-up of a blue electrical outlet socket with two gold pins (no text or symbols visible)

R indicates receptacle
P indicates plug
L indicates locking plug or receptacle

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Eaton ePDU Catalog Numbering System

Eaton's smart part numbers help our customers understand our numbering system.

Follow the example below to see what the letters and numbers mean within our ePDU catalog numbers.

Eaton has introduced new part numbers to our product link. Please see details below:

ePBZ

BZ = Basic

eMA

MA = Managed

eAM

AM = Advanced Monitored

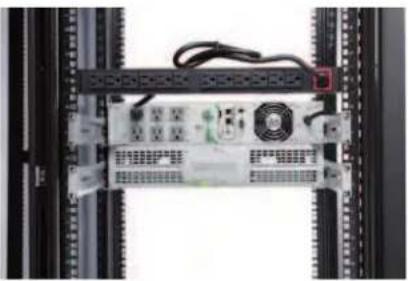

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES ePDUs

ePDUs feature the broadest portfolio in the industry across all power densities and technologies to satisfy the needs of every data center.

• Vertical OU or horizontal 1U/2U configurations
- Five technologies: Basic, Monitored, Advanced Monitored, Switched and Managed
- Custom designs upon request

ePDUs

Catalog Max. Cord Input Output Dimensions List
Number	kW	Function	Length (ft)	Plug	Receptacles	(H x W x D, inches)	Price
Basic ePDUs-Designed for reliable and cost effective power distribution; basic ePDUs have the form factor and receptacle choices to meet the needs of demanding data center architects.
Horizontal Mount Models
ePBZ78	2.88	BA	15	L5-30P	(20) 5-20R	1.7 x 17.0 x 3.5	259
ePBZ79	4.99	BA	15	L6-30P	(16) C13, (4) C19	1.7 x 17.0 x 5.1	259
ePBZ82	1.92	BA	15	L5-20P/5-20P*	(12) 5-20R	1.7 x 17.3 x 2.3	148
ePBZ83	1.44	BA	15	5-15P	(12) 5-15R	1.7 x 17.3 x 2.3	99
ePBZ84	2.88	BA	10	L5-30P	(10) 5-20R	1.7 x 17.0 x 3.5	226
ePBZ85	1.92	BA	10	5-20P	(12) 5-20R	1.7 x 17.3 x 2.3	119
ePBZ86	1.44	BA	10	5-15P	(12) 5-15R	1.7 x 17.3 x 2.3	99
ePBZ88	3.33	BA	6	C20	(10) C13, (2) C19	1.7 x 19.0 x 2.4	129
ePBZ91	4.99	BA	10	L6-30P	(10) C13	1.7 x 17.0 x 3.5	209
ePBZ94	4.99	BA	6	L6-30P	(6) C19	1.7 x 19.0 x 2.4	229
ePBZ95	3.33	BA	6	L6-20P	(12) C13, (1) C19	1.7 x 19.0 x 2.4	129
ePBZ99	1.92	BA	6	L5-20P	(12) 5-20R	1.7 x 19.0 x 2.4	119
EFLXI3000R-PDU1UIEC	3.33	BA	3	C20	(12) C13, (1) C19	1.7 x 17.3 x 2.4	149
EFLXL1500R-PDU1U	1.44	BA	3	5-15P	(12) 5-15R	1.7 x 17.3 x 2.4	89
EFLXL2000R-PDU1U	1.92	BA	3	5-20P	(12) 5-20R	1.7 x 17.3 x 2.4	99
EFLXL2000R-PDU1UL	1.92	BA	3	5-20P	(5) L5-20R	1.7 x 17.3 x 2.4	129
PW101BA1U140	1.44	BA	9	5-15P	(12) 5-15R	1.7 x 19.0 x 7.0	199
PW102BA1U158	1.92	BA	9	5-20P	(12) 5-20R	1.7 x 19.0 x 7.0	229
PW102BA1U159	1.92	BA	9	L5-20P	(12) 5-20R	1.7 x 19.0 x 7.0	229
PW103BA1U190	2.88	BA	9	L5-30P	(12) 5-20R	1.7 x 19.0 x 7.0	259
PW103BA1U191	3.33	BA	9	L6-20P	(12) C13	1.7 x 19.0 x 7.0	279
PW103BA1U405	3.33	BA	9	C20	(16) C13	1.7 x 19.0 x 7.0	229
PW103BA1U406	4.99	BA	9	L6-30P	(16) C13	1.7 x 19.0 x 7.0	398
PW105BA1U163	4.99	BA	9	L6-30P	(12) C13	1.7 x 19.0 x 7.0	349
PW105BA1U192	4.99	BA	9	L6-30 P	(6) C13, (4) C19	1.7 x 19.0 x 7.0	349
PW105BA1U404	4.99	BA	9	L14-30P	(12) 5-15R	1.7 x 19.0 x 7.0	446
PW105BA2U420	4.99	BA	9	L6-30P	(4) L6-20R	3.4 x 19.0 x 6.0	579
PW314BA1U193	14.4	BA	9	CS8365	(6) C19	1.7 x 17.0 x 7.0	669
Vertical Mount Models
ePBZ71	1.92	BA	15	5-20P/L5-20P*	(30) 5-20R	72.0 x 1.5 x 1.5	279
ePBZ72	1.92	BA	15	5-20P/L5-20P*	(18) 5-20R	48.0 x 1.5 x 1.5	209
ePBZ73	1.44	BA	15	5-15P	(18) 5-15R	48.0 x 1.5 x 1.5	149
ePBZ74	1.92	BA	15	5-20P/L5-20P*	(14) 5-20R	24.0 x 1.5 x 1.5	169
ePBZ75	1.44	BA	15	5-15P	(14) 5-15R	24.0 x 1.5 x 1.5	119
ePBZ77	1.92	BA	15	L5-20P/5-20P	(24) 5-20R	60.0 x 1.5 x 1.5	219
ePBZ80	4.99	BA	10	L6-30P	(30) C13	52.9 x 1.9 x 2.1	299
ePBZ89	1.44	BA	6	C14	(16) C13	28.0 x 2.2 x 1.9	99
ePBZ90	2.88	BA	15	L5-30P	(24) 5-20R	40.0 x 1.9 x 2.1	269
ePBZ92	4.99	BA	6	L6-30P	(20) C13, (4) C19	42.0 x 2.2 x 1.9	279
ePBZ93	3.33	BA	6	L6-20P	(20) C13, (4) C19	42.0 x 2.2 x 1.9	229
ePBZ96	1.92	BA	6	L5-20P	(24) 5-20R	60.0 x 1.5 x 1.5	199
ePBZ97	1.92	BA	6	5-20P	(24) 5-20R	60.0 x 1.5 x 1.5	149
ePBZ98	1.44	BA	6	5-15P	(18) 5-15R	48.0 x 1.5 x 1.5	99
PW103BAOU237	3.33	BA	9	L6-20P	(24) C13, (4) C19	66.0 x 1.9 x 2.0	499
PW103BAOU257	2.88	BA	9	L5-30P	(24) 5-20R	66.0 x 1.9 x 2.0	399
PW105BAOU239	4.99	BA	9	L6-30P	(24) C13, (4) C19	66.0 x 1.9 x 2.0	499
PW105BAOU412	4.99	BA	9	L14-30P	(12) 5-15R	10.0 x 7.8 x 3.0	189
PW105BAOU421	4.99	BA	9	L14-30P	(24) 5-20R	66.0 x 1.9 x 2.0	599
PW306BAOU241	5.76	BA	9	L21-20P	(30) 5-20R	66.0 x 1.9 x 2.0	499
PW306BAOU244	5.76	BA	9	L21-20P	(30) C13, (6) C19	66.0 x 1.9 x 2.0	499
PW306BAOU246	5.76	BA	9	L21-20P	(18) 5-20R, (6) L6-30R	66.0 x 1.9 x 2.0	499
PW309BAOU409	8.65	BA	9	L21-30P	(24) 5-20R	66.0 x 1.9 x 2.0	658
PW314BAOU251	14.4	BA	9	CS8365	(24) C13, (4) C19, (2) L6-30R	66.0 x 1.9 x 2.0	749
PW314BAOU253	14.4	BA	9	CS8365	(30) C13, (6) C19	66.0 x 1.9 x 2.0	$1,049

* These units ship with an adapter allowing for 5-20P input plug.

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

ePDUs (continued)

ePDUs (continued)

Catalog Max. Cord Input Output Dimensions List
Number	kW	Function	Length (ft)	Plug	Receptacles	(H x W x D, inches)	Price
Monitored ePDUs-Designed for high-density, mission-critical server applications, provides maximum power for both standard and blade servers. Monitored ePDUs provide circuit level amperage metering through both a local digital motor and othemet network capabilities. This technology allows the data center manager complete access to power information.
Horizontal Mount Models
PW101MI1U221	1.44	MI	9	5-15P	(12) 5-15R	1.7 × 17.0 × 7.0	399
PW101MI1U403	1.44	MI	9	5-15P	(12) 5-20R	1.7 \times 17.0 \times 7.0	457
PW102MI1U160	1.92	MI	9	L5-20P	(12) 5-20R	1.7 × 17.0 × 7.0	469
PW103MI1U161	2.88	MI	9	L5-30P	(12) 5-20 R	1.7 \times 17.0 \times 7.0	529
PW103MI1U162	3.33	MI	9	L6-20P	(12) C13	1.7 × 17.0 × 7.0	439
PW105MI1U164	4.99	MI	9	L6-30P	(12) C13	1.7 \times 17.0 \times 7.0	649
PW105MI1U165	4.99	MI	9	L6-30P	(6) C13, (4) C19	1.7 × 17.0 × 7.0	599
PW105MI2U402	4.99	MI	9	L6-30P	(20) C13	3.4 \times 19.0 \times 7.0	699
PW317MI2U141	17.29	MI	9	IEC30960 460P9W	(12) C19	3.4 × 19.0 × 9.5	1,349
Vertical Mount Models
PW105AM0U411	4.99	MI	9	L6-30P	(14) C13, (2) C19	66.0 \times 3.5 \times 2.0	1,066
PW309AM0U410	8.65	MI	9	L21-30P	(21) C13, (3) C19	66.0 × 3.5 × 2.0	1,163
PW101MI0U233	1.44	MI	9	5-15P	(28) 5-15R	66.0 \times 1.9 \times 2.0	449
PW102MI0U234	1.44	MI	9	5-20P	(24) 5-20R	66.0 × 1.9 × 2.0	469
PW102MI0U235	1.92	MI	9	L5-20P	(24) 5-20 R	66.0 \times 1.9 \times 2.0	479
PW103MI0U236	2.88	MI	9	L5-30P	(24) 5-15 R	66.0 × 1.9 × 2.0	529
PW103MI0U238	3.33	MI	9	L6-20P	(24) C13, (4) C19	66.0 \times 1.9 \times 2.0	579
PW105MI0U240	4.99	MI	9	L6-30P	(24) C13, (4) C19	66.0 × 1.9 × 2.0	549
PW105MI0U255	4.99	MI	9	L14-30P	(24) C13, (4) C19, (4) 5-20R	66.0 \times 1.9 \times 2.0	699
PW306MI0U242	5.76	MI	9	L21-20P	(30) 5-20R	66.0 × 1.9 × 2.0	649
PW306MI0U243	5.76	MI	9	L21-20P	(24) C13, (3) C19, (6) 5-20R	66.0 \times 1.9 \times 2.0	649
PW306MI0U245	5.76	MI	9	L21-20P	(36) C13, (6) C19	66.0 × 1.9 × 2.0	649
PW306MI0U247	5.76	MI	9	L21-20P	(18) 5-20R, (6) L6-30R	66.0 \times 1.9 \times 2.0	649
PW306MI0U408	5.76	MI	9	L21-20P	(30) 5-15R	66.0 × 1.9 × 2.0	675
PW309MI0U248	8.65	MI	9	L21-30P	(24) C13, (3) C19, (6) 5-20R	66.0 \times 1.9 \times 2.0	899
PW309MI0U250	8.65	MI	9	L21-30P	(36) C13	66.0 × 1.9 × 2.0	899
PW309MI0U256	8.65	MI	9	L21-30P	(30) C13, (6) C19	66.0 \times 1.9 \times 2.0	899
PW314MI0U252	14.40	MI	9	CS8365	(24) C13, (4) C19, (2) L6-30R	66.0 × 1.9 × 2.0	1,349
PW314MI0U254	14.40	MI	9	CS8365	(30) C13, (6) C19	66.0 \times 1.9 \times 2.0	1,099
PW317MI0U222	17.29	MI	9	IEC309-60	(12) C13, (12) C19	66.0 × 2.0 × 4.0	$1,799

Switched ePDUs-for receptacle level control choose switched ePDUs, which allow the user to remote reboot or lockout individual receptacles. Switched ePDUs also employe local meters as well as networking capability via either Ethernet or serial connections. Local LEDs show the status of receptacles and an accessories port allows for temperature and humidity probes to manage local environmental conditions.

Horizontal Mount Models
PW103SW2U413	3.33	SW	9	C20	(8) C13	1.7 × 19.0 × 9.5	749
PW103SW2U414	3.33	SW	9	C20	(8) 5-15R	1.7 \times 19.0 \times 9.5	749
PW105SW2U223	4.99	SW	9	L6-30P	(20) C13	1.7 × 19.0 × 9.5	1,399
PW105SW2U415	4.99	SW	9	L6-30P	(20) C13, (4) C19	1.7 \times 19.0 \times 9.5	1,399
Vertical Mount Models
PW101SW0U224	1.44	SW	9	5-15P	(16) 5-15R	68.0 × 1.9 × 2.0	949
PW102SW0U150	1.92	SW	9	L5-20P	(8) 5-15R	42.0 \times 1.9 \times 2.0	779
PW102SW0U151	1.92	SW	9	L5-20P	(24) 5-15R	66.0 × 1.9 × 2.0	949
PW103SW0U152	2.88	SW	9	L5-30P	(16) 5-15R	66.0 \times 1.9 \times 2.0	999
PW103SW0U153	3.33	SW	9	L6-20P	(24) C13	66.0 × 1.9 × 2.0	949
PW105SW0U154	4.99	SW	9	L6-30P	(16) C13	66.0 \times 1.9 \times 2.0	999
PW306SW0U155	5.76	SW	9	L21-20P	(24) 5-15R	66.0 × 1.9 × 2.0	1,199
PW306SW0U156	5.76	SW	9	L21-20P	(24) C13	66.0 \times 1.9 \times 2.0	1,199
PW309SW0U178	8.65	SW	9	L21-30P	(24) C14	66.0 × 1.9 × 2.0	1,199
PW317SW0U400	17.29	SW	9	IEC 60309P 3P + PE	(18) C13, (6) C19	66.0 \times 2.0 \times 4.0	2,199
PW317SW0U401	17.29	SW	9	IEC 60309 460P9W	(12) C13, (12) C19	66.0 × 2.0 × 4.0	$2,199

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

ePDUs (continued)

ePDUs (continued)

Catalog Max.	Cord Input	Output	Dimensions	List
Number		kW	Function	Length (ft)	Plug	Receptacles	(H x W x D, inches)	Price

Advanced Monitored ePDUs-Outlet level monitoring of voltage, current, power and energy (KWH). Provides necessary measurements to calculate Level 3 PUE and to run capacity /usage analytics. Advanced local display and color coded silk screen.

Vertical Mount Models

eAM001	5.8	AM	10	L6-30P	(20) C13, (4) C19	68.0 × 2.2 × 2.6	1,030
eAM002	5.8	AM	10	L21-20P	(21) C13, (3) C19	60.0 \times 2.2 \times 2.6	1,170
eAM003	12.6	AM	10	CS8365C	(21) C13, (3) C19	68.0 × 2.2 × 2.6	1,420
eAM004	8.6	AM	10	L21-30P	(21) C13, (3) C19	68.0 \times 2.2 \times 2.6	1,420
eAM005	17.3	AM	10	IEC309 48A	(21) C13, (3) C19	72.4 × 2.2 × 2.6	2,240
eAM008	3.3	AM	10	C20	(20) C13, (4) C19	60.0 \times 2.2 \times 2.6	920

Managed ePDUs—includes outlet level switching to power cycle (reboot) locked servers or turn off unused outlets. Outlet level monitoring of voltage, current, power and energy (KWH). Provides necessary measurements to calculate Level 3 PUE and to run capacity /usage analytics.

Vertical Mount Models

eMA006	5.8	MA	10	L21-20P	(21) C13, (3) C19	60.0 x 2.2 x 2.6	1,300
eMA007	12.6	MA	10	CS8365C	(21) C13, (3) C19	68.0 x 2.2 x 2.6	1,570
eMA009	17.3	MA	10	IEC309 48A	(12) C13, (12) C19	72.4 x 2.2 x 2.6	2,470
eMA010	5.8	MA	10	L6-30P	(20) C13, (4) C19	68.0 x 2.2 x 2.6	1,150
eMA011	8.6	MA	10	L21-30P	(21) C13, (3) C19	68.0 x 2.2 x 2.6	1,570
eMA012	3.3	MA	10	L6-20P	(20) C13, (4) C19	60.0 x 2.2 x 2.6	1,020
eMA013	11.5	MA	10	IEC309 16A	(12) C13, (12) C19	68.0 x 2.2 x 2.6	1,720
eMA014	17.3	MA	10	IEC309 24A	(12) C13, (12) C19	72.4 x 2.2 x 2.6	2,160

Environmental Probes

Catalog Number	Description	Price
EMP001	Environmental Monitoring Probes for AM and MA units	$99

Accessories

Catalog Number	Description	Price
KBLT01	Plug Restraint Cable Tray for AM and MA units	$79

FlexPDU plug/amp rating UPS model (North American only)

15	Eaton Evolution Rack UPS, 650–1550 VA
	Eaton Evolution S Rack/Tower UPS, 1250 VA
	Eaton 5PX Rack/Tower UPS, 1000-1500 VA
	Eaton 9130 Rack UPS, 700–1500 VA
	Eaton EX Rack UPS, 1000–1500 VA
20	Eaton Evolution Rack/Tower UPS, 2000 VA
	Eaton Evolution S Rack/Tower UPS, 1750-3000 VA
	Eaton 5PX Rack/Tower UPS, 2200-3000 VA
	Eaton 9130 Rack UPS, 2000-3000 VA
	Eaton EX Rack/Tower UPS, 2200-3000 VA

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Eaton Automatic Transfer Switches

eATS (Automatic Transfer Switch) and STS (Source Transfer Switch) ePDUs—Designed for switching non-phase synchronized AC power sources, the automatic transfer switch ePDUs' intelligent circuitry monitors both inputs, providing a fast switch transfer from primary to secondary source power critical equipment without interruption. These ePDUs assure the highest level of redundancy to mission-critical applications.

• 1U configurations available
- Custom designs upon request

eATS (Automatic Transfer Switch) and STS (Source Transfer Switch) ePDUs

Catalog Number	Max. kW	Function	Cord Length (ft)	Input Plug	Output Receptacles	Dimensions (H x W x D, inches)	List Price
Horizontal Mount Models
PULSTS1400R-1U	-	AT	-	(2) 5-15P	(6) 5-15R	1.7 × 19.0 × 9.8	369
PULSTS16AMPR-1U	-	AT	-	(2) C20	(6) C13, (1) C19	1.7 \times 16.9 \times 9.8	449
PWATSL520004	1.92	AT	9	(2) L5-20P	(8) 5-20R	1.7 × 19.0 × 7.0	699
PWATSL530005	2.88	AT	9	(2) L5-30P	(8) 5-20R	1.7 \times 19.0 \times 7.0	749
PWATSL530007	2.88	AT	9	(2) L5-30P	(1) L5-30R	1.7 × 19.0 × 7.0	749
PWATSL630006	4.99	AT	9	(2) L6-30P	(12) C13	1.7 \times 19.0 \times 7.0	799
PWATSL630008	4.99	AT	9	(2) L6-30P	(1) L6-30R	1.7 × 19.0 × 7.0	749
PWATSS515002	1.44	AT	9	(2) 5-15P	(8) 5-15R	1.7 \times 19.0 \times 7.0	599
PWATSS520003	1.92	AT	9	(2) 5-20P	(8) 5-20 R	1.7 × 19.0 × 7.0	649
PWATSSC20001	3.33	AT	-	(2) C20	(8) C13, (1) C19	1.7 \times 19.0 \times 7.0	599

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Eaton HotSwap Maintenance Bypass (MBP)

HotSwap MBP—Facilitating hot-swappable UPS replacement from the rack—the HotSwap MBP is also ideal when exchanging a faulty unit or upgrading to a new UPS. The HotSwap MBP offers receptacles in 5-15R and 5-20R.

• Gain additional receptacles on UPSs
- Provide service continuity during battery replacement, UPS maintenance or upgrade
- Ease installation with flexible mounting options (rear panel, the top, on the left or on the right of the UPS (depending on the UPS model)
- Accommodate most space constraints with minimal depth 1U form factor

Electrical panel with multiple circuit breakers and terminal blocks (no visible text or symbols)

HOTSWAP MBP

Catalog Max. Cord Input Output Dimensions
Number	kW	Function	Length	Connection	Receptacles (Quantity)	(H x W x D, inches)	List Price
EHBPL1500R-PDU1U	1.44	BA	3'	5-15P	(6) 5-15R	2.1 x 3.8 x 17.3	230
EHBPL2000R-PDU1U	1.92	BA	3'	5-20P	(6) 5-15R	2.1 x 3.8 x 17.3	275
EHBPL3000R-PDU1U	2.88	BA	3'	L5-30P	(5) 5-20R	2.1 x 3.8 x 17.3	$400

HotSwap MBP	UPS model (North American only)
15	Eaton Evolution Rack UPS, 650–1550 VA
	Eaton Evolution S Rack/Tower UPS, 1250 VA
	Eaton 5PX Rack/Tower UPS, 1000-1500 VA
	Eaton 9130 Rack UPS, 700–1500 VA
	Eaton EX Rack UPS, 1000–1500 VA
20	Eaton Evolution Rack/Tower UPS, 2000 VA
	Eaton Evolution S Rack/Tower UPS, 1750 VA
	Eaton 5PX Rack/Tower UPS, 2200 VA
	Eaton 9130 Rack UPS, 2000 VA
	Eaton EX Rack/Tower UPS, 2200 VA
30	Eaton Evolution S Rack/Tower UPS, 2500–3000 VA
	Eaton 5PX Rack/Tower UPS, 3000 VA
	Eaton 9130 Rack UPS, 2500–3000 VA
	Eaton EX Rack/Tower UPS, 3000 VA

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

ePDU Cables

• Adapters to enable equipment with disparate input/output receptacles to work together
• Jumpers to connect two pieces of equipment without cluttering up the cable arrangement
• Splitters to add extra equipment to a UPS or PDU without using up more outlets

All Eaton power cables are tested and certified for use with Eaton products, such as ePDUs, rack power modules (RPMs) and UPSs—proven to deliver the reliability and service life needed for the most rigorous data center applications.

• Choose from adapters, jumpers and splitters for any rack power distribution application
• Select from a broad range of input/output connectors
  • Streamline cabling in enclosures by deploying exactly the cable length needed
  • Count on assured performance with pre-tested products that meet UL and Eaton standards

Adapter Cables

Catalog Number	Description	Leads	Input Plug	Output	Length (ft)	Price
010-0020		10 ft	IEC320-C14 to IEC320-C13 Jumper Cable			1	C14	C13	10	16
010-0021		7 ft	IEC320-C14 to IEC320-C13 Jumper Cable			1	C14	C13	7	13
010-0024		15 ft	IEC320-C14 to IEC320-C13 Jumper Cable			1	C14	C13	15	19
010-0025		8 ft	IEC320-C14 to IEC320-C13 Jumper Cable			1	C14	C13	8	14
010-0026		8 ft	C19 TO Bare Wire Cable			1	Bare Wire	C19	8	15
010-0027		6 ft	IEC320-C14 to IEC320-C13 Jumper Cable			1	C14	C13	6	12
010-0028		4 ft	IEC320-C14 to IEC320-C13 Jumper Cable			1	C14	C13	4	10
010-0029		2 ft	IEC320-C14 to IEC320-C13 Jumper Cable			1	C14	C13	8	8
010-0032		1 ft	IEC320-C14 to 5-15R Adapter Cable			1	C19	C14	2	14
010-0034		8 ft	IEC320-C19 to Bare Wire Adapter Cable			1	C19	Bare	8	30
010-9332		8 ft	IEC320-C13 to 5-15P Jumper Cable			1	5-15P	C13	8	15
010-9334		8 ft	IEC320-C19 to 5-15P Adapter Cable			1	5-15P	C19	8	20
010-9335		8 ft	IEC320-C19 to 5-20P Adapter Cable			1	5-20P	C19	8	25
010-9336		8 ft	IEC320-C19 to 6-15P Adapter Cable			1	6-15P	C19	8	30
010-9337		8 ft	IEC320-C19 to 6-20P Adapter Cable			1	6-20P	C19	8	30
010-9338		8 ft	IEC320-C19 to L5-15P Adapter Cable			1	L5-15 P	C19	8	35
010-9339		8 ft	IEC320-C19 to L5-20P Adapter Cable			1	L5-20 P	C19	8	25
010-9341		8 ft	IEC320-C19 to L6-20P Adapter Cable			1	L6-20 P	C19	8	30
010-9342		8 ft	IEC320-C19 to IEC320-C20 Adapter Cable			1	C20	C19	8	30
010-9343		8 ft	SCHUCKO to IEC320-C19 Adapter Cable			1	C19	SCHUCKO	8	28
010-9345		8 ft	AS/NZS 3112 to IEC320-C19 Adapter Cable			1	C19	AS/NZS 3112	8	33
010-9351		8 ft	British to IEC320-C19 Adapter Cable			1	C19	British Connector	8	25
010-9365		8 ft	IEC320-C14 to IEC320-C19 Jumper Cable			1	C19	C14	8	31
CBL146		30 ft	Power Cord Assembly 10/3 SOOW 2" Pigtails			2	Pigtails	Pigtails	30	131
CBL147		Cable Assembly High Volt Cover, 15 ft 10/3 SOOW, L6-30P				1	L6-30P		15	140
SUB-PWRCORD-908		8 ft	L6-30R to L6-30P Adapter Cable			1	L6-30P	L6-30R	8	53

Splitter Cables

Catalog Number	Description	Leads	Input Plug Output	Length (ft)	Price
CBL139		Splitter Cable L14-30P to (2)		L6-30R (4ft/2ft)	2	L14-30P	L6-30R	4	150
CBL143		Splitter Cable L14-30P to (2)		L5-30R (4ft/2ft)	2	L14-30P	L5-30R	4	150
CBL148		Splitter Cable L14-20P to (2)		L5-20R (4ft/2ft)	2	L14-20P	L5-20R	4	159
CBL149		Splitter Cable L21-30P to (3)		L5-30R (4ft/2ft/1ft)	3	L21-30P	L5-30R	4	149
CBL150		Splitter Cable L21-20P to (3)		L5-20R (4ft/2ft/1ft)	3	L21-20P	L5-20R	4	$150

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

ePDU Cables (continued)

Accessories

CatalogNumber Description Price
010-0322 C19 Receptacle Connector 13
035-0113 C13 Outlet Cap2
001-0819-1 Mounting Bracket Right 18
001-0819-2 Mounting Bracket Left18
001-1393-1 Mounting Bracket Adjustable Black - RoHS Compliant S5
001-1928-1 Side Mounting Bracket	24
001-1995-1 Bracket	29
SUB-HRDWARE-017	VPC Bracket - Standard, Offset	11
SUB-HRDWARE-032	Mounting Bracket	4
SUB-HRDWARE-038	Tooless Mounting Kit	$2

Environmental Probes

CatalogNumber Description Price
SENSOR-T1-10	Sensor with 1 Temperature Probe	40
SENSOR-T1H1-10	Sensor with 1 Temperature Probe 1 Humidity Probe	72
SENSOR-T2-10	Sensor with 2 Temperature Probes	102
SENSOR-T2H1-10	Sensor with 2 Temperature Probes 1 Humidity Probe	135

ECLIPSE SURGE SUPPRESSORS

Pulsar series

The Eclipse is Ideal for all uses—computer, peripheral, stereo and video—total protection against power surges, spikes, nearby lightning strikes and line noise.

- Up to 1020 joule rating

- Master on/off switch

- Instantaneous response time

- Visual alarm(s)

• Audible alarm (except personal)

• Circuit breaker and thermal fuse protection

- 360^ rotating plug (except personal)

Eclipse Surge Suppressors

Catalog Style Dimensions Weight List
Number Number Description (H x W x D, inches) (lb)			Price*
ECLL1800-PER	83500	ECLIPSE Personal 120V 1800W (6) 5-15R	2.00 × 1.25 × 11.00	1.0	240
ECLL1800-PRO	83501	ECLIPSE Pro 120V 1800W (8) 5-15R	3.88 \times 1.31 \times 9.75	1.5	450
ECLL1800-PROTEL	83502	ECLIPSE ProTel 1800W (8) 5-15R	3.88 × 1.31 × 9.75	1.5	$490

* List price reflects minimum purchase quantity of 20 pieces.

Three black electrical circuit breakers with power strip and indicator lights, shown against white background (no text or symbols visible)

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Enclosures

Eaton enclosure solutions represent the first critical step in planning an ideal data center and complement

a comprehensive power management portfolio that includes rackmount UPSs, ePDUs, remote power panels (RPPs) and a host of other power quality equipment. The industry leader in power quality is now the single source for your data center requirements—from planning and turnkey installation to services for the life of your data center.

• Highly functional and stylish, value packed and competitively priced
• Perforated doors exceed server air flow requirements
• Split rear doors minimize floor space requirements and provide ease of installation and maintenance
• Floating 19" rails provide more room for OU cable management and ePDU installations
• Z-server rails offer additional mounting locations for ePDUs and cable management
• Internal, welded frame with repetitive hole pattern delivers high load bearing capacity and additional mounting locations
• Internal door hinges offer a high level of cabinet security; door stiffeners offer mounting locations for fan trays

Black server rack cabinet with multiple drive bays and ventilation slots (no visible text or labels)

ENCLOSURES

Shipping

Dimensions Dimensions Shipping List

Description	Part Number	(H x W x D, inches)	(H x W x D, inches)	Weight (lb)	Price
42U Enclosure Split Rear & Sides	PWENC9970936	80.0 x 24.0 x 42.0	83.0 x 32.0 x 48.0	295	1,600
42U Enclosure Split Rear No Sides	PWENC9970935	80.0 x 24.0 x 42.0	83.0 x 32.0 x 48.0	257	1,400
42U Enclosure Split Rear & Sides & Casters	PWENC9970940	80.0 x 24.0 x 42.0	83.0 x 32.0 x 48.0	305	1,800
42U Enclosure Split Rear & Casters, No Sides	PWENC9970939	80.0 x 24.0 x 42.0	83.0 x 32.0 x 48.0	267	1,600

ENCLOSURE OPTIONS

Description	Part Number	Pkg of	Shipping
			Dimensions (H x W x D, inches)	Dimensions (H x W x D, inches)	Shipping Weight (lb)	List Price
Sidewalls-pair, black	PWENC9970941	1	80.0 x 1.0 x 42.0	80.0 x 4.0 x 42.0	105	300
Casters, Uninstalled	PWACC9970942	4	2.0 x 4.0 x 4.0	10.0 x 24.0 x 24.0	15	225
M6 Captive Nuts	PWACC9970943	50	-	Bag	-	50
M6 Phillips Screws	PWACC9970944	100	-	Bag	-	25
Baying Kit	PWACC9970945	6	-	Bag	2	30
Mounting Plate	PWACC9970946	4	2.87 x .66	Bag	3	80
Bolt Down Kit	PWACC9970947	4	-	Bag	3	20
1U Tool Less Blanking Panel	PWACC9970948	10	1U x 19.0	10.0 x 10.0 x 24.0	10	200
3U Blanking Panel	PWACC9970949	5	3U x 19.0	10.0 x 10.0 x 24.0	20	125
19" Toolless Fixed Shelf	PWACC9970950	1	1U x 19.0	1.0 x 24.0 x 24.0	10	150
19" Telescoping HD Toolless Shelf	PWACC9970951	1	1U x 19.0	6.0 x 24.0 x 24.0	15	350
Heavy Duty Telescopic Rail	PWACC9970952	2	-	4.0 x 2.0 x 24.0	5	150
1U Horizontal Rack Mount Manager w/ Cover	PWACC9970953	2	1U x 19.0	4.0 x 4.0 x 19.0	6	120
2U Horizontal Rack Mount Manager w/ Cover	PWACC9970954	2	2U x 19.0	4.0 x 4.0 x 24.0	10	140
2U Wide x 9U Vertical Manager Kit for Suited Cabinets	PWACC9970955	1	9U x 3.5 x 6.0	5.0 x 5.0 x 16.0	5	110
Cover for PWACC997055	PWACC9970956	4	3.5 x 9U	3.0 x 3.0 x 16.0	6	140
Cable Management-Metal D-Rings	PWACC9970957	10	3.14 x 1.4	8.0 x 8.0 x 8.0	5	120
Cable Management-Toolless D-Rings	PWACC9970958	10	-	Bag	1	50
Cable Management-Toolless Velcro Strap	PWACC9970959	10	-	Bag	1	50
Fan Kit-Split Rear Door, Black, 110V	PWACC9970960	1	-	8.0 x 10.0 x 12.0	12	200
Fan Kit-Split Rear Door, Black, 220V	PWACC9970961	1	-	8.0 x 10.0 x 12.0	12	200
Fan Kit-Single Rear Door, Black, 110V	PWACC9970962	1	-	6.0 x 10.0 x 20.0	12	400
Enclosure Blower 115V 250 cfm	PWACC9970963	1	2U x 19.0	7.0 x 20.0 x 32.0	20	750
Filter Assembly for Enclosure Blower	PWACC9970964	1	-	4.0 x 20.0 x 24.0	2	200
Replacement Filters for Enclosure Blower	PWACC9970965	12	-	20.0 x 20.0 x 20.0	5	500
19" Fixed HD Toolless Shelf	PWACC9970980	1	1U x 19.0	6.0 x 24.0 x 24.0	10	275
Toolless ePDU Mounting Bracket-1 ePDU	PWACC9962618	2	2.0 x 1.0	4.0 x 4.0 x 1.0	1	50
Toolless ePDU Mounting Bracket - 2 ePDUs	PWACC9962619	2	4.0 x 4.0	4.0 x 4.0 x 1.0	1	50
Partition Wall for Bayed Enclosures	PWACC9962621	1	77.0 x 40.0	80.0 x 42.0 x 4.0	10	400
Roof Mount Cable Manager	PWACC9961554	1	24.0 x 8.0 x 6.0	26.0 x 10.0 x 8.0	8	125
Roof Mount Cable Manager for Ladder Rack	PWACC9961555	1	24.0 x 8.0 x 6.0	26.0 x 10.0 x 8.0	8	$125

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Environmental Rack Monitor (ERM)

• Connect and monitor up to two temperature sensors, two humidity sensors and four input contact sensors
• OU form factor space saving design; does not take valuable space that can be occupied by servers
• Built-in Web server—access, monitor, configure and even reboot the device from anywhere on the Internet using its own dedicated IP address
• Supports SNMP and comes with its own MIB (Management Information Base). Can integrate with any open-standards based Network Management System (NMS) such as HP OpenView
  • One-year warranty on rack monitor and all sensors

Black electronic device with attached cable and connector (no visible text or symbols)

ENVIRONMENTAL RACK MONITORS

Shipping
Description Part Number (H x W x D, inches) Weight (lb) Price	Dimensions Shipping List
Environmental Rack Monitor, 120V AC 2-pin power input1	103005775	2.5 x 7.6 x 11.9	1.7	379
Environmental Rack Monitor, C13/C14, 100-250V AC, 50/60Hz 3-pin power input	103005912	2.5 x 7.6 x 11.9	2.2	379
TH-Module (Black), individual	103005822	2.4 x 6.3 x 8.8	0.7	79
Environmental Rack Monitor Water Leak Detector, 3ft	103005780	0.6 x 7.9 x 8.2	0.3	129
Environmental Rack Monitor Water Leak Detector, 12ft	103005894	0.6 x 11.2 x 11.4	0.5	229
Environmental Rack Monitor Door Contact Sensor	103005781	2.0 x 2.0 x 2.0	0.1	25
Environmental Rack Monitor Vibration Sensor	103005782	2.0 x 3.0 x 2.0	0.1	29
Environmental Rack Monitor Power Supply, 120V AC	103005783	2.1 x 2.8 x 4.1	0.2	19
Environmental Rack Monitor Power Supply, C13/C14 adapter cable, 100-250V AC, 50/60Hz	103005895	2.1 x 2.8 x 4.1	0.2	35
Environmental Rack Monitor Smoke Detector/Alarm (220V, IEC C-13)	103005779	2.4 x 6.3 x 8.8	2.2	129
Environmental Rack Monitor Smoke Detector/Alarm (110V, 5-15)	103005890	2.4 x 6.3 x 8.8	2.2	$129

1. Includes one TH-module

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Eaton Remote Power Panel Part Number Illustration

Eaton is now employing the use of smart part numbers to help our customers understand the product that fits their needs. Follow the example below as reference only. For ordering purposes please select one of the pre-configured part numbers in the price book or use the online configurator available through the Power Quality web site.

    A --> L["B1 = Small RPP (24"W x 24"D)"]
    A --> M["B2 = Rack RPP (24"W x 42"D)"]

    B --> N["1 = Direct Connect"]
    B --> O["2-3 = Single Input"]
    B --> P["4-5 = Dual Input"]

    C --> Q["1 = Standard kAIC"]
    C --> R["2 = High kAIC"]

    D --> S["A = 208V 225A Bolt-on CH"]
    D --> T["B = 208V 400A Bolt-on CH"]
    D --> U["C = 208V 225A Plug-on CH"]
    D --> V["D = 208V 400A Plug-on CH"]
    D --> W["E = 208V 225A Bolt-on SQD"]
    D --> X["F = 208V 400A Bolt-on SQD"]

    E --> Y["0 = None"]
    E --> Z["A = Top Only (1 Panel)"]
    E --> AA["B = Bottom Only (1 Panel)"]
    E --> AB["C = Top & Bottom (2 Panels)"]

    F --> AC["001 = Gen 1"]
    G --> AD["0 = None"]
    G --> AE["2 = Modbus RTU"]
    G --> AF["3 = PXGXPDP"]
    G --> AG["4 = Modbus RTU & PXGXPDP"]

    H --> AH["0 = Solid"]
    H --> AI["1 = See-Thru Plexi"]
    H --> AJ["2 = Rack Mesh"]

    I --> AK["0 = None"]
    I --> AL["1 = Single Display"]
    I --> AM["2 = Dual Display"]

    J --> AN["0 = None"]
    J --> AO["1 = System Level"]
    J --> AP["2 = Premium BCMS 60A"]
    J --> AQ["3 = Premium BCMS 100A"]

    K --> AR["0 = None"]
    K --> AS["2 = 100kA/ph"]
    K --> AT["3 = 200kA/ph"]

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Remote Power Panel (RPP)

Eaton RPPs deliver unmatched power distribution with up to 168 factory-installed branch breakers in a highly compact footprint. These products offer ease of installation through standard top and bottom cable entry provisions within a free-standing structure. They include extensive monitoring options such as branch circuit monitoring, which allows you to manage and monitor power effectively.

• Unmatched power distribution in either a highly compact footprint or rack configuration to line and match with IT equipment racks
• Ease of installation through standard top and bottom cable entry provision
• Extensive monitoring options allow you to manage power effectively
  • Factory-tested power distribution to ensure highest reliability
• Flexible expansion for your power distribution within a data center

Black server rack cabinet with ventilation grilles and indicator lights (no visible text or labels)

Rack Power Panel
24°W × 42°D × 80°H

Exterior view of a gray industrial cabinet or enclosure with ventilation grilles and door (no visible text or symbols)

Remote Power Panel
24°W x 24°D x 80°H

REMOTE POWER PANEL TOPSELLERS (24"W x 24"D x 80"H)

Surge List
Part Number	Description	Local Display	Protection	Door Style	Price
Direct Connection to Panel Main Breakers
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B111AC010113001	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	10,170
B111AC012113001 per Input	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	100 kA/ph	See-Through Plexi	12,220
B111BC010103001	Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front	None	Solid Standard	11,145
B111ACC10213001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	See-Through Plexi	16,790
B111ACC12213001 per Input	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	100 kA/ph	See-Through Plexi	20,890
B111BCC10203001	Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Solid Standard	19,015
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B111AC020113001	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	13,270
B111AC022113001 per Input	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	100 kA/ph	See-Through Plexi	15,320
B111BC020103001	Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front	None	Solid Standard	14,245
B111ACC20213001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	See-Through Plexi	20,790
B111ACC22213001 per Input	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	100 kA/ph	See-Through Plexi	24,890
B111BCC20203001	Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Solid Standard	23,015
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B111AC030113001	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	13,720
B111AC032113001 per Input	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	100 kA/ph	See-Through Plexi	15,770
B111BC030103001	Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front	None	Solid Standard	14,695
B111ACC30213001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	See-Through Plexi	21,790
B111ACC32213001 per Input	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	100 kA/ph	See-Through Plexi	25,890
B111BCC30203001	Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Solid Standard	24,015

Single Input Main Lug

System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B121AC010113001	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	10,805
B131ACC10113001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	13,690
B131BAA10103001	Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front	None	Solid Standard	12,915
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B121AC020113001	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	13,905
B131ACC20113001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	19,890
B131BAA20103001	Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front	None	Solid Standard	16,015

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Remote Power Panel (RPP)(continued)

REMOTE POWER PANEL TOPSELLERS (24"W x 24"D x 80"H) (continued)

Surge ListPart Number Description Local Display Protection Door Style Price
Single Input Main Lug (continued)
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B121AC030113001	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	14,355
B131ACC30113001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	20,890
B131BAA30103001	Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front	None	Solid Standard	16,465
Dual Input Main Lugs
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B141ACC10213001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	See-Through Plexi	17,860
B141BAA10203001	Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Solid Standard	17,085
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B141ACC20213001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	See-Through Plexi	21,860
B141BAA20203001	Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Solid Standard	17,985
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B141ACC30213001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	See-Through Plexi	22,860
B141BAA30203001	Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Solid Standard	$18,435

RACK POWER PANEL TOPSELLERS (24"W x 42"D x 80"H)

Part Number	Description	Local Display	Surge Protection	Door Style	List Price
Direct Connection to Panel Main Breakers
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B211AC010113001	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	12,595
B211AC012113001	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	100 kA/ph per Input	See-Through Plexi	14,645
B211BC010103001	Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front	None	Solid Standard	13,445
B211ACC10213001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	See-Through Plexi	19,215
B211ACC12213001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	100 kA/ph per Input	See-Through Plexi	23,315
B211BCC10203001	Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Solid Standard	21,315
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B211AC020113001	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	15,695
B211AC022113001	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	100 kA/ph per Input	See-Through Plexi	17,745
B211BC020103001	Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front	None	Solid Standard	16,545
B211ACC20213001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	See-Through Plexi	23,215
B211ACC22213001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	100 kA/ph per Input	See-Through Plexi	27,315
B211BCC20203001	Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Solid Standard	25,315
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B211AC030113001	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	16,145
B211AC032113001	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	100 kA/ph per Input	See-Through Plexi	18,195
B211BC030103001	Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front	None	Solid Standard	16,995
B211ACC30213001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	See-Through Plexi	24,115
B211ACC32213001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	100 kA/ph per Input	See-Through Plexi	28,215
B211BCC30203001	Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Solid Standard	26,215

Single Input Main Lug

System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B221AC010113001	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	13,230
B231ACC10113001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	16,115
B231BAA10103001	Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front	None	Solid Standard	$15,215
EATON CORPORATION Reference Guide & Pricebook

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Remote Power Panel (RPP)(continued)

RACK POWER PANEL TOPSELLERS (24"W x 42"D x 80"H) (continued)

Surge List
Part Number	Description	Local Display	Protection	Door Style	Price
Single Input Main Lug (continued)
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B221AC020113001	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	16,330
B231ACC20113001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	22,315
B231BAA20103001	Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front	None	Solid Standard	18,315
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B221AC030113001	Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	16,780
B231ACC30113001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	23,215
B231BAA30103001	Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front	None	Solid Standard	18,765
Dual Input Main Lugs
System Level Monitoring (Includes Power Xpert Gateway PDP Card)
B241ACC10213001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	See-Through Plexi	20,285
B241BAA10203001	Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Solid Standard	19,385
Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)
B241ACC20213001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	See-Through Plexi	24,285
B241BAA20203001	Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Solid Standard	20,285
Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)
B241ACC30213001	Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	See-Through Plexi	25,185
B241BAA30203001	Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Solid Standard	20,735

REMOTE AND RACK POWER PANEL TOPSELLERS- OPTIONS

Part Number	Description	List Price
157607364	Transient Suppression Plate - 4'W x 4'D plate	250
157607206	Extra Knock-out Plates - 84 holes	170
157607208	Extra Blank Plates	170
124100030-009	Low Voltage Control Junction Box	370

REMOTE AND RACK POWER PANEL TOPSELLERS- BRANCH BREAKERS

For branch breakers, please refer to the Eaton Branch Circuit Breakers section.

EATON RPP. PDR, EMS SERVICE PLANS

Description	Service Part Number for UPS	Additional Information	List Price Per Year
Startup
Startup, After Hours (7x24)	W2SU05NXXX-RPPB	RPP w/BCMS, EMS UGK	845
Startup, Business Hours (5x8)	W2SU06NXXX-RPPB	RPP w/BCMS, EMS UGK	1,352
Pre Site Survey, After Hours (7x24)	W20005NPSX-RPP	RPP, PDR	618
Startup, After Hours (7x24)	W2SU05NXXX-RPP	RPP, PDR	660
Startup, Business Hours (5x8)	W2SU06NXXX-RPP	RPP, PDR	1,056
First-year Service Plans
PowerTrust Value Service Plan	W1PVN3NEXX-RPP	RPP, PDR	460
PowerTrust Service Plan 8 Hr	W1PT82NEDX-RPP	RPP, PDR	646
PowerTrust Value Service Plan	W1PVN3NEXX-RPPB	RPP w/BCMS, EMS UGK	540
PowerTrust Service Plan 8 Hr	W1PT82NEDX-RPPB	RPP w/BCMS, EMS UGK	757
PDR/RPP Preventive Maintenance, Business Hours (5x8)	W10006NXXX-RPPB	RPP w/BCMS, EMS UGK	291
PDR/RPP Preventive Maintenance, Business Hours (5x8)	W10006NXXX-RPP	RPP, PDR	259
Second-year+ Service Plans
PowerTrust Value Service Plan	W2PVN3NEXX-RPP	RPP, PDR	917
PowerTrust Service Plan 8 Hr	W2PT82NEDX-RPP	RPP, PDR	1,292
PowerTrust Value Service Plan	W2PVN3NEXX-RPPB	RPP w/BCMS, EMS UGK	1,081
PowerTrust Service Plan 8 Hr	W2PT82NEDX-RPPB	RPP w/BCMS, EMS UGK	1,514
PDR/RPP Preventive Maintenance, Business Hours (5x8)	W20006NXXX-RPPB	RPP w/BCMS, EMS UGK	581
PDR/RPP Preventive Maintenance, Business Hours (5x8)	W20006NXXX-RPP	RPP, PDR	$518

Additional services and descriptions may be found starting on page 153.

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Eaton Power Distribution Rack Part Number Illustration

Eaton is now employing the use of smart part numbers to help our customers understand the product that the fits their needs. Follow the example below as reference only. For ordering purposes please select one of the pre-configured part numbers in the price book or use the online configurator available through the Power Quality web site.

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Power Distribution Rack (PDR)

Eaton PDRs are designed for high power applications in data center and rack equipment environments. The PDR packs up to four 400A column panelboards into a single EIA standard enclosure allowing users to take full advantage of all 168 pole positions. The PDR offers top and bottom cable entry for fast, flexible installation. Available options include 100% rated breakers, plexiglas doors and cabinet main input breakers.

• Flexible power distribution with up to 168 factory-installed branch breakers in a highly compact footprint
• Designed for high-density racks, with 400A panels and high power inputs
• Aesthetically pleasing design, with an elegant rack enclosure in textured black finish
  • Free-standing unit with top and bottom cable entry for fast, flexible installation
• Front and/or rear access, column power panels, large LCD for ease of servicing
• Extensive monitoring options, including the Eaton Energy Management System

Exterior view of a black industrial control cabinet with display panels and control knobs (no visible text or symbols)

POWER DISTRIBUTION RACK TOPSELLERS

Surge List

Part Number Description Local Display Protection Door Style Price

Direct Connection to Panel Main Breakers

System Level Monitoring
PD1122002031001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Plexi	18,630
PD1120102011001	Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	Plexi	13,590
PD1120032010001	Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammerper Input	Front	50 kA/ph	Mesh	15,140
PD1122182030001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammerper Input	Front & Back	100 kA/ph	Mesh	23,580
Premium Level Monitoring with BCMS (60A max)
PD1122003031001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Plexi	22,620
PD1120103011001	Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	Plexi	16,440
PD1120033010011	Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammerper Input	Frontper Input	50 kA/ph	Plexi	18,240
PD1122183030001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammerper Input	Front & Backper Input	100 kA/ph	Mesh	27,570
Premium Level Monitoring with BCMS (100A max)
PD1144104030001	Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	27,410
PD1122004030001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	22,690
PD1120004010001	Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	Mesh	16,340
PD1140004010001	Front only - 2 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front	None	Mesh	19,100

Single Input Main Lug

System Level Metering
PD1244102030001	Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	25,100
PD1222102010001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	20,380
PD1200002011011	Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	Plexi	15,590
PD1222002031011	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Plexi	20,630
Premium Level Monitoring with BCMS (60A max)
PD1244103030001	Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	29,090
PD1222103030001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	24,370
PD1244103030011	Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Plexi	29,340
PD1244003030011	Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Plexi	24,620
Premium Level Monitoring with BCMS (100A max)
PD1244104030001	Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	29,410
PD1222104030001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	24,690
PD1244104030011	Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Plexi	29,660
PD1220004011001	Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	Plexi	18,590

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Power Distribution Rack (PDR)(continued)

POWER DISTRIBUTION RACK TOPSELLERS

Surge ListPart Number Description Local Display Protection Door Style Price
Dual Input Main Lugs
System Level Metering
PD1344102031001	Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Plexi	27,350
PD1322102030001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	22,380
PD1322002031001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Plexi	22,630
Premium Level Monitoring with BCMS (60A max)
PD1322103031001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Plexi	29,940
PD1344103031001	Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Plexi	31,340
PD1322003030001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	26,370
PD1344003031001	Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Plexi	31,090
Premium Level Monitoring with BCMS (100A max)
PD1322104030001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	26,690
PD1344104030001	Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	31,410
PD1322004031001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Plexi	26,940
PD1344004031001	Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Plexi	31,660
Single Input Main Breaker (400A)
System Level Metering
PD1420102010001	Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	Mesh	15,840
PD1422002030001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	20,880
Premium Level Monitoring with BCMS (60A max)
PD1420003011001	Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	18,940
PD1420003012001	Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	Mesh w/ Cut-out	18,840
Premium Level Monitoring with BCMS (100A max)
PD1420004011001	Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	See-Through Plexi	19,090
PD1420004012001	Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front	None	Mesh w/ Cut-out	18,990
Dual Input Main Breaker (600A)
System Level Metering
PD1722102030001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	25,380
PD1744102030001	Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	30,100
Premium Level Monitoring with BCMS (60A max)
PD1722103031001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Plexi	29,370
PD1744103030001	Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	34,090
Premium Level Monitoring with BCMS (100A max)
PD1722104031001	Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer	Front & Back	None	Plexi	29,690
PD1744104030001	Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer	Front & Back	None	Mesh	$34,410

POWER DISTRIBUTION RACK TOPSELLERS - OPTIONS

Part Number Description		List Price
124100030-009	Control Junction Box	370
157607364	Transient Suppression Plate	225

Notes: PDRs come with 42-circuit column panelboards with 225A or 400A panel main breakers. Please contact factory for custom configurations.
PDR services are shared with RPP services and can be found on page 17 or in the 3-Phase service section on page 153.

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Eaton Branch Circuit Breakers

Eaton Cutler-Hammer bolt-on branch circuit breakers can be installed in any 42-pole Cutler-Hammer panelboard providing over-current and high interrupting current protection. Single-, double- and three-pole breakers can be provided from 10 to 100A trip rating and 10 or 22 kAIC.

Single-pole Breakers

Part Number	Trip Rating	kAIC	List Price
BAB1010	10A	10	17.00
BAB1015	15A	10	17.00
BAB1020	20A	10	17.00
BAB1025	25A	10	17.00
BAB1030	30A	10	17.00
BAB1035	35A	10	17.00
BAB1040	40A	10	17.00
BAB1045	45A	10	17.00
BAB1050	50A	10	17.00
BAB1055	55A	10	17.00
BAB1060	60A	10	17.00
QBHW1015			15A 2226.00
QBHW1020			20A 22 26.00
QBHW1025			25A 2226.00
QBHW1030			30A 22 26.00
QBHW1035			35A 2226.00
QBHW1040			40A 22 26.00
QBHW1045			45A 2226.00
QBHW1050			50A 22 26.00
QBHW1055			55A 2226.00
QBHW1060			60A 22 $26.00

Double-pole Breakers
Three-pole Breakers

Part Number	Trip Rating	kAIC	List Price	Part Number	Trip Rating	kAIC	List Price
BAB2010	10A	10	29.00	BAB3015H	15A	10	95.00
BAB2015	15A	10	29.00	BAB3020H	20A	10	95.00
BAB2020	20A	10	29.00	BAB3025H	25A	10	95.00
BAB2025	25A	10	29.00	BAB3030H	30A	10	95.00
BAB2030	30A	10	29.00	BAB3035H	35A	10	95.00
BAB2035	35A	10	29.00	BAB3040H	40A	10	95.00
BAB2040	40A	10	29.00	BAB3045H	45A	10	95.00
BAB2045	45A	10	29.00	BAB3050H	50A	10	95.00
BAB2050	50A	10	29.00	BAB3055H	55A	10	95.00
BAB2055	55A	10	29.00	BAB3060H	60A	10	95.00
BAB2060	60A	10	29.00	QBHW3015H	15A	22	138.00
BAB2070	70A	10	56.00	BAB3070H	70A	10	152.00
BAB2080	80A	10	56.00	BAB3080H	80A	10	152.00
BAB2090	90A	10	56.00	BAB3090H	90A	10	152.00
BAB2100	100A	10	56.00	BAB3100H	100A	10	152.00
QBHW2015	15A	22	41.00	QBHW3020H	20A	22	138.00
QBHW2020	20A	22	41.00	QBHW3025H	25A	22	138.00
QBHW2025	25A	22	41.00	QBHW3030H	30A	22	138.00
QBHW2030	30A	22	41.00	QBHW3035H	35A	22	138.00
QBHW2035	35A	22	41.00	QBHW3040H	40A	22	138.00
QBHW2040	40A	22	41.00	QBHW3045H	45A	22	138.00
QBHW2045	45A	22	41.00	QBHW3050H	50A	22	138.00
QBHW2050	50A	22	41.00	QBHW3055H	55A	22	138.00
QBHW2055	55A	22	41.00	QBHW3060H	60A	22	138.00
QBHW2060	60A	22	41.00	QBHW3070H	70A	22	220.00
QBHW2070	70A	22	74.00	QBHW3080H	80A	22	220.00
QBHW2080	80A	22	74.00	QBHW3090H	90A	22	220.00
QBHW2090	90A	22	74.00	QBHW3100H	100A	22	220.00
QBHW2100	100A	22	$74.00

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Eaton Energy Management System Upgrade Kit

Eaton EMS Upgrade Kit (EMS-UGK) extends branch circuit monitoring capabilities to any existing and third-party power distribution equipment, such as RPPs, PDUs or wall-mounted panels. This standalone device monitors, tracks and analyzes power, voltage, current and frequency readings, providing time-stamped metering, alarms, events and statistical information for better energy planning. This practical and affordable solution comes with an easy-to-use software tool to configure startup settings

and options.

• Monitors up to 2 x 42-poles panels and 2 main inputs up to 400A through split core CTs
- Subfeed monitoring, 75A and 100A branch breaker CTs optional
• LCD screen for local indication of energy consumption
- Conduit box for enhanced wiring harness protection
• 208/120V or 380-415/220-240V rating for North American and International use
• Power Xpert PDP SNMP and TCP/IP Gateway Card included
- Dimensions: 15"W x 11"H x 5"D

Collection of electronic equipment including capacitors, relays, and connectors (no visible text or symbols)

EMS UPGRADE KIT - NORTH AMERICAN MODELS: 120/208V, 50/60Hz

Part Number	Power Monitoring	Display Conduit Box List Price
E11101003	1 Panel (42 Poles) No No 5,050
E11201003	2 Panels (84 Poles) No No6,350
E12101003	1 Panel (42 Poles) Yes	No 5,550
E12201003	2 Panels (84 Poles) Yes	No6,850
E11112003		1 Panel (42 Poles) & Panel Main Breaker	No	Yes	6,260
E11212003		2 Panels (84 Poles) & Panel Main Breaker	No	Yes	7,670
E12112003		1 Panel (42 Poles) & Panel Main Breaker	Yes	Yes	6,760
E12212003		2 Panels (84 Poles) & Panel Main Breaker	Yes	Yes	8,170
E11111003	1 Panel (42 Poles) & Panel Main Breaker	No No 6,150
E11211003	2 Panels (84 Poles) & Panel Main Breaker	No No7,450
E12111003		1 Panel (42 Poles) & Panel Main Breaker	Yes	No	6,650
E12211003		2 Panels (84 Poles) & Panel Main Breaker	Yes	No	7,950

EMS UPGRADE KIT - INTERNATIONAL MODELS: 380/415 - 220/240V, 50/60Hz

Part Number	Power Monitoring	Display Conduit Box List Price
E21101003	1 Panel (42 Poles) No No 5,095
E21201003	2 Panels (84 Poles) No No6,395
E22101003	1 Panel (42 Poles) Yes	No 5,595
E22201003	2 Panels (84 Poles) Yes	No6,895
E21112003		1 Panel (42 Poles) & Panel Main Breaker	No	Yes	6,305
E21212003		2 Panels (84 Poles) & Panel Main Breaker	No	Yes	7,715
E22112003		1 Panel (42 Poles) & Panel Main Breaker	Yes	Yes	6,805
E22212003		2 Panels (84 Poles) & Panel Main Breaker	Yes	Yes	8,215
E21111003	1 Panel (42 Poles) & Panel Main Breaker	No No 6,195
E21211003	2 Panels (84 Poles) & Panel Main Breaker	No No7,495
E22111003		1 Panel (42 Poles) & Panel Main Breaker	Yes	No	6,695
E22211003		2 Panels (84 Poles) & Panel Main Breaker	Yes	No	7,995

EMS UPGRADE KIT - OPTIONS

Part Number	Description	List Price
103006704	Subfeed Breaker Monitoring Kit (3 CTs)	825
103006705	100A Branch Breaker CTs Kit (10)	475
103006756	Extra 75A Branch Breaker CTs Kit (5)	$120

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

UL Listed Power Distribution Cables

Eaton's line of liquid-tight power distribution cables minimizes electrical and mechanical disturbances including harmonic distortion. These cables are UL listed for use with Integration Technology Equipment (NEC 645) and are exempt from being secured in place, making your power distribution system completely flexible and cost effective.

• Highly flexible and approved for data center environments (NEC 645)
- Custom configurations and colors available

STANDARD NEMA CABLE

Mechanical assembly of cylindrical and rectangular components with no visible text or symbols

NEMA Type	Hubbell PN	Volts Amps	Phase Breaker	Wire Qty	Wire Size Sealite			Fixed Price	Price Per Foot
5-15R1	5261	120	15	1	1 Pole	3	12 awg	0.5"	130.00
5-15R2	5262	120	15	1	1 Pole	3	12 awg	0.5"	130.00
5-15R4	5262	120	15	1	1 Pole	3	12 awg	0.5"	135.00
5-20R1	5361	120	20	1	1 Pole	3	12 awg	0.5"	135.00
5-20R2	5362	120	20	1	1 Pole	3	12 awg	0.5"	110.00
5-20R4	5362	120	20	1	1 Pole	3	12 awg	0.5"	140.00
5-30R1	9308	120	30	1	1 Pole	3	10 awg	0.5"	140.00
5-50R1	9360	120	50	1	1 Pole	3	8 awg	0.5"	185.00
6-15R1	5661	208	15	1	2 Pole	3	12 awg	0.5"	130.00
6-15R2	5662	208	15	1	2 Pole	3	12 awg	0.5"	125.00
6-15R4	5662	208	15	1	2 Pole	3	12 awg	0.5"	170.00
6-20R1	5465	208	20	1	2 Pole	3	12 awg	0.5"	145.00
6-20R2	5462	208	20	1	2 Pole	3	12 awg	0.5"	135.00
6-20R4	5462	208	20	1	2 Pole	3	12 awg	0.5"	185.00
6-30R1	9330	208	30	1	2 Pole	3	10 awg	0.5"	140.00
14-20R1	8410	120/208	20	1	2 Pole	4	12 awg	0.5"	150.00
14-30R1	9430	120/208	30	1	2 Pole	4	10 awg	0.5"	185.00
14-50R1	9450	120/208	50	1	2 Pole	4	8 awg	0.75"	295.00
L5-15R1	4710	120	15	1	1 Pole	3	12 awg	0.5"	140.00
L5-15R2	4700	120	15	1	1 Pole	3	12 awg	0.5"	140.00
L5-20R1	2310	120	20	1	1 Pole	3	12 awg	0.5"	125.00
L5-30R1	2610	120	30	1	1 Pole	3	10 awg	0.5"	145.00
L6-15R1	4560	208	15	2	2 Pole	3	12 awg	0.5"	135.00
L6-15R2	4550	208	15	2	2 Pole	3	12 awg	0.5"	135.00
L6-20R1	2320	208	20	2	2 Pole	3	12 awg	0.5"	125.00
L6-30R1	2620	208	30	2	2 Pole	3	10 awg	0.5"	140.00
L14-20R1	2410	120/208	20	2	2 Pole	4	12 awg	0.5"	145.00
L14-30R1	2710	120/208	30	2	2 Pole	4	10 awg	0.5"	170.00
L15-20R1	2420	208	20	3	3 Pole	4	12 awg	0.5"	175.00
L15-30R1	2720	208	30	3	3 Pole	4	10 awg	0.5"	185.00
L21-20R1	2510	208	20	3	3 Pole	5	12 awg	0.5"	160.00
L21-30R1	2810	208	30	3	3 Pole	5	10 awg	0.5"	185.00

Notes: See next page

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

UL Listed Power Distribution Cables (continued)

NEMA "IG" ISOLATED GROUND CABLE

NEMA Type	Hubbell PN	Volts Amps	Phase Breaker	Wire Qty	Wire Size Sealite			Fixed Price	Price Per Foot
5-15R1 IG 5261	120 15 1 1 Pole 4 12 awg	0.5" 120.00	3.62
5-15R2 IG 5262	120 15 1 1 Pole 4 12 awg	0.5" 125.00	3.62
5-15R4 IG 5262	120 15 1 1 Pole 4 12 awg	0.5" 160.00	3.62
5-20R1 IG 5361	120 20 1 1 Pole 4 12 awg	0.5" 130.00	3.62
5-20R2 IG 5362	120 20 1 1 Pole 4 12 awg	0.5" 125.00	3.62
5-20R4 IG 5362	120 20 1 1 Pole 4 12 awg	0.5" 165.00	3.62
5-30R1 IG 9308	120 30 1 1 Pole 4 10 awg	0.5" 160.00	4.41
6-15R1 IG 5661	208 15 1 2 Pole 4 12 awg	0.5" 195.00	3.62
6-15R2 IG 5662	208 15 1 2 Pole 4 12 awg	0.5" 205.00	3.62
6-15R4 IG 5662	208 15 1 2 Pole 4 12 awg	0.5" 325.00	3.62
6-20R1 IG 5465	208 20 1 2 Pole 4 12 awg	0.5" 210.00	3.62
6-20R2 IG 5462	208 20 1 2 Pole 4 12 awg	0.5" 235.00	3.62
6-20R4 IG 5462	208 20 1 2 Pole 4 12 awg	0.5" 370.00	3.62
6-30R1 IG 9330	208 30 1 2 Pole 4 10 awg	0.5" 255.00	4.41
L5-15R1 IG	4710 120 15 1 1 Pole 4 12	awg 0.5" 175.00	3.62
L5-15R2 IG	4700 120 15 1 1 Pole 4 12	awg 0.5" 140.00	3.62
L5-20R1 IG	2310 120 20 1 1 Pole 4 12	awg 0.5" 135.00	3.62
L5-30R1 IG	2610 120 30 1 1 Pole 4 10	awg 0.5" 155.00	4.41
L6-15R1 IG	4560 208 15 2 2 Pole 4 12	awg 0.5" 140.00	3.62
L6-15R2 IG	4550 208 15 2 2 Pole 4 12	awg 0.5" 135.00	3.62
L6-20R1 IG	2320 208 20 2 2 Pole 4 12	awg 0.5" 135.00	3.62
L6-30R1 IG	2620	208 30 2 2 Pole 4 10 awg	0.5"165.00	4.41
L14-20R1 IG	2410	120/208	20	2	2 Pole	5	12 awg	0.5"	155.00
L14-30R1 IG	2710	120/208	30	2	2 Pole	5	10 awg	0.5"	200.00
L15-20R1 IG	2420 208 20 3 3 Pole 5 12	awg 0.5"205.00	4.36
L15-30R1 IG	2720 208 30 3 3 Pole 5 10	awg 0.5"235.00	4.99
L21-20R1 IG	2510 208 20 3 3 Pole 6 12	awg 0.5"170.00	4.67
L21-30R1 IG	2810 208 30 3 3 Pole 6 10	awg 0.5"205.00	$5.51

Notes:
1. For the cables that have 0.5" conduit, to go to 0.75" conduit, please add \$1.05 per foot to the above list price.
2. For the cables that have 12 awg wire, to go to 10 awg wire conduit, please add \$1.00 per foot to the above list price.
3. Breakers are NOT included in the base price above.
4. The above pricing does NOT include shipping costs.
5. Please see the Cables specifications or contact the factory for details.
6. Add .63 per FT for colored LT.
7. For separate circuits for quads etc, must call for quote.
8. To construct a part number use the following format: - . As an example, a 5-50R1 NEMA type with 2 feet of cable becomes 5-50R1-02.
9. Price is determined by adding the Fixed Price to Price per Foot multiplied by the cable length in feet.

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

UL Listed Power Distribution Cables (continued)

RUSSELLSTOLL & IEC CABLES

Device Volts	Amps Phase	Breaker Wire	Qty Wire Size	Sealtite				Fixed Price	Price Per Foot
RS3913 250 20	2 2 Pole 3 12	awg 0.5" 65	0.00	3.21
RS3743 250 20	2 2 Pole 3 12	awg 0.5" 84	5.00	3.21
RS3913U2	250 20 2 2 P	ole 3 12 awg	0.5" 665.00	3.21
RS3914 250 20	3 3 Pole 4 12	awg 0.5" 75	5.00	3.62
RS3933 250 30	2 2 Pole 4 10	awg 0.5" 76	5.00	4.36
RS3753 250 30	2 2 Pole 4 10	awg 0.5" 82	5.00	4.36
RS3934 250 30	3 3 Pole 4 10	awg 0.5" 81	0.00	4.36
RS3754 250 30	3 3 Pole 4 10	awg 0.5" 87	5.00	4.36
RS7428-78	600	60	3	3 Pole	4	6 awg	0.75"	2,205.00	10.82
9C33UO	250 30 2 2 P	ole 3 10 awg	0.5" 625.00	4.36
9C54U2/C75	250	50	3	3 Pole	4	8 awg	0.75"	1,080.00	9.03
HBL360C6W	250	60	2	2 Pole	3	6 awg	0.75"	1,050.00	10.82
HBL460C9W	250	60	3	3 Pole	4	6 awg	0.75"	945.00	15.02
HBL360R9W	250	60	3	3 Pole	4	6 awg	0.75"	1,000.00	15.02

"FIELD WIRE" CABLES

Description	Device	Volts	Amps	Phase	Breaker	Wire Qty	Wire Size	Sealtite	Fixed Price	Price Per Foot
FW120	N/A	120	15	1	1 Pole	3	12 awg	0.5"	130.00	3.21
FW130	N/A	120	15	1	1 Pole	3	10 awg	0.5"	130.00	3.94
FW220	N/A	120	15	1	2 Pole	3	12 awg	0.5"	170.00	3.21
FW220N	N/A	120	20	1	2 Pole	4	12 awg	0.5"	135.00	3.62
FW230	N/A	120	20	1	2 Pole	3	10 awg	0.5"	135.00	3.94
FW230N	N/A	120	20	1	2 Pole	4	10 awg	0.5"	175.00	4.36
FW320	N/A	120	30	1	3 Pole	4	12 awg	0.5"	155.00	3.62
FW320N	N/A	208	15	1	3 Pole	5	12 awg	0.5"	225.00	4.46
FW330	N/A	208	15	1	3 Pole	4	10 awg	0.5"	235.00	4.36
FW330N	N/A	208	15	1	3 Pole	5	10 awg	0.5"	365.00	4.99
FW360	N/A	208	20	1	3 Pole	4	6 awg	0.75"	140.00	13.81
FW360N	N/A	208	20	1	3 Pole	5	6 awg	1.00"	270.00	16.07
FW3100	N/A	208	20	1	3 Pole	4	3 awg	1.25"	420.00	33.34
FW3100N	N/A	208	100	1	3 Pole	5	1 awg	1.50"	280.00	45.05

Notes:
1. For the cables that have 0.5" conduit, to go to 0.75" conduit, please add \1.05 per foot to the above list price. 2. For the cables that have 12 awg wire, to go to 10 awg wire conduit, please add \1.00 per foot to the above list price. 3. Breakers are NOT included in the base price above. 4. The above pricing does NOT include shipping costs. 5. Please see the Cables specifications or contact the factory for details. 6. Add .63 list per FT for colored LT. 7. For "Field Wire" cables: All single pole field wire cables include a neutral, separate "N" is not required.

EATON CATALOG NUMBER ORDERING INSTRUCTIONS

Single-phase Products

Eaton is now employing the use of smart part numbers to help our customers design the product that fits their needs and makes ordering a snap.

Follow the example below to see how to easily select your product's features and create the catalog number for your order.

*Other selectable voltages vary by product

EATON 3105 UPS

Powerware series

Standby UPS (500-700 VA)

Protect your small office and home office computer and telephone equipment from the damaging threats that lurk in public utility power especially power outages, sags, and line noise.

• Save space with a compact design that fits easily under a desk or can be conveniently wall-mounted, with quick access to all surge suppression and battery backup receptacles
• Extend UPS service life with user-replaceable batteries
• Protect network-connected equipment from surges coming over LAN or telephone lines
• Be informed of power problems and low battery conditions with audible alarms
• Deliver short-term mobile power with start-on-battery capability
• Warranty (US and Canada): Three-year limited warranty (third year of warranty free with online product registration), \$25,000 load protection guarantee

Exterior view of a black electronic device labeled 'E.T.M' with control buttons and ports (no readable text beyond branding)

3105 NORTH AMERICAN MODELS: 120V, 50/60 Hz

Model	Part Number	Rating (VA/Watts)	Input Connection	Output Receptacles	Dimensions (H x W x D, inches)	Weight (lb)	List Price
3105 500	103004247-5592	500/300	5-15P	(8) 5-15R (4 Battery Backup & 4 Surge Protection only)	4.4 × 7.0 × 11.0	11.2	77
3105 700	103004248-5592	700/420	5-15P	(8) 5-15R (4 Battery Backup & 4 Surge Protection only)	4.4 \times 7.0 \times 11.0	14.3	107

SOFTWARE

The Intelligent Power Software Suite is available for download free of charge. See the software and connectivity product sections for more detail.

3105 EXTENDED WARRANTY PLANS

Extended Warranty extends term of Factory Warranty and adds Advanced Exchange

Extended Warranty

Part Number	UPS Model	Description	List Price
3SW5Y-0001-0750U	3105	5 Year Extended Factory Warranty with Advanced Exchange	$18

Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.

3105 BATTERY BACKUP TIMES (in minutes)

UPS model

	Load	50W	100W	150W	200W	250W	300W	350W	400W
500		43	17	11	6	4	3
700		53	30	14	9	7	6	4	3

Note: Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.

EATON 3S UPS

Eaton series

Standby UPS (550-750 VA)

The sleek Eaton 3S delivers high efficiency and energy-saving battery backup and surge protection for your premium home and office equipment — ready to go right out of the box.

- Ease of use: Plug-and-play capability — features HID-compliant USB port for automatic integration with

Windows, Mac and Linux (no drivers required)

- EcoControl for 30% greater energy savings than a typical battery backup

- Attractive design and glossy finish make the 3S a perfect fit for the modern office environment

- Up to 10 receptacles — (5) battery backup and surge protection, (5) surge protection

- Protection for devices connected to telephone, fax and Ethernet lines

- User-replaceable batteries

- Integrated graceful shutdown capability for connected devices

- Warranty (US and Canada): Three-year limited warranty (third year of warranty free with online product registration), \$25,000 load protection guarantee

Exterior view of a black EAT-N device with multiple ports and indicator lights (no readable text or symbols)

3S NORTH AMERICAN MODELS: 120V, 50/60 Hz

Part Rating Model	Rating Input Number	Output Dimensions (VA/Watts)	Weight Connection	List Receptacles	(H x W x D, inches)	(lb)	Price
3S 550	3S550	550/330	5-15P	(8) 5-15R (4 Battery Backup & 4 Surge Protection only)	3.4 × 5.5 × 13.2	7.3	86
3S 750	3S750	750/450	5-15P	(10) 5-15R (5 Battery Backup & 5 Surge Protection only)	3.4 \times 6.7 \times 13.2	9.7	119

3S INTERNATIONAL MODELS: 230V, 50/60 Hz

Part Rating Model	Rating Number	Output (VA/Watts)	Dimensions	Weight Connection	List Receptacles	(H x W x D, inches)	(lb)	Price
3S550IEC	3S550IEC	550/330	C14(1) IEC-IEC cable		(8) C13 (4 Battery Backup & 4 Surge only)	3.4 × 5.5 × 13.2	7.3	99
3S700IEC	3S700IEC	700/420	C14(1) IEC-IEC cable		(8) C13 (4 Battery Backup & 4 Surge only)	3.4 \times 6.7 \times 13.2	9.7	137

SOFTWARE

To enable EcoControl functionality on the 750 VA unit, download Personal Solution-Pac software at www.eaton.com/psp. The Intelligent Power Software Suite is available for download free of charge from www.eaton.com/intelligentpower. See the software and connectivity product sections for more detail.

3S EXTENDED WARRANTY PLANS

Extended Warranty extends term of Factory Warranty and adds Advanced Exchange

Extended Warranty

Part Number	UPS Model	Description	List Price
3SW5Y-0001-0750U	3S	5 Year Extended Factory Warranty with Advanced Exchange	$18

Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.

3S BATTERY BACKUP TIMES (in minutes)

UPS model
	Load	50W	100W	150W	200W	250W	300W	350W	400W	450W
3S550		42	18	11	6	4
3S750		61	31	20	13	10	7	6	4	3

Note: Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.

EATON 5110 UPS

Powerware series

Now featuring a 3-year warranty with product registration!

Line-interactive UPS (500-1500 VA)

Protect your SOHO computer and telephone equipment from the damaging threats that lurk in public utility power.

- Protect against power outages, surges, sags and line noise

- Save space with a compact design that fits easily under a desk, mounted under a computer terminal, or on a computer shelf with quick access to all receptacles

- Keep essential systems running through power outages by plugging them into receptacles with surge suppression and battery backup

- Conserve battery runtime by plugging non-essential equipment into receptacles that have surge suppression only

- Extend UPS service life with user-replaceable batteries and deliver short-term mobile power with start-on-battery capability

- Protect network-connected equipment from surges coming over LAN or telephone lines

• USB port and cables are standard

- Warranty (US and Canada): Three-year limited warranty (third year of warranty free with online product registration), S150,000 load protection guarantee

Black industrial server unit with ventilation grilles and control panel (no visible text or symbols)

5110 NORTH AMERICAN MODELS: 120V, 50/60 Hz

Part Power Out Input Output Dimensions			Weight List
Model	Number	(VA/Watts)	Connection*	Receptacles**	(H x W x D, inches)	(Ib)	Price
5110 500	103004256-5591	500/300	5-15P	(8) 5-15R	10.6 × 3.4 × 10.2	12.1	S116
5110 700	103004257-5591	700/420	5-15P	(8) 5-15R	10.6 × 3.4 × 10.2	15.2	S137
5110 1000	103004258-5591	1000/600	5-15P	(8) 5-15R	10.6 × 3.4 × 15.1	28.0	S179
5110 1500	103004259-5591	1440/900	5-15P	(8) 5-15R	10.6 × 3.4 × 15.1	29.1	S249

5110 INTERNATIONAL MODELS: 230V, 50/60 Hz

Model	Part Number	Power Out (VA/Watts)	Input Connection***	Output Receptacles**	Dimensions H x W x D (inches)	Weight (lb)	List Price
5110 500i	103004261-5591	500/300	C14	(8) C13	10.6 × 3.4 × 10.2	13.4	133
5110 700i	103004262-5591	700/420	C14	(8) C13	10.6 \times 3.4 \times 10.2	16.5	158
5110 1500i	103004264-5591	1500/900	C14	(8) C13	10.6 × 3.4 × 15.1	30.2	$286

* 1.8m line cord with 90-degree angle plug **Four battery backup & surge protection; four surge protection only *** 1.8m line patch cord IEC to IEC

SOFTWARE

The Intelligent Power Software Suite is available for download free of charge. See the software and connectivity product sections for more detail.

5110 SERVICE PLANS

Extended Warranty Coverage for UPS (includes batteries in UPS)
Part Number	UPS Model	Description	List Price
5SW5Y-0001-0950U	5110 500	5 Year Extended Factory Warranty with Advanced Exchange	46
	5110 700
5SW5Y-0951-1400U	5110 1000	5 Year Extended Factory Warranty with Advanced Exchange	94
5SW5Y-1401-1750U	5110 1500	5 Year Extended Factory Warranty with Advanced Exchange	$123

Startup and Preventive Maintenance Service

Product	Part Number	List Price	Product	Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
5x8 Service	0STUP5100XALLC5	778	5x8 Service	0XXPM5100XALLC5	778
7x24 Service	0STUP5100XALLC7	$1,002	7x24 Service	0XXPM5100XALLC7	S1,002

For additional services and definitions, please see the Extended Warranties table in the Single-phase Service section.

EATON 5110 UPS

Powerware series (continued)

5110 BATTERY BACKUP TIMES (in minutes)

Load	30W	60W	90W	120W	150W	180W	210W	240W	270W	300W	330W	360W	390W	420W
500	52	35	22	14	11	8	6	5	4	3	-	-	-	-
700	63	46	34	23	16	12	10	8	7	6	5	4	4	3
Load	120W	180W	240W	300W	360W	420W	480W	540W	600W	660W	720W	780W	840W	900W
1000	52	35	23	17	13	10	9	7	5	-	-	-	-	-
1500	62	43	29	20	16	14	12	11	9	8	7	6	5	4.4

Note: Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.

EATON 5115 UPS TOWER

Powerware series

EATON TAA COMPLIANT

Line-interactive UPS (500-1400 VA)

The Eaton 5115 UPS offers Series 5 advanced protection for PCs, small-office-home-office equipment, workstations and small networking devices.

• ABM technology significantly increases battery service life
- Pure sine wave output delivers smooth, continuous power
- Buck and Boost voltage regulation corrects incoming voltage fluctuations
• Hot-swappable batteries simplify service
• Network Transient Protector isolates network/phone wiring
- Intelligent Power Software Suite provides monitoring and shutdown capabilities
- Warranty (US and Canada): Three-year limited warranty (third year of warranty free with online product registration), \$150,000 load protection guarantee

Exterior view of a white laboratory appliance with control panel (no visible text or symbols)

5115 NORTH AMERICAN TOWER MODELS: 120V, 50/60 Hz

Part Rating Input Output Dimensions Weight List
Model	Number	(VA/Watts)	Connection	Receptacles	(H x W x D inches)	(lb)	Price
5115 500	05146548-5591	500/320	5-15P	(4) 5-15R	7.6 x 5.9 x 10.6	17.2	219
5115 750	05146554-5591	750/500	5-15P	(4) 5-15R	7.6 x 5.9 x 13.2	27.3	315
5115 1000	05146560-5591	1000/670	5-15P	(6) 5-15R	7.6 x 5.9 x 13.2	27.8	399
5115 1400	05146566-5591	1400/950	5-15P	(6) 5-15R	7.6 x 5.9 x 15.4	37.0	489

1. Bundled with Intelligent Power Software Suite CD and communication cable (DB9f to DB9m P/N 60420064-002).

5115 TAA COMPLIANT MODELS

Part Rating Input Output Dimensions Weight List
Model	Number	(VA/Watts)	Connection	Receptacles	H x W x D (inches)	(lb)	Price
5115 750 VA 120V TAA	05146554-5591US	750/500	5-15P	(4) 5-15R	7.6 × 5.9 × 13.2	27.3	375
5115 1000 VA 120V TAA	05146560-5591US	1000/670	5-15P	(6) 5-15R	7.6 \times 5.9 \times 13.2	27.8	489
5115 1500 VA 120V TAA	05146566-5591US	1400/950	5-15P	(6) 5-15R	7.6 × 5.9 × 15.4	37.0	550
5115 1500 VA 230V TAA	05146567-5591US	1400/950	C14	(6) C13	7.6 \times 5.9 \times 15.4	37.0	610
5115 1000VA 230V TAA	05146561-5591US	1000/670	C14	(6) C13	7.6 × 5.9 × 13.2	27.8	490
5115 750 VA 230V TAA	05146555-5591US	750/500	C14	(6) C13	7.6 \times 5.9 \times 13.2	27.3	350

5115 INTERNATIONAL TOWER MODELS: 230V, 50/60 Hz

Model	Part Number	Rating (VA/Watts)	Input Connection	Output Receptacles	Dimensions H x W x D (inches)	Weight (lb)	List Price
5115 500i	05146549-5591	500/320	C14	(4) C13	7.6 x 5.9 x 10.6	17.2	252
5115 750i	05146555-5591	750/500	C14	(4) C13	7.6 x 5.9 x 13.2	27.3	362
5115 1000i	05146561-5591	1000/670	C14	(6) C13	7.6 x 5.9 x 13.2	27.8	459
5115 1400i	05146567-5591	1400/950	C14	(6) C13	7.6 x 5.9 x 15.4	37.0	562

1. Bundled with Intelligent Power Software Suite CD and communication cable (DB9f to DB9m P/N 60420064-002).

5115 SERVICE PLANS

Extended Warranty Coverage for UPS (includes batteries in UPS)
Part Number	UPS Model	Description	List Price
5SW5Y-0001-0950U5115 750	5115 500	5 Year Extended Factory Warranty with Advanced Exchange	46
5SW5Y-0951-1400U5115 1400	5115 1000	5 Year Extended Factory Warranty with Advanced Exchange	94

Startup and Preventive Maintenance Service

Product	Part Number	List Price	Product	Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
5x8 Service	0STUP5100XALLC5	778	5x8 Service	0XXPM5100XALLC5	778
7x24 Service	0STUP5100XALLC7	1,002	7x24 Service	0XXPM5100XALLC7	1,002

For additional services and definitions, please see the Extended Warranties table in the Single-phase Service section.

EATON 5115 UPS TOWER

Powerware series (continued)

SOFTWARE

The Intelligent Power Software Suite is available for download free of charge. See the software and connectivity product sections for more detail.

5115 BATTERY BACKUPTIMES (in minutes)

View interactive runtime graphs at www.eaton.com/5115

Load (VA/Watts)	5115 500	5115 750	5115 1000	5115 1400
200/128		17		38	41	58
300/192		11		27	28	41
500/320		5		14	15	28
600/402		-		9	10	19
750/503		-		6	8	14
900/603		-		-	6	10
1000/670		-		-	5	8
1200/804		-		-	-	6
1400/938		-		-	-	5

Note: Runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.

EATON 5115 UPS RACKMOUNT

Powerware series

Line-interactive UPS (500-1500 VA)

The Eaton 5115 UPS rackmount offers high-density, Series 5 advanced protection for servers, storage systems, network equipment and other critical devices.

- 1U rack height conserves valuable rack space for other critical devices while delivering powerful performance

- Unique chassis design adapts to 19-inch rack, wall-mount, side-cabinet (OU), and bench-top applications

• ABM technology significantly increases battery service life

• True sine wave output delivers smooth, continuous power

- Load segments enable scheduled shutdowns and extend backup time for critical devices

• Hot-swappable batteries minimize downtime

- Standard USB and RS-232 serial ports extend communication capacity; X-Slot ^® options available

- Included Intelligent Power Software Suite CD provides UPS power management, monitoring and automatic shutdown

- Warranty (US and Canada): Three-year limited warranty (third year of warranty free with online product registration), \$150,000 load protection guarantee

Front view of a black electronic device with ventilation slots and control buttons (no visible text or symbols)

5115 NORTH AMERICAN RACKMOUNT MODELS: 120V, 50/60 Hz

Part Rating Input Output Dimensions Weight List
Model	Number	(VA/Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
5115 500 RM	103003266-6591	500/320	5-15P	(4) 5-15R	1.75 × 17.3 × 22.8	35.2	S299
5115 750 RM	103003269-6591	750/520	5-15P	(4) 5-15R	1.75 × 17.3 × 22.8	41.4	S483
5115 1000 RM	103003272-6591	1000/670	5-15P	(4) 5-15R	1.75 × 17.3 × 22.8	41.4	S629
5115 1500 RM	103003275-6591	1440/1000	5-15P	(4) 5-15R	1.75 × 17.3 × 22.8	48.6	S819

1. Includes all mounting hardware. Bundled with Intelligent Power Software Suite CD and communication cable (DB9f to DB9m, P/N 60420064-002).

5115 INTERNATIONAL RACKMOUNT MODELS: 230V, 50/60 Hz

Part Rating Input Output Dimensions Weight List
Model	Number	(VA/Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
5115 750i RM	103003270-6591	750/520	C14	(4) C13	1.75 × 17.3 × 22.8	41.4	529
5115 1500i RM	103003276-6591	1440/1000	C14	(4) C13	1.75 \times 17.3 \times 22.8	48.6	889

1. Includes all mounting hardware. Bundled with Intelligent Power Software Suite CD and communication cable (DB9f to DB9m, P/N 60420064-002).

SOFTWARE AND CONNECTIVITY OPTIONS

Description	Part Number	List Price
ConnectUPS-X	116750221-001	335
Power Xpert Gateway UPS Card	PXGXUPS	450

Bundled with Intelligent Power Software Suite CD and communication cable.
See software and connectivity product sections for more detail.

5115 RACKMOUNT SERVICE PLANS

Extended Warranty Coverage for UPS (includes batteries in UPS)
Part Number	UPS Model	Description	List Price
5SW5Y-0001-0950U5115 750 RM	5115 500 RM	5 Year Extended Factory Warranty with Advanced Exchange	46
5SW5Y-0951-1400U	5115 1000 RM	5 Year Extended Factory Warranty with Advanced Exchange	94
5SW5Y-1401-1750U	5115 1500 RM	5 Year Extended Factory Warranty with Advanced Exchange	S123

Startup and Preventive Maintenance Service

Product	Part Number	List Price	Product	Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
5x8 Service	0STUP5100XALLC5	778	5x8 Service	0XXPM5100XALLC5	778
7x24 Service	0STUP5100XALLC7	1,002	7x24 Service	0XXPM5100XALLC7	1,002

For additional services and definitions, please see the Extended Warranties table in the Single-phase Service section.

EATON 5115 UPS RACKMOUNT

Powerware series (continued)

5115 RACKMOUNT BATTERY BACKUP TIMES (in minutes)

View interactive runtime graphs at www.eaton.com/5115rm

Load (VA/Watts) 5115 RM 500 5115 RM 750 5115 RM 1000 5115 RM 1500
200/130 19 37 41 76
300/190 11 25 29 58
500/320 5 13 15 28
750/520 - 6 8	16
900/600 -	-	6	11
1000/670	-	-	5	9
1200/800	-	-	-	8
1440/1000	-	-	-	5

Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

EATON EVOLUTION UPS

Pulsar series

(this product was formerly known as the Evolution UPS)

Line-interactive UPS (650-2000 VA)

The Eaton Evolution UPS provides high density power protection for network devices.

• Ideal for rackmount servers, conventional rackmount or tower servers, and network storage systems
• Sine wave output
  • USB, serial and communication slots as standard
  • Hot-swappable batteries
• Load segmentation provided

Exterior view of a modern electronic device with a black tower and drive unit (no visible text or symbols)

EVOLUTION NORTH AMERICAN MODELS: 120V, 50/60 Hz

Catalog Style Number	Rating Input Number	Output Dimensions Description	Weight List (VA/Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
EVLL650T	81700	Evolution 650 VA Tower	650/420	5-15P	(4) 5-15R	9.2 × 5.8 × 16.5	18.5	289
EVLL850T	81703	Evolution 850 VA Tower	850/600	5-15P	(4) 5-15R	9.2 \times 5.8 \times 16.5	23.9	349
EVLL1150T	81705	Evolution 1150 VA Tower	1150/770	5-15P	(4) 5-15R	9.2 × 5.8 × 16.5	27.6	449
EVLL1550T	81709	Evolution 1550 VA Tower	1550/1100	5-15P	(4) 5-15R	9.2 \times 5.8 \times 19.4	36.4	574
EVLL650R-1U	81701	Evolution 650 VA Rackmount (1U)	650/420	5-15P	(4) 5-15R	1.7 (1U) × 17.2 × 14.4	22.3	326
EVLL850R-1U	81704	Evolution 850 VA Rackmount (1U)	850/600	5-15P	(4) 5-15R	1.7 (1U) \times 17.2 \times 20.2	35.5	508
EVLL1150R-1U	81706	Evolution 1150 VA Rackmount (1U)	1150/770	5-15P	(4) 5-15R	1.7 (1U) × 17.2 × 20.2	36.6	647
EVLL1550R-1U	81710	Evolution 1550 VA Rackmount (1U)	1550/1100	5-15P	(4) 5-15R	1.7 (1U) \times 17.2 \times 21.9	44.1	813

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number	Description	List Price
Network-MS	Network-MS connectivity card	$249

See software and connectivity product sections for more detail.

EVOLUTION SERVICE PLANS

Warranty+ Extended Warranty (Offsite Repair)
Product	Contract Duration	Service Plan Part Number	List Price
650 VA	3 YR	650EXWAR1YREVLU	80.99
	5 YR	650EXWAR3YREVLU	188.99
850 VA	3 YR	850EXWAR1YREVLU	80.99
	5 YR	850EXWAR3YREVLU	188.99
1150 VA	3 YR	1150EXWAR1YREVLU	80.99
	5 YR	1150EXWAR3YREVLU	188.99
1550 VA	3 YR	1440EXWAR1YREVLU	80.99
	5 YR	1440EXWAR3YREVLU	188.99
2000 VA	3 YR	2000EXWAR1YREVLU	152.99
	5 YR	2000EXWAR3YREVLU	350.99

Onsite PowerTrust Service Plans include startup, annual PM and eNotify Remote Monitoring service

Product	Contract Duration	Service Plan Part Number	List Price
650 VA	2 YR	650PT2YREVLU	2,193
	3 YR	650PT3YREVLU	3,634
	5 YR	650PT5YREVLU	6,468
850 VA	2 YR	850PT2YREVLU	2,193
	3 YR	850PT3YREVLU	3,634
	5 YR	850PT5YREVLU	6,468
1150 VA	2 YR	1150PT2YREVLU	2,193
	3 YR	1150PT3YREVLU	3,634
	5 YR	1150PT5YREVLU	$6,468

EATON EVOLUTION UPS

Pulsar series (continued)

EVOLUTION SERVICE PLANS (continued)

Onsite PowerTrust Service Plans include startup, annual PM and eNotify Remote Monitoring service (continued)

Product Contract Duration Service Plan Part Number List Price

1550 VA 2 YR 1440PT2YREVLU 2,193

3 YR 1440PT3YREVLU3,634

5 YR 1440PT5YREVLU 6,468

2000 VA 2 YR 2000PT2YREVLU2,193

3 YR 2000PT3YREVLU 3,634

5 YR 2000PT5YREVLU6,468

Onsite Flex Service Plans include startup and eNotify Remote Monitoring service

Product Contract Duration Service Plan Part Number List Price

650 VA 2 YR 650FLEX2YREVLU 1,556

3 YR 650FLEX3YREVLU2,361

5 YR 650FLEX5YREVLU 3,920

850 VA 2 YR 850FLEX2YREVLU1,556

3 YR 850FLEX3YREVLU 2,361

5 YR 850FLEX5YREVLU3,920

1150 VA 2 YR 1150FLEX2YREVLU 1,556

3 YR 1150FLEX3YREVLU2,361

5 YR 1150FLEX5YREVLU 3,920

1550 VA 2 YR 1440FLEX2YREVLU1,556

3 YR 1440FLEX3YREVLU 2,361

5 YR 1440FLEX5YREVLU3,920

2000 VA 2 YR 2000FLEX2YREVLU 1,556

3 YR 2000FLEX3YREVLU2,361

5 YR 2000FLEX5YREVLU $3,920

Startup and Preventive Maintenance Service (7x24)

Product Part Number	List Price		Product Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
650 VA	650SUEVLU	1,002	650 VA	650PMEVLU	1,002
850 VA	850SUEVLU	1,002	850 VA	850PMEVLU	1,002
1150 VA	1150SUEVLU	1,002	1150 VA	1150PMEVLU1,002
1550 VA	1440SUEVLU	1,002	1440 VA	1440PMEVLU1,002
2000 VA	2000SUEVLU	1,002	2000 VA	2000PMEVLU1,002

7x24 prices listed above also apply to 5x8 services. Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.

EATON EVOLUTION UPS

Pulsar series (continued)

View interactive runtime graphs at www.eaton.com/evolution

EVOLUTION BATTERY BACKUP TIMES (in minutes) @ 0.7 Power Factor*

Load (VA/Watts) Internal Batteries
EVLL650T / EVLL650R-1U
65/42 53
130/84 31
195/126 18
260/168 13
325/210 9
390/252 7
455/294 6
520/336 4
585/378 3
650/420 2
EVLL850T / EVLL850R-1U
85/60 80
170/120 46
255/180 26
340/240 21
425/300 15
510/360 12
595/420 8
680/480 6
765/540 5
850/600 4
EVLL1150T / EVLL1150R-1U
155/110 77
310/220 42
465/330 22
620/440 17
775/550 12
690/462 10
805/539 7
920/616 6
1035/693	5
1150/770	4
EVLL1550T / EVLL1550R-1U
115/77 61
310/220 42
465/330 29
620/440 21
775/550 14
930/660 11
1085/770	8
1240/880	6
1395/990	5
1550/1100	4

* Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

EATON 5125 UPS TOWER

Powerware series

Line-interactive UPS (1000-2200 VA)

The Eaton 5125 UPS delivers cost-effective power protection for PCs, workstations and servers.

• ABM technology significantly increases battery service life
- Buck and Double Boost voltage regulation corrects voltage fluctuations and delivers pure sine wave output
- Extended runtime capability with extended battery modules (EBMs)
- Load segments maximize runtime for critical devices
• Hot-swappable batteries simplify service
- Warranty (US and Canada): Three-year limited warranty (third year of warranty free with online product registration), \$150,000 load protection guarantee

Now featuring a 3-year warranty with product registration!

Exterior view of a white industrial machine with ventilation grilles and control panel (no visible text or symbols)

5125 NORTH AMERICAN TOWER MODELS: 120V, 50/60 Hz

Part Rating Input Model	Output Dimensions Number	Weight List (VA/Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
5125 1000	05146629-5591	1000/700	5-15P	(6) 5-15R	9.81 × 6.38 × 15.79	34.3	518
5125 1500	05146632-5591	1440/1050	5-15P	(6) 5-15R	9.81 \times 6.38 \times 18.39	50.7	646
5125 2200	05146635-5591	1920/1600	5-20P	(6) 5-15R, (2) 5-20R	9.84 × 8.07 × 19.41	68.3	$1,045

5125 OPTIONS

Description	Part Number	Dimensions(H x W x D, inches)	Weight(lb)	List Price
Extended Battery Modules
5125 24V EBM (for 1000 Tower)	05146638-5591	9.84 × 6.38 × 18.66	59.5	417
5125 48V EBM (for 1500/2200 Tower)	05146639-5591	9.84 \times 6.38 \times 18.66	59.5	455

SOFTWARE AND CONNECTIVITY OPTIONS

Description	Part Number	List Price
ConnectUPS-X	116750221-001	335
Power Xpert Gateway UPS Card	PXGXUPS	450
Bundled with Intelligent Power Software Suite CD and communication cable.

See software and connectivity product sections for more detail.

5125 TOWER SERVICE PLANS

Extended Warranty Coverage for UPS (includes batteries in UPS)
Part Number	UPS Model	Description	List Price
5SW5Y-0951-1400U	5125 1000	5 Year Extended Factory Warranty with Advanced Exchange	94
5SW5Y-1401-1750U	5125 1500	5 Year Extended Factory Warranty with Advanced Exchange	123
5SW5Y-1751-2500U	5125 2200	5 Year Extended Factory Warranty with Advanced Exchange	$255

Startup and Preventive Maintenance Service

Product	Part Number	List Price	Product	Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
5x8 Service	0STUP5100XALLC5	778	5x8 Service	0XXPM5100XALLC5	778
7x24 Service	0STUP5100XALLC7	1,002	7x24 Service	0XXPM5100XALLC7	1,002

For additional services and definitions, please see the Extended Warranties table in the Single-phase Service section.

View interactive runtime graphs at www.eaton.com/5125

5125 TOWER BATTERY BACKUPTIMES (in minutes, full load/half load)*

Load (VA)	Standard Internal Batteries	+1 EBM	+2 EBMs	+3 EBMs	+4 EBMs
1000	5/14	25/60	55/170	83/199	109/228
1500	6/17	33/79	63/146	92/174	120/201
2200	5/14	26/60	55/170	81/198	106/224

*Up to four EBMs can be connected to the 1000–2200 VA models. EBM runtimes include internal batteries. Runtime chart provides typical information. Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

EATON 5130 UPS RACK/TOWER

Powerware series

EATON TAA COMPLIANT

Line-interactive UPS (1250-3000 VA)

The Eaton 5130 UPS offers density-optimized, highly configurable, advanced power protection for IT network/wiring closets, medical systems, communications/VoIP network systems and other mission-critical applications.

• Line-interactive topology with sine wave output
- Sized at PF 0.9 or greater means more watts available and compatibility with modern IT loads
• High power density (2U up to 3 kVA)
- Compatible with short depth racks up to 3 kVA
• USB, serial and communication slots as standard
• Hot-swappable batteries (accessible from front panel)
- Extended runtime by adding an EBM (up to four EBMs can be used)
- Load segmentation provided
- 4-post rail kit and tower pedestals included for all models (2-post rail kit optional)
- Warranty (US and Canada): Three-year limited warranty (third year of warranty free with online product registration), \$150,000 load protection guarantee

5130 NORTH AMERICAN RACK/TOWER MODELS ^1 : 120V, 50/60 Hz

Dimensions
Catalog Number	Rating	Input	Output (H x W x D, Description	Weight	List (VA/Watts)	Connection	Receptacles	(inches)	(lb)	Price
PW5130L1000-XL2U			5130 1000 120V Rack/Tower 2U		1000/1000	5-15P	(6) 5-15R	3.4 x 17.4 x 20.0	53.6	499
PW5130L2200-XL2U			5130 2200 120V Rack/Tower 2U		2200/1920	5-20P	(8) 5-20R	3.4 x 17.4 x 25.0	74.5	699

5130 TAA COMPLIANT RACK/TOWER MODELS

Dimensions
Catalog Number	Description	Rating (VA/Watts)	Input Connection	Output Receptacles	(H x W x D, inches)	Weight (lb)	List Price
PW5130L2200-XL2US	5130 2200 VA 120V TAA Rack/Tower 2U	2200/1920	5-20P	(8) 5-20R	3.4 x 17.4 x 25.0	74.5	699
PW5130L3000-XL2US	5130 3000 VA 120V TAA Rack/Tower 2U	3000/2700	L5-30P	(1) L5-30P, (6) 5-20R	3.4 x 17.4 x 25.0	74.5	879
PW5130i1250-XL2US	5130 1250 VA 230V TAA Rack/Tower 2U	1250/1150	IEC C14-10A	(8) IEC-C13 10A	3.4 x 17.4 x 20.0	53.6	569
PW5130i1750-XL2US	5130 1750 VA 230V TAA Rack/Tower 2U	1750/1600	IEC C14-10A	(8) IEC-C13 10A	3.4 x 17.4 x 20.0	58.6	599

5130 INTERNATIONAL RACK/TOWER MODELS: 230V, 50/60 Hz

Dimensions
Catalog Number	Description	Rating (VA/Watts)	Input Connection	Output Receptacles	(H x W x D, inches)	Weight (lb)	List Price
PW5130i1250-XL2U	5130 1250 230V Rack/Tower 2U	1250/1150	C14	(8) C13	3.4 x 17.4 x 20.0	53.6	569
PW5130i1750-XL2U	5130 1750 230V Rack/Tower 2U	1750/1600	C14	(8) C13	3.4 x 17.4 x 20.0	58.6	599

1. 120V models are adjustable to 80V-153V range user. 230V models are adjustable to 150V-294V range. Note: All models consist of {2} Load Segments (one receptacle each).

5130 OPTIONS

Catalog Number	Description	Dimensions (H x W x D, inches)	Weight (lb)	List Price
Extended Battery Modules
PW5130N1750-EBM2U ^1	5130 1000/1250/1500/1750 EBM R/T 2U	3.4 x 17.4 x 20.0	67.0	428
Two-post rail kit
103007018-5591	Two-post rack mounting rail kit	-	-	70

Power distribution and maintenance bypass
For detailed information on FlexPDU and HotSwap Maintenance Bypass products, please refer to the Eaton Power Distribution and Enclosures section.
1. This EBM works with the 1000, 1250, 1500 and 1750 VA UPS models.

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number	Description	List Price
Network-MS	Network Card-MS	$249

See software and connectivity product sections for more detail.

EATON 5130 UPS RACK/TOWER

Powerware series (continued)

5130 SERVICE PLANS

Extended Warranty Coverage for UPS (includes batteries in UPS)
Part Number	UPS Model	Description List Price
5SW5Y-0951-1400U	5130 1000	5 Year Extended Factory Warranty with Advanced Exchange 94
5130 1250
5SW5Y-1401-1750U	5130 1750	5 Year Extended Factory Warranty with Advanced Exchange123
5SW5Y-1751-2500U	5130 2200	5 Year Extended Factory Warranty with Advanced Exchange 255
5SW5Y-2501-3000U	5130 3000	5 Year Extended Factory Warranty with Advanced Exchange294
5SW5Y-0001-1750B	5130 1750	EBM 5 Year Extended Factory Warranty with Advanced Exchange $296

Startup and Preventive Maintenance Service

Product Part Number	List Price	Product Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
5x8 Service	0STUP5100XALLC5	778	5x8 Service	0XXPM5100XALLC5	778
7x24 Service	0STUP5100XALLC7	1,002	7x24 Service	0XXPM5100XALLC7	1,002

For additional services and definitions, please see the Extended Warranties table in the Single-phase Service section.

View interactive runtime graphs at www.eaton.com/5130

5130 BATTERY BACKUP TIMES (in minutes) ^1

Load (VA/Watts)	Internal Batteries	+1 EBM	+2 EBMs	+3 EBMs	+4 EBMs
PW5130L1000-XL2U (with PW5130N1750-EBM2U)
100/70	112	440	841	1196	1530
250/175	59	255	570	725	975
500/350	25	125	225	305	422
750/525	16	78	140	210	288
1000/700	10	56	100	150	192
1000/1000^2	7	36	66	97	128
PW5130L1500-XL2U (with PW5130N1750-EBM2U)
150/105	90	302	495	710	920
375/262	45	150	270	410	530
750/525	19	61	121	185	250
1125/787	10	45	70	110	150
1500/1050	7	32	58	84	111
1500/1400^2	4	22	40	55	77
PW5130L2200-XL2U (with PW5130N3000-EBM2U)
195/136	119	426	608	1082	1450
488/341	55	185	370	639	810
975/682	23	105	190	285	370
1463/1045	12	56	105	150	220
1950/1365	8	38	65	114	152
2200/1920^2	5	27	48	70	97
PW5130L3000-XL2U / XL3U / PW5130G3000-XL2U (with PW5130N3000-EBM2U or -EBM3U, depending on UPS height)
300/210	80	270	500	705	901
750/525	39	143	308	370	482
1500/1050	16	62	117	160	210
2250/1575	8	35	59	85	105
3000/2100	5	24	40	59	82
3000/2700^2	3	17	32	47	62

1. Battery backup times, shown at 0.7 power factor, are approximate and may vary with equipment, configuration, battery age, temperature, etc. International model runtimes are available; please visit www.eaton.com/5130 for details.
2. Runtimes shown at full load with maximum power factor.

Line-interactive UPS (1000–3000 VA)

The Eaton 5PX UPS provides advanced power conditioning and unparalleled battery backup for network closets and small data centers.

• Line-interactive topology with sine wave output
• Industry-leading efficiency of up to 99 percent
- Meters energy consumption down to the outlet segments
- Displays critical UPS information in a next-generation graphical LCD
- Protects more devices by providing up to 28 percent more wattage than traditional UPSs
• ABM technology extends battery life by 50 percent
- Extended available runtime by adding up to 4 EBMs
- Comes with free monitoring and management software, perfect for virtualized environments
- Hot-swappable batteries allow you to replace batteries while the UPS stays on
- Load segments enable shutdown of connected devices for increased runtime
• 4-post rail kit included (2-post rail kit optional)
- Warranty (US and Canada): Three-year limited warranty (third year of warranty free with online product registration), five-year extended warranty plans available, \$150,000 load protection guarantee

Two black electronic devices with front-mounted screens and ventilation grilles, no visible text or symbols.

5PX NORTH AMERICAN MODELS: 120V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List
Number	Description	(VA/Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
5PX1000RT	Eaton 5PX 1000 VA 120V Rack / Tower 2U	1000/1000	5-15P (8ft)	(8) 5-15R	3.4 (2U) x 17.4 x 20.6	62	657
5PX1500RT	Eaton 5PX 1500 VA 120V Rack / Tower 2U	1440/1440	5-15P (8ft)	(8) 5-15R	3.4 (2U) x 17.4 x 20.6	65	872
5PX1500RTN	Eaton 5PX 1500 VA with Network Card-MS	1440/1440	5-15P (8ft)	(8) 5-15R	3.4 (2U) x 17.4 x 20.6	65	1,121
5PX2200RT	Eaton 5PX 2200 VA 120V Rack / Tower 2U	1950/1920	5-20P (8ft)	(4) 5-20R, (4) 5-15R	3.4 (2U) x 17.4 x 20.6	65	1,332
5PX2200RTN	Eaton 5PX 2200 VA with Network Card-MS	1950/1920	5-20P (8ft)	(4) 5-20R, (4) 5-15R	3.4 (2U) x 17.4 x 20.6	65	1,581
5PX3000RT2U	Eaton 5PX 3000 VA 120V Rack / Tower 2U	3000/2700	L5-30P (10ft)	(6) 5-20R, (1) L5-30R	3.4 (2U) x 17.4 x 25.4	87	1,595
5PX3000RT2UN	Eaton 5PX 3000 VA with Network Card-MS	3000/2700	L5-30P (10ft)	(6) 5-20R, (1) L5-30R	3.4 (2U) x 17.4 x 25.4	87	1,844
5PX3000RT3U	Eaton 5PX 3000 VA 120V Rack / Tower 3U	3000/2700	L5-30P (10ft)	(6) 5-20R, (1) L5-30R	5.1 (3U) x 17.4 x 19.6	86	1,675

5PX INTERNATIONAL MODELS: 208/230V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List
Number	Description	(VA/Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
5PX1500iRT	Eaton 5PX 1500 VA 208/230V Rack / Tower 2U	1500/1350	C14	(8) C13	3.4 (2U) x 17.4 x 20.6	61	989
5PX2200iRT	Eaton 5PX 2200 VA 208/230V Rack / Tower 2U	2200/1980	C20	(1) C19, (8) C13	3.4 (2U) x 17.4 x 20.6	63	1,499
5PX3000iRT2U	Eaton 5PX 3000 VA 208/230V Rack / Tower 2U	3000/2700	C20	(1) C19, (8) C13	3.4 (2U) x 17.4 x 25.4	84	1,799
5PX3000iRT2UN	Eaton 5PX 3000 VA with Network Card-MS	3000/2700	C20	(1) C19, (8) C13	3.4 (2U) x 17.4 x 25.4	84	2,048

5PX OPTIONS

Catalog Number	Description	Rating (VA)	For use with 5PX model	Dimensions (H x W x D, inches)	Weight (lb)	List Price
Extended Battery Modules
5PXEBM48RT	Eaton 5PX 48V EBM Rack / Tower 2U	48V	5PX1000RT, 5PX1500RT, 5PX2200RT	3.4 (2U) x 17.4 x 20.0	72	585
5PXEBM72RT2U	Eaton 5PX 72V EBM Rack / Tower 2U	72V	5PX3000RT2U	3.4 (2U) x 17.4 x 20.0	102	859
5PXEBM72RT3U	Eaton 5PX 72V EBM Rack / Tower 3U, short depth	72V	5PX3000RT3U	5.1 (3U) x 17.4 x 19.6	98	$859

Two-post rail kit

103007018-5591 Two-post rack mounting rail kit (supports 2U models only)
Catalog Number	Description	For use with 5PX model	Input Connection	Output Receptacles	Dimensions (H x W x D, inches)	List Price
Power distribution and maintenance bypass
EHBPL1500R-PDU1U	HotSwap Maintenance Bypass (MBP)	5PX1000RT, 5PX1500RT	5-15P	(6) 5-15R	2.1 × 17.3 × 3.8	230
EHBPL2000R-PDU1U	HotSwap Maintenance Bypass (MBP)	5PX2200RT	5-20P	(6) 5-15R	2.1 \times 17.3 \times 3.8	275
EHBPL3000R-PDU1U	HotSwap Maintenance Bypass (MBP)	5PX3000RT2U, 5PX3000RT3U	L5-30P	(5) 5-20R	2.1 × 17.3 × 3.8	$400

For detailed information on FlexPDU and HotSwap Maintenance Bypass products, please refer to the Eaton Power Distribution and Enclosures section.

Eaton series (continued)

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number	Description	List Price
Network-MS	Network Card-MS	$249

See software and connectivity product sections for more detail.

5PX RACK/TOWER SERVICE PLANS

Extended Warranty Coverage for UPS (includes batteries in UPS)
Part Number UPS Model	Description	List Price
5SW5Y-0951-1400U	5PX 1000	5 Year Extended Factory Warranty with Advanced Exchange	94
5SW5Y-1401-1750U	5PX 1500	5 Year Extended Factory Warranty with Advanced Exchange	123
5SW5Y-1751-2500U	5PX 2200	5 Year Extended Factory Warranty with Advanced Exchange	255
5SW5Y-2501-3000U	5PX 3000	5 Year Extended Factory Warranty with Advanced Exchange	294
5SW5Y-0001-1750B	5PX EBM48	5 Year Extended Factory Warranty with Advanced Exchange	296
5SW5Y-1751-3000B	5PX EBM72	5 Year Extended Factory Warranty with Advanced Exchange	463

Startup and Preventive Maintenance Service

Product	Part Number	List Price	Product	Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
5x8 Service	0STUP5100XALLC5	778	5x8 Service	0XXPM5100XALLC5	778
7x24 Service	0STUP5100XALLC7	1,002	7x24 Service	0XXPM5100XALLC7	1,002

For additional services and definitions, please see the Extended Warranties table in the Single-phase Service section.

View interactive runtime graphs at www.eaton.com/5PX

5PX BATTERY BACKUP TIMES (in minutes) ^1

Load (VA/Watts)	Internal Batteries	+1 EBM	+2 EBMs	+3 EBMs	+4 EBMs
5PX1000RT (with 5PXEBM48RT)
100/70	120	462	796	1131	1466
250/175	69	286	490	695	899
500/350	30	145	254	364	473
750/525	17	83	151	219	286
1000/700	11	59	108	156	204
1000/1000^2	7	39	71	103	135
5PX1500RT (with 5PXEBM48RT)
150/105	81	334	550	765	981
375/262	43	187	315	442	569
750/525	18	87	150	214	277
1125/787	9	50	89	129	169
1440/1050	6	35	66	96	126
1440/1440^2	3	21	41	62	82
5PX2200RT (with 5PXEBM48RT)
195/136	71	274	465	656	847
488/341	39	154	270	385	501
975/682	16	67	123	179	236
1463/1045	8	36	67	93	128
1950/1365	5	26	48	65	93
2200/1920^2	3	15	29	36	57
5PX3000RT2U or 5PX3000RT3U (with 5PXEBM72RT2U or 5PXEBM72RT3U)
300/210	63	273	470	667	864
750/525	31	148	254	360	465
1500/1050	13	64	111	158	206
2250/1575	8	35	64	94	123
3000/2100	6	26	48	70	91
3000/2700^2	4	19	35	52	68

1. Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. International model runtimes are available; please visit www.eaton.com/5PX for details.

2. Runtimes shown at full load with maximum power factor.

EATON EVOLUTION S UPS

Pulsar series

(this product was formerly known as the Evolution S UPS)

Line-interactive UPS (1250-3000 VA)

High density power protection with optimized form factors and extended runtime options for network devices:

- Rackmount servers - Conventional rackmount or tower servers - Network storage systems

Two gray server units with ventilation grilles, one front and one side, shown against a white background (no visible text or labels)

EVOLUTION S NORTH AMERICAN MODELS: 120V, 50/60 Hz

Catalog Style Rating Input Output Dimensions Weight List
Number	Number	Description	(VA/Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
EVLSL1750-XL2U	81711	Evolution S 1750 Tower/Rack (2U)	1750/1600	5-20P	(6) 5-20R	3.4 (2U) x 17.3 x 20.0	58.6	599
EVLSL2500-XL2U	81714	Evolution S 2500 Tower/Rack (2U)	2500/2250	L5-30P	(6) 5-20R, (1) L5-30R	3.4 (2U) x 17.3 x 25.0	74.5	699
EVLSL3000-XL2U	81715	Evolution S 3000 Tower/Rack (2U)	3000/2700	L5-30P	(6) 5-20R, (1) L5-30R	3.4 (2U) x 17.3 x 25.0	74.5	799
EVLSL3000-XL3U	81716	Evolution S 3000 Tower/Rack (3U)	3000/2700	L5-30P	(6) 5-20R, (1) L5-30R	5.1 (3U) x 17.3 x 19.1	75.6	759

EVOLUTIONS OPTIONS

Catalog Number	Style Number	Description	Rating (VA/Watts)	Dimensions (H x W x D, inches)	Weight (lb)	List Price
Extended Battery Modules
EVLSLI1750R-EBM2U	68470	EBM for 1250 & 1750VA models (2U)	-	3.4 (2U) x 17.3 x 20.0	67.0	428
EVLSI3000R-EBM3U	68471	EBM for 2500/3000 VA Tower/Rack (3U)	-	5.15 (3U) x 17.32 x 19.06	91.9	704
Two-post rail kit
103007018-5591		Two-post rack mounting rail kit	-	-	-	$70

Power distribution and maintenance bypass

For detailed information on FlexPDU and HotSwap Maintenance Bypass products, please refer to the Eaton Power Distribution and Enclosures section.

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number	Description	List Price
Network-MS	Network Card-MS	$249

See software and connectivity product sections for more detail.

EVOLUTION S SERVICE PLANS

Warranty+ Extended Warranty (Offsite Repair)
Product	Contract Duration	Service Plan Part Number	List Price	Battery Module Part Number	List Price
1250 VA	3 YR	1250EXWAR1YREVLSU	80.99	1250EXWAR1YREVLSB	80.99
	5 YR	1250EXWAR3YREVLSU	188.99	1250EXWAR3YREVLSB	188.99
1750 VA	3 YR	1750EXWAR1YREVLSU	152.99	1750EXWAR1YREVLSB	152.99
	5 YR	1750EXWAR3YREVLSU	350.99	1750EXWAR3YREVLSB	350.99
2500 VA	3 YR	2500EXWAR1YREVLSU	152.99	2500EXWAR1YREVLSB	152.99
	5 YR	2500EXWAR3YREVLSU	350.99	2500EXWAR3YREVLSB	350.99
3000 VA	3 YR	3000EXWAR1YREVLSU	152.99	3000EXWAR1YREVLSB	152.99
	5 YR	3000EXWAR3YREVLSU	350.99	3000EXWAR3YREVLSB	350.99

Onsite PowerTrust Service Plans include startup, annual PM and eNotify Remote Monitoring service

Product		Contract Duration	Service Plan Part Number	List Price	Battery Module Part Number	List Price
1250 VA		2 YR	1250PT2YREVLSU	2,193	1250PT2YREVLSB	219
		3 YR	1250PT3YREVLSU	3,634	1250PT3YREVLSB	363
		5 YR	1250PT5YREVLSU	6,468	1250PT5YREVLSB	647
1750 VA		2 YR	1750PT2YREVLSU	2,193	1750PT2YREVLSB	219
		3 YR	1750PT3YREVLSU	3,634	1750PT3YREVLSB	363
		5 YR	1750PT5YREVLSU	6,468	1750PT5YREVLSB	647
2500 VA		2 YR	2500PT2YREVLSU	2,193	2500PT2YREVLSB	219
		3 YR	2500PT3YREVLSU	3,634	2500PT3YREVLSB	363
		5 YR	2500PT5YREVLSU	6,468	2500PT5YREVLSB	647
3000 VA		2 YR	3000PT2YREVLSU	2,193	3000PT2YREVLSB	219
		3 YR	3000PT3YREVLSU	3,634	3000PT3YREVLSB	363
		5 YR	3000PT5YREVLSU	6,468	3000PT5YREVLSB	647

EATON EVOLUTION S UPS

Pulsar series (continued)

View interactive runtime graphs at www.eaton.com/evolution-s

EVOLUTION S SERVICE PLANS (continued)

Onsite Flex Service Plans include startup and eNotify Remote Monitoring service
Contract Service PlanProduct Duration Part Number Price Part Number Price		List Battery Module	List
1250 VA 2 YR 1250FLEX2YREVLSU 1,556 1250FLEX2YREVLSB S156
3 YR 1250FLEX3YREVLSU2,361 1250FLEX3YREVLSB 236
5 YR 1250FLEX5YREVLSU3,920 1250FLEX5YREVLSB 392
1750 VA 2 YR 1750FLEX2YREVLSU1,556 1750FLEX2YREVLSB 156
3 YR 1750FLEX3YREVLSU2,361 1750FLEX3YREVLSB 236
5 YR 1750FLEX5YREVLSU3,920 1750FLEX5YREVLSB 392
2500 VA 2 YR 2500FLEX2YREVLSU1,556 2500FLEX2YREVLSB 156
3 YR 2500FLEX3YREVLSU2,361 2500FLEX3YREVLSB 236
5 YR 2500FLEX5YREVLSU3,920 2500FLEX5YREVLSB 392
3000 VA 2 YR 3000FLEX2YREVLSU1,556 3000FLEX2YREVLSB 156
3 YR 3000FLEX3YREVLSU2,361 3000FLEX3YREVLSB 236
5 YR 3000FLEX5YREVLSU3,920 3000FLEX5YREVLSB $392

Startup and Preventive Maintenance Service (7x24)

Product Part Number	List Price		Product	Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
1250 VA	1250SUEVLSU	1,002	1250 VA	1250PMEVLSU	1,002
1750 VA	1750SUEVLSU	1,002	1750 VA	1750PMEVLSU	1,002
2500 VA	2500SUEVLSU	1,002	2500 VA	2500PMEVLSU	1,002
3000 VA	3000SUEVLSU	1,002	3000 VA	3000PMEVLSU	1,002

7x24 prices listed above also apply to 5x8 services. UPS coverage required for battery module coverage. Additional information about service plan features can be found in the Single-phase Service
Plans Overview of this reference guide

EVOLUTION S BATTERY BACKUP TIMES (in minutes) @ 0.9 Power Factor

Load (VA/Watts)	Standard Internal Batteries	+1 EBM	+2 EBMs	+3 EBMs	+4 EBMs
Evolution S 1750
175/160	80	245	410	575	740
438/400	24	96	168	240	312
875/800	9	36	62	89	115
1313/1200	6	24	42	60	79
1750/1600	3	16	28	41	53
Evolution S 2500
250/225	77	300	410	780	1064
625/563	28	122	207	309	412
1250/1125	11	55	100	150	206
1875/1938	6	31	59	90	120
2500/2250	3	23	42	63	85
Evolution S 3000
300/270	70	242	448	634	820
750/675	24	105	180	255	330
1500/1350	10	44	73	101	130
2250/2025	5	25	47	69	91
3000/2700	3	17	32	47	62

Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

EATON 5125 UPS RACKMOUNT

Powerware series

Line-interactive UPS (5000-6000 VA)

The 5125 delivers a space-saving 3U rack height package and is the ideal high-density power protection solution for your servers, storage systems, network equipment and other critical devices.

• ABM technology significantly increases battery service life
- Load segment control (separate receptacles groups) enables scheduled shut downs and maximum runtime for each critical device
- Communication bay allows for optional communication cards for remote management; USB and serial ports extend capacity
- Hot-swappable battery and electronics modules simplify service, provide high availability and faster mean time to repair
- Warranty (US and Canada): Three-year limited warranty (third year of warranty free with online product registration), optional Gold Plans available, \$150,000 load protection guarantee

Now featuring a 3-year warranty with product registration!

Black electronic device with a logo on top, no visible text or symbols on the body

5125 RACKMOUNT MODELS: 200-240V

Model	Part Number	Rating (VA/Watts)	Input Connection	Output Receptacles	Dimensions (H x W x D, inches)	Weight (lb)	List Price
5125 5000	103003611-5591	5000/4500(2) L6-20, (4) C13	L6-30P	L6-30R on short cord	5.25 (3U) x 17.50 x 26.00	161	2,998
5125 6000 HW	103003610-5591	6000/5400(4) C19, (4) C13	Hardwired	Hardwired	5.25 (3U) x 17.50 x 26.00	161	3,351
5125 6000i	103003612-5591	6000/5400(4) C19, (4) C13	IEC-309-32A	IEC-309-32A on short cord	5.25 (3U) x 17.50 x 26.00	161	$3,389

5125 RACKMOUNT OPTIONS

Model	Part Number	Dimensions(H x W x D, inches)	Weight(lb)	ListPrice
Extended Battery Modules
5125 240V EBM (Black)	103003387-6591	5.25 (3U) x 17.50 x 26.0	169	$1,295

Notes: EBMs are the same EBMs used for the 9125 5000/6000 VA product line.

ENCLOSURES

See the Enclosures section for a comprehensive list of IT enclosure offerings.

SOFTWARE AND CONNECTIVITY OPTIONS

Part Number	Description	Style Number	List Price
39J4824	ConnectUPS-X	16750221-001	$335
Bundled with Intelligent Power Software Suite CD and communication cable.

See software and connectivity product sections for more detail.

EATON 5125 UPS RACKMOUNT

Powerware series (continued)

5125 RACKMOUNT SERVICE PLANS

Contract Onsite Gold Plan List Onsite Gold Plan List
Product Duration Part Number Price Plus Part Number Price
5000-6000 VA 2 YR 20SGX51256000CX 557 20SGP51256000CX1,142
3 YR 30SGX51256000CX 1,027 30SGP51256000CX1,984
	5 YR	50SGX51256000CX 1,633		50SGP51256000CX	2,723
Base Unit 7x24 Service Adders
Contract Onsite Gold Plan List Onsite Gold Plan List
Product Duration Part Number Price Plus Part Number Price
7x24 Base 2 YR 20SGX5100BASEC7 327 20SGP5100BASEC7534
Adder	3 YR	30SGX5100BASEC7	367	30SGP5100BASEC7	781
5 YR 50SGX5100BASEC7	424	50SGP5100BASEC7	1,211
External Battery Module Adder Service Plan
Contract Onsite Gold Plan List Onsite Gold Plan List
Product Duration Part Number Price Plus Part Number Price
EBM 240	2 YR	20SGX5125B240CX	327	20SGP5125B240CX	805
PW5125	3 YR	30SGX5125B240CX	786	30SGP5125B240CX	1,743
5000/6000VA	5 YR	50SGX5125B240CX	1,705	50SGP5125B240CX	2,661
External Battery Module 7x24 Service Adders
Contract Onsite Gold Plan List Onsite Gold Plan List
Product Duration Part Number Price Plus Part Number Price
7x24	2 YR	20SGX5100EBMXC7	165	20SGP5100EBCXC7	268
Battery	3 YR	30SGX5100EBMXC7	184	30SGP5100EBCXC7	391
Adder	5 YR	50SGX5100EBMXC7	213	50SGP5100EBCXC7	606

To cover both the base UPS and Extended Battery Modules, the EBM Gold Plan(s) should be added to the like UPS Gold Plan(s). Unit must be within 100 miles of an established service location to qualify for 24-hour response and is per contracted period of maintenance. Initial startup serves as the performance check during the first year of the Onsite Gold Plan Plus. UPS Gold Plan covers standard, internal batteries.

Startup and Preventive Maintenance Service

Product	Part Number	List Price	Product	Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
5x8 Service	0STUP5100XALLC5	778	5x8 Service	0XXPM5100XALLC5	778
7x24 Service	0STUP5100XALLC7	1,002	7x24 Service	0XXPM5100XALLC7	1,002

Additional information about service plan features can be found in the Single-Phase Service Plans Overview section of this reference guide.

View interactive runtime graphs at www.eaton.com/5125rm

5125 RACKMOUNT BATTERY BACKUP TIMES (in minutes) @ 0.9 Power Factor

Load (VA/Watts)	Internal Batteries	Standard +1 EBM	+2 EBMs	+3 EBMs	+4 EBMs
1000/900	59	169	303	452	612
2000/1800	26	79	138	204	274
2200/1980	21	65	112	164	223
2500/2250	19	61	106	156	210
2700/2430	17	52	89	132	180
3000/2700	15	49	85	125	168
3500/3150	13	43	73	110	142
4500/4050	8	27	52	76	102
5000/4500	7	24	46	67	89
5500/4950	6	22	42	61	81
6000/5400	5	19	36	53	71

Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

EATON EX UPS

Pulsar series

(this product was formerly known as the Pulsar and Pulsar M UPSs)

Online UPS (700-3000 VA)

Ideal protection for servers, data storage, network equipment, telephony, VoIP and medical equipment—industrial processes.

• True double-conversion
  • Hot-swappable batteries
• Two load segments
• USB and RS-232 ports
• Rack/tower configurations provide versatility
• High power factor provides more real power (watts) for more loads
  • Four-post rail kit included with rack UPS

Exterior view of a server rack unit with front-mounted drive and top-mounted tower (no visible text or labels)

EX NORTH AMERICAN MODELS: 120V, 50/60 Hz

Catalog Style Rating Input Output Dimensions Weight List
Number	Number	Description	(VA/Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
PULSL700T	86700	120V TWR 0.7 kVA	700/630	5-15P	(4) 5-15R	9.52 x 6.00 x 17.31	25.7	655
PULSL1000T	86701	120V TWR 1 kVA	1000/900	5-15P	(4) 5-15R	9.52 x 6.00 x 17.31	33.0	735
PULSL1500T	86703	120V TWR 1.5 kVA	1500/1350	5-15P	(4) 5-15R	9.52 x 6.00 x 19.29	39.6	995
PULSL1000R-XL2U	86702	120V RT2U 1 kVA	1000/900	5-15P	(6) 5-15R	3.46 (2U) x 17.25 x 19.00	39.6	835
PULSL1500R-XL2U	86704	120V RT2U 1.5 kVA	1500/1350	5-15P	(6) 5-15R	3.46 (2U) x 17.25 x 19.00	-	1,085
PULSML2200-XL2U	86722	120V RT2U 2.2 kVA	2100/1650	5-20P	(6) 5-20R, (1) L5-20R	3.40 (2U) x 17.30 x 25.20	68.2	1,579
PULSML2200-XL3U	86723	120V RT3U 2.2 kVA	2100/1650	5-20P	(6) 5-20R, (1) L5-20R	5.14 (3U) x 17.30 x 19.29	70.0	1,335
PULSML3000-XL2U	86732	120V RT2U 3 kVA	3000/2550	L5-30P	(6) 5-20R, (1) L5-30R	3.40 (2U) x 17.30 x 25.20	70.0	2,149

EX INTERNATIONAL MODELS: 230V, 50/60 Hz

Catalog Number	Style Number	Description	Rating (VA/Watts)	Input Connection	Output Receptacles	Dimensions (H x W x D, inches)	Weight (lb)	List Price
PULSI1000T	68181	230V TWR 1 kVA	1000/900	IEC C14 (10A Socket)	(6) IEC C13 (10A)	9.52 × 6.00 × 17.31	33.0	969
PULSI1500T	68183	230V TWR 1.5 kVA	1500/1350	IEC C14 (10A Socket)	(6) IEC C13 (10A)	9.52 \times 6.00 \times 19.29	39.6	1,329
PULSI1000R-XL2U	68182	230V RT2U 1 kVA	1000/900	IEC C14 (10A Socket)	(6) IEC C13 (10A)	3.46 (2U) × 17.25 × 19.00	39.6	1,105
PULSI1500R-XL2U	68184	230V RT2U 1.5 kVA	1500/1350	IEC C14 (10A Socket)	(6) IEC C13 (10A)	3.46 (2U) \times 17.25 \times 19.00	-	1,569
PULSMI2200-XL2U	68401	230V RT2U 2.2 kVA	2200/1980	IEC C20 (16A) or terminal block on 103007536-6591 PPDM	(8) IEC C13 (10A) (1) IEC C19 (16A)	3.39 × 17.32 × 25.20	68.3	2,179
PULSMI2200-XL3U	68400	230V RT3U 2.2 kVA	2200/1980	IEC C20 (16A) or terminal block on 103007536-6591 PPDM	(8) IEC C13 (10A) (1) IEC C19 (16A)	5.16 \times 17.32 \times 19.29	66.1	1,959
PULSMI3000-XL2U	68403	230V RT2U 3 kVA	3000/2700	IEC C20 (16A) or terminal block on 103007536-6591 PPDM	(8) IEC C13 (10A) (1) IEC C19 (16A)	3.39 × 17.32 × 25.20	68.3	2,833
PULSMI3000-XL3U	68402	230V RT3U 3 kVA	3000/2700	IEC C20 (16A) or terminal block on 103007536-6591 PPDM	(8) IEC C13 (10A) (1) IEC C19 (16A)	5.16 \times 17.32 \times 19.29	66.1	2,550
PULSMI3000-XL3UXL	68404	230V RT3U XL 3 kVA	3000/2400	IEC C20 (16A) or terminal block on 103007536-6591 PPDM	(8) IEC C13 (10A) (1) IEC C19 (16A)	5.16 × 17.32 × 19.29	37.4	$3,281

EATON EX UPS

Pulsar series (continued)

EX OPTIONS

Catalog Style Dimensions Weight ListNumber Number Description (H x W x D, inches) (lb) Price
Extended Battery Modules
PULSL1500T-EBM	86705	120V TWR EBM 1–1.5 kVA	9.52 x 6.00 x 17.32	46.3	649
PULSL1500R-EBM	86706	120V RT EBM 1-1.5 kVA	3.40 x 17.25 x 19.00	58.1	749
PULSI1500T-EBM	68185	230V TWR EBM 1–1.5 kVA	9.53 x 6.22 x 15.75	46.3	605
PULSI1500R-EBM	68186	230V RT EBM 1-1.5 kVA	3.41 x 17.32 x 18.9	58.1	729
PULSMI3000-EBM	68405	120/230V RT EBM 2–3 kVA	5.16 x 17.32 x 19.29	92.4	985
Optional Mounting Hardware
PULSM-RAIL	68441	2U/3U Four-post rail kit	-	22.0	196
-	103007018-5591	Two-post rack mounting rail kit	-	-	$70

Power distribution and maintenance bypass

For detailed information on FlexPDU and HotSwap Maintenance Bypass products, please refer to the Eaton Power Distribution and Enclosures section.

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number	Description	List Price
Network-MS	Network Card-MS	$249

See software and connectivity product sections for more detail.

EX SERVICE PLANS

Warranty+ Extended Warranty (Offsite Repair)
Product	Contract Duration	Service Plan Part Number	List Price	Battery Module Part Number	List Price
700 VA	3 YR	700EXWAR1YRPULSU	80.99	-	-
	5 YR	700EXWAR3YRPULSU	188.99	-	-
1000 VA	3 YR	1000EXWAR1YRPULSU	80.99	1000EXWAR1YRPULSB	80.99
	5 YR	1000EXWAR3YRPULSU	188.99	1000EXWAR3YRPULSB	188.99
1500 VA	3 YR	1500EXWAR1YRPULSU	152.99	1500EXWAR1YRPULSB	152.99
	5 YR	1500EXWAR3YRPULSU	350.99	1500EXWAR3YRPULSB	350.99
2200 VA	3 YR	2200EXWAR1YRPULSMU	296.99	2200EXWAR1YRPULSMB	296.99
	5 YR	2200EXWAR3YRPULSMU	683.10	2200EXWAR3YRPULSMB	683.10
3000 VA	3 YR	3000EXWAR1YRPULSMU	296.99	3000EXWAR1YRPULSMB	296.99
	5 YR	3000EXWAR3YRPULSMU	683.10	3000EXWAR3YRPULSMB	683.10

Onsite PowerTrust Service Plans include startup, annual PM and eNotify Remote Monitoring service

Product	Contract Duration	Service Plan Part Number	List Battery Module		List Price
			Price	Part Number
700 VA	2 YR	700PT2YRPULSU	2,193	-	-
	3 YR	700PT3YRPULSU	3,634	-	-
	5 YR	700PT5YRPULSU	6,468	-	-
1000 VA	2 YR	1000PT2YRPULSU	2,193	1000PT2YRPULSB	219
	3 YR	1000PT3YRPULSU	3,634	1000PT3YRPULSB	363
	5 YR	1000PT5YRPULSU	6,468	1000PT5YRPULSB	647
1500 VA	2 YR	1500PT2YRPULSU	2,193	1500PT2YRPULSB	219
	3 YR	1500PT3YRPULSU	3,634	1500PT3YRPULSB	363
	5 YR	1500PT5YRPULSU	6,468	1500PT5YRPULSB	647
2200 VA	2 YR	2200PT2YRPULSMU	2,193	2200PT2YRPULSMB	219
	3 YR	2200PT3YRPULSMU	3,634	2200PT3YRPULSMB	363
	5 YR	2200PT5YRPULSMU	6,468	2200PT5YRPULSMB	647
3000 VA	2 YR	3000PT2YRPULSMU	2,193	3000PT2YRPULSMB	219
	3 YR	3000PT3YRPULSMU	3,634	3000PT3YRPULSMB	363
	5 YR	3000PT5YRPULSMU	6,468	3000PT5YRPULSMB	$647

EATON EX UPS

Pulsar series (continued)

EX SERVICE PLANS (continued)

Onsite Flex Service Plans include startup and eNotify Remote Monitoring service

Contract Service PlanProduct Duration Part Number Price Part Number Price			List Battery Module		List
700 VA 2 YR 700FLEX2YRPULSU 1,556 - -
	3 YR 700FLEX3YRPULSU2,361	- -
	5 YR 700FLEX5YRPULSU 3,920 - -
1000 VA	2 YR	1000FLEX2YRPULSU	1,556	1000FLEX2YRPULSB	156
	3 YR	1000FLEX3YRPULSU	2,361	1000FLEX3YRPULSB	236
	5 YR	1000FLEX5YRPULSU	3,920	1000FLEX5YRPULSB	392
1500 VA	2 YR	1500FLEX2YRPULSU	1,556	1500FLEX2YRPULSB	156
	3 YR	1500FLEX3YRPULSU	2,361	1500FLEX3YRPULSB	236
	5 YR	1500FLEX5YRPULSU	3,920	1500FLEX5YRPULSB	392
2200 VA	2 YR 2200FLEX2YRPULSMU	1,556 2200FLEX2YRPULSMB 156
	3 YR 2200FLEX3YRPULSMU	2,361 2200FLEX3YRPULSMB 236
	5 YR 2200FLEX5YRPULSMU	3,920 2200FLEX5YRPULSMB 392
3000 VA	2 YR 3000FLEX2YRPULSMU	1,556 3000FLEX2YRPULSMB 156
	3 YR 3000FLEX3YRPULSMU	2,361 3000FLEX3YRPULSMB 236
	5 YR 3000FLEX5YRPULSMU	3,920 3000FLEX5YRPULSMB $392

Startup and Preventive Maintenance Service (7x24)

Product	Part Number	List Price	Product	Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
700 VA	700SUPULSU	1,002	700 VA	700PMPULSU	1,002
1000 VA	1000SUPULSU	1,002	1000 VA	1000PMPULSU	1,002
1500 VA	1500SUPULSU	1,002	1500 VA	1500PMPULSU1,002
2200 VA	2200SUPULSMU	1,002	2200 VA	2200PMPULSMU	1,002
3000 VA	3000SUPULSMU	1,002	3000 VA	3000PMPULSMU	1,002

7x24 prices listed above also apply to 5x8 services. UPS coverage required for battery module coverage. Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.

View interactive runtime graphs at www.eaton.com/ex

EX BATTERY BACKUP TIMES (in minutes)

Load (VA/Watts)	Standard Internal Batteries	+1 EBM	+2 EBMs	+3 EBMs	+4 EBMs
EX 700
70/49	71	-	-	-	-
140/98	36	-	-	-	-
210/147	25	-	-	-	-
280/196	20	-	-	-	-
350/245	16	-	-	-	-
420/294	12	-	-	-	-
490/343	10	-	-	-	-
560/392	8 - -	-	-
630/441	6 - -	-	-
700/490	5 - -	-	-
EX 1000 / 1000 RT 2U
100/70	75	290	490	790	980
200/140	40	170	290	440	550
300/210	28	125	210	310	390
400/280	21	92	180	240	310
500/350	18	75	150	205	250
600/420	14	60	110	170	220
700/490	11	52	90	145	190
800/560	9	43	78	125	170
900/630	7	40	70	112	155
1000/700	6	35	60	95	135

EATON EX UPS

Pulsar series (continued)

EX BATTERY BACKUP TIMES (in minutes) (continued)

Load Standard(VA/Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs
EX 1500 / 1500 RT 2U
150/105 60 212	360	475	700
300/210 32 110	220	280	380
450/315	21	78	155	210	260
600/420	16	60	115	160	200
750/525	13	47	83	140	180
900/630	10	40	71	110	140
1050/735	8	34	60	90	118
1200/840	7	30	52	76	100
1350/945	6	27	48	70	90
1500/1050	5	24	42	62	80
EX 2200 RT 2U & 3U*
220/154 90 352	587	831	1216
440/308 48 200	340	470	650
660/462 30 130	225	320	450
880/616 22 100	170	260	350
1100/770	16	80	135	215	286
1320/924	13	62	110	180	240
1540/1078	10	50	95	150	200
1760/1232	8	42	80	125	170
1980/1386	7	36	65	110	152
2200/1540	6	30	51	83	134
EX 3000 RT 2U & 3U**
300/210 79 254	454	549	847
600/420 40 130	255	290	445
900/630	25	80	160	205	290
1200/840	18	60	120	162	230
1500/1050	14	48	102	129	187
1800/1260	12	38	82	103	150
2100/1470	9	32	72	86	125
2400/1680	7	27	58	73	100
2700/1890	6	22	50	64	82
3000/2100	5	18	36	47	70
EX 3000 RT 3U XL***
300/210	-	175	375	549	768
600/420	-	90	215	290	405
900/630	-	55	135	205	265
1200/840	-	42	102	162	212
1500/1050	-	34	88	129	173
1800/1260	-	26	70	103	138
2100/1470	-	23	63	86	116
2400/1680	-	20	51	73	93
2700/1890	-	16	44	64	76
3000/2100	-	13	31	47	65

* Output power rating = 1650W ** Standard configuration power rating = 2550W, with EBM = 2100W
*** Output power rating = 2150W up to 12 EBMs can be added for extended runtime of 196–1909 minutes
Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
The Eaton EX has a 0.9 power factor, but runtimes are shown here at 0.7 power factor for easy comparison against competitor's products, which have a 0.7 power factor.

EATON 9130 UPS RACKMOUNT

Powerware series

EATON TAA COMPLIANT

Online UPS (700-3000 VA)

The Eaton 9130 UPS provides more real power and greener IT with high performance protection and battery backup for unpredictable power in any IT environment.

• Cuts energy usage and costs with >95% efficiency rating in high efficiency mode
• Conserves valuable rack space with 2U rackmount form factor that includes internal batteries and a 4-post rail kit (2-post rail kit optional)

- Provides more real power (watts) to protect more equipment and leave room for expanding IT systems with a 0.9 power factor

- Simplifies UPS monitoring and management with a bright LCD user interface, intuitive power management software and optional eNotify Remote Monitoring service

• Increases battery service life and system uptime with ABM battery-charging technology and hot-swappable batteries

- Maximizes runtimes with optional extended battery modules

- Warranty (US and Canada): Two-year limited warranty, extended warranty, Onsite Flex and Onsite PowerTrust service plans, and \$250,000 load protection guarantee

9130 NORTH AMERICAN RACK MODELS: 120V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List Number Description (VA/Watts) Connection
				^1 Receptacles	(H x W x D, inches)	^2	(lb)	Price
PW9130L700R-XL2U	9130 700 120V RACK	700/630	5-15P	(6) 5-15R	3.4 x 17.3 x 16.9		35.3	$942
PW9130L1000R-XL2U	9130 1000 120V RACK	1000/900	5-15P	(6) 5-15R	3.4 x 17.3 x 16.9		35.3	S1,171
PW9130L1500R-XL2U	9130 1500 120V RACK	1500/1350	5-15P	(6) 5-15R	3.4 x 17.3 x 16.9		43.0	S1,657
PW9130L1500R-XL2UN	9130 1500 120V RACK with Network Card-MS	1500/1350	5-15P	(6) 5-15R	3.4 x 17.3 x 16.9		43.0	S1,895
PW9130L2000R-XL2U	9130 2000 120V RACK	2000/1800	5-20P	(6) 5-20R, (1) L5-20R	3.4 x 17.3 x 22.6		63.9	S2,021
PW9130L2000R-XL2UN	9130 2000 120V RACK with Network Card-MS	2000/1800	5-20P	(6) 5-20R, (1) L5-20R	3.4 x 17.3 x 22.6		63.9	S2,321
PW9130L2500R-XL2U	9130 2500 120V RACK	2500/2250	L5-30P	(6) 5-20R, (1) L5-30R	3.4 x 17.3 x 22.6		65.0	S2,561
PW9130L3000R-XL2U	9130 3000 120V RACK	3000/2700	L5-30P	(6) 5-20R, (1) L5-30R	3.4 x 17.3 x 22.6		65.0	S3,223
PW9130L3000R-XL2UN	9130 3000 120V RACK with Network Card-MS	3000/2700	L5-30P	(6) 5-20R, (1) L5-30R	3.4 x 17.3 x 22.6		65.0	S3,523

9130 TAA COMPLIANT MODELS

Catalog Rating Input Output Dimensions Weight List Number Description (VA/Watts) Connection
				^1 Receptacles		(H x W x D, inches)	^2	Price
PW9130L700R-XL2US	9130 700 VA 120V TAA Rack 2U	700/630	5-15P	(6) 5-15R		3.4 x 17.3 x 16.9	35.3	S1,070
PW9130L1500R-XL2US	9130 1500 VA 120V TAA Rack 2U	1500/1350	5-15P	(6) 5-15R		3.4 x 17.3 x 16.9	43.0	S1,743
PW9130L2000R-XL2US	9130 2000 VA 120V TAA Rack 2U	2000/1800	5-20P	(6) 5-20R, (1) L5-20R		3.4 x 17.3 x 22.6	63.9	S2,349
PW9130L3000R-XL2US	9130 3000 VA 120V TAA Rack 2U	3000/2700	L5-30P	(6) 5-20R, (1) L5-30R		3.4 x 17.3 x 22.6	65.0	S3,707
PW9130i1000R-XL2US	9130 1000 VA 230V TAA Rack 2U	1000/900	IEC C14-10A	(6) IEC-C13 10A		3.4 x 17.3 x 16.9	35.3	S1,444
PW9130i1500R-XL2US	9130 1500 VA 230V TAA Rack 2U	1500/1350	IEC C14-10A	(6) IEC-C13 10A		3.4 x 17.3 x 16.9	43.0	S1,974
PW9130i3000R-XL2US	9130 3000 VA 230V TAA Rack 2U(8) IEC-C13 10A	3000/2700	IEC C20-16A	(1) IEC-C19 16A,		3.4 x 17.3 x 22.6	65.0	S3,470

9130 GLOBAL RACK MODELS: 208V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List Number Description (VA/Watts) Connection
				^1 Receptacles	(H x W x D, inches)	^2	(lb)	Price
PW9130G1000R-XL2U	9130 1000G RACK	1000/900	L6-20P ^3	(1) L6-20R, (2) 6-20R	3.4 x 17.3 x 16.9		35.3	1,087
PW9130G3000R-XL2U	9130 3000G RACK	3000/2700	L6-20P^4	(1) L6-30R, (1) L6-20R,	3.4 x 17.3 x 22.6		65.0	2,934
		(2) 6-20R
PW9130G3000R-XL2UEU	9130 3000G EU RACK	3000/2700	L6-20P ^4	(8) C13, (1) C19	3.4 x 17.3 x 22.6		65.0	$2,924

1. Input cord length is 6 ft

2. Rack models occupy 2U of rack space and fit into 19-inch racks

3. C14, w/detachable L6-20P

4. C20, w/detachable L6-20P

EATON 9130 UPS RACKMOUNT

Powerware series (continued)

9130 INTERNATIONAL RACK MODELS: 230V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List Number Description (VA/Watts) Connection				^1 Receptacles (H x W x D, inches)		^2 (lb)	Price
PW9130i1000R-XL2U	9130 1000 230V RACK	1000/900	C14	(6) C13	3.4 x 17.3 x 16.9	35.3	1,238
PW9130i1500R-XL2U	9130 1500 230V RACK	1500/1350	C14	(6) C13	3.4 x 17.3 x 16.9	43.0	1,700
PW9130i2000R-XL2U	9130 2000 230V RACK	2000/1800	C14	(8) C13, (1) C19	3.4 x 17.3 x 22.6	63.9	2,103
PW9130i3000R-XL2U	9130 3000 230V RACK	3000/2700	C20	(8) C13, (1) C19	3.4 x 17.3 x 22.6	65.0	3,009

1. Input cord length is 6 ft 2. Rack models occupy 2U of rack space and fit into 19-inch racks

9130 RACK OPTIONS

Catalog Number	Style Number	Description	Input Connection	Output Receptacles	Dimensions (H x W x D, inches)	Weight (lb)	List Price
Extended Battery Modules
PW9130N1000R-EBM2U ^1	-	PW9130 700/1000 EBM Rack	-	-	3.4 x 17.3 x 16.9	48.7	723
PW9130N1500R-EBM2U^{2}	-	PW9130 1500 EBM Rack	-	-	3.4 x 17.3 x 16.9	62.0	723
PW9130N3000R-EBM2U ^3	-	PW9130 2000/2500/3000 EBM Rack	-	-	3.4 x 17.3 x 22.6	90.6	852
PW9130N1000R-EBM2US	-	9130 700/1000 EBM TAA Rack 2U	-	-	3.4 x 17.3 x 16.9	48.7	841
PW9130N1500R-EBM2US	-	9130 1500 EBM TAA Rack 2U	-	-	3.4 x 17.3 x 16.9	62.0	841
PW9130N3000R-EBM2US	-	PW9130 2000/3000 EBM TAA Rack 2U	-	-	3.4 x 17.3 x 22.6	90.6	987
PowerPass ^ Distribution Modules (PPDMs)
EPPDMG3000R-2U-1 ^5	103007535-6591	PPDM1-HV-US-P2 3 kVA	IEC320-C20 ^6	(1) L5-30R & (6) 5-20R	3.5 (2U) x 17.0 x 23.9	76.0	999
EPPDMG3000R-2U-HW^{6}	103007536-6591	PPDM1-HV-US-HW 3 kVA (ROHS)	Hardwire	Hardwire	3.5 (2U) x 17.0 x 23.9	76.0	999
EPPDML3000R-2U-HW ^6	103007537-6591	PPDM2-LV-US-HW 3 kVA (ROHS)	Hardwire	Hardwire	3.5 (2U) x 17.0 x 23.9	20.0	799
EPPDL3000R-2U-4^{6}	103006843-6591	PPDM2-LV-US-P1 3 kVA	L5-30P^{1}	(1) L5-30R & (6) 5-20R	3.5 (2U) x 17.0 x 23.9	20.0	799
-	103002731-6591 ^5	PPDM1-HV-US-P3 3 kVA	C20	(6) 5-20R	3.5 (2U) x 17.0 x 23.9	76.0	999
Two-post rail kit
103007018-5591		Two-post rack mounting rail kit(supports 2U models only; 3 kVA PPDM not supported)			-	-	70
Four-post rail kit
103005156		Four-post rail kit (supports 3 kVA PPDM)			-	-	102
Power distribution and maintenance bypass
EHBPL1500R-PDU1U^{7}	-	HotSwap Maintenance Bypass (MBP)	5-15P	(6) 5-15R	2.1 x 17.3 x 3.8	-	230
EHBPL2000R-PDU1U ^8	-	HotSwap Maintenance Bypass (MBP)	5-20P	(6) 5-15R	2.1 x 17.3 x 3.8	-	275
EHBPL3000R-PDU1U^{9}	-	HotSwap Maintenance Bypass (MBP)	L5-30P	(5) 5-20R	2.1 x 17.3 x 3.8	-	400

For detailed information on FlexPDU and HotSwap Maintenance Bypass products, please refer to the Eaton Power Distribution and Enclosures section.
1. This EBM works with 700/1000 VA models, where available
2. This EBM works with 1500 VA model
3. This EBM works with 2000/2500/3000 VA models, where available
4. Connection cables to the UPS are included with the PPDM; use the input cord from the UPS as input to the PPDM, except for hardwire units
5. These PPDMs work with the following 9130 models: PW9130G3000R-XL2UEU and PW9130i3000R-XL2U.
6. These PPDMs work with the following 9130 models: PW9130L2500R-XL2U and PW9130L3000R-XL2U.
7. This HotSwap MBP works with the following 9130 models: PW9130L700R-XL2U, PW9130L1000R-XL2U, PW9130L1500R-XL2U
8. This HotSwap MBP works with the following 9130 model: PW9130L2000R-XL2U
9. This HotSwap MBP works with the following 9130 models: PW9130L2500R-XL2U, PW9130L3000R-XL2U

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number	Description	List Price
Network-MS	Network Card-MS	$249

See software and connectivity product sections for more detail.

9130 RACK SERVICE PLANS

For recommended service coverage, please see the Extended Warranties table in the Single-phase Service section.

Startup and Preventive Maintenance Service (7x24)

Product	Part Number	List Price
Onsite Startup
700 VA	700SU9130U	1,002
1000 VA	1000SU9130U	1,002
1500 VA	1500SU9130U	1,002
2000 VA	2000SU9130U	1,002
2500 VA	2500SU9130U	1,002
3000 VA	3000SU9130U	1,002

7x24 prices listed above also apply to 5x8 services. UPS coverage required for battery module coverage. Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.

EATON 9130 UPS RACKMOUNT

Powerware series (continued)

View interactive runtime graphs

at www.eaton.com/9130rm

9130 RACK MODELS BATTERY BACKUP TIMES (in minutes) @ 0.7 Power Factor*

Internal
VA/Watts Batteries +1EBM +2 EBMs +3 EBMs +4 EBMs
PW9130L700R-XL2U
700/490 14 55 102 148 175
525/368 20 77 140 179 239
350/245 32	124 189 282 414
175/123 64	200 395 552 739
PW9130L1000R-XL2U
1000/700	10 40	73	108 149
750/525 13 58 101 152 219
500/350 24 85 172 249 304
250/175 48	190 310 451 569
PW9130G1000R-XL2U / PW9130i1000R-XL2U
1000/700	10 40	78	110 150
750/525 13 55 103 151 223
500/350 22 82 186 250 312
250/175 47	190 328 431 584
PW9130L1500R-XL2U
1500/1050	7	34	63	88	135
1125/788	11 44	84	129 210
750/525 18 79 148 207 267
375/263 38	167 278 475 540
PW9130i1500R-XL2U
1500/1050	7	32	61	98	128
1125/788	11 47	83	126 195
750/525 18 81 143 208 262
375/263 38	171 298 416 564
PW9130L2000R-XL2U
2000/1400	9	45	86	124	163
1500/1050	14 66 115 165 225
1000/700	26	101 185 251 343
500/350 52	197 353 481 629
PW9130i2000R-XL2U
2000/1400	9	46	83	118	163
1500/1050	13 64 118 170 221
1000/700	25 95 190 242 345
500/350 53	205 346 488 625
PW9130L2500R-XL2U
2500/2250	7	31	59	87	119
1875/1688	10 43	81	121 154
1250/1125	17 65 120 163 203
625/563	40	145 228 363 491
PW9130L3000R-XL2U
3000/2100	5	25	48	72	100
2250/1575	8	37	72	102	137
1500/1050	13 60 100 165 223
750/525	34	138 228 326 438
PW9130G3000R-XL2U / PW9130G3000R-XL2UEU / PW9130i3000R-XL2U
3000/2100	6	25	45	68	96
2250/1575	8	34	70	96	130
1500/1050	14 62	92	156 211
750/525 34	130 212 355 442

*Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. The 9130 has a 0.9 power factor, but runtimes are shown here at 0.7 power factor for easy comparison against competitors' products, which have a 0.7 power factor.

EATON 9130 UPS TOWER

Powerware series

Online UPS (700-3000 VA)

The Eaton 9130 UPS provides more real power and greener IT with high performance protection and battery backup for unpredictable power in any IT environment.

• Cuts energy usage and costs with >95% efficiency rating in high efficiency mode
• Provides more real power (watts) to protect more equipment and leave room for expanding IT systems with a 0.9 power factor
• Simplifies UPS monitoring and management with a bright LCD user interface, intuitive power management software and optional eNotify Remote Monitoring service

- Increases battery service life and system uptime with ABM battery-charging technology and hot-swappable batteries

- Maximizes runtimes with optional extended battery modules (compatible with all units except the 700 VA tower models)

- Warranty (US and Canada): Two-year limited warranty, extended warranty, Onsite Flex and Onsite PowerTrust service plans, and \$250,000 load protection guarantee

Exterior view of a black electronic device with ventilation slots and a digital display (no visible text or symbols)

9130 NORTH AMERICAN TOWER MODELS: 120V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts)	Connection			Receptacles	(H x W x D, inches)	(lb)	Price
PW9130L700T	PW9130 700 120V TOWER	700/630	5-15P	(6) 5-15R	9.1 × 6.3 × 13.9	26.5	891
PW9130L1000T-XL	PW9130 1000 120V TOWER	1000/900	5-15P	(6) 5-15R	9.1 \times 6.3 \times 15.1	30.9	1,150
PW9130L1500T-XL	PW9130 1500 120V TOWER	1500/1350	5-15P	(6) 5-15R	9.1 × 6.3 × 17.0	41.8	1,518
PW9130L2000T-XL	PW9130 2000 120V TOWER	2000/1800	5-20P	(1) L5-20, (4) 5-20R	12.8 \times 8.4 \times 16.2	77.2	2,011
PW9130L3000T-XL	PW9130 3000 120V TOWER	3000/2700	L5-30P	(4) 5-20R, (1) L5-30R	12.8 × 8.4 × 16.2	77.2	$3,029

1. Input cord length is 6 ft

9130 GLOBAL TOWER MODELS: 208V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts) Connection				^1 Receptacles	(H x W x D, inches)	(lb)	Price
PW9130G1000T-XL	PW9130 1000G TOWER	1000/900	L6-20P ^2	(1) L6-20R, (2) 6-20R	9.1 x 6.3 x 15.0	32.0	1,028
PW9130G2000T-XL	PW9130 2000G TOWER	2000/1800	L6-20P^2	(1) L6-20R, (4) 6-20R	12.8 x 8.4 x 16.2	77.2	1,963
PW9130G2000T-XLEU	PW9130 2000G EU TOWER	2000/1800	L6-20P ^2	(8) C13, (1) C19	12.8 x 8.4 x 16.1	76.1	1,914
PW9130G3000T-XL	PW9130 3000G TOWER	3000/2700(2) 6-20R	L6-20P^3	(1) L6-30R, (1) L6-20R,	12.8 x 8.4 x 16.2	77.2	3,027
PW9130G3000T-XLEU	PW9130 3000G EU TOWER	3000/2700	L6-20P ^3	(8) C13, (1) C19	12.8 x 8.4 x 16.2	77.2	$2,945

1. Input cord length is 6 ft

2. C14, w/dotachable L6-20P

3. C20, w/detachable L6-20P

9130 INTERNATIONAL TOWER MODELS: 230V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List
Number Description (VA/Watts)	Connection			^1 Receptacles		(H x W x D, inches)	(lb)	Price
PW9130i700T	PW9130 700 230V TOWER	700/630	C14 ^2	(6) C13	9.1 x 6.3 x 13.9	26.5	849
PW9130i1000T-XL	PW9130 1000 230V TOWER	1000/900	C14^2	(6) C13		9.1 x 6.3 x 15.1	30.9	1,045
PW9130i1500T-XL	PW9130 1500 230V TOWER	1500/1350	C14 ^2	(6) C13		9.1 x 6.3 x 17.0	41.8	1,503
PW9130i2000T-XL	PW9130 2000 230V TOWER	2000/1800	C14^2	(8) C13, (1) C19		12.8 x 8.4 x 16.2	77.2	S2,017
PW9130i3000T-XL	PW9130 3000 230V TOWER	3000/2700	C20^3$	(8) C13, (1) C19		12.8 x 8.4 x 16.2	77.2	S2,945

1. Input cord length is 6 ft

2. Detachable C13 to C14 cord

3. Detachable C19 to C20 cord

EATON 9130 UPS TOWER

Powerware series (continued)

9130 OPTIONS

Catalog Style Dimensions Weight ListNumber Number Description (H x W x D, inches) (lb) Price
Extended Battery Modules
PW9130N1000T-EBM	PW9130 1000 EBM Tower	9.1 x 6.3 x 15.1	41.8	598
PW9130N1500T-EBM^{\dagger}	PW9130 1500 EBM Tower	9.1 x 6.3 x 17.0	52.9	754
PW9130N3000T-EBM ^	PW9130 2000/3000 EBM Tower	12.8 x 8.4 x 16.2	110.2	$862

1. This EBM works with 1000 VA model, where available
2. This EBM works with 1500 VA model
3. This EBM works with 2000/3000 VA models, where available

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number	Description	List Price
Network-MS	Network Card-MS	$249

See software and connectivity product sections for more detail.

9130 TOWER SERVICE PLANS

For recommended service coverage, please see the Extended Warranties table in the Single-phase Service section.

Startup and Preventive Maintenance Service (7x24)

Product	Part Number	List Price
Onsite Startup
700 VA	700SU9130U	1,002
1000 VA	1000SU9130U1,002
1500 VA	1500SU9130U 1,002
2000 VA	2000SU9130U1,002
3000 VA	3000SU9130U $1,002

7x24 prices listed above also apply to 5x8 services. UPS coverage required for battery module coverage. Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.

EATON 9130 UPS TOWER

Powerware series (continued)

View interactive runtime graphs at www.eaton.com/9130

9130 TOWER MODELS BATTERY BACKUP TIMES (in minutes) @ 0.7 Power Factor*

InternalVA/Watts Batteries +1EBM +2 EBMs +3 EBMs +4 EBMs
PW9130L700T
700/490 8 N/A N/A N/A N/A
525/368	12	N/A N/A N/A N/A
350/245	21	N/A N/A N/A N/A
175/123	37	N/A N/A N/A N/A
PW9130i700T
700/490 8 N/A N/A N/A N/A
525/368	12	N/A N/A N/A N/A
350/245	19	N/A N/A N/A N/A
175/123	35	N/A N/A N/A N/A
PW9130L1000T-XL
1000/700	10	40	73	108	149
750/525	13	58	101	152	219
500/350	24	85	172	249	304
250/175	48	190	310	451	569
PW9130i1000T-XL / 103007846-6591
1000/700	10	40	78	110	150
750/525	13	55	103	151	223
500/350	22	82	186	250	312
250/175	47	190	328	431	584
PW9130L1500T-XL
1500/1050	7	34	63	88	135
1125/788	11	44	84	129	210
750/525	18	81	143	208	262
375/263	38	171	298	416	564
PW9130i1500T-XL
1500/1050	7	32	61	88	135
1125/788	11	47	83	126	195
750/525	18	81	143	208	262
375/263	38	171	298	416	564
PW9130L2000T-XL
2000/1400	15	61	111	156	194
1500/1050	21	81	145	184	269
1000/700	34	129	198	193	410
500/350	72	225	449	590	766
PW9130G2000T-XL / PW9130i2000T-XL / 103007847-6591
2000/1400	15	61	111	156	186
1500/1050	21	81	145	184	248
1000/700	34	129	198	293	410
500/350	72	225	449	590	766
PW9130L3000T-XL
3000/2100	9	35	66	95	132
2250/1575	13	53	100	139	183
1500/1050	22	86	153	221	267
750/525	69	168	298	395	545
PW9130G3000T-XL / XLEU / PW9130i3000T-XL / 103007848-6591
3000/2100	9	36	68	101	137
2250/1575	12	49	90	134	165
1500/1050	20	79	143	180	240
750/525	46	161	267	434	547

*Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. The 9130 has a 0.9 power factor, but runtimes are shown here at 0.7 power factor for easy comparison against competitors' products, which have a 0.7 power factor.

EATON 9135 UPS RACK/TOWER

Powerware series

Online UPS (5000-6000 VA)

The Eaton 9135 UPS offers advanced power protection and battery backup for any IT environment, including networking, centralized retail and manufacturing.

• Protects mission critical applications from downtime, data loss and corruption, and process interruption by providing continuous, clean power
• Shields connected equipment from damage or degradation caused by power anomalies
• Enables extended backup power time for critical systems through orderly shutdown of non-essential equipment during power outages
• Warranty (US and Canada): Two-year limited warranty, extended warranty, Onsite Flex and Onsite PowerTrust service plans and \$250,000 load protection guarantee

Two black industrial power storage units with control panels and indicator lights, no visible text or symbols

9135 RACK/TOWER GLOBAL MODELS: 208V, 50/60Hz*

Catalog Number	Rating	Input	Output Description	Dimensions	Weight List (VA/Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
PW9135G5000-XL3U			PW9135 5000 208V 3U	5000/3500		Terminal Block with L6-30 cord	Hardwired + (4) L6-30R	5.14(3U) × 17.5 × 29.2	125.7	4,690
PW9135G6000-XL3U			PW9135 6000 208V 3U	6000/4200		Terminal Block with L6-30 cord	Hardwired + (4) L6-30R	5.14(3U) \times 17.5 \times 29.2	125.7	5,280
PW9135G6000-XL3UN			PW9135 6000 208V 3U with Network Card-MS	6000/4200		Terminal Block with L6-30 cord	Hardwired + (4) L6-30R	5.14(3U) × 17.5 × 29.2	125.7	$5,610

* Global models can operate at nominal voltages of 200V (10% derating of output power) 208/220/230/240/250V. The default nominal voltage is 208V.

9135 RACK/TOWER INTERNATIONAL MODELS: 230V, 50/60Hz*

Catalog Number	Rating	Input	Output Description	Dimensions	Weight (VA/Watts)	List Connection	Receptacles	(H x W x D, inches)	(lb)	Price
PW9135G6000-XL3UEU			PW9135 6000 230V 3U EU		6000/4200	Hardwired	Hardwired + (2)C19, (8)C13	5.14 (3U) x 17.5 x 29.2	125.7	$5,280

* International models can operate at nominal voltages of 200V (10% derating of output power) 208/220/230/240/250V. The default nominal voltage is 230V.

9135 RACK/TOWER OPTIONS

Catalog Number	Description	Input Voltage (Vac)	Output Voltage (Vac)	Input Connection	Output Receptacles	Dimensions (H x W x D, inches)	Weight (lb)	List Price
Extended Battery Module
PW9135N6000-EBM3U	9135 EBM - 5/6 kVA R/T (3U)	—	—	—	—	5.14 (3U) x 17.5 x 25.6	155.4	1,509
PowerPass Distribution Modules (PPDMs)—for use with 208V models only.1
EPPDMG6000-3U-12	PPDM, L6-30	208–240	208–240/120	L6-30P	(1) L6-30R, (8) 5-15R	5.25 (3U) x 17.4 x 24.8	106.0	1,045
EPPDMG6000-3U-22	PPDM, L6-20	208–240	208–240/120	L6-30P	(1) L6-20R, (8) 5-15R	5.25 (3U) x 17.4 x 24.8	106.0	1,045
EPPDMG6000-3U-32	PPDM, L5-30	208–240	208–240/120	L6-30P	(1) L5-30R, (8) 5-15R	5.25 (3U) x 17.4 x 24.8	106.0	1,045
EPPDMG6000-3U-42	PPDM, L14-30R	208–240	208–240/120	L6-30P	(1) L14-30R, (8) 5-15R	5.25 (3U) x 17.4 x 24.8	106.0	1,045
EPPDMG6000-3U-HW2	PPDM, HW	208–240	208–240/120	Hardwired	Hardwired	5.25 (3U) x 17.4 x 24.8	106.0	1,045
EPPDMG6000-3U-HWEU2	PPDM, EURO HW	230–240	230–240	Hardwired	Hardwired	5.25 (3U) x 17.4 x 24.8	106.0	1,025
EPPDMG6000-3U-52	PPDM, L6-30 & L14-30	208–240	208–240/120	L6-30P	(1) L6-30R, (1) L14-30R, (4) 5-15R	5.25 (3U) x 17.4 x 24.8	106.0	1,045
EPPDMG60000-3U-62	PPDM, (2) L6-303	208–240	208–240/120	L6-30P	(2) L6-30R, (4) 5-20R	5.25 (3U) x 17.4 x 24.8	106.0	1,045
EPPDMG6000-3U-72	PPDM, (2) L6-203	208–240	208–240/120	L6-30P	(2) L6-20R, (4) 5-20R	5.25 (3U) x 17.4 x 24.8	106.0	1,045

1. User-selectable for 208, 220, 230, and 240V. 2. Includes Rail Kit. All models fit in 19-inch rack enclosures. 3. Black only.
   Note: Input and output to the UPS is via L6-30P and L6-30R connection.

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number	Description	List Price
Network-MS	Network Card-MS	$249

See software and connectivity product sections for more detail.

RACKMOUNT ePDU OPTIONS

Catalog Number	Max. kW	Function	Cord Length (ft)	Input Plug	Output Receptacles	Dimensions (H x W x D, inches)	List Price
PW105BA2U420	4.99	BA	9	L6-30P	(4) L6-20R	3.4 × 19.0 × 6.0	579
PW105BA0U421	4.99	BA	9	L14-30P	(24) 5-20R	66.0 \times 1.9 \times 2.0	599

EATON 9135 UPS RACK/TOWER

Powerware series (continued)

9135 RACK/TOWER SERVICE PLANS

Onsite PowerTrust Service Plans include startup, annual PM and eNotify Remote Monitoring service
Contract Service Plan			List Battery Module		List
Product Duration Part Number Price Part Number Price
5000 VA 2 YR 5000PT2YR9135U 2,193 5000PT2YR9135B438
3 YR 5000PT3YR9135U 3,634 5000PT3YR9135B727
5 YR 5000PT5YR9135U 6,468 5000PT5YR9135B1,294
6000 VA 2 YR 6000PT2YR9135U 2,193 6000PT2YR9135B438
3 YR 6000PT3YR9135U 3,634 6000PT3YR9135B727
5 YR 6000PT5YR9135U 6,468 6000PT5YR9135B1,294
Onsite Flex Service Plans include startup and eNotify Remote Monitoring service
Contract Service Plan			List Battery Module		List
Product Duration Part Number Price Part Number Price
5000 VA 2 YR 5000FLEX2YR9135U 1,556 5000FLEX2YR9135B311
3 YR 5000FLEX3YR9135U 2,361 5000FLEX3YR9135B472
5 YR 5000FLEX5YR9135U 3,920 5000FLEX5YR9135B784
6000 VA 2 YR 6000FLEX2YR9135U 1,556 6000FLEX2YR9135B311
3 YR 6000FLEX3YR9135U 2,361 6000FLEX3YR9135B472
5 YR 6000FLEX5YR9135U 3,920 6000FLEX5YR9135B784
Startup and Preventive Maintenance Service (7x24)
Product	Part Number	List Price	Product	Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
5000 VA	5000SU9135U	1,002	5000 VA	5000PM9135U	1,002
6000 VA	6000SU9135U	1,002	6000 VA	6000PM9135U	1,002

7x24 prices listed above also apply to 5x8 services. UPS coverage required for battery module coverage. Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.

9135 RACK/TOWER BATTERY BACKUP TIMES (in minutes) *

View interactive runtime graphs at www.eaton.com/9135

Load (VA/Watts)	StandardInternal Batteries		+1 EBM	+2 EBMs	+3 EBMs	+4 EBMs
1000/700	36		132	232	332	433
2000/1400	13		52	95	140	184
3000/2100	10		40	74	110	146
4000/2800 7		29 53 80	107
5000/3500 5		22 41 62 83
6000/4200 **	4		18	33 50 68

* Backup times are approximate and vary with equipment, configuration, battery age, temperature, etc.

** Runtimes available for the 6 kVA model only.

EATON MX UPS

Pulsar series

(this product was formerly known as the Pulsar MX UPS)

Online double-conversion UPS (5000 VA, upgradeable to 20,000 VA)

A unique, true online double-conversion product family designed to let you pay-as-you-grow with high-density power protection. Can be used for 20 to 110 servers, ideal for departmental networks, servers and workstations.

• Two front access hot-swappable sub-modules (power and battery) for maintenance without load interruption
  • Automatic battery test (test period can be set)
• Internal bypass built-in to supply the load even if the UPS fails
  • Large input voltage and frequency ranges to avoid using the batteries unnecessarily

Exterior view of a black server rack and tower unit (no visible text or symbols)

MX STANDALONE MODELS

Catalog Style Rating Input Output Dimensions Weight List
Number	Number	Description	(VA/Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
PULSMXG5000-XL3U	87050	MX 5000 VA RT with L6-30 cord	5000/4500(4) L6-30R	Terminal Block	Hardwired,	5.14 (3U) × 17.50 × 27.60	125.7	4,317
PULSMXL5000-XL5U	87150	MX 5000 VA RT LV with L6-30 cord	5000/4500(3) L6-30R,(2) L5-20R, (6) 5-20R	Terminal Block	Hardwired,	8.64 (5U) \times 17.50 \times 27.60	209.7	5,316

MX FRAME ENCLOSURES: 208/240V

Catalog Number	Style Number	Description	Rating (VA/Watts)	Input Connection	Output Receptacles	Dimensions (H x W x D, inches)	Weight (lb)	List Price
PULSMXG0K20-XL16U	87021	MX 16U	Scalable to 20 kVA Frame Empty	Hardwired	Hardwired, (8) L6-30R	31.30 (16U) x 17.50 x 29.10	157.0	$5,296
PULSMXG15K20-XL16U	87415	MX 16U	Scalable to 20 kVA Frame 15 kVA	Hardwired	Hardwired, (8) L6-30R	31.30 (16U) x 17.50 x 29.20	428.0	S12,342
PULSMXG20K20-XL16U	87420	MX 16U	20000/18000 Frame 20 kVA	Hardwired	Hardwired, (8) L6-30R	31.30 (16U) x 17.50 x 29.30	517.0	S14,560

MX OPTIONS

Catalog Number	Style Number	Description	Output Receptacles	Dimensions (H x W x D, inches)	Weight (lb)	List Price
72-153653-01	72-153653-01	8' input cable with L6-30P		15.48 (9U) x 17.49 x 28.00	-	159
PULSMXL5000-XFMR2U	87102	MX Transformer 5 kVA	(2) L5-20R, (6) 5-20R	3.50 (2U) x 17.50 x 25.60	84.0	999
PULSMXG5000-PWR	87100	MX Power Sub-module		7.80 x 5.00 x 23.74	32.0	2,005
68528	68528	MX 6-foot battery cable		-	-	63
87410	87410	Caster/Floor Mount Kit for MX Frame		-	-	181
PULSMXN20K-XFMR	87482	MX-K 20 kVA Transformer		21.00 x 17.50 x 28.00	322.0	7,140
Extended Battery Modules
PULSMXG5000-EBM3U	87103	MX EBM - 5 kVA R/T (3U)		5.14 (3U) x 17.50 x 25.60	154.0	1,431
PULSMXG5000-BAT	87101	MX Battery Sub-module		4.57 x 8.44 x 19.60	72.0	544
86005	86005	Battery Integration Kit		-	-	$577

Note: For replacement parts, please contact our Service Group at 800.356.5737 for pricing.

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number	Description	List Price
Network-MS	Network Card-MS	$249

See software and connectivity product sections for more detail.

RACKMOUNT ePDU OPTIONS

Catalog Number	Max. kW	Function	Cord Length (ft)	Input Plug	Output Receptacles	Dimensions (H x W x D, inches)	List Price
PW105BA2U420	4.99	BA	9	L6-30P	(4) L6-20R	3.4 × 19.0 × 6.0	S579

EATON MX UPS

Pulsar series (continued)

MX SERVICE PLANS

Onsite PowerTrust Service Plans include startup, annual PM and eNotify Remote Monitoring service
Contract Service Plan			List Battery Module		List
Product Duration Part Number Price Part Number Price
5000 VA 2 YR 5000PT2YRPULSMXU 2,193 5000PT2YRPULSMXB439
3 YR 5000PT3YRPULSMXU 3,634 5000PT3YRPULSMXB727
5 YR 5000PT5YRPULSMXU 6,468 5000PT5YRPULSMXB1,294
10000 VA 2 YR 10000PT2YRPULSMXU		3,180 -		-
3 YR 10000PT3YRPULSMXU	5,270 -		-
5 YR 10000PT5YRPULSMXU	9,379 -		-
15000 VA 2 YR 15000PT2YRPULSMXU		3,838 -		-
3 YR 15000PT3YRPULSMXU	6,360 -		-
5 YR 15000PT5YRPULSMXU	11,319 -		-
20000 VA 2 YR 20000PT2YRPULSMXU		3,838 -		-
3 YR 20000PT3YRPULSMXU	6,360 -		-
5 YR 20000PT5YRPULSMXU	11,319 -		-
Onsite Flex Service Plans include startup and eNotify Remote Monitoring service
Contract Service Plan			List Battery Module		List
Product Duration Part Number Price Part Number Price
5000 VA 2 YR 5000FLEX2YRPULSMXU		1,556 5000FLEX2YRPULSMXB S311
3 YR 5000FLEX3YRPULSMXU		2,361 5000FLEX3YRPULSMXB S472
5 YR 5000FLEX5YRPULSMXU		3,920 5000FLEX5YRPULSMXB S784
10000 VA 2 YR 10000FLEX2YRPULSMXU		2,256 -		-
3 YR 10000FLEX3YRPULSMXU		3,424 -		-
5 YR 10000FLEX5YRPULSMXU		5,684 -		-
15000 VA 2 YR 15000FLEX2YRPULSMXU		2,723 -		-
3 YR 15000FLEX3YRPULSMXU		4,132 -		-
5 YR 15000FLEX5YRPULSMXU		6,860 -		-
20000 VA 2 YR 20000FLEX2YRPULSMXU		2,723 -		-
3 YR 20000FLEX3YRPULSMXU		4,132 -		-
5 YR 20000FLEX5YRPULSMXU		6,860 -		-
Startup and Preventive Maintenance Service (7x24)
Product	Part Number List Price		Product	Part Number List Price
Onsite Startup			Onsite Preventive Maintenance
5000 VA	5000SUPULSMXU	1,002	5000 VA	5000PMPULSMXU	1,002
10000 VA	10000SUPULSMXU	1,002	10000 VA	10000PMPULSMXU	1,002
15000 VA	15000SUPULSMXU	1,002	15000 VA	15000PMPULSMXU	1,002
20000 VA	20000SUPULSMXU	1,002	20000 VA	20000PMPULSMXU	$1,002

7x24 prices listed above also apply to 5x8 services. Service plans apply to standalone models and frame enclosures. Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.

EATON MX UPS

Pulsar series (continued)

MX BATTERY BACKUP TIMES (in minutes @ .7 pf)*
View interactive runtime graphs at www.eaton.com/mx

Load kW Internal Batteries +1 EBM +2 EBMs +3 EBMs
700 36 132 232 332
1050 23	87	156 225
1400 17	64	116 169
1750 13	50	91	134
2100 10	40	74	110
2450	8	33	62	93
2800	7	29	53	80
3150	6	25	47	70
3500	5	22	41	62

MX FRAME BATTERY BACKUP TIMES (PARALLEL UPS, in minutes @ .7 pf, N+0)**

Load%	Internal Batteries	+1 EBM	+2 EBMs	+3 EBMs
20	36	132	232	332
30	23	87	156	225
40	17	64	116	169
50	13	50	91	134
60	10	40	74	110
70	8	33	62	93
80	7	29	53	80
90	6	25	47	70
10	5	22	41	62

* Backup times are approximate and vary with equipment, configuration, battery age, temperature, etc.
** For parallel systems, an EBM is required for each power module to reach data point. For example, a 20kVA system with four power modules would need four individual EBMs to reach 22 minutes at full load.

EATON 9140 UPS RACKMOUNT

Powerware series

Online UPS (7.5–10 kVA)

Superior de-centralized power protection for medium and high-density rack environments.

• Online UPS designed for maximum reliability
- Compact design occupies only 6U of rack space, including internal batteries
• Lightweight, hot-swappable battery and electronics modules allow for easy installation and service
- Pre-installed rackmount hardware significantly reduces installation time
- Extends battery runtime for up to 45 minutes with up to four 3U EBMs
- Intuitive LCD interface provides detailed information and UPS management in multiple languages
- USB and serial ports standard, optional X-Slot communication card
- Warranty (US and Canada): Two-year limited warranty and \$250,000 load protection guarantee

Exterior view of a black electronic device with ventilation slots and a digital display (no visible text or symbols)

9140 RACK USER SELECTABLE MODELS: 208-240V IN (SINGLE-PHASE)

208–240 Vac in (single-phase) / 208–240 Vac out

Style Rating Input Output Dimensions Weight List
Number	Description	(VA/Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
103005093-6591	PW9140 7500 HW	7500/6000	Hardwired	Hardwired, (3) C19, (2) C13	10.5 (6U) x 17.2 x 31.1	254	5,686
103004728-6591	PW9140 10000 HW	10000/8000	Hardwired	Hardwired, (3) C19, (2) C13	10.5 (6U) x 17.2 x 31.1	254	6,470
103005094-6591	PW9140 7500	7500/6000	IEC309-60A cord	IEC309-60A cord, (4) C19	10.5 (6U) x 17.2 x 31.1	265	6,237
103004727-6591	PW9140 10000	10000/8000	IEC309-60A cord	IEC309-60A cord, (4) C19	10.5 (6U) x 17.2 x 31.1	265	6,915

9140 RACK OPTIONS

StyleNumber	Description	OutputReceptacles	Dimensions(H x W x D, inches)	Weight(lb)	ListPrice
Extended Battery Modules
103004729-6591	9140 EBM - 7.5/10 kVA Rack (3U)		5.25 (3U) × 17.2 × 26.0	179	1,849
EX RT/9140 Transformer
EXRTL9140-XFMR3U	7.5/10 kVA Transformer Modufe	(2) L6-30R, (8) 5-20R + HW	5.16 (3U) \times 17.49 \times 25.00	173	2,677

1. Up to four EBMs can be connected to a single PW9140 UPS.
2. Rail kit included
   Note: For replacement parts, contact our Service Group at 800.356.5737 for pricing.

ENCLOSURES

See the Enclosures section for a comprehensive list of IT enclosure offerings.

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number	Description	Style Number	List Price
PXGXUPS	Power Xpert Gateway UPS Card 103007974-5591		450
116750221-001	ConnectUPS-X	-	335

Bundled with Intelligent Power Software Suite CD and communication cable.

See software and connectivity product sections for more detail.

9140 RACK SERVICE PLANS

Gold Plans
Product	Contract Duration	Onsite Gold Plan Part Number	List Price	Onsite Gold Plan Plus Part Number	List Price
7.5 kVA	2 YR	20SGX91400750CX	1,697	20SGP91400750CX	2,678
	3 YR	30SGX91400750CX	2,372	30SGP91400750CX	3,454
	5 YR	50SGX91400750CX	3,742	50SGP91400750CX	4,959
10 kVA	2 YR	20SGX91401000CX	1,730	20SGP91401000CX	2,764
	3 YR	30SGX91401000CX	2,437	30SGP91401000CX	3,575
	5 YR	50SGX91401000CX	3,873	50SGP91401000CX	5,152

Onsite PowerTrust Service Plans include eNotify Remote Monitoring

Product	Contract Duration	Onsite Gold Plan Part Number	List Price	Onsite Gold Plan Plus Part Number	List Price
7.5 kVA	2 YR	20PGX91400750CX	2,055	20PGP91400750CX	3,036
	3 YR	30PGX91400750CX	2,910	30PGP91400750CX	3,992
	5 YR	50PGX91400750CX	4,638	50PGP91400750CX	5,855
10 kVA	2 YR	20PGX91401000CX	2,089	20PGP91401000CX	3,123
	3 YR	30PGX91401000CX	2,975	30PGP91401000CX	4,113
	5 YR	50PGX91401000CX	4,769	50PGP91401000CX	6,048

EATON 9140 UPS RACKMOUNT

Powerware series (continued)

9140 RACK SERVICE PLANS (continued)

Extended Battery Module Adder Service Plans
Contract Onsite Gold Plan List Onsite Gold Plan List
Product	Duration	Part Number	Price	Plus Part Number	Price
3U EBM	2 YR	20SGX9140EBMXCX	698	20SGP9140EBMXCX	937
	3 YR	30SGX9140EBMXCX	1,575	30SGP9140EBMXCX	2,054
	5 YR	50SGX9140EBMXCX	3,304	50SGP9140EBMXCX	4,262

Startup and Preventive Maintenance Service

Product	Part Number	List Price	Product	Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
5x8 Service	0STUP9100XALLC5	778	5x8 Service	0XXPM9100XALLC5	778
7x24 Service	0STUP9100XALLC7	1,002	7x24 Service	0XXPM9100XALLC7	1,002

Onsite Gold plans are 7x24. Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.

9140 RACK 7.5-10 KVA SERVICE UPGRADES

Part Number	Description	List Price
103005104	kVA Service Upgrade-7.5kVA to 10kVA Corded	896
103005105	kVA Service Upgrade-7.5kVA to 10kVA Hardwired	896

9140 RACK BATTERY BACKUP TIMES (in minutes) ^1
View interactive runtime graphs at www.eaton.com/9140

Load (VA/Watts)	Standard Internal Batteries	+1 EBM	+2 EBMs	+3 EBMs	+4 EBMs
1250/1000	80	137	189	275	365
2500/2000	31	61	99	138	181
3750/3000	18	38	68	92	121
5000/4000	12	27	52	69	90
6250/5000	9	21	42	55	72
7500/6000	7	17	35	46	60
8750/7000	6	14	31	40	51
10000/8000	5	12	27	35	45

1. This table provides typical information. Backup times are approximate and vary with equipment, configuration, battery age, temperature, etc.

EATON EX RT UPS

Pulsar series

(this product was formerly known as the Comet EX RT UPS)

High performance UPS

Perfect for rack servers enclosure and industrial environment.

High-end power protection ideal for:

• Servers, whether rack-mounted or standing
  • Networking & VoIP
• Storage
• Telecom equipment

• Medical equipment
- Sensitive electronic equipment in industrial environment
• High-density server virtualization environment

Black industrial server unit with front panel and control panel (no visible text or labels)

EX RT

Catalog Style Rating Number	Input Output Dimensions Weight List
	Number	Description	(VA/Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
EXRTG5000-XL6UMS	86505	EXRT 5 kVA RT HV	5000/4000	Hardwired	Hardwired	10.32 (6U) x 17.49 x 26.25	192.0	4,445
EXRTG7000-XL6UMS	86507	EXRT 7 kVA RT HV	7000/4900	Hardwired	Hardwired	10.32 (6U) x 17.49 x 26.25	192.0	5,036
EXRTG11000-XL6UMS	86511	EXRT 11 kVA RT HV	11000/8000	Hardwired	Hardwired	10.32 (6U) x 17.49 x 26.25	211.0	6,498
EXRTL5000-XL9UMS	86506	EXRT 5 kVA RT LV	5000/4000	Hardwired	Hardwired + (2) NEMA L6-30R + (8) NEMA 5-20R	15.48 (9U) x 17.49 x 26.25	365.0	6,025
EXRTL7000-XL9UMS	86508	EXRT 7 kVA RT LV	7000/4900	Hardwired	Hardwired + (2) NEMA L6-30R + (8) NEMA 5-20R	15.48 (9U) x 17.49 x 26.25	365.0	6,968
EXRTL11000-XL9UMS	86512	EXRT 11 kVA RT LV	11000/8000	Hardwired	Hardwired + (2) NEMA L6-30R + (8) NEMA 5-20R	15.48 (9U) x 17.49 x 26.25	384.0	8,675

EX RT POWER MODULES*

Catalog Number	Style Number	Description	List Price
EXRTG5000-PWRMS	86056	EXRT 5 kVA Power Module	3,117
EXRTG7000-PWRMS	86076	EXRT 7 kVA Power Module	3,715
EXRTG11000-PWRMS	86116	EXRT 11 kVA Power Module	$5,027

* Rail kit included

EX RT OPTIONS

Catalog Number	Style Number	Description	Output Receptacles	Dimensions (H x W x D, inches)	Weight (lb)	List Price
EX RT Modules*
EXRTL7000-XFMR3U	86311	EXRT 5/7 kVA Transformer Module	(2) L6-30R + (8) 5-20R + HW	5.16 (3U) x 17.49 x 25.00	173.0	2,522
EXRTL9140-XFMR3U	103007853-6591	EXRT 11 kVA Transformer Module	(2) L6-30R + (8) 5-20R + HW	5.16 (3U) x 17.49 x 25.00	173.0	2,677
EXRTG11000-CHR3U	86004	EXRT 5/7/11 kVA Charger Module		5.16 (3U) x 17.49 x 23.75	25.4	748
Battery Integration
86005	86005	Battery Integration Kit / Caster Kit		-	-	577
86006	86006	EXRT 6-ft Battery Extension Cable		-	-	48
Optional Mounting Hardware
86001	86001	EXRT Power Module Rail Kit		-	-	87
86002	86002	EXRT EBM/Transformer Rail Kit		-	-	58
Cabling
72-153653-01	72-153653-01	8' Cord with L6-30		-	-	159
Extended Battery Modules*
EXRTG7000-EBM3U	86079	EX RT EBM - 5/7 kVA		5.16 (3U) x 17.49 x 25.00	142.0	1,326
EXRTG11000-EBM3U	86119	EX RT EBM - 11 kVA		5.16 (3U) x 17.49 x 25.00	151.0	1,463

* Rail kit included

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number	Description	List Price
Network-MS	Network Card-MS	$249

See software and connectivity product sections for more detail.

EATON EX RT UPS

Pulsar series (continued)

RACKMOUNT ePDU OPTIONS

Catalog Max. Cord Input Output DimensionsList Number kW Function Length (ft) Plug Receptacles(H x W x D, inches) Price
PW105BA2U420$579	4.99	BA	9	L6-30P	(4) L6-20R	3.4 x 19.0 x 6.0

EX RT SERVICE PLANS

Onsite PowerTrust Service Plans include startup, annual PM and eNotify Remote Monitoring service
Product	Contract Duration	Service Plan Part Number	List Price	Battery Module Part Number	List Price
5000 VA	2 YR	5000PT2YREXRTU	2,193	5000PT2YREXRTB	439
	3 YR	5000PT3YREXRTU	3,634	5000PT3YREXRTB	727
	5 YR	5000PT5YREXRTU	6,468	5000PT5YREXRTB	1,294
7000 VA	2 YR	7000PT2YREXRTU	2,193	7000PT2YREXRTB	439
	3 YR	7000PT3YREXRTU	3,634	7000PT3YREXRTB	727
	5 YR	7000PT5YREXRTU	6,468	7000PT5YREXRTB	1,294
11000 VA	2 YR	11000PT2YREXRTU	3,180	11000PT2YREXRTB	636
	3 YR	11000PT3YREXRTU	5,270	11000PT3YREXRTB	1,054
	5 YR	11000PT5YREXRTU	9,379	11000PT5YREXRTB	1,876

Onsite Flex Service Plans include startup and eNotify Remote Monitoring service

Product	Contract Duration	Service Plan Part Number	List Price	Battery Module Part Number	List Price
5000 VA	2 YR	5000FLEX2YREXRTU	1,556	5000FLEX2YREXRTB	311
	3 YR	5000FLEX3YREXRTU	2,361	5000FLEX3YREXRTB	472
	5 YR	5000FLEX5YREXRTU	3,920	5000FLEX5YREXRTB	784
7000 VA	2 YR	7000FLEX2YREXRTU	1,556	7000FLEX2YREXRTB	311
	3 YR	7000FLEX3YREXRTU	2,361	7000FLEX3YREXRTB	472
	5 YR	7000FLEX5YREXRTU	3,920	7000FLEX5YREXRTB	784
11000 VA	2 YR	11000FLEX2YREXRTU	2,256	11000FLEX2YREXRTB	451
	3 YR	11000FLEX3YREXRTU	3,424	11000FLEX3YREXRTB	685
	5 YR	11000FLEX5YREXRTU	5,684	11000FLEX5YREXRTB	1,137

Startup and Preventive Maintenance Service (7x24)

Product	Part Number	List Price	Product	Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
5000 VA	5000SUEXRTU	1,002	5000 VA	5000PMEXRTU	1,002
7000 VA	7000SUEXRTU	1,002	7000 VA	7000PMEXRTU	1,002
11000 VA	11000SUEXRTU	1,002	11000 VA	11000PMEXRTU	1,002

7x24 prices listed above also apply to 5x8 services. UPS coverage required for battery module coverage. Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.

EATON EX RT UPS

Pulsar series (continued)

View interactive runtime graphs at www.eaton.com/ex-rt

EX RT BATTERY BACKUP TIMES (in minutes)*

Load (VA/Watts) Base Battery Module +1 EBM +2 EBMs +3 EBMs +4 EBMs +5 EBMs
EXRTG5000-XL6U / EXRTL5000-XL9U
500/400 170 358 540 740 892	1220
1000/800	91	170 260 355 505	540
1500/1200	49	110 170 240 290	355
2000/1600	33	84	120	170	235	260
2500/2000	25	60	100	122	170	225
3000/2400	21	46	75	110	135	170
3500/2800	16	39	64	95	119	140
4000/3200	13	31	57	84	105	120
4500/3600	11	27	52	68	92	110
5000/4000	9	25	45	60	84	100
EXRTG7000-XL6U / EXRTL7000-XL9U
700/490 121 266 447 578 756	889
1400/890	57	125 203 244 364	453
2100/1470	37	80	124	185	245	287
2800/1960	28	61	101	128	169	232
3500/2450	21	53	83	108	132	164
4200/2940	15	37	66	90	110	133
4900/3430	12	30	55	75	98	118
5600/3920	10	24	45	61	77	102
6300/4410	8	22	38	53	69	86
7000/4900	7	20	32	45	57	72
EXRTG11000-XL6U / EXRTL11000-XL9U
1100/800	90	191 293 392 525	637
2200/1600	40	93	143	199	261	312
3300/2400	25	61	96	135	172	201
4400/3200	18	43	71	99	120	142
5500/4000	14	30	53	84	102	113
6600/4800	11	24	44	60	86	102
7700/5600	9	20	34	51	67	87
8800/6400	7	17	27	43	56	68
9900/7200	6	15	24	35	48	60
11000/8000	5	14	22	30	42	53

* Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

EATON 9155 UPS

Powerware series

EATON TAA COMPLIANT

Online double-conversion UPS (8-15 kVA)

This innovative design delivers one of the industry's best combinations of high efficiency, low input current distortion and highest power factor, while conserving valuable space and offering the most cost-effective, highest performance option available today.

• True online double-conversion topology protects equipment from all nine of the most common power problems
• Industry leading power density, providing up to 13 percent more power capacity in a compact tower design including batteries
• Up to 200 percent more standard runtime out of the box, 600 percent more runtime in a smaller footprint with a 3-high module
• Up to a 74 percent footprint reduction
• Flexible voltages, as split-phase architecture creates up to 15 kVA at 100, 120, 208 or 240 Vac with no transformers required
• Flexible on-board power distribution modules (PDMs) allow for hardwired output or up to 15 different output receptacle options, reducing installation and site preparation expenses

- Plug-and-play rack enclosure power distribution with the on-board PDU

- Inherently scalable from 8–15 kVA, allowing you to pay as you grow or increase capacity with no additional hardware purchases or installation concerns

- Eaton's patented Hot Sync paralleling technology allows for wireless paralleling in the event of communications failure, providing the industry's only truly redundant paralleling technology

- Flexible 0 footprint extended run configurations allow for adding additional runtime in the same industry-leading compact footprint available

Exterior view of a black server rack unit with ventilation grilles (no visible text or labels)

9155 MODELS

Part Rating		^2 Input Output Dimensions Weight				^3 List
Model	Number ^1	(kVA/kW)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
PW9155 8 kVA 32 Battery (2-high)	K40811000000000	8/7.2	Hardwired	Optional	32.2 x 12.0 x 33.7	352	9,500
PW9155 8 kVA 64 Battery (3-high)	K40812000000000	8/7.2	Hardwired	Optional	47.8 x 12.0 x 33.7	590	11,420
PW9155 8 kVA 32 Batteryw/Trans. Mod. (3-high)	K40813000000000	8/7.2	Hardwired	Optional	47.8 x 12.0 x 33.7	558	13,307
PW9155 10 kVA 32 Battery (2-high)	K41011000000000	10/9	Hardwired	Optional	32.2 x 12.0 x 33.7	352	10,995
PW9155 10 kVA 64 Battery (3-high)	K41012000000000	10/9	Hardwired	Optional	47.8 x 12.0 x 33.7	590	13,223
PW9155 10 kVA 32 Batteryw/Trans. Mod. (3-high)	K41013000000000	10/9	Hardwired	Optional	47.8 x 12.0 x 33.7	558	15,304
PW9155 12 kVA 32 Battery (2-high)	K41211000000000	12/10.8	Hardwired	Optional	32.2 x 12.0 x 33.7	352	11,596
PW9155 12 kVA 64 Battery (3-high)	K41212000000000	12/10.8	Hardwired	Optional	47.8 x 12.0 x 33.7	590	13,845
PW9155 12 kVA 32 Batteryw/Trans. Mod. (3-high)	K41213000000000	12/10.8	Hardwired	Optional	47.8 x 12.0 x 33.7	558	15,843
PW9155 15 kVA 32 Battery (2-high)	K41511000000000	15/13.5	Hardwired	Optional	32.2 x 12.0 x 33.7	352	12,656
PW9155 15 kVA 64 Battery (3-high)	K41512000000000	15/13.5	Hardwired	Optional	47.8 x 12.0 x 33.7	590	15,190
PW9155 15 kVA 32 Batteryw/Trans. Mod. (3-high)	K41513000000000	15/13.5	Hardwired	Optional	47.8 x 12.0 x 33.7	558	17,262

1. 50/60 Hz auto-sensing. All models can be used for frequency/phase conversion with derated 80% load, please refer to manual for details. 2. Input voltage 100/200, 110/220, 120/240, Vac 180^ phase displacement, 120/208, 127/220 Vac 120^ phase displacement. Output voltages are user-selectable 100/200, 110/220, 120/240 Vac 180^ phase displacement. 3. Weight is installed weight, add 47 lb (2-modules high) or 50 lb (3-modules high) to determine shipping weight.

BUILT-IN CONNECTIVITY OPTIONS

Available X-Slot card options (The UPS has two X-Slot bays available; one X-Slot card can be factory installed, the second X-Slot card can be ordered separately and user-installed.)

Description	Value for CTO Digit 8	Part Number (if ordered separately)	List Price
NONE (No Pre-installed X-Slot card)	0	-	0
ConnectUPS-X Web/SNMP Card	3	116750221-001	335
Modbus Card-X-Slot	4	103005425-5591	661
Relay Interface Card-X-Slot (AS/400 Compatible)	5	1018460	146
Industrial Relay and Display Drive Card X-Slot	6	103003055	$335

EATON 9155 UPS

Powerware series (continued)

OUTPUT RECEPTACLES AND MAINTENANCE BYPASS

Order Number Description Dimensions (H x W x D, inches) Weight (lb) List Price

See worksheet below: Power Distribution Module (PDM) with Mechanical 16.5 x 12.0 x 7.0 25.0 \$999

Bypass Switch (rear UPS mount)*

Receptacle Codes (Qty) NEMA Type
(Select digits 9–12 in the CTO number)

PDM Worksheet CTO	Description	Voltage	Phase	Price Adder per Receptacle Code Chosen
S	Mechanical Bypass Module only			999
A	(4) 5-15R	120V	Single	220
B	(4) 5-20R UL	120V	Single	220
D	(4) 6-15R	208V	Dual	220
E	(4) 6-20R	208V	Dual	220
F	(4) L5-15R	120V	Single	220
G	(2) L5-20R*	120V	Single	220
H	(2) L5-30R*	120V	Single	220
I	(2) L6-15R	208V	Dual	220
J	(2) L6-20R*	208V	Dual	220
K	(2) L6-30R*	208V	Dual	220
L	(2) L14-20R*	120/208V	Dual	220
M	(2) L14-30R*	120/208V	Dual	220
X	Blank Plate	-	-	20
O (Zero)	Last Product Identifier Number	-	-	-

Notes: If any output receptacles are chosen, the Maintenance Bypass module will be included and will add \$999 to the cost. Maximum 4 choices within CTO part number (9-12). The combined quantities of LOCKING receptacles (denoted with a *) must not exceed four. Please be sure to utilize the 'X' designation for any of the 4 total slots not populated. * Please contact factory for custom configuration availability.
* If only mechanical bypass is chosen, remaining three slots should be populated with '0'.

9155 OPTIONS

Model Number	Description	Dimensions (H x W x D, inches)	Weight (lb)	List Price
Hot Sync (Parallel Systems)*
124100017-001	9155 Parallel Tie Cabinet	24.00 x 20.30 x 6.00	80.0	1,559
103004336	CAN Bridge Card	-	-	519

Note: Up to (3) PW9155s can be paralleled within the Parallel Tie Cabinet and each UPS must include a Hot Sync CAN Bridge Card installed in the 2nd X-Slot.

Extended Battery Module

103004192-5501	PW9155 EBM 64 (2-high Stack)	32.20 x 12.00 x 30.20	480.0	5,640
103004193-5501	PW9155 EBM 96 (3-high Stack)	47.80 x 12.00 x 30.20	710.0	8,047

Note: Up to (4) EBM64s or (3) EBM96s can be added for additional runtime.

Maintenance Bypass Module (MBM)

BPE20MBB1A	Wall-mounted Maintenance Bypass Module	21.00 x 14.00 x 6.75	34.0	1,790
9155 Upgrade Packages
103004195	PW9155 One-step kVA Upgrade Kit			1,249
103004196	PW9155 Two-step kVA Upgrade Kit			2,499
Seismic Kit
103004194-5501	Seismic kit, Rated Zone 4, UL tested, performance rating based on NEBS GR-63-CORE Standard Vibration Test		136.0	1,871

Notes: An 8 to 15 kVA upgrade would require purchase of a one and two-step upgrade. Up to three 9155s can be paralleled within the Parallel Tie Cabinet and each UPS must include CAN Bridge Card installed in the second X-Slot. For extended runtime applications, each UPS must have dedicated and identical number of EBMs. Kit includes CAN Bridge Card and Instructions.
* Eaton startup is required for factory warranty of parallel configuration.

SOFTWARE AND CONNECTIVITY OPTIONS

Bundled with Intelligent Power Software Suite CD and communication cable. See the software and connectivity sections for more details.

9155 SERVICE PLANS

Gold PlansProduct	ContractDuration	Onsite Gold PlanPart Number	ListPrice	Onsite Gold PlanPlus Part Number	ListPrice
8–10 kVA	2 YR	20SGX915510KVCX	840	20SGP915510KVCX	1,837
	3 YR	30SGX915510KVCX	1,587	30SGP915510KVCX	3,618
	5 YR	50SGX915510KVCX	3,118	50SGP915510KVCX	6,154
12–15 kVA	2 YR	20SGX915515KVCX	924	20SGP915515KVCX	1,929
	3 YR	30SGX915515KVCX	1,746	30SGP915515KVCX	3,957
	5 YR	50SGX915515KVCX	3,586	50SGP915515KVCX	6,714

EATON 9155 UPS

Powerware series (continued)

9155 SERVICE PLANS (continued)

Gold Plans Contract Onsite Gold Plan List Onsite Gold Plan ListProduct Duration Part Number Price Plus Part Number Price
10 kVA 2 YR 20SGX915510P2CX 1,796		20SGP915510P2CX3,674
2-Unit	3 YR 30SGX915510P2CX 3,137		30SGP915510P2CX6,929
Parallel System	5 YR 50SGX915510P2CX		5,817	50SGP915510P2CX	11,455
8–10 kVA	2 YR 20SGX915510P3CX 2,335		20SGP915510P3CX4,776
3-Unit	3 YR 30SGX915510P3CX 4,078		30SGP915510P3CX9,008
Parallel System	5 YR 50SGX915510P3CX		7,562	50SGP915510P3CX	13,747
12–15 kVA	2 YR 20SGX915515P2CX 1,940		20SGP915515P2CX3,967
2-Unit	3 YR 30SGX915515P2CX 3,388		30SGP915515P2CX7,484
Parallel System	5 YR 50SGX915515P2CX		6,283	50SGP915515P2CX	12,372
12–15 kVA	2 YR 20SGX915515P3CX 2,522		20SGP915515P3CX5,158
3-Unit	3 YR 30SGX915515P3CX 4,405		30SGP915515P3CX9,729
Parallel System	5 YR 50SGX915515P3CX		8,168	50SGP915515P3CX	14,846

Onsite PowerTrust Service Plans include eNotify Remote Monitoring service

Product Duration	Contract Part Number	Price Plus Part Number	Onsite Gold Plan List	Onsite Gold Plan List
8-10 kVA	2 YR	20PGX915510KVCX	1,198	20PGP915510KVCX	2,195
	3 YR	30PGX915510KVCX	2,125	30PGP915510KVCX	4,155
	5 YR	50PGX915510KVCX	4,014	50PGP915510KVCX	7,050
8-10 kVA	2 YR	20PGX915510P2CX	2,155	20PGP915510P2CX	4,032
2-Unit	3 YR	30PGX915510P2CX	3,675	30PGP915510P2CX	7,467
Parallel System	5 YR	50PGX915510P2CX	6,713	50PGP915510P2CX	12,351
8-10 kVA	2 YR	20PGX915510P3CX	2,694	20PGP915510P3CX	5,134
3-Unit	3 YR	30PGX915510P3CX	4,616	30PGP915510P3CX	9,546
Parallel System	5 YR	50PGX915510P3CX	8,458	50PGP915510P3CX	14,643
12-15 kVA	2 YR	20PGX915515KVCX	1,288	20PGP915515KVCX	2,377
	3 YR	30PGX915515KVCX	2,418	30PGP915515KVCX	4,629
	5 YR	50PGX915515KVCX	4,706	50PGP915515KVCX	7,834
12-15 kVA	2 YR	20PGX915515P2CX	2,388	20PGP915515P2CX	4,415
2-Unit	3 YR	30PGX915515P2CX	4,060	30PGP915515P2CX	8,156
Parallel System	5 YR	50PGX915515P2CX	7,403	50PGP915515P2CX	13,492
12-15 kVA	2 YR	20PGX915515P3CX	2,970	20PGP915515P3CX	5,606
3-Unit	3 YR	30PGX915515P3CX	5,077	30PGP915515P3CX	10,401
Parallel System	5 YR	50PGX915515P3CX	9,288	50PGP915515P3CX	15,966

Extended Battery Module Adder Service Plans

Contract Onsite Gold Plan List Onsite Gold Plan List
Product Duration Part Number Price Plus Part Number Price
EBM 64(2 stack)	2 YR	20SGX9155EB64CX	609	20SGP9155EB64CX	864
	3 YR	30SGX9155EB64CX	1,095	30SGP9155EB64CX	1,238
	5 YR 50SGX9155EB64CX 1,705 50SGP9155EB64CX			2,212
EBM 96(3 stack)	2 YR	20SGX9155EB96CX	670	20SGP9155EB96CX	950
	3 YR	30SGX9155EB96CX	1,415	30SGP9155EB96CX	1,705
	5 YR 50SGX9155EB96CX 2,201 50SGP9155EB96CX			2,962

Startup and Preventive Maintenance Service

Product	Part Number	List Price	Product	Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
5x8 Service	0STUP9100XALLC5	778	5x8 Service	0XXPM9100XALLC5	778
7x24 Service	0STUP9100XALLC7	1,002	7x24 Service	0XXPM9100XALLC7	1,002

Onsite Gold plans are 7x24. Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.

Parallel System Startups

Model	Part Number	List Price
9155 8–10kVA–Two-or-Three-unit Parallel, 5x8	OSTUP9155P10CX	896
9155 12–15kVA–Two-or-Three-unit Parallel, 5x8	OSTUP9155P15CX	1,120
9155 8–10kVA–Two-or-Three-unit Parallel, 7x24	OSTUP9155P10C7	1,120
9155 12–15kVA–Two-or-Three-unit Parallel, 7x24	OSTUP9155P15C7	1,344

EATON 9155 UPS

Powerware series (continued)

9155 SPARE PARTS

Description Part Number List Price

PW9155 Spares Kit 106711155 call

Spare parts kits MUST be purchased at the time of the UPS. If not purchasing at the time of the UPS then contact our Service Group, 1-800-356-5737, for pricing.

9155 UPGRADES

Description Part Number List Price

9155-2 Unit Parallel Upgrade Kit ^1 103004626 \$1,118

9155-3 Unit Parallel Upgrade Kit ^4 103004627 \$1,677

1. Up to three PW9155s can be paralleled with the parallel cabinet. 2. Each 9155 must have a Hot Sync Bridge CAN Card installed in the second X-Slot communication bay. 3. If extended runtime is required for the application, then each UPS must have its own EBM and the same number of EBM(s). 4. Kit includes CAN Bridge Card and instructions.

9155 BATTERY BACKUP TIMES (in minutes) @ 0.9 Power Factor

Load(VA/Watts)	UPS + Internal					UPS + Internal
	32 Battery	+1 EBM 64	+2 EBM 64	+3 EBM 64	+4 EBM 64	64 Battery	+1 EBM 96	+2 EBM 96	+3 EBM 96
15000/13500	4.6	23.0	43.0	65.1	88.6	13.3	43.0	76.7	113.0
14500/13050	4.9	24.1	45.2	68.3	93.0	14.1	45.2	80.5	119.0
14000/12600	5.2	25.2	47.3	71.5	97.4	14.9	47.3	84.2	125.0
13500/12150	5.5	26.4	49.4	74.7	102.0	15.8	49.4	88.1	130.0
13000/11700	5.8	27.6	51.6	78.1	106.0	16.7	51.6	92.0	136.0
12500/11250	6.1	28.8	54.0	81.6	111.0	17.6	54.0	96.2	142.0
12000/10800	6.5	30.2	56.5	85.5	116.0	18.6	56.5	101.0	149.0
11500/10350	6.9	31.6	59.3	89.7	122.0	19.2	59.3	106.0	156.0
11000/9900	7.3	33.3	62.4	94.4	129.0	20.2	62.4	111.0	164.0
10500/9450	7.8	35.1	65.9	99.6	136.0	21.4	65.9	117.0	174.0
10000/9000	8.4	37.2	69.8	106.0	144.0	22.6	69.8	124.0	184.0
9500/8550	9.1	39.6	74.2	112.0	153.0	24.1	74.2	132.0	196.0
9000/8100	9.9	42.3	79.4	120.0	163.0	25.7	79.4	141.0	209.0
8500/7650	10.8	45.5	85.2	129.0	175.0	27.6	85.2	152.0	225.0
8000/7200	11.9	49.1	91.9	139.0	189.0	29.8	91.9	164.0	242.0
7500/6750	13.1	53.2	99.7	151.0	205.0	32.3	99.7	178.0	263.0
7000/6300	14.6	58.0	109.0	164.0	224.0	35.2	109.0	194.0	286.0
6500/5850	16.3	63.5	119.0	180.0	245.0	38.6	119.0	212.0	314.0
6000/5400	18.4	70.0	131.0	198.0	270.0	42.5	131.0	234.0	346.0
5500/4950	20.1	77.6	145.0	220.0	300.0	47.2	145.0	259.0	383.0
5000/4500	22.4	86.6	162.0	245.0	334.0	52.6	162.0	289.0	428.0
4500/4050	25.2	97.4	182.0	276.0	376.0	59.2	182.0	325.0	-
4000/3600	28.6	110.0	207.0	313.0	426.0	67.1	207.0	369.0	-
3500/3150	32.8	127.0	238.0	359.0	-	77.0	238.0	423.0	-
3000/2700	38.3	148.0	277.0	418.0	-	89.7	277.0	-	-
2500/2250	45.6	176.0	329.0	-	-	107.0	329.0	-	-

Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

EATON 9170+ UPS RACK/TOWER

Powerware series

Online double-conversion UPS (3-18 kVA)

Reliable online, high-frequency, double-conversion power protection that provides flexible solutions for mission-critical applications.

• N + X power and logic redundancy eliminating all system level single point-of-failure
• Easily scalable to adapt to changing IT environments by simply adding power and/or battery modules
  • Double-conversion, online design delivers the highest level of protection
  • ABM technology significantly increases battery service life
• Hot-swappable battery and power modules, each weighing less than 30 pounds for easy handling and replacement
  • Power management software bundle provides monitoring and shutdown capabilities
• Warranty (US and Canada): Two-year limited warranty and \$250,000 load protection guarantee; optional Gold Plans available

Exterior view of a black industrial tower with horizontal slats (no visible text or symbols)

9170+ MODELS

Dimensions Weight List
Model Part Number (H x W x D, inches) (lb) Price

9170+ Modules
Split-phase Power Module (100/200, 120/208, 127/220, 110/220, 120/240V In & Out)	ASY-0673	4.23 × 14.12 × 15.25	17	1,902
Universal Power Module (208-240V In & Out)	ASY-0674	4.23 \times 14.12 \times 15.25	17	1,824
Battery Module (two required per slot/string) ^1	ASY-0529	4.23 × 7.012 × 14.75	30	358
Optional 20 Amp Charger Module (same form factor as 3 kVA power modules)	ASY-0675	4.23 \times 14.12 \times 14.75	17	2,670

Note: For 9170 replacement modules, contact our Service Group at 800.356.5737 for pricing.

UPS Enclosures

3-slot enclosure (3 kVA max.), Hardwired Input/Output	0660C030AAAAAAAAI	17.80 x 17.00 x 25.40	66	2,049
6-slot enclosure (3, 6 or 9 kVA), Hardwired Input/Output	0660C060AAAAAAAAI	31.50 x 17.00 x 25.40	103	2,355
9-slot enclosure (3, 6, 9, 12, 15 or 18 kVA), Hardwired Input/Output	0660C090AAAAAAAAI	47.00 x 24.00 x 28.40	158	2,620
12-slot enclosure (3, 6, 9, 12, 15 or 18 kVA), Hardwired Input/Output	0660C120AAAAAAAAI	60.70 x 24.00 x 28.40	196	2,916
9-slot rack enclosure	0660C092AAAAAAAAI	45.00 x 17.00 x 25.40	158	2,855
12-slot rack enclosure	0660C122AAAAAAAAI	58.00 x 17.00 x 25.40	196	3,161

External Options

Rack Kit (3- & 6-slot enclosure only)	ASY-0547	-	15	S165
Caster option for 3- & 6-slot enclosure	ASY-0527	-	9	200
External battery connection option (matching cabinet for hot-swap battery modules)	ASY-0525	-	8	245
Floor Anchoring kit	ASY-0548	-	6	55
6-slot external battery enclosure: black^{1}	ASY-0612	31.50 x 17.00 x 25.40	93	1,245
9-slot external battery enclosure: black ^1	ASY-0737	47.00 x 24.00 x 28.40	148	1,750
12-slot external battery enclosure: black^{1}	ASY-0738	60.70 x 24.00 x 28.40	186	2,472
12-slot enclosure w/AC for charger option: black	ASY-0739	60.70 x 24.00 x 28.40	196	2,833
12-slot rack external battery enclosure: black	103004136	58.00 x 17.00 x 25.40	186	2,368
12-slot rack external battery enclosure w/AC charger option: black	103004137	58.00 x 17.00 x 25.40	196	2,986
Rail Kit Option for 3 & 6 slot rackmount^{2}	103007312	-	12	265

1. External Battery Cabinet connection option (ASY-0525) required with each battery cabinet.
2. Rail kit optional for 3 & 6 slot rackmount chassis - included with 9 & 12 slot rackmount chassis

Wall-mounted Maintenance Bypass Cabinets

3- & 6-slot enclosure (Make-Before-Break)	BPE14MBB1A	21.0 x 14.0 x 6.75	31	1,385
9- & 12-slot enclosure (Break-Before-Make)	BPE20BBM1A	21.0 x 14.0 x 6.75	34	1,556
9- & 12-slot enclosure (Make-Before-Break)	BPE20MBB1A	21.0 x 14.0 x 6.75	34	$1,790

EATON 9170+ UPS RACK/TOWER

Powerware series (continued)

9170+ PRE-CONFIGURED SYSTEMS

Output Dimensions Weight List
Model Number Rating	Input Connection Receptacles (H x W x D, inches) (lb)		Price
Pre-configured Systems with Hardwire Input and Output Options
PW3S3KIncludes:(1) 3-slot enclosure(1) power module(2) battery modules(1) caster kit	3 kVA expandable to 3 kVA N+1	Hardwired	Hardwired	19.5 × 17.0 × 25.5	155	4,867
PW6S3KIncludes:(1) 6-slot enclosure(1) power module(2) battery modules(1) caster kit	3 kVA expandable to 9 kVA N+X	Hardwired	Hardwired	33.3 \times 17.0 \times 25.5	155	5,173
PW6S6KIncludes:(1) 6-slot enclosure(2) power modules(4) battery modules(1) caster kit	6 kVA expandable to 9 kVA N+X	Hardwired	Hardwired	33.3 × 17.0 × 25.5	232	7,791
PW6S9KIncludes:(1) 6-slot enclosure(3) power modules(6) battery modules(1) caster kit	9 kVA expandable to 9 kVA N+X	Hardwired	Hardwired	33.3 \times 17.0 \times 25.5	346	10,409
PW9S9KIncludes:(1) 9-slot enclosure(3) power modules(6) battery modules	9 kVA expandable to 18 kVA N+X	Hardwired	Hardwired	47.0 × 24.0 × 28.5	389	10,474
PW12S9KIncludes:(1) 12-slot enclosure(3) power modules(6) battery modules	9 kVA expandable to 18 kVA N+X	Hardwired	Hardwired	60.7 \times 24.0 \times 28.5	427	10,770
PW12S12KIncludes:(1) 12-slot enclosure(4) power modules(8) battery modules	12 kVA expandable to 18 kVA N+X	Hardwired	Hardwired	60.7 × 24.0 × 28.5	504	13,388
PW12S15KIncludes:(1) 12-slot enclosure(5) power modules(10) battery modules	15 kVA expandable to 18 kVA N+X	Hardwired	Hardwired	60.7 \times 24.0 \times 28.5	581	16,006
PW12S18KIncludes:(1) 12-slot enclosure(6) power modules(12) battery modules	18 kVA expandable to 18 kVA N+X	Hardwired	Hardwired	60.7 × 24.0 × 28.5	658	$18,624

Replacement batteries—contact Sales Support 800.356.5794, option 3.

EATON 9170+ UPS RACK/TOWER

Powerware series (continued)

PRE-CONFIGURED SYSTEMS WITH HARDWIRE INPUT AND RECEPTACLES OUTPUT OPTIONS

Output Dimensions Weight List
Model Number Rating	Input Connection Receptacles (H x W x D, inches) (lb) Price
PW6S3K-PDIncludes:(1) 6-slot enclosure(1) power modules(2) battery modules(1) caster kit	3 kVA expandableto 9 kVA N+X (2) L6-30R,(12) 5-20R	Hardwired	(2) L14-30R,	33.3 x 17.0 x 25.5	192	5,587
PW6S6K-PDIncludes:(1) 6-slot enclosure(2) power modules(4) battery modules(1) caster kit	6 kVA expandableto 9 kVA N+X (2) L6-30R,(12) 5-20R	Hardwired	(2) L14-30R,	33.3 x 17.0 x 25.5	269	8,205
PW6S9K-PDIncludes:(1) 6-slot enclosure(3) power modules(6) battery modules(1) caster kit	9 kVA expandableto 9 kVA N+X (2) L6-30R,(12) 5-20R	Hardwired	(2) L14-30R,	33.3 x 17.0 x 25.5	346	10,823
PW9S9K-PDIncludes:(1) 9-slot enclosure(3) power modules(6) battery modules	9 kVA expandableto 18 kVA N+X(12) 5-20R	Hardwired(2) L6-30R,	(2) L14-30R,	47.0 x 24.0 x 28.5	389	10,888
PW12S9K-PDIncludes:(1) 12-slot enclosure(3) power modules(6) battery modules	9 kVA expandableto 18 kVA N+X(12) 5-20R	Hardwired(3) L6-30R,	(3) L14-30R,	60.7 x 24.0 x 28.5	427	11,322
PW12S12K-PDIncludes:(1) 12-slot enclosure(4) power modules(8) battery modules	12 kVA expandableto 18 kVA N+X(12) 5-20R	Hardwired(3) L6-30R,	(3) L14-30R,	60.7 x 24.0 x 28.5	504	13,940
PW12S15K-PDIncludes:(1) 12-slot enclosure(5) power modules(10) battery modules	15 kVA expandableto 18 kVA N+X(12) 5-20R	Hardwired(3) L6-30R,	(3) L14-30R,	60.7 x 24.0 x 28.5	581	16,558
PW12S18K-PDIncludes:(1) 12-slot enclosure(6) power modules(12) battery modules	18 kVA expandableto 18 kVA N+X(12) 5-20R	Hardwired(3) L6-30R,	(3) L14-30R,	60.7 x 24.0 x 28.5	658	19,176
PW3S3K-LPDIncludes:(1) 3-slot enclosure(1) power modules(2) battery modules(1) caster kit	3 kVA expandableto 3 kVA N+1(4) 5-20R	L14-30P(1) L6-30R,	(1) L14-30R,	19.5 x 17.0 x 25.5	155	5,231
PW6S3K-LPDIncludes:(1) 6-slot enclosure(1) power modules(2) battery modules(1) caster kit	3 kVA expandableto 9 kVA N+X (2) L6-30R,(12) 5-20R	14-50P	(2) L14-30R,	33.3 x 17.0 x 25.5	192	5,736
PW6S6K-LPDIncludes:(1) 6-slot enclosure(2) power modules(4) battery modules(1) caster kit	6 kVA expandableto 9 kVA N+X (2) L6-30R,(12) 5-20R	14-50P	(2) L14-30R,	33.3 x 17.0 x 25.5	269	$8,353

Notes: 50/60 Hz automatic frequency selection. Input/output voltages: 208–240 Vac or 100/200, 110/220, 120/208, 120/240 and 127/220 Vac. Pre-configured systems (3) and (6) slot enclosure dimensions include caster kit. Each pre-configured system includes a 6.5-minute runtime. Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. Split-phase Power Modules included.

EATON 9170+ UPS RACK/TOWER

Powerware series (continued)

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number	Description	List Price
116750222-001	ConnectUPS-BD	335
Network-MS	Network Card-MS	249
Bundled with Intelligent Power Software Suite CD and communication cable.

See software and connectivity product sections for more detail.

UNIVERSAL MODULE ASY-0674 RUNTIME CHART IN MINUTES (FULL LOAD/HALF LOAD)

Load (VA) Number of strings (two battery modules per string; two battery modules occupy one slot)

1 String

2 String

3 String

4 String

5 String

6 String

7 String

8 String

9 String

10 String

11 String

12 String

3 kVA

8/24

24/59

43/95

58/140

80/175

95/125

119/240

135/290

155/335

165/365

200/395

215/450

6 kVA

8/24

16/40

24/59

32/83

40/103

49/114

58/140

69/156

83/175

90/190

103/205

9 kVA

8/24

13/35

18/46

24/59

29/63

35/86

40/103

46/115

54/125

58/140

12 kVA

8/24

13/33

16/40

19.5/43.5

24/59

29/70

33/80

36/90

41/100

15 kVA

8/24

11.5/31

14.5/31.5

18/46

20.5/51

24/58

28/66

31/73

18 kVA

8/24

11/31.5

13/36

15.5/41

18/45

20.5/51

24/58

Note: Additional battery runtimes available up to 8 hours. Please contact your Eaton representative.

13 String

14 String

15 String

16 String

17 String

18 String

19 String

20 String

21 String

22 String

23 String

24 String

3 kVA

225/500

245/540

270/600

290/620

315/650

335/690

350/720

365/780

375/850

395/890

425/920

450/950

6 kVA

113/335

123/255

135/273

143/290

148/315

156/333

165/350

175/365

183/385

190/395

198/420

205/440

9 kVA

63/150

73/165

80/178

86/190

93/200

100/210

107/225

115/240

121/255

125/270

135/280

143/290

12 kVA

47/110

52/121

56/130

58/140

65/147

70/156

75/165

80/175

85/185

90/195

95/205

100/215

15 kVA

34/83

38/94

41.5/103

44.5/113

46.5/117

51/127

56/130

58/140

61/149

66/158

71/165

73/170

18 kVA

27/65

31.5/72

34.5/77

36/83

38/94

41/100

44/105

45/115

48/122

54/131

57/137

58/140

Battery strings above and to the right of the dark line require additional (N+X) power modules or a 20A charger module.

SPLIT-PHASE MODULE ASY-0673 RUNTIME CHART IN MINUTES (FULL LOAD/HALF LOAD)

Load (VA) Number of Strings (two battery modules per string; two battery modules occupy one slot)

1 String

2 String

3 String

4 String

5 String

6 String

7 String

8 String

9 String

10 String

11 String

12 String

3 kVA

6.5/16

16/40

27.5/67.5

40/98

53.5/132

67.5/167

83/204

98/242

115/283

132/324

149/365

167/408

6 kVA

6.5/16

11/27.5

16/40

21.5/53.5

27.5/68

33.5/83

40/98

46.5/115

53.5/132

60.5/149

67.5/167

9 kVA

6.5/16

9.5/23.5

13/31.5

16/40

20/49

23.5/58

27.5/67.5

31.5/78

35.5/88

40/98

12 kVA

6.5/16

9/21.5

11/27.5

13.5/33.5

16/40

19/46.5

21.5/53.5

24.5/60.5

27.5/68

15 kVA

6.5/16

8/20.5

10/25

12/30

14/35

16/40

18.5/45

20.5/50.5

18 kVA

6.5/16

8/20

9.5/23.5

11/27.5

12.5/30

14.5/35.5

16/40

Note: Additional battery runtimes available up to 8 hr. Please contact your Eaton representative. Split-phase Module is for U.S. use.

13 String

14 String

15 String

16 String

17 String

18 String

19 String

20 String

21 String

22 String

23 String

24 String

3 kVA

185/456

204/501

223/549

242/595

262/640

283/692

302/750

323/790

345/850

365/900

387/955

408/1015

6 kVA

75/185

83/204

90/223

98/242

106/262

115/285

123/302

132/324

140/345

149/365

157/388

167/408

9 kVA

44/109

49/120

53.5/132

58/143

63/154

68/167

73/179

78/191

83/204

88/210

93/229

98/242

12 kVA

30.5/75

33.5/83

37/90

40/98

43/106

46.5/115

50/123

53.5/132

57/140

60/149

64/157

68/167

15 kVA

23/56

25/62

27.5/67.5

30/73.5

32.5/79.5

35/86

37.5/92

40/98

42.5/105

45/111

48/118

51/124

18 kVA

18/44

20/49

21.5/53.5

23.5/58

25.5/63

27.5/68

29.5/73

31.5/78

33.5/83

35.5/88

38/93

40/98

Note: Battery strings above and to the right of the dark line require additional (N+X) power modules or a 20A charger module.

CUSTOMIZABLE INPUT PLUG OPTIONS

Input Plug	Power Module Type	CTO Digit	List Price
L14-20P^2	Split-phase	F	109
L14-30P^{3}	Split-phase	G	129
14-50P^4	Split-phase	H	$149

Notes: 1. May be configured to order by contacting sales support: 800,356,5794. 2. Limits chassis to maximum current of 16A and two power modules for 3 kVA redundant. 3. Limits chassis to maximum current of 24A and three power modules for 5 kVA redundant. 4. Limits chassis to maximum current of 40A and four power modules for 8 kVA redundant.

EATON 9170+ UPS RACK/TOWER

Powerware series (continued)

CUSTOMIZABLE RECEPTACLE OPTIONS

Output Receptacle Power Module Type # of Bays CTO Digit List Price
5-20R duplex Split-phase 1 E 49			Maximum of three different types of receptacles per enclosure59Bays available per69 enclosure:3-slot has (4) bays6-slot has (8) bays9-slot has (8) bays12-slot has (12) bays
6-20R duplex All 1 G		69
L5-20R twist lock	Split-phase 1 K 49
L5-30R twist lock	Split-phase 1 L
L6-15R twist lock duplex	All 1	M
L6-20R twist lock	All 1 N
L6-30R twist lock	All 1 O
L14-30R twist lock	Split-phase 1 R69
3 x 5-15R duplex	Split-phase 2	W
3 x 5-20R duplex	Split-phase 2 X $69

9170+ SERVICE PLANS

Gold Plans
	Contract Duration	Onsite Gold Plan Part Number	List Price	Onsite Gold Plan Plus Part Number	List Price
3-slot Cabinet	2 YR	20SGX91703SLTCX	884	20SGP91703SLTCX	1,317
	3 YR	30SGX91703SLTCX	1,320	30SGP91703SLTCX	2,212
	5 YR	50SGX91703SLTCX	1,949	50SGP91703SLTCX	3,631
6-slot Cabinet	2 YR	20SGX91706SLTCX	978	20SGP91706SLTCX	1,411
	3 YR	30SGX91706SLTCX	1,753	30SGP91706SLTCX	2,645
	5 YR	50SGX91706SLTCX	2,796	50SGP91706SLTCX	4,479
9-slot Cabinet	2 YR	20SGX91709SLTCX	1,061	20SGP91709SLTCX	1,493
	3 YR	30SGX91709SLTCX	2,132	30SGP91709SLTCX	3,024
	5 YR	50SGX91709SLTCX	3,537	50SGP91709SLTCX	5,220
12-slot Cabinet	2 YR	20SGX917012SLCX	1,155	20SGP917012SLCX	1,587
	3 YR	30SGX917012SLCX	2,565	30SGP917012SLCX	3,457
	5 YR	50SGX917012SLCX	4,385	50SGP917012SLCX	6,067
6-slot External Battery Cabinet	2 YR	20SGX9170B6SLCX	309	20SGP9170B6SLCX	349
	3 YR	30SGX9170B6SLCX	1,211	30SGP9170B6SLCX	1,318
	5 YR	50SGX9170B6SLCX	2,272	50SGP9170B6SLCX	2,451
9-slot External Battery Cabinet	2 YR	20SGX9170B9SLCX	398	20SGP9170B9SLCX	438
	3 YR	30SGX9170B9SLCX	1,793	30SGP9170B9SLCX	1,901
	5 YR	50SGX9170B9SLCX	3,419	50SGP9170B9SLCX	3,599
12-slot External Battery Cabinet	2 YR	20SGX9170B12SCX	486	20SGP9170B12SCX	526
	3 YR	30SGX9170B12SCX	2,376	30SGP9170B12SCX	2,483
	5 YR	50SGX9170B12SCX	4,566	50SGP9170B12SCX	4,745

Onsite PowerTrust Service Plans include eNotify Remote Monitoring service

Product	Contract Duration	Onsite Gold Plan Part Number	List Price	Onsite Gold Plan Plus Part Number	List Price
3-slot Cabinet	2 YR	20PGX91703SLTCX	1,152	20PGP91703SLTCX	1,586
	3 YR	30PGX91703SLTCX	1,724	30PGP91703SLTCX	2,615
	5 YR	50PGX91703SLTCX	2,621	50PGP91703SLTCX	4,303
6-slot Cabinet	2 YR	20PGX91706SLTCX	1,336	20PGP91706SLTCX	1,770
	3 YR	30PGX91706SLTCX	2,290	30PGP91706SLTCX	3,183
	5 YR	50PGX91706SLTCX	3,692	50PGP91706SLTCX	5,375
9-slot Cabinet	2 YR	20PGX91709SLTCX	1,509	20PGP91709SLTCX	1,941
	3 YR	30PGX91709SLTCX	2,804	30PGP91709SLTCX	3,696
	5 YR	50PGX91709SLTCX	4,657	50PGP91709SLTCX	6,340
12-slot Cabinet	2 YR	20PGX917012SLCX	1,603	20PGP917012SLCX	2,035
	3 YR	30PGX917012SLCX	3,237	30PGP917012SLCX	4,129
	5 YR	50PGX917012SLCX	5,505	50PGP917012SLCX	7,187

Startup and Preventive Maintenance Service

Product	Part Number	List Price	Product	Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
5x8 Service	0STUP9100XALLC5	778	5x8 Service	0XXPM9100XALLC5	778
7x24 Service	0STUP9100XALLC7	1,002	7x24 Service	0XXPM9100XALLC7	1,002

Onsite Gold plans are 7x24. Additional information about service plan features can be found in the Single-phase Service Plans Overview section of this reference guide.

EATON FERRUPS FE UPS 60 HZ

Powerware series

Ferroresonant UPS (500-3100 VA)

• Bulletproof power integrity and management for telecommunications and computer loads
• Special configurations and options available—call sales support for details: 800.356.5794
• Warranty (US and Canada): Two-year limited warranty and \$250,000 load protection guarantee; optional Gold Plans available

EATON TAA COMPLIANT

The FERRUPS® can be customized with many options and runtimes. If you do not find the configuration you need in this price book, call 800.356.5794.

FERRUPS FE 60 Hz MODELS

Input/Output Runtimes Output ListCTO Number Voltage Full/Half Load Input Plug Receptacles Price
MODEL FE500 (500 VA/350W)
FA000AA0A0A0A0A	120V/120V	9/25 min	Hardwire	Hardwire	1,246
FA000BB2A0A0A0A	120V/120V	9/25 min	5-15	(4) 5-15	1,205
FA010BB2A0A0A0A 120V/120V 20/56 min 5-15		(4) 5-15	1,275
FA020BB2A0A0A0A	120V/120V	75/212 min	5-15	(4) 5-15	1,424
MODEL FE700 (700 VA/500W)
FB000AA0A0A0A0A	120V/120V	11/31 min	Hardwire	Hardwire	1,394
FB000BB2A0A0A0A	120V/120V	11/31 min	5-15	(4) 5-15	1,352
FB020BB2A0A0A0A	120V/120V	34/96 min	5-15	(4) 5-15	1,559
FB040BB2A0A0A0A	120V/120V	External Battery	5-15	(4) 5-15	1,246
Model FE850 (850 VA/600W)
FC000BB2A0A0A0A	120V/120V	9/25 min	5-15	(4) 5-15	1,514
FC010BB2A0A0A0A	120V/120V	38/107 min	5-15	(4) 5-15	1,628
FC000AA0A0A0A0A	120V/120V	9/25 min	Hardwire	Hardwire	1,555
Model FE1.15 (1.15 kVA/800W)
FD000AA0A0A0A0A	120V/120V	8/22 min	Hardwire	Hardwire	2,122
FD000BB3A0A0A0A	120V/120V	8/22 min	5-15	(6) 5-15	2,080
FD010BB3A0A0A0A	120V/120V	30/85 min	5-15	(6) 5-15	2,376
FD020BB3A0A0A0A	120V/120V	70/197 min	5-15	(6) 5-15	2,474
Model FE1.4 (1.4 kVA/1 kW)
FE000AA0A0A0A0A	120V/120V	11/31 min	Hardwire	Hardwire	2,287
FE000BB3A0A0A0A	120V/120V	11/31 min	5-15	(6) 5-15	2,245
FE010BB3A0A0A0A	120V/120V	22/62 min	5-15	(6) 5-15	2,513
Model FE1.8 (1.8 kVA/1.25 kW)
FF000CC3A0A0A0B	120V/120V	11/30 min	5-20	(6) 5-20	3,332
FF010AA0A0A0A0B	120V/120V	86/206 min	Hardwire	Hardwire	3,894
FF010CC3A0A0A0B	120V/120V	86/206 min	5-20	(6) 5-20	3,852
Model FE2.1 (2.1 kVA/1.5 kW)
FG000AA0A0A0A0B	120V/120V	9/25 min	Hardwire	Hardwire	3,702
FG000CC3A0A0A0B	120V/120V	9/25 min	5-20	(6) 5-20	3,660
FG010AA0A0A0A0B	120V/120V	66/163 min	Hardwire	Hardwire	4,213
FG010CC3A0A0A0B	120V/120V	66/163 min	5-20	(6) 5-20	4,172
Model FE3.1 (3.1 kVA/2.2 kW)
FH000JC3A0A0A0B	120V/120V	14/35 min	L5-30	(6) 5-20	4,553
FH010JC3A0A0A0B	120V/120V	37/98 min	L5-30	(6) 5-20	5,013
FH000AA0A0A0A0B	120V/120V	14/35 min	Hardwire	Hardwire	4,595
FH010AA0A0A0A0B	120V/120V	37/98 min	Hardwire	Hardwire	$5,054

Note: See following pages for external battery packs and maintenance bypass switches.

EATON FERRUPS FE UPS 60 HZ

Powerware series (continued)

Ferroresonant UPS (4.3-18 kVA)

• Bulletproof power integrity and management for telecommunications and computer loads
  • Power factor-corrected, switch-mode and linear power supplies

The FERRUPS can be customized with many options and runtimes. If you do not find the configuration you need in this price book, call 800.356.5794.

White laboratory equipment with control panel and display (no visible text or symbols)

FERRUPS FE 60 Hz MODELS (continued)

Input/Output Runtimes Output List
Model Number CTO Number Voltage Full/Half Load Input Plug Receptacles Price
Model FE4.3 (4.3 kVA/3 kW)
FE4.3 kVA	FI100AA0A0A0A0B	208-208/120V	10/24 min	Hardwired	Hardwired	6,475
FE4.3 kVA	FI300AA0A0A0A0B	240-240/120V	10/24 min	Hardwired	Hardwired	6,475
FE4.3 kVA	FI000AA0A0A0A0B	120V/120V	10/24 min	Hardwired	Hardwired	6,754
Model FE5.3 (5.3 kVA/3.7 kW)
FE5.3 kVA	FJ000AA0A0A0A0B	120V/120V	20/50 min	Hardwired	Hardwired	7,831
FE5.3 kVA	FJ100AA0A0A0A0B	208-208/120V	20/50 min	Hardwired	Hardwired	7,552
FE5.3 kVA	FJ300AA0A0A0A0B	240-240/120V	20/50 min	Hardwired	Hardwired	7,552
Model FE7 (7 kVA/5 kW)
FE7 kVA	FK100AA0A0A0A0B	208-208/120V	12/33 min	Hardwired	Hardwired	9,403
FE7 kVA	FK300AA0A0A0A0B	240-240/120V	12/33 min	Hardwired	Hardwired	9,403
FE7 kVA	FK000AA0A0A0A0B	120V/120V	12/33 min	Hardwired	Hardwired	9,681
Model FE10 (10 kVA/7.5 kW)
FE10 kVA	FL140AA0A0A0A0B	208-208/120V	External	Hardwired	Hardwired	9,759
Recommended system options:	EBPS10F	Standard external battery pack (11/26 min)				3,659
	BPE04BBM1A	External maintenance bypass switch (break-before-make)				795
System List						14,213
FE10 kVA	FL340AA0A0A0A0B	240-240/120V	External	Hardwired	Hardwired	9,759
Recommended system options:	EBPS10F	Standard external battery pack (11/26 min)				3,659
	BPE04MBB1A	External maintenance bypass switch (make-before-break)				880
System List						14,298
Model FE12.5 (12.5 kVA/10 kW)
FE12.5 kVA	FM140AA0A0A0A0B	208-208/120V	External	Hardwired	Hardwired	10,420
Recommended system options:	EBPS12F	Standard external battery pack (18/48 min)				4,926
	BPE04BBM1A	External maintenance bypass switch (break-before-make)				795
System List						16,141
FE12.5 kVA	FM340AA0A0A0A0B	240-240/120V	External	Hardwired	Hardwired	10,420
Recommended system options:	EBPS12F	Standard external battery pack (18/48 min)				4,926
	BPE04MBB1A	External maintenance bypass switch (make-before-break)				880
System List						16,226
Model FE18 (18 kVA/15 kW)
FE18 kVA	FN140AA0A0A0A0B	208-208/120V	External	Hardwired	Hardwired	13,404
Recommended system options:	EBPS18F	Standard external battery pack (10/26 min)				4,926
	BPE05BBM1A	External maintenance bypass switch (break-before-make)				980
System List						19,310
FE18 kVA	FN340AA0A0A0A0B	240-240/120V	External	Hardwired	Hardwired	13,404
Recommended system options:	EBPS18F	Standard external battery pack (10/26 min)				4,926
	BPE05MBB1A	External maintenance bypass switch (make-before-break)				1,100
System List						$19,430

Note: See following pages for external battery packs and maintenance bypass switches. Call for other configurations and options.

EATON FERRUPS UPS RACK SERIES 60 HZ

Powerware series

EATON TAA COMPLIANT

Ferroresonant UPS (1.4 kVA-7 kVA)

• Bulletproof power integrity and management for telecommunications and computer loads
  • Power factor-corrected, switch-mode and linear power supplies
  • High reliability for industrial and harsh environment
  • Ultra-high reliability for standard, commercial environment

The FERRUPS can be customized with many options and runtimes. If you do not find the configuration you need in this price book, call 800.356.5794.

Exterior view of a white industrial electrical cabinet with multiple compartments (no visible text or labels)

FERRUPS RACK SERIES 60 Hz MODELS

Input/Output Runtimes Output ListCTO Number Voltage Full/Half Load Input Plug Receptacles Price
Model FES1.4 (1.4 kVA/1 kW)
RC000BB2A0A0A0A	120V-120V	14/36 min	5-15	(4) 5-15	4,434
RC000AA0A0A0A0A	120V-120V	14/36 min	Hardwired	Hardwired	4,310
Model FER2.1 (2.1 kVA/1.5 kW)
RH000CC3A0A0A0B	120V-120V	24/58 min	5-20	(6) 5-20	5,340
RH000AA0A0A0A0B	120V-120V	24/58 min	Hardwired	Hardwired	5,151
Model FER3.1 (3.1 kVA/2.2 kW)
RI000JB3A0A0A0B	120V-120V	14/35 min	L5-30	(6) 5-15	5,853
RI000AA0A0A0A0B	120V-120V	14/35 min	Hardwired	Hardwired	5,626
Model FER7 (7 kVA/5 kW)
RK140AA0A0A0A0B	208-120/208V	External Battery	Hardwired	Hardwired	10,273
RK340AA0A0A0A0B	240-120/240V	External Battery	Hardwired	Hardwired	10,273
EBPS4.3R	Standard external battery pack (12/33 min)				$2,889

Note: See following pages for external battery packs and maintenance bypass switches. Call for other configurations and options.

SOFTWARE AND CONNECTIVITY OPTIONS

Description	Part Number	List Price
Serial CheckUPS Cable DB25M to DB9F	INT-0035	48
BestLink Web/SNMP Adapter (external)	116750225-001	349
IBM AS/400 Kit Standard Cable Kit	IPK-0001	95
Handheld Remote and Keypad (FE, FES, FER models only)	RCK-0007	265
Caster Assy	CAA-0006	$145

FERRUPS RACK AND TOWER BASE UNIT SERVICE PLANS

Product	Contract Duration	Gold Plan Part Number	List Price	Gold Plan Plus Part Number	List Price	Onsite Gold Plan Part Number	List Price	Onsite Gold Plan Plus Part Number	List Price
500–850 VA	2 YR	2XXGXFERRX850CX	92	2XXGPFERRX850CX	793	20SGXFERRX850CX	884	20SGPFERRX850CX	1,033
	3 YR	3XXGXFERRX850CX	298	3XXGPFERRX850CX	1,017	30SGXFERRX850CX	1,046	30SGPFERRX850CX	1,650
	5 YR	5XXGXFERRX850CX	557	5XXGPFERRX850CX	1,437	50SGXFERRX850CX	1,745	50SGPFERRX850CX	2,710
1.15–1.4 kVA	2 YR	2XXGXFERR1400CX	168	2XXGPFERR1400CX	865	20SGXFERR1400CX	991	20SGPFERR1400CX	1,074
	3 YR	3XXGXFERR1400CX	475	3XXGPFERR1400CX	1,196	30SGXFERR1400CX	1,437	30SGPFERR1400CX	1,784
	5 YR	5XXGXFERR1400CX	818	5XXGPFERR1400CX	1,804	50SGXFERR1400CX	2,369	50SGPFERR1400CX	2,959
1.8–3.1 kVA	2 YR	-	-	-	-	20SGXFERR3100CX	1,167	20SGPFERR3100CX	1,371
	3 YR	-	-	-	-	30SGXFERR3100CX	1,580	30SGPFERR3100CX	2,303
	5 YR	-	-	-	-	50SGXFERR3100CX	2,688	50SGPFERR3100CX	3,825
4.3–7.0 kVA	2 YR	-	-	-	-	20SGXFERR7KVACX	1,539	20SGPFERR7KVACX	2,546
	3 YR	-	-	-	-	30SGXFERR7KVACX	1,929	30SGPFERR7KVACX	3,466
	5 YR	-	-	-	-	50SGXFERR7KVACX	2,761	50SGPFERR7KVACX	5,305
10 kVA	2 YR	-	-	-	-	20SGXFERR10KVCX	1,564	20SGPFERR10KVCX	2,570
	3 YR	-	-	-	-	30SGXFERR10KVCX	2,210	30SGPFERR10KVCX	3,539
	5 YR	-	-	-	-	50SGXFERR10KVCX	3,199	50SGPFERR10KVCX	5,441
12.5–18 kVA	2 YR	-	-	-	-	20SGXFERR18KVCX	1,749	20SGPFERR18KVCX	2,728
	3 YR	-	-	-	-	30SGXFERR18KVCX	2,678	30SGPFERR18KVCX	3,919
	5 YR	-	-	-	-	50SGXFERR18KVCX	4,028	50SGPFERR18KVCX	6,324

EATON FERRUPS UPS RACK SERIES 60 HZ

Powerware series (continued)

FERRUPS EXTERNAL BATTERY CABINETS

GROUP 1 Contract Onsite Gold Plan List Onsite Gold Plan Plus List Duration Part Number Price Part Number Price
21 ME	2 YR	20SGXFERRXBG1CX	153	20SGPFERRXBG1CX	253
	3 YR	30SGXFERRXBG1CX	420	30SGPFERRXBG1CX	571
	5 YR	50SGXFERRXBG1CX	827	50SGPFERRXBG1CX	1,076
GROUP 2
8ME EBPS4.3R	2 YR	20SGXFERRXBG2CX	171	20SGPFERRXBG2CX	269
9ME EBPS10	3 YR	30SGXFERRXBG2CX	617	30SGPFERRXBG2CX	765
24ME 1FE	5 YR	50SGXFERRXBG2CX	1,277	50SGPFERRXBG2CX	1,506
25ME 1re
GROUP 3
2FE 9FE	2 YR	20SGXFERRXBG3CX	198	20SGPFERRXBG3CX	292
16FE 2re	3 YR	30SGXFERRXBG3CX	836	30SGPFERRXBG3CX	978
1rd	5 YR	50SGXFERRXBG3CX	1,747	50SGPFERRXBG3CX	1,977
GROUP 4
EBPS12.5	2 YR	20SGXFERRXBG4CX	195	20SGPFERRXBG4CX	288
EBPS18	3 YR	30SGXFERRXBG4CX	572	30SGPFERRXBG4CX	718
8FE	5 YR	50SGXFERRXBG4CX	1,180	50SGPFERRXBG4CX	1,412
GROUP 5
10ME 11ME	2 YR	20SGXFERRXBG5CX	262	20SGPFERRXBG5CX	355
12ME 3FE	3 YR	30SGXFERRXBG5CX	1,392	30SGPFERRXBG5CX	1,418
4FE 2rd	5 YR	50SGXFERRXBG5CX	3,004	50SGPFERRXBG5CX	3,135
GROUP 6
13ME	2 YR	20SGXFERRXBG6CX	282	20SGPFERRXBG6CX	376
5FE	3 YR	30SGXFERRXBG6CX	1,589	30SGPFERRXBG6CX	1,736
3rd	5 YR	50SGXFERRXBG6CX	3,412	50SGPFERRXBG6CX	3,636
GROUP 7
10FE	2 YR	20SGXFERRXBG7CX	325	20SGPFERRXBG7CX	428
17FE	3 YR	30SGXFERRXBG7CX	1,654	30SGPFERRXBG7CX	1,846
	5 YR	50SGXFERRXBG7CX	3,412	50SGPFERRXBG7CX	3,818
GROUP 8
14ME 6FE	2 YR	20SGXFERRXBG8CX	460	20SGPFERRXBG8CX	553
11FE 12FE	3 YR	30SGXFERRXBG8CX	2,836	30SGPFERRXBG8CX	2,883
18FE 19FE	5 YR	50SGXFERRXBG8CX	5,972	50SGPFERRXBG8CX	6,231
GROUP 9
15ME 7FE	2 YR	20SGXFERRXBG9CX	538	20SGPFERRXBG9CX	631
13FE 20FE	3 YR	30SGXFERRXBG9CX	3,744	30SGPFERRXBG9CX	3,890
	5 YR	50SGXFERRXBG9CX	8,225	50SGPFERRXBG9CX	8,458
GROUP 10
14FE	2 YR	20SGXFERRBG10CX	866	20SGPFERRBG10CX	959
21FE	3 YR	30SGXFERRBG10CX	6,103	30SGPFERRBG10CX	6,248
	5 YR	50SGXFERRBG10CX	13,506	50SGPFERRBG10CX	13,738
GROUP 11
15FE	2 YR	20SGXFERRBG11CX	1,254	20SGPFERRBG11CX	1,347
22FE	3 YR	30SGXFERRBG11CX	9,344	30SGPFERRBG11CX	9,490
	5 YR	50SGXFERRBG11CX	20,742	50SGPFERRBG11CX	20,974

Startup and Preventive Maintenance Service

Product	Part Number	List Price	Product	Part Number	List Price
Onsite Startup			Onsite Preventive Maintenance
5x8 Service	0STUPFERRXALLC5	778	5x8 Service	0XXPMFERRXALLC5	778
7x24 Service	0STUPFERRXALLC7	1,002	7x24 Service	0XXPMFERRXALLC7	1,002

Onsite Gold plans are 7x24. Additional information about service plan features can be found in the Single-Phase Service Plans Overview section of this reference guide.

EATON FERRUPS UPS EXTERNAL OPTIONS & ACCESSORIES

Powerware series

FERRUPS EXTERNAL BATTERY PACK BACKUP TIMES (full/half load)

FERRUPS external battery packs offer extended backup times. Please see following pages for typical backup times. Use of the external battery packs require that the FERRUPS UPS be configured with external battery or battery charger options as noted below.

Tower: 1.4–3.1 kVA
Battery Pack List Price FE1.15 kVA FE1.4 kVA FE1.8 kVA FE2.1 kVA FE3.1 kVA

8ME 2,386 3h 15m / 9h 11m 2h 20m / 6h 35m - - -
9ME	2,606	3h 50m / 10h 50m	3h 10m / 8h 57m	2h 12m / 4h 53m	1h 41m / 3h 54m	57m / 2h 27m
10ME	4,480	6h 30m / 18h 23m	5h 20m / 15h 5m	3h 38m / 8h 22m	2h 50m / 6h 37m	1h 41m / 4h 03m
11ME	4,963	-	-	5h 09m / 11h 30m	4h 03m / 9h 10m	2h 29m / 5h 44m
12ME	6,603	-	-	6h 07m / 14h 06m	4h 46m / 11h 08m	2h 52m / 6h 50m
13ME	8,061	-	-	8h 30m / 18h 53m	6h 42m / 15h 04m	4h 07m / 9h 27m
14ME	9,893	-	-	12h 08m / 27h 06m	9h 33m / 21h 36m	5h 52m / 13h 30m
15ME	13,379	-	-	18h 52m / 44h 45m	15h 12m / 36h 28m	9h 41m / 22h 18m

Tower: 4.3–7 kVA
Battery Pack List Price FE4.3 kVA FE5.3 kVA FE7 kVA

1FE	3,219	40m / 1h 42m	27m / 1h 14m	-
2FE	4,509	1h 11m / 2h 51m	49m / 2h 10m	34m / 1h 28m
3FE	4,997	1h 49m / 4h 05m	1h 12m / 3h 08m	48m / 2h 13m
4FE^2	6,663	2h 06m / 4h 46m	1h 27m / 3h 39m	60m / 2h 33m
5FE^2	8,144	3h 04m / 6h 46m	2h 13m / 5h 11m	1h 32m / 3h 41m
6FE^3	9,803	4h 27m / 9h 39m	3h 08m / 7h 22m	2h 16m / 5h 14m
7FE^3	$13,539	7h 12m / 15h 56m	5h 10m / 12h 10m	3h 45m / 8h 39m

Tower: 10–18 kVA

Battery Pack	List Price	FE10 kVA	FE12.5 kVA	Battery Pack	List Price	FE18 kVA
EBPS10F	3,569	11m / 26 m	-	EBPS18F	4,926	10m / 26m
EBPS12F	4,926	-	18m / 48m	16FE	6,455	14m / 39m
8FE	4,955	27m / 1h 10m	-	17FE	9,910	27m / 1h 10m
9FE	6,531	41m / 1h 48m	27m / 1h 13m	18FE	10,660	37m / 1h 46m
10FE 9,946	1h 13m / 2h 59m	49m / 2h 07m	19FE	^{3}	14,942	48m / 2h 04m
11FE	11,029	1h 51m / 4h 16m	1h 12m / 3h 04m	20FE^{3}	18,702	1h 13m / 3h 01m
12FE^2 14,812	2h 09m / 5h 02m	1h 38m / 4h 05m	21FE	^{3}	21,319	1h 49m / 4h 17m
13FE^2 18,887	3h 07m / 7h 04m	2h 12m / 5h 05m	22FE	^{3}	31,877	3h 04m / 7h 05m
14FE^3	21,932	4h 26m / 10h 04m	3h 08m / 7h 14m
15FE^{3}	31,860	7h 20m / 16h 38m	5h 10m / 11h 57m

Rackmount: 2.1–7 kVA

Battery Pack	List Price	FER2.1 kVA	FER3.1 kVA	FER7 kVA
1RE	3,089	1h 41m / 3h 54m	57m / 2h 27m	-
2RE	5,361	2h 50m / 6h 37m	1h 41m / 4h 03m	-
EBPS4.3R	$3,034	-	-	12m / 33m

1. Requires FERRUPS UPS to be configured with optional 15 Amp battery charger.

2. Requires FERRUPS UPS to be configured with optional 10 Amp battery charger.

3. Requires FERRUPS UPS to be configured with optional 20 Amp battery charger.

Note: Backup times are approximate and vary with equipment, configuration, battery age, temperature etc.

EATON FERRUPS UPS EXTERNAL OPTIONS & ACCESSORIES

Powerware series (continued)

MAINTENANCE BYPASS SWITCHES

Part Number	Description	Application List Price
BPE01MBB1A	BPE01 Make-Before-Break Maintenance Bypass Switch	For use with:
	FE500 VA-2.1 kVA with 120V input
	FE3.1 kVA with 120 V input and standard charger 485
BPE02BBM1A	BPE02 Break-Before-Make Maintenance Bypass Switch	For use with:
	FE500 VA-7 kVA with 208V or 220V input665
BPE02MBB1A	BPE02 Make-Before-Break Maintenance Bypass Switch	For use with:
	FE3.1 kVA with 120V input and 15 Amp charger
	FE4.3 kVA with 120V input
	FE500 VA-FE7 kVA with 240V input	665
BPE04BBM1A	BPE04 Break-Before-Make Maintenance Bypass Switch	For use with:
	FE10 kVA-12.5 kVA with 208V input	795
BPE04MBB1A	BPE04 Make-Before-Break Maintenance Bypass Switch	For use with:
	FE5.3 kVA-7 kVA with 120V input
	FE10 kVA-FE12.5 kVA with 240V input	880
BPE05MBB1A	BPE05 Make-Before-Break Maintenance Bypass Switch	For use with:
	FE18 kVA with 240V input	1,100
BPE05BBM1A	BPE05 Break-Before-Make Maintenance Bypass Switch	For use with:
	FE18 kVA with 208V input	$980

Note: See FERRUPS CTO Configuration Guides for additional external maintenance bypass switch options.

SPARE PARTS KITS ^1

Application	Low Voltage Part Number	High Voltage Part Number	List Price
FE500VA 60 Hz Tower	SPK-FALV	-	call
FE700VA 60 Hz Tower	SPK-FBLV	-	call
FE850VA 60 Hz Tower	SPK-FCLV	SPK-FCHV	call
FE1.15kVA 60 Hz Tower	SPK-FDLV	SPK-FDHV	call
FE1.4kVA 60 Hz Tower	SPK-FELV	SPK-FEHV	call
FE1.8kVA 60 Hz Tower	SPK-FFLV	SPK-FFHV	call
FE2.1kVA 60 Hz Tower	SPK-FGLV	SPK-FGHV	call
FE3.1kVA 60 Hz Tower	SPK-FHLV	SPK-FHHV	call
FE4.3kVA 60 Hz Tower, with 5 Amp Battery Charger	SPK-FILV-5A	SPK-FIHV-5A	call
FE4.3kVA 60 Hz Tower, with 10 Amp Battery Charger	SPK-FILV-10A	SPK-FIHV-10A	call
FE4.3kVA 60 Hz Tower, with 20 Amp Battery Charger	SPK-FILV-20A	SPK-FIHV-20A	call
FE5.3kVA 60 Hz Tower, with 5 Amp Battery Charger	SPK-FJLV-5A	SPK-FJHV-5A	call
FE5.3kVA 60 Hz Tower, with 10 Amp Battery Charger	SPK-FJLV-10A	SPK-FJHV-10A	call
FE5.3kVA 60 Hz Tower, with 20 Amp Battery Charger	SPK-FJLV-20A	SPK-FJHV-20A	call
FE7kVA 60 Hz Tower, with 5 Amp Battery Charger	SPK-FKLV-5A	SPK-FKHV-5A	call
FE7kVA 60 Hz Tower, with 10 Amp Battery Charger	SPK-FKLV-10A	SPK-FKHV-10A	call
FE7kVA 60 Hz Tower, with 20 Amp Battery Charger	SPK-FKLV-20A	SPK-FKHV-20A	call
FE10kVA 60 Hz Tower, with 5 Amp Battery Charger	-	SPK-FLHV-5A	call
FE10kVA 60 Hz Tower, with 10 Amp Battery Charger	-	SPK-FLHV-10A	call
FE10kVA 60 Hz Tower, with 20 Amp Battery Charger	-	SPK-FLHV-20A	call
FE12.5kVA 60 Hz Tower, with 5 Amp Battery Charger	-	SPK-FMHV-5A	call
FE12.5kVA 60 Hz Tower, with 10 Amp Battery Charger	-	SPK-FMHV-10A	call
FE12.5kVA 60 Hz Tower, with 20 Amp Battery Charger	-	SPK-FMHV-20A	call
FE18kVA 60 Hz Tower, with 5 Amp Battery Charger	-	SPK-FNHV-5A	call
FE18kVA 60 Hz Tower, with 10 Amp Battery Charger	-	SPK-FNHV-10A	call
FE18kVA 60 Hz Tower, with 20 Amp Battery Charger	-	SPK-FNHV-20A	call
FES850VA 60 Hz rack	SPK-RALV	SPK-RAHV	call
FES1.4kVA 60 Hz rack	SPK-RCLV	-	call
FER or FES2.1kVA 60 Hz rack	SPK-RHLV	-	call
FER or FES3.1kVA 60 Hz rack	-	SPK-RIHV	call
FER7kVA 60 Hz rack, with 5 Amp Battery Charger	SPK-RKLV-5A	SPK-RKHV-5A	call
FER7kVA 60 Hz rack, with 10 Amp Battery Charger	SPK-RKLV-10A	SPK-RKHV-10A	call

1. Spare parts kits must be ordered at time of FERRUPS UPS order.

Eaton Enterprise DC Power System

EPS2-400 series

Front view of a black industrial rack-mounted server unit with multiple drive bays and indicator lights (no visible text or labels)

EPS2, -48 Vdc DC Power

The Eaton EPS2 DC power system is designed for converged data networks and low power telecommunications applications that require a compact efficient DC power supply.

• 19-inch, 2U rackmount solution with two rectifier positions, controller, 10 load breaker positions and two battery breaker positions
- Includes the SC200 controller which features a USB port for local communications and a 10BaseT Ethernet port for remote networking and communications
- Can be equipped with three variants of rectifiers depending on load requirements
- Operates at 120 Vac or 208/240 Vac input
- Can be connected to external batteries, or can operate without batteries depending on the application
• Warranty (US and Canada): Two-year limited warranty

EPS2 DC Power System (-48 Vdc)

Catalog Output Rating Input Output Dimensions Weight List
Description	Number	Voltage	(Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
EPS2, -48 Vdc output, 2U	EPS2-421-6000	-48 Vdc	Up to 4000W*	IEC socket	Hardwired	3.5 (2U) x 19 x 13.2	25	$1,925

*Non-redundant power rating, depending on rectifier and AC input voltage

EPS2 OPTIONS

Description	Catalog Number	Dimensions (H x W x D, inches)	Weight (lb)	List Price
Rectifiers1
Rectifier, 2000W output with 208/240 Vac input, 1150W with 120 Vac input	APR48-ES	-	5	650
Rectifier, 1800W output with 208/240 Vac input, 1100W with 120 Vac input	APR48-3G	-	5	450
Rectifier, 900W output with 208/240 Vac input, 550W with 120 Vac input	EPR48-3G	-	5	395
Rectifier blank2	RM3B-01	-	-	25
AC Line Cords (one required per rectifier)
AC cord set, C15 to NEMA 5-15P	88-92310	-	-	75
AC cord set, C15 to NEMA L6-15P	88-92320	-	-	90
Load Breakers (minimum of one required per system, 10 positions available)2
Circuit breaker, 6A	307-00601-11	-	-	35
Circuit breaker, 10A	307-01001-11	-	-	35
Circuit breaker, 15A	307-01501-11	-	-	35
Circuit breaker, 20A	307-02001-11	-	-	35
Circuit breaker, 25A	307-02501-11	-	-	35
Circuit breaker, 30A	307-03001-11	-	-	35
Battery Breakers (two positions available)
Circuit breaker, 50A	307-05001-21	-	-	60
Circuit breaker, 70A	307-07001-21	-	-	60
Battery Cable Kits (one per battery breaker required)
Battery cable kit for use with standard batteries with one hole lugs, 2m	CKBATT-01	-	-	130
Battery cable kit for use with EBM batteries, 2m	CKBATT-02	-	-	130
Extended Battery Module
5130 1000/1250/1500/1750 EBM R/T 2U	PW5130N1750-EBM2U	3.4 x 17.4 x 20.0	67	$428

Notes:
1. One rectifier is needed per system.
2. Rectifier blank needed if only one rectifier is purchased.
Additional notes:
Note the following limitations on the load breakers that can be installed in the unit per UL requirements.
Top row (positions 1-2)—6A, 10A and 15A only
Top row (positions 3-5)—6A, 10A 15A and 20A only
Bottom row (positions 6-7)—6A, 10A and 15A only
Bottom row (positions 8-10)—any breaker size

Eaton Enterprise DC Power System

EPS2-400 series (continued)

EBM BATTERY BACKUP TIMES* (in minutes)

Load (Watts) +1 EBM

300 >90

600 54

900 34

1200 22

1800 12

* EPS2 does not include internal batteries. External battery backup times are approximate and vary with equipment, configuration, battery age, temperature, etc. Note: For additional battery options please contact [e-mail]

EPS2 SERVICE PLANS

Model Part Number List Price
EPS2 DC First-year Services
Flex: Next Day Rsp, 7x24 Cvg Only W1FLN7NXXX-0005 434
Flex: 8 Hr Rsp, 7x24 Cvg Only	W1FL87NXXX-0005	549
Flex: 4 Hr Rsp, 7x24 Cvg Only	W1FL47NXXX-0005	686
Flex: 2 Hr Rsp, 7x24 Cvg Only	W1FL27NXXX-0005	879
Flex: Next Day Rsp, 5x8 Cvg Only	W1FLN8NXXX-0005 348
Flex: 8 Hr Rsp, 5x8 Cvg Only	W1FL88NXXX-0005	439
Flex: 4 Hr Rsp, 5x8 Cvg Only	W1FL48NXXX-0005	549
PowerTrust Value Service Plan	W1PVN3NEXX-0005	820
ProActive Service Plan 8 Hr	W1PA81NXDX-0005	1,091
ProActive Service Plan 4 Hr	W1PA41NXDX-0005	1,228
ProActive Service Plan 2 Hr	W1PA21NXDX-0005	1,420
PowerTrust Service Plan 8 Hr W1PT82NEDX-0005		1,091
PowerTrust Service Plan 4 Hr W1PT42NEDX-0005		1,228
PowerTrust Service Plan 2 Hr W1PT22NEDX-0005		1,420
PowerTrust Preferred Service Plan 8 Hr	W1PP81NEDX-0005	1,563
PowerTrust Preferred Service Plan 4 Hr	W1PP41NEDX-0005	1,699
PowerTrust Preferred Service Plan 2 Hr	W1PP21NEDX-0005	1,892
Extended Warranty Plus (offsite)	W1EX00NXXX-0005	185
Second-year+ EPS2 DC Services
Flex: Next Day Rsp, 7x24 Cvg Only W2FLN7NXXX-0005 867
Flex: 8 Hr Rsp, 7x24 Cvg Only	W2FL87NXXX-0005	1,098
Flex: 4 Hr Rsp, 7x24 Cvg Only	W2FL47NXXX-0005	1,372
Flex: 2 Hr Rsp, 7x24 Cvg Only	W2FL27NXXX-0005	1,756
Flex: Next Day Rsp, 5x8 Cvg Only	W2FLN8NXXX-0005 693
Flex: 8 Hr Rsp, 5x8 Cvg Only	W2FL88NXXX-0005	879
Flex: 4 Hr Rsp, 5x8 Cvg Only	W2FL48NXXX-0005	1,098
PowerTrust Value Service Plan	W2PVN3NEXX-0005	1,638
ProActive Service Plan 8 Hr	W2PA81NXDX-0005	2,180
ProActive Service Plan 4 Hr	W2PA41NXDX-0005	2,455
ProActive Service Plan 2 Hr	W2PA21NXDX-0005	2,839
PowerTrust Service Plan 8 Hr W2PT82NEDX-0005		2,180
PowerTrust Service Plan 4 Hr W2PT42NEDX-0005		2,455
PowerTrust Service Plan 2 Hr W2PT22NEDX-0005		2,839
PowerTrust Preferred Service Plan 8 Hr	W2PP81NEDX-0005	3,125
PowerTrust Preferred Service Plan 4 Hr	W2PP41NEDX-0005	3,399
PowerTrust Preferred Service Plan 2 Hr	W2PP21NEDX-0005	3,784
Extended Warranty Plus (offsite)	W2EX00NXXX-0005	369
Start Up, Business Hours (5x8)	SU06NXXX-0005	734
Start Up, After Hours (7x24)	SU05NXXX-0005	945
UPS Preventive Maintenance, After Hours (7x24)	0005NPSX-0005	945
UPS Preventive Maintenance, Business Hours (5x8)	0006NXXX-0005	945

Eaton Access DC Power System

APS3-400 series

Front view of a black server rack unit with multiple drive fuses and ventilation fans (no visible text or labels)

The Eaton APS3 DC power system is designed for converged data networks and low power telecommunications applications that require a compact efficient DC power supply.

• 19-inch, 3U rackmount solution with three rectifier positions, controller, eight load breaker positions and two battery breaker positions
- Includes the SC200 controller which features a USB port for local communications and a 10BaseT Ethernet port for remote networking and communications
- Can be equipped with two variants of rectifiers depending on load requirements
- Operates at 120 Vac or 208/240 Vac input
- Can be connected to external batteries or can operate without batteries depending on the application
• Warranty (US and Canada): Two-year limited warranty

EATON ACCESS DC POWER SYSTEM

Catalog Output Rating Input Output Dimensions Weight List
Description	Number	Voltage	(Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
APS3, -48Vdc output, 3U	APS3-421-A0A	-48 Vdc	Up to 6000W*	bulk AC input	Hardwired	5.25 (3U) x 19 x 14	30	S2,795
APS3, -48Vdc output, 3U	APS3-421-B0A	-48 Vdc	Up to 6000W*	individually AC fed rectifiers via IEC connectors	Hardwired	5.25 (3U) x 19 x 14	30	S2,975

*Non-redundant power rating, depending on rectifier and AC input voltage

APS3 OPTIONS

Description	Catalog Number	Weight (lb)	List Price
Rectifiers ^1
Rectifier, 2000W output with 208/240 Vac input, 1150W with 120 Vac input	APR48-ES	5	650
Rectifier, 1800W output with 208/240 Vac input, 1100W with 120 Vac input	APR48-3G	5	450
Rectifier blank ^2	RMB-09	-	25
AC Line Cords (one required per rectifier) - for APS3-421-B0A only
AC cord set, C15 to NEMA 5-15P	88-92310	-	75
AC cord set, C15 to NEMA L6-15P	88-92320	-	90
Load Breakers (minimum of one required per system, 8 positions available)
Circuit breaker, 5A	307-00500-02	-	40
Circuit breaker, 10A	307-01000-15	-	40
Circuit breaker, 15A	307-01500-01	-	40
Circuit breaker, 20A	307-02000-13	-	40
Circuit breaker, 25A	307-02500-06	-	40
Circuit breaker, 30A	307-03000-01	-	40
Circuit breaker, 40A	307-04000-15	-	40
Circuit breaker, 50A	307-05000-07	-	40
Circuit breaker, 60A	307-06000-01	-	40
Circuit breaker, 80A	307-08000-02	-	40
Battery Breakers (two positions available)
Circuit breaker, 100A	307-10000-04	-	40

Notes:
1. One rectifier is needed per system.
2. Rectifier blank needed for any unused rectifier positions. Three positions available in this system. Additional Notes:
For battery options or other technical questions, please contact [e-mail].

Eaton Access DC Power System

APS3-400 series (continued)

APS3 SERVICE PLANS

Model Part Number List Price
APS3 DC First-year Services
Flex: Next Day Rsp, 7x24 Cvg Only W1FLN7NXXX-0005 434
Flex: 8 Hr Rsp, 7x24 Cvg Only W1FL87NXXX-0005549
Flex: 4 Hr Rsp, 7x24 Cvg Only W1FL47NXXX-0005 686
Flex: 2 Hr Rsp, 7x24 Cvg Only W1FL27NXXX-0005879
Flex: Next Day Rsp, 5x8 Cvg Only W1FLN8NXXX-0005 348
Flex: 8 Hr Rsp, 5x8 Cvg Only W1FL88NXXX-0005439
Flex: 4 Hr Rsp, 5x8 Cvg Only W1FL48NXXX-0005 549
PowerTrust Value Service Plan W1PVN3NEXX-0005820
ProActive Service Plan 8 Hr	W1PA81NXDX-0005	1,091
ProActive Service Plan 4 Hr	W1PA41NXDX-0005	1,228
ProActive Service Plan 2 Hr	W1PA21NXDX-0005	1,420
PowerTrust Service Plan 8 Hr	W1PT82NEDX-0005	1,091
PowerTrust Service Plan 4 Hr	W1PT42NEDX-0005	1,228
PowerTrust Service Plan 2 Hr	W1PT22NEDX-0005	1,420
PowerTrust Preferred Service Plan 8 Hr	W1PP81NEDX-0005	1,563
PowerTrust Preferred Service Plan 4 Hr	W1PP41NEDX-0005	1,699
PowerTrust Preferred Service Plan 2 Hr	W1PP21NEDX-0005	1,892
Extended Warranty Plus (offsite)	W1EX00NXXX-0005	185
Second-year+ APS3 DC Services
Flex: Next Day Rsp, 7x24 Cvg Only W2FLN7NXXX-0005 867
Flex: 8 Hr Rsp, 7x24 Cvg Only W2FL87NXXX-0005	1,098
Flex: 4 Hr Rsp, 7x24 Cvg Only W2FL47NXXX-0005	1,372
Flex: 2 Hr Rsp, 7x24 Cvg Only W2FL27NXXX-0005	1,756
Flex: Next Day Rsp, 5x8 Cvg Only W2FLN8NXXX-0005 693
Flex: 8 Hr Rsp, 5x8 Cvg Only W2FL88NXXX-0005879
Flex: 4 Hr Rsp, 5x8 Cvg Only W2FL48NXXX-0005	1,098
PowerTrust Value Service Plan W2PVN3NEXX-0005	1,638
ProActive Service Plan 8 Hr	W2PA81NXDX-0005	2,180
ProActive Service Plan 4 Hr	W2PA41NXDX-0005	2,455
ProActive Service Plan 2 Hr	W2PA21NXDX-0005	2,839
PowerTrust Service Plan 8 Hr	W2PT82NEDX-0005	2,180
PowerTrust Service Plan 4 Hr	W2PT42NEDX-0005	2,455
PowerTrust Service Plan 2 Hr	W2PT22NEDX-0005	2,839
PowerTrust Preferred Service Plan 8 Hr	W2PP81NEDX-0005	3,125
PowerTrust Preferred Service Plan 4 Hr	W2PP41NEDX-0005	3,399
PowerTrust Preferred Service Plan 2 Hr	W2PP21NEDX-0005	3,784
Extended Warranty Plus (offsite)	W2EX00NXXX-0005	369
Start Up, Business Hours (5x8)	SU06NXXX-0005	734
Start Up, After Hours (7x24)	SU05NXXX-0005	945
UPS Preventive Maintenance, After Hours (7x24)	0005NPSX-0005	945
UPS Preventive Maintenance, Business Hours (5x8)	0006NXXX-0005	945

Eaton Access DC Power System

APS6-400 series

The Eaton APS6 DC power system is designed for converged data networks and low power telecommunications applications that require a compact efficient DC power supply.

• 19-inch, 6U rackmount solution with six rectifier positions, a controller, 20 load breaker positions and up to six battery breaker positions
• Includes the SC200 controller, which features a USB port for local communications, and a 10BaseT Ethernet port for remote networking and communications
• Can be equipped with two variants of rectifiers depending on load requirements
• Operates at 120 Vac or 208/240 Vac input, bulk AC input
• Can be connected to external batteries or can operate without batteries depending on the application
• Warranty (US and Canada): Two-year limited warranty

Front view of a black industrial control unit with multiple switches and modules (no visible text or labels)

EATON ACCESS DC POWER SYSTEM

Catalog Output Rating		Input Output Dimensions		Weight List(Watts)
Description	Number	Voltage			Connection	Receptacles	(H x W x D, inches)	(lb)	Price
APS6, -48 Vdc output, 6U	APS6-421-C0A	-48 Vdc	Up to 12000W* depending on rectifier and AC input voltage	Hardwired	Hardwired	10.5 (6U) x 19 x 15.5	47	$3,400

*Non-redundant power rating, depending on rectifier and AC input voltage

APS6 OPTIONS

Description	Catalog Number	Weight (lb)	List Price
Rectifiers ^1
Rectifier, 2000W output with 208/240 Vac input, 1150W with 120 Vac input	APR48-ES	5	650
Rectifier, 1800W output with 208/240 Vac input, 1100W with 120 Vac input	APR48-3G	5	450
Rectifier blank ^2	RMB-09	-	25
Load Breakers (minimum of one required per system, 20 positions available)
Circuit breaker, 5A	307-00500-02	-	40
Circuit breaker, 10A	307-01000-15	-	40
Circuit breaker, 15A	307-01500-01	-	40
Circuit breaker, 20A	307-02000-13	-	40
Circuit breaker, 25A	307-02500-06	-	40
Circuit breaker, 30A	307-03000-01	-	40
Circuit breaker, 40A	307-04000-15	-	40
Circuit breaker, 50A	307-05000-07	-	40
Circuit breaker, 60A	307-06000-01	-	40
Circuit breaker, 80A	307-08000-02	-	40
Circuit breaker, 100A	307-10000-03	-	40
Battery Breakers (6 pole positions available)
Circuit breaker, 100A (one pole)	307-10000-04	-	40
Circuit breaker, 150A (two pole)	307-915086-81	-	140
Circuit breaker, 200A (two pole)	307-920086-81	-	$140

Notes:
1. One rectifier is needed per system.
2. Rectifier blank needed for any unused rectifier positions. Three positions available in this system.
Additional Notes:
Breakers 80A and larger must have space adjacent.
For battery options or other technical questions, please contact [e-mail].

Eaton Access DC Power System

APS6-400 series (continued)

APS6 SERVICE PLANS

Model Part Number List Price
APS6 DC First-year Services
Flex: Next Day Rsp, 7x24 Cvg Only W1FLN7NXXX-0005 434
Flex: 8 Hr Rsp, 7x24 Cvg Only W1FL87NXXX-0005549
Flex: 4 Hr Rsp, 7x24 Cvg Only W1FL47NXXX-0005 686
Flex: 2 Hr Rsp, 7x24 Cvg Only W1FL27NXXX-0005879
Flex: Next Day Rsp, 5x8 Cvg Only W1FLN8NXXX-0005 348
Flex: 8 Hr Rsp, 5x8 Cvg Only W1FL88NXXX-0005439
Flex: 4 Hr Rsp, 5x8 Cvg Only W1FL48NXXX-0005 549
PowerTrust Value Service Plan W1PVN3NEXX-0005820
ProActive Service Plan 8 Hr	W1PA81NXDX-0005	1,091
ProActive Service Plan 4 Hr	W1PA41NXDX-0005	1,228
ProActive Service Plan 2 Hr	W1PA21NXDX-0005	1,420
PowerTrust Service Plan 8 Hr	W1PT82NEDX-0005	1,091
PowerTrust Service Plan 4 Hr	W1PT42NEDX-0005	1,228
PowerTrust Service Plan 2 Hr	W1PT22NEDX-0005	1,420
PowerTrust Preferred Service Plan 8 Hr	W1PP81NEDX-0005	1,563
PowerTrust Preferred Service Plan 4 Hr	W1PP41NEDX-0005	1,699
PowerTrust Preferred Service Plan 2 Hr	W1PP21NEDX-0005	1,892
Extended Warranty Plus (offsite)	W1EX00NXXX-0005	185
Second-year+ APS3 DC Services
Flex: Next Day Rsp, 7x24 Cvg Only W2FLN7NXXX-0005 867
Flex: 8 Hr Rsp, 7x24 Cvg Only W2FL87NXXX-0005	1,098
Flex: 4 Hr Rsp, 7x24 Cvg Only W2FL47NXXX-0005	1,372
Flex: 2 Hr Rsp, 7x24 Cvg Only W2FL27NXXX-0005	1,756
Flex: Next Day Rsp, 5x8 Cvg Only W2FLN8NXXX-0005 693
Flex: 8 Hr Rsp, 5x8 Cvg Only W2FL88NXXX-0005879
Flex: 4 Hr Rsp, 5x8 Cvg Only W2FL48NXXX-0005	1,098
PowerTrust Value Service Plan W2PVN3NEXX-0005	1,638
ProActive Service Plan 8 Hr	W2PA81NXDX-0005	2,180
ProActive Service Plan 4 Hr	W2PA41NXDX-0005	2,455
ProActive Service Plan 2 Hr	W2PA21NXDX-0005	2,839
PowerTrust Service Plan 8 Hr	W2PT82NEDX-0005	2,180
PowerTrust Service Plan 4 Hr	W2PT42NEDX-0005	2,455
PowerTrust Service Plan 2 Hr	W2PT22NEDX-0005	2,839
PowerTrust Preferred Service Plan 8 Hr	W2PP81NEDX-0005	3,125
PowerTrust Preferred Service Plan 4 Hr	W2PP41NEDX-0005	3,399
PowerTrust Preferred Service Plan 2 Hr	W2PP21NEDX-0005	3,784
Extended Warranty Plus (offsite)	W2EX00NXXX-0005	369
Start Up, Business Hours (5x8)	SU06NXXX-0005	734
Start Up, After Hours (7x24)	SU05NXXX-0005	945
UPS Preventive Maintenance, After Hours (7x24)	0005NPSX-0005	945
UPS Preventive Maintenance, Business Hours (5x8)	0006NXXX-0005	945

Eaton DV2 DC Power System

DV2-Metro UL series

The Eaton DV2-Metro UL DC power system is for converged data networks and medium power telecommunications applications that require a compact efficient DC power supply.

• Cabinet configuration with 20 rectifier positions, a controller, 20 load breaker positions and four battery trays
• Includes the SC200 controller, which features a USB port for local communications, and a 10BaseT Ethernet port for remote networking and communications
• Can be equipped with two variants of rectifiers depending on load requirements
• Operates at 208/240 Vac input
• Optional battery cabinet has space for up to four internal battery strings
  • Warranty (US and Canada): Two-year limited warranty

Exterior view of a black server cabinet with mesh insulation and open door (no visible text or labels)

EATON DV2-METRO UL DC POWER SYSTEM

Catalog Output Rating Input Output Dimensions Weight List
Description	Number	Voltage	(Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
DV2-Metro UL System	DV2-A20B-32111	-48 Vdc	Up to 600A	Hardwired	Hardwired	78.7 x 23.6 x 23.6	1,980	9,950
DV2-Metro UL Battery Cabinet	DV2-EBC4-00100	-48 Vdc				78.7 x 23.6 x 23.6	1,870	4,995

DV2-METRO UL OPTIONS

Description	Catalog Number	Weight (lb)	List Price
Rectifiers
Rectifier, 2000W output with 208/240 Vac input, 1150W with 120 Vac input	APR48-ES	5	650
Rectifier, 1800W output with 208/240 Vac input, 1100W with 120 Vac input	APR48-3G	5	450
Rectifier blank	RMB1U-00	-	25
Load Breakers (minimum of one required per system, 20 positions available)
Circuit breaker, 5A	307-00500-02	-	40
Circuit breaker, 10A	307-01000-15	-	40
Circuit breaker, 15A	307-01500-01	-	40
Circuit breaker, 20A	307-02000-13	-	40
Circuit breaker, 25A	307-02500-06	-	40
Circuit breaker, 30A	307-03000-01	-	40
Circuit breaker, 40A	307-04000-15	-	40
Circuit breaker, 50A	307-05000-07	-	40
Circuit breaker, 60A	307-06000-01	-	40
Circuit breaker, 80A	307-08000-02	-	40
Circuit breaker, 100A	307-10000-03	-	40
Circuit breaker, 150A (two-position) ^1	150A-MCB	-	80
Circuit breaker, 200A (two-position)^{1}	200A-MCB	-	80
Circuit breaker, 250A (three-position) ^2	250A-MCB	-	125
Kit for two position breakers, includes bridging copper bar, insulator, and hardware	DCMKIT-2	-	35
Kit for three position breakers, includes bridging copper bar, insulator, and hardware	DCMKIT-3	-	$50

Notes:
Battery cabinet does not include cables to the main power cabinet.
Breakers 80A and larger must have space adjacent. For battery options or other technical questions, please contact [e-mail]
1. Each two-position breaker requires one DCMKIT-2.
2. Each three-position breaker requires one DCMKIT-3.

DV2-METRO UL SERVICE PLANS

Model	Part Number	List Price
Startup, Business Hours (5x8)	SU06NXXX	1,425
Startup, After Hours (7x24)	SU05NXXX	1,689
PowerTrust Express Service Plan	PE00NEXX	1,056
PowerTrust Value Service Plan	PVN3NEXX	2,723
ProActive Service Plan 8 Hr	PA81NEDX	3,771
PowerTrust Service Plan 8 Hr	PT81NEDX	3,612
PowerTrust Preferred Service Plan 8 Hr	PP81NEDX	5,090
4 Hr Adder	XX4XNXXX	451
2 Hr Adder	XX2XNXXX	1,087
Flex: Next Day Rsp, 5x8 Cvg Only	FLN8NXXX	1,140

Eaton DV2 DC Power System

DV2-Metro UL series (continued)

DV2-METRO UL SERVICE PLANS (continued)

Model Part Number List Price
Flex: 8 Hr Rsp, 5x8 Cvg Only FL88NXXX 1,442
Flex: 4 Hr Rsp, 5x8 Cvg Only FL48NXXX1,803
Flex: Next Day Rsp, 7x24 Cvg Only FLN7NXXX 1,424
Flex: 8 Hr Rsp, 7x24 Cvg Only FL87NXXX1,803
Flex: 4 Hr Rsp, 7x24 Cvg Only FL47NXXX 2,254
Flex: 2 Hr Rsp, 7x24 Cvg Only FL27NXXX2,890
DC Preventive Maintenance, Business Hours (5x8) 0006NXXX 1,161
DC Preventive Maintenance, After Hours (7x24) 0005NXXX1,320
Discount Adder XXXXNXDX	$226

Eaton Matrix 2000 Standalone Inverter

Matrix series

Front view of a black server rack with ports and ventilation grilles (no visible text or labels)

The Eaton Matrix 2000 Standalone Inverter is designed for use in telecommunications applications and provides 2000W of reliable AC power in a 1U x 19" rackmount package.

• Input -48 Vdc, Output 120 Vac
• Pure sine wave output
• Unity power factor (full 2000 watt output power)
• Significant overload capability, 120% continuously, 200% for 5 seconds
• High efficiency, >91%
• High power density
• Built in Static Transfer Switch (STS)
• DSP design for improved reliability and performance
• Comprehensive LCD/LED with keypad
• Warranty (US and Canada): Two-year limited warranty

EATON MATRIX 2000 STANDALONE INVERTER

Catalog Output Rating Input Output Dimensions Weight List
Number	Voltage	(VA/Watts)	Connection	Receptacles	(H x W x D, inches)	(lb)	Price
INV-4820SA	120 Vac	2000/2000	AC = NEMA 5-20P,DC = Two Hole CompressionLugs on .625" / 16mm Centers	(2) NEMA 5-20Routput sockets	1.7 (1U) x 17.3 x 14.2	15.6	$3,000

Note: For presales support please contact [e-mail]

EATON BLADEUPS

An Eaton Green Solution

EATON TAA COMPLIANT

Double-conversion on-demand (12-60 kW)

The Eaton BladeUPS is a revolutionary power quality solution, expanding power protection from 12 kW to 60 kW in a single industry standard 19-inch rack, and, most significantly, providing this robust, compact solution without generating the additional heat associated with legacy end-of-row, modular UPS products.

• Achieves the highest power density in the marketplace
• Requires only six rack units (6U) per unit
• Reduces single points of failure with an intelligent bypass design that eliminates human error
• Provides the ultimate in reliability through a peer-to-peer paralleling relationship

Exterior view of a black and white industrial power supply unit (no visible text or symbols)

BLADEUPS (12 kW) MODELS: 208V

Input/Output Dimensions Weight
Description	Style Number	Rating	Voltage	(H x W x D, inches)	(lb)	Price
BladeUPS 12 kW 208V w/60A 5W in/5W out	ZC1212200100000	12 kVA (12 kW)	208/208	10.5 (6U) x 17.3 x 28.0	322	11,795
BladeUPS 12 kW 208V w/60A 5W in/5W out w/SNMP	ZC1212201100000	12 kVA (12 kW)	208/208	10.5 (6U) x 17.3 x 28.0	322	12,095
BladeUPS 12 kW 208V w/60A 5W in/4W out	ZC1212600100000	12 kVA (12 kW)	208/208	10.5 (6U) x 17.3 x 28.0	321	11,745
BladeUPS 12 kW 208V w/60A 5W in/4W out w/SNMP	ZC1212601100000	12 kVA (12 kW)	208/208	10.5 (6U) x 17.3 x 28.0	321	12,045
BladeUPS 12 kW 208V w/60A 5W in/RPM ONLY	ZC1212000100000	12 kVA (12 kW)	208/208	10.5 (6U) x 17.3 x 28.0	321	11,595
BladeUPS 12 kW 208V w/60A 5W in/RPM ONLY w/SNMP	ZC1212001100000	12 kVA (12 kW)	208/208	10.5 (6U) x 17.3 x 28.0	321	11,895
BladeUPS 12 kW 208V w/parallel cord	ZC121P060100000	12 kVA (12 kW)	208/208	10.5 (6U) x 17.3 x 28.0	311	11,795
BladeUPS 12 kW08V w/parallel cord w/SNMP	ZC121P061100000	12 kVA (12 kW)	208/208	10.5 (6U) x 17.3 x 28.0	311	12,095
BladeUPS 12 kW 208V w/60A 5W in/5W out w/Power Xpert SNMP/ModBus	ZC1212208100000	12 kVA (12 kW)	208/208	10.5 (6U) x 17.3 x 28.0	322	12,245
BladeUPS 12 kW 208V w/60A 5W in/4W out w/Power Xpert SNMP/ModBus	ZC1212608100000	12 kVA (12 kW)	208/208	10.5 (6U) x 17.3 x 28.0	321	12,195
BladeUPS 12 kW 208V w/parallel cord w/Power Xpert SNMP/ModBus	ZC121P068100000	12 kVA (12 kW)	208/208	10.5 (6U) x 17.3 x 28.0	311	$12,245

1. All weights are installed weight, add 80 lb to determine shipping weight

2. 5W in (wired input plug) is model IEC309-60 HBL560P9W or similar

3. 5W out (output connector) is model IEC309-60 HBL560C9W or similar

4. 4W out (output connector) is model IEC309-60 HBL460C9W or similar

BLADEUPS (12 kW) MODELS: 400V

Input/Output Dimensions Weight
Description	Style Number	Rating	Voltage	(H x W x D, inches)	(lb)	Price
BladeUPS 12 kW 400V w/IEC 309-32A 5W in/5W out	ZC1224400100000	12 kVA (12 kW)	400/400	10.5 (6U) x 17.3 x 28.0	318	11,795
BladeUPS 12 kW 400V w/IEC 309-32A 5W in/5W out	ZC1224401100000	12 kVA (12 kW)	400/400	10.5 (6U) x 17.3 x 28.0	318	12,095
w/SNMP
BladeUPS 12 kW 400V w/IEC 309-32A 5W in/ RPM ONLY out	ZC1224000100000	12 kVA (12 kW)	400/400	10.5 (6U) x 17.3 x 28.0	314	11,595
BladeUPS 12 kW 400V w/IEC 309-32A 5W in/ RPM ONLY out w/SNMP	ZC1224001100000	12 kVA (12 kW)	400/400	10.5 (6U) x 17.3 x 28.0	314	11,895
BladeUPS 12 kW 400V w/parallel cord	ZC122P060100000	12 kVA (12 kW)	400/400	10.5 (6U) x 17.3 x 28.0	317	$11,795

1. All weights are installed weight, add 80 lb to determine shipping weight

2. 5W in (wired input plug) is model IEC309-32 HBL532P6W or similar

3. 5W out (output connector) in model IEC309-32 HBL532C6W or similar

BUILT-IN CONNECTIVITY OPTIONS

Option	Select digit "8" in the Style Number	Value for Style Number digit 8	Price Adder
X-Slot 2	Standard Relay Card (<60 Vac rated, IBM AS/400)	3	140
	Industrial Relay Card (5A @ 250 Vac)	4	300
	Hot Sync CAN Bridge Card	6	500
Option	Select digit "9" in the Style Number	Value for Style Number digit 9	Price Adder
X-Slot 1	ConnectUPS-X Web/SNMP Card	1	300
	Standard Relay Card (<60 Vac rated, IBM AS/400)	3	140
	Industrial Relay Card (5A @ 250 Vac)	4	300
	Power Xpert Gateway UPS Card	8	$470

Note: All parallel configured systems include a Hot Sync CAN Bridge card in the standard part number

EATON BLADEUPS (continued)

BLADEUPS (12-60 kW) MODELS: PRE-ASSEMBLED SYSTEMS IN NEW EATON 42U RACK

Factory Installed and Tested UPS Systems in Eaton 42U Rack
Input/Output Dimensions				1 Weight		2 List
Description Style Number Rating Voltage (H x W x D, inches) (lb) Price
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V	ZP21110XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	683	17,595
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V, w/(1) SNMP	ZP21111XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	683	17,895
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V w/(1) Power Xpert SNMP/ModBus	ZP21115XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	683	18,045
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V	ZP212100XXXXX000	24 kVA (24 kW)	208/208	81.0 x 24.0 x 42.0	994	28,995
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V w/(1) SNMP	ZP212110XXXXX000	24 kVA (24 kW)	208/208	81.0 x 24.0 x 42.0	994	29,295
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V w/(1) Power Xpert SNMP/ModBus	ZP212150XXXXX000	24 kVA (24 kW)	208/208	81.0 x 24.0 x 42.0	994	29,445
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V	ZP2131000XXX000	36 kVA (36 kW)	208/208	81.0 x 24.0 x 42.0	1316	39,995
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V w/(1) SNMP	ZP2131100XXX000	36 kVA (36 kW)	208/208	81.0 x 24.0 x 42.0	1316	40,295
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V w/(1) Power Xpert SNMP/ModBus	ZP2131500XXX000	36 kVA (36 kW)	208/208	81.0 x 24.0 x 42.0	1316	40,445
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V	ZP21410000XX000	48 kVA (48 kW)	208/208	81.0 x 24.0 x 42.0	1638	49,095
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V w/(1) SNMP	ZP21411000XX000	48 kVA (48 kW)	208/208	81.0 x 24.0 x 42.0	1638	49,395
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V w/(1) Power Xpert SNMP/ModBus	ZP21415000XX000	48 kVA (48 kW)	208/208	81.0 x 24.0 x 42.0	1638	49,545
BladeUPS Pre-Assembled Bottom Entry 60 kW, 208V	ZP215100000X000	60 kVA (60 kW)	208/208	81.0 x 24.0 x 42.0	1960	60,995
BladeUPS Pre-Assembled Bottom Entry 60 kW, 208V w/(1) SNMP	ZP215110000X000	60 kVA (60 kW)	208/208	81.0 x 24.0 x 42.0	1960	61,295
BladeUPS Pre-Assembled Bottom Entry 60 kW, 208V w/(1) Power Xpert SNMP/ModBus	ZP215150000X000	60 kVA (60 kW)	208/208	81.0 x 24.0 x 42.0	1960	61,445
BladeUPS Pre-Assembled Bottom Entry 60 kW N+1, 208V	ZP216100000000	60 kVA (60 kW) N+1	208/208	81.0 x 24.0 x 42.0	2282	72,695
BladeUPS Pre-Assembled Bottom Entry 60 kW N+1, 208V w/(1) SNMP	ZP216110000000	60 kVA (60 kW) N+1	208/208	81.0 x 24.0 x 42.0	2282	72,995
BladeUPS Pre-Assembled Bottom Entry 60 kW N+1, 208V w/(1) Power Xpert SNMP/ModBus	ZP216150000000	60 kVA (60 kW) N+1	208/208	81.0 x 24.0 x 42.0	2282	73,145
BladeUPS Pre-Assembled Top Entry 12 kW, 208V	ZP22110XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	683	17,595
BladeUPS Pre-Assembled Top Entry 12 kW, 208V, w/SNMP	ZP22111XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	683	17,895
BladeUPS Pre-Assembled Top Entry 12 kW, 208V, w/Power Xpert SNMP/ModBus	ZP22115XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	683	18,045
BladeUPS Pre-Assembled Top Entry 24 kW, 208V	ZP222100XXXXX000	24 kVA (24 kW)	208/208	81.0 x 24.0 x 42.0	994	28,995
BladeUPS Pre-Assembled Top Entry 24 kW, 208V, w/SNMP	ZP222110XXXXX000	24 kVA (24 kW)	208/208	81.0 x 24.0 x 42.0	994	29,295
BladeUPS Pre-Assembled Top Entry 24 kW, 208V, w/Power Xpert SNMP/ModBus	ZP222150XXXXX000	24 kVA (24 kW)	208/208	81.0 x 24.0 x 42.0	994	29,445
BladeUPS Pre-Assembled Top Entry 36 kW, 208V	ZP2231000XXX000	36 kVA (36 kW)	208/208	80.0 x 24.0 x 42.0	1316	39,995
BladeUPS Pre-Assembled Top Entry 36 kW, 208V, w/SNMP	ZP2231100XXX000	36 kVA (36 kW)	208/208	80.0 x 24.0 x 42.0	1316	40,295
BladeUPS Pre-Assembled Top Entry 36 kW, 208V, w/Power Xpert SNMP/ModBus	ZP2231500XXX000	36 kVA (36 kW)	208/208	80.0 x 24.0 x 42.0	1316	40,445
BladeUPS Pre-Assembled Top Entry 48 kW, 208V	ZP2241000XX000	48 kVA (48 kW)	208/208	81.0 x 24.0 x 42.0	1638	49,095
BladeUPS Pre-Assembled Top Entry 48 kW, 208V, w/SNMP	ZP2241100XX000	48 kVA (48 kW)	208/208	81.0 x 24.0 x 42.0	1638	49,395
BladeUPS Pre-Assembled Top Entry 48 kW, 208V, w/Power Xpert SNMP/ModBus	ZP2241500XX000	48 kVA (48 kW)	208/208	81.0 x 24.0 x 42.0	1638	49,545
BladeUPS Pre-Assembled Top Entry 60 kW, 208V	ZP2251000XX000	60 kVA (60 kW)	208/208	81.0 x 24.0 x 42.0	1960	60,995
BladeUPS Pre-Assembled Top Entry 60 kW, 208V, w/SNMP	ZP2251100XX000	60 kVA (60 kW)	208/208	81.0 x 24.0 x 42.0	1960	61,295
BladeUPS Pre-Assembled Top Entry 60 kW, 208V, w/Power Xpert SNMP/ModBus	ZP2251500XX000	60 kVA (60 kW)	208/208	81.0 x 24.0 x 42.0	1960	61,445
BladeUPS Pre-Assembled Top Entry 60 kW N+1, 208V	ZP2261000XX000	60 kVA (60 kW) N+1	208/208	81.0 x 24.0 x 42.0	2282	72,695
BladeUPS Pre-Assembled Top Entry 60 kW N+1, 208V, w/SNMP	ZP2261100XX000	60 kVA (60 kW) N+1	208/208	81.0 x 24.0 x 42.0	2282	72,995
BladeUPS Pre-Assembled Top Entry 60 kW N+1, 208V, w/Power Xpert SNMP/ModBus	ZP2261500XX000	60 kVA (60 kW) N+1	208/208	81.0 x 24.0 x 42.0	2282	73,145

1. Shipping dimensions are 86.5 x 32.0 x 77.0 2. All weights are installed weight. To determine shipping weight of pre-assembled systems, add 368 lbs.

Additional notes: Factory-installed connectivity for Pre-Assembled Systems: Style Number digit 7 represents the communication card installed in the system.

0 = No connectivity, 1 = ConnectUPS-X Web/SNMP, 2 = ModBus RTU, 3 = Standard relay card, 4 = Industrial relay card, 5 = Power Xpert Gateway UPS Card

For systems with more than one UPS module, additional cards are required. Please visit the Connectivity Products section for card information, including pricing.

EATON BLADEUPS (continued)

BLADEUPS (12-48 kW) MODELS: PRE-ASSEMBLED SYSTEMS IN NEW EATON 42U RACK

Factory Installed and Tested UPS Systems in Eaton 42U Rack. System capable of expansion to maximum of 48kW

Input/Output Dimensions
Description	Style Number	Rating	Voltage	^1 Weight(H x W x D, inches)	(lb)	List Price
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V	ZP23110XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	661	16,795
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V, w/(1) SNMP	ZP23111XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	661	17,095
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V w/(1) Power Xpert SNMP/ModBus	ZP23115XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	661	17,245
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V	ZP232100XXX000	24 kVA (24 kW)	208/208	81.0 x 24.0 x 42.0	972	28,195
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V w/(1) SNMP	ZP232110XXX000	24 kVA (24 kW)	208/208	81.0 x 24.0 x 42.0	972	28,495
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V w/(1) Power Xpert SNMP/ModBus	ZP232150XXX000	24 kVA (24 kW)	208/208	81.0 x 24.0 x 42.0	972	28,645
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V	ZP2331000XX000	36 kVA (36 kW)	208/208	81.0 x 24.0 x 42.0	1294	39,195
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V w/(1) SNMP	ZP2331100XX000	36 kVA (36 kW)	208/208	81.0 x 24.0 x 42.0	1294	39,495
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V w/(1) Power Xpert SNMP/ModBus	ZP2331500XX000	36 kVA (36 kW)	208/208	81.0 x 24.0 x 42.0	1294	39,645
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V	ZP23410000XX000	48 kVA (48 kW)	208/208	81.0 x 24.0 x 42.0	1616	48,295
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V w/(1) SNMP	ZP23411000XX000	48 kVA (48 kW)	208/208	81.0 x 24.0 x 42.0	1616	48,595
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V w/(1) Power Xpert SNMP/ModBus	ZP23415000XX000	48 kVA (48 kW)	208/208	81.0 x 24.0 x 42.0	1616	48,745
BladeUPS Pre-Assembled Top Entry 12 kW, 208V	ZP24110XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	661	16,795
BladeUPS Pre-Assembled Top Entry 12 kW, 208V, w/SNMP	ZP24111XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	661	17,095
BladeUPS Pre-Assembled Top Entry 12 kW, 208V, w/Power Xpert SNMP/ModBus	ZP24115XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	661	17,245
BladeUPS Pre-Assembled Top Entry 24 kW, 208V	ZP242100XXXX000	24 kVA (24 kW)	208/208	81.0 x 24.0 x 42.0	972	28,195
BladeUPS Pre-Assembled Top Entry 24 kW, 208V, w/SNMP	ZP242110XXXX000	24 kVA (24 kW)	208/208	81.0 x 24.0 x 42.0	972	28,495
BladeUPS Pre-Assembled Top Entry 24 kW, 208V, w/Power Xpert SNMP/ModBus	ZP242150XXXX000	24 kVA (24 kW)	208/208	81.0 x 24.0 x 42.0	972	28,645
BladeUPS Pre-Assembled Top Entry 36 kW, 208V	ZP2431000XX000	36 kVA (36 kW)	208/208	80.0 x 24.0 x 42.0	1294	39,195
BladeUPS Pre-Assembled Top Entry 36 kW, 208V, w/SNMP	ZP2431100XX000	36 kVA (36 kW)	208/208	80.0 x 24.0 x 42.0	1294	39,495
BladeUPS Pre-Assembled Top Entry 36 kW, 208V, w/Power Xpert SNMP/ModBus	ZP2431500XX000	36 kVA (36 kW)	208/208	80.0 x 24.0 x 42.0	1294	39,645
BladeUPS Pre-Assembled Top Entry 48 kW, 208V	ZP24410000XX000	48 kVA (48 kW)	208/208	81.0 x 24.0 x 42.0	1616	48,295
BladeUPS Pre-Assembled Top Entry 48 kW, 208V, w/SNMP	ZP24411000XX000	48 kVA (48 kW)	208/208	81.0 x 24.0 x 42.0	1616	48,595
BladeUPS Pre-Assembled Top Entry 48 kW, 208V, w/Power Xpert SNMP/ModBus	ZP24415000XX000	48 kVA (48 kW)	208/208	81.0 x 24.0 x 42.0	1616	48,745

1. Shipping dimensions are 86.5 x 32.0 x 77.0 2. All weights are installed weight. To determine shipping weight of pre-assembled systems, add 368 lbs.
   Additional notes: Factory-installed connectivity for Pre-Assembled Systems: Style Number digit 7 represents the communication card installed in the system.
   0 = No connectivity, 1 = ConnectUPS-X Web/SNMP, 2 = ModBus RTU, 3 = Standard relay card, 4 = Industrial relay card, 5 = Power Xpert Gateway UPS Card
   For systems with more than one UPS module, additional cards are required. Please visit the Connectivity Products section for card information, including pricing.

EATON BLADEUPS (continued)

BLADEUPS (12-60 kW) MODELS: PRE-ASSEMBLED SYSTEMS

Factory Installed and Tested UPS Systems in 42U Rack Input/Output Dimensions
Description Style Number Rating Voltage (H x W x D, inches) (lb) Price				1 Weight	2 List
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V	ZP11110XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	683	17,595
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V, w/(1) SNMP	ZP11111XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	683	17,895
BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V w/(1) Power Xpert SNMP/ModBus	ZP11115XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	683	18,045
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V	ZP112100XXXXX000	24 kVA (24 kW)	208/208	80.0 x 24.0 x 42.0	994	28,995
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V w/(1) SNMP	ZP112110XXXXX000	24 kVA (24 kW)	208/208	80.0 x 24.0 x 42.0	994	29,295
BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V w/(1) Power Xpert SNMP/ModBus	ZP112150XXXXX000	24 kVA (24 kW)	208/208	80.0 x 24.0 x 42.0	994	29,445
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V	ZP1131000XXX000	36 kVA (36 kW)	208/208	80.0 x 24.0 x 42.0	1316	39,995
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V w/(1) SNMP	ZP1131100XXX000	36 kVA (36 kW)	208/208	80.0 x 24.0 x 42.0	1316	40,295
BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V w/(1) Power Xpert SNMP/ModBus	ZP1131500XXX000	36 kVA (36 kW)	208/208	80.0 x 24.0 x 42.0	1316	40,445
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V	ZP11410000XX000	48 kVA (48 kW)	208/208	80.0 x 24.0 x 42.0	1638	49,095
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V w/(1) SNMP	ZP11411000XX000	48 kVA (48 kW)	208/208	80.0 x 24.0 x 42.0	1638	49,395
BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V w/(1) Power Xpert SNMP/ModBus	ZP11415000XX000	48 kVA (48 kW)	208/208	80.0 x 24.0 x 42.0	1638	49,545
BladeUPS Pre-Assembled Bottom Entry 60 kW, 208V	ZP115100000X000	60 kVA (60 kW)	208/208	80.0 x 24.0 x 42.0	1960	60,995
BladeUPS Pre-Assembled Bottom Entry 60 kW, 208V w/(1) SNMP	ZP115110000X000	60 kVA (60 kW)	208/208	80.0 x 24.0 x 42.0	1960	61,295
BladeUPS Pre-Assembled Bottom Entry 60 kW, 208V w/(1) Power Xpert SNMP/ModBus	ZP115150000X000	60 kVA (60 kW)	208/208	80.0 x 24.0 x 42.0	1960	61,445
BladeUPS Pre-Assembled Bottom Entry 60 kW N+1, 208V	ZP116100000000	60 kVA (60 kW) N+1	208/208	80.0 x 24.0 x 42.0	2282	72,695
BladeUPS Pre-Assembled Bottom Entry 60 kW N+1, 208V w/(1) SNMP	ZP116110000000	60 kVA (60 kW) N+1	208/208	80.0 x 24.0 x 42.0	2282	72,995
BladeUPS Pre-Assembled Bottom Entry 60 kW N+1, 208V w/(1) Power Xpert SNMP/ModBus	ZP116150000000	60 kVA (60 kW) N+1	208/208	80.0 x 24.0 x 42.0	2282	73,145
BladeUPS Pre-Assembled Top Entry 12 kW, 208V	ZP12110XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	683	17,595
BladeUPS Pre-Assembled Top Entry 12 kW, 208V, w/SNMP	ZP12111XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	683	17,895
BladeUPS Pre-Assembled Top Entry 12 kW, 208V, w/Power Xpert SNMP/ModBus	ZP12115XXXXX000	12 kVA (12 kW)	208/208	81.0 x 24.0 x 42.0	683	18,045
BladeUPS Pre-Assembled Top Entry 24 kW, 208V	ZP122100XXXXX000	24 kVA (24 kW)	208/208	81.0 x 24.0 x 42.0	994	28,995
BladeUPS Pre-Assembled Top Entry 24 kW, 208V, w/SNMP	ZP122110XXXXX000	24 kVA (24 kW)	208/208	81.0 x 24.0 x 42.0	994	29,295
BladeUPS Pre-Assembled Top Entry 24 kW, 208V, w/Power Xpert SNMP/ModBus	ZP122150XXXXX000	24 kVA (24 kW)	208/208	81.0 x 24.0 x 42.0	994	29,445
BladeUPS Pre-Assembled Top Entry 36 kW, 208V	ZP1231000XXX000	36 kVA (36 kW)	208/208	80.0 x 24.0 x 42.0	1316	39,995
BladeUPS Pre-Assembled Top Entry 36 kW, 208V, w/SNMP	ZP1231100XXX000	36 kVA (36 kW)	208/208	80.0 x 24.0 x 42.0	1316	40,295
BladeUPS Pre-Assembled Top Entry 36 kW, 208V, w/Power Xpert SNMP/ModBus	ZP1231500XXX000	36 kVA (36 kW)	208/208	80.0 x 24.0 x 42.0	1316	40,445
BladeUPS Pre-Assembled Top Entry 48 kW, 208V	ZP1241000XX000	48 kVA (48 kW)	208/208	81.0 x 24.0 x 42.0	1638	49,095
BladeUPS Pre-Assembled Top Entry 48 kW, 208V, w/SNMP	ZP1241100XX000	48 kVA (48 kW)	208/208	81.0 x 24.0 x 42.0	1638	49,395
BladeUPS Pre-Assembled Top Entry 48 kW, 208V, w/Power Xpert SNMP/ModBus	ZP1241500XX000	48 kVA (48 kW)	208/208	81.0 x 24.0 x 42.0	1638	49,545
BladeUPS Pre-Assembled Top Entry 60 kW, 208V	ZP1251000XX000	60 kVA (60 kW)	208/208	81.0 x 24.0 x 42.0	1960	60,995
BladeUPS Pre-Assembled Top Entry 60 kW, 208V, w/SNMP	ZP1251100XX000	60 kVA (60 kW)	208/208	81.0 x 24.0 x 42.0	1960	61,295
BladeUPS Pre-Assembled Top Entry 60 kW, 208V, w/Power Xpert SNMP/ModBus	ZP1251500XX000	60 kVA (60 kW)	208/208	81.0 x 24.0 x 42.0	1960	61,445
BladeUPS Pre-Assembled Top Entry 60 kW N+1, 208V	ZP126100000000	60 kVA (60 kW) N+1	208/208	81.0 x 24.0 x 42.0	2282	72,695
BladeUPS Pre-Assembled Top Entry 60 kW N+1, 208V, w/SNMP	ZP126110000000	60 kVA (60 kW) N+1	208/208	81.0 x 24.0 x 42.0	2282	72,995
BladeUPS Pre-Assembled Top Entry 60 kW N+1, 208V, w/Power Xpert SNMP/ModBus	ZP126150000000	60 kVA (60 kW) N+1	208/208	81.0 x 24.0 x 42.0	2282	73,145

1. Shipping dimensions are 86.5 × 32.0 × 77.0 . 2. All weights are installed weight. To determine shipping weight of pre-assembled systems, add 368 lbs.

Additional notes: Factory-installed connectivity for Pre-Assembled Systems: Style Number digit 7 represents the communication card installed in the system.

0 = No connectivity, 1 = ConnectUPS-X Web/SNMP, 2 = ModBus RTU, 3 = Standard relay card, 4 = Industrial relay card, 5 = Power Xpert Gateway UPS Card

For systems with more than one UPS module, additional cards are required. Please visit the Connectivity Products section for card information, including pricing.

EATON BLADEUPS (continued)

BLADEUPS OPTIONS

Description Style Number Dimensions (H x W x D, inches) Weight (lb) List Price
Extended Battery Modules
BladeUPS 3U EBM1 103005747-6591 5.2 (3U) x 17.2 x 26.0 170 1,695
Extension Cable
BladeUPS 3 Ft EBM Extension Cable	103006348-001	2.4 x 8.5 x 9.7	2	220
1. Shipped on pallet with dimensions of 5x40x48.
Maintenance Bypass
BladeUPS Maintenance Bypass Module, 208V	103007415-5208	10.5 (6U) x 17.3 x 29.6	76	6,095
BladeUPS Maintenance Bypass Module, 400V	103007415-5400	10.5 (6U) x 17.3 x 29.6	76	6,095
UPS Paralleling
BladeUPS Bar System in 42U Enclosure,Bottom Entry (includes Bus Bar and Wireway)	103005913	80.0 x 24.0 x 42.0	350	6,495
BladeUPS Bar System in 42U Enclosure,Top Entry (includes BusBar and Wireway)	103006596	80.0 x 24.0 x 42.0	350	6,495
BladeUPS 60 kW Bus Bar, Bottom Entry	103007571-5591 71.9 x 6.0 x 5.7	54		3,695
BladeUPS 60 kW Bus Bar, Top Entry	103007573-5591 71.9 x 6.0 x 5.7	54		3,695
BladeUPS 60 kW Universal Wireway	103007569-5591 10.4 (6U) x 19.0 x 34.0	45		1,395
BladeUPS 48 kW BusBar, Top Entry	103007828-55912 51.0 x 6.0 x 5.7	40		3,095
BladeUPS 48 kW BusBar, Bottom Entry	103007830-5591 51.0 x 6.0 x 5.7	40		$3,095

1. Please consult Application Engineering when purchasing this item.
2. All bus bar assemblies are rated for 208 or 400V installations.

Distribution Options

See ePDU options in the Eaton Power Distribution and Enclosures section of this book.

SOFTWARE AND CONNECTIVITY OPTIONS

Bundled with Intelligent Power Software Suite CD and communication cable. See the software and connectivity product sections for more detail.

EATON BLADEUPS (continued)

BLADEUPS BATTERY BACKUP TIMES (in minutes)

Load (kW) Internal Battery +1 EBM +2 EBMs +3 EBMs +4 EBMs
2	44	85	137	199	258
3	30	56	89	128	165
4	23	42	66	94	120
5	18	33	51	73	94
6	13.6	27	42	60	76
7	11	23	32	50	64
8	9	18	28	43	55
9	7	15	24	38	48
10	6	13	22	33	42
11	5	11	20	30	38
12						4.7	9.5	17 27 34

Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
1 EBM needed per BladeUPS.

BLADEUPS BATTERY BACKUP TIMES (Parallel UPS, in minutes)

Number of UPS Modules	Total Load (kW)	Configuration	Internal Battery	+1 EBM	+2 EBMs	+3 EBMs	+4 EBMs
2	12	N+1	14	27	42	60	76
3	24	N+1	8.7	18	28	43	55
4	36	N+1	7.3	15	24	38	48
5	48	N+1	6.7	13	23	35	44
6	60	N+1	6.2	13	22	33	42

BLADEUPS OPTIONS: RACK POWER MODULE (RPM)

The RPM delivers up to 36 kW of power in an organized manner to loads of various voltages, power cords and layouts. The 3U RPM can be deployed in the same rack with the UPS and IT equipment; there's no need for a dedicated infrastructure rack. The resulting architecture has fewer cables to manage, fewer distribution points to monitor, and greater flexibility for IT personnel make changes without an electrician.

• Provides plug-and-play primary distribution of power from three-phase input source to secondary power distribution devices
• Serves data center loads with various voltages, power cord configurations and layouts
• Distributes three-phase power to 12 poles, with choice of output receptacle types
• "Power Equalizer" LED gives quick visual indication of each circuits load, reducing possibility of overloads and breakers tripped offline
• Load information available from the front of the rack, no need to check individual power strips in the rear of the cabinet (hot isle)
• Branch circuit monitoring option allows easy load monitoring over the network, with Power Xpert infrastructure
  • Installs in only 3U of space in EIA 19-inch rack or enclosure (or optional wall-mount), all hardware included
• Enables customer installation and changes without the services of a licensed electrician

RPM DIMENSIONS

	Dimensions (H x W x D, inches)	Dimensions (H x W x D, mm)	Weight (lb)	Weight (kg)
Installed	5.2 × 17.4 × 26.3	132 × 442 × 668	32	15
Shipped	16.2 × 21.5 × 31.0	5.2 × 17.4 × 26.3	44	20

RPM TOPSELLERS

Topseller RPMs are the most popular configurations.
Receptacles
Part Number	Input Cable	Recep 1	Recep 2	Metering	TVSS	List Price
Y03113011100000	BladeUPS 208V 15'	L21-20 (2)	L21-20 (2)	Local Power Meter	No	2,690
Y03113022100000	BladeUPS 208V 15'	L21-30 (2)	L21-30 (2)	Local Power Meter	No	2,780
Y03113055100000	BladeUPS 208V 15'	L6-30 (3)	L6-30 (3)	Local Power Meter	No	2,290
Y03113047100000	BladeUPS 208V 15'	L6-20 (3)	5-20 (6)	Local Power Meter	No	2,325
Y03113017100000	BladeUPS 208V 15'	L21-20 (2)	5-20 (6)	Local Power Meter	No	2,465
Y031130FF100000	BladeUPS 208V 15'	L15-30 (2)	L15-30 (2)	Local Power Meter	No	2,700

EATON BLADEUPS (continued)

RPM ACCESSORIES

Description	Part Number	List Price
RPM wall-mount bracket kit	103006226	$205

RACK POWER MODULE CONFIGURATOR

Description Number Digit Value	Quantity Part List Price
Base 3U RPM Distribution Box		-	1	Y
			2	0
3	3
Input Voltage	208V	-	4	1		1,575
	400V			2		1,575
Input Cords: Connection	Hardwired	-	5	0
	BladeUPS Unit 208V			1
	IEC309-60 5 wire			2
	NEMA L21-30P			3
	BladeUPS Unit 400V	4
Input Cords: Length	Hardwired	-	6	0		215
	8 feet	-		1	BladeUPS Unit 208V	170
	IEC309-60 5 wire 640
	NEMA L21-30P	125
	BladeUPS Unit 400V	170
	10 feet	-		2	BladeUPS Unit 208V	230
	IEC309-60 5 wire 645
	NEMA L21-30P	140
	BladeUPS Unit 400V	230
	15 feet	-		3	BladeUPS Unit 208V	315
	IEC309-60 5 wire 705
	NEMA L21-30P	155
	BladeUPS Unit 400V	315
	20 feet	-		4	BladeUPS Unit 208V	390
	IEC309-60 5 wire 765
	NEMA L21-30P	175
	BladeUPS Unit 400V	$390
Future Option		-	7	0		-

EATON BLADEUPS (continued)

RACK POWER MODULE CONFIGURATOR (continued)

Description Number Digit Value	Quantity Part Price	List
Output Receptacle Plate #1 & Output Receptacle Plate #2	L21-20R	2	8 & 9	1	400
	L21-30R	2		2	445
	L6-15R	3		3	245
	L6-20R	3		4	260
	L6-30R	3		5	200
	5-15R	6		6	170
	5-20R	6		7	175
	L14-20R	3		8	180
	L14-30R	3		9	245
	IEC320-C13 (208V)	12		A	180
	IEC320-C19 (208V)	6		B	160
	IEC320-C13 (230V)	12		C	180
	IEC320-C19 (230V)	6		D	160
	L15-20	2		E	400
	L15-30	2		F	445
Metering Choices	Power Equalizer	-	10	1	-
	Energy Management System, NO card	-		2	695
	Energy Management System, with card	-		3	1,025
Future Option		-	11	0	-
	None	-	12	0	0
		-	13	0	-
		-	14	0	-
		-	15	0	-

How to order: 1. Select base model voltage (208V or 400V), 2. Select input connector option, 3. Select input cord length (corded units only), 4. Select first receptacle plate option, 5. Select second receptacle plate option, 6. Select metering option. Example of configured model part number: Y03111022300000

BLADEUPS OPTIONS: EATON BLADEUPS PDU WITH MAINTENANCE BYPASS

K-1 RATED TP-1 TRANSFORMER, 480V IN 208V OUT AND (2) 42-POLE PANELBOARDS

The Eaton BladeUPS PDU with Maintenance Bypass saves money and space in the data center or network operations center while offering three functions in one cabinet. The BladeUPS PDU combines step-down transformation, power distribution (up to 84 pole positions) and maintenance bypass into a single cabinet—the perfect complement to a 60 kVA BladeUPS system.

• TP-1, K1-rated input transformer—Energy-star efficiency, 480-208/120V, along with integral voltage transformation, electrical isolation and high efficiency
• Integrated maintenance bypass, including maintenance bypass breaker, rectifier input breaker and UPS output breaker, all rated for 225A, for high availability
  • Available with up to two Eaton PRL-1a 42-pole panelboards, or up to four subfeed breakers or full rated lugs. PRL-1a panels accept BAB or QBHW style breakers
• Multiple power functions in a single cabinet mean efficient use of space
• Free-standing, easy-access design that complements other modern data center equipment while providing ease of installation and use for flexible access and deployment options
  • Warranty: Eighteen months

Black server rack cabinet with multiple drive bays and ventilation slots (no visible text or labels)

EATON BLADEUPS PDU WITH MAINTENANCE BYPASS

Catalog Number	Style Number	Description	Rating (VA/Watts)	Input Connection	Output Receptacles	Dimensions (H x W x D, inches)	Weight (lb)	List Price
124100029-001	124100029-001	PDU for 60 kVA BladeUPS – 2 panels – 480:208V	60 kVA/60 kW	AC input 480V3 phase 3 wire, ground, 60 Hz	(2) 42-pole panelboards (branch breakers not included)	80 x 30 x 36	1200	$23,190

EATON BLADEUPS (continued)

EATON BLADEUPS PDU WITH MAINTENANCE BYPASS (continued)

Dimensions
Catalog Number	Style Number	Description	Rating (VA/Watts)	Input Connection	Output Receptacles	(H x W x D, inches)	Weight (lb)	List Price
124100029-002 panelboard	PTE06056BAS4100 Eaton PRL1	PDU with bypass w/ 1 42 pole	60 kVA/60 kW	Hardwire 480 vac	(1) 42 pole panelboard	80 x 30 x 36	1150	22,730
124100029-003 full rated output lugs	PTE06056BAS41LL	PDU with bypass w/ 1 42 pole panelboard, full output lugs	60 kVA/60 kW	Hardwire 480 vac	(1) 42 pole panelboard Eaton PRL1,	80 x 30 x 36	1170	23,420
124100029-004 2 subfeed breakers	PTE06056BAS412A	PDU with bypass w/ 1 42 pole panelboard, 2 subfeed breakers	60 kVA/60 kW	Hardwire 480 vac	(1) 42 pole panelboard Eaton PRL1,	80 x 30 x 36	1210	23,540
124100029-005 3 subfeed breakers	PTE06056BAS413A	PDU with bypass w/ 1 42 pole panelboard, 3 subfeed breakers	60 kVA/60 kW	Hardwire 480 vac	(1) 42 pole panelboard Eaton PRL1,	80 x 30 x 36	1225	27,130
124100029-006 4 subfeed breakers	PTE06056BAS414A	PDU with bypass w/ 1 42 pole panelboard, 4 subfeed breakers	60 kVA/60 kW	Hardwire 480 vac	(1) 42 pole panelboard Eaton PRL1,	80 x 30 x 36	1240	28,750
124100029-007 output lugs	PTE06056BAS40LL	PDU with bypass w/ full rated	60 kVA/60 kW	Hardwire 480 vac	Full rated output lugs	80 x 30 x 36	1100	22,820
124100029-008 breakers	PTE06056BAS402A	PDU with bypass w/ 2 subfeed	60 kVA/60 kW	Hardwire 480 vac	2 subfeed breakers	80 x 30 x 36	1130	25,270
124100029-009 breakers	PTE06056BAS403A	PDU with bypass w/ 3 subfeed	60 kVA/60 kW	Hardwire 480 vac	3 subfeed breakers	80 x 30 x 36	1145	26,760
124100029-010 breakers	PTE06056BAS404A	PDU with bypass w/ 4 subfeed	60 kVA/60 kW	Hardwire 480 vac	4 subfeed breakers	80 x 30 x 36	1160	28,410
124100029-011	PTE06056BAS42LL	PDU with bypass w/ 2 42 pole panelboard, full rated output lugs	60 kVA/60 kW	Hardwire 480 vac	(2) 42 pole panelboard Eaton PRL1, full output lugs	80 x 30 x 36	1210	23,890

Note:

1. Please contact Pre-sales Support to specify what trip ratings are needed for the subfeed breakers.

2. All subfeed breakers are standard Eaton FD frames, rated at 225A trip.

3. The PDU with bypass should be discounted at the same multiplier level as the BladeUPS system.

EATON BLADEUPS SERVICE PLANS

Description	Service Part Number for UPS	Additional Information Per Year	List Price
Startup
BladeUPS Assembly and Set Up	W2AS00N000-0015	BladeUPS 1 Module	1,161
BladeUPS Assembly and Set Up	W2AS00N000-0080	BladeUPS 2-6 Modules	2,217
Startup, Business Hours (5x8)	W2SU06NXXX-0015	BladeUPS 1 Module	1,161
Startup, Business Hours (5x8)	W2SU06NXXX-0080	BladeUPS 2-6 Modules	1,785
Startup for BladeUPS Pre-Assembled Systems
Pre-Assembled Start-up Level 1, 5 x 8 (up to 20 accessories installed)	W2SUPS06NXXX-0080	BladeUPS 1-6 Modules	2,142
Pre-Assembled Start-up Level 1, 7 x 24 (up to 20 accessories installed)	W2SUPS05NXXX-0080	BladeUPS 1-6 Modules	2,818
Pre-Assembled Start-up Level 2, 5 x 8 (up to 40 accessories installed)	W2SUPR06NXXX-0080	BladeUPS 1-6 Modules	2,320
Pre-Assembled Start-up Level 2, 7 x 24 (up to 40 accessories installed)	W2SUPR05NXXX-0080	BladeUPS 1-6 Modules	3,054

EATON BLADEUPS (continued)

EATON BLADEUPS SERVICE PLANS (continued)

Description Service Part Number Additional List Price
for UPS Information Per Year
First-year Service Plans
PowerTrust Service Plan 8 Hr	W1PT82NEDX-0015	BladeUPS 1 Module	1,330
PowerTrust Service Plan 8 Hr	W1PT82NEDX-0080	BladeUPS 2-6 Modules	3,104
UPS Preventive Maintenance, Business Hours (5x8)	W10006NXXX-0015	BladeUPS 1 Module	475
UPS Preventive Maintenance, Business Hours (5x8)	W10006NXXX-0080	BladeUPS 2-6 Modules	713
Sealed Battery Preventive Maintenance, Any Time	W10005NEXT	1 to 4 EBMs per system	473
Sealed Battery Preventive Maintenance, Any Time	W10005NINT	Internal batteries473
Second-year+ Service Plans
PowerTrust Service Plan 8 Hr	W2PT82NEDX-0015	BladeUPS 1 Module	2,660
PowerTrust Service Plan 8 Hr	W2PT82NEDX-0080	BladeUPS 2-6 Modules	6,207
UPS Preventive Maintenance, Business Hours (5x8)	W20006NXXX-0015	BladeUPS 1 Module	950
UPS Preventive Maintenance, Business Hours (5x8)	W20006NXXX-0080	BladeUPS 2-6 Modules	1,425
Sealed Battery Preventive Maintenance, Any Time	W20005NEXT	1 to 4 EBMs per system	945
Sealed Battery Preventive Maintenance, Any Time	W20005NINT	Internal batteries945

Additional services and descriptions may be found starting on page 153.

EATON 9355 UPS

Powerware series

Double-conversion (10–15 kVA)

This innovative design delivers one of the industry's best combinations of high efficiency, low input current distortion and highest power factor, while conserving valuable space and offering the most cost-effective, highest performance option available today.

• True double-conversion topology protects equipment from all nine of the most common power problems
• Industry leading power density, providing up to 20 percent more power capacity in a compact tower design including batteries
• Up to 350 percent more standard runtime
• Up to a 74 percent footprint reduction and up to an 83 percent total size reduction
• Flexible on-board power distribution modules (PDMs) allow for hardwired output or up to 15 different output receptacle options, reducing installation and site preparation expenses
• Plug-and-play rack enclosure power distribution with the 9355 on-board PDU
• Inherently scalable from 10–15 and 20–30 kVA, allowing you to pay as you grow or increase capacity with no additional hardware purchases or installation concerns
• Eaton's patented Hot Sync paralleling technology allows for wireless paralleling in the event of communications failure, providing the industry's only truly redundant paralleling technology
• Flexible 0 footprint extended run configurations allow for adding additional runtime in the same industry-leading compact footprint
• Includes rear-mounted bypass switch

9355 (10-15 kVA) MODELS

Input/Output Base Dimensions Weight List
Description Part Number	1 Rating	Voltage Runtime (min)		(H x W x D, inches)	3	(Ib)3	Price
PW9355 10 kVA with 32-Battery (2-high)	KA1011100000010	10 kVA/9 kW	208/208	8	32.2 x 12.0 x 33.7	373	15,226
PW9355 10 kVA with 64-Battery (3-high)	KA1012100000010	10 kVA/9 kW	208/208	22	47.8 x 12.0 x 33.7	609	17,035
PW9355 10 kVA with 32-Battery (2-high)	KA1011200000010	10 kVA/9 kW	220/2202	8	32.2 x 12.0 x 33.7	373	15,226
PW9355 10 kVA with 64-Battery (3-high)	KA1012200000010	10 kVA/9 kW	220/2202	22	47.8 x 12.0 x 33.7	609	17,035
PW9355 10 kVA with 32-Battery and input isolation transformer (3-high)	KA1013400000010	10 kVA/9 kW	480/208	8	47.8 x 12.0 x 33.7	577	19,606
PW9355 10 kVA with 32-Battery and input isolation transformer (3-high)	KA1013600000010	10 kVA/9 kW	600/208	8	47.8 x 12.0 x 33.7	577	19,606
PW9355 15 kVA with 32-Battery (2-high)	KA1511100000010	15 kVA/13.5 kW	208/208	4	32.2 x 12.0 x 33.7	373	16,604
PW9355 15 kVA with 64-Battery (3-high)	KA1512100000010	15 kVA/13.5 kW	208/208	13	47.8 x 12.0 x 33.7	609	18,457
PW9355 15 kVA with 32-Battery (2-high)	KA1511200000010	15 kVA/13.5 kW	220/2202	4	32.2 x 12.0 x 33.7	373	16,604
PW9355 15 kVA with 64-Battery (3-high)	KA1512200000010	15 kVA/13.5 kW	220/2202	13	47.8 x 12.0 x 33.7	609	18,457
PW9355 15 kVA with 32-Battery and input isolation transformer (3-high)	KA1513400000010	15 kVA/13.5 kW	480/208	4	47.8 x 12.0 x 33.7	577	20,728
PW9355 15 kVA with 32-Battery and input isolation transformer (3-high)	KA1513600000010	15 kVA/13.5 kW	600/208	4	47.8 x 12.0 x 33.7	577	20,728

9355 (10-15 KVA) MODELS WITH BUNDLED 5X8 STARTUP & 7X24 8-HR ONSITE RESPONSE SERVICE

Description	Part Number1	Warranty	Rating	Input/Output Voltage	Base Runtime (min)	Dimensions (H x W x D, inches)2	Weight (lb)3	List Price
PW9355 10 kVA with 32-Battery (2-high)	KA1011100000020	1 YR	10 kVA/9 kW	208/208	8	32.2 x 12.0 x 33.7	373	16,620
PW9355 10 kVA with 64-Battery (3-high)	KA1012100000020	1 YR	10 kVA/9 kW	208/208	22	47.8 x 12.0 x 33.7	609	18,376
PW9355 10 KVA with 32 Battery (2-high)	KA1011100000030	2 YR	10 kVA/9 kW	208/208	8	32.2 x 12.0 x 33.7	373	17,972
PW9355 10 kVA with 64-Battery (3-high)	KA1012100000030	2 YR	10 kVA/9 kW	208/208	22	47.8 x 12.0 x 33.7	609	19,728
PW9355 10 KVA with 32 Battery (2-high)	KA1011100000040	3 YR	10 kVA/9 kW	208/208	8	32.2 x 12.0 x 33.7	373	19,324
PW9355 10 kVA with 64-Battery (3-high)	KA1012100000040	3 YR	10 kVA/9 kW	208/208	22	47.8 x 12.0 x 33.7	609	21,080
PW9355 15 KVA with 32 Battery (2-high)	KA1511100000020	1 YR	15 kVA/13.5 kW	208/208	4	32.2 x 12.0 x 33.7	373	18,441
PW9355 15 kVA with 64-Battery (3-high)	KA1512100000020	1 YR	15 kVA/13.5 kW	208/208	13	47.8 x 12.0 x 33.7	609	20,294
PW9355 15 KVA with 32 Battery (2-high)	KA1511100000030	2 YR	15 kVA/13.5 kW	208/208	4	32.2 x 12.0 x 33.7	373	19,793
PW9355 15 kVA with 64-Battery (3-high)	KA1512100000030	2 YR	15 kVA/13.5 kW	208/208	13	47.8 x 12.0 x 33.7	609	21,646
PW9355 15 KVA with 32 Battery (2-high)	KA1511100000040	3 YR	15 kVA/13.5 kW	208/208	4	32.2 x 12.0 x 33.7	373	21,145
PW9355 15 kVA with 64-Battery (3-high)	KA1512100000040	3 YR	15 kVA/13.5 kW	208/208	13	47.8 x 12.0 x 33.7	609	22,998

1. 50/60 Hz auto-sensing.
2. 220V units are wye connected 220/127V input and 220/127V output, three-phase, 4-wire plus ground.
3. Add 47 lbs for 2-high configurations or 50 lbs for 3-high configurations to determine shipping weight. 4. An input neutral is required for all configurations unless the input isolation transformer is used.
4. For parallel systems, change CTO digit #5 to a "2" and add \$300 to the list price and include Parallel Tie Cabinet.
5. These models include a SU06NXXX 5x8 startup and FL87NXXX Flex 7x24, 8-hour onsite response parts and labor coverage support agreement in one-, two- and three-year terms. A \$500 remote site surcharge applies for locations beyond 100 miles of an Eaton field technician. Additional services and upgrades to the above startup or Flex coverage can be ordered as a separate line item at the standard service pricing.

Two black industrial server units with ventilation grilles, one side showing a digital display and the other a tall tower (no visible text or labels)

EATON 9355 UPS

Powerware series (continued)

9355 OPTIONS

Part Additional Input/Output Dimensions Weight List
Description Number Information Voltage (H x W x D, inches) (lb) Price
PW9355 10-15 kVA 2-High Line & Match Extended Battery Module	103004192-5501	64 Batteries	-	32.2 × 12.0 × 30.2	480	5,640
PW9355 10-15 kVA 3-High Line & Match Extended Battery Module	103004193-5501	96 Batteries	-	47.8 \times 12.0 \times 30.2	710	8,047
PW9355 Wall Mount Parallel Tie Cabinet, 2-Breaker MBP(225A Bus, 200A Neutral, (1) 225A MBP, & (4) 80A MOBs)	124100020-001	-	208V/208V	36.0 × 20.0 × 5.75	68' S1,663
PW9355 Wall Mount Parallel Tie Cabinet With MIS Breaker(225A MBP, 225A MIS, & (4) 80A MOBs)	124100020-002	-	208V/208V	60 × 20.0 × 5.75	140	3,950
PW9355 Remote EPO Switch	103002939	Wall-mounted	-	-	-	279
PW9355 10-15 kVA Seismic Mounting Kit	103004194-5501	Zone 4 Kit	-	-	-	1,871
Remote Monitor Panel requires Industrial Relay X-Slot Card part		See section for Connectivity Options & Pricing
CAN Bridge Parallel Card	103004336	-	-		-	519

1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.

9355 BYPASS PANELS

Description	Part Number	Input/Output Voltage	Dimensions (H x W x D, inches)	Weight (lb) ^1	List Price
PW9355 15 kVA 3-breaker Maintenance Bypass Panel (100A Bus, 200A Neutral, & 60A MBP, MIB, MIS)	124100027-001	208V/208V	48.0 x 20.0 x 5.8	120	3,588
PW9355 15 kVA 3-breaker Maintenance Bypass Panel with integral 120 KA TVSS (100A Bus, 200A Neutral, & 60A MBP, MIB, MIS)	124100027-002	208V/208V	60.0 x 20.0 x 5.8	120	6,810
PW9355 15 kVA 3-breaker Maintenance Bypass Panel with 36-Pole Distribution Provisions (Cutler-Hammer GHB 65 kAIC)	124100027-003	208V/208V	72.0 x 20.0 x 5.8	210	4,004
PW9355 15 kVA 3-breaker Maintenance Bypass Panel with 36-Pole Distribution Provisions & Integrated TVSS (Cutler-Hammer GHB 65 kAIC)	124100027-004	208V/208V	90.0 x 20.0 x 5.8	225	7,384
PW9355 15 kVA 3-breaker Maintenance Bypass Panel with 36-Pole Distribution Provisions (Cutler-Hammer GHBW 22 kAIC)	124100027-006	208V/208V	72.0 x 20.0 x 5.8	210	4,004
PW9355 15 kVA 3-breaker Maintenance Bypass Panel with 36-Pole Distribution Provisions (Cutler-Hammer BAB 10 kAIC)	124100027-007	208V/208V	72.0 x 20.0 x 5.8	210	4,004
PW9355 15 kVA 3-breaker Maintenance Bypass Panel with 36-Pole Distribution Provisions & Integrated TVSS (Cutler-Hammer GBHW 22 kAIC)	124100027-008	208V/208V	90.0 x 20.0 x 5.8	225	7,384
PW9355 15 kVA 3-breaker Maintenance Bypass Panel with 36-Pole Distribution Provisions & Integrated TVSS (Cutler-Hammer BAB 10 kAIC)	124100027-009	208V/208V	90.0 x 20.0 x 5.8	225	7,384

1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.

SURGE PROTECTION

See the surge protection product section for more details.

OUTPUT RECEPTACLES

Receptacle Codes	(Qty) NEMA Type	Enter “Receptacle Code” into CTO Digits #	Price Adder for EACH Receptacle Code Chosen
2	(1) L15-30R	9, 10 or 11 only	220
3	(1) L21-20R	9, 10 or 11 only	220
4	(1) L21-30R	9, 10 or 11 only	220
A	(2) 5-15R	9,10,11,12	220
B	(2) 5-20R UL	9,10,11,12	220
D	(2) 6-15R	9,10,11,12	220
E	(2) 6-20R	9,10,11,12	220
F	(2) L5-15R	9,10,11,12	220
G	(1) L5-20R*	9,10,11,12	220
H	(1) L5-30R*	9,10,11,12	220
I	(2) L6-15R	9,10,11,12	220
J	(1) L6-20R*	9,10,11,12	220
K	(1) L6-30R*	9,10,11,12	220
L	(1) L14-20R*	9,10,11,12	220
M	(1) L14-30R*	9,10,11,12	220
X	Blank Panel	9,10,11,12	20
N	(2) IEC 320 C13 (120V)	9,10,11,12	220
P	(2) IEC 320 C19 (120V)	9,10,11,12	220

Note: Arrange receptacle codes in numerical-alphabetical order in digits 9 through 12 of the CTO number
Example 1: a PDM with an L21-20, an L14-30, and Qty 2 IEC320-C19 would have digits 9 through 12 of the CTO arranged as '3MPP'
Example 2: a PDM with a 5-15R, and an L6-30, and an L14-30 would have digits 9 through 12 of the CTO arranged as "AKMX"
The combined quantities of LOCKING receptacles (denoted by *) must not exceed 4 per unit.
Please be sure to utilize the "X" designation for any of the 4 total slots not populated.
EATON CORPORATION Reference Guide & Pricebook

EATON 9355 UPS

Powerware series (continued)

BUILT-IN CONNECTIVITY OPTIONS

Value for Part List
Description CTO Digit 8 Number (if ordered separately)	Price
NONE (No Pre-installed X-Slot card) 0	-	0
ConnectUPS-X Web/SNMP Card 3	116750221-001	335
Modbus Card-X-Slot	4	103005425-5591	661
Relay Interface Card-X-Slot (AS/400 Compatible)	5	1018460	146
Industrial Relay and Display Drive Card X-Slot	6	103003055	$335

Note: You can have up to two optional connectivity cards installed.

9355 BATTERY BACKUP TIMES (in minutes) @ 0.9 POWER FACTOR

Load (VA/Watts)	UPS + Internal 32 Battery	+1 EBM 64	+2 EBMs 64	+3 EBMs 64	+4 EBMs 64	UPS + Internal 64 Battery	+1 EBM 96	+2 EBMs 96	+3 EBMs 96
15000/13500	4.6	23.0	43.0	65.1	88.6	13.3	43.0	76.7	113.0
14500/13050	4.9	24.1	45.2	68.3	93.0	14.1	45.2	80.5	119.0
14000/12600	5.2	25.2	47.3	71.5	97.4	14.9	47.3	84.2	125.0
13500/12150	5.5	26.4	49.4	74.7	102.0	15.8	49.4	88.1	130.0
13000/11700	5.8	27.6	51.6	78.1	106.0	16.7	51.6	92.0	136.0
12500/11250	6.1	28.8	54.0	81.6	111.0	17.6	54.0	96.2	142.0
12000/10800	6.5	30.2	56.5	85.5	116.0	18.6	56.5	101.0	149.0
11500/10350	6.9	31.6	59.3	89.7	122.0	19.2	59.3	106.0	156.0
11000/9900	7.3	33.3	62.4	94.4	129.0	20.2	62.4	111.0	164.0
10500/9450	7.8	35.1	65.9	99.6	136.0	21.4	65.9	117.0	174.0
10000/9000	8.4	37.2	69.8	106.0	144.0	22.6	69.8	124.0	184.0
9500/8550	9.1	39.6	74.2	112.0	153.0	24.1	74.2	132.0	196.0
9000/8100	9.9	42.3	79.4	120.0	163.0	25.7	79.4	141.0	209.0
8500/7650	10.8	45.5	85.2	129.0	175.0	27.6	85.2	152.0	225.0
8000/7200	11.9	49.1	91.9	139.0	189.0	29.8	91.9	164.0	242.0
7500/6750	13.1	53.2	99.7	151.0	205.0	32.3	99.7	178.0	263.0
7000/6300	14.6	58.0	109.0	164.0	224.0	35.2	109.0	194.0	286.0
6500/5850	16.3	63.5	119.0	180.0	245.0	38.6	119.0	212.0	314.0
6000/5400	18.4	70.0	131.0	198.0	270.0	42.5	131.0	234.0	346.0
5500/4950	20.1	77.6	145.0	220.0	300.0	47.2	145.0	259.0	383.0
5000/4500	22.4	86.6	162.0	245.0	334.0	52.6	162.0	289.0	428.0
4500/4050	25.2	97.4	182.0	276.0	376.0	59.2	182.0	325.0	-
4000/3600	28.6	110.0	207.0	313.0	426.0	67.1	207.0	369.0	-
3500/3150	32.8	127.0	238.0	359.0	-	77.0	238.0	423.0	-
3000/2700	38.3	148.0	277.0	418.0	-	89.7	277.0	-	-
2500/2250	45.6	176.0	329.0	-	-	107.0	329.0	-	-

Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

EATON 9355 (10-15 KVA) SERVICE PLANS

Description	Service Part Number for UPS	Additional Information	List Price Per Year
Startup
Startup, After Hours (7x24)	W2SU05NXXX-0015		1,425
Startup, Business Hours (5x8)	W2SU06NXXX-0015		1,161
First-year Service Plans
PowerTrust Value Service Plan	W1PVN3NEXX-0015		998
PowerTrust Service Plan 8 Hr	W1PT82NEDX-0015		1,330
UPS Preventive Maintenance, Business Hours (5x8)	W10006NXXX-0015		475
Sealed Battery Preventive Maintenance, Any Time	W10005NINT	Internal batteries	473
Sealed Battery Preventive Maintenance, Any Time	W10005NS064	Per EBM 64	500
Sealed Battery Preventive Maintenance, Any Time	W10005NS096	Per EBM 96	500
Second-year+ Service Plans
PowerTrust Value Service Plan	W2PVN3NEXX-0015		1,994
PowerTrust Service Plan 8 Hr	W2PT82NEDX-0015		2,660
UPS Preventive Maintenance, Business Hours (5x8)	W20006NXXX-0015		950
Sealed Battery Preventive Maintenance, Any Time	W20005NINT	Internal batteries	945
Sealed Battery Preventive Maintenance, Any Time	W20005NS064	Per EBM 64	926
Sealed Battery Preventive Maintenance, Any Time	W20005NS096	Per EBM 96	926

Additional services and descriptions may be found starting on page 153.

EATON 9355 UPS

Powerware series (continued)

9355 (20-30 KVA) MODELS
20 kVA (18 kW)

Input/Output Base Dimensions Weight Option List
Description Part Number	1 Voltage Runtime (min) (H x W x D, inches)			3 (lb)3	Cabinet(s)	Price
PW9355 20 kVA with Internal Batteries	KB2013100000010	208/208	18	66.0 x 20.0 x 34.1	1160		22,481
PW9355 20 kVA Single Feed with Options Cabinet & Internal Batteries, including Isolation Transformer	KB2013100000010	208/208	18	66.0 x 40.0 x 34.1	1695	KBT001100000010*	27,837
PW9355 20 kVA with Internal Batteries & Dual Feed Isolation Transformer (2 Opt Cabs)	KB2013100000010	208/208	18	66.0 x 60.0 x 34.1	2230	KBT001100000010* KBT002100000010	33,193
PW9355 20 kVA with Internal Batteries	KB2013200000010	220/220^2	18	66.0 x 20.0 x 34.1	1160		22,481
PW9355 20 kVA with Internal Batteries & Single Feed Options Cabinet	KB2013100000010	480/208	18	66.0 x 40.0 x 34.1	1695	KBT001200000010*	27,837
PW9355 20 kVA Dual Feed with Options Cabinets & Internal Batteries (2 Opt Cabs)	KB2013100000010	480/208	18	66.0 x 60.0 x 34.1	2230	KBT002200000010 KBT001200000010*	33,193
PW9355 20 kVA Single Feed with Options Cabinets & Internal Batteries	KB2013100000010	600/208	18	66.0 x 40.0 x 34.1	1695	KBT001300000010	27,837
PW9355 20 kVA Dual Feed with Options Cabinets & Internal Batteries	KB2013100000010	600/208	18	66.0 x 60.0 x 34.1	2230	KBT001300000010* KBT002300000010	33,193
PW9355 20 kVA Single Feed with Options Cabinet & Internal Batteries (1 Opt Cab)	KB2013100000010	480/480	18	66.0 x 40.0 x 34.1	1952	KBT004200000010*	$33,193

30 kVA (27 kW)

Description	UPS Part (CTO) Number	Input/Output Voltage	Base Runtime (min)	Dimensions (H x W x D, inches) ^3	Weight (lb) ^3	Option Cabinet(s)	List Price
PW9355 30 kVA with Internal Batteries	KB3013100000010	208/208	11	66.0 x 20.0 x 34.1	1160		23,598
PW9355 30 kVA Single Feed with Options Cabinet & Internal Batteries, including Isolation	KB3013100000010	208/208	11	66.0 x 40.0 x 34.1	1695	KBT001100000010*	28,954
PW9355 30 kVA with Internal Batteries & Dual Feed Isolation Transformer (2 Opts Cabs)	KB3013100000010	208/208	11	66.0 x 60.0 x 34.1	2230	KBT001100000010* KBT002100000010	34,310
PW9355 30 kVA with Internal Batteries	KB3013200000010	220/220^2	11	66.0 x 20.0 x 34.1	1160		23,598
PW9355 30 kVA with Internal Batteries & Single Feed Options Cabinet	KB3013100000010	480/208	11	66.0 x 40.0 x 34.1	1695	KBT001200000010*	28,954
PW9355 30 kVA Dual Feed with Options Cabinets & Internal Batteries (2 Opts Cabs)	KB3013100000010	480/208	11	66.0 x 60.0 x 34.1	2230	KBT001200000010* KBT002200000010	34,310
PW9355 30 kVA Single Feed with Options Cabinet & Internal Batteries	KB3013100000010	600/208	11	66.0 x 40.0 x 34.1	1695	KBT001300000010	28,954
PW9355 30 kVA Dual Feed with Options Cabinet & Internal Batteries (2 Opts Cabs)	KB3013100000010	600/208	11	66.0 x 60.0 x 34.1	2230	KBT001300000010* KBT002300000010	34,310
PW9355 30 kVA Single Feed with Options Cabinet & Internal Batteries (1 Opts Cab)	KB3013100000010	480/480	11	66.0 x 40.0 x 34.1	1952	KBT004200000010*	$34,310

* contains MBP Rotary Style

9355 (20-30 KVA) MODELS WITH BUNDLED 5X8 STARTUP & 7X24 8-HR ONSITE RESPONSE SERVICE

Description	Part Number	Warranty	Input/Output Voltage	Dimensions (H x W x D, inches) ^3	Weight (lb) ^3	List Price
PW9355 20 kVA with Internal Batteries ^6	KB2013100000020	1 YR	208/208	66.0 x 20.0 x 34.1	1160	24,152
PW9355 20 kVA with Internal Batteries^6	KB2013100000030	2 YR	208/208	66.0 x 20.0 x 34.1	1160	25,955
PW9355 20 kVA with Internal Batteries ^6	KB2013100000040	3 YR	208/208	66.0 x 20.0 x 34.1	1160	27,758
PW9355 30 kVA with Internal Batteries^6	KB3013100000020	1 YR	208/208	66.0 x 20.0 x 34.1	1160	25,924
PW9355 30 kVA with Internal Batteries ^6	KB3013100000030	2 YR	208/208	66.0 x 20.0 x 34.1	1160	27,727
PW9355 30 kVA with Internal Batteries^6	KB3013100000040	3 YR	208/208	66.0 x 20.0 x 34.1	1160	29,530

1. 50/60 Hz auto-sensing.

2. 220V units are wye connected 220/127V input and 220/127V output, three-phase, 4-wire plus ground.

3. Add 47 lb for 2-high configurations or 50 lbs for 3-high configurations to determine shipping weight.

4. An input neutral is required for all configurations unless the input isolation transformer is used.

5. For parallel systems, change CTO digit #5 to a "2" and add \$500 to the list price and include Parallel Tie Cabinet.

6. These models include a SU06NXXX 5x8 startup and FLB7NXXX Flex 7x24, 8-hour onsite response parts and labor coverage support agreement in one-, two- and three-year terms. A \$500 remote site surcharge applies for locations beyond 100 miles of an Eaton field technician. Additional services and upgrades to the above startup or Flex coverage can be ordered as a separate line item at the standard service pricing.

EATON 9355 UPS

Powerware series (continued)

9355 OPTIONS

Part Input/Output Dimensions Weight List
Description Number Rating Voltage (H x W x D, inches) (lb)					1 Price
PW9355 20 & 30 kVA 2 String Line & Match
Extended Battery Cabinet	103005183	36	-	66.0 x 20.0 x 34.1	1105.0	8,357
PW9355 20 & 30 kVA 4 String Line & Match
Extended Battery Cabinet	103004868	72	-	66.0 x 20.0 x 34.1	2060.0	12,754
Option Cabinet, Containing Maintenance Bypass, with No Transformer	KBT000000000010	-	208/208	67.0 x 20.0 x 34.1	205.0	2,391
PW9355 30 kVA Wall-mount Parallel Tie Cabinet 2-Breaker MBP(400A Bus, 200A Neutral, 1 350A MBP, & (4) 110A MOBs)	124100026-001	-	208/208	48.0 x 20.0 x 5.8	150.01	3,015
PW9355 30 kVA Wall-mount Parallel Tie Cabinet with MIS Breaker (350A MBP, 350A MIS, & (4) 110A MOBs)	124100026-002	-	208/208	57.0 x 24.0 x 11.3	235	6,975
Remote EPO Switch	103002939	Wall-mounted	-	-	-	279
Zone 4 Seismic Kit (UPS Cabinet only)	103004896	Zone 4 Kit	-	-	-	520
Remote Monitor Panel requires Industrial Relay X-Slot Card part		See section for Connectivity Options & Pricing
CAN Bridge Parallel Card	103004336	-	-	-	-	519
UPS Optional Output Breaker (125A, Change Digit #5 in CTO number to "3" for RT systems)						$250

1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.
   Notes: Up to 3 EBMs can be added to each UPS for extended runtime. To find items and pricing for spare parts, kVA upgrades and parallel upgrades, please refer to the 9355 services page.

9355 BYPASS PANELS

Description	Part Number	Input/Output Voltage	Dimensions (H x W x D, inches)	Weight (lb) ^1 Price	List
PW9355 20 & 30 kVA 3-breaker Maintenance Bypass Panel (225A Bus, 225A Neutral, & 110A MBP, 125A MIB, 110A MIS)	124100028-001	208/208	48.0 x 20.0 x 5.8	120	3,900
PW9355 20 & 30 kVA 3-breaker Maintenance Bypass Panel with integral 120 KA TVSS (225A Bus, 225A Neutral, & 110A MBP, 125A MIB, 110A MIS)	124100028-002	208/208	60.0 x 20.0 x 5.8	120	7,405
PW9355 20 & 30kVA 3-Breaker Maintenance Bypass Panel with 36-pole Distribution Provisions (Cutler-Hammer GHB 65 kAIC)	124100028-003	208/208	72.0 x 20.0 x 5.8	210	4,498
PW9355 20 & 30 kVA 3-Breaker Maintenance Bypass Panel with 36-pole Distribution Provisions & Integrated TVSS (Cutler-Hammer GHB 65 kAIC)	124100028-004	208/208	90.0 x 20.0 x 5.8	225	7,748
PW9355 20 & 30kVA 3-Breaker Maintenance Bypass Panel with 36-pole Distribution Provisions (Cutler-Hammer GBHW 22 kAIC)	124100028-006	208/208	72.0 x 20.0 x 5.8	210	4,498
PW9355 20 & 30kVA 3-Breaker Maintenance Bypass Panel with 36-pole Distribution Provisions (Cutler-Hammer BAB 10 kAIC)	124100028-007	208/208	72.0 x 20.0 x 5.8	210	4,498
PW9355 20 & 30 kVA 3-Breaker Maintenance Bypass Panel with 36-pole Distribution Provisions & Integrated TVSS (Cutler-Hammer GBHW 22 kAIC)	124100028-008	208/208	90.0 x 20.0 x 5.8	225	7,748
PW9355 20 & 30 kVA 3-Breaker Maintenance Bypass Panel with 36-pole Distribution Provisions & Integrated TVSS (Cutler-Hammer BAB 10 kAIC)	124100028-009	208/208	90.0 x 20.0 x 5.8	225	7,748

1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.
   Note: Please specify preference for breakers.

9355 BUILT-IN CONNECTIVITY OPTIONS

Available X-Slot card options
Description	Value for CTO Digit 8	Part Number (if ordered separately)	List Price
NONE (No pre-installed X-Slot card)	0	-	0
ConnectUPS-X Web/SNMP Card	3	116750221-001	335
Modem Card	7	05146288-5501	530
Modbus Card-X-Slot	4	103005425-5591	661
Relay Interface Card-X-Slot (AS/400 Compatible)	5	1018460	146
Industrial Relay and Display Drive Card X-Slot	6	103003055	335

Note: UPS has two X-Slots, one of which can be populated or factory installed, with the second X-Slot accessory supplied separately.

EATON 9355 UPS

Powerware series (continued)

9355 BATTERY BACKUP TIMES (in minutes)

UPS Internal Internal Internal Load w/Internal Battery Battery (VA/Watts)	Internal Battery Battery	+EBC 36	+EBC 72	+2 EBC 72	+3 EBC 72
30000/27000	11	31	56	89	108
29000/26100	11	33	58	90	109
28000/25200	12	35	60	93	111
27000/24300	12	38	62	95	114
26000/23400	13	40	65	98	118
25000/22500	14	43	68	101	124
24000/21600	14	46	71	103	129
23000/20700	15	48	74	106	134
22000/19800	16	51	76	109	144
21000/18900	17	53	79	111	152
20000/18000	18	56	82	114	160
19000/17100	19	58	85	117	175
18000/16200	20	62	88	120	189
17000/15300	22	66	92	130	204
16000/14400	24	71	96	142	219
15000/13500	26	75	101	154	234
14000/12600	28	79	105	166	249
13000/11700	31	84	110	178	265
12000/10800	35	88	114	201	280
11000/9900	38	94	119	226	319
10000/9000	42	101	134	251	355
7500/6750	58	117	188	347	471
5000/4500	90	188	294	543	610

Note: Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

EATON 9355 (20-30 KVA) SERVICE PLANS

Description	Service Part Number for UPS	Additional Information	List Price Per Year
Startup
Startup, After Hours (7x24)	W2SU05NXXX-0030		1,689
Startup, Business Hours (5x8)	W2SU06NXXX-0030		1,425
First-year Service Plans
PowerTrust Value Service Plan	W1PVN3NEXX-0030		1,362
PowerTrust Service Plan 8 Hr	W1PT82NEDX-0030		1,806
UPS Preventive Maintenance, Business Hours (5x8)	W10006NXXX-0030		581
Sealed Battery Preventive Maintenance, Any Time	W10005NINT	Internal batteries	473
Sealed Battery Preventive Maintenance, Any Time	W10005NS036	Per EBC 36	373
Sealed Battery Preventive Maintenance, Any Time	W10005NS072	Per EBC 72	671
Second-year+ Service Plans
PowerTrust Value Service Plan	W2PVN3NEXX-0030		2,723
PowerTrust Service Plan 8 Hr	W2PT82NEDX-0030		3,612
UPS Preventive Maintenance, Business Hours (5x8)	W20006NXXX-0030		1,161
Sealed Battery Preventive Maintenance, Any Time	W20005NINT	Internal batteries	945
Sealed Battery Preventive Maintenance, Any Time	W20005NS036	Per EBC 36	745
Sealed Battery Preventive Maintenance, Any Time	W20005NS072	Per EBC 72	1,341

Additional services and descriptions may be found starting on page 153.

EATON EMERGENCY LIGHTING UPS

Eaton's Emergency Lighting product line offers a UPS system and line and match battery cabinets to achieve the minimum UL 924 required 90 minutes of runtime. The Eaton Emergency Lighting UPS line combines the industry's highest capacity and smallest footprint, making it the most cost-effective solution to comply with Emergency Lighting.

All solutions are fully tested to comply with UL 924.

• 90 minutes of runtime
- Allows for a manually operated and protected test switch
• 10-30 kVA
• 208, 277 and 480V options

SINGLE-PHASE EMERGENCY LIGHTING

Three black server cabinets with ventilation grilles, no visible text or labels

System Dimensions		Individual System
Description	Part Number	Individual Description	Quantity Required	Rating (kVA/kW)	Input/Output Voltage	Runtime (min)	(H x W x D, inches)	Weight (lb)	List Price	List Price
	K41013000000000	9155 10 kVA UPS	1						14,858
Eaton Emergency Lighting	BH-08KEL277-100	UPS Upgrade	1	10/7.2	277/277	134	47.8 x 36.0 x 33.7	1,978	2,583	35,299
Single-phase 7 kW 277V	103004193-5501	9155 Battery Cabinet	2						8,047
UPS System	BH-EBM96EL-600	Battery Upgrade	2						882
	K41513000000000	9155 15 kVA UPS	1						17,262
Eaton Emergency Lighting	BH-10KEL277-100	UPS Upgrade	1	15/9	277/277	120	47.8 x 36.0 x 33.7	1,978	2,971	38,091
Single-phase 9 kW 277V	103004193-5501	9155 Battery Cabinet	2						8,047
UPS System	BH-EBM96EL-600	Battery Upgrade	2						882

THREE-PHASE EMERGENCY LIGHTING

System Dimensions		Individual System
Description	Part Number	Individual Description	Quantity Required	Rating (kVA/kW)	Input/Output Voltage	Runtime (min)	(H x W x D, inches)	Weight (lb)	List Price	List Price
	KA1012100000010	9355 10 kVA UPS	1						16,539
Eaton Emergency Lighting	BH-10KEL2083P-100	UPS Upgrade	1	10/8.5	208/208	124	47.8 x 36.0 x 33.7	2,029	3,307	37,704
Three-phase 8.5 kW 208V	103004193-5501	9355 Battery Cabinet	2						8,047
UPS System	BH-EBM96EL-600	Battery Upgrade	2						882
	KA1512100000010	9355 15 kVA UPS	1						18,457
Eaton Emergency Lighting	BH-15KEL2083P-100	UPS Upgrade	1	15/13.1	208/208	113	47.8 x 36.0 x 33.7	2,739	3,691	48,935
Three-phase 13 kW 208V	103004193-5501	9355 Battery Cabinet	3						8,047
UPS System	BH-EBM96EL-600	Battery Upgrade	3						882
	KB2013100000010	9355 20 kVA UPS	1						21,826
Eaton Emergency Lighting	BH-20KEL2083P-100	UPS Upgrade	1	20/18	208/208	114	66.0 x 60.0 x 34.1	5,280	4,365	54,493
Three-phase 18 kW 208V	103004868	9355 Battery Cabinet	2						12,754
UPS System	BH-EBC72EL-600	Battery Upgrade	2						1,397
	KB3013100000010	9355 30 kVA UPS	1						23,598
Eaton Emergency Lighting	BH-30KEL208SF-100	UPS Upgrade	1	30/24	208/208	108	66.0 x 60.0 x 34.1	5,280	4,719	56,619
Three-phase 24 kW 208V	103004868	9355 Battery Cabinet	2						12,754
UPS System	BH-EBC72EL-600	Battery Upgrade	2						1,397
	KB3013100000010	9355 20 kVA UPS	1						23,598
Eaton Emergency Lighting	BH-30KEL2083P-100	UPS Upgrade	1	30/27	208/208	90	66.0 x 80.0 x 34.1	7,340	4,719	70,770
Three-phase 27 kW 208V	103004868	9355 Battery Cabinet	3						12,754
UPS System	BH-EBC72EL-600	Battery Upgrade	3						1,397
	KB2013100000010	9355 20 kVA UPS	1						21,826
	BH-20KEL2083P-100	UPS Upgrade	1						4,365
Eaton Emergency Lighting	103004868	9355 Battery Cabinet	2	20/18	480/277	114	66.0 x 80.0 x 34.1	6,072	12,754	67,347
Three-phase 18 kW 480V	BH-EBC72EL-600	Battery Upgrade	2						1,397
UPS System	KBT004200000010	9355 Options Cabinet	1						10,712
	BH-KBT004-200	Options Upgrade	1						2,142
	KB3013100000010	9355 30 kVA UPS	1						23,598
	BH-30KEL208SF-100	UPS Upgrade	1						4,719
Eaton Emergency Lighting	103004868	9355 Battery Cabinet	2	30/24	480/277	108	66.0 x 80.0 x 34.1	6,072	12,754	69,473
Three-phase 24 kW 480V	BH-EBC72EL-600	Battery Upgrade	2						1,397
UPS System	KBT004200000010	9355 Options Cabinet	1						10,712
	BH-KBT004-200	Options Upgrade	1	30/27	480/277	90	66.0 x 100.0 x 34.1	8,132	23,598
	KB3013100000010	9355 30 kVA UPS	1						4,719
	BH-30KEL2083P-100	UPS Upgrade	1						12,754	83,624
Eaton Emergency Lighting	103004868	9355 Battery Cabinet	3	30/27	480/277	90	66.0 x 100.0 x 34.1	8,132	12,754
Three-phase 27 kW 480V	BH-EBC72EL-600	Battery Upgrade	3						1,397
UPS System	KBT004200000010	9355 Options Cabinet	1						10,712
	BH-KBT004-200	Options Upgrade	1						2,142

EATON 9E UPS & ACCESSORIES

The Eaton 9E UPS delivers three key benefits that drive a lower total cost of ownership (TCO): internal batteries, compact footprint and energy-efficiency.

Energy-efficient

• Delivers up to 98% efficiency
- Up to 7% more efficient than competitive units
• Helps you qualify for local utility rebates and incentives

Internal batteries

• Deliver up to 21 minutes of runtime
• Pre-wired for easy installation

Compact footprint

• Up to 35% smaller than similarly specified competitive solutions
• Allows dedication of more floor space to revenue-producing equipment

Front view of a black industrial cabinet with a digital display on top (no visible text or symbols)

20-30 kVA

Front view of a black server rack unit with a digital display and logo (no visible text or symbols)

40-60 kVA

9E (20-30 KVA) MODELS WITH INTERNAL RUNTIME

Input/Output Internal Dimensions Weight List
Description Part Number	Voltage	Runtime (min)	(H x W x D, inches)	(lb)	Price
20 kVA (16 kW)
20 kVA UPS Single Feed with Internal Batteries	9EA02AA61001000	208/208	21	53.5 x 20.9 x 31.5	1049	21,826
20 kVA UPS Single Feed with Internal Batteries and Internal Maintenance Bypass System	9EA02AA61101000	208/208	21	53.5 x 20.9 x 31.5	1049	23,376
30 kVA (24 kW)
30 kVA UPS Single Feed with Internal Batteries	9EA03AA61001000	208/208	12	53.5 x 20.9 x 31.5	1049	23,598
30 kVA UPS Single Feed with Internal Batteries and Internal Maintenance Bypass System	9EA03AA61101000	208/208	12	53.5 x 20.9 x 31.5	1049	25,148

9E (20-30 KVA) MODELS FOR EXTERNAL RUNTIME

Input/Output Dimensions Weight List
Description Part Number		Voltage	(H x W x D, inches)	(lb)	Price
20 kVA (16 kW)
20 kVA UPS Single Feed for External Batteries	9EA02AA60001000	208/208	53.5 x 20.9 x 31.5	434	16,398
20 kVA UPS Single Feed for External Batteries and Internal Maintenance Bypass System	9EA02AA60101000	208/208	53.5 x 20.9 x 31.5	434	17,948
30 kVA (24 kW)
30 kVA UPS Single Feed for External Batteries	9EA03AA60001000	208/208	53.5 x 20.9 x 31.5	434	18,170
30 kVA UPS Single Feed for External Batteries and Internal Maintenance Bypass System	9EA03AA60101000	208/208	53.5 x 20.9 x 31.5	434	19,720

* 50/60 Hz auto-sensing. For 220/220 V Input/Output Voltage change CTO digit #6-7 to BB

* For Dual Feed change Part Number digit #12 to 2 and apply \$100 adder per UPS to the list price.

9E (20-30 KVA) EXTENDED BATTERY CABINET

Number of Description	Number of Dimensions Weight List
		Part Number	Batteries	Strings	(H x W x D, inches)	(lb)
20 & 30 kVA Extended Battery Cabinet**		9EZAAC00000000	54	3	53.5 x 20.9 x 31.5	1585

** Maximum of 2 Extended Battery Cabinets can be bought for a system. See runtime chart.

9E (20-30 KVA) INTEGRATED ACCESSORY CABINET - DISTRIBUTION

Dimensions Weight List
Description	Part Number	(H x W x D, inches)	(lb)	Price
20 & 30 kVA IAC - With 42-pole Distribution Panelboard and No Subfeed Breakers	9EZDA0000000000	53.5 x 20.9 x 31.5	238	$9,516
Subfeed Breaker Options

Select Part Number digits #6, 7, and 8 from the following list for up to 3 Subfeed Breakers

Description	Subfeed Part Number	Price Adder per Subfeed Breaker
125A Breaker	A	643
60A Breaker	B	623
40A Breaker	C	334
No Subfeed Breaker	O	0

EATON 9E UPS & ACCESSORIES

(continued)

9E (20-30 KVA) INTEGRATED ACCESSORY CABINET - MAINTENANCE BYPASS

Dimensions Weight List
Description Part Number	(H x W x D, inches) (lb) Price
20 & 30 kVA IAC - Maintenance Bypass for Single Feed Units	9EZBA1000000000	53.5 x 20.9 x 31.5	237	7,950
20 & 30 kVA IAC - Maintenance Bypass for Dual Feed Units	9EZBA2000000000	53.5 x 20.9 x 31.5	237	8,383

9E (20-30 KVA) INTEGRATED ACCESSORY CABINET - TIE

Dimensions Weight List
Description Part Number	(H x W x D, inches) (lb) Price
20 & 30 kVA IAC - Tie for 1+1 Redundant with Maintenance Bypass	9EZCA0100000000	53.5 x 20.9 x 31.5	326	10,998
20 & 30 kVA IAC - Tie for 2+0 Capacity with Maintenance Bypass	9EZCA0200000000	53.5 x 20.9 x 31.5	326	12,124

9E (20-30 KVA) INTEGRATED ACCESSORY CABINET - TRANSFORMER

Input/Output Dimensions Weight List
Description	Part Number	Voltage	(H x W x D, inches)	(lb)	Price
20 & 30 kVA IAC - Single Transformer	9EZFAA000000000	480/208	53.5 x 20.9 x 31.5	496	8,255
20 & 30 kVA IAC - Dual Transformers	9EZFAB000000000	480/480	53.5 x 20.9 x 31.5	834	12,383

9E (20-30 KVA) WALL MOUNT MAINTENANCE BYPASS PANELS

Dimensions Weight List
Description Part Number	(H x W x D, inches) (lb) Price
Up to 30 kVA Wall Mount Maintenance Bypass Panel	M1BAAX0X1XXXXXX	57.0 x 24.0 x 11.3	400	S5,431
Up to 30 kVA Wall Mount Maintenance Bypass Panel with 36 Pole Distribution	M9EZGA110000000	90.0 x 24.0 x 11.3	400	S5,886
Up to 90 kVA Wall Mount Maintenance Bypass Panel	M1BIOX0X1XXXXXX	57.0 x 24.0 x 11.3	350	S8,026
Up to 90 kVA Wall Mount Maintenance Bypass Panel with 36 Pole Distribution	M9EZGA310000000	90.0 x 24.0 x 11.3	350	S9,024

9E (40-60 KVA) MODELS WITH INTERNAL RUNTIME

Input/Output Internal Dimensions Weight List
Description Part Number	* Voltage	Runtime (min)	(H x W x D, inches) (lb) Price
40 kVA (32 kW)
40 kVA UPS Single Feed with Internal Batteries	9EB04AA61001000	208/208	10	74.0 x 23.6 x 31.5	1499	38,540
40 kVA UPS Single Feed with Internal Batteries and Internal Maintenance Bypass System	9EB04AA61101000	208/208	10	74.0 x 23.6 x 31.5	1499	41,540
60 kVA (48 kW)
60 kVA UPS Single Feed with Internal Batteries	9EB06AA61001000	208/208	5	74.0 x 23.6 x 31.5	1499	43,027
60 kVA UPS Single Feed with Internal Batteries and Internal Maintenance Bypass System	9EB06AA61101000	208/208	5	74.0 x 23.6 x 31.5	1499	46,027

9E (40-60 KVA) MODELS FOR EXTERNAL RUNTIME

Input/Output Dimensions Weight List
Description Part Number	* Voltage		(H x W x D, inches) (lb) Price
40 kVA (32 kW)
40 kVA UPS Single Feed for External Batteries	9EB04AA60001000	208/208	74.0 x 23.6 x 31.5	705	26,504
40 kVA UPS Single Feed for External Batteries and Internal Maintenance Bypass System	9EB04AA60101000	208/208	74.0 x 23.6 x 31.5	705	29,504
60 kVA (48 kW)
60 kVA UPS Single Feed for External Batteries	9EB06AA60001000	208/208	74.0 x 23.6 x 31.5	705	33,991
60 kVA UPS Single Feed for External Batteries and Internal Maintenance Bypass System	9EB06AA60101000	208/208	74.0 x 23.6 x 31.5	705	36,504

* 50/60 Hz auto-sensing. For 220/220 V Input/Output Voltage change CTO digit #6-7 to BB
* For Dual Feed change Part Number digit #12 to 2 and apply \$100 adder per UPS to the list price.

9E (40-60 KVA) EXTENDED BATTERY CABINET

Number of Description	Number of Dimensions Weight List
	Part Number	Batteries	Strings	(H x W x D, inches)	(lb)	Price
40 & 60 kVA Extended Battery Cabinet**	9EZABB000000000	72	4	74.0 × 31.3 × 31.5	2713	20,296
40 & 60 kVA Extended Battery Cabinet**	9EZABC000000000	108	6	74.0 \times 31.3 \times 31.5	3117	26,874

** Maximum of 2 Extended Battery Cabinets can be bought for a system. See runtime chart.

EATON 9E UPS & ACCESSORIES

(continued)

9E (40-60 KVA) INTEGRATED ACCESSORY CABINET - DISTRIBUTION

Dimensions Weight List
Description Part Number (H x W x D, inches) (lb) Price
40 & 60 kVA IAC - With 42-pole Distribution Panelboard and No Subfeed Breakers	9EZDB0000000000		74.0 x 20.9 x 31.5	315	9,659
Subfeed Breaker Options
Select Part Number digits #6, 7, and 8 from the following list for up to 3 Subfeed Breakers
Description Subfeed Part Number	Price Adder per Subfeed Breaker
250A Breaker	A		853
125A Breaker	B		833
80A Breaker	C		409
No Subfeed Breaker	0	$0

9E (40-60 KVA) INTEGRATED ACCESSORY CABINET - MAINTENANCE BYPASS

Dimensions Weight List
Description Part Number (H x W x D, inches) (lb) Price
40 & 60 kVA IAC - Maintenance Bypass for Single Feed Units	9EZBB1000000000	74.0 x 20.9 x 31.5	334	11,067
40 & 60 kVA IAC - Maintenance Bypass for Dual Feed Units	9EZBB2000000000	74.0 x 20.9 x 31.5	334	11,696

9E (40-60 KVA) INTEGRATED ACCESSORY CABINET - TIE

Dimensions Weight List
Description Part Number (H x W x D, inches) (lb) Price
40 & 60 kVA IAC - Tie for 1+1 Redundant with Maintenance Bypass	9EZCB0100000000	74.0 x 20.9 x 31.5	456	14,634
40 & 60 kVA IAC - Tie for 2+0 Capacity with Maintenance Bypass	9EZCB0200000000	74.0 x 20.9 x 31.5	456	16,060

9E (40-60 KVA) INTEGRATED ACCESSORY CABINET - TRANSFORMER

Input/Output Dimensions Weight List
Description Part Number Voltage	(H x W x D, inches) (lb) Price
40 & 60 kVA IAC - Single Transformer	9EZFBA000000000	480/208	74.0 x 31.3 x 31.5	918	12,570
40 & 60 kVA IAC - Dual Transformers	9EZFBB000000000	480/480	74.0 x 31.3 x 31.5	1446	16,668

9E (40-60 KVA) WALL MOUNT MAINTENANCE BYPASS PANELS

Dimensions Weight List
Description Part Number (H x W x D, inches) (lb) Price
Up to 60 kVA Wall Mount Maintenance Bypass Panel	M1BFFX0X1XXXXXX	57.0 x 24.0 x 11.3	700	8,179
Up to 60 kVA Wall Mount Maintenance Bypass Panel with 36 Pole Distribution	M9EZGB11000000	90.0 x 24.0 x 11.3	700	9,177
Up to 180 kVA Wall Mount Maintenance Bypass Panel	M1BN0X0X1XXXXXX	73.5 x 36.0 x 11.3	350	15,434
Up to 180 kVA Wall Mount Maintenance Bypass Panel with 36 Pole Distribution	M9EZGB31000000	90.0 x 36.0 x 11.3	350	16,433

9E BATTERY BACKUP TIMES (in minutes)*

Model	100% Load
20 kVA	21
30 kVA	12
40 kVA	10
60 kVA	5

9E EBC RUNTIMES

	20 kVA	30 kVA	40 kVA		60 kVA
1 EBC	42 minutes	26 minutes	26 minutes - 4 String	43 minutes - 6 String	14 minutes - 4 String	26 minutes - 6 String
2 EBC	102 minutes	62 minutes	62 minutes - 8 String	104 minutes - 12 String	37 minutes - 8 String	62 minutes - 12 String

* Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

EATON 9E UPS & ACCESSORIES

(continued)

EATON 9E (30 kVA) SERVICES

Description Service Part Number Additional List Pricefor UPS Information Per Year
Startup
Startup, Business Hours (5x8)	SU06NXXX-0030	Startup, commissioning and user training	1,425
Startup, After Hours (7x24)	SU05NXXX-0030	Startup, commissioning and user training	1,689
Preventive Maintenance Service
UPS Preventive Maintenance, After Hours (7x24)	0005NXXX-0030	Preventive Maintenance, testing, firmware updates	1,320
Sealed Battery Preventive Maintenance, Any Time - 3 Strings (54 jars)	0005NSXX-0054	Preventive Maintenance, testing, inspection report	1,006
Sealed Battery Preventive Maintenance, Any Time - 6 Strings (108 jars)	0005NSXX-0108	Preventive Maintenance, testing, inspection report	$1,677

Concurrent Service Plans

Warranty Extension 3YR (5x8, NBD)internal battery business hours, next business day response			2,880
Warranty Extension 3YR (7x24, 8HR)internal battery anytime hours, 8 hour response	WE87CXXX-0030	Parts, labor and travel (100 miles) for electronics and	4,261
Warranty Extension 3YR (7x24, 4HR)internal battery anytime hours, 4 hour response	WE47CXXX-0030	Parts, labor and travel (100 miles) for electronics and1	5,389
Warranty Upgrade 3YR (7x24, 8HR)annual 5x8 UPS PM's (year 2 and 3), eNotify monitoring	WU82CEXX-0030	Parts, labor and travel (100 miles) for electronics andinternal battery anytime hours, 8 hour response, 7x24 Startup,	8,887
Warranty Upgrade 3YR (7x24, 4HR)internal battery anytime hours, 4 hour responseannual 5x8 UPS PM's (year 2 and 3), eNotify monitoring	WU42CEXX-0030	Parts, labor and travel (100 miles) for electronics and1, 7x24 Startup,	9,928
External Battery Warranty Extension -3 Strings (54 jars)	BL07CBXX-0054	Parts, labor and travel (100 miles) for external batterycabinets (coverage response matches warranty or 5x8 NBD)	963
External Battery Warranty Extension -6 Strings (108 jars)	BL07CBXX-0108	Parts, labor and travel (100 miles) for external batterycabinets (coverage response matches warranty or 5x8 NBD)	1,925
9E 20-60 "A" Spare Parts Kit	744-A1267-00P		call
9E 20-60 "B" Spare Parts Kit	744-A1268-00P		call
9E 20-60 "C" Spare Parts Kit	744-A1269-00P		call
9E 20-60 "D" Spare Parts Kit	744-A1270-00P		call
9E KVA Field Upgrade 20 to 30KVA	P-106000003		5,324

1. 4-hour response is available in the top 70 US markets; go to http://powerquality.eaton.com/products-services/Services/UPS-Services.asp to verify zip code response time availability; remote locations beyond 100 miles from a field tech travel charges will apply
   9E services above are designed to be sold with the 9E product transaction and are limited to the above items; additional services and descriptions may be found starting on page 153.

EATON 9E (60 kVA) SERVICES

Description Service Part Number Additional List Pricefor UPS Information Per Year
Startup
Startup, Business Hours (5x8)	SU06NXXX-0080	Startup, commissioning and user training	1,785
Startup, After Hours (7x24)	SU05NXXX-0080	Startup, commissioning and user training	2,349
Preventive Maintenance Service
UPS Preventive Maintenance, After Hours (7x24)	0005NXXX-0080	Preventive Maintenance, testing, firmware updates	1,584
Sealed Battery Preventive Maintenance, Any Time - 4 Strings (72 jars)	0005NSXX-0072	Preventive Maintenance, testing, inspection report	1,341
Sealed Battery Preventive Maintenance, Any Time - 6 Strings (108 jars)	0005NSXX-0108	Preventive Maintenance, testing, inspection report	1,677
Sealed Battery Preventive Maintenance, Any Time - 8 Strings (144 jars)	0005NSXX-0144	Preventive Maintenance, testing, inspection report	1,938
Sealed Battery Preventive Maintenance, Any Time - 12 Strings (216 jars)	0005NSXX-0216	Preventive Maintenance, testing, inspection report	$2,906

EATON 9E UPS & ACCESSORIES

(continued)

EATON 9E (60 kVA) SERVICES (continued)

Description Service Part Number Additional List Pricefor UPS Information Per Year
Concurrent Service Plans
Warranty Extension 3YR (5x8, NBD) WEN8CXXX-0080 Parts, labor and travel (100 miles) for electronics and 4,062internal battery business hours, next business day response
Warranty Extension 3YR (7x24, 8HR)	WE87CXXX-0080	Parts, labor and travel (100 miles) for electronics and	5,683
internal battery anytime hours, 8 hour response
Warranty Extension 3YR (7x24, 4HR)	WE47CXXX-0080	Parts, labor and travel (100 miles) for electronics and1	7,510
internal battery anytime hours, 4 hour response
Warranty Upgrade 3YR (7x24, 8HR)	WU82CEXX-0080	Parts, labor and travel (100 miles) for electronics andinternal battery anytime hours, 8 hour response, 7x24 Startup,annual 5x8 UPS PM's (year 2 and 3), eNotify monitoring	12,882
Warranty Upgrade 3YR (7x24, 4HR)	WU42CEXX-0080	Parts, labor and travel (100 miles) for electronics and1, 7x24 Startup,annual 5x8 UPS PM's (year 2 and 3), eNotify monitoring	14,708
External Battery Warranty Extension -4 Strings (72 jars)	BL07CBXX-0072	Parts, labor and travel (100 miles) for external batterycabinets (coverage response matches warranty or 5x8 NBD)	1,284
External Battery Warranty Extension -6 Strings (108 jars)	BL07CBXX-0108	Parts, labor and travel (100 miles) for external batterycabinets (coverage response matches warranty or 5x8 NBD)	1,925
External Battery Warranty Extension -8 Strings (144 jars)	BL07CBXX-0144	Parts, labor and travel (100 miles) for external batterycabinets (coverage response matches warranty or 5x8 NBD)	2,567
External Battery Warranty Extension -12 Strings (216 jars)	BL07CBXX-0216	Parts, labor and travel (100 miles) for external batterycabinets (coverage response matches warranty or 5x8 NBD)	3,851
9E 20-60 "A" Spare Parts Kit	744-A1267-00P		call
9E 20-60 "B" Spare Parts Kit	744-A1268-00P		call
9E 20-60 "C" Spare Parts Kit	744-A1269-00P		call
9E 20-60 "D" Spare Parts Kit	744-A1270-00P		call
9E KVA Field Upgrade 40 to 60KVA	P-106000004		6,534

1. 4-hour response is available in the top 70 US markets; go to http://powerquality.eaton.com/products-services/Services/UPS-Services.asp to verify zip code response time availability; remote locations beyond 100 miles from a field tech travel charges will apply
   9E services above are designed to be sold with the 9E product transaction and are limited to the above items; additional services and descriptions may be found starting on page 153.

EATON 9390IT UPS

Powerware series

Double-conversion

• All-in-one, space efficient, completely integrated system with internal batteries (40 kVA) and distribution delivers optimal end-of-row data center solution
• Industry leading power density, providing up to 23 percent more power capacity in a compact all-in-one tower with internal batteries
• Industry's smallest footprint at 40 kVA, providing up to a 61 percent footprint reduction
• Scalable 40 kVA modular building block, allowing for cost-effective expansion to 80 kVA with an on-board tie cabinet and 160 kVA with a four-module tie cabinet
• Up to 40 percent more STANDARD runtime, eliminating the need for external battery cabinets
• On-board pre-wired maintenance bypass and integrated distribution cabinets provide greater redundancy and reduce installation and maintenance costs
• Reduced footprint extended run modules for longer runtime applications
  • Inherently 208 or 480 Vac-capable with no transformers
• Patented Powerware Hot Sync ^® paralleling technology enables paralleling of up to four 9390 UPSs for additional capacity or redundancy

- Power management software suite includes applications for remote UPS monitoring, management and shutdown to help insure system and data integrity

• Includes Eaton Saver System, ESS

- Factory startup (5x8) included standard on all models; one-year parts warranty, 90-day labor warranty from startup date; two-year battery warranty on internal batteries

- 9390IT with distribution from 40-160 kVA (standalone units only)

Exterior view of a black industrial server unit with ventilation grilles and a blue indicator light (no visible text or symbols)

9390IT (40 kVA) BASE MODELS

Rating Input/Output Base Run- Dimensions Weight List
Part Number	Description	(kVA/kW)	Voltage	time (min)	(H x W x D, inches)	(lb)	Price
TA04A1001150010	9390IT 40 kVA UPS with internal batteries	40 kVA/36 kW	208/208	8	73.7 x 27.9 x 31.0	1,445	38,540
TA04A2001150010	9390IT 40 kVA UPS with internal batteries	40 kVA/36 kW	480/480	8	73.7 x 27.9 x 31.0	1,445	35,550
TA04A1001180010(no internal batteries)	9390IT 40 kVA extended-run UPS module	40 kVA/36 kW	208/208	0	73.7 x 18.9 x 31.6	590	35,152
TA04A2001180010(no internal batteries)	9390IT 40 kVA extended-run UPS module	40 kVA/36 kW	480/480	0	73.7 x 18.9 x 31.6	540	33,280
TA04A1001153010integrated three-breaker maintenance bypasssidecar (175A BIB, MBP, & MIS breakers)	9390IT 40 kVA UPS with internal batteries and	40 kVA/36 kW	208/208	8	73.7 x 35.9 x 31.0	1,595	43,090
TA04A2001153010integrated three-breaker maintenance bypasssidecar (70A BIB, MBP, & MIS breakers)	9390IT 40 kVA UPS with internal batteries and	40 kVA/36 kW	480/480	8	73.7 x 35.9 x 31.0	1,595	40,100
TA04A1001183010integrated three-breaker maintenance bypasssidecar (175A BIB, MBP, & MIS breakers)	9390IT 40 kVA extended-run UPS module and	40 kVA/36 kW	208/208	0	73.7 x 26.9 x 31.6	740	39,702
TA04A2001183010integrated three-breaker maintenance bypasssidecar (70A BIB, MBP, & MIS breakers)	9390IT 40 kVA extended-run UPS module and	40 kVA/36 kW	480/480	0	73.7 x 26.9 x 31.6	690	37,830
TA04A1001159010two-system parallel tie sidecar (with output system load breaker)	9390IT 40 kVA UPS with internal batteries and	40 kVA/36 kW	208/208	8	73.7 x 35.9 x 31.0	1,595	43,090
TA04A2001159010two-system parallel tie sidecar (with output system load breaker)	9390IT 40 kVA UPS with internal batteries and	40 kVA/36 kW	480/480	8	73.7 x 35.9 x 31.0	1,595	40,100
TA04A1001189010two-system parallel tie sidecar (with output system load breaker and no internal batteries)	9390IT 40 kVA with internal batteries and	40 kVA/36 kW	208/208	0	73.7 x 26.9 x 31.6	740	39,702
TA04A2001189010two-system parallel tie sidecar (with output system load breaker and no internal batteries)	9390IT 40 kVA with internal batteries and	40 kVA/36 kW	480/480	0	73.7 x 26.9 x 31.6	690	37,830

Order Notes
1. To order a parallel system, change digit 5 to a B and digit 7 or 8 (Can-Bridge Card) must also be 2. 2. On-board maintenance bypass side-car systems have 65 kAIC breakers @ 208 Vac and 35 kAIC breaks @ 480 Vac. 3. For Load-sync Control, digit 15 must be a 2 and requires one wall-mounted control box for two systems—see miscellaneous parts. 4. For runtimes exceeding 8 minutes, an extended Run-UPS BASE Module and battery cabinet is required

EATON 9390IT UPS

Powerware series (continued)

9390IT WITH DISTRIBUTION

Rating Input/Output Base Run- Dimensions Weight List
Part Number	Description (kVA/kW) Voltage time (min) (H x W x D, inches) (lb) Price
TA04A100115K010	9390IT 40 kVA UPS with internal batteries and integrated IT distribution. Includes 12 / L6-30 receptacles with three breaker maintenance bypass (BIB, MBP, & MIS breakers)	40 kVA/36 kW	208/208	8	73.7 x 34.9 x 31.0	1,590	48,722
TA04A100115P010	9390IT 40 kVA UPS with internal batteries and integrated IT distribution. Includes 6 / L21-30 receptacles with three breaker maintenance bypass (BIB, MBP, & MIS breakers)	40 kVA/36 kW	208/208	8	73.7 x 34.9 x 31.0	1,590	46,599
TA04A100115R010	9390IT 40 kVA UPS with internal batteries and integrated IT distribution. Includes 4 / IEC309-60 receptacles with three breaker maintenance bypass (BIB, MBP, & MIS breakers)	40 kVA/36 kW	208/208	8	73.7 x 34.9 x 31.0	1,590	49,604
TA04A100118K010	9390IT 40 kVA extended-run UPS module with integrated IT distribution. Includes 12 / L6-30 receptacles with three breaker maintenance bypass (BIB, MBP, & MIS breakers)	40 kVA/36 kW	208/208	-	73.7 x 26.9 x 31.0	735	37,123
TA04A100118R010	9390IT 40 kVA extended-run UPS module with integrated IT distribution. Includes 6 / L21-30 receptacles with three breaker maintenance bypass (BIB, MBP, & MIS breakers)	40 kVA/36 kW	208/208	-	73.7 x 26.9 x 31.0	735	35,000
TA04A100118R010	9390IT 40 kVA extended-run UPS module with integrated IT distribution. Includes 4 / IEC309-60 receptacles with three breaker maintenance bypass (BIB, MBP, & MIS breakers)	40 kVA/36 kW	208/208	-	73.7 x 26.9 x 31.0	735	38,004
TE04A400118P010	9390IT 40 kVA extended-run UPS module with integrated IT distribution. Includes 4 / L22-30 receptacles with three breaker maintenance bypass (BIB, MBP, & MIS breakers)	40 kVA/36 kW	400/400	-	73.7 x 26.9 x 31.0	735	47,780
TE04A400118R010	9390IT 40 kVA extended-run UPS module with integrated IT distribution. Includes 2 / IEC309-60 receptacles with three breaker maintenance bypass (BIB, MBP, & MIS breakers)	40 kVA/36 kW	400/400	-	73.7 x 26.9 x 31.0	735	48,273
TB08A100118P010	9390IT 80 kVA extended-run UPS module with integrated IT distribution. Includes 12 / L21-30 receptacles with three breaker maintenance bypass (BIB, MBP, & MIS breakers)	80 kVA/72 kW	208/208	-	73.7 x 26.9 x 31.0	790	60,570
TB08A100118R010	9390IT 80 kVA extended-run UPS module with integrated IT distribution. Includes 6 / IEC309-60 receptacles with three breaker maintenance bypass (BIB, MBP, & MIS breakers)	80 kVA/72 kW	208/208	-	73.7 x 26.9 x 31.0	790	64,238
TF08A400118P010	9390IT 80 kVA extended-run UPS module with integrated IT distribution. Includes 6 / L22-30 receptacles with three breaker maintenance bypass (BIB, MBP, & MIS breakers)	80 kVA/72 kW	400/400	-	73.7 x 26.9 x 31.0	785	62,917
TF08A400118R010	9390IT 80 kVA extended-run UPS module with integrated IT distribution. Includes 4 / IEC309-60 receptacles with three breaker maintenance bypass (BIB, MBP, & MIS breakers)	80 kVA/72 kW	400/400	-	73.7 x 26.9 x 31.0	785	64,881
TG12A400118P010	9390IT 120 kVA extended-run UPS module with integrated IT distribution. Includes 9 / L22-30 receptacles with three breaker maintenance bypass (BIB, MBP, & MIS breakers)	120 kVA/108 kW	400/400	-	73.7 x 43.9 x 31.0	1,110	70,658
TH16A400118R010	9390IT 160 kVA extended-run UPS module with integrated IT distribution. Includes 6 / IEC209-60 receptacles with three breaker maintenance bypass (BIB, MBP, & MIS breakers)	160 kVA/144 kW	400/400	-	73.7 x 43.9 x 31.0	1,200	76,174

EATON 9390IT UPS

Powerware series (continued)

CONNECTIVITY OPTIONS

Description CTO Part Number List Price
HotSync CAN Bridge Card (required to obtain RS485 Port for RMP II/RIM II/SCM II) 103004336 530
Power Xpert Gateway UPS Card PXGXUPS450
ConnectUPS-X WEB/SNMP 39J4824 335
ModBus Communication Card 103002510-5501629
Standard Relay Card (<60 Vac rated, IBM AS/400 ) 1018460 146
Industrial Relay and Display Drive Card X-Slot (5A @ 250 Vac) 103003055		320
Modem Card (required for out-of-band monitoring)	05146288-5501	$530

9390IT OPTIONS (40 kVA)

		Input/Output	Dimensions	Weight	List
Part Number	Description	Voltage	(H x W x D, inches)	(lb)	Price
T04112000000001	IDC with MBS and main output breaker	208/208	73.7 x 35.8 x 31.6	350	6,521
T04112200000021	IDC with MBS, K-13 isolation transformer	208/208	73.7 x 35.8 x 31.6	1,350	9,431
T04152200000021	IDC with MBS, K-13 isolation transformer	480/208	73.7 x 35.8 x 31.6	1,350	9,691
T04112040000021	IDC with three-breaker MBS and 42-pole distribution panel	208/208	73.7 x 35.8 x 31.6	350	8,580
T04112044000021	IDC with three-breaker MBS and (2) 42-pole distribution panels	208/208	73.7 x 35.8 x 31.6	350	10,639
T04112041000021	IDC with three-breaker MBS, 42-pole distribution panel and (1) sub-feed breaker	208/208	73.7 x 35.8 x 31.6	350	9,484
TP0442111100010	Parallel tie maintenance bypass cabinet, (4) UPS modules 120 kVA N+1, 160 kVA capacity (150A MOBs, 600A MIS, 600A MBP)	208/208	73.5 x 36.0 x 11.5	600	11,544
TP0442211100010	Parallel tie maintenance bypass cabinet, (4) UPS modules 120 kVA N+1, 160 kVA capacity (70A MOBs, 250A MIS, 250A MBP)	480/480	57.0 x 24.0 x 11.5	600	5,408

9390IT EXTENDED BATTERY OPTIONS

Part Number	Description	Rating	Input/Output Voltage	Base Run-time (min)	Dimensions (H x W x D, inches)	Weight (lb)	List Price
TS0403E20111100	40 kVA Extended-run battery cabinet	240 Cell	480V Link	22	73.7 x 22.5 x 31.6	2,395	15,323
TL0403E33111100	40 kVA Extended-run battery cabinet	240 Cell	480V Link	42	73.7 x 42.7 x 31.6	3,580	21,292
TL0403B47111100	40 kVA Extended-run battery cabinet	240 Cell	480V Link	66	73.7 x 42.7 x 31.6	4,785	40,689
TS0803E20111100	80 kVA Extended-run battery cabinet	240 Cell	480V Link	7	73.7 x 22.5 x 31.6	2,405	15,699
TL0803E33111100	80 kVA Extended-run battery cabinet	240 Cell	480V Link	18	73.7 x 42.7 x 31.6	3,590	21,702
TL0803E50111100	80 kVA Extended-run battery cabinet	240 Cell	480V Link	29	73.7 x 42.7 x 31.6	4,835	26,662
TL1203E28111100	120 kVA Extended-run battery cabinet	240 Cell	480V Link	7	73.7 x 42.7 x 31.6	3,245	19,797
TL1203E28211100	120 kVA Extended-run battery cabinet	480 Cell	480V Link	20	73.7 x 85.4 x 31.6	6,490	39,118
TL1203E50211100	120 kVA Extended-run battery cabinet	480 Cell	480V Link	43	73.7 x 85.4 x 31.6	9,670	52,843
TL1603E39111100	160 kVA Extended-run battery cabinet	240 Cell	480V Link	8	73.7 x 42.7 x 31.6	3,920	23,418
TL1603E33211100	160 kVA Extended-run battery cabinet	480 Cell	480V Link	18	73.7 x 85.4 x 31.6	7,180	43,125
TL1603E50211100	160 kVA Extended-run battery cabinet	480 Cell	480V Link	29	73.7 x 85.4 x 31.6	9,670	53,043

Order Notes

1. All weights are installed weight, add 65 lb to determine shipping weight

2. Main breaker feeds input of isolation transformer

3. All IDC cabinets listed above include three-breaker UPS wrap-around maintenance bypass switch

4. 42-pole load centers are Cutler-Hammer series, type PRL1A; use type BAB or QBHW bolt-on breakers

5. 40 kVA IDC uses 175A C-H type "JG" breakers at 208V and 70A C-H type "EG" breakers at 480V

6. All breakers have adjustable trip settings; please refer to the Installation Manual for details

7. For seismic zone 4 construction change digit 10 to 1

8. Cabinets ordered remotely will include only one set of side panels and no interconnect (battery cabinet to UPS or battery cabinet to battery

NON-MATCHING MAINTENANCE BYPASS PANELS (40 kVA)

Part Number	Description	Rating (amps)	Input/Output Voltage	Dimensions (H x W x D, inches)	Weight (lb)	List Price
M90BEA1XXX	Maintenance bypass, 208/208V, three-breaker 10 kAIC (225A MIS/MBP/BIB)	225	208/208	73.0 x 24.0 x 11.5	400	4,503
M90BFA1XXX	Maintenance bypass, 208/208V, three-breaker 35 kAIC (175A MIS/MBP/BIB)	175	208/208	73.0 x 24.0 x 11.5	400	4,295

EATON 9390IT UPS

Powerware series (continued)

NON-MATCHING MAINTENANCE BYPASS PANELS (40 kVA)(continued)

Part Input/Output Dimensions Weight ListNumber Description Rating (amps) Voltage (H x W x D, inches) (lb) Price
M90BGA1XXX	Maintenance bypass, 208/208V, three-breaker65 kAIC (175A MIS/MBP/BIB)	175	208/208	73.0 x 24.0 x 11.5	400	4,711
M90BEE1XXX	Maintenance bypass, 480/480V, three-breaker10 kAIC (100A MIS/MBP/BIB)	100	480/480	73.0 x 24.0 x 11.5	400	3,359
M90BFE1XXX	Maintenance bypass, 480/480V, three-breaker35 kAIC (70A MIS/MBP/BIB)	70	480/480	73.0 x 24.0 x 11.5	400	4,087
M90BGE1XXX	Maintenance bypass, 480/480V, three-breaker65 kAIC (70A MIS/MBP/BIB)	70	480/480	73.0 x 24.0 x 11.5	400	4,503

MISCELLANEOUS PARTS

Part Number	Description	List Price
103006244	REPO switch, wall-mount ^1	426
103004223	Remote Monitor Panel "RMP II"^{2}	1,113
103004221	Relay Interface Module "RIM II" ^2	1,092
103004222	Supervisory Contact Module "SCM II"^{2}	1,206
103007974-5591	Power Xpert Gateway UPS Card	450
103004336	HotSync CAN Bridge Card, (used for paralleling units and/or RMP II/RIM II/SCM II interface)^{3}	530
103004179	9390 UPS/IDC seismic mounting kit ^4	718
103001040	9390 output sync control box, 208 Vac	11,336
103001041	9390 output sync control box, 480 Vac	7,072
103003876	UPS/ battery cabinet/ IDC side panel kit	738
152601664	Battery cabinet to battery cabinet interconnect cables (IBC-S cabinet)	73
152601526	Battery cabinet to battery cabinet interconnect cables (IBC-L cabinet)	73

Notes
1. UPS EPO is selectable as N/O or N/C. 2. Requires HotSync CAN Bridge Card to interface with these devices (only one CAN card required for up to four remote devices). Each UPM requires one card for paralleling. Same card can be used for communication to RS485 devices (RMP II, RIM II, SCM II). Remote devices (RMP II, RIM II, SCM II) require protected 120V AC source hardwired to the device. 3. HotSync CAN Bridge Card for parallel operation requires Eaton Service Engineer to configure. 4. 40–80 kVA IDC Seismic kit cannot be installed in the field. Must be factory installed. Order via CTO.

9390IT BATTERY BACKUP TIMES (in minutes)*

Load (VA/Watts)	UPS w/Internal Battery
40,000 / 36,000	8.3
36,000 / 32,400	9.9
32,000 / 28,800	11.7
28,000 / 25,200	14.5
24,000 / 21,600	17.2
20,000 / 18,000	21.8
16,000 / 14,400	30.1
12,000 / 10,800	42.7
8,000 / 7,200	60.0
4,000 / 3,600	86.5

* Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

9390IT SERVICE PLANS

Description	Service Part Number for UPS	Additional Information	List Price Per Year
Startup
Startup, After Hours (7x24)	W2SU05NXXX-0050	9390-IT	2,174
Startup, Business Hours (5x8)	W2SU06NXXX-0050	9390-IT	1,685
Startup, After Hours (7x24)	W2SU05NXXX-0080	9390-IT (80KVA)	2,349
Startup, Business Hours (5x8)	W2SU06NXXX-0080	9390-IT (80KVA)	1,785
Upgrade from 5x8 to 7x24 Startup (5x8 startup included with 9390IT UPS)	UPC05CXXX-0050	9390-IT	532
Startup, After Hours (7x24)	W2SU05NXXX-0160	9390-IT (120/160KVA)	2,988
Startup, Business Hours (5x8)	W2SU06NXXX-0160	9390-IT (120/160KVA)	$2,271

EATON 9390IT UPS

Powerware series (continued)

9390IT SERVICE PLANS

Description Service Part Number Additional List Pricefor UPS Information Per Year
First-year Service Plans
PowerTrust Value Service Plan W1PVN3NEXX-0050 9390-IT 1,659
PowerTrust Service Plan 8 Hr	W1PT82NEDX-0050	Assumes internal batteries only	2,213
PowerTrust Value Service Plan	W1PVN3NEXX-0080	9390-IT (80KVA)	2,003
PowerTrust Service Plan 8 Hr	W1PT82NEDX-0080	9390-IT (80KVA)	3,104
PowerTrust Value Service Plan	W1PVN3NEXX-0160	9390-IT (120/160KVA)	2,372
PowerTrust Service Plan 8 Hr	W1PT82NEDX-0160	9390-IT (120/160KVA)	3,712
PowerTrust External 40 jar Battery Portion	W1BT05NS040	Per 40-jar battery cabinet	414
UPS Preventive Maintenance, Business Hours (5x8)	W10006NXXX-0160	9390-IT (120/160KVA)	1,135
IDC Preventive Maintenance, Business Hours (5x8)	W10006NIDC-9390	9390-IT (all)	211
UPS Preventive Maintenance, Business Hours (5x8)	W10006NXXX-0050	9390-IT	633
UPS Preventive Maintenance, Business Hours (5x8)	W10006NXXX-0080	9390-IT (80KVA)	713
Sealed Battery Preventive Maintenance, Any Time	W10005NINT	Internal batteries	473
Sealed Battery Preventive Maintenance, Any Time	W10005NS040	Per 40 jar battery cabinet	$414

Second-year+ Service Plans

PowerTrust Value Service Plan W2PVN3NEXX-0050 9390-IT 3,318
PowerTrust Service Plan 8 Hr	W2PT82NEDX-0050	Assumes internal batteries only	4,426
PowerTrust Value Service Plan	W2PVN3NEXX-0080	9390-IT (80KVA)	4,004
PowerTrust Service Plan 8 Hr	W2PT82NEDX-0080	9390-IT (80KVA)	6,207
PowerTrust Value Service Plan	W2PVN3NEXX-0160	9390-IT (120/160KVA)	4,744
PowerTrust Service Plan 8 Hr	W2PT82NEDX-0160	9390-IT (120/160KVA)	7,422
PowerTrust External 40 jar Battery Portion	W2BT05NS040	Per 40-jar battery cabinet	828
UPS Preventive Maintenance, Business Hours (5x8)	W20006NXXX-0160	9390-IT (120/160KVA)	2,271
IDC Preventive Maintenance, Business Hours (5x8)	W20006NIDC-9390	9390-IT (all)	422
UPS Preventive Maintenance, Business Hours (5x8)	W20006NXXX-0050	9390-IT	1,267
UPS Preventive Maintenance, Business Hours (5x8)	W20006NXXX-0080	9390-IT (80KVA)	1,425
Sealed Battery Preventive Maintenance, Any Time	W20005NINT	Internal batteries	945
Sealed Battery Preventive Maintenance, Any Time	W20005NS040	Per 40 jar battery cabinet	$828

Additional services and descriptions may be found starting on page 153.

POWER-SUPPRESS 100 and POWER-SUPPRESS T7

Ultra-isolator Noise Suppressor and Isolation Provider

The Power-Suppress 100 offers the following advanced features:

• Traps unwanted harmonics
• Removes surge voltages and minimizes reflected THD
• Eliminates load generated feedback
  • Available in both hardwired or line cord/receptacle models
• Fast and easy installation
• Long life operation
• Small footprint—saves valuable space
• Meets FCC Category A
• UL 1012, cUL, UL 1449

The Power-Suppress T7 provides these features

• Traps unwanted harmonics
  • 20,000,000:1 (146 dB) common-mode reduction
  • Normal-mode noise reduction
• Transient suppression system with status indicators
• Exclusive shielding
• K-20 rated
  • Over-temperature protection
• Clean, noise-free power output
  • High efficiency
• Fast, easy installation
• UL and cUL listed requirements

POWER-SUPPRESS 100: 125 to 7500 VA

Style Input/Output Dimensions Weight List
Catalog Number	Number	Description	Voltage	(H x W x D, inches)	(lb)	Price
Line-cord/receptacle models
T100R-0500	T100R-0500	PWR SUPPRESS T100 RCPT 500 VA	120V IN, 120V OUT	6.5 x 6.1 x 12.0	22	764
T100R-0750	T100R-0750	PWR SUPPRESS T100 RCPT 750 VA	120V IN, 120V OUT	6.5 x 6.1 x 12.0	-	817
T100R-1000	T100R-1000	PWR SUPPRESS T100 RCPT 1000 VA	120V IN, 120V OUT	6.5 x 6.1 x 12.0	31	829
T100R-1800	T100R-1800	PWR SUPPRESS T100 RCPT 1800 VA	120V IN, 120V OUT	10.5 x 11.1 x 17.0	54	1,099
T100R-2400	T100R-2400	PWR SUPPRESS T100 RCPT 2400 VA	120V IN, 120V OUT	10.5 x 11.1 x 17.0	58	1,245
Terminal style models
T100H-0500	T100H-0500	PWR SUPPRESS T100 HW 500 VA	120/240V IN, 120/240V OUT	6.4 x 6.1 x 12.0	22	781
T100H-0750	T100H-0750	PWR SUPPRESS T100 HW 750 VA	120/240V IN, 120/240V OUT	6.4 x 6.1 x 12.0	28	824
T100H-1000	T100H-1000	PWR SUPPRESS T100 HW 1000 VA	120/240V IN, 120/240V OUT	6.4 x 6.1 x 12.0	31	839
T100H-1800	T100H-1800	PWR SUPPRESS T100 HW 1800 VA	120/240V IN, 120/240V OUT	10.3 x 11.1 x 17.0	54	985
T100H-2500	T100H-2500	PWR SUPPRESS T100 HW 2500 VA	120/240V IN, 120/240V OUT	10.3 x 11.1 x 17.0	58	1,217
T100H-5000	T100H-5000	PWR SUPPRESS T100 HW 5000 VA	120/240V IN, 120/240V OUT	10.3 x 11.1 x 17.0	86	1,773
T100H-5001*	T100H-5001	PWR SUPPRESS T100 HW V 5000 VA	240/480V IN, 120/240V OUT	10.3 x 11.1 x 17.0	-	2,144
T100H-7500	T100H-7500	PWR SUPPRESS T100 HW 7500 VA	120/240V IN, 120/240V OUT	10.3 x 11.1 x 17.0	116	2,151
T100H-7501*	T100H-7501	PWR SUPPRESS T100 HW 7500 VA	240/480V IN, 120/240V OUT	10.3 x 11.1 x 17.0	116	2,603

* Please note the higher input voltage on these models

POWER-SUPPRESS T7: 15 to 225 kVA

Catalog Number	StyleNumber	Description	Dimensions(H x W x D, inches)	Weight(lb)	ListPrice
T7H208-15K	97201-31	PWR SUPPRESS T7 208/208V 15 kVA	31 x 35 x 18	420	10,770
T7H208-30K	97203-31	PWR SUPPRESS T7 208/208V 30 kVA	31 x 35 x 18	490	11,000
T7H208-50K	97205-31	PWR SUPPRESS T7 208/208V 50 kVA	43 x 43 x 22	710	12,810
T7H208-75K	97207-31	PWR SUPPRESS T7 208/208V 75 kVA	43 x 43 x 22	950	15,150
T7H480-100K	97410-31	PWR SUPPRESS T7 480/208V 100 kVA	43 x 43 x 22	990	18,250
T7H480-125K	97412-31	PWR SUPPRESS T7 480/208V 125 kVA	43 x 43 x 22	1,140	21,100
T7H480-150K	97415-31	PWR SUPPRESS T7 480/208V 150 kVA	43 x 43 x 22	1,240	22,540
T7H480-15K	97401-31	PWR SUPPRESS T7 480/208V 15 kVA	35 x 31 x 18	420	12,110
T7H480-225K	97422-31	PWR SUPPRESS T7 480/208V 225 kVA	55 x 47 x 28	1,780	26,510
T7H480-30K	97403-31	PWR SUPPRESS T7 480/208V 30 kVA	35 x 31 x 18	490	11,720
T7H480-50K	97405-31	PWR SUPPRESS T7 480/208V 50 kVA	43 x 43 x 22	710	12,990
T7H480-75K	97407-31	PWR SUPPRESS T7 480/208V 75 kVA	43 x 43 x 22	810	16,160

POWER-SURE 700

The Power-Sure 700 provides intelligent protection for transmitters & industrial controls.

• Fast microprocessor controlled voltage regulation
• Tight output voltage regulation
• Zero-current switching
• Wide input regulation range
• Triple shielded, computer grade transformer
  • Highly efficient—97% typical
  • High inrush capability
  • Transient protection and high frequency filter
  • Over/under voltage protection (optional)
• Includes input circuit breaker
• Manual bypass switch (optional)

POWER-SURE 700 POWER CONDITIONERS: 208/208V

Style Dimensions Weight ListCatalog Number Number Description (H x W x D, inches) (lb) Price
TBL-010K-6	TBL-010K-6	PWRSURE 700 208/208V 10 kVA	30.0 x 21.5 x 29.0	440	14,359
TBL-015K-6	TBL-015K-6	PWRSURE 700 208/208V 15 kVA	30.0 x 21.5 x 29.0	520	15,539
TBL-025K-6	TBL-025K-6	PWRSURE 700 208/208V 25 kVA	44.0 x 21.5 x 29.0	700	22,408
TBL-030K-6	TBL-030K-6	PWRSURE 700 208/208V 30 kVA	44.0 x 21.5 x 29.0	720	19,404
TBL-045K-6	TBL-045K-6	PWRSURE 700 208/208V 45 kVA	44.0 x 45.0 x 29.0	950	24,187
TBL-050K-6	TBL-050K-6	PWRSURE 700 208/208V 50 kVA	44.0 x 45.0 x 29.0	970	29,636
TBL-075K-6	TBL-075K-6	PWRSURE 700 208/208V 75 kVA	44.0 x 45.0 x 29.0	1100	40,237
TBL-100K-6	TBL-100K-6	PWRSURE 700 208/208V 100 kVA	44.0 x 45.0 x 29.0	1660	45,226
TBL-125K-6	TBL-125K-6	PWRSURE 700 208/208V 125 kVA	44.0 x 45.0 x 29.0	1980	50,870
TBL-150K-6	TBL-150K-6	PWRSURE 700 208/208V 150 kVA	44.0 x 45.0 x 29.0	2200	60,535
TBL-225K-6	TBL-225K-6	PWRSURE 700 208/208V 225 kVA	77.0 x 56.0 x 41.5	3300	93,568
TBL-300K-6	TBL-300K-6	PWRSURE 700 208/208V 300 kVA	77.0 x 56.0 x 41.5	4000	111,488

POWER-SURE 700 POWER CONDITIONERS: 240/208V

Style Dimensions Weight ListCatalog Number Number Description (H x W x D, inches) (lb) Price
TCL-010K-6	TCL-010K-6	PWRSURE 700 240/208V 10 kVA	30.0 x 21.5 x 29.0	440	14,447
TCL-015K-6	TCL-015K-6	PWRSURE 700 240/208V 15 kVA	30.0 x 21.5 x 29.0	520	15,539
TCL-030K-6	TCL-030K-6	PWRSURE 700 240/208V 30 kVA	44.0 x 21.5 x 29.0	720	18,816
TCL-045K-6	TCL-045K-6	PWRSURE 700 240/208V 45 kVA	44.0 x 45.0 x 29.0	950	28,470
TCL-050K-6	TCL-050K-6	PWRSURE 700 240/208V 50 kVA	44.0 x 45.0 x 29.0	970	25,003
TCL-075K-6	TCL-075K-6	PWRSURE 700 240/208V 75 kVA	44.0 x 45.0 x 29.0	1100	36,121
TCL-100K-6	TCL-100K-6	PWRSURE 700 240/208V 100 kVA	44.0 x 45.0 x 29.0	1660	$46,938

POWER-SURE 700 POWER CONDITIONERS: 480/208V

Style Dimensions Catalog Number	Weight Number	List Description	(H x W x D, inches)	(lb)	Price
TDL-010K-6	TDL-010K-6	PWRSURE 700 480/208V 10 kVA	30.0 x 21.5 x 29.0	440	15,916
TDL-015K-6	TDL-015K-6	PWRSURE 700 480/208V 15 kVA	30.0 x 21.5 x 29.0	520	15,526
TDL-025K-6	TDL-025K-6	PWRSURE 700 480/208V 25 kVA	44.0 x 21.5 x 29.0	700	18,909
TDL-030K-6	TDL-030K-6	PWRSURE 700 480/208V 30 kVA	44.0 x 21.5 x 29.0	720	19,727
TDL-045K-6	TDL-045K-6	PWRSURE 700 480/208V 45 kVA	44.0 x 45.0 x 29.0	950	25,798
TDL-050K-6	TDL-050K-6	PWRSURE 700 480/208V 50 kVA	44.0 x 45.0 x 29.0	970	26,078
TDL-075K-6	TDL-075K-6	PWRSURE 700 480/208V 75 kVA	44.0 x 45.0 x 29.0	1100	38,876
TDL-100K-6	TDL-100K-6	PWRSURE 700 480/208V 100 kVA	44.0 x 45.0 x 29.0	1660	42,183
TDL-125K-6	TDL-125K-6	PWRSURE 700 480/208V 125 kVA	44.0 x 45.0 x 29.0	1980	41,754
TDL-225K-6	TDL-225K-6	PWRSURE 700 480/208V 225 kVA	77.0 x 56.0 x 41.5	3300	81,684
TDL-300K-6	TDL-300K-6	PWRSURE 700 480/208V 300 kVA	77.0 x 56.0 x 41.5	4000	$86,493

POWER-SURE 700 (continued)

POWER-SURE 700 POWER CONDITIONERS: 480/480V

Style Dimensions Weight ListCatalog Number Number Description (H x W x D, inches) (lb) Price
TDN-010K-6 TDN-010K-6	PWRSURE 700 480/480V 10 kVA	30.0 x 21.5 x 29.0	440 14,699
TDN-025K-6	TDN-025K-6	PWRSURE 700 480/480V 25 kVA	44.0 x 21.5 x 29.0	700	20,718
TDN-030K-6	TDN-030K-6	PWRSURE 700 480/480V 30 kVA	44.0 x 21.5 x 29.0	720	20,667
TDN-045K-6	TDN-045K-6	PWRSURE 700 480/480V 45 kVA	44.0 x 45.0 x 29.0	950	26,568
TDN-075K-6	TDN-075K-6	PWRSURE 700 480/480V 75 kVA	44.0 x 45.0 x 29.0	1100	31,387
TDN-100K-6	TDN-100K-6	PWRSURE 700 480/480V 100 kVA	44.0 x 45.0 x 29.0	1660	45,592
TDN-125K-6	TDN-125K-6	PWRSURE 700 480/480V 125 kVA	44.0 x 45.0 x 29.0	1980	42,251
TDN-150K-6	TDN-150K-6	PWRSURE 700 480/480V 150 kVA	44.0 x 45.0 x 29.0	2200	51,037
TDN-225K-6	TDN-225K-6	PWRSURE 700 480/480V 225 kVA	77.0 x 56.0 x 41.5	3300	74,916
TDN-300K-6	TDN-300K-6	PWRSURE 700 480/480V 300 kVA	77.0 x 56.0 x 41.5	-	91,955

POWER-SURE 700 POWER CONDITIONERS: 600/208V

Style Dimensions Weight ListCatalog Number Number Description (H x W x D, inches) (lb) Price
TEL-010K-6	TEL-010K-6	PWRSURE 700 600/208V 10 kVA	30.0 x 21.5 x 29.0	440	14,966
TEL-015K-6	TEL-015K-6	PWRSURE 700 600/208V 15 kVA	30.0 x 21.5 x 29.0	520	16,071
TEL-025K-6	TEL-025K-6	PWRSURE 700 600/208V 25 kVA	44.0 x 21.5 x 29.0	700	19,484
TEL-030K-6	TEL-030K-6	PWRSURE 700 600/208V 30 kVA	44.0 x 21.5 x 29.0	720	19,656
TEL-045K-6	TEL-045K-6	PWRSURE 700 600/208V 45 kVA	44.0 x 45.0 x 29.0	950	26,015
TEL-050K-6	TEL-050K-6	PWRSURE 700 600/208V 50 kVA	44.0 x 45.0 x 29.0	970	26,589
TEL-075K-6	TEL-075K-6	PWRSURE 700 600/208V 75 kVA	44.0 x 45.0 x 29.0	1100	40,647
TEL-100K-6	TEL-100K-6	PWRSURE 700 600/208V 100 kVA	44.0 x 45.0 x 29.0	1660	48,311
TEL-125K-6	TEL-125K-6	PWRSURE 700 600/208V 125 kVA	44.0 x 45.0 x 29.0	1980	43,754
TEL-150K-6	TEL-150K-6	PWRSURE 700 600/208V 150 kVA	44.0 x 45.0 x 29.0	2200	59,290
TEL-225K-6	TEL-225K-6	PWRSURE 700 600/208V 225 kVA	77.0 x 56.0 x 41.5	3300	81,684
TEL-300K-6	TEL-300K-6	PWRSURE 700 600/208V 300 kVA	77.0 x 56.0 x 41.5	-	91,847

POWER-SURE 700 POWER CONDITIONERS: 600/480V

Style Dimensions Weight ListCatalog Number Number Description (H x W x D, inches) (lb) Price
TEN-010K-6	TEN-010K-6	PWRSURE 700 600/480V 10 kVA	30.0 x 21.5 x 29.0	440	14,691
TEN-015K-6	TEN-015K-6	PWRSURE 700 600/480V 15 kVA	30.0 x 21.5 x 29.0	520	16,531
TEN-025K-6	TEN-025K-6	PWRSURE 700 600/480V 25 kVA	44.0 x 21.5 x 29.0	700	18,219
TEN-030K-6	TEN-030K-6	PWRSURE 700 600/480V 30 kVA	44.0 x 21.5 x 29.0	720	20,445
TEN-045K-6	TEN-045K-6	PWRSURE 700 600/480V 45 kVA	44.0 x 45.0 x 29.0	950	23,368
TEN-075K-6	TEN-075K-6	PWRSURE 700 600/480V 75 kVA	44.0 x 45.0 x 29.0	1100	37,391
TEN-100K-6	TEN-100K-6	PWRSURE 700 600/480V 100 kVA	44.0 x 45.0 x 29.0	1660	43,911
TEN-125K-6	TEN-125K-6	PWRSURE 700 600/480V 125 kVA	44.0 x 45.0 x 29.0	1980	45,201
TEN-150K-6	TEN-150K-6	PWRSURE 700 600/480V 150 kVA	44.0 x 45.0 x 29.0	2200	53,639
TEN-225K-6	TEN-225K-6	PWRSURE 700 600/480V 225 kVA	77.0 x 56.0 x 41.5	3300	77,464
TEN-300k-6	TEN-300k-6	PWRSURE 700 600/480V 300 kVA	77.0 x 56.0 x 41.5	-	$87,953

POWER-SURE 700 MANUAL MAINTENANCE BYPASS SWITCH

Catalog Number	Style Number	Description	List Price
RBS2020	RBS2020	PWRSURE 700 ACC MAN BYP SW 10/15 kVA	643
RBS2021	RBS2021	PWRSURE 700 ACC MAN BYP SW 25/30 kVA	1,067
RBS2022	RBS2022	PWRSURE 700 ACC MAN BYP SW 45-125 kVA	$1,738

POWER-SURE 700 OPTIONS

Catalog Number	Style Number	Description	List Price
UOV2020	UOV2020	PWRSURE 700 ACC UND/OVR V SHUTDOWN	541
REP2020	REP2020	PWRSURE 700 ACC RMTE EMG PWROFF	243
STC2020	STC2020	PWRSURE 700 ACC SHUNT TRIP	$678

POWER-SURE 800

Power Conditioners (1.4 to 25 kVA)

Superior power conditioning for industrial, commercial and medical equipment. Power-Sure 800 power conditioners provide high quality power with inherent surge protection, noise and bi-directional harmonic filtering, as well as superior isolation. Power-Sure 800 units range from office models to floor or wall/panel mounted industrial models and provide an excellent solution for any application with noisy or poor power quality.

• Superior isolation
• Tight voltage regulation
  • High immunity to distortion
  • Lightning and surge protection
  • Protection against power interruptions
  • Power factor correction
  • Bi-directional harmonic filtering
  • UL 1012, UL 544 and cUL Listed
• K-30 rated design

• Meets ANSI standards for computers with inputs as low as 50% of nominal

POWER-SURE 800 POWER CONDITIONERS: 60 Hz Models-Receptacle Style (Plug-and-play)

Style Dimensions Weight ListCatalog Number Number Description (H x W x D, inches) (lb) Price
T800R-00500	T800R-00500	PWRSURE 800 OFC/RCPT 500 VA	8.5 × 12.8 × 9.5	32	847
T800R-00700	T800R-00700	PWRSURE 800 OFC/RCPT 700 VA	8.5 \times 12.8 \times 9.5	-	1,156
T800R-00850	T800R-00850	PWRSURE 800 OFC/RCPT 800 VA	8.5 × 12.8 × 9.5	-	1,192
T800R-01000	T800R-01000	PWRSURE 800 OFC/RCPT 1 kVA	8.5 \times 12.8 \times 17.5	46	1,265
T800R-01600	T800R-01600	PWRSURE 800 OFC/RCPT 1.6 kVA	8.5 × 12.8 × 17.5	62	1,588
T800R-02100	T800R-02100	PWRSURE 800 OFC/RCPT 2.1 kVA	8.5 \times 12.8 \times 17.5	65	1,737
T800R-02500	T800R-02500	PWRSURE 800 OFC/RCPT 2.5 kVA	8.5 × 12.8 × 17.5	68	1,821
T800R-03500	T800R-03500	PWRSURE 800 OFC/RCPT 3.5 kVA	8.5 \times 12.8 \times 17.5	72	2,183
T800R-03501	T800R-03501	PWRSURE 800 OFC/RCPT 3.5 kVA	8.5 × 12.8 × 17.5	73	2,309
T800R-05000	T800R-05000	PWRSURE 800 OFC/RCPT 5 kVA	15.0 \times 23.8 \times 22.5	-	3,310
T800R-07500	T800R-07500	PWRSURE 800 OFC/RCPT 7.5 kVA	15.0 × 23.8 × 22.5	-	3,959
T800R-10000	T800R-10000	PWRSURE 800 OFC/RCPT 10 kVA	15.0 \times 23.8 \times 22.5	-	5,568
T800R-15000	T800R-15000	PWRSURE 800 OFC/RCPT 15 kVA	15.0 × 23.8 × 22.5	-	$6,706

POWER-SURE 800 POWER CONDITIONERS: 60 Hz Models—Hardwired Wall or Panel Mount

Style Dimensions Weight ListCatalog Number Number Description (H x W x D, inches) (lb) Price
T800P-00500	T800P-00500	PWRSURE 800 PNL/HW 500 VA	9.0 x 14.0 x 10.0	52	1,017
T800P-00750	T800P-00750	PWRSURE 800 PNL/HW 750 VA	9.0 x 14.0 x 10.0	60	1,317
T800P-01000	T800P-01000	PWRSURE 800 PNL/HW 1 kVA	9.0 x 14.0 x 10.0	82	1,305
T800P-01500	T800P-01500	PWRSURE 800 PNL/HW 1.5 kVA	13.0 x 16.5 x 14.8	106	1,881
T800P-02000	T800P-02000	PWRSURE 800 PNL/HW 2 kVA	13.0 x 16.5 x 14.8	125	1,819
T800P-03000	T800P-03000	PWRSURE 800 PNL/HW 3 kVA	13.0 x 16.5 x 14.8	142	2,821
T800P-05000	T800P-05000	PWRSURE 800 PNL/HW 5 kVA	27.0 x 22.5 x 28.5	437	5,065
T800P-08000	T800P-08000	PWRSURE 800 PNL/HW 8 kVA	27.0 x 22.5 x 28.5	495	6,236
T800P-10000	T800P-10000	PWRSURE 800 PNL/HW 10 kVA	27.0 x 22.5 x 28.5	-	$7,612

POWER-SURE 800 POWER CONDITIONERS: 60 Hz Models—Hardwired Floor Mount

Style Dimensions Weight ListCatalog Number Number Description (H x W x D, inches) (lb) Price
T800F-05000	T800F-05000	PWRSURE 800 FLR/HW 5 kVA	23.0 x 20.0 x 28.5	407	5,160
T800F-08000	T800F-08000	PWRSURE 800 FLR/HW 8 kVA	23.0 x 20.0 x 28.5	465	6,232
T800F-10000	T800F-10000	PWRSURE 800 FLR/HW 10 kVA	23.0 x 20.0 x 28.5	407	6,991
T800F-15000	T800F-15000	PWRSURE 800 FLR/HW 15 kVA	35.0 x 25.0 x 39.5	830	10,864
T800F-20000	T800F-20000	PWRSURE 800 FLR/HW 20 kVA	35.0 x 25.0 x 39.5	-	13,152
T800F-25000	T800F-25000	PWRSURE 800 FLR/HW 25 kVA	35.0 x 25.0 x 39.5	-	15,016

Power Xpert Meter 4000/6000/8000

Power Quality Metering Products

You can't manage what you can't measure, and you certainly can't measure something you can't even see—without a power quality instrument that is. Invisible and fleeting power disturbances can be silent killers—the electronic equivalent of high blood pressure.

Eaton's Power Xpert 4000/6000/8000 meters represent a new genre of power quality instruments and world-class power monitoring that reduces day to day operating costs and helps avoid costly business interruptions. The meters combine state-of-the-art technology with next generation power diagnostics, data trending and performance benchmarking, along with a "Twist-n-Click" LCD: a new paradigm for simplicity and ease of use in the market place.

Two electronic devices, one displaying a screen and the other a black case with control panels (no visible text or symbols)

In addition the meters have an embedded Web server that enables users to surf to the meter over the Internet via a standard Web browser. The new platform offers advanced functionality like high speed impulsive transient waveform capture, 6 Mhz sampling rate (six samples every millionth of a second) with one millisecond time stamping, anti-aliasing, ITIC analysis and automatic trigger settings, open field upgradeable firmware, up to 8 GB memory and optional digital, relay I/O card.

Features and Benefits

• Free download of Power Xpert Meter Profiler to trend and predict energy usage
- Embedded Web Server -- see and analyze waveforms, trends, harmonics directly in your web browser or LCD meter graphic display
• Automatic power quality analysis and trigger setting with built-in ITIC performance curve: detect and capture sags, swells, transients and flicker
• Comprehensive power, energy and demand measurements for 138 standard data points logged
- At-a-glance view of power quality analysis with patented Power Quality Index gauge, statistically derived trending and red-yellow-green indicators for overall power health

- Energy usage patterns can be effortlessly analyzed with the month-to-month, week-to-week comparison chart. Raw data can be easily exported with the 'Save Table' option to other applications such as Excel for further analysis or graphing

- Industry-standard communication protocols, to support a multitude of configurations and third-party software: HTTP, FTP, Modbus RTU, Modbus TCP, SNMP, SMTP, NTP, COMTRADE

• 4000 to 6000 meter firmware upgrade available

• High storage capacity

• 4000 meter offers 2 GB

• 6000 meter offers 4 GB

• 8000 meter offers 8 GB

• ANSI C12.20 accuracy

• CE and Industry Canada certified

E.T.N Patient Quality Index 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 19.0 20.0 21.0 22.0 23.0 24.0 25.0 26.0 27.0 28.0 29.0 30.0 31.0 32.0 33.0 34.0 35.0 36.0 37.0 38.0 39.0 40.0 41.0 42.0 43.0 44.0 45.0 46.0 47.0 48.0 49.0 50.0 51.0 52.0 53.0 54.0 55.0 56.0 57.0 58.0 59.0 60.0 61.0 62.0 63.0 64.0 65.0 66.0 67.0 68.0 69.0 70.0 71.0 72.0 73.0 74.0 75.0 76.0 77.0 78.0 79.0 80.0 81.0 82.0 83.0 84.0 85.0 86.0 87.0 88.0 89.0 90.0 91.0 92.0 93.0 94.0 95.0 96.0 97.0 98.0 99.0 100.0

Applications

Identify power quality problems

• Identify harmonics, sags, swells and transients damaging or disrupting sensitive, mission critical IT equipment
• Boost IT equipments service life to the maximum
• Analyze sequence of events up to one millisecond time resolution
• Protect motors from damage
• Preserve the integrity of processes and batches
  • Prevent blown capacitor bank fuses
• Protect transformers and conductors from overheating

Monitor circuit loading

• Avoid overloads and nuisance overload trips
• Maximize equipment utilization
• Manage emergency overloads

Manage energy utilization

• Reduce peak demand charges and power factor penalties
• Identify excessive energy consumption

Detect and record high speed transients

• Avoid equipment damage and disruption
• Identify equipment malfunction

Power Xpert Meter 4000/6000/8000 (continued)

Power Quality Metering Products

POWER XPERT METER 4000/6000/8000

Catalog Number Style Number Description List Price
PXM 4000 METERS
PXM4051A1AA 65D4061G001	PXM 4000 Meter, 2 GB, AC, no options 5,290
PXM4051A1BA 65D4061G002	PXM 4000 Meter, 2 GB, AC, w/ Com. Exp. Card6,455
PXM4051A1AB 65D4061G005	PXM 4000 Meter, 2 GB, AC, w/ I/O Card 5,925
PXM4051A1BB 65D4061G006	PXM 4000 Meter, 2 GB, AC, w/ Com. Exp. & I/O Cards7,090
PXM4251A1AA 65D4261G001	PXM 4000 Meter, 2 GB, AC, w/ VAUX 6,140
PXM4251A1BA 65D4261G002	PXM 4000 Meter, 2 GB, AC, w/ VAUX & Com. Exp. Card7,305
PXM4251A1AB 65D4261G005	PXM 4000 Meter, 2 GB, AC, w/ VAUX & I/O Card 6,775
PXM4251A1BB 65D4261G006	PXM 4000 Meter, 2 GB, AC, w/ VAUX, Com. Exp. & I/O Cards7,940
PXM 6000 METERS
PXM6051A1AA 65D6061G001	PXM 6000 Meter, 4 GB, AC, no options 7,410
PXM6051A1BA 65D6061G002	PXM 6000 Meter, 4 GB, AC, w/ Com. Exp. Card8,575
PXM6051A1AB 65D6061G005	PXM 6000 Meter, 4 GB, AC, w/ I/O Card 8,045
PXM6051A1BB 65D6061G006	PXM 6000 Meter, 4 GB, AC, w/ Com. Exp. & I/O Cards9,210
PXM6251A1AA 65D6261G001	PXM 6000 Meter, 4 GB, AC, w/ VAUX 8,260
PXM6251A1BA 65D6261G002	PXM 6000 Meter, 4 GB, AC, w/ VAUX & Com. Exp. Card9,425
PXM6251A1AB 65D6261G005	PXM 6000 Meter, 4 GB, AC, w/ VAUX & I/O Card 8,895
PXM6251A1BB 65D6261G006	PXM 6000 Meter, 4 GB, AC, w/ VAUX, Com. Exp. & I/O Cards10,060
PXM 8000 METERS
PXM8051A1AA 65D8061G001	PXM 8000 Meter, 8 GB, AC, no options 9,530
PXM8051A1BA 65D8061G002	PXM 8000 Meter, 8 GB, AC, w/ Com. Exp. Card10,695
PXM8051A1AB 65D8061G005	PXM 8000 Meter, 8 GB, AC, w/ I/O Card 10,165
PXM8051A1BB 65D8061G006	PXM 8000 Meter, 8 GB, AC, w/ Com. Exp. & I/O Cards11,330
PXM8251A1AA 65D8261G001	PXM 8000 Meter, 8 GB, AC, w/ VAUX 10,380
PXM8251A1BA 65D8261G002	PXM 8000 Meter, 8 GB, AC, w/ VAUX & Com. Exp. Card11,545
PXM8251A1AB 65D8261G005	PXM 8000 Meter, 8 GB, AC, w/ VAUX & I/O Card 11,015
PXM8251A1BB 65D8261G006	PXM 8000 Meter, 8 GB, AC, w/ VAUX, Com. Exp. & I/O Cards12,180

POWER XPERT METER 4000/6000/8000 ACCESSORIES

Catalog Number	Style Number	Description List Price
PX-PMBA	66B2133G01	PXM Bracket Assembly for back-to-back meter to display mounti	211
PXMIO-B	66D2101G11	I/O card: 8 Digital Input, 2 Solid State Output, 3 Relay Out	635
PXMCE-B	66D2102G11	Com Expansion Card: Ethernet 100FX, 10/100T, RS-485, RS-232	1,165
PXD-MMG	66D2117G01	PXM Meter Graphic Display Module	1,695
PX-PMBB	66D2148G01	Panel mnt bracket retrofit assembly for PXM LCD to an IQA cu	158
PX-PMBC	66D2150G01	Panel mnt bracket assembly for reduced PXM LCD Display rear	158
PXM-4KUPG	65D1001G01	POWER XPERT METER 4000 TO 6000 LICENSE UPGRADE KEY	$2,490

Power Xpert Meter 4000/6000/8000 Catalog Numbering System

PXM 8051A1BB

Example 1: PXM8251A1BB (PXM 8000 Meter, w/ VAUX, Std pwr, Com. Exp. and I/O Cards)
Example 2: PXM6251A1BA (PXM 6000 Meter, w/ VAUX, Std pwr, Com. Exp. Card)

POWER XPERT METER 2000

Compact Power Quality Metering Products

The meters combine state-of-the-art technology with waveform viewing, data trending and performance benchmarking. The embedded Web server enables users to surf to the meter over the Internet via a standard Web browser. This platform offers adaptability such as field-upgradeable firmware and optional digital inputs/outputs and analog outputs.

Applications

Identify power quality problems to help:

• Protect motors from damage
  • Preserve the integrity of processes and batches
  • Prevent blown capacitor bank fuses
• Protect transformers and conductors from overheating

GRID Status Inputs L(+) N(-) Vref Va Vb Vc Rusley Outputs E.T-N T+G 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4.0 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 5.0

POWER XPERT METER 2000

Configuration Number Catalog Number Description List Price
1	PXM2250MA51105	PXM2250 Meter/Display 50Hz 1A 90-265V AC/DC 1,989
2	PXM2250MA51405	PXM2250 Meter/Display 50Hz 1A 24-48V DC1,989
3	PXM2250MA55105	PXM2250 Meter/Display 50Hz 5A 90-265V AC/DC 1,989
4	PXM2250MA55405	PXM2250 Meter/Display 50Hz 5A 24-48V DC1,989
5	PXM2250MA61105	PXM2250 Meter/Display 60Hz 1A 90-265V AC/DC 1,989
6	PXM2250MA61405	PXM2250 Meter/Display 60Hz 1A 24-48V DC1,989
7	PXM2250MA65105	PXM2250 Meter/Display 60Hz 5A 90-265V AC/DC 1,989
8	PXM2250MA65115	PXM2250 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI2,432
9	PXM2250MA65125	PXM2250 Meter/Display 60Hz 5A 90-265V AC/DC w/4KYZ&4DI 2,925
10		PXM2250MA65135	PXM2250 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 0-12,925
11		PXM2250MA65145	PXM2250 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 4-20 2,534
12		PXM2250MA65405	PXM2250 Meter/Display 60Hz 5A 24-48V DC1,989
13		PXM2250MA65415	PXM2250 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI 2,432
14		PXM2250MA65425	PXM2250 Meter/Display 60Hz 5A 24-48V DC w/4KYZ&4DI2,925
15		PXM2250MA65435	PXM2250 Meter/Display 60Hz 5A 24-48V DC w/4AO 0-1 2,925
16		PXM2250MA65445	PXM2250 Meter/Display 60Hz 5A 24-48V DC w/4AO 4-202,534
17		PXM2260MA51105	PXM2260 Meter/Display 50Hz 1A 90-265V AC/DC 2,350
18		PXM2260MA51405	PXM2260 Meter/Display 50Hz 1A 24-48V DC2,350
19		PXM2260MA55105	PXM2260 Meter/Display 50Hz 5A 90-265V AC/DC 2,350
20		PXM2260MA55405	PXM2260 Meter/Display 50Hz 5A 24-48V DC2,350
21		PXM2260MA61105	PXM2260 Meter/Display 60Hz 1A 90-265V AC/DC 2,350
22		PXM2260MA61405	PXM2260 Meter/Display 60Hz 1A 24-48V DC2,350
23		PXM2260MA65105	PXM2260 Meter/Display 60Hz 5A 90-265V AC/DC 2,350
24		PXM2260MA65115	PXM2260 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI2,794
25		PXM2260MA65125	PXM2260 Meter/Display 60Hz 5A 90-265V AC/DC w/4KYZ&4DI 3,287
26		PXM2260MA65135	PXM2260 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 0-13,287
27		PXM2260MA65145	PXM2260 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 4-20 2,896
28		PXM2260MA65405	PXM2260 Meter/Display 60Hz 5A 24-48V DC2,350
29		PXM2260MA65415	PXM2260 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI 2,794
30		PXM2260MA65425	PXM2260 Meter/Display 60Hz 5A 24-48V DC w/4KYZ&4DI3,287
31		PXM2260MA65435	PXM2260 Meter/Display 60Hz 5A 24-48V DC w/4AO 0-1 3,287
32		PXM2260MA65445	PXM2260 Meter/Display 60Hz 5A 24-48V DC w/4AO 4-202,896
33		PXM2270MA51105	PXM2270 Meter/Display 50Hz 1A 90-265V AC/DC 3,114
34		PXM2270MA51405	PXM2270 Meter/Display 50Hz 1A 24-48V DC3,114
35		PXM2270MA55105	PXM2270 Meter/Display 50Hz 5A 90-265V AC/DC 3,114
36		PXM2270MA55405	PXM2270 Meter/Display 50Hz 5A 24-48V DC3,114
37		PXM2270MA61105	PXM2270 Meter/Display 60Hz 1A 90-265V AC/DC 3,114
38		PXM2270MA61405	PXM2270 Meter/Display 60Hz 1A 24-48V DC3,114
39		PXM2270MA65105	PXM2270 Meter/Display 60Hz 5A 90-265V AC/DC 3,114
40		PXM2270MA65115	PXM2270 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI3,558

POWER XPERT METER 2000 (continued)

Power Quality Metering Products

POWER XPERT METER 2000 (continued)

Configuration Number	Catalog Number	Description	List Price
41	PXM2270MA65125	PXM2270 Meter/Display 60Hz 5A 90-265V AC/DC w/4KYZ&4DI	4,051
42	PXM2270MA65135	PXM2270 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 0-1	4,051
43	PXM2270MA65145	PXM2270 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO 4-20	3,660
44	PXM2270MA65405	PXM2270 Meter/Display 60Hz 5A 24-48V DC	3,114
45	PXM2270MA65415	PXM2270 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI	3,558
46	PXM2270MA65425	PXM2270 Meter/Display 60Hz 5A 24-48V DC w/4KYZ&4DI	4,051
47	PXM2270MA65435	PXM2270 Meter/Display 60Hz 5A 24-48V DC w/4AO 0-1	4,051
48	PXM2270MA65445	PXM2270 Meter/Display 60Hz 5A 24-48V DC w/4AO 4-20	3,660
49		PXM2250TA51105	PXM2250 Transducer Only 50Hz 1A 90-265V AC/DC
50		PXM2250TA51405	PXM2250 Transducer Only 50Hz 1A 24-48V DC
51		PXM2250TA55105	PXM2250 Transducer Only 50Hz 5A 90-265V AC/DC
52		PXM2250TA55405	PXM2250 Transducer Only 50Hz 5A 24-48V DC
53		PXM2250TA61105	PXM2250 Transducer Only 60Hz 1A 90-265V AC/DC
54		PXM2250TA61405	PXM2250 Transducer Only 60Hz 1A 24-48V DC
55		PXM2250TA65105	PXM2250 Transducer Only 60Hz 5A 90-265V AC/DC
56		PXM2250TA65115	PXM2250 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI
57		PXM2250TA65125	PXM2250 Transducer Only 60Hz 5A 90-265V AC/DC w/4KYZ&4DI
58	PXM2250TA65135	PXM2250 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 0-1	2,755
59		PXM2250TA65145	PXM2250 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 4-20
60		PXM2250TA65405	PXM2250 Transducer Only 60Hz 5A 24-48V DC
61		PXM2250TA65415	PXM2250 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI
62		PXM2250TA65425	PXM2250 Transducer Only 60Hz 5A 24-48V DC w/4KYZ&4DI
63	PXM2250TA65435	PXM2250 Transducer Only 60Hz 5A 24-48V DC w/4AO 0-1	2,755
64		PXM2250TA65445	PXM2250 Transducer Only 60Hz 5A 24-48V DC w/4AO 4-20
65		PXM2260TA51105	PXM2260 Transducer Only 50Hz 1A 90-265V AC/DC
66		PXM2260TA51405	PXM2260 Transducer Only 50Hz 1A 24-48V DC
67		PXM2260TA55105	PXM2260 Transducer Only 50Hz 5A 90-265V AC/DC
68		PXM2260TA55405	PXM2260 Transducer Only 50Hz 5A 24-48V DC
69		PXM2260TA61105	PXM2260 Transducer Only 60Hz 1A 90-265V AC/DC
70		PXM2260TA61405	PXM2260 Transducer Only 60Hz 1A 24-48V DC
71		PXM2260TA65105	PXM2260 Transducer Only 60Hz 5A 90-265V AC/DC
72		PXM2260TA65115	PXM2260 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI
73		PXM2260TA65125	PXM2260 Transducer Only 60Hz 5A 90-265V AC/DC w/4KYZ&4DI
74	PXM2260TA65135	PXM2260 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 0-1	3,116
75		PXM2260TA65145	PXM2260 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 4-20
76		PXM2260TA65405	PXM2260 Transducer Only 60Hz 5A 24-48V DC
77		PXM2260TA65415	PXM2260 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI
78		PXM2260TA65425	PXM2260 Transducer Only 60Hz 5A 24-48V DC w/4KYZ&4DI
79	PXM2260TA65435	PXM2260 Transducer Only 60Hz 5A 24-48V DC w/4AO 0-1	3,116
80		PXM2260TA65445	PXM2260 Transducer Only 60Hz 5A 24-48V DC w/4AO 4-20
81		PXM2270TA51105	PXM2270 Transducer Only 50Hz 1A 90-265V AC/DC
82		PXM2270TA51405	PXM2270 Transducer Only 50Hz 1A 24-48V DC
83		PXM2270TA55105	PXM2270 Transducer Only 50Hz 5A 90-265V AC/DC
84		PXM2270TA55405	PXM2270 Transducer Only 50Hz 5A 24-48V DC
85		PXM2270TA61105	PXM2270 Transducer Only 60Hz 1A 90-265V AC/DC
86		PXM2270TA61405	PXM2270 Transducer Only 60Hz 1A 24-48V DC
87		PXM2270TA65105	PXM2270 Transducer Only 60Hz 5A 90-265V AC/DC
88		PXM2270TA65115	PXM2270 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI
89		PXM2270TA65125	PXM2270 Transducer Only 60Hz 5A 90-265V AC/DC w/4KYZ&4DI
90	PXM2270TA65135	PXM2270 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 0-1	$3,972

POWER XPERT METER 2000 (continued)

Power Quality Metering Products

POWER XPERT METER 2000 (continued)

Configuration Number	Catalog Number	Description	List Price
91	PXM2270TA65145	PXM2270 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO 4-20	3,582
92	PXM2270TA65405	PXM2270 Transducer Only 60Hz 5A 24-48V DC	3,036
93	PXM2270TA65415	PXM2270 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI	3,479
94	PXM2270TA65425	PXM2270 Transducer Only 60Hz 5A 24-48V DC w/4KYZ&4DI	3,972
95	PXM2270TA65435	PXM2270 Transducer Only 60Hz 5A 24-48V DC w/4AO 0-1	3,972
96	PXM2270TA65445	PXM2270 Transducer Only 60Hz 5A 24-48V DC w/4AO 4-20	3,582
97	PXM2000-GCK	PXM 2000 Gateway Card Kit to Upgrade an IQ 250/260 to a PXM 2000	$795

*Prices subject to change.

POWER XPERT METER 2000 ACCESSORIES

Description	Catalog Number
Panel Mounting Bracket Assembly for Retrofitting a PXM 2000 to an IQ Analyzer/IQ DP4000/IQ Data/IQ 300 Cutout	IQ250-PMAK
PXM 2000 Gateway Card Kit to Upgrade an IQ 250/260 to a PXM 2000	PXM2000-GCK

Power Xpert Meter 2000 Catalog Numbering System

Example 1: PXM2270MA65145 (PXM 2270 Meter/Display 60 Hz, 5 A, 90 – 265 Vac/dc W/4AO)
Example 2: PXM2250MA65105 (PXM 2250 Meter/Display 60 Hz, 5 A, 90 – 265 Vac/dc)

IQ 250/260 SERIES

Metering Products

The IQ 250 and IQ 260 electronic meters provide capabilities you wouldn't normally expect in an affordable, compact meter—such as fast sampling rate and accurate metering for a full range of power attributes. The meter can be configured either from the easy-to-read display or remotely (accessible via a Power Xpert Gateway) via included configuration software. In addition, built-in slots allow for upgrades to input/output option cards.

Applications

Identify power quality problems to help:

• Comprehensive metering
• High-end accuracy
• Self-test capability to validate accuracy
• Large, easy-to-read display
- Local or remote configuration
• Industry-standard communication protocols (Modbus)
• Mix-and-match input/output options
- Integration with Eaton's Power Xpert Architecture
- Field-upgradeable

120.0 A 120.0 B 120.0 C T >

IQ 250/260 SERIES

Configuration Number Catalog Number Description List Price
1 IQ250MA51100 IQ250 Meter/Display 50Hz 1A 90-265V AC/DC 1,325
2 IQ250MA51400 IQ250 Meter/Display 50Hz 1A 24-48V DC1,325
3 IQ250MA55100 IQ250 Meter/Display 50Hz 5A 90-265V AC/DC 1,325
4 IQ250MA55400 IQ250 Meter/Display 50Hz 5A 24-48V DC1,325
5 IQ250MA61100 IQ250 Meter/Display 60Hz 1A 90-265V AC/DC 1,325
6 IQ250MA61400 IQ250 Meter/Display 60Hz 1A 24-48V DC1,325
7 IQ250MA65100 IQ250 Meter/Display 60Hz 5A 90-265V AC/DC 1,325
8 IQ250MA65110 IQ250 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI1,805
9 IQ250MA65114 IQ250 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI&4AO 2,395
10	IQ250MA65120	IQ250 Meter/Display 60Hz 5A 90-265V AC/DC w/4KYZ&4DI	2,339
11	IQ250MA65140	IQ250 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO	1,916
12	IQ250MA65400 IQ250 Meter/Display 60Hz 5A 24-48V DC1,325
13	IQ250MA65410	IQ250 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI	1,805
14	IQ250MA65414	IQ250 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI&4AO	2,395
15	IQ250MA65420	IQ250 Meter/Display 60Hz 5A 24-48V DC w/4KYZ&4DI	2,339
16	IQ250MA65440	IQ250 Meter/Display 60Hz 5A 24-48V DC w/4AO	1,916
17	IQ250TA51100	IQ250 Transducer Only 50Hz 1A 90-265V AC/DC	1,141
18	IQ250TA51400	IQ250 Transducer Only 50Hz 1A 24-48V DC	1,141
19	IQ250TA55100	IQ250 Transducer Only 50Hz 5A 90-265V AC/DC	1,141
20	IQ250TA55400	IQ250 Transducer Only 50Hz 5A 24-48V DC	1,141
21	IQ250TA61100	IQ250 Transducer Only 60Hz 1A 90-265V AC/DC	1,141
22	IQ250TA61400	IQ250 Transducer Only 60Hz 1A 24-48V DC	1,141
23	IQ250TA65100	IQ250 Transducer Only 60Hz 5A 90-265V AC/DC	1,141
24	IQ250TA65110	IQ250 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI	1,620
25	IQ250TA65114	IQ250 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI&4AO	2,211
26	IQ250TA65120	IQ250 Transducer Only 60Hz 5A 90-265V AC/DC w/4KYZ&4DI	2,153
27	IQ250TA65140	IQ250 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO	1,731
28	IQ250TA65400	IQ250 Transducer Only 60Hz 5A 24-48V DC	1,141
29	IQ250TA65410	IQ250 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI	1,620
30	IQ250TA65414	IQ250 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI&4AO	2,211
31	IQ250TA65420	IQ250 Transducer Only 60Hz 5A 24-48V DC w/4KYZ&4DI	2,153
32	IQ250TA65440	IQ250 Transducer Only 60Hz 5A 24-48V DC w/4AO	1,731
33	IQ260MA51100 IQ260 Meter/Display 50Hz 1A 90-265V AC/DC $1,717

IQ 250/260 SERIES (continued)

Metering Products

IQ 250/260 SERIES

Configuration Number Catalog Number Description List Price

34 IQ260MA51400 IQ260 Meter/Display 50Hz 1A 24-48V DC 1,717

35 IQ260MA55100 IQ260 Meter/Display 50Hz 5A 90-265V AC/DC1,717

36 IQ260MA55400 IQ260 Meter/Display 50Hz 5A 24-48V DC 1,717

37 IQ260MA61100 IQ260 Meter/Display 60Hz 1A 90-265V AC/DC1,717

38 IQ260MA61400 IQ260 Meter/Display 60Hz 1A 24-48V DC 1,717

39 IQ260MA65100 IQ260 Meter/Display 60Hz 5A 90-265V AC/DC1,717

40 IQ260MA65110 IQ260 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI 2,196

41 IQ260MA65114 IQ260 Meter/Display 60Hz 5A 90-265V AC/DC w/2DO&2DI&4AO2,786

42 IQ260MA65120 IQ260 Meter/Display 60Hz 5A 90-265V AC/DC w/4KYZ&4DI 2,730

43 IQ260MA65140 IQ260 Meter/Display 60Hz 5A 90-265V AC/DC w/4AO2,307

44 IQ260MA65400 IQ260 Meter/Display 60Hz 5A 24-48V DC 1,717

45 IQ260MA65410 IQ260 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI2,196

46 IQ260MA65414 IQ260 Meter/Display 60Hz 5A 24-48V DC w/2DO&2DI&4AO 2,786

47 IQ260MA65420 IQ260 Meter/Display 60Hz 5A 24-48V DC w/4KYZ&4DI2,730

48 IQ260MA65440 IQ260 Meter/Display 60Hz 5A 24-48V DC w/4AO 2,307

49 IQ260TA51100 IQ260 Transducer Only 50Hz 1A 90-265V AC/DC1,532

50 IQ260TA51400 IQ260 Transducer Only 50Hz 1A 24-48V DC 1,532

51 IQ260TA55100 IQ260 Transducer Only 50Hz 5A 90-265V AC/DC1,532

52 IQ260TA55400 IQ260 Transducer Only 50Hz 5A 24-48V DC 1,532

53 IQ260TA61100 IQ260 Transducer Only 60Hz 1A 90-265V AC/DC1,532

54 IQ260TA61400 IQ260 Transducer Only 60Hz 1A 24-48V DC 1,532

55 IQ260TA65100 IQ260 Transducer Only 60Hz 5A 90-265V AC/DC1,532

56 IQ260TA65110 IQ260 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI 2,011

57 IQ260TA65114 IQ260 Transducer Only 60Hz 5A 90-265V AC/DC w/2DO&2DI&4AO2,602

58 IQ260TA65120 IQ260 Transducer Only 60Hz 5A 90-265V AC/DC w/4KYZ&4DI 2,544

59 IQ260TA65140 IQ260 Transducer Only 60Hz 5A 90-265V AC/DC w/4AO2,123

60 IQ260TA65400 IQ260 Transducer Only 60Hz 5A 24-48V DC 1,532

61 IQ260TA65410 IQ260 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI2,011

62 IQ260TA65414 IQ260 Transducer Only 60Hz 5A 24-48V DC w/2DO&2DI&4AO 2,602

63 IQ260TA65420 IQ260 Transducer Only 60Hz 5A 24-48V DC w/4KYZ&4DI2,544

64 IQ260TA65440 IQ260 Transducer Only 60Hz 5A 24-48V DC w/4AO 2,123

65 IQ250/260-I01 IQ250/260 I/O Card-2 Relay Outputs/2 Status Inputs480

66 IQ250/260-I02 IQ250/260 I/O Card-4 KYZ Pulses/4 Status Inputs 1,014

67 IQ250/260-I03 IQ250/260 I/O Card-4 Analog Outputs- 0-1 mA1,014

68 IQ250/260-I04 IQ250/260 I/O Card-4 Analog Outputs- 4-20 mA 591

69 PXM2000-GCK PXM 2000 Gateway Card Kit to Upgrade an IQ 250/260 to a PXM 2000795

*Prices subject to change.

IQ 250/260 SERIES (continued)

Metering Products

IQ 250/260 ACCESSORIES (I/O Cards Offered for Upgrade)

Description Catalog Number
IQ250/260 I/O Card-2 Relay Outputs/2 Status Inputs IQ250/260-I01
IQ250/260 I/O Card-4 KYZ Pulses/4 Status Inputs IQ250/260-I02
IQ250/260 I/O Card-4 Analog Outputs- 0-1 mA IQ250/260-I03
IQ250/260 I/O Card-4 Analog Outputs- 4-20 mA IQ250/260-I04
PXM 2000 Gateway Card Kit to Upgrade an IQ 250/260 to a PXM 2000 PXM2000-GCK
Panel Mounting Bracket Assembly for Retrofitting a PXM 2000 to an IQ Analyzer/IQ DP4000/IQ Data/IQ 300 Cutout	IQ250-PMAK

IQ 250/260 Catalog Numbering System

IQ 250 M A 6 5 1 1 0

Example 1: IQ250MA65140 (IQ 250 Meter/Display 60 Hz, 5 A, 90 - 265 Vac/dc W/4AO)

Example 2: IQ260MA65100 (IQ 260 Meter/Display 60 Hz, 5 A, 90 - 265 Vac/dc)

IQ 130/140/150 SERIES

Metering Products

Providing the first line of defense against costly power problems, Eaton's IQ 100 electronic power meters can perform the work of an entire wall of legacy metering equipment utilizing today's technology. Eaton's IQ 100 meters use 24-bit AD converters that sample at more than 400 samples per cycle and meet ANSI C12.20 standards for accuracy of 0.5 percent. With such high-performance measurement capability, these meters can be confidently used for primary revenue metering and submetering applications.

Applications

• Utility and commercial metering
- Substations, industrial facilities, power generation sites and campuses
- Submetering
- Load studies and voltage recording
• Analog meter replacement

E.T.N MAX: 120.0 A MAX: 120.0 B MAX: 120.0 C 30% 50% 60% 70% 80% 90% 90% 100% 100% 110% 110% 120%

IQ 130/140/150 SERIES

Configuration Number Catalog Number Description List Price

1 IQ130MA5110 IQ130 Meter/Display 50Hz 1A 90-265V AC/DC 469

2 IQ130MA5140 IQ130 Meter/Display 50Hz 1A 24-48V DC469

3 IQ130MA5510 IQ130 Meter/Display 50Hz 5A 90-265V AC/DC 469

4 IQ130MA5511 IQ130 Meter/Display 50Hz 5A 90-265V AC/DC w/Modbus/KYZ Out622

5 IQ130MA5540 IQ130 Meter/Display 50Hz 5A 24-48V DC 469

6 IQ130MA6110 IQ130 Meter/Display 60Hz 1A 90-265V AC/DC469

7 IQ130MA6140 IQ130 Meter/Display 60Hz 1A 24-48V DC 469

8 IQ130MA6510 IQ130 Meter/Display 60Hz 5A 90-265V AC/DC469

9 IQ130MA6511 IQ130 Meter/Display 60Hz 5A 90-265V AC/DC w/Modbus/KYZ Out 622

10 IQ130MA6540 IQ130 Meter/Display 60Hz 5A 24-48V DC469

11 IQ130MA6541 IQ130 Meter/Display 60Hz 5A 24-48V DC w/Modbus/KYZ Out 622

12 IQ140MA5110 IQ140 Meter/Display 50Hz 1A 90-265V AC/DC607

13 IQ140MA5140 IQ140 Meter/Display 50Hz 1A 24-48V DC 607

14 IQ140MA5510 IQ140 Meter/Display 50Hz 5A 90-265V AC/DC607

15 IQ140MA5511 IQ140 Meter/Display 50Hz 5A 90-265V AC/DC w/Modbus/KYZ Out 760

16 IQ140MA5540 IQ140 Meter/Display 50Hz 5A 24-48V DC607

17 IQ140MA6110 IQ140 Meter/Display 60Hz 1A 90-265V AC/DC 607

18 IQ140MA6140 IQ140 Meter/Display 60Hz 1A 24-48V DC607

19 IQ140MA6510 IQ140 Meter/Display 60Hz 5A 90-265V AC/DC 607

20 IQ140MA6511 IQ140 Meter/Display 60Hz 5A 90-265V AC/DC w/Modbus/KYZ Out760

21 IQ140MA6540 IQ140 Meter/Display 60Hz 5A 24-48V DC 607

22 IQ140MA6541 IQ140 Meter/Display 60Hz 5A 24-48V DC w/Modbus/KYZ Out760

23 IQ150MA5110 IQ150 Meter/Display 50Hz 1A 90-265V AC/DC 642

24 IQ150MA5140 IQ150 Meter/Display 50Hz 1A 24-48V DC642

25 IQ150MA5510 IQ150 Meter/Display 50Hz 5A 90-265V AC/DC 642

26 IQ150MA5511 IQ150 Meter/Display 50Hz 5A 90-265V AC/DC w/Modbus/KYZ Out795

27 IQ150MA5540 IQ150 Meter/Display 50Hz 5A 24-48V DC 642

28 IQ150MA6110 IQ150 Meter/Display 60Hz 1A 90-265V AC/DC642

29 IQ150MA6140 IQ150 Meter/Display 60Hz 1A 24-48V DC 642

30 IQ150MA6510 IQ150 Meter/Display 60Hz 5A 90-265V AC/DC642

31 IQ150MA6511 IQ150 Meter/Display 60Hz 5A 90-265V AC/DC w/Modbus/KYZ Out 795

32 IQ150MA6540 IQ150 Meter/Display 60Hz 5A 24-48V DC642

33 IQ150MA6541 IQ150 Meter/Display 60Hz 5A 24-48V DC w/Modbus/KYZ Out 795

34 IQ130TA5111 IQ130 Transducer Only 50Hz 1A 90-265V AC/DC w/Modbus/KYZ Out469

35 IQ130TA5141 IQ130 Transducer Only 50Hz 1A 24-48V DC w/Modbus/KYZ Out 469

36 IQ130TA5511 IQ130 Transducer Only 50Hz 5A 90-265V AC/DC w/Modbus/KYZ Out469

37 IQ130TA5541 IQ130 Transducer Only 50Hz 5A 24-48V DC w/Modbus/KYZ Out 469

38 IQ130TA6111 IQ130 Transducer Only 60Hz 1A 90-265V AC/DC w/Modbus/KYZ Out469

IQ 130/140/150 SERIES (continued)

Metering Products

IQ 130/140/150 SERIES

Configuration Number	Catalog Number	Description	List Price
39	IQ130TA6141	IQ130 Transducer Only 60Hz 1A 24-48V DC w/Modbus/KYZ Out	469
40	IQ130TA6511	IQ130 Transducer Only 60Hz 5A 90-265V AC/DC w/Modbus/KYZ Out	469
41	IQ130TA6541	IQ130 Transducer Only 60Hz 5A 24-48V DC w/Modbus/KYZ Out	469
42	IQ140TA5111	IQ140 Transducer Only 50Hz 1A 90-265V AC/DC w/Modbus/KYZ Out	607
43	IQ140TA5141	IQ140 Transducer Only 50Hz 1A 24-48V DC w/Modbus/KYZ Out	607
44	IQ140TA5511	IQ140 Transducer Only 50Hz 5A 90-265V AC/DC w/Modbus/KYZ Out	607
45	IQ140TA5541	IQ140 Transducer Only 50Hz 5A 24-48V DC w/Modbus/KYZ Out	607
46	IQ140TA6111	IQ140 Transducer Only 60Hz 1A 90-265V AC/DC w/Modbus/KYZ Out	607
47	IQ140TA6141	IQ140 Transducer Only 60Hz 1A 24-48V DC w/Modbus/KYZ Out	607
48	IQ140TA6511	IQ140 Transducer Only 60Hz 5A 90-265V AC/DC w/Modbus/KYZ Out	607
49	IQ140TA6541	IQ140 Transducer Only 60Hz 5A 24-48V DC w/Modbus/KYZ Out	607
50	IQ150TA5111	IQ150 Transducer Only 50Hz 1A 90-265V AC/DC w/Modbus/KYZ Out	642
51	IQ150TA5141	IQ150 Transducer Only 50Hz 1A 24-48V DC w/Modbus/KYZ Out	642
52	IQ150TA5511	IQ150 Transducer Only 50Hz 5A 90-265V AC/DC w/Modbus/KYZ Out	642
53	IQ150TA5541	IQ150 Transducer Only 50Hz 5A 24-48V DC w/Modbus/KYZ Out	642
54	IQ150TA6111	IQ150 Transducer Only 60Hz 1A 90-265V AC/DC w/Modbus/KYZ Out	642
55	IQ150TA6141	IQ150 Transducer Only 60Hz 1A 24-48V DC w/Modbus/KYZ Out	642
56	IQ150TA6511	IQ150 Transducer Only 60Hz 5A 90-265V AC/DC w/Modbus/KYZ Out	642
57	IQ150TA6541	IQ150 Transducer Only 60Hz 5A 24-48V DC w/Modbus/KYZ Out	$642

Accessories

Catalog Number Description
IQ250-PMAK	Panel Mounting Bracket Assembly for Retrofitting a PXM 2000 to an IQ Analyzer/IQ DP4000/IQ Data/IQ 300 Cutout

IQ 100 Catalog Numbering System

Enclosed Meters

Power Quality Metering Products

Designed for the IQ 130/140/150, IQ 250/260, and Power Xpert Meter 2000, Eaton's Enclosed Meter offers mounting and installation flexibility, especially in retrofit applications where no metering compartment or mounting space is available in the existing electrical distribution equipment or where installation time is a premium. Factory designed and wired, Eaton's Enclosed Meter delivers savings in labor and installation costs since input current and voltage wiring as well as I/O wiring is pre-wired to terminal blocks inside the enclosure. To ensure safety, Eaton's Enclosed Meter includes a primary breaker for line voltage that can be turned off during meter maintenance.

Applications

Stand-alone, enclosed meters are ideal for new metering applications where no metering existed previously, retrofit installations or where ease of installation is required. All necessary components are included.

新汽-桥 1200 1200 1200

ENCLOSED METERS

Catalog Number Style Number Description List Price
W/IQ100 Series Meters
IQ150MA6511-2A 84-32835-32 IQ150 W/MODBUS/KYZ OUT W/NEMA 12 ENCLOSURE 1,525
IQ150MA6511-2B 84-32835-31 IQ150 W/MODBUS/KYZ OUT W/NEMA 12 ENCLOSURE W/CPT1,662
IQ150MA6511-3A 84-32835-64 IQ150 W/MODBUS/KYZ OUT W/NEMA 3R ENCLOSURE 1,598
IQ150MA6511-3B 84-32835-63 IQ150 W/MODBUS/KYZ OUT W/NEMA 3R ENCLOSURE W/CPT1,735
IQ150MA6511-4A 84-32835-96 IQ150 W/MODBUS/KYZ OUT W/NEMA 4X ENCLOSURE 1,681
IQ150MA6511-4B 84-32835-95 IQ150 W/MODBUS/KYZ OUT W/NEMA 4X ENCLOSURE W/CPT1,818
W/IQ250/260 Series Meter
IQ250MA65100-2B 84-32835-25 IQ250 W/NEMA 12 ENCLOSURE W/CPT 2,192
IQ250MA65100-3A 84-32835-60 IQ250 W/NEMA 3R ENCLOSURE2,128
IQ250MA65100-3B 84-32835-57 IQ250 W/NEMA 3R ENCLOSURE W/CPT		2,265
IQ250MA65100-4A 84-32835-92 IQ250 W/NEMA 4X ENCLOSURE2,211
IQ250MA65100-4B 84-32835-89 IQ250 W/NEMA 4X ENCLOSURE W/CPT		2,348
IQ250MA65110-2A 84-32835-29 IQ250 W/2DO&2DI W/NEMA 12 ENCLOSURE		2,702
IQ250MA65110-2B 84-32835-26 IQ250 W/2DO&2DI W/NEMA 12 ENCLOSURE W/CPT		2,839
IQ250MA65110-3A 84-32835-61 IQ250 W/2DO&2DI W/NEMA 3R ENCLOSURE		2,775
IQ250MA65110-3B 84-32835-58 IQ250 W/2DO&2DI W/NEMA 3R ENCLOSURE W/CPT		2,912
IQ250MA65110-4A 84-32835-93 IQ250 W/2DO&2DI W/NEMA 4X ENCLOSURE		2,858
IQ250MA65110-4B 84-32835-90 IQ250 W/2DO&2DI W/NEMA 4X ENCLOSURE W/CPT		2,995
IQ250MA65114-2A 84-32835-30 IQ250 W/2DO&2DI&4AO W/NEMA 12 ENCLOSURE		3,292
IQ250MA65114-2B 84-32835-27 IQ250 W/2DO&2DI&4AO W/NEMA 12 ENCLOSURE W/CPT			3,429
IQ250MA65114-3A 84-32835-62 IQ250 W/2DO&2DI&4AO W/NEMA 3R ENCLOSURE		3,365
IQ250MA65114-3B 84-32835-59 IQ250 W/2DO&2DI&4AO W/NEMA 3R ENCLOSURE W/CPT			3,502
IQ250MA65114-4A 84-32835-94 IQ250 W/2DO&2DI&4AO W/NEMA 4X ENCLOSURE		3,448
IQ250MA65114-4B 84-32835-91 IQ250 W/2DO&2DI&4AO W/NEMA 4X ENCLOSURE W/CPT			3,585
IQ260MA65100-2A 84-32835-22 IQ260 W/NEMA 12 ENCLOSURE		2,447
IQ260MA65100-2B 84-32835-19 IQ260 W/NEMA 12 ENCLOSURE W/CPT 2,584
IQ260MA65100-3A 84-32835-54 IQ260 W/NEMA 3R ENCLOSURE2,520
IQ260MA65100-3B 84-32835-51 IQ260 W/NEMA 3R ENCLOSURE W/CPT		2,657
IQ260MA65100-4A 84-32835-86 IQ260 W/NEMA 4X ENCLOSURE2,603
IQ260MA65100-4B 84-32835-83 IQ260 W/NEMA 4X ENCLOSURE W/CPT		2,740
IQ260MA65110-2A 84-32835-23 IQ260 W/2DO&2DI W/NEMA 12 ENCLOSURE		3,093
IQ260MA65110-2B 84-32835-20 IQ260 W/2DO&2DI W/NEMA 12 ENCLOSURE W/CPT		3,230
IQ260MA65110-3A 84-32835-55 IQ260 W/2DO&2DI W/NEMA 3R ENCLOSURE		3,166
IQ260MA65110-3B 84-32835-52 IQ260 W/2DO&2DI W/NEMA 3R ENCLOSURE W/CPT		3,303
IQ260MA65110-4A 84-32835-87 IQ260 W/2DO&2DI W/NEMA 4X ENCLOSURE		3,249
IQ260MA65110-4B 84-32835-84 IQ260 W/2DO&2DI W/NEMA 4X ENCLOSURE W/CPT		3,386
IQ260MA65114-2A 84-32835-24 IQ260 W/2DO&2DI&4AO W/NEMA 12 ENCLOSURE		3,683
IQ260MA65114-2B 84-32835-21 IQ260 W/2DO&2DI&4AO W/NEMA 12 ENCLOSURE W/CPT			3,820
IQ260MA65114-3A 84-32835-56 IQ260 W/2DO&2DI&4AO W/NEMA 3R ENCLOSURE		3,756
IQ260MA65114-3B 84-32835-53 IQ260 W/2DO&2DI&4AO W/NEMA 3R ENCLOSURE W/CPT			3,893
IQ260MA65114-4A 84-32835-88 IQ260 W/2DO&2DI&4AO W/NEMA 4X ENCLOSURE		3,839
IQ260MA65114-4B 84-32835-85 IQ260 W/2DO&2DI&4AO W/NEMA 4X ENCLOSURE W/CPT		$3,976

Enclosed Meters (continued)

Power Quality Metering Products

ENCLOSED METERS (continued)

Catalog Number Style Number Description List Price
W/Power Xpert Meter 2000 Series
PXM2250MA65105-2A	84-32835-16	PXM2250 W/NEMA 12 ENCLOSURE 2,719
PXM2250MA65105-2B	84-32835-13	PXM2250 W/NEMA 12 ENCLOSURE W/CPT2,856
PXM2250MA65105-3A	84-32835-48	PXM2250 W/NEMA 3R ENCLOSURE 2,792
PXM2250MA65105-3B	84-32835-45	PXM2250 W/NEMA 3R ENCLOSURE W/CPT2,929
PXM2250MA65105-4A	84-32835-80	PXM2250 W/NEMA 4X ENCLOSURE 2,875
PXM2250MA65105-4B	84-32835-77	PXM2250 W/NEMA 4X ENCLOSURE W/CPT3,012
PXM2250MA65115-2A	84-32835-17	PXM2250 W/2DO&2DI W/NEMA 12 ENCLOSURE 3,329
PXM2250MA65115-2B	84-32835-14	PXM2250 W/2DO&2DI W/NEMA 12 ENCLOSURE W/CPT3,466
PXM2250MA65115-3A	84-32835-49	PXM2250 W/2DO&2DI W/NEMA 3R ENCLOSURE 3,402
PXM2250MA65115-3B	84-32835-46	PXM2250 W/2DO&2DI W/NEMA 3R ENCLOSURE W/CPT	3,539
PXM2250MA65115-4A	84-32835-81	PXM2250 W/2DO&2DI W/NEMA 4X ENCLOSURE 3,485
PXM2250MA65115-4B	84-32835-78	PXM2250 W/2DO&2DI W/NEMA 4X ENCLOSURE W/CPT	3,622
PXM2250MA65145-2A	84-32835-18	PXM2250 W/4AO 4-20 W/NEMA 12 ENCLOSURE	3,431
PXM2250MA65145-2B	84-32835-15	PXM2250 W/4AO 4-20 W/NEMA 12 ENCLOSURE W/CPT	3,568
PXM2250MA65145-3A	84-32835-50	PXM2250 W/4AO 4-20 W/NEMA 3R ENCLOSURE 3,504
PXM2250MA65145-3B	84-32835-47	PXM2250 W/4AO 4-20 W/NEMA 3R ENCLOSURE W/CPT	3,641
PXM2250MA65145-4A	84-32835-82	PXM2250 W/4AO 4-20 W/NEMA 4X ENCLOSURE 3,587
PXM2250MA65145-4B	84-32835-79	PXM2250 W/4AO 4-20 W/NEMA 4X ENCLOSURE W/CPT	3,724
PXM2260MA65105-2A	84-32835-10	PXM2260 W/NEMA 12 ENCLOSURE 3,080
PXM2260MA65105-2B	84-32835-7	PXM2260 W/NEMA 12 ENCLOSURE W/CPT3,217
PXM2260MA65105-3A	84-32835-42	PXM2260 W/NEMA 3R ENCLOSURE 3,153
PXM2260MA65105-3B	84-32835-39	PXM2260 W/NEMA 3R ENCLOSURE W/CPT3,290
PXM2260MA65105-4A	84-32835-74	PXM2260 W/NEMA 4X ENCLOSURE 3,236
PXM2260MA65105-4B	84-32835-71	PXM2260 W/NEMA 4X ENCLOSURE W/CPT3,373
PXM2260MA65115-2A	84-32835-11	PXM2260 W/2DO&2DI W/NEMA 12 ENCLOSURE 3,691
PXM2260MA65115-2B	84-32835-8	PXM2260 W/2DO&2DI W/NEMA 12 ENCLOSURE W/CPT3,828
PXM2260MA65115-3A	84-32835-43	PXM2260 W/2DO&2DI W/NEMA 3R ENCLOSURE 3,764
PXM2260MA65115-3B	84-32835-40	PXM2260 W/2DO&2DI W/NEMA 3R ENCLOSURE W/CPT	3,901
PXM2260MA65115-4A	84-32835-75	PXM2260 W/2DO&2DI W/NEMA 4X ENCLOSURE 3,847
PXM2260MA65115-4B	84-32835-72	PXM2260 W/2DO&2DI W/NEMA 4X ENCLOSURE W/CPT	3,984
PXM2260MA65145-2A	84-32835-12	PXM2260 W/4AO 4-20 W/NEMA 12 ENCLOSURE	3,793
PXM2260MA65145-2B	84-32835-9	PXM2260 W/4AO 4-20 W/NEMA 12 ENCLOSURE W/CPT	3,930
PXM2260MA65145-3A	84-32835-44	PXM2260 W/4AO 4-20 W/NEMA 3R ENCLOSURE 3,866
PXM2260MA65145-3B	84-32835-41	PXM2260 W/4AO 4-20 W/NEMA 3R ENCLOSURE W/CPT	4,003
PXM2260MA65145-4A	84-32835-76	PXM2260 W/4AO 4-20 W/NEMA 4X ENCLOSURE 3,949
PXM2260MA65145-4B	84-32835-73	PXM2260 W/4AO 4-20 W/NEMA 4X ENCLOSURE W/CPT	4,086
PXM2270MA65105-2A	84-32835-4	PXM2270 W/NEMA 12 ENCLOSURE 3,844
PXM2270MA65105-2B	84-32835-1	PXM2270 W/NEMA 12 ENCLOSURE W/CPT3,981
PXM2270MA65105-3A	84-32835-36	PXM2270 W/NEMA 3R ENCLOSURE 3,917
PXM2270MA65105-3B	84-32835-33	PXM2270 W/NEMA 3R ENCLOSURE W/CPT4,054
PXM2270MA65105-4A	84-32835-68	PXM2270 W/NEMA 4X ENCLOSURE 4,000
PXM2270MA65105-4B	84-32835-65	PXM2270 W/NEMA 4X ENCLOSURE W/CPT4,137
PXM2270MA65115-2A	84-32835-5	PXM2270 W/2DO&2DI W/NEMA 12 ENCLOSURE 4,455
PXM2270MA65115-2B	84-32835-2	PXM2270 W/2DO&2DI W/NEMA 12 ENCLOSURE W/CPT4,592
PXM2270MA65115-3A	84-32835-37	PXM2270 W/2DO&2DI W/NEMA 3R ENCLOSURE $4,528

Enclosed Meters (continued)

Power Quality Metering Products

ENCLOSED METERS (continued)

Catalog Number Style Number Description List Price
W/Power Xpert Meter 2000 Series (continued)
PXM2270MA65115-3B	84-32835-34	PXM2270 W/2DO&2DI W/NEMA 3R ENCLOSURE W/CPT 4,665
PXM2270MA65115-4A	84-32835-69	PXM2270 W/2DO&2DI W/NEMA 4X ENCLOSURE4,611
PXM2270MA65115-4B	84-32835-66	PXM2270 W/2DO&2DI W/NEMA 4X ENCLOSURE W/CPT 4,748
PXM2270MA65145-2A	84-32835-6	PXM2270 W/4AO 4-20 W/NEMA 12 ENCLOSURE4,557
PXM2270MA65145-2B	84-32835-3	PXM2270 W/4AO 4-20 W/NEMA 12 ENCLOSURE W/CPT 4,694
PXM2270MA65145-3A	84-32835-38	PXM2270 W/4AO 4-20 W/NEMA 3R ENCLOSURE4,630
PXM2270MA65145-3B	84-32835-35	PXM2270 W/4AO 4-20 W/NEMA 3R ENCLOSURE W/CPT 4,767
PXM2270MA65145-4A	84-32835-70	PXM2270 W/4AO 4-20 W/NEMA 4X ENCLOSURE4,713
PXM2270MA65145-4B	84-32835-67	PXM2270 W/4AO 4-20 W/NEMA 4X ENCLOSURE W/CPT $4,850

Note: Enclosed Meters Includes Meter/Display, 60HZ, 5A, 90-265VAC

Enclosed Meter ordering information

SOFTWARE

Software Products

Delivering a full line of software, strategic equipment, and connectivity devices, Eaton provides the perfect solution. Implementing these key components along with our UPS products allows you to get the most out of your power protection system.

Intelligent Power Software Suite INTELLIGENT POWER MANAGER – MONITORING AND MANAGEMENT SOFTWARE

Ideal for monitoring and managing multiple power and environmental devices, Intelligent Power Manager software from Eaton delivers a global view across the network from any PC with an Internet browser or VMware's vCenter dashboard. Exceptionally versatile, the software is compatible with devices supporting a network interface, including Eaton and other manufacturers' UPSs, environmental sensors, ePDUs, shutdown applications and more. Intelligent Power Manager also offers the ability to sort units by customized views, centralize alarms and maintain event logs for preventive maintenance of the entire installed equipment base.

Download from eaton.com/intelligentpower

Features and benefits

• View similar devices and all alerts from a single Web interface
• Mass upgrade firmware
- Manage shutdown agents
- Auto discovery automatically detects network devices
• Edit and configure SNMP devices
- Read and report on power consumption

• View UPSs and other power devices from VMware vCenter and Citrix XenCenter dashboards
- Triggers VMware's vMotion and other migration applications to move virtual machines to an available server during a power outage
- Enables remote, safe shutdown of servers in a cluster running vCenter
• Monitor kWh (kilowatt hours)

INTELLIGENT POWER PROTECTOR – SHUTDOWN SOFTWARE

When the power goes out for a prolonged period of time, Intelligent Power Protector facilitates automatic, graceful shutdown of computers, servers and network devices powered by an Eaton UPS, saving all work-in-progress and ensuring data integrity. This software's versatile user interface shows you detailed information about connected servers and UPSs through USB and serial or network communication. Intelligent Power Protector is available free of charge and can be downloaded from eaton.com/intelligentpower.

Screenshot of a software interface displaying a data analytics dashboard with charts and graphs, likely for statistical or statistical analysis.

Features and benefits

• Gracefully shuts down computers and servers during an extended power outage
• Easy-to-use interface from any PC with a Web browser
  • Acquires UPS information through local or network communication
• Easily deployed on many computers
• Can be remotely managed, configured and updated with Intelligent Power Manager
• Compatible with VMware vCenter, Microsoft SCVMM, Red Hat KVM and Citrix XenServer

Download from eaton.com/intelligentpower

Eaton Power Xpert Software MONITORING AND MANAGEMENT SYSTEM

Power Xpert Software is a comprehensive solution for system-level management of your power infrastructure via a Web-browser, from any desktop, on one screen. Power Xpert Software is designed to take the complexity out of managing your power system and provides a clear picture of what is happening at a component, device and system level. By gathering, presenting and analyzing data in detail, system-wide, Power Xpert Software provides insight into cost savings and downtime prevention.

Screenshot of a Chinese software interface displaying multiple dashboard panels with status indicators and system status icons.

Power Xpert Software Professional Edition

• Geared towards end users, with built in support for Eaton power distribution products such as switchgear, UPSs, breakers, PDUs, RPPs, meters, relays, VFDs and MCCs among others.
• Eaton products connect with the software directly via an Ethernet connection, while legacy devices use a Power Xpert Gateway to Web-enable their communications
• A subset of third-party meters and devices are supported as standard via the gateway connection
  • Optional Power Xpert Reporting

Power Xpert Software Enterprise Edition

• Geared towards advanced power users, system integrators and enterprises with heterogeneous device spectrum and system developers who can take advantage of the included SNMP and Modbus integration development utilities
• Extensive support for third party devices via standard SNMP and Modbus TCP protocols
  • Large variety of ready made third-party drop in drivers
  • Optional Power Xpert Reporting

SOFTWARE

Software Products (continued)

Eaton's Power Xpert Reporting

Eaton's Power Xpert Reporting works in conjunction with Power Xpert Software and Foresee allowing a view past individual measurements, trend graphs and events. It consolidates complex data from a multitude of devices from around the globe into easy-to-understand graphical reports. Stan-

dard reports include: Energy Summary Report; Energy Cost Allocation Report; Power Quality Report; Branch Circuit Report; Capacity Summary Report; Event Summary Report; Joint Commission; Data Center Efficiency Report; Greenhouse Gases Report, Utilities Report, Baseline Comparison Report and Power Xpert Dashboard Report.

Highlighted features

• Helps quality for LEED ^® credits
• Reporting hierarchies organize device data
• Microsoft ^ Excel ^ integration for further analysis
• Web-browser access
• Connect to multiple databases simultaneously
• Custom report support

Eaton LanSafe Software

POWER MANAGEMENT SOFTWARE FOR NETWORK SHUTDOWN

LanSafe ^® software comes free of charge with Eaton's 3, 5 and 9 series UPSs to monitor UPS status and gracefully shutdown or restart the systems connected to that UPS during an extended power failure. In addition, it introduces a number of revolutionary features to simplify UPS monitoring and management.

Features and Benefits

• Stealth mode operation
• Cost savings calculator
• Animated UPS PowerScope view
  • History calendar and control room views

• Separate views for single- and three-phase UPSs
  • Event history summary

• Battery replacement warning
  • Power on/off scheduling via calendar
  • UPS load segment (receptacle) control

• Local/remote UPS power on/off
  • Automatic, graceful shut down with work in progress saving, during an extended power failure

NetWatch

SERVER SHUTDOWN SOFTWARE

The NetWatch Client software is designed to shut down a server or workstation under the control of a UPS being monitored and managed by a ConnectUPS Web/SNMP card, BestLink Web/SNMP adapter or an Eaton Network Management Card (NMC).

Process Response Building Server P Subsidi D Information 10.25.21.249 SMAP/360 Adapters Process Response Server Jazz Web/SMAP Card 10.25.21.249 SMAP/360 Adapters Jazz Web/SMAP Card Load Segment 1: Segment 1 Load Segment 2: Segment 2 10.25.21.168 IPS/Web Card 102.168.073 SMAP/360 Adapters 102.168.073 Audio Pro 102.168.110 IPS/Web Card Load Segment 1: Segment 1 Load Segment 2: Segment 2 OK Cancel Cancel

Features and Benefits

• Monitor the activity of a single UPS through communication with the ConnectUPS, BestLink or NMC
• Alerts users of a server or workstation whenever a power failure occurs
• During a power outage, provide automatic graceful shutdown functionality and inform clients on pending shutdown thus preparing users for the removal of AC power

NetWatch Client 5.0 has met the Cisco Technology Developer Program test criteria for interoperability with Cisco's Unified Communications Manager 4.3.

SOFTWARE

Software Products (continued)

EATON POWER XPERT SOFTWARE

Part Number List Price
Power Xpert Software Professional Edition
Power Xpert Software Professional Edition PXS-PRO 5,999
Power Xpert Software Professional Edition w/ 1 Day Startup* PXS-PROn1S9,897
Power Xpert Software Professional Edition w/ 2 Day Startup* PXS-PROn2S 12,651
Power Xpert Software Professional Edition w/ 5 Day Startup* PXS-PROn5S20,947
Power Xpert Software Professional Edition & Power Xpert Reporting PXS-PROnPXR 11,398
Power Xpert Software Enterprise Edition
Power Xpert Software Enterprise Edition	PXS-ENT	11,999
Power Xpert Software Enterprise Edition w/ 1 Day Startup*	PXS-ENTn1S	15,297
Power Xpert Software Enterprise Edition w/ 2 Day Startup*	PXS-ENTn2S	18,051
Power Xpert Software Enterprise Edition w/ 5 Day Startup*	PXS-ENTn5S	26,347
Power Xpert Software Enterprise Edition & Power Xpert Reporting	PXS-ENTnPXR	17,098

*N/A = Not available for international sales, services are available in continental USA only.

POWER XPERT SOFTWARE ACCESSORIES

Description	Part Number	List Price
Environmental Monitoring Probe	116750224-001	$220

POWER XPERT REPORTING

Description	Part Number	List Price
Power Xpert Reporting - Single Source DB Connections *	PXR	5,999
Power Xpert Reporting - up to 2 Source DB Connections *	PXR-2DB	8,998
Power Xpert Reporting - up to 5 Source DB Connections *	PXR-5DB	12,597
Power Xpert Reporting - up to 10 Source DB Connections *	PXR-10DB	17,636
Power Xpert Reporting - up to 25 Source DB Connections *	PXR-25DB	24,691
Power Xpert Reporting - up to 50 Source DB Connections *	PXR-50DB	34,567

*Number of supported Source Database Connections to either Power Xpert Software or Foreseer

UPS MANAGEMENT/SUPERVISORY SOFTWARE

Description	Part Number	List Price
Intelligent Power Manager, Silver edition: support for 11–100 IP addresses - all series	66925	569
Intelligent Power Manager, Gold edition: support for unlimited IP addresses - all series	66926	2,765
Management-Pac 2-Network Management Systems - Pulsar series	66923	$369
Intelligent Power Software Suite CD: Bundled free-of-charge with Eaton UPSs (contains: Intelligent Power Manager supervisory software, Intelligent Power Protector protection software, Personal Solution-Pac power management software for non-networked Pulsar series UPSs, LanSafe power management software)	103004871

CONNECTIVITY

Connectivity Products

Eaton's connectivity products are accessory hardware options used to provide Eaton UPS/PDU products to external communication devices. We offer a variety of connectivity products to ensure communication compatibility with a variety of external devices through the Web, serial, USB, relays or SNMP.

Web/SNMP Devices

The Network Card-MS, ConnectUPS-X, ConnectUPS-BD and ConnectUPS-E Web/SNMP devices are designed for the rigorous task of managing the UPS that protects equipment and the critical data residing throughout the network.

Features and Benefits

• Monitoring via Web (computer, PDA or cell phone) or via SNMP (Network Management System) provides easy, anytime, anywhere access
• Built-in three port switching hub (in X-Slot version) adds three 10/100 Mbps power connected network connections
- Alarm notification through any combination of e-mail, SNMP traps or network message speeds corrective action
- Integrated NetWatch Client software provides graceful, unattended shutdown of computer operating systems

• MultiView software provides simultaneous UPS monitoring through multiple Network Card-MS and ConnectUPS-X, -BD and -E cards from a single computer console
• SSL and SSH encryption and authentication
  • Automatic local language detection and support; Spanish, Chinese, German, Italian, French and Portuguese among others

Eaton Expansion Chassis & Modbus Card

The Expansion Chassis is a three-slot peripheral device that expands communication methods for a UPS through its support for X-Slot cards. It is pre-configured with the Eaton Modbus card, which serves as the interface to Modbus networks and as the communications controller for the other slots.

Features and Benefits

• Serves as the framework for protocol conversion via compatible X-Slot cards to: Modbus, SNMP and HTTP
• Add expanded communication support for a wide range of UPS models: 5115, 5125, 9170+, 9315, 9355 and 9390
• Flexible mounting options (via included feet, rack or wall-mounting kits); redundant power inputs

Interface Cards

• Alarm notification speeds corrective action through any combination of e-mail, SNMP traps or NetWatch Client software
• Compatible with X-Slot cards: Modbus Card (one included), ConnectUPS-X Web/SNMP Card PXGX 2000 and Single Port Serial Card

Two electronic circuit boards with connectors and ports, no visible text or symbols

The Relay Interface Cards provide simple alarm notification via isolated contacts to signal remote alarm panels or security systems in the event of a change of state in UPS operation.

Features and Benefits

• Provides out-of-band communication methods via RS-232 serial communications or isolated Form-C relay contacts
• Provides isolated dry contact Form-C relay outputs for Utility failure, Low battery, UPS alarm/OK and On bypass

• User-selectable normally open (NO) or normally closed (NC) contacts

• Shutdown function to remotely shutdown UPS in the event of an emergency
  • IBM AS/400 computer port (DB-15)
  • Terminal block outputs available on X-Slot card

Environmental Monitoring Probe UPS Connectivity Device

White wireless router device with visible ports and connectors (no text or symbols)

EMP enables you to remotely monitor environmental conditions as easily as

you monitor power conditions. Using a standard Web browser, you can view the ambient temperature and humidity of the remote environment, as well as the status of two additional contact devices, such as a smoke detector or open-door sensor.

Features and Benefits

• Monitors temperature, humidity and status of two contacts/sensors
- Works with any Eaton UPS/PDU with any ConnectUPS Web/SNMP Card and Power Xpert Gateway Card
- Can be located up to 20 meters (65.6 feet) from the UPS
- Measures ambient temperatures between -20^ and 80^ (-4°F and 176°F)

• Measures relatively humidity between 10 and 90 percent
- Displays status on Web page, IP phone or PDA or network management system
• Auto-sends alarms via e-mail, PCS phone or pager

CONNECTIVITY (continued)

Connectivity Products

Eaton Power Xpert Gateway PDP Card

Provides Web-enabled, real-time monitoring of Eaton three-phase PDUs, RPPs, PDRs, RPMs and the Eaton Energy Management System for power quality status and fast response to power-related events.

Eaton Power Xpert Gateway UPS Card

Provides Web-enabled, real-time monitoring of select single- and three-phase UPSs for power quality status and fast response to power-related events. The Power Xpert Gateway UPS Card is compatible with Eaton UPSs with X-Slot compatibility; these include the 5115 RM, 5125, 9125, 9140, 9155, 9315, 9355, 9390, 9395 and BladeUPS.

Features and Benefits of the Power Xpert Gateway cards include

• Web-enabled monitoring of power quality data—data can be viewed from any location with a Web browser
• Configure and edit settings of the cards remotely via the Web interface—bring the power of configuration to your desktop
• Data, event and system logging with time stamp—accurate logging for power quality analysis, troubleshooting and equipment planning
• Modbus TCP/IP and SNMP support—open communication protocol allows for communication to standard building management and network management systems

• Collective Notification e-mail messaging on input power related events—one e-mail will be sent for multiple UPS with a consolidated list of the events and affected UPS

• Customized e-mail messaging for events notification, including data and event logs and periodic "heartbeat" e-mails—direct alarm and event notification to the appropriate person(s) in the organization

• Easy integration into existing Ethernet infrastructure—minimize installation cost
• Seamless integration of Eaton UPSs, PDUs, RPMs and RPPs into Power Xpert Software—Web-enable and monitor all of your equipment, from Eaton or other manufacturers, with the Power Xpert Architecture
  • Supports the Environmental Monitoring Probe—expanded ability to view temperature, humidity and two contact closures

CONNECTIVITY (continued)

Connectivity Products

SOFTWARE COMPATIBILITY WITH UPS VIA USB OR SERIAL CABLE (PEER-TO-PEER)

Powerware Series Pulsar Series Eaton BladeUPS
Protection and supervision software
Intelligent Power Protector x x x
Personal Solution-Pac		x
Microsoft® Integrated Power Manager		x
LanSafe	x x x

SOFTWARE AND CONNECTIVITY COMPATIBILITY WITH ETHERNET AND CONNECTIVITY CARD (NETWORK)

When purchasing additional software, make sure that it is compatible with your UPS's connectivity card.	Network Card-MS (Network-MS)	ConnectUPS-BD (116750222-001)	ConnectUPS-X (116750221-001)	BestLink Web/SNMP Adapter (116750225-001)	Network and MODBUS Card-MS (MODBUS-MS)	X-Slot® Modbus Card (103005425-5591)	Power Xpert Gateway UPS (PXGXUPS)	Relay card-MS (Relay-MS)	Relay Interface Card-X-Slot (1018460)	Relay Interface Card-BestDock (1014018)
Supervision software—monitors and manages UPSs and connected devices
Intelligent Power Manager	X	X	X		X	X	X
Foreseer and Power Xpert Software - Professional/Enterprise	X	X	X		X	X	X
LanSafe		X	X			X
Protection software—graceful shutdown of OSs on servers and PCs
Intelligent Power Protector	X	X	X		X	X	X
NetWatch	X	X	X		X	X	X
Network Shutdown Module	X				X
Power Xpert Software - Professional and Enterprise Editions	X	X	X			X	X
LanSafe	X	X
Enterprise Power Monitoring Software
Power Xpert Software - Professional and Enterprise Editions	X	X	X			X	X
Foreseer Services	X	X	X		X	X	X
Connectivity compatibility
3105, 3S, 5110 and 5115 tower
5115 RM			X			X	X		X
5125			X			X	X		X
Evolution/Evolution S	X							X
5130	X							X
5PX	X							X
EX	X				X			X
9130	X	X			X					X
MX	X				X			X
MX frame	X							X
9135	X				X			X
EX RT	X				X			X
9140			X			X	X		X
9155			X				X		X
9170+		X								X
FERRUPS				X
BladeUPS			X			X	X		X
9315			X			X	X		X
9355			X			X	X		X
9390			X			X	X		X
9390IT			X			X	X		X
9395			X			X	X		X
9E	X				X

*Also compatible with the following high voltage series: Ellipse, Ellipse Max, Protection Center, Protection Station

CONNECTIVITY (continued)

Connectivity Options

WEB/SNMP PRODUCTS

Description Part Number List Price

ConnectUPS-X Web/SNMP Card 116750221-001 335(for use with 5115, 5125, 9140, 9155, BladeUPS, 9355, 9390, 9390IT)

ConnectUPS-BD Web/SNMP Card (for use with 9130 and 9170+) 116750222-001335

ConnectUPS-E Web/SNMP Adapter (for use with legacy Powerware 9150 and 9305 UPSs) 116750223-001 493

Ethernet SNMP/HTTP Adapter (for use with FERRUPS) 116750225-001349

Network Card-MS Web/SNMP Network-MS $249(for use with Evolution, 5130, 5PX, Evolution S, 9130, 9135, EX RT, 9170+)

INTEGRATION PRODUCTS (EXPANDED CONNECTIVITY & OPEN SYSTEM INTEGRATION) - POWERWARE AND EATON SERIES

Description Part Number	List Price
Expansion Chassis - Provides additional X-Slots via RS-232 DB9 (Includes Modbus Card)	05147063	1,658
Modbus Card-X-Slot	103005425-5591	661
Network and MODBUS Card-MS (for use with 5PX, MX, EX RT)	MODBUS-MS	$335

CONNECTIVITY AND ENVIRONMENTAL ACCESSORIES

Description Part Number	List Price
Environmental Monitoring Probe	116750224-001 $220

RELAY INTERFACE/REMOTE MONITORING PRODUCTS

Description Part Number List Price
Relay Card-MS	RELAY-MS	100
Relay Interface Card-BD (AS/400 Compatible)	1014018	146
Relay Interface Card-X-Slot (AS/400 Compatible)	1018460	146
Cable 25 ft (compatible with AS/400 model 9406; for use with 1014018 or 1018460)	103004349-5501	62
Cable 75 ft (compatible with AS/400 model 9406; for use with 1014018 or 1018460)	103004347-5501	104
Industrial Relay and Display Drive Card X-Slot.	103003055	335
Provides (4) Form-C Relay contacts (5A @ 250V) for UPS integration into security and alarm systems. Also provides signal information for the Remote Monitor Display Panel (103002687-001)
Splitter Cable 3 ft (DB15 male to dual DB15 female; for use with 1014018 or 1018460)	124102028-001	158
Relay Card - Contacts (DB25) & RS232 (DB9) - X-Slot. Includes 30 ft cable DB25 - DB9. (compatible with AS/400 model 9406)	103004741-5591	314
Cable 10 ft DB9 - DB9 (compatible with AS/400 model 9406; for use with 103006828)	66033	$100

POWER XPERT CONNECTIVITY PRODUCTS

Description Part Number List Price
Power Xpert Gateway PDP Card	PXGXPDP	950
Power Xpert Gateway UPS Card	PXGXUPS	450

REMOTE MONITORING PANELS (FOR MONITORING OF UPS STATUS) - POWERWARE SERIES

Description	Part Number	List Price
Remote Monitor Display Panel (Requires Industrial Relay and Display Drive Card Part Number 103003055)	103002687-001	$335

INTEGRATION SOFTWARE - POWERWARE AND EATON SERIES

Description	Web Download	List Price
IBM Director Snap-in: Network Management System (NMS) software	powerquality.eaton.com	Free-of-charge

SURGE PROTECTION

PSPD SERIES

Eaton's PSPD series of surge protection devices ensure that critical equipment is protected with the safest, most reliable and most advanced UL 1449 3rd Edition certified surge protectors. The array of features, options, and configurations ensures there is a unit for all electrical applications, including service entrances, data centers, critical distribution switchboards and panelboards, and PDU's and RPP's.

• Common voltages and configurations as well as a variety of surge current capacity ratings from 50 through 400kA provide application flexibility.
• UL 1449 3rd Edition recognized component for the United States and Canada, covered by Underwriters Laboratories certification and follow-up service.
• Utilizes self-protected protected metal oxide varistor (MOV) technology, which provides both high energy capacity and fail-safe operation.
• Side mount units offer factory-sealed assembly, which prevents arc flash and shock hazards.
• Standard units include EMI/RFI filtering to provide effective protection for sensitive electronic loads.
• Side mount units contain no replaceable parts or items that require periodic maintenance thus reducing maintenance costs.

Two black industrial electrical control units with digital display screens (no visible text or symbols)

Dimensions Dimensions Part (H x W x D, Weight List Part (H x Description	W x D, Weight List
	Number	inches)	(lb)	Price	Number	inches)	(lb)	Price
PSPD 050 (50 kA/phase surge rating)
Standard with Surge Counter Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD050208Y3K	10.5 x 7.5 x 3.5	7.0	795	PSPD050208Y3M	11.0 x 11.5 x 6.0	14.0	1,160
120/240 Single Split-phase (3W + G)	PSPD050240S3K	10.5 x 7.5 x 3.5	7.0	865	PSPD050240S3M	11.0 x 11.5 x 6.0	14.0	1,230
240 Delta (3W + G)	PSPD050240D3K	10.5 x 7.5 x 3.5	7.0	935	PSPD050240D3M	11.0 x 11.5 x 6.0	14.0	1,295
480 Delta (3W + G)	PSPD050480D3K	10.5 x 7.5 x 3.5	7.0	935	PSPD050480D3M	11.0 x 11.5 x 6.0	14.0	1,295
400/230 Wye Three-phase (4W + G)	PSPD050400Y3K	10.5 x 7.5 x 3.5	7.0	935	PSPD050400Y3M	11.0 x 11.5 x 6.0	14.0	1,295
480/277 Wye Three-phase (4W + G)	PSPD050480Y3K	10.5 x 7.5 x 3.5	7.0	935	PSPD050480Y3M	11.0 x 11.5 x 6.0	14.0	1,295
Standard Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD050208Y2K	10.5 x 7.5 x 3.5	7.0	665	PSPD050208Y2M	11.0 x 11.5 x 6.0	14.0	1,030
120/240 Single Split-phase (3W + G)	PSPD050240S2K	10.5 x 7.5 x 3.5	7.0	735	PSPD050240S2M	11.0 x 11.5 x 6.0	14.0	1,095
240 Delta (3W + G)	PSPD050240D2K	10.5 x 7.5 x 3.5	7.0	795	PSPD050240D2M	11.0 x 11.5 x 6.0	14.0	1,160
480 Delta (3W + G)	PSPD050480D2K	10.5 x 7.5 x 3.5	7.0	795	PSPD050480D2M	11.0 x 11.5 x 6.0	14.0	1,160
400/230 Wye Three-phase (4W + G)	PSPD050400Y2K	10.5 x 7.5 x 3.5	7.0	795	PSPD050400Y2M	11.0 x 11.5 x 6.0	14.0	1,160
480/277 Wye Three-phase (4W + G)	PSPD050480Y2K	10.5 x 7.5 x 3.5	7.0	795	PSPD050480Y2M	11.0 x 11.5 x 6.0	14.0	1,160
Basic Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD050208Y1K	10.5 x 7.5 x 3.5	7.0	635	PSPD050208Y1M	11.0 x 11.5 x 6.0	14.0	995
120/240 Single Split-phase (3W + G)	PSPD050240S1K	10.5 x 7.5 x 3.5	7.0	695	PSPD050240S1M	11.0 x 11.5 x 6.0	14.0	1,060
240 Delta (3W + G)	PSPD050240D1K	10.5 x 7.5 x 3.5	7.0	765	PSPD050240D1M	11.0 x 11.5 x 6.0	14.0	1,125
480 Delta (3W + G)	PSPD050480D1K	10.5 x 7.5 x 3.5	7.0	765	PSPD050480D1M	11.0 x 11.5 x 6.0	14.0	1,125
400/230 Wye Three-phase (4W + G)	PSPD050400Y1K	10.5 x 7.5 x 3.5	7.0	765	PSPD050400Y1M	11.0 x 11.5 x 6.0	14.0	1,125
480/277 Wye Three-phase (4W + G)	PSPD050480Y1K	10.5 x 7.5 x 3.5	7.0	765	PSPD050480Y1M	11.0 x 11.5 x 6.0	14.0	1,125
PSPD 080 (80 kA/phase surge rating)
Standard with Surge Counter Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD080208Y3K	10.5 x 7.5 x 3.5	7.0	1,165	PSPD080208Y3M	11.0 x 11.5 x 6.0	14.0	1,495
120/240 Single Split-phase (3W + G)	PSPD080240S3K	10.5 x 7.5 x 3.5	7.0	1,265	PSPD080240S3M	11.0 x 11.5 x 6.0	14.0	1,595
240 Delta (3W + G)	PSPD080240D3K	10.5 x 7.5 x 3.5	7.0	1,365	PSPD080240D3M	11.0 x 11.5 x 6.0	14.0	1,695
480 Delta (3W + G)	PSPD080480D3K	10.5 x 7.5 x 3.5	7.0	1,365	PSPD080480D3M	11.0 x 11.5 x 6.0	14.0	1,695
400/230 Wye Three-phase (4W + G)	PSPD080400Y3K	10.5 x 7.5 x 3.5	7.0	1,365	PSPD080400Y3M	11.0 x 11.5 x 6.0	14.0	1,695
480/277 Wye Three-phase (4W + G)	PSPD080480Y3K	10.5 x 7.5 x 3.5	7.0	1,365	PSPD080480Y3M	11.0 x 11.5 x 6.0	14.0	1,695

SURGE PROTECTION (continued)

PSPD SERIES

Dimensions Dimensions Part (H x W x D, Weight List Part (H x W x D, Weight List Description	Number	(inches)	(lb)	Price	Number	(inches)	(lb)	Price
PSPD 080 (80 kA/phase surge rating) (continued)
Standard Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD080208Y2K	10.5 x 7.5 x 3.5	7.0	965	PSPD080208Y2M	11.0 x 11.5 x 6.0	14.0	1,295
120/240 Single Split-phase (3W + G)	PSPD080240S2K	10.5 x 7.5 x 3.5	7.0	1,065	PSPD080240S2M	11.0 x 11.5 x 6.0	14.0	1,395
240 Delta (3W + G)	PSPD080240D2K	10.5 x 7.5 x 3.5	7.0	1,165	PSPD080240D2M	11.0 x 11.5 x 6.0	14.0	1,495
480 Delta (3W + G)	PSPD080480D2K	10.5 x 7.5 x 3.5	7.0	1,165	PSPD080480D2M	11.0 x 11.5 x 6.0	14.0	1,495
400/230 Wye Three-phase (4W + G)	PSPD080400Y2K	10.5 x 7.5 x 3.5	7.0	1,165	PSPD080400Y2M	11.0 x 11.5 x 6.0	14.0	1,495
480/277 Wye Three-phase (4W + G)	PSPD080480Y2K	10.5 x 7.5 x 3.5	7.0	1,165	PSPD080480Y2M	11.0 x 11.5 x 6.0	14.0	1,495
Basic Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD080208Y1K	10.5 x 7.5 x 3.5	7.0	915	PSPD080208Y1M	11.0 x 11.5 x 6.0	14.0	1,245
120/240 Single Split-phase (3W + G)	PSPD080240S1K	10.5 x 7.5 x 3.5	7.0	1,010	PSPD080240S1M	11.0 x 11.5 x 6.0	14.0	1,340
240 Delta (3W + G)	PSPD080240D1K	10.5 x 7.5 x 3.5	7.0	1,110	PSPD080240D1M	11.0 x 11.5 x 6.0	14.0	1,440
480 Delta (3W + G)	PSPD080480D1K	10.5 x 7.5 x 3.5	7.0	1,110	PSPD080480D1M	11.0 x 11.5 x 6.0	14.0	1,440
400/230 Wye Three-phase (4W + G)	PSPD080400Y1K	10.5 x 7.5 x 3.5	7.0	1,110	PSPD080400Y1M	11.0 x 11.5 x 6.0	14.0	1,440
480/277 Wye Three-phase (4W + G)	PSPD080480Y1K	10.5 x 7.5 x 3.5	7.0	1,110	PSPD080480Y1M	11.0 x 11.5 x 6.0	14.0	1,440
PSPD 100 (100 kA/phase surge rating)
Standard with Surge Counter Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD100208Y3K	10.5 x 7.5 x 3.5	7.0	1,386	PSPD100208Y3M	11.0 x 11.5 x 6.0	14.0	1,722
120/240 Single Split-phase (3W + G)	PSPD100240S3K	10.5 x 7.5 x 3.5	7.0	1,502	PSPD100240S3M	11.0 x 11.5 x 6.0	14.0	1,838
240 Delta (3W + G)	PSPD100240D3K	10.5 x 7.5 x 3.5	7.0	1,617	PSPD100240D3M	11.0 x 11.5 x 6.0	14.0	1,953
480 Delta (3W + G)	PSPD100480D3K	10.5 x 7.5 x 3.5	7.0	1,617	PSPD100480D3M	11.0 x 11.5 x 6.0	14.0	1,953
400/230 Wye Three-phase (4W + G)	PSPD100400Y3K	10.5 x 7.5 x 3.5	7.0	1,617	PSPD100400Y3M	11.0 x 11.5 x 6.0	14.0	1,953
480/277 Wye Three-phase (4W + G)	PSPD100480Y3K	10.5 x 7.5 x 3.5	7.0	1,617	PSPD100480Y3M	11.0 x 11.5 x 6.0	14.0	1,953
Standard Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD100208Y2K	10.5 x 7.5 x 3.5	7.0	1,150	PSPD100208Y2M	11.0 x 11.5 x 6.0	14.0	1,486
120/240 Single Split-phase (3W + G)	PSPD100240S2K	10.5 x 7.5 x 3.5	7.0	1,266	PSPD100240S2M	11.0 x 11.5 x 6.0	14.0	1,602
240 Delta (3W + G)	PSPD100240D2K	10.5 x 7.5 x 3.5	7.0	1,381	PSPD100240D2M	11.0 x 11.5 x 6.0	14.0	1,717
480 Delta (3W + G)	PSPD100480D2K	10.5 x 7.5 x 3.5	7.0	1,381	PSPD100480D2M	11.0 x 11.5 x 6.0	14.0	1,717
400/230 Wye Three-phase (4W + G)	PSPD100400Y2K	10.5 x 7.5 x 3.5	7.0	1,381	PSPD100400Y2M	11.0 x 11.5 x 6.0	14.0	1,717
480/277 Wye Three-phase (4W + G)	PSPD100480Y2K	10.5 x 7.5 x 3.5	7.0	1,381	PSPD100480Y2M	11.0 x 11.5 x 6.0	14.0	1,717
Basic Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD100208Y1K	10.5 x 7.5 x 3.5	7.0	1,066	PSPD100208Y1M	11.0 x 11.5 x 6.0	14.0	1,402
120/240 Single Split-phase (3W + G)	PSPD100240S1K	10.5 x 7.5 x 3.5	7.0	1,171	PSPD100240S1M	11.0 x 11.5 x 6.0	14.0	1,507
240 Delta (3W + G)	PSPD100240D1K	10.5 x 7.5 x 3.5	7.0	1,276	PSPD100240D1M	11.0 x 11.5 x 6.0	14.0	1,612
480 Delta (3W + G)	PSPD100480D1K	10.5 x 7.5 x 3.5	7.0	1,276	PSPD100480D1M	11.0 x 11.5 x 6.0	14.0	1,612
400/230 Wye Three-phase (4W + G)	PSPD100400Y1K	10.5 x 7.5 x 3.5	7.0	1,276	PSPD100400Y1M	11.0 x 11.5 x 6.0	14.0	1,612
480/277 Wye Three-phase (4W + G)	PSPD100480Y1K	10.5 x 7.5 x 3.5	7.0	1,276	PSPD100480Y1M	11.0 x 11.5 x 6.0	14.0	1,612
PSPD 120 (120 kA/phase surge rating)
Standard with Surge Counter Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD120208Y3K	10.5 x 7.5 x 3.5	7.0	1,617	PSPD120208Y3M	11.0 x 11.5 x 6.0	14.0	2,037
120/240 Single Split-phase (3W + G)	PSPD120240S3K	10.5 x 7.5 x 3.5	7.0	1,754	PSPD120240S3M	11.0 x 11.5 x 6.0	14.0	2,174
240 Delta (3W + G)	PSPD120240D3K	10.5 x 7.5 x 3.5	7.0	1,896	PSPD120240D3M	11.0 x 11.5 x 6.0	14.0	2,316
480 Delta (3W + G)	PSPD120480D3K	10.5 x 7.5 x 3.5	7.0	1,896	PSPD120480D3M	11.0 x 11.5 x 6.0	14.0	2,316
400/230 Wye Three-phase (4W + G)	PSPD120400Y3K	10.5 x 7.5 x 3.5	7.0	1,896	PSPD120400Y3M	11.0 x 11.5 x 6.0	14.0	2,316
480/277 Wye Three-phase (4W + G)	PSPD120480Y3K	10.5 x 7.5 x 3.5	7.0	1,896	PSPD120480Y3M	11.0 x 11.5 x 6.0	14.0	2,316

SURGE PROTECTION (continued)

PSPD SERIES

Dimensions Dimensions Part (H x W x D, Weight List Part (H x W x D, Weight List Description	Number	(inches)	(lb)	Price	Number	(inches)	(lb)	Price
PSPD 120 (120 kA/phase surge rating) (continued)
Standard Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD120208Y2K	10.5 x 7.5 x 3.5	7.0	1,381	PSPD120208Y2M	11.0 x 11.5 x 6.0	14.0	1,801
120/240 Single Split-phase (3W + G)	PSPD120240S2K	10.5 x 7.5 x 3.5	7.0	1,518	PSPD120240S2M	11.0 x 11.5 x 6.0	14.0	1,938
240 Delta (3W + G)	PSPD120240D2K	10.5 x 7.5 x 3.5	7.0	1,659	PSPD120240D2M	11.0 x 11.5 x 6.0	14.0	2,079
480 Delta (3W + G)	PSPD120480D2K	10.5 x 7.5 x 3.5	7.0	1,659	PSPD120480D2M	11.0 x 11.5 x 6.0	14.0	2,079
400/230 Wye Three-phase (4W + G)	PSPD120400Y2K	10.5 x 7.5 x 3.5	7.0	1,659	PSPD120400Y2M	11.0 x 11.5 x 6.0	14.0	2,079
480/277 Wye Three-phase (4W + G)	PSPD120480Y2K	10.5 x 7.5 x 3.5	7.0	1,659	PSPD120480Y2M	11.0 x 11.5 x 6.0	14.0	2,079
Basic Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD120208Y1K	10.5 x 7.5 x 3.5	7.0	1,276	PSPD120208Y1M	11.0 x 11.5 x 6.0	14.0	1,696
120/240 Single Split-phase (3W + G)	PSPD120240S1K	10.5 x 7.5 x 3.5	7.0	1,402	PSPD120240S1M	11.0 x 11.5 x 6.0	14.0	1,822
240 Delta (3W + G)	PSPD120240D1K	10.5 x 7.5 x 3.5	7.0	1,533	PSPD120240D1M	11.0 x 11.5 x 6.0	14.0	1,953
480 Delta (3W + G)	PSPD120480D1K	10.5 x 7.5 x 3.5	7.0	1,533	PSPD120480D1M	11.0 x 11.5 x 6.0	14.0	1,953
400/230 Wye Three-phase (4W + G)	PSPD120400Y1K	10.5 x 7.5 x 3.5	7.0	1,533	PSPD120400Y1M	11.0 x 11.5 x 6.0	14.0	1,953
480/277 Wye Three-phase (4W + G)	PSPD120480Y1K	10.5 x 7.5 x 3.5	7.0	1,533	PSPD120480Y1M	11.0 x 11.5 x 6.0	14.0	1,953
PSPD 160 (160 kA/phase surge rating)
Standard with Surge Counter Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD160208Y3K	10.5 x 7.5 x 3.5	7.0	2,079	PSPD160208Y3M	11.0 x 11.5 x 6.0	14.0	2,604
120/240 Single Split-phase (3W + G)	PSPD160240S3K	10.5 x 7.5 x 3.5	7.0	2,263	PSPD160240S3M	11.0 x 11.5 x 6.0	14.0	2,788
240 Delta (3W + G)	PSPD160240D3K	10.5 x 7.5 x 3.5	7.0	2,447	PSPD160240D3M	11.0 x 11.5 x 6.0	14.0	2,972
480 Delta (3W + G)	PSPD160480D3K	10.5 x 7.5 x 3.5	7.0	2,447	PSPD160480D3M	11.0 x 11.5 x 6.0	14.0	2,972
400/230 Wye Three-phase (4W + G)	PSPD160400Y3K	10.5 x 7.5 x 3.5	7.0	2,447	PSPD160400Y3M	11.0 x 11.5 x 6.0	14.0	2,972
480/277 Wye Three-phase (4W + G)	PSPD160480Y3K	10.5 x 7.5 x 3.5	7.0	2,447	PSPD160480Y3M	11.0 x 11.5 x 6.0	14.0	2,972
Standard Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD160208Y2K	10.5 x 7.5 x 3.5	7.0	1,843	PSPD160208Y2M	11.0 x 11.5 x 6.0	14.0	2,368
120/240 Single Split-phase (3W + G)	PSPD160240S2K	10.5 x 7.5 x 3.5	7.0	2,027	PSPD160240S2M	11.0 x 11.5 x 6.0	14.0	2,552
240 Delta (3W + G)	PSPD160240D2K	10.5 x 7.5 x 3.5	7.0	2,211	PSPD160240D2M	11.0 x 11.5 x 6.0	14.0	2,736
480 Delta (3W + G)	PSPD160480D2K	10.5 x 7.5 x 3.5	7.0	2,211	PSPD160480D2M	11.0 x 11.5 x 6.0	14.0	2,736
400/230 Wye Three-phase (4W + G)	PSPD160400Y2K	10.5 x 7.5 x 3.5	7.0	2,211	PSPD160400Y2M	11.0 x 11.5 x 6.0	14.0	2,736
480/277 Wye Three-phase (4W + G)	PSPD160480Y2K	10.5 x 7.5 x 3.5	7.0	2,211	PSPD160480Y2M	11.0 x 11.5 x 6.0	14.0	2,736
Basic Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD160208Y1K	10.5 x 7.5 x 3.5	7.0	1,707	PSPD160208Y1M	11.0 x 11.5 x 6.0	14.0	2,232
120/240 Single Split-phase (3W + G)	PSPD160240S1K	10.5 x 7.5 x 3.5	7.0	1,875	PSPD160240S1M	11.0 x 11.5 x 6.0	14.0	2,400
240 Delta (3W + G)	PSPD160240D1K	10.5 x 7.5 x 3.5	7.0	2,048	PSPD160240D1M	11.0 x 11.5 x 6.0	14.0	2,573
480 Delta (3W + G)	PSPD160480D1K	10.5 x 7.5 x 3.5	7.0	2,048	PSPD160480D1M	11.0 x 11.5 x 6.0	14.0	2,573
400/230 Wye Three-phase (4W + G)	PSPD160400Y1K	10.5 x 7.5 x 3.5	7.0	2,048	PSPD160400Y1M	11.0 x 11.5 x 6.0	14.0	2,573
480/277 Wye Three-phase (4W + G)	PSPD160480Y1K	10.5 x 7.5 x 3.5	7.0	2,048	PSPD160480Y1M	11.0 x 11.5 x 6.0	14.0	2,573
PSPD 200 (200 kA/phase surge rating)
Standard with Surge Counter Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD200208Y3K	10.5 x 7.5 x 3.5	7.0	2,541	PSPD200208Y3M	11.0 x 11.5 x 6.0	14.0	3,224
120/240 Single Split-phase (3W + G)	PSPD200240S3K	10.5 x 7.5 x 3.5	7.0	2,772	PSPD200240S3M	11.0 x 11.5 x 6.0	14.0	3,455
240 Delta (3W + G)	PSPD200240D3K	10.5 x 7.5 x 3.5	7.0	3,003	PSPD200240D3M	11.0 x 11.5 x 6.0	14.0	3,686
480 Delta (3W + G)	PSPD200480D3K	10.5 x 7.5 x 3.5	7.0	3,003	PSPD200480D3M	11.0 x 11.5 x 6.0	14.0	3,686
400/230 Wye Three-phase (4W + G)	PSPD200400Y3K	10.5 x 7.5 x 3.5	7.0	3,003	PSPD200400Y3M	11.0 x 11.5 x 6.0	14.0	3,686
480/277 Wye Three-phase (4W + G)	PSPD200480Y3K	10.5 x 7.5 x 3.5	7.0	3,003	PSPD200480Y3M	11.0 x 11.5 x 6.0	14.0	3,686

SURGE PROTECTION (continued)

PSPD SERIES

Dimensions Dimensions Part (H x W x D, Weight List Part (H x W x D, Weight List Description	Number	(inches)	(lb)	Price	Number	(inches)	(lb)	Price
PSPD 200 (200 kA/phase surge rating) (continued)
Standard Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD200208Y2K	10.5 x 7.5 x 3.5	7.0	2,305	PSPD200208Y2M	11.0 x 11.5 x 6.0	14.0	2,988
120/240 Single Split-phase (3W + G)	PSPD200240S2K	10.5 x 7.5 x 3.5	7.0	2,536	PSPD200240S2M	11.0 x 11.5 x 6.0	14.0	3,219
240 Delta (3W + G)	PSPD200240D2K	10.5 x 7.5 x 3.5	7.0	2,767	PSPD200240D2M	11.0 x 11.5 x 6.0	14.0	3,450
480 Delta (3W + G)	PSPD200480D2K	10.5 x 7.5 x 3.5	7.0	2,767	PSPD200480D2M	11.0 x 11.5 x 6.0	14.0	3,450
400/230 Wye Three-phase (4W + G)	PSPD200400Y2K	10.5 x 7.5 x 3.5	7.0	2,767	PSPD200400Y2M	11.0 x 11.5 x 6.0	14.0	3,450
480/277 Wye Three-phase (4W + G)	PSPD200480Y2K	10.5 x 7.5 x 3.5	7.0	2,767	PSPD200480Y2M	11.0 x 11.5 x 6.0	14.0	3,450
Basic Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD200208Y1K	10.5 x 7.5 x 3.5	7.0	2,132	PSPD200208Y1M	11.0 x 11.5 x 6.0	14.0	2,814
120/240 Single Split-phase (3W + G)	PSPD200240S1K	10.5 x 7.5 x 3.5	7.0	2,347	PSPD200240S1M	11.0 x 11.5 x 6.0	14.0	3,030
240 Delta (3W + G)	PSPD200240D1K	10.5 x 7.5 x 3.5	7.0	2,557	PSPD200240D1M	11.0 x 11.5 x 6.0	14.0	3,240
480 Delta (3W + G)	PSPD200480D1K	10.5 x 7.5 x 3.5	7.0	2,557	PSPD200480D1M	11.0 x 11.5 x 6.0	14.0	3,240
400/230 Wye Three-phase (4W + G)	PSPD200400Y1K	10.5 x 7.5 x 3.5	7.0	2,557	PSPD200400Y1M	11.0 x 11.5 x 6.0	14.0	3,240
480/277 Wye Three-phase (4W + G)	PSPD200480Y1K	10.5 x 7.5 x 3.5	7.0	2,557	PSPD200480Y1M	11.0 x 11.5 x 6.0	14.0	3,240
PSPD 250 (250 kA/phase surge rating)
Standard with Surge Counter Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD250208Y3K	10.5 x 7.5 x 6.0	11.5	3,119	PSPD250208Y3M	11.0 x 11.5 x 6.0	16.5	3,906
120/240 Single Split-phase (3W + G)	PSPD250240S3K	10.5 x 7.5 x 6.0	11.5	3,408	PSPD250240S3M	11.0 x 11.5 x 6.0	16.5	4,195
240 Delta (3W + G)	PSPD250240D3K	10.5 x 7.5 x 6.0	11.5	3,696	PSPD250240D3M	11.0 x 11.5 x 6.0	16.5	4,484
480 Delta (3W + G)	PSPD250480D3K	10.5 x 7.5 x 6.0	11.5	3,696	PSPD250480D3M	11.0 x 11.5 x 6.0	16.5	4,484
400/230 Wye Three-phase (4W + G)	PSPD250400Y3K	10.5 x 7.5 x 6.0	11.5	3,696	PSPD250400Y3M	11.0 x 11.5 x 6.0	16.5	4,484
480/277 Wye Three-phase (4W + G)	PSPD250480Y3K	10.5 x 7.5 x 6.0	11.5	3,696	PSPD250480Y3M	11.0 x 11.5 x 6.0	16.5	4,484
Standard Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD250208Y2K	10.5 x 7.5 x 6.0	11.5	2,883	PSPD250208Y2M	11.0 x 11.5 x 6.0	16.5	3,670
120/240 Single Split-phase (3W + G)	PSPD250240S2K	10.5 x 7.5 x 6.0	11.5	3,171	PSPD250240S2M	11.0 x 11.5 x 6.0	16.5	3,959
240 Delta (3W + G)	PSPD250240D2K	10.5 x 7.5 x 6.0	11.5	3,460	PSPD250240D2M	11.0 x 11.5 x 6.0	16.5	4,248
480 Delta (3W + G)	PSPD250480D2K	10.5 x 7.5 x 6.0	11.5	3,460	PSPD250480D2M	11.0 x 11.5 x 6.0	16.5	4,248
400/230 Wye Three-phase (4W + G)	PSPD250400Y2K	10.5 x 7.5 x 6.0	11.5	3,460	PSPD250400Y2M	11.0 x 11.5 x 6.0	16.5	4,248
480/277 Wye Three-phase (4W + G)	PSPD250480Y2K	10.5 x 7.5 x 6.0	11.5	3,460	PSPD250480Y2M	11.0 x 11.5 x 6.0	16.5	4,248
Basic Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD250208Y1K	10.5 x 7.5 x 6.0	11.5	2,667	PSPD250208Y1M	11.0 x 11.5 x 6.0	16.5	3,455
120/240 Single Split-phase (3W + G)	PSPD250240S1K	10.5 x 7.5 x 6.0	11.5	2,935	PSPD250240S1M	11.0 x 11.5 x 6.0	16.5	3,723
240 Delta (3W + G)	PSPD250240D1K	10.5 x 7.5 x 6.0	11.5	3,203	PSPD250240D1M	11.0 x 11.5 x 6.0	16.5	3,990
480 Delta (3W + G)	PSPD250480D1K	10.5 x 7.5 x 6.0	11.5	3,203	PSPD250480D1M	11.0 x 11.5 x 6.0	16.5	3,990
400/230 Wye Three-phase (4W + G)	PSPD250400Y1K	10.5 x 7.5 x 6.0	11.5	3,203	PSPD250400Y1M	11.0 x 11.5 x 6.0	16.5	3,990
480/277 Wye Three-phase (4W + G)	PSPD250480Y1K	10.5 x 7.5 x 6.0	11.5	3,203	PSPD250480Y1M	11.0 x 11.5 x 6.0	16.5	3,990
PSPD 300 (300 kA/phase surge rating)
Standard with Surge Counter Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD300208Y3K	10.5 x 7.5 x 6.0	11.5	3,691	PSPD300208Y3M	11.0 x 11.5 x 6.0	16.5	4,531
120/240 Single Split-phase (3W + G)	PSPD300240S3K	10.5 x 7.5 x 6.0	11.5	4,038	PSPD300240S3M	11.0 x 11.5 x 6.0	16.5	4,878
240 Delta (3W + G)	PSPD300240D3K	10.5 x 7.5 x 6.0	11.5	4,384	PSPD300240D3M	11.0 x 11.5 x 6.0	16.5	5,225
480 Delta (3W + G)	PSPD300480D3K	10.5 x 7.5 x 6.0	11.5	4,384	PSPD300480D3M	11.0 x 11.5 x 6.0	16.5	5,225
400/230 Wye Three-phase (4W + G)	PSPD300400Y3K	10.5 x 7.5 x 6.0	11.5	4,384	PSPD300400Y3M	11.0 x 11.5 x 6.0	16.5	5,225
480/277 Wye Three-phase (4W + G)	PSPD300480Y3K	10.5 x 7.5 x 6.0	11.5	4,384	PSPD300480Y3M	11.0 x 11.5 x 6.0	16.5	5,225

SURGE PROTECTION (continued)

PSPD SERIES

Dimensions Dimensions Part (H x W x D, Weight List Part (H x W x D, Weight List Description	Number	(inches)	(lb)	Price	Number	(inches)	(lb)	Price
PSPD 300 (300 kA/phase surge rating) (continued)
Standard Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD300208Y2K	10.5 x 7.5 x 6.0	11.5	S3,455	PSPD300208Y2M	11.0 x 11.5 x 6.0	16.5	4,295
120/240 Single Split-phase (3W + G)	PSPD300240S2K	10.5 x 7.5 x 6.0	11.5	S3,801	PSPD300240S2M	11.0 x 11.5 x 6.0	16.5	S4,641
240 Delta (3W + G)	PSPD300240D2K	10.5 x 7.5 x 6.0	11.5	S4,148	PSPD300240D2M	11.0 x 11.5 x 6.0	16.5	S4,988
480 Delta (3W + G)	PSPD300480D2K	10.5 x 7.5 x 6.0	11.5	S4,148	PSPD300480D2M	11.0 x 11.5 x 6.0	16.5	S4,988
400/230 Wye Three-phase (4W + G)	PSPD300400Y2K	10.5 x 7.5 x 6.0	11.5	S4,148	PSPD300400Y2M	11.0 x 11.5 x 6.0	16.5	S4,988
480/277 Wye Three-phase (4W + G)	PSPD300480Y2K	10.5 x 7.5 x 6.0	11.5	S4,148	PSPD300480Y2M	11.0 x 11.5 x 6.0	16.5	4,988
Basic Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD300208Y1K	10.5 x 7.5 x 6.0	11.5	S3,198	PSPD300208Y1M	11.0 x 11.5 x 6.0	16.5	4,038
120/240 Single Split-phase (3W + G)	PSPD300240S1K	10.5 x 7.5 x 6.0	11.5	S3,518	PSPD300240S1M	11.0 x 11.5 x 6.0	16.5	S4,358
240 Delta (3W + G)	PSPD300240D1K	10.5 x 7.5 x 6.0	11.5	S3,838	PSPD300240D1M	11.0 x 11.5 x 6.0	16.5	S4,678
480 Delta (3W + G)	PSPD300480D1K	10.5 x 7.5 x 6.0	11.5	S3,838	PSPD300480D1M	11.0 x 11.5 x 6.0	16.5	S4,678
400/230 Wye Three-phase (4W + G)	PSPD300400Y1K	10.5 x 7.5 x 6.0	11.5	S3,838	PSPD300400Y1M	11.0 x 11.5 x 6.0	16.5	4,678
480/277 Wye Three-phase (4W + G)	PSPD300480Y1K	10.5 x 7.5 x 6.0	11.5	S3,838	PSPD300480Y1M	11.0 x 11.5 x 6.0	16.5	4,678
PSPD 400 (400 kA/phase surge rating)
Standard with Surge Counter Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD400208Y3K	10.5 x 7.5 x 6.0	11.5	S4,846	PSPD400208Y3M	11.0 x 11.5 x 6.0	16.5	5,740
120/240 Single Split-phase (3W + G)	PSPD400240S3K	10.5 x 7.5 x 6.0	11.5	S5,310	PSPD400240S3M	11.0 x 11.5 x 6.0	16.5	S6,205
240 Delta (3W + G)	PSPD400240D3K	10.5 x 7.5 x 6.0	11.5	S5,770	PSPD400240D3M	11.0 x 11.5 x 6.0	16.5	S6,665
480 Delta (3W + G)	PSPD400480D3K	10.5 x 7.5 x 6.0	11.5	S5,770	PSPD400480D3M	11.0 x 11.5 x 6.0	16.5	S6,665
400/230 Wye Three-phase (4W + G)	PSPD400400Y3K	10.5 x 7.5 x 6.0	11.5	S5,770	PSPD400400Y3M	11.0 x 11.5 x 6.0	16.5	6,665
480/277 Wye Three-phase (4W + G)	PSPD400480Y3K	10.5 x 7.5 x 6.0	11.5	S5,770	PSPD400480Y3M	11.0 x 11.5 x 6.0	16.5	6,665
Standard Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD400208Y2K	10.5 x 7.5 x 6.0	11.5	S4,610	PSPD400208Y2M	11.0 x 11.5 x 6.0	16.5	5,505
120/240 Single Split-phase (3W + G)	PSPD400240S2K	10.5 x 7.5 x 6.0	11.5	S5,075	PSPD400240S2M	11.0 x 11.5 x 6.0	16.5	S5,965
240 Delta (3W + G)	PSPD400240D2K	10.5 x 7.5 x 6.0	11.5	S5,535	PSPD400240D2M	11.0 x 11.5 x 6.0	16.5	S6,430
480 Delta (3W + G)	PSPD400480D2K	10.5 x 7.5 x 6.0	11.5	S5,535	PSPD400480D2M	11.0 x 11.5 x 6.0	16.5	S6,430
400/230 Wye Three-phase (4W + G)	PSPD400400Y2K	10.5 x 7.5 x 6.0	11.5	S5,535	PSPD400400Y2M	11.0 x 11.5 x 6.0	16.5	6,430
480/277 Wye Three-phase (4W + G)	PSPD400480Y2K	10.5 x 7.5 x 6.0	11.5	S5,535	PSPD400480Y2M	11.0 x 11.5 x 6.0	16.5	6,430
Basic Diagnostics	'K' Option - No Integral Disconnect				'M' Option - Integral Disconnect
208/120 Wye Three-phase (4W + G)	PSPD400208Y1K	10.5 x 7.5 x 6.0	11.5	S4,263	PSPD400208Y1M	11.0 x 11.5 x 6.0	16.5	5,160
120/240 Single Split-phase (3W + G)	PSPD400240S1K	10.5 x 7.5 x 6.0	11.5	S4,689	PSPD400240S1M	11.0 x 11.5 x 6.0	16.5	S5,585
240 Delta (3W + G)	PSPD400240D1K	10.5 x 7.5 x 6.0	11.5	S5,120	PSPD400240D1M	11.0 x 11.5 x 6.0	16.5	S6,015
480 Delta (3W + G)	PSPD400480D1K	10.5 x 7.5 x 6.0	11.5	S5,120	PSPD400480D1M	11.0 x 11.5 x 6.0	16.5	S6,015
400/230 Wye Three-phase (4W + G)	PSPD400400Y1K	10.5 x 7.5 x 6.0	11.5	S5,120	PSPD400400Y1M	11.0 x 11.5 x 6.0	16.5	S6,015
480/277 Wye Three-phase (4W + G)	PSPD400480Y1K	10.5 x 7.5 x 6.0	11.5	S5,120	PSPD400480Y1M	11.0 x 11.5 x 6.0	16.5	$6,015

SURGE PROTECTION

PSPV SERIES

Eaton's PSPV series is a commercial grade and light industrial surge protection device that combines surge suppression components and EMI/RFI filtering to provide effective protection for sensitive electronic loads. Use of the PSPV can prevent costly downtime and equipment damage from surges (or transients) caused by lightning, utility grid switching, switching of external/internal inductive or capacitive loads and other sources.

E.T.N Large Protective Device N-1.2

• Surge Plane technology ensures reliability and performance by using a low impedance copper platform.
• Compact design enables close mounting to electrical distribution equipment.
• Status indicator lights let you easily monitor supply power, surge suppression component status, and fusing.
• Choose from 6 surge current ratings to meet a variety of application needs.
  • UL 1449 3rd Edition certification.

Voltage Part Dimensions
Description Rating Number (H x W x D, inches) Enclosure Weight (lb) List Price

PSPV 050 (50 kA/phase surge rating)	120/240 Split Phase (3W+G)	PSPV050240S2K	5.1 x 11.6 x 2.7	NEMA 1	5.0	600
PSPV 050 (50 kA/phase surge rating)	240 Delta (3W+G)	PSPV050240D2K	5.1 x 11.6 x 2.7	NEMA 1	5.0	600
PSPV 050 (50 kA/phase surge rating)	120/208 Wye (4W+G)	PSPV050208Y2K	5.1 x 11.6 x 2.7	NEMA 1	5.0	600
PSPV 050 (50 kA/phase surge rating)	400 Delta (3W+G)	PSPV050480D2K	5.1 x 11.6 x 2.7	NEMA 1	5.0	600
PSPV 050 (50 kA/phase surge rating)	277/480 Wye (4W+G)	PSPV050480Y2K	5.1 x 11.6 x 2.7	NEMA 1	5.0	600
PSPV 050 (50 kA/phase surge rating)	400 Delta (3W+G)	PSPV050400D2K	5.1 x 11.6 x 2.7	NEMA 1	5.0	600
PSPV 050 (50 kA/phase surge rating)	230/400 Wye (4W+G)	PSPV050400Y2K	5.1 x 11.6 x 2.7	NEMA 1	5.0	600
PSPV 080 (50 kA/phase surge rating)	120/240 Split Phase (3W+G)	PSPV080240S2K	5.1 x 11.6 x 2.7	NEMA 1	5.5	680
PSPV 080 (50 kA/phase surge rating)	240 Delta (3W+G)	PSPV080240D2K	5.1 x 11.6 x 2.7	NEMA 1	5.5	920
PSPV 080 (50 kA/phase surge rating)	120/208 Wye (4W+G)	PSPV080208Y2K	5.1 x 11.6 x 2.7	NEMA 1	5.5	920
PSPV 080 (50 kA/phase surge rating)	400 Delta (3W+G)	PSPV080480D2K	5.1 x 11.6 x 2.7	NEMA 1	5.5	920
PSPV 080 (50 kA/phase surge rating)	277/480 Wye (4W+G)	PSPV080480Y2K	5.1 x 11.6 x 2.7	NEMA 1	5.5	920
PSPV 080 (50 kA/phase surge rating)	400 Delta (3W+G)	PSPV080400D2K	5.1 x 11.6 x 2.7	NEMA 1	5.5	920
PSPV 080 (50 kA/phase surge rating)	230/400 Wye (4W+G)	PSPV080400Y2K	5.1 x 11.6 x 2.7	NEMA 1	5.5	920
PSPV 100 (50 kA/phase surge rating)	120/240 Split Phase (3W+G)	PSPV100240S2K	5.1 x 11.6 x 2.7	NEMA 1	6.0	800
PSPV 100 (50 kA/phase surge rating)	240 Delta (3W+G)	PSPV100240D2K	5.1 x 11.6 x 2.7	NEMA 1	6.0	1,090
PSPV 100 (50 kA/phase surge rating)	120/208 Wye (4W+G)	PSPV100208Y2K	5.1 x 11.6 x 2.7	NEMA 1	6.0	1,090
PSPV 100 (50 kA/phase surge rating)	400 Delta (3W+G)	PSPV100480D2K	5.1 x 11.6 x 2.7	NEMA 1	6.0	1,090
PSPV 100 (50 kA/phase surge rating)	277/480 Wye (4W+G)	PSPV100480Y2K	5.1 x 11.6 x 2.7	NEMA 1	6.0	1,090
PSPV 100 (50 kA/phase surge rating)	400 Delta (3W+G)	PSPV100400D2K	5.1 x 11.6 x 2.7	NEMA 1	6.0	1,090
PSPV 100 (50 kA/phase surge rating)	230/400 Wye (4W+G)	PSPV100400Y2K	5.1 x 11.6 x 2.7	NEMA 1	6.0	1,090
PSPV 120 (50 kA/phase surge rating)	120/240 Split Phase (3W+G)	PSPV120240S2K	5.1 x 11.6 x 2.7	NEMA 1	6.0	960
PSPV 120 (50 kA/phase surge rating)	240 Delta (3W+G)	PSPV120240D2K	5.1 x 11.6 x 2.7	NEMA 1	6.0	1,250
PSPV 120 (50 kA/phase surge rating)	120/208 Wye (4W+G)	PSPV120208Y2K	5.1 x 11.6 x 2.7	NEMA 1	6.0	1,250
PSPV 120 (50 kA/phase surge rating)	400 Delta (3W+G)	PSPV120480D2K	5.1 x 11.6 x 2.7	NEMA 1	6.0	1,250
PSPV 120 (50 kA/phase surge rating)	277/480 Wye (4W+G)	PSPV120480Y2K	5.1 x 11.6 x 2.7	NEMA 1	6.0	1,250
PSPV 120 (50 kA/phase surge rating)	400 Delta (3W+G)	PSPV120400D2K	5.1 x 11.6 x 2.7	NEMA 1	6.0	1,250
PSPV 120 (50 kA/phase surge rating)	230/400 Wye (4W+G)	PSPV120400Y2K	5.1 x 11.6 x 2.7	NEMA 1	6.0	1,250
PSPV 160 (50 kA/phase surge rating)	120/240 Split Phase (3W+G)	PSPV160240S2K	5.1 x 11.6 x 2.7	NEMA 1	6.5	1,280
PSPV 160 (50 kA/phase surge rating)	240 Delta (3W+G)	PSPV160240D2K	5.1 x 11.6 x 2.7	NEMA 1	6.5	1,650
PSPV 160 (50 kA/phase surge rating)	120/208 Wye (4W+G)	PSPV160208Y2K	5.1 x 11.6 x 2.7	NEMA 1	6.5	1,650
PSPV 160 (50 kA/phase surge rating)	400 Delta (3W+G)	PSPV160480D2K	5.1 x 11.6 x 2.7	NEMA 1	6.5	1,650
PSPV 160 (50 kA/phase surge rating)	277/480 Wye (4W+G)	PSPV160480Y2K	5.1 x 11.6 x 2.7	NEMA 1	6.5	1,650
PSPV 160 (50 kA/phase surge rating)	400 Delta (3W+G)	PSPV160400D2K	5.1 x 11.6 x 2.7	NEMA 1	6.5	1,650
PSPV 160 (50 kA/phase surge rating)	230/400 Wye (4W+G)	PSPV160400Y2K	5.1 x 11.6 x 2.7	NEMA 1	6.5	1,650
PSPV 200 (50 kA/phase surge rating)	120/240 Split Phase (3W+G)	PSPV200240S2K	5.1 x 11.6 x 2.7	NEMA 1	7.0	1,650
PSPV 200 (50 kA/phase surge rating)	240 Delta (3W+G)	PSPV200240D2K	5.1 x 11.6 x 2.7	NEMA 1	7.0	2,050
PSPV 200 (50 kA/phase surge rating)	120/208 Wye (4W+G)	PSPV200208Y2K	5.1 x 11.6 x 2.7	NEMA 1	7.0	2,050
PSPV 200 (50 kA/phase surge rating)	400 Delta (3W+G)	PSPV200480D2K	5.1 x 11.6 x 2.7	NEMA 1	7.0	2,050
PSPV 200 (50 kA/phase surge rating)	277/480 Wye (4W+G)	PSPV200480Y2K	5.1 x 11.6 x 2.7	NEMA 1	7.0	2,050
PSPV 200 (50 kA/phase surge rating)	400 Delta (3W+G)	PSPV200400D2K	5.1 x 11.6 x 2.7	NEMA 1	7.0	2,050
PSPV 200 (50 kA/phase surge rating)	230/400 Wye (4W+G)	PSPV200400Y2K	5.1 x 11.6 x 2.7	NEMA 1	7.0	2,050

SURGE PROTECTION

Surge Protection Devices (SPD)

SPD Type 1 CHSP Service Entrance Surge Protection — UL 1449 3rd Ed. Listed

• Commercial grade AC power protection
- Type 1 surge device for installation before or after the main service disconnect
- Convenient mounting options—universal fit to any manufacturer's equipment
- Clear, visible LED indication displaying status of the surge protector

Three identical blue medical or laboratory containers with white caps, each containing a black liquid and a white label (no visible text or symbols on the containers themselves)

SPD TYPE 1 CHSP

Surge Current
Catalog Number	Enclosure	Voltage	Phase	Frequency (Hz)	MCOV^1	VPR^2	I_n^3	SCCR^4	Capacity, Per Phase Rating^5	List Price
CHSPT1ULTRA	NEMA 4	100/200, 110/220, 120/240	Single	50/60	L-L 300, L-N 150	L-L 1000, L-N 600	20 kA	200 kA	50 kA	S1,330
CHSPT1MAX	NEMA 4	100/200, 110/220, 120/240	Single	50/60	L-L 300, L-N 150	L-L 1000, L-N 600	20 kA	200 kA	45 kA	S1,005
CHSPT1MICRO	NEMA 4	100/200, 110/220, 120/240	Single	50/60	L-L 300, L-N 150	L-L 1000, L-N 600	20 kA	200 kA	36 kA	$678
CHSPT1-208Y	NEMA 4	120/208	Three-phase wye	50/60	L-L 300, L-N 150	L-L 1000, L-N 600	20 kA	200 kA	50 kA	S1,330

Notes:

1. MCOV: Maximum Continuous Operating Voltage that may be applied to the device per mode. 2. VPR: Voltage Protection Rating is the measured limiting voltage after a surge event.

2. I_n : Nominal Discharge Current is the current that the device can withstand for 15 impulses. 4. SCCR: The amount of current the product can withstand under short-circuit conditions

3. Surge Current Capacity: The maximum one time surge current rating per phase

For warranty details, go to www.eaton.com/surgetrap

SPD Type 2 CHSP Service Entrance Surge Protection — UL 1449 3rd Ed.; cUL

• AC power protection
• Universally connects to any manufacturer's loadcenter (breaker box)
• Quick connect design—easy to mount telephone and cable protection modules
  • LED status indication
• This product should be connected on the load side of the loadcenter main service disconnect through a dedicated circuit breaker (follow NEC Guidelines)

Five black industrial electrical contactors with visible brand labels and model numbers (no readable text beyond branding)

SPD TYPE 2 CHSP

Catalog Number	Enclosure	Voltage	Phase	Frequency (Hz)	MCOV^1	VPR^2	I_n^3	SCCR^4	Surge Current Capacity, Per Phase Rating5	List Price
CHSPT2ULTRA	NEMA 4	120/240 Vac rated line voltage	Single	60	150V L-N, 300V L-L	600V L-N, 1000V L-L, 800V N-G, 600V L-G	20 kA	22 kA	108 kA (L1-N 54 kA, L1-G 54 kA, L2-N 54 kA, L2-G 54 kA)	1,010
CHSPT2MAX	NEMA 4	120/240 Vac rated line voltage	Single	60	150V L-N, 300V L-L	600V L-N, 1000V L-L, 800V N-G, 600V L-G	10 kA	22 kA	72 kA (L1-N 36 kA, L1-G 36 kA, L2-N 36 kA, L2-G 36 kA)	537
CHSPT2MICRO	NEMA 4	120/240 Vac rated line voltage	Single	60	150V L-N, 300V L-L	600V L-N, 1000V L-L, 800V N-G, 600V L-G	5 kA	22 kA	36 kA (L1-N 18 kA, L1-G 18 kA, L2-N 18 kA, L2-G 18 kA)	$336

Notes:

1. MCOV: Maximum Continuous Operating Voltage that may be applied to the device per mode. 2. VPR: Voltage Protection Rating is the measured limiting voltage after a surge event.

2. I_n : Nominal Discharge Current is the current that the device can withstand for 15 impulses. 4. SCCR: The amount of current the product can withstand under short-circuit conditions

3. Surge Current Capacity: The maximum one time surge current rating per phase.

For warranty details, go to www.eaton.com/surgetrap

SURGE PROTECTION(continued)

Surge Protection Devices (SPD)

Accessories for CHSP Type 2 Service Entrance Protection

CHSP TYPE 2

Catalog Number	Surge Current DC Breakdown List
	Description	Installation	Capacity	Voltage	Voltage	Price
CHSPCABLE	Quick Connect design—add additional telephone and AC protection modules; protects two quad shield cables enclosure	Indoor installation; or rain-tight when used with recommended	10 kA per line	145V	-	302
CHSPTELE	Quick Connect design—add additional AC and cable protection modules; protects four telephone lines, bi-directional enclosure	Indoor installation; or rain-tight when used with recommended	20 kA per line	230V	Ring 90–120 Vac/ Tone 48–52 Vdc	323
CHSPT23PACK	3-Pack: CHSPT2ULTRA+CHSPTELE+CHSPCABLE; Surge protection for AC power, telephone and cable—see individual product features	-	See individual product ratings	-	-	$1,075

DISTRIBUTED SURGE PROTECTION

Surge Strip Series SECONDARY PROTECTION FOR POINT-OF-USE

Point-of-use surge strips are designed to offer premium surge protection for specific electronics while providing innovative features to enhance user convenience and safety.

Exterior view of a modern office building (no signage)

RESIDENTIAL SURGE PRODUCTS – SURGE STRIP SERIES

Total Maximum Micro Series (good)	List Part Number	Joules	Surge Current	Features	Protection Level/Application	Price
	SMICRO7	540	36,000A	7 outlets, 6' cord, sliding safety covers	Basic protection for AC power	108
	SMICRO6T	540	36,000A	6 outlets, wall-mount	Basic protection for AC power + phone	121
Max Series (better)
	SMAX7	1080	72,000A	7 outlets, 6' cord, sliding safety covers	Advanced protection for AC power	121
	SMAX7T	1080	72,000A	7 outlets, 6' cord, sliding safety covers	Advanced protection for AC power + phone	152
	SMAX7C	1080	72,000A	7 outlets, 6' cord, sliding safety covers	Advanced protection for AC power + coax cable	158
	SMAX8TC	2160	144,000A	8 outlets, 6' cord, sliding safety covers	Advanced protection for AC power + phone + coax cable	159
Ultra Series (best)
	SULT8T	2160	144,000A	8 rotating outlets (for extra plug-in space), 6' cord	Premium protection for AC power + phone	238
	SULT10TC	2880	192,000A	10 outlets (5 fixed, 5 rotating for extra plug-in space), 6' cord	Premium protection for AC power + phone + coax cable + network	314
	SULT12TC	4320	288,000A	12 outlets (4 fixed, 5 rotating for extra plug-in space), 6' cord	Premium protection for AC power + phone + coax cable + network	316
Power Strip (no surge protection)
	PSXVAL6AC3	-	-	6 grounded outlets, 3' cord	-	18
	PSXVAL6AC4	-	-	6 grounded outlets, 4' cord	-	18
	PSXVAL6AC8	-	-	6 grounded outlets, 8' cord	-	28

SERVICES

Single-phase Service Plans Overview

SUMMARY OF EATON SERVICE PLANS FOR SINGLE-PHASE MODELS

Single-phase Factory Extended Warranty + Onsite Onsite Flex Onsite PowerTrust Onsite
Service Plan Features	Warranty	Warranty	Extended Warranty	Gold	Gold Plus	(eNotify)	(eNotify)
Comprehensive coverage of theUPS and standard batteries	•	•	•	•	•	•	•
Telephone technical support	•	•	•	•	•	•	•
eNotify remote monitoring						•	•
Connectivity support	•	•	•	•	•	•	•
Expedited delivery of replacementparts, modules and batteries		•	•	•	•	•	•
Onsite startup				•	•	•	•
Onsite corrective maintenance				•	•	•	•
Next-day 24-hr response				•	•	•	•
Annual UPS preventive maintenance					•		•
Annual battery preventive maintenance					•		•

1. Onsite startup and corrective maintenance service is 5x8 for Series 5 products; 7x24 for Series 9 products and FERRUPS.

2. Unit must be within 100 miles of Eaton established service location to qualify for 24-hour response.

3. Initial startup serves as the annual PM service for the first year of operation. Subsequent annual PM services are scheduled on request from customer beginning in the second year of operation.

4. eNotify Remote Monitoring service requires Web card and EMP, not included in Flex or PowerTrust contract price. eNotify not available for 3015, 5110, 5115 and FERRUPS.

5. Extended Warranty plans not available for large / hardwired units including Eaton 9155, 9170+, and most FERRUPS.

6. Factory Warranty: Two-year Warranty for 3105, 3S, 5110, 5115, 5125, 5130, 5PX, 9130, 9135, Evolution, Evolution S, EX, MX, EX RT, 9140, 9155, 9170+ and FERRUPS. Eaton 3105, 3S, 5110, 5115, 5125, 5130 and 5PX upgrade to 3-Year Warranty when registered online at www.eaton.com/pq/register.

SELECTING A SERVICE PLAN

Eaton single-phase UPSs come with warranty coverage that typically includes parts and labor for electronics, 7x24 Customer Reliability Center triage and 7x24 technical support access. But to extend the term of the base factory warranty and expedite service delivery, you should recommend a service plan. The best service plans are essentially offered in two categories:

1. Extended Warranty (recommended for UPSs below 5 kVA)

When your customer notifies Eaton about a defective unit, Eaton ships a replacement unit overnight. Upon receipt of the new UPS, the customer returns the defective unit to Eaton via ground shipment. The freight for both units is paid by Eaton.

2. Onsite service and repair (recommended for UPSs 5 kVA and above)

Onsite service plans vary by unit and have different levels of coverage – for detailed information, visit www.eaton.com/upsservices. The following features can be added to service plans to guarantee unparalleled UPS performance:

• Comprehensive coverage of the UPS and batteries
• Telephone technical support
• eNotify remote monitoring
- Connectivity support
- Expedited delivery of replacement parts, modules and batteries
- Onsite startup
- Onsite corrective maintenance
• Next-day 24-hour response
• Annual UPS and/or battery preventive maintenance

SERVICES

Single-phase Service Plans

Extended Warranties
Extended Warranty Coverage for UPS (includes batteries in UPS)

Extended WarrantyPart Number List Price VA Range Description Applicable UPS Model
3SW5Y-0001-0750U S18 1 - 750 Standby, 5-year-total 3105, 3S warranty (UPS)
5SW5Y-0001-0950U S46 1 - 950			Line-interactive, 5-year-total warranty (UPS)	5110, 5115, 5125, 5130, 5PX
5SW5Y-0951-1400U S94 951 - 1400
5SW5Y-1401-1750U	123	1401 - 1750
5SW5Y-1751-2500U	255	1751 - 2500
5SW5Y-2501-3000U S294	2501 - 3000
5SW5Y-3001-6000U S622	3001 - 6000
9SW3Y-0001-0700U S84 1 - 700			Online, 3-year-total warranty (UPS)	9130, 9135, FERRUPS (not hardwired)
9SW3Y-0701-1000U S108 701 - 1000
9SW3Y-1001-1500U S138	1001 - 1500
9SW3Y-1501-2200U	184	1501 - 2000
9SW3Y-2201-2500U	244	2001 - 2500
9SW3Y-2501-3000U S308	2501 - 3000
9SW3Y-3001-6000U S471	3001 - 6000
9SW5Y-0001-0700U S252 1 - 700			Online, 5-year-total warranty (UPS)	9130, 9135, FERRUPS (not hardwired)
9SW5Y-0701-1000U S324 701 - 1000
9SW5Y-1001-1500U S415	1001 - 1500
9SW5Y-1501-2200U	553	1501 - 2000
9SW5Y-2201-2500U	732	2001 - 2500
9SW5Y-2501-3000U S924	2501 - 3000
9SW5Y-3001-6000U S1,412	3001 - 6000

Extended Warranty Coverage for EBM (External Battery Module)

Extended Warranty Part Number List Price VA	Range Description	Applicable EBM Models
5SW5Y-0001-1750B	296	1 - 1750	Line-interactive, 5-year-total warranty (EBM)
5SW5Y-1751-3000B	463	1751 - 3000
5SW5Y-3001-6000B 648	3001 - 6000
9SW3Y-0001-3000B	148	1 - 3000	Online, 3-year-total warranty (EBM)
9SW3Y-3001-6000B	296	3001 - 6000
9SW5Y-0001-3000B	370	1 - 3000	Online, 5-year-total warranty (EBM)
9SW5Y-3001-6000B	$740	3001 - 6000

Important Notes:
1) Extended Warranty extends term of Factory Warranty and adds Advanced Exchange
2) Factory Warranty - Return Process
- Customer returns unit to Eaton (customer pays freight)
- Eaton ground ships replacement unit (on receipt of defective unit)
- Eaton covers freight to customer
3) Advanced Exchange - Return Process
- Eaton overnight ships replacement unit (on customer contact)
- Customer returns defective unit in overnight packaging
- Eaton covers freight in both directions
4) Extended Warranty "buy/resell" multiplier matches new product (hardware) multiplier
5) Extended Warranty plans not applicable to large (>6 kVA) and hardwired units

SERVICES

Three-phase Service Plans Overview

Eaton's three-phase UPS service options, provide the uptime, convenience and value that's right for you and your business. You can leverage onsite services to meet your specific needs for UPSs, batteries and related equipment. With 240 customer service engineers in North America, we have more factory-trained personnel than any other UPS manufacturer and customers consistently rank our service number one in quality.

PowerTrust PowerTrust 9E Warranty 9E Warranty

Three-phase Service Plan Features	Value	ProActive	PowerTrust	Preferred	Flex	Extension	Upgrade
Parts and Labor for Electronics	●	●	●	●		●	●
Parts and Labor for Batteries	0	0	0	0		●	●
7x24 Startup							●
5x8 Onsite Corrective Maintenance	●					●
7x24 Onsite Corrective Maintenance		●	●	●		0	●
Next Business Day Response	●					●
8-Hour Response		●	●	●	Custom Service	0	●
4-Hour Response		0	0	0	Contracts	0	0
2-Hour Response		0	0 0
5x8 UPS Preventive Maintenance Visit	1 per year	0	1 per year	0			●
7x24 UPS Preventive Maintenance Visit	0	1 per year	0	2 per year
Battery Preventive Maintenance Visit	0	0	1 per year	2 per year			●
eNotify Remote Monitoring Service	●	●	●	●			●
Discounted Spare Parts & Upgrade Kits & T&M		30%	30%	30%

• Included feature o Optional feature

Eaton's most popular on-site UPS support plans come standard with the above features. Additional preventive maintenance visits can be added to any packaged plan. Flex Support Plans should be used whenever a standard packaged service plan doesn't exactly match your needs. 9E UPS 3-year warranty extensions or upgrades are only available for 9E (9E may only purchase startup, PM's and external battery warranty extension).

THREE-PHASE SERVICE PLANS

Description	Service Part Number for UPS	Additional Information	List Price Per Year
Startup
BladeUPS Assembly and Set Up	W2AS00N000-0015	BladeUPS	1,161
BladeUPS Assembly and Set Up	W2AS00N000-0080	BladeUPS	2,217
Startup, After Hours (7x24)	W2SU05NXXX-0015	BladeUPS, 9355	1,425
Startup, After Hours (7x24)	W2SU05NXXX-0030	BladeUPS, 9355	1,689
Startup, Business Hours (5x8)	W2SU06NXXX-0015	BladeUPS, 9355	1,161
Startup, Business Hours (5x8)	W2SU06NXXX-0030	BladeUPS, 9355	1,425
Pre Site Survey, After Hours (7x24)	W20005NPSX-0050	BladeUPS, 9390IT	1,056
Startup, After Hours (7x24)	W2SU05NXXX-0050	BladeUPS, 9390IT	2,174
Startup, Business Hours (5x8)	W2SU06NXXX-0050	BladeUPS, 9390IT	1,685
Pre Site Survey, After Hours (7x24)	W20005NPSX-0080	BladeUPS, 9390IT (80 kVA)	1,056
Startup, After Hours (7x24)	W2SU05NXXX-0080	BladeUPS, 9390IT (80 kVA) 2,349
Startup, Business Hours (5x8)	W2SU06NXXX-0080	BladeUPS, 9390IT (80 kVA)	1,785
Startup, After Hours - 30kVA (7x24)	SU05NXXX-0030	9E	1,689
Startup, Business Hours - 30kVA (5x8)	SU06NXXX-0030	9E	1,425
Startup, After Hours - 60kVA (7x24)	SU05NXXX-0080	9E	2,349
Startup, Business Hours - 60kVA (5x8)	SU06NXXX-0080	9E	1,785
Upgrade from 5x8 to 7x24 Startup (5x8 startup included with 9390IT UPS)	UPC05CXXX-0050	9390IT	532
Pre Site Survey, After Hours (7x24)	W20005NPSX-0160	9390IT (120/160 kVA)	1,056
Startup, After Hours (7x24)	W2SU05NXXX-0160	9390IT (120/160 kVA)	2,988
Startup, Business Hours (5x8)	W2SU06NXXX-0160	9390IT (120/160 kVA)	2,271
Pre Site Survey, After Hours (7x24)	W20005NPSX-RPPB	RPP w/BCMS, EMS UGK	792
Startup, After Hours (7x24)	W2SU05NXXX-RPPB	RPP w/BCMS, EMS UGK	845
Startup, Business Hours (5x8)	W2SU06NXXX-RPPB	RPP w/BCMS, EMS UGK	1,352
Pre Site Survey, After Hours (7x24)	W20005NPSX-RPP	RPP, PDR	618
Startup, After Hours (7x24)	W2SU05NXXX-RPP	RPP, PDR	660
Startup, Business Hours (5x8)	W2SU06NXXX-RPP	RPP, PDR	1,056

SERVICES

Three-phase Service Plans (continued)

THREE-PHASE SERVICE PLANS (continued)

Description Service Part Number Additional List Pricefor UPS Information Per Year
Startup for BladeUPS Pre-Assembled Systems
Pre-Assembled Start-up Level 1, 5 x 8 (up to 20 accessories installed)	W2SUPS06NXXX-0080	BladeUPS	2,142
Pre-Assembled Start-up Level 1, 7 x 24 (up to 20 accessories installed)	W2SUPS05NXXX-0080	BladeUPS	2,818
Pre-Assembled Start-up Level 2, 5 x 8 (up to 40 accessories installed)	W2SUPR06NXXX-0080	BladeUPS	2,320
Pre-Assembled Start-up Level 2, 7 x 24 (up to 40 accessories installed)	W2SUPR05NXXX-0080	BladeUPS	3,054

Warranty Extension and Upgrade

Warranty Extension 3YR, 5x8, NBD	WEN8CXXX-0030	9E (20, 30 kVA)	2,880
Warranty Extension 3YR, 7x24, 4 Hr^{1}	WE47CXXX-0030	9E (20, 30 kVA)5,389
Warranty Upgrade 3YR, 7x24, 4 Hr ^1	WU42CEXX-0030	9E (20, 30 kVA)	9,928
Warranty Extension 3YR, 5x8, NBD	WEN8CXXX-0080	9E (40, 60 kVA)	4,062
Warranty Extension 3YR, 7x24, 4 Hr ^1	WE47CXXX-0080	9E (40, 60 kVA) 7,510
Warranty Upgrade 3YR, 7x24, 4 Hr^{1}	WU42CEXX-0080	9E (40, 60 kVA)	14,708
External Battery Warranty Extension - 3 Strings (54 jars)	BL07CBXX-0054	9E (20, 30 kVA)	963
External Battery Warranty Extension - 6 Strings (108 jars)	BL07CBXX-0108	9E (20, 30 kVA)	1,925
External Battery Warranty Extension - 4 Strings (72 jars)	BL07CBXX-0072	9E (40, 60 kVA)	1,283
External Battery Warranty Extension - 6 Strings (108 jars)	BL07CBXX-0108	9E (40, 60 kVA)	1,925
External Battery Warranty Extension - 8 Strings (144 jars)	BL07CBXX-0144	9E (40, 60 kVA)	2,567
External Battery Warranty Extension - 12 Strings (216 jars)	BL07CBXX-0216	9E (40, 60 kVA)	3,851

1. 4-hour response is available in the top 70 US markets; go to http://powerquality.eaton.com/products-services/Services/UPS-Services.asp to verify zip code response time availability; remote locations beyond 100 miles from a field tech travel charges will apply

First-year Service Plans

PowerTrust Express Service Plan	W1PE00NEXX-0015	BladeUPS	449
Flex: 8 Hr Rsp, 7x24 Cvg Only	W1FL87NXXX-0015	BladeUPS, 9355	676
Flex: 4 Hr Rsp, 7x24 Cvg Only	W1FL47NXXX-0015	BladeUPS, 9355	845
Flex: 8 Hr Rsp, 7x24 Cvg, eNotify Only	W1FL87NEXX-0015	BladeUPS, 9355	771
Flex: 4 Hr Rsp, 7x24 Cvg, eNotify Only	W1FL47NEXX-0015	BladeUPS, 9355	940
PowerTrust Value Service Plan	W1PVN3NEXX-0015	BladeUPS, 9355	998
PowerTrust Service Plan 8 Hr	W1PT82NEDX-0015	BladeUPS, 9355	1,330
PowerTrust Service Plan 4 Hr	W1PT42NEDX-0015	BladeUPS, 9355	1,499
PowerTrust Preferred Service Plan 8 Hr	W1PP81NEDX-0015	BladeUPS, 9355	2,016
PowerTrust Preferred Service Plan 4 Hr	W1PP41NEDX-0015	BladeUPS, 9355	2,185
Flex: 8 Hr Rsp, 7x24 Cvg Only	W1FL87NXXX-0030	BladeUPS, 9355	901
Flex: 4 Hr Rsp, 7x24 Cvg Only	W1FL47NXXX-0030	BladeUPS, 9355	1,127
Flex: 8 Hr Rsp, 7x24 Cvg, eNotify Only	W1FL87NEXX-0030	BladeUPS, 9355	1,070
Flex: 4 Hr Rsp, 7x24 Cvg, eNotify Only	W1FL47NEXX-0030	BladeUPS, 9355	1,297
PowerTrust Value Service Plan	W1PVN3NEXX-0030	BladeUPS, 9355	1,362
PowerTrust Service Plan 8 Hr	W1PT82NEDX-0030	BladeUPS, 9355	1,806
PowerTrust Service Plan 4 Hr	W1PT42NEDX-0030	BladeUPS, 9355	2,033
PowerTrust Preferred Service Plan 8 Hr	W1PP81NEDX-0030	BladeUPS, 9355	2,545
PowerTrust Preferred Service Plan 4 Hr	W1PP41NEDX-0030	BladeUPS, 9355	2,772
Flex: 8 Hr Rsp, 7x24 Cvg Only	W1FL87NXXX-0050	BladeUPS, 9390IT	1,122
Flex: 4 Hr Rsp, 7x24 Cvg Only	W1FL47NXXX-0050	BladeUPS, 9390IT	1,403
Flex: 8 Hr Rsp, 7x24 Cvg, eNotify Only	W1FL87NEXX-0050	BladeUPS, 9390IT	1,439
Flex: 4 Hr Rsp, 7x24 Cvg, eNotify Only	W1FL47NEXX-0050	BladeUPS, 9390IT	1,720
PowerTrust Value Service Plan	W1PVN3NEXX-0050	BladeUPS, 9390IT	1,659
PowerTrust Express Service Plan	W1PE00NEXX-0080	BladeUPS, 9390IT (80 kVA)	766
Flex: 8 Hr Rsp, 7x24 Cvg Only	W1FL87NXXX-0080	BladeUPS, 9390IT (80 kVA)	1,372
Flex: 4 Hr Rsp, 7x24 Cvg Only	W1FL47NXXX-0080	BladeUPS, 9390IT (80 kVA)	1,738
Flex: 8 Hr Rsp, 7x24 Cvg, eNotify Only	W1FL87NEXX-0080	BladeUPS, 9390IT (80 kVA)	1,795
Flex: 4 Hr Rsp, 7x24 Cvg, eNotify Only	W1FL47NEXX-0080	BladeUPS, 9390IT (80 kVA)	2,160
PowerTrust Value Service Plan	W1PVN3NEXX-0080	BladeUPS, 9390IT (80 kVA)	2,003
PowerTrust Service Plan 8 Hr	W1PT82NEDX-0080	BladeUPS, 9390IT (80 kVA)	3,104
PowerTrust Service Plan 4 Hr	W1PT42NEDX-0080	BladeUPS, 9390IT (80 kVA)	3,469

SERVICES

Three-phase Service Plans (continued)

THREE-PHASE SERVICE PLANS (continued)

Description Service Part Number Additional List Price for UPS Information Per Year
First-year Service Plans (continued)
PowerTrust Preferred Service Plan 8 Hr	W1PP81NEDX-0080	BladeUPS, 9390IT (80 kVA)	4,397
PowerTrust Preferred Service Plan 4 Hr	W1PP41NEDX-0080	BladeUPS, 9390IT (80 kVA)	4,762
Flex: 8 Hr Rsp, 7x24 Cvg Only	W1FL87NXXX-0160	9390IT (120/160 kVA)	1,874
Flex: 4 Hr Rsp, 7x24 Cvg Only	W1FL47NXXX-0160	9390IT (120/160 kVA)	2,352
Flex: 8 Hr Rsp, 7x24 Cvg, eNotify Only	W1FL87NEXX-0160	9390IT (120/160 kVA)	2,297
Flex: 4 Hr Rsp, 7x24 Cvg, eNotify Only	W1FL47NEXX-0160	9390IT (120/160 kVA)	2,774
PowerTrust Value Service Plan	W1PVN3NEXX-0160	9390IT (120/160 kVA)	2,372
PowerTrust Service Plan 8 Hr	W1PT82NEDX-0050	Assumes internal batteries only	2,213
PowerTrust Service Plan 4 Hr	W1PT42NEDX-0050	Assumes internal batteries only	2,493
PowerTrust Preferred Service Plan 8 Hr	W1PP81NEDX-0050	Assumes internal batteries only	2,952
PowerTrust Preferred Service Plan 4 Hr	W1PP41NEDX-0050	Assumes internal batteries only	3,232
PowerTrust Service Plan 8 Hr	W1PT82NEDX-0160	Assumes 40 jar battery cabinet	3,712
PowerTrust Service Plan 8 Hr	W1PT42NEDX-0160	Assumes 40 jar battery cabinet	4,189
PowerTrust Preferred Service Plan 8 Hr	W1PP81NEDX-0160	Assumes 40 jar battery cabinet	5,049
PowerTrust Preferred Service Plan 4 Hr	W1PP41NEDX-0160	Assumes 40 jar battery cabinet	5,527
PowerTrust External 40 jar Battery Portion	W1BT05NS040	Per 40-jar battery cabinet	414
PowerTrust Preferred External 40 jar Battery Portion	W1BP05NS040	Per 40-jar battery cabinet	828
Flex: 8 Hr Rsp, 7x24 Cvg Only	W1FL87NXXX-RPP	RPP, PDR	317
Flex: 4 Hr Rsp, 7x24 Cvg Only	W1FL47NXXX-RPP	RPP, PDR	396
PowerTrust Value Service Plan	W1PVN3NEXX-RPP	RPP, PDR	460
PowerTrust Service Plan 8 Hr	W1PT82NEDX-RPP	RPP, PDR	646
PowerTrust Service Plan 4 Hr	W1PT42NEDX-RPP	RPP, PDR	726
PowerTrust Preferred Service Plan 8 Hr	W1PP82NEDX-RPP	RPP, PDR	1,005
PowerTrust Preferred Service Plan 4 Hr	W1PP42NEDX-RPP	RPP, PDR	1,085
Flex: 8 Hr Rsp, 7x24 Cvg Only	W1FL87NXXX-RPPB	RPP w/BCMS, EMS UGK	396
Flex: 4 Hr Rsp, 7x24 Cvg Only	W1FL47NXXX-RPPB	RPP w/BCMS, EMS UGK	495
PowerTrust Value Service Plan	W1PVN3NEXX-RPPB	RPP w/BCMS, EMS UGK	540
PowerTrust Service Plan 8 Hr	W1PT82NEDX-RPPB	RPP w/BCMS, EMS UGK	757
PowerTrust Service Plan 4 Hr	W1PT42NEDX-RPPB	RPP w/BCMS, EMS UGK	856
PowerTrust Preferred Service Plan 8 Hr	W1PP82NEDX-RPPB	RPP w/BCMS, EMS UGK	1,259
PowerTrust Preferred Service Plan 4 Hr	W1PP42NEDX-RPPB	RPP w/BCMS, EMS UGK	$1,358

Second-year+ Service Plans

PowerTrust Express Service Plan	W2PE00NEXX-0015	BladeUPS	897
Flex: 8 Hr Rsp, 7x24 Cvg Only	W2FL87NXXX-0015	BladeUPS, 9355	1,352
Flex: 4 Hr Rsp, 7x24 Cvg Only	W2FL47NXXX-0015	BladeUPS, 9355	1,689
Flex: 8 Hr Rsp, 7x24 Cvg, eNotify Only	W2FL87NEXX-0015	BladeUPS, 9355	1,541
Flex: 4 Hr Rsp, 7x24 Cvg, eNotify Only	W2FL47NEXX-0015	BladeUPS, 9355	1,880
PowerTrust Value Service Plan	W2PVN3NEXX-0015	BladeUPS, 9355	1,994
PowerTrust Service Plan 8 Hr	W2PT82NEDX-0015	BladeUPS, 9355	2,660
PowerTrust Service Plan 4 Hr	W2PT42NEDX-0015	BladeUPS, 9355	2,998
PowerTrust Preferred Service Plan 8 Hr	W2PP81NEDX-0015	BladeUPS, 9355	4,032
PowerTrust Preferred Service Plan 4 Hr	W2PP41NEDX-0015	BladeUPS, 9355	4,371
Flex: 8 Hr Rsp, 7x24 Cvg Only	W2FL87NXXX-0030	BladeUPS, 9355	1,803
Flex: 4 Hr Rsp, 7x24 Cvg Only	W2FL47NXXX-0030	BladeUPS, 9355	2,254
Flex: 8 Hr Rsp, 7x24 Cvg, eNotify Only	W2FL87NEXX-0030	BladeUPS, 9355	2,141
Flex: 4 Hr Rsp, 7x24 Cvg, eNotify Only	W2FL47NEXX-0030	BladeUPS, 9355	2,592
PowerTrust Value Service Plan	W2PVN3NEXX-0030	BladeUPS, 9355	2,723
PowerTrust Service Plan 8 Hr	W2PT82NEDX-0030	BladeUPS, 9355	3,612
PowerTrust Service Plan 4 Hr	W2PT42NEDX-0030	BladeUPS, 9355	4,063
PowerTrust Preferred Service Plan 8 Hr	W2PP81NEDX-0030	BladeUPS, 9355	5,090
PowerTrust Preferred Service Plan 4 Hr	W2PP41NEDX-0030	BladeUPS, 9355	5,541
Flex: 8 Hr Rsp, 7x24 Cvg Only	W2FL87NXXX-0050	BladeUPS, 9390IT	2,245
Flex: 4 Hr Rsp, 7x24 Cvg Only	W2FL47NXXX-0050	BladeUPS, 9390IT	2,805
Flex: 8 Hr Rsp, 7x24 Cvg, eNotify Only	W2FL87NEXX-0050	BladeUPS, 9390IT	2,878

SERVICES

Three-phase Service Plans (continued)

THREE-PHASE SERVICE PLANS (continued)

Description Service Part Number Additional List Price for UPS Information Per Year
Second-year+ Service Plans (continued)
Flex: 4 Hr Rsp, 7x24 Cvg, eNotify Only	W2FL47NEXX-0050	BladeUPS, 9390IT	3,438
PowerTrust Value Service Plan	W2PVN3NEXX-0050	BladeUPS, 9390IT	3,318
PowerTrust Express Service Plan	W2PE00NEXX-0080	BladeUPS, 9390IT (80 kVA)	1,531
Flex: 8 Hr Rsp, 7x24 Cvg Only	W2FL87NXXX-0080	BladeUPS, 9390IT (80 kVA)	2,745
Flex: 4 Hr Rsp, 7x24 Cvg Only	W2FL47NXXX-0080	BladeUPS, 9390IT (80 kVA)	3,476
Flex: 8 Hr Rsp, 7x24 Cvg, eNotify Only	W2FL87NEXX-0080	BladeUPS, 9390IT (80 kVA)	3,589
Flex: 4 Hr Rsp, 7x24 Cvg, eNotify Only	W2FL47NEXX-0080	BladeUPS, 9390IT (80 kVA)	4,320
PowerTrust Value Service Plan	W2PVN3NEXX-0080	BladeUPS, 9390IT (80 kVA)	4,004
PowerTrust Service Plan 8 Hr	W2PT82NEDX-0080	BladeUPS, 9390IT (80 kVA)	6,207
PowerTrust Service Plan 4 Hr	W2PT42NEDX-0080	BladeUPS, 9390IT (80 kVA)	6,937
PowerTrust Preferred Service Plan 8 Hr	W2PP81NEDX-0080	BladeUPS, 9390IT (80 kVA)	8,793
PowerTrust Preferred Service Plan 4 Hr	W2PP41NEDX-0080	BladeUPS, 9390IT (80 kVA)	9,523
Flex: 8 Hr Rsp, 7x24 Cvg Only	W2FL87NXXX-0160	9390IT (120/160 kVA)	3,748
Flex: 4 Hr Rsp, 7x24 Cvg Only	W2FL47NXXX-0160	9390IT (120/160 kVA)	4,703
Flex: 8 Hr Rsp, 7x24 Cvg, eNotify Only	W2FL87NEXX-0160	9390IT (120/160 kVA)	4,592
Flex: 4 Hr Rsp, 7x24 Cvg, eNotify Only	W2FL47NEXX-0160	9390IT (120/160 kVA)	5,548
PowerTrust Value Service Plan	W2PVN3NEXX-0160	9390IT (120/160 kVA)	4,744
PowerTrust Service Plan 8 Hr	W2PT82NEDX-0050	Assumes internal batteries only	4,426
PowerTrust Service Plan 4 Hr	W2PT42NEDX-0050	Assumes internal batteries only	4,986
PowerTrust Preferred Service Plan 8 Hr	W2PP81NEDX-0050	Assumes internal batteries only	5,904
PowerTrust Preferred Service Plan 4 Hr	W2PP41NEDX-0050	Assumes internal batteries only	6,464
PowerTrust Service Plan 8 Hr	W2PT82NEDX-0160	Assumes 40 jar battery cabinet	7,422
PowerTrust Service Plan 8 Hr	W2PT42NEDX-0160	Assumes 40 jar battery cabinet	8,377
PowerTrust Preferred Service Plan 8 Hr	W2PP81NEDX-0160	Assumes 40 jar battery cabinet	10,097
PowerTrust Preferred Service Plan 4 Hr	W2PP41NEDX-0160	Assumes 40 jar battery cabinet	11,053
PowerTrust External 40 jar Battery Portion	W2BT05NS040	Per 40-jar battery cabinet	828
PowerTrust Preferred External 40 jar Battery Portion	W2BP05NS040	Per 40-jar battery cabinet	1,656
Flex: 8 Hr Rsp, 7x24 Cvg Only	W2FL87NXXX-RPP	RPP, PDR	633
Flex: 4 Hr Rsp, 7x24 Cvg Only	W2FL47NXXX-RPP	RPP, PDR	792
PowerTrust Value Service Plan	W2PVN3NEXX-RPP	RPP, PDR	917
PowerTrust Service Plan 8 Hr	W2PT82NEDX-RPP	RPP, PDR	1,292
PowerTrust Service Plan 4 Hr	W2PT42NEDX-RPP	RPP, PDR	1,450
PowerTrust Preferred Service Plan 8 Hr	W2PP82NEDX-RPP	RPP, PDR	2,010
PowerTrust Preferred Service Plan 4 Hr	W2PP42NEDX-RPP	RPP, PDR	2,168
Flex: 8 Hr Rsp, 7x24 Cvg Only	W2FL87NXXX-RPPB	RPP w/BCMS, EMS UGK	792
Flex: 4 Hr Rsp, 7x24 Cvg Only	W2FL47NXXX-RPPB	RPP w/BCMS, EMS UGK	990
PowerTrust Value Service Plan	W2PVN3NEXX-RPPB	RPP w/BCMS, EMS UGK	1,081
PowerTrust Service Plan 8 Hr	W2PT82NEDX-RPPB	RPP w/BCMS, EMS UGK	1,514
PowerTrust Service Plan 4 Hr	W2PT42NEDX-RPPB	RPP w/BCMS, EMS UGK	1,712
PowerTrust Preferred Service Plan 8 Hr	W2PP82NEDX-RPPB	RPP w/BCMS, EMS UGK	2,517
PowerTrust Preferred Service Plan 4 Hr	W2PP42NEDX-RPPB	RPP w/BCMS, EMS UGK	$2,715

First-year Preventive Maintenance Service

UPS Preventive Maintenance, After Hours (7x24)	0005NXXX-0030	9E (20, 30 kVA)	1,320
UPS Preventive Maintenance, After Hours (7x24)	0005NXXX-0080	9E (40, 60 kVA)	1,584
UPS Preventive Maintenance, After Hours (7x24)	W10005NXXX-0160	9390IT (120/160 kVA)	1,495
UPS Preventive Maintenance, Business Hours (5x8)	W10006NXXX-0160	9390IT (120/160 kVA)	1,135
IDC Preventive Maintenance, After Hours (7x24)	W10005NIDC-9390	9390IT (all)	238
IDC Preventive Maintenance, Business Hours (5x8)	W10006NIDC-9390	9390IT (all)	211
UPS Preventive Maintenance, After Hours (7x24)	W10005NXXX-0015	BladeUPS, 9355	581
UPS Preventive Maintenance, After Hours (7x24)	W10005NXXX-0030	BladeUPS, 9355	660
UPS Preventive Maintenance, Business Hours (5x8)	W10006NXXX-0015	BladeUPS, 9355	475
UPS Preventive Maintenance, Business Hours (5x8)	W10006NXXX-0030	BladeUPS, 9355	581
UPS Preventive Maintenance, After Hours (7x24)	W10005NXXX-0050	BladeUPS, 9390IT	686
UPS Preventive Maintenance, Business Hours (5x8)	W10006NXXX-0050	BladeUPS, 9390IT	633

SERVICES

Three-phase Service Plans (continued)

THREE-PHASE SERVICE PLANS (continued)

Description Service Part Number Additional List Price for UPS Information Per Year
First-year Preventive Maintenance Service (continued)
UPS Preventive Maintenance, After Hours (7x24)	W10005NXXX-0080	BladeUPS, 9390IT (80 kVA)	792
UPS Preventive Maintenance, Business Hours (5x8)	W10006NXXX-0080	BladeUPS, 9390IT (80 kVA)	713
Sealed Battery Preventive Maintenance, Any Time	W10005NEXT	1 to 4 EBMs per system	473
Sealed Battery Preventive Maintenance, Any Time	W10005NINT	Internal batteries	473
Sealed Battery Preventive Maintenance, Any Time	W10005NS040	Per 40 jar battery cabinet	414
Sealed Battery Preventive Maintenance, Any Time	W10005NS036	Per EBC 36	373
Sealed Battery Preventive Maintenance, Any Time	W10005NS072	Per EBC 72	671
PDR/RPP Preventive Maintenance, Business Hours (5x8)	W10006NXXX-RPPB	RPP w/BCMS, EMS UGK	291
PDR/RPP Preventive Maintenance, After Hours (7x24)	W10005NXXX-RPPB	RPP w/BCMS, EMS UGK	396
PDR/RPP Preventive Maintenance, Business Hours (5x8)	W10006NXXX-RPP	RPP, PDR	259
PDR/RPP Preventive Maintenance, After Hours (7x24)	W10005NXXX-RPP	RPP, PDR	309
Battery Preventive Maintenance, After Hours (7x24)	0005NSXX-0054	9E (20, 30 kVA) - 3 Strings (54 jars)	1,006
Battery Preventive Maintenance, After Hours (7x24)	0005NSXX-0108	9E (20, 30 kVA) - 6 Strings (108 jars)	1,677
Battery Preventive Maintenance, After Hours (7x24)	0005NSXX-0072	9E (40, 60 kVA) - 4 Strings (72 jars)	1,341
Battery Preventive Maintenance, After Hours (7x24)	0005NSXX-0108	9E (40, 60 kVA) - 6 Strings (108 jars)	1,677
Battery Preventive Maintenance, After Hours (7x24)	0005NSXX-0144	9E (40, 60 kVA) - 8 Strings (144 jars)	1,938
Battery Preventive Maintenance, After Hours (7x24)	0005NSXX-0216	9E (40, 60 kVA) - 12 Strings (216 jars)	$2,906

Second-year+ Preventive Maintenance Service

UPS Preventive Maintenance, After Hours (7x24)	W20005NXXX-0160	9390IT (120/160 kVA)	2,988
UPS Preventive Maintenance, Business Hours (5x8)	W20006NXXX-0160	9390IT (120/160 kVA)	2,271
IDC Preventive Maintenance, After Hours (7x24)	W20005NIDC-9390	9390IT (all)	475
IDC Preventive Maintenance, Business Hours (5x8)	W20006NIDC-9390	9390IT (all)	422
UPS Preventive Maintenance, After Hours (7x24)	W20005NXXX-0015	BladeUPS, 9355	1,161
UPS Preventive Maintenance, After Hours (7x24)	W20005NXXX-0030	BladeUPS, 9355	1,320
UPS Preventive Maintenance, Business Hours (5x8)	W20006NXXX-0015	BladeUPS, 9355	950
UPS Preventive Maintenance, Business Hours (5x8)	W20006NXXX-0030	BladeUPS, 9355	1,161
UPS Preventive Maintenance, After Hours (7x24)	W20005NXXX-0050	BladeUPS, 9390IT	1,372
UPS Preventive Maintenance, Business Hours (5x8)	W20006NXXX-0050	BladeUPS, 9390IT	1,267
UPS Preventive Maintenance, After Hours (7x24)	W20005NXXX-0080	BladeUPS, 9390IT (80 kVA)	1,584
UPS Preventive Maintenance, Business Hours (5x8)	W20006NXXX-0080	BladeUPS, 9390IT (80 kVA)	1,425
Sealed Battery Preventive Maintenance, Any Time	W20005NEXT	1 to 4 EBMs per system	945
Sealed Battery Preventive Maintenance, Any Time	W20005NINT	Internal batteries	945
Sealed Battery Preventive Maintenance, Any Time	W20005NS040	Per 40 jar battery cabinet	828
Sealed Battery Preventive Maintenance, Any Time	W20005NS036	Per EBC 36	745
Sealed Battery Preventive Maintenance, Any Time	W20005NS072	Per EBC 72	1,341
PDR/RPP Preventive Maintenance, Business Hours (5x8)	W20006NXXX-RPPB	RPP w/BCMS, EMS UGK	581
PDR/RPP Preventive Maintenance, After Hours (7x24)	W20005NXXX-RPPB	RPP w/BCMS, EMS UGK	792
PDR/RPP Preventive Maintenance, Business Hours (5x8)	W20006NXXX-RPP	RPP, PDR	518
PDR/RPP Preventive Maintenance, After Hours (7x24)	W20005NXXX-RPP	RPP, PDR	$618

Battery replacement coverages

2 Year Battery Labor Coverage adder	W2BL07NAXX	Per EBM	317
3 Year Battery Labor Coverage adder	W2BL07NBXX	Per 40-jar cabinet or internal	713
Full Battery Coverage B47	W2FB07CNXX-B47	40 jars of B47	4,642
Full Battery Coverage E20	W2FB07CNXX-E20	40 jars of E20	2,337
Full Battery Coverage E33	W2FB07CNXX-E33	40 jars of E33	3,175
Full Battery Coverage EBC 36	W2FB07CXXX-E36	36 jars of HR120	1,718
Full Battery Coverage EBC 72	W2FB07CXXX-E72	72 jars of HR120	2,386
Full Battery Coverage EBM 64	W2FB07NXXX-EB64	64 jars of HR34	865
Full Battery Coverage EBM 96	W2FB07NXXX-EB96	96 jars of HR34	1,188
Full Battery Coverage Internal	W2FB07NXXX-IH34	108 jars of HR34	1,271
Full Battery Coverage Internal	W2FB07NXXX-IN32	32 jars of HR34	$559

SERVICES

Three-phase Service Plans (continued)

THREE-PHASE SERVICE PLANS (continued)

Description Service Part Number Additional List Pricefor UPS Information Per Year
Service Field Upgrades (includes parts, anytime labor and 100 miles of travel)
9355 10-15 Parallel Upgrade Kit (covers procedure for 2 UPS modules)	103004948	9355	2,024
9355 10-15 Parallel Upgrade Kit (covers procedure for one module)	103004656	9355	1,111
9355 KVA Field Upgrade 10 to 15	103004657	9355	4,027
9355-20-30 Parallel Upgrade Kit (covers procedure for 2 UPS modules)	103005160	9355	2,147
9355-20-30 Parallel Upgrade Kit (covers procedure for one module)	103004336	9355	1,111
9355 kVA Field Upgrade 20 to 30	103004901	9355	5,431
9390IT Parallel Upgrade Kit (covers procedure for 2 UPS modules)	164700589	9390IT	1,605
9390IT Parallel Upgrade Kit (covers procedure for one module)	164700589	9390IT	1,605

Service Spare Part Kits

BladeUPS Power Module 12 kW	103005991-5501	BladeUPS	call
9355 10-15 A Spares Kit	106711169	9355	call
9355 10-15 B Spares Kit	106711181	9355	call
9355 10-15 C Spares Kit	106711183	9355	call
9355-20-30 A Spares Kit	106711170	9355	call
9355-20-30 B Spares Kit	106711182	9355	call
9355-20-30 C Spares Kit	106711184	9355	call
9390IT - 40 208 Vac A Spares Kit	106711150	9390IT	call
9390IT - 40 480 Vac A Spares Kit	106711151	9390IT	call
9390IT - 40 208 Vac B Spares Kit	106711164	9390IT	call
9390IT - 40 480 Vac B Spares Kit	106711165	9390IT	call
9390IT - 40 208 Vac C Spares Kit	106711194	9390IT	call
9390IT - 40 480 Vac C Spares Kit	106711196	9390IT	call
PDU/RPP "A" SqD 60A Spare Parts Kit	106711332	RPP, PDR	call
PDU/RPP "B" Spare Parts Kit	106711330	RPP, PDR	call
PDU/RPP "C" Spare Parts Kit	106711331	RPP, PDR	call
PDU/RPP 30-300 CH with Universal Control Board "A" Spare Parts Kit	106711205	RPP, PDR	call
PDU/RPP 30-300 CH with Universal Control Board "C" Spare Parts Kit	106711207	RPP, PDR	call
PDU/RPP CH 100A "A" Spare Parts Kit	106711329	RPP, PDR	call
PDU/RPP CH 60A "A" Spare Parts Kit	106711333	RPP, PDR	call
RPP with Universal Control Board SqD "A" Spare Parts Kit	106711206	RPP, PDR	call
RPP with Universal Control Board SqD "C" Spare Parts Kit	106711208	RPP, PDR	call
PDR "A" Spare Parts Kit	106711318	RPP, PDR	call
PDR "B" Spare Parts Kit	106711319	RPP, PDR	call
PDR "C" Spare Parts Kit	106711320	RPP, PDR	call

Notes:
• Full Battery Coverage: Onsite coverage (matches required UPS plan coverage) to replace batteries inspected below 80% of rated capacity; requires annual battery PM (PM not included in FBC price)
- eNotify connectivity parts (Web/SNMP Card and EMP) not included with service plan or new product purchase; purchase separately - Apply 50% discount on additional startup after first system
- Call 800-843-9433 for 8/4/2 hour response time availability; apply \$500 surcharge for remote site locations
- Prices are for CONUS; call for OCONUS pricing and availability
- Internal batteries receive a no-charge PM during UPS PM procedure; excludes external cabinets
- Spare part kit ordering instructions: "A" kits are 80% of parts, "B" kits are 60% of parts, "C" are consumables or 40% of parts
- BladeUPS: 12 kW (1 module) = 0015
- BladeUPS: 12 kW - 60 kW (1 to 6 modules) = 0080
• PDR or RPP 30 - 300 kVA = RPP
• EMS or RPP w/BCMS = RPPB
• W1 prefix indicates first year services
- W2 prefix indicates services delivered after year one (except startup, assembly)
- Last 4 part number digits refer to maximum KVA UPS rating

SERVICES

Three-phase Service Plans Overview

TIME AND MATERIAL SERVICE RATE SCHEDULE

The following rate schedule applies to all services rendered on non-contracted and non-warranty equipment and to all services performed on contracted equipment where the service performed is outside the scope of the contracted coverage. Labor rates are based on the actual time of delivery. Specific contract customers may be eligible for discounts on time and material charges.

3-Phase Products - Portal to Portal Labor per Hour (Onsite and Travel Time) Current List Price

Mon. – Fri., Business Hours (8AM – 5PM): \$247

Mon. – Fri., After Business Hours (5PM – 8AM): S315

Weekends and Holidays (Saturday 12:01AM – Sunday Midnight): \$394

3-Phase Products - Minimum Labor Billing (minimum value range equal to above rates x hourly minimum)

Equipment below 200kVA, Five day or less response (4 hour min.): \$1,575

Equipment 200kVA and above or Multi Module, Five day or less response (6 hour min.): \$2,363

Equipment 200kVA and above or Multi Module, Two day or less response (8 hour min.): \$3,150

1-Phase Products - Portal to Portal Labor per Hour (Onsite and Travel Time)

Mon. – Fri., Business Hours (8AM – 5PM): \$196

Mon. – Fri., After Business Hours (5PM – 8AM), Weekends and Holidays: \$317

1-Phase Products - Minimum Labor Billing (minimum value range equal to above rates x hourly minimum)

Equipment below 200kVA, Five day or less response (4 hour min.): \$1,267

Equipment 200kVA and above or Multi Module, Five day or less response (6 hour min.): \$1,901

Equipment 200kVA and above or Multi Module, Two day or less response (8 hour min.): \$2,534

Travel & Living Expenses

Transportation:
3-Phase Products:	Automobile mileage included in labor rates
1-Phase Products:	Automobile mileage at $ 0.70 per mile
All others (air fare, car rental, tolls, etc.):	Actual
Lodging & Meals:	Actual

Calculation of Labor and Mileage Charges: Portal to Portal (travel labor and mileage)

Materials/Spare Parts		Current List Price
Minimum billing:	110 Domestic,275 International

Parts Expedite Fees

Mon. – Fri., Business Hours (8AM – 5PM): 110
Mon. – Fri., After Business Hours (5PM – 8AM):	275
Weekends and Holidays:	$440

Freight Expense

Freight – FOB Factory:	Actual
Same Day Delivery:	$155 plus Actual Freight

Offsite Repair Labor:		132 per hour
Minimum Billing:		132
Expediting Fee:		$110

Note: Three-phase products include Eaton BladeUPS, Best Power Unity UT3; single-phase products include Eaton 9155, Powerware 9150, Best Power Unity UT3K, UT8K

SERVICES

eNotify Remote Monitoring

eNotify Remote Monitoring features 7x24 real-time monitoring of 100+ UPS and battery alarms, with technical experts available to respond immediately and resolve many issues remotely. With eNotify Remote Monitoring software, processors and firmware inside the UPS collect performance data and send status messages to Eaton's Remote Monitoring Command Center. eNotify evaluates the health of your UPS by comparing current and historical performance data with specified parameters. The analyzed data is then used to make accurate performance reports of UPS status. Monthly email reports detail UPS performance and alarm history.

eNotify monthly reports

Eaton's eNotify Remote Monitoring Command Center

Interior view of a busy control room with multiple operators at desks (no visible text or signage)

SELF-INSTALLING ENOTIFY

A Quick Start Guide and self-installation wizard tool is available online at www.eaton.com/enotify. This self-installation process takes as little as 10 minutes to complete. To activate eNotify, customers must have a ConnectUPS Web/SNMP card and an Environmental Monitoring Probe (EMP). connectivity parts are not included with service plan or product purchase; purchase separately.

EATON UPS BATTERIES

All Batteries Are Not Created Equal

Did you know that battery failure is the number one cause of load loss and system downtime? The single-most critical element of UPS performance is battery quality. All it takes is one bad battery to bring your systems down during a power outage or other interruption. Battery performance varies greatly from one manufacturer to another. Making the wrong decision on batteries can have a serious impact on UPS uptime reliability, causing potentially devastating consequences from power interruptions. That's why Eaton offers a line of qualified premium batteries for use with Eaton UPS models. Eaton UPS qualified batteries must adhere to Eaton's stringent battery tests and quality specifications.

Benefits of Eaton Batteries

Eaton batteries offer performance and quality at competitive prices. Eaton continuously scans the globe to ensure the highest-quality batteries are available and qualified for use. As new batteries are introduced, we apply a proven qualification process, testing them with our products to verify that they meet or exceed manufacturer specifications and supply maximum runtime. Using Eaton-qualified batteries gives your customers confidence that

their batteries will perform as expected and keep their applications running.

• Batteries are the number one cause of UPS load loss
• One bad battery can ruin an entire string
- Eaton-qualified batteries are backed by a service network of trained and qualified battery customer service engineers

Is your customer willing to risk the availability of their company's mission-critical applications on an unqualified battery?

Battery Replacement

Provide the ultimate in uptime by maintaining your UPS batteries with our battery replacement program. Eliminate potentially devastating downtime by replacing batteries before they fail. See the Eaton Battery Replacement Pricebook on the Eaton Power Quality Salesweb for the most current battery offerings and pricing.

Worker in hard hat and safety gear standing beside a red industrial machine (no visible text or symbols)

RMA POLICY AND PRODUCT WARRANTIES

Sales Returned Merchandise Authorization (RMA) Policy

Written authority from Eaton must be obtained before any return or credit will be allowed.

Sales RMAs will be issued for new, unused equipment that is:

A. Within 30 days of original shipment date

B. Returned in original sealed packaging

C. Returned in unmodified, untampered, original condition

D. A current design

Cancellations and Erroneous Orders:

Any order for standard Eaton products may not be cancelled within thirty days of the date scheduled for shipment/delivery by Eaton. Otherwise the order may be cancelled in accordance with the following:

• Sales RMAs issued for cancellations and erroneous orders will be subject to a minimum 15% restocking/cancellation fee
- Restocking/cancellation fee for standard product will be 15%
- Restocking/cancellation fee for special, custom or configured products will be a minimum of 50%
- The buyer is responsible for both inbound and outbound freight charges

Note: Charges may be waived by mutual agreement between buyer and seller. Proper approval and authorization must be obtained and documented in writing before the transaction is initiated.

Erroneous Shipments:

Sales RMAs necessary as a result of shipping/order entry errors will be issued and transacted with no charge to the buyer. Eaton will pay inbound freight, and outbound freight will be similar service level as original shipment.

RMA Expiration:

An RMA is valid for 60 calendar days from date of authorization by Eaton, after which it is subject to cancellation.

Sales Contracts:

An active Sales Contract with clauses relating to return of product for sales credits may supersede the Sales RMA policy statements above.

To request a Sales RMA please contact:

800.356.5794

e-mail: [e-mail]

WARRANTY

Eaton Corporation Load Protection Guarantee (US and Canada)

UPS MODELS: 3105, 3S, 5110, 5115, 5125, 5130, 5PX, 9130, 9135, 9140, 9155, 9170+ AND FERRUPS

GUARANTOR: The Guarantor for the load protection guaranty set forth herein is Eaton Corporation, an Ohio Corporation Company ("Company").

LIMITED GUARANTY: This load protection guaranty (this "Guaranty") applies only to the original End-user (the "End-user") of any 3105, 3S, 5110, 5115, 5125, 5130, 5PX, 9130, 9135, 9140, 9155, 9170+ and FERRUPS Products (individually and collectively, the "Product") and cannot be transferred. This Guaranty applies even in the event that the Product is initially sold by Company for resale to an End-User.

WHAT THIS GUARANTY COVERS: For the lifetime of the Product, Guarantor promises to repair or replace, at Guarantor's option, the equipment (valued up to the limits shown below*) that is damaged by an AC power line surge, spike or other transient when properly connected to Guarantor's uninterruptible power system ("UPS"). Reimbursement for or restoration of data loss excluded. This Guaranty applies only if all of the following circumstances arise:

1. The UPS is plugged into properly grounded and wired outlets, using no extension cords, adapters, other ground wires or other electrical connectors;
2. The installation of the UPS complies with all applicable electrical and safety codes described by the National Electric Code (NEC);
3. The UPS was used under normal operating conditions and in accordance with all labels and instructions; and
4. The UPS was not damaged by accident (other than AC power line transient), misuse or abuse.

*Cumulative Limits to be paid by Guarantor under this Load Protection Guaranty:

\$25,000 for UPS Model 3105 and 3S

\$150,000 for UPS Models 5110, 5115, 5125, 5130 and 5PX

\$250,000 for UPS Models 9130, 9135, 9140, 9155, 9170+ and FERRUPS products

WHAT THIS GUARANTY DOES NOT COVER: Any reimbursement or repair to End-user's equipment does not include reimbursement for or restoration of any data loss. This Guaranty does not cover any defects or damages caused by: (a) failure to properly store the Product before installation, including the charge of batteries no later than the date indicated on the packaging; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse, misapplication, or incorrect installation of Product; (d) repair or alteration of Product not authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; (e) improper testing, operation, maintenance, adjustment, or modification of any kind to the Product not authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent with the Product's labels or instructions.

This Guaranty is not valid: (a) unless the End-user returns to Company the Warranty Registration Card or completes the registration form on www.powerquality.eaton.com/productregistration within thirty (30) days of purchase; or (b) if the Product's serial numbers have been removed or are illegible.

Company shall not be responsible for any charges for testing, checking, removal or installation of any items.

LIMITATION OF LIABILITY: THE REMEDIES OF THE END-USER SET FORTH HEREIN ARE EXCLUSIVE AND ARE THE SOLE REMEDIES FOR ANY FAILURE OF COMPANY TO COMPLY WITH ITS OBLIGATIONS HEREUNDER. EXCEPT AS OTHERWISE PROVIDED FOR IN THIS GUARANTY, IN NO EVENT SHALL COMPANY BE LIABLE IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE FOR DAMAGE TO PROPERTY OR EQUIPMENT OTHER THAN THE PRODUCTS, INCLUDING LOSS OF PROFITS OR REVENUE, LOSS OF USE OF PRODUCTS, LOSS OF DATA, COST OF CAPITAL, CLAIMS OF CUSTOMERS OF THE END-USER OR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER. THE TOTAL CUMULATIVE LIABILITY OF COMPANY HEREUNDER WHETHER THE CLAIMS ARE BASED IN CONTRACT (INCLUDING INDEMNITY), IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE, SHALL NOT EXCEED THOSE SET FORTH ABOVE.

Company shall not be responsible for failure to provide repair or replacement under this Guaranty due to causes beyond Company's reasonable control.

END-USER'S OBLIGATIONS: In order to receive the benefits of this Guaranty, the End-user must use the Product in a normal way; follow the Product's operation and maintenance manual; and protect against further damage to the Product if there is a covered defect.

OTHER LIMITATIONS: Company's obligations under this Guaranty are expressly conditioned upon receipt by Company of all payments due to it (including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance with the contract terms under which the Product is sold, Company shall have no obligation under this Guaranty.

COSTS NOT RELATED TO GUARANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of this Guaranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this Guaranty will be borne by the End-user.

TO MAKE A CLAIM: In the USA, call the Customer Reliability Center 7x24 at 800.356.5737. Outside of the USA, contact your local Eaton product sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3149. For comments or questions about this Load Protection Guaranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.

WARRANTY

Limited Warranty

UPS MODELS: 3105, 3S, 5110, 5115, 5125, 5130 AND 5PX (USA AND CANADA)

WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton Corporation, an Ohio Corporation company ("Company").

LIMITED WARRANTY: This limited warranty (this "Warranty") applies only to the original End-user (the "End-user") of any 3105, 3S, 5110, 5115, 5125, 5130 and 5PX Products (individually and collectively, the "Product") purchased on or after August 19th, 2009, and cannot be transferred. This Warranty applies even in the event that the Product is initially sold by Company for resale to an End-user.

LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed [and currently located] in the fifty (50) United States, the District of Columbia and Canada is twenty-four (24) months from the date of purchase, or thirty (30) months from the date of shipment. For units that are registered online at www.eaton.com/PQ/Register, the warranty is extended to thirty-six (36) months from the date of purchase, or forty-two (42) months from the date of shipment.

WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Product and battery (individually and collectively, the "Warranted Items") are free of defects in material and workmanship. If, in the opinion of Company, a Warranted Item is defective and the defect is within the terms of this Warranty, Company's sole obligation will be to repair or replace such defective Warranted Item (including by providing service, parts and labor, as applicable), at the option of Company.

PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS: The Warranted Item will be repaired or replaced at a Company site or such other location as determined by Company.

If the Warranted Item is to be replaced by Company, and the End-user supplies a credit card number or purchase order for the value of the replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives notice of the warranty claim. In such case, the End-user must return (at Company's expense) the defective Warranted Item to Company in the same packaging as the replacement Warranted Item received by the End-user or as otherwise instructed by Company. If Company does not receive the defective Warranted Item, Company will either charge the End-user's credit card, or send the End-user an invoice (which the End-user agrees to pay), for the value of the replacement product.

If the Warranted Item is to be replaced by Company, but the End-user is unwilling or unable to supply a credit card number or purchase order for the value of the replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives the defective product from the End-user.

In any case, Company will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective equipment and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or reconditioned. All Warranted Items returned to Company and all parts replaced by Company shall become the property of Company.

WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly store the Product before installation, including the charge of batteries no later than the date indicated on the packaging; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse, misapplication or incorrect installation; (d) repair or alteration not authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; (e) improper testing, operation, maintenance, adjustment or modification of any kind not authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent with the Product's labels or instructions.

This Warranty is not valid if the Product's serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.

WARRANTY

Limited Warranty (continued)

Company shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.

COMPANY DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY COMPANY. IF PERMITTED BY THE APPLICABLE MANUFACTURER, COMPANY SHALL PASS THROUGH SUCH MANUFACTURER'S WARRANTIES TO END-USER.

COMPANY DOES NOT WARRANT SOFTWARE, INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT CREATED BY COMPANY. WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT WAS CREATED USING AN "OPEN SOURCE" MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.

THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY COMPANY WITH RESPECT TO THE PRODUCTS AND SERVICES AND, EXCEPT FOR SUCH FOREGOING WARRANTY COMPANY DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-CONFORMITIES IN THE MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE COMPANY'S SOLE LIABILITY AND END-USER'S EXCLUSIVE REMEDY FOR FAILURE OF COMPANY TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER ARE BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE.

LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Company to comply with its obligations hereunder. In no event shall Company be liable in contract, in tort (including negligence or strict liability) or otherwise for damage to property or equipment other than the Products, including loss of profits or revenue, loss of use of Products, loss of data, cost of capital, claims of customers of the End-user or any special, indirect, incidental or consequential damages whatsoever. The total cumulative liability of Company hereunder whether the claims are based in contract (including indemnity), in tort (including negligence or strict liability) or otherwise, shall not exceed the price of the Product on which such liability is based.

Company shall not be responsible for failure to provide service or parts due to causes beyond Company's reasonable control.

END-USER'S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the Product's operation and maintenance manual; and protect against further damage to the Product if there is a covered defect.

OTHER LIMITATIONS: Company's obligations under this Warranty are expressly conditioned upon receipt by Company of all payments due to it (including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance with the contract terms under which the Product is sold, Company shall have no obligation under this Warranty. Also during such time, the period of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.

COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this Warranty will be borne by the End-user.

OBTAINING WARRANTY SERVICE: In the USA, call the Customer Reliability Center 7x24 at 800.843.9433. Outside of the USA, contact your local Eaton product sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3028. For comments or questions about this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.

WARRANTY

Two-Year Limited Warranty

UPS MODELS: 9130, 9135, 9140 AND FERRUPS UP TO 3.1 kVA (USA AND CANADA)

WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton Corporation, an Ohio Corporation company ("Company").

LIMITED WARRANTY: This limited warranty (this "Warranty") applies only to the original End-user (the "End-user") of any 9130, 9135, 9140 and FERRUPS up to 3.1 kVA Products (individually and collectively, the "Product") purchased on or after June 1, 2004, and cannot be transferred. This Warranty applies even in the event that the Product is initially sold by Company for resale to an End-user.

LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed [and currently located] in the fifty (50) United States, the District of Columbia and Canada is twenty-four (24) months from the date of purchase, or thirty (30) months from the date of shipment.

WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Product and battery (individually and collectively, the "Warranted Items") are free of defects in material and workmanship. If, in the opinion of Company, a Warranted Item is defective and the defect is within the terms of this Warranty, Company's sole obligation will be to repair or replace such defective Warranted Item (including by providing service, parts and labor, as applicable), at the option of Company.

PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS: The Warranted Item will be repaired or replaced at a Company site or such other location as determined by Company.

If the Warranted Item is to be replaced by Company, and the End-user supplies a credit card number or purchase order for the value of the replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives notice of the warranty claim. In such case, the End-user must return (at Company's expense) the defective Warranted Item to Company in the same packaging as the replacement Warranted Item received by the End-user or as otherwise instructed by Company. If Company does not receive the defective Warranted Item, Company will either charge the End-user's credit card, or send the End-user an invoice (which the End-user agrees to pay), for the value of the replacement product.

If the Warranted Item is to be replaced by Company, but the End-user is unwilling or unable to supply a credit card number or purchase order for the value of the replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives the defective product from the End-user.

In any case, Company will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective equipment and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or reconditioned. All Warranted Items returned to Company and all parts replaced by Company shall become the property of Company.

WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly store the Product before installation, including the charge of batteries no later than the date indicated on the packaging; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse, misapplication or incorrect installation; (d) repair or alteration not authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; (e) improper testing, operation, maintenance, adjustment or modification of any kind not authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent with the Product's labels or instructions.

This Warranty is not valid if the Product's serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.

WARRANTY

Two-Year Limited Warranty (continued)

Company shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.

COMPANY DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY COMPANY. IF PERMITTED BY THE APPLICABLE MANUFACTURER, COMPANY SHALL PASS THROUGH SUCH MANUFACTURER'S WARRANTIES TO END-USER.

COMPANY DOES NOT WARRANT SOFTWARE, INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT CREATED BY COMPANY. WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT WAS CREATED USING AN "OPEN SOURCE" MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.

THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY COMPANY WITH RESPECT TO THE PRODUCTS AND SERVICES AND, EXCEPT FOR SUCH FOREGOING WARRANTY COMPANY DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-CONFORMITIES IN THE MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE COMPANY'S SOLE LIABILITY AND END-USER'S EXCLUSIVE REMEDY FOR FAILURE OF COMPANY TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER ARE BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE.

LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Company to comply with its obligations hereunder. In no event shall Company be liable in contract, in tort (including negligence or strict liability) or otherwise for damage to property or equipment other than the Products, including loss of profits or revenue, loss of use of Products, loss of data, cost of capital, claims of customers of the End-user or any special, indirect, incidental or consequential damages whatsoever. The total cumulative liability of Company hereunder whether the claims are based in contract (including indemnity), in tort (including negligence or strict liability) or otherwise, shall not exceed the price of the Product on which such liability is based.

Company shall not be responsible for failure to provide service or parts due to causes beyond Company's reasonable control.

END-USER'S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the Product's operation and maintenance manual; and protect against further damage to the Product if there is a covered defect.

OTHER LIMITATIONS: Company's obligations under this Warranty are expressly conditioned upon receipt by Company of all payments due to it (including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance with the contract terms under which the Product is sold, Company shall have no obligation under this Warranty. Also during such time, the period of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.

COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this Warranty will be borne by the End-user.

OBTAINING WARRANTY SERVICE: In the USA, call the Customer Reliability Center 7x24 at 800.843.9433. Outside of the USA, contact your local Eaton product sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3028. For comments or questions about this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.

WARRANTY

Two-Year Limited Warranty

UPS MODELS: 9155, 9170+ AND FERRUPS 4.3–18 kVA (USA AND CANADA)

WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton Corporation, an Ohio Corporation company ("Company").

LIMITED WARRANTY: This limited warranty (this "Warranty") applies only to the original end-user (the "End-user") of any 9155, 9170 and FERRUPS 4.3–18 kVA Products (individually and collectively, the "Product") purchased on or after June 1, 2004, and cannot be transferred. This Warranty applies even in the event that the Product is initially sold by Company for resale to an End-user.

LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed [and currently located] in the fifty (50) United States, the District of Columbia and Canada is twenty-four (24) months from the date of purchase for parts, or thirty (30) months from the date of shipment for parts, and ninety (90) days from the date of purchase for labor, as further clarified in the following sections.

WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Product and battery (individually and collectively, the "Warranted Items") are free of defects in material and workmanship. If, in the opinion of Company, a Warranted Item is defective and the defect is within the terms of this Warranty, Company's sole obligation will be to repair or replace such defective Warranted Items (including by providing service, parts and labor, as applicable), at the option of Company, and such repair or replacement shall be at either the End-user's location, Company's site, or such other location as determined by Company. All Warranted Items returned to Company and all parts replaced by Company shall become the property of Company. Expenses for any labor to repair the Warranted Item beyond the initial ninety (90) days are the sole responsibility of the End-user.

PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS: When shipment is required of End-user: When Company determines that the Warranted Item will be repaired or replaced at a Company site or such other location, and the End-user must ship to Company the defective Warranted Item, the following procedures are required.

If the Warranted Item is to be replaced by Company, and the End-user supplies a credit card number or purchase order for the value of the replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives notice of the warranty claim. In such case, the End-user must return (at Company's expense) the defective Warranted Item to Company in the same packaging as the replacement Warranted Item received by the End-user or as otherwise instructed by Company. If Company does not receive the defective Warranted Item, Company will either charge the End-user's credit card, or send the End-user an invoice (which the End-user agrees to pay), for the value of the replacement product.

If the Warranted Item is to be replaced by Company, but the End-user is unwilling or unable to supply a credit card number or purchase order for the value of the replacement product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives the defective product from the End-user.

In any case, Company will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective equipment and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or reconditioned. All Warranted Items returned to Company and all parts replaced by Company shall become the property of Company.

WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly store the Product before installation, including the charge of batteries no later than the date indicated on the packaging; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse, misapplication or incorrect installation; (d) repair or alteration not authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; (e) improper testing, operation, maintenance, adjustment or modification of any kind not authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent with the Product's labels or instructions.

This Warranty is not valid if the Product's serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.

Company shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.

WARRANTY

Two-Year Limited Warranty (continued)

COMPANY DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY COMPANY. IF PERMITTED BY THE APPLICABLE MANUFACTURER, COMPANY SHALL PASS THROUGH SUCH MANUFACTURER'S WARRANTIES TO END-USER.

COMPANY DOES NOT WARRANT SOFTWARE, INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT CREATED BY COMPANY. WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT WAS CREATED USING AN "OPEN SOURCE" MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.

THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY COMPANY WITH RESPECT TO THE PRODUCTS AND SERVICES AND, EXCEPT FOR SUCH FOREGOING WARRANTY COMPANY DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-CONFORMITIES IN THE MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE COMPANY'S SOLE LIABILITY AND END-USER'S EXCLUSIVE REMEDY FOR FAILURE OF COMPANY TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER ARE BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY), OR OTHERWISE.

LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Company to comply with its obligations hereunder. In no event shall Company be liable in contract, in tort (including negligence or strict liability) or otherwise for damage to property or equipment other than the Products, including loss of profits or revenue, loss of use of Products, loss of data, cost of capital, claims of customers of the End-user or any special, indirect, incidental or consequential damages whatsoever. The total cumulative liability of Company hereunder whether the claims are based in contract (including indemnity), in tort (including negligence or strict liability) or otherwise, shall not exceed the price of the Product on which such liability is based.

Company shall not be responsible for failure to provide service or parts due to causes beyond Company's reasonable control.

END-USER'S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the Product's operation and maintenance manual; and protect against further damage to the Product if there is a covered defect.

OTHER LIMITATIONS: Company's obligations under this Warranty are expressly conditioned upon receipt by Company of all payments due to it (including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance with the contract terms under which the Product is sold, Company shall have no obligation under this Warranty. Also during such time, the period of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.

COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this Warranty will be borne by the End-user.

OBTAINING WARRANTY SERVICE: In the USA, call the Customer Reliability Center 7x24 at 800.843.9433. Outside of the USA, contact your local Eaton product sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3028. For comments or questions about this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.

WARRANTY

Limited Warranty (Global)

UPS MODEL: BLADEUPS

WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton Corporation, an Ohio Corporation ("Eaton").

LIMITED WARRANTY: This limited warranty (this "Warranty") applies only to the original Purchaser (the "End-user") of any BladeUPS Products (individually and collectively, the "Product") purchased and registered with Eaton and cannot be transferred. This restriction applies even in the event that the Product is initially sold by Eaton for resale to an End-user. This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State (or jurisdiction to jurisdiction).

LIMITED WARRANTY PERIOD: The period covered by this Warranty for the Product is eighteen (18) months from date of Product shipment.

WHAT THIS LIMITED WARRANTY COVERS: Eaton warrants that the Product and battery (individually and collectively, the "Warranted Items") are free of defects in material and workmanship. If, in the opinion of Eaton, a Warranted Item is defective and the defect is within the terms of this Warranty, Eaton's sole obligation will be to repair or replace such defective Warranted Item (including providing service, parts and labor, as applicable), at the option of Eaton.

PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS: The Warranted Item will be repaired or replaced at an Eaton site or such other location as determined by Eaton.

If the Warranted Item is to be replaced by Eaton, and the End-user supplies a credit card number or purchase order for the value of the replacement product, Eaton will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Eaton receives notice of the warranty claim. In such case, the End-user must return (at Eaton's expense) the defective Warranted Item to Eaton in the same packaging as the replacement Warranted Item received by the End-user or as otherwise instructed by Eaton. If Eaton does not receive the defective Warranted Item, Eaton will either charge the End-user's credit card, or send the End-user an invoice (which the End-user agrees to pay), for the value of the replacement product.

If the Warranted Item is to be replaced by Eaton, but the End-user is unwilling or unable to supply a credit card number or purchase order for the value of the replacement product, Eaton will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Eaton receives the defective product from the End-user.

In any case, Eaton will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective equipment and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or re-conditioned. All Warranted Items returned to Eaton and, in any replacement endeavor, all parts removed by Eaton shall become the property of Eaton.

WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly store the Product before installation, including the charge of batteries no later than the date indicated on the packaging; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) damage caused by fire, flood, lightning, vandalism, acts of God, End-user's neglect, misuse, misapplication, incorrect connection or external damage; or that has been subject to repair or alteration by End-user (or a third party) not authorized by Eaton in writing; (d) repair or alteration not performed by an authorized Eaton Customer Service Engineer or Agent; (e) improper testing, operation, maintenance, adjustment or modification of any kind not authorized in writing by Eaton personnel or performed by an authorized Eaton Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent with the Product's labels or instructions.

This Warranty is not valid if the Product's serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.

Eaton shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.

EATON DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY EATON. IF PERMITTED BY THE APPLICABLE MANUFACTURER, EATON SHALL PASS THROUGH SUCH MANUFACTURER'S WARRANTIES TO END-USER.

WARRANTY

Limited Warranty (Global) (continued)

EATON DOES NOT WARRANT SOFTWARE, INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT CREATED BY EATON. WITHOUT LIMITING THE FOREGOING, EATON SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT WAS CREATED USING AN "OPEN SOURCE" MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.

THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY EATON WITH RESPECT TO THE PRODUCTS AND SERVICES AND, EXCEPT FOR SUCH FOREGOING WARRANTY EATON DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-CONFORMITIES IN THE MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE EATON'S SOLE LIABILITY AND END-USER'S EXCLUSIVE REMEDY FOR FAILURE OF EATON TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER ARE BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE. SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF EXPRESS OR IMPLIED WARRANTIES, SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. IN THAT EVENT, SUCH WARRANTIES ARE LIMITED IN DURATION TO THE LIMITED WARRANTY PERIOD. SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND/OR EXCLUSIONS MAY NOT APPLY TO YOU.

LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Eaton to comply with its obligations hereunder. In no event shall Eaton be liable for any indirect, incidental, special or consequential damages of any kind or type whatsoever, resulting from or in connection with any claim or cause of action, whether brought in contract or in tort (including negligence or strict liability). Some States or jurisdictions do not allow the exclusion of limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Eaton shall not be responsible for failure to provide service or parts due to causes beyond Eaton's reasonable control. In no case will Eaton's liability under this Warranty exceed the replacement value of the Warranted Items.

END-USER'S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must register the product warranty (via mail or online at www.eaton.com/powerquality "warranty registration"); use the Product in a normal way; follow the Product's operation and maintenance manual; and protect against further damage to the Product if there is a covered defect.

OTHER LIMITATIONS: Eaton's obligations under this Warranty are expressly conditioned upon receipt by Eaton of all payments due from End-user (including interest charges, if any). During such time as Eaton has not received payment of any amount due to it for the Product, in accordance with the contract terms under which the Product is sold, Eaton shall have no obligation under this Warranty. Also during such time, the period of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.

COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for replacement equipment, installation, materials, freight charges, travel expenses or labor of Eaton representatives outside the terms of this Warranty will be borne by the End-User.

OBTAINING WARRANTY SERVICE: In the United States, call the Customer Reliability Center 7x24 at 800.356.5737. Outside of the United States, contact your local Eaton product sales or service representative, or call the Customer Reliability Center in the United States at 919.870.3028. For comments or questions about this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.

WARRANTY

Two-Year Limited Warranty (USA and Canada)

CONNECTIVITY DEVICES

WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton Corporation, an Ohio Corporation Company ("Company").

LIMITED WARRANTY: This limited warranty (this "Warranty") applies only to the original End-user (the "End-user") of any 3, 5 and 9 series Connectivity Devices (the "Product") purchased on or after June 1, 2004, and cannot be transferred. This Warranty applies even in the event that the Product is initially sold by Company for resale to an End-user.

LIMITED WARRANTY PERIOD: The period covered by this Warranty for the Product installed [and currently located] in the fifty (50) United States, the District of Columbia, and Canada is twenty-four (24) months from the date of purchase.

WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Product (the "Warranted Item") is free from defects in material and workmanship. If, in the opinion of Company, a Warranted Item is defective and the defect is within the terms of this Warranty, Company's sole obligation will be to repair or replace such defective Warranted Item (including by providing service, parts and labor, as applicable), at the option of Company.

PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS: The Warranted Item will be repaired or replaced at a Company site or such other location as determined by Company.

If the Warranted Item is to be replaced by Company, and the End-user supplies a credit card number or purchase order for the value of the replacement Product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives notice of the warranty claim. In such case, the End-user must return (at Company's expense) the defective Warranted Item to Company in the same packaging as the replacement Warranted Item received by the End-user or as otherwise instructed by Company. If Company does not receive the defective Warranted Item, Company will either charge the End-user's credit card, or send the End-User an invoice (which the End-user agrees to pay), for the value of the replacement Product.

If the Warranted Item is to be replaced by Company, but the End-user is unwilling or unable to supply a credit card number or purchase order for the value of the replacement Product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives the defective Product from the End-user.

In any case, Company will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective equipment and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or reconditioned. All Warranted Items returned to Company and all parts replaced by Company shall become the property of Company.

WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly store the Product before installation; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse, misapplication or incorrect installation; (d) repair or alteration not authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; (e) improper testing, operation, maintenance, adjustment or modification of any kind not authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent with the Product's labels or instructions.

This Warranty is not valid if the Product's serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.

Company shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.

COMPANY DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY COMPANY. IF PERMITTED BY THE APPLICABLE MANUFACTURER,

COMPANY SHALL PASS THROUGH SUCH MANUFACTURER'S WARRANTIES TO END-USER.

COMPANY DOES NOT WARRANT SOFTWARE (IF APPLICABLE TO THE PRODUCT), INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT CREATED BY COMPANY. WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT WAS CREATED USING AN "OPEN SOURCE" MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.

WARRANTY

Two-Year Limited Warranty (USA and Canada) (continued)

COMPANY DOES NOT WARRANT SOFTWARE (IF APPLICABLE TO THE PRODUCT), INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT CREATED BY COMPANY. WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT WAS CREATED USING AN "OPEN SOURCE" MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.

THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY COMPANY WITH RESPECT TO THE PRODUCTS AND SERVICES AND, EXCEPT FOR SUCH FOREGOING WARRANTY COMPANY DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT, AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-CONFORMITIES IN THE MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE COMPANY'S SOLE LIABILITY AND END-USER'S EXCLUSIVE REMEDY FOR FAILURE OF COMPANY TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER ARE BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY), OR OTHERWISE.

LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Company to comply with its obligations hereunder. In no event shall Company be liable in contract, in tort (including negligence or strict liability) or otherwise for damage to property or equipment other than the Products, including loss of profits or revenue, loss of use of Products, loss of data, cost of capital, claims of customers of the End-user or any special, indirect, incidental or consequential damages whatsoever. The total cumulative liability of Company hereunder whether the claims are based in contract (including indemnity), in tort (including negligence or strict liability) or otherwise, shall not exceed the price of the Product on which such liability is based.

Company shall not be responsible for failure to provide service or parts due to causes beyond Company's reasonable control.

END-USER'S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the Product's user's guide; and protect against further damage to the Product if there is a covered defect.

OTHER LIMITATIONS: Company's obligations under this Warranty are expressly conditioned upon receipt by Company of all payments due to it (including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance with the contract terms under which the Product is sold, Company shall have no obligation under this Warranty. Also during such time, the period of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.

COSTS NOT RELATED TO WARRANTY: The End-User shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this Warranty will be borne by the End-User.

OBTAINING WARRANTY SERVICE: In the USA, call the Customer Reliability Center 7x24 at 800.356.5737. Outside of the USA, contact your local product sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3149. For comments or questions about this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.

WARRANTY

Two-Year Limited Warranty (USA and Canada)

EPDU ENCLOSURE POWER DISTRIBUTION UNITS

WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton Corporation, an Ohio Corporation Company ("Company").

RACKMOUNTED LIMITED WARRANTY: This limited warranty (this "Warranty") applies only to the original End-user (the "End-user") of any Eaton Rackmounted Power Distribution Units (the "Product") purchased on or after June 1, 2004, and cannot be transferred. This Warranty applies even in the event that the Product is initially sold by Company for resale to an End-user.

LIMITED WARRANTY PERIOD: The period covered by this Warranty for the Product installed [and currently located] in the fifty (50) United States, the District of Columbia and Canada is twenty-four (24) months from the date of purchase.

WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Product (the "Warranted Item") is free from defects in material and workmanship. If, in the opinion of Company, a Warranted Item is defective and the defect is within the terms of this Warranty, Company's sole obligation will be to repair or replace such defective Warranted Item (including by providing service, parts and labor, as applicable), at the option of Company.

PROCEDURES FOR REPAIR OR REPLACEMENT OF WARRANTED ITEMS:

Standard Product: Defined as ePDU product with the product number sequence PWxxxxxxxxxx, (whereas x can be any value). The Warranted item will be replaced by the Company.

Custom Product: Defined as ePDU product with any product number sequence that does not equal a standard product as noted above. The Warranted item will be repaired at a Company site or such other location as determined by Company.

If the Warranted Item is to be replaced by Company, and the End-user supplies a credit card number or purchase order for the value of the replacement Product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives notice of the warranty claim. In such case, the End-user must return (at Company's expense) the defective Warranted Item to Company in the same packaging as the replacement Warranted Item received by the End-user or as otherwise instructed by Company. If Company does not receive the defective Warranted Item, Company will either charge the End-user's credit card, or send the End-user an invoice (which the End-user agrees to pay), for the value of the replacement Product.

If the Warranted Item is to be replaced by Company, but the End-user is unwilling or unable to supply a credit card number or purchase order for the value of the replacement Product, Company will use commercially reasonable business efforts to ship (via standard ground shipment and at no cost to the End-user) the replacement Warranted Item to the End-user within one (1) business day after Company receives the defective Product from the End-user.

In any case, Company will provide shipping instructions and will pay its designated carrier for all shipping charges for return of defective equipment and replacement of Warranted Items. Any returned Warranted Item or parts that are replaced may be new or reconditioned. All Warranted Items returned to Company and all parts replaced by Company shall become the property of Company.

WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly store the Product before installation; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) neglect, accident, abuse, misuse, misapplication or incorrect installation; (d) repair or alteration not authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; (e) improper testing, operation, maintenance, adjustment or modification of any kind not authorized in writing by Company personnel or performed by an authorized Company Customer Service Engineer or Agent; or (f) use of the Product under other than normal operating conditions or in a manner inconsistent with the Product's labels or instructions.

This Warranty is not valid if the Product's serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.

Company shall not be responsible for any charges for testing, checking, removal or installation of Warranted Items.

COMPANY DOES NOT WARRANT EQUIPMENT NOT MANUFACTURED BY COMPANY. IF PERMITTED BY THE APPLICABLE MANUFACTURER, COMPANY SHALL PASS THROUGH SUCH MANUFACTURER'S WARRANTIES TO END-USER.

WARRANTY

Two-Year Limited Warranty (USA and Canada) (continued)

COMPANY DOES NOT WARRANT SOFTWARE (IF APPLICABLE TO THE PRODUCT), INCLUDING SOFTWARE EMBEDDED IN PRODUCTS, THAT IS NOT CREATED BY COMPANY. WITHOUT LIMITING THE FOREGOING, COMPANY SPECIFICALLY DOES NOT WARRANT SOFTWARE (SUCH AS LINUX) THAT WAS CREATED USING AN "OPEN SOURCE" MODEL OR IS DISTRIBUTED PURSUANT TO AN OPEN SOURCE LICENSE.

THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED BY COMPANY WITH RESPECT TO THE PRODUCTS AND SERVICES AND, EXCEPT FOR SUCH FOREGOING WARRANTY COMPANY DISCLAIMS ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY, TITLE, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. CORRECTION OF NON-CONFORMITIES IN THE MANNER AND FOR THE PERIOD OF TIME PROVIDED ABOVE SHALL CONSTITUTE COMPANY'S SOLE LIABILITY AND END-USER'S EXCLUSIVE REMEDY FOR FAILURE OF COMPANY TO MEET ITS WARRANTY OBLIGATIONS, WHETHER CLAIMS OF THE END-USER ARE BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY), OR OTHERWISE.

LIMITATION OF LIABILITY: The remedies of the End-user set forth herein are exclusive and are the sole remedies for any failure of Company to comply with its obligations hereunder. In no event shall Company be liable in contract, in tort (including negligence or strict liability) or otherwise for damage to property or equipment other than the Products, including loss of profits or revenue, loss of use of Products, loss of data, cost of capital, claims of customers of the End-user or any special, indirect, incidental or consequential damages whatsoever. The total cumulative liability of Company hereunder whether the claims are based in contract (including indemnity), in tort (including negligence or strict liability) or otherwise, shall not exceed the price of the Product on which such liability is based.

Company shall not be responsible for failure to provide service or parts due to causes beyond Company's reasonable control.

END-USER'S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the Product's user's guide; and protect against further damage to the Product if there is a covered defect.

OTHER LIMITATIONS: Company's obligations under this Warranty are expressly conditioned upon receipt by Company of all payments due to it (including interest charges, if any). During such time as Company has not received payment of any amount due to it for the Product, in accordance with the contract terms under which the Product is sold, Company shall have no obligation under this Warranty. Also during such time, the period of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.

COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for replacement equipment, installation, materials, freight charges, travel expenses or labor of Company representatives outside the terms of this Warranty will be borne by the End-user.

OBTAINING WARRANTY SERVICE: In the USA, call the Customer Reliability Center 7x24 at 800.356.5737. Outside of the USA, contact your local Eaton product sales or service representative, or call the Customer Reliability Center in the USA at 919.870.3149. For comments or questions about this Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.

WARRANTY

Limited Factory Warranty For Eaton Three-phase UPS Products

THREE-PHASE PRODUCTS

WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton Corporation, an Ohio Corporation ("Eaton").

LIMITED WARRANTY: This limited warranty (this "Warranty") applies only to the original End-user (the "End-user") of the Eaton three-phase UPS Products (the "Product") and cannot be transferred. This Warranty applies even in the event that the Product is initially sold by Eaton for resale to an End-user.

LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed [and currently located] in the fifty (50) United States and the District of Columbia is twelve (12) months from the date of Product startup or eighteen (18) months from date of Product shipment, whichever occurs first, for parts coverage and 90 days from the date of Product startup for labor coverage. The period covered by this Warranty for Product installed [and currently located] outside of the fifty (50) United States and the District of Columbia is twelve (12) months from the date of Product startup or eighteen (18) months from date of Product shipment, whichever occurs first, for parts coverage.

WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Eaton three-phase UPS electronics, Eaton-built accessories, and Eaton-built battery cabinets, (individually and collectively, the "Warranted Items") are free from defects in material and workmanship. If, in the opinion of Eaton, a Warranted Item is defective and the defect is within the terms of this Warranty, Eaton's sole obligation will be to repair or replace such defective item (including by providing service, parts and labor, as applicable), at the option of Eaton. The Warranted Item will be repaired or replaced onsite at the End-user's location or such other location as determined by Eaton. Any parts that are replaced may be new or reconditioned. All parts replaced by Eaton shall become the property of Eaton.

WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly store the Product before installation, including the "trickle charge" of batteries no later than the date indicated on the packaging; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) neglect, accident, fire, flood, lightning, vandalism, acts of God, Customer's neglect, abuse, misuse, misapplication, incorrect installation; (d) repair or alteration, not authorized in writing by Eaton personnel or performed by an authorized Eaton Customer Service Engineer or Agent; or (e) improper testing, operation, maintenance, adjustment or any modification of any kind not authorized in writing by Eaton personnel or performed by an authorized Eaton Customer Service Engineer or Agent.

This Warranty is not valid: (a) unless an authorized Eaton Customer Service Engineer (in USA) or Agent (outside of USA) performs startup and commissioning of the Product; (b) if the Product is moved to a new location by someone other than an authorized Eaton Customer Service Engineer (in USA) or Agent (outside of USA); or (c) if the Product's serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof. Labor warranty is not provided for Product located outside of the fifty (50) United States or the District of Columbia. Any equipment, parts or materials included in the Product and not manufactured by Eaton are warranted solely by the manufacturer of such equipment, parts or materials and are not included as part of this warranty. Batteries are not warranted by Eaton.

THIS WARRANTY IS THE END-USER'S SOLE REMEDY AND IS EXPRESSLY IN LIEU OF, AND THERE ARE NO OTHER, EXPRESSED OR IMPLIED GUARANTEES OR WARRANTIES (INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE, WHICH ARE EXPRESSLY DISCLAIMED).

LIMITATION OF LIABILITY: In no event shall Eaton be liable for any indirect, incidental, special or consequential damages of any kind or type whatsoever, or based on any claim or cause of action, however denominated. Eaton shall not be responsible for failure to provide service or parts due to causes beyond Eaton's reasonable control. In no case will Eaton's liability under this Warranty exceed the replacement value of the Warranted Items.

END-USER'S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must use the Product in a normal way; follow the Product's operators and maintenance manual; and protect against further damage to the Product if there is a covered defect.

OTHER LIMITATIONS: Eaton's obligations under this Warranty are expressly conditioned upon receipt by Eaton of all payments due to it (including interest charges, if any). During such time as Eaton has not received payment of any amount due to it for the Product, in accordance with the contract terms under which the Product is sold, Eaton shall have no obligation under this Warranty. Also during such time, the period of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.

COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for replacement equipment, installation, materials, freight charges, travel expenses or labor of Eaton representatives outside the terms of this Warranty will be borne by the End-user.

OBTAINING WARRANTY SERVICE: In the USA, call the Eaton Customer Reliability Center 7x24 at 800.843.9433. Outside of the USA, call your local Eaton sales or service representative, or call the Eaton Customer Reliability Center in the USA at 919.870.3028. For comment or questions about this Limited Factory Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.

WARRANTY

Limited Factory Warranty For Eaton 9355 UPS Products

9355

WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton Corporation, an Ohio Corporation ("Eaton").

LIMITED WARRANTY: This limited warranty (this "Warranty") applies only to the original End-user (the "End-user") of the 9355 UPS Products (the "Product") and cannot be transferred. This Warranty applies even in the event that the Product is initially sold by Eaton for resale to an End-user.

WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants, within the terms of this Warranty, that the Eaton three-phase UPS electronics, Eaton-built accessories and Eaton-built battery cabinets, (individually and collectively, the "Warranted Items") are free from defects in material and workmanship.

For Product installed (and currently located) in the fifty (50) United States and the District of Columbia, if, in the opinion of Eaton, a Warranted Item is defective, Eaton's sole obligation, at the option of Eaton, will be to refurbish or replace such defective Warranted Item (including the costs of providing diagnosis, service, and labor ["labor coverage"]). The defective Warranted Item will be refurbished or replaced onsite at the End-user's location or such other location as determined by Eaton. Any parts that are replaced may be new or reconditioned. All parts replaced by Eaton shall become the property of Eaton.

For Product installed (and currently located) outside the fifty (50) United States and the District of Columbia, if, in the opinion of Eaton, a Warranted Item is defective, Eaton's sole obligation, at the option of Eaton, will be to refurbish or replace such defective Warranted Item. (not including the costs of labor coverage). The defective Warranted Item will be refurbished or replaced onsite at the End-User's location or such other location as determined by Eaton. Any parts that are replaced may be new or reconditioned. All parts replaced by Eaton shall become the property of Eaton.

LIMITED WARRANTY PERIOD:

The period covered by this Warranty for Product installed (and currently located) in the fifty (50) United States and the District of Columbia is ninety (90) days from the date of Product purchase for labor coverage and twelve (12) months from the date of Product purchase or eighteen (18) months from date of Product shipment, whichever occurs first, for the refurbishment/replacement of parts.

The period covered by this Warranty for Product installed (and currently located) outside of the fifty (50) United States and the District of Columbia is twelve (12) months from the date of Product purchase or eighteen (18) months from date of Product shipment, whichever occurs first, for the refurbishment/replacement of parts.

WHAT THIS LIMITED WARRANTY DOES NOT COVER:

This Warranty does not cover any defects or damages caused by: (a) failure to properly store the Product before installation, including the "trickle charge" of batteries no later than the date indicated on the packaging; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) neglect, accident, fire, flood, lightning, vandalism, acts of God, Customer's neglect, abuse, misuse, misapplication, incorrect installation; (d) repair or alteration, not authorized in writing by Eaton personnel or performed by an authorized Eaton Customer Service Engineer or Agent; or (e) improper testing, operation, maintenance, adjustment or any modification of any kind not authorized in writing by Eaton personnel or performed by an authorized Eaton Customer Service Engineer or Agent.

This Warranty is not valid: if the Product's serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof. Labor warranty is not provided for Product located outside of the fifty (50) United States or the District of Columbia. Any equipment, parts or materials included in the Product and not manufactured by Eaton are warranted solely by the manufacturer of such equipment, parts or materials and are not included as part of this warranty. Batteries are not warranted by Eaton.

THIS WARRANTY IS THE END-USER'S SOLE REMEDY AND IS EXPRESSLY IN LIEU OF, AND THERE ARE NO OTHER, EXPRESSED OR IMPLIED GUARANTEES OR WARRANTIES (INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE, WHICH ARE EXPRESSLY DISCLAIMED).

LIMITATION OF LIABILITY: In no event shall Eaton be liable for any indirect, incidental, special or consequential damages of any kind or type whatsoever, or based on any claim or cause of action, however denominated. Eaton shall not be responsible for failure to provide service or parts due to causes beyond Eaton's reasonable control. In no case will Eaton's liability under this Warranty exceed the replacement value of the Warranted Items.

WARRANTY

Limited Factory Warranty For Eaton 9355 UPS Products (continued)

END-USER'S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-user must register the product warranty (via mail or online at www.eaton.com/powerquality "product registration"); use the Product in a normal way; follow the Product's operators and maintenance manual; and protect against further damage to the Product if there is a covered defect.

OTHER LIMITATIONS: Eaton's obligations under this Warranty are expressly conditioned upon receipt by Eaton of all payments due to it (including interest charges, if any). During such time as Eaton has not received payment of any amount due to it for the Product, in accordance with the contract terms under which the Product is sold, Eaton shall have no obligation under this Warranty. Also during such time, the period of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.

COSTS NOT RELATED TO WARRANTY: The End-user shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for replacement equipment, installation, materials, freight charges, travel expenses or labor of Eaton representatives outside the terms of this Warranty will be borne by the End-user.

OBTAINING WARRANTY SERVICE: In the USA, call the Eaton Customer Reliability Center 7x24 at 800.843.9433. Outside of the USA, call your local Eaton sales or service representative, or call the Eaton Customer Reliability Center in the USA at 919.870.3028. For comment or questions about this Limited Factory Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.

WARRANTY

Limited Factory Warranty For Eaton 9E UPS Products

9E

WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton Corporation, an Ohio Corporation ("Eaton").

LIMITED WARRANTY: This limited warranty (this "Warranty") applies only to the original Purchaser (the "End-User") of the Eaton 9E UPS Products (the "Product") and cannot be transferred. This restriction applies even in the event that the Product is initially sold by Eaton for resale to an End-User. This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State (or jurisdiction to jurisdiction).

WHAT THIS LIMITED WARRANTY COVERS: Eaton warrants, within the terms of this Warranty, that the Eaton three-phase UPS electronics, Eaton-built accessories, and Eaton-built battery cabinets, (individually and collectively, the "Warranted Items") are free from defects in material and workmanship.

For Product installed (and currently located) in the fifty (50) United States and the District of Columbia, if, in the opinion of Eaton, a Warranted Item is defective, Eaton's sole obligation, at the option of Eaton, will be to refurbish or replace such defective Warranted Item (including the costs of providing diagnosis, service, and labor ["labor coverage"]). The defective Warranted Item will be refurbished or replaced onsite at the End-User's location or such other location as determined by Eaton. Any parts that are replaced may be new or reconditioned. In any replacement endeavor, all parts removed by Eaton shall become the property of Eaton.

For Product installed (and currently located) outside the fifty (50) United States and the District of Columbia, if, in the opinion of Eaton, a Warranted Item is defective, Eaton's sole obligation, at the option of Eaton, will be to refurbish or replace such defective Warranted Item. (not including the costs of labor coverage). The defective Warranted Item will be refurbished or replaced onsite at the End-User's location or such other location as determined by Eaton. Any parts that are replaced may be new or reconditioned. In any replacement endeavor, all parts removed by Eaton shall become the property of Eaton.

LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed (and currently located) in the fifty (50) United States and the District of Columbia is six (6) months from the date of Product purchase for labor coverage when no startup is performed by an authorized Eaton Customer Service Engineer or Agent or twelve (12) months from the date of Product purchase with startup performed by an authorized Eaton Customer Service Engineer or Agent and twelve (12) months from the date of Product purchase or eighteen (18) months from date of Product shipment, whichever occurs first, for the refurbishment/replacement of parts.

The period covered by this Warranty for Product installed (and currently located) outside of the fifty (50) United States and the District of Columbia is twelve (12) months from the date of Product purchase or eighteen (18) months from date of Product shipment, whichever occurs first, for the refurbishment/replacement of parts.

WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages caused by: (a) failure to properly store the Product before installation, including the "trickle charge" of batteries no later than the date indicated on the packaging; (b) shipping and delivery of the Product if shipping is FOB Factory; (c) neglect, accident, fire, flood, lightning, vandalism, acts of God, End-User's neglect, abuse, misuse, misapplication, incorrect installation; (d) repair or alteration, not authorized in writing by Eaton personnel or performed by an authorized Eaton Customer Service Engineer or Agent; or (e) improper testing, operation, maintenance, adjustment, or any modification of any kind not authorized in writing by Eaton personnel or performed by an authorized Eaton Customer Service Engineer or Agent.

This Warranty is not valid: if the Product's serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant to this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof. Eaton does not provide a labor warranty for Product located outside of the fifty (50) United States or the District of Columbia. Any equipment, parts or materials included in the Product and not manufactured by Eaton are warranted solely by the manufacturer of such equipment, parts or materials and are not included as part of this Warranty. Batteries are not warranted by Eaton.

THIS WARRANTY IS THE END-USER'S SOLE REMEDY AND IS EXPRESSLY IN LIEU OF, AND THERE ARE NO OTHER, EXPRESSED OR IMPLIED GUARANTEES OR WARRANTIES (INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE, WHICH ARE EXPRESSLY DISCLAIMED). SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF EXPRESS OR IMPLIED WARRANTIES, SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. IN THAT EVENT, SUCH WARRANTIES ARE LIMITED IN DURATION TO THE LIMITED WARRANTY PERIOD. SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND/OR EXCLUSIONS MAY NOT APPLY TO YOU..

LIMITATION OF LIABILITY: In no event shall Eaton be liable for any indirect, incidental, special or consequential damages of any kind or type whatsoever, resulting from or in connection with any claim or cause of action, whether brought in contract or in tort (including negligence and strict liability). Some States or jurisdictions do not allow the exclusion of limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Eaton shall not be responsible for failure to provide service or parts due to causes beyond Eaton's reasonable control. In no case will Eaton's liability under this Warranty exceed the replacement value of the Warranted Items.

WARRANTY

Limited Factory Warranty For Eaton 9E UPS Products (continued)

END-USER'S OBLIGATIONS: In order to receive the benefits of this Warranty, the End-User must register the product warranty (via mail or online at www.powerquality.eaton.com/Product-Registration "product registration"); use the Product in a normal way; follow the Product's operators and maintenance manual; and protect against further damage to the Product if there is a covered defect.

OTHER LIMITATIONS: Eaton's obligations under this Warranty are expressly conditioned upon receipt by Eaton of all payments due from End-User (including interest charges, if any). During such time as Eaton has not received payment of any amount due to it for the Product, in accordance with the contract terms under which the Product is sold, Eaton shall have no obligation under this Warranty. Also during such time, the period of this Warranty shall continue to run and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.

COSTS NOT RELATED TO WARRANTY: The End-User shall be invoiced for, and shall pay for, all services not expressly provided for by the terms of this Warranty, including without limitation, site calls involving an inspection that determines no corrective maintenance is required. Any costs for replacement equipment, installation, materials, freight charges, travel expenses or labor of Eaton representatives outside the terms of this Warranty will be borne by the End-User.

OBTAINING WARRANTY SERVICE: In the United States, call the Eaton Customer Reliability Center 7x24 at 800-843-9433. Outside of the United States, call your local Eaton sales or service representative, or call the Eaton Customer Reliability Center in the United States at 919-870-3028. For comment or questions about this Limited Factory Warranty, write to the Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.

WARRANTY

Pulsar series

LIMITED WARRANTY & PROPRIETARY RIGHTS FOR PULSAR SERIES SINGLE-PHASE PRODUCTS (T-11)

STANDARD LIMITED WARRANTY FORM (APPLICABLE WITHIN THE UNITED STATES, CANADA AND LATIN AMERICA)

EATON CORPORATION STANDARD SINGLE-PHASE LIMITED WARRANTY

Eaton Corporation warrants single phase products manufactured by Eaton Corporation to be free from defects in materials and workmanship for the following applicable time periods beginning with the date of purchase by or for the first End-user ("Purchaser"):

The following products are covered by a one (1) year warranty period:

• Power-Sure 700 Power Conditioners

The following products are covered by a two (2) year warranty period:

• Nova AVR, Evolution, Evolution S, EX, MX, MX Frame and EX RT
• Power-Suppress 100 Ultra-Isolator Noise Suppressors and Power-Sure 800 Power Conditioners

The following products are covered by a three (3) year warranty period:

- Eclipse Personal

The following products are covered by a five (5) year warranty period:

• Power-Suppress T7

The following products are covered by a ten (10) year warranty period;

• Eclipse Pro and Eclipse ProTel

The terms and conditions of this standard limited warranty also apply to extended warranty coverage for the Pulsar series.

Any defects in materials or workmanship must be reported to Eaton Corporation within the applicable warranty period. Where labor is not included in the warranty, any labor performed by Eaton Corporation shall be billed to Purchaser at, and Purchaser agrees to pay, Eaton Corporation standard labor rates then in effect for all warranty work performed hereunder. Eaton Corporation shall have the sole right to determine if any defective parts are to be repaired at the job site or whether they are to be returned to the factory for repair or replacement. All items returned to Eaton Corporation for repair or replacement must be sent freight prepaid to its factory. Purchaser must obtain Eaton Corporation Return Materials Authorization ("RMA") prior to returning items. The conditions stated herein must be met for Eaton Corporation warranty to be valid. Eaton Corporation will not be liable for any damage done by unauthorized repair work, unauthorized replacement parts, from any misapplication of the subject product, for damage due to accident, abuse or act of God (such as earthquake, flood, inclement weather, rain or fire), or relating to Purchaser's failure to follow proper environmental conditions for the product.

In no event shall Eaton Corporation be liable for loss, damage, or expense directly or indirectly arising from the use of or any defects in the subject product, or from any other cause, except as expressly stated in this warranty. EXCEPT AS EXPRESSLY STATED IN THIS WARRANTY, EATON CORPORATION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE OR NON-INFRINGEMENT. SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF EXPRESS OR IMPLIED WARRANTIES, SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. IN THAT EVENT, SUCH WARRANTIES ARE LIMITED IN DURATION TO THE LIMITED WARRANTY PERIOD. SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND/OR EXCLUSIONS MAY NOT APPLY TO YOU.

Eaton Corporation is not liable for and Purchaser waives any right of action it has or may have against Eaton Corporation for any consequential or special damages arising out of any breach of warranty, and for any damages Purchaser may claim for damage to any property or injury or death to any person arising out of its purchase or the use, operation or maintenance of the subject product. In no event will Eaton Corporation be liable for any labor subcontracted or performed by Purchaser for preparation of the warranted item for return to an Eaton Corporation factory or for preparation work for field repair or replacement, and Eaton Corporation will not be responsible to pay any invoice therefore. Some States and jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty shall be exclusive of any and all other warranties express or implied and may be modified only by a writing signed by an authorized officer of Eaton Corporation. This warranty shall extend to the Purchaser but to no one else. Accessories supplied by Eaton Corporation, but manufactured by others, carry any warranty the manufacturers have made to Eaton Corporation, and which can be passed on to Purchaser.

EATON CORPORATION makes no warranty with respect to whether the products sold hereunder infringe any patent, U.S. or foreign, and Purchaser

WARRANTY

Pulsar series (continued)

represents that any specially ordered products do not infringe any patent. Purchaser agrees to indemnify and hold EATON CORPORATION harmless from any liability by virtue of any patent claims where Purchaser has ordered a product conforming to Purchaser's specifications, or conforming to Purchaser's specific design. Purchaser has not relied and shall not rely on any oral representation regarding any products sold hereunder and any oral representation shall not bind EATON CORPORATION and shall not be part of any warranty.

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State or jurisdiction to jurisdiction.

PROPRIETARY RIGHTS STATEMENT

The information in this manual is the property of EATON CORPORATION, and represents a proprietary article in which EATON CORPORATION retains any and all intellectual property rights, including exclusive rights of use and/or manufacture and/or sale. Possession of this information does not convey any permission to reproduce, print, manufacture, or have made the article or articles shown herein. Such permission may be granted only by specific written authorization signed by an authorized officer of EATON CORPORATION.

IBM, PC-AT, ES/9000, and AS/400 are trademarks of International Business Machines Corporation. Other trademarks that may be used herein are owned by their respective companies and are referred to in an editorial fashion only.

Eaton Corporation DPQD, 8709 Kerns Street, San Diego, CA 92154 · 800.279.7776 · www.eaton.com/powerquality · www.eaton.com/mgeops

For Single-phase Warranty applicable outside of the United States, Canada and Latin America, contact the appropriate EATON CORPORATION Regional Office.

WARRANTY

Limited Warranty (USA and Canada)

EATON DC PRODUCTS

Eaton Corporation (“the manufacturer”) warrants its equipment against defects in materials or workmanship. The term of this warranty shall be as stated in the Contract of Sale for such equipment. In the absence of any such statement in the Contract of Sale, the term of this warranty shall be either i) one year if the date of initial sale of equipment was before July 1 ^st , 2007, or ii) two years if the date of initial sale of equipment was on or after July 1 ^st , 2007, AND the purchaser of the equipment is a registered business in the United States of America or Canada. Warranty only applies to the original purchaser. It does not apply to pre-used equipment.

This warranty is void in any of the following circumstances: (a) the equipment has been misused, neglected, damaged or abused; (b) the equipment has been improperly installed, operated, repaired or maintained; (c) the equipment has been modified; (d) the equipment has been connected to other equipment with which it is not compatible; (e) the equipment has been used or stored in conditions outside its electrical or environmental Specifications; (f) the equipment has been used for purposes other than for which it was designed; (g) the equipment has been used outside its stated specifications and operating parameters.

Unless otherwise provided in a contract of sale, correct installation is the owner's responsibility. The equipment must be installed in accordance with the installation procedures in the relevant supporting documentation. Failure to follow such installation procedures may, at the manufacturer's discretion, render this warranty null and void. The manufacturer shall not be liable if the equipment has been altered, damaged or rendered non-functional through incorrect installation.

The manufacturer does not warrant any modules or components manufactured by third parties. However, the manufacturer shall extend to the owner, in so far as practicable, the benefit of any warranties that such third party manufacturers may have given to the manufacturer concerning such modules and components.

To assert a warranty claim, complete the Return Materials Authorization form (“RMA form”). An RMA form is available from the manufacturer or its authorized service agent. If the manufacturer accepts the warranty claim, it shall instruct the owner to return the equipment either to the manufacturer or its authorized service agent. Wherever possible, use the original packaging to return items. The manufacturer may request proof of purchase.

If the manufacturer accepts the warranty claim, the manufacturer will provide, or arrange for, service, repair or replacement, as the manufacturer shall determine in its sole discretion. The manufacturer shall bear the cost of such service, repair or replacement. The owner shall bear the cost of freight and insurance on the equipment to the manufacturer or its authorized service agent, as the case may be. The manufacturer shall bear the cost of freight and insurance to return the equipment to the owner.

The manufacturer's sole responsibility is to repair, replace or service equipment subject to a valid warranty claim. Under no circumstance will the manufacturer be liable for direct, indirect, incidental, special or consequential costs or damages, including dismantling and re-installation costs, loss of operations or profits, to the maximum extent permitted by law.

The manufacturer accepts no liability for personal injury or property damage resulting from failure to heed relevant installation, operating and safety procedures specified by the manufacturer or imposed by law.

This is an express warranty. The manufacturer disclaims any other express or implied warranties, including warranties of merchantability or fitness for purpose, to the maximum extent permitted by law.

Some jurisdictions do not allow limitations or disclaimers of implied or statutory warranties. Some jurisdictions do not allow disclaimers or exclusions of consequential or incidental damages. Therefore, the above disclaimers, limitations and exclusions may not apply in all jurisdictions in which the manufacturer sells its equipment.

This warranty gives the owner specific legal rights. The owner may have other rights or remedies pursuant to the laws in its territory. Nothing in this limited warranty should be construed as limiting or restricting any other statutory right or remedy of the owner, except for such limitations or restrictions herein as may be allowed by the law of the territory.

The manufacturer has a policy of continual product improvement and specifications are subject to change without notice.
