TAM4201B - Toaster BEKO - Free user manual and instructions

Product type	2-slice toaster
Brand	Beko
Model	TAM4201B
Dimensions (L × W × H)	30 × 20 × 25 cm
Net weight	1.5 kg
Power supply	220-240 V ~ 50/60 Hz
Power	850 W
Number of slots	2
Browning control	7 positions with dial
Additional functions	Defrost, reheat, emergency stop
Housing material	ABS plastic with brushed metal finish
Power cord	Detachable, length 0.8 m
Cord storage	Under the base
Maintenance and cleaning	Removable crumb tray, clean with a damp cloth
Safety	Automatic shut-off, cool-touch exterior
Spare parts and repairability	Available through Beko after-sales service
General information	PDF manual downloadable from notice-facile.com

Frequently Asked Questions - TAM4201B BEKO

How to adjust the browning of the Beko TAM4201B toaster?

Turn the dial on the side of the appliance. The higher the number, the darker the toast. Start with a medium setting (3-4) and adjust according to your preference.

What to do if the toaster does not turn on?

Check that the cord is properly plugged in and the outlet works. Make sure the lowering lever is pressed down fully. If the problem persists, contact Beko customer service.

Bread gets stuck in the slot, how to remove it?

Unplug the appliance and let it cool. Gently turn the toaster upside down to remove the pieces. Never use metal utensils to avoid damaging the heating elements.

Can I toast irregularly shaped bread?

Yes, the slots are designed to accommodate different types of bread, including thick slices. Use the reheat function for pre-cooked bread.

What is the defrost function and how to use it?

The defrost function allows toasting frozen bread without burning it. Lower the lever, then press the Defrost button. The toasting time is automatically extended.

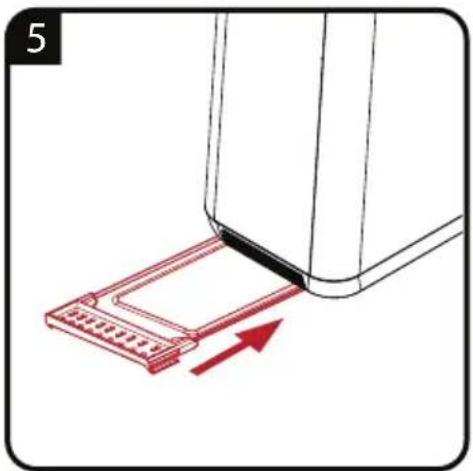

How to clean the crumb tray?

Pull out the crumb tray located at the front or under the base. Empty the crumbs and wash it with soapy water. Dry it thoroughly before putting it back.

The toaster emits a burning smell during first use, is this normal?

Yes, it is normal. Manufacturing residues may cause a slight odor during the first cycles. Run the appliance empty twice at maximum power before first use.

Can I use the toaster with a power strip?

Not recommended. Always plug the appliance directly into a wall outlet to avoid overload. The 850 W power requires a dedicated socket.

How to reset the toaster after an emergency stop?

Unplug the appliance for 30 seconds, then plug it back in. Lower the lever, the toaster should work normally. If not, contact technical support.

Where to find spare parts for the Beko TAM4201B?

Spare parts (cord, tray, etc.) are available from Beko after-sales service. Contact support or check the official website for references.

USER MANUAL TAM4201B BEKO

Black beke toaster with open lid and side grilles (no visible text or symbols)

Red beke toaster with black handle and white top (no visible text or symbols)

TAM4201B

TAM4201R

EN DE FR TR ES PL RO IT AR

01M-8836613200-2918-02

CONTENTS

ENGLISH 7-12

DEUTSCH 13-20

FRANÇAIS 21-29

TÜRKÇE 30-35

ESPAÑOL 36-45

POLSKI 46-57

ROMANIAN 58-66

ITALIANO 67-75

Line drawing of a toaster with three slices on a plate (no text or symbols)

Line drawing of a hand cleaning a toaster oven with a cloth (no text or symbols)

Diagram showing a device being inserted into a slot, with red triangular arrows indicating movement (no text or symbols)

Illustration of a hand cleaning a surface with a cloth, next to a computer monitor (no text or symbols)

Diagram showing a red arrow pointing to a device component with a black connector (no text or symbols)

EN	OPERATION CLEANING AND CARE
DE	BETRIEB REINIGUNG UND PFLEGE
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
TR	KULLANIM TEMIZLEME VE BAKIM
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA
RO	UTILIZARE CURĂ AREA ȘI ÎNGRIJIREA
IT	UTILIZZO PULIZIA E CURA
AR	التنظيف والعناية الت冲洗يل

Please read this user manual first!

Dear Customers,

Thank you for selecting an Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

WARNING: Warning for hot surfaces.

Suitable for contact with food.

Do not immerse the appliance in water.

1. Bread slot
2. Start lever
3. Browning control
4. Reheat button
5. Defrost button
6. Stop button
7. Crumb tray
8. Housing

Technical data

Power supply: 220-240 V\~, 50-60 Hz

Power: 720-850 W

Technical and design modifications reserved.

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

1

Important instructions for safety and environment

This chapter contains safety instructions that will help protect from risk of personal injury or material damage.

Failure to follow these instructions will void the granted warranty.

1.1 General safety

• This appliance complies with the international safety standards.
- This appliance can be used by children who are at the age of 8 and above and by people who have reduced physical, perceptual or mental abilities or by people who are deficient in terms of experience and knowledge as long as they are supervised and given the instructions regarding the safe use of the appliance and dangers encountered. Children should not play with the appliance.
- Cleaning and maintenance should not be performed by children unless they are older than 8 years old and supervised.
- Keep the appliance and its power cable so that they are inaccessible by children under 8 years old.

• Do not use the appliance if the power cable or the appliance itself is damaged. Contact an authorised service.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• For additional protection, this appliance should be connected to a household residual current device with a rating of 30 mA maximum.
• Use the appliance with a grounded outlet only.
• Do not use the appliance with an extension cord.
• Prevent damage to the power cord by not squeezing, bending, or rubbing it on sharp edges.
• Do not touch the plug of the appliance with damp or wet hands.
• Do not unplug the appliance by pulling the power cable.
• Do not immerse the appliance or its cable in water.
• Do not leave the appliance unattended while it is plugged in.

1 Important instructions for safety and environment

• Exterior surface gets hot while the appliance is in use. Do not touch hot surfaces to avoid risk of burning.
• Do not leave metal cooking utensils and items on cooking plates.
• Operate and store the appliance on a stable surface.
• Do not attempt to dismantle the appliance.
• Only use the original parts or parts recommended by the manufacturer.
• Unplug the appliance before cleaning and let it completely dry after cleaning.
• The appliance is not suitable for outdoor use.
• Food items can catch fire due to overheating. Do not allow the appliance to get in contact or be covered with flammable items such as curtains, fabric, wall panels and etc.

• Do not use the appliance in or near the areas where combustible or inflammable places and materials exist.

• Do not operate the appliance with an external timer or with another remote control system.

• If you keep the packaging materials, store them out of the reach of children.
• Allow the appliance to cool before storing it in a cupboard, on a shelf and etc.
• Do not put bread on any plastic part of the appliance.
• Since temperatures are perceived differently by different people, this device should be used with caution. Hold the appliance exclusively on surfaces intended to hold and use heat protection measures such as heat protection gloves or pot holders. Areas which are not intended to be touched must be given sufficient time to cool.
• The heated rolls can only be touched when the appliance has cooled down to room temperature.

1

Important instructions for safety and environment

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic

and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do

not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Operation

	When using the appliance for the first time, smoke can develop due to production residues. However, this does not mean the appliance is defective. The first time you switch it on use the appliance as you normally would but without bread. It is recommended to use the medium setting of the browning control (3). Ensure for proper room ventilation.

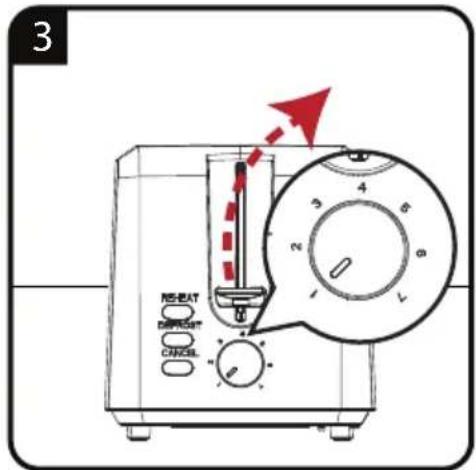

	Pushing 1 from the browning control (3) will give the lightest degree of browning and pushing 7 the darkest.
	The browning degree can vary depending on the type of bread.
	When toasting several slices of bread consecutively, the toaster will become hotter and therefore the bread will gradually become darker. Therefore select an appropriate browning degree.
	The browning degree of one slice is darker than two slices, although the browning control (3)is set to the same level.
	If the power plug is not connected to the wall socket, the start lever (2) does not snap into place.
	The degree of browning can also be adjusted during the toasting process with the browning control (3).
	To cancel the toasting process before it has finished, press the stop button (6). The start lever (2) springs back up and the toast slices can be taken out of the toaster.

After the start lever (2) springs back up, you can use the high-lift function by pushing the start lever (2) upwards.

WARNING: Be very careful when taking the toast slices out of the toaster as the metal parts of the toaster and also the bread can become very hot.

If toast slices get stuck in the toaster, switch the toaster off immediately by pressing the stop button (6). Pull the power plug out of the wall socket. Let the toaster cool down completely. Carefully try to take the bread out of the toaster without damaging the sensitive heating elements and other parts. Do not use any electroconductive objects to remove the bread from the toaster.

When the defrost button (5) is pressed, the toasting process takes longer than with normal toasting.

To cancel the toasting process before it has finished, press the stop button (6). The start lever (2) springs back up and the toast slices can be taken out of the toaster.

After the start lever (2) springs back up, you can use high-lift function by pushing the start lever (2) upwards.

WARNING: Be very careful when taking the toast slices out of the toaster as the metal parts of the toaster and also the bread can become very hot.

2 Operation

To cancel the toasting process before it has finished, press the stop button (6). The start lever (2) springs back up and the toast slices can be taken out of the toaster.

After the start lever (2) springs back up, you can use high-lift function by pushing the start lever (2) upwards.

Be very careful when taking the toast slices out of the toaster as the metal parts of the toaster and also the bread can become very hot.

3 Information

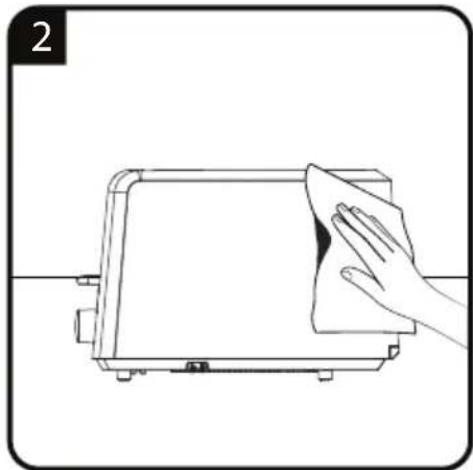

3.1 Cleaning and care

WARNING: Never use petrol solvents, abrasive cleaners, metal objects or hard brushes to clean the appliance.

WARNING: Never put the appliance or power cord in water or any other liquids.

Before using the appliance after cleaning, dry all parts carefully using a soft towel.

3.2 Storage

• If you do not plan to use the appliance for a long period of time, please store it carefully.
• Make sure the appliance is unplugged, cooled down and completely dry.
• Wrap the power cord around the cable coil on the bottom of the toaster.
• Store the appliance in a cool, dry place.
• Make sure the appliance is kept out of the reach of children.

3.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

Please see the cover page of the user manual for initial use, general use and cleaning sections.

Red beiko toaster with two shades of blue and white, no visible text or symbols on the device itself.

TAM4201B

AR

beko

01M-8836613200-2918-02
