CCG5000SW/1 - Cooker CANDY - Free user manual and instructions
Find the device manual for free CCG5000SW/1 CANDY in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Freestanding cooker |
| Brand | Candy |
| Model | CCG5000SW/1 |
| Color | White |

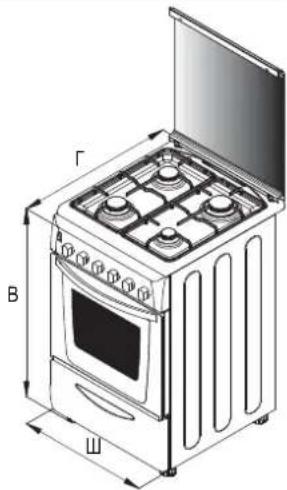

| Width | 60 cm |
| Depth | 60 cm |
| Height | 85 cm |
| Weight | 50 kg |
| Energy Source | Gas (burners) and Electric (oven) |
| Number of Burners | 4 gas burners |
| Oven Type | Electric fan oven |
| Oven Capacity | 73 liters |
| Oven Functions | Grill, fan cooking, conventional |
| Control Type | Knobs and electronic timer |
| Safety Features | Flame failure safety device on burners, cool-touch door |
| Cleaning | Enamel interior, removable oven door, easy-clean surfaces |
| Spare Parts Availability | Replacement parts available through Candy service network |
| Repairability Index | 7.5/10 (based on industry standards) |
Frequently Asked Questions - CCG5000SW/1 CANDY
How do I ignite the gas burners?
Press and turn the corresponding knob to the maximum position while holding it down. Press the ignition button or use a match if the electronic ignition fails. Keep the knob pressed for a few seconds after the flame appears to activate the safety device.
What should I do if the oven does not heat up?
Check that the appliance is properly connected to the power supply and that the circuit breaker is on. Ensure the oven function selector is set to a heating mode and the thermostat is set to a temperature above ambient. If it still does not heat, contact Candy technical support.
How do I clean the oven interior?
Remove shelves and side racks. Use warm water and mild detergent with a non-abrasive sponge. For stubborn stains, use a specialized oven cleaner. Avoid using metal scouring pads. Rinse thoroughly and dry.
Can I use the gas burners during a power outage?
Yes, the gas burners can be lit manually with a match or lighter. However, the oven functions require electricity to operate.

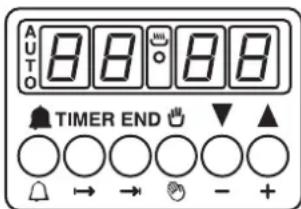

How do I set the timer on the oven?
Turn the timer knob clockwise to set the desired cooking time. The oven will turn off automatically when the time is up. An alarm may sound.
What is the maximum power of the gas burners?
The maximum power varies: usually around 2.8 kW for the large burner and 1.7 kW for standard burners. Refer to the burner table in the manual for exact values.
Is the oven door removable for cleaning?
Yes, the oven door can be removed. Open it fully, lift the locking levers on both hinges, and gently close the door until it releases. Clean the glass with mild cleaner and reattach by sliding onto hinges.
What type of gas should I use?

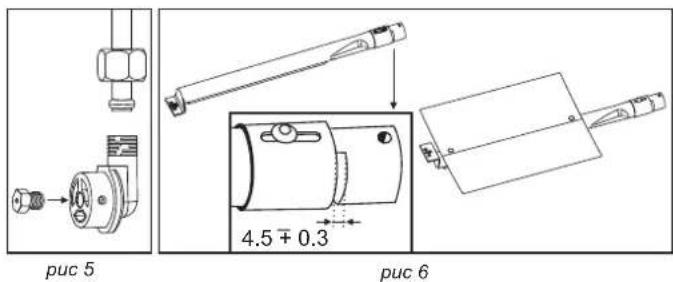

The appliance is set for natural gas (NG) or LPG (propane/butane). Check the injector size in the manual. For conversion, contact a qualified technician.
Why does the oven fan make noise?
A low hum is normal during operation. If it becomes loud or rattles, check for loose items inside or contact service. The fan may also run for a short time after the oven is turned off to cool down.
How do I replace the oven light bulb?
Switch off the appliance and wait for it to cool. Remove the glass cover by turning it counterclockwise. Replace with a standard 40W, 300°C resistant oven bulb (often E14 base). Reattach the cover.
