USER MANUAL 1200 Liberty Garden

Liberty GARDEN

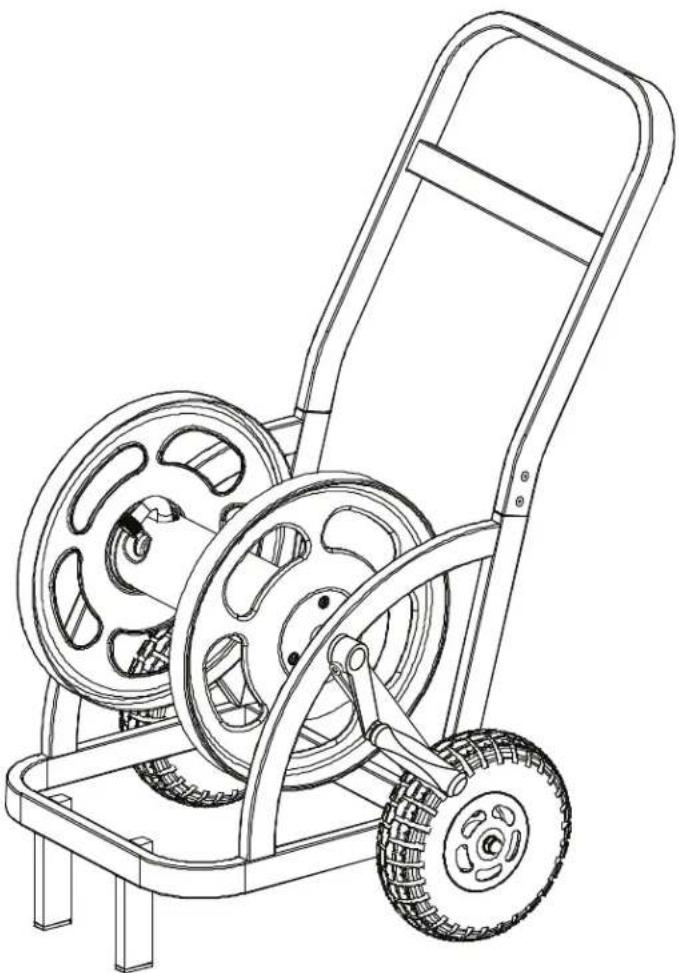

2-Wheel Metal Hose Cart Owner's Manual

Line drawing of a two-wheeled push cart with two wheels and a handle (no text or symbols)

VISIT OUR WEBSITE: WWW.LIBERTYGARDENPRODUCTS.COM

OR CALL US TOLL FREE AT 1-866-820-5805

LIBERTY GARDEN PRODUCTS, INC.

1161 SOUTH PARK DRIVE, KERNERSVILLE NC 27284

IMPORTANT: READ THE OWNER'S MANUAL BEFORE ASSEMBLING

TOOLS REQUIRED:

Simple line drawing of a right-angle pipe with a circular label 'AA' in the corner (no text or symbols on the pipe itself)

Allen wrench (Supplied)

Line drawing of a wrench with a black circular label containing the letters 'BB' (no text or symbols on the wrench itself)

Open-end wrench (Supplied)

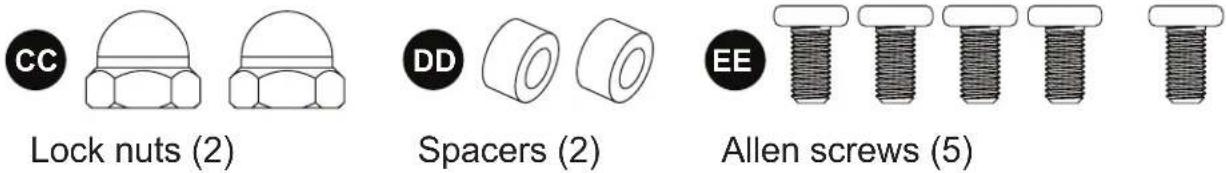

HARDWARE INCLUDED

Note: Hardware and parts not shown to actual size.

PARTS LIST

A. Crank handle (1)

B. Axle (1)

C. Leader hose (1)

D. Tires (2)

E. Base (1) F. Push handle (1)

IMPORTANT: LAY OUT ALL PARTS AND FASTENERS. MAKE SURE ALL PARTS ARE ACCOUNTED FOR. IF ANY PART IS MISSING PLEASE CONTACT LIBERTY GARDEN PRODUCTS AT 1-866-820-5805. DO NOT CONTACT THE RETAILER. YOU CAN ALSO VISIT OUR WEBSITE, WWW.LIBERTYGARDENPRODUCTS.COM, FOR MORE INSTRUCTIONS, PICTURES AND HELPFUL HINTS.

ASSEMBLY

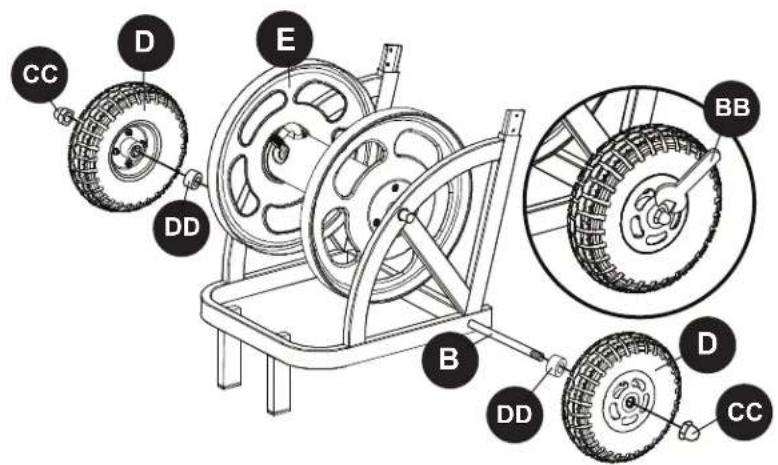

1 Remove nuts (CC) and two spacers (DD) from the axle (B). Insert axle through the holes at the bottom of the base (E). Place spacers (DD) on both ends of axle (B) before securing wheels (D) with lock nuts (CC). Tighten lock nuts using open-end wrench (BB)

2 Attach the push handle (F) to the base (E) using the supplied allen wrench (AA) and four allen screws (EE).

CC D E DD BB B DD D CC

Technical diagram of a manual push cart with labeled parts E, F, and EE, showing mechanical components and assembly details.

3 Slide crank handle (A) onto spool on base (E). Secure with allen screw (EE), tightening with Allen wrench (AA).

4 Attach end of the leader hose (C) to the hose swivel on base (E), attach the other end to a water source. Attach up to 200 ft. of garden hose (sold separately) to the hose connector on the spool of the base (E).

E EE A A EE

Technical diagram of a manual pump cart with labeled components E, C, and E shown in circular insets.

CAUTION: DO NOT OVER TIGHTEN LOCK NUTS AND ALLEN SCREWS.

CARE INSTRUCTIONS

Rust

Your hose reel will give you many seasons of reliable and functional hose storage. As with any steel product, there is always the chance for rust developing over time. Your hose reel finish is designed for industrial applications, but even the toughest of coatings can be compromised by scratches. Such minor surface damage can occur in shipping despite our best efforts. We have found that most scratches occur during assembly and/or installation. If the base metal is exposed to the elements long enough, rust will develop. We recommend that you periodically inspect your reel for any surface damage.

Scratches can easily be repaired by using standard automotive touch-up body paint. Some of our most loyal customers recommend that at the end of each season, the unit be cleaned and painted with a clear acrylic paint. Two other sources of rust acceleration is exposing the reel to yard fertilizers or leaving your hose reel standing in grass. Be sure to rinse off your hose reel after it comes in contact with freshly fertilized grass. Also, try to park your hose reel on solid ground. Leaving it standing on top of vegetation promotes condensation on the undercarriage of the unit.

Leaks

Your hose reel is manufactured with the finest quality components available. All components are manufactured to rigorous quality standards not common in other consumer grade hose reels available today. When you install your hose reel, be sure the hose washers are in place and all fittings are secure.

DO NOT OVER TIGHTEN as you might damage the components. If you live in more temperate climates, be sure to drain the unit of any residual water before storing. DO NOT EXPOSE THE UNIT TO FREEZING TEMPERATURES while water remains in the plumbing system.

Troubleshooting Guide

Problem: Swivel head is not rotating, causing the leader hose to kink up.

Solution: Remove leader hose and turn the square head of the swivel several times; apply lubricant.

Problem: Leaking Fixtures (galvanized tee; brass coupling; swivel)

Solution: Apply Teflon/Plummer's Tape or/and make sure fixtures are tightened.

TIPS

• DO NOT use a compressor while inflating the tires; hand pump only. 15 PSI maximum.
• To help delay rust, check for any scratches on your hose cart. Apply clear acrylic/weatherproof paint to avoid rusting.
• Drain water before storing.
  • DO NOT drink water from the hose.
• DO NOT leave water running though the reel while not in-use or unsupervised.
• Turn off water after each use.

CURING A LEAKING SWIVEL

Problem:

Your new #1200 / 2-Wheel Metal Hose Cart is leaking at the swivel.

Solution:

It is normal for the swivel to leak slightly until the O-rings are wet and have seated. If the leaking continues, you don't need to take the cart back to the store. This is a simple problem and is easily fixed by a few simple procedures.

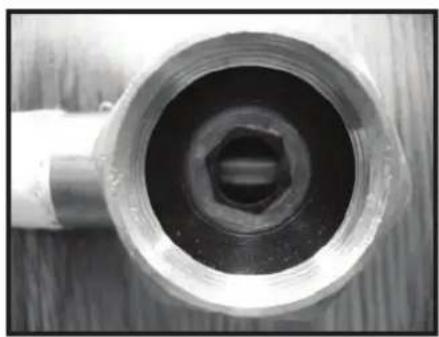

1. If the leader hose is attached to the swivel, unscrew the hose and look inside the swivel.
2. Using either a hex key or a large screw driver, insert the tool into the hex opening and gently tighten the threaded insert. DO NOT OVER TIGHTEN!
3. This should stop the leaking.
4. If the unit still leaks, please check that the hose washer is inside the nut. You may contact Liberty for a new hose washer or obtain one at any hardware store.
5. If your swivel is old, the O-rings may be worn, please contact us for a new set of O-rings.
6. If these steps do not solve your leaking problem, then contact Liberty Garden Products.

Close-up of a metallic pipe fitting with a hexagonal bolt hole, resting on a wooden surface (no text or symbols visible)

SHIFT D-RNG HOUSHO D-RNG SWAF RING NEORT 0-RNG RMS-CE NUT

CALL US AT 1-866-820-5805 IF YOU HAVE ANY QUESTIONS REGARDING TROUBLESHOOTING AND WARRANTY

WARRANTY

Our guarantee is as functional and straight-forward as our products. Since we design and build our products to provide you with many years of satisfaction, all Liberty™ products are guaranteed against defects in materials and workmanship. In the unlikely event that a problem arises as a result of a defect in our materials or workmanship, we will promptly repair or replace the item at our expense. All we require is that you contact us first and we'll take it from there. It is important to note that our guarantee is not an unconditional guarantee for the life of the product. Liberty™ hose reels are made from the finest materials available under our exact manufacturing standards. But, like any other product, it is not indestructible. Therefore, our guarantee does not cover:

• Product damage that is a result of abuse, misuse, or mishandling. (Exposing the unit to freezing temperatures with water remaining in the reel plumbing system voids the unit warranty.)
• Rust. Despite the industrial quality coating and our best efforts, steel will rust over time.
• Incidental damage, consequential damages, injury to persons or to other property not purchased from us due to the use of our product.
• DO NOT consume water from garden hose; not fit for human consumption.

If there is damage to the product that occurred as a result of shipping, you should file a damage claim with the carrier.

- DO NOT leave water running though the reel while not in-use or unsupervised.

As with any product, it should be expected that component parts - particularly moving parts, seals, o-rings, swivel, hose and connectors will wear with use and over time may need to be replaced or refurbished. This type of normal wear and tear is naturally not covered by our guarantee, but we will always be happy to provide you with prompt, high quality service and replacement parts at a nominal cost.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. (Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you).

You will find that we apply the same standard of excellence to our customer service as we do to our products.

Warning! The hose and hose fittings contain chemical(s), including lead, known to the state of California to cause cancer, birth defects and other reproductive harm. Wash hands after use.

"Liberty" is a registered trademark of Liberty Garden Products, Inc. Kernersville, NC. All Rights Reserved 2013

Updated 11-1-2013
