USER MANUAL TX-NR5100 KLIPSCH

Firmware Update

Troubleshooting

Supplementary Information

Reducing the Power Consumption in Standby State

When the following functions are enabled, the power consumption in standby state increases. To reduce the power consumption in standby state, check each setting and set the functions to "Off".

HDMI CEC (→p105)

• HDMI Standby Through (→p105)
• USB Power Out at Standby (→p112)
• Network Standby (→p112)
• Bluetooth Wakeup (→p113)

☐ Detailed contents (Next page)

Before starting the procedure 6

Firmware Update 7

Update Information of the firmware 7

Firmware Update Procedure 7

Part Names 10

Front Panel 10

Display 12

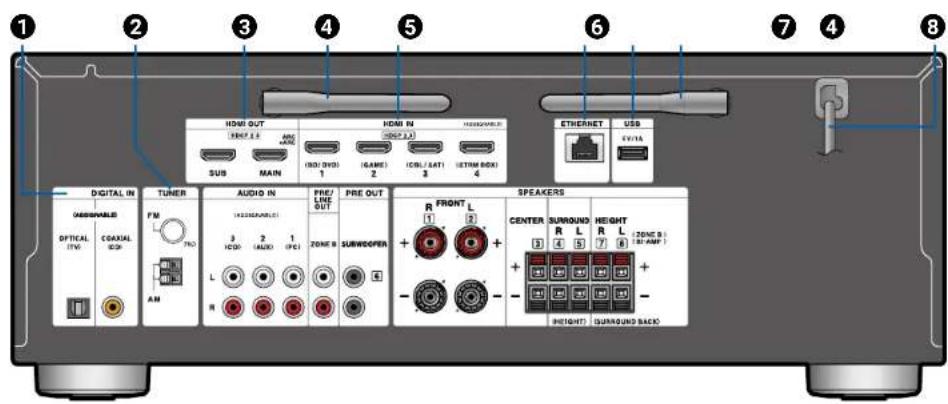

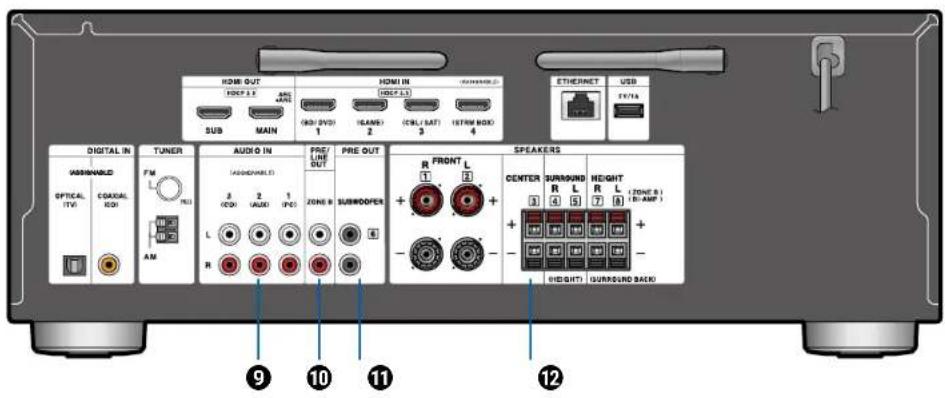

Rear Panel 13

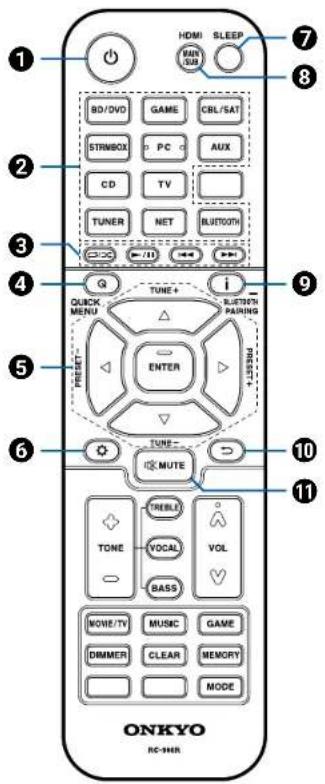

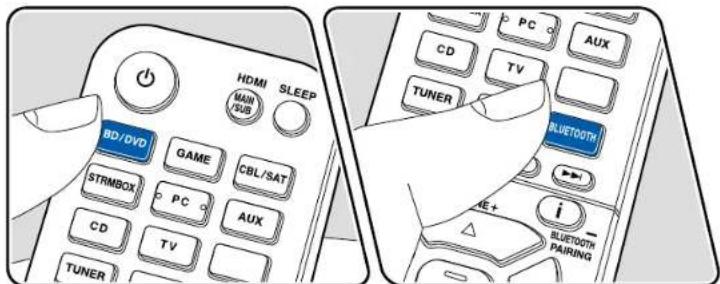

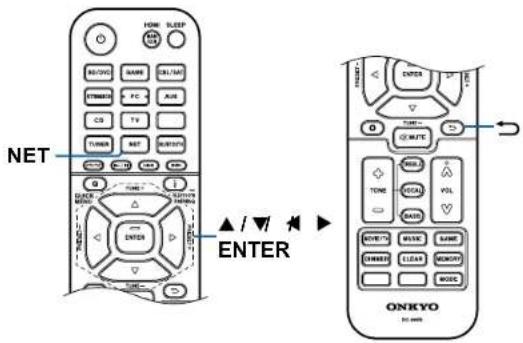

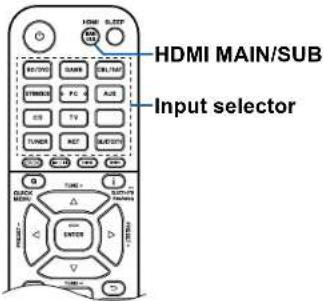

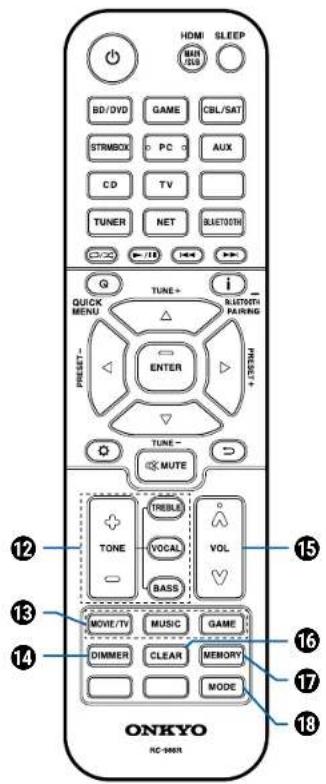

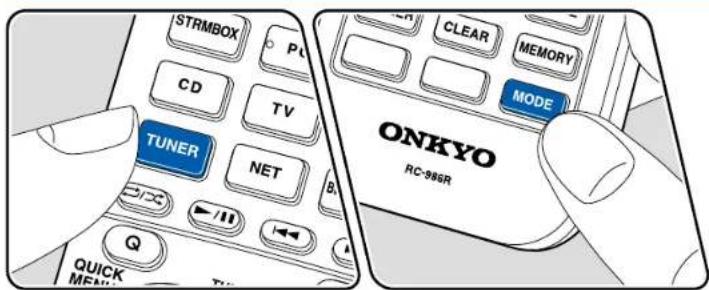

Remote Controller 15

Inputting Characters 17

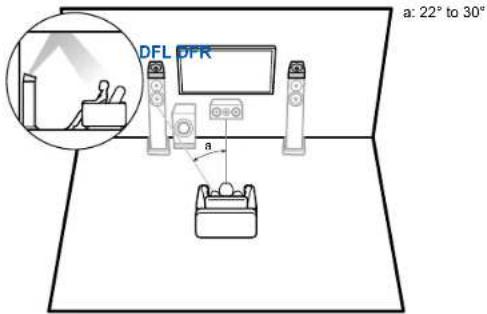

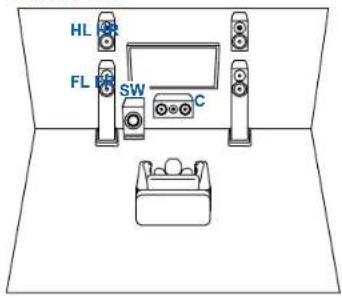

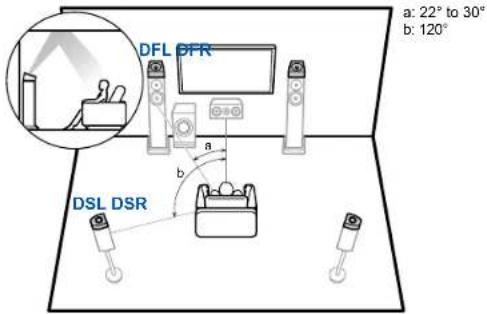

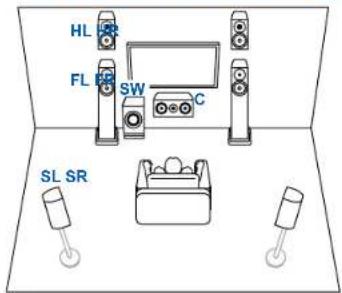

Speaker Layout

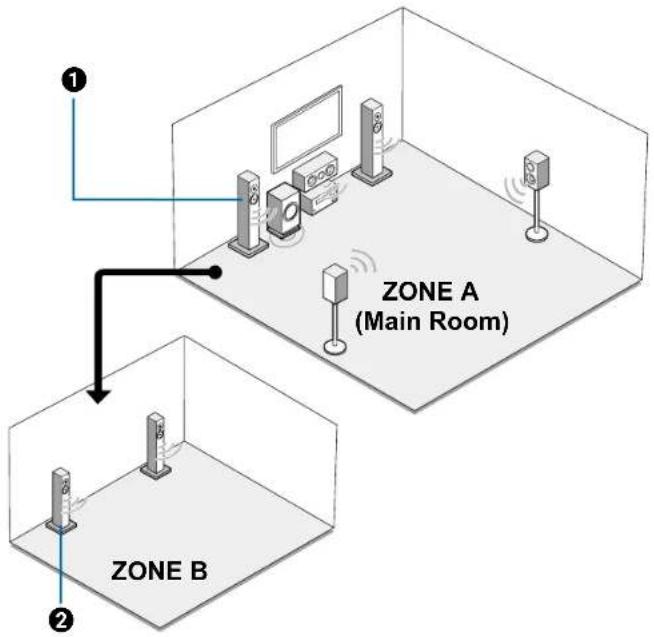

The listening room and the speaker layout 19

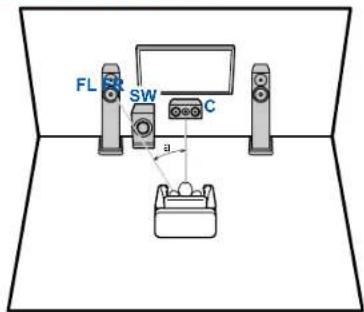

3.1 Channel System 20

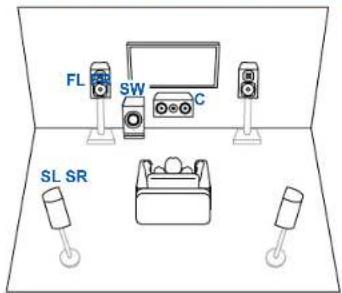

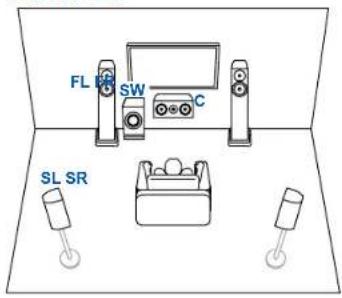

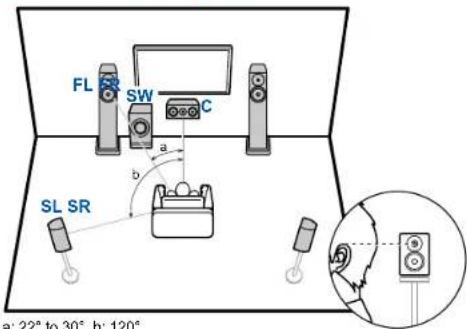

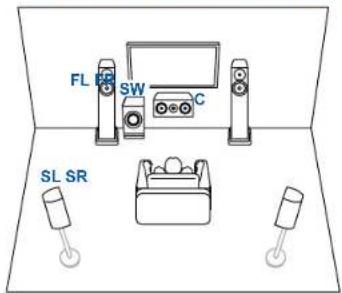

5.1 Channel System 21

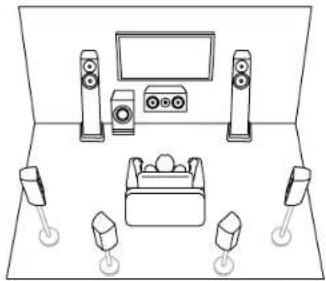

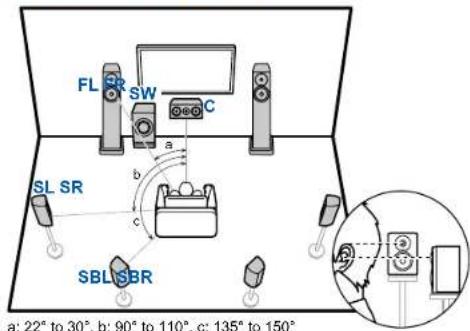

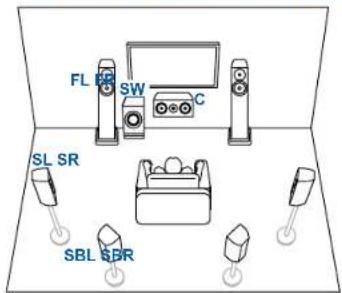

7.1 Channel System 22

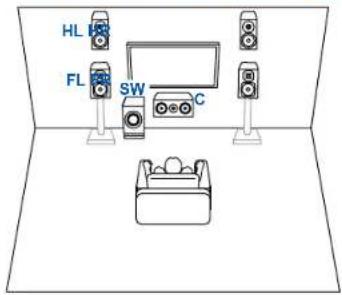

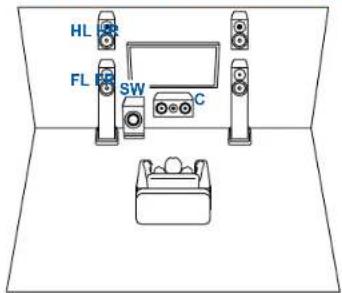

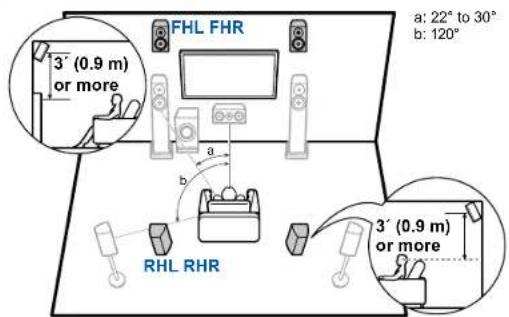

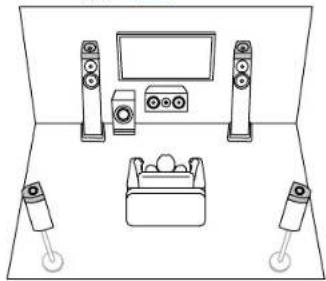

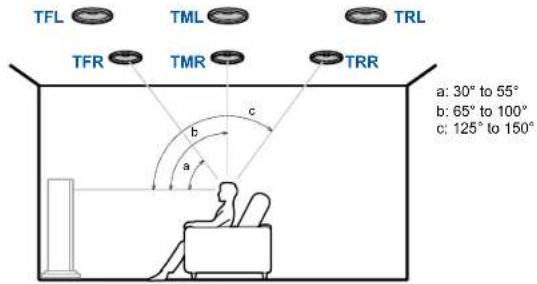

3.1.2 Channel System 23

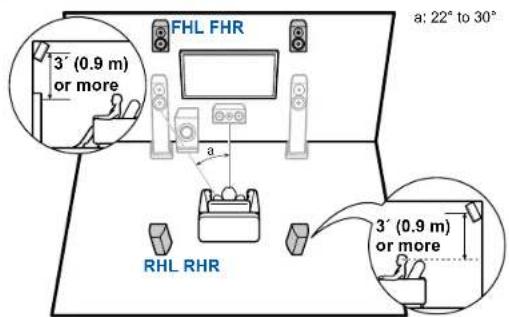

5.1.2 Channel System 24

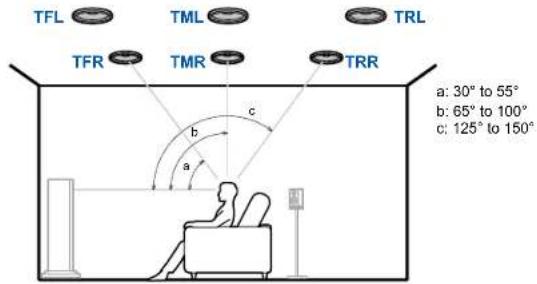

Speaker Installation

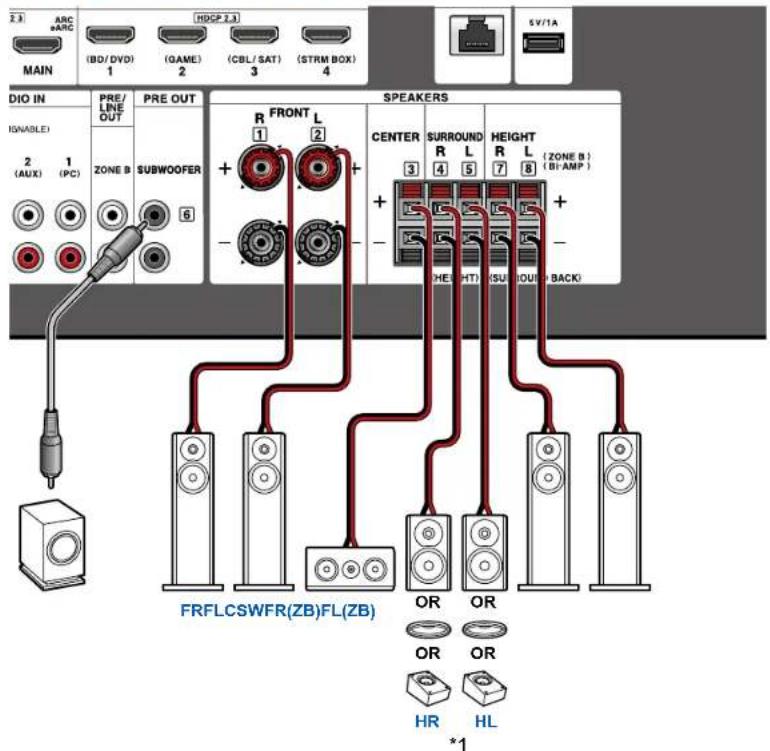

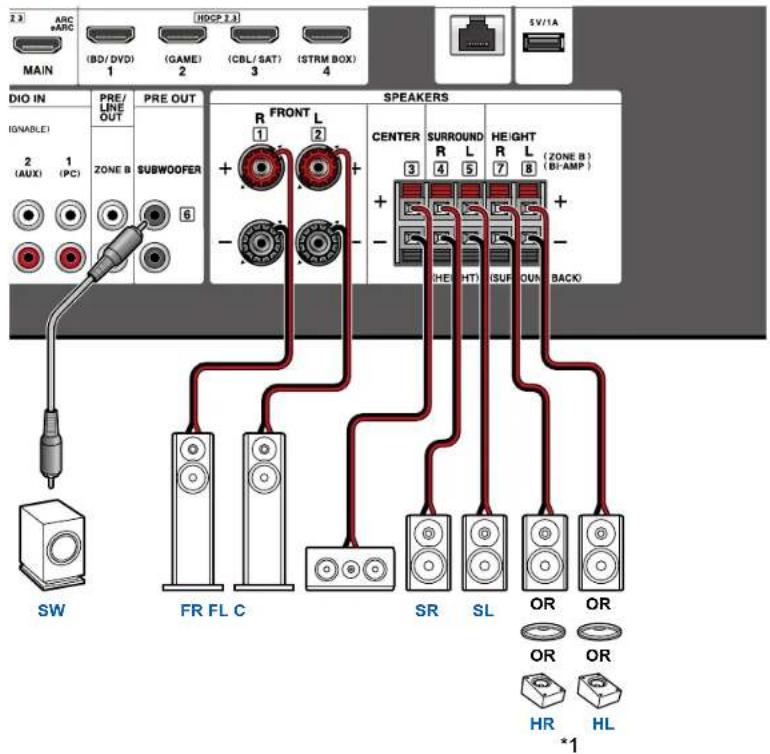

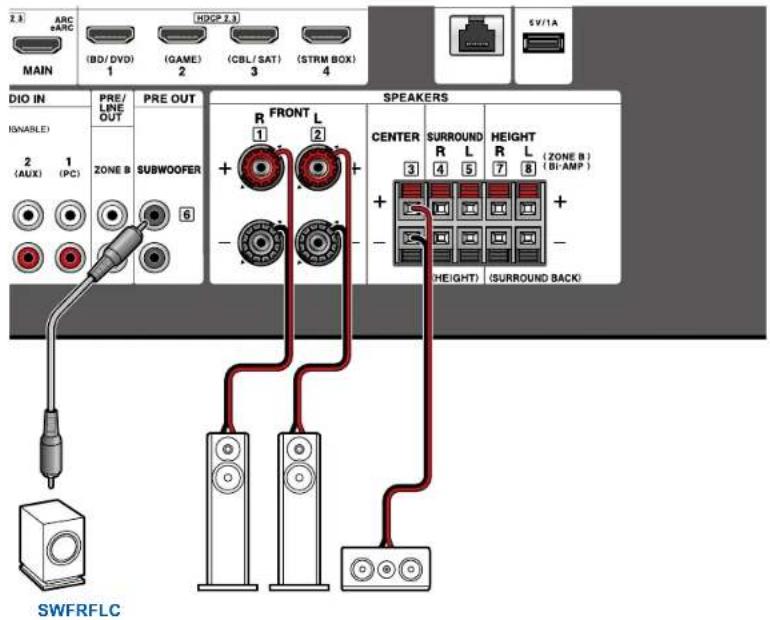

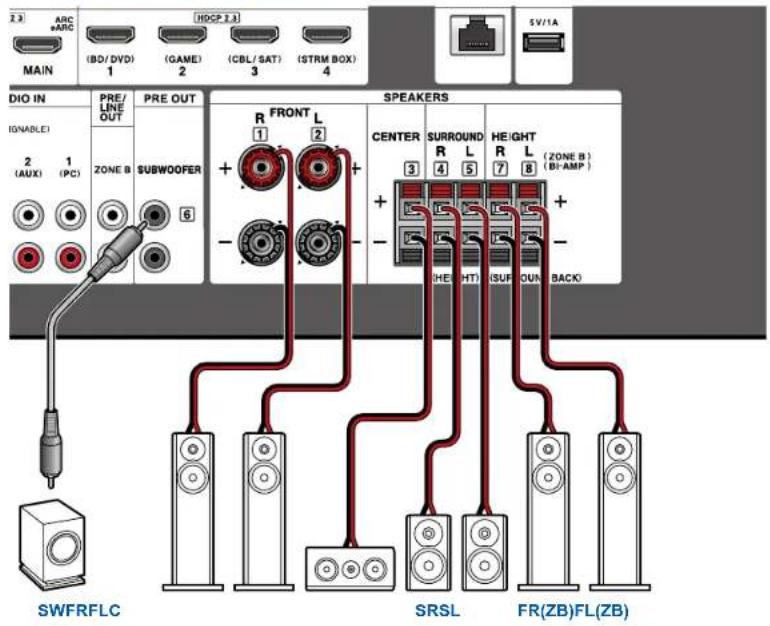

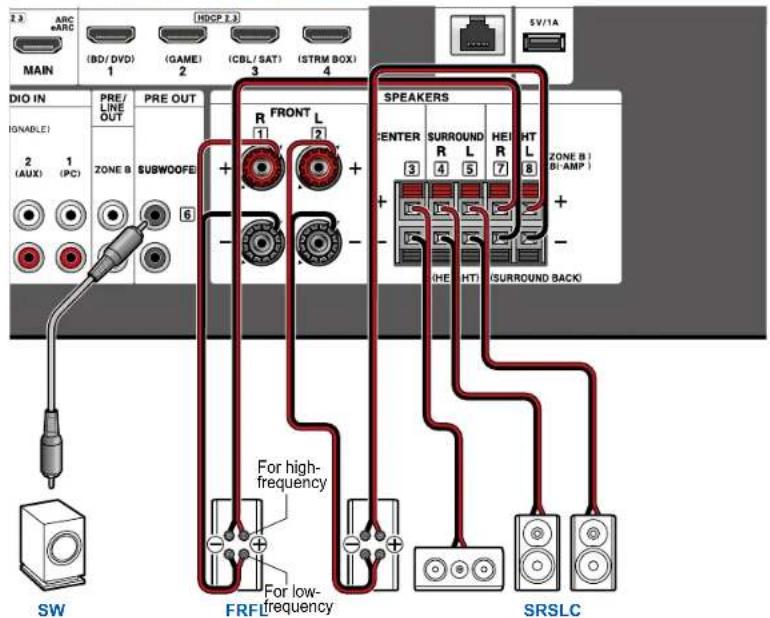

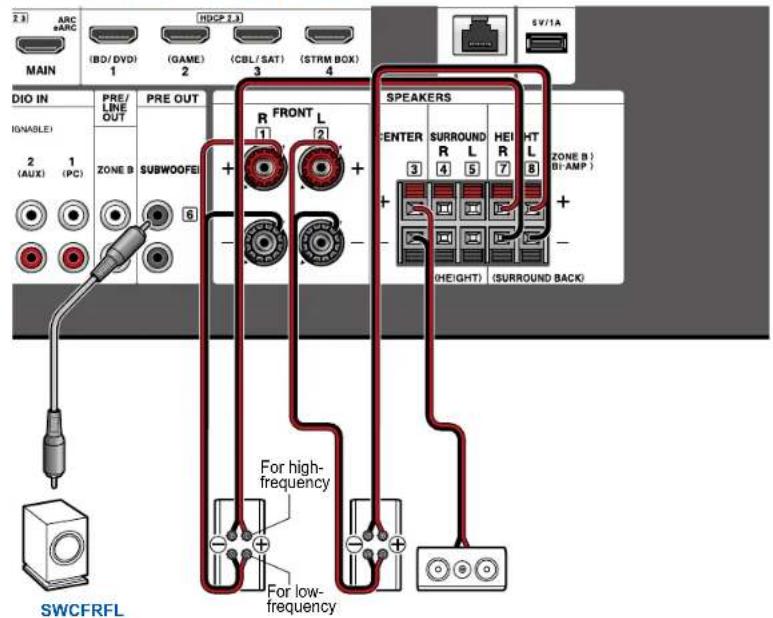

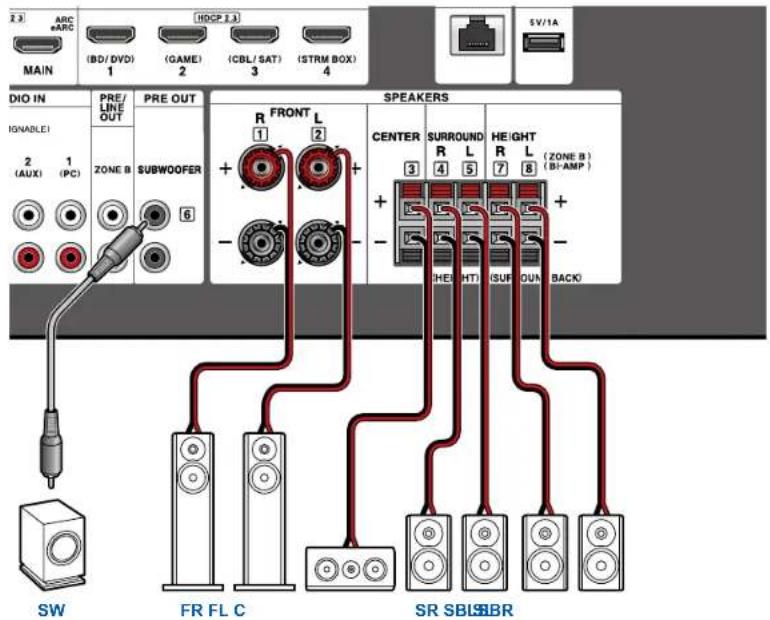

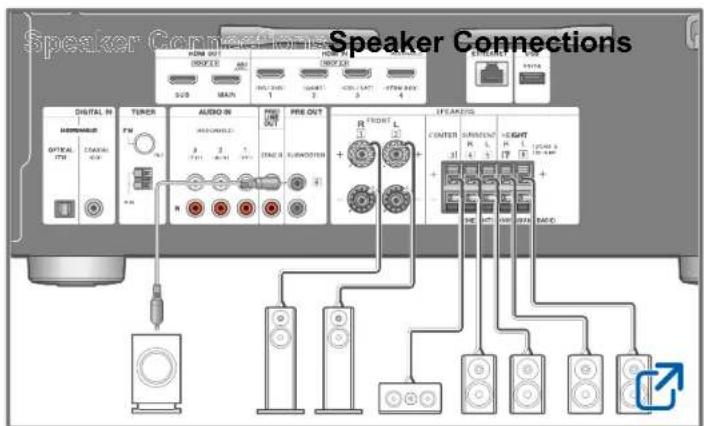

Speaker Connections

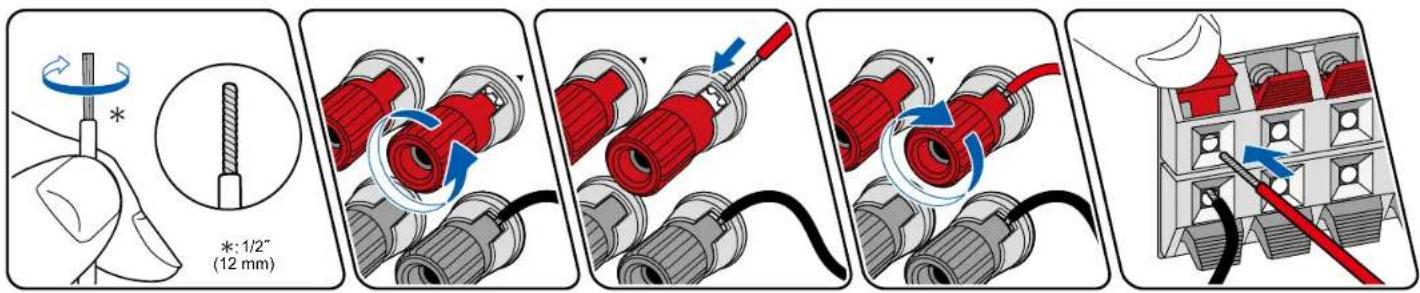

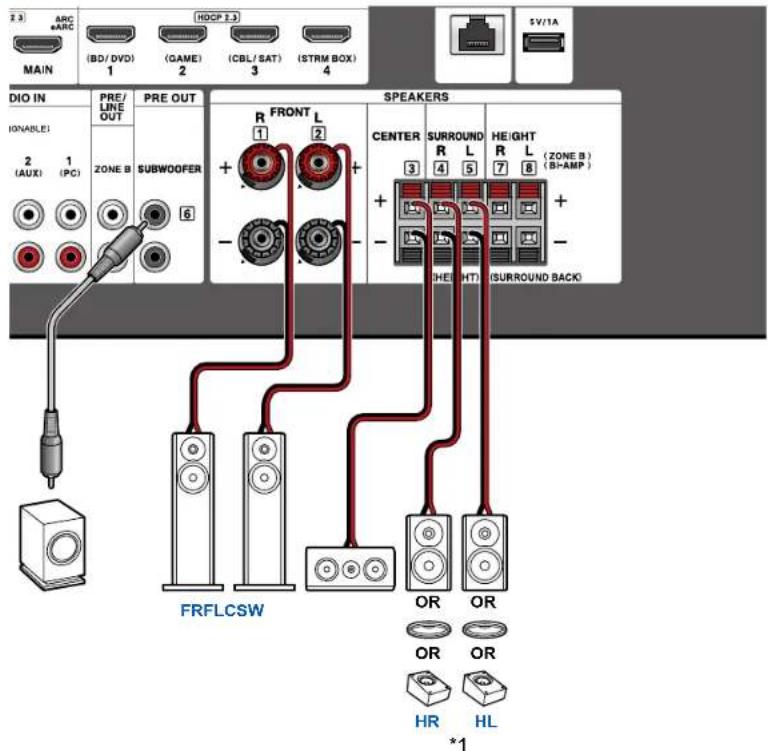

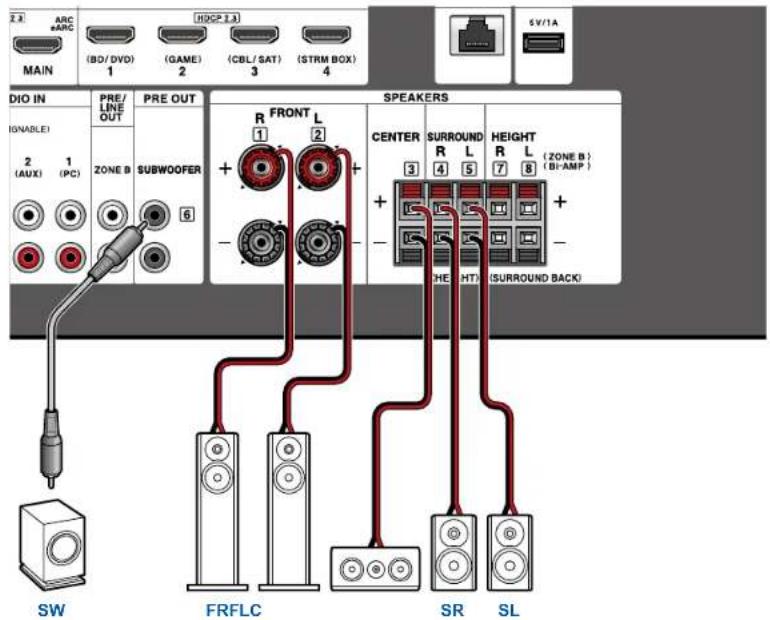

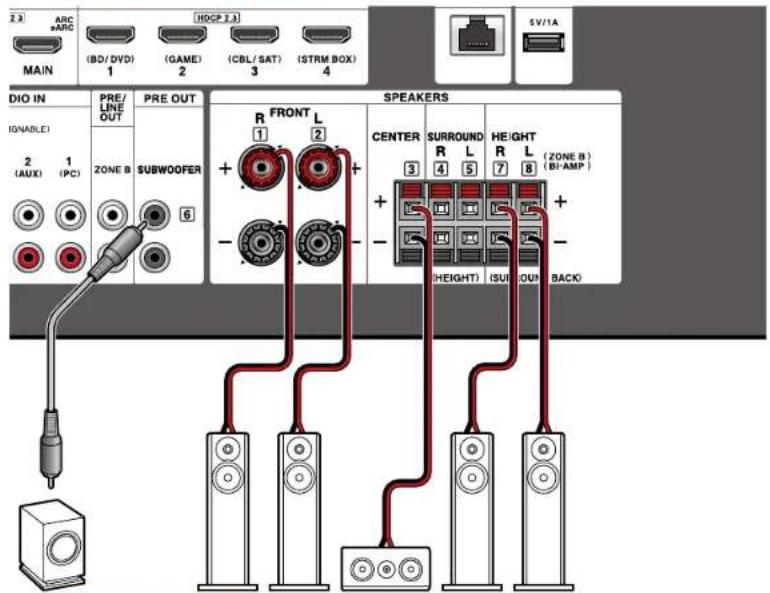

Speakers you can use with this unit and cable connections 31

Connections

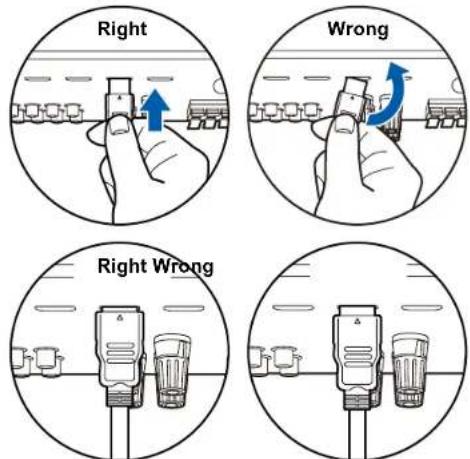

Notes regarding connections with HDMI cables 45 Connections 45

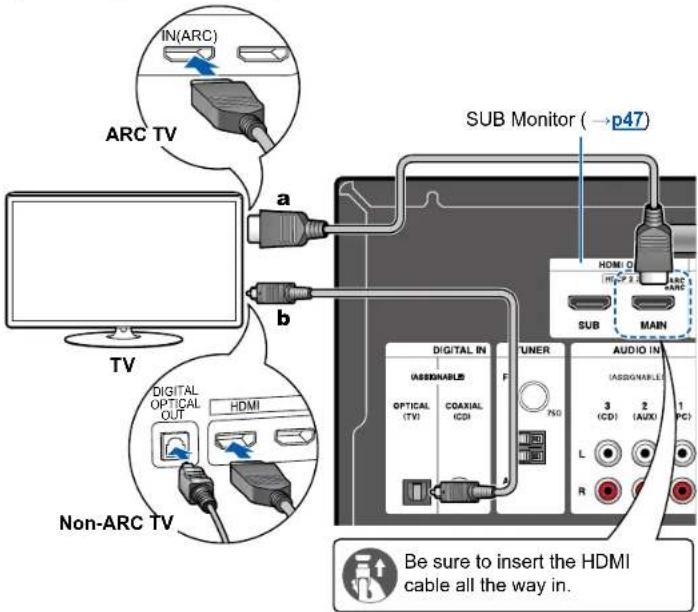

Connecting the TV 46 To ARC/eARC TV 46 To Non-ARC TV 46

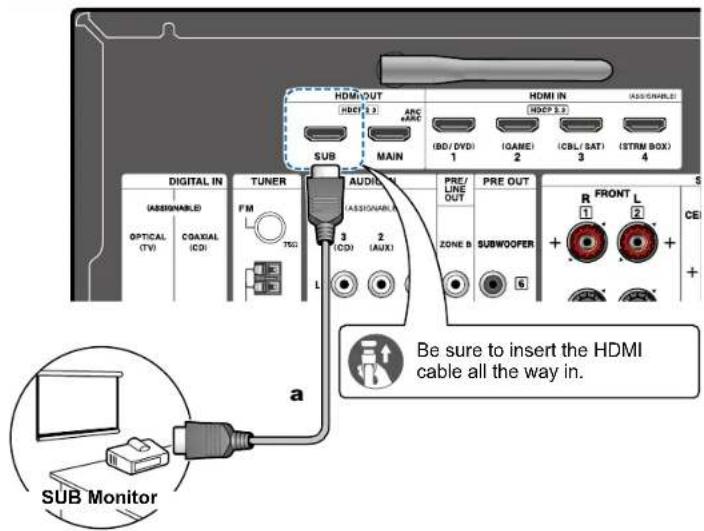

Connecting the SUB Monitor 47 SUB Monitor 47

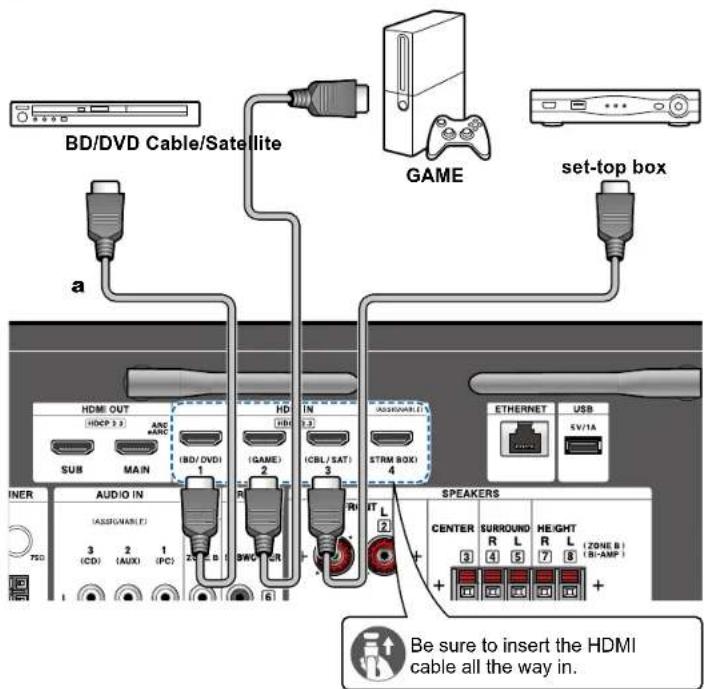

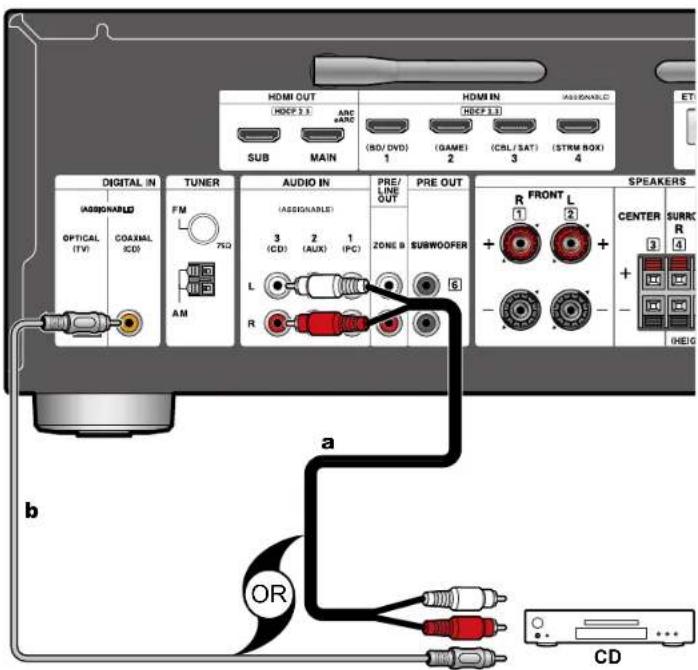

Connecting Playback Devices 48 Connecting an AV Component with HDMI Jack 48 Connecting an Audio Component 49

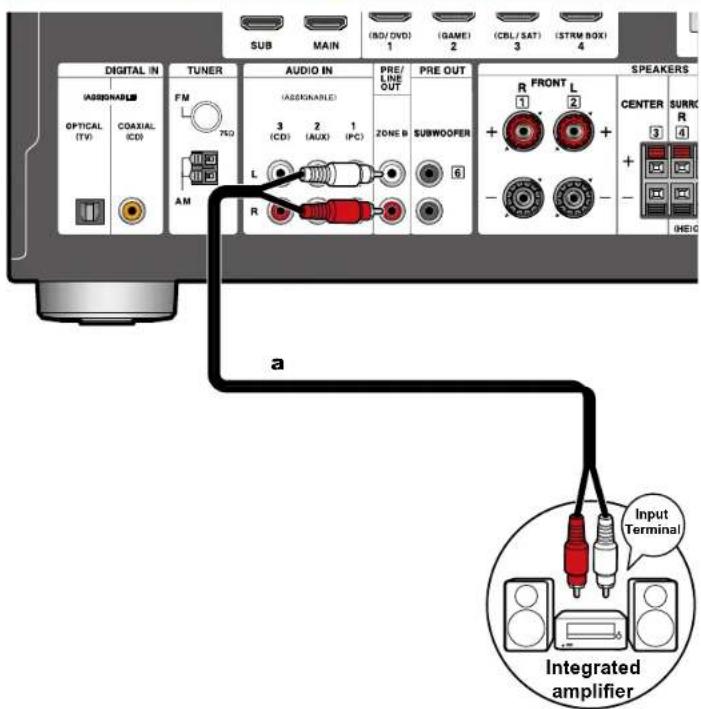

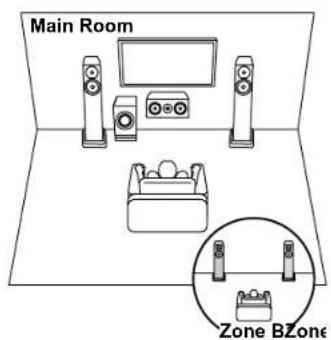

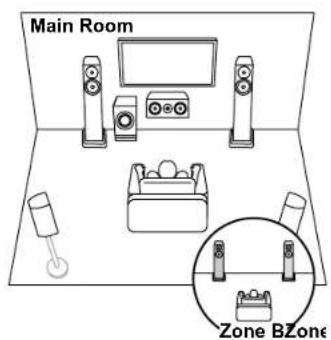

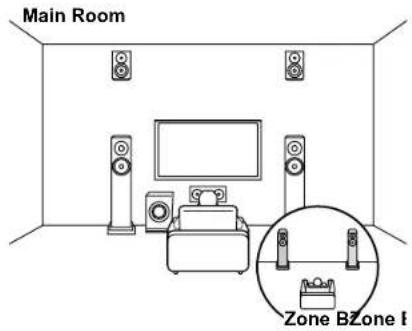

Connecting an AV Component in a Separate Room (ZONE B connection) 50 Connecting an Integrated Amplifier (ZONE B) 50

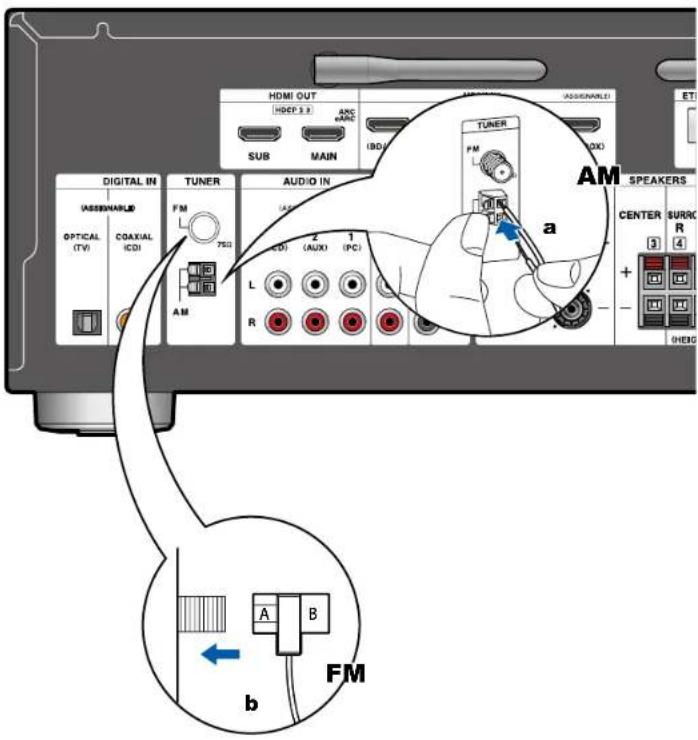

Connecting Antennas 51

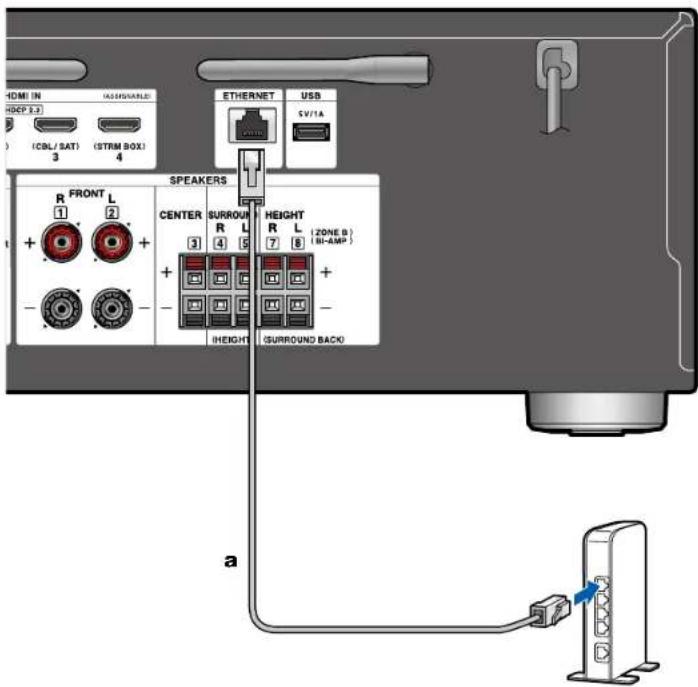

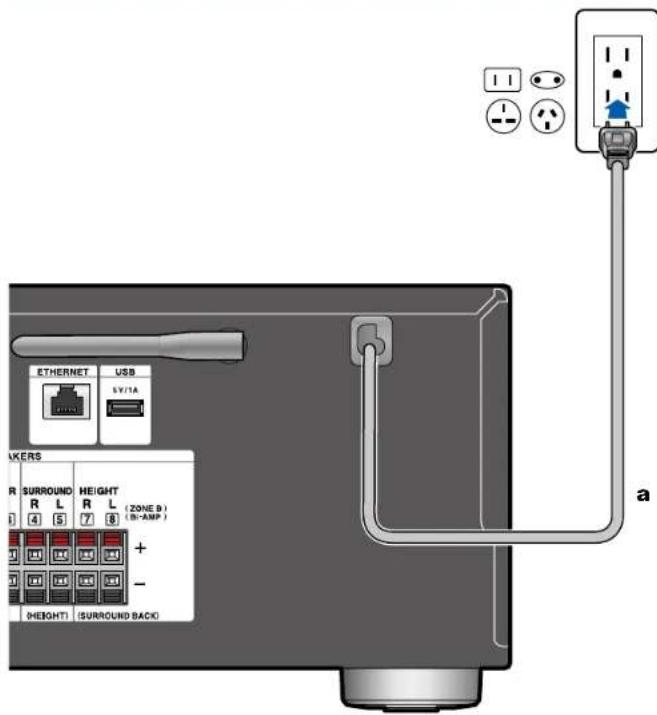

Network Connection 52 Connecting the Power Cord 53

Playback

Playing audio from an externally connected device 55 Basic Operations 55

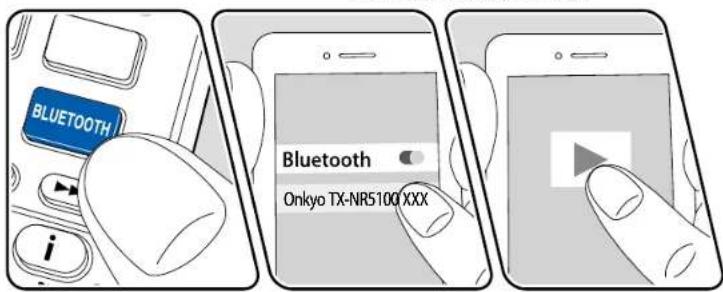

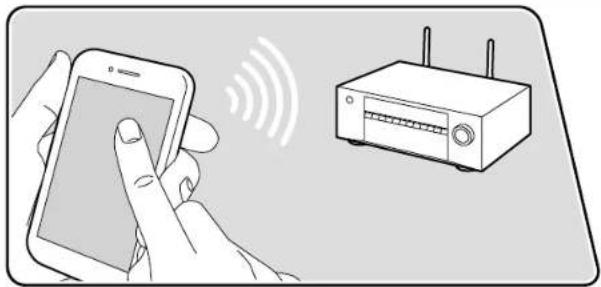

BLUETOOTH® Playback 56 Playing audio from BLUETOOTH wireless technology enabled devices with this unit 56

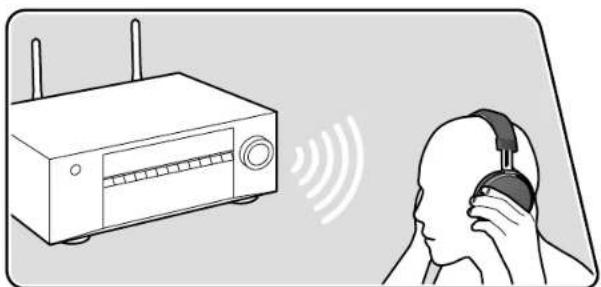

Transmitting audio from this unit to BLUETOOTH

wireless technology enabled devices 57

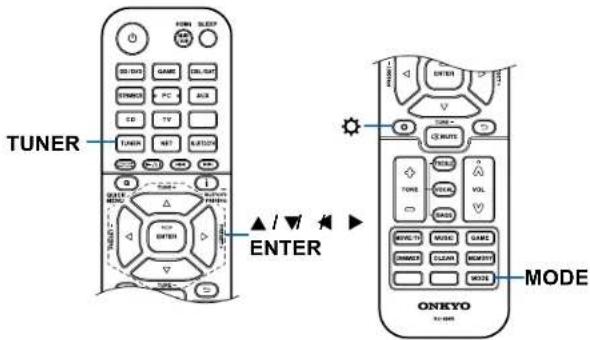

Listening To the Radio 59

Listening To the AM/FM Radio 59

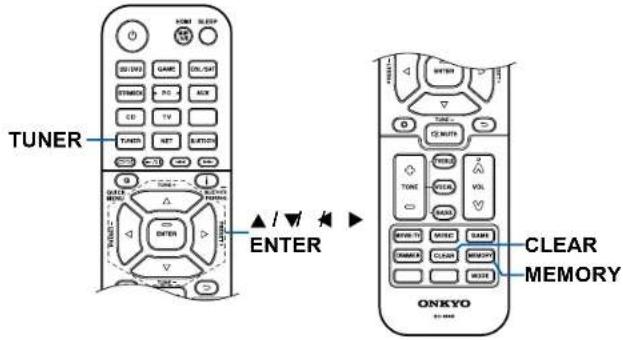

Presetting a Radio Station 61

Listening Mode 62

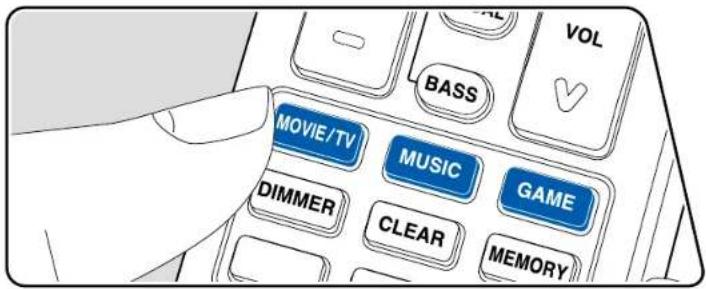

Selecting a Listening mode 62

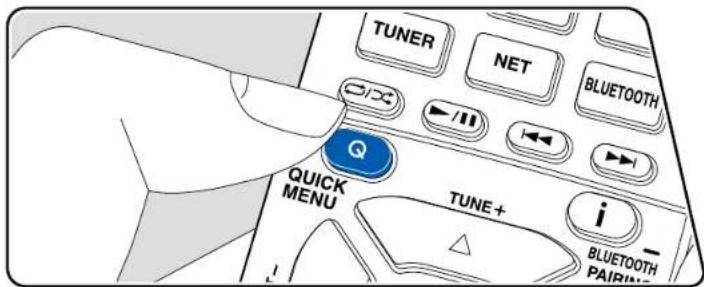

Quick Menu 64

Menu operations 64

Spotify 66

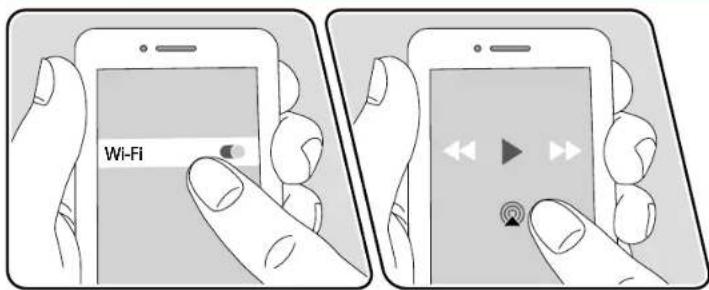

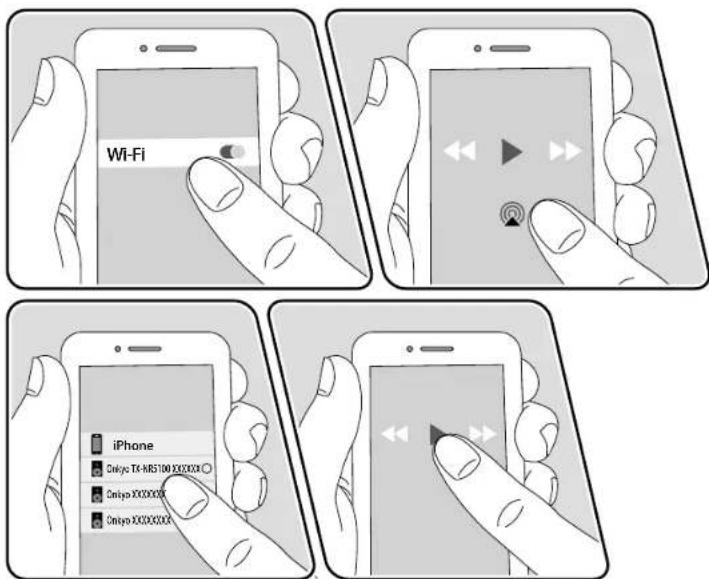

AirPlay ^® 67

Basic Operations 67

Playing Back on multiple devices (AirPlay2) 68

DTS Play-Fi® 69

Playing Back 69

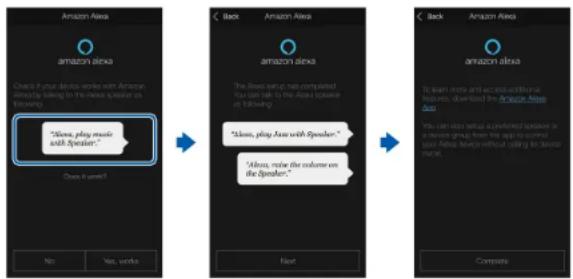

Amazon Alexa 70

Registering this unit with an Amazon account 70

Operating this unit 71

Amazon Music 72

Registering This Unit with Amazon Music 72

Playing Amazon Music using the Onkyo Controller 73

Playing Amazon Music using the remote controller 73

TIDAL 74

Registering this unit with TIDAL 74

Playing TIDAL 74

Connecting the Sonos System for Playback 75

Necessary Equipment 75

How to Connect This Unit and Sonos Connect 75

Setting Up 75

Playing Sonos on This Unit 76

Internet Radio 77

Playing Back 77

Playing different audio and video 79

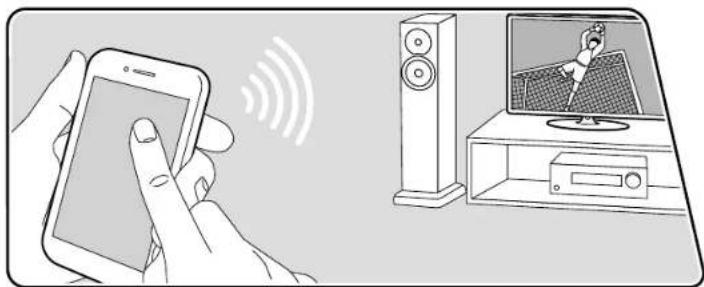

Displaying Your Favorite Video on TV While Playing

Music 79

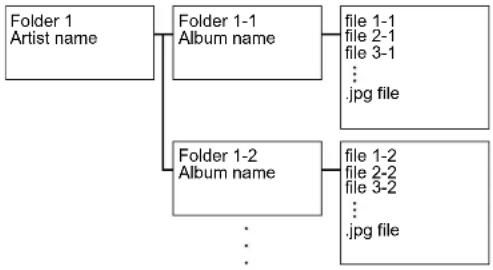

USB Storage Device 80

Supported Audio Formats 80

USB Storage Device Requirements 80

Playing music files saved on a USB storage device 81

Music Server 83

Supported Audio Formats 83

Windows Media® Player 12 settings 83

Playing Back 84

Play Queue 86

Adding Play Queue Information 86

Sort and Delete 86

Playing Back 87

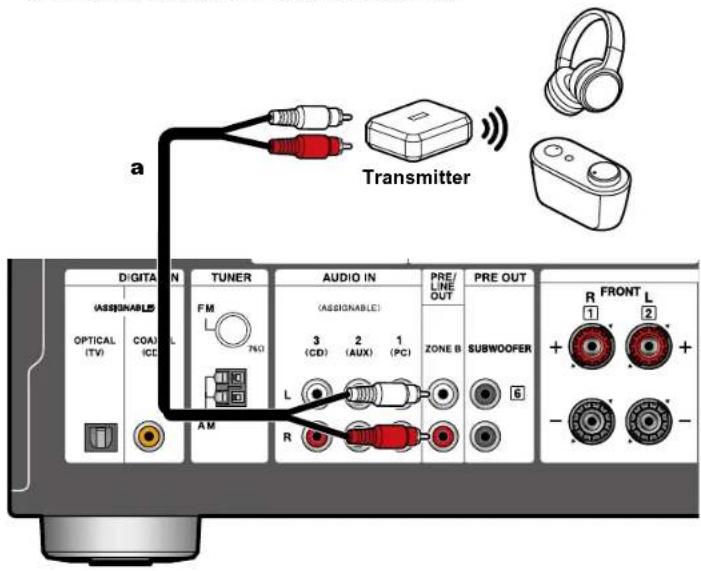

Connecting a transmitter for playback 88

Connections 88

Playing Back 88

Setup

Setup Menu 90

Menu list 90
1. Input/Output Assign 92
2. Speaker 96
3. Audio Adjust 101
4. Source 103
5. Hardware 105
6. Miscellaneous 114

Web Setup 116

Menu operations 116

Initial Setup with Auto Start-up Wizard 117

Operations 117

Onkyo Controller 120

Main features 120

Initial Setup 120

Troubleshooting

When the unit is operating erratically 123

Troubleshooting 124

Appendix

Speaker Layouts and Selectable Listening Modes 136

LISTENING MODE buttons and Selectable Listening Modes 139

Input Formats and Selectable Listening Modes 141

Listening Mode Effects 145

Speaker combinations 150

General Specifications 151

Before starting the procedure

What's in the box

Line drawing of a portable electronic device with front panel and control buttons (no text or symbols)

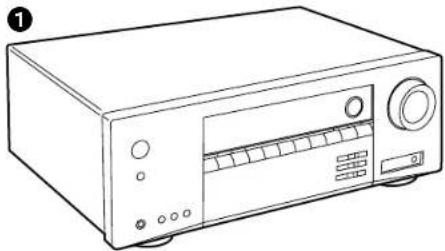

1. Main unit (1)
2. Remote controller (RC-986R) (1), Batteries (AAA/R03) (2)
3. Speaker setup microphone (1)
   • Used during Initial Setup
4. Indoor FM antenna (1)
5. AM loop antenna (1)
6. Initial Setup Guide (1)
   * This is an online user manual. This is not supplied with the product.

Note

• Connect speakers with an impedance of 4 to 16 .
• The power cord must be connected only after all other connections are completed.
• We will not accept any responsibility for damage arising from the connection with equipment manufactured by other companies.
• Network services and content that can be used may no longer be available if new functions are added by updating firmware or the service providers terminate their services. Also, available services may differ depending on your area.
• Details on the firmware update will be posted on our website and through other means at a later date.
• Specifications and appearance are subject to change without prior notice.

Firmware Update

This unit is equipped with a function to update the firmware via network or USB port when the firmware update is announced after purchase. This enables various functions to be added and operations to be improved.

Depending on the manufacturing timing of the product, the firmware may be switched to the updated one. In such a case, new functions may be added from the start. For how to confirm the latest firmware contents and the firmware version of your product, see the following section.

Update Information of the firmware

For the latest firmware contents and the firmware version, visit our company's website. If the firmware version of your product differs from the latest one, it is recommended to update the firmware.

To confirm the firmware version of your product, press the ☐ button on the remote controller, and refer to "6. Miscellaneous" - "Firmware Update" - "Version" (→p115).

Firmware Update Procedure

The update may take approx. 20 minutes to complete via network or via USB port. Existing settings are guaranteed in either updating method. When this unit is connected to the network, notifications of firmware updates may be displayed. To update the firmware, select "Update Now" with the cursor buttons of the remote controller and press ENTER. The unit automatically enters standby mode after "Completed!" is displayed, and the update is completed.

Disclaimer: The program and accompanying online documentation are furnished to you for use at your own risk.

Our company will not be liable and you will have no remedy for damages for any claim of any kind whatsoever concerning your use of the program or the accompanying online documentation, regardless of legal theory, and whether arising in tort or contract.

In no event will our company be liable to you or any third party for any special, indirect, incidental, or consequential damages of any kind, including, but not limited to, compensation, reimbursement or damages on account of the loss of present or prospective profits, loss of data, or for any other reason whatsoever.

Updating the Firmware via Network

• While updating the firmware, do not do the following:
• Disconnecting and reconnecting cables, USB storage device, speaker setup microphone or headphones, or performing operations on the unit such as turning the power off
  – Accessing this unit from a PC or smartphone using their applications
• Check that the unit is turned on, and the connection to the Internet is secured.
• Turn off control devices (PC etc.) connected to the network.
• Stop an Internet radio, USB storage device, or server content being played.
• If "HDMI CEC" is set to "On", set it to "Off".
• Press. Next, select "5. Hardware" - "HDMI" and press ENTER, then select "HDMI CEC" and select "Off".
  * The descriptions may differ from the actual on-screen displays, however, operations and functions are the same.

Update

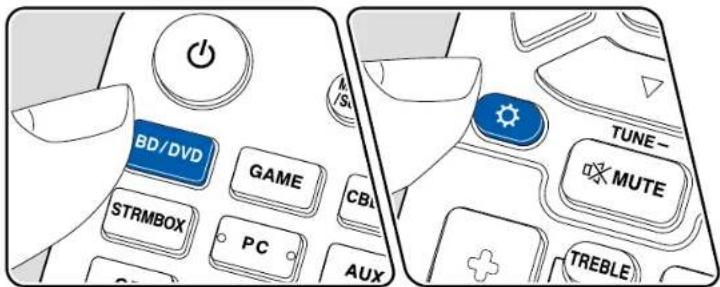

1. Press ⚙

The Setup menu is displayed on the TV screen.

1. Select "6. Miscellaneous" - "Firmware Update" - "Update via NET" with the cursors in order, then press ENTER.

2. If "Firmware Update" is grayed out and cannot be selected, wait for a while until it starts up.

3. If there is no updatable firmware, "Update via NET" cannot be selected.

4. Press ENTER with "Update" selected, and start update.

5. During the update, the TV screen may go black depending on the program to be updated. In such a case, check the progress on the display of the unit. The TV screen will remain black until the update is completed and the power is turned on again.

6. When "Completed!" is displayed, the update is complete.

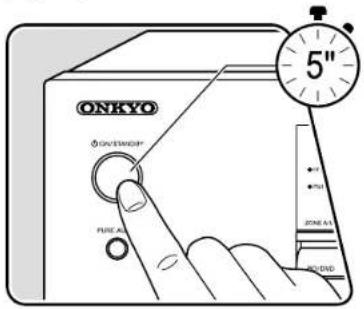

7. Press ON/STANDBY on the main unit to turn the unit into standby mode. The process is completed, and your firmware is updated to the latest version.

8. Do not use on the remote controller.

If an Error Message is Displayed

- If an error occurs, "*-* * Error!" is displayed on the display of the unit. ("*" represents an alphanumeric character.) Refer to the following descriptions

and check.

Error Code

• *-01, *-10: Ethernet cable not found. Connect the Ethernet cable properly.
• *-02, *-03, *-04, *-05, *-06, *-11, *-13, *-14, *-16, *-17, *-18, *-20, *-21;
  Internet connection error. Check the following:

- Whether the router is turned on

- Whether this unit and the router are connected via the network

Unplug and plug the power cords of this unit and the router. This may solve the problem. If you are still unable to connect to the Internet, the DNS server or proxy server may be temporarily down. Check the server operation status with your Internet service provider.

• Others: After removing the power plug once, insert it to the outlet, and then start the operation from the beginning.

Updating via USB

• While updating the firmware, do not do the following:
• Disconnecting and reconnecting cables, USB storage device, speaker setup microphone or headphones, or performing operations on the unit such as turning the power off
• Accessing this unit from a PC or smartphone using their applications
• Prepare a 1 GB or larger USB storage device. The format of USB storage devices supports FAT16 or FAT32 file system format.
  – Media inserted into a USB card reader may not be used for this function.
  – USB storage devices equipped with the security function are not supported.
• USB hubs and USB devices equipped with the hub function are not supported. Do not connect these devices to the unit.
• Delete any data stored on the USB storage device.
• Turn off control devices (PC etc.) connected to the network.
• Stop an Internet radio, USB storage device, or server content being played.
• If "HDMI CEC" is set to "On", set it to "Off".
• Press. Next, select "5. Hardware" - "HDMI" and press ENTER, then select "HDMI CEC" and select "Off".
  * Depending on the USB storage device or its content, long time may be required for loading, the content may not be loaded correctly, or power may not be supplied correctly.
  * Our company will not be liable whatsoever for any loss or damage of data, or storage failure arising from the use of the USB storage device. Please note this in advance.
  * The descriptions may differ from the actual on-screen displays, however, operations and functions are the same.

Update

1. Connect the USB storage device to your PC.

2. Download the firmware file from the our company's website to your PC and unzip.
   Firmware files are named as below.
   ONKAVR****_R****.zip
   Unzip the file on your PC. The number of unzipped files and folders varies depending on the model.

3. Copy all unzipped files and folders to the root folder of the USB storage device.

• Make sure to copy the unzipped files.

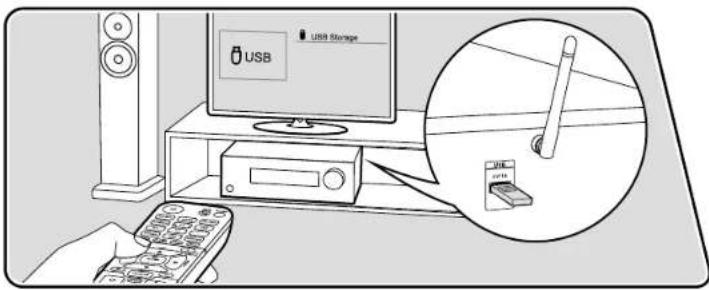

1. Connect the USB storage device to the USB port of this unit.

2. If an AC adapter is supplied with the USB storage device, connect the AC adapter, and use it with a household outlet.

3. If the USB storage device has been partitioned, each section will be treated as an independent device.

4. Press

The Setup menu is displayed on the TV screen.

1. Select "6. Miscellaneous" - "Firmware Update" - "Update via USB" with the cursors in order, then press ENTER.

2. If "Firmware Update" is grayed out and cannot be selected, wait for a while until it starts up.

3. If there is no updatable firmware, "Update via USB" cannot be selected.

4. Press ENTER with "Update" selected, and start update.

5. During the update, the TV screen may go black depending on the program to be updated. In such a case, check the progress on the display of the unit. The TV screen will remain black until the update is completed and the power is turned on again.

6. During the update, do not turn the power off, or disconnect or reconnect the USB storage device.

7. When "Completed!" is displayed, the update is complete.

8. Disconnect the USB storage device from the unit.

9. Press ON/STANDBY on the main unit to turn the unit into standby mode.

The process is completed, and your firmware is updated to the latest version.

- Do not use on the remote controller.

If an Error Message is Displayed

If an error occurs, "*-* * Error!" is displayed on the display of the unit. ("* " represents an alphanumeric character.) Refer to the following descriptions and check.

Error Code

• *-01, *-10:

The USB storage device cannot be recognized. Check if the USB storage device or USB cable is securely inserted to the USB port of the unit.

Connect the USB storage device to an external power source if it has its own power supply.

• *-05, *-13, *-20, *-21:

The firmware file is not present in the root folder of the USB storage device, or the firmware file is for another model. Retry from the download of the firmware file.

- Others:

After removing the power plug once, insert it to the outlet, and then start the operation from the beginning.

Part Names

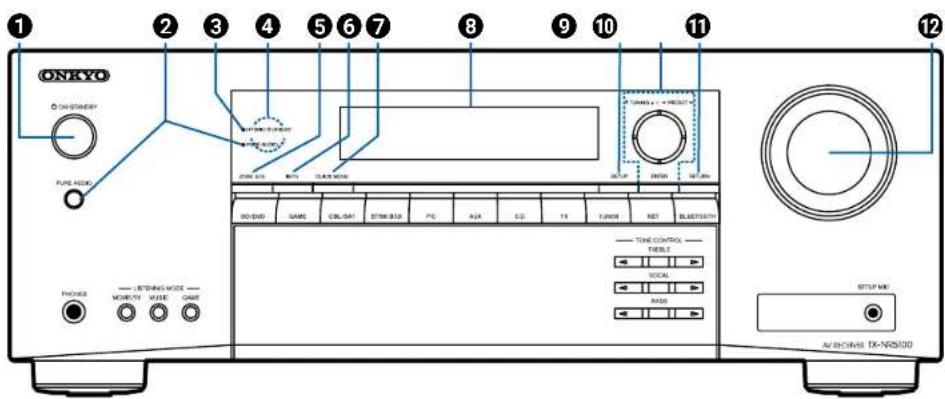

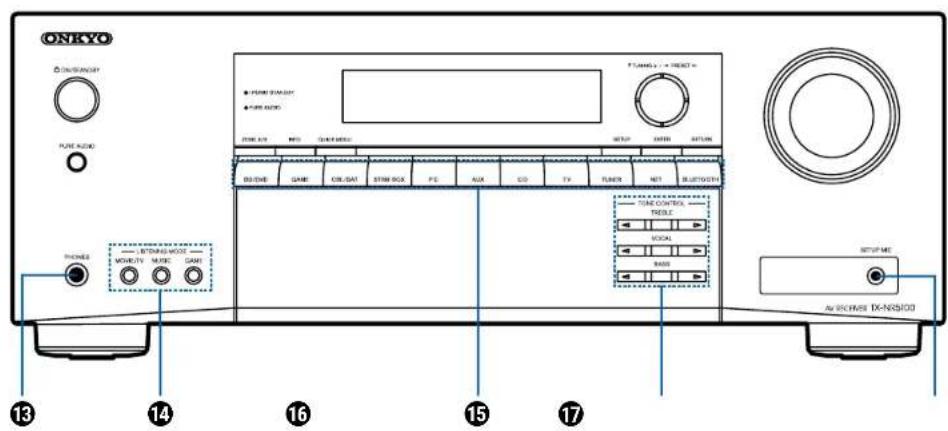

Front Panel

1. ON/STANDBY button

1. PURE AUDIO button/indicator: Switches to the Pure Audio mode. The indicator lights when the mode is on. (→p148)
2. HYBRID STANDBY indicator: Lights up when any of the following functions is working or enabled in standby state of this unit. When this indicator is lighting, the power consumption in standby state increases, however, the increase in power consumption is minimized by entering

the HYBRID STANDBY mode where only the essential circuits operate.

-HDMI CEC (→p105)
- HDMI Standby Through (→p105)
- USB Power Out at Standby (→p112)
- Network Standby (→p112)
- Bluetooth Wakeup (→p113)

1. Remote control sensor: Receives signals from the remote controller.

• The reception range of the remote controller

is within a distance of approx. 16°/5 m, and an angle of 20° in vertical direction and 30° to right and left.

1. ZONE A/B button: Selects an audio output destination. (→p88)
2. INFO button: Switches the information on the display.
3. QUICK MENU button: Pressing this button during playback can make settings such as "HDMI" and "Audio" quickly on the TV screen while playing. (→p64)
4. Display (→p12)
5. SETUP button: You can display advanced setting items on the TV and the display to have a more enjoyable experience with this unit. (→p89)

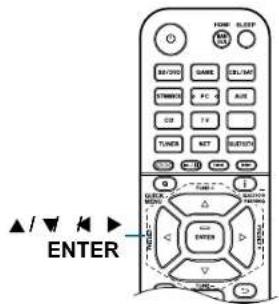

6. Cursor buttons (▲▼/▲and ENTER button: Select an item with the cursors, and press ENTER to confirm your selection. When using TUNER, use them to tune in to stations. (→p59)
7. RETURN button: Returns the display to the previous state while setting
8. MASTER VOLUME

1. PHONES jack: Connect headphones with a standard plug (ø1/4"/6.3 mm).
2. LISTENING MODE button: Switches the listening mode (→p62) by pressing "MOVIE/TV", "MUSIC" and "GAME" repeatedly.

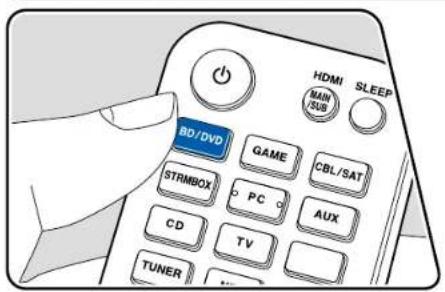

3. Input selector buttons: Switches the input to be played.
4. TONE CONTROL button: Adjusts the sound quality. Press ◀ ▶f "TREBLE", "VOCAL" or "BASS" respectively.

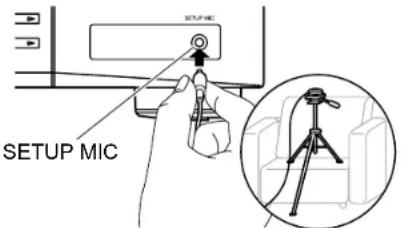

1. SETUP MIC jack: Connect the supplied speaker setup microphone. (→p119)

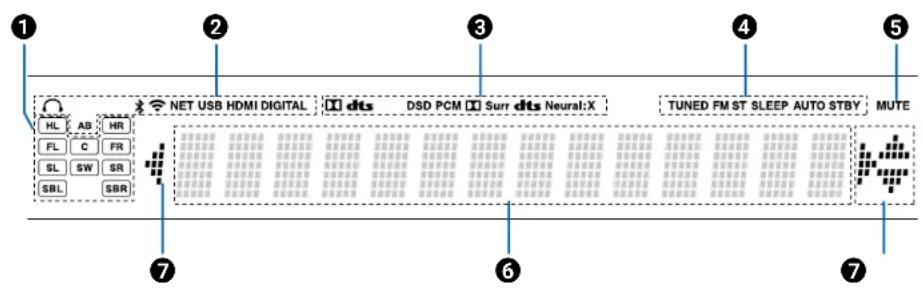

Display

AB: Audio is output to both ZONE A and ZONE B.

1. Lights according to the type of input digital audio signal and the listening mode.

2. Lights in the following conditions.

TUNED: Receiving AM/FM radio.

FM ST: Receiving FM stereo.

SLEEP: Sleep timer is set

AUTO STBY: Auto Standby is set. (→p112)

1. Blinks when muting is on.

2. Displays various information of the input signals.

3. Cursors (▲▼/▲) These may light when performing operations while "NET" is selected with the input selector. ▲light when there are multiple folders or files that are available to be selected. ◀light when text information does not fit with the range provided by "6".

4. Speaker/Channel display: Displays the output channel that corresponds to the selected listening mode.

5. Lights in the following conditions.

○: Headphones are connected.
*: Connected by BLUETOOTH.
: Connected by Wi-Fi.

NET: Lights when connected to the network with the "NET" input selector. It will blink if incorrectly connected to the network.

USB: Lights when the "NET" input selector is selected, a USB device is connected and the USB input is selected. It will blink if the USB device is not properly connected.

HDMI: HDMI signals are input and the HDMI input is selected.

DIGITAL: Digital signals are input and the digital input is selected.

A: Audio is output only to ZONE A.
B: Audio is output only to ZONE B.

Rear Panel

1. Wireless antenna: Used for WI-Fi connection or
   when using a BLUETOOTH enabled device. Adjust the angles according to the connection status.
2. HDMI IN jacks: Transmit video signals and audio signals with an HDMI cable connected to an AV component.
3. ETHERNET port: Connect to the network with an Ethernet cable.
4. USB port: Connect a USB storage device to play music files (→p80). You can also supply power (5 V/1 A) to USB devices with a USB cable.

5. Power cord

6. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals with a digital optical cable or digital coaxial cable.

7. TUNER AM/FM terminal: Connect the supplied antennas.

1. HDMI OUT jacks: Transmit video signals and audio signals with an HDMI cable connected to a monitor such as a TV or projector.

1. AUDIO IN jacks: Input AV component audio signals with an analog audio cable.

2. ZONE B PRE/LINE OUT jacks: Simultaneously output the same audio source as the speakers (ZONE A) connected to this unit by connecting this unit to wireless headphones, wireless speaker transmitter, etc., using an analog audio cable.

3. SUBWOOFER PRE OUT jacks: Connect a powered subwoofer with a subwoofer cable. Up to two powered subwoofers can be connected. The same signal is output from each SUBWOOFER PRE OUT jack.

4. SPEAKERS terminals: Connect speakers with speaker cables. (FRONT L/R terminals support banana plugs. Use a plug 4 mm in diameter. Y plug connection is not supported.)

Remote Controller

1. ⓄN/STANDBY button
2. Input selector buttons: Switches the input to be played.
3. Play buttons: Used for playback operations for the Music Server (→p83) or USB device (→p80). Also, switching to "CEC MODE" with "18. MODE button" allows you to operate an HDMI CEC function-enabled AV component. (Some devices may not be operated.)
4. Q (QUICK MENU) button: Pressing this button during playback allows you to make settings such as "HDMI" and "Audio" quickly on the TV screen while playing. (→p64)
5. Cursor buttons and ENTER button: Select an item with the cursors, and press ENTER to confirm your selection. Pressing ◀ button allows you to switch the screen when a music folder list or file list is not displayed on one screen on the TV.
6. Button: Displays advanced setting items on the TV or the display to have a more enjoyable experience with this unit. (→p89)
7. SLEEP button: You can allow the unit to enter standby automatically when the specified time has elapsed. Select the time from "30 min", "60 min", "90 min" and "Off". When you do not want to turn the unit to standby automatically, select "Off". You can also set this by pressing button and selecting "5. Hardware" - "Power Management" - "Sleep Timer" (→p112) on the Setup menu.
8. HDMI MAIN/SUB button: Select the HDMI OUT jack to output video signals from "MAIN", "SUB", and "MAIN+SUB".
9. i button: Switches the information on the display. Also, when the "BLUETOOTH" input

selector is selected, pressing and holding this button for 5 seconds or more will switch to the pairing mode.

1. ▷ button: Returns the display to the previous state while setting.
2. ✗ MUTE button: Temporarily mutes audio. Press the button again to cancel muting.

Remote Controller

1. TONE buttons: Adjusts the sound quality. Press "TREBLE", "BASS", or "VOCAL" to select what you want to adjust, then adjust with + and -. TREBLE/BASS button: You can adjust the sound quality of the front speakers.

2. Press TREBLE or BASS to select the content to adjust. TREBLE: Enhances or moderates the high-tone range of the front speakers. BASS: Enhances or moderates the low-tone range of the front speakers.

3. Press + or - to adjust.

VOCAL button: Emphasizes movie dialogues and music vocals to listen to them more easily. It is effective to movie lines in particular. Also, it exerts the effect even if the center speaker is not used. Select a desired level from "1" (low) to "5" (high).

1. Press VOCAL.

2. Press + or - to adjust.

- Depending on the input source or listening mode setting, selection is not possible, or the desired effect may not be achieved.

1. LISTENING MODE buttons: Selects a listening mode (→p62, p139).

2. DIMMER button: Switches the brightness of the display with three levels. It cannot be turned off completely.

3. VOLUME buttons

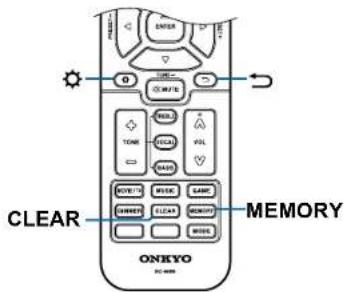

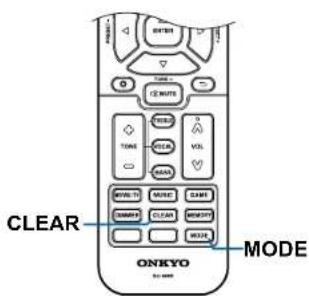

4. CLEAR button: Deletes all characters you have entered when entering text on the TV screen.

5. MEMORY button: Used to register AM/FM radio stations. (→p61)

6. MODE button: Switches between automatic tuning and manual tuning for AM/FM stations (→p59). Also, when an HDMI CEC function-enabled AV component is connected to this unit, you can switch "3. Play buttons" between "CEC MODE" and "RCV MODE" (normal mode).

Inputting Characters

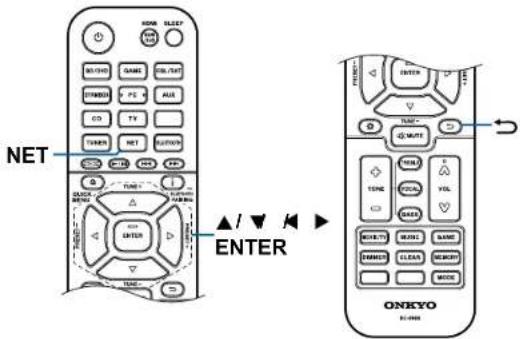

You can input characters or symbols on the keyboard displayed on the TV screen such as when inputting a password for Wi-Fi Setup ( p107) or naming a preset radio station ( p103).

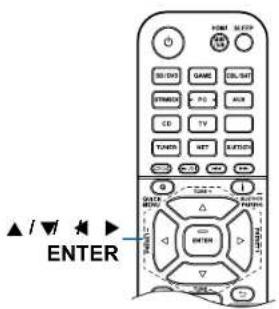

1. Select a character or symbol with the cursors ▲ /▼/ ▶ on the remote controller and press the ENTER button.
2. When saving characters after input, select "OK" and press the ENTER button.

• Select "A/a" to switch between upper and lower cases. (Can also be switched with the MODE button on the remote controller.)
• To enter a space, select "山
• To delete a character on the left of the cursor, select "☒".
• To delete all the input characters, press the CLEAR button on the remote control.

Speaker Layout

This unit can be used in different ways, depending on the layout of the speakers you are installing. Select the speaker layout that suits the installation environment, then confirm the methods for installation and connection.

☐ Speaker layout (→p20)
☐ Speaker Installation (→p25)
☐ Speaker Connections (→p30)
☐ Speaker Combinations (→p150)

The listening room and the speaker layout

1. ZONE A Speakers

The speaker system set up in the main room (where this unit is located).

1. ZONE B Speakers

The 2 ch speaker system set up in a separate room (ZONE B). The same source can be played back in the main room and the separate room simultaneously.

3.1 Channel System

This is a 3.1 Channel System that combines the front speakers with the center speaker and subwoofer.

Basic system (→p26)

Line drawing of a room setup with speakers, TV, and a box (no text or symbols)

3.1 ch + ZONE B ( p26)

3.1 ch (Bi-Amping (Front)) (→p26)

Line drawing of a room setup with speakers, a TV, and a box (no text or symbols)

5.1 Channel System

This is a basic 5.1 Channel System.

Basic system (→p26)

Line drawing of a room setup with speakers, TV, and seating (no text or symbols)

5.1 ch + ZONE B (→p26)

5.1 ch (Bi-Amping (Front)) (→p26)

Line drawing of a room setup with speakers, a TV, and a box (no text or symbols)

7.1 Channel System This is a 7.1 Channel System that consists of the basic 5.1 Channel System and added surround back speakers.

Basic system (→p27)

Line drawing of a room setup with speakers, TV, and lighting fixtures (no text or symbols)

3.1.2 Channel System

A Speaker System that is a 3.1 Channel System with one set of height speakers added.

3.1.2 ch (Front High or Rear High) (→p28)

Line drawing of a room setup with a TV, speakers, and speakers mounted on the wall (no text or symbols)

3.1.2 ch (Top Front or Top Middle or Top Rear)

Simple line drawing of a person relaxing in a room with ceiling lights and a vertical post (no text or symbols)

3.1.2 ch (Dolby Enabled Speakers (Front))

Line drawing of a room setup with speakers, TV, and a sofa (no text or symbols)

3.1.2 ch + ZONE B ( p28)

3.1.2 ch (Bi-Amping (Front)) (→p28)

Line drawing of a room with speakers, a TV, and a sofa (no text or symbols)

5.1.2 Channel System A Speaker System that is a 5.1 Channel System with one set of height speakers added.

5.1.2 ch (Front High or Rear High) (→p29)

Line drawing of a modern living room with speakers, TV, and furniture (no text or symbols)

5.1.2 ch (Top Front or Top Middle or Top Rear) (→p29)

Line drawing of a person relaxing in a room with ceiling lights and a small device (no text or symbols)

5.1.2 ch (Dolby Enabled Speakers (Front or Surround)) (→p29)

Line drawing of a room setup with speakers, TV, and a box (no text or symbols)

Speaker Installation

Speaker Installation

How the speakers are set up depends on the size and shape of the room, so here we introduce just a basic layout example.

The alphabetic symbols used in this chapter represent the following speakers:

FL Front speaker Left

FR Front speaker Right

C Center speaker

SW powered SubWoofer

SL Surround speaker Left

SR Surround speaker Right

SBL Surround Back speaker Left

SBR Surround Back speaker Right

FHL Front High speaker Left

FHR Front High speaker Right

RHL Rear High speaker Left

RHR Rear High speaker Right

TFL Top Front speaker Left

TFR Top Front speaker Right

TML Top Middle speaker Left

TMR Top Middle speaker Right

TRL Top Rear speaker Left

TRR Top Rear speaker Right

DFL Dolby enabled speaker Front Left

DFR Dolby enabled speaker Front Right

DSL Dolby enabled speaker Surround Left

DSR Dolby enabled speaker Surround Right

3.1ch

5.1ch

7.1c h

3.12ch

5.12ch

3.1 Channel System

a: 22^ to 30^

FL, FR Place the Left and Right Front Speakers to match ear height.
C The center speaker should be set up facing the listening position at an angle.
SW Place the powered subwoofer between the center speaker and a front speaker.

Speaker Installation

5.1 Channel System

FL, FR Place the Left and Right Front Speakers to match ear height.
C The center speaker should be set up facing the listening position at an angle.
SW Place the powered subwoofer between the center speaker and a front speaker.
SL, SR Place the Left and Right Surround Speakers to be just above ear height.

3.1 ch connection (→p33)
3.1 ch + ZONE B connection (→p34)
3.1 ch (Bi-Amping (Front)) connection (→p35)

5.1 ch connection (→p36)
5.1 ch + ZONE B connection (→p37)
5.1 ch (Bi-Amping (Front)) connection (→p38)

Speaker Installation

7.1 Channel System

FL, FR Place the Left and Right Front Speakers to match ear height.

C The center speaker should be set up facing the listening position at an angle.

SW Place the powered subwoofer between the center speaker and a front speaker.

SL, SR Place the Left and Right Surround Speakers to be just above ear height.

SBL, SBR Place the Left and Right Surround Back Speakers at ear height.

- If surround back speakers are installed, be sure to install surround speakers as well.

7.1 ch connection (→p39)

3.1.2 Channel System

High Speakers

FHL, FHR Place the front high speakers directly above the front speakers, angled to face the listening position.
RHL, RHR Place the rear high speakers so the lateral distance matches the front speakers, angled to face the listening position.

3.1.2 ch connection (→p40)

3.1.2 ch + ZONE B connection (→p41)

3.1.2 ch (Bi-Amping (Front)) connection (→p42)

Speaker Installation

Top Speakers

TFL, TFR Fit top front speakers on the ceiling in front of the listening position.
TML, TMR Fit top middle speakers on the ceiling directly above the listening position.
TRL, TRR Fit top rear speakers on the ceiling behind the listening position.

- Match the lateral distance of the top speakers to the front speakers.

Dolby Enabled Speakers

DFL, DFR The Dolby enabled speakers (front) are installed on top of the front speakers.

5.1.2 Channel System

High Speakers

FHL, FHR Place the front high speakers directly above the front speakers, angled to face the listening position.
RHL, RHR Place the rear high speakers so the lateral distance matches the front speakers, angled to face the listening position.

5.1.2 ch connection (→p43)

Speaker Installation

Top Speakers

TFL, TFR Fit top front speakers on the ceiling in front of the listening position. TML, TMR Fit top middle speakers on the ceiling directly above the listening position.
TRL, TRR Fit top rear speakers on the ceiling behind the listening position. - Match the lateral distance of the top speakers to the front speakers.

Dolby Enabled Speakers

DFL, DFR The Dolby enabled speakers (front) are installed on top of the front speakers.
DSL, DSR The Dolby enabled speakers (surround) are installed on top of the surround speakers.

Speaker Connections

Speaker Connections

(Before starting the procedure)

Speakers you can use with this unit and cable connections

31

3.1 Channel System 33, 34, 35
5.1 Channel System 36, 37, 38
7.1 Channel System 39
3.1.2 Channel System 40, 41, 42
5.1.2 Channel System 43

Speakers you can use with this unit and cable connections

Connections

■ (Note) Speaker Impedance

Connect speakers with an impedance of 4 Ω to 16 Ω. If any of the speakers to be connected has an impedance of 4 Ω or more and less than 6 Ω, set "Speaker Impedance" to "4ohms" for "Speaker Setup" in the Initial Setup section (→p117). When setting "Speaker Impedance" from the Setup menu, press ⚙ on the remote controller, and set "2. Speaker" - "Configuration" - "Speaker Impedance" (→p96) to "4ohms".

■ Connect the Speaker Cables

Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass sound will not be reproduced properly due to reverse phase. Twist the wires exposed from the tip of the speaker cable so that the wires do not stick out of the speaker terminal when connecting. If the exposed wires touch the rear panel, or the + side and - side wires touch each other, a malfunction may occur.

Speaker Connections

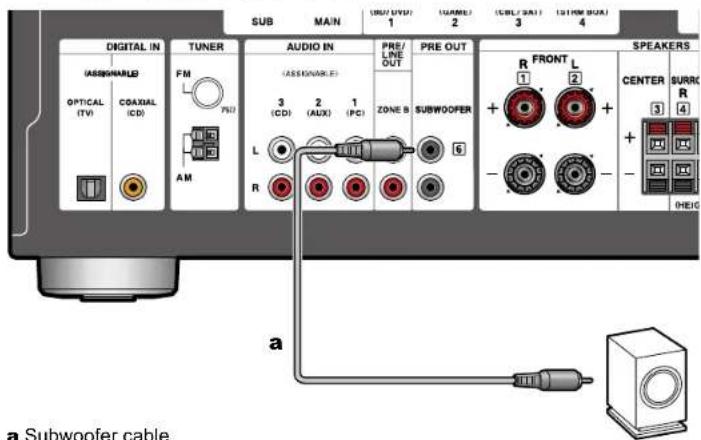

■ Connect the Subwoofer

a Subwoofer cable

Connect a powered subwoofer with this unit using a subwoofer cable. Up to two powered subwoofers can be connected. The same signal is output from each SUBWOOFER PRE OUT jack.

Speaker Connections

3.1 Channel System

Speaker Connections

■ 3.1 Channel System + ZONE B SPEAKER

MAIN ROOM

ZONE B

SWFRFLFR(ZB)FL(ZB)C

Speaker Connections

■ 3.1 Channel System (Bi-Amping the Speakers)

Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of your speakers as well.

Speaker Connections

5.1 Channel System

Speaker Connections

5.1 Channel System + ZONE B SPEAKER

MAIN ROOM

ZONE B

Speaker Connections

5.1 Channel System (Bi-Amping the Speakers)

Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of your speakers as well.

Speaker Connections

7.1 Channel System

Speaker Connections

3.1.2 Channel System

*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).

Speaker Connections

■ 3.1.2 Channel System + ZONE B SPEAKER

MAIN ROOM

ZONE B

*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).

Speaker Connections

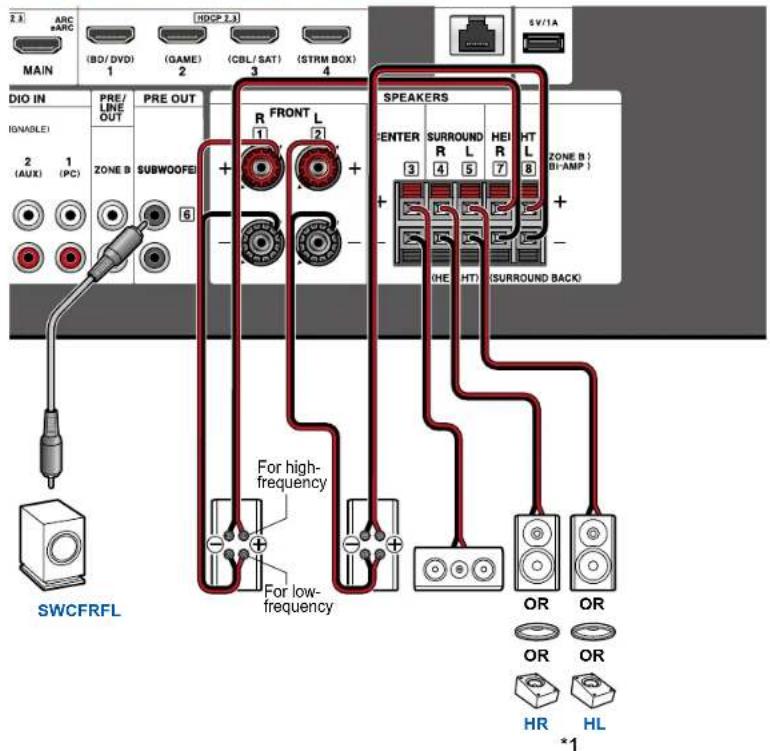

■ 3.1.2 Channel System (Bi-Amping the Speakers)

Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of your speakers as well.

*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).

Speaker Connections

5.1.2 Channel System

*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).

Connections

Notes regarding connections with HDMI cables 45

Connecting the TV 46

Connecting the SUB Monitor 47

Connecting Playback Devices 48

Connecting an AV Component in a Separate Room (ZONE B connection) 50

Connecting Antennas 51

Network Connection 52

Connecting the Power Cord 53

Notes regarding connections with HDMI cables

HDMI (High-Definition Multimedia Interface) is a digital interface standard for connecting TVs, projectors, Blu-ray Disc players, game consoles, and other video components. With HDMI, a single cable can carry control signals, digital video, and digital audio.

Connections

Push HDMI cables straight in and all the way. You can damage the terminals if you try to insert at an angle.

- Hold the terminal housing on the HDMI cable when unplugging. Pulling on the cable may lead to damaged cabling.

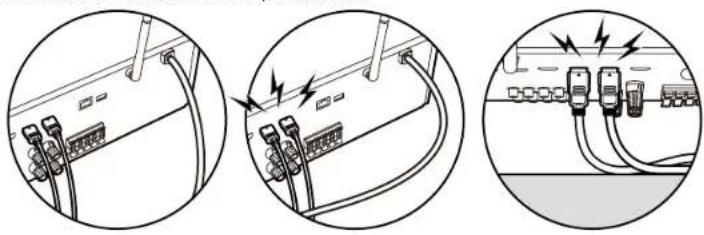

■ (Note) Placement of cables

Putting a load on HDMI cables can lead to poor operational performance. Place the cables so there is no load put on them.

Right Wrong Wrong

• When 4K high-quality video (4K 60Hz, 4K HDR, etc.) is to be played, use Premium High Speed HDMI Cable or Premium High Speed HDMI Cable with Ethernet that have the "PREMIUM Certified Cable" label attached to the packaging.
• When 8K high-quality video (8K 60Hz, etc.) is to be played, use ULTRA High Speed HDMI Cable that has the "ULTRA HIGH SPEED" label attached to the packaging.

Connecting the TV

By connecting a TV to this unit, you can show the video from AV devices connected to this unit on the TV and also play the sound from the TV through this unit.

To ARC/eARC TV

If the TV supports the ARC (Audio Return Channel) function(*), use only the HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of the TV for connection. You connect the HDMI cable to the HDMI OUT MAIN jack labeled "ARC" on the receiver side.

- When a TV compatible with the eARC function is connected, use an HDMI cable that supports Ethernet.

To Non-ARC TV

If the TV does not support the ARC (Audio Return Channel) function(*), connect an HDMI cable and digital optical cable.

- If you use a cable set-top box, etc. connected to the input jack of this unit to watch TV (without using a built-in tuner of the TV), connection with a digital optical cable is not required.

Setup

- When not using the ARC function, press on the remote controller, then set "5. Hardware" - "HDMI" - "Audio Return Channel (eARC supported)" (→p106) to "Off".

(*)The ARC function and eARC function transmit the audio signals of the TV via an HDMI cable, and plays the audio of the TV on this unit. To check if the TV supports the ARC function and eARC function, refer to the instruction manual of the TV, etc.

ARC/eARC compatible audio formats (→p153)

- Settings are required when 4K or 8K high-quality video is to be played. Refer to "HDMI 4K/8K Signal Format" (→p93) for information on the settings. Also, use an HDMI cable that supports 4K or 8K video.

a HDMI cable, b Digital optical cable

Connecting the SUB Monitor

SUB Monitor

This unit has multiple HDMI OUT jacks, and another TV or projector can be connected to the HDMI OUT SUB jack.

• Switch between MAIN and SUB using the HDMI MAIN/SUB button on the remote controller (→p15) or "Quick Menu" (→p64). Note that this jack is not ARC-compatible.
• If devices with different resolutions are connected to HDMI OUT MAIN jack and SUB jack, images are output with the lower resolution.

a HDMI cable

Connecting Playback Devices

Connecting an AV Component with HDMI Jack

This is a connection example of an AV component equipped with an HDMI jack. When connecting with an AV component that conforms to the CEC (Consumer Electronics Control) standard, you can use the HDMI CEC function (*) that enables linking with input selectors, etc. and the HDMI Standby Through function that can transmit video and audio signals of the AV component to the TV even if this unit is in standby mode.

• Settings are required when 4K or 8K high-quality video is to be played. Refer to "HDMI 4K/8K Signal Format" (→p93) for information on the settings. Also, use an HDMI cable that supports 4K or 8K video.
• The corresponding resolution is different depending on the HDMI jack connected. See "Supported input resolutions" (→p154) for details.
• To enjoy digital surround sound including Dolby Digital, set the audio output of the connected Blu-ray Disc player etc. to the Bitstream output.

(*)The HDMI CEC function: This function enables various linking operations with CEC-compliant devices, such as switching input selectors interlocking with a CEC-compliant player, switching audio output between TV and this unit or adjusting the volume using the remote controller of a CEC-compliant TV, and automatically switching this unit to standby when the TV is turned off.

a HDMI cable

Connecting an Audio Component

This is an example of connection with an audio component. Connect a CD player using a digital coaxial cable or analog audio cable.

a Analog audio cable, b Digital coaxial cable

Connecting an AV Component in a Separate Room (ZONE B connection)

Connecting an Integrated Amplifier (ZONE B)

While performing playback in the main room (where this unit is located), you can enjoy 2-ch audio of the same source in the separate room (ZONE B) at the same time. Use an analog audio cable to connect the ZONE B PRE/LINE OUT jack of this unit to the LINE IN jack of the integrated amplifier or power amplifier in the separate room.

Setup

- When connecting the power amplifier, set "Zone B Output Level" to "Variable" for "Speaker Setup" in the Initial Setup section (→p117). When setting "Zone B Output Level" from the Setup menu, press ☑ on the remote controller, and set "2. Speaker" - "Configuration" - "Zone B Output Level" (→p96) to "Variable". If it is not set, a large volume is output and the power amplifier, speakers, etc. may be damaged.

a Analog audio cable

Connecting Antennas

Connect the antenna to this unit, and set up the antenna at the best position for listening while receiving radio signals. Attach the indoor FM antenna to the wall using push pins or adhesive tape.

a AM loop antenna, b Indoor FM antenna

Connections

Network Connection

This unit can be connected to the network using a wired LAN or Wi-Fi (wireless LAN). You can enjoy network functions such as Internet radio by network connection. If connection is made by the wired LAN, connect the router and the ETHERNET jack with the Ethernet cable as shown in the illustration. To connect by Wi-Fi, select your desired setting method in "Network Connection" (→p118) of Initial Setup, and then follow the on-screen instructions. To configure the setting on the Setup menu after the completion of Initial Setup, press the ⚙ button on the remote controller, and select "5. Hardware" - "Network" to make the setting (→p107). For the Wi-Fi connection, stand the wireless antenna for use.

a Ethernet cable

Connections

Connecting the Power Cord

Connect the power cord after all the connections are completed.

a Power cord

Playback

Basic Operations

Playing audio from an externally connected device 55

BLUETOOTH® Playback 56

Listening To the Radio 59

Listening Mode 62

Quick Menu 64

Network Service

Spotify 66

AirPlay® 67

DTS Play-Fi® 69

Amazon Alexa 70

Amazon Music 72

Connecting the Sonos System for Playback 75

Internet Radio 77

Convenience functions

Playing different audio and video 79

USB Storage Device 80

Music Server 83

Play Queue 86

Connecting a transmitter for playback 88

Playing audio from an externally connected device

You can play the audio from AV components, such as Blu-ray disc players through this unit.

- When a TV is connected to the HDMI OUT SUB jack, use the HDMI MAIN/SUB button or "Quick Menu" (→p64) to switch between MAIN and SUB.

Basic Operations

Perform the following procedure when this unit is on.

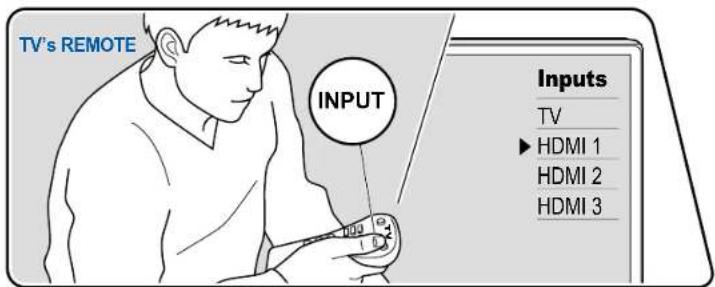

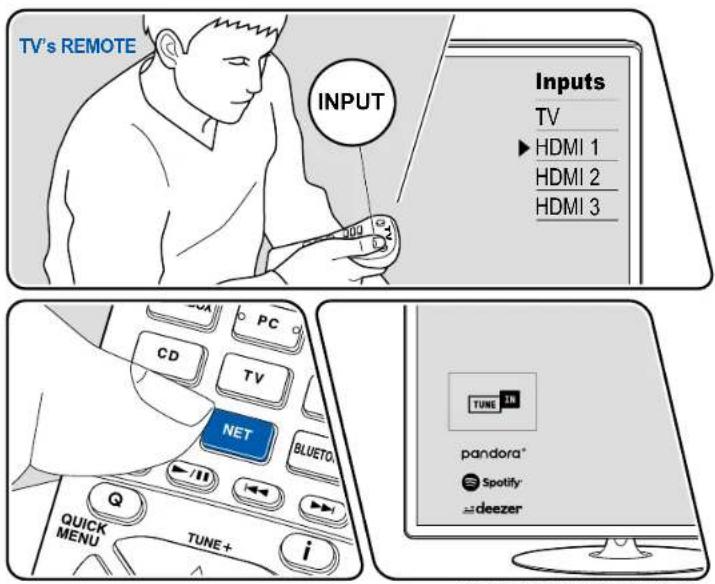

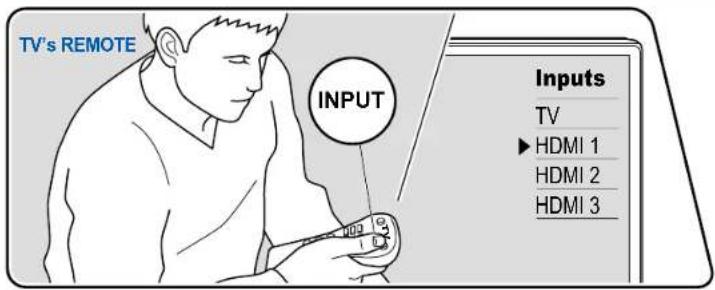

1. Switch the input on the TV to the input connected to the unit.
2. Press the input selector whose name is the same as that of the jack to which the player is connected.

For example, press BD/DVD to play the player connected to the BD/DVD jack. Press TV to listen to the sound of the TV.

- When the CEC link function works, the input switches automatically when a CEC compliant TV or player is connected to this unit using HDMI connection.

1. Start play on the AV component.

BLUETOOTH® Playback

You can wirelessly play music on a smartphone or other BLUETOOTH wireless technology enabled device through the speakers connected to this unit. It is also possible to transmit the audio from this unit to BLUETOOTH enabled headphones, wireless speakers, etc.

Playing audio from BLUETOOTH wireless technology enabled devices with this unit

Illustration of a hand holding a smartphone with wireless signal waves next to a wireless router (no text or symbols)

The illustration shows an image.

Perform the following procedure when this unit is on.

Pairing

1. When you press the BLUETOOTH button, "Now Pairing..." appears on the display, and the pairing mode is enabled.

Now Pairing...

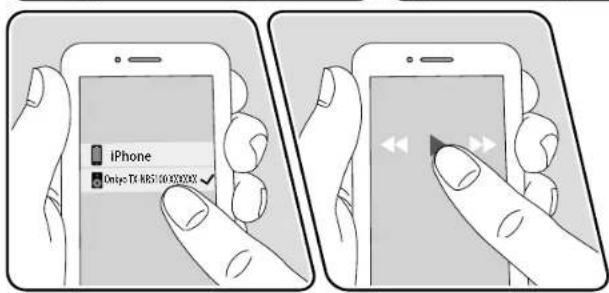

1. Enable (turn on) the BLUETOOTH function of the BLUETOOTH enabled device, and then select this unit from among the devices displayed. If a password is requested, enter "0000".

2. This unit is displayed as "Onkyo TX-NR5100 XXXXXX". This display can be changed using the Friendly Name function (→p108) or Onkyo Controller (→p120) (available on iOS or Android™).

3. To connect another BLUETOOTH enabled device, press and hold the i button at least 5 seconds, and then perform step 2. This unit can store the pairing information of up to 8 paired devices.
4. The coverage area is approx. 48'/15 m. Note that connection is not always guaranteed with all BLUETOOTH enabled devices.

Playing Back

1. Perform the connection procedure on the BLUETOOTH enabled device.
2. Playing the music file.

The input on this unit automatically switches to "BLUETOOTH". Turn up the volume of the BLUETOOTH enabled device to an appropriate level.

- Due to the characteristics of BLUETOOTH wireless technology, the sound produced on this unit may slightly be behind the sound played on the BLUETOOTH enabled device.

Transmitting audio from this unit to BLUETOOTH wireless technology enabled devices

Illustration of a router connected to a person wearing headphones, with sound waves shown (no text or symbols)

The illustration shows an image.

Pairing

1. Press the input selector you want to play.
2. Select a source other than "BLUETOOTH". This function does not work if you select "BLUETOOTH".
3. Press the 🔊 button on the remote controller, select "5. Hardware" - "Bluetooth" - "Bluetooth Transmitter", and press the ENTER button.
4. Select "On" for "Bluetooth Transmitter". • If you select "On (Tx)", playback is from the Bluetooth wireless technology enabled device only, and if you select "On (Main + Tx)", playback is from both the Bluetooth wireless technology enabled device and the main unit.

1. In "Search Devices", press ENTER.
2. The search starts for BLUETOOTH wireless technology enabled devices that are able to receive, then a list of relevant devices is displayed.
3. Select the device you want to output the audio from, and when you press ENTER the message "Now Pairing..." is displayed and the two are paired. • Depending on the BLUETOOTH wireless technology enabled device, you may need to pair manually. If the device name does not appear in the list, check the settings of the BLUETOOTH wireless technology enabled device.

Playing Back

1. Do the play operations on the AV component connected to this unit. Do the play operations on this unit when the input is TUNER or NET.

- If "Variable" has been selected for the "Output Level", the volume can be adjusted on this unit. Adjust to a suitable volume on the connected Bluetooth wireless technology enabled device beforehand. If "Fixed" is selected, adjust the volume on the Bluetooth wireless technology enabled device.

- You cannot transmit audio to multiple BLUETOOTH wireless technology enabled devices from this unit.

- The coverage area is approx. 48'/15 m. Note that connection is not always guaranteed with all BLUETOOTH enabled devices.

- When "Bluetooth Transmitter" is "On (Tx)" or "On (Main + Tx)" and in the following cases, when this unit detects a paired Bluetooth wireless technology enabled device, it will automatically reconnect with that device.

- While other than "BLUETOOTH" is selected

- When the "NET" input is selected and there is audio output from a network service/content (some services excluded)

When not using this function, select "Off" in "Bluetooth Transmitter" to cancel the connection. Also disconnect on the receiving device (if disconnection is possible on the receiving device).

- Audio cannot be output from a BLUETOOTH wireless technology enabled device in the following cases:

- When the audio file is DSD format

- When playing audio from one of the following network services: Chromecast built-in, Amazon Alexa, AirPlay, DTS Play-Fi

- Sound quality adjustments and listening modes of this unit cannot be applied to the output audio.

Listening To the Radio

You can receive AM/FM radio stations on this unit with the built-in tuner.

Listening To the AM/FM Radio

Tuning into a Radio Station

Perform the following procedure when this unit is on.

■ Tuning Automatically

1. Press TUNER repeatedly to select either "AM" or "FM".
2. Press MODE repeatedly to display "TunMode: Auto" on the display.

TunMode: Auto

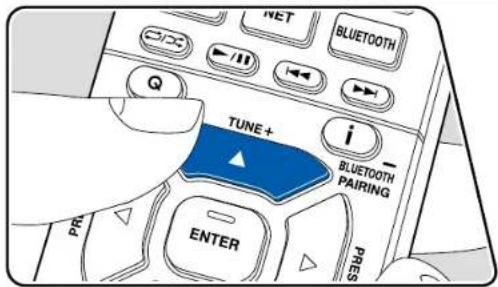

1. When you press the cursors ▲, automatic tuning starts, and searching stops when a station is found. When tuned in to a radio station, the "TUNED" indicator on the display lights up. When tuned in to an FM radio station, the "FM ST" indicator lights up.

When FM broadcasts reception is poor: Perform the procedure for "Tuning Manually" (→p60). Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.

■ Tuning Manually

Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.

1. Press TUNER repeatedly to select either "AM" or "FM".
2. Press MODE repeatedly to display "TunMode: Manual" on the display.

TunMode:Manual

1. While pressing the cursors ▼, select the desired radio station.

- Each time you press the cursors ▲, the frequency changes by 1 step. If the button is held down, the frequency changes continuously, and if the button is released, the frequency stops changing.

■ Frequency step setting

Press ⚙ and using the cursors and ENTER, select "6. Miscellaneous" - "Tuner" - "AM/FM Frequency Step", and then select the frequency step for your area.

☐ Presetting a Radio Station (→p61)

Presetting a Radio Station

Playback

■ Registration Procedure

You can preset up to 40 of your favorite radio stations.

After tuning in to the radio station you want to register, perform the following procedure.

1. Press MEMORY so that the preset number on the display blinks.

FM 87.5 MHz

1. While the preset number is blinking (approx. 8 seconds), repeatedly press the cursors ◀ to select a number between 1 and 40.

2. Press MEMORY again to register the station. When the station is registered, the preset number stops flashing. Repeat this procedure for all of your favorite radio stations.

■ Selecting a Preset Radio Station

1. Press TUNER.
2. Press the cursors ◀ to select a preset number.

■ Deleting a Preset Radio Station

1. Press TUNER.
2. Press the cursors ◀ to select the preset number to delete.
3. After pressing MEMORY, press CLEAR while the preset number is blinking, and delete the preset number. When deleted, the number on the display disappears.

Listening Mode

This unit is equipped with a variety of listening modes, and you can select the optimum listening mode for movies, TV, music, and games by pressing MOVIE/TV, MUSIC, and GAME. (→p139)

• For details of the effects of each listening mode, refer to "Listening Mode Effects" (→p145).
• For listening modes selectable for each audio format of input signals, refer to "Input Formats and Selectable Listening Modes" (→p141).

Selecting a Listening mode

1. Press one from among MOVIE/TV, MUSIC, and GAME during playback.
2. Press the selected button repeatedly to switch the modes displayed on the display of the main unit.

DTS

- Each of MOVIE/TV, MUSIC and GAME buttons stores the listening mode that was selected last. If content incompatible of the listening mode selected last is played, the most standard listening mode for the content is automatically selected.

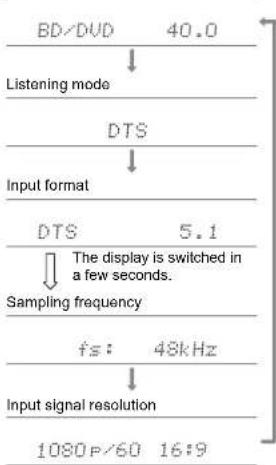

Checking the input format and listening mode

Repeatedly pressing the button on the remote controller switches the display of the main unit in the following order.

• The content displayed depends on the source, BLUETOOTH, etc., being played.
• Not all the information is necessarily displayed.

Input source and volume

Quick Menu

Menu operations

You can quickly adjust the settings you frequently use, such as tone adjustments, etc.

You can make the settings on the TV screen during playback. Press Q on the remote controller to display the Quick Menu.

Select the item with the cursors ▲ of the remote controller, and press the ENTER button to confirm your selection.

Use the cursors to change the settings.

• To return to the previous screen, press ↩

• To exit the settings, press Q.

HDMI

HDMI Out: Select the HDMI OUT jack to output video signals from "MAIN", "SUB", and "MAIN+SUB".

A/V Sync: If the video is behind the audio, you can delay the audio to offset the gap. The setting can be set for each input.

- It cannot be set if the listening mode is Pure Audio or Direct.

Audio Return Channel: You can enjoy the sound of the HDMI-connected ARC-compatible TV through the speakers connected to the unit. Select "On" when listening to the audio of TV using the speakers of this unit. Select "Off" when the ARC function is not used.

Audio

Music Optimizer: Improve the quality of the compressed audio. Playback sound of lossy compressed files such as MP3 will be improved. The setting can be set for each input. This works in signals whose sampling frequencies are 48kHz or less. The setting is not effective in the bitstream signals.

- It cannot be set if the listening mode is Pure Audio or Direct.

Late Night: Enable small sounds to be easily heard in detail. It is useful when you need to reduce the volume while watching a movie late night.

- This function cannot be used in the following cases.

- When playing Dolby Digital Plus or Dolby TrueHD with "Loudness Management" set to "Off"

- When the input signal is DTS:X, and "Dialog Control" is not 0 dB

- When the input signal is Analog/DSD and the listening mode is Pure Audio or Direct

Zone B: Select a method of outputting audio to ZONE B from among "Off", "On (A+B)" and "On (B)".

Digital Filter: You can switch the type of digital filter in the AUDIO DAC (digital analog converter). You can choose "Slow" (gives the sound a soft and fluid feel), "Sharp" (gives the sound more structure and firmer feel) or "Auto" (auto). The setting can be separately set to each input selector. This can be set when the sampling frequency is 44.1 kHz or more.

RoomEQ

It cannot be set if the listening mode is Pure Audio or Direct.

AccuEQ: Enable or disable the equalizer function that corrects for sound distortion caused by the acoustic environment of the room. On (All Ch): EQ that corrects according to the room acoustics acquired with the AccuEQ calibration is applied to all channels.

On (ex. L/R): The same EQ as "On (All Ch)" is applied to speakers other than the Front Speakers. EQ correction for the Front Speakers is turned off.

- The setting can be separately set to each input selector.

Manual Equalizer: Select "Preset 1" to "Preset 3" configured in "2. Speaker" - "Equalizer Settings" on the Setup menu. When this is set to "Off", the same sound field setting is applied to all ranges.

Cinema Filter: Adjusts the soundtrack with the enhanced high range so that it suits a home theater.

In this function, the following listening modes can be used: Dolby Audio - DD, Dolby Audio - DD+, Dolby Audio - Surr, Dolby Audio - TrueHD, Multichannel, DTS, DTS-ES, DTS 96/24, DTS-HD High Resolution, DTS-HD Master Audio, DTS Neural:X, DTS Express and DSD

Level

Front: Adjust the speaker level of the front speakers while listening to the sound.

Center: Adjust the speaker level of the center speaker while listening to the sound.

Subwoofer: Adjust the speaker level of the subwoofer while listening to the sound.

- If you set the unit to the standby mode, the adjustments you made will be restored to the previous statuses.

Playback

Spotify

Spotify

Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.

AirPlay®

By connecting this unit to the same network as that of iOS devices such as iPhone ^ , iPod touch ^ and iPad ^ , you can enjoy music files on iOS devices wirelessly.

- Update the OS version on your iOS device to the latest version.

- Depending on the iOS version, operation screens or operation procedures on the iOS device may be different. For details, refer to the operating instructions for the iOS device.

Basic Operations

e.g., iOS 10

1. Connect the iOS device to the access point where this unit is connected via network.
2. Tap the AirPlay icon in the play screen of the music app on an iOS device that supports AirPlay and select this unit from the list of devices displayed.
3. Play the music file on the iOS device.
4. When "5. Hardware" - "Power Management" - "Network Standby" is set to "Off" in the Setup menu, turn this unit on manually, and press the NET button on the remote controller. In the factory default setting, the Network Standby function (→p112) is set to On.
5. Due to the characteristics of AirPlay wireless technology, the sound produced on this unit may slightly be behind the sound played on the AirPlay-enabled device.

You can also play the music files on a PC with iTunes (Ver. 10.2 or later) equipped. Confirm that this unit and the PC are connected to the same network beforehand. Then, press NET on the remote controller. Next, click the AirPlay icon 🔒 in iTunes, select this unit from the displayed devices, and start play of a music file.

Playing Back on multiple devices (AirPlay2)

e.g., iOS 11.4

This unit supports AirPlay2. If the version of the iOS device is iOS11.4 or later, you can play the tracks on the iOS device simultaneously on this device and on another device that supports AirPlay2.

1. Connect the iOS device to the access point where this unit is connected via network.

2. Tap the AirPlay icon ☑ on the play screen of the music play application on the iOS device, and select this unit and AirPlay2-supported devices to play from the displayed devices.

3. AirPlay2-supported devices are displayed with white circle on the right side.

4. Multiple AirPlay2-supported devices can be selected.
   • The volume can be adjusted on individual devices.

5. Play the music file on the iOS device.

6. When "5. Hardware" - "Power Management" - "Network Standby" is set to "Off" in the Setup menu, turn this unit on manually, and press the NET button on the remote controller. In the factory default setting, the Network Standby function (→p112) is set to On.

7. Due to the characteristics of AirPlay wireless technology, the sound produced on this unit may slightly be behind the sound played on the AirPlay-enabled device.

You can also play the music files on a PC with iTunes (Ver. 12.8 or later) equipped. Confirm that this unit and the PC are connected to the same network beforehand. Then, press NET on the remote controller. Next, click the AirPlay icon 🔒 in iTunes, select this unit and AirPlay2-supported devices to play from the displayed devices, and start play of a music file.

DTS Play-Fi®

https://play-fi.com/

When connecting this unit to the same network as mobile devices, such as a smartphone and tablet, you can enjoy music played on the mobile device wirelessly. Music from a streaming distribution service or music in the music library on a mobile device can be played. This function also supports a playlist on iTunes. Also, connecting multiple speakers supporting DTS Play-Fi on the same network will enable "Group playback" that plays the same music in separate rooms at home. To enjoy this function, download Onkyo Music Control App (available on iOS or Android™).

Playing Back

1. Download Onkyo Music Control App using your mobile device. https://www.onkyo.com/playfi/app_o.html

1. Connect the mobile device to the network where this unit is connected.
2. Starting up Onkyo Music Control App will automatically display compatible devices.

3. Select this device from the compatible devices. Then, a list of applications such as a music streaming distribution service is displayed. Select the content to play, and perform operation according to the on-screen instructions.

4. When "5. Hardware" - "Power Management" - "Network Standby" is set to "Off" in the Setup menu, turn this unit on manually, and press the NET button on the remote controller. In the factory default setting, the Network Standby function (→p112) is set to On.

5. For detailed operation and FAQ, visit the following URL. https://www.onkyo.com/playfi/info_o.html
6. To use a music streaming distribution service, user registration may be required.
7. This unit does not support the following DTS Play-Fi functions.

- Spotify

– Wireless Surround Sound
– Line In Rebroadcast
- Internet Radio

• Some of the settings in the "Setup menu" cannot be changed on this unit. To change those settings, cancel the connection of this unit from the application.
• Listening modes cannot be selected during playback.

Amazon Alexa

Alexa is a cloud-based voice service developed by Amazon. When this unit is registered with an Amazon account, you can use a terminal with Amazon Alexa (an Amazon Echo, etc.) or Amazon Alexa App (available on iOS and Android™) to perform operations such as adjusting the volume of this unit or playing music using voice commands.

- You need an Amazon account to use Amazon Alexa. For more information, see the Amazon website.

Line drawing of a person looking at a cylindrical device emitting sound waves (no text or symbols)

Registering this unit with an Amazon account

1. Register with the Amazon account on Onkyo Controller. This cannot be set with operations on this unit.
   Refer to "Onkyo Controller" (→p120) for information about the app.
2. Start Onkyo Controller and tap the unit when displayed.
3. Tap "NET" or "NETWORK" at the top of the Onkyo Controller screen, and after switching to the network menu, tap the "amazon alexa" icon.

If the login screen is not displayed but an update or installation screen is displayed instead, perform the update or installation according to the on-screen instructions.

Available services may differ depending on your area.

1. Tap "Start Setup", and in the Setup screen, select the language and register the device name. Select the same language as the one you have selected for your other terminals with Amazon Alexa (an Amazon Echo, etc.). For the device name, use one that can easily be called up vocally. For example: Speaker
2. Tap "Next" to display the Amazon Alexa screen.
3. Follow the on screen instructions to enter the Amazon account information, such as your email address and password, to log into Amazon (*1). After logging in, tap "Allow" and register this unit with an Amazon account.

(*1) Log in using the same account as other terminals with Amazon Alexa.

1. When registration is finished, the screen returns to the one for Onkyo Controller. Follow the on screen instructions and talk to the terminal with Amazon Alexa (an Amazon Echo, etc.), and confirm that you can use voice commands.

For example: "Alexa, raise the volume of the speaker (*2)" "Alexa, play music from the speaker (*2)"

(*2) Use the device name you registered in Step 4 when talking.

Operating this unit

You can use voice commands to adjust the volume on this unit, start and stop music, and skip music up or down.

1. With the unit on, speak at the terminal with Amazon Alexa (an Amazon Echo, etc.). When using the Amazon Alexa app, after starting the app, tap the Alexa logo and speak at the mobile device.

For example: "Alexa, raise the volume of the speaker (*3)"

"Alexa, play music from the speaker (*3)"

(*3) Use the device name you registered in Step 4 of "Registering this unit with an Amazon account" when talking.

• Refer to the website for details about voice commands. (Click here)
• It is not possible to turn the unit on or off, or to switch the listening mode.
• Refer to the Amazon websites for information about operation of the Amazon Alexa app.

Amazon Music

amazon music

Registering this unit with Amazon Music allows you to enjoy the music distribution service provided by Amazon.

- To play Amazon Music, you need to have your Amazon account and sign up for Amazon Prime or Amazon Music Unlimited. For more information, see the Amazon website.

Amazon Music is now available in several countries. If Amazon Music is not available in your country, please visit https://music.amazon.com/ for more info.

Registering This Unit with Amazon Music

1. Register with the Amazon account on Onkyo Controller. This cannot be set with operations on this unit.
   Refer to "Onkyo Controller" (→p120) for information about the app.
2. Start Onkyo Controller and tap the unit when displayed.
3. Tap "NET" or "NETWORK" on the upper part of the Onkyo Controller's screen to switch to the network menu. Then tap the "Amazon Music" icon to display the login screen of Amazon Music. (Depending on the model, the icon names may be different.)
4. If the login screen is not displayed but an update or installation screen is displayed instead, perform the update or installation according to the on-screen instructions.

Available services may differ depending on your area.

1. Enter the Amazon account information such as email address and password to log in to Amazon. When the login is successful and this unit is registered, the Amazon Music menu is displayed.

For playback, proceed to step 3 in the next section.

Playing Amazon Music using the Onkyo Controller

1. Start up Onkyo Controller. This unit is automatically displayed after startup. Then, tap and select this unit displayed.
2. Tap "NET" or "NETWORK" on the upper part of the screen to switch to the network screen. Then tap the "Amazon Music" icon.
3. Select the content to play from the menu screen of Amazon Music to start playback.

Playing Amazon Music using the remote controller

1. Switch the input on the TV to the input connected to the unit.
2. Pressing NET will display the Network Functions list screen on the TV.
3. Select "Amazon Music" with the cursors and press ENTER to confirm.
4. Select the content to play from the menu screen of Amazon Music to start playback.

TIDAL

TIDAL

Registering this unit with TIDAL allows you to enjoy the music distribution service provided by TIDAL. You can register this unit on the screen of Onkyo Controller by downloading Onkyo Controller (available on iOS or Android™) to mobile devices such as a smartphone and tablet.

- You need a TIDAL account to play back TIDAL. For more information, see the TIDAL website.

Registering this unit with TIDAL

• You can register this unit with TIDAL using Onkyo Controller. The registration cannot be performed by operation of this unit.
• Connect this unit to your home network by the network settings on this unit.
• Download Onkyo Controller using your mobile device.
• Connect the mobile device to the network where this unit is connected.
• Start up Onkyo Controller to automatically display this unit. Tap and select this unit displayed.
• Tap "NET" or "NETWORK" on the upper part of the Onkyo Controller's screen to switch to the network menu. Then tap the "TIDAL" icon to display the login screen of TIDAL. (Depending on the model, the icon names may be different.)

- If the login screen is not displayed but an update or installation screen is displayed instead, perform the update or installation according to the onscreen instructions.

Available services may differ depending on your area.

1. Enter the TIDAL account information such as login ID and password to log in to TIDAL. When the login is successful and this unit is registered, the TIDAL menu is displayed. For playback, proceed to step 3 in the next section.

Playing TIDAL

1. Start up Onkyo Controller. This unit is automatically displayed after startup. Then, tap and select this unit displayed.
2. Tap "NET" or "NETWORK" on the upper part of the screen to switch to the network screen. Then tap the "TIDAL" icon.
3. Select the content to play from the menu screen of TIDAL to start playback.
4. To play TIDAL using the remote controller, operate the input selector on the remote controller to display the network menu, and select "TIDAL" from the menu.

Connecting the Sonos System for Playback

Works with

SONOS

Connecting this unit and Sonos Connect allows you to send the music or music sources on the Sonos App to this unit. Through Sonos Connect, you can play this unit with the same group of another Sonos device on the network or can play only on this unit. Also, if you start to play music from Sonos App, this unit is automatically turned on and the link function to switch input works.

• When "5. Hardware" - "Power Management" - "Network Standby" is set to "Off" in the Setup menu, turn this unit on manually, and press the NET button on the remote controller. In the factory default setting, the Network Standby function (→p112) is set to On.
• You can register a maximum of 2 Sonos Connect.

Necessary Equipment

• Sonos Connect
  • RCA audio cable (supplied with Sonos Connect)

How to Connect This Unit and Sonos Connect

1. Connect the Sonos Connect to the AUDIO IN jack of this unit with the RCA audio cable supplied with the Sonos Connect. Any input jacks other than the PHONO jack can be used.
2. A digital cable can also be connected. For details, refer to the instruction manual of Sonos.
3. You can change the name of the input selector displayed on this unit to easier-to-understand name. For example, the input connected to Sonos Connect can be changed from "CD" (or another input selector name) to "SONOS". Press the ⚙ button on the remote controller, select "4. Source"
4. "Name Edit" and then change the name.

Setting Up

A setup is required to play Sonos on this unit. Make the setting according to the following procedure.

1. Press the ⚙ button on the remote controller, select "5. Hardware" - "Works with SONOS", and press the ENTER button.
2. Select the following items with the cursors ▲ and set each item. Input Selector:

Enable the interlocking function with the Sonos Connect. With the cursors

▶. select the input selector to which the Sonos Connect is connected.

Connected Device:

Press the ENTER button to display Sonos devices connected to the same network as the network of this unit. Select the Sonos Connect connected to the unit and press the ENTER button.

• Products (e.g. Play:3 unequipped with an output terminal) other than the Sonos Connect are also displayed in the device list and selectable. In that case, when playback on the Sonos side starts, the input is switched, however, audio is not output. Select the room name of the connected Sonos Connect.
• Up to 32 devices can be displayed on the Sonos product list screen. If you

cannot find the Sonos Connect to be interlocked, return to the previous screen, turn off the product you do not want to interlock, and try again.

Preset Volume:

You can set the volume beforehand for playing back the Sonos Connect in the main room (where this unit is located). Select a value from "Last" (Volume level before entering standby mode), "Min", "0.5" to "99.5" and "Max".

Playing Sonos on This Unit

1. Select desired tracks using Sonos App and send the tracks to the room where this unit is located (or to the group). It is recommended to give an easy-to-remember name to the combination of this unit and Sonos Connect, such as TV Room or Living Room where this unit is located.
2. If the input selector of this unit is not automatically switched even after the start of music playback, stop the playback once and start again.
3. When the "Volume Pass Through" mode has been selected with the Sonos App settings, you can use the Sonos App to control the volume of this unit. * You cannot use the "Preset Volume" function when the "Volume Pass Through" mode has been selected.

Internet Radio

By connecting this unit to an Internet-connected network, you can enjoy Internet radio services such as TuneIn Radio.

• To play Internet radio services, the network needs to be connected to the Internet.

- Depending on the Internet radio service, a user registration may be required on your PC beforehand. For details of each service, visit the website of each service.

Playing Back

The illustration shows an image.

Perform the following procedure when this unit is on.

1. Switch the input on the TV to the input connected to the unit.
2. Pressing NET will display the Network Functions list screen on the TV.
3. Select your preferred Internet radio service using cursor, and press ENTER to confirm the selection.
4. Following the on-screen instructions, select a radio station and program using cursor, and then press ENTER to play.
   • To return to the previous screen, press

Internet Radio Service Menu

You can bookmark specific stations, or delete stations that have been bookmarked. The displayed menu varies according to the service being selected.

The menu icon ⏻ is displayed while a station is being played. When only this icon is displayed, pressing ENTER will display the menu on the screen. When multiple icons are displayed, select the ⏻ icon with the cursor, and press ENTER.

Regarding the Tuneln Radio Account

If you create an account on the Tuneln Radio website (tunein.com), and log in it from this unit, your favorite radio stations or programs you have followed on the website are automatically added to your "My Presets" on this unit. "My Presets" is displayed on the next level in the hierarchical structure of Tuneln Radio. To display a radio station added to "My Presets", you need log into Tuneln Radio from the unit. To log in, select "Login" - "I have a Tuneln account" in the "Tuneln Radio" top list on the unit, and then enter your user name and password.

- If you select "Login" on this unit, a registration code is displayed. By using this code, you can associate the device on the My Page section of the Tuneln Radio website so that you can log in from "Login" - "Login with a registration code" without entering the user name and password.

Playing different audio and video

Displaying Your Favorite Video on TV While Playing Music

Illustration of a hand holding a smartphone with wireless signal waves next to a TV set (no text or symbols)

The illustration shows an image.

While listening to the music from a CD or BLUETOOTH enabled device, you can display video on TV from an AV component such as a Blu-ray Disc player.

- For audio playback, you can select an input selector to which video input is not assigned, such as "CD", "TUNER", "NET" and "BLUETOOTH".

Perform the following procedure when this unit is on.

1. Switch the input on the TV to the input connected to the unit.

2. Press an input selector such as BD/DVD button connected to the AV component of which the video is to be displayed on TV.

- This operation is not necessary if the same input selector has been selected in the previous operation.

1. Press an input selector of the audio you want to play, such as the CD or BLUETOOTH button and perform playback operation.

2. Perform the playback operation of the AV component such as a Blu-ray Disc player. To play the audio of NET or BLUETOOTH, the following step 5 operation is required.

3. To play the audio of NET or BLUETOOTH, press the MODE button to switch the TV display from the NET or BLOOTOOTH playback screen to the video of the AV component. Pressing the MODE button again will return to the NET or BLOOTOOTH playback screen.

- When the TV display is switched to the video of the AV component, the playback screen of NET or BLUETOOTH is displayed on the corner of the screen as Mini Player. The setting for Mini Player can be changed on the Setup Menu so that it automatically turns off in 30 seconds after displayed. ("Mini Player OSD" (→p94))

Setting the video source to be displayed on TV beforehand: When playing the audio of "TUNER", "NET" and "BLUETOOTH", you can set the input selector to be displayed on TV beforehand using "Video Select" (→p104) on the Setup Menu. If a value other than "Last" is set, step 2 in the operation procedure is not required.

USB Storage Device

You can play music files stored on a USB storage device.

Supported Audio Formats

MP3 (.mp3)

- MPEG-1/MPEG-2 Audio Layer 3/44.1 kHz, 48 kHz/Between 8 kbps and 320 kbps, and VBR

WMA (.wma)

• 44.1 kHz, 48 kHz/Between 5 kbps and 320 kbps, and VBR

• WMA Pro/Voice/WMA Lossless formats are not supported.

WAV (.wav)

WAV files contain uncompressed PCM digital audio.

• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit

AIFF (.aiff/.aif)

AIFF files contain uncompressed PCM digital audio.

• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit

AAC (.aac/.m4a/.mp4/.3gp/.3g2)

- MPEG-2/MPEG-4 Audio/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/Between 8 kbps and 320 kbps, and VBR

FLAC (.flac)

• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit

LPCM (Linear PCM)

• 44.1 kHz, 48 kHz/16 bit

Apple Lossless (.m4a/.mp4)

• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/16 bit, 24 bit

DSD (.dsf/.dff)

• DSF/DSDIFF/2.8 MHz, 5.6 MHz, 11.2 MHz

USB Storage Device Requirements

• This unit can use USB storage devices that comply with the USB mass storage class standard. Also the format of USB storage devices supports FAT16 or FAT32 file system format.
• If the USB storage device has been partitioned, each section will be treated as an independent device.
• Up to 20,000 tracks per folder are supported, and folders can be nested up to 16 levels deep.
• USB hubs and USB storage devices with hub functions are not supported. Do not connect these devices to the unit.
• If an AC adapter is supplied with the USB storage device, connect the AC adapter, and use it with a household outlet.
• USB storage devices with security functions are not supported on this unit.
• Media inserted to the USB card reader may not be available in this function. Furthermore, depending on the USB storage device, proper reading of the contents may not be possible.
• In use of a USB storage device, our company accepts no responsibility whatsoever for the loss or modification of data stored on a USB storage device, or malfunction of the USB storage device. We recommend that you back up the data stored on a USB storage device before using it with this unit.
• Note that operation is not always guaranteed for all USB storage devices.

☐ Playing music files saved on a USB storage device (→p81)

Playing music files saved on a USB storage device

Perform the following procedure when this unit is on.

1. Switch the input on the TV to the input connected to the unit.
2. Plug your USB storage device with the music files into the USB port on the rear panel of this unit.
3. Press NET to display the network service list screen.
4. Select "USB" with the cursors, and then press ENTER.

- If the "USB" indicator blinks on the display, check whether the USB storage device is plugged in properly.

- Do not unplug the USB storage device while "Connecting..." is being displayed on the display. This may cause data corruption or malfunction.

1. Press ENTER on the next screen again. The list of folders and music files on the USB storage device is displayed. Select the folder with the cursors, and press ENTER to confirm your selection.
2. Select the music file with the cursors, and then press ENTER to start playback.

• To return to the previous screen, press ↻
- Characters that cannot be displayed on this unit appear with "*".
- The USB port of this unit complies with the USB 2.0 standard. The transfer speed may be insufficient for some content you play, and sound interruptions, etc. may occur.

Playback

• When playing files recorded with VBR (Variable bit-rate), the playback time may not be displayed correctly.
• This unit supports the gapless playback of the USB storage device in the following conditions.
  When continuously playing WAV, FLAC and Apple Lossless files with the same format, sampling frequency, the number of channels and quantization bit rate.

- To display an album title, artist name and album art of a file in WAV format, make the folder structure and file names as shown below when saving music files. The album art can be displayed by saving a .jpg file to display on the screen in the folder of bottom level. Note that a large volume of .jpg file may take time to be displayed, or may not be displayed.

Music Server

Streaming play of music files stored on PCs or NAS devices connected to the same network as this unit is supported.

- The network servers this unit is compatible with are those PCs with players installed that have the server functionality of Windows Media® Player 12, or NAS that are compatible with home network functionality. When using Windows Media ® Player 12, you need to make the settings beforehand. Note that with PCs, only music files registered in the library of Windows Media ® Player can be played.

Supported Audio Formats

MP3 (.mp3)

- MPEG-1/MPEG-2 Audio Layer 3/44.1 kHz, 48 kHz/Between 8 kbps and 320 kbps, and VBR

WMA (.wma)

• 44.1 kHz, 48 kHz/Between 5 kbps and 320 kbps, and VBR

- WMA Pro/Voice/WMA Lossless formats are not supported.

WAV (.wav)

WAV files contain uncompressed PCM digital audio.

• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit

AIFF (.aiff/.aif)

AIFF files contain uncompressed PCM digital audio.

• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit

AAC (.aac/.m4a/.mp4/.3gp/.3g2)

- MPEG-2/MPEG-4 Audio/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/Between 8 kbps and 320 kbps, and VBR

FLAC (.flac)

• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit

LPCM (Linear PCM)

• 44.1 kHz, 48 kHz/16 bit

Apple Lossless (.m4a/.mp4)

• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/16 bit, 24 bit

DSD (.dsf/.dff)

• DSF/DSDIFF/2.8 MHz, 5.6 MHz, 11.2 MHz

Windows Media® Player 12 settings

1. Turn on your PC, and start Windows Media® Player 12.
2. In the "Stream" menu, select "Turn on media streaming" to display a dialog box.
3. If the media streaming is already turned on, select "More streaming options..." in the "Stream" menu to display the list of playback devices in the network, and then go to step 4.
4. Click "Turn on media streaming" to display the list of playback devices in the network.
5. Select this unit in "Media streaming options" and check that it is set to "Allow".
6. Click "OK" to close the dialog.
7. Open the "Stream" menu and confirm that "Allow remote control of my Player..." is checked.

□ Playing Back (→p84)

Playing Back

Playback

The illustration shows an image.

Perform the following procedure when this unit is on.

1. Switch the input on the TV to the input connected to the unit.
2. Start the server (Windows Media Player 12 or NAS device) containing the music files to play.
3. Make sure that the PC or NAS is properly connected to the same network as this unit.
4. Press NET to display the network service list screen. • If the "NET" indicator on the display blinks, the unit connected to the network. Check the connection.

1. With the cursors, select "Music Server", and then press ENTER.

Playback

1. Select the target server with the cursors, and press ENTER to display the items list screen.

2. This unit cannot access pictures and videos stored on servers.

3. Depending on the server sharing settings, contents stored on the server may not be displayed.

4. With the cursors, select the music file to play, and then press ENTER to start playback.

- If "No Item." is displayed on the screen, check whether the network is properly connected.

• To return to the previous screen, press ↩.
• When playing files recorded with VBR (Variable bit-rate), the playback time may not be displayed correctly.
• For music files on a server, up to 20,000 tracks per folder are supported, and folders can be nested up to 16 levels deep.
• Depending on the type of media server, the unit may not recognize it, or may not be able to play its music files.

Searching music files to select

If the server you use supports search functions, the following search function can be used.

Perform the following procedure with available servers displayed using Music Server.

1. With ▲ / ▼ select the server containing music files you want to play, and press ENTER.

2. With ▲ / ▼ select the Search folder, and press ENTER. The Search folder contains the following three folders.

3. "Search by Artist": Select this when searching by artist name.

4. "Search by Album": Select this when searching by album title.

5. "Search by Track": Select this when searching by track title.

6. With ▲,▼select the folder, and press ENTER.

7. Input a character string to search for, and press ENTER. Then, the search result is displayed.
8. With ▲ / ▼ select the music files to play, and press ENTER.

Controlling Remote Playback from a PC

You can use this unit to play music files stored on your PC by operating the PC in your home network. The unit supports remote playback via Windows Media ^ Player 12. To use the remote playback function of this unit with Windows Media ^ Player 12, it must be configured beforehand. (→p83)

Remote playback

1. Turn on the power of the unit.
2. Turn on your PC, and start Windows Media® Player 12.
3. Select and right-click the music file to play with Windows Media® Player 12.

- To remotely play a music file on another server, open the target server from "Other Libraries", and select the music file to play.

1. Select this unit in "Play to" to open the "Play to" window of Windows Media® Player 12, and start playback on this unit.

- If your PC is running on Windows ^ 8.1, click "Play to", and select this unit. If your PC is running on Windows ^ 10, click "Cast to Device", and select this unit. Operations during remote playback are possible from the "Play to" window on the PC. The playback screen is displayed on the HDMI-connected TV.

1. Adjust the volume using the volume bar on the "Play to" window.

2. Sometimes, the volume displayed on the remote playback window may differ from the volume displayed on the display of this unit.

3. When the volume is changed on this unit, the value is not reflected in the "Play to" window.
4. This unit cannot play music files remotely in the following conditions.

5. It is using a network service.
   – It is playing a music file on a USB storage device.

6. Remote play of FLAC and DSD is not supported.

7. Remote playback does not support the gapless playback.

Play Queue

When downloading Onkyo Controller (available on iOS or Android™) to mobile devices, such as a smartphone and tablet, you can save your favorite playlist (Play Queue information) among music files stored in the USB storage device connected to this unit and music files stored in PC or NAS connected to the same network as this unit, and you can play the music on the playlist. The Play Queue information is effective until the power cord of this unit is removed from the outlet. Refer to "Onkyo Controller" (→p120) for information about the app.

Adding Play Queue Information

1. Select the "INPUT" input on the application screen, and tap the "USB" icon. Or, select the "NET" input, and tap the "USB" icon or "Music Server" icon. (Depending on the model, the icon names may be different.)

1. Tapping the "+" icon of the track you want to add will open the pop-up to add the Play Queue information.

1. Touch the "Play Now 🔊" "Play Next " or "Play Last " icon to add the track to Play Queue.
2. If there are no tracks on the Play Queue list, only "Play Now " is displayed.

Sort and Delete

1. Select the "NET" input, tap the "Play Queue" icon, and enter the Play Queue service screen.

Playback

1. Tap the "icon of the track to sort, and drag the icon to the destination.

1. To delete a track, slide the track to the left until the trash icon changes to "☐". If the device is on iOS, slide the " " icon to the left. Releasing your finger will delete the track from Play Queue.

Playback starts when you select "Play Now" for Play Queue addition, or select the track in the Play Queue service screen.

Connecting a transmitter for playback

When you connect wireless headphones or a wireless speaker transmitter to the ZONE B PRE/LINE OUT terminal of this unit, you can play back the same source through the wireless headphones or wireless speakers as in the main room.

Connections

1. Use an analog audio cable to connect the ZONE B PRE/LINE OUT terminal on this unit to the input terminal on the transmitter.

Playing Back

1. Press the Q button on the remote controller and select "Audio" - "Zone B".
2. Select the audio output destination.
   Off: Outputs audio only from ZONE A. "A" on the display of the main unit lights up.
   On (A+B): Outputs audio from both ZONE A and ZONE B. "A" and "B" on the display of the main unit light up.
   On (B): Outputs audio only from ZONE B. "B" on the display of the main unit lights up.

AB

1. Start play on the AV component.

2. Adjust the volume on the transmitter, etc., in ZONE B.

- If "On (A+B)" is selected as an audio output destination, you can select only the "Stereo" listening mode for ZONE A when using the 2.1 ch speaker layout. When using a speaker layout of 3.1 ch or more, you can select only the "AllCh Stereo" listening mode.

a Analog audio cable

Setup

Setup Menu 90

Web Setup 116

Initial Setup with Auto Start-up Wizard 117

Onkyo Controller 120

Setup Menu

Use the on-screen displays (OSD) that appear on the TV to make the settings.

Press ⚙ on the remote controller to display the Setup menu.

Select the item with the cursors ▲ / ▼ of the remote controller, and press the ENTER button to confirm your selection.

Use the cursors ◀/▶ to change the default values.

• To return to the previous screen, press ⊃.

- To exit the settings, press the ⚙ button.

Menu list

Setup
1. Input/Output Assign	1. TV Out / OSD
2. Speaker	2. HDMI Input
3. Audio Adjust	3. Digital Audio Input
4. Source	4. Analog Audio Input
5. Hardware
6. Miscellaneous

1. Input/Output Assign	1. TV Out / OSD	Make settings for TV output and On-Screen Displays (OSD) that appear on the TV.	p92
	2. HDMI Input	You can change input assignment between the input selectors and HDMI IN jacks.	p94
	3. Digital Audio Input	Change input assignment between the input selectors and DIGITAL IN COAXIAL/OPTICAL jacks.	p95
	4. Analog Audio Input	Change input assignment between the input selectors and AUDIO IN jacks.	p95
2. Speaker	1. Configuration	Change the settings of connection environment of the speakers.	p96
	2. Crossover Change the settings of crossover frequencies.		p97
	3. Distance	Set the distance from each speaker to the listening position.	p98
	4. Level Calibration	Adjust the volume level of each speaker.	p98
	5. Dolby Enabled Speaker	Change the settings of Dolby Enabled Speakers. p99
	6. Equalizer Settings	You can adjust the output volume of the range for each connected speaker.	p99
	7. Speaker Virtualizer	The Speaker Virtualizer function can be switched between On and Off.	p100
3. Audio Adjust	1. Multiplex/Mono	Change the settings of multiplex audio playback.	p101
	2. Dolby	Change the setting of when Dolby signals are input.	p101
	3. DTS	Change the setting of when DTS signals are input.	p102
	4. LFE Level	Set the low-frequency effect (LFE) level for Dolby Digital series, DTS series, Multichannel PCM, and DSD signals.	p102
	5. Volume	Change the Volume settings.	p102

Setup

4. Source	1. My Input Volume	Set a volume value for each input selector.	p103
	2. Name Edit Set an easy name for each input.		p103
	Audio Select	Select the prioritized input terminal when multiple audio sources are connected to one input selector.	p103
	Video Select	When "TUNER", "NET", or "BLUETOOTH" input is selected, you can set the input from which video is displayed on the TV.	p104
5. Hardware	1. HDMI	Change the settings for the HDMI functions.	p105
	2. Network Change the settings for the Network functions.		p107
	3. Bluetooth Change the settings for the BLUETOOTH function.		p110
	4. Power Management	Change the settings for the power-save function.	p112
	5. Works with SONOS Change the settings to connect with the Sonos Connect.		p113
6. Miscellaneous	1. Tuner	Change the settings for Tuner.	p114
	2. Remote ID Change the remote controller ID.		p114
	3. Firmware Update	Change the settings for Firmware Update.	p115
	4. Initial Setup	Make the initial setup from the setup menu.	p115
	5. Lock	Lock the Setup menu so that the settings cannot be changed.	p115
	6. Factory Reset	All the settings are restored to factory defaults.	p115

1. Input/Output Assign1. Input/Output Assign

1. TV Out / OSD

Make settings for TV output and On-Screen Displays (OSD) that appear on the TV.

☐ HDMI Out (Default Value: MAIN)

Select the HDMI jack to be connected with the TV.

- If devices with different resolutions are connected to HDMI OUT MAIN jack and SUB jack, images are output with the lower resolution.

MAIN When connecting the TV to the HDMI OUT MAIN jack

SUB When connecting the TV to the HDMI OUT SUB jack

MAIN+SUB When connecting to both the MAIN and SUB jacks

☐ Dolby Vision (Default Value: MAIN)

To output Dolby Vision video from the player to a TV that supports Dolby Vision, select either the HDMI OUT MAIN jack or HDMI OUT SUB jack to which the Dolby Vision-supported TV is connected. This setting is only necessary if you have set "HDMI Out" to "MAIN+SUB" and you have connected a TV to both the MAIN and SUB jacks.

MAIN To output Dolby Vision video to a Dolby Vision-supported TV connected to the HDMI OUT MAIN jack

SUB To output Dolby Vision video to a Dolby Vision-supported TV connected to the HDMI OUT SUB jack

Off After selecting "MAIN" or "SUB", if the video on the TV does not appear correctly

☐ Upscaling (Default Value: Off)

When a TV supporting 4K is used, video signals input with 1080p can be automatically output with 4K.

- If the TV does not support the 4K resolution with the same frequency as the frequency of HDMI input video signals, upscaling to 4K is not correctly performed. Check the frequency of 4K resolution supported by the TV, and change the resolution of the video signals input from the AV component.

Off When this function is not used

- If your TV does not support 4K, set it to "Off".

Auto When this function is used

☐ Super Resolution (Default Value: 2)

When "Upscaling" is set to "Auto", select the correction level of the input video signals from "Off" and "1" (weak) to "3" (strong).

1. Input/Output Assign

HDMI 4K/8K Signal Format

Set the 4K/8K signal format input and output by this unit. Set to suit the TV or player connected.

- For resolutions supported by this unit, refer to "Supported input resolutions" (→p154).

BD/DVD (Default Value: 4K Enhanced)

GAME (Default Value: 4K Enhanced)

CBL/SAT (Default Value: 4K Enhanced)

STRM BOX (Default Value: 4K Enhanced)

PC (Default Value: 4K Enhanced)

CD (Default Value: 4K Enhanced)

TV (Default Value: 4K Enhanced)

4K Standard When using a High Speed HDMI Cable that supports 10.2 Gbps to connect a TV or player compatible with standard 4K signal formats (4K 30Hz, etc.)
4K Enhanced	When using a Premium High Speed HDMI Cable that supports 18 Gbps to connect a TV or player compatible with high-definition 4K signal formats (4K 60Hz, 4K HDR, etc.)• There may be some image disruption depending on the connected component and the HDMI cable. If this occurs, switch to "4K Standard".
8K Standard When using an 18 Gbps-compatible PREMIUM High Speed HDMI Cable or a 48 Gbps-compatible ULTRA High Speed HDMI Cable to connect a TV or player compatible with 4K/120p or 5K, 8K signal formats

☐ OSD Language (Default Value: English)

Select the on-screen display language from the following. English, German, French, Spanish, Italian, Dutch, Swedish

□ Impose OSD (Default Value: On)

Set whether or not to display information such as volume adjustment or switching of input on the TV screen.

On	OSD is displayed on the TV• OSD may not be displayed depending on the input signal even if "On" is selected. In this case, change the resolution of the connected device.
Off	OSD is not displayed on the TV

1. Input/Output Assign

☐ Mini Player OSD (Default Value: Always On)

You can display on the TV the images from another input selected last while playing the audio from NET or BLUETOOTH input. After switching the input to NET or BLUETOOTH, play the images and audio. And then when you press MODE on the remote controller, the image is displayed in full-screen mode, and the audio information (Mini Player) for NET or BLUETOOTH is displayed in the corner of the screen. You can set whether to always display this Mini Player on the screen.

• Each time the MODE button is pressed, the image display/non-display can be switched.
- This setting cannot be selected if "Impose OSD" is set to "Off".

Always On The Mini Player is always displayed.

Auto Off The Mini Player turns off automatically in 30 seconds after displayed. If operation such as changing the volume is performed, it is displayed again for 30 seconds.

☐ Screen Saver (Default Value: 3 minutes)

Set the time to start the screen saver.

Select a value from "3 minutes", "5 minutes", "10 minutes" and "Off".

2. HDMI Input

You can change input assignment between the input selectors and HDMI IN jacks.

☐ BD/DVD (Default Value: HDMI 1 (HDCP 2.3))

GAME (Default Value: HDMI 2 (HDCP 2.3))

CBL/SAT (Default Value: HDMI 3 (HDCP 2.3))

STRM BOX (Default Value: HDMI 4 (HDCP 2.3))

PC (Default Value: ---)

CD (Default Value: ---)

TV (Default Value: ---)

"HDMI 1 (HDCP 2.3)" to "HDMI 4 (HDCP 2.3)":

Assign any HDMI IN jack to each of the input selectors. If you do not assign a jack, select "--". To select an HDMI IN jack already assigned to another input selector, change its setting to "--" first.

1. Input/Output Assign

3. Digital Audio Input

Change input assignment between the input selectors and DIGITAL IN COAXIAL/OPTICAL jacks. If you do not assign a jack, select "--".

☐ BD/DVD (Default Value: ---)

GAME (Default Value: ---)

CBL/SAT (Default Value: ---)

STRM BOX (Default Value: ---)

PC (Default Value: ---)

CD (Default Value: COAXIAL)

TV (Default Value: OPTICAL)

COAXIAL, OPTICAL

Assign the COAXIAL terminal or OPTICAL terminal to any input selector.

• Supported sampling rates for PCM signals (stereo, mono) from a digital input are 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/16bit, 20bit, and 24bit.

4. Analog Audio Input

Change input assignment between the input selectors and AUDIO IN jacks. If you do not assign a jack, select "--".

☐ BD/DVD (Default Value: ---)

GAME (Default Value: ---)

CBL/SAT (Default Value: ---)

STRM BOX (Default Value: ---)

PC (Default Value: AUDIO 1)

AUX (Default Value: AUDIO 2)

CD (Default Value: AUDIO 3)

TV (Default Value: ---)

AUDIO 1, AUDIO 2, AUDIO 3

Assign the AUDIO IN terminal to any input selector.

2. Speaker2. Speaker

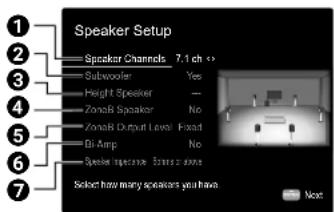

1. Configuration

Change the settings of connection environment of the speakers.

☐ Speaker Channels (Default Value: 7.1 ch)

Select "2.1 ch", "3.1 ch", "4.1 ch", "5.1 ch", "6.1 ch", "7.1 ch", "2.1.2 ch", "3.1.2 ch", "4.1.2 ch", or "5.1.2 ch" to suit the number of speaker channels connected.

Subwoofer (Default Value: Yes)

Set whether a subwoofer is connected or not.

Yes When a subwoofer is connected

No When a subwoofer is not connected

☐ Height Speaker (Default Value: Top Middle)

Set the speaker type when height speakers are connected. Select from "Top Middle", "Top Rear", "Rear High", "Dolby Speaker (Front)", "Dolby Speaker (Surr)", "Front High" and "Top Front" according to the type and layout of the connected speakers.

- If an item cannot be selected even though connection is correct, check that the settings in "Speaker Channels" matches the number of connected channels.

☐ Zone B Speaker (Default Value: No)

Set whether speakers are connected to ZONE B speaker terminals.

- This setting cannot be selected when "Speaker Channels" is set to "6.1 ch", "7.1 ch", "4.1.2 ch" or "5.1.2 ch".

Yes When speakers are connected to ZONE B speaker terminals

No When speakers are not connected to ZONE B speaker terminals

- This setting is fixed to "No" when "Bi-Amp" is set to "Yes".

☐ Zone B Output Level (Default Value: Fixed)

When audio is output to ZONE B, set whether the volume is adjusted with the integrated amplifier in the separate room or with this unit.

- This setting is fixed to "Variable" when "Zone B Speaker" is set to "Yes".

Fixed When adjusting with the integrated amplifier in the separate room

Variable When adjusting with this unit

☐ Bi-Amp (Default Value: No)

Set whether the front speakers are bi-amp connected.

- This setting cannot be selected when surround back speakers or height speakers are used.

No When front speakers are not bi-amp connected • This setting is fixed to "No" when "Zone B Speaker" is set to "Yes". Yes When front speakers are bi-amp connected

☐ Speaker Impedance (Default Value: 6ohms or above)

Set the impedance (Ω) of the connected speakers.

- For impedance, check the indications on the back of the speakers or their instruction manual.

4ohms When any of the connected speakers have 4 or more to less than 6 impedance
6ohms or above When all the connected speakers have an impedance of 6 or more

2. Speaker

SetupSet

2. Crossover

Change the settings of crossover frequencies.

Front (Default Value: 100 Hz)

Center (Default Value: 100 Hz)

Height (Default Value: 100 Hz)

Surround (Default Value: 100 Hz)

Surround Back (Default Value: 100 Hz)

LPF of LFE (Default Value: 120 Hz)

Double Bass (Default Value: On)

Front:

Select the crossover frequency from "40 Hz" to "200 Hz" to start outputting frequencies for each channel.

"Full Band": Full band will be output.

- If "Configuration" - "Subwoofer" is set to "No", "Front" is fixed to "Full Band", and the low pitched range of the other channels is output from the front speakers. Refer to the instruction manual of your speakers to make the setting.

Center, Height, Surround:

Select the crossover frequency from "40 Hz" to "200 Hz" to start outputting frequencies for each channel.

"Full Band": Full band will be output.

- "Full Band" can be selected only when "Front" is set to "Full Band".

- If the item cannot be selected even though connection is correct, check if the setting in "Configuration" - "Speaker Channels" matches the number of connected channels.

Surround Back:

Select the crossover frequency from "40 Hz" to "200 Hz" to start outputting frequencies for each channel.

"Full Band": Full band will be output.

- "Full Band" can be selected only when "Surround" is set to "Full Band".

- If the item cannot be selected even though connection is correct, check if the setting in "Configuration" - "Speaker Channels" matches the number of connected channels.

LPF of LFE:

Set the low-pass filter for LFE (low-frequency effect) signals in order to pass only the lower frequency signals than the set value, and thus cancel unwanted noises. The low-pass filter is effective only on sources with LFE channel.

The value from "80 Hz" to "120 Hz" can be set.

"Off": When this function is not used

Double Bass:

This can be selected only when "Configuration" - "Subwoofer" is set to "Yes" and "Front" is set to "Full Band".

Boost bass output by feeding bass sounds from the front left and right speakers and the center speaker to the subwoofer.

"On": Bass output is boosted.

"Off": Bass output is not boosted.

- This function is not automatically set even if AccuEQ Room Calibration is performed.

2. Speaker

3. Distance

Set the distance from each speaker to the listening position.

☐ Front Left (Default Value: 12.0 ft/3.60 m)

Center (Default Value: 12.0 ft/3.60 m)

Front Right (Default Value: 12.0 ft/3.60 m)

Height Left (Default Value: 9.0 ft/2.70 m)

Height Right (Default Value: 9.0 ft/2.70 m)

Surround Right (Default Value: 7.0 ft/2.10 m)

Surr Back Right (Default Value: 7.0 ft/2.10 m)

Surr Back Left (Default Value: 7.0 ft/2.10 m)

Surround Left (Default Value: 7.0 ft/2.10 m)

Subwoofer (Default Value: 12.0 ft/3.60 m)

- The unit of distance can be changed by pressing the MODE button on the remote controller. When using the unit "feet", the setting is available in increments of 0.1 ft from 0.1 ft to 30.0 ft. When using the unit "meter", the setting is available in increments of 0.03 m from 0.03 m to 9.00 m.

(Height Left, Height Right):

- This setting cannot be changed when "Configuration" - "Speaker Channels" is set to "4.1.2 ch" or "5.1.2 ch", and the audio output destination is set to "On (A+B)".

(Surr Back Right, Surr Back Left):

- This setting cannot be changed when the audio output destination is set to "On (A+B)" or "On (B)".

4. Level Calibration

Adjust the volume level of each speaker.

- This setting cannot be selected when the audio output destination is set to "On (B)".

☐ Front Left (Default Value: 0.0 dB)

Center (Default Value: 0.0 dB)

Front Right (Default Value: 0.0 dB)

Height Left (Default Value: 0.0 dB)

Height Right (Default Value: 0.0 dB)

Surround Right (Default Value: 0.0 dB)

Surr Back Right (Default Value: 0.0 dB)

Surr Back Left (Default Value: 0.0 dB)

Surround Left (Default Value: 0.0 dB)

Subwoofer (Default Value: 0.0 dB)

Select a value between "-12.0 dB" and "+12.0 dB" ("-15.0 dB" and "+12.0 dB" for Subwoofer) (in 0.5 dB increments). A test tone will be output each time you change the value. Select the desired level.

(Height Left, Height Right):

- This setting cannot be changed when "Configuration" - "Speaker Channels" is set to "4.1.2 ch" or "5.1.2 ch", and the audio output destination is set to "On (A+B)".

(Surr Back Right, Surr Back Left):

- This setting cannot be changed when the audio output destination is set to "On (A+B)".

2. Speaker

5. Dolby Enabled Speaker

Change the settings of Dolby Enabled Speakers.

- This setting can be selected when "Configuration" - "Height Speaker" is set to "Dolby Speaker".

☐ Distance from the ceiling (Default Value: 6.0 ft/1.80 m)

Set the distance between the Dolby Enabled Speaker and the ceiling. Select between "0.1 ft"/"0.03 m" and "15.0 ft"/"4.50 m" ("0.1 ft"/"0.03 m" units).

- The unit of distance (ft/m) is displayed using the unit selected for the "Distance" setting.

AccuReflex (Default Value: Off)

You can enhance the reflection effect of Dolby Enabled Speakers from the ceiling.

Off When this function is not used

On When this function is used

6. Equalizer Settings

You can adjust the output volume of the range for each connected speaker. Adjust the volume of different sound ranges for each speaker. You can set three different equalizers in Preset 1 to 3. The number of frequencies that can be selected for each speaker is up to five bands for the Subwoofer and nine bands for the other speakers.

Front (Default Value: 0.0dB)

Center (Default Value: 0.0dB)

Height (Default Value: 0.0dB)

Surround (Default Value: 0.0dB)

Surround Back (Default Value: 0.0dB)

Subwoofer (Default Value: 0.0dB)

After selecting the speaker frequency from between "25 Hz" and "16 kHz" ("25 Hz" and "160 Hz" for Subwoofer) with the cursors ▲, ▶ adjust the volume of that frequency between "-6.0 dB" and "+6.0 dB" with ▲. ▼

- Depending on the input source or listening mode setting, the desired effect may not be achieved.

(Subwoofer):

- This cannot be selected if "Configuration" - "Subwoofer" is set to "No".

2. Speaker

7. Speaker Virtualizer

The Speaker Virtualizer function can be switched between On and Off.

☐ Speaker Virtualizer (Default Value: On)

On Listening modes such as T-D that have virtual speaker effects can be selected.

Off Listening modes such as T-D that have virtual speaker effects cannot be selected.

3. Audio Adjust3. Audio Adjust

1. Multiplex/Mono

Change the settings of multiplex audio playback.

☐ Multiplex Input Channel (Default Value: Main)

Set the audio channel or language to be output when playing multiplex audio or multilingual broadcasts, etc.

- For multiplex audio broadcasts, pressing the i button on the remote controller will display "1+1" on the main unit's display.

Main Main channel only
Sub Sub channel only
Main / Sub	Main and sub channels will be output at the same time.

☐ Mono Input Channel (Default Value: Left + Right)

Set the input channel when playing back analog or 2 ch PCM signals in the Mono listening mode.

Left Left channel only

Right Right channel only

Left + Right Left and right channels

2. Dolby

Change the setting of when Dolby signals are input.

☐ Loudness Management (Default Value: On)

When playing Dolby TrueHD, enable the dialog normalization function which keeps the volume of dialog at a certain level. Note that when this setting is Off, the Late Night function that allows you to enjoy surround at low volumes is fixed to off when playing Dolby Digital Plus/Dolby TrueHD.

On	When this function is used
Off	When this function is used

☐ Center Spread (Default Value: Off)

Adjust the width of the front sound field created when playing back with the Dolby Audio - Surr listening mode.

- Depending on the speaker settings, "Off" is applied.

On	The sound field is spread to left and right.
Off	The sound field is centralized.

3. Audio Adjust

3. DTS

Change the setting of when DTS signals are input.

☐ DTS Auto Surround (Default Value: On)

When inputting DTS signals that include extended channel information, the optimum listening mode is automatically selected according to the extended information contained in the input signal and the speaker configuration of this unit when playing in the straight decoding listening mode.

On When this function is used

Off Audio is played using the same amount of channels in the

input signal according to the speaker configuration of this unit.

- If this function is set to "Off", the ES Matrix and ES Discrete listening modes cannot be selected.

Dialog Control (Default Value: 0 dB)

You can increase the volume of dialog portion of the audio up to 6 dB by 1 dB step so that you can hear the dialog easily in noisy atmosphere.

• This cannot be set for content other than DTS:X.
- Depending on the content, this function may not be selected.

4. LFE Level

Set the low-frequency effect (LFE) level for Dolby Digital series, DTS series, Multichannel PCM, and DSD signals.

LFE Level (Default Value: 0 dB)

Select the low-frequency effect (LFE) level of each signal from "0 dB" to "-∞ dB". If the low-frequency effect sound is too strong, select "-20 dB" or "-∞ dB".

5. Volume

Change the Volume settings.

Mute Level (Default Value: -∞ dB)

Set the volume lowered from the listening volume when muting is on. Select a value from "-∞ dB", "-40 dB", and "-20 dB".

Maximum Volume (Default Value: Off)

Set the maximum value to prevent the volume from becoming too loud. Select a value from "Off", and "50" to "99".

Power On Volume (Default Value: Last)

Set the volume level of when the power is turned on. Select a value from "Last" (Volume level before entering standby mode), "Min", "0.5" to "99.5" and "Max". You cannot set a higher value than that of "Maximum Volume".

Headphone Level (Default Value: 0.0 dB)

Adjust the output level of headphones. Select a value between "-12.0 dB" and "+12.0 dB".

4. Source4. Source

SetupSet

1. My Input Volume

Set a volume value for each input selector.

☐ My Input Volume (Default Value: Last)

Select a value from "Last", "Min", "0.5" to "81.5" and "Max".

• The volume level when the power is turned on is the value set for "Power On Volume".
• To set the volume to the current volume, press the button of the input selector you wish to set for approx. 3 seconds.

2. Name Edit

Set an easy name for each input. The set name appears on the main unit's display. Select the input selector to make the setting.

☐ Name Edit (Default Value: Input name)

1. Select a character or symbol with the cursors, and press ENTER. Repeat this operation to input up to 10 characters.
   "A/a": Switches between upper and lower cases. (Pressing MODE on the remote controller also toggles between upper and lower cases)
   "←""→": Moves the cursor in the arrow direction.
   "Removes a character on the left of the cursor."
   "Enter a space.
2. Pressing CLEAR on the remote controller will remove all the input characters.
3. After inputting, select "OK" with the cursors, and press ENTER. The input name will be saved.
   To restore the name to the default value, press CLEAR on the remote controller on the input screen. Then while nothing is entered, select "OK", and press ENTER.
4. To name a preset radio station, press TUNER on the remote controller, select AM/FM and select the preset number.
5. This cannot be set if the "NET" or "BLUETOOTH" input is selected.

Audio Select

Select the priority for input selection when multiple audio sources are connected to one input selector, such as connections to both the "BD/DVD" HDMI IN jack and the "BD/DVD" AUDIO IN jack. The setting can be separately set to each input selector button. Select the input selector to configure. Note that there are some default values you cannot change.

☐ BD/DVD (Default Value: HDMI)

GAME (Default Value: HDMI)

CBL/SAT (Default Value: HDMI)

STRM BOX (Default Value: HDMI)

ARC	When giving priority to input signal from ARC compatible TV.The setting can be selected only when "5. Hardware" - "HDMI" - "Audio Return Channel (eARC supported)" is set to "On" and also the "TV" input is selected.
HDMI	When giving priority to input signal from HDMI IN jacksThis item can be selected only when the input to be set is assigned to the HDMI jack in the "1. Input/Output Assign" - "HDMI Input" setting.
COAXIAL	When giving priority to input signal from DIGITAL IN COAXIAL jacksThis item can be selected only when the input to be set is assigned to the COAXIAL jack in the "1. Input/Output Assign" - "Digital Audio Input" setting.
OPTICAL	When giving priority to input signal from DIGITAL IN OPTICAL jacksThis item can be selected only when the input to be set is assigned to the OPTICAL jack in the "1. Input/Output Assign" - "Digital Audio Input" setting.

4. Source

SetupSet

Analog When giving priority to the input signal from AUDIO IN jacksThis item can be selected only when the input to be set is assigned to the AUDIO IN jack in the "1. Input/Output Assign" - "Analog Audio Input" setting.

□ PCM Fixed Mode (Default Value: Off)

Select whether to fix input signals to PCM (except multi-channel PCM) when you select "HDMI", "COAXIAL", or "OPTICAL" in the "Audio Select" setting. Set this item to "On" if noise is produced or truncation occurs at the beginning of a track when playing PCM sources. Select "Off" normally.

- Each time the "Audio Select" setting is changed, the setting is restored to "Off".

- The setting cannot be changed when "TUNER", "NET", or "BLUETOOTH" input is selected.

Video Select

When "TUNER", "NET", or "BLUETOOTH" input is selected, you can set the input from which video is displayed on the TV.

☐ Video Select (Default Value: Last)

Last Select the	video input played immediately prior.
BD/DVD,GAME,CBL/SAT,STRM BOX,PC,CD,TV	Play the video of each input.This setting is effective for an input selector assigned in "1. Input/Output Assign" - "HDMI Input".

5. Hardware5. Hardware

1. HDMI

Change the settings of the HDMI function.

☐ HDMI CEC (Default Value: On)

Setting this to "On" enables the input selection link and other link functions with HDMI-connected CEC-compatible device.

When this setting is changed, turn off and then on again the power of all connected devices.

• Depending on the TV to use, a link setting may be required on the TV.
• This function is effective only when the device is connected to the HDMI OUT MAIN terminal.
• Setting this to "On" and closing the operation screen will display the name of the connected CEC-compatible device and "CEC On" on the main unit's display.

- When this function is set to "On", the power consumption in standby state increases, however, the increase in power consumption is minimized by automatically entering the HYBRID STANDBY mode where only the essential circuits operate.

- If you operate the MASTER VOLUME dial on the main unit when this setting is "On" and audio is output from the TV speakers, audio will be output also from the speakers connected to this unit. To output audio from only either of them, change the setting of this unit or TV, or reduce the volume of this unit.

- If abnormal behavior is observed when this is set to "On", set it to "Off".

- If a connected device is not CEC-compatible, or if you are not sure whether it is compatible, set it to "Off".

On When this function is used

Off When this function is not used

☐ HDMI Standby Through (Default Value: Auto (Eco))

When this is set to anything other than "Off", you can play the video and audio of an HDMI-connected player on the TV even if the unit is in standby mode. Also, only "Auto" and "Auto (Eco)" can be selected if "HDMI CEC" is set to "On". If you select anything else, set "HDMI CEC" to "Off".

• When this function is set to a value other than "Off", the power consumption in standby state increases, however, the increase in power consumption is minimized by automatically entering the HYBRID STANDBY mode where only the essential circuits operate.
• To play a non-CEC compliant player on the TV, turn the unit on and switch the input.
• When using a CEC-compliant TV, you can reduce the power consumption in standby mode by selecting "Auto (Eco)".

Off When this function is not used
BD/DVD,GAME,CBL/SAT,STRM BOX,PC,CD,TV	For example, if you select "BD/DVD", you can play the equipment connected to the "BD/DVD" jack on the TV even if the unit is in standby mode. Select this setting if you have decided which player to use with this function.
Last You can play on the TV the video and audio of the input selected immediately before the unit is switched to standby.When "Last" is selected, you can switch the input of the unit using the remote controller or the Onkyo Controller even in the standby mode.
Auto,Auto (Eco)	Select one of these settings when you have connected equipment that conforms to the CEC standard. You can play the video and audio of the input selected on the TV, irrespective of what input was selected immediately prior to the unit being switched to standby, using the CEC link function.

5. Hardware

☐ Audio TV Out (Default Value: Auto)

You can enjoy audio through the speakers of the TV while this unit is on.

• This setting is fixed to "Auto" if you set "1. Input/Output Assign" - "TV Out/OSD" - "HDMI Out" or "HDMI" - "HDMI Out" in the "Quick Menu" to "MAIN" or "MAIN+SUB" and set "HDMI CEC" to "On". If you change this setting, set "HDMI CEC" to "Off".
• Listening mode cannot be changed while "Audio TV Out" is set to "On" and audio is being output from the TV.
• Depending on your TV or input signal of the connected device, audio may not be output from the TV even if this is set to "On". In such a case, audio is output from the speakers of the unit.
• Audio is output from this unit if you operate the MASTER VOLUME dial on this unit when audio that is input to this unit is output from your TV speakers. If you do not want to output audio, change the setting of this unit or TV, or reduce the volume of this unit.

On When this function is used
Off When this function is not used

Auto When the

"HDMI Out" setting is "MAIN" or "MAIN+SUB" and the "HDMI CEC" setting is "On", the setting is fixed to "Auto". With "Auto", when audio is output from the TV speakers, audio is not output from the speakers of this unit, and when audio is output from the speakers of this unit, audio is not output from the TV speakers.· If the HDMI CEC setting is off on the TV, there may be audio output from both the TV speakers and the speakers of this unit.

☐ Audio Return Channel (eARC supported) (Default Value: On)

You can enjoy the sound of an HDMI-connected ARC-compatible TV or eARC-compatible TV through the speakers connected to the unit.

On When enjoying the TV sound through the speakers connected to the unit

Off When the ARC function or eARC function is not used

☐ Auto Lip Sync (Default Value: On)

Automatically corrects desynchronization between the video and audio signals based on the information from the HDMI Lip-Sync-compatible TV.

On When enabling the automatic correction function

Off When not using the automatic correction function

5. Hardware

SetupSet

2. Network

Change the settings of the Network function.

- When LAN is configured with a DHCP, set "DHCP" to "Enable" to configure the setting automatically. ("Enable" is set by default) To assign fixed IP addresses to each components, you must set "DHCP" to "Disable", assign an address to this unit in the "IP Address" setting, and set information related to your LAN, such as Subnet Mask and Gateway.

☐ Wi-Fi (Default Value: Off(Wired))

Connect the unit to the network via a wireless LAN router.

- When switching between "On" and "Off(Wired)", stop the Network service. Also, when group playback is in process, cancel the group playback once, and then switch the setting.

On Wireless LAN connection

Off(Wired) Wired LAN connection

☐ Wi-Fi Setup (Default Value: -)

Configure wireless LAN settings by pressing ENTER with "Start" displayed.

☐ Wi-Fi Status (Default Value: -)

The information of the connected access point is displayed.

SSID SSID of the connected access point.

Signal Signal strength of the connected access point.

Status Status of the connected access point.

☐ MAC Address (Default Value: -)

Check the MAC address of this unit.

This value is specific to the component and cannot be changed

☐ DHCP (Default Value: Enable)

Enable	Auto configuration by DHCP
Disable	Manual configuration without DHCPIf you select "Disable", set "IP Address", "Subnet Mask", "Gateway", and "DNS Server" manually.

IP Address (Default Value: 0.0.0.0)

Displays/Sets the IP address.

☐ Subnet Mask (Default Value: 0.0.0.0)

Displays/Sets the subnet mask.

☐ Gateway (Default Value: 0.0.0.0)

Displays/Sets the gateway.

☐ DNS Server (Default Value: 0.0.0.0)

Displays/Sets the primary DNS server.

□ Proxy URL (Default Value: -)

Displays/Sets the proxy server URL.

☐ Proxy Port (Default Value: 8080)

Displays/Sets the proxy server port number when you input "Proxy URL".

5. Hardware

☐ Friendly Name (Default Value: Onkyo TX-NR5100 XXXXXX)

Change the model name of this unit which is displayed on the device connected to the network to an easily recognized name.

1. Press ENTER to display the Edit screen.

2. Select a character or symbol with the cursors, and press ENTER.

Repeat this operation to input up to 31 characters.

"A/a": Switches between upper and lower cases. (Pressing MODE on the remote controller also toggles between upper and lower cases)

"←" "→": Moves the cursor in the arrow direction.

"Removes a character on the left of the cursor."

"": Enters a space

- Pressing CLEAR on the remote controller will remove all the input characters.

1. After inputting, select "OK" with the cursors, and press ENTER. The input name will be saved.

AirPlay (Default Value: On)

Select whether or not to use the AirPlay function.

On When this function is used

Off When this function is not used

AirPlay Device Name (Default Value: Onkyo TX-NR5100 XXXXXX)

Change the model name of this unit which is displayed on the AirPlay-connected device to an easily recognized name.

1. Press ENTER to display the Edit screen.

2. Select a character or symbol with the cursors, and press ENTER. Repeat this operation to input up to 31 characters.

"A/a": Switches between upper and lower cases. (Pressing MODE on the remote controller also toggles between upper and lower cases)

"←" "→": Moves the cursor in the arrow direction.

"Removes a character on the left of the cursor.

"Enter a space.

- Pressing CLEAR on the remote controller will remove all the input characters.

1. After inputting, select "OK" with the cursors, and press ENTER. The input name will be saved.

- This function cannot be used when registering this unit to Home App.

5. Hardware

AirPlay Password (Default Value: -)

You can set a password of up to 31 characters so that only users that have input can use AirPlay.

1. Press ENTER to display the Edit screen.

2. Select a character or symbol with the cursors, and press ENTER.

Repeat this operation to input up to 31 characters.

"A/a": Switches between upper and lower cases. (Pressing MODE on the remote controller also toggles between upper and lower cases)

"←" "→": Moves the cursor in the arrow direction.

"Removes a character on the left of the cursor.

"": Enters a space.

- To select whether to mask the password with "*" or display it in plain text, press MEMORY on the remote controller.

- Pressing CLEAR on the remote controller will remove all the input characters.

1. After inputting, select "OK" with the cursors, and press ENTER.

The input password will be saved.

- This function cannot be used when registering this unit to Home App.

☐ Privacy Statement (Default Value: Not Accepted)

When using a network service that requires a login name, email address, password, etc., you need to agree to the Privacy Statement of our company.

- This setting can be made after confirming the Privacy Statement. When you select "Privacy Statement" and press ENTER, the Privacy Statement is displayed.

- When "Not Accepted" is selected, you will log out from the network service you have logged in.

☐ Network Check (Default Value: -)

You can check the network connection. Press ENTER when "Start" is displayed.

- Wait for a while if "Network" cannot be selected. It can be selected when the network function is activated.

5. Hardware

3. Bluetooth

Change the settings for the BLUETOOTH function.

- Wait for a while if "Bluetooth" cannot be selected. It can be selected when the BLUETOOTH function is activated.

(Bluetooth Receiver)

Bluetooth Receiver (Default Value: On)

Select whether or not to use the function that receives audio from BLUETOOTH wireless technology enabled devices.

On When this function is used

Off When this function is not used

☐ Auto Input Change (Default Value: On)

When a BLUETOOTH enabled device is played while it is connected to the unit, the input of the unit can be automatically switched to "BLUETOOTH".

On The input will automatically become "BLUETOOTH" when a BLUETOOTH enabled device is connected.

Off The function is disabled.

- If the input is not switched automatically, set this to "Off", and change the input manually.

☐ Auto Reconnect (Default Value: On)

This function automatically reconnects to the BLUETOOTH enabled device connected last when you change the input to "BLUETOOTH".

- This may not work with some BLUETOOTH enabled devices.

On When this function is used

Off When this function is not used

□ Pairing Information (Default Value: -)

You can initialize the pairing information stored on this unit. If you are no longer able to connect with a device you have paired, try doing this. (→p129)

Pressing ENTER when "Clear" is displayed initializes the pairing information stored on this unit.

- This function does not initialize the pairing information on the BLUETOOTH enabled device. When pairing the unit again with the device, be sure to clear the pairing information on the BLUETOOTH enabled device beforehand. For information on how to clear the pairing information, refer to the instruction manual of the BLUETOOTH enabled device.

☐ Device (Default Value: -)

Displays the name of the BLUETOOTH enabled device connected to the unit. - The name is not displayed when "Status" is "Ready" and "Pairing".

□ Status (Default Value: -)

Displays the status of the BLUETOOTH enabled device connected to the unit.

Ready Not paired

Pairing Paired

Connected Successfully connected

(Bluetooth Transmitter)

Bluetooth Transmitter (Default Value: Off)

Select whether or not to use the function that transmits audio from this unit to BLUETOOTH wireless technology enabled devices.

On (Tx) When this function is to be used (played back only on Bluetooth wireless technology enabled devices)
On (Main + Tx)	When this function is to be used (played back both on this unit and on Bluetooth wireless technology enabled devices)

Off When this function is not used

5. Hardware

SetupSet

☐ Search Devices (Default Value: -)

Search for a BLUETOOTH wireless technology enabled device that is able to receive the audio from this unit. Select "Start" then press ENTER. A list of the names of BLUETOOTH wireless technology enabled devices that are able to receive is displayed. Select the device to be connected with the cursors ▲, ▼ then pairing begins when you press ENTER.

☐ Output Level (Default Value: Variable)

You can select whether to adjust the volume on this unit or to adjust it on the Bluetooth wireless technology enabled device.

Variable To use the volume controls on this unit

Fixed To use the volume controls on the Bluetooth wireless technology enabled device

☐ aptX HD (Default Value: Off)

It is possible to use aptX HD to connect a BLUETOOTH wireless technology enabled device and this unit.

- The codec of the receiving device must be compatible with aptX HD.

On When this function is used

Off When this function is not used

☐ Low Latency Mode (Default Value: Off)

If the audio from a device connected via BLUETOOTH is delayed compared to the video on the TV when watching a gaming screen, etc., you can reduce the audio delay.

On When this function is used

Off When this function is not used

□ Pairing Information (Default Value: -)

You can initialize the pairing information stored on this unit. If you are no longer able to connect with a device you have paired, try doing this. (→p130)

Pressing ENTER when "Clear" is displayed initializes the pairing information stored on this unit.

- This function does not initialize the pairing information on the BLUETOOTH enabled device. When pairing the unit again with the device, be sure to clear the pairing information on the BLUETOOTH enabled device in advance. For information on how to clear the pairing information, refer to the BLUETOOTH enabled device's instruction manual.

☐ Device (Default Value: -)

Displays the name of the BLUETOOTH enabled device connected to the unit. - The name is not displayed when "Status" is "Ready" and "Pairing".

Status (Default Value: -)

Displays the status of the BLUETOOTH enabled device connected to the unit.

Ready Not paired
Pairing Paired
Connected Successfully connected
Connected (aptX)	Successfully connected with aptX compatible device
Connected (aptX HD)	Successfully connected with aptX HD compatible device

5. Hardware

4. Power Management

Change the settings for the power-save function.

Sleep Timer (Default Value: Off)

30 minutes,60 minutes,90 minutes	You can allow the unit to enter standby automatically when the specified time has elapsed. Select a value from "30 minutes", "60 minutes" and "90 minutes".
Off Does not turn the unit to standby automatically.

☐ Auto Standby (Default Value: Off)

This setting allows the unit to enter standby mode automatically after 20 minutes of inactivity without any video or audio input. (When "USB Power Out at Standby" or "Network Standby" is enabled, the unit enters the HYBRID STANDBY mode which minimizes the increase in power consumption.)

On The unit will	automatically enter standby mode ("AUTO STBY" will light).• "Auto Standby" is displayed on the main unit's display and TV screen 30 seconds before entering standby mode.
Off The unit will	not automatically enter standby mode.

☐ Auto Standby In HDMI Standby Through (Default Value: Off)

Enable or disable "Auto Standby" while "HDMI Standby Through" is on.

On The setting	will be enabled.· This setting cannot be set to "On" if "Auto Standby" and "HDMI Standby Through" are set to "Off".
Off The setting	will be disabled.

USB Power Out at Standby (Default Value: Off)

Devices connected to the USB port (5 V/1 A) on the rear of the unit can be supplied with electricity even when this unit is in standby mode when this function is "On".

- When this function is set to "On", the power consumption in standby state increases, however, the increase in power consumption is minimized by automatically entering the HYBRID STANDBY mode where only the essential circuits operate.

☐ Network Standby (Default Value: On)

When this function is set to "On", the network function works even in standby state, and you can turn on the power of the unit via network using an application such as Onkyo Controller that can control this unit.

- When this function is set to "On", the power consumption in standby state increases, however, the increase in power consumption is minimized by automatically entering the HYBRID STANDBY mode where only the essential circuits operate. Note that even if this function is set to "Off", when any of the HDMI CEC (→p105), HDMI Standby Through (→p105), USB Power Out at Standby (→p112) and Bluetooth Wakeup (→p113) functions is enabled, this function will be in "On" state regardless of the setting.

- When connection to the network is lost, "Network Standby" may be disabled to reduce power consumption. In such a case, turn the unit on by using the power button on the remote controller or main unit.

5. Hardware

Bluetooth Wakeup (Default Value: Off)

This function wakes up the unit on standby by connecting a BLUETOOTH enabled device.

On When this function is usedWhen this function is set to "On", the power consumption in standby state increases, however, the increase in power consumption is minimized by automatically entering the HYBRID STANDBY mode where only the essential circuits operate.

Off When this function is not usedThis setting is fixed to "Off" if "Bluetooth" - "Bluetooth Receiver" is set to "Off".This setting is also fixed to "Off" if "Bluetooth" - "Bluetooth Receiver" - "Auto Input Change" is set to "Off".

• Wait for a while if "Network Standby" and "Bluetooth Wakeup" cannot be selected. It can be selected when the network function is activated.

5. Works with SONOS

Change the settings to connect with the Sonos Connect.

☐ Input Selector (Default Value: Off)

Select the input selector to which the Sonos Connect is connected. - Selecting "Off" disables the interlock function with Sonos.

☐ Connected Device (Default Value: -)

Displays the Sonos Connect connected to the same network as the network of this unit. Press the ENTER button to select the connected Sonos Connect.

• Products (e.g. Play:3 unequipped with an output terminal) other than the Sonos Connect are also displayed in the device list and selectable. In that case, when playback on the Sonos side starts, the input is switched, however, audio is not output. Select the room name of the connected Sonos Connect.
• Up to 32 devices can be displayed on the Sonos product list screen. If you cannot find the Sonos Connect to be interlocked, return to the previous screen, turn off the product you do not want to interlock, and try again.
• To use this function, set "Input Selector" beforehand.

☐ Preset Volume (Default Value: Main=Last)

You can set the volume beforehand for playing back the Sonos Connect. Select a value from "Last" (Volume level before entering standby mode), "Min", "0.5" to "99.5" and "Max". - To use this function, set "Input Selector" beforehand.

6. Miscellaneous6. Miscellaneous

SetupSet

1. Tuner

Change the settings for Tuner.

☐ AM / FM Frequency Step (Default Value: 10 kHz / 0.2 MHz)

Select a frequency step to suit your residential area.

Select "10 kHz/0.2 MHz" or "9 kHz/0.05 MHz".

- When this setting is changed, all radio presets are deleted.

2. Remote ID

Change the remote controller ID.

Remote ID (Default Value: 1)

If multiple ONKYO products are installed in the same room, select the ID for the remote control used with this unit from "1", "2" and "3" to prevent interference between the unit and other ONKYO products. After changing the ID on the main unit, set the same ID on the remote controller as the main unit with the following procedure.

While pressing and holding the MODE button, press the following buttons for approx. 3 seconds.

• To change the remote controller ID to "1": MOVIE/TV

• To change the remote controller ID to "2": MUSIC

• To change the remote controller ID to "3": GAME

6. Miscellaneous

3. Firmware Update

Change the settings for Firmware Update.

Update Notice (Default Value: Enable)

Availability of a firmware update is notified via network.

Enable Notify updates

Disable Do not notify updates

☐ Version (Default Value: -)

The current firmware version is displayed.

Update via NET (Default Value: -)

Press ENTER to select when updating the firmware via network.

- This setting cannot be selected if you do not have Internet access or there is no updatable firmware.

Update via USB (Default Value: -)

Press ENTER to select when updating the firmware via USB.

- This setting cannot be selected if a USB storage device is not connected or there is no updatable firmware in the USB storage device.

- Wait for a while if "Firmware Update" cannot be selected. It can be selected when the network function is activated.

4. Initial Setup

Make the initial setup from the setup menu.

- Wait for a while if "Initial Setup" cannot be selected. It can be selected when the network function is activated.

5. Lock

Lock the Setup menu so that the settings cannot be changed.

Setup Parameter (Default Value: Unlocked)

Lock the Setup menu so that the settings cannot be changed.

Locked The menu is locked.

Unlocked The menu is unlocked.

6. Factory Reset

All the settings are restored to factory defaults.

☐ Factory Reset (Default Value: -)

All the settings are restored to factory defaults. Select "Start" and press ENTER.

- If "Factory Reset" is performed, your settings are restored to the default values. Be sure to note down your setting contents beforehand.

Web Setup

Menu operations

You can make the settings for the network function of this unit using an Internet browser on a PC, smartphone, etc.

1. Press ⚙ on the remote controller to display the Setup menu.
2. Select "5. Hardware" - "Network" with the cursors, and then take a note of the IP address displayed in "IP Address".

3. Start the Internet browser on your PC, smartphone, etc. and enter the IP address of this unit in the URL field.

4. The screen for entering the user name and password is displayed. Enter the following then click "OK".

User name: admin (fixed) Password: admin (default value)

• You can change the password after logging in.
• Input is required again if you close the browser.

• Take a note of the password so that you do not forget it. If you do forget it, reset the unit "Resetting the unit (this resets the unit settings to the default)" (→p123) then log in again with the initial settings (admin).

• Information for the unit (Web Setup screen) is displayed in the internet browser.

1. After changing the settings, select "Save" to save the settings.

Device Information

You can change the Friendly Name or AirPlay Device Name, set an AirPlay Password, etc.

Control4: Register this unit if you are using a Control4 system.

Firmware Update: Select the firmware file you have downloaded to your PC so you can update this unit.

Network Setting

Status: You can see information for the network such as the MAC address and IP address of this unit.

Network Connection: You can select a network connection method. If you select "Wireless", select an access point from "Wi-Fi Setup" to connect.

DHCP: You can change DHCP settings. If you select "Off", set "IP Address", "Subnet Mask", "Gateway" and "DNS Server" manually.

Proxy: Display and set the URL for the proxy server.

Initial Setup with Auto Start-up Wizard

Operations

When you turn the unit on for the first time after purchase, the Initial Setup screen is automatically displayed on the TV to allow you to make settings required for startup using simple operations following on-screen guidance.

1. Switch the input of the TV to the input connected to the unit.

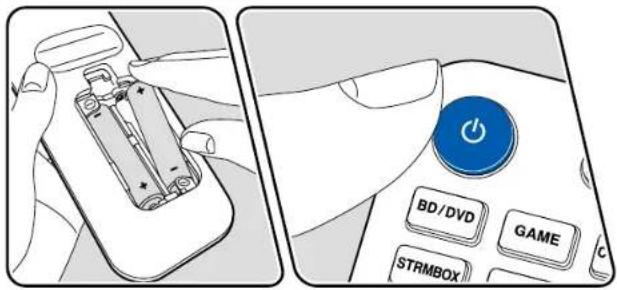

2. Put batteries into the remote controller of this unit.
3. Press don the remote controller to turn the unit on.
4. When the language selection screen is displayed on TV, select the language with the cursors ▲/▼ and press ENTER.
5. To make the network connection settings, select "Yes" and press ENTER.
6. Select the item with the cursors of the remote controller, and press ENTER to confirm your selection. To return to the previous screen, press ↩.
7. If you have terminated the Initial Setup halfway, turn this unit to standby mode and turn the power on again. Then you can display the Initial Setup again. Unless you do the Initial Setup to the end or select "Never Show Again" in the screen shown after setting the Network Connection, the wizard screen is shown every time the power is turned on.
8. To perform the Initial Setup again after the setting is completed, press ,select "6. Miscellaneous" - "Initial Setup", and press ENTER.

Network Connection

1. A confirmation screen asking you whether to agree to the privacy statement is displayed during network setting. If you agree, select "Accept" and press ENTER.
2. Select the type of connection to the network. To use the Chromecast built-in function to connect, select "Yes" and press ENTER. The Google Home app is required to use the Chromecast built-in function. Download the Google Home app from Google Play or the App Store to your smart phone or tablet.

- Google Home app can be used on the following operating systems. (As of february 2021)

Android ^TM : Android 6.0 or later.

iOS: iOS 12.0 or later. Compatible with iPhone ^® , iPad ^® , and iPod touch ^® .

If you select "No", you can connect using either wired LAN or Wi-Fi.

"Wired": Use a wired LAN to connect to a network.

"Wireless": Wi-Fi connection using an access point such as a wireless LAN router.

• There are two methods for Wi-Fi connection.
  "Scan Networks": Search for an access point from this unit. Find out the SSID of the access point beforehand.
  "Use iOS Device (iOS7 or later)": Share the Wi-Fi settings of your iOS device with this unit.
• If you select "Scan Networks", there are another two types of connection methods. Check the following.

"Enter Password": Enter the password (or key) of the access point to connect.

"Push Button": If the access point is equipped with an automatic setting button, you can connect without entering the password.

- If the SSID of the access point is not displayed, select "Other..." with the cursor ▶ on the SSID list screen, press ENTER, and then follow the on-screen instructions.

Keyboard Input

To switch between upper and lower cases, select "A/a" on the screen, and press ENTER on the remote controller.

To select whether to mask the password with "*" or display it in plain text, press MEMORY on the remote controller. Pressing CLEAR on the remote controller will delete all the input characters.

1. Speaker Setup

1. Select the connected speaker configuration and press ENTER. Note that the image on the screen changes each time you select the number of channels in "Speaker Channels".

① Select to suit the number of speaker channels connected.
② Set whether a subwoofer is connected or not.
3 Set the speaker type if height speakers are connected to the HEIGHT terminals.
④ Set whether speakers are connected to Zone B speaker terminals.
⑤ When audio is output to ZONE B, set whether the volume is adjusted with the integrated amplifier in the separate room or with this unit.
⑥ Set whether the front speakers are bi-amp connected.
⑦ Set the impedance of the connected speakers.

1. The speaker combination selected in step 1 is displayed. "Yes" is displayed for the selected speakers. If the setting is correct, press ENTER.
2. Select "Next" and press ENTER. Then a test tone is output from each speaker to confirm the connection. Selecting each speaker with the cursors ▲ / ▼ will output the test tone. Press ENTER after confirmation.
3. If there is no problem with the speaker connection, select "Next" and press ENTER. To return to "Speaker Setup", select "Back to Speaker Setup" and

Setup

press ENTER.

2. ARC Setup

If you have connected a TV that supports ARC, select "Yes" and press ENTER.

3. AccuEQ Room Calibration

Place the supplied speaker setup microphone at the listening position. The unit automatically measures the test tones output from each speaker, and sets the optimum volume level for each speaker, the crossover frequencies, and the distance from the listening position. This also reduces the effect of the standing wave in accordance with the viewing environment and automatically adjusts the equalizers for the speakers, and enables correction of sound distortion caused by the acoustic environment of the room.

• It takes between 3 and 12 minutes for calibration to be completed. Each speaker outputs the test tone at high volume during measurement, so be careful of your surroundings. Also, keep the room as quiet as possible during measurement.
• If you connect a subwoofer, check the power and volume of the subwoofer. Set the subwoofer volume to more than half.
• If the power of this unit suddenly turns off, the wires in the speaker cables have touched the rear panel or other wires, and the protection circuit is working. Twist the wires again securely, and make sure they do not stick out of the speaker terminals when connecting.
• Place the supplied speaker setup microphone at the listening position, and connect it to the SETUP MIC jack on the main unit.

When placing the speaker setup microphone on a tripod, refer to the illustration.

1. Confirm a test tone is output from the subwoofer and press ENTER.
2. Press ENTER to output test tones from each speaker, and the connected speakers and the noise in the surrounding environment are automatically measured.
3. The measurement results in step 3 are displayed. If there is no problem in the detection result of the speaker, select "Next" and press ENTER to output the test tone again to automatically set the settings such as volume level, crossover frequency, etc., to their optimum. (The test tone is automatically output when 10 seconds has elapsed without any operation.)
4. When the measurement is completed, the measurement results are displayed. You can check each setting using the cursors ◀/▶Select "Save" and press ENTER to save the settings.
5. Disconnect the speaker setup microphone.

Onkyo Controller

Onkyo Controller (available on iOS and Android™ handsets) is a dedicated app available for free which allows you to use your handset as a remote controller. Along with basic operations such as switching input and adjusting the volume, you can also select a radio station or network service (internet radio or play of a music file) without looking at the TV.

- To use Onkyo Controller, this unit needs to be connected to the same network as the mobile device.

Main features

• Turning the power on/off, switching input, adjusting the volume, and other such basic remote controller operations.
• Playing internet radio services (Tuneln Radio, etc.) and selecting stations. Control in the palm of your hands without looking at the TV.
• Play the music files saved on the mobile device via Wi-Fi.
• Play Amazon Music (compatible models only) (→p72)

Initial Setup

1. Download the Onkyo Controller from the App Store or Google Play ^TM Store.
2. Connect the mobile device to the same network as the unit.
3. Start Onkyo Controller. This unit is displayed automatically when the app is started, so tap the unit when displayed to select it.

Troubleshooting

Troubleshooting

When the unit is operating erratically 123

Try restarting the unit 123

Resetting the unit (this resets the unit settings to the default) 123

Troubleshooting 124

Power 124
Audio 124
■ Listening Modes 126
■ Video 127
■ Linked operation 128
Tuner 129
■ BLUETOOTH function 129

■ Network function 131
■ USB storage device 132
■ Wireless LAN Network 132
■ ZONE B function 133
■ Remote Controller 133
■ Display 133

■ Others 134

Troubleshooting

Troubleshooting

Before starting the procedure

Problems may be solved by simply turning the power on/off or disconnecting/connecting the power cord, which is easier than working on the connection, setting and operating procedure. Try the simple measures on both the unit and the connected device. If the problem is that the video or audio is not output or the HDMI linked operation does not work, disconnecting/connecting the HDMI cable may solve it. When reconnecting, be careful not to wind the HDMI cable since if wound the HDMI cable may not fit well. After reconnecting, turn off and on the unit and the connected device.

Two circular diagrams showing hand fastening a cable switch into a car seatbelt, with arrows indicating the mechanism (no text or symbols present)

• The AV receiver contains a microPC for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least 5 seconds, and then plug it back in.
• Our company is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit's malfunction. Before you record important data, make sure that the material will be recorded correctly.

When the unit is operating erratically

☐ Try restarting the unit

Restarting this unit may solve the problem. Set the main unit to standby, then after waiting for 5 seconds or more, press and hold the ON/STANDBY button of the main unit for at least 5 seconds, and then restart the unit. (The settings on this unit are kept.) If the problem persists after restarting the unit, unplug and plug the power cords or HDMI cable of this unit and connected devices.

☐ Resetting the unit (this resets the unit settings to the default)

If the restart of the unit does not solve the problem, reset the unit, and restore all the settings to the factory default at the time of purchase. This may solve the problem. If the unit is reset, your settings are restored to the default values. Be sure to note down your setting contents before performing the following operations. Note that it is not possible to reset the unit during the Initial Setup process. Before doing the following procedures, press to exit Initial Setup.

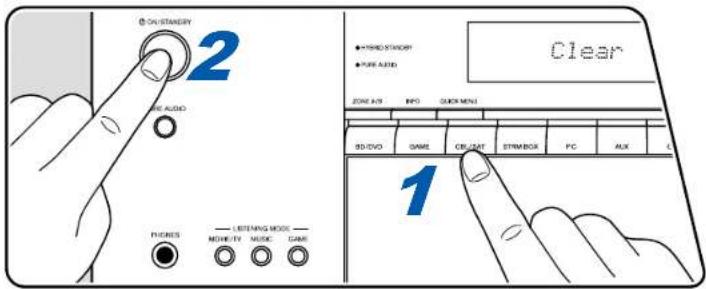

1. While pressing and holding CBL/SAT of the input selector on the main unit with the unit turned on, press the ON/STANDBY button.
2. "Clear" is displayed on the display, and the unit returns to the standby state. Do not remove the power cord until "Clear" disappears from the display. To reset the remote controller, while pressing and holding MODE, press the CLEAR button at least 3 seconds.

Troubleshooting

Troubleshooting

Power

☐ When the power is turned on, "AMP Diag Mode" appears on the display of the main unit

- The protection circuit function may have operated. If the unit suddenly enters the standby state and "AMP Diag Mode" appears on the display of the main unit when the power is turned on again, this function is diagnosing whether or not the main unit is malfunctioning or there is an abnormality with the speaker cable connection. When the diagnosis is complete, the following messages are displayed.

CH SP WIRE	If the unit returns to the normal ON state after "CH SP WIRE" appears on the display, the speaker cable may have been short-circuited. After setting the power of this unit to standby state, connect the speaker cable again. Twist the wires exposed from the tip of the speaker cable so that the wires do not stick out of the speaker terminal.
NG: * * * * *	If the operation has stopped with "NG" displayed on the display, set the power of this unit to standby state immediately and remove the power plug from the outlet. The unit may be malfunctioning. Consult a dealer.

The unit turns off unexpectedly

• If "5. Hardware" - "Power Management" - "Auto Standby" on the Setup menu is activated, the unit automatically enters the standby mode.
• The protection circuit function may have operated due to an abnormal rise in temperature of the unit. In such a case, the power turns off repeatedly even if the power is turned on each time. Secure sufficient ventilation space around the unit, wait for a while until the temperature of the unit decreases. Then, turn the power on again.

WARNING: If smoke, smell or abnormal noise is produced by the unit, unplug the power cord from the outlet immediately, and contact the dealer or our company's support.

Audio

• Make sure that the speaker setup microphone is no longer connected.
• Confirm that the connection between the output jack on the connected device and the input jack on this unit is correct.

- Make sure that none of the connecting cables are bent, twisted, or damaged.

- If "MUTING" is displayed on the display and is blinking, press on the remote controller to cancel muting.

- While headphones are connected to the PHONES jack, no sound is output from the speakers.

- When "4. Source" - "Audio Select" - "PCM Fixed Mode" on the Setup menu is set to "On", audio is not played if signals other than PCM are input. Change the setting to Off.

Check the following if the problem persists after you have confirmed the above.

(→p112)

Troubleshooting

☐ No sound from the TV

- Change the input selector on this unit to the position of the terminal to which the TV is connected.

- If the TV does not support the ARC function, along with the connection by an HDMI cable, connect the TV and this unit using a digital optical cable. (→p46)

☐ No sound from a connected player

• Change the input selector on this unit to the position of the jack to which the player is connected.
• Check the digital audio output setting on the connected device. On some game consoles, such as those supporting DVD, the default setting may be off.
• For some DVD-Video discs, you need to select an audio output format from a menu.

☐ A speaker produces no sound

• Make sure that the polarity (+/-) of the speaker cables is correct, and that no bare wires are in contact with the metal part of speaker terminals.
• Make sure that the speaker cables are not shorting out.
• Check "Connect the Speaker Cables" (→p31) to see if the speaker connections have been made correctly. Settings for the speaker connection environment need to be made in "Speaker Setup" in Initial Setup. Check "Initial Setup with Auto Start-up Wizard" (→p117).
• Depending on the input signal and listening mode, not much sound may be output from speakers. Select another listening mode to see if sound is output.
• If surround back speakers are installed, be sure to install surround speakers as well.
• A maximum of 5.1 ch playback is possible when Bi-Amping connection is used. Be sure to remove the jumper bar on the speakers when using Bi-Amping connection.

☐ The subwoofer produces no sound

If the setting of the front speakers is "Full Band", the low range elements will be output from the front speakers instead of from the subwoofer during

2 ch audio input of TV or music. To output the sound from the subwoofer, make one of the following settings.

1. Change the setting for the front speakers to a setting of crossover frequency value other than "Full Band".

The range below the specified frequency will be output from the subwoofer instead of from the front speakers. If your front speakers have a high low-range reproduction capability, changing this setting is not recommended.

1. Change "Double Bass" to "On".

The low range elements of the front speakers will be output from both the front speakers and the subwoofer. Due to this, the bass sound may be emphasized too much. In such a case, do not change the setting, or make the setting with the above option 1.

• For the setting details, refer to "2. Speaker" - "Crossover" on the Setup menu.
• If the input signals do not contain subwoofer audio elements (LFE), the subwoofer may produce no sound.

Troubleshooting

☐ Noise can be heard

- Using cable ties to bundle audio pin cables, power cords, speaker cables, etc. may degrade the audio quality. Do not bundle the cords. - An audio cable may be picking up interference. Change the position of the cables.

☐ The beginning of audio received by an HDMI IN cannot be heard

- Since it takes longer to identify the format of an HDMI signal than it does for other digital audio signals, audio output may not start immediately.

☐ Sound suddenly reduces

- When using the unit for extended periods with the temperature inside the unit exceeding a certain temperature, the volume may be reduced automatically to protect the circuits.

☐ Sound suddenly changes

- When "My Input Volume" is set, the volume is set for each input selector. Check "4. Source" - "My Input Volume" on the Setup menu (→p103).

Listening Modes

- To enjoy digital surround playback in formats such as Dolby Digital, you need to make a connection for audio signals with an HDMI cable, digital coaxial cable or digital optical cable. Also, audio output need to be set to Bitstream output on the connected Blu-ray Disc player, etc.

- Press i on the remote controller several times to switch the display of the main unit, and you can check the input format. Check the following if the problem persists after you have confirmed the above.

□ Cannot select a desired listening mode

- Depending on the connection status of the speaker, some listening modes may not be selected. Check "Speaker Layouts and Selectable Listening Modes" "Speaker Layouts and Selectable Listening Modes" (→p136) or "Input Formats and Selectable Listening Modes" (→p141).

□ Cannot listen to the sound in Dolby TrueHD, Dolby Atmos or DTS-HD Master Audio format

- If the audio in Dolby TrueHD, Dolby Atmos or DTS-HD Master Audio format cannot be output correctly in the source format, set "BD video supplementary sound" (or reencode, secondary sound, video additional audio, etc.) to "Off" in the setting of a connected Blu-ray Disc player, etc. After changing the setting, switch the listening mode to that for each source, and confirm.

Troubleshooting

□ About Dolby signals

• When surround back speakers are included in the speaker layout, and software that is recorded with the 5.1-channel Dolby audio format is played, the surround channel audio may be output from the surround back speakers.
• Some Dolby Atmos audio format that is used on games, etc., may be recognized as "Multichannel PCM". If this occurs, check the firmware updates for the game console.

□ About DTS signals

• With media that switches suddenly from DTS to PCM, PCM playback may not start immediately. In such a case, stop playback on the player side for approx. 3 seconds or more. Then, resume playback. The playback will be performed normally.
• DTS playback may not be performed normally on some CD and LD players even if the player and this unit are digitally connected. If some processing (e.g., output level adjustment, sampling frequency conversion, or frequency characteristic conversion) has been executed for the DTS signal being output, this unit cannot recognize it as a genuine DTS signal, and noise may occur.
• While playing a DTS-compatible disc, if a pause or skip operation is performed on your player, noise may occur for a short period. This is not a malfunction.

Video

• Confirm that the connection between the output jack on the connected device and the input jack on this unit is correct.
• Make sure that none of the connecting cables are bent, twisted, or damaged.
• When the TV image is blurry or unclear, the power cord or connection cables of the unit may have interfered. In such a case, keep distance between TV antenna cable and cables of the unit.
• Check the switching of the input screen on the monitor side such as a TV.
  Check the following if the problem persists after you have confirmed the above.

☐ No image appears

• Change the input selector on this unit to the position of the jack to which the player is connected.
• While the Pure Audio listening mode is selected, only video signals input from the HDMI input jack can be output.

Troubleshooting

☐ No image from a device connected to HDMI IN jack

• To display video from the connected player on the TV while the unit is in standby, you need to enable "5. Hardware" - "HDMI" - "HDMI Standby Through" on the Setup menu. For details of the HDMI Standby Through function, check "5. Hardware" - "HDMI" on the Setup menu. (→p105)
• To output video to a TV connected to the HDMI OUT SUB jack, press the Q button on the remote controller to display "Quick Menu" and select "HDMI" - "HDMI Out", or press the HDMI MAIN/SUB button on the remote controller and select the HDMI OUT jack.
• Check if "Resolution Error" is displayed on the main unit display when video input via HDMI IN jack is not displayed. In this case, the TV does not support the resolution of the video input from the player. Change the setting on the player.
• Normal operation with an HDMI-DVI adapter is not guaranteed. In addition, video signals output from a PC are not guaranteed.
• Try switching off the Deep Color function. To turn off the Deep Color function, simultaneously press the STRM BOX and ON/STANDBY buttons on the main unit. While holding down STRM BOX, press ON/STANDBY repeatedly until "Deep Color:Off" appears on the display. To reactivate the Deep Color function, repeat the above described step until "Deep Color:On" is appeared on the display.

□ Images flicker

- The output resolution of the player may not be compatible with the resolution of the TV. If the player is connected to this unit with an HDMI cable, change the output resolution on the player. Also this may be solved by changing the screen mode on the TV.

☐ Video and audio are out of synch

- Depending on the settings on your TV and connection environment, the video may be behind the audio. Press Q on the remote controller to display "Quick Menu", select "HDMI" - "A/V Sync", and make the adjustment. (→p65)

Linked operation

☐ HDMI linked operation does not work with CEC-compliant devices, such as a TV

• In the Setup menu of the unit, set "5. Hardware" - "HDMI" - "HDMI CEC" to "On".
• It is also necessary to set HDMI linking on the CEC-compliant device. Check the instruction manual.
• When connecting a Sharp brand player or recorder to the HDMI IN jacks, set "5. Hardware" - "HDMI" - "HDMI Standby Through" to "Auto" on the Setup menu.

Troubleshooting

Tuner

☐ Poor reception or much noise

• Recheck the antenna connection.
• Move the antenna away from the speaker cord or power cord.
• Move the unit away from your TV or PC.
• Passing cars or airplanes in the vicinity can cause interference.
• If radio waves are blocked by concrete walls, etc., radio reception may be poor.
• Change the reception mode to mono (→p60).
• When listening to an AM station, operating the remote controller may cause noise.
• FM reception may be clearer if you use the antenna jack on the wall used for the TV.

(→p51)

■ BLUETOOTH function

• Unplug and plug the power cord of the unit, or turn off and on the BLUETOOTH enabled device. Restart of the BLUETOOTH enabled device may be effective.
• BLUETOOTH enabled devices must support the A2DP profile.
• Because a radio wave interference will occur, this unit may not be used near devices such as a microwave oven or cordless phone which use the radio wave in the 2.4 GHz range.
• A metallic object near the unit can affect on the radio wave, and BLUETOOTH connection may not be possible.

Check the following if the problem persists after you have confirmed the above.

☐ Cannot transmit from a Bluetooth wireless technology enabled device (PC, smartphone, etc.) to this unit

- Check if the BLUETOOTH function of the BLUETOOTH enabled device is enabled.

☐ Cannot connect a BLUETOOTH wireless technology enabled device (PC, smartphone, etc.) to this unit

- Initialize the pairing information and perform pairing again.

Firstly delete all the pairing information saved on this unit. In the Setup menu, select "5. Hardware" - "Bluetooth" - "Bluetooth Receiver" - "Pairing Information", then press ENTER while "Clear" is displayed.

Next, delete the pairing information of this unit that is saved on the BLUETOOTH wireless technology enabled device. For information on how to clear the pairing information, refer to the BLUETOOTH enabled device's instruction manual.

Finally, perform pairing again. Refer to "Playing audio from BLUETOOTH wireless technology enabled devices with this unit" (→p56) for pairing instructions.

(→p110)

Troubleshooting

☐ Cannot transmit from this unit to a Bluetooth wireless technology enabled device (wireless headphones, etc.)

- Check that the "Bluetooth Transmitter" setting on this unit is set to either "On(Tx)" or "On(Main + Tx)". (→p110)

☐ Cannot connect this unit to a BLUETOOTH wireless technology enabled device (wireless headphones, etc.)

- Check if the BLUETOOTH function of the BLUETOOTH enabled device is enabled. (→p111)

- Initialize the pairing information and perform pairing again. Firstly delete all the pairing information saved on this unit. In the Setup menu, select "5. Hardware" - "Bluetooth" - "Bluetooth Transmitter" - "Pairing Information", then press ENTER while "Clear" is displayed.

Next, delete the pairing information of this unit that is saved on the BLUETOOTH wireless technology enabled device. For information on how to clear the pairing information, refer to the BLUETOOTH enabled device's instruction manual.

Finally, perform pairing again. Refer to "Transmitting audio from this unit to BLUETOOTH wireless technology enabled devices" (→p57) for pairing instructions.

□ Music playback is unavailable on the unit even after successful BLUETOOTH connection

• If the volume setting on this unit or the Bluetooth wireless technology enabled device is low, audio may not be played. Check the volume setting on this unit or the Bluetooth wireless technology enabled device.
• Some Bluetooth enabled devices may be equipped with a Send/Receive selector switch. Try switching the setting to suit the application the device is being used for.
• Depending on the characteristics or specifications of the BLUETOOTH enabled device, music may not be played back on this unit.

☐ Sound is interrupted

- There maybe a problem with the BLUETOOTH enabled device. Check the information on a web page.

☐ The audio quality is poor after connection with a BLUETOOTH enabled device

- The BLUETOOTH reception is poor. Move the BLUETOOTH enabled device closer to the unit, or remove any obstacle between the BLUETOOTH enabled device and this unit.

Troubleshooting

Network function

• If you cannot select a network service, start up the network function to select it. It may take approx. one minute to start it up.
• When the NET indicator is blinking, this unit is not properly connected to the home network.
• Unplug and plug the power cords of this unit and the router, or restart the router.
• If the desired router is not displayed in the access point list, it may be set to hide SSID, or the ANY connection may be off. Change the setting and try again.
  Check the following if the problem persists after you have confirmed the above.

□ Cannot access the Internet radio

• In the case the service provider has terminated the service, the network service or contents may not be used on this unit.
- Check if your modem and router are properly connected, and they are both turned on.
- Check if the LAN side port on the router is properly connected to this unit.
- Check if connecting to Internet from other devices is possible. If it is not possible, turn off all devices connected to the network, wait for a while, and then turn on the devices again.
- Depending on ISP, setting the proxy server is required.
- Check if the router and modem you are using are supported by your ISP.

□ Cannot access the network server

• This unit needs to be connected to the same router as the network server.
• This unit supports the Windows Media ^® Player 12 network servers, or NASes that support the home network function.
• Windows Media ^ Player may require some settings. Refer to "Music Server".
• When using a PC, only the music files registered in the library of Windows Media ^ Player can be played.

(→p83)

☐ Sound is interrupted when playing music files on the network server

• Check if the network server meets the requirements for operation.
• When the PC is serving as the network server, quit application software other than the server software (Windows Media ^ Player 12, etc.).
• If the PC is downloading or copying large files, the playback sound may be interrupted.

Troubleshooting

USB storage device

☐ USB storage device is not displayed

• Check if the USB storage device or USB cable is securely inserted to the USB port of the unit.
• Disconnect the USB storage device once from the unit, and then reconnect it.
  • Performance of the hard disk that receive power from the USB port of the unit is not guaranteed.
• Depending on the type of content, the playback may not be performed normally. Check the types of supported file formats.
  • Operations of USB storage devices equipped with security functions are not guaranteed.

Wireless LAN Network

- Unplug and plug the power cords of this unit and the wireless LAN router, check the power-on status of the wireless LAN router, or restart the wireless LAN router.

Check the following if the problem persists after you have confirmed the above.

□ Cannot access wireless LAN network

• The wireless LAN router setting may be switched to Manual. Restore the setting to Auto.
• Try the manual set-up. The connection may succeed.
• When the wireless LAN router is in stealth mode (mode to hide SSID) or when the ANY connection is off, the SSID is not displayed. Change the setting and try again.
• Check if the SSID and encryption settings (WEP, etc.) are correct. Match the network settings with the settings of this unit.
• Connection to an SSID that includes multi-byte characters is not supported. Set the SSID of the wireless LAN router using single-byte alphanumeric characters only, and try again.

☐ Connected to an SSID different from the selected SSID

- Some wireless LAN routers allow you to set multiple SSIDs for one unit. If connecting to such a router using the automatic setting button, you may end up connecting to an SSID different from the SSID you want to connect to. If this occurs, use the connection method requiring you to enter a password.

Troubleshooting

□ Playback sound is interrupted, or communication is not possible

• You may not receive radio waves due to poor radio wave conditions. Shorten the distance from the wireless LAN router, or remove obstacles to improve visibility, and connect again. Install the unit away from microwave ovens or other access points. It is recommended to install the wireless LAN router and the unit in the same room.
• If there is a metallic object near the unit, wireless LAN connection may not be possible because the metal affects the radio wave.
• When other wireless LAN devices are used near the unit, other symptoms may occur, such as interrupted playback and impossible communication. You can avoid those problems by changing the channel of your wireless LAN router. For instructions on changing channels, refer to the instruction manual supplied with your wireless LAN router.
• There may not be enough bandwidth available in wireless LAN. Use a wired LAN for connection.

ZONE B function

☐ The audio of an externally connected AV component cannot be output to ZONE B.

- To output the audio to ZONE B, select "Audio" - "Zone B" on the Quick Menu, and set the audio output destination to "On (A+B)" or "On (B)" (→p88)

Remote Controller

• Make sure that the batteries are inserted with the correct polarity.
• Insert new batteries. Do not mix different types of batteries, or old and new batteries.
• Make sure that the sensor of the main unit is not subjected to direct sunlight or inverter-type fluorescent lights. Relocate it if necessary.
• If the main unit is installed in a rack or cabinet with colored-glass doors, or if the doors are closed, the remote controller may not work normally.

Display

☐ The display does not light up

• When the Dimmer function is working, the display may go dim. Press the DIMMER button, and change the brightness level of the display. (→p16)
• The display is turned off when the Pure Audio listening mode is selected.

Troubleshooting

Others

☐ Strange noise can be heard from the unit

- If you have connected another device to the same outlet as this unit, strange noise may occur under the influence of the device. If the symptom is remedied by removing the power plug of the other device from the outlet, use different outlets for this unit and the device.

☐ The message "Noise Error" appears during AccuEQ Room Calibration

- This can be caused by a malfunction in your speaker unit. Check the speaker output, etc.

☐ The measurement results of AccuEQ Room Calibration show different distances to the speakers from the actual ones

- Depending on the speakers you are using, some errors may occur in the measurement results. If this is the case, make the settings in "2. Speaker" - "Distance" in the Setup menu.

(→p98)

☐ The measurement results of AccuEQ Room Calibration show that the volume level of the subwoofer has been corrected to the lower limit

- The volume level correction of the subwoofer may not have been completed. Lower the volume of the subwoofer before AccuEQ Room Calibration measurement.

Appendix

Appendix

Speaker Layouts and Selectable Listening Modes 136

LISTENING MODE buttons and Selectable

Listening Modes 139

Input Formats and Selectable Listening Modes 141

Listening Mode Effects 145

Speaker combinations 150

General Specifications 151

Speaker Layouts and Selectable Listening Modes

See the following table for selectable listening modes for each speaker layout.

Listening mode	Speaker layout (ch)
	2.1	3.1	4.1	5.1	6.1	7.1	2.1.2	3.1.2	4.1.2	5.1.2
DD(Dolby Audio - DD)		(*1) (*1)	(*1)*2) (*2) (*8) (*3)	(*3)
DD+ (Dolby Audio - DD+)		(*1)	(*1)	(*1)	(*1)(*2)	(*1)(*2)	(*1)	(*1)	(*1)	(*1)
DTHD (Dolby Audio - TrueHD)		(*1)	(*1)	(*1)	(*1)(*2)	(*1)(*2)	(*1)	(*1)	(*1)	(*1)
Atmos 2.0/2.1
Atmos 3.0/3.1
Atmos 4.0/4.1
Atmos 5.0/5.1
Atmos 6.0/6.1
Atmos 7.0/7.1
Atmos 2.0.2/2.1.2
Atmos 3.0.2/3.1.2
DSur (Dolby Audio - Surr)
DSur 2.0/2.1 (Dolby Audio - Surr)
DSur 3.0/3.1 (Dolby Audio - Surr)
DSur 4.0/4.1 (Dolby Audio - Surr)
DSur 5.0/5.1 (Dolby Audio - Surr)
DSur 6.0/6.1 (Dolby Audio - Surr)
DSur 7.0/7.1 (Dolby Audio - Surr)
DSur 2.0.2/2.1.2 (Dolby Audio - Surr)
DSur 3.0.2/3.1.2 (Dolby Audio - Surr)

Appendix

Listening mode	Speaker layout (ch)
	2.1	3.1	4.1	5.1	6.1	7.1	2.1.2	3.1.2	4.1.2	5.1.2
DTS		√	√	√	√	√		√(*3) (*3) (*)	(12)	√
ES Discrete (DTS-ES Discrete)					√	√
ES Matrix (DTS-ES Matrix)					√	√
DTS 96/24		√	√	√	√	√		√(*3) (*3) (*)	(12)	√
DTS-HD HR (DTS-HD High Resolution)		√	√	√	√	√		√	√	√
DTS-HD Master (DTS-HD Master Audio)		√	√	√	√	√		√	√	√
DTS Express		√	√	√	√	√		√	√	√
DTS:X		√	√	√	√	√	√	√	√	√
DTS Neural:X	√	√	√	√	√	√	√	√	√	√
DTS Virtual:X	√	√	√	√	√	√

Appendix

Listening mode	Speaker layout (ch)
	2.1	3.1	4.1	5.1	6.1	7.1	2.1.2	3.1.2	4.1.2	5.1.2
Multich (Multichannel)		(*1) (*1) (*4) (*1) (*1) (*2) (*3) (*3)	(*1) (*1) (*4) (*4) (*4) (*3) (*3)	(*1) (*1) (*4) (*4) (*3) (*3)
DSD		(*1) (*1) (*4) (*4) (*4) (*3) (*3)	(*1) (*1) (*4) (*4) (*4)	(*1) (*1) (*2) (*1) (*2)	(*1) (*1) (*1) (*1)
Pure Audio		(*1) (*1) (*4) (*1) (*2) (*1) (*2)	(*1) (*1) (*2) (*1) (*2)	(*1) (*1) (*2)	(*1) (*1) (*1)
Direct		(*1) (*1) (*4) (*1) (*2)	(*1) (*1) (*2)	(*1) (*2)	(*1) (*1) (*1)
Stereo		(*5)	(*5)	(*5)	(*5)	(*5)	(*5)	(*5)	(*5)	(*5)
Mono		(*5)	(*5)	(*5)	(*5)	(*5)	(*5)	(*5)	(*5)	(*5)
Orchestra
Unplugged
Studio-Mix
TV Logic
Game-RPG
Game-Action
Game-Rock
Game-Sports
AllCh Stereo
Mono Music
T-D (Theater-Dimensional)			(*5)	(*6)	(*5)	(*6)	(*5)	(*6)	(*5)	(*6)

*1: Reproduced with the sound field according to the number of channels of input signals.
*2: If 4.1ch or 5.1ch Dolby signals (DD, DD+, DTHD) are input, surround channel audio is output from the surround back speakers.
*3: Not output from height speakers.
*4: Not output from surround back speakers.
*5: Output only from front speakers.
*6: Output only from front speakers and center speaker.

LISTENING MODE buttons and Selectable Listening Modes

Refer to the following table for the listening modes that can be selected with each listening mode button.

Listening mode MOVIE/TV MUSIC GAME	LISTENING MODE buttons
DD (Dolby Audio - DD)	√	√	√
DD+ (Dolby Audio - DD+)	√	√	√
DTHD (Dolby Audio - TrueHD)	√	√	√
Atmos	√	√	√
Atmos 2.0/2.1	√	√	√
Atmos 3.0/3.1	√	√	√
Atmos 4.0/4.1	√	√	√
Atmos 5.0/5.1	√	√	√
Atmos 6.0/6.1	√	√	√
Atmos 7.0/7.1	√	√	√
Atmos 2.0.2/2.1.2	√	√	√
Atmos 3.0.2/3.1.2	√	√	√
DSur (Dolby Audio - Surr)	√	√	√
DSur 2.0/2.1 (Dolby Audio - Surr)	√	√	√
DSur 3.0/3.1 (Dolby Audio - Surr)	√	√	√
DSur 4.0/4.1 (Dolby Audio - Surr)	√	√	√
DSur 5.0/5.1 (Dolby Audio - Surr)	√	√	√
DSur 6.0/6.1 (Dolby Audio - Surr)	√	√	√
DSur 7.0/7.1 (Dolby Audio - Surr)	√	√	√
DSur 2.0.2/2.1.2 (Dolby Audio - Surr)	√	√	√
DSur 3.0.2/3.1.2 (Dolby Audio - Surr)	√	√	√

Listening mode MOVIE/TV MUSIC GAME	LISTENING MODE buttons
DTS	√	√	√
ES Discrete (DTS-ES Discrete)	√	√	√
ES Matrix (DTS-ES Matrix)	√	√	√
DTS 96/24	√	√	√
DTS-HD HR (DTS-HD High Resolution)	√	√	√
DTS-HD Master (DTS-HD Master Audio)	√	√	√
DTS Express	√	√	√
DTS:X	√	√	√
DTS Neural:X	√	√	√
DTS Virtual:X	√	√	√

Listening mode MOVIE/TV MUSIC GAME	LISTENING MODE buttons
Multich (Multichannel)	√	√	√
PCM	√	√	√
DSD	√	√	√
Pure Audio		√
Direct	√	√	√
Stereo		√
Mono	√

Appendix

Listening mode MOVIE/TV MUSIC GAME	LISTENING MODE buttons
Orchestra		√
Unplugged		√
Studio-Mix		√
TV Logic	√
Unplugged		√
Game-RPG			√
Game-Action			√
Game-Rock			√
Game-Sports			√
AllCh Stereo	√	√	√
Mono Music		√
T-D (Theater-Dimensional)	√		√

Appendix

Input Formats and Selectable Listening Modes

You can select a variety of listening modes according to the audio format of the signal to be input.

- Selectable listening modes when headphones are connected are Pure Audio, Mono, Direct, and Stereo only

Input format\Listening mode	Pure Audio Direct Stereo	DD(Dolby Audio - DD) (*2)	DD+ (Dolby Audio - DD+) (*2)(*3)	DTHD (Dolby Audio - TrueHD) (*2)	Atmos (*12)	DSur (Dolby Audio - Surr) (*12)
2-channel signal input
Analog / PCM	√					√
Music file / DSD (*1)	√					√
DD / DD+ / DTHD	√					√
DTS / DTS 96/24 / DTS Express / DTS-HD HR / DTS-HD MSTR	√					(*13)
Multi-channel signal input
Multich PCM	√					√
DSD (*1)	√					√
DD	√	√				√
DD+	√		√			√
DTHD	√			√		√
ATMOS	√				√
DTS	√					√
DTS 96/24	√					√
DTS Express	√
DTS-HD HR	√					√
DTS-HD MSTR	√					√
DTS-ES Discrete	√					√
DTS-ES Matrix	√					√
DTS:X	√

Appendix

Input format\Listening mode	DTS (*2)	DTS 96/24 (*2)	DTS Express (*2)	DTS-HD HR (DTS-HD High Resolution) (*2)	DTS-HD Master (DTS-HD Master Audio) (*2)	ES Discrete (DTS-ES Discrete) (*5)	ES Matrix (DTS-ES Matrix) (*5)	DTS:X	DTS Neural:X (*6)	DTS Virtual:X (*9) (*10)
2-channel signal input
Analog / PCM									√	√
Music file / DSD (*1)									√	√
DD / DD+ / DTHD									√	√
DTS / DTS 96/24 / DTSExpress / DTS-HD HR /DTS-HD MSTR									√	√
Multi-channel signal input
Multich PCM									√	√
DSD (*1)									√	√
DD									√	√
DD+									√	√
DTHD									√	√
ATMOS
DTS	√								√	√
DTS 96/24		√							√	√
DTS Express			√						√	√
DTS-HD HR				√					√	√
DTS-HD MSTR					√				√	√
DTS-ES Discrete	√(*4)					√			√	√
DTS-ES Matrix	√(*4)						√		√	√
DTS:X								√		√

Appendix

Input format\Listening mode	PCM(Multich PCM) (*2)	DSD(*2)(*11)	Mono	Orchestra/ Unplugged/ Studio-Mix/ TV Logic/ Game-Action/ Game-Rock/Game-RPG/ Game-Sports (*7)	AllCh Stereo / MonoMusic (*8)	T-D (Theater-Dimensional) (*9)
2-channel signal input
Analog / PCM			√	√	√	√
Music file / DSD (*1)				√	√	√
DD / DD+ / DTHD				√	√	√
DTS / DTS 96/24 / DTS Express / DTS-HD HR / DTS-HD MSTR				√	√	√
Multi-channel signal input
Multich PCM	√			√	√	√
DSD (*1)		√		√	√	√
DD				√	√	√
DD+				√	√	√
DTHD				√	√	√
ATMOS				√	√	√
DTS				√	√	√
DTS 96/24				√	√	√
DTS Express				√	√	√
DTS-HD HR				√	√	√
DTS-HD MSTR				√	√	√
DTS-ES Discrete				√	√	√
DTS-ES Matrix				√	√	√
DTS:X				√	√	√

Appendix

(*1) You cannot select any mode other than Pure Audio, Direct, Stereo, AllCh Stereo and Mono Music if the sampling rate is 5.6/11.2 MHz.
(*2) A center speaker or surround speakers need to be installed.
(*3) If the input source is Blu-ray Disc and the speaker layout is 5.1 ch or less, DD+ cannot be selected. Instead, the listening mode for DD can be selected.
(*4) This can only be selected when no surround back speaker is connected.
(*5) Surround back speakers need to be installed.
(*6) If the input format is any of the following and the number of channels is monaural, this listening mode becomes unavailable. – DTS, DTS 96/24, DTS Express, DTS-HD HR, DTS-HD MSTR, PCM, music file
(*7) Surround speakers or height speakers need to be installed.
(*8) A center speaker, surround speakers, or height speakers need to be installed.
(*9) Cannot be selected if "Speaker Virtualizer" (→p100) is set to "Off".
(*10) Cannot be selected when height speakers are installed.
(*11) Cannot be selected when the input format is monaural.
(*12) The listening mode displayed depends on the speaker layout (→p136). Furthermore, when the setting for "Speaker Virtualizer" (→p100) is "Off" (the default value is On), then modes other than Atmos and D80r cannot be selected
(*13) This cannot be selected when the input format is DTS Express.

☐ Speaker Layouts and Selectable Listening Modes (→p136)

In alphabetical order

AllCh Stereo

This mode is ideal for background music. Stereo sound is played through the surround speakers as well as the front speakers, creating a stereo image.

Atmos

Since this mode calculates the positional data of audio recorded in Dolby Atmos audio in real-time and outputs it from appropriate speakers, you can enjoy the natural and stereophonic sound field of Dolby Atmos with any speaker layout including connection of only front speakers. Also, the Dolby Atmos sound design can be reproduced more faithfully by connecting surround back speakers or height speakers. You can select this mode when inputting the Dolby Atmos audio format.

Unlike existing surround systems, Dolby Atmos does not rely on channels, but rather enables the accurate placement of sound objects that have independent motion in a 3D space with even greater clarity. Dolby Atmos is an optional audio format for Blu-ray Discs and achieves a more stereophonic sound field by introducing a sound field above the listener.

According to the speaker layout, the following listening modes are displayed. - Atmos 2.0/2.1: When only front speakers are installed

• Atmos 3.0/3.1: When front speakers and center speaker are installed
• Atmos 4.0/4.1: When front speakers and surround speakers are installed
• Atmos 5.0/5.1: When front speakers, center speaker and surround speakers are installed
• Atmos 6.0/6.1: When front speakers, surround speakers and surround back speakers are installed
  -At mo s 7.0/7.1: When front speakers, center speaker, surround speakers and surround back speakers are installed
• Atmos 2.0.2/2.1.2: When front speakers and height speakers are installed
• Atmos 3.0.2/3.1.2: When front speakers, center speaker and height speakers are installed
• Atmos: Selectable in the "4.1.2 ch" or "5.1.2 ch" setting with surround speakers and height speakers installed.

• To enable transfer of this audio format, connect via an HDMI cable and set the audio output on the player to Bitstream output.
• When "Speaker Virtualizer" (→p100) is set to "Off" (Default: On), modes other than Atmos cannot be selected.

DD (Dolby Audio - DD)

This mode faithfully reproduces the sound design recorded in the Dolby Digital audio format.

Dolby Digital is a multi-channel digital format developed by Dolby Laboratories, Inc. and is widely adopted for use in movie production. It is also a standard audio format for DVD-Video and Blu-ray Discs. It is possible to record a maximum of 5.1 channels on a DVD-Video or Blu-ray Disc; two front channels, one center channel, two surround channels, and the LFE channel dedicated to the bass region (sound elements for the subwoofer).

- To enable transfer of this audio format, connect via a digital cable and set the audio output on the player to Bitstream output.

This mode faithfully reproduces the sound design recorded in the Dolby Digital Plus audio format.

The Dolby Digital Plus format has been improved based on Dolby Digital, increasing the number of channels and endeavoring to improve sound quality by giving more flexibility in data bit rates. Dolby Digital Plus is an optional audio format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of 7.1 channels with additional channels such as the surround back channel.

- To enable transfer of this audio format, connect via an HDMI cable and set the audio output on the player to Bitstream output.

Appendix

Direct

This listening mode can be selected for all input signals. Processing that affects sound quality is shut down, and sound closer to the original is reproduced. The sound is reproduced with the sound field based on the number of channels in the input signal. For example, a 2 ch signal is output only from the front speakers.

Note that the sound adjustment is not available when this mode is selected.

This listening mode expands 2 ch or 5.1 ch input signals to 5.1 ch, 7.1 ch or 5.1.2 ch. This mode expands actual channels to more channels for playback according to the configuration of the connected speakers. Also, even if there is no speaker for expansion, for example when only front speakers are connected, audio of surround channel or height channel is virtually created for expansion playback.

According to the speaker layout, the following listening modes are displayed.

• DSur 2.0/2.1: When only front speakers are installed
• DSur 3.0/3.1: When front speakers and center speaker are installed
• DSur 4.0/4.1: When front speakers and surround speakers are installed
• DSur 5.0/5.1: When front speakers, center speaker and surround speakers are installed

- DSur 6.0/6.1: When front speakers, surround speakers and surround back speakers are installed

- DS ur 7.0/7.1: When front speakers, center speaker, surround speakers and surround back speakers are installed

- DSur 2.0.2/2.1.2: When front speakers and height speakers are installed

- DSur 3.0.2/3.1.2: When front speakers, center speaker and height speakers are installed

- DSur: Selectable in the "4.1.2 ch" or "5.1.2 ch" setting with surround speakers and height speakers installed.

- When "Speaker Virtualizer" (→p100) is set to "Off" (Default: On), modes other than □Sur cannot be selected.

DTHD (Dolby Audio - TrueHD)

This mode faithfully reproduces the sound design recorded in the Dolby TrueHD audio format.

The Dolby TrueHD audio format is a "lossless" format expanded based on the lossless compression technology referred to as MLP, and it faithfully reproduces the master audio recorded in the studio. Dolby TrueHD is an optional audio format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of 7.1 channels with additional channels such as the surround back channel. 7.1 ch is recorded at 96 kHz/24 bit, and 5.1 ch is recorded at 192 kHz/24 bit.

- To enable transfer of this audio format, connect via an HDMI cable and set the audio output on the player to Bitstream output.

DSD

This mode is suitable for playing sources recorded in DSD.

- This unit supports the DSD signal input from the HDMI input terminal. However, depending on the connected player, better sound may be obtained by setting the output on the player side to the PCM output.

- This listening mode cannot be selected if the output setting on your Blu-ray Disc/DVD player is not set to DSD.

DTS

This mode faithfully reproduces the sound design recorded in the DTS audio format.

The DTS audio format is a multi-channel digital format developed by DTS, Inc. This format is an optional audio format for DVD-Video and a standard format for Blu-ray Discs. It enables recording of 5.1 channels; two front channels, one center channel, two surround channels, and the LFE channel dedicated to the bass region (sound elements for the subwoofer). The content is recorded with a rich volume of data, with a maximum sampling rate of 48 kHz, at a resolution of 24 bits and a bit rate of 1.5 Mbps.

- To enable transfer of this audio format, connect via a digital cable and set the audio output on the player to Bitstream output.

Appendix

DTS 96/24

This mode faithfully reproduces the sound design recorded in the DTS 96/24 audio format.

The DTS 96/24 format is an optional audio format for DVD-Video and Blu-ray Discs. It enables recording of 5.1 channels; two front channels, one center channel, two surround channels, and the LFE channel dedicated to the bass region (sound elements for the subwoofer). Detailed reproduction is achieved by recording the content at a sampling rate of 96 kHz and at a resolution of 24 bits.

- To enable transfer of this audio format, connect via a digital cable and set the audio output on the player to Bitstream output.

DTS Express

This mode faithfully reproduces the sound design recorded in the DTS Express audio format.

DTS Express is an optional audio format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of 7.1 channels with additional channels such as the surround back channel. It also supports low bit rates.

- To enable transfer of this audio format, connect via an HDMI cable and set the audio output on the player to Bitstream output.

■ DTS-HD HR (DTS-HD High Resolution)

This mode faithfully reproduces the sound design recorded in the DTS-HD High Resolution Audio audio format.

DTS-HD High Resolution Audio is an optional audio format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of 7.1 channels with additional channels such as the surround back channel at a sampling rate of 96 kHz and at a resolution of 24 bits.

- To enable transfer of this audio format, connect via an HDMI cable and set the audio output on the player to Bitstream output.

■ DTS-HD MSTR (DTS-HD Master Audio)

This mode faithfully reproduces the sound design recorded in the DTS-HD Master Audio audio format.

DTS-HD Master Audio is an optional audio format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of 7.1 channels with additional channels such as the surround back channel using the lossless audio reproduction technology. 96 kHz/24 bit is supported for 7.1 ch, and 192 kHz/24 bit is supported for 5.1 ch.

- To enable transfer of this audio format, connect via an HDMI cable and set the audio output on the player to Bitstream output.

DTS Neural:X

This listening mode expands actual channels to more channels for playback to suit the configuration of the connected speakers by expanding the input signals from 2 channels or 5.1 channels to 5.1 channels or 7.1 channels respectively.

DTS Virtual:X

DTS Virtual:X listening mode uses the proprietary audio processing technology to create spacious 3D sound including audio from up above without connecting height speakers.

This mode can be selected in any speaker layout such as front speakers-only connection. You can enjoy your favorite movies or TV programs with a more immersive audio experience.

- This mode cannot be selected when height speakers are connected.

- This mode cannot be selected when "Speaker Virtualizer" (→p100) is set to "Off" (Default: On).

DTS:X

This mode faithfully reproduces the sound design recorded in the DTS:X audio format.

The DTS:X audio format is a combination of the mixing method based on traditional channel based formats (5.1 ch and 7.1 ch) and object based dynamic audio mixing, and it is characterized by the precise positioning of sounds and the ability to express sound movement.

- To enable transfer of this audio format, connect via an HDMI cable and set the audio output on the player to Bitstream output.

Appendix

ES Discrete (DTS-ES Discrete)

This mode faithfully reproduces the sound design recorded in the DTS-ES Discrete audio format.

DTS-ES Discrete is an optional audio format based on 5.1 ch for DVD-Video and Blu-ray Discs. It is possible to record a maximum of 6.1 channels with a monaural surround back channel added.

- To enable transfer of this audio format, connect via a digital cable and set the audio output on the player to Bitstream output.

ES Matrix (DTS-ES Matrix)

This mode faithfully reproduces the sound design recorded in the DTS-ES Matrix audio format.

DTS-ES Matrix is an optional audio format based on 5.1 ch for DVD-Video and Blu-ray Discs. A monaural surround back channel is inserted to this format by matrix encoding. During playback, 6.1 channel-playback is achieved by the matrix decoder on this unit.

- To enable transfer of this audio format, connect via a digital cable and set the audio output on the player to Bitstream output.

Game-Action

This mode is suitable for games with a lot of action.

Game-Rock

This mode is suitable for games with rock content.

Game-RPG

This mode is suitable for role-playing games.

Game-Sports

This mode is suitable for sports games.

Mono

In this mode, monaural audio is played from the center speaker at the time of inputting an analog signal or PCM signal. If there is no center speaker connected, monaural audio is played from the front speakers.

Mono Music

In this mode, all speakers output the same sound in mono, so the sound you hear is the same regardless of where you are within the listening room.

Multich (Multichannel)

This mode is suitable to play sources recorded in multichannel PCM.

Orchestra

This mode is suitable for classical or operatic music. This mode emphasizes the surround channels in order to widen the sound image, and simulates the natural reverberation of a large hall.

Pure Audio

This mode reproduces the original sound more faithfully. The display is turned off to provide purer sound. Note that the sound adjustment is not available when this mode is selected.

Stereo

In this mode, sound is output from the right and left front speakers and subwoofer.

Studio-Mix

This mode is suitable for rock or pop music. This mode creates a lively sound field with a powerful acoustic image as if you are at a club or rock concert.

■ T-D (Theater-Dimensional)

In this mode, you can enjoy a virtual playback of multichannel surround sound even with only two or three speakers. This works by controlling how sounds reach the listener's left and right ears.

- This mode cannot be selected when "Speaker Virtualizer" (→p100) is set to "Off" (Default: On).

TV Logic

Suitable for TV shows produced in a TV studio. This mode gives clarity to voices by enhancing the entire surround sounds, and creates a realistic acoustic image.

Unplugged

Suitable for acoustic instruments, vocals and jazz. This mode emphasizes the front sound field image, giving the impression of being in front of the stage.

Appendix

Speaker combinations

• Up to two powered subwoofers can be connected in either combination.

Speaker Channels	FRONT	CENTER	SURROUND	SURROUND BACK	HEIGHT Bi-AMP	ZONE B (ZONE SPEAKER)
2.1 ch	√				√ (*1) (*1)	√
3.1 ch	√	√			√ (*1) (*1)	√
4.1 ch	√		√		√ (*1) (*1)	√
5.1 ch	√	√	√		√ (*1) (*1)	√
6.1 ch	√		√	√
7.1 ch	√	√	√	√
2.1. 2 ch	√				√ (*2) (*1) (*2) (*√)	√
3.1. 2 ch	√	√			√ (*2) (*1) (*2) (*√)	√
4.1. 2 ch	√		√		√
5.1. 2 ch	√	√	√		√

(*1) You can select either Bi-AMP or ZONE SPEAKER.
(*2) When using Bi-Amp speakers, connect the Bi-Amp speakers to the HEIGHT terminals and connect the height speakers to the SURROUND terminals.

General Specifications

Amplifier Section

Rated Output Power	With 8 ohm loads, both channels driven, from 20-20,000 Hz; rated 80 watts per channel minimum RMS power, with no more than 0.08% total harmonic distortion from 250 milliwatts to rated output. (FTC)
Maximum Effective Output Power 165 W at 6 ohms	1 kHz, 1 ch driven of 10% THD
Dynamic Power (IEC60268-Short-term maximum output power)	160 W (3 Ω, Front), 125 W (4 Ω, Front), 85 W (8 Ω, Front)
THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz - 20,000 Hz, Rated output power)
Input Sensitivity and Impedance 200 mV/32 kΩ (LINE(RCA))
Rated RCA Output Level and Impedance	PRE OUT (SUBWOOFER): 1 V/470 Ω
	PRE/LINE OUT (ZONE B): 200 mV/2.2 kΩ
Frequency Response 10 Hz - 100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
Tone Control Characteristics ±10 dB, 20 Hz (BAS S), ±10 dB, 20 kHz (TREBLE)
Signal to Noise Ratio 106 dB (IHF-A, LINE IN, SP OUT)
Speaker Impedance 4 Ω - 16 Ω
Headphone Rated Output 80 mW + 80 mW (32 Ω, 1 kHz, 10% THD)
Supported impedance of Headphones 8 Ω - 600 Ω
Headphones Frequency Response 10 Hz - 100 kHz

Appendix

Tuner Section

FM Tuning Frequency Range 87.5 MHz - 107.9 MHz

50 dB quieting sensitivity (FM MONO) 1.0 μV, 11.2 dBf (IHF, 1 kHz, 100% MOD)

AM Tuning Frequency Range 530 kHz - 1710 kHz

Preset Channel 40

BLUETOOTH Section
Communication system BLUETOOTH Specification version 4.2
Frequency band 2.4 GHz band
Modulation method FHSS (Frequency Hopping Spread Spectrum)
Compatible BLUETOOTH profiles A2DP 1.2, AVR	CP 1.3
Supported Codecs	Receiving: SBC, AACTransmitting: SBC, aptX, aptX HD
Transmission range (A2DP) 20 Hz - 20 kHz (Sampling frequency 44.1 kHz)
Maximum communication range	Line of sight approx. 15 m(*) (*)The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, cordless phone, reception sensitivity, antenna's performance, operating system, software application, etc.

Appendix

HDMI
Input 4
Output 2 (MAIN, SUB)

	Input *1 Output
	HDMI 1 HDMI	2 HDMI 3 HDMI 4 MAIN SUB
HDMI Ver 2.1 2.1 2.1 2.1 bandwidth 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gbps 24Gps
ALLM	√	√	√	√
VRR (for Game)	√	√	√	√
QMS (for Movie)	√	√	√	√
FVA (for Game)	√	√	√	√
QFT (for Movie)	√	√	√	√
DSC	√	√	√	√
Uncompressed 8K/24p		8K/24p	8K/24p	8K/24p
	4:2:0	4:2:0	4:2:0	4:2:0
Compressed (TV needs DSC)	8K/60p	8K/60p	8K/60p	8K/60p
	4:4:4	4:4:4	4:4:4	4:4:4
ARC / eARC *2
HDR10 (HDR10, BT.2020, HLG)	√	√	√	√
HDR10+	√	√	√	√

✓	✓
✓	✓
✓	✓
✓	✓
✓	✓
✓	✓
8K/24p4:2:0	8K/24p4:2:0
8K/60p4:4:4	8K/60p4:4:4
✓
✓	✓
✓	✓

*1 Audio Format:
2 ch linear PCM (32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 16/20/24 bit) Multi-channel linear PCM (Maximum 7.1 channels, 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 16/20/24 bit) Bitstream (Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS Express, DTS:X, DSD(2.8 MHz), PCM)
*2 ARC compatible audio formats: PCM, Dolby Digital, Dolby Digital Plus, DTS (DTS 96/24, DTS-ES, etc.), DTS-HD High Resolution Audio eARC compatible audio formats: PCM, Dolby Digital, Dolby Digital Plus, DTS (DTS 96/24, DTS-ES, etc.), Dolby TrueHD, Dolby Atmos, DTS- HD Master Audio, DTS:X, Multichannel PCM, DTS-HD High Resolution Audio

Appendix

Supported input resolutions	Frame rate	Color space	Color depth	HDMI IN 1 - 3	HDMI IN 4 - 6	AUX INPUT HDMI (Front)
4K(3840x2160p)	24/25/30 Hz YCbCr	4:2:2 12 bit		✓	✓	✓
		YCbCr4:4:4/RGB 8 bit		✓	✓	✓
			10/12 bit	✓	✓
4K SMPTE(4096x2160p)	48/50/60 Hz YCbCr	4:2:0 8 bit		✓	✓	✓
			10/12 bit	✓	✓
		YCbCr4:2:2 12 bit		✓	✓
		YCbCr4:4:4/RGB 8 bit		✓	✓
			10/12 bit	✓	✓
	100/120 Hz YCbCr4	2:0 8/10/12 bit		✓	✓
		YCbCr4:2:2 12 bit		✓	(^*1)
		YCbCr4:4:4/RGB 8/10 bit		✓	(^*1)
			12 bit	(^*1) (^*1)	✓
5K(5120x2160p)	24/25/30 Hz YCbCr	4:2:2 12 bit		✓	✓
		YCbCr4:4:4/RGB 8 bit		✓	✓
			10/12 bit	✓	✓
	48/50/60 Hz YCbCr	4:2:0 8/10/12 bit		(^*2) (^*2)	✓
		YCbCr4:2:2 12 bit		✓	✓
		YCbCr4:4:4/RGB 8 bit		✓	✓
			10/12 bit	✓	(^*1)
8K(7680x4320p)	24/25/30 Hz YCbCr	4:2:0 8/10/12 bit		✓	✓
		YCbCr4:2:2 12 bit		✓	(^*1)
		YCbCr4:4:4/RGB 8/10 bit		✓	(^*1)
			12 bit	^(*1) (^*1)	✓
	48/50/60 Hz YCbCr	4:2:0 8/10 bit		✓	(^*1)
			12 bit	(^*1) (^*1)	✓
		YCbCr4:2:2 12 bit		(^*1) (^*1)	✓
		YCbCr4:4:4/RGB 8/10 bit	10/12 bit	(^*1) (^*1)	✓

(*1)Video compressed with DSC (Display Stream Compression) can be input and output. DSC is a video compression technique that enables the transmission of high-resolution video, which requires high bandwidth, via HDMI.
(*2)5K, 48Hz, YCbCr4:2:0, 8/10/12 bit is not supported.

Appendix

- Signals are output from the HDMI OUT jack of this unit to the TV with the same resolution as the input resolution. When a TV supporting 4K is used, HDMI video signals with 1080p can be output with 4K.

For linked functions to work properly, do not connect CEC-compliant devices exceeding the connectable number to the HDMI jack as shown below.

- Blu-ray Disc/DVD players: up to 3 units

- Blu-ray Disc/DVD recorders: up to 3 units

- Cable TV tuner, terrestrial digital tuner, and satellite broadcasting tuner: up to 4 units

Operation has been confirmed on the following devices: (As of April 2020)

Toshiba brand televisions; Sharp brand televisions; Onkyo and Integra brand RIHD-compatible players; Toshiba brand players and recorders; Sharp brand players and recorders (when used with a Sharp brand television)

Network Section
Ethernet LAN 1 (10BASE-T/100BASE-TX)
Wireless LAN IEEE 802.11 a/b/g/n/ac standard (Wi-Fi	^ standard) 5 GHz/2.4 GHz band
■Music Server (→p83) Supported Audio Formats	MP3 (.mp3)MPEG-1/MPEG-2 Audio Layer-3/44.1 kHz, 48 kHz/Between 8 kbps and 320 kbps, and VBRWMA (.wma)44.1 kHz, 48 kHz/Between 5 kbps and 320 kbps, and VBRWMA Pro/Voice/WMA Lossless formats are not supported.WAV (.wav)WAV files contain uncompressed PCM digital audio.44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bitAIFF (.aiff/.aif)AIFF files contain uncompressed PCM digital audio.44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bitAAC (.aac/.m4a/.mp4/.3gp/.3g2)MPEG-2/MPEG-4 Audio/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/Between 8 kbps and 320 kbps, and VBRFLAC (.flac)44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bitLPCM (Linear PCM)44.1 kHz, 48 kHz/16 bitApple Lossless (.m4a/.mp4)44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/16 bit, 24 bitDSD (.dsf/.dff)DSF/DSDIFF/2.8 MHz, 5.6 MHz, 11.2 MHz

Appendix

USB Section
USB 1 (Rear : Ver.2.0, 5V/1 A)
■USB Storage Device ( p80 ) Supported Audio Formats	MP3 (.mp3)MPEG-1/MPEG-2 Audio Layer-3/44.1 kHz, 48 kHz/Between 8 kbps and 320 kbps, and VBRWMA (.wma)44.1 kHz, 48 kHz/Between 5 kbps and 320 kbps, and VBRWMA Pro/Voice/WMA Lossless formats are not supported.WAV (.wav)WAV files contain uncompressed PCM digital audio.44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bitAIFF (.aiff/.aif)AIFF files contain uncompressed PCM digital audio.44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bitAAC (.aac/.m4a/.mp4/.3gp/.3g2)MPEG-2/MPEG-4 Audio/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/Between 8 kbps and 320 kbps, and VBRFLAC (.flac)44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bitLPCM (Linear PCM)44.1 kHz, 48 kHz/16 bitApple Lossless (.m4a/.mp4)44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/16 bit, 24 bitDSD (.dsf/.diff)DSF/DSDIFF/2.8 MHz, 5.6 MHz, 11.2 MHz

General
Power Supply AC 120 V, 60 Hz
Power Consumption 490 W
Full Standby mode 0.10 W
Network Standby (wired) 1.6 W
Network Standby (wireless) 1.7 W
Bluetooth Wakeup 1.6 W
HDMI CEC 0.1 W

Appendix

Standby mode (ALL ON) 1.7 W
Equipment with HiNA functionality Standby mode, Network disconnect and Network Standby ON	2.6 WThis equipment complies with European Commission Regulation (EC) No 1275/2008 as equipment with HiNA functionality. If you do not to use the Network function, please set Network Standby setting to Off. You can reduce power consumption under standby mode.
Dimensions (W × H × D)	435 mm × 160 mm × 327.8 mm17-1/8" × 6-5/16" × 12-7/8"
Weight 8.4 kg (18.5 lbs.)

Video Section
Composite None
Component None

Audio Inputs
Analog 3
Digital 2 (COAXIAL × 1, OPTICAL × 1)

Appendix

Audio Outputs
Analog	PRE/LINE OUT (ZONE B) × 1PRE OUT (SUBWOOFER) × 2
Speaker Outputs	7 (FRONT L/R, CENTER, SURROUND L/R, HEIGHT L/R or SURROUND BACK L/R or ZONE B L/R)• FRONT L/R terminals support banana plugs.
Phones 1 (ø 6.3 mm, 1/4")

Others
Setup Mic 1 (Front)
RS-232 None
12V TRIGGER OUT None
IR None

Specifications and features are subject to change without notice.

License and Trademark

ONKYO

SN 29403953_EN

Onkyo group has established its Privacy Policy, available at [https://www.onkyo.com/privacy/].

H2104-0
