Product Type	Wireless N Broadband Router
Wireless Standard	IEEE 802.11b/g/n
Frequency Band	2.4 GHz
Maximum Data Rate	300 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Port	1 x 10/100 Mbps
Antennas	2 x 5 dBi fixed
Security	WEP, WPA/WPA2, SPI Firewall
Features	WPS, QoS, DDNS, DMZ, Port Forwarding
Power Supply	DC 12V, 1A
Dimensions (L x W x H)	180 x 120 x 30 mm
Weight	0.25 kg
Operating Temperature	0°C to 40°C
Humidity	10% to 90% (non-condensing)
Package Contents	Router, power adapter, Ethernet cable, manual
Repairability	Contact Edimax support for repairs; spare parts include power supply and antennas

Frequently Asked Questions - AR-7265WNB Edimax

How do I reset the Edimax AR-7265WNB to factory defaults?

Press and hold the reset button on the back of the router for about 10 seconds until the power LED blinks. Release the button; the router will reboot with factory settings.

What is the default IP address for accessing the router's web interface?

The default IP address is 192.168.2.1. Enter this in your browser's address bar to access the login page.

What are the default login credentials?

Default username is admin and password is 1234 (or blank, depending on firmware). Check the manual for your specific version.

How can I change the Wi-Fi password?

Log in to the router's web interface, go to Wireless settings, and change the pre-shared key under Security settings. Save the changes.

Does this router support WPS?

Yes, the AR-7265WNB supports WPS (Wi-Fi Protected Setup). Press the WPS button on the router and on your client device to connect securely.

How do I set up port forwarding?

Go to Advanced Settings > Port Forwarding. Enter the application name, port range, protocol, and the IP address of the device. Enable the rule and save.

What is the maximum number of connected devices?

The router can typically support up to 253 wired and wireless devices combined, but performance may degrade with many simultaneous connections.

Why is my internet connection unstable?

Check for wireless interference (other networks, microwaves), move the router to a central location, update firmware, or reduce the number of connected devices.

How do I update the firmware?

Download the latest firmware from Edimax support page. Log into the router, go to System Tools > Firmware Upgrade, select the file, and start upgrade. Do not power off during update.

Can I use this router as a wireless repeater?

Yes, it supports Wireless Distribution System (WDS) or repeater mode. Configure it in the wireless settings to extend your existing network.

USER MANUAL AR-7265WNB Edimax

Wireless 802.11n ADSL2/2+ Modem Router

AR-7265WnA / AR-7265WnB

AR-7265WnM

User's Manual

Version 2.0 / May 2008

XIMAX XIMAX Wi-Fi MAX Wi-Fi 802.16 ADEL: 2.2" Modem Filter

Copyright© by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company

This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

The product you have purchased and the setup screen may appear slightly different from those shown in this QIG. For more detailed information about this product, please refer to the User Manual on the CD-ROM. The software and specifications are subject to change without notice. Please visit our web site www.edimax.com for the update. All rights reserved including all brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders.

Linux Open Source Code

Certain Edimax products include software code developed by third parties, software code is subject to the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL"). Please see the GNU (www.gnu.org) and LPGL (www.gnu.org) Websites to view the terms of each license.

The GPL Code and LGPL Code used in Edimax products are distributed without any warranty and are subject to the copyrights of their authors. For details, see the GPL Code and LGPL Code licenses. You can download the firmware-files at http://www.edimax.com under "Download" page.

Federal Communication Commission Interference Statement

FCC Part 68

This equipment complies with Part 68 of the FCC Rules. On the bottom of this equipment is a label that contains the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. You must provide this information to the telephone company upon request.

The REN is useful to determine the quantity of devices you may connect to the telephone line and still have all of those devices ring when your number is called.

In most, but not all areas, the sum of the REN of all devices connected to one line should not exceed five (5.0). To be certain of the number of devices you may connect to your line, as determined by the REN, you should contact your local telephone company to determine the maximum REN for your calling area.

If the modem causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance.

But if advance notice isn't practical, you will be notified as soon as possible. You will be advised of your right to file a complaint with the FCC.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper operation of your equipment.

If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.

If you experience trouble with this modem, please contact your dealer for repair/warranty information. The telephone company may ask you to disconnect

this equipment from the network until the problem has been corrected or you are sure that the equipment is not malfunctioning.

This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs.

Installation

This device is equipped with a USOC RJ11C connector.

FCC Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio technician for help.

FCC Caution

This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person's body (excluding extremities of hands, wrist and feet) during wireless modes of operation.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment.

Federal Communication Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.

The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE).

The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment.

EU Countries Intended for Use

The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, Bulgaria, Cyprus, Czech Republic, Estonia, Hungary, Latvia, Lithuania, Malta, Poland, Romania, Slovakia, Slovenia, the Netherlands, Portugal, Spain, Sweden, and the United Kingdom.

The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland.

EU Countries Not intended for use

None.

Contents

1. INTRODUCTION.... 1

1.1 FEATURES 2
1.2. MINIMUM REQUIREMENTS.... 3
1.3. PACKAGE CONTENT 3
1.4. HARDWARE PLACEMENT 4

1.4.1. Rear Panel....4

1.4.2. Front LEDs....5

2. HARDWARE INSTALLATION .... 7

3. SETUP WIZARD 8

4. IP ADDRESS SETTING...... 12

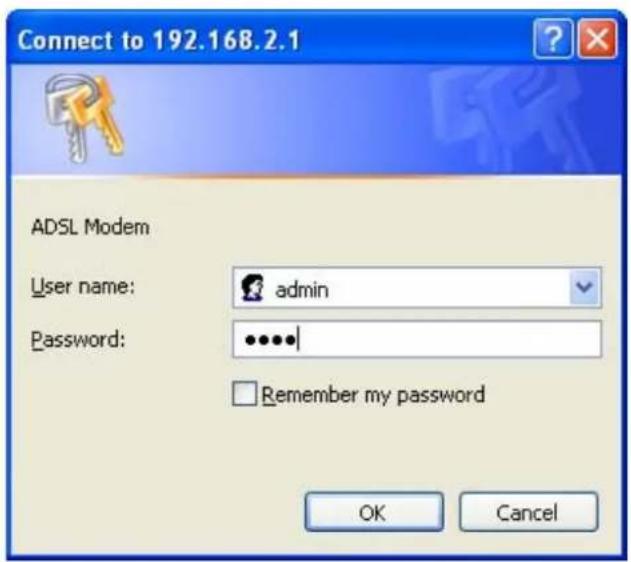

5. WEB MANAGEMENT CONFIGURATION...... 18

5.1. QUICK START....20
5.2. INTERFACE SETUP 25

5.2.1. Internet 25
5.2.2. LAN....30
5.2.3. Wireless....33

5.3. ADVANCED SETUP 38

5.3.1. Firewall 38
5.3.2. Routing 39
5.3.3. NAT....41

5.3.3.1. NAT 41

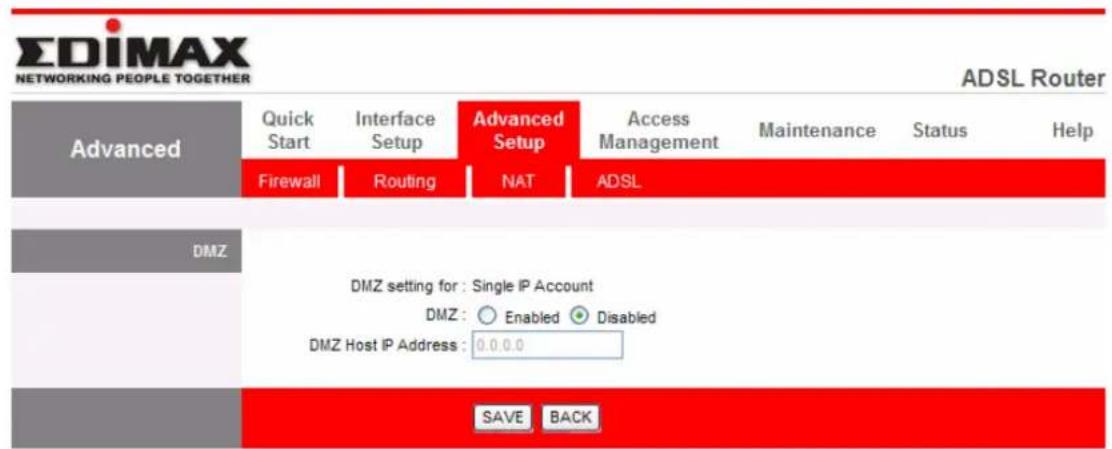

5.3.3.2. DMZ 42

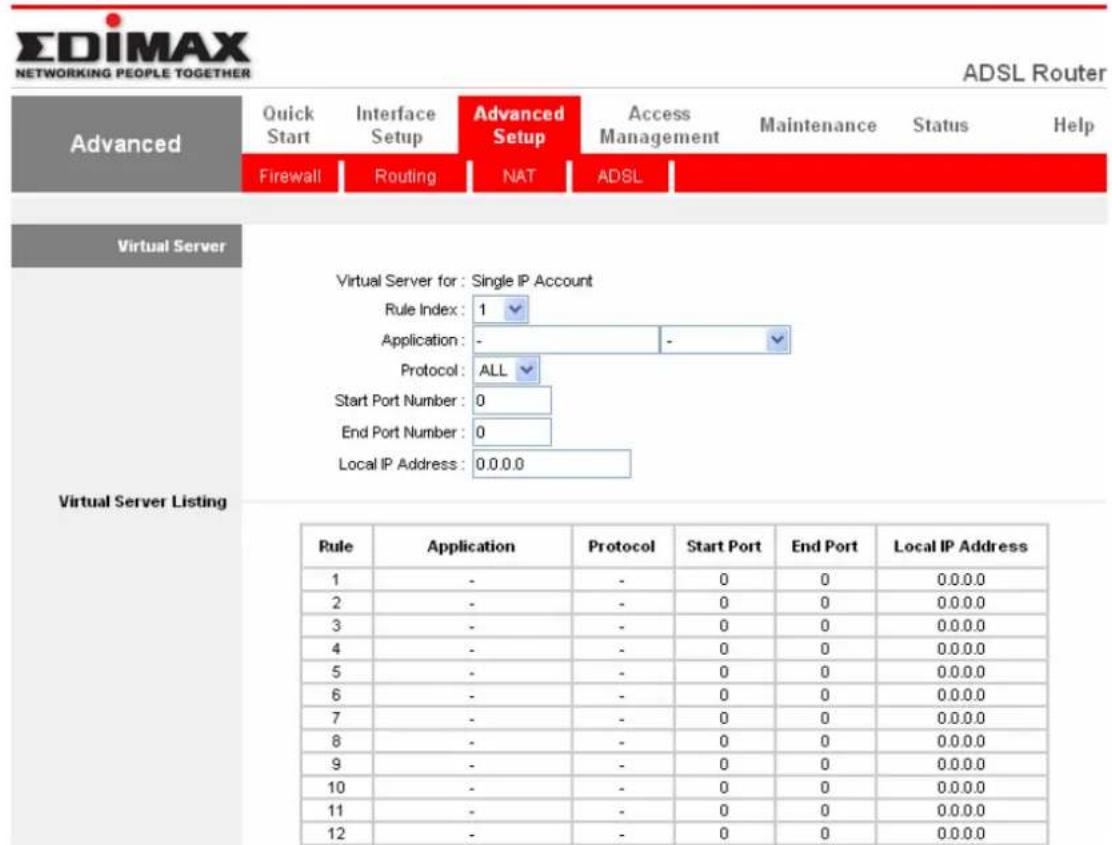

5.3.3.3. Virtual Server 42

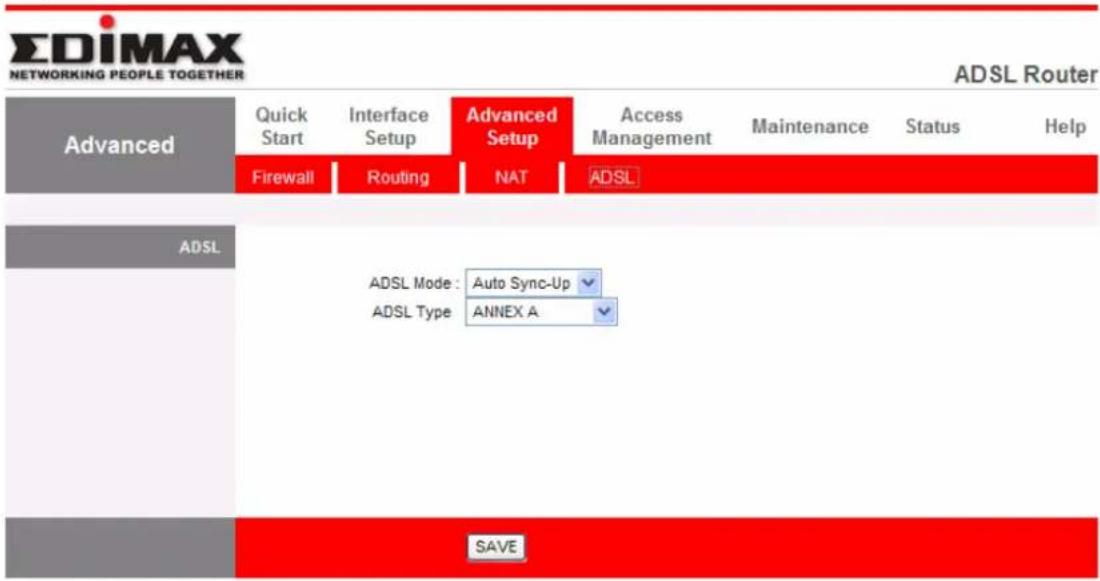

5.3.4. ADSL 44

5.4. ACCESS MANAGEMENT.... 45

5.4.1. ACL....45
5.4.2. IP Filter 46

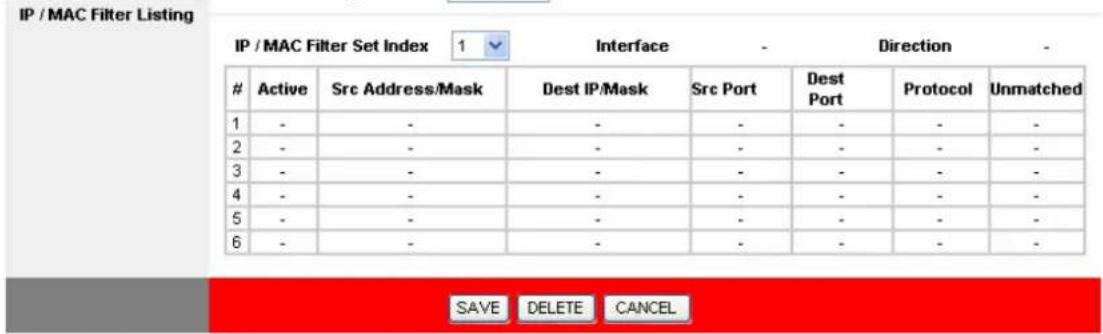

5.4.2.1. IP/MAC Filter 47

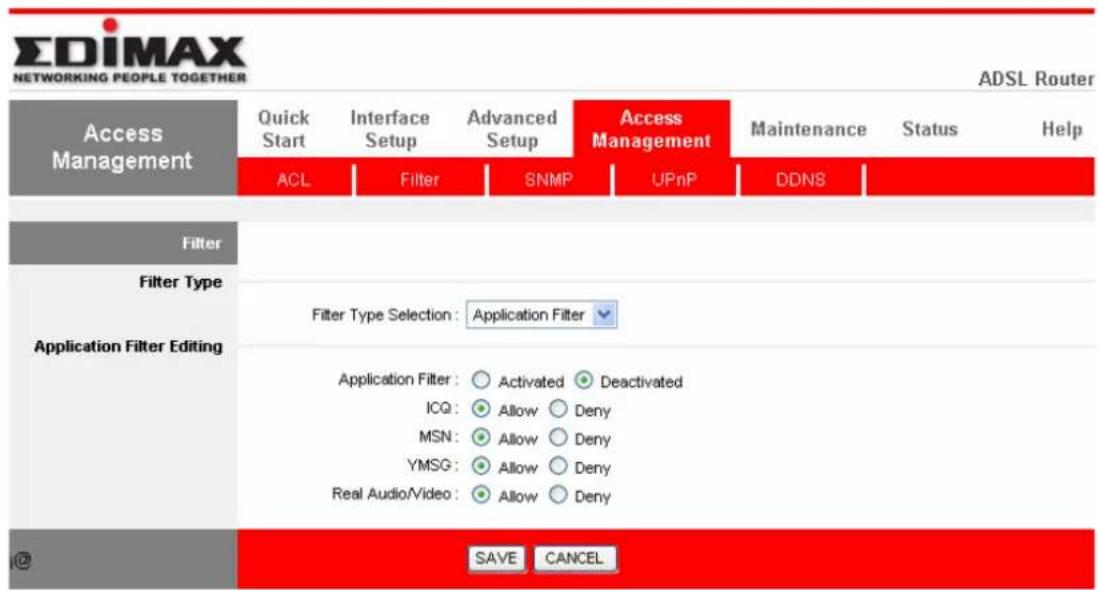

5.4.2.2. Application Filter.... 49

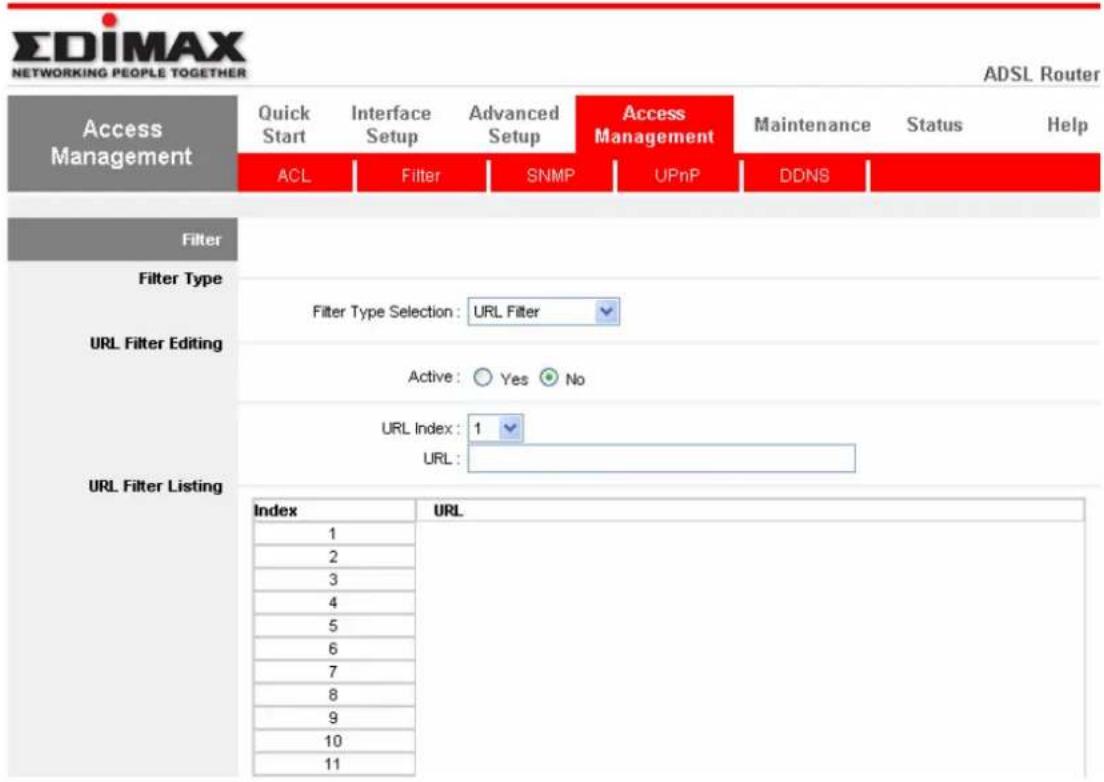

5.4.2.3. URL Filter.... 50

5.4.3. SNMP 51

5.4.4. UPnP....52

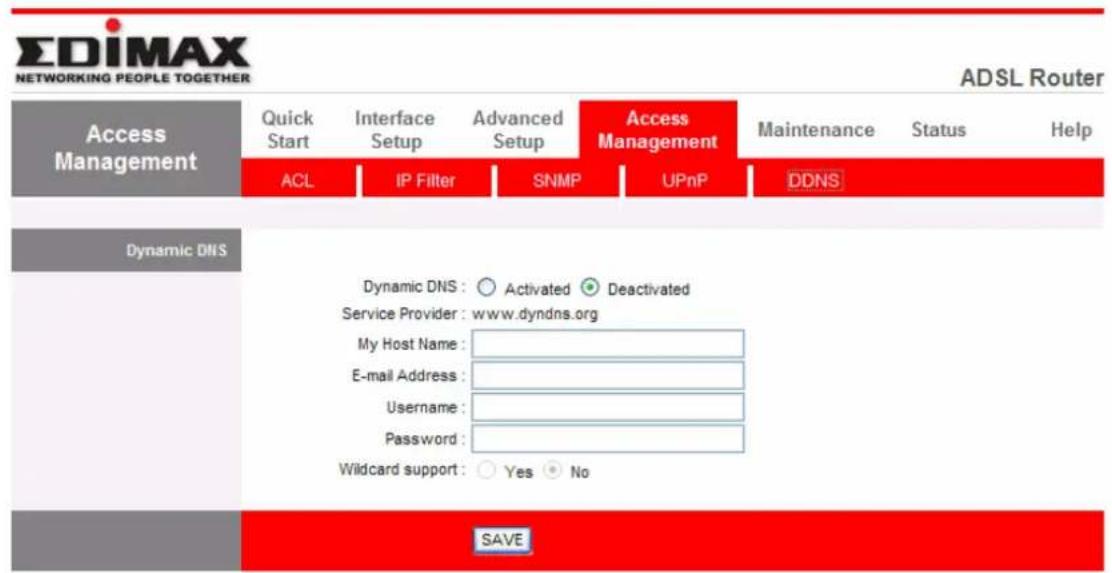

5.4.5. DDNS 53

5.5. MAINTENANCE.... 54

5.5.1. Administrator....54

5.5.2. Time Zone....55

5.5.3. Firmware....56

5.5.4. System Restart 57

5.5.5. Diagnostics....57

5.6. STATUS....58

5.6.1. Device Info 58

5.6.2. System Log....59

5.6.3. Statistics 60

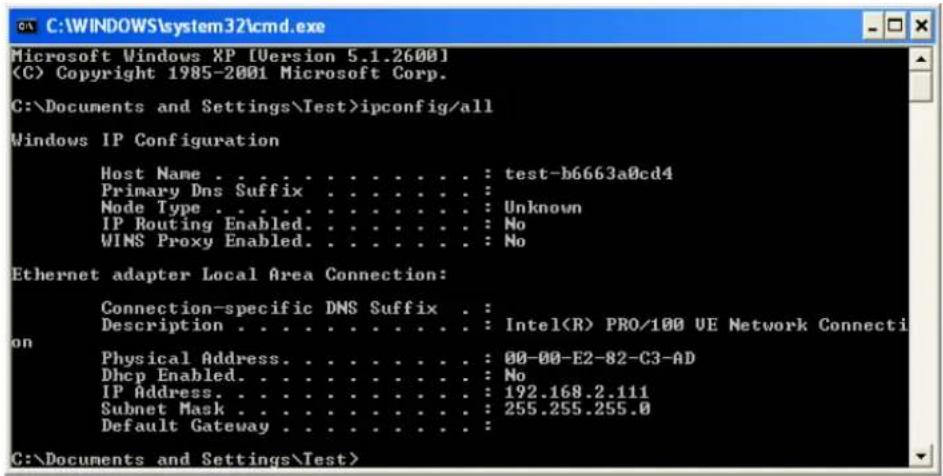

1. TROUBLESHOOTING...... 61

2. GLOSSARY 65

1. Introduction

Congratulations on purchasing Edimax AR-7265WnA or B Wireless 11n ADSL2+ Modem Router. This router is a cost-effective ADSL2+ router, with the combination of an ADSL2+ modem, router, Ethernet network switch and wireless access point, you can surf the Internet through your ADSL2/2+ broadband connection without investing other devices.

This router can support downstream transmission rates of up to 24Mbps and upstream transmission rates of up to 1Mbps. It supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 1483/2684 encapsulation over ATM (bridged or routed) and PPP over Ethernet (RFC 2516) to establish a connection with ISP. The product also supports VC-based and LLC-based multiplexing.

With the web management interface, users can easily configure the various functions of the router including DHCP server, NAT, virtual server, DMZ, access control, IP/MAC/Application/URL filter, Firewall, PPTP/IPSec/L2TP pass-through, DDNS, UPnP, Wireless and etc.

This router is a high performance and high-speed device that provides a full rate of ADSL2+ standard with the superb reliability and a complete solution for home and office application.

1.1. Features

ADSL2/2+ Compliance

• Support downstream rates of up to 24Mbps and upstream rates of up to 1Mbps.
• Compliant to ITU-T G.992.1 (G.dmt), G.992.2 (G.lite), G.992.3 (ADSL2), G.992.4 (splitterless ADSL2), G.992.5 (ADSL2+) for Annex A, B. (Annex A and B are supported in different H/W platform)
• Supports Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt (G.992.1); G.994.1 and G.996.1 (for ISDN only); G.991.1; G.lite (G992.2)).
  • Multiple Protocols over AAL5 (RFC 1483/2684).
• PPP over AAL5 (RFC 2364).
  • PPP over Ethernet (RFC 2516).

Support 300Mbps 802.11n Wireless Access Point

• Complies with IEEE 802.11n and 802.11g/b standard.
• High data rate – up to 300Mbps network speed.
• Supports 64-bit/128-bit WEP, WPA-PSK and WPA2-PSK wireless security functions.
  • Support Auto Channel Selection.
  • Supports MAC address filtering.

Router

• NAT (Network Address Translation) IP Sharing
- Virtual Server
• DMZ
• VPN Pass Through (IPSec/PPTP/L2TP)
• SPI Anti-DOS Firewall
• DHCP Server and Client

Access Management

• ACL (Access Control)
  • IP/MAC/Application/URL Filter
  • UPnP (Universal Plug and Play)
  • SNMP
• Dynamic DNS

1.2. Minimum Requirements

The following devices are necessary to configure and use the ADSL2+ Router :

• A PC with Pre-installed Ethernet Adapter (Required) and a Web-Browser (Internet Explorer 4.0 or higher)
• RJ-45 Ethernet crossover cable (Included in the package)
  • RJ-11 (ADSL Ready) phone Line

1.3. Package Content

• One ADSL2/2+ Router (Annex A or B)
- 3dBi Antennas x 3
• One 12V Power Adapter
• One RJ-45 Ethernet Cable (100 cm)
• One RJ-11 Telephone Line (180 cm)
• One Quick Installation Guide
• One CD with Setup Wizard, Multi-languages QIG and User Manual
- Holding Base

Notice :

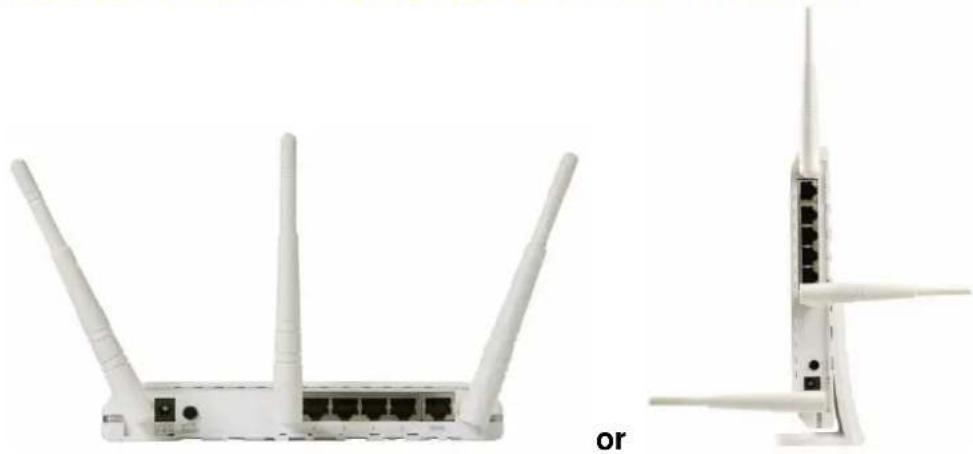

To improve wireless signal reception, please arrange the antennas as the picture shown below (horizontal or vertical installation), and place the wireless access point in open space. Please keep the distance between antennas, if the antennas are too close to each other, wireless signal reception will be affected.

Two white wireless router devices shown from front and side angles, no text or symbols visible

1.4. Hardware Placement

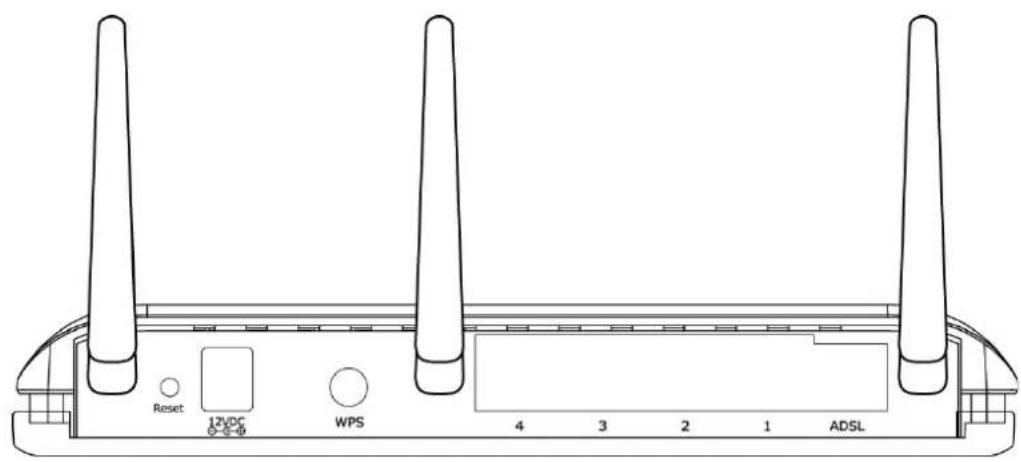

1.4.1. Rear Panel

Reset 12VDC WPS 4 3 2 1 ADSL

1) Antenna Connectors

The antenna connector of the router is reverse SMA connector. It allows you to connecting an external antenna with reverse SMA connector to the router easily.

2) Reset

The Reset button can be used to reset the router or restore to factory defaults.

- If problems occur with your router, power it on and press the router's reset button with a pencil tip (for less than 3 seconds) and the router will reboot and, keeping all your current settings.

- If problems persisted or you forgot your router's password, press the reset button for 5 seconds with power on. The router will reset to the factory default settings. (Warning : all your current settings will be lost and replaced by the factory default settings)

3) WPS

Wi-Fi Protected Setup (WPS) is the simplest way to build connection between wireless network clients and this ADSL router. Press this button on the router and enable WPS function of the wireless clients, the router and clients will automatically configure the security key and connect directly. Please note that the router will wait for WPS requests from wireless clients in 2 minutes after the WPS button is pressed.

4) Power Jack

Please plug the power adapter attached with the ADSL Router to the power jack. The power adapter is 12V.

5) Local Area Network (LAN)

The router's 4 LAN ports are where you connect your LAN's PCs, printer servers, hubs and switches etc.

6) ADSL

Connect the supplied RJ-11 telephone line to this port and your ADSL/telephone network.

1.4.2. Front LEDs

On the router's front panel there are LED lights that inform you of the router's current status. Below is an explanation of each LED and its description.

WPS ADSL LAN 1 2 3 4

LED	Light	Status	Description
PWR (Green)	On	The	router is
	Off Wireless LAN	is disabled WLAN (Yellow)
	Blinking Wireless	traffic is transmitting or receiving
	Off WPS function	is disabled WPS (Yellow)
	Blinking WPS function is enabled
ADSL (Green) On	Connected to an	ADSL DSLAN successfully
	Blinking	No connection
LAN LNK/ACT (Port 1-4)	On	The LAN cable is connected to the router
	Off	No network connection.
	Blinking	Network traffic transferring or receiving through the LAN port

2. Hardware Installation

Step 1. Connect the ADSL Line

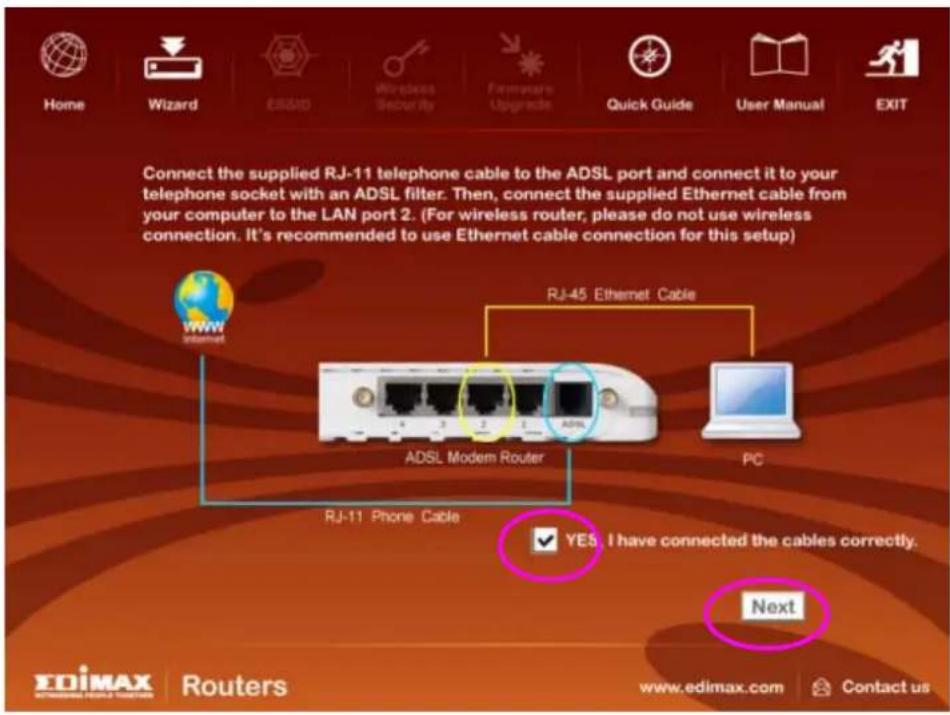

Use the supplied RJ-11 telephone cable, connect the router from the ADSL port to your telephone socket with an ADSL micro filter plugged in.

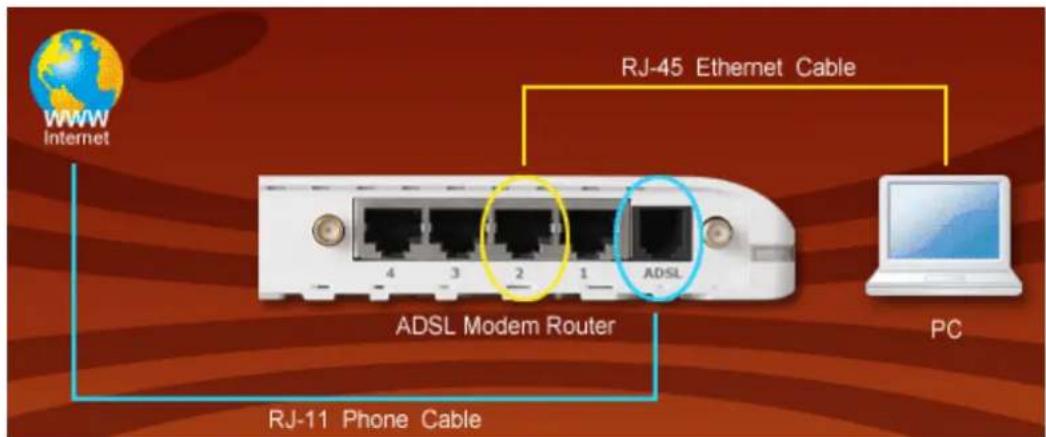

Step 2. Connect the router to your LAN network

Connect the router to your PC, hub or switch by attached the Ethernet cable to the LAN port of the router.

RJ-45 Ethernet Cable ADSL Modem Router PC RJ-11 Phone Cable

Step 3. Connect the Power Adapter to the Router

Connect the power adapter to the power jack on the rear panel of the router and switch on the power.

Step 4. Check the ADSL LED light status

Please check the ADSL LED on the front panel. This light indicates the status of your ADSL broadband through your telephone line. If the light is on solid, you can continue the setup. However, if the light is flashing, there is no broadband line being detected. Therefore, please call your Internet Service Provider (ISP) and inform them about the flashing ADSL light.

Step 5. Firewall settings.

Please turn off all personal firewall before you continue the setup as they might block the communication of your PC and the router.

Note : You must use the power adapter shipped along with the router, do NOT use any other power adapter from other sources.

3. Setup Wizard

You can configure the router by running the Setup Wizard in the CD-ROM provided in the package. The wizard provides quick setup for the Internet connection, SSID, wireless security, firmware upgrade and changing router's password. When you start the Setup Wizard, you will get the following Welcome screen. Please choose the language to start with and follow the easy steps in the Wizard. No instruction for the Setup Wizard is given here.

If you lost the CD-ROM or you prefer the traditional web setup, please follow the procedures of chapter 4 and chapter 5 to configure the router.

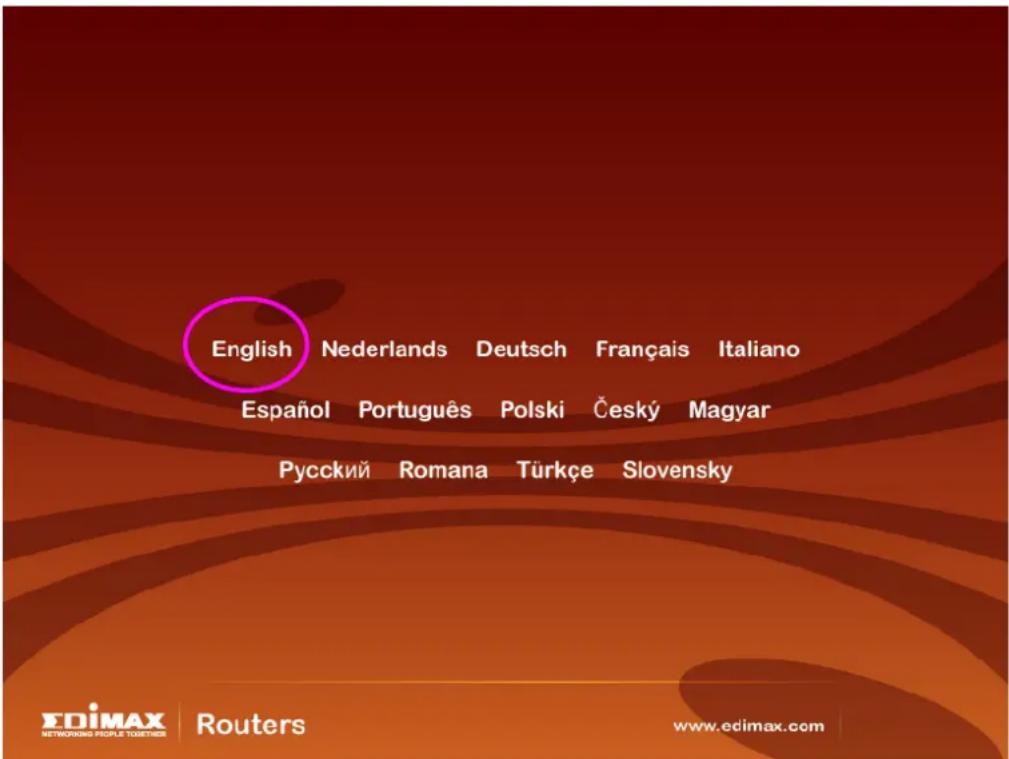

English Nederlands Deutsch Français Italiano Español Português Polski Český Magyar Русский Romana Türkçe Slovensky EDIMAX NETWORKS PEOPLE TOGETHER Routers www.edimax.com

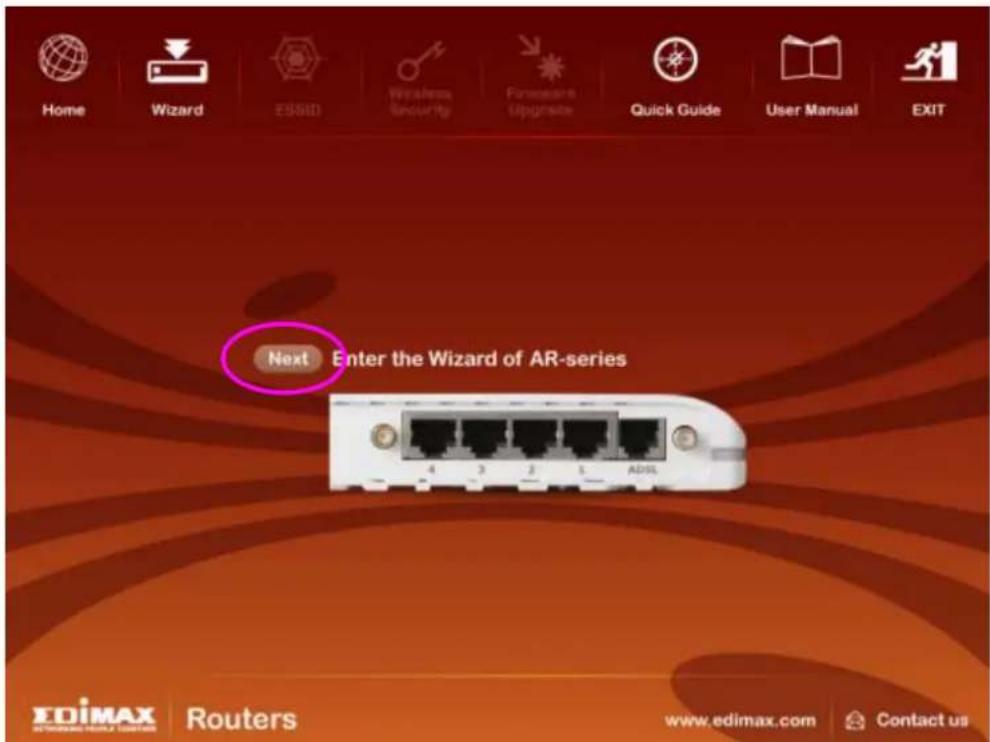

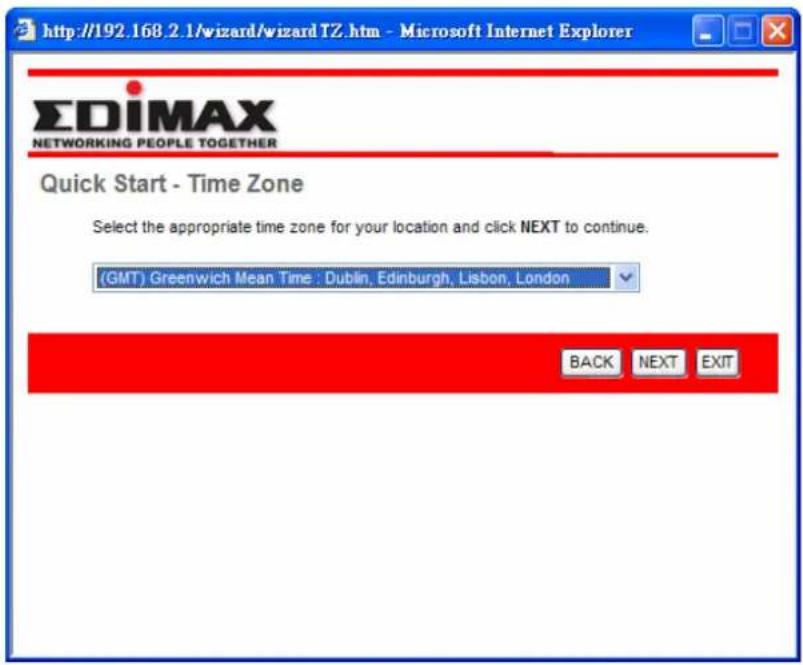

The wizard will guide you to setup “ Internet Connection” , “ ESSID “ , Wireless security “ and “ Firmware Upgrade “ .

Home Wizard ESSID Wireless Security Firmware Upgrade Quick Guide User Manual EXIT EZMAX Wizard will guide you to setup the Internet connection, Wireless ESSID, Wireless Security and perform Firmware Upgrade. Next EDIMAX Routers www.edimax.com Contact us

Home Wizard ESSID Wireless Security Firmware Upgrade Quick Guide User Manual EXIT Next Enter the Wizard of AR-series EDIMAX Routers www.edimax.com Contact us

Home Wizard ESSMD Wireless Security Firmware Upgrade Quick Guide User Manual EXIT Connect the supplied RJ-11 telephone cable to the ADSL port and connect it to your telephone socket with an ADSL filter. Then, connect the supplied Ethernet cable from your computer to the LAN port 2. (For wireless router, please do not use wireless connection. It's recommended to use Ethernet cable connection for this setup) RJ-45 Ethernet Cable www.internet ADSL Modem Router PC RJ-11 Phone Cable YES I have connected the cables correctly. Next EDIMAX Routers www.edimax.com Contact us

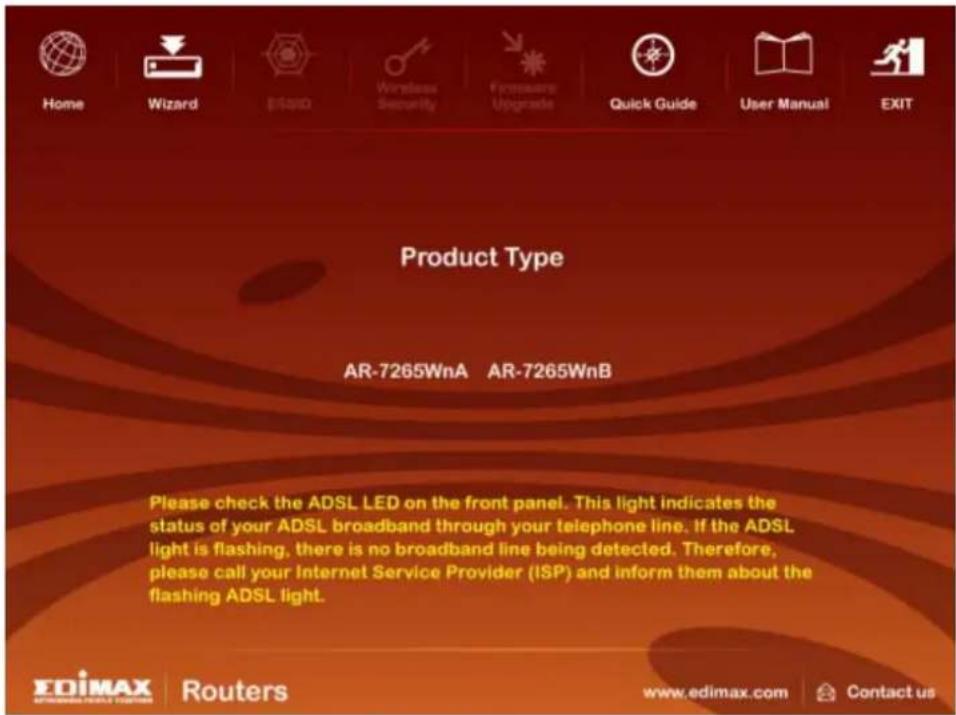

Please choose the product type which you bought.

Home Wizard BIOS Wireless Security Firmware Upgrade Quick Guide User Manual EXIT Product Type AR-7265WnA AR-7265WnB Please check the ADSL LED on the front panel. This light indicates the status of your ADSL broadband through your telephone line. If the ADSL light is flashing, there is no broadband line being detected. Therefore, please call your Internet Service Provider (ISP) and inform them about the flashing ADSL light. EDIMAX Routers www.edimax.com Contact us

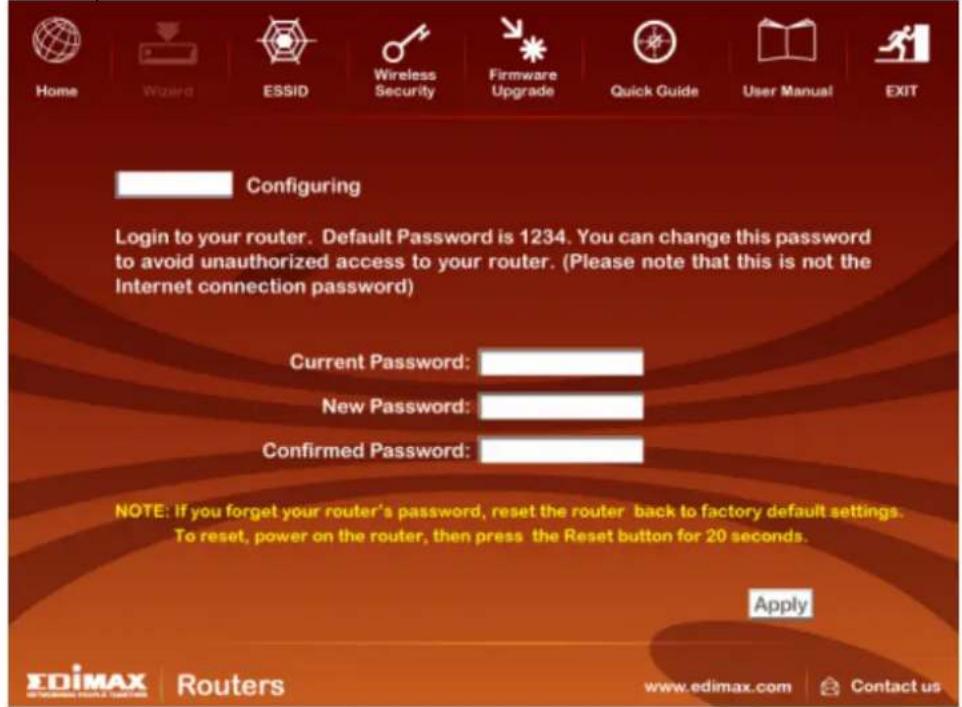

The default password is "1234".

Home Wizard ESSID Wireless Security Firmware Upgrade Quick Guide User Manual EXIT Configuring Login to your router. Default Password is 1234. You can change this password to avoid unauthorized access to your router. (Please note that this is not the Internet connection password) Current Password: New Password: Confirmed Password: NOTE: If you forget your router's password, reset the router back to factory default settings. To reset, power on the router, then press the Reset button for 20 seconds. Apply EDIMAX Routers www.edimax.com Contact us

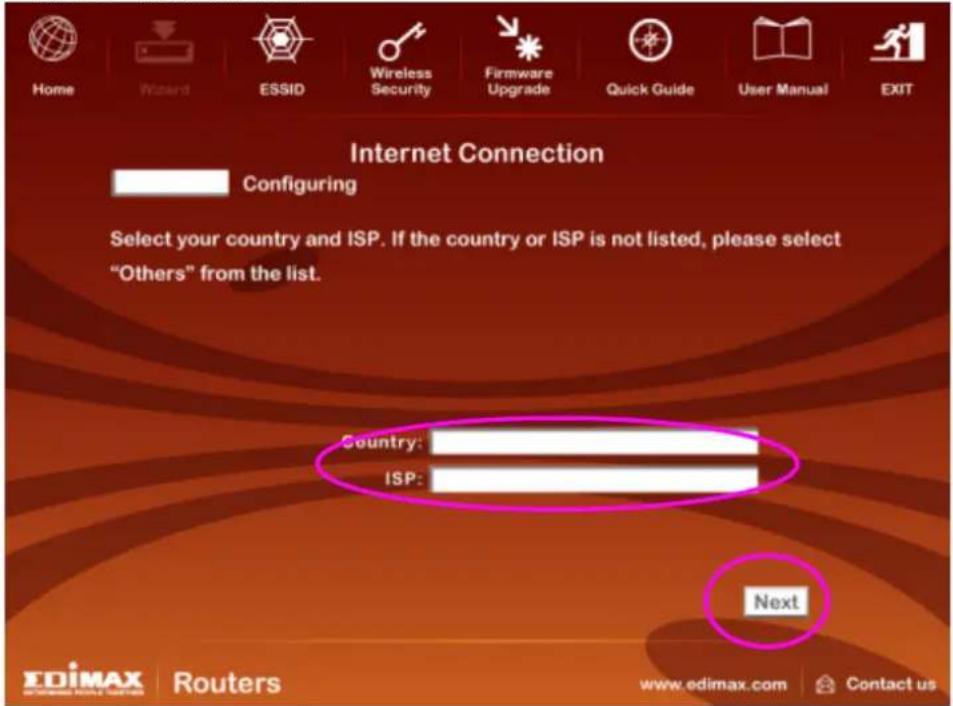

Please select your country and ISP. If the country or ISP is not listed, please select "Others" from the list.

Home Wizard ESSID Wireless Security Firmware Upgrade Quick Guide User Manual EXIT Internet Connection Configuring Select your country and ISP. If the country or ISP is not listed, please select "Others" from the list. Country: ISP: Next EDIMAX Routers www.edimax.com Contact us

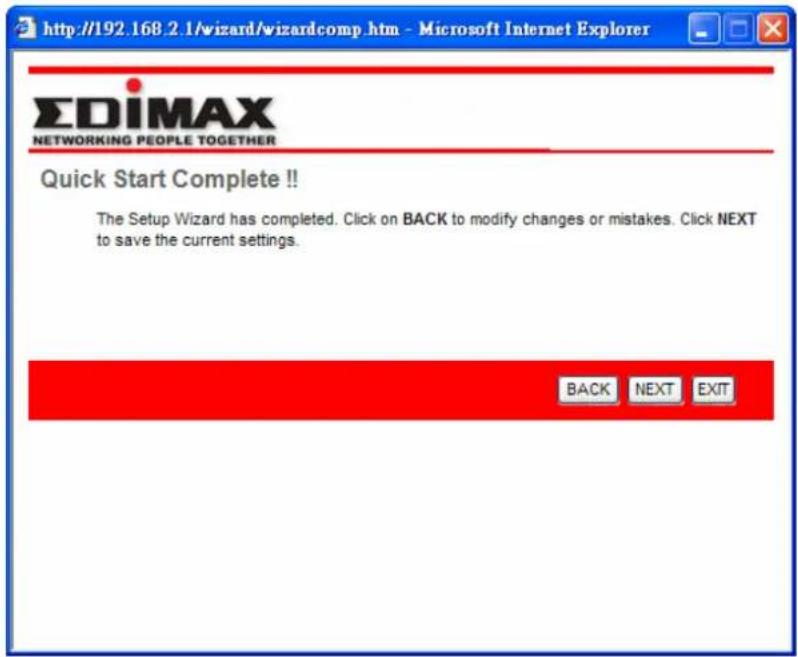

Click" Next " to finish all configurations of Internet Connection, Wireless setting and Firmware Upgrade.

4. IP Address Setting

If you lost the CD-ROM or you prefer the traditional web setup, please follow the procedures of chapter 4 and chapter 5 to configure the router. Using the router to get into the Internet, the PCs in the network must have Ethernet adapter installed and be connected to the router either directly or through a hub or switch. The TCP/IP protocol of each PC has to been installed and the IP Address of each PC has to be set in the same subnet as the router.

The router's default IP Address is 192.168.2.1 and the subnet mask is 255.255.255.0. PCs can be configured to obtain IP Address automatically through the DHCP Server of the router or a fixed IP Address in order to be in the same subnet as the router. By default, the DHCP Server of the router is enabled and will dispatch IP Address to PC from 192.168.2.100 to 192.168.2.200. It is strongly recommended to set obtaining IP address automatically.

This section shows you how to configure your PC's so that it can obtain an IP address automatically for either Windows 95/98/Me, 2000 or NT operating systems. For other operating systems (Macintosh, Sun, etc.), please follow the manual of the operating systems. The following is a step-by-step illustration on how to configure your PC to obtain an IP address automatically for Windows XP, Windows 2000, Windows 95/98/Me, and Windows NT.

Windows XP

1. Click the Start button and select Control Panel and then double click Network Connections. The Network Connections window will appear.
2. Right click on the Local Area Connection icon and select Properties. The Local Area Connection window will appear.

3. Check your list of Network Components. You should see Internet Protocol [TCP/IP] on your list. Select it and click the Properties button.

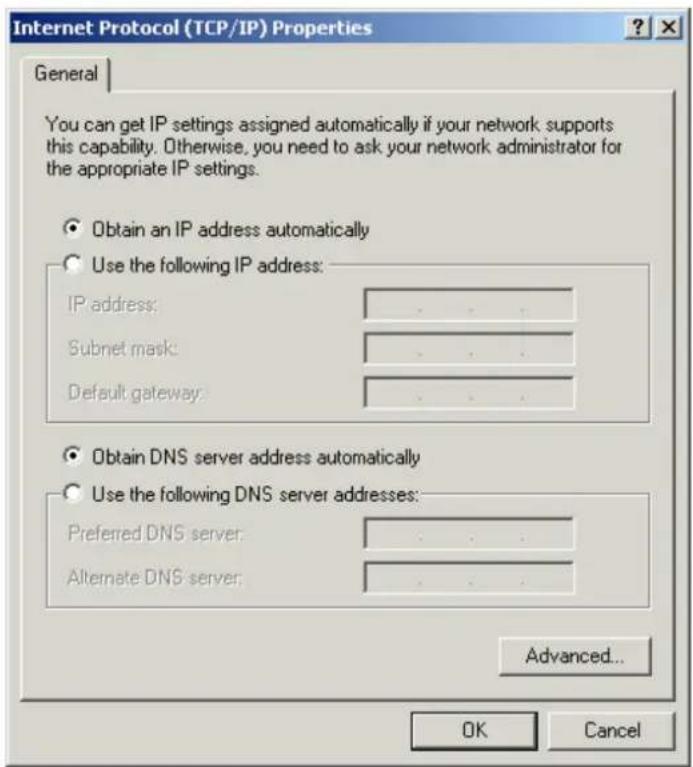

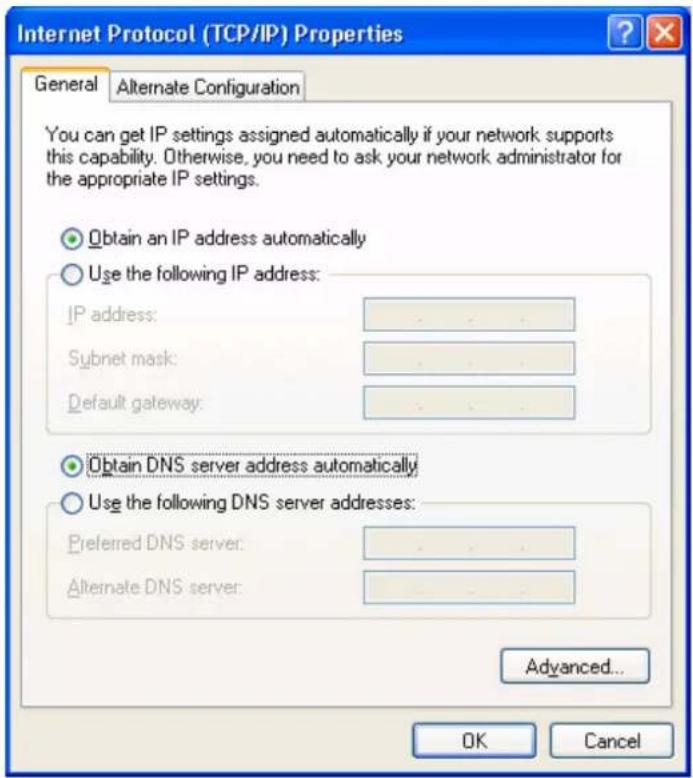

4. In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address automatically and Obtain DNS server address automatically as shown on the following screen.

Internet Protocol (TCP/IP) Properties General Alternate Configuration You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: ...... Subnet mask: ...... Default gateway: ...... Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: ...... Alternate DNS server: ...... Advanced... OK Cancel

1. Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your router's DHCP server.

Note: Please make sure that the router's DHCP server is the only DHCP server available on your LAN.

Windows 2000

1. Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear.
2. Double-click Network and Dial-up Connections icon. In the Network and Dial-up Connection window, double-click Local Area Connection icon. The Local Area Connection window will appear.
3. In the Local Area Connection window, click the Properties button.
4. Check your list of Network Components. You should see Internet Protocol [TCP/IP] on your list. Select it and click the Properties button.
5. In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address automatically and Obtain DNS server address automatically as shown on the following screen.

Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: Subnet mask: Default gateway: Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: Alternate DNS server: Advanced... OK Cancel

1. Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your Broadband Router's DHCP server.

Note: Please make sure that the router's DHCP server is the only DHCP server available on your LAN.

Windows 95/98/Me

1. Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear.
2. Double-click Network icon. The Network window will appear.
3. Check your list of Network Components. If TCP/IP is not installed, click the Add button to install it now. If TCP/IP is installed, go to step 6.
4. In the Network Component Type dialog box, select Protocol and click Add button.
5. In the Select Network Protocol dialog box, select Microsoft and TCP/IP and then click the OK button to start installing the TCP/IP protocol. You may need your Windows CD to complete the installation.

6. After installing TCP/IP, go back to the Network dialog box. Select TCP/IP from the list of Network Components and then click the Properties button.

7. Check each of the tabs and verify the following settings:

Bindings: Check Client for Microsoft Networks and File and printer sharing for Microsoft Networks.

Gateway: All fields are blank.

DNS Configuration: Select Disable DNS.

WINS Configuration: Select Disable WINS Resolution.

IP Address: Select Obtain IP address automatically.

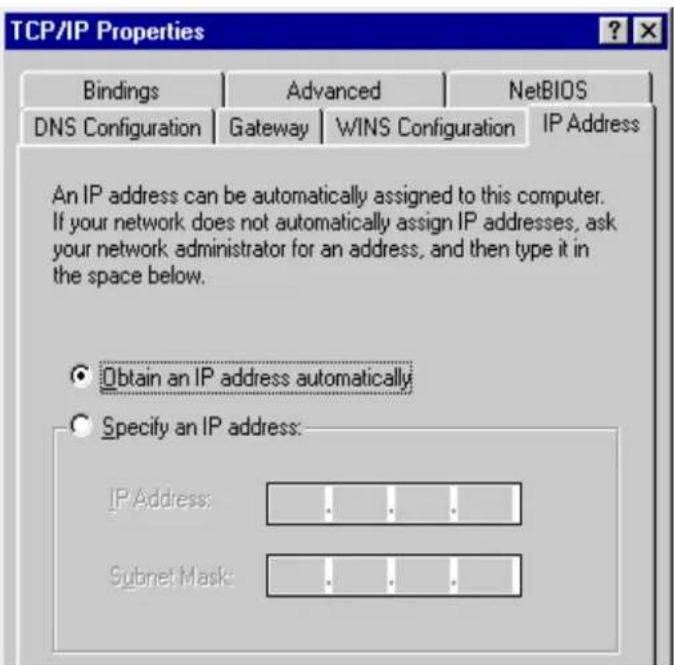

TCP/IP Properties Bindings Advanced NetsBIOS DNS Configuration Gateway WINS Configuration IP Address An IP address can be automatically assigned to this computer. If your network does not automatically assign IP addresses, ask your network administrator for an address, and then type it in the space below. Obtain an IP address automatically Specify an IP address: IP Address: .... Subnet Mask: ....

1. Reboot the PC. Your PC will now obtain an IP address automatically from your router's DHCP server.

Note: Please make sure that the router's DHCP server is the only DHCP server available on your LAN.

Windows NT

1. Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear.
2. Double-click Network icon. The Network window will appear. Select the Protocol tab from the Network window.
3. Check if the TCP/IP Protocol is on your list of Network Protocols. If TCP/IP is not installed, click the Add button to install it now. If TCP/IP is installed, go to step 5.

4. In the Select Network Protocol window, select the TCP/IP Protocol and click the Ok button to start installing the TCP/IP protocol. You may need your Windows CD to complete the installation.

5. After you install TCP/IP, go back to the Network window. Select TCP/IP from the list of Network Protocols and then click the Properties button.

6. Check each of the tabs and verify the following settings:

IP Address: Select Obtain an IP address from a DHCP server.

DNS: Let all fields are blank.

WINS: Let all fields are blank.

Routing: Let all fields are blank.

Microsoft TCP/IP Properties IP Address DNS WINS Address Routing An IP address can be automatically assigned to this network card by a DHCP server. If your network does not have a DHCP server, ask your network administrator for an address, and then type it in the space below. Adapter: [1] Realtek RTL8139/810X Family PCI Fast Ethernet Adapter Obtain an IP address from a DHCP server Specify an IP address IP Address: ... Subnet Mask: ... Default Gateway: ... Advanced... OK Cancel Apply

1. Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your Broadband Router's DHCP server.

Note: Please make sure that the router's DHCP server is the only DHCP server available on your LAN.

5. Web Management Configuration

Once you have configured your PCs to obtain an IP address automatically, the router's DHCP server will automatically give your LAN clients an IP address. By default the router's DHCP server is enabled so that you can obtain an IP address automatically. To see if you have obtained an IP address, see Appendix A.

Once your PC has obtained an IP address from your router, enter the default IP address 192.168.2.1 (router's IP address) into your PC's web browser and press

ress http://192.168.2.1 DAP Options

The login screen below will appear. Enter the "User Name" and "Password" and then click to login. By default the user name is "admin" and the password is "1234". For security reasons it is recommended that you change the password as soon as possible.

Connect to 192.168.2.1 ADSL Modem User name: admin Password: ••••• Remember my password OK Cancel

The HOME page screen below will appear. The Home Page is divided into seven sections: Quick Start, Interface Setup, Advanced Setup, Access Management, Maintenance, Status and Help.

Status	Quick Start	Interface Setup	Advanced Setup	Access Management	Maintenance	Status	ADSL Router Help
	Device Info		System Log	Statistics
Device Information
	Firmware Version: 2.11.32.0(NRE0.C29)3.9.9.5 MAC Address: 00:aa:bb:01:23:45
LAN
	IP Address: 192.168.2.1 Subnet Mask: 255.255.255.0 DHCP Server: Enabled
WAN
	Virtual Circuit: PVCO Status: Not Connected Connection Type: Dynamic IP IP Address: 0.0.0.0 Subnet Mask: 0.0.0.0 Default Gateway: 0.0.0.0 DNS Server: 0.0.0.0 NAT: Enabled
ADSL
	ADSL Firmware Version: FwVer:3.9.9.5_TC3085 HwVer:T14.F7_3.0 Line State: Down Modulation: N/A Annex Mode: N/A
		Downstream	Upstream

Quick Start (Section 5.1)

Follow the setup process in the Quick Start, you can quickly set the router as an Internet Access device.

Interface Setup (Section 5.2)

It allows you to configure the Internet, LAN and Wireless access

Advanced Setup (Section 5.3)

This section contains configurations for the router's advanced functions such as Firewall, Virtual Server, DMZ, ADSL Mode, ADSL Type, etc.

Access Management (Section 5.4)

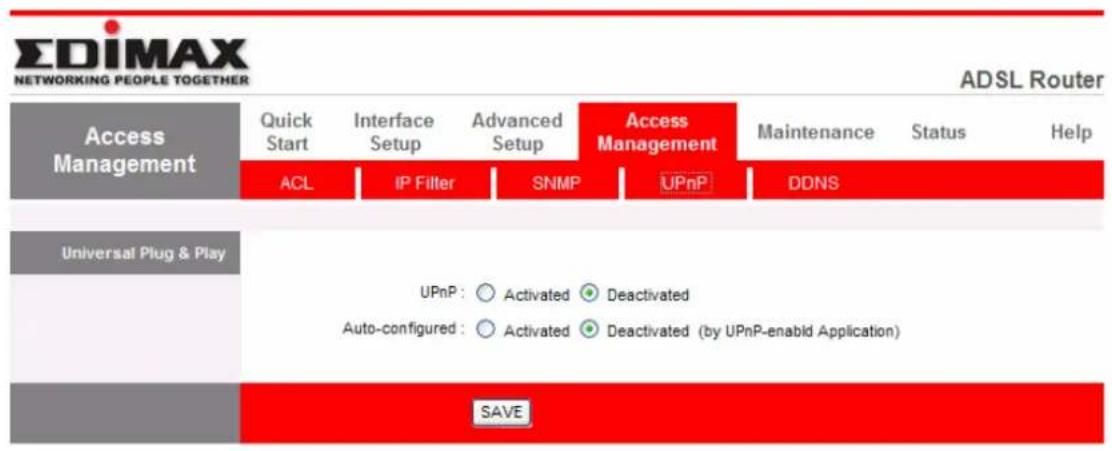

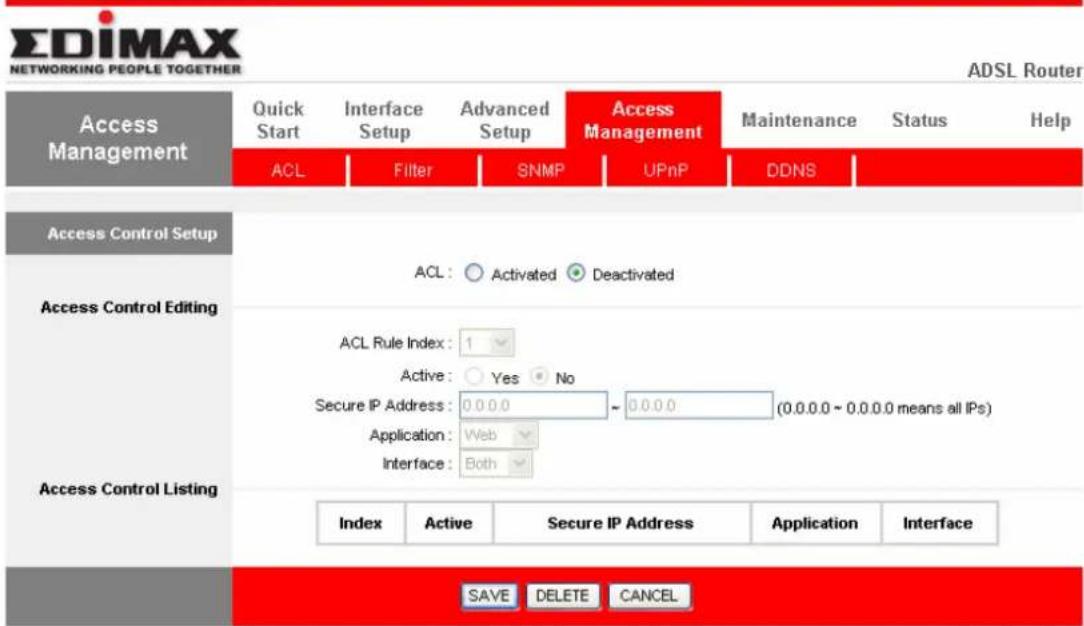

It allows you to configure ACL, IP Filter, SNMP, UPnP and DDNS functions.

Maintenance (Section 5.5)

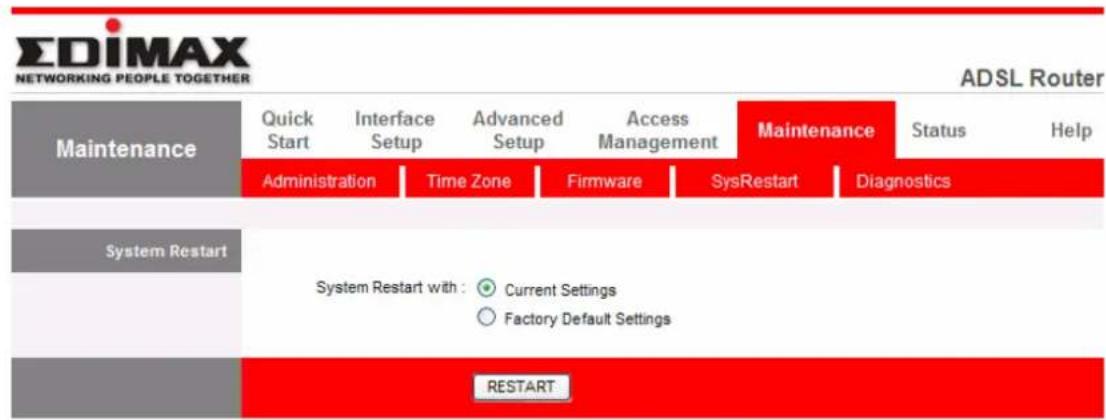

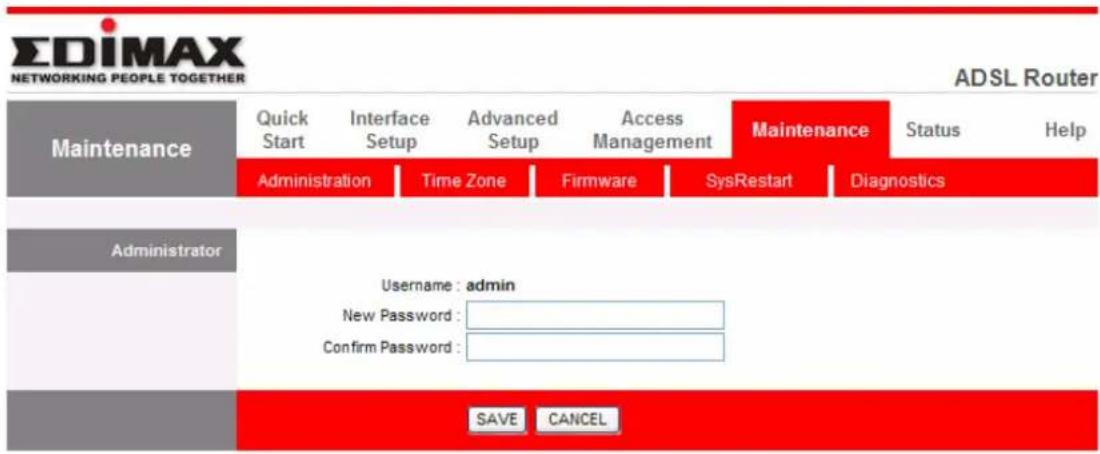

If you want to change the administrator's password, restart the router, update the firmware, diagnose the connection or change the Tome Zone of the router, please select this menu.

Status (Section 5.6)

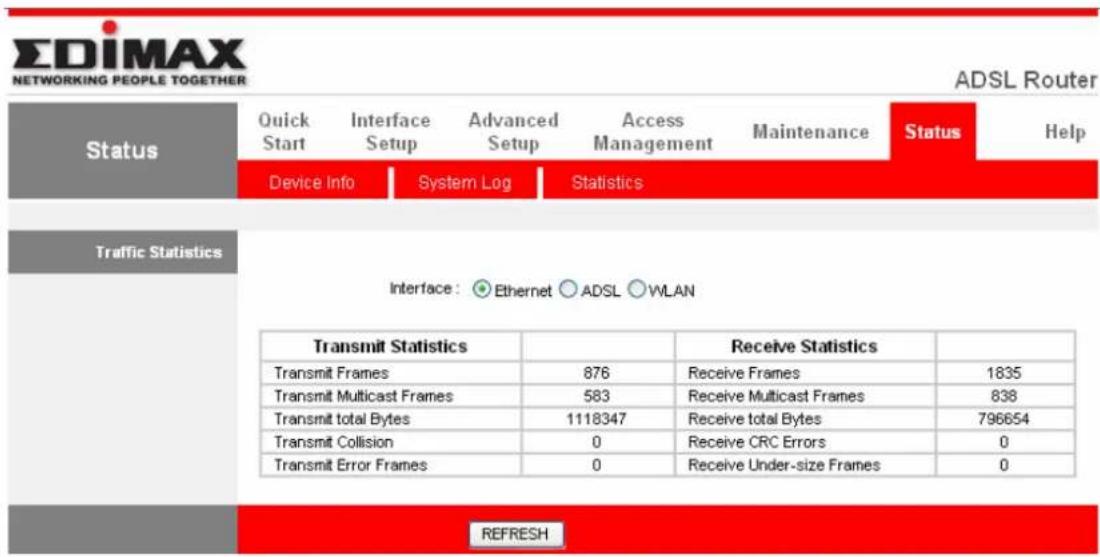

The router's setup information, system log and some statistics can be viewed here.

Help

If you want to know about the settings of the router quickly, please refer to the description in the Help menu.

5.1. Quick Start

The Quick Start section is designed to get you using the router as quickly as possible. Before configuring the router, please check with your ISP (Internet Service Provider) what kind of the service is provided such as PPPoE, PPPoA or RFC1483/2684. Gather the information as illustrated in the following table and keep it for reference.

PPPoE VPI/VCI, VC-	-based/LLC-based multiplexing, Username, Password (and Service Name).
PPPoA VPI/VCI, VC-	-based/LLC-based multiplexing, Username, Password.
RFC1483 Bridged VPI	I/VCI, VC-based/LLC-based multiplexing to use Bridged Mode.
RFC1483 Routed VPI	I/VCI, VC-based/LLC-based multiplexing, IP Address, Subnet Mask, Gateway Address, and Domain Name System (DNS) IP Address (It is a fixed IP Address).

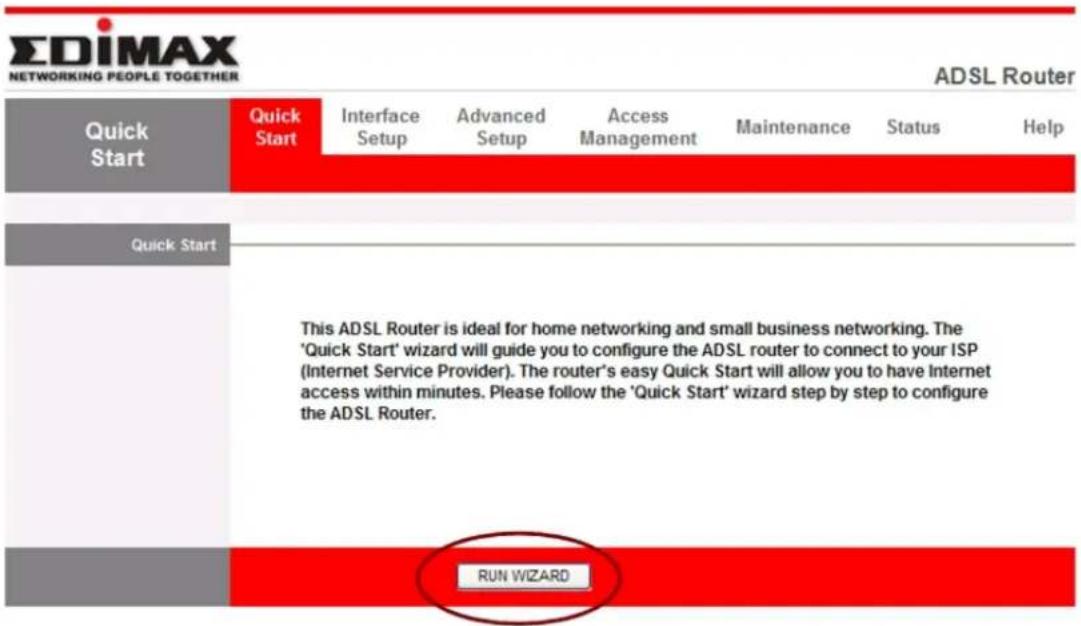

In the Quick Start, click "Run Wizard" to start the configuration.

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Quick Start Quick Start This ADSL Router is ideal for home networking and small business networking. The 'Quick Start' wizard will guide you to configure the ADSL router to connect to your ISP (Internet Service Provider). The router's easy Quick Start will allow you to have Internet access within minutes. Please follow the 'Quick Start' wizard step by step to configure the ADSL Router. RUN WIZARD

Please follow the steps in the setup wizard to complete the configuration of the Internet connection.

http://192.168.2.1/wizard/wizardstart.htm - Microsoft Internet Explorer EDIMAX NETWORKING PEOPLE TOGETHER Quick Start The Wizard will guide you through these four quick steps. Begin by clicking on NEXT. Step 1. Set your new password Step 2. Choose your time zone Step 3. Set your Internet connection Step 4. Re-start your ADSL router NEXT EXIT

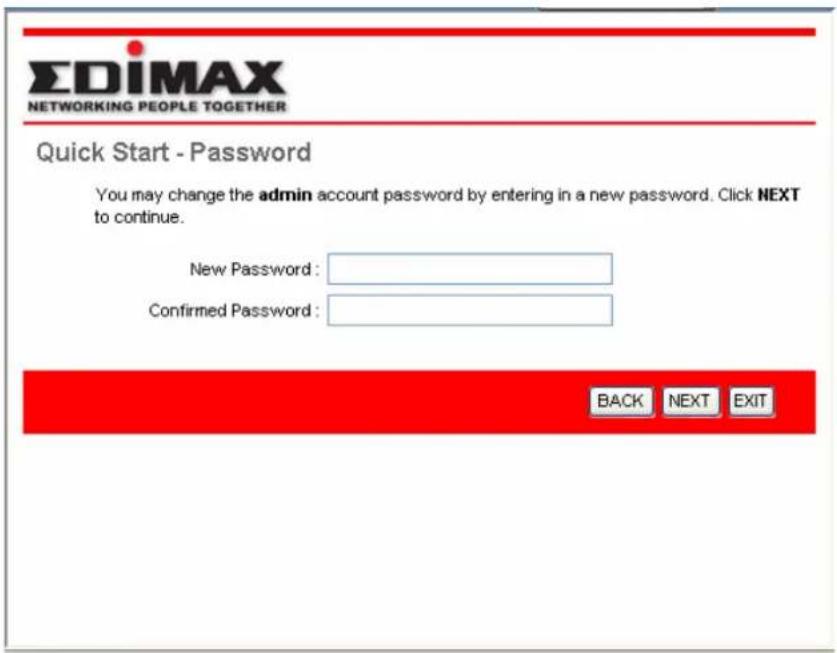

Step 1: Set your new password

Please enter the new password and confirm the password again.

EDIMAX NETWORKING PEOPLE TOGETHER Quick Start - Password You may change the admin account password by entering in a new password. Click NEXT to continue. New Password : Confirmed Password : BACK NEXT EXIT

Step 2: Choose your tome zone

Please select the tome zone where you are located.

http://192.168.2.1/wizard/wizard.TZ.htm - Microsoft Internet Explorer EDIMAX NETWORKING PEOPLE TOGETHER Quick Start - Time Zone Select the appropriate time zone for your location and click NEXT to continue. (GMT) Greenwich Mean Time : Dublin, Edinburgh, Lisbon, London BACK NEXT EXIT

Step 3: Set your Internet connection

Please check with your ISP the connection type of the ADSL line.

http://192.168 2.1/wizard/wizardConType.htm - Microsoft Internet Explorer EDIMAX NETWORKING PEOPLE TOGETHER Quick Start - ISP Connection Type Select the internet connection type to connect to your ISP. Click NEXT to continue. Dynamic IP Address Choose this option to obtain a IP address automatically from your ISP. Static IP Address Choose this option to set static IP information provided to you by your ISP. PPPoE/PPPoA Choose this option if your ISP uses PPPoE/PPPoA. (For most DSL users) Bridge Mode Choose this option if your ISP uses Bridge Mode. BACK NEXT EXIT

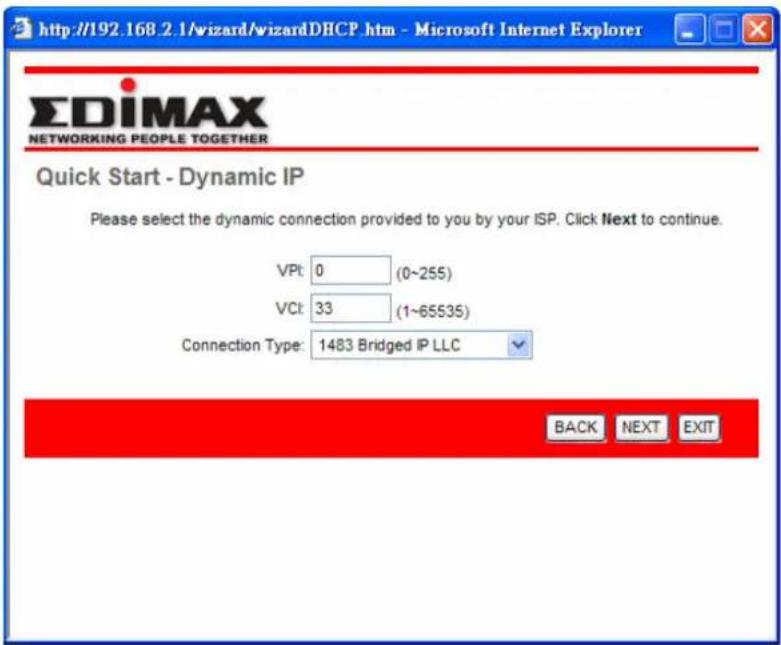

Step 4: Input the data supplied by your ISP

To know more about the explanation of each setting, please refer to Section 5.2.

http://192.168.2.1/wizard/wizardDHCP.htm - Microsoft Internet Explorer EDIMAX NETWORKING PEOPLE TOGETHER Quick Start - Dynamic IP Please select the dynamic connection provided to you by your ISP. Click Next to continue. VPt: 0 (0~255) VCt: 33 (1~65535) Connection Type: 1483 Bridged IP LLC BACK NEXT EXIT

Step 5: Re-start your ADSL router

Click "Next" to save the settings and restart the router.

http://192.168.2.1/wizard/wizardcomp.htm - Microsoft Internet Explorer EDIMAX NETWORKING PEOPLE TOGETHER Quick Start Complete !! The Setup Wizard has completed. Click on BACK to modify changes or mistakes. Click NEXT to save the current settings. BACK NEXT EXIT

5.2. Interface Setup

5.2.1. Internet

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Interface Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help Internet LAN Wireless ATM VC Virtual Circuit: PVC0 ▼ PVCs Summary Status: ● Activated ○ Deactivated VPI: 0 (range: 0-255) VCI: 33 (range: 1-65535) QoS ATM QoS: UBR PCR: 0 cells/second SCR: 0 cells/second MBS: 0 cells Encapsulation ISP: ● Dynamic IP Address ○ Static IP Address ○ PPPoA/PPPoE ○ Bridge Mode Dynamic IP Encapsulation: 1483 Routed IP LLC(IPoA) ▼ NAT: Enable ▼ Default Route: ● Yes ○ No

- ATM VC

Parameter Description

Virtual Circuit VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier define a virtual circuit.

VPI VPI is a virtual path determines the way an ATM cell should be routed. The VPI is an 8-bit (in UNI) or 12-bit (in NNI) number that is included in the header of an ATM cell. The valid range for the VPI is 0 to 255. Enter the VPI assigned by the ISP.

Parameter Description

VCI VCI is the label given to an ATM VC to identify it and

determine its destination. The VCI is a 16-bit number that is included in the header of an ATM cell. The valid range for the VCI is 32 to 65535. Enter the VCI assigned by the ISP.

ATM QoS CBR (Constant Bit Rate) – This class is used for

emulating circuit switching. The cell rate is constant with time. Select CBR to specify fixed (always on) bandwidth for voice or data traffic.

UBR (Unspecified Bit Rate) – Select UBR for applications that are non-time sensitive, such as e-mail.

rtVBR (real time Variable Bit Rate) – This class is similar to nrtVBR but is designed for applications that are sensitive to cell-delay variation. Examples for real-time VBR are voice with speech activity detection (SAD) and interactive compressed video.

nrtVBR (non-real time Variable Bit Rate) – This class allows users to send traffic at a rate that varies with time depending on the availability of user information. Statistical multiplexing is provided to make optimum use of network resources. Multimedia e-mail is an example of nrtVBR.

PCR Divide the DSL line rate (bps) by 424 (the size of an ATM

cell) to find the PCR (Peak Cell Rate). This is the maximum rate at which the sender can send cells.

SCR SCR (Sustain Cell Rate) is the average rate, as

measured over a long interval, in the order of the connection lifetime.

Parameter Description

MBS MBS (Maximum Burst Size) refers to the maximum number of cells that can be sent at the peak rate. Type the MBS, which is less than 65535.

- Encapsulation

The router can be connected to your service provider in any of the following ways.

Parameter Description

Dynamic IP Address Obtain an IP address automatically from your service provider.

Static IP Address Uses a static IP address. Your service provider gives a static IP address to access Internet services.

PPPoE/PPPoA PPPoE (PPP over Ethernet) and PPPoA (PPP over ATM) are common connection methods used for xDSL.

Bridge Mode Bridge Mode is a common connection method used for xDSL modem.

• Dynamic IP Address/Static IP Address/PPPoE/PPPoA/Bridge Mode

After you have selected the ISP Type, this web page will be varied depending on the ISP Type you select. You have to continue setting some parameters. Please refer to the following table for the explanation of each parameter.

Parameter Description

User Name Enter the username exactly as your ISP assigned.

Password Enter the password that your ISP has assigned to you.

Encapsulation Please check with your ISP the method of multiplexing. In Bridge Mode, please select "1483 Bridge IP LLC" or "1483 Bridge IP VC-Mux". In PPPoE/PPPoA mode,

please select "PPPoE LLC", "PPPoE VC-Mux", "PPPoA LLC", or "PPPoA VC-Mux".

Bridge Interface This router built-in ADSL modem is able to connect to ISP automatically. Alternatively, if you want to use the dial up software to manually connect to the ISP, you have to activate the "Bridge Interface".

Connection Always On – The connection will be kept always on. If the connection is interrupted, the router will re-connect automatically.

Connect On-Demand – Only connect when you want to surf the Internet. “Close if idle for xx minutes” is set to stop the connection when the network traffic is not sending or receiving after an idle time.

Connect Manually – After you have selected this option, please go to Status page. You will see the “Connect” button, click it and the router will connect to the ISP. If you want to stop the connection, please click “Disconnect” button.

TCP MSS Option The “TCP MSS Option” enables the configuration of the maximum segment size (MSS) for transient packets that traverse a router, specifically TCP segments in the SYN bit set, when PPPoE is being used in the network. Please specify the MSS range from 100 to 1452 bytes or 0 byte as the default value.

Parameter Description

Get IP Address Choose Static or Dynamic IP Address. If Static IP is selected, please set the IP Address, Subnet Mask and Gateway obtained from your ISP.

Static IP Address Enter the IP Address assigned by your ISP.

IP Subnet Mask Enter the Subnet Mask assigned by your ISP.

Gateway Enter the Gateway assigned by your ISP.

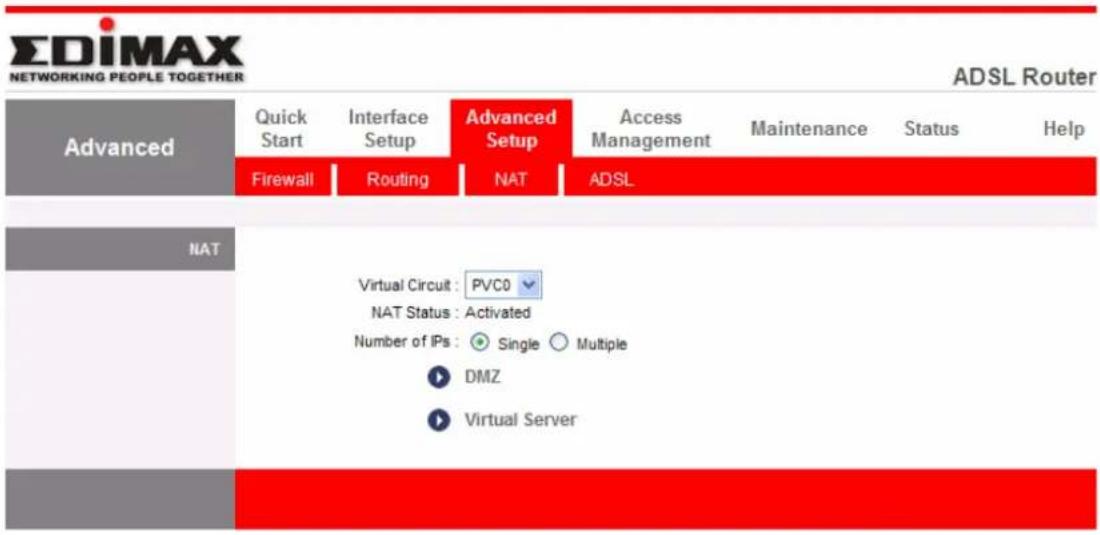

NAT NAT (Network Address Translation), an Internet standard

that enables a local-area network (LAN) to use one set of IP addresses for internal traffic and a second set of addresses for external traffic. When NAT is enabled, the router will help to make all necessary IP address translations for the PC connected to the router to access the Internet.

Default Route When "Default Router" is enabled, all the packets for destinations not known by the router's routing table are sent to the default route. By default, it is enabled.

TCP MTU Option MTU (Maximum Transmission Unit) determine the maximum size of each packet in any transmission within the network. Please specify the MTU range from 100 to 1500 bytes or 0 byte as the default value.

Dynamic Route Dynamic routing allows routing tables in routers to change as the possible routes change. This router supports RIP1, RIP2-B and RIP2-M protocols for dynamic routing. After the RIP protocol is selected, please choose the RIP direction from "None", "Both", "IN Only" or "OUT Only".

Parameter Description

Multicast Specify the method of transmitting data simultaneously to

many receivers. Please select "IGMP v1" or "IGMP v2" as the multicast protocol or select "Disabled" to disable the function.

5.2.2. LAN

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Interface Quick Start Internet Interface Setup LAN Advanced Setup Access Management Maintenance Status Help Wireless Router Local IP IP Address: 192.168.2.1 IP Subnet Mask: 255.255.255.0 Dynamic Route: RIP2-B Direction None Multicast: Disabled IGMP Snoop: Disabled Enabled DHCP DHCP: Disabled Enabled Relay DHCP Server Starting IP Address: 192.168.2.2 Current Pool Summary IP Pool Count: 100 Lease Time: 259200 seconds (0 sets to default value of 259200) DNS DNS Relay: Use Auto Discovered DNS Server Only Primary DNS Server: N/A Secondary DNS Server: N/A SAVE CANCEL

- Router Local IP

Parameter Description

IP Address Enter the IP Address of the ADSL router for the local user to access the router's web page. By default, the IP Address is 192.168.2.1.

Parameter Description

IP Subnet Mask Enter the Subnet Mask of the ADSL router. By default, the Subnet Mask is 255.255.255.0.

Dynamic Route Dynamic routing allows routing tables in routers to change as the possible routes change. This router supports RIP1, RIP2-B and RIP2-M protocols for dynamic routing. After the RIP protocol is selected, please choose the RIP direction from "None", "Both", "IN Only" or "OUT Only".

Multicast Specify the method of transmitting data simultaneously to many receivers. Please select "IGMP v1" or "IGMP v2" as the multicast protocol or select "Disabled" to disable the function.

IGMP Snoop When “IGMP Snoop” (Internet Group Management Protocol Snoop) is enabled, the router can make intelligent multicast forwarding decisions by examining the contents of each frame’s IP header. Without the function, the router will broadcast the multicast packets to each port and may create excessive traffic in the network and degrade the performance of the network.

- DHCP

Parameter Description

DHCP You can enable or disable the DHCP server. By enabling the DHCP server the router will automatically give your LAN clients an IP address. If the DHCP is not enabled then you'll have to manually set your LAN client's IP addresses.

Starting IP Address If the DHCP Server is enabled, please set the "Starting

IP Address" which will be the first IP Address assigned to the LAN client. By default, the "Starting IP Address" is 192.168.2.100.

IP Pool Count You can select a particular IP address range for your DHCP server to issue IP addresses to your LAN Clients. By default, the “IP Pool Count” is 100. The IP range is starting from IP 192.168.2.100 to 192.168.2.199.

Parameter Description

Lease Time In the Lease Time setting you can specify the time period that the DHCP Server lends an IP address to your LAN clients. The DHCP will change your LAN client's IP address when this time threshold period is terminated.

DNS Relay A Domain Name System (DNS) server is like an index of IP addresses and Web addresses. If you type a Web address into your browser, such as "www.router.com", a DNS server will find that name in its index and the matching IP address. Please select "Use Auto Discovered DNS Server Only" to auto set the DNS Server. If there is a DNS server that you would rather to use, please select "Use Discovered DNS Server Only" and you need to specify the IP address of that DNS server.

Primary DNS Server Enter the ISP's DNS Server IP Address; or you can specify your own preferred DNS Server IP Address.

Secondary DNS Server This is optional. You can enter another DNS Server's IP Address as a backup. The secondary DNS will be used should the Primary DNS fail.

5.2.3. Wireless

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Interface Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help Internet LAN Wireless Access Point Settings Access Point: Activated Deactivated Channel: Undefined 11 Current Channel: 11 Beacon Interval: 100 (range: 20~1000) RTS/CTS Threshold: 2347 (range: 1500~2347) Fragmentation Threshold: 2346 (range: 256~2346, even numbers only) DTIM: 1 (range: 1~255) Wireless Mode: 802.11b+g+n 11n Settings Channel Bandwidth: 20 MHz Guard Interval: 800 nsec MCS: AUTO Multiple SSIDs Settings SSID Index: 1 Broadcast SSID: Yes No VMM: Enable Disable Use WPS: Yes No WPS Settings WPS state: Configured WPS mode: PIN code PBC Start WPS

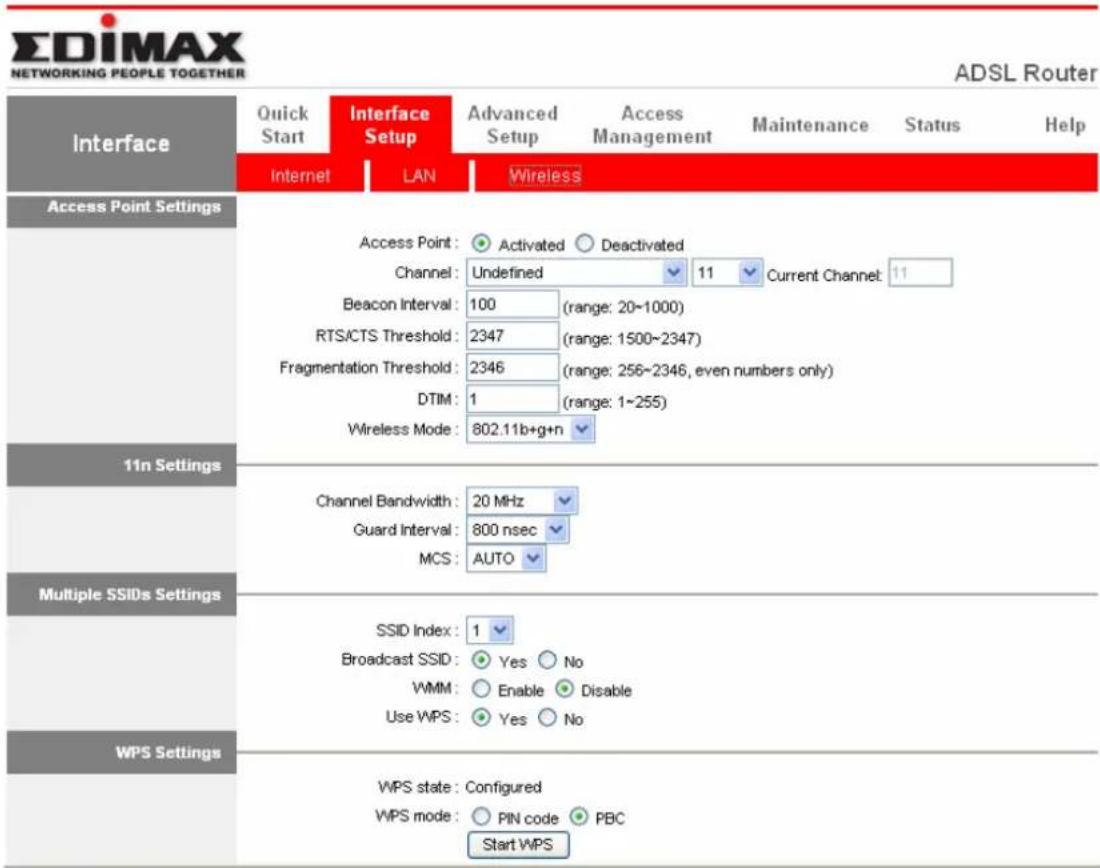

- Access Point Settings

Parameter Description

Access Point Activated or deactivated the wireless function of the router. When it is activated, the router will be an access point for other wireless clients to connect wirelessly.

Channel It is the radio channel used by the wireless LAN. All devices in the same wireless LAN should use the same channel. Please select the country you are located and designate a channel that the router will use. If you want to let the router automatically find an available channel with the highest signal strength, please select "Auto". The

auto-selective channel will be shown in the "Current Channel" field.

SSID The SSID (up to 32 printable ASCII characters) is the unique name identified in a WLAN. The ID prevents the unintentional merging of two co-located WLANs. The default SSID of the router is “default”.

Beacon Interval The interval of time that this wireless router broadcast a beacon. Beacon is used to synchronize the wireless network. The range for the beacon period is between 20 and 1000 with a typical value of 100 (milliseconds).

RTS/CTS Threshold When the packet size is smaller than the RTS threshold, the wireless router will not use the RTS/CTS mechanism to send this packet. The range is from 1500 to 2347.

Fragmentation Fragment Threshold specifies the maximum size of packet during the fragmentation of data to be transmitted. If you set this value too low, it will result in bad performance. Enter a value from 256 to 2346.

DTIM Determines the interval the Access Point will send its broadcast traffic. The range is from 1 to 255 and the default value is 3 beacons.

802.11b/g/n 802.11 b – This router will only work in 802.11b mode. If there are only 802.11b wireless clients in the network, you can set the router to this mode.

802.11 g – This router will only work in 802.11g mode. If there are only 802.11g wireless clients in the network, you can set the router to this mode.

802.11 b+g+n – This router will support 802.11b, 802.11g and 802.11n communications simultaneously. It is

recommended to set this mode.

Channel Bandwidth 20MHz or 20/40MHz Auto.

- Multiple SSIDs Settings

Parameter Description

SSID Index This router can support multiple SSIDs. By default, this function is disabled. You can only set a set of SSID.

SSID The SSID (up to 32 printable ASCII characters) is the unique name identified in a WLAN. The ID prevents the unintentional merging of two co-located WLANs. The default SSID of the router is “default”.

Broadcast SSID Select "Yes" to make the SSID to be visible so wireless clients can scan the router within the network. Select "No" if you want to hide the SSID of the router. Wireless clients have to set the same SSID of the router in order to access the network.

Authentication Type To prevent unauthorized wireless clients from accessing the router, this router supports WEP, WPA-PSK and WPA2-PSK authentication type. If the router has enabled the authentication, all the wireless clients' settings have to be consistent with the router for building the connection.

• WEP/WPA-PSK/WPA2-PSK

Parameter Description

WEP-64Bits WEP is less level of security than WPA. WEP supports 64-bit and 128-bit key lengths to encrypt the wireless data. The longer key length will provide higher security. When "WEP-64Bits" is selected, you have to enter exactly 5 ASCII characters ("a-z" and "0-9") or 10 hexadecimal digits ("0-9", "a-f") for each Key (1-4).

WEP-128Bits When "WEP-128Bits" is selected, you have to enter exactly 13 ASCII characters ("a-z" and "0-9") or 26 hexadecimal digits ("0-9", "a-f") for each Key (1-4).

Parameter Description

WPA-PSK WPA-PSK is suitable for home and small business. It uses TKIP or AES for data encryption. When “WPA-PSK” is selected, please select the encryption method and enter 8-63 characters as the “Pre-Shared Key”.

WPA2-PSK WPA2-PSK is also for home and small business. It uses TKIP or AES for data encryption. WPA2-PSK offers the highest level of security. When “WPA2-PSK” is selected, please select the encryption method and enter 8-63 characters as the “Pre-Shared Key”.

- Wireless MAC Address Filter

Parameter Description

Active This router can prevent the wireless clients from

accessing the wireless network by checking the MAC Address of the clients. If you enable this function, please set the MAC Address of the wireless clients that you want to filter.

Action Allow Association – Only allow the wireless clients with

the MAC Address you have specified can access to the router.

Deny Association – The wireless clients with the MAC Address you have specified will be denied accessing to the router.

Mac Address #1-8 Please enter the MAC Address of the wireless clients for the filtering control.

5.3. Advanced Setup

5.3.1. Firewall

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Advanced Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help Firewall Routing NAT ADSL Firewall: ○ Enabled ● Disabled SPI: ○ Enabled ● Disabled (WARNING: If You enabled SPI, all traffics initiated from WAN would be blocked, including DMZ, Virtual Server, and ACL WAN side.) SAVE CANCEL

Parameter Description

Firewall When you enable the firewall function, it will protect you from following attacks of WAN side:

• SYN flooding attack
- Ping of Death
- Teardrop
- Land attack

SPI If you enable SPI, all traffics initiated from WAN site will be blocked including DMZ, Virtual Server, etc.

5.3.2. Routing

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Advanced Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help Firewall Routing NAT ADSL Routing Table List # Dest IP Mask Gateway IP Metric Device Use Edit Drop 1 192.168.2.0 24 192.168.2.1 1 enet0 5587 ADD ROUTE

- Routing Table List

You can see the current routing table of the router here. If you want to add another routing rule, please click "ADD ROUTE".

Parameter Description

Dest IP Show the IP Address of the destination LAN.

Mask Show the Subnet Mask of the destination LAN. If it shows "8" that means the Subnet Mask is "255.0.0.0"; "16" means the Subnet Mask is "255.255.0.0"; "24" means the Subnet Mask is "255.255.255.0".

Parameter Description

Gateway IP The next stop gateway of the path toward the destination LAN. This is the IP of the neighbor router that this router should communicate with on the path to the destination LAN.

Metric The number of hops (routers) to pass through to reach the destination LAN. It must be between 1 and 15.

Device Show the interface that go to the next hop (router), such as LAN port.

Use The counter for access time.

Edit Edit the route, this icon is not shown for system default route.

Drop Drop the route, this icon is not shown for system default route.

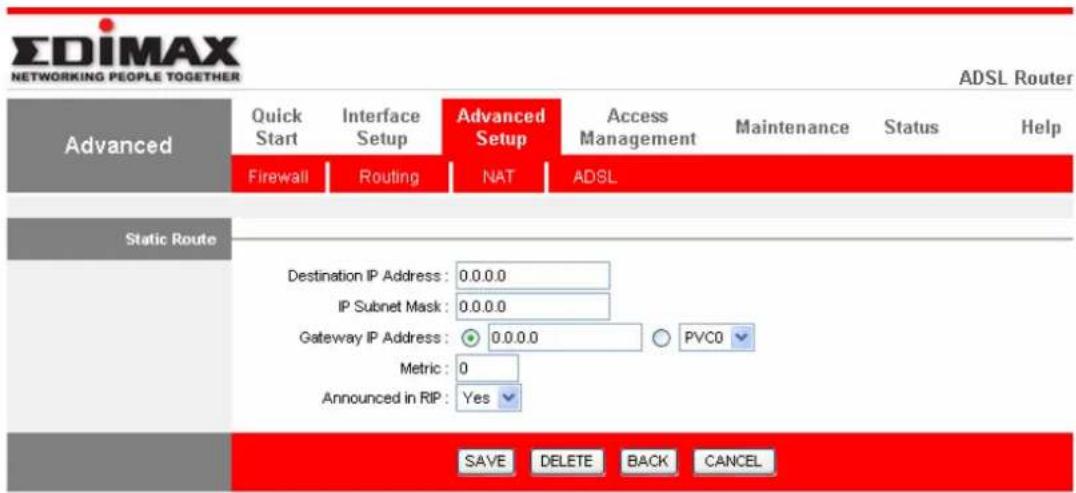

- Add Route

If you have another router with a LAN-to-LAN connection, you may need to create a static routing on the router that is the gateway to Internet.

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Advanced Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help Firewall Routing NAT ADSL Static Route Destination IP Address: 0.0.0.0 IP Subnet Mask: 0.0.0.0 Gateway IP Address: 0.0.0.0 Metric: 0 Announced in RIP: Yes SAVE DELETE BACK CANCEL

Parameter Description

Destination IP Address Enter the IP Address of the destination LAN.

IP Subnet Mask Enter the Subnet Mask address of the destination LAN.

Gateway IP Address This is the gateway IP Address where packets are sent. Enter the gateway IP Address and select the channel (PVC) you want to configure.

Metric The number of hops (routers) to pass through to reach the destination LAN. It must be between 1 and 15.

Announced in RIP Select "Yes", this routing path will be propagated to other hosts through RIP broadcasts. Select "No", this routing path will be kept private and it is not included in RIP broadcasts.

5.3.3. NAT

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Advanced Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help Firewall Routing NAT ADSL NAT Virtual Circuit : PVC0 NAT Status : Activated Number of IPs : Single Multiple DMZ Virtual Server

5.3.3.1. NAT

Network Address Translation (NAT) allows multiple users at your local site to access the Internet through a single Public IP Address or multiple Public IP Addresses. NAT provides Firewall protection from hacker attacks and has the flexibility to allow you to map Private IP Addresses to Public IP Addresses for key services such as Websites and FTP.

Parameter Description

Virtual Circuit VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier define a virtual circuit. Please select the channel (PVC) you want to configure.

NAT Status The activated or deactivated status for the NAT function will be shown here.

Number of IPs Select "Single" if you only have a public IP Address.

Select "Multiple" if you have multiple IP Addresses.

5.3.3.2. DMZ

The DMZ Host is a local computer exposed to the Internet. When setting a particular internal IP Address as the DMZ Host, all incoming packets will be checked by the firewall and NAT algorithms then passed to the DMZ Host.

For example, if you have a local client PC that cannot run an Internet application (e.g. Games) properly from behind the NAT firewall, then you can open the client up to unrestricted two-way Internet access by defining a DMZ Host.

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Advanced Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help Firewall Routing NAT ADSL DMZ DMZ setting for : Single IP Account DMZ : ○ Enabled ● Disabled DMZ Host IP Address : 0.0.0.0 SAVE BACK

Parameter Description

DMZ setting for Show the DMZ setting is for single or multiple IP Addresses.

DMZ Enable or disable the DMZ function.

DMZ Host IP Address Enter a static IP Address to the DMZ Host. This IP Address will be exposed to the Internet.

5.3.3.3. Virtual Server

Use the Virtual Server function when you want different servers/clients in your LAN to handle different service/Internet application type (e.g. Email, FTP, Web

server etc.) from the Internet. Computers use numbers called port numbers to recognize a particular service/Internet application type. The Virtual Server allows you to re-direct a particular service port number (from the Internet/WAN) to a particular LAN private IP Address and its service port number.

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Advanced Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help Firewall Routing NAT ADSL Virtual Server Virtual Server for: Single IP Account Rule Index: 1 Application: - Protocol: ALL Start Port Number: 0 End Port Number: 0 Local IP Address: 0.0.0.0 Virtual Server Listing Rule Application Protocol Start Port Protocol Start Port Number: 0.0.0.0 Rule Application Protocol Start Port Protocol End Port Number: 0.0.0.0 Rule Application Protocol Start Port Protocol End Port Number: 0.0.0.0 Rule Application Protocol Start Port Protocol End Port Number: 0.0.0.0 Rule Application Protocol Start Port Protocol End Port Number: 0.0.0.0 Rule Application Protocol Start Port Protocol End Port Number: 0.0.1.0 Rule Application Protocol Start Port Protocol End Port Number: 0.0.2.0 Rule Application Protocol Start Port Protocol End Port Number: 0.0.3.0 Rule Application Protocol Start Port Protocol End Port Number: 0.0.4.0 Rule Application Protocol Start Port Protocol End Port Number: 0.0.5.0 Rule Application Protocol Start Port Protocol End Port Number: 0.0.6.0 Rule Application Protocol Start Port Protocol End Port Number: 0.0.7.0 Rule Application Protocol Start Port Protocol End Port Number: 0.0.8.0 Rule Application Protocol Start Port Protocol End Port Number: 0.0.9.0 Rule Application Protocol Start Port Protocol End Port Number: 0.1.1.0 Rule Application Protocol Start Port Protocol End Port Number: 0.1.2.0 Rule Application Protocol Start Port Protocol End Port Number: 0.1.3.0 Rule Application Protocol Start Port Protocol End Port Number: 0.1.4.0 Rule Application Protocol Start Port Protocol End Port Number: 0.1.5.0 Rule Application Protocol Start Port Protocol End Port Number: 0.1.6.0 Rule Application Protocol Start Port Protocol End Port Number: 0.1.7.0 Rule Application Protocol Start Port Protocol End Port Number: 0.1.8.0 Rule Application Protocol Start Port Protocol End Port Number: 0.1.9.0 Rule Application Protocol Start Port Protocol End Port Number: 0.2.1.0

Parameter Description

Virtual Server for Show the Virtual Server setting is for single or multiple IP Addresses.

Rule Index Choose the rule number.

Application Select the application of the virtual server, for example:

FTP or HTTP Server. When the application is selected, the port number for the application will be assigned automatically.

Parameter Description

Start Port Number Enter the start port number.

End Port Number Enter the end port number.

Local IP Address It is recommended to enter a static IP Address for the server here. If the server's IP Address is obtained from DHCP Server, the IP Address may be changed dynamically and will cause problem on this feature. Please assign a static IP Address to the server and make sure that the IP Address is not in the range of IP Addresses that the DHCP Server will assign.

5.3.4. ADSL

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Advanced Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help Firewall Routing NAT ADSL ADSL ADSL Mode: Auto Sync-Up ADSL Type: ANNEX A SAVE

Parameter Description

ADSL Mode The default setting is "Auto Sync-Up". This mode will automatically detect the ADSL mode including ADSL2+, ADSL2, G.DMT, T1.413 and G.lite. If you are not sure how to select the ADSL mode, please contact with your ISP.

ADSL Type Check with your ISP about the ADSL type of the DSLAM device they use.

5.4. Access Management

5.4.1. ACL

If you want to restrict users from accessing certain Internet applications/services such as Internet websites, email, FTP etc., then this is the place to set that configuration. Access Control allows users to define the traffic type permitted in your LAN or WAN. You can control which computer can have access to these services by entering the IP Address of the computer.

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Access Management Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help ACL Filter SNMP UPnP DDNS Access Control Setup ACL: ○ Activated ● Deactivated Access Control Editing ACL Rule Index: 1 Active: ○ Yes ● No Secure IP Address: 0.0.0.0 ~ 0.0.0.0 (0.0.0.0 ~ 0.0.0.0 means all IPs) Application: Web Interface: Both Access Control Listing Index Active Secure IP Address Application Interface SAVE DELETE CANCEL

Parameter Description

ACL Activate or deactivate the Access Control function. When you have activated the function, please do make sure that you have designated the available applications/services or you will be denied to access all the services.

ACL Rule Index This is the item number to record the setting rule.

Secure IP Address The default 0.0.0.0\~0.0.0.0 allows any user to use this service to remotely manage the router. Type a range of IP Addresses to authorize access to a number of users with matching IP Addresses.

Application Choose the services that you permit to use in your LAN or WAN interface. These services include Web, FTP, Telnet, SNMP and Ping.

Interface

Select the interface that the user is allowed to use services through it. It includes LAN, WAN or Both.

5.4.2. IP Filter

You can forbid some users accessing to the router by filtering the users through IP Address or MAC Address. You can also restrict some applications or URLs be accessing by users through the router here. Please select the filter type to start configuring.

Access Management	Quick Start	Interface Setup	Advanced Setup	Access Management	Maintenance	Status	Help
	ACL	Filter	SNMP	UPnP	DDNS
Filter
Filter Type
IP / MAC Filter Set Editing	Filter Type Selection: IP / MAC Filter
	IP / MAC Filter Set Index: 1 Interface: PVC0 Direction: Both
IP / MAC Filter Rule Editing	IP / MAC Filter Rule Index: 1 Rule Type: IP Active: Yes No
	Source IP Address: (0.0.0 means Don't care) Subnet Mask: Port Number: 0 (0 means Don't care)
	Destination IP Address: (0.0.0 means Don't care) Subnet Mask: Port Number: 0 (0 means Don't care)

5.4.2.1. IP/MAC Filter

Access Management	Quick Start	Interface Setup	Advanced Setup	Access Management	Maintenance	Status	Help
	ACL	Filter	SNMP	UPnP	DDNS
Filter
Filter Type
IP / MAC Filter Set Editing	Filter Type Selection: IP/MAC Filter
	IP / MAC Filter Set Index: 1 Interface: PVC0 Direction: Both
IP / MAC Filter Rule Editing	IP / MAC Filter Rule Index: 1 Rule Type: IP Active: Yes No
	Source IP Address: (0.0.0.0 means Don't care) Subnet Mask: Port Number: 0 (0 means Don't care)
	Destination IP Address: (0.0.0.0 means Don't care) Subnet Mask: Port Number: 0 (0 means Don't care)

• IP / MAC Filter Set Editing

Parameter Description

IP/MAC Filter Set Index This is the item number to record the setting.

Interface Select which channel (PVC) to configure.

Direction Select the access to the Internet (Outgoing) or from the Internet (Incoming), or Both.

• IP / MAC Filter Rule Editing

Parameter Description

IP/MAC Filter Rule Index This is the item number to record the setting rule.

Rule Type Select to filter through the IP Address or MAC Address.

Active Select "Yes" to enable the current rule, select "No" to cancel the current rule.

Source IP Address Enter the start IP Address which will be monitored. If "0.0.0.0" is set, it means for any IP Address.

Subnet Mask Enter the Subnet Mask based on the Source IP Address.

Port Number LAN users use port number to distinguish one network application over another such as 21 is for FTP service. The port number range is from 0 to 65535. It is recommended that this option be configured by an advanced user.

Destination IP Address Enter the start IP Address which will be monitored. If "0.0.0.0" is set, it means for any IP Address.

Subnet Mask Enter the Subnet Mask based on the Destination IP Address.

Port Number This is the port or port ranges that define the application.

Protocol It is the packet protocol type used by the application. Please select "TCP", "UDP" or "ICMP". For example, FTP service, you have to select "TCP".

MAC Address The MAC address (Media Access Control address) is a

hardware address that uniquely identifies each node of a network. If the rule type is "MAC", you have to designate the MAC address that you want to filter.

Rule Unmatched Select action for the traffic unmatching current rule.

"Forward" is to leave it pass through; "Next" is to check it by the next rule.

• IP / MAC Filter Listing

The IP/MAC Filter Listing will list the IP/MAC Filter rules you have configured.

You can review the settings here.

IP / MAC Filter Listing IP / MAC Filter Set Index 1 Interface - Direction -

Active Src Address/Mask Dest IP/Mask Src Port Dest Port Protocol Unmatched

1 - - - - - - - - 2 - - - - - - - - 3 - - - - - - - - 4 - - - - - - - - 5 - - - - - - - - 6 - - - - - - - - - SAVE DELETE CANCEL

5.4.2.2. Application Filter

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Access Management Quick Start ACL Interface Setup Filter Advanced Setup SNMP Access Management UPnP Maintenance DDNS Status Help Filter Filter Type Application Filter Editing Filter Type Selection: Application Filter Application Filter: ○ Activated ● Deactivated ICQ: ○ Allow ○ Deny MSN: ○ Allow ○ Deny YMSG: ○ Allow ○ Deny Real Audio/Video: ○ Allow ○ Deny i@ SAVE CANCEL

Parameter Description

Application Filter Activate or deactivate the application filter.

ICQ/MSN/YMSG/Real Audio/Video

If "Allow" is selected, the packets for these applications will be able to pass through the router. If you want to restrict these applications, please select "Deny".

5.4.2.3. URL Filter

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Access Management Quick Start ACL Interface Setup Filter Advanced Setup SNMP Access Management UPnP Maintenance DDNS Status Help Filter Filter Type Filter Type Selection: URL Filter URL Filter Editing Active: Yes No URL Index: 1 URL: URL Filter Listing Index URL 1 2 3 4 5 6 7 8 9 10 11

- URL Filter Editing

Parameter Description

Active Activate or deactivate the URL filter.

URL Index This is the item number to record the setting.

URL A URL can be thought of as the "address" of a web page

and is sometimes referred to informally as a "web address." Please enter the web address here that you want to restrict to be connected.

- URL Filter Listing

The URL Filter Listing will list the URL you have configured. You can review the settings here.

5.4.3. SNMP

Simple Network Management Protocol (SNMP) is a popular protocol for network management. It is used for collecting information and configuring the network devices. This router supports SNMP agent function, which allows a manager station to manage and monitor the router through the network.

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Access Management Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help ACL IP Filter SNMP UPnP DDNS SNMP Get Community : public Set Community : public SAVE

Parameter Description

Get Community Enter the password for the incoming Get- and GetNext requests from the management station.

Set Community Enter the password for a Set request to configure the router.

5.4.4. UPnP

When the UPnP function is enabled, the router can be detected by UPnP compliant system such as Windows XP. The router will be displayed in the Neighborhood of Windows XP, so you can directly double click the router or right click the router and select "Invoke" to configure the router through web browser.

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Access Management Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help ACL IP Filter SNMP UPnP DDNS Universal Plug & Play UPnP: ○ Activated ● Deactivated Auto-configured: ○ Activated ● Deactivated (by UPnP-enabled Application) SAVE

Parameter Description

UPnP Activated or deactivated the UPnP function.

Auto-configured Select this check box to allow UPnP-enabled applications to automatically configure the router so that they can communicate through the router, for example by using NAT traversal, UPnP applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device; this eliminates the need to manually configure port forwarding for the UPnP enabled application.

5.4.5. DDNS

DDNS allows you to map the static domain name to a dynamic IP address. You must get an account, password and your static domain name from the DDNS service providers.

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Access Management Quick Start ACL Interface Setup IP Filter Advanced Setup Advanced Setup SNMP UPnP Maintenance Status Help DDNS Dynamic DNS Dynamic DNS : ○ Activated ● Deactivated Service Provider : www.dyndns.org My Host Name : E-mail Address : Username : Password : Wildcard support : ○ Yes ● No SAVE

Parameter Description

Dynamic DNS Activated or deactivated the DDNS function.

Service Provider This router supports DynDNS service provider.

My Host Name Enter the domain name assigned to your router by the service provider.

E-mail Address Enter the E-mail address assigned by DDNS service provider.

Username

Enter

your

username.

Password Enter the password you set for the DDNS service.

Wildcard Support Enable or disable the wildcard to stand for some characters.

5.5. Maintenance

5.5.1. Administrator

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Maintenance Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help Administration Time Zone Firmware SysRestart Diagnostics Administrator Username: admin New Password: Confirm Password: SAVE CANCEL

Parameter Description

Username The username of the router is "admin" by default.

New Password Enter up to 30-digit of the new password.

Confirm Password Enter the new password again to confirm the setting.

5.5.2. Time Zone

The Time Zone allows your router to set its time; this will affect function such as System Log.

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Maintenance Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help Administration Time Zone Firmware SysRestart Diagnostics Time Zone Current Date/Time: 01/01/2000 00:09:12 Time Synchronization Synchronize time with: NTP Server automatically PC's Clock Manually Time Zone: (GMT) Greenwich Mean Time : Dublin, Edinburgh, Lisbon, London Daylight Saving: Enabled Disabled NTP Server Address: 192.43.244.18 (0.0.0.0: Default Value) SAVE CANCEL

Parameter Description

Current Date/Time Show the current date/time of the router.

Synchronize time with NTP Server Automatically – Set the time by following with a NTP Server.

PC's Clock – Set the time the same as your computer.

Manually – Set the time manually.

Time Zone Select the time zone of the country you are currently in.

The router will set its time based on your selection.

Daylight Saving Select this option if it is in daylight savings time.

NTP Server Address Enter the IP Address of your time server.

5.5.3. Firmware

If you have new firmware for some features update, please upgrade firmware of the router here.

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Maintenance Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help Administration Time Zone Firmware SysRestart Diagnostics FirmwareRomfile Upgrade Current Firmware Version: 2.11.32.0(NRE0.C29)3.9.9.5 New Firmware Location: Browse New Romfile Location: Browse Romfile Backup: ROMFILE SAVE Status:

It might take several minutes, don't power off it during upgrading. Device will restart after the upgrade.

UPGRADE

Parameter Description

Current Firmware Version The current firmware version will be shown here.

New Firmware Type in the location of the new firmware or click "Browse" Location to find it.

New Romfile Location To restore the backup settings, please type in the location of the backup file or click "Browse" to find it.

Romfile Backup To save the current settings as a backup file, please click "ROMFILE SAVE". Then please change the file name and select the location you want to save the file.

Upgrade Click “Upgrade” to begin the upgrade processes or backup file restoring processes. After the router is restarted, the processes are completed. It might take several minutes, don't power off the router during upgrading or restoring.

5.5.4. System Restart

In this page, you can restart your router or restore to factory defaults. If you wish to restart the router using the factory default settings, select "Factory Default Settings" to reset to factory defaults. You can also click the "Reset" button in the rear panel of the router over 5 seconds to reset default settings.

5.5.5. Diagnostics

This page allows you to diagnose the connectivity of the LAN and WAN network.

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Maintenance Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help Administration Time Zone Firmware SysRestart Diagnostics Diagnostic Test Virtual Circuit: PVC0 >> Testing Ethernet LAN connection ... >> Testing ADSL Synchronization . >> Testing ATM OAM segment ping ... >> Testing ATM OAM end to end ping ... >> Ping Primary Domain Name Server . >> Ping www.yahoo.com ... PASS PASS PASS SKIPPED FAIL

5.6. Status

5.6.1. Device Info

In this page, you can know the device information including firmware, MAC Address, LAN and WAN settings and also the ADSL line status.

Status	Quick Start	Interface Setup	Advanced Setup	Access Management	Maintenance	Status	Help
	Device Info		System Log	Statistics
Device Information
	Firmware Version: 2.11.32.0(NRE0.C29)3.9.9.5 MAC Address: 00:aa:bb:01:23:45
LAN
	IP Address: 192.168.2.1 Subnet Mask: 255.255.255.0 DHCP Server: Enabled
WAN
	Virtual Circuit: PVC0 Status: Not Connected Connection Type: Dynamic IP IP Address: 0.0.0.0 Subnet Mask: 0.0.0.0 Default Gateway: 0.0.0.0 DNS Server: 0.0.0.0 NAT: Enabled
ADSL
	ADSL Firmware Version: FwVer:3.9.9.5_TC3085 HwVer:T14.F7_3.0 Line State: Down Modulation: N/A Annex Mode: N/A
			Downstream	Upstream

5.6.2. System Log

Display system logs accumulated up to the present time. You can also save the logs for future reviewing.

EDIMAX NETWORKING PEOPLE TOGETHER Status Quick Start Interface Setup Advanced Setup Access Management Maintenance Status Help Device Info System Log Statistics System Log 1/1/2000 0:1:2> Connect() to NTP server fail 1/1/2000 0:1:2> adjTimeTask fail: id = 11, ip = c02bf412 1/1/2000 0:1:2> No DNS server available 1/1/2000 0:1:2> Last errorlog repeat 10 Times 1/1/2000 0:1:2> adjTimeTask fail: no server available 1/1/2000 0:1:2> adjtime task pause 60 seconds 1/1/2000 0:2:2> sending request to NTP server(7d) 1/1/2000 0:3:2> Connect() to NTP server fail 1/1/2000 0:3:2> adjTimeTask fail: id = 11, ip = c02bf412 1/1/2000 0:3:2> No DNS server available 1/1/2000 0:3:2> Last errorlog repeat 10 Times 1/1/2000 0:3:2> adjTimeTask fail: no server available 1/1/2000 0:3:2> adjtime task pause 60 seconds 1/1/2000 0:4:2> sending request to NTP server(f5) 1/1/2000 0:5:2> Connect() to NTP server fail 1/1/2000 0:5:2> adjTimeTask fail: id = 11, ip = c02bf412 1/1/2000 0:5:2> No DNS server available 1/1/2000 0:5:2> Last errorlog repeat 10 Times 1/1/2000 0:5:2> adjTimeTask fail: no server available 1/1/2000 0:5:2> adjtime task pause 1 day

5.6.3. Statistics

Show the statistics of transmit and receive packets on the LAN port, ADSL line or WLAN port.

EDIMAX NETWORKING PEOPLE TOGETHER ADSL Router Status Quick Interface Advanced Access Maintenance Status Help Start Setup Setup Setup Management Device Info System Log Statistics Traffic Statistics Interface: ● Ethernet ○ ADSL ○ VLAN Transmit Statistics 876 Receive Frames 1835 Transmit Multicast Frames 583 Receive Multicast Frames 838 Transmit total Bytes 1118347 Receive total Bytes 796654 Transmit Collision 0 Receive CRC Errors 0 Transmit Error Frames 0 Receive Under-size Frames 0 REFRESH

6. Troubleshooting

1. The LAN LED on the front panel does not light up.

STEPS	CORRECTIVE ACTION
1 Check the	Ethernet cable connections between your ADSL2+Router and the computer or hub.
2 Check for faulty Ethernet cables.
3 Make sure	your computer's Ethernet card is working properly.
4 If these steps fail to correct the problem, contact your local distributor for assistance.

1. The ADSL LED on the front panel does not light up.

STEPS	CORRECTIVE ACTION
1 Check the	telephone wire and connections between ADSL2+Router DSL port and the wall jack.
2 Make sure	that the telephone company has checked your phone line and set it up for DSL service.
3 Reset your	ADSL line to reinitialize your link to the DSLAM.
4 If these steps fail to correct the problem, contact your local distributor for assistance.

1. I cannot access the web management.

STEPS	CORRECTIVE ACTION
1 Make sure	you are using the correct IP address of ADSL2+Router. Check the IP address of ADSL2+ Router.
2 Your computer and ADSL2+ Router's IP addresses must be on the same subnet for LAN access.
3 If you have	changed ADSL2+ Router's LAN IP address, then enter the new one as the URL.

The following procedures will help you to check the current IP Address setting of your computer. You can compare if your computer and router's IP Addresses are in the same subnet.

Step 1: Click "Start" and select "Run".

Step 2: Type in "cmd" and click "OK".

Run Type the name of a program, folder, document, or Internet resource, and Windows will open it for you. Open: cmd OK Cancel Browse...

Step 3: Type ipconfig /all and click enter.

C:\WINDOWS\system32\cmd.exe Microsoft Windows XP [Version 5.1.2600] (C) Copyright 1985-2001 Microsoft Corp. C:\Documents and Settings\Test>ipconfig/all Windows IP Configuration Host Name . . . . . . . . . . . . . : test-b6663a0cd4 Primary Dns Suffix . . . . . . . . . : Node Type . . . . . . . . . . . . : Unknown IP Routing Enabled. . . . . . . . : No WINS Proxy Enabled. . . . . . . : No Ethernet adapter Local Area Connection: Connection-specific DNS Suffix . : Description . . . . . . . . . . : Intel(R) PRO/100 VE Network Connecti on Physical Address. . . . . . . . : 00-00-E2-82-C3-AD Dhcp Enabled. . . . . . . : No IP Address. . . . . . . . : 192.168.2.111 Subnet Mask . . . . . . . : 255.255.255.0 Default Gateway . . . . . . : C:\Documents and Settings\Test>

• Your PC's IP address is 192.168.2.111.
  • The PC's Subnet Mask is 255.255.255.0.

• Your PC's MAC Address is the one entitled Physical Address (00-00-E2-82-C3-AD).

• I forget my login username and/or password.

STEPS	CORRECTIVE ACTION
1 If you have	changed the password and have now forgotten it, you will need to upload the default configuration file. This will erase all custom configurations and restore all of the factory defaults including the password.
2 Press the R	Reset button for five seconds, and then release it.When the LAN LED begins to blink, the defaults have been restored.
3 The default	username is “admin”. The default password is “1234”.The Password and Username fields are case-sensitive. Make sure that you enter the correct password and username using the proper casing.
4 It is highly	recommended to change the default username and password. Make sure you store the username and password in a save place.

1. I cannot access the Web Management of the router after activating the ACL function.

STEPS	CORRECTIVE ACTION
1 When ACL	is activated, you have to set the ACL rule for allowing some users to use some services. Check if you have set the rules. If not, all the users are forbidden using any of service from LAN or WAN.
2 If you cannot access the Web Management of the router, please press the Reset button over 5 seconds to restore to defaults.
3 After the router is restarting, log in the router with the default IP Address 192.168.2.1.

1. Initialization of the ADSL connection failed.

STEPS	CORRECTIVE ACTION
1 Check the	cable connections between the ADSL port and the wall jack. The ADSL LED on the rear panel of the router should be on.
2 Check VPI,	VCI, type of encapsulation and type of multiplexing settings are the same as what you collected from your ISP.
3 Restart the	router. If you still have problems, you may need to verify your VPI, VCI, type of encapsulation and type of multiplexing settings with the ISP.

1. I cannot get a WAN IP address from the ISP.

STEPS	CORRECTIVE ACTION
1 The ISP provides the WAN IP address after authenticating you. Authentication may be through the user name and password, the MAC address or the host name.
2 The username and password apply to PPPoE and PPPoA encapsulation only. Make sure that you have entered the correct Service Type, User Name and Password (be sure to use the correct casing).

1. Internet connection disconnects.

STEPS	CORRECTIVE ACTION
1 Check the schedule rules.
2 If you use PPPoA or PPPoE encapsulation, check the idle time-out setting.
3	Contact your ISP.

7. Glossary

10Base-T

It is an Ethernet standard for Local Area Network (LAN). 10Base-T uses a twisted pair cable with maximum length of 100 meters.

AAL

ATM Adaptation Layer that defines the rules governing segmentation and reassembly of data into cells. Different AAL types are suited to different traffic classes.

ADSL

Asymmetric Digital Subscriber Line, as its name showing, is an asymmetrical data transmission technology with high traffic rate downstream and low traffic rate upstream. ADSL technology satisfies the bandwidth requirement of applications, which demand “asymmetric” traffic, such as web surfing, file download and Video-on-demand (VOD).

ATM

Asynchronous Transfer Mode is a layer 2 protocol supporting high-speed asynchronous data with advanced traffic management and quality of service features.

bps

Bits per second, a standard measurement of digital transmission speeds.

Bridge

A device that connects two or more physical networks and forwards packets between them. Bridges can usually be made to filter packets, that is, to forward only certain traffic. Related devices are: repeaters which simply forward electrical signals from one cable to the other and full-fledged routers which make routing decisions based on several criteria.

CPE

Customer Premises Equipment, such as ADSL router, USB modem.

Default Gateway (Router)

Every non-router IP device needs to configure a default gateway's IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it out towards the destination.

DHCP

Dynamic Host Configuration Protocol, this protocol automatically gives every computer on your home network an IP address.

DNS Server IP Address

DNS stands for Domain Name System, which allows Internet servers to have a domain name (such as www.Broadbandrouter.com) and one or more IP addresses (such as 192.34.45.8). A DNS server keeps a database of Internet servers and their respective domain names and IP addresses, so that when a domain name is requested (as in typing "Broadbandrouter.com" into your Internet browser), the user is sent to the proper IP address. The DNS server IP address used by the computers on your home network is the location of the DNS server your ISP has assigned to you.

DSL

Digital Line Subscriber (DSL) technology provides high-speed access over twisted copper pair for connection to the Internet, LAN interfaces, and to broadband services such as video-on-demand, distance learning, and video conferencing.

Ethernet

It is a standard for computer networks. Ethernet networks are connected by special cables and hubs or switches, and move data around at up to 10/100 million bits per second (Mbps).

FTP

File Transfer Protocol. The Internet protocol (and program) used to transfer files between hosts.

Idle Timeout

Idle Timeout is designed so that after there is no traffic to the Internet for a pre-configured amount of time, the connection will automatically be disconnected.

ISP

Internet Service Provider is a business that provides connectivity to the Internet for individuals and other businesses or organizations.

ISP Gateway Address

The ISP Gateway Address is an IP address for the Internet router located at the ISP's office.

LAN

Local Area Network is a group of computers and devices connected together in a relatively small area (such as a house or an office). Your home network is considered a LAN.

MAC Address

MAC stands for Media Access Control. A MAC address is the hardware address of a device connected to a network. The MAC address is a unique identifier for a device with an Ethernet interface. It is comprised of two parts: 3 bytes of data that corresponds to the Manufacturer ID (unique for each manufacturer), plus 3 bytes that are often used as the product's serial number.

MTU

Maximum Transmission Unit

NAT

Network Address Translator is defined by RFC 1631. Enable a LAN network to use one set of IP address for internal traffic. A NAT box located where the LAN meets the Internet provides the necessary IP address translation. This helps provide a sort of firewall and allow for a wider address range to be used internally without danger of conflict. Using the router's NAT capability, you can access the Internet from any computer on your home network without having to purchase more IP addresses from your ISP.

Port

Network Clients (LAN PC) uses port numbers to distinguish one network application/protocol over another. Below is a list of common applications and protocol/port numbers:

Application	Protocol	Port Number
Telnet	TCP	23
FTP	TCP	21
SMTP	TCP	25
POP3	TCP	110
H.323	TCP	1720
SNMP	UCP	161
SNMP Trap UDP 162
HTTP	TCP	80
PPTP	TCP	1723
PC Anywhere TCP 5631
PC Anywhere UDP 5632

PPP

PPP is the Point-to-Point-Protocol. The successor to SLIP, PPP provides router-to-router and host-to-network connections over both synchronous and asynchronous circuits.

PPPoA (RFC 2364)

The Point-to-Point Protocol (PPP) provides a standard method for transporting multi-protocol data grams over point-to-point links. This document describes the use of ATM Adaptation Layer 5 (AAL5) for framing PPP encapsulated packets.

PPPoE (RFC 2516)

This document describes how to build PPP sessions and encapsulate PPP packets over Ethernet. PPP over Ethernet (PPPoE) provides the ability to connect a network of hosts over a simple bridging access device to a remote Access Concentrator.

Protocol

A protocol is a set of rules for interaction agreed upon between multiple parties so that when they interface with each other based on such a protocol, the interpretation of their behavior is well defined and can be made objectively, without confusion or misunderstanding.

PVC

Permanent Virtual Circuit, connection-oriented permanent leased line circuit between end-stations on a network over a separate ATM circuit.

RFC

Request for Comments. The document series, begun in 1969, which describes the Internet suite of protocols and related experiments. Not all RFCs describe Internet standards, but all Internet standards are written up as RFCs.

RFC 1483

Multi-protocol encapsulation over AAL-5. Two encapsulation methods for carrying network interconnect traffic over ATM AAL-5. The first method allows multiplexing of multiple protocols over a single ATM virtual circuit. The protocol of a carried PDU is identified by prefixing the PDU by an IEEE 802.2 Logical Link Control (LLC) header. This method is in the following called "LLC Encapsulation". The second method does higher-layer protocol multiplexing implicitly by ATM Virtual Circuits (VCs). It is in the following called "VC Based Multiplexing".

Router

A system responsible for making decisions about which of several paths network (or Internet) traffic will follow. To do this, it uses a routing protocol to gain information about the network and algorithms to choose the best route based on several criteria known as "routing metrics.

Subnet Mask

A subnet mask, which may be a part of the TCP/IP information provided by your ISP, is a set of four numbers (e.g. 255.255.255.0) configured like an IP address. It is used to create IP address numbers used only within a particular network (as opposed to valid IP address numbers recognized by the Internet, which must be assigned by InterNIC).

TCP/IP, UDP

Transmission Control Protocol/Internet Protocol (TCP/IP) and Unreliable Datagram Protocol (UDP). TCP/IP is the standard protocol for data transmission over the Internet. Both TCP and UDP are transport layer protocol. TCP performs proper error detection and error recovery, and thus is reliable. UDP on the other hand is not reliable. They both run on top of the IP (Internet Protocol), a network layer protocol.

TELNET

It is the virtual terminal protocol in the Internet suite of protocols. Allows users of one host to log into a remote host and act as normal terminal users of that host.

VCI

Virtual Circuit Identifier is part of the ATM cell header. A VCI is a tag indicating the channel over which a cell will travel. The VCI of a cell can be changed as it moves between switches via Signaling.

VPI

Virtual Path Identifier is part of the ATM cell header. A VPI is a pipe for a number of Virtual Circuits.

WAN

Wide Area Network is a network that connects computers located in geographically separate areas (e.g. different buildings, cities, countries). The Internet is a wide area network.

Web-based management Graphical User Interface (GUI)

Many devices support a graphical user interface that is based on the web browser. This means the user can use the familiar Netscape or Microsoft Internet Explorer to Control/configure or monitor the device being managed.

Abstract red background with concentric circular patterns (no text or symbols)

Headquarters

Edimax Technology co., Ltd

NO. 3, Wu-Chuan 3rd RD

Wu-Ku-Industrial Park

Taipei Hsien, Taiwan. R.O.C.

TEL: [phone]

Edimax Technology Poland. Sp. Z o.o.

ul. Postepu 14, 02-676 Warsaw, Poland

IEL: +48-22-60/9480

FAX: [phone]

e-mail : [e-mail]

Romania Office

Edimax Technology Romania

Bucuresti, str. Splaiul Unirii, nr. 10,

bl. B5, sc. 1, et. 5, ap.15, sector 4.

TEL:[phone]

FAX : [phone]

e-mail:[e-mail]

Russia Office

Edimax Technology Russia

Fridriha Ehgelsa str., 75, bld. 3,

105082 Moscow,Russia

TEL: [phone]

FAX: [phone]

e-mail:[e-mail]

European Headquarters

Edimax Technology Europe B.V.

United Kingdom Office

Edimax Technology (UK) Ltd.

Suite 378 Silbury Court, Silbury Boulevard

Milton Keynes MK9 2AH

TEL: [phone]

FAX: [phone]

e-mail:[e-mail]

Germany Office

Edimax Technology Europe BV

Hans-Boeckler-Str. 13,

47877 Willich Germany

TEL: [phone]

FAX: [phone]

e-mail:[e-mail]

France Office

EDIMAX Technology Europe B.V. FRANCE

3350 Scott Blvd., Bldg.15

Santa Clara, CA 95054, USA

TEL: [phone]

FAX: [phone]

e-mail:[e-mail]

Latin America Office

Edimax Latin America Inc.

2954 NW 72 Ave. Miami, FL 33122. USA.

TEL: [phone]

FAX: [phone]

e-mail: [e-mail]

China Office

Beijing Edimax Science & Technology Co., Ltd.

17#1708,IDEAL Plaza,NO.111,

ZhiChun Road, HaiDian District,

Beijing,China

TEL: [phone]

FAX: [phone]

e-mail:[e-mail]

EDIMAX

NETWORKING PEOPLE TOGETHER

www.edimax.com
