USER MANUAL 66705E INTEX

INTEX® OWNER'S MANUAL

Built-in Fast-Fill™ Electric Pump

ModelAP619A110-120V\~60Hz0.9A

IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING THIS PRODUCT

DANGER

• To reduce the risk of electric shock: Always unplug this furnishing from the electrical outlet before cleaning.

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

• NEVER PLACE AN INFANT TO SLEEP ON AIR MATTRESSES.
  • Never introduce any flammable substance into the inflatable airbed, SUCH AS AEROSOL TIRE REPAIR
  PRODUCTS, as it may ignite or explode.
  • For indoor household use only.
  • Unplung from outlet before putting on or taking off parts
• Close supervision is necessary when this furnishing is used by or near children, invalids, or disable persons.
  • Use this furnishing only for its intended use as described in these instructions. Do not use attachments
• Bad this furnishing only for its included bad as described in these instructions. Do not use attachments not recommended by the manufacturer.
  • Do not operate whom acrecol (spray) products are being used or whom oxygen is being administered.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• This is not a tax. Children must not be left unattended when using the airbag.
• This is not a toy. Children must not be left, unattended when using the abroad.
• Keep the storage box away from babies and children. The storage box is not a toy. When not in use
• Keep the storage bag away from babies and children. The storage bag is not a toy, when not in use, said the bag and put it away out of the reach of children.
  I told the bag and put it away out of the reach of children.
• Do not walk, stand on or jump on or use the airbed as a trampoline.
• Do not use on or near water. This is not a rail.
• Do not set up bed near stairs, doors, sharp edges or breakable objects. Provide adequate space
  between bed and objects to avoid entrapment.
  • Make sure the area is flat, smooth, free of sharp objects that could puncture the bed and keep away
  from ledges.
• Keep pets away from the airbed. Pets may puncture the surface of the bed.
• Avoid sleeping on the edge of the airbed. Edgas produce less support than the middle of the bed.
  • Do not operate air pump for more than 10 minutes at a time. Let pump cool at least 10 minutes between
• Not a point to be present in the next 10 years of interest for the first year, to improve financial uses.
• Unplung electrical power cord when not in use. To disconnect, turn all controls to the off position, then
  on plug electrical power cord when not in door to disconnect, turn all controls to the on position, then remove plug from outlet.
  ■ Never operate the furnishing with the air openings blocked. Keep the air openings free of lint, hair, and
• Never operate the furnishing with the all openings blocked. Keep the all openings free of line, hard, and the like. Never drop or insert object into any opening.
  ■ Nouns operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been
• Never operate this furnishing in it has a damaged cord of plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the furnishing to a service center for examination
  dropped of damaged, or dropped into water. Return the furnishing to a service center for examination and/or repair.
• If the 12 supply cord is damaged, it must be replaced by the manufacturer as its service spent in order.
• If the AC supply cord is damaged, it must be replaced by the manufacturer of its service agent in order.
  to avoid a hazard.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do
  not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not
  be tripped over. Keep the cord away from heated surfaces.

FOLLOW THESE RULES AND ALL INSTRUCTIONS TO AVOID SUFFOCATION

PROPERTY DAMAGE, ELECTRIC SHOCK, BURNS OR OTHER INJURY.

CAUTION

- To reduce the risk of electric shock or injury, use indoors only, do not expose to rain. Store indoors.

SERVICING OF A DOUBLE-INSULATED PRODUCT:

In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor should a means for grounding be added to the product.

READ AND SAVE THESE INSTRUCTIONS

Servicing of a double-insulated product requires extreme care and knowledge of the system, and should be done only by qualified service personnel. Replacement parts for a double-insulated product must be identical to those parts in the product.

A double-insulated product is marked with the words "DOUBLE INSULATION" or "DOUBLE INSULATED" and with the symbol ☐.

INSTRUCTIONS

General

• This appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

- No air pump maintenance is required

• For cleaning use only mild soapy solution. Do not use any chemicals.

• In case of repairs, use only common PVC repair glue and patches

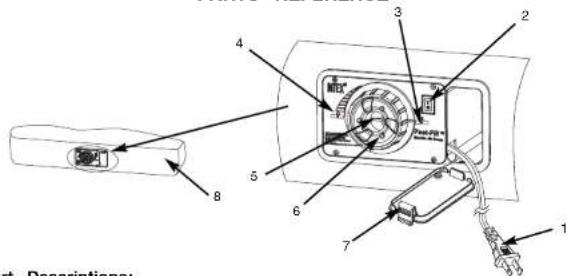

PARTS REFERENCE

Part Descriptions:

1. AC line cord

2. Switch

3. Inflation mark ( )

4. Deflation mark ( )

5. Air passage & control

dial valve

1. Control dial

2. Cord compartment cover

3. Airbed

NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale.

INFLATION

1. Open line cord compartment cover. See Fig (1).

2. Plug in the AC line cord into an AC electrical outlet. See Fig (2).

FIG. (1)

FIG (2)

1. Turn the control dial clockwise until arrow points to the inflation mark ( ). See Fig (3).

2. Press "I" to switch ON. See Fig (4).

3. When the airbed is fully inflated to the desired firmness, press "O" to switch OFF. See Fig (5).

READ AND SAVE THESE INSTRUCTIONS

(151) AP618A BUILFIN ELECTRIC PUMP ENGLISH 4.876" X 7.25" 07/12/2011

(151) APG19A BULTIN ELECTRIC PUMP ENGLISH 4.870" X 7.25" 07/12/2011

FIG (3)

FIG (4)
G (5)

1. Lie down on the airbed to test the firmness.

2. If the sleeping surface is too hard, adjust the firmness by turning the control dial counterclockwise gradually until air starts to exit through the air passage. See Fig (6). Turn the control dial fully clockwise when the desired firmness is achieved. See Fig (7). If the airbed becomes too soft repeat step #3 thru #7 as necessary.

3. Disconnect the AC line cord from the wall socket, place it inside the cord compartment and close the cover.

FIG (6)

FIG (7)

IMPORTANT NOTE

Proper inflation of the airbed.

The ambient temperatures of air have an effect on the airbed internal pressure. At low ambient temperature the air will contract within the airbed and the airbed will feel softer: add air as necessary. At high ambient temperature the air within the airbed will expand significantly and the airbed will become hard and may burst: release air to avoid damage to the airbed or to soften the feel. Do not expose the airbed to extreme temperatures (hot or cold).

Stretching is a natural characteristic of new vinyl. During initial use, the airbed may become soft and require additional inflation to maintain desired firmness. This is normal for the first few days of use.

Dimensions shown are approximate and will vary due to the vinyl temperature and the air temperature.

In no event shall Intex, their authorized agents or employees be liable for damages (such as pin holes) to the airbed caused by negligence, ordinary wear and tear, abuse and carelessness, or external forces.

DEFLATION

1. Open line cord compartment cover. See Fig (1).
2. Plug in the AC line cord into an AC electrical outlet. See Fig (2).
3. Turn the control dial counterclockwise until arrow points to deflation mark (☐). See Fig (8).

FIG (8)

FIG (9)

FIG (10)

READ AND SAVE THESE INSTRUCTIONS

Page 3

1. Press "I" to switch ON. See Fig (4).
2. When the airbed is completely deflated, begin rolling the airbed from the foot of the airbed towards the head of the airbed where the pump is located. See Fig (9).
3. When all air is removed from the airbed, press "O" to switch OFF. See Fig (5).
4. Tum the control dial fully clockwise. See Fig (10)
5. Disconnect the AC line cord from the wall socket, place it inside the cord compartment and close the cover.

INFLATION OPTION

1. If electrical power is not available then a conventional foot or manually operated air pump can be connected to the control dial valve for inflation. See Fig (11).
2. Turn the control dial clockwise until arrow points to the inflation mark ( ).
3. Insert air pump nozzle to the control dial valve to inflate the airbed.

FIG (11)

IMPORTANT

Inflate only with a low pressure inflator. Do not over inflate. Fill with cold air only.

STORAGE

1. Deflate the airbed following the "DEFLATION" instructions.
2. Tum the control dial counterclockwise until arrow points to deflation mark (☐). See Fig (8).
3. Make sure the airbed is clean and dry.
4. Lay bed flat with sleeping surface facing upwards and follow the folding steps on Figs (12 - 16). Fold the airbed loosely and avoid sharp bends, corners and creases which can damage the airbed.

FIG (12)

FIG (13)

FIG (14)

FIG (15)

FIG (16)

1. Turn the control dial fully clockwise. See Fig (10).
2. Place the airbed inside the storage bag and store in a dry, cool storage location.
