99-7426 - Car kit Metra - Free user manual and instructions

Product Type	Car Installation Kit (Dash Kit)
Brand	Metra
Model	99-7426
Compatible Vehicles	Nissan Murano (without Bose audio) 2009-2014
Radio Provisions	DIN with pocket, ISO DIN with pocket, ISO DDIN
Color	Painted Charcoal
Material	High-grade ABS Plastic
Dimensions (approx)	7.0" x 5.0" x 2.0" (180 x 130 x 50 mm)
Weight (approx)	0.8 lbs (350 g)
Included Components	Radio housing, ISO DIN brackets, ISO DIN trim plate, ISO DDIN brackets, ISO DDIN trim plate, Pocket
Required Tools	Panel removal tool, Phillips screwdriver, Cutting tool
Wiring Harness (sold separately)	Metra 70-7552
Antenna Adapter (sold separately)	Metra 40-NI12
Installation Method	Dash disassembly and kit assembly (3 configurations)
Climate Control Location	Above radio
Special Notes	For models with climate controls above radio; not for Bose audio equipped models
Recommended Certification	MECP certified technicians
Technical Support	Phone: [phone] ext. 8300, Email: [e-mail]
Maintenance	Clean with soft dry cloth
Safety	Disconnect battery before installation; let vehicle sit with key out

Frequently Asked Questions - 99-7426 Metra

What vehicles is the Metra 99-7426 compatible with?

The Metra 99-7426 is designed for the Nissan Murano (without Bose audio) from 2009 to 2014, specifically models with climate controls located above the radio.

Does this kit include a wiring harness?

No, the wiring harness is sold separately. Metra recommends using the Metra 70-7552 wiring harness and the Metra 40-NI12 antenna adapter.

What tools are required for installation?

You will need a panel removal tool, a Phillips screwdriver, and a cutting tool.

What radio sizes does this kit support?

This kit supports DIN (single DIN), ISO DIN, and ISO DDIN (double DIN) radio provisions, each with appropriate brackets and trim plates.

Is the kit painted?

Yes, the kit is painted charcoal to match the factory finish of the vehicle.

Does this kit work with Bose systems?

No, this kit is specifically for vehicles without Bose audio. For Bose-equipped models, a different kit may be required.

How do I install a DIN radio with pocket?

First, remove the metal DIN sleeve from the aftermarket radio and slide it into the radio housing, bending locking tabs. Then slide the radio into the sleeve, snap the pocket into the housing, and connect wiring.

Can I install a double DIN radio?

Yes, using the ISO DDIN provision. Cut and remove the center bar from the radio housing, snap on the ISO DDIN brackets, slide in the radio, and secure with screws. Then attach the ISO DDIN trim plate.

What antenna adapter is needed?

The required antenna adapter is the Metra 40-NI12, sold separately.

Where can I find installation help?

For installation assistance, contact Metra Tech Support at 386-257-1186 ext. 8300 or email [e-mail]. Also, refer to the instruction booklet for detailed steps.

USER MANUAL 99-7426 Metra

Interior view of a car dashboard with steering wheel and air conditioner unit (no visible text or symbols)

Nissan Murano (without Bose audio) \* 2009-2014

* For models with climate controls located above the radio

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

specific applications

KIT FEATURES

• DIN radio provision with pocket
• ISO DIN radio provision with pocket
- ISO DDIN radio provision
- Painted charcoal to match the factory finish

KIT COMPONENTS

• A) Radio housing • B) ISO DIN brackets • C) ISO DIN trim plate • D) ISO DDIN brackets • E) ISO DDIN trimplate • F) Pocket

A

B

C

D

E

F

TABLE OF CONTENTS

Dash Disassembly 2

Kit Assembly

-DIN radio provision with pocket ....3
-ISO DIN radio provision with pocket ....3
-ISO DDIN radio provision ....4

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: 70-7552

Antenna Adapter: 40-NI12

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
• Cutting tool

Attention! Let the vehicle sit with the key out of the ignition for a few minutes before removing the factory radio. When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition.

DASH DISASSEMBLY

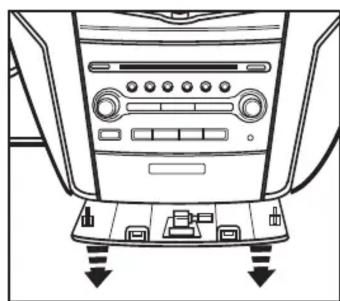

1. Unclip and remove the trim panel at the bottom center of the dash. (Figure A)

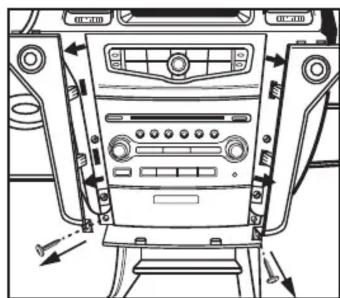

2. Remove (1) Phillips screw from the bottom of each side trim panel, then unclip and remove the panels. (Figure B)

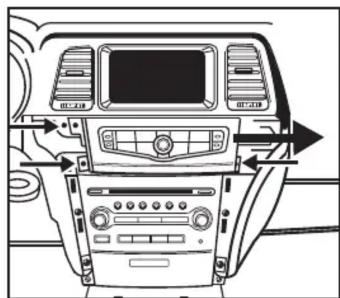

3. Remove (3) Phillips screws securing the climate control panel, then unclip, unplug, and remove the panel. (Figure C)

Interior view of a car dashboard with control panel and buttons (no visible text or labels)

(Figure B)

1. Remove (2) Phillips screws from the panel below the radio (containing the passenger air bag light), then unclip, unplug, and remove the panel. (Figure D)
2. Remove (6) Phillips screws securing the radio. Slide the radio out, then unplug and remove radio. (Figure E)

Continue to Kit Assembly

Top-down line drawing of a car dashboard with control panel and buttons (no text or symbols)

(Figure D)

Top-down line drawing of a car air conditioner unit with control panel and buttons (no text or symbols)

(Figure A)

Interior view of a car dashboard with air vent and control panel (no text or symbols visible)

(Figure C)

Interior view of a car dashboard with control panel and buttons (no text or symbols visible)

(Figure E)

KIT ASSEMBLY

DIN radio provision with pocket

1. Remove the metal DIN sleeve from the aftermarket radio.
2. Slide the sleeve into the radio housing and secure by bending the metal locking tabs down. (Figure A)
3. Slide the radio into the sleeve until it snaps into place. (Figure B)
4. Snap the pocket into the radio housing. (Figure C)
5. Locate the factory wiring harness and antenna connector in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Test the radio and vehicle for proper operation.
6. Reassemble the dash in reverse order of disassembly to complete the installation.

Line drawing of a hand using a tool to adjust or install a device with a ruler (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

ISO DIN radio provision with pocket

1. Remove the metal DIN sleeve and trim ring from the aftermarket radio.
2. Secure the ISO DIN brackets to the radio using the screws supplied with the radio. (Figure A)
3. Slide the radio into the radio housing until it snaps into place. (Figure B)
4. Snap the ISO DIN trim plate onto the front of the radio housing. (Figure B)
5. Snap the pocket into the radio housing. (Figure C)
6. Locate the factory wiring harness and antenna connector in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Test the radio and vehicle for proper operation.
7. Reassemble the dash in reverse order of disassembly to complete the installation.

(Figure A)(Figure A)

(Figure B)(Figure B)

Technical line drawing of a mechanical device with mounting bracket and directional arrows indicating assembly (no text or symbols)

(Figure C)(Figure C)

KIT ASSEMBLY

ISO DDIN radio provision

1. Cut and remove the center bar from the radio housing. (Figure A)
2. Snap the ISO DDIN brackets to the inside edge of the radio housing. (Figure B)
3. Slide the radio into the bracket/radio housing assembly, then secure using the screws supplied with the radio. (Figure C)
4. Snap the ISO DDIN trim plate onto the front of the radio/housing. (Figure C)
5. Locate the factory wiring harness and antenna connector in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Test the radio and vehicle for proper operation.
6. Reassemble the dash in reverse order of disassembly to complete the installation.

Line drawing of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

(Figure A) (Figure B)

Technical line drawing of a rectangular frame with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

(Figure C)

If you are having difficulties with the installation of this product, contact our Tech Support line either by phone at 386-257-1186 ext. 8300, or email at [e-mail]. Before doing so, look over the instruction booklet a second time and ensure that the installation was performed exactly as the instruction booklet is stated. Have the vehicle apart and ready to perform troubleshooting steps before contacting Metra/Axxess Tech Support.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
