99-5856B - Car kit Metra - Free user manual and instructions

Product Type	Car radio installation kit
Vehicle Compatibility	Ford Transit Connect (with AM/FM only radio) 2014-2018
Radio Provision	ISO DIN with pocket or ISO DDIN
Passenger Airbag Indicator	Built-in, plug and play
Finish	Painted scratch resistant matte black
Included Components	Radio trim panel, radio brackets, sub-dash bracket, ISO-DIN pocket, panel clips (4), screws (4 #8x3/8"), upper pocket
Required Tools	Panel removal tool, Phillips screwdriver, T-15 Torx driver, T-20 Torx driver
Wiring Harness (sold separately)	Metra 70-5524 recommended
Antenna Adapter (sold separately)	Metra 40-EU10 recommended
Material	Plastic (ABS), painted
Installation Type	Dash replacement, requires disassembly
Country of Origin	Not specified

Frequently Asked Questions - 99-5856B Metra

Which vehicles are compatible with the Metra 99-5856B kit?

The kit is designed for Ford Transit Connect models from 2014-2018 with an AM/FM only radio. Always check MetraOnline.com for the latest vehicle fitments.

What radio sizes does this kit support?

It supports both ISO DIN (single-DIN) radios with a pocket and ISO DDIN (double-DIN) radios without a pocket.

Do I need any additional wiring harness or antenna adapter?

Yes, they are sold separately. Metra recommends the 70-5524 wiring harness and the 40-EU10 antenna adapter for a plug-and-play installation.

What tools are required for installation?

You will need a panel removal tool, Phillips screwdriver, T-15 Torx driver, and T-20 Torx driver.

How do I handle the passenger airbag indicator?

The kit includes a built-in passenger airbag indicator that plugs directly into the factory harness. Ensure the connection is secure during reassembly.

Is the kit painted or do I need to paint it?

The trim panel comes pre-painted in a scratch resistant matte black finish. No additional painting is required.

What is the purpose of the upper pocket?

The upper pocket snaps into place above the radio trim panel to restore the factory storage compartment look. It is included in the kit.

Can I use this kit with a factory amplifier?

The manual does not mention amplifier integration. For vehicles with factory amplifiers, you may need additional adapters. Contact Metra tech support for guidance.

What should I do if I encounter installation difficulties?

Review the instructions carefully. If issues persist, contact Metra Tech Support at 386-257-1187 or email [e-mail]. Have the vehicle disassembled for troubleshooting.

Is professional installation recommended?

Metra recommends installation by a MECP certified technician for best results. You can also enroll in installer training at www.installerinstitute.com.

USER MANUAL 99-5856B Metra

Interior view of a car dashboard with digital display and control buttons (no visible text or symbols)

Ford Transit Connect (with AM/FM only radio) 2014–2018

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications

KIT FEATURES

• ISO DIN radio provision with pocket
• ISO DDIN radio provision
- Passenger airbag indicator
- Painted scratch resistant matte black

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Sub-dash bracket • D) ISO-DIN pocket • E) (4) Panel clips • F) (4) #8 x 3/8" Phillips screws • G) Upper pocket
AB

Technical line drawing of a car interior frame with no visible text or symbols

•

•

•

E

F

G

TABLE OF CONTENTS

Dash Disassembly 2

Kit Assembly

-ISO DIN radio provision with pocket ....3

-ISO DDIN radio provision ....3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: 70-5524

Antenna Adapter: 40-EU10

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• T-15 Torx driver • T-20 Torx driver

Attention! Let the vehicle sit with the key out of the ignition for a few minutes before removing the factory radio. When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition.

DASH DISASSEMBLY

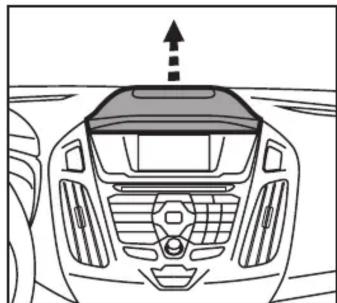

1. Remove the top panel above the storage pocket. (Figure A)

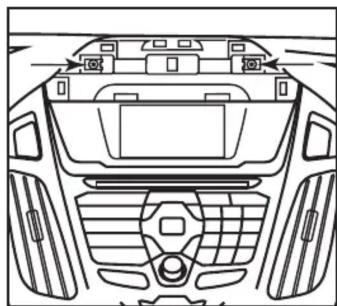

2. Remove (2) T-15 Torx screws above the display/radio panel. (Figure B)
3. Unplug and remove the display/radio panel. (Figure C)

Front view of a car dashboard with no visible text or symbols

(Figure A) (Figure C)

1. Remove the A/C vents and hazard switch from the panel and set aside for kit assembly.
2. Remove (4) T-20 Torx screws and remove the shaded factory sub-dash bracket. (Figure D)

Continue to Kit Assembly

Top-down view of a car dashboard with control panels and directional arrows (no text or symbols)

Technical line drawing of a vehicle chassis with no visible text or symbols

Front view line drawing of a car's dashboard and rear seats (no text or symbols)

(Figure B) (Figure D)

KIT ASSEMBLY

ISO DIN radio provision with pocket

1. Secure the sub-dash bracket into the dash opening with either the factory screws or the included screws.
2. Secure the pocket to the radio brackets using the (4) #8 x 3/8" Phillips screws supplied. (Figure A)
3. Remove the metal "DIN" sleeve and trim ring from the aftermarket radio.
4. Slide the radio into the bracket/pocket assembly, then secure the radio using the screws supplied with the radio. (Figure B)
5. Snap the hazard switch into the radio trim panel from the front.
6. Snap the A/C vents into the radio trim panel from the back.
7. Plug in the passenger airbag light and hazard connections.
8. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS.
9. Attach (4) panel clips to the radio trim panel, then reassemble the dash in reverse order of disassembly, using the 99-5856B radio trim panel.
10. Snap in the upper pocket to complete the installation.

Technical line drawing of a mechanical housing or enclosure with mounting brackets and internal components (no text or symbols)

(Figure A) (Figure A)

Technical line drawing of an electronic device with labeled components (no text or symbols present)

(Figure B)

ISO DDIN radio provision

1. Secure the sub-dash bracket into the dash opening with either the factory screws or the included screws.

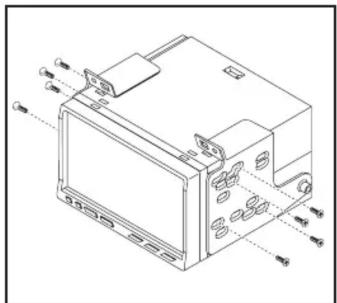

2. Secure the radio brackets to the radio using the screws supplied with the radio. (Figure A)
3. Snap the hazard switch into the radio trim panel from the front.
4. Snap the A/C vents into the radio trim panel from the back.
5. Plug in the passenger airbag light and hazard connections.
6. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS.
7. Attach (4) panel clips to the radio trim panel, then reassemble the dash in reverse order of disassembly, using the 99-5856B radio trim panel.
8. Snap in the upper pocket to complete the installation.

Technical line drawing of an electronic device casing with ports and connectors (no text or symbols)

If you are having difficulties with the installation of this product, contact our Tech Support line either by phone at 386-257-1187, or email at [e-mail]. Before doing so, look over the instruction booklet a second time and ensure that the installation was performed exactly as the instruction booklet is stated. Have the vehicle apart and ready to perform troubleshooting steps before contacting Metra/Axxess Tech Support.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
