Product Type	Flush Mount Distribution Enclosure
Brand	Hager
Model	VF318PTQ
Series	golf VF Series
Mounting Type	Flush
Number of Rows	3
Number of Modules	54
Terminal Type	Qlink (screwless)
Door Type	Opaque
Rated Current	Up to 63 A
Rated Insulation Voltage	400 V AC / 50 Hz
IP Rating (with door)	IP40
IP Rating (without door)	IP30
IK Rating	IK07
Insulation Class	Class II
Color	White RAL 9010
Material	Plastic (enclosure)
Width (Enclosure)	460 mm
Height (Enclosure)	543 mm
Depth (Min. Wall Cut Out)	72 mm
Busbar Supplied	3 x 18 pole
Standards	AS/NZS, IEC, RoHS, WEEE
Awards	Australian International Design Award, Red Dot Design Award

Frequently Asked Questions - VF318PTQ HAGER

What is the difference between the VF318PTQ and VF318TTQ models?

The VF318PTQ has an opaque door, while the VF318TTQ has a transparent door. Both are flush mount enclosures with Qlink terminals.

Can the door be opened 180 degrees?

Yes, the door can be fitted on the right or left and opens up to 180 degrees for easy access.

What is the maximum device depth that can be installed in this enclosure?

The enclosure accommodates devices up to 70 mm installation depth.

Is the VF318PTQ suitable for outdoor use?

No, the enclosure is rated IP40 with door, making it suitable for indoor use only. It is not weatherproof.

What type of terminals does the VF318PTQ use?

It uses Qlink terminals, which are screwless and provide quick and reliable connections for conductors up to 4 mm².

How do I clean the enclosure?

Clean the enclosure with a soft, damp cloth. Do not use abrasive cleaners or solvents that may damage the plastic.

Can I lock the door?

Yes, an optional lock and keys (cat. ref. VZ794N) can be added to secure the door.

What is the maximum number of modules in this enclosure?

The VF318PTQ has 54 modules (3 rows of 18 modules each).

Is the enclosure compatible with Hager's onekonekt system?

Yes, it is compatible with the onekonekt range of modular protection devices, including MCBs, RCBOs, and RCCBs using a common busbar.

What is the weight of the VF318PTQ?

The weight is not specified in the manual, but based on similar enclosures, it is approximately 2-3 kg.

USER MANUAL VF318PTQ HAGER

Residential Distribution Solutions

Beautifully simple

Overhead view of a person kneeling on a white floor next to a cardboard box, surrounded by black geometric outlines (no text or symbols visible)

all in

one

Blue right-pointing arrow on black background (no text or symbols)

Our solutions for Residential buildings

"Hager's residential distribution solution ensures you have everything you need for your next installation. The combination of our award winning and aesthetically pleasing golf enclosure range coupled with our onekonekt system, provides you with a beautifully simple solution that makes each installation easier, safer and faster."

Modern office desk with yellow and black panels, a laptop stand, and a chair, against a white wall and window (no text or symbols visible)

Everything in the system

golf enclosures

The golf enclosure is the perfect solution for all residential and multi-residential installations. The enclosure is swiftly and easily mounted and offers space for a large number of modular devices.

The advantages for you

→ Flush or Surface mount, opaque or transparent door options available
→ 1 to 4 rows from 4 to 72 modules
→ Ample wiring space between the modular devices and terminals as well as behind the DIN rails
→ Clean and convenient wiring thanks to patented integrated cable management system

White open electrical cabinet with two internal compartments (no visible text or symbols)

golf Home Networking enclosures

The golf Home Networking enclosure offers solutions that provide you with the greatest amount of flexibility to meet almost any type of home networking equipment.

The advantages for you

→ Flush mount with opaque door design, consistent with golf enclosures
→ 3 sizes and extension box available
→ Easy installation, can be turned 180° to install patented slider on top or bottom
→ Ample wiring space allows room to mount peripherals

Exterior view of a white industrial air vent with ventilation grilles (no text or symbols visible)

Modern office setup with a yellow cabinet and desk, no visible text or symbols

Electrical circuit breaker with multiple fuses and a red indicator block (no visible text or symbols)

onekonekt Modular Protection Devices

Hager's full range of residential protection devices connect to the same busbar increasing safety and reducing installation time.

The advantages for you

→ All earth leakage devices are type-A increasing fault identification

Green and yellow plastic electrical connector housing (no text or symbols visible)

Link Terminals

Our Link terminals offer significant time saving and reliability compared to traditional brass link screw terminals.

The advantages for you

→ Quick and easy screwless installation
→ Rerliable and constant tension reduces potential hot joints
→ Easy labelling system for clear circuit identification

Close-up of white industrial air conditioner unit with attached circuit board (no visible text or symbols)

Network Accessories

Hager's patching solutions allow both multi and single module add-ons in Cat5, Cat6 and shielded.

The advantages for you

→ Additional Cat5, Cat6 and F-type modules available
→ 4 and 8 outputTelephone splitters for simple distribution
→Individual toolless Cat6 patch modules

Two white plastic mechanical components with internal cutouts, shown in isometric view (no text or symbols)

Sliders

Our patented sliders keep unsightly wires contained behind the wall and help to provide power to our networking enclosures.

The advantages for you

→ The double slider is used to connect a golf mains distribution enclosure to a golf home networking enclosure creating a unique combination

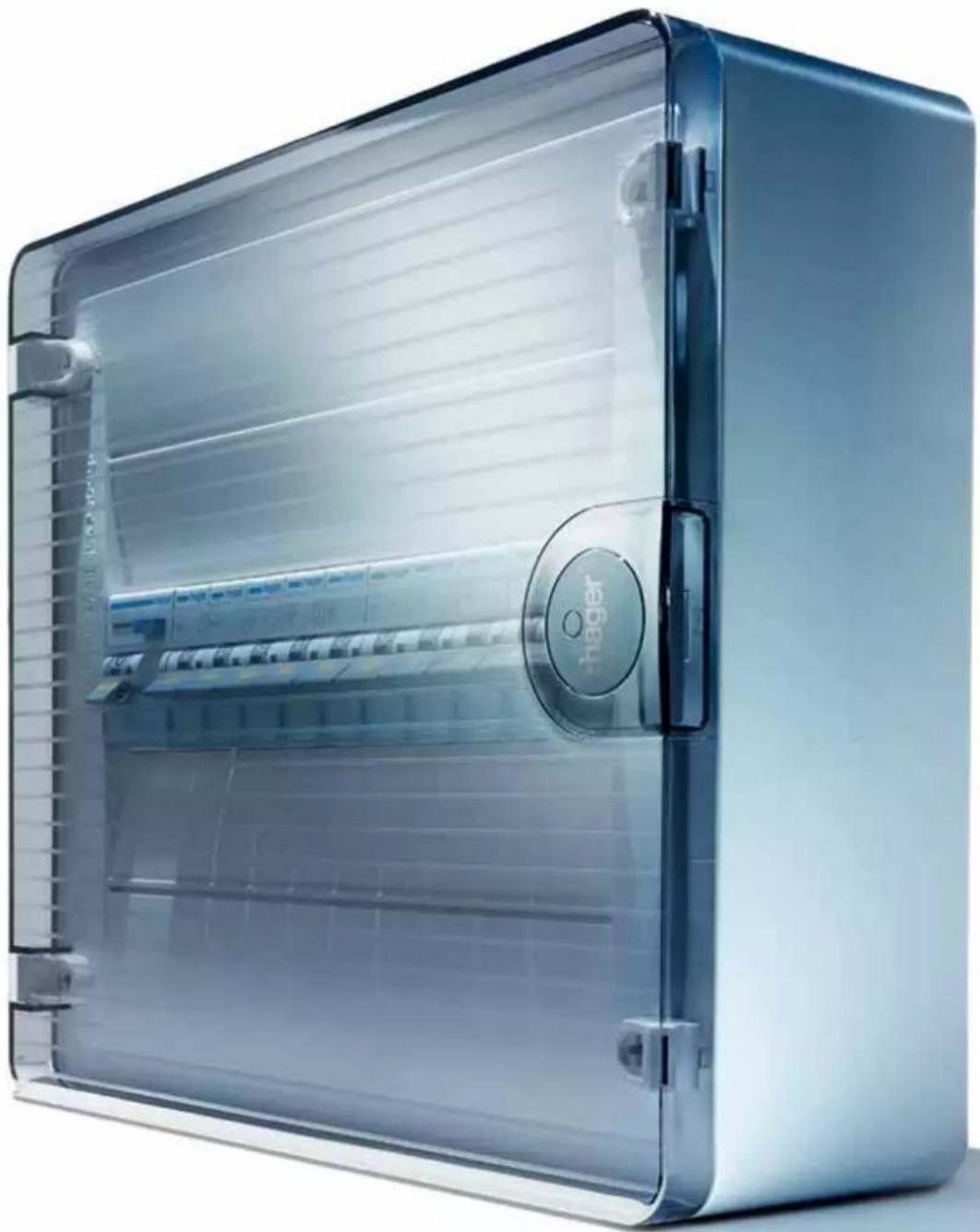

beauty outside

Exterior view of a modern stainless steel appliance with clear glass cover and control panel (no visible text or symbols)

Product photo of a red dot design award featuring multiple silver-framed storage units with no visible text or symbols on the devices themselves.

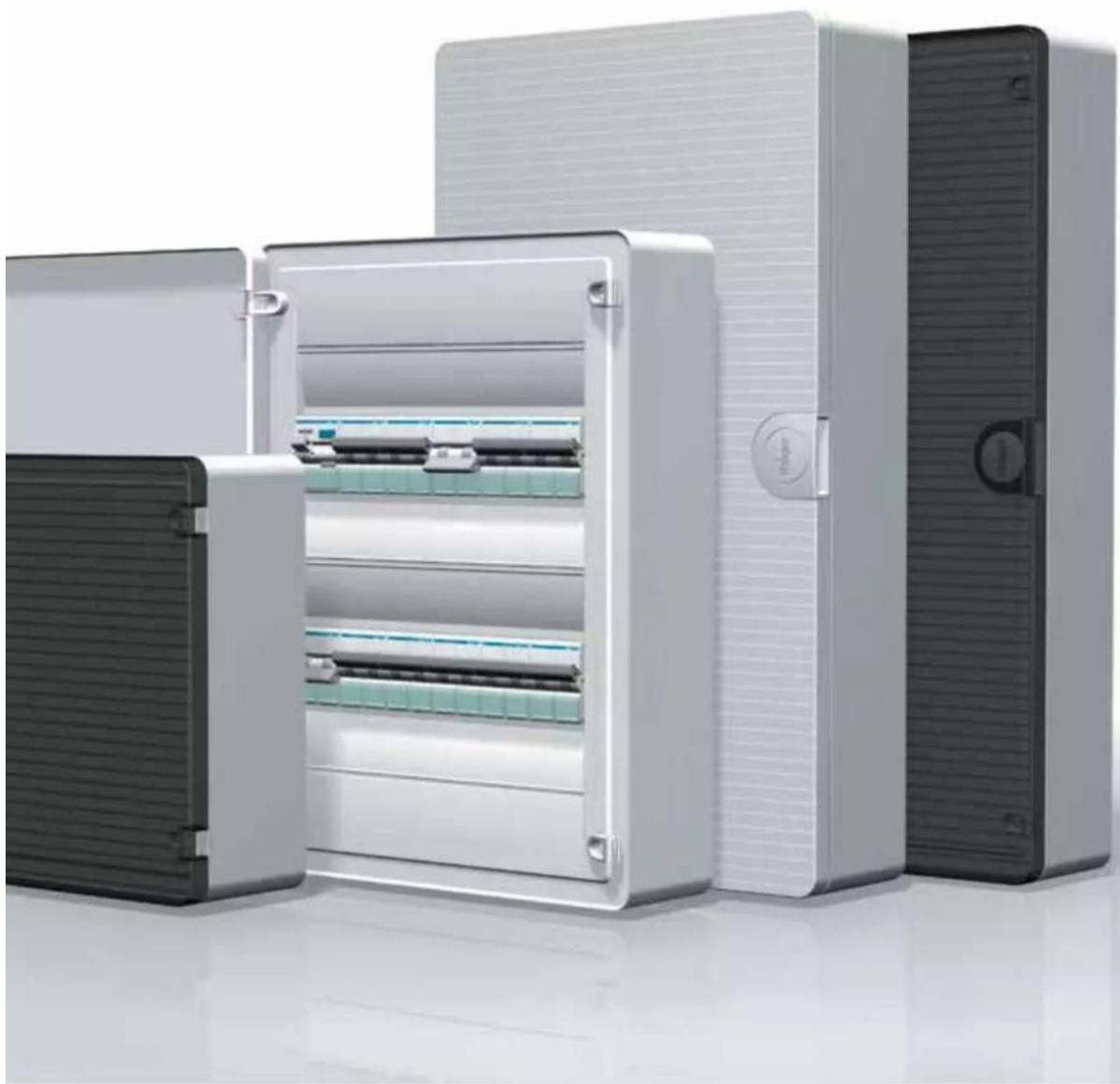

Innovation on the inside

The golf enclosure range from Hager is the benchmark in distribution. Packed with features that provide simple and fast installation, available in flush or surface mounting and with a choice of either Link terminals, 63A or 100A brass links, this red dot design award and Australian International Design Award winning range meets all expectations in distribution for both contractors and home owners.

Exterior view of a modern office building (no signage)

Open white electrical cabinet with two horizontal slots (no text or symbols visible)

Quality

Our surface mount golf enclosures with their ample cabling space, convenient cable management, installation tips within the box and the ability to rotate the enclosure a full 180°, means they are ideal for any standard residential power distribution installation.

Exterior view of a white open electrical cabinet (no text or symbols visible)

Adaptability

Hager's flush mount golf enclosures have the added advantage of connecting to our golf home networking enclosures to provide a comprehensive and aesthetically pleasing solution for any residential installation.

Close-up of three colored Ethernet connectors (blue, white, green) attached to a black cable, no text or symbols visible.

Reliability

Optional patented neutral & earth sink terminals provide an easier, safer and faster connection for your installation, saving time & money.

Options

All golf enclosures are supplied with standard 63A brass links with the option of 100A where higher ratings are needed.

Red hager skater in action on snowy slope, wearing helmet with 'hager' logo (no visible text or symbols)

Friday, 3rd April 2015

New world record of 203.275 km/h in high speed snowboarding for Edmond Plawczyk!

Proudly sponsored by Hager

high speed

Electrical circuit breaker with hager and main buttons (MSN163R, MSN120, ADC310T) installed in a grid connection (no visible text or symbols on main components)

High performance, high safety

Our onekonekt residential range of modular devices saves you time and money, with an installation time up to 10 times faster than traditional wiring.

The onekonekt system is one of the most versatile & flexible solutions to residential electricians on the market today. The use of busbar in our industry is not a new concept. However, providing a full range of residential protection devices that connect to the same busbar, increasing safety, reducing installation time, improving technical characteristics and aesthetics within one system, definitely is.

Electrical enclosure with multiple shagers and circuit breakers, no visible text or symbols on main components

Close-up of yellow electrical fuse components with warning symbols (no readable text)

Safety

Insulated fork caps enable unused forks to remain in-situ for additional circuits in the future. Busbar and endcaps ensure complete insulation of the bar.

Performance

Our type A Earth Leakage Devices filter out interference from modern day appliances such as TV's washing machines and LED lighting, that can potentially prevent the device from operating accurately.

Close-up of a mechanical device with a metallic handle and central shaft (no visible text or symbols)

Flexibility

Bi-connect terminals on all devices enable supply from either cables in the cage or busbars in the slot; guaranteeing full connection capacity.

Close-up of a white mechanical component with two dark rectangular cutouts (no visible text or symbols)

Simplicity

For the entire 2 pole RCCB and RCBO range, the neutral busbar slot is fully insulated so there is no need to cut the forks off the busbar.

easy to

connect

Interior architectural rendering of a modern living room with living areas, furniture, and staircase (no text or symbols visible)

A new approach to home networking

Australians love technology. Our homes are now filled with multiple users, home offices, smart TVs, game consoles, smart phones and more. Today, the creation of a home network has become more of a need than a luxury.

Hager's golf home networking enclosure is a first in Australia, providing the option to be installed as a stand-alone home network hub or combined with the mains distribution golf enclosure by utilising our patented double slider providing you with pure aesthetic genius.

Modern minimalist living room interior with open refrigerator and staircase (no text or symbols)

Electrical cabinet with blue cables and orange connectors mounted on a white rack (no visible text or symbols)

Versatility

Three flush or surface mount enclosure sizes supply ample space for mounting all your network distribution modules as well as other peripherals.

Front view of a square electronic device with four ventilation grilles (no text or symbols visible)

Circulation

The vented door assists with heat dissipation and assists signal reception for wireless devices mounted within.

White mechanical component with a rectangular opening and flange (no text or symbols visible)

Flexibility

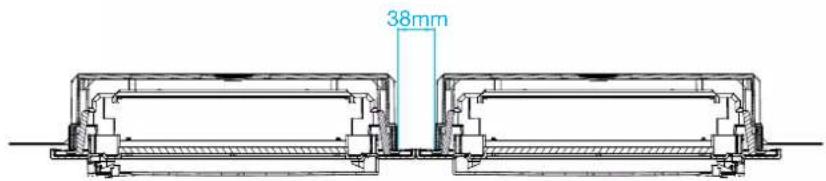

With the use of our patented double sliders, you can combine your mains distribution with your home networking for ease of cabling and superb aesthetics.

Two white industrial electrical equipment units, one with a side panel and the other a close-up view (no visible text or symbols)

Additions

Cat 6 UTP/STP individual patch modules and 4 to 8 way telephone splitter helps simplify every installation.

Exterior view of an open electrical enclosure with internal wiring and a grid panel (no visible text or symbols)

Beautifully simple, the complete system

At Hager, we believe that every home owner deserves to have a high quality, safe and great looking distribution system in their home - and the installation of the system should be simple and beneficial to all installing contractors.

The golf system offers exactly that. From its award winning aesthetics on the outside, to it's installer friendly, superior protection and distribution equipment on the inside, it's the most flexible, comprehensive solution on the market today.

• golf VS series enclosures

Surface mounted with brass terminals 20

Surface mounted with oink terminals 20

• golf VF series enclosures

Flush mounted with brass terminals 21

Flush mounted with sink terminals 21

• golf enclosure accessories 22

• Home networking modules 23

• Home networking accessories 24

• Isolating switches 25

- MCB's 26

- RCBO's 27

- Safety switches 28

• Insulated busbars & connectors 29

• golf enclosure technical summary 30

• onekonekt technical summary 31

Surface mounted distribution boxes from 1 to 4 rows, from 4 to 72 modules, supplied with opaque or transparent door for devices up to 70mm installation depth. Door can be fitted on right or left, optional lock and keys. Door opens up to 180°. Wall box and cover are symmetrical for removable cable entry slider. Cable entries for cable and conduit.

VS Components:

• Earth & neutral terminals
• Pole fillers
• Patented marking system
• Cable management clips
• Transport protection film
• Busbar supplied with some references

Technical data:

• IP rating: IP30 without door IP40 with door IK07
• Isolation Class II
• White colour RAL 9010
• Rated current: for devices up to 63A
• Rated insulation voltage: 400V AC/50Hz

Standard: all products conform to Australian and international standards. All products conform to the RoHS and WEEE directives. - Winner of the Australian International Design Award and the reddot Design Award

Australian International Design Award

reddot design award

VS112PT

Exterior view of a white open electrical enclosure with two internal compartments (no text or symbols visible)

VS218PT

golf enclosure with 63A brass terminals

Description Busbar Brass terminal Cat ref.				Opaque Door	Cat ref. Transp. door
	25mm ^2	16mm ^2	10mm ^2
1 row 4 | None 1 2 3				VS104PT VS104TT
1 row 8 | None 1 4 5				VS108PT VS108TT
1 row 12 | 1 x 12 pole 1 8 9				VS112PT VS112TT
1 row 18 | 1 x 18 pole 1 12 13				VS118PT VS118TT
2 row 24 | 2 x 12 pole 1 14 16				VS212PT VS212TT
2 row 36 | 2 x 18 pole 1 21 24				VS218PT VS218TT
3 row 36 | 3 x 12 pole 1 16 17				VS312PT VS312TT
3 row 54 | 3 x 18 pole 1 21 24				VS318PT VS318TT
4 row 48 | 4 x 12 pole 2 26 28				VS412PT VS412TT
4 row 72 | 4 x 18 pole 1 21 24				VS418PT VS418TT

Exterior view of a white electrical cabinet with three horizontal panels, one open and one closed (no text or symbols visible)

VS318TTH

golf enclosure with 100A brass terminals

Description Busbar	Brass terminal		Cat ref. Opaque Door	Cat ref. Transp. door
	25mm^2	16mm^2
1 row 12 | 1 x 12 pole 1 13			VS112PTH VS112TTH
1 row 18 | 1 x 18 pole 1 19			VS118PTH VS118TTH
2 row 24 | 2 x 12 pole 1 25			VS212PTH VS212TTH
2 row 36 | 2 x 18 pole 1 37			VS218PTH VS218TTH
3 row 36 | 3 x 12 pole 1 37			VS312PTH VS312TTH
3 row 54 | 3 x 18 pole 2 41			VS318PTH VS318TTH
4 row 48 | 4 x 12 pole 2 42			VS412PTH VS412TTH
4 row 72 | 4 x 18 pole 2 61			VS418PTH VS418TTH

Exterior view of a white electrical cabinet with blue doors open (no text or symbols visible)

VS412TTQ

golf enclosure with Qlink terminals

Description Busbar link terminal Cat ref.				Opaque Door	Cat ref. Transp. door
		25mm ^2	4mm ^2
1 row 12	1 x 12 pole 3 15			VS112PTQ VS112TTQ
1 row 18	1 x 18 pole 4 20			VS118PTQ VS118TTQ
2 row 24	2 x 12 pole 4 20			VS212PTQ VS212TTQ
2 row 36	2 x 18 pole 7 29			VS218PTQ VS218TTQ
3 row 36	3 x 12 pole 7 29			VS312PTQ VS312TTQ
3 row 54	3 x 18 pole 10 42			VS318PTQ VS318TTQ
4 row 48	4 x 12 pole 10 36			VS412PTQ VS412TTQ
4 row 72	4 x 18 pole 15 55			VS418PTQ VS418TTQ

Flush mounted distribution boxes from 1 to 4 rows, from 4 to 72 modules, supplied with opaque or transparent door for devices up to 70mm installation depth. Door can be fitted on right or left, optional lock and keys. Door opens up to 180°. Wall box and cover are symmetrical for removable cable entry slider. Cable entries for cable and conduit.

VF Components:

• Earth & neutral terminals
• Pole fillers
• Patented marking system in enclosures >36
• Cable management clips in enclosures >36
• Transport protection film
• Busbar supplied with some references

Technical data:

• IP rating: IP30 without door IP40 with door IK07
• Isolation Class II
• White colour RAL 9010
• Rated current: for devices up to 63A
• Rated insulation voltage: 400V AC/50Hz

Standard: all products conform to Australian and international standards. All products conform to the RoHS and WEEE directives. - Winner of the Australian International Design Award and the reddot Design Award

Australian International Design Award

reddot design award

VF112PT

Open white electrical cabinet with two internal compartments (no text or symbols visible)

VF218PT

golf enclosure with 63A brass terminals

Description Busbar Brass terminal Cat ref.				Opaque Door	Cat ref. Transp. door
	25mm ^2	16mm ^2	10mm ^2
1 row 4 | None 1 2 3				VF104PT VF104TT
1 row 8 | None 1 4 5				VF108PT VF108TT
1 row 12 | 1 x 12 pole 1 8 9				VF112PT VF112TT
1 row 18 | 1 x 18 pole 1 12 13				VF118PT VF118TT
2 row 24 | 2 x 12 pole 1 14 16				VF212PT VF212TT
2 row 36 | 2 x 18 pole 1 21 24				VF218PT VF218TT
3 row 36 | 3 x 12 pole 1 16 17				VF312PT VF312TT
3 row 54 | 3 x 18 pole 1 21 24				VF318PT VF318TT
4 row 48 | 4 x 12 pole 2 26 28				VF412PT VF412TT
4 row 72 | 4 x 18 pole 1 21 24				VF418PT VF418TT

Exterior view of a white cabinet with three horizontal panels, one open and one closed (no text or symbols visible)

VF318TTH

golf enclosure with 100A brass terminals

Description Busbar	Brass terminal		Cat ref. Opaque Door	Cat ref. Transp. door
	25mm^2	16mm^2
1 row 12 | 1 x 12 pole 1 13			VF112PTH VF112TTH
1 row 18 | 1 x 18 pole 1 19			VF118PTH VF118TTH
2 row 24 | 2 x 12 pole 1 25			VF212PTH VF212TTH
2 row 36 | 2 x 18 pole 1 37			VF218PTH VF218TTH
3 row 36 | 3 x 12 pole 1 37			VF312PTH VF312TTH
3 row 54 | 3 x 18 pole 2 41			VF318PTH VF318TTH
4 row 48 | 4 x 12 pole 2 42			VF412PTH VF412TTH
4 row 72 | 4 x 18 pole 2 61			VF418PTH VF418TTH

Exterior view of a white electrical cabinet with four compartments, one open and one closed (no text or symbols visible)

VF412TTQ

golf enclosure with Qlink terminals

Description Busbar link terminal Cat ref.			Opaque Door	Cat ref. Transp. door
	25mm ^2	4mm ^2
1 row 12 | 1 x 12 pole 3 15			VF112PTQ VF112TTQ
1 row 18 | 1 x 18 pole 4 20			VF118PTQ VF118TTQ
2 row 24 | 2 x 12 pole 4 20			VF212PTQ VF212TTQ
2 row 36 | 2 x 18 pole 7 29			VF218PTQ VF218TTQ
3 row 36 | 3 x 12 pole 7 29			VF312PTQ VF312TTQ
3 row 54 | 3 x 18 pole 10 42			VF318PTQ VF318TTQ
4 row 48 | 4 x 12 pole 10 36			VF412PTQ VF412TTQ
4 row 72 | 4 x 18 pole 15 55			VF418PTQ VF418TTQ

golf enclosure accessories Includes an extensive range, from cable retainers to hollow wall anchors, keys, locks and doors, every single feature is conceived to save time and increase simplicity of mounting.

VZ610N

Opaque Doors

To suit Pack Cat ref.
VF/VS104 1	VZ601N
VF/VS108 1	VZ602N
VF/VS112 1	VZ603N
VF/VS212 1	VZ604N
VF/VS312 1	VZ605N
VF/VS412 1	VZ606N
VF/VS118 1	VZ607N
VF/VS218 1	VZ608N
VF/VS318 1	VZ609N
VF/VS418 1	VZ610N

VZ630N

Transparent Doors (polycarbonate)

To suit Pack Cat ref.
VF/VS104 1	VZ621N
VF/VS108 1	VZ622N
VF/VS112 1	VZ623N
VF/VS212 1	VZ624N
VF/VS312 1	VZ625N
VF/VS412 1	VZ626N
VF/VS118 1	VZ627N
VF/VS218 1	VZ628N
VF/VS318 1	VZ629N
VF/VS418 1	VZ630N

VZ794N

Earthed metal back plate

To suit Pack Cat ref.
VF108 1	VF108BP
VF112 1	VF112BP
VF118 1	VF118BP
VF212 1	VF212BP
VF218 1	VF218BP
VF312 (available early 2015) 1	VF312BP
VF318 1	VF318BP
VF412 1	VF412BP
VF418 1	VF418BP

Key Lock

Description Pack Cat ref.

Supplied with 2 keys 1

VZ794N

Our home networking enclosures allow you to combine mains distribution boards with home networking or as a stand alone enclosure.

Features:

• True flush mounting base on 18 pole wide enclosures
• Steel mounting pan
• Vented door
• DIN rail (12 mods wide)

Flush mount features:

• Vertical Double GPO
• Slider (incorporates GPO mounting block).

NOTE: Joining double slider for use with 18 module wide flush enclosures only.

Open electrical enclosure with open door and ventilation grilles (no visible text or symbols)

VS218PZD

Surface mount enclosures
Description Size in mm Cat ref.

Surface enclosure with- Vented door- Mounting pan	460w x 418h	VS218PZD
	460w x 543h	VS318PZD
	460w x 688h	VS418PZD

Exterior view of a white open electrical enclosure with a closed lid (no text or symbols visible)

VF218PZD

Flush mount enclosures

Description Size in mm Cat ref.
Flush enclosure with	460w x 418h	VF218PZD
- Vented door	460w x 543h	VF318PZD
- Double vertical GPO	460w x 688h	VF418PZD
- Mounting pan
- DIN
- Single slider

Open white industrial electrical cabinet with open door and ventilation grilles (no visible text or symbols)

VF218VZE

Extension box

Description Size in mm Cat ref.
218 sized flush enclosure with:	460w x 418h	VF218PZE
- Vented door
- Mounting pan
- Double Vertical GPO
- DIN
- Double slider for combining with any VFX18 golf enclosure

VZ850N

Sliders

Description Suits Cat ref.
Double slider (combines two enclosures) VFx18	VZ850N
Single slider VFx18	VZ852N

The components that come supplied as standard within our media enclosures are also available separately.

Additional patching modules in Cat6 & Cat6 shielded, F-type modules, telephone splitters and other accessories are also available separately.

The TN003S & TN002S Cat6 UTP & STP patch modules provide a toolless wiring system (no punch down required) with positive cable retention ensuring every cable remains in place and stays connected.

The 2 in 8 out telephone splitter can be bridged to give a 1 in 8 out configuration if required.

TN002STN010S

TN131

Accessories

Description Characteristics Cat ref.
Connectors RJ45 Cat 6 STP patch modules		TN002S
	RJ45 Cat 6 UTP patch modules	TN003S
	Coax F/F module	TN010S
Telephone splitter 1 input / 4 output		TN131
	2 input / 8 output	TN111
Din rail 12 pole length		VZ854N
Patch cables RJ45 Cat 6 patch cable 0.3m		TN733B
	RJ45 Cat 6 patch cable 0.5m	TN735B
	RJ45 Cat 6 patch cable 1m	TN740B
Doors to suit VF/VS218 with vents - opaque		VZ855N
	to suit VF/VS318 with vents - opaque	VZ856N
	to suit VF/VS418 with vents - opaque	VZ857N
Segregation Plate for VZ850N		VZ851N
Cog mounting plate for Cog rail mount type devices		VZ853N
Key Lock		VZ794N

VZ853N

Coiled black cable with two connectors (no text or symbols visible)

TN735B

Description

For use as a switch isolator in all types of circuits. As defined in AS/NZS3000-2007, clause 2.3.3.2, domestic installations require no more than one main switch for each metered supply.

Technical data

AC 22B duty specification (mixed resistive and inductive loads. Not motors)

Connection capacity

Exterior view of a three-phase electrical circuit breaker (no text or symbols visible)

SBR399

Triple pole Isolating switches

Characteristics Width Cat ref
3 x 40A 400V~ 3 mod	SBR340
3 x 63A 400V~ 3 mod	SBR363
3 x 80A 400V~ 3 mod	SBR380
3 x 100A 400V~ 3 mod	SBR390
3 x 125A 400V~ 3 mod	SBR399

Exterior view of a three-phase electrical circuit breaker (no text or symbols visible)

SBR490

Four pole Isolating switches

Characteristics Width Cat ref
N 4 x 63A 400V~ neutral right 4 mod	SBR463
4 x 100A 400V~ neutral right 4 mod	SBR490

Description

Protection and control of circuits against overloads and short-circuits in residential installations.

Technical data

• Complies with AS/NZS 60898
• Tripping characteristics: magnetic level is set at 5 - 10 x In(C - curve)
• Breaking capacity: 6000A
• Voltage rating: 240/415V AC
• Current rating: 6 to 63A
• Mechanical life: 20,000 operations

- Bi-connect allowing two connection points

Connection capacity

• 25mm^2 rigid
• 16mm ^2 flexible

Two white electrical circuit breakers with different internal components (no visible text or symbols)

MSN120 MSN163R

Single pole

Current Rating (A) Width Pack Qty Cat ref

6 1 mod 12	MSN106
10 1 mod 12	MSN110
13 1 mod 12	MSN113
16 1 mod 12	MSN116
20 1 mod 12	MSN120
25 1 mod 12	MSN125
32 1 mod 12	MSN132
40 1 mod 12	MSN140
50 1 mod 12	MSN150
63 1 mod 12	MSN163
63 1 mod 12	MSN163R

MSN220

Double pole

Current Rating (A) Width Pack Qty Cat ref

6 2 mod 6	MSN206
10 2 mod 6	MSN210
16 2 mod 6	MSN216
20 2 mod 6	MSN220
25 2 mod 6	MSN225
32 2 mod 6	MSN232
40 2 mod 6	MSN240
50 2 mod 6	MSN250
63 2 mod 6	MSN263

Exterior view of a single electrical circuit breaker (no text or symbols visible)

MSN320

Triple pole

Current Rating (A) Width Pack Qty Cat ref

6 3 mod 4	MSN306
10 3 mod 4	MSN310
16 3 mod 4	MSN316
20 3 mod 4	MSN320
25 3 mod 4	MSN325
32 3 mod 4	MSN332
40 3 mod 4	MSN340
50 3 mod 4	MSN350
63 3 mod 4	MSN363

Description

RCBO's are compact combination devices which provide MCB overcurrent protection & earth leakage protection. The Type A devices, with line neutral switched, are available with various current ratings ranging from 10A - 40A.

Type A devices are designed with intrinsic features that can detect AC as well as pulsating DC residual currents.

The type A device filters out interference from modern day appliances such as TV's washing machines and LED lighting, that can potentially prevent the device from operating accurately.

Features

- Earth fault indication window - Trip free mechanisms

1 mod connection capacity

• 10mm² flexible
• 16mm² rigid

2 mod connection capacity

• 16mm² flexible
• 25mm² rigid

Specifically designed for DIN rail enclosures

Accessories

- Toggle locking device

ADC320T

1 module RCBO 6ka Type A

Residual current Im Current rating (A) Width Cat ref
30mA 10A 1 mod	ADC310T
30mA 13A 1 mod	ADC313T
30mA 16A 1 mod	ADC316T
30mA 20A 1 mod	ADC320T
30mA 25A 1 mod	ADC325T

ADA910T

2 module RCBO 6ka Type A

Residual current Im Current rating (A) Width Cat ref
10mA 10A 2 mod	ACA910T
10mA 13A 2 mod	ACA913T
10mA 16A 2 mod	ACA916T
30mA 10A 2 mod	ADA910T
30mA 13A 2 mod	ADA913T
30mA 16A 2 mod	ADA916T
30mA 20A 2 mod	ADA920T
30mA 25A 2 mod	ADA925T
30mA 32A 2 mod	ADA932T
30mA 40A 2 mod	ADA940T

Description

The safety switch is designed to open a circuit automatically in the case of a fault between phase and earth and/or neutral and earth, greater than or equal to rated tripping current. Use in domestic, commercial or industrial installations.

Features

• Conforms with IEC 60898-1, 60947-2 and AS/NZS 61008.1
• Voltage rating, 230/415V\~
• Positive contact indication windows
• Earth fault indication window
• Trip free mechanisms

Connection capacity

• 25mm ^2 - Rigid (50mm ^2 for 80A,100A)
• 16mm ^2 - Flexible (35mm ^2 for 80A, 100A)

Accessories

• Auxiliary & alarm contacts
• Toggle locking device
• Neutral links
• Shunt trip
• Undervoltage release

CDA240T

Residential

Double pole

Description Residual current Im Current rating (A) Width Cat ref.

Type A 30mA 25A 2 mod	CDA225T
30mA 40A 2 mod	CDA240T
30mA 63A 2 mod	CDA263T
Type AC 30mA 80A 2 mod	CD280T
30mA 100A 2 mod	CD284T

White electrical circuit breaker with fuses and a blue control panel (no visible text or symbols)

CDA440T

Residential

Four pole

Description Residual current Im Current rating (A) Width Cat ref.

Type A 30mA 25A 4 mod	CDA425T
30mA 40A 4 mod	CDA440T
30mA 63A 4 mod	CDA463T
30mA 80A 4 mod	CD481T
30mA 100A 4 mod	CD485T

Description

A range of connection devices to simplify installation of modular devices such as MCB's, RCD's etc...

KDN180A

Insulated busbars - Fork type

Characteristics Width Cat ref
1 phase 80A 12 mod	KDN180A
1 phase 80A 18 mod	KDN180G
2 phase 80A 12 mod	KDN280A
3 phase 80A 12 mod	KDN380A
3 phase 80A 18 mod	KDN380G

KB181GI

Insulated busbars - Tongue type

Characteristics Width Cat ref
6 tongue 12 mod	KB181A1
9 tongue 18 mod	KB181G1

KZ059

Insulated caps

Description Characteristics Cat ref
Busbar end caps Suits KDN1xx & KB181xx	KB181A1
Busbar end caps Suits KDN2XX/KDN3XX	KB181G1
Fork caps - yellow	KZ059

KRN163

Cable Connectors

Characteristics Cat ref
Tongue type connection from top for cables: 25mm	KF81A
Tongue type connection from top for cables: 2 x 16mm	KF82A
Tongue type connection from side for cables: 35mm ^2	KF83A
Tongue type connection from side of cables: 35mm ^2 with longer tongue	KF83D
Tongue type connection from side of cables: 35mm ^2 with longer insulated tongue	KF83F
Fork type connection from side for cables: 25mm ^2	KF84A
DIN mounted	KRN163

Close-up of a small electronic component labeled KM03A, showing two blue circular components and a close-up of its wiring (no readable text or symbols)

Other accessories

Description Characteristics Cat ref
RCD neutral links 3 tunnel link for fitting to RCD's		KM03A
Cable adaptor 35mm	^2 to suit golf enclosure	KM035

Cable entries

top/bottom

• One side of the surface enclosure is designed for use of trunking and knock outs. The other side of the enclosure has dimples located for the various sizes of conduit entries, 20mm, 25mm, 32mm and 40mm. The enclosure is symmetrical through 180°.
• For flush enclosures, Precut with diameters 20, 25, 32 and 40mm, the wall box is 180^ rotatable, to provide slider position on top or bottom.

Surface Ref		Dimension Wall		fixation
		A	H	E	F	G
VS104...	1 row 4 138	184	101	68	58
VS108...	1 row 8 210	184	174	68	58
VS112...	1 row 12 282	252	22	2	136	58
VS212...	2 row 12 282	377	22	2	261	58
VS312...	3 row 12 282	500	22	2	386	58
VS412...	4 row 12 282	647	22	2	491	78
VS118...	1 row 18 390	252	33	0	136	58
VS218...	2 row 18 390	377	33	0	261	58
VS318...	3 row 18 390	500	33	0	386	58
VS418...	4 row 18 390	647	33	0	491	78
VS122...	1 row 22 462	252	40	2	136	58

Flush Ref Dimension		Wall Cut Out
		A H E F
VF104...	1 row 4 20	4 225 170	189
VF108...	1 row 8 27	5 225 242	189
VF112...	1 row 12 3	52 293 31	8 257
VF212...	2 row 12 3	52 418 31	8 382
VF412...	4 row 12 3	52 688 31	8 652
VF118...	1 row 18 4	60 293 42	6 257
VF218...	2 row 18 4	60 418 42	6 382
VF318...	3 row 18 4	60 543 42	6 507
VF418...	4 row 18 4	60 688 42	6 652
VF122...	1 row 22 5	32 293 49	8 257

For the wall cut out, these dimensions are minimal. Depth must always be 72mm min.

Cutout for combined boards utilising double slider (Flush enclosures only)

When connecting 2 x VFx18 enclosures with a double slider, an additional 38mm must be added to the total cutout height of the boards.

e.g. VF118PT joining with a VF218PZD = 257mm + 382mm + 38mm.

Total height for the cutout = 677mm.

Width of the cutout remains consistent at 426mm.

NOTE: Joining double slider for use with 18 module wide flush enclosures only.

	MSNxxx ADCxxxT ADAxxxT CDAxxxT
	1P, 2P & 3P MCBs 1 mod.	RCBOs 2 mod. RCBOs 2P & 4P RCCBs
Rated current (In): 6A to 63A 10A to 32A			10A to 40A (30mA) ;10A to 16A (10mA)	25A to 63A
Rated voltage (Un)	230V to 240V (1P & 2P),400V to 415V (3P)	240V 240V 240V
Curve Type: C C C -
Rated residual operatingcurrent (IΔn)	- 30mA 10mA, 30mA 30mA
Operating characteristic: - Type A Type A Type A
Rated Frequency: 50/60Hz 50Hz	50Hz	50Hz
Rated short-circuit capacity(Icn):	6000A	6000A	6000A	-
Residual making and breakingcapacity	- 4500A	4500A	1500A
IP rating:	IP2x terminals	IP2x terminals	IP2x terminals	IP2x terminals
Standard:	AS/NZS 60898	AS/NZS 61009-1	AS/NZS 61009-1	AS/NZS 61009-1
Approval:	RCM logo	RCM logo	RCM logo	RCM logo
Maximum service voltage:	60V	253V 240V 240V (2P) - 415V (4P)
Minimum service voltage:	250/440V	85V	127V	127V (2P) - 240V (4P)
Technology	-	Line voltagedependent tripping	Line non-voltagedependent tripping	Line non-voltagedependent tripping
Power supply (line side):	Feed either topor bottom	Bottom	Feed either topor bottom	Feed either topor bottom
Isolation application:	Yes (IEC 60898)	Yes (IEC 61009-1)	Yes (IEC 61009-1)	Yes (IEC 61008-1)
Operating temperature:	-25°C to + 60°C	- 5°C to + 55 °C	-25°C to + 40°C	-25°C to + 40°C
Storage temperature:	-25°C to + 80°C	- 25°C to + 80 °C	-55°C to + 70°C	-55°C to + 70°C
Terminal capacity (top):	Rigid or strandedconductor:1 mm2 to 25 mm2	Rigid or strandedconductor:1 mm2 to 16 mm2(or 2x 6 mm2)	Rigid or strandedconductor:1 mm2 to 25 mm2	Rigid or strandedconductor:1 mm2 to 25 mm2
Terminal capacity (bottom):	Rigid or strandedconductor:1 mm2 to 25 mm2	Rigid or strandedconductor:1 mm2 to 16 mm2	Rigid or strandedconductor:1 mm2 to 25 mm2	Rigid or strandedconductor:1 mm2 to 25 mm2
Terminal torque (top/bottom):	2.5 Nm nominal with size2 pozidrive screw headand 6mm slot	2.3 Nm nominal with size2 pozidrive screw headand 6mm slot	2 Nm nominal with size 2pozidrive screw head and6mm slot	2.8 Nm nominal with size2 pozidrive screw headand 6mm slot
Busbar system:	Yes, fork	Yes, fork	Yes, fork	Yes, fork
Neutral lead length:	NA	1000 mm	NA	NA

Hager Electro Pty Ltd

1/170 Power Street

Glendenning NSW 2761

www.hagerelectro.com.au

Nationwide sales

Ph 1300 850 253

Fx 1300 424 372

Email: [e-mail]

Grid of empty rounded squares with one highlighted in blue (no text or symbols)

DISCLAIMER: Whilst every effort has been made to ensure the reliability of the information is correct at time of publication, Hager cannot guarantee the accuracy of all of the information contained herein. Changes/updates brought to the attention of Hager, once verified, will be corrected in future editions.
