Product Type	Electric Kettle
Brand	Ravanson
Model	CB-1709
Capacity	1.7 Liters
Power	1500-2000 W
Voltage	220-240 V ~ 50/60 Hz
Material	Stainless Steel Body and Plastic Lid
Dimensions (W x D x H)	22 x 15 x 24 cm
Weight	0.8 kg
Cord Length	Approx. 70 cm
Heating Element	Concealed stainless steel
Auto Shut-Off	Yes, when water boils
Boil-Dry Protection	Yes (automatic shut-off if empty)
Base Type	360° swivel cordless base
Filter	Removable scale filter
Lid Opening	One-button push opening
Water Level Indicator	Yes, transparent window with marks
Keep Warm Function	No
Cleaning	Descale regularly with vinegar or citric acid
Safety Certifications	CE, RoHS

Frequently Asked Questions - CB-1709 Ravanson

What is the capacity of the Ravanson CB-1709 kettle?

The Ravanson CB-1709 has a capacity of 1.7 liters, ideal for boiling water for tea, coffee, or cooking.

Does the kettle have automatic shut-off?

Yes, the kettle automatically shuts off once the water reaches boiling point. It also has boil-dry protection to prevent damage if operated without water.

How do I clean the kettle?

Regular cleaning is recommended. Fill the kettle with a mixture of water and white vinegar or citric acid, boil, let sit for 15 minutes, then rinse thoroughly. Do not use abrasive cleaners.

Is the kettle cordless?

Yes, the kettle is cordless and sits on a 360° swivel base, making it easy to lift and pour from any angle.

What material is the kettle made of?

The body is made of stainless steel, and the lid is plastic. The heating element is concealed stainless steel for easy cleaning.

Can I use the kettle to keep water warm?

No, the Ravanson CB-1709 does not have a keep warm function. It is designed for boiling water only.

How do I remove scale buildup?

Use the removable scale filter to catch particles. For descaling, boil a solution of water and vinegar or a commercial descaler, then rinse.

What is the power consumption?

The kettle operates at 1500-2000 watts depending on the voltage (220-240 V). This allows for fast boiling.

Is the kettle safe to leave unattended?

While the kettle has auto shut-off and boil-dry protection, it is recommended to not leave it unattended during use for safety.

What should I do if the kettle does not turn on?

Check that the base is properly connected to power and the kettle is seated correctly. If it still doesn't work, contact Ravanson customer support for assistance.

USER MANUAL CB-1709 Ravanson

ENG User's manual Electric kettle

MODEL:

CB-1707 / CB-1709 / CB-1001

Producent:

Before first use, always read the safety instructions and warnings included in this guide.

Failure to observe the below mentioned safety warnings and safety guidelines for may cause to electric shock, fire and/or serious injuries.

Keep safety instructions and warnings at hand for future reference.

GENER3L S3FETY GUIDELINES

This3appliance3is3not3intended3for3use3by3persons3(including3children)3 with33reduced33physical,33sensory33or33mental33capabilities,33or33lack33of experience3and3knowledge,3unless3they3have3been3given3supervision3 or33instruction33concerning33use33of33the33appliances33by33a33person3 responsible3for3their3safety3

Do33not33allow33children33to33use33the33appliance33as33a33toy.33Cleaning maintenance3by3children3without3supervision3is3not3allowed.3

Children33are3not33aware3of33dangers33that33may3arise33during33the33use electric3devices.3

Keep33the33appliance33and33corresponding33cord33out33of33the33reach33children.3

Do3not3operate3the3appliance3with3a3damaged3cord.33

Damaged3power3cord3must3be3replaced3by3manufacturer,3authorized3

service3centre3or3other3qualified3persons3in3order3to3avoid3risk.3

Do33not33allow33the33power33cord33to33touch33sharp33edges33or3hot33si

Damaged3cord3poses3a3risk3of3electric3shock.3

Do3not3place3the3appliance3on3hot3surfaces.3

The3plug3must3fit3the3socket.3

The3plug3must3not3be3modified3in3any3way.3

Do3not3use3outside.3Do3not3expose3to3rain.3Protect3against3humidity.3

Do3not3operate3with3wet3hands.3

The3kettle3is3for3household3use3only.3Do3not3use3outdoors.3

Do33not3place33on33or33near3a3hot33gas3or33electric33burner33or33in33a5oven.3

Do33not33operate33the33appliance33without33anything33in33it33to33avoid3damaging3the3heat3elements.3

Use3only3a3soft3damp3(not3wet)3cloth3with3mild3detergent3to3clean3the3 appliance.3Do3not3use3solvents,3petrol3or3other3measures3that3would3 damage3the3device.3

Store3in3a3dry3place3protected3against3humidity3and3dust.3

Transport33in33an33original33packaging33that33protects33against33mechanic damages.3

The3appliance3must3be3repaired3only3by3a3qualified3person3and3with3the3use3of3original3spare3parts.3

The3use3of3accessories,3which3are3not3recommended3by3the3appliance3manufacturer,3may3result3in3fire,3electric3shock3or3personal3injury.3

Do3not3leave3the3appliance3running3unattended.3

If3the3kettle3is3overfilled,3boiling3water3may3spurt3out3of3it.3

The3kettle3may3be3used3only3with3the3provided3base.3

To3avoid3electric3shock,3do3not3immerse3the3cable3or3plug3in3water3or3other3liquid.3

Before3 connecting3 the3 kettle3 to3 the3 power3 supply,3 check3 that3 the voltage33indicated33on33the33appliance33(underside33the33kettle33&33base corresponds33with33the33voltage33in33your33home.33If33this33is33not33the contact3your3dealer3and3stop3using3the3kettle.3

Do3not3use3the3appliance3if3it3shows3any3signs3of3damage3to3the3cable3or3if3the3appliance3has3been3dropped3on3the3floor.3

The3appliance3generates3heat.33

Always3take3care33to3pour3boiling3water33slowly33and3carefully3without3tipping3the3kettle3too3fast.3

Extreme3caution3must3be3used3when3moving3an3appliance3containing3hot3water.3

There is a risk of burn caused by the escaping water or steam. Do not touch any parts of the kettle except the handle when the appliance is being used and make sure the lid is properly closed. The appliance is suitable only for heating water. Do not pour other liquids into the kettle.

3TTENTION!3The appliance is not provided for operating with use of external sleep timers or separate remote control systems.

3TTENTION!33accessible surfaces may become hot during operation.

It is recommended to connect the device to the power supply network equipped with a residual current device (RCD) with a switch-off current of 30mA or less.

After use, always remove the power plug from the socket; do so as well in the case of any malfunction.

Before cleaning, unplug from the mains.

Store and transport in a package protecting against dust, moisture and mechanical damages.

After the water is boiled, the kettle switches off automatically. Use the switch button to turn the kettle off before the water is boiled.

After the kettle switches off automatically (or when it was switched off manually), it may take some time (15 - 20 seconds needed to cool down) for the kettle to be ready to be used again.

Despite proper use of the device and following all safety guidelines, some specific residual risks cannot be completely eliminated.

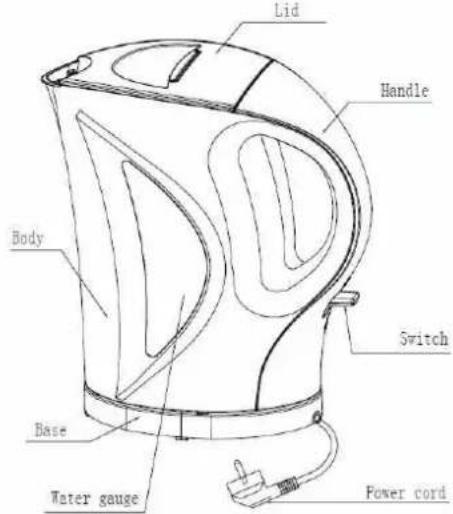

PARTS DESCRIPTION

CB-1709

PURPOSE AND USE

This appliance is intended for household and similar applications, such as:

• kitchens in shops, offices, and other working environments
• households
• by customers in hotels, motels, and other residential environments
• lodgings, breakfast rooms, and similar environments

Attention! Make sure that the power source to which the appliance is to be connected is accordant with the parameters specified on the rating plate.

TECHNICAL PARAMETERS

CB-1001 CB-1707 CB-1709
Voltage 220 – 240 V 220 – 240 V 220 – 240 V
Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Rated power 1000 – 1200 W 1850 – 2000 W 1850 – 2000 W

BEFORE FIRST USE

Before first use, rinse the kettle and boil water in it several times (min 3 x), using clean water for each cooking cycle and filling the kettle to the top of the label.

Place the base on a stable and level surface.

Pour the required amount of clean water into the kettle. Do not touch any parts of the kettle except the handle when the appliance is working5 make sure the lid is properly closed. You may check the amount of water on the level indicator on the outside of the kettle.

Always fill the appliance above the specified minimum level. Never fill the appliance above the specified maximum level.

Always make sure that the lid is properly and tightly closed.

Place the kettle on the base so that the bottom of the kettle fits precisely to the base.

Insert the plug into the wall socket.

Set the switch to position "1" (on) to start the heating process5 the indicator light will go on.

When the water is boiled, the switch automatically returns to the position "O" (off), and the indicator light goes off. The kettle may also be switched off manually by turning the switch to "O."

If the appliance switches off before the water is boiled, the kettle should be decalcified, descaled. In order to remove the scale, you may use any descaler.

Please follow the instructions provided by the manufacturers of descalers.

After descaling, the kettle should be thoroughly washed like before first use.

Should you accidentally let the kettle operate without water, the boil-dry protection will automatically switch off the power. If this occurs, allow the kettle to cool before filling with cold water to reboil.

CLE3NING 3ND C3RE

For cleaning the appliance use a soft and damp (not wet) cloth and a delicate cleaning agent. For cleaning surfaces in contact with food use a cleaning agent provided for such surfaces. Follow the guidelines of the cleaning agent's manufacturer. Do not use solvents, gasoline and other agents which may damage the appliance.

REMOV3L OF MINER3L DEPOSITS

Your kettle should be periodically descaled as the mineral deposits in tap water may form scale at the bottom of kettle interior so as to cause the operation less efficiency. You can use the commercially available descaler and follow the instructions on the package of descaler. Alternatively, you may follow the below instructions to use the white vinegar.

1. Fill the kettle with 3 cups of white vinegar, then adding water to the amount so as to cover the bottom of kettle completely. Leave the solution in the kettle overnight.

2. Then discard the mixture in the kettle, then filling the kettle with clean water, boiling and then discard the water. Repeat several times until the odor of vinegar has been flushed away. Any stains remaining inside the spout can be removed by rubbing with a damp cloth.

TROUBLESHOOTING

Disconnect from the mains and contact authorized service centre for possible repair.

TR3NSPORT3TION 3ND STOR3GE

Before putting the device away, wait until it cools down. Keep and store in a package protecting from humidity and mechanical damages. Keep away from children.

Such a marking informs that this equipment cannot be disposed of together with other household waste. The user is obliged to pass the device to a company authorized to dispose of electronic/electric devices. Both the person who deals with direct disposal, shops and other local units make a system enabling to dispose of the device. Proper procedures concerning electric/electronic equipment disposal are intended to avoid any harmful impact to humans and environment resulting from dangerous components and improper storage or processing of the devices. Substances having negative environmental impact have been reduced to make the

product safer after its disposal.
