DK-LV-MF - Faucets Irritrol - Free user manual and instructions

Product Type	Drip Zone Kit (Less Valve)
Brand	Irritrol
Model	DK-LV-MF (Medium Flow)
Maximum Supply Pressure	150 psi
Downstream Pressure Regulation	25 psi
Flow Rate at 25 psi (MF Model)	2–20 GPM
Filtration	150 Mesh Stainless Steel Screen
Included Components	Pressure Regulator (25 psi, 3/4" FNPT), Y-Filter (3/4" MPT x MPT, 150 mesh), Drip Line Compression Adapter (CA-710), 1" x 3/4" Male NPT Reducer Bushing, 3/4" MPT x 1/2" Slip Fitting
Connection Size	3/4" NPT
Valve Not Included	Yes (kit without valve)
Required Solenoid Valve	24 VAC, 50/60 Hz (not included)
Installation Tape	PTFE tape, 1½ to 2 turns on male threads
Installation Orientation	Flow direction arrows must be followed; Y-filter angled slightly downward
Recommended Installation	Below grade in a valve box
Flush Requirement	Flush system after installation to remove debris
Maximum Drip Emitters (0.5 GPH)	240–2400
Maximum Drip Emitters (1.0 GPH)	120–1200
Maximum Drip Emitters (2.0 GPH)	60–600
Material	Brass and plastic (assumed based on components)
Warranty	Refer to Irritrol warranty policy

Frequently Asked Questions - DK-LV-MF Irritrol

What is the Irritrol DK-LV-MF Drip Zone Kit?

The DK-LV-MF is a drip zone kit without a valve, designed for medium flow applications (2-20 GPM at 25 psi). It includes a pressure regulator, Y-filter, compression adapter, and fittings to connect to a drip irrigation system.

What is the maximum supply pressure for this kit?

The maximum supply pressure is 150 psi. The downstream pressure is regulated to 25 psi.

What flow rate does the DK-LV-MF support?

The medium flow model supports a flow rate of 2 to 20 GPM at the regulated pressure of 25 psi.

What filtration is included in the kit?

The kit includes a 3/4" MPT x MPT Y-filter with a 150 mesh stainless steel screen to protect downstream components.

How should I install the Y-filter and pressure regulator?

Use PTFE tape (1½ to 2 turns) on male threads. Ensure components are oriented according to flow direction arrows. Angle the Y-filter slightly downward. Do not use pipe dope.

Can I install this kit underground?

Yes, installation below grade in a valve box is recommended for protection and ease of service.

How do I adapt the kit for dripline?

Install the provided 3/4" MPT x 1/2" slip fitting and CA-710 dripline compression adapter onto the pressure regulator outlet.

How many drip emitters can I connect to this kit?

Refer to the emitter table: For 0.5 GPH emitters, 240-2400; for 1.0 GPH, 120-1200; for 2.0 GPH, 60-600. These ranges are for the medium flow model.

Do I need to flush the system after installation?

Yes, it is important to flush the system to remove debris before operating with drip emitters.

What type of valve can I use with this kit?

The kit is designed to be used with a separate electric control valve (not included). Compatible valves include Irritrol 2500TF, 2711APR, 700B-.75, or 700-1 series, typically 24 VAC solenoid operated.

USER MANUAL DK-LV-MF Irritrol

Click on the links to view the documents.

Drip Zone Valve Kit

Models 2500DK-1-LF and 2500DK-1-MF

Installation Instructions

373-0512 Revision B

Drip Zone Valve Kit

Models 2711APRDK-LF and 2711APRDK-MF

Installation Instructions

373-0513 Revision B

Drip Zone Valve Kit

Models 2713APRDK-LF and 2713APRDK-MF

Installation Instructions

373-0514 Revision B

Drip Zone Valve Kit

Models 700DK-075-LF

Installation Instructions

373-0515 Revision B

Drip Zone Valve Kit

Models 700DK-1-LF and 700DK-1-MF

Installation Instructions

373-0516 Revision B

Drip Zone Kit - Less Valve

Models DK-LV-LF and DK-LV-MF

Installation Instructions

373-0535 Revision A

Drip Zone Valve Kit Models 2500DK-1-LF and 2500DK-1-MF Installation Instructions

Kit Components

• Irritrol 2500 Series Valve, Model 2500TF
• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT (Low Flow [LF] model)
• Pressure Regulator - 25 psi at 2–20 GPM, 3/4" Female NPT (Medium Flow [MF] model)
  • 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
  • 1" x 3/4" Male NPT Reducer Bushing
  • 3/4" MPT x 1/2" Slip Fitting

Specifications

• Downstream Pressure Regulation: 25 psi
• Flow Rate at 25 psi: (LF Model) 0.1–8 GPM (MF Model) 2–20 GPM
  • Filtration: 150 Mesh Stainless Steel Screen
  • 1" In-line Electric Control Valve, Model 2500TF
  ♦ Operating Pressure: 10–150 psi
  ♦ 24 VAC, 50/60 Hz Solenoid
  ♦ Inrush: 0.40 amp, 9.6 VA
  ♦ Holding: 0.20 amp, 4.8 VA
  • Manual On/Off - Internal and External Bleed
• Adjustable Flow Control

Installation Procedure

CAUTION: When assembling the drip zone valve kit components, use just 1 12 to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.

⚠️ Important: Ensure the Y-filter, control valve and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the Y-filter inlet into the valve outlet with the provided 1" x 3/4" NPT reducer bushing. Use PTFE tape on all threaded connections. Angle the Y-filter slightly downward as shown in Figure 1.
2. Thread the pressure regulator inlet into the Y-filter outlet.
3. Connect the water source supply line and piping to drip emitters.

NOTE: Installing the valve assembly below grade in a valve box is recommended for protection and ease of service.

NOTE: Refer to the 2500TF Series Valve Instruction Guide provided in the kit for complete valve installation and operation information.

NOTE: To adapt the Drip Zone Valve Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.
2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

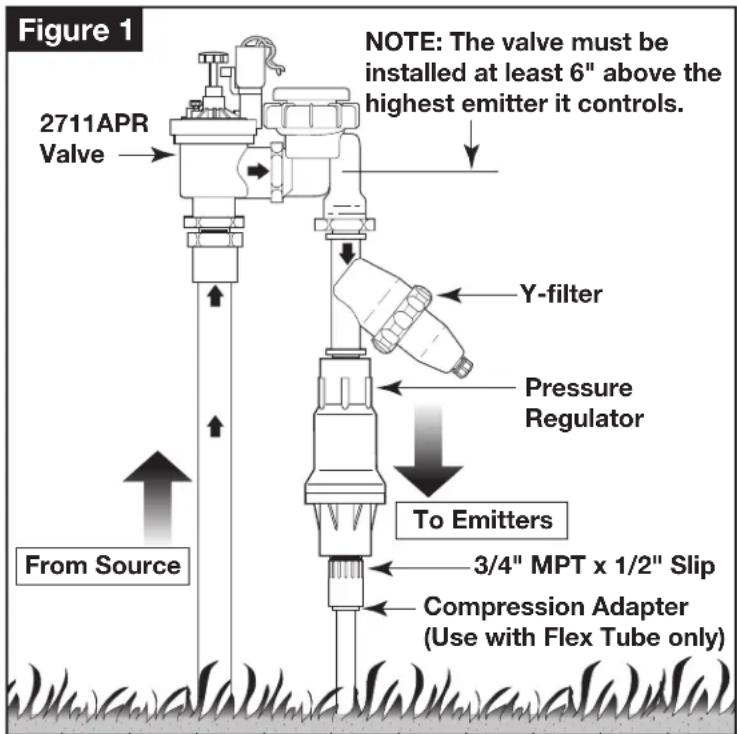

Drip Zone Valve Kit Models 2711APRDK-LF and 2711APRDK-MF Installation Instructions

Kit Components

• Irritrol 2700 Series Valve, Model 2711APR
• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT (Low Flow [LF] model)
• Pressure Regulator - 25 psi at 2–20 GPM, 3/4" Female NPT (Medium Flow [MF] model)
• 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
• 3/4" MPT x 1/2" Slip Fitting

Specifications

• Downstream Pressure Regulation: 25 psi
• Flow Rate at 25 psi: (LF Model) 0.1–8 GPM (MF Model) 2–20 GPM
  • Filtration: 150 Mesh Stainless Steel Screen
• 3/4" Anti-siphon Electric Control Valve, Model 2711APR
  ♦ Operating Pressure: 10–150 psi
  ♦ 24 VAC, 50/60 Hz Solenoid
  ♦ Inrush: 0.40 amp, 9.6 VA
  ♦ Holding: 0.20 amp, 4.8 VA
• Manual On/Off - Internal and External Bleed
  ♦ Adjustable Flow Control

Installation Procedure

CAUTION: When assembling the drip zone valve kit components, use just 1½ to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.
⚠️ Important: Ensure the Y-filter, control valve and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the Y-filter inlet into the valve outlet. Use PTFE tape on all threaded connections. Angle the Y-filter slightly downward as shown in Figure 1.

2. Thread the pressure regulator inlet into the Y-filter outlet.

3. Connect the water source supply line and piping to drip emitters.

NOTE: Refer to the 2711APR Series Valve Instruction Guide provided in the kit for complete valve installation and operation information.

NOTE: To adapt the Drip Zone Valve Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.

2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

©

Kit Components

• Irritrol 700 Series Valve, Model 700B-.75
• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT
  • 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
  • 3/4" MPT x 1/2" Slip Fitting

Specifications

• Downstream Pressure Regulation: 25 psi
  • Flow Rate at 25 psi: 0.1–8 GPM
  • Filtration: 150 Mesh Stainless Steel Screen
  • 1" In-line Electric Control Valve, Model 700B-.75
  ♦ Operating Pressure: 10–150 psi
  ♦ 24 VAC, 50/60 Hz Solenoid
  • Inrush: 0.40 amp, 9.6 VA
  ♦ Holding: 0.20 amp, 4.8 VA
• Manual On/Off - Internal and External Bleed
• Adjustable Flow Control

Installation Procedure

CAUTION: When assembling the drip zone valve kit components, use just 1 ½ to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.

⚠️ Important: Ensure the Y-filter, control valve and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the Y-filter inlet into the valve outlet. Use PTFE tape on all threaded connections. Angle the Y-filter slightly downward as shown in Figure 1.
2. Thread the pressure regulator inlet into the Y-filter outlet.
3. Connect the water source supply line and piping to drip emitters.

NOTE: Installing the valve assembly below grade in a valve box is recommended for protection and ease of service.

NOTE: Refer to the 700 Series Valve Instruction Guide provided in the kit for complete valve installation and operation information.

NOTE: To adapt the Drip Zone Valve Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.
2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

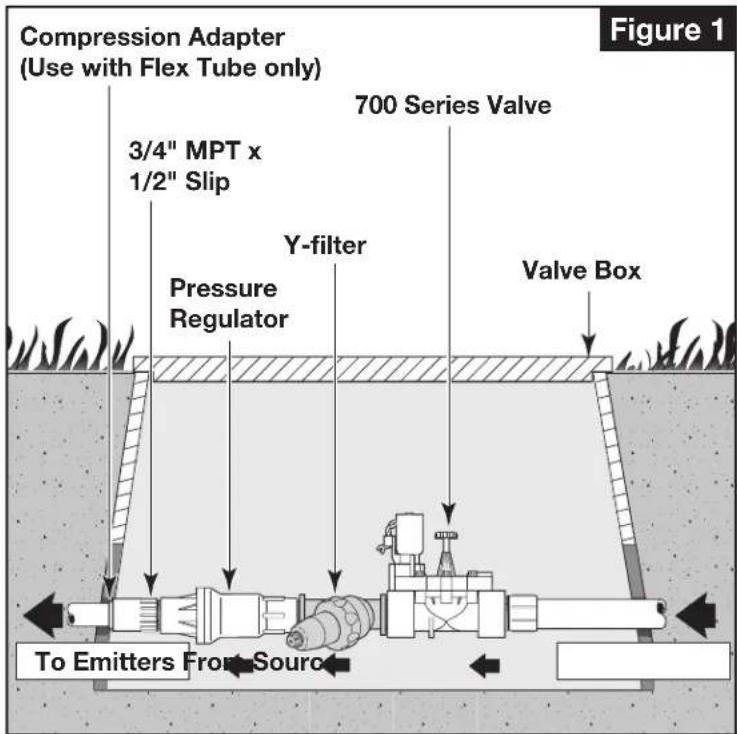

Irritrol®

Get more done™

Drip Zone Valve Kit Models 700DK-1-LF and 700DK-1-MF Installation Instructions

Kit Components

• Irritrol 700 Series Valve, Model 700-1
• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT (Low Flow [LF] model)
• Pressure Regulator - 25 psi at 2–20 GPM, 3/4" Female NPT (Medium Flow [MF] model)
  • 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
  • 1" x 3/4" Male NPT Reducer Bushing
  • 3/4" MPT x 1/2" Slip Fitting

Specifications

• Downstream Pressure Regulation: 25 psi
• Flow Rate at 25 psi: (LF model) 0.1–8 GPM (MF model) 2–20 GPM
  • Filtration: 150 Mesh Stainless Steel Screen
  • 1" In-line Electric Control Valve, Model 700-1
  ♦ Operating Pressure: 10–150 psi
  • 24 VAC, 50/60 Hz Solenoid
  ♦ Inrush: 0.40 amp, 9.6 VA
  ♦ Holding: 0.20 amp, 4.8 VA
• Manual On/Off - Internal and External Bleed
• Adjustable Flow Control

Installation Procedure

CAUTION: When assembling the drip zone valve kit components, use just 1 ½ to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.

⚠️ Important: Ensure the Y-filter, control valve and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the Y-filter inlet into the valve outlet with the provided 1" x 3/4" NPT reducer bushing. Use PTFE tape on all threaded connections. Angle the Y-filter slightly downward as shown in Figure 1.
2. Thread the pressure regulator inlet into the Y-filter outlet.
3. Connect the water source supply line and piping to drip emitters.

NOTE: Installing the valve assembly below grade in a valve box is recommended for protection and ease of service.

NOTE: Refer to the 700 Series Valve Instruction Guide provided in the kit for complete valve installation and operation information.

NOTE: To adapt the Drip Zone Valve Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.
2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

Irritrol®

Get more done™

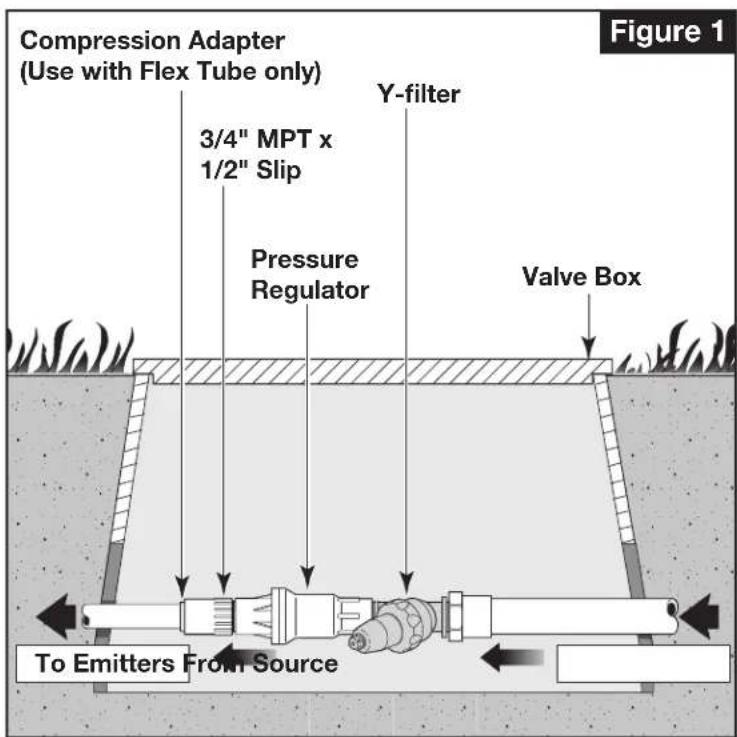

Drip Zone Kit - Less Valve Models DK-LV-LF and DK-LV-MF Installation Instructions

Kit Components

• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT (Low Flow [LF] model)
• Pressure Regulator - 25 psi at 2–20 GPM, 3/4" Female NPT (Medium Flow [MF] model)
  • 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
• 1" x 3/4" Male NPT Reducer Bushing
• 3/4" MPT x 1/2" Slip Fitting

Specifications

• Maximum Supply Pressure: 150 psi
- Downstream Pressure Regulation: 25 psi
- Flow Rate at 25 psi: (LF model) 0.1–8 GPM (MF model) 2–20 GPM
• Filtration: 150 Mesh Stainless Steel Screen

Installation Procedure

CAUTION: When assembling the drip zone kit components, use just 1 12 to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.

⚠️ Important: Ensure the Y-filter and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the pressure regulator inlet into the Y-filter outlet.
2. Connect the water source supply line and piping to drip emitters.

NOTE: Installing the assembly below grade in a valve box is recommended for protection and ease of service.

NOTE: To adapt the Drip Zone Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.

2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

© Irritrol • www.irritrol.com • For Technical Assistance, call 1-800-333-3125 Part Number 373-0535 revision A
