Your Creations 18962 - Kitchen appliance RUSSELL HOBBS - Free user manual and instructions

Product Type	Hand Mixer
Brand	Russell Hobbs
Model	Your Creations 18962
Power	250 W (approx.)
Speed Settings	5 speeds + Turbo boost
Attachments Included	2 wire whisks, 2 dough hooks, 1 balloon whisk
Maximum Continuous Operation	5 minutes
Rest Period Required	5 minutes
Material	Plastic body, stainless steel attachments
Weight	1.0 kg (approx.)
Dimensions (H x W x D)	20 x 10 x 15 cm (approx.)
Voltage	220-240 V (UK)
Cord Length	1.8 m (approx.)
Safety Features	Overheat protection via rest requirement, non-immersion design
Care and Cleaning	Wipe with damp cloth; attachments dishwasher safe
Guarantee	2 years
Controls	Slide switch, eject button, turbo button

Frequently Asked Questions - Your Creations 18962 RUSSELL HOBBS

How do I attach the whisk or dough hook?

Ensure the mixer is switched off (O). Align the pips on the shaft with the slots in the drive head, then push until it clicks into place. Use either both wire whisks or both dough hooks; do not mix them.

Can I use the mixer continuously for more than 5 minutes?

No. The manual states you must not run the mixer for more than 5 minutes at a time. After 5 minutes, let it rest for 5 minutes to avoid overheating.

How do I clean the attachments?

Switch off and unplug the mixer. Wash the whisks and hooks in hot soapy water or place them in the cutlery basket of your dishwasher. Wipe the outer surfaces with a damp cloth.

What is the turbo button for?

The turbo button (Ⓞ) provides a burst of high speed when the motor is already running (speed 1 to 4). Press it to override the current speed setting.

Can I knead dough with this mixer?

The dough hooks are for mixing ingredients only, not for kneading. Kneading may overload the motor. It is recommended to knead dough by hand for better results.

What should I do if the mixer starts to labour?

If the motor labours, add more liquid to the mix if possible, or switch off (O) and continue mixing by hand. Do not force the mixer.

Is the mixer suitable for all types of mixtures?

Use wire whisks for light dough and batter, balloon whisk for egg whites and cream, and dough hooks for heavier dough like bread or fruit-cake. Adjust speed and time according to the mixture's thickness and composition.

How do I remove the attachments safely?

Switch off (O) and unplug the mixer. Hold both whisks/hooks to prevent them from jumping out, then press the eject button (▲) to release them from the drive heads.

Where can I find the model number for support?

The model number is on the rating plate, usually underneath the product. For this model, it is 'Your Creations 18962'. Keep it handy when contacting customer service.

Does the mixer come with a guarantee?

Yes, it comes with a 2-year guarantee against defects affecting functionality from the first retail purchase. Register online within 28 days for an extra year guarantee and prize draw entry.

USER MANUAL Your Creations 18962 RUSSELL HOBBS

instructions

£10,000 prize draw EXTRA year guarantee FREE rewards gallery www.russellhobbs.co.uk/productregister/ Register online now! See back for details

Read the instructions, keep them safe, pass them on if you pass the mixer on. Remove all packaging before use.

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children must not use or play with the appliance.

Keep the appliance and cable out of reach of children.

Misuse of the appliance may cause injury.

Unplug the appliance before assembly, disassembly, or cleaning.

Don't leave the appliance unattended while plugged in. If the cable is damaged, return the appliance, to avoid any hazard.

• Don't immerse the appliance in liquid.
• Keep fingers, hair, clothing and kitchen utensils clear of the whisks/hooks.
• Don't let anything enter the vents.
• Don't use accessories or attachments other than those we supply.
• Don’t use the appliance if it’s damaged or malfunctions.
• Don't use the appliance for any purpose other than those described in these instructions.
• Route the cable so it doesn't overhang, and can't be tripped over or caught.
• Don't run the mixer for more than 5 minutes at a time, or it'll overheat. After 5 minutes, let it rest for 5 minutes.

HOUSEHOLD USE ONLY

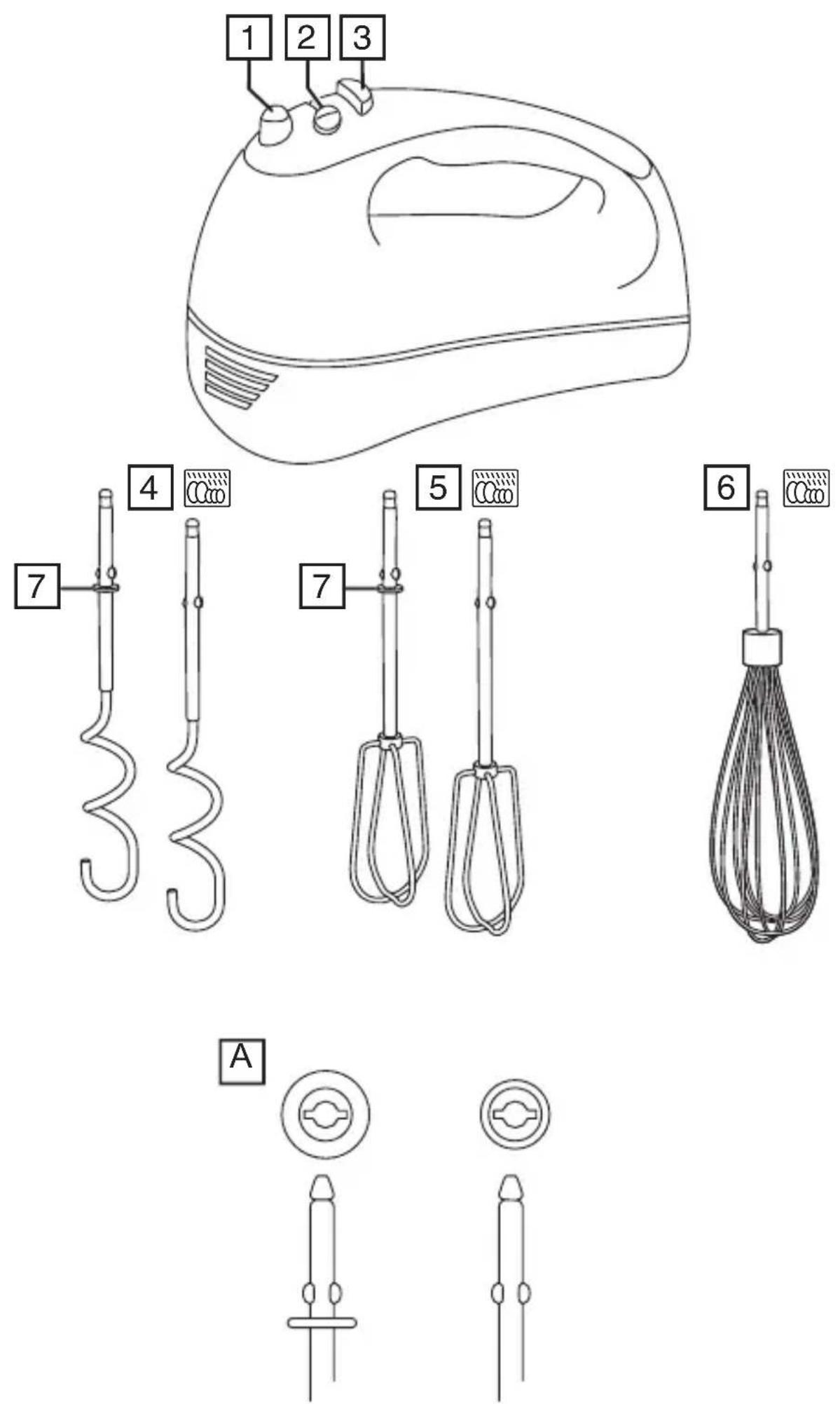

PARTS

1. Eject button
2. Speed control
3. Turbo button Ⓞ

4. Dough hooks

5. Wire whisks

6. Balloon whisk
7. Flange

FITTING THE ATTACHMENTS

1. Switch off (O) before fitting or removing the whisks/hooks.
2. Use both wire whisks or both hooks, don't mix them.
3. Fit the wire whisk/hook with the flange to the drive head with the large hole (FIG A).
4. You may fit the balloon whisk to either drive head.
5. Align the pips on the shaft with the slots in the drive head.
6. Push the shaft into the drive head till it clicks into place.

REMOVING THE ATTACHMENTS

1. Switch off (O) and unplug the mixer, then shake any excess mixture into the mixing bowl.
2. Hold both whisks/hooks, to prevent them jumping out, then press ▲ to eject them from the drive heads.

USING YOUR MIXER

1. Move the switch to the right to switch on.
2. Choose a speed between 1 (low), and 5 (high).
3. Slide the switch fully left (O) to switch off.
4. Press the turbo button Ⓞ to over-ride the speed switch, for a burst of high speed. This only works when the motor is already running (1 to 4).

TIMINGS AND SPEEDS

• If you're using a recipe book, follow the recipe.
• If you've no recipe, you'll need to experiment to find the best settings.
• Timing and speed will vary with the amount, thickness, and composition of the mix.
• Generally, large quantities, thick mixes, and a high ratio of solids to liquids need longer timings and slower speeds.
• Smaller quantities, thinner mixes, and more liquids than solids need shorter timings and higher speeds.

- Speed and timing aren't critical. If you're unsure, use short bursts.

HINTS AND TIPS

• Use the wire whisks for beating/aerating light dough and batter.
• Use the balloon whisk for beating/aerating egg whites and cream.
• To avoid splashing, don’t start the mixer till the whisks are immersed in the food/liquid to be mixed.
• Use the hooks for heavier dough (e.g. bread, fruit-cake).
• Don't use the hooks for kneading dough, just for mixing the ingredients. Kneading will overload the motor.
• Kneading dough by hand is kinder, and gives better results.
• If you need to set the mixer down, switch off (O), and shake any mixture off the whisks/hooks before removing them from the mixing bowl.
• You may stand the mixer on its end.
• Don't run the mixer for more than 5 minutes at a time. After 5 minutes, let it rest for 5 minutes.
• If the motor starts to labour, add more liquid to the mix, if possible, or switch off (O) and carry on by hand.

CARE AND MAINTENANCE

1. Switch off (O) and unplug the mixer before cleaning.
2. Wipe outer surfaces with a damp cloth.
3. Wash the whisks and hooks in hot soapy water, or in the cutlery basket of your dishwasher.

QUICK RECIPE

Basic Biscuits (using the wire whisks)

• 100g (4oz) butter
  • 150g (6oz) caster sugar
  • 1 tsp vanilla essence
• 1 medium egg
  • 100g (4oz) plain flour
  • 100g (4oz) self raising flour

Cream the butter, sugar and vanilla essence at medium speed for 1-2 minutes till light, pale and fluffy. Reduce speed, add the egg, then gradually increase speed till everything has combined.

Sift the flours together then work them into the mixture.

Form into balls, put them on a greased baking tray, flatten them slightly, then bake in a pre-heated oven at 180° C for 12-15 minutes.

Cool on the tray for a few minutes, then move to a wire rack.

Recipes are available on our website:

http://www.russellhobbs.com/ifu/550932

ENVIRONMENTAL PROTECTION

To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol mustn't be disposed of with unsorted municipal waste, but recovered, reused, or recycled.

CUSTOMER SERVICE

If you ring, have the Model No. to hand, as we won't be able to help without it. It's on the rating plate (usually underneath the product). The product isn't user-serviceable. If it isn't working, read the instructions, check the plug fuse and main fuse/circuit breaker. If it's still not working, consult your retailer.

If that doesn't solve the problem, ring Customer Service for advice. If they tell you to return the product to us, pack it carefully, include a note with your name, address, day phone number, and what's wrong. If under guarantee, say where and when purchased, and include proof of purchase (till receipt). Send it to:

Customer Service, Spectrum Brands (UK) Ltd, Fir Street, Failsworth, Manchester M35 0HS

email: [e-mail]

telephone: [phone] (local rate number)

GUARANTEE

Defects affecting product functionality appearing within two years of first retail purchase will be corrected by replacement or repair provided the product is used and maintained in accordance with the instructions. Your statutory rights are not affected. Documentation, packaging, and product specifications may change without notice.

ONLINE

www.russellhobbs.co.uk for more products

REGISTER ONLINE FOR -

£10,000 prize draw,

EXTRA year guarantee,

FREE rewards gallery

Visit www.russellhobbs.co.uk/productregister/

You must register within 28 days of purchase.
