Product Type	Z-Wave Room Thermostat
Brand	Devolo
Model	09507
Wireless Standard	Z-Wave
Compatibility	Devolo Home Control Central Unit and other Z-Wave controllers
Power Supply	2 AA alkaline batteries (not rechargeable)
Battery Life	Approximately 2 years (typical usage)
Display	LCD screen showing target temperature, battery status, wireless connection, keypad lock
Control	Manual via navigation buttons or remote via Home Control Central Unit
Mounting	Wall-mounted with included screws and backplate
Intended Use	Indoor temperature control for home automation
CE Conformity	Directives 2014/53/EU, 2014/35/EU, FTEG; for EU, Switzerland, Norway
Warranty	3 years
Maintenance	Battery replacement only; no user-serviceable parts
Disposal	Do not dispose with household waste; return to municipal collection point or retailer

Frequently Asked Questions - 09507 DEVOLO

What batteries does the Devolo 09507 thermostat use?

The thermostat uses two AA alkaline batteries. Do not use rechargeable batteries.

How do I install the thermostat on the wall?

Separate the backplate from the device, drill holes based on the template, attach the backplate with screws, remove the battery tab, and slide the thermostat onto the backplate from above.

How do I register the thermostat with my Home Control Central Unit?

Log in to your Home Control Central Unit via my devolo app or web, go to Devices > Add device, select devolo Home Control Room Thermostat, and follow the on-screen instructions.

Can I control the thermostat manually without the central unit?

Yes, you can set the target temperature using the navigation buttons on the thermostat. Changes are sent to the central unit automatically.

What does the LCD display show?

The display shows the target temperature, battery status, wireless connection strength, and whether the keypad lock is active.

Is the thermostat compatible with other Z-Wave controllers?

It is designed for the devolo Home Control system, but it uses the Z-Wave wireless standard and should work with any Z-Wave-certified controller.

How do I replace the batteries?

Remove the thermostat from the backplate, open the battery compartment, replace the old AA alkaline batteries with new ones, ensuring correct polarity, and reattach the thermostat.

What should I do if the thermostat is not responding?

Check the battery status, ensure the wireless connection is active, and verify that the central unit is online. If issues persist, consult the Home Control online help.

Can I use rechargeable batteries?

No, only AA alkaline batteries are recommended. Rechargeable batteries may damage the device.

How long is the warranty period?

The Devolo 09507 thermostat comes with a 3-year warranty. Contact the vendor for warranty claims.

USER MANUAL 09507 DEVOLO

Thank you for placing your trust in this devolo product.

Carefully read all instructions before setting up the device and store the instructions for later reference.

Icons

Very important note. Failure to observe this note may result in damage.

Important note that should be observed.

Background information and configuration tips for your device.

Intended use

Use the Home Control Room Thermostat as described in these instructions and in the Home Control online help to prevent damage and injuries.

Except for occasional battery replacement, the Home Control Room Thermostat is completely maintenance-free. Otherwise, the device contains no user-serviceable parts!

CE conformity

When used as intended, the product conforms to the basic requirements of the directives 2014/53/EU, 2014/35/EU and the other relevant provisions of the Radio and Telecommunications Terminal Equipment Act (FTEG) and is designed for use in the EU, Switzerland and Norway. A printout of the CE declaration is included.

devolo Home Control

Home Control (also known as home automation) refers to the specific control of electrically operated indoor household devices. The Home Control system by devolo uses the Z-Wave™ wireless standard.

A Home Control system requires a Z-Wave™-compatible control unit such as the Home Control Central Unit from devolo. Use its Home Control portal to coordinate the Home Control Room Thermostat and all other Home Control devices. You can access the Home Control Central Unit through the my devolo app and at www.mydevolo.com in a browser.

For more information about setting up the Home Control Central Unit, please refer to the installation guide and/or Home Control online help.

Accessing the Home Control Central Unit via the my devolo app (for smartphone/tablet)

Open the my devolo app ↩ Home Control and select your Home Control Central Unit.

Accessing the Home Control Central Unit via web browser (PC/laptop)

At www.mydevolo.com Home Control select your Home Control Central Unit.

For more information on the control and configuration of all devolo Home Control devices, as well as application examples, please refer to the Home Control online help.

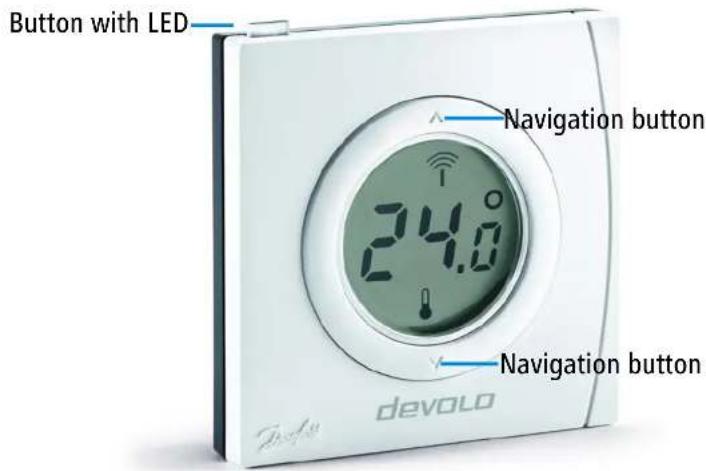

The Home Control Room Thermostat

Room temperature is controlled electronically, e.g. via the Home Control Central Unit (see section devolo Home Control on page 3) or manually via the navigation buttons on the thermostat. In the latter case, the Home Control Room Thermostat sends a change notification to the control unit, e.g. the Home Control Central Unit. In addition to the target temperature, the display shows the status of the respective battery, the wireless connection and any keypad lock that may be in effect.

For more detailed descriptions of the Home Control Room Thermostat functions, refer to the Home Control online help.

Batteries

Always keep batteries away from open flame and high temperatures. Avoid direct sunlight and radiant heat!

Always remove all batteries from battery-operated devices that are only in storage and are not in use. Old batteries can leak and damage the device!

Do not use rechargeable batteries!

When inserting the batteries, ensure that the polarity is correct. Using the batteries incorrectly can damage the device!

The Home Control Room Thermostat uses commercially available AA alkaline batteries. For information on replacing the battery, please refer to the Home Control online help.

Installing the Home Control Room Thermostat

If installing to a wall using screws, make sure that no gas, water or power lines in the wall get damaged. There is a danger of electric shock!

Only use the Home Control Room Thermostat indoors.

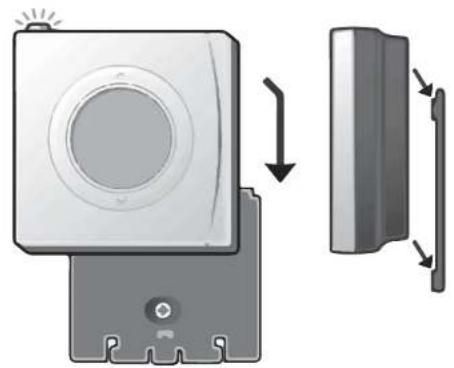

① Disconnect the housing backplate, which also acts as both a holder and battery compartment cover, from the device by pushing it down and away.

② Then, based on the template on the housing backplate, drill holes into the desired location and attach the housing backplate in the correct mounting position using the included screws.

③ Remove the black battery tab inside the Home Control Room Thermostat to establish battery contact.

8

④ Then slide the Home Control Room Thermostat from above onto the housing backplate fastened on the wall.

Registering the Home Control Room Thermostat on the control unit (e.g. Home Control Central Unit)

⑤ After you have successfully installed the Home Control Room Thermostat, continue with its electronic registration on the control unit.
⑥ When you plug in the Home Control Central Unit from devolo, follow the description in the section devolo Home Control on page 3 to call up your Home Control Central Unit and select Devices Add device devolo Home Control Room Thermostat. Follow the instructions there to log into your Home Control Central Unit.

From now on, you can take electronic control conveniently using the Home Control portal of the Home Control Central Unit.

For more information on the control and configuration of all devolo Home Control devices, as well as application examples, please refer to the Home Control online help.

Service and warranty

Warranty: 3 years

If your devolo device is found to be defective during initial installation or within the warranty period, please contact the vendor who sold you the product. The vendor will take care of the repair or warranty claim for you. The complete warranty conditions can be found at www.devolo.com/warranty.

Great Britain 0203 024 18	38 (national rate) [e-mail]
Sweden 0077 1400 480 (national rate) [e-mail]
Finland 972 519 125 (national rate) [e-mail]
Norway 81 500 174 (national rate) [e-mail]
Denmark 070 136 001 (national rate) [e-mail]
Other countries +49 241 70	525 18 (international rate) [e-mail]

Disposal

Neither the Home Control Room Thermostat nor the batteries may be disposed of with the household waste. Instead, you can return these at no charge at your municipal collection point or at the retailer (e.g. supermarket, specialist shop).
