USER MANUAL MC522 Manta

Abstract black-and-white circular logo with interlocking curved shapes (no text or symbols)

MANTA

Fridge with freezer

MC521/MC522

Instrukcja obsługi

User's Manual

CLEANING AND CARE 10

DO'S AND DONT'S 10

DIAGRAM 11

OPERATIONS 11

SPECIFICATION MC521 13

SPECIFICATION MC522 13

INSTRUKCJE TRANSPORTOWE

INSTRUKCJA MONTAŻU

(100mm) 4" (100mm)

● The appliance should be transported only in an upright position. The packing as supplied must be intact during transportation
- If during the course of transport the appliance has to be transported horizontally, it must only be laid on its left hand side when standing in the front of the appliance. After bringing it to upright position, it must not be operated for at least 4 hours to allow the system to settle
● The appliance must be protected against rain, moisture and other atmospheric influences.
● Care must be taken while cleaning or carrying the appliance not to touch the bottom of the condenser metal wires at the back of the appliance, as this could cause injury to fingers and hands or damage the appliance
- Do not position the appliance on top of another. Do not attempt to sit or stand on top of the appliance as it is not designed for such use. You could injure yourself or damage the appliance.
● Make sure that the mains cable is not caught under the appliance during and after moving, as this could damage the cable
- When positioning your appliance take care not to damage your flooring, pipes, wall coverings etc.
- Do not move the appliance by pulling by the lid, door or handle.
- Do not allow children to play with the appliance or tamper with the controls.
● Failure to comply with the above instructions could result in damage to the appliance. The manufacturer declines to accept any liability should the transportation instructions not be followed.

INSTALLATION INSTRUCTIONS

- If possible, avoid placing the appliance near cookers, radiators or in direct sunlight as this will cause your appliance to work harder. If installed next to a source of heat or freezer, maintain the following minimum side clearances:

From cookers 100 mm (4")
From radiators 300 mm (12")
From refrigerators 100 mm (4")

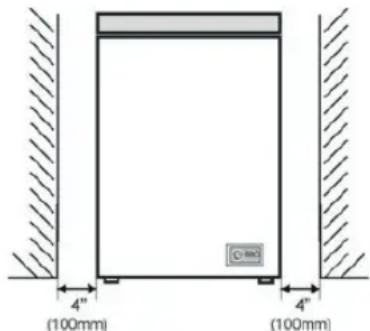

● Make sure that sufficient room is provided around the appliance to ensure free air circulation. Ideally, no less than 10 cm should be left around the sides and at the back, make sure clearances are maintained as shown the diagram below.

(100mm) (100mm)

● The appliance should be placed on a flat, firm surface.
● The appliance must not be used outdoors.
- Protect the appliance from moisture. Do not place the appliance in damp rooms in order to protect metal parts from corrosion. Do not spray water into the appliance, since it will cause insulation deterioration and ground fault
● Refer to cleaning and care section to prepare your appliance for use
- If the appliance is placed in an unheated room (e.g. in the garage), in cold weather water droplets may form on external surfaces. This is quite normal and does not indicate a malfunction. Wipe the condensed water vapor with a dry cloth.
- Place the appliance in the designated location and do not connect it to the mains for a minimum of 1 h.

FRIDGE WITH FREEZER

◆ MC521/ MC522

CLEANING AND CARE

• We recommend that you switch off the appliance at the socket outlet and pull out the mains plug before cleaning
  ● Never use any sharp instruments or abrasive substances, soap, household cleaner, detergent or wax polish for cleaning
• Use lukewarm water to clean the compartment of the appliance and wipe it dry.
• Clean the interior using a damp cloth with a solution of bicarbonate of soda to one pint of water. Wring it out, clean the interior and wipe it dry.
• Remove excessive ice formation regularly using a plastic scraper available in hardware stores. A large amount of accumulated ice will cause the freezer to operate less efficiently.
• If the appliance is not going to be used for a long period of time, switch it off, remove all food, clean it and leave the door ajar
• Check door seals regularly to ensure they are clean and free from food particles.
• Never wash the compressor with water – just wipe it thoroughly with a dry cloth after cleaning the freezer to prevent the formation of rust
  ● This appliance is intended for domestic household use only. Warranty does not cover commercial use.
• If the mains lead is damaged, you must have it replaced by the manufacturer, an authorized service centre or similarly qualified persons in order to avoid a hazard

DO'S AND DON'TS

● Defrost food from the freezer thoroughly in a fridge or in a microwave oven following defrosting and cooking instructions. Ensure that the freezer lid/door is completely closed after each use
● Frozen food must be completely thawed before cooking
- Close the lid/door gently
- Check contents of the freezer at regular intervals

• Clean and defrost your appliance regularly (See "Defrosting").
• Keep food for as short a time as possible and adhere to "Best Before" and "Use by" etc. dates
  ● Store commercially frozen food in accordance with the instructions given on the packets.
  ● Always choose high quality fresh food and be sure it is thoroughly clean before you freeze it
  ● Prepare fresh food for freezing in small portions to ensure rapid freezing
• Wrap all foods in aluminum foil or freezer quality plastic bags and make sure any air pockets are pressed outi usuwaj ze środka powietrze
  ● Wrap frozen food immediately after purchasing and put it in to the freezer as soon as possible
• Remove ice cream from the freezer 10-20 minutes before serving.
• Don't leave the door open for long periods, as this will make the appliance more costly to run and cause excessive ice formation
• Don't use sharp edged objects such as knives or forks to remove excess ice
• Don't put hot food into the appliance. Let it cool down first
• Don't put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer, as they may burst.
• Don't store poisonous or any dangerous substances in your appliance. It has been designed for the storage of edible foodstuffs only
• Don't eat ice-cream and ice cubes directly after taking them out from the freezer. The low temperature may cause, freezer burns' on lips.
• Don't freeze fizzy drinks
• Don't try to keep frozen food which has thawed; it should be eaten within 24 hours or cooked and refrozen.
• Don't remove items from the freezer with wet hands.
• Don't close the lid/door with force. You may damage the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Don't store explosive substances in the appliance, e.g., spray cans that contain inflammable propellant gas, etc.

DIAGRAM

1 2/3 5 5 5 7

1. Fridge Compartment
2. Thermostat Control
3. Interior Light
4. Interior Glass Shelf
5. Door Storage – Specific Areas for Bottles & Dairy Products
6. Salad Crisper Box with Glass Shelf
7. Two Levelling Feet

OPERATION

Start-up and temperature control

• Place the appliance in its designated location and allow to stand for a minimum of 1 hour before it is switched on
  ● Turn the thermostat knob to position 6. Food can be placed in the compartment only after freezer thermostat has operated in position 6 for 4 hours
• The temperature in the appliance is controlled by the temperature control knob. Settings below represent the average temperature inside the appliance as follows (if ambient temperature = 22°C)

0 – the compressor shut off, no freezing

1 - 6 - temperature within the range of FRIDGE +0°C <> +10°C / FREEZER <> -18°C

- The achieved temperatures may vary according to certain conditions of use such as: placement of the freezer, ambient temperature, frequency of lid being opened and closed and the extent to which the freezer is filled with food. Depending on these factors, the temperature knob position will vary. Typically, with the ambient temperature of approximately 22°C, the temperature knob should be set to the middle setting

- This appliance has a four star freezer that is suitable for the long-term storage of frozen food items. It can also be used for freezing and storing fresh food items. You should always follow the storage guidelines printed on each food producers packaging, however the following information is provided as a general guide for the maximum storage life of frozen items:

- Fresh Meat and Poultry – up to 12 months

- Cooked Meats – up to 2 months

- Fresh Fish – up to 6 months

- Fruit and Vegetables – up to 12 months

- Bread and Cakes – up to 6 months

- You may hear faint gurgling or bubbling sounds when the refrigerant is pumped to the cooling system and through the coils or tubing at the rear of the appliance. When the compressor is in operation you may hear a slight whirring sound or pulsating noise. The thermostat controls the operation of the compressor, and you may hear a slight click as it cycles in and out.

FRIDGE WITH FREEZER ◆ MC521/ MC522

Defrosting

• Defrost twice a year or when a frost layer of approximately 7 mm (1/4") has formed
  ● Alternatively you may switch off the freezer at the socket outlet and pull out the mains plug
• 6 hours before the defrosting, please set the thermostat knob at „MAX“ position to make sure the food is at the lowest temperature when you get it out. All food should be wrapped in several layers of newspaper and stored in a cool place (e.g. fridge or larder).
• Remove the freezer basket and leave the lid open. Containers of warm water may be placed in the freezer to speed up the defrosting.
• Never use hairdryers, electrical heaters or other such electrical appliances for defrosting
• When defrosting has finished leave the appliance for approximately 4 hours.
• Don't use sharp edged objects such as knives or forks to remove the ice

Changing the Interior Light ^1 .

1. Switch off the power supply to the appliance
2. Remove the retaining screw and the plastic light cover
3. Remove the bulb lamp from the light unit
4. Replace the bulb with a suitable replacement (maximum 25W)
5. Refit the cover and switch the appliance back on

MOST COMMON PROBLEMS

Symptom Cause
Appliance will not work at all	The power supply plug is not inserted in the wall socket or the plug and the outlet is loose.Due to some anomaly in the household electric supply circuit, no power is reaching the refrigerator supply socket. This can be checked by plugging in a light or any other electric appliance into the suspect socket.The voltage is too low.
Noisy running	The appliance has not been properly levelled.The refrigerator contact with the wall.The accessories in the refrigerator are placed wrong position
Appliance does not cool sufficiently	Door has been opened too often, or it has been left open for a while.The refrigerator is too near to the wall.Too much food in the refrigerator.Have not regulate the temperature correctly.
Smell inside the appliance.	Some of the food is not properly wrapped or covered.The inside of the refrigerator needs cleaning.If your refrigerator shows other symptoms from those described above, or if you have check all items listed as the causes and the symptom still exist, then call the service department.

The Following Are not Breakdowns

1. Refrigerant running in pipes gives forth a gentle sound of water running in pipes
2. In a moist season, the outer surface of refrigerator may be covered with moisture which should be simply wiped away.
3. The compressor may be heated to the extent that scalding your hand in summer during refrigerator operation.

SPECIFICATIONS - PRODUCT DATA SHEET

Due to product's changing and improving, the exact product for the consumer may not correspond with some details in the instruction. Please accept our apologize for no information in advance

Appliance type Top mounted	fridge with 4-star freezer compartment
Model: Manta MC521
Total effective volume 136L
Fridge effective volume 97L
Freezer effective volume 39L
Climate class ST
Overvoltage protection class	I
Voltage 220V-240V
Frequency 50Hz
Input power 180W
Refrigerant/ weight	R600a / 78g
Net weight	40kg
Dimensions of the product	480*510*1228mm
Freezing capacity	5kg/24h
Ability to keep food after voltage cut off	10h
Energy consumption	0.53KW/24H

SPECIFICATIONS – PRODUCT DATA SHEET

Due to product's changing and improving, the exact product for the consumer may not correspond with some details in the instruction. Please accept our apologize for no information in advance

Appliance type Top mounted	fridge with 4-star freezer compartment
Model: Manta MC522
Total effective volume 213L
Fridge effective volume 168L
Freezer effective volume 45L
Climate class ST
Overvoltage protection class	I
Voltage 220V-240V
Frequency 50Hz
Input power 180W
Refrigerant/ weight	R600a / 76g
Net weight	48kg
Dimensions of the product	550*582*1440mm
Freezing capacity	5kg/24h
Ability to keep food after voltage cut off	10h
Energy consumption	0.45KW/24H
