USER MANUAL Wind Top AE2282-001EU MSI

Wind Top AE2282 Series All-in-One (AIO) PC

MS-AC7B/ AC7C System

Contents

Copyright Notice......iii

Trademarks......iii

Revision ....iii

Upgrade and Warranty ....iv

Acquisition of Replaceable Parts ....iv

Technical Support ....iv

Green Product Features ....iv

Environmental Policy v

Chemical Substances Information ...... v

Battery Information ...... v

Safety Instructions....vi

CE Conformity......viii

FCC-B Radio Frequency Interference Statement ......viii

WEEE Statement ix

1. Overview 1-1

Packing Contents 1-2

System Overview 1-3

System Specifications 1-9

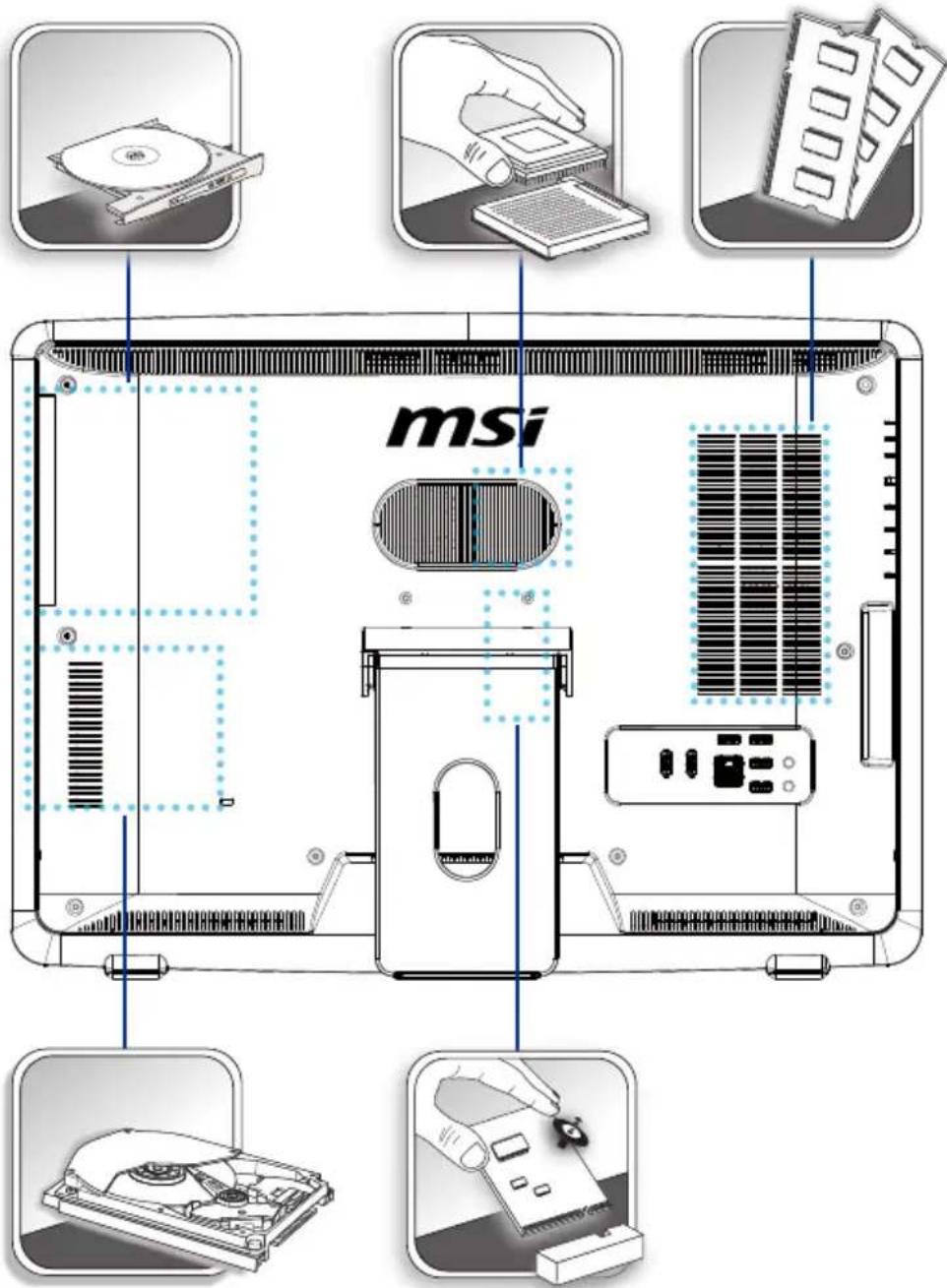

Component Replacement & Upgrade 1-11

2. Getting Started 2-1

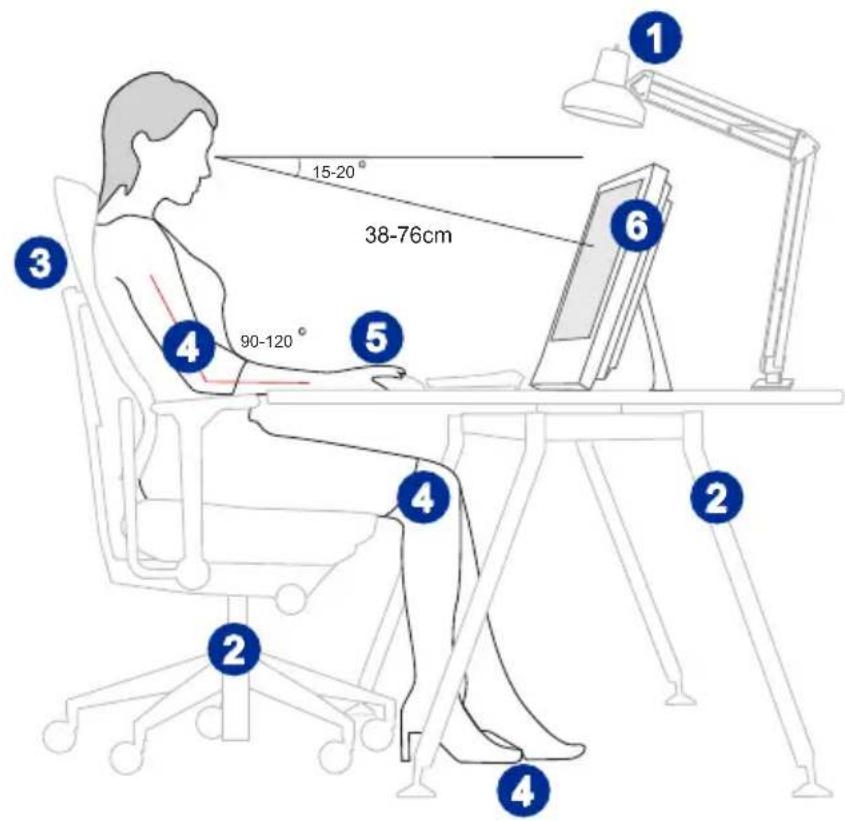

Safety & Comfort Tips 2-2

Hardware Setup 2-3

3. System Operations (Windows 7) ...... 3-1

System Booting Setup for the first time 3-2

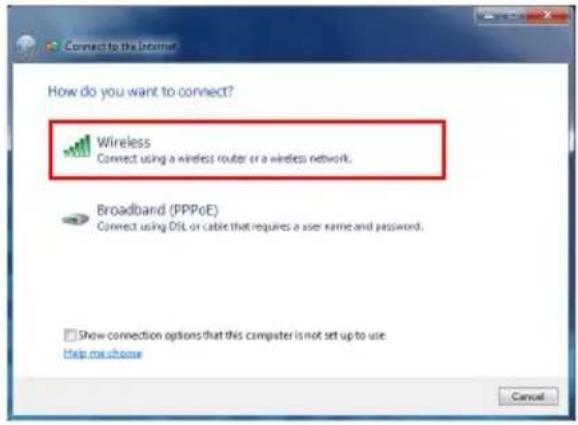

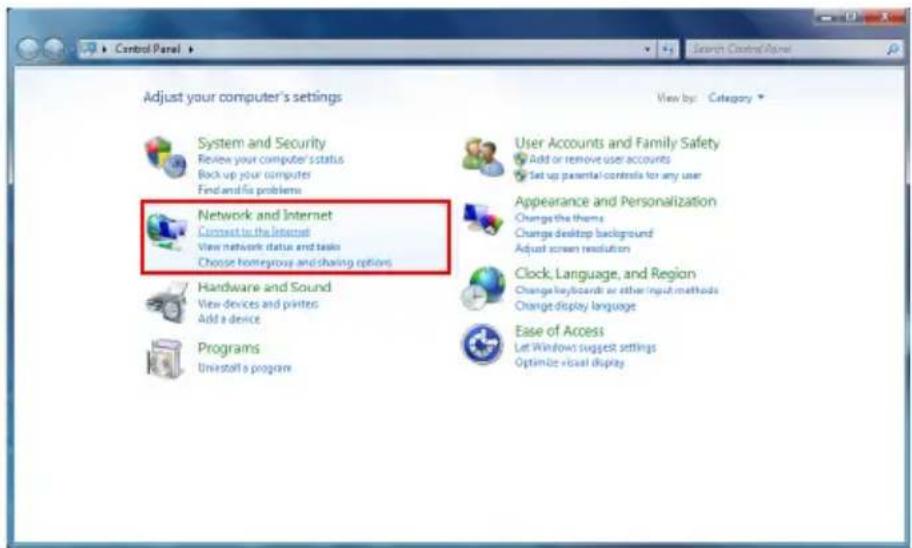

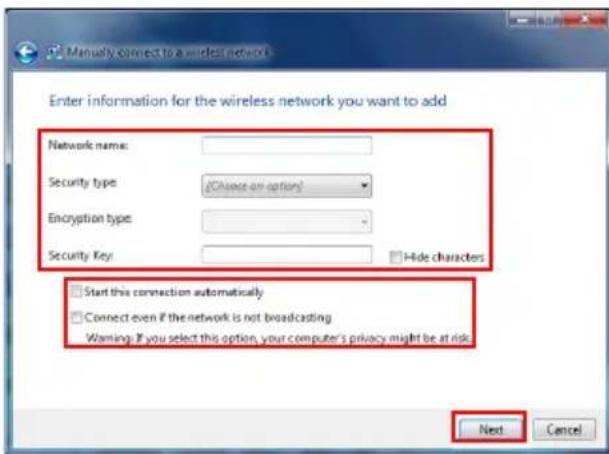

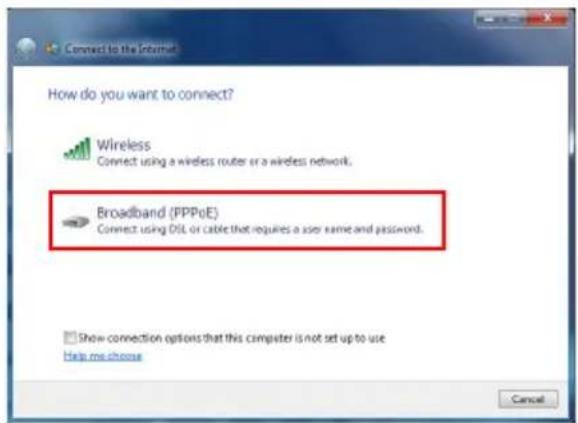

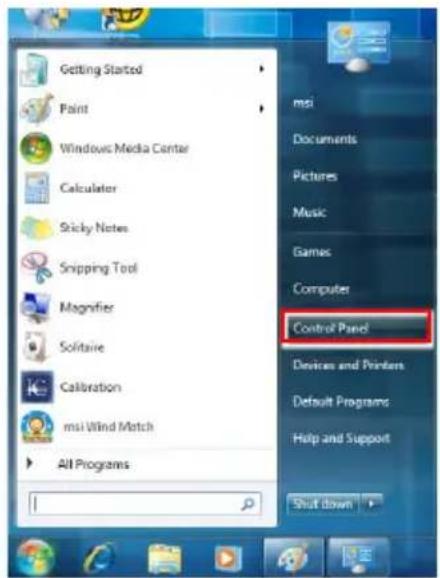

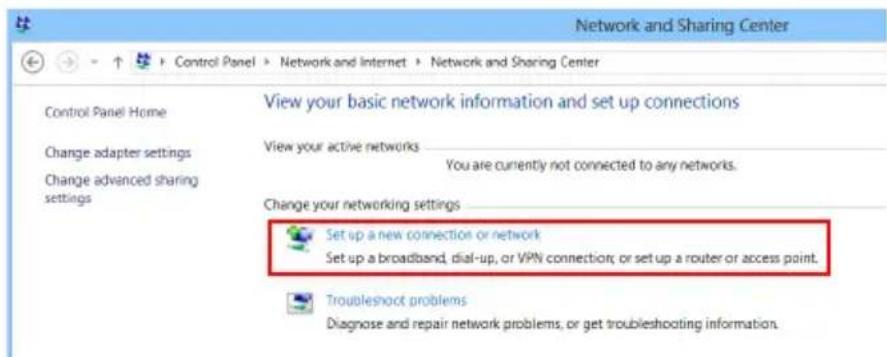

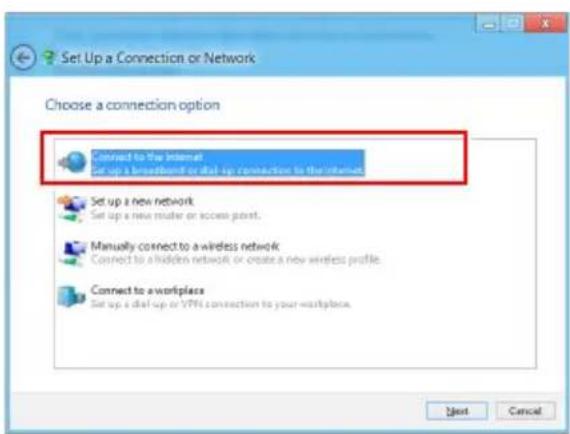

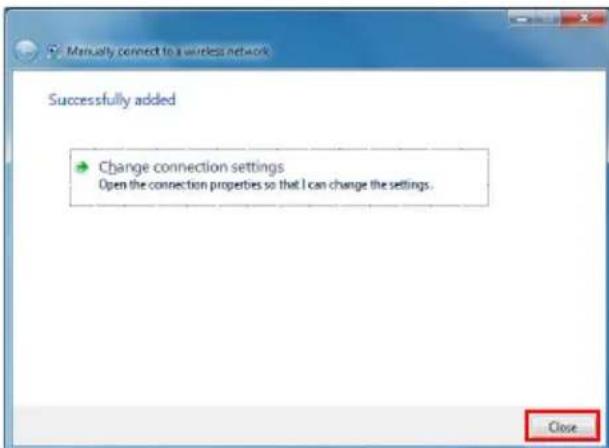

Network Connection under Windows 3-3

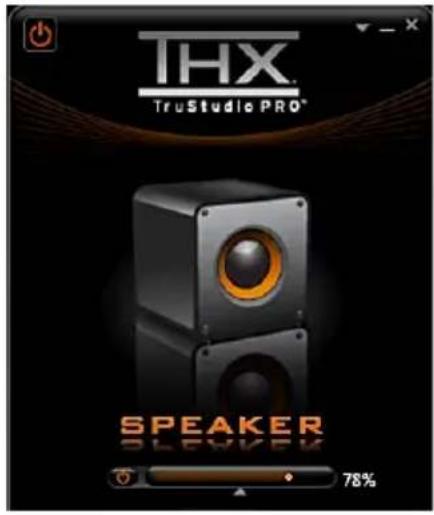

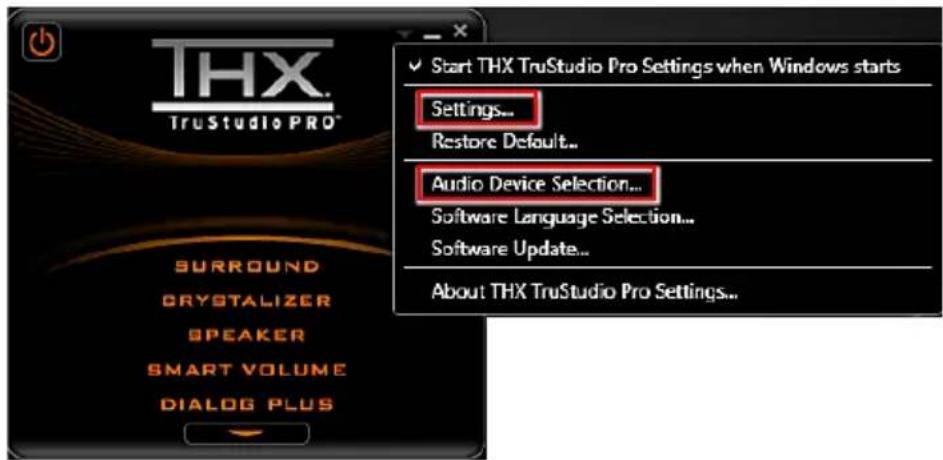

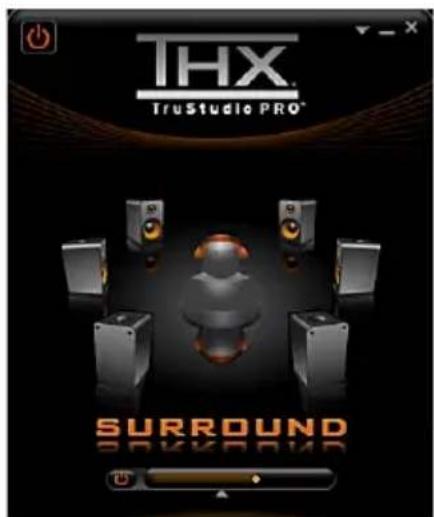

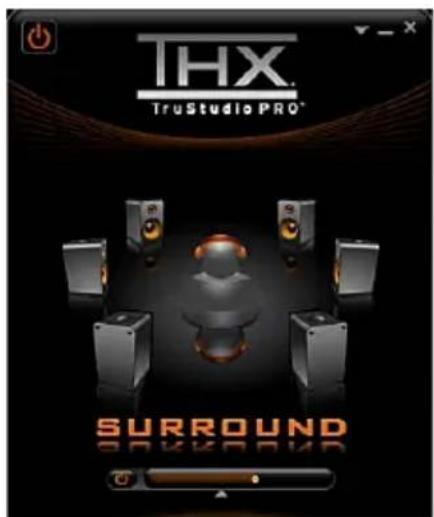

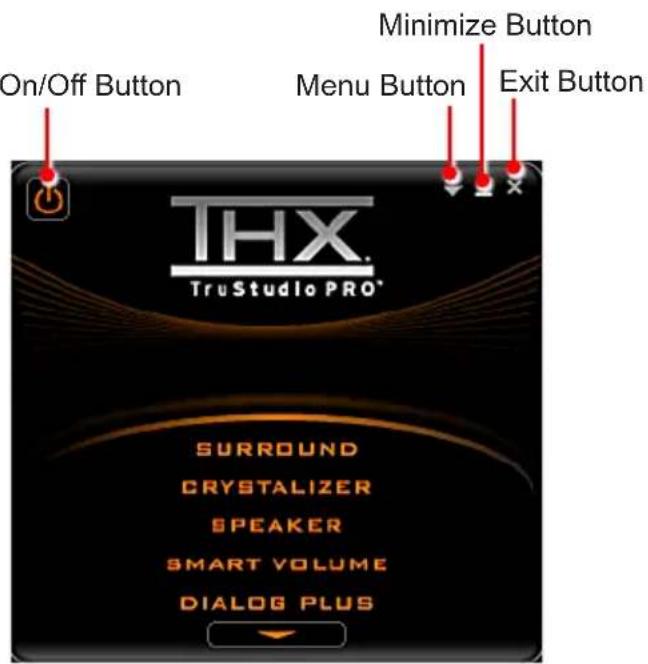

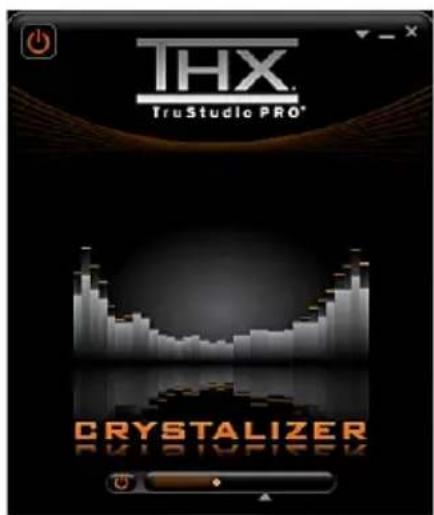

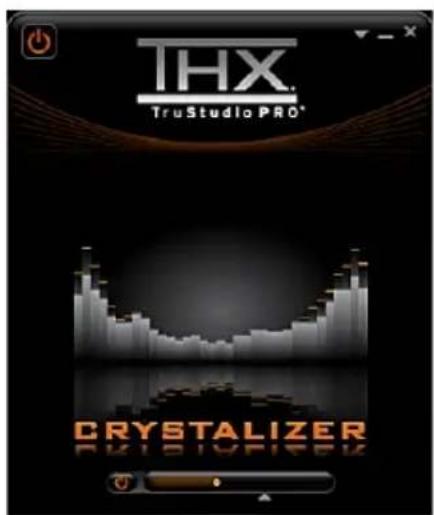

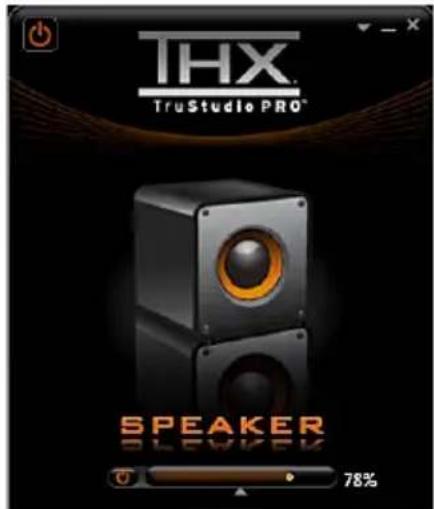

THX TruStudio PRO (Optional) 3-8

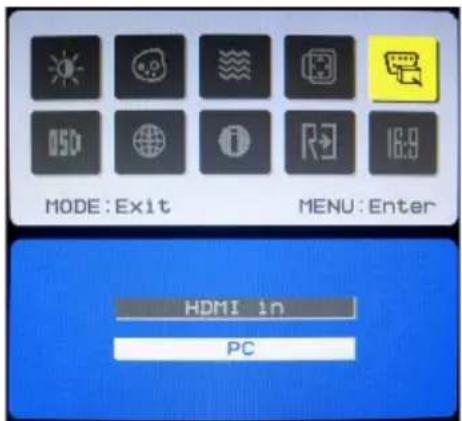

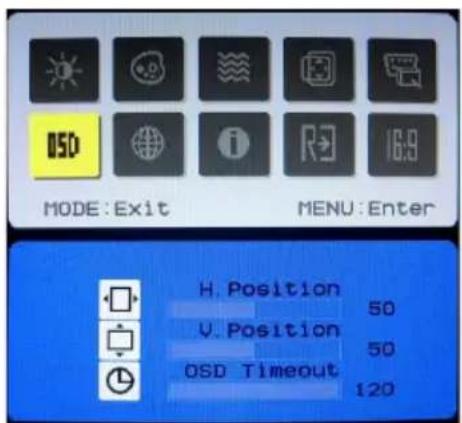

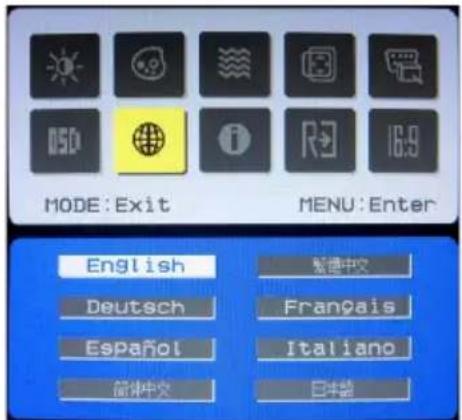

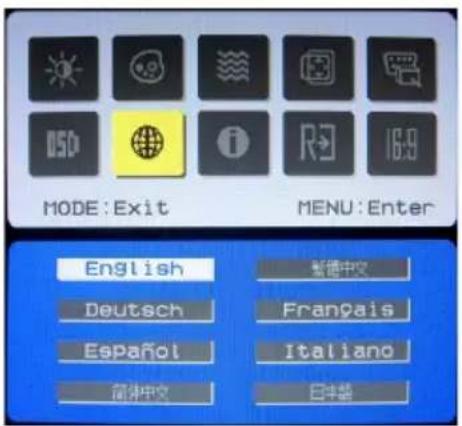

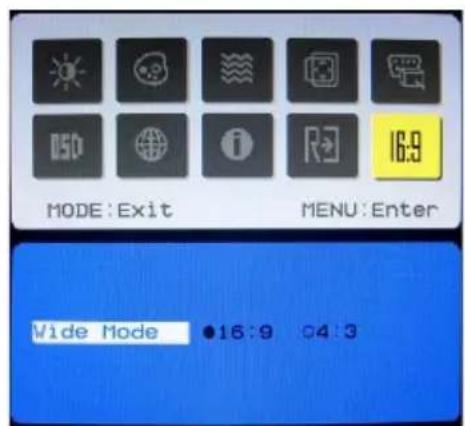

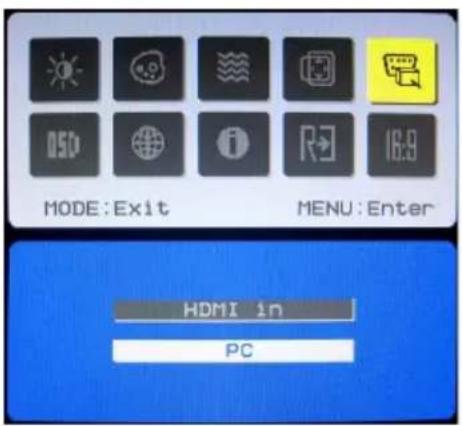

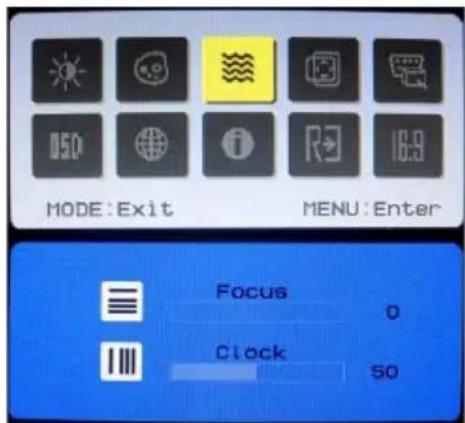

On-Screen Display (OSD) 3-11

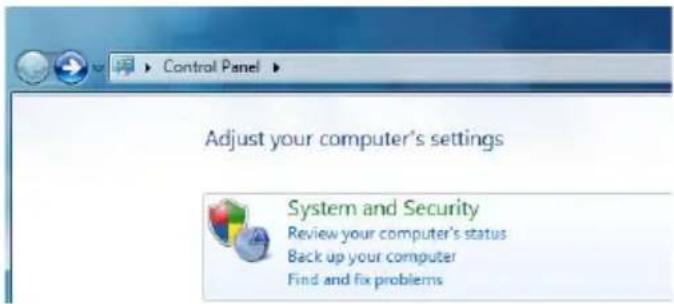

Power Management 3-14

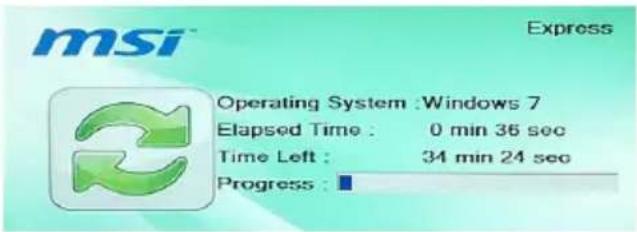

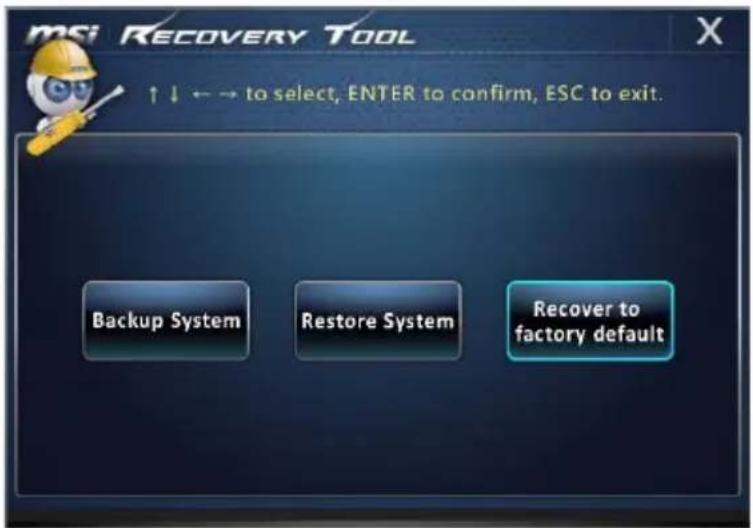

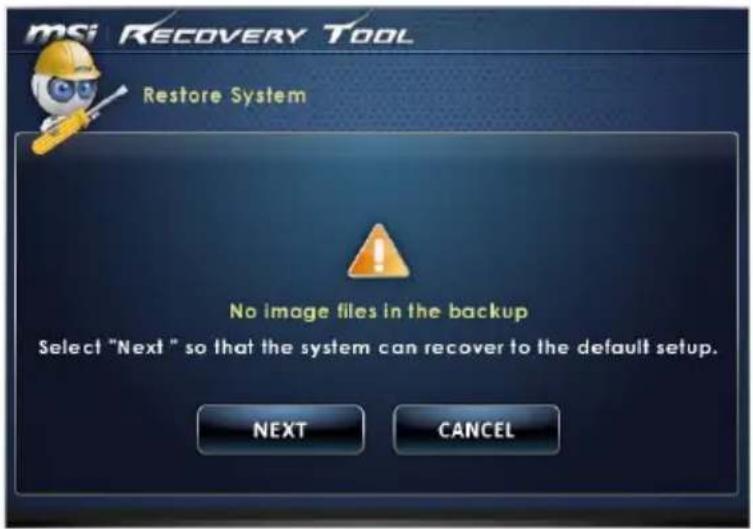

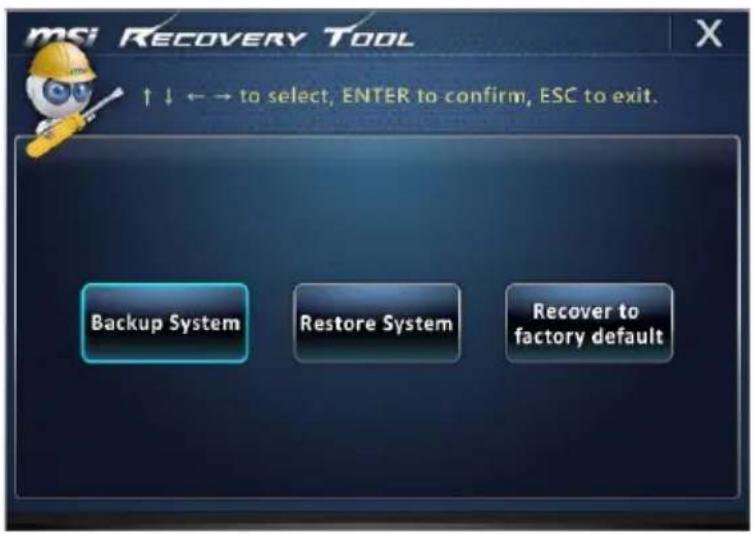

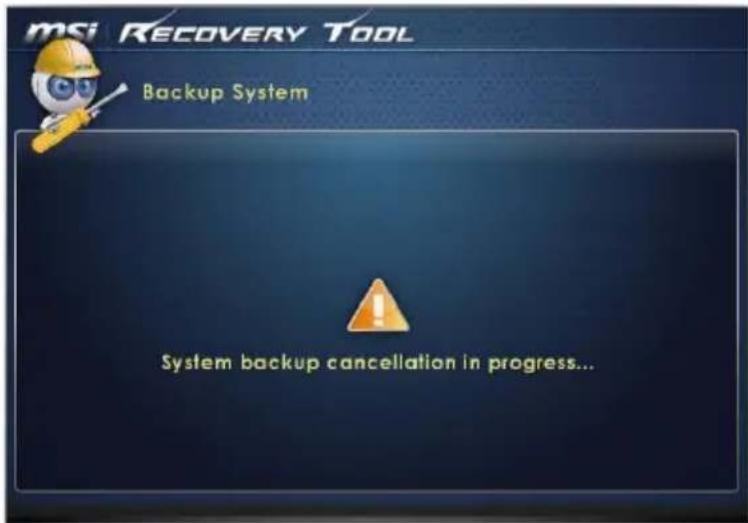

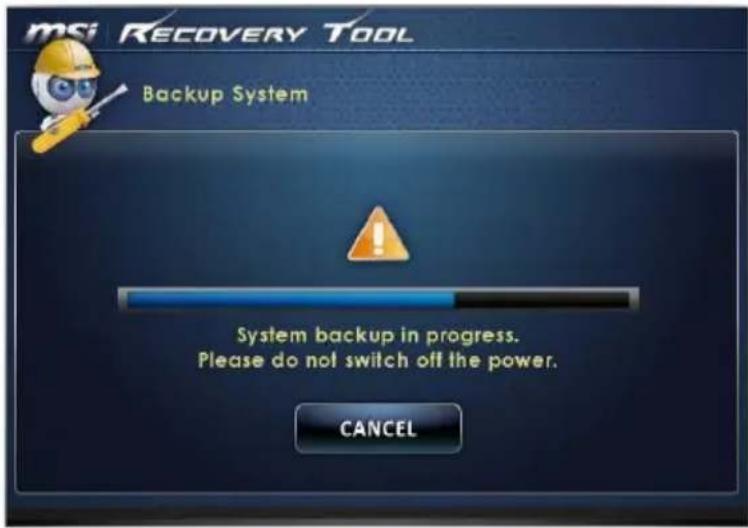

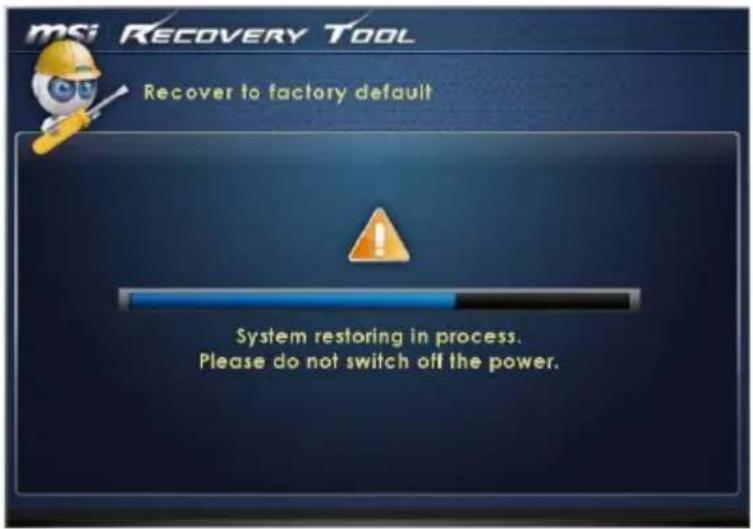

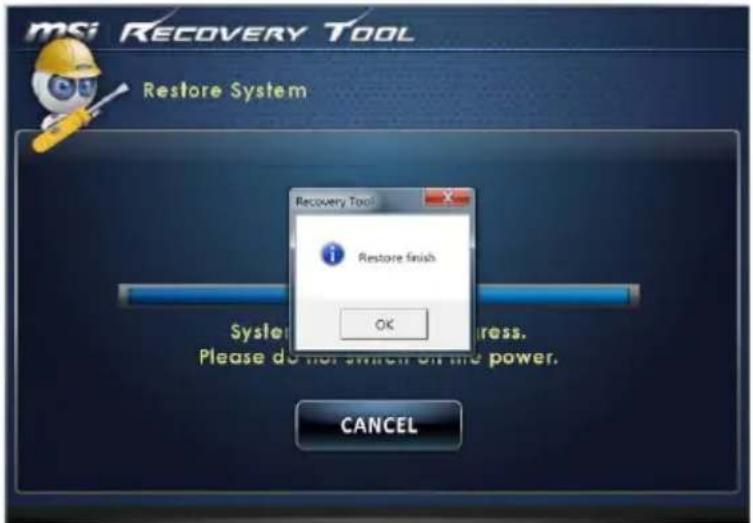

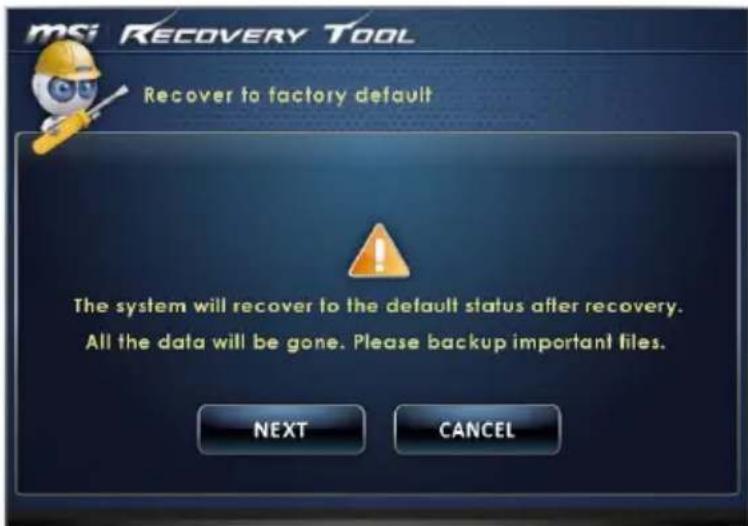

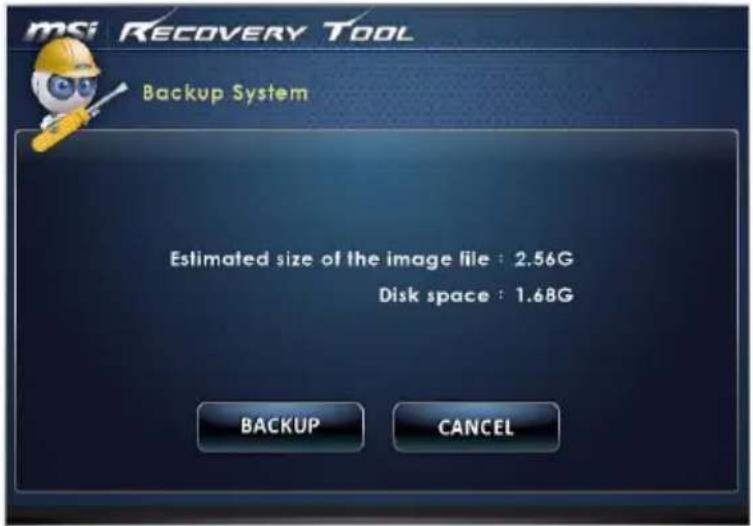

System Recovery Tool 3-16

4. System Operations (Windows 8) 4-1

System Booting Setup for the first time 4-2

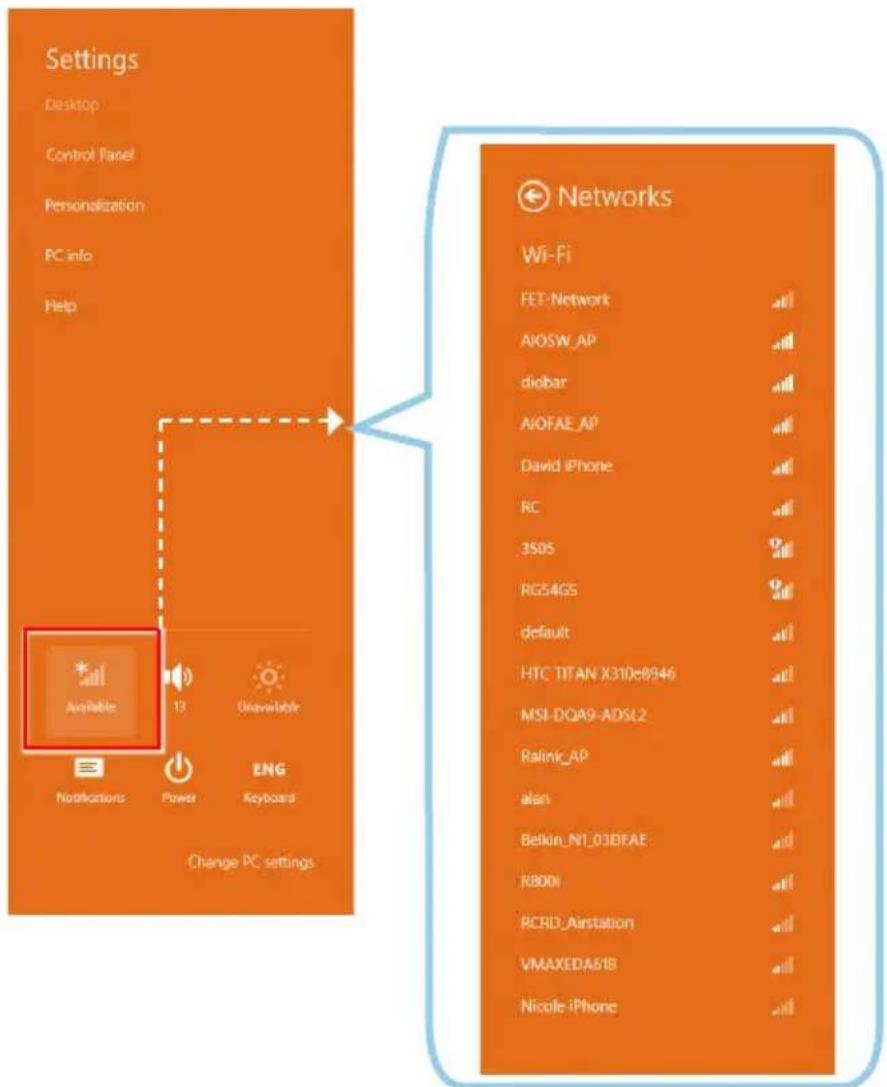

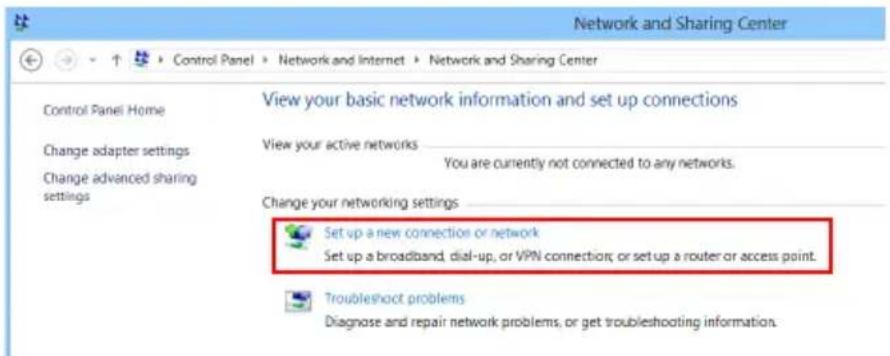

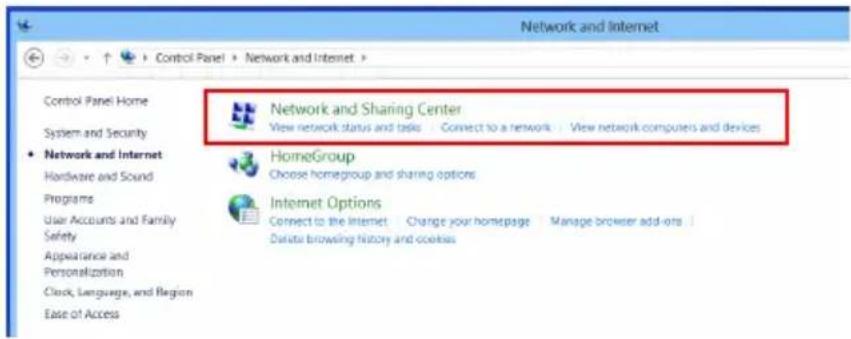

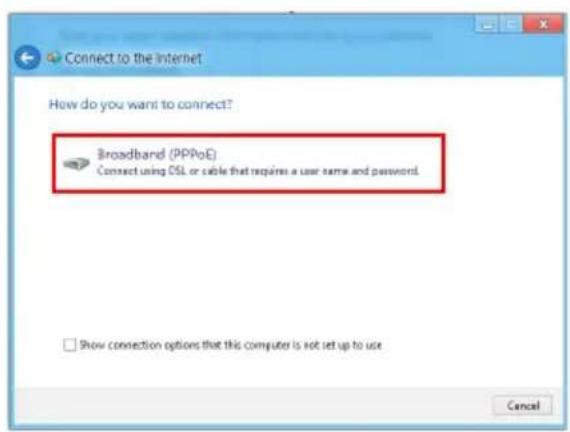

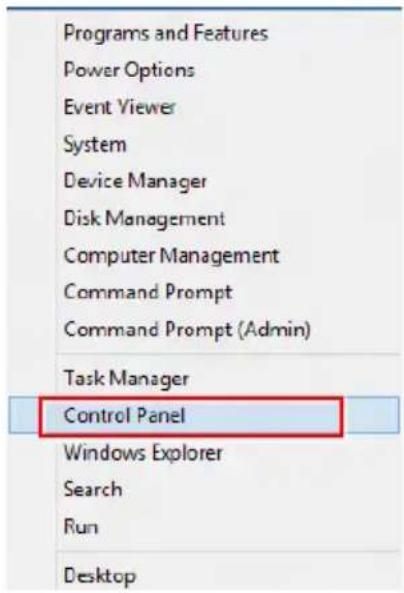

Network Connection under Windows 4-3

THX TruStudio PRO (Optional) 4-9

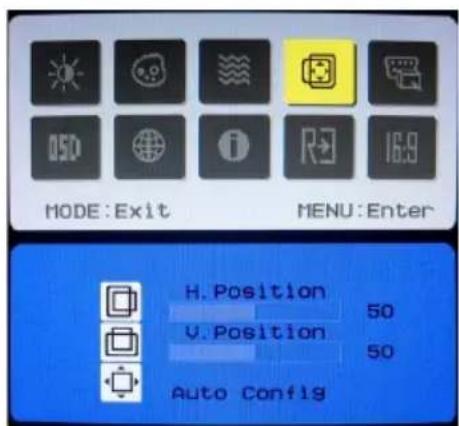

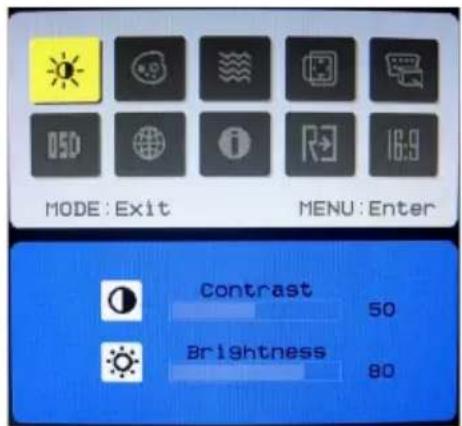

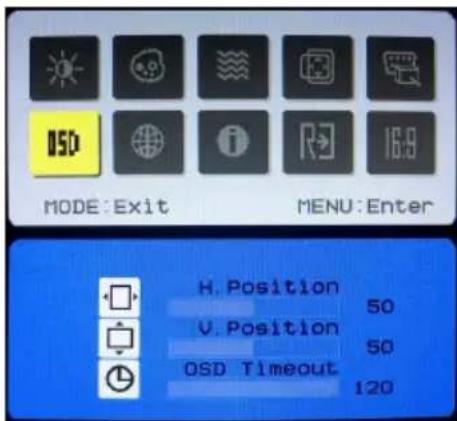

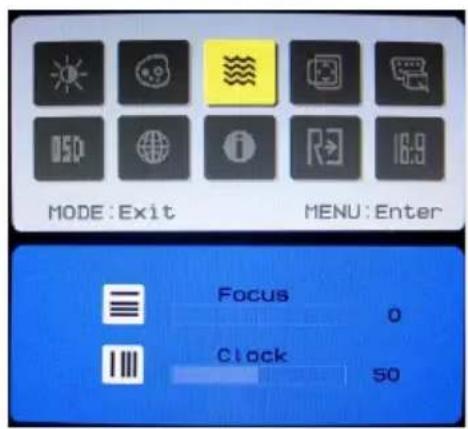

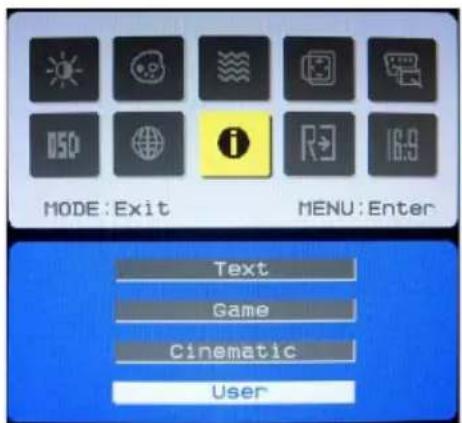

On-Screen Display (OSD) 4-12

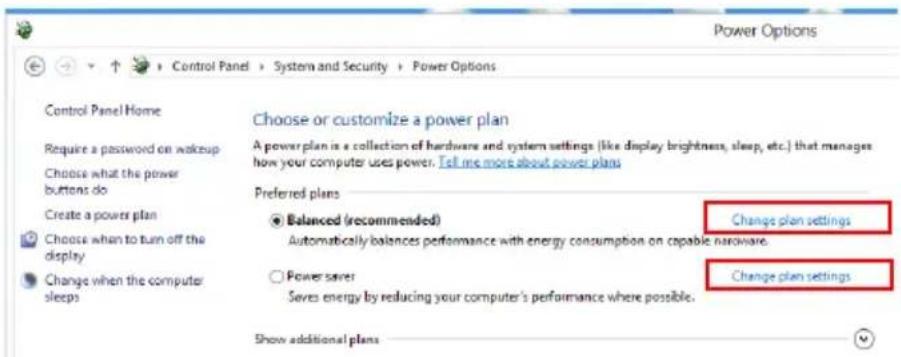

Power Management 4-15

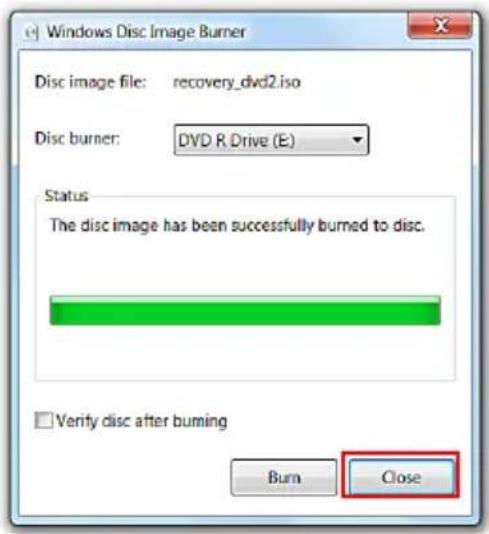

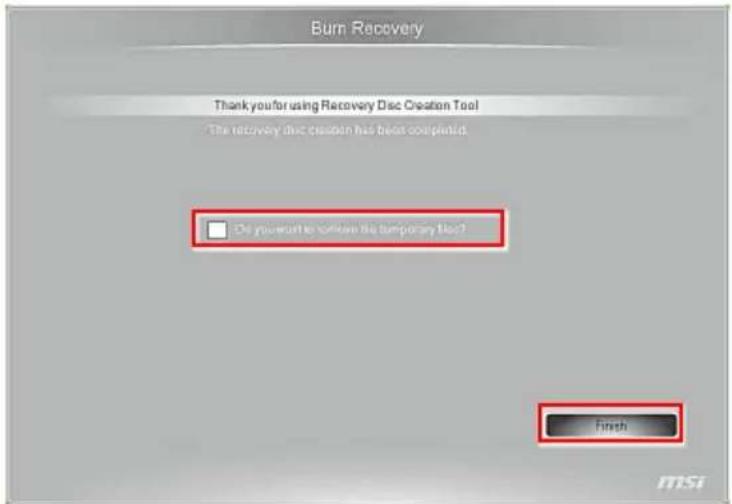

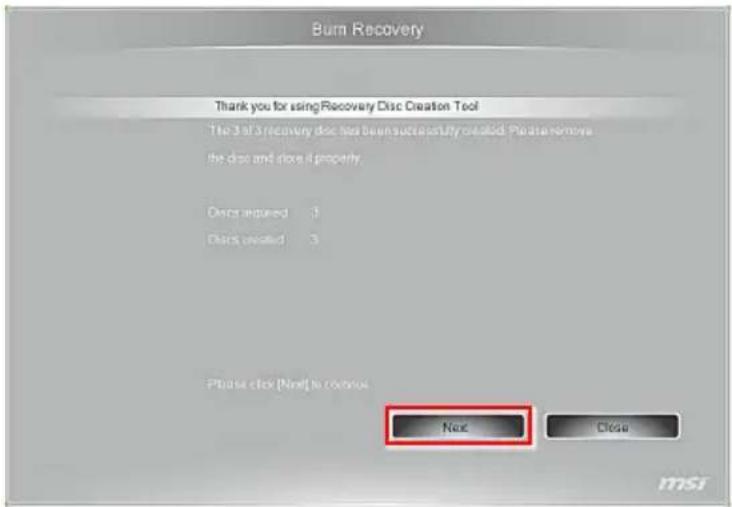

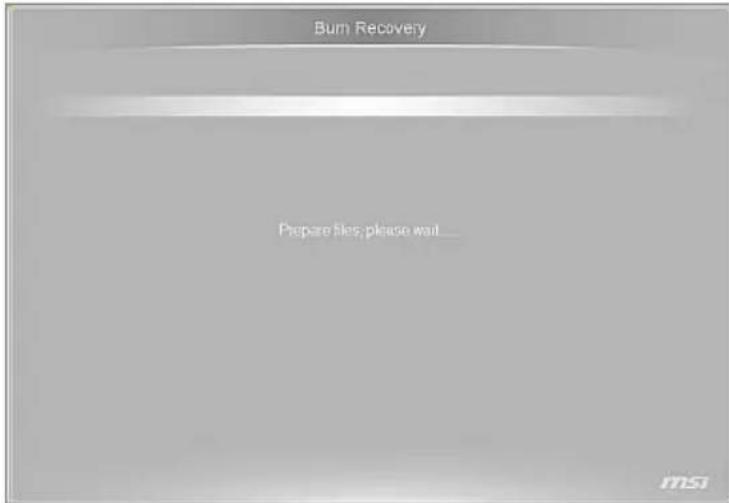

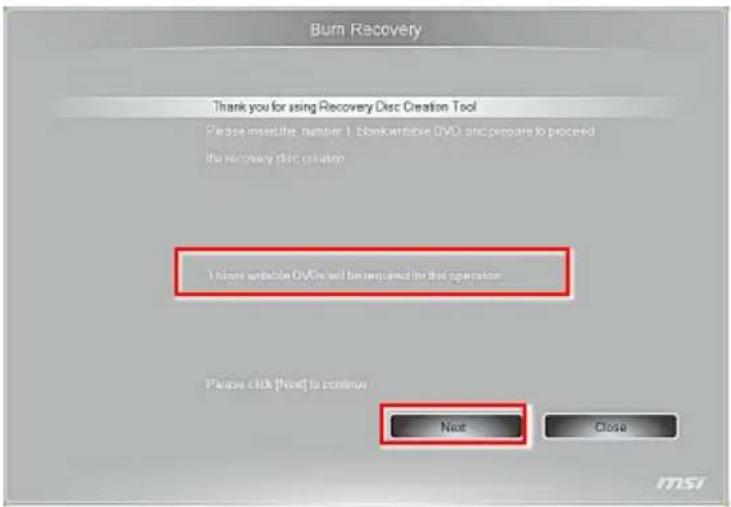

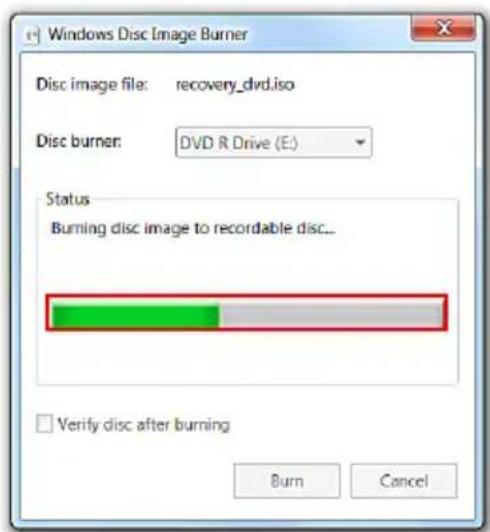

Creating System Recovery Disc 4-17

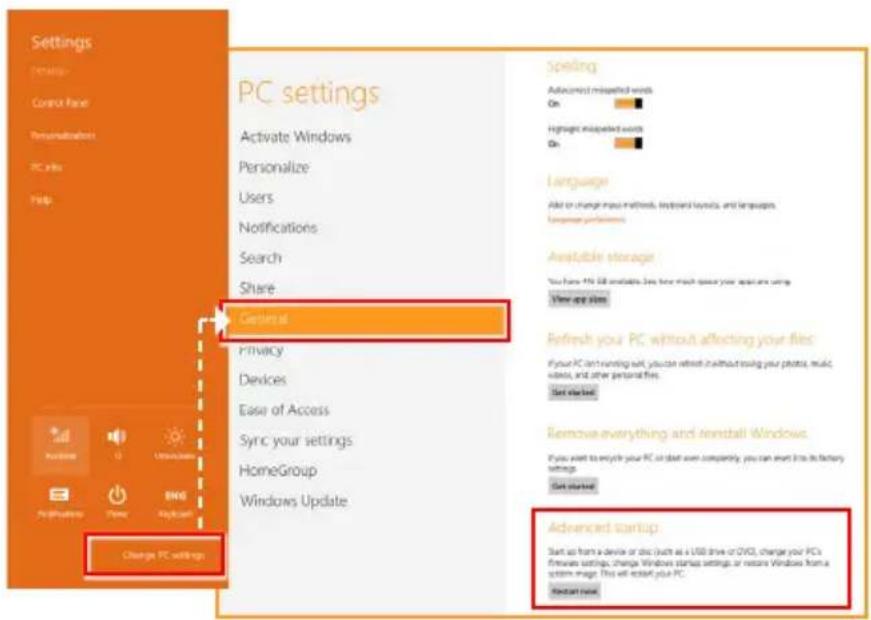

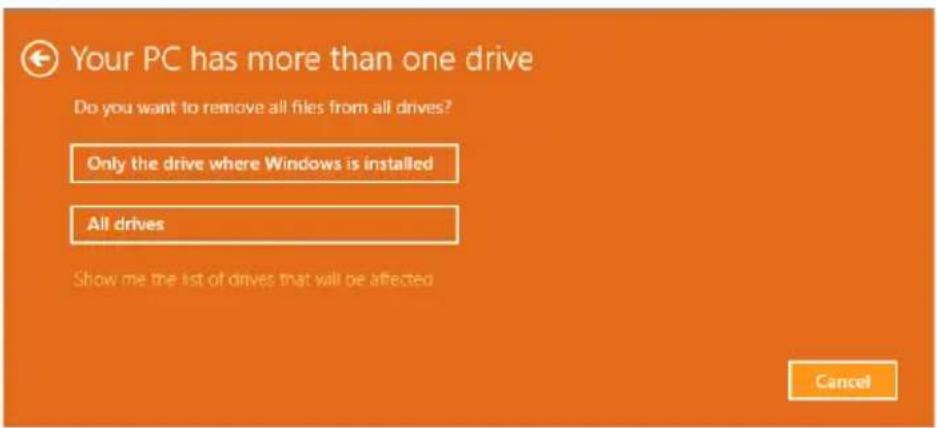

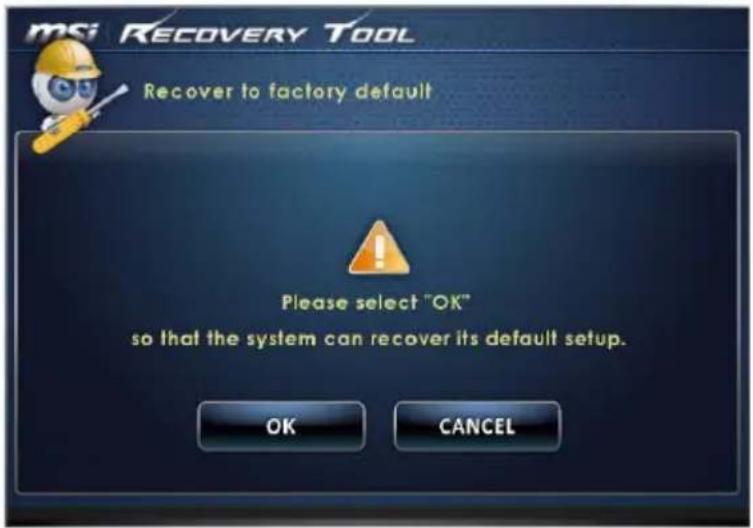

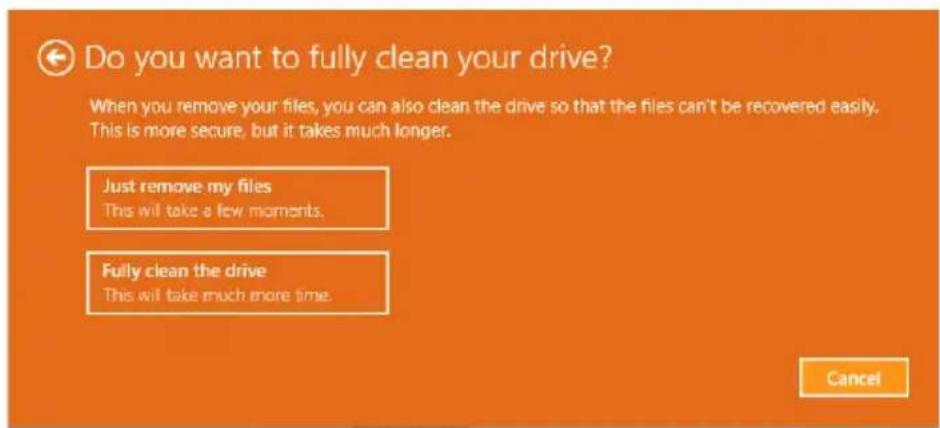

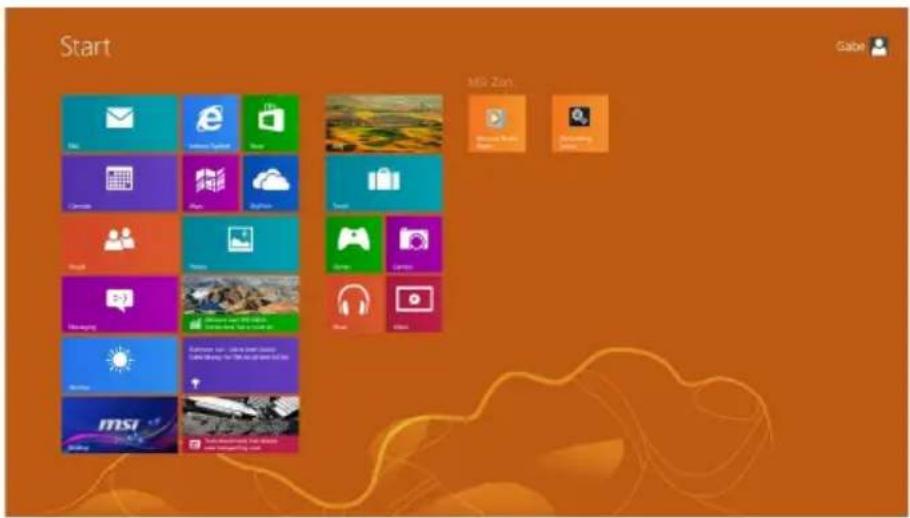

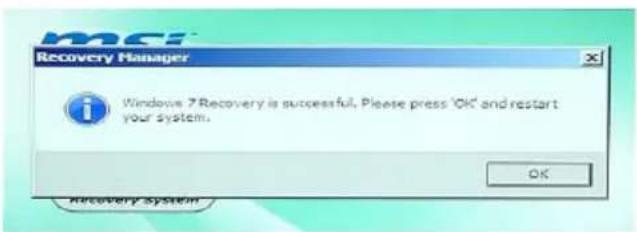

System Recovery 4-22

A. Troubleshooting ...... A-1

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.

■ MSI is a registered trademark of Micro-Star Int'l Co., Ltd.
Intel is a registered trademark of Intel Corporation.
■ Windows is a registered trademark of Microsoft Corporation.
■ Realtek is a registered trademark of Realtek Semiconductor Corporation.
■ THX and THX TruStudio PRO are trademarks of THX Ltd., which may be registered in some jurisdictions. All rights reserved.

Revision

Revision Date

V1.0 2012/09

Upgrade and Warranty

Please note that certain components preinstalled in the product may be upgradable or replaceable by user's request. To learn more about upgrade limitation, please refer to the specifications in the User's Manual. For any further information about the product users purchased, please contact the local dealer. Do not attempt to upgrade or replace any component of the product if you are not an authorized dealer or service center, since it may cause the warranty void. It is strongly recommended that you contact the authorized dealer or service center for any upgrade or replace service.

Acquisition of Replaceable Parts

Please be noticed that the acquisition of replaceable parts (or compatible ones) of the product users purchased in certain countries or territories may be fulfilled by the manufacturer within 5 years at most since the product has been discontinued, depending on the official regulations declared at the time.

Please contact the manufacturer via http://support.msi.com/ for the detailed information about the acquisition of spare parts.

Technical Support

If a problem arises with your system and no solution can be obtained from the user's manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.

Visit the MSI website for technical guide, BIOS updates, driver updates and other information via http://www.msi.com/service/download/
Contact our technical staff via http://support.msi.com/

Green Product Features

☐ Reduced energy consumption during use and stand-by
Limited use of substances harmful to the environment and health
Easily dismantled and recycled
- Reduced use of natural resources by encouraging recycling
- Extended product lifetime through easy upgrades
☐ Reduced solid waste production through take-back policy

Environmental Policy

The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life.
Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products.
Visit the MSI website and locate a nearby distributor for further recycling information.
Users may also reach us at [e-mail] for information regarding proper Disposal, Take-back, Recycling, and Disassembly of MSI products.

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

http://www.msi.com/html/popup/csr/evmtprtt_pcm.html

Battery Information

European Union:

Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

Taiwan:

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

廢電池請回收

California, USA:

The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California.

For further information please visit:

http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Safety Instructions

Read the safety instructions carefully and thoroughly.

All cautions and warnings on the equipment or user's manual should be noted.

Keep the User's Guide that comes with the package for future reference.

Keep this equipment away from humidity and high temperature.

Lay this equipment on a reliable flat surface before setting it up.

Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100\~240V before connecting the equipment to the power outlet. Do not disable the protective earth pin from the plug. The equipment must be connected to an earthed mains socket-outlet.
Always unplug the AC power cord before installing any add-on card or module to the equipment.
Always disconnect the AC power cord or switch the wall socket off if the equipment would be left unused for a certain time to achieve zero energy consumption.

The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator.

Do not leave the equipment in an unconditioned environment with a storage temperature above 60 °C (140°F) or below 0 °C (32°F), which may damage the equipment.

NOTE: The maximum operating temperature is around 35^ C.

Never pour any liquid into the opening that could damage or cause electrical shock.

Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord.

When installing the coaxial cable to the TV Tuner, it is necessary to ensure that the metal shield is reliably connected to protective earthing system of the building.

Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.

Always keep the strong magnetic or electrical objects away from the equipment.

If any of the following situations arises, get the equipment checked by service personnel:

The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well or you can not get it work according to user's manual.
The equipment has dropped and damaged.
The equipment has obvious sign of breakage.

1. The optical storage devices are classified as CLASS 1 LASER PRODUCT. Use of controls or adjustments or performance of procedures other than those specified is prohibited.
2. Do not touch the lens inside the drive.

CE Conformity

Hereby, Micro-Star International CO., LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/television technician for help.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

VOIR LA NOTICE D'INSTALLATION AVANT DE RACCORDER AU RESEAU.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

WEEE Statement

(English) Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of "electrical and electronic equipment" cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life.

This system is integrated in design, selecting a stylish appearance with a mirror screen, which displays the simplicity of modern individualism and the comfort of home. With a touchscreen display, flawless audio/video capabilities, and intuitive user interface, it blends technology with life, making computers easier and more fun to use — suitable for the whole family.

Packing Contents

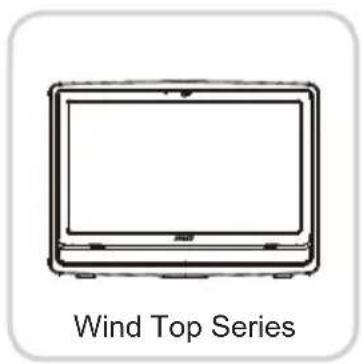

Wind Top Series

Line drawing of an AC/DC adapter connected to a rectangular device with cables (no text or symbols on the diagram itself)

Line drawing of an AC power cord with two connectors (no text or symbols on the diagram itself)

msi LCD Display Wiper

Driver/ Utility Disk

User Manual & Quick Guide

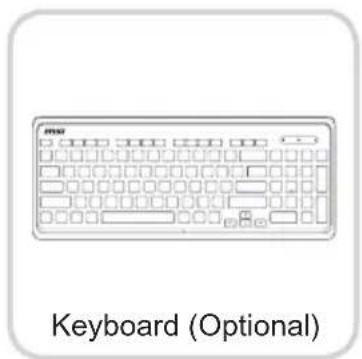

Keyboard (Optional)

Mouse (Optional)

Stylus (Optional)

* Please contact us immediately if any of the items is damaged or missing.
* The illustrations are for reference only and your packing contents may slightly vary depending on the model you purchased.

System Overview

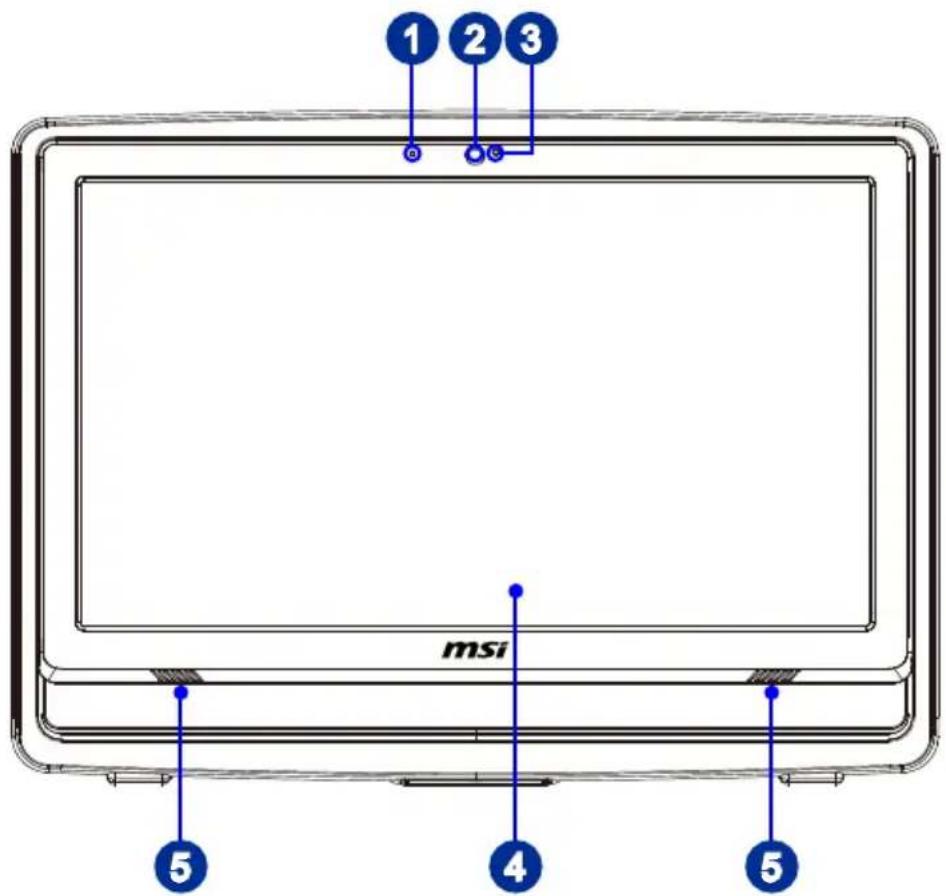

Front View

1 2 3 msi 5 4 5

1 Microphone

The built-in microphone can be used for video chatting online.

2 Webcam

The built-in webcam with the microphone can be used for picture taking, video recoding, online conferencing and any other interactive applications.

3 LED Indicator (Optional)

The LED indicator indicates when it is recording. The LED indicator should be on when device is capturing video and off when the device is not capturing video.

LCD Display

The 21.5-inch TFT LCD display is with an optimal resolution of 1920 X 1080 pixels and standard proportion of 16:9 widescreen.

5 Stereo Speakers

The built-in stereo speakers deliver high quality sound blaster with stereo system.

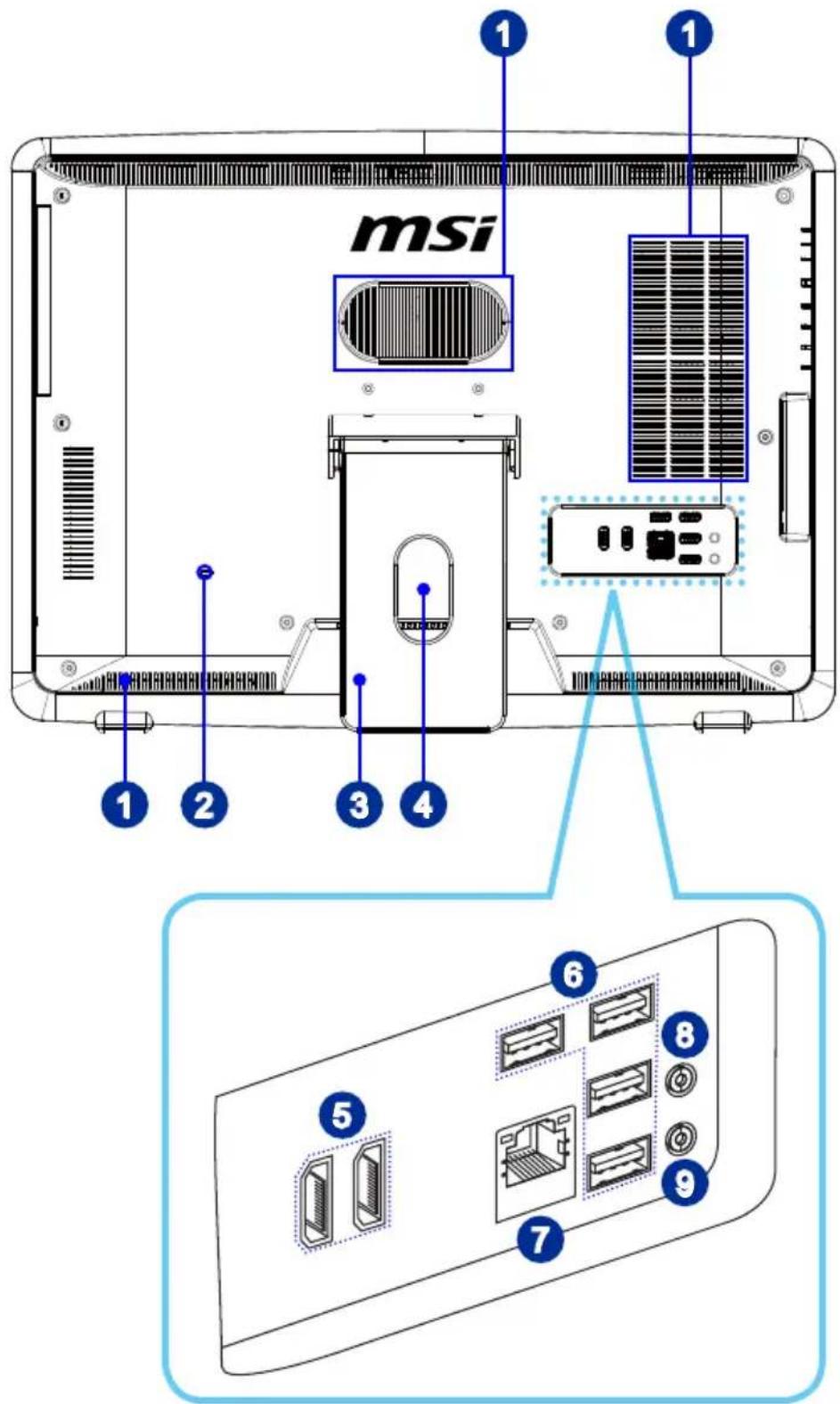

▶ Rear View

msi 1 1 1 2 3 4 6 5 8 9 7

Important

We suggest that you connect the AC/DC adapter to your AIO PC first and then connect the AC power cord to the socket-outlet for safety concerns.

1 Ventilator The ventila

The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator.

2 Kensington Lock Port This AIO PC provides a k

This AIO PC provides a Kensington lock port, which allows users to secure the AIO PC in place with a key or some mechanical PIN device and attached through a rubberised metal cable. The end of the cable has a small loop which allows the whole cable to be looped around a permanent object, such as a heavy table or other similar equipment, thus securing the AIO PC in place.

3 Stand

Use this stand to position your system on a flat and stable surface.

4 Cable Routing Hole Route the cables through

Route the cables through the cable routing hole to avoid cable spaghetti when connecting devices.

5 HDMI-In Port (Optional) HDMI™

(with MSI Instant Display Technology)

The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video interface capable of transmitting uncompressed streams. HDMI supports all TV format, including standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable.

With MSI Instant Display Technology, when you connect power to the AIO PC successfully, the monitor will automatically enter "stand by" mode without pressing the power button. When devices are connected to the HDMI-in port, the monitor will be turn on immediately. You can also switch the modes through the Monitor Power / Mode Button on the side panel if you have already turned on your AIO PC. This technology helps to save more energy for your system.

HDMI-Out Port (Optional) HDMI

The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video interface capable of transmitting uncompressed streams. HDMI supports all TV format, including standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable.

* Please refer to the printed icon on the chassis for the exact position of HDMI-In Port and HDMI-Out Port.

6 USB 2.0 Port The USB (Unive

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices. It supports up to 480Mbit/s (Hi-Speed) data transfer rate.

RJ-45 LAN Jack

The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN). You can connect a network cable to it.

LED Color LED State Condition
Left Yellow Off LAN link is not established.
			On (steady state) LAN link is established.
			On (brighter & pulsing) The computer is communicating with another computer on the LAN.
Right Green Off 10 Mbit/sec data rate is selected.
				On 100 Mbit/sec data rate is selected.
				Orange On 1000 Mbit/sec data rate is selected.

Microphone Jack

This connector is provided for microphones.

Line-Out Jack

This connector is provided for headphones or speakers.

Important

High-speed devices are recommended for USB 3.0 ports whereas low-speed devices, such as mouse or keyboard, are suggested to be plugged into the USB 2.0 ports on the rear panel.

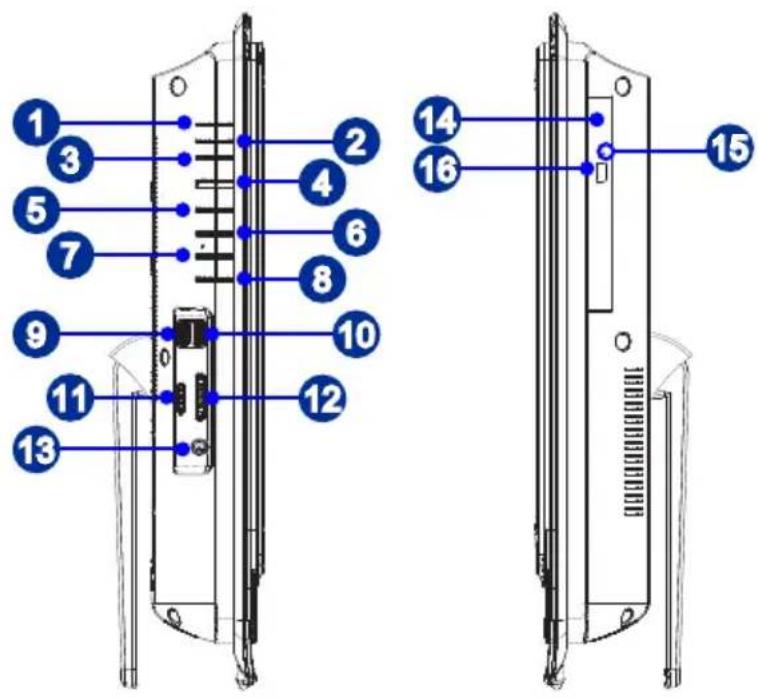

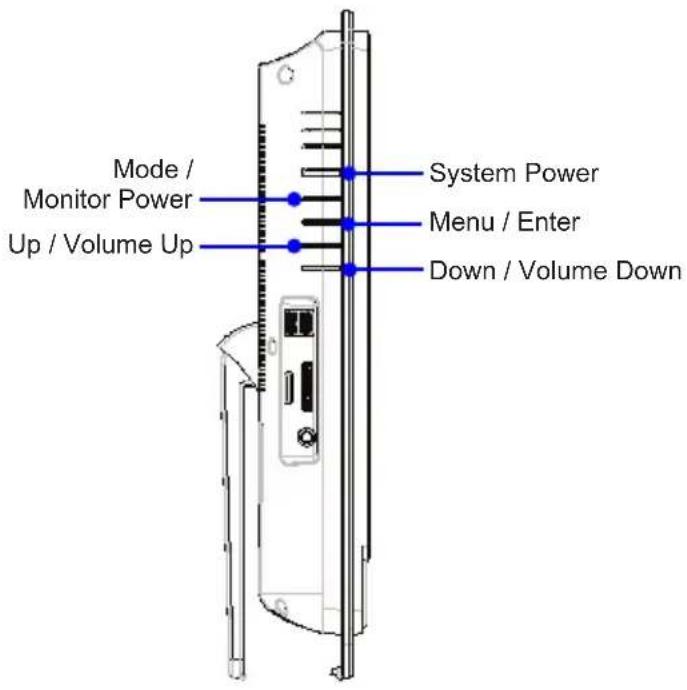

> Side View

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

1 System Power LED

The power LED glows when the system is turned on and goes off when the system is shut down. In terms of power saving, the LED blinks in S3 (Suspend to RAM) mode and goes off in S4 (Suspend to Disk) mode.

2 Monitor Power LED The power LED glows

The power LED glows when the monitor is turned on and goes off when the monitor is shut down.

3 Hard Disk Drive LED

This indicator shows the activity status of the HDD. It flashes when the system is accessing data on the HDD and remains off when no disk activity is detected.

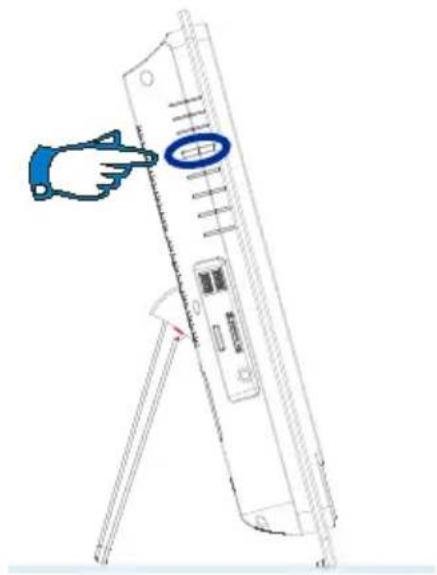

4 System Power Button

Press the system power button to turn the system on or off.

5 Monitor Power/ Mode Button This button works both as the

This button works both as the monitor power button and as the signal input switch between PC & HDMI.

6 Menu/ Enter Button

Press this button to view the OSD menu or enter into the submenu.

Up/ Volume Up Button

In Menu mode, this button indicates the cursor movement or OSD manual selection in incremental values. Out of Menu mode, it works as Volume Up button.

Down/ Volume Down Button

In Menu mode, this button indicates the cursor movement or OSD manual selection in decremental values. Out of Menu mode, it works as Volume Down button.

USB 3.0 Port (Optional)

The USB 3.0 port is backward-compatible with USB 2.0 devices. It supports up to 5Gbit/s (SuperSpeed) data transfer rate.

USB 3.0 Port (with MSI Super Charger Technology) (Optional)

The USB 3.0 port is backward-compatible with USB 2.0 devices. It supports up to 5Gbit/s (SuperSpeed) data transfer rate.

With MSI Super Charger Technology, not only does it function as normal USB 3.0 port, but it also enables users to charge USB devices even when the system is turned off. Users will no longer need to power on the system just to charge USB devices. Better yet, it can reduce the charge time up to 40%, making life more efficient than ever.

B-CAS Card Reader Slot (Optional for Japanese ISDB-T/S only)

This slot is provided for B-CAS (Broadcast Satellite Conditional Access System) card.

Card Reader Drive

The built-in card reader may support various types of memory cards.

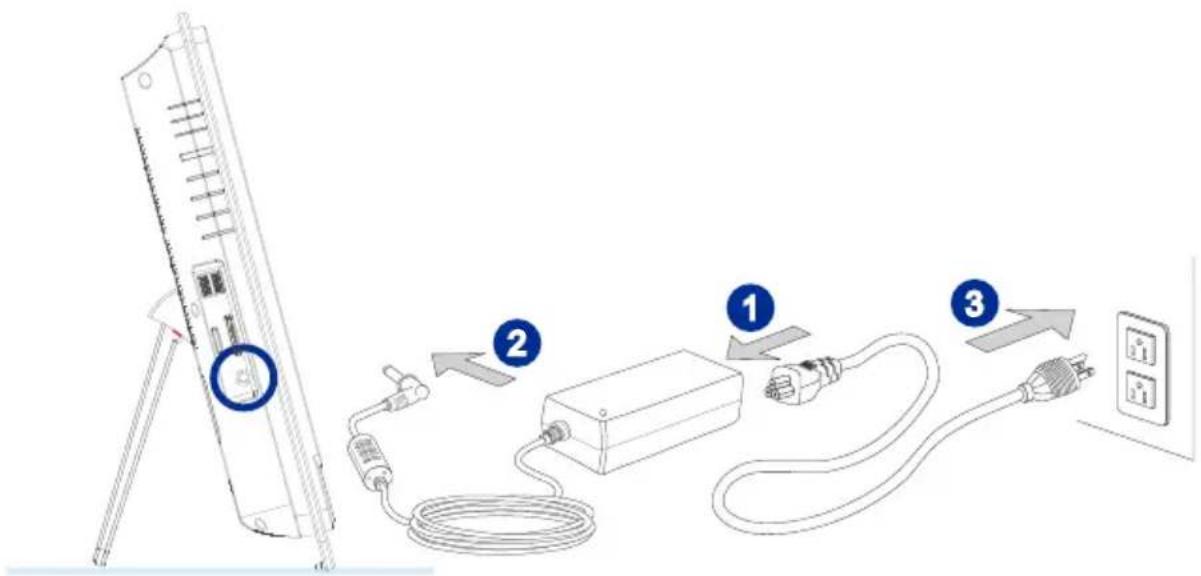

Power Jack

The AC/DC adapter converts AC power to DC power for this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter.

Optical Disk Drive

A DVD Super-Multi drive is integrated for your home entertainment (Blu-ray is optional).

Eject Hole

Insert a thin, straight object (such as a paper clip) into the eject hole to open the optical disk drive manually if the eject button does not work.

Eject Button

Press the eject button to open the optical disk drive.

System Specifications

Processor

■ Option 1:
- Intel ^® Ivy Bridge series processor in the LGA1155 package
- TDP Max 65W
■ Option 2:
- Intel ^® 3rd Gen Core ^TM i series processor in the LGA1155 package
- TDP Max 65W

Chipset

Intel® H61 chipset■

Memory

■ 2 DDR3 SO-DIMM slots
■ Supports the maximum of 8GB

LAN

■ Bluetooth: optionally supported through built-in Bluetooth module
■ Wireless LAN: optionally supported through Mini PCI-E WLAN module
■ Wired LAN: supported by Realtek® RTL8111E Gigabit Ethernet controller

Audio

■ HDA Codec by Realtek® ALC887
■ Compliant with Azalia 1.0 specs

Display

■ 21.5-inch full-HD display with backlight LED
- An optimal resolution of 1920 x 1080 pixels
- Standard proportion of 16:9 widescreen

Rear Input/ Output

■ 1 LAN jack
■ 1 line-out jack
■ 1 microphone jack
■ 4 USB 2.0 ports
■ 1 HDMI-in port (Optional)
■ 1 HDMI-out port (Optional)

Side Input/ Output

■ 1 power jack
■2 USB 3.0 ports (Optional)
■ 1 B-CAS card reader slot (Optional for Japanese ISDB-T/S only)

Storage

■ Hard Disk Drive: 3.5", SATAII
■ Optical Disk Drive: Slim DVD Super Multi (Blu-ray is optional)
■ Card Reader: 3-in-1 SD/ MS/ MMC

Stereo Speaker

2 stereo speakers■

WebCam

Support webcam with microphone

Power Supply

■ Option 1:
- 90 Watt AC/DC adapter with active PFC
- Input: 100-240V, 1.5A, 50-60Hz
- Output: 19V -4.74A

■ Option 2:

• 120 Watt AC/DC adapter with active PFC
• Input: 100-240V, 2.0A, 50-60Hz
• Output: 19V -0.32A

■ Option 3:

• 150 Watt AC/DC adapter with active PFC
• Input: 100-240V, 2.0A, 50-60Hz
• Output: 19V -7.9A

■ Option 4:

• 180 Watt AC/DC adapter with active PFC
• Input: 100-240V, 2.25A, 50-60Hz
• Output: 19.5V -8.2A

Component Replacement & Upgrade

Please note that certain components preinstalled in the product may be upgradable or replaceable by user's request depending on the models users purchased.

msi

To learn more about upgrade limitation, please refer to the specifications in the User's Manual. For any further information on the product users purchased, please contact the local dealer.

Do not attempt to upgrade or replace any component of the product if you are not an authorized dealer or service center, since it may cause the warranty void. It is strongly recommended that you contact the authorized dealer or service center for any upgrade or replace service.

Chapter 2

Getting Started

This chapter provides you with the information on hardware setup procedures. While connecting peripheral devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity.

Safety & Comfort Tips

The AIO PC is a portable platform that allows you to work anywhere. However, choosing a good workspace is important if you have to work with your PC for a long period of time.

1. Your work area should have enough illumination.
2. Choose the proper desk and chair and adjust their height to fit your posture when operating.
3. When sitting on the chair, sit straight and keep a good posture. Adjust the chair's back (if available) to support your back comfortably.
4. Place you feet flat and naturally on the floor, so that your knees and elbows have the proper position (about 90-degree) when operating.
5. Put your hands on the desk naturally to support your wrists.
6. Adjust the angle/position of the AIO PC to have an optimal view.
7. Avoid using your PC in a place where discomfort may occur (such as on the bed).
8. The AIO PC is an electrical device. Please treat it with great care to avoid personal injury.

15-20° 38-76cm 90-120° 4 5 6 2 4 2 4

Hardware Setup

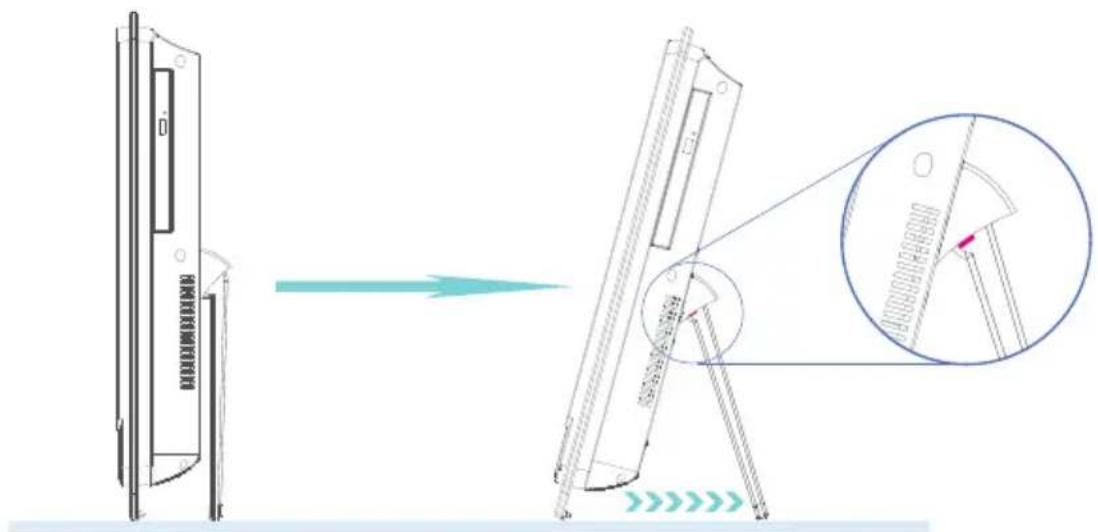

Positioning Your System

1. Place your system on a flat and steady surface such as a table or desk.
2. Pull the stand open and tilt the monitor. To stabilize the system, make sure that the stand has been pulled until the mark on its hinge aligns to the edge of the hinge cover. Proper positioning helps to reduce your eye strain & muscle fatigue as well.

Technical diagram showing a device with a left-side panel and its side view, including a magnified inset of the component.

Connecting the AC Power

1. Assemble the AC/DC adapter and the AC power cord.
2. Plug the DC end of the adapter to the AIO PC.
3. Plug the male end of the AC power cord to the electrical outlet.

Important

We suggest that you connect the AC/DC adapter to your AIO PC first and then connect the AC power cord to the socket-outlet for safety concerns.

Powering on the System

Press the power button to power on the system.

Diagram showing a hand pointing at a measurement device with a blue circular marker highlighting the center.

Chapter 3

System Operations (Windows 7)

This chapter provides you with essential information on system operations.

Important

All information is subject to change without prior notice.

System Booting Setup for the first time

For the first-time use, you will need to go over the following steps to start using your Wind Top Series AIO PC. The entire booting setup will take you around 30 minutes.

1. Windows setup starts running. Please wait until Windows setup finishes the progress loading.
2. Select the language of the operating system and click [Next] to continue.
3. Choose the "Country or region", "Time and currency", and "Keyboard layout" you need. Click [Next] to continue.
4. Choose a user name for your account and name your computer to distinguish it on the network. Click [Next] to continue.
5. Set a password for your account to protect your user account from unwanted users. (Leave this field blank if no need for password.) Click [Next] to continue.
6. Please read the license terms. Check the "I accept the license terms" box and click [Next] to continue.
7. Select [Use recommended settings] for "Help protect your computer and improve Windows automatically."
8. Review your time and date settings. Click [Next] to continue.
9. Please choose a wireless network you intend to join from the provided WLAN list. Click [Next] to continue. You may also click [Skip] to skip this step and set up the WLAN later.
10. (Optional) Followingly comes the anti-virus software screen. Click [Agree] to accept the license agreement terms and activate the anti-virus software. Alternatively, choose [Stay Unprotected] and click [Next] to proceed without activating the anti-virus software.
11. The "Software Installation Menu" pops up. Click [Install] to continue.
12. The software is being installed. Please do not turn off the computer when software installation is running. When the progress bar completes loading, click [Finish] to continue.
13. The system enters the Windows 7 OS to start its personalized settings. Get ready to explore your AIO PC after the personalized settings are done. Have fun with it!

Network Connection under Windows

Wired LAN

1. Go to [Start] > [Control Panel].

Getting Started Paint Windows Media Center Calculator Sticky Notes Snipping Tool Magnifier Solitaire Calibration msi Wind Match All Programs msi Documents Pictures Music Games Computer Control Panel Devices and Printers Default Programs Help and Support Shut Down

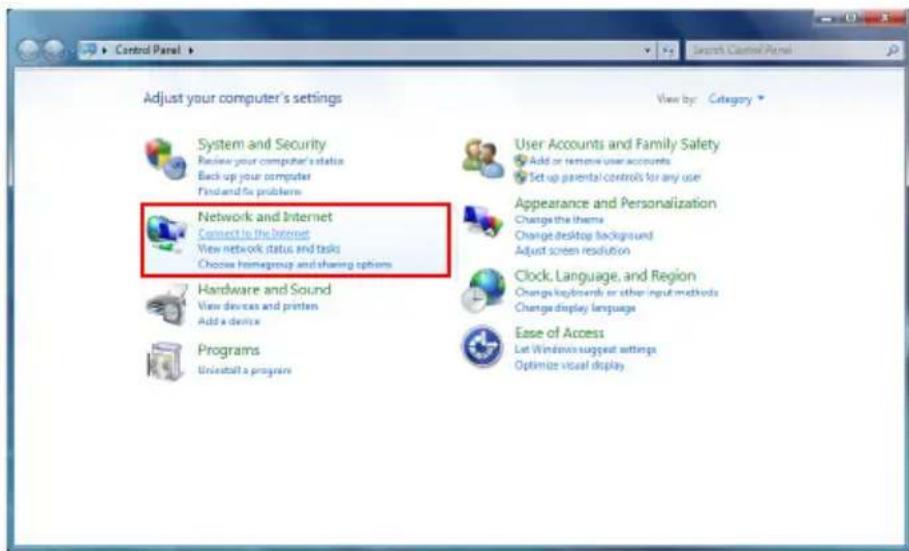

1. Select [Connect to the Internet] under [Network and Internet].

Adjust your computer's settings System and Security Review your computer's status Back up your computer Find and fix problems Network and Internet Connect to the Internet View network status and tasks Choose homegroup and sharing options Hardware and Sound View devices and printers Add a device Programs Uninstall a program User Accounts and Family Safety Add or remove user accounts Set up parental controls for any use Appearance and Personalization Change the themes Change desktop background Adjust screen resolution Clock, Language, and Region Change keywords or other input methods Change display language Ease of Access Let Windows suggest settings Optimize visual display

1. Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user name and password.

How do you want to connect? Wireless Connect using a wireless router or a wireless network. Broadband (PPPoE) Connect using DSL or cable that requires a user name and password. Show connection options that this computer is not set up to use Help me choose Cancel

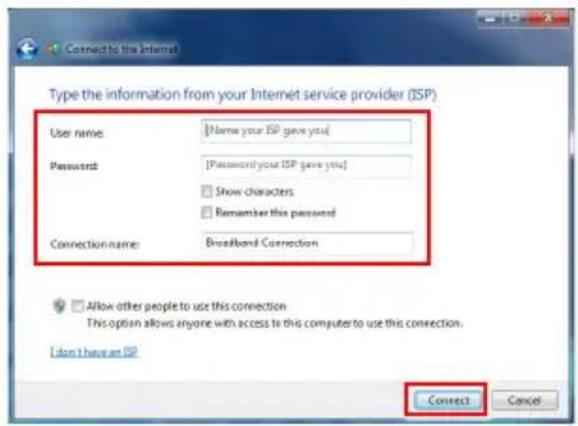

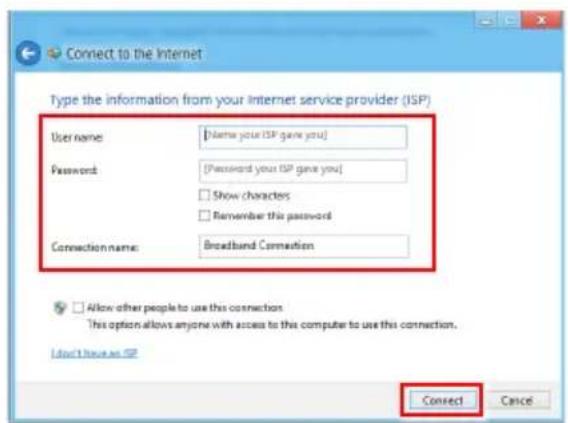

1. Type the information from your Internet Service Provider (ISP) and click [Connect] to establish your LAN connection.

Connect to the Internet Type the information from your Internet service provider (ISP) User name: [Name your ISP gave you] Password: [Password your ISP gave you] Show characters Remember this password Connection name: Broadband Connection Allow other people to use this connection This option allows anyone with access to this computer to use this connection. I don't have an ISP Connect Cancel

> Wireless LAN

1. Go to [Start] > [Control Panel].

Getting Started Paint Windows Media Center Calculator Sticky Notes Snipping Tool Magnifier Solitaire Calibration msi Wind Match All Programs msi Documents Pictures Music Games Computer Control Panel Devices and Printers Default Programs Help and Support Shut down

1. Select [Connect to the Internet] under [Network and Internet].

Control Panel Adjust your computer's settings View by: Category System and Security Review your computer status Back up your computer Find and fix problems Network and Internet Connect to the Internet View network status and tasks Choose homegroup and sharing options Hardware and Sound View devices and printers Add a device Programs Uninstall's program User Accounts and Family Safety Add or remove user accounts Set up parental controls for any user Appearance and Personalization Change the themes Change desktop background Adjust screen resolution Clock, Language, and Region Change keyboards or other input methods Change display language Ease of Access Let Windows suggest settings Optimize visual display

1. Select [Wireless] to connect using a wireless router or a wireless network.

How do you want to connect? Wireless Connect using a wireless router or a wireless network. Broadband (PPPoE) Connect using DSL or cable that requires a user name and password. Show connection options that this computer is not set up to use Help me choose Cancel

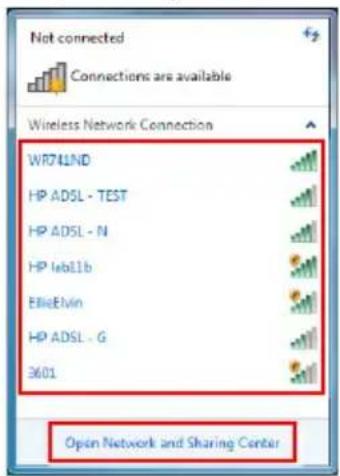

1. A list of available WLAN connections pops up. Choose a connection from the list or click [Open Network and Sharing Center] to establish a new connection.

Not connected Connections are available Wireless Network Connection WR741ND HP ADSL - TEST HP ADSL - N HP Iebllb ElicEMin HP ADSL - G 3601 Open Network and Sharing Center

1. To establish a new WLAN connection, select [Set up a new connection or network] in [Network and Sharing Center].

Control Panel Home Manage wireless networks Change adapter settings Change advanced sharing settings View your basic network information and set up connections MSI-MSI (This computer) Internet View your active networks You are currently not connected to any networks. Connect to a network Change your networking settings Set up a new connection or network Set up a wireless, broadband, dial-up, ad-hoc, or VPN connections or set up a router or access port. Connect to a network Connect or reconnect to a wireless, audio, dial-up, or VPN network connection. Choose homegroup and sharing options Access files and printers located on other network computers, or change sharing settings. Troubleshoot problems Diagnose and repair network problems, or get troubleshooting information.

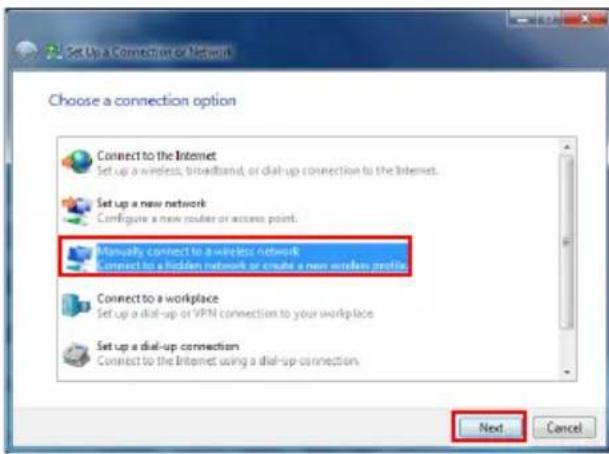

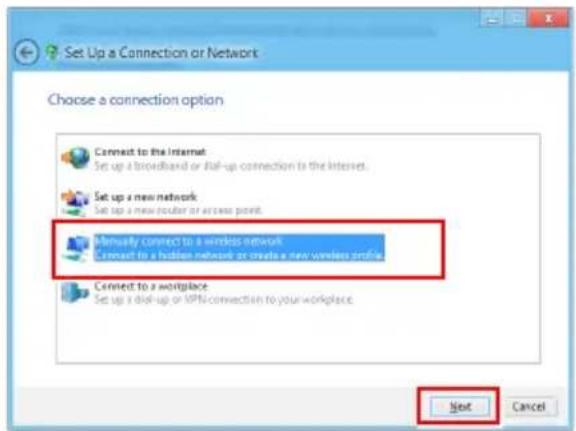

1. Followingly, choose [Manually connect to a wireless network] and click [Next] to continue.

Set Up a Connection or Network Choose a connection option Connect to the Internet Set up a wireless, broadband, or dial-up connection to the Internet. Set up a new network Configure a new router or access point. Manually connect to a wireless network Connect to a hidden network or create a new wireless profile. Connect to a workplace Set up a dial-up or VPN connection to your workplace Set up a dial-up connectors Connect to the Internet using a dial-up connection. Next Cancel

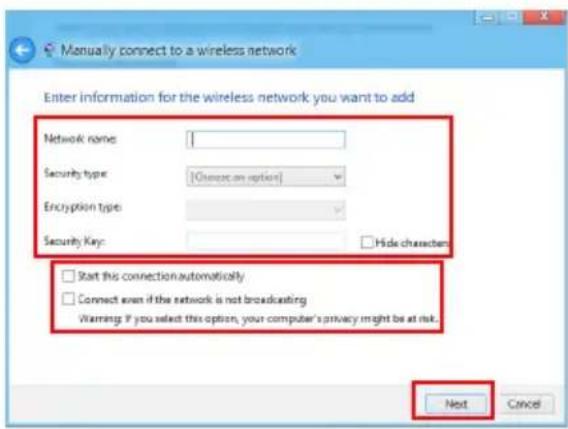

1. Enter information for the wireless network you intend to add and click [Next] to proceed.

Manually connect to a wireless network Enter information for the wireless network you want to add Network name: Security type: [Choose an option] Encryption type: Security Key: Hide characters Start this connection automatically Connect even if the network is not broadcasting Warning: If you select this option, your computer's privacy might be at risk Next Cancel

1. A new WLAN connection has been made. Click [Close] to exit or select [Change connection settings] to modify the WLAN settings.

Manually connect to a wireless network Successfully added Change connection settings Open the connection properties so that I can change the settings. Close

THX TruStudio PRO (Optional)

THX TruStudio PRO is specially designed to bring the same great audio experience found in live performances, films, and recording studios - to the PC. THX TruStudio provides the latest ground-breaking technologies that deliver the fullest audio experience for music, movies and games, while remaining true to the source and intention of the artists who created it.

THX TruStudio PRO™

Using the THX TruStudio PRO

1. To launch the THX TruStudio PRO, open its control panel from Start -> Program -> Creative -> THX TruStudio PRO or double-click the THX tray icon at the system tray.

Toolbar with icons including a red square labeled '100K' and various colored and styled symbols

1. Click the Menu Button. Enter Settings and Audio Device Selection to select and configure the audio source targeted for sound processing.

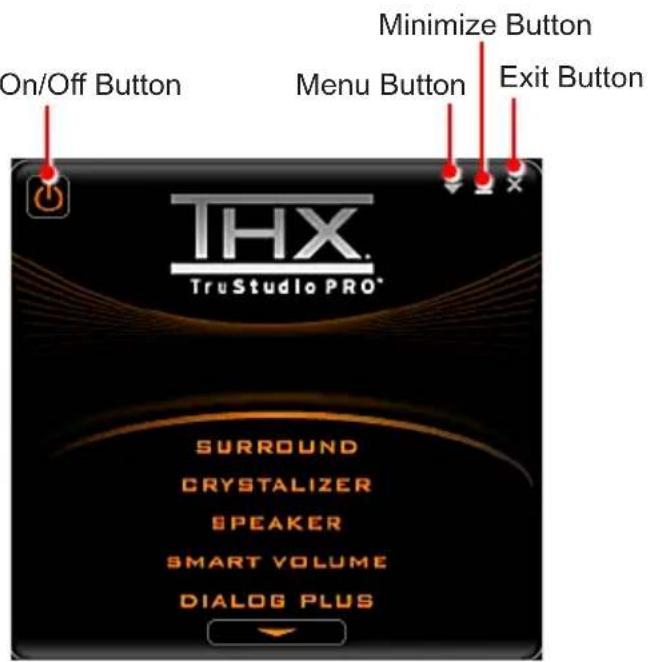

On/Off Button Minimize Button Menu Button Exit Button THX. TruStudio PRO® SURROUND CRYSTALIZER SPEAKER SMART VOLUME DIALOG PLUS

THX. TruStudio Pro™ Start THX TruStudio Pro Settings when Windows starts Settings... Restore Default... Audio Device Selection... Software Language Selection... Software Update... About THX TruStudio Pro Settings...

1. Choose the audio effect you need and fine-tune the value to suit your preferences. The THX TruStudio PRO will process the specified audio signals to deliver enhanced audio performance.

THX TruStudio PRO® SURROUND SURKROUND

Surround controls the level of audio immersion in music, movies and games.

Instructions:

1. Select Surround.
2. Drag the slider left or right. Changes can be heard when adjusting the slider.
3. Click the triangle under the slider to confirm the adjustment.
4. Play an audio file.

THX. TruStudio PRO* CRYSTALIZER DRUGRISEK

Crystalizer enhances music and movies to make them sound livelier.

Instructions:

1. Select Crystalizer.
2. Drag the slider left or right. Changes can be heard when adjusting the slider.
3. Click the triangle under the slider to confirm the adjustment.
4. Play an audio file.

THX Trustudio PRO® SPEAKER 5LEVEK 78%

Speaker enhances the sound quality and bass of any speaker system for a better listening experience.

Instructions:

1. Select Speaker.
2. Drag the slider left or right. Changes can be heard when adjusting the slider.
3. Click the triangle under the slider to confirm the adjustment.
4. Play an audio file.

The bass slider will be disabled for 5.1 and 7.1 speaker configurations.

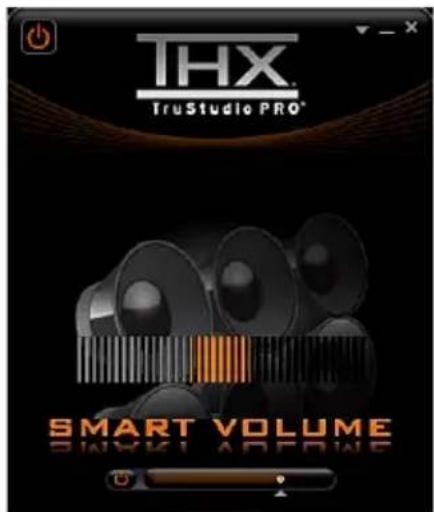

THX TruStudio PRO® SMART VOLUME BRAVYKLA AROWE

Smart Volume adjusts the loudness of your audio playback automatically to minimize sudden volume changes.

Instructions:

1. Select Smart Volume.
2. Drag the slider left or right. Changes can be heard when adjusting the slider.
3. Click the triangle under the slider to confirm the adjustment.
4. Play an audio file.

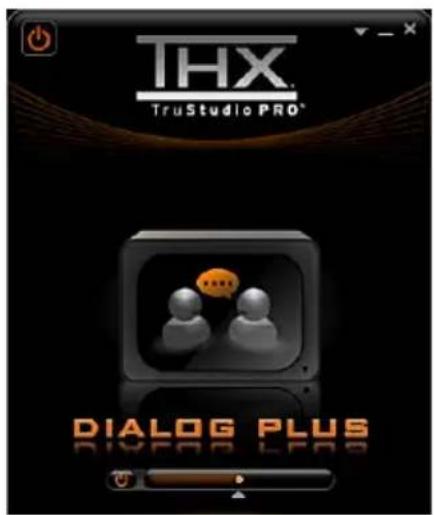

THX TruStudio PRO® DIALOG PLUS DIYOG PLUS

Dialog Plus enhances the voice in movies for clearer dialogs.

Instructions:

1. Select Dialog Plus.
2. Drag the slider left or right. Changes can be heard when adjusting the slider.
3. Click the triangle under the slider to confirm the adjustment.
4. Play an audio file with dialogs.

On-Screen Display (OSD)

The on-screen display (OSD) allows you to tune the viewing options of the monitor, such as brightness, contrast, positioning, language, etc.

Mode / Monitor Power Up / Volume Up System Power Menu / Enter Down / Volume Down

1. Press the Menu button to launch the OSD main menu. Use the Up and Down buttons to select the desired function menu and press the Menu button to enter. Use the Up and Down buttons to select or tune the values to suit your personal preferences. After the settings are done, press the Mode button to exit.

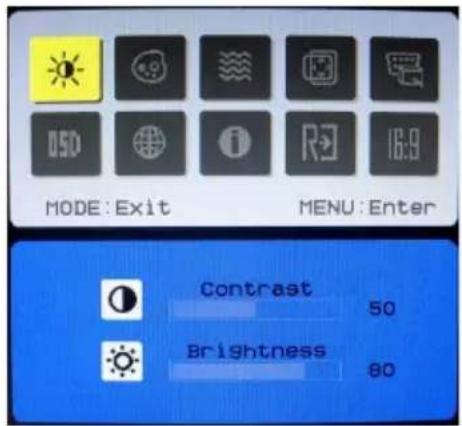

Adjusting contrast and brightness

MODE: Exit MENU: Enter Contrast 50 Brightness 80

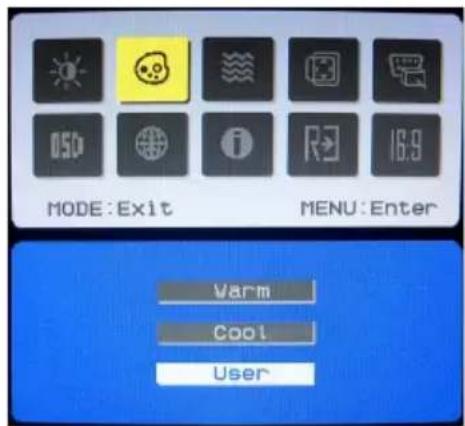

Adjusting color

MODE:Exit MENU:Enter Warm Cool User

Adjusting phase/focus & clock/pitch

MODE:Exit MENU:Enter Focus 0 Clock 50

Adjusting screen position

MODE:Exit MENU:Enter H. Position 50 U. Position 50 Auto Config

Adjusting signal source

MODE: Exit MENU: Enter HDMI in PC

Adjusting OSD position & timeout

OSD MODE: Exit MENU: Enter H. Position 50 V. Position 50 OSD Timeout 120

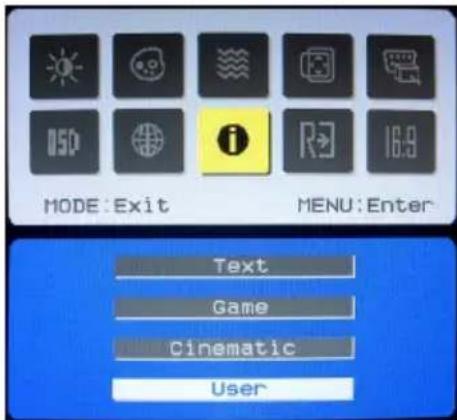

Specifying language Scenery mode

MODE: Exit MENU: Enter English Deutsch Español 简体中文 繁體中文 Français Italiano 日中華

MODE: Exit i MENU: Enter Text Game Cinematic User

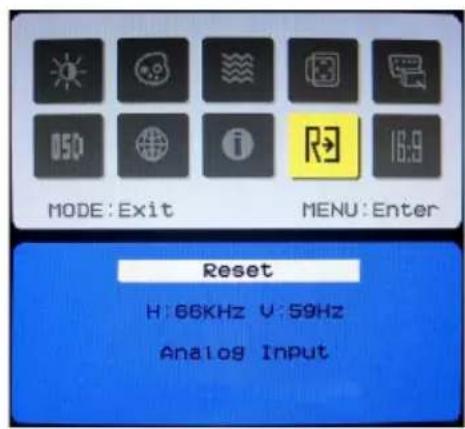

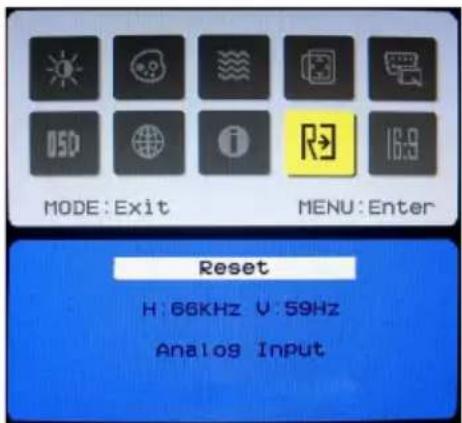

Resetting system Adjusting wide screen mode

MODE:Exit MENU:Enter Reset H: 66KHz V: 59Hz Analog Input

MODE: Exit MENU: Enter Wide Mode 016:9 04:3

1. Press the Up & Down buttons to adjust the system volume.

Illustration of a green megaphone with sound waves, no text or symbols present

1. Press the Mode button to view the signal source. Press it again to select PC/ HDMI/ monitor off mode.

RECIRRS PC OFF

Important

Whenever any error takes place and incurs abnormal display or volume malfunction, enter the OSD menu and reset your monitor to restore all settings to manufacturer default for optimal performance.

MODE: Exit MENU: Enter Reset H: 68KHz V: 59Hz Analog Input

Power Management

Power management of personal computers (PCs) and monitors has the potential to save significant amounts of electricity as well as deliver environmental benefits.

To be energy efficient, turn off your display or set your PC to sleep mode after a period of user inactivity.

Power Management in Windows OS

■ [Power Options] in Windows OS allow you to control the power management features of your display, hard drive, and battery. Go to [Start] > [Control Panel] > [System and Security].

Control Panel Adjust your computer's settings System and Security Review your computer's status Back up your computer Find and fix problems

Then click on the [Power Options] link.

Power Options

Require a password when the computer wakes

Change when the computer sleeps

Change what the power buttons do

Select a power plan that suits your personal needs. You may also fine-tune the settings by clicking [Change plan settings].

Select a power plan

Power plans can help you maximize your computer's performance or conserve energy. Make a plan active by selecting it, or choose a plan and customize it by changing its power settings. Tell me more about power plans

Preferred plans

Balanced (recommended)

Change plan settings

Automatically balances performance with energy consumption on capable hardware.

Power saver

Change plan settings

Saves energy by reducing your computer's performance where possible.

Show additional plans

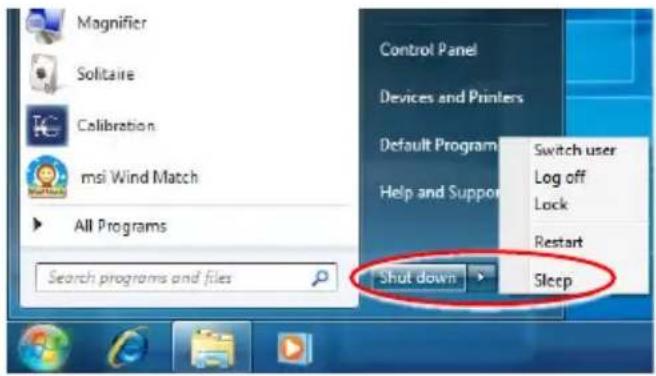

■ The Shut Down Computer menu presents the options of Sleep (S3/S4) & Shut Down (S5) for rapid and easy management of your system power.

Magnifier Solitaire Calibration msi Wind Match All Programs Search programs and files Control Panel Devices and Printers Default Program Help and Support Switch user Log off Lock Restart Shut down Sleep

Power Management through ENERGY STAR qualified monitors (Optional)

The power management feature allows the computer to initiate a low-power or "Sleep" mode after a period of user inactivity. When used with an external ENERGY STAR qualified monitor, this feature also supports similar power management features of the monitor. To take advantage of these potential energy savings, the power management feature has been preset to behave in the following ways when the system is operating on AC power:

■ Turn off the display after 15 minutes
■ Initiate Sleep after 30 minutes

Waking the System Up

The computer shall be able to wake up from power saving mode in response to a command from any of the following:

■ the power button,
■ the network (Wake On LAN),
■ the mouse,
■ the keyboard.

Energy Saving Tips:

■ Turn off the monitor by pressing the LCD power button after a period of user inactivity.
- Tune the settings in Power Options under Windows OS to optimize your PC's power management.
■ Install power saving software to manage your PC's energy consumption.
■ Always disconnect the AC power cord or switch the wall socket off if your PC would be left unused for a certain time to achieve zero energy consumption.

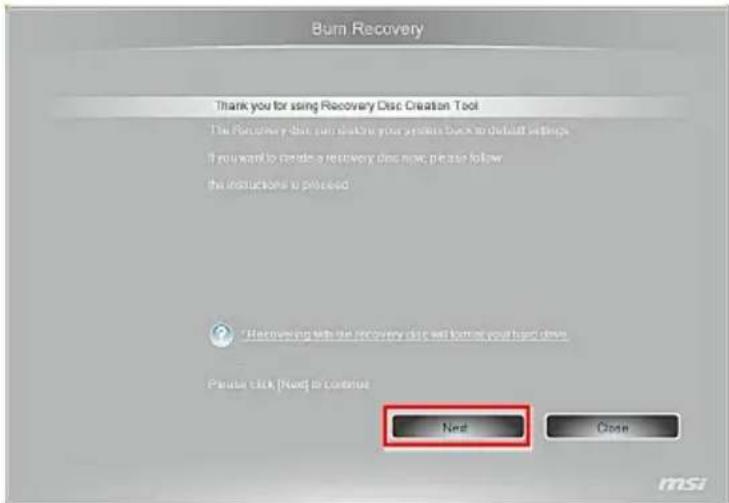

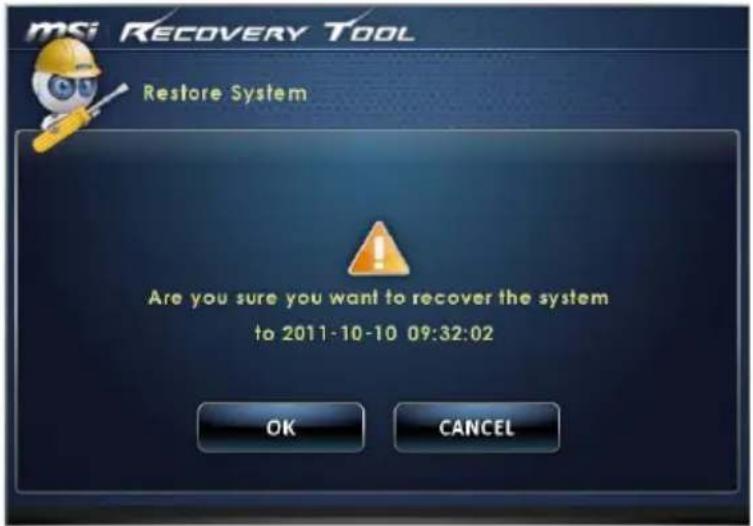

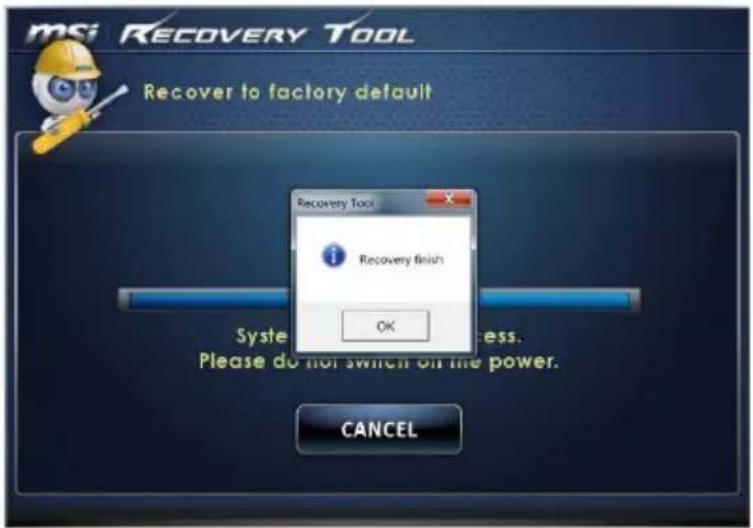

System Recovery Tool

The Recovery Tool is only available on systems bundled with Windows OS and MSI utilities by default.

The purposes for using the Recovery Tool may include:

• Restore the system back to the initial status of original manufacturer's default settings.
  ■ When some errors have occurred to the operating system in use.
  ■ When the operating system is affected by virus and is not able to work normally.
  ■ When you want to install the OS with other built-in languages.

Before using the Recovery Tool, please back up the important data saved on your system drive to other storage devices.

If the following solution fails to recover your system, please contact the authorized local distributor or service center for further assistance.

➢ Recovering the System with the F3 Hotkey

If the system encounters non-recoverable problems, it is always recommended that you try the F3 hotkey to recover your system with the recovery partition of the hard disk drive first.

Follow the instructions below to continue:

1. Restart the system.

2. Press the F3 hotkey on the keyboard when the following image appears.

3. Enter the Recovery Tool. This tool contains three features: Backup System, Restore System and Recover to factory default.

msi RECOVERY TOOL ↑ ↓ ← → to select, ENTER to confirm, ESC to exit. Backup System Restore System Recover to factory default

System Backup

It is highly recommended that users back up the system as the solution in the event of a catastrophic disk failure or other accidents.

Follow the instructions below to continue:

1. Select [Backup System] to enter. Alternatively, select [X] or press [Esc] on the keyboard to exit.

msi RECOVERY TOOL ↑ ↓ ← → to select, ENTER to confirm, ESC to exit. Backup System Restore System Recover to factory default

1. Select [BACKUP] to start the system backup immediately.

The Initial Backup

The initial backup may take a while. Please let it complete without interruption.

msi RECOVERY TOOL Backup System Estimated size of the image file : 2.56G Disk space : 1.68G BACKUP CANCEL

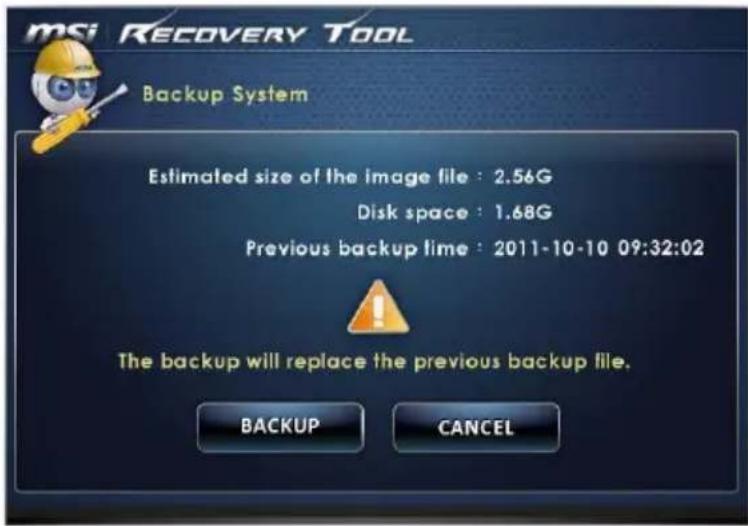

Subsequent Backups

Subsequent backups will replace the previous backup files.

msi RECOVERY TOOL Backup System Estimated size of the image file : 2.56G Disk space : 1.68G Previous backup time : 2011-10-10 09:32:02 The backup will replace the previous backup file. BACKUP CANCEL

1. The system backup is in progress. Please note that it may take a while. Do not switch off the power, or it may cause unknown damage to the system.

msi RECOVERY TOOL Backup System System backup in progress. Please do not switch off the power. CANCEL

1. Alternatively, select [CANCEL] to stop the system backup immediately. Please do not switch off the power while the system backup cancellation is in progress.

msi RECOVERY TOOL Backup System System backup cancellation in progress...

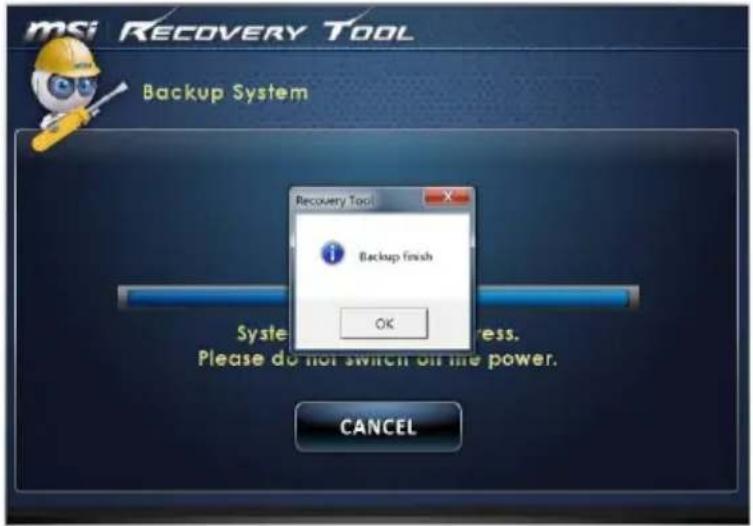

1. The following message indicates a successful system backup. Press [OK] to finish.

msi RECOVERY TOOL Backup System Recovery Tool Backup finish OK Cancel System Press. Please do not switch on the power.

System Restore

This tool helps to return the system to a previous state with the backup files that users created and saved in the hard disk drive beforehand. If no backup files are available, the system will be restored to the default setup.

Follow the instructions below to continue:

1. Select [Restore System] to enter. Alternatively, select [X] or press [Esc] on the keyboard to exit.

msi RECOVERY TOOL ↑ ↓ ← → to select, ENTER to confirm, ESC to exit. Backup System Restore System Recover to factory default

1. Select [OK] or [NEXT] so that the system can recover to the previous backup or default setup. Alternatively, select [CANCEL] to stop the system restore immediately.

- With backup files: restoring the system to the previous backup

msi RECOVERY TOOL Restore System Are you sure you want to recover the system to 2011-10-10 09:32:02 OK CANCEL

- Without backup files: restoring the system to the default setup

msi RECOVERY TOOL Restore System No image files in the backup Select "Next" so that the system can recover to the default setup. NEXT CANCEL

1. The system restore is in progress. Please note that it may take a while. Do not switch off the power, or it may cause unknown damage to the system.

msi RECOVERY TOOL Restore System System recovery in progress. Please do not switch off the power.

1. The following message indicates a successful system restore. Press [OK] to finish. Restart the system and access the Windows operating system as usual. If the restore process fails or is interrupted, please start the whole procedure all over again.

msi RECOVERY TOOL Restore System Recovery Tool Restore finish OK CANCEL System Press. Please do not offer on the power.

> System Recovery

This tool helps to recover the system back to factory default settings. All data on the HDD will be erased while all settings will be restored to factory default.

Follow the instructions below to continue:

1. Select [Recover to factory default] to enter. Alternatively, select [X] or press [Esc] on the keyboard to exit.

msi RECOVERY TOOL ↑↓←→ to select, ENTER to confirm, ESC to exit. Backup System Restore System Recover to factory default

1. The system will be recovered to factory settings. All data will be gone. Make sure all important data have been backed up. Select [NEXT] to continue. Alternatively, select [CANCEL] to stop.

msi RECOVERY TOOL Recover to factory default The system will recover to the default status after recovery. All the data will be gone. Please backup important files. NEXT CANCEL

1. Please select [OK] so that the system can recover its default setup.

msi RECOVERY TOOL Recover to factory default Please select "OK" so that the system can recover its default setup. OK CANCEL

1. The system recovery is in progress. Please note that it may take a while. Do not switch off the power, or it may cause unknown damage to the system.

msi RECOVERY TOOL Recover to factory default System restoring in process. Please do not switch off the power.

1. The following message indicates a successful system recovery. Press [OK] to finish. Restart the system and access the Windows operating system as usual. If the recovery process fails or is interrupted, please start the whole procedure all over again.

msi RECOVERY TOOL Recover to factory default Recovery Tool Recovery finish OK Cancel System Press. Please do not switch on the power.

Chapter 4

System Operations (Windows 8)

This chapter provides you with essential information on system operations.

Important

All information is subject to change without prior notice.

System Booting Setup for the first time

For the first-time use, you will need to go over the following steps to start using your AIO PC. The entire booting setup will take you a while.

1. Windows setup starts running. Please wait until Windows setup finishes the progress loading.
2. Select the language of the operating system and click [Next] to continue.
3. Please read the license terms. Check the "I accept the license terms for using Windows" box and click [Accept] to continue.
4. Select a color and enter the PC name. Click [Next] to continue.
5. Please choose a wireless network you intend to join from the provided WLAN list. Click [Connect] to continue. You may also click [Connect to a wireless network later] to set up the wireless network later.
6. Enter the password for this network and click [Connect] to continue.
7. By choosing the express settings, this PC will occasionally send info to Microsoft to help make things run more smoothly in Windows. Click [Use express settings] to continue.
8. Enter your email address as a Microsoft account to sign in to Windows. Click [Next] to continue.
9. Enter your Microsoft account password and click [Next] to continue.
10. Enter your phone number and alternate email as the security info to keep your account more secure. Click [Next] to finish.
11. The system enters the Windows 8 OS. Get ready to explore your AIO PC. Have fun with it!

Network Connection under Windows

Wired LAN

1. Go to [Start] > [Control Panel].

Programs and Features Power Options Event Viewer System Device Manager Disk Management Computer Management Command Prompt Command Prompt (Admin) Task Manager Control Panel Windows Explorer Search Run Desktop

Select [View network status and tasks] under [Network and Internet].2.

Control Panel

Adjust your computer's settings

View by: Category

System and Security

Review your computer's status

Save backup copies of your files with File History Find and fix problems

Network and Internet

View network status and tasks

Choose homegroup and sharing options

Hardware and Sound

View devices and printers

Add a device

Programs

Uninstall program

User Accounts and Family Safety

Change account type

Set up Family Safety for any user

Appearance and Personalization

Change the theme

Change desktop background

Adjust screen resolution

Clock, Language, and Region

Add a language

Change input methods

Change date, time, or number formats

Ease of Access

Let Windows suggest settings

Optimize visual display

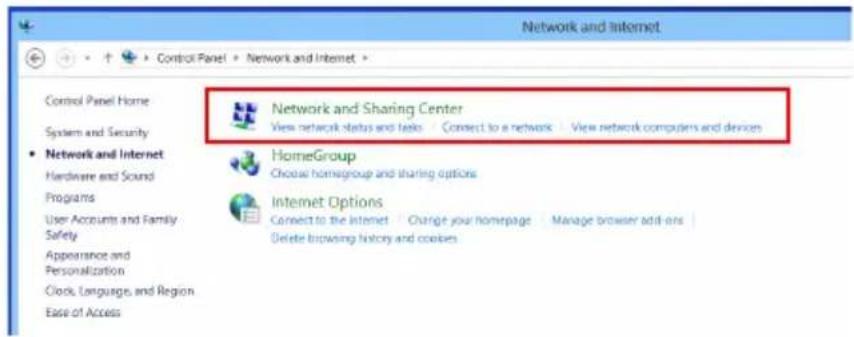

To establish a new connection, select [Network and Sharing Center].3.

Network and Internet Control Panel Home System and Security Network and Internet Hardware and Sound Programs User Accounts and Family Safety Appearance and Personalization Clock, Language, and Region Ease of Access Network and Sharing Center View network status and tasks Connect to a network View network computers and devices HomeGroup Choose homegroup and sharing options Internet Options Connect to the Internet Change your homepage Manage browser additions Delete browsing history and cookies

Select [Set up a new connection or network]. 4.

Network and Sharing Center Control Panel Home Change adapter settings Change advanced sharing settings View your basic network information and set up connections View your active networks You are currently not connected to any networks. Change your networking settings Set up a new connection or network Set up a broadband, dial-up, or VPN connection; or set up a router or access point. Troubleshoot problems Diagnose and repair network problems, or get troubleshooting information.

Choose [Connect to the Internet].5.

Set Up a Connection or Network Choose a connection option Connect to the Internet Set up a broadband or dial-up connection to the internet Set up a new network Set up a new router or access port. Manually connect to a wireless network Connect to a hidden network or create a new wireless profile. Connect to a workplace Set up a dial-up or VPN connection to your workplace. Next Cancel

1. Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user name and password.

Connect to the Internet How do you want to connect? Broadband (PPPoE) Connect using DSL or cable that requires a user name and password. Show connection options that this computer is not set up to use Cancel

1. Type the information from your Internet Service Provider (ISP) and click [Connect] to establish your LAN connection.

Connect to the Internet Type the information from your Internet service provider (ISP) User name: [Name your ISP gave you] Password: [Password your ISP gave you] Show characters Remember this password Connection name: Broadband Connection Allow other people to use this connection This option allows anyone with access to this computer to use this connection. I don't have an ISP Connect Cancel

> Wireless LAN

1. Select [Settings] Desktop, locate a wireless icon with available network.
2. A list of available WLAN connections pops up. Choose a connection from the list.

Settings Desktop Control Panel Personalization PC info Help Available 13 Unavailable Notifications Power Keyboard Change PC settings Networks Wi-Fi FET-Network AIOSW_AP diobar AIOFAE_AP David iPhone RC 3505 RG54GS default HTC TITAN X310e8946 MSI-DQA9-ADSL2 Ralink_AP alan Belkin_N1_03DFAE R800i RCRD_Airstation VMAXEDA61B Nicole iPhone

1. To establish a new connection, select [Network and Sharing Center] under [Network and Internet] in [Control Panel].

Network and Internet Control Panel Home System and Security • Network and Internet Hardware and Sound Programs User Accounts and Family Safety Appearance and Personalization Clock, Language, and Region Ease of Access Network and Sharing Center View network status and tasks Connect to a network View network computers and devices HomeGroup Choose homegroup and sharing options Internet Options Connect to the Internet Change your homepage Manage browser add-ons Delete browsing history and cookies

Select [Set up a new connection or network]. 4.

Network and Sharing Center Control Panel Home View your basic network information and set up connections Change adapter settings View your active networks You are currently not connected to any networks. Change advanced sharing settings Change your networking settings Set up a new connection or network Set up a broadband, dial-up, or VPN connection; or set up a router or access point. Troubleshoot problems Diagnose and repair network problems, or get troubleshooting information.

1. Followingly, choose [Manually connect to a wireless network] and click [Next] to continue.

Set Up a Connection or Network Choose a connection option Connect to the Internet Set up a broadband or dial-up connection to the Internet. Set up a new network Set up a new router or access point. Manually connect to a wireless network Connect to a hidden network or create a new wireless profile. Connect to a workplace Set up a dial-up or VPN connection to your workplace. Next Cancel

1. Enter information for the wireless network you intend to add and click [Next] to proceed.

Manually connect to a wireless network Enter information for the wireless network you want to add Network name: Security type: [Connect an option] Encryption type: Security Key: Hide character Start this connection automatically Connect even if the network is not broadcasting Warning if you select this option, your computer's privacy might be at risk. Next Cancel

1. A new WLAN connection has been made. Click [Close] to exit or select [Change connection settings] to modify the WLAN settings.

Manually connect to a wireless network Successfully added Change connection settings Open the connection properties so that I can change the settings. Close

THX TruStudio PRO (Optional)

THX TruStudio PRO is specially designed to bring the same great audio experience found in live performances, films, and recording studios - to the PC. THX TruStudio provides the latest ground-breaking technologies that deliver the fullest audio experience for music movies and games, while remaining true to the source and intention of the artists who created it.

THX TruStudio PRO™

Using the THX TruStudio PRO

1. To launch the THX TruStudio PRO, open its control panel from Start -> Program -> Creative -> THX TruStudio PRO or double-click the THX tray icon at the system tray.

Toolbar with icons including a red square labeled '100K' and various function buttons or icons

1. Click the Menu Button. Enter Settings and Audio Device Selection to select and configure the audio source targeted for sound processing.

On/Off Button ThX. TruStudio PRO® Minimize Button Menu Button Exit Button SURROUND CRYSTALIZER SPEAKER SMART VOLUME DIALOG PLUS

THX. TruStudio Pro™ Start THX TruStudio Pro Settings when Windows starts Settings... Restore Default... Audio Device Selection... Software Language Selection... Software Update... About THX TruStudio Pro Settings...

1. Choose the audio effect you need and fine-tune the value to suit your preferences. The THX TruStudio PRO will process the specified audio signals to deliver enhanced audio performance.

THX Trustudio PRO™ SURROUND ROKKROUND

Surround controls the level of audio immersion in music, movies and games.

Instructions:

1. Select Surround.
2. Drag the slider left or right. Changes can be heard when adjusting the slider.
3. Click the triangle under the slider to confirm the adjustment.
4. Play an audio file.

THX TruStudio PRO* CRYSTALIZER RHYRISEK

Crystalizer enhances music and movies to make them sound livelier.

Instructions:

1. Select Crystalizer.
2. Drag the slider left or right. Changes can be heard when adjusting the slider.
3. Click the triangle under the slider to confirm the adjustment.
4. Play an audio file.

THX TruStudio PRO® SPEAKER BLEYEK 78%

Speaker enhances the sound quality and bass of any speaker system for a better listening experience.

Instructions:

1. Select Speaker.
2. Drag the slider left or right. Changes can be heard when adjusting the slider.
3. Click the triangle under the slider to confirm the adjustment.
4. Play an audio file.

The bass slider will be disabled for 5.1 and 7.1 speaker configurations.

THX TruStudio PRO® SMART VOLUME RINYKLADEWES

Smart Volume adjusts the loudness of your audio playback automatically to minimize sudden volume changes.

Instructions:

1. Select Smart Volume.
2. Drag the slider left or right. Changes can be heard when adjusting the slider.
3. Click the triangle under the slider to confirm the adjustment.
4. Play an audio file.

THX TruStudio PRO® RIALOG PLUS RIVER FLOWS

Dialog Plus enhances the voice in movies for clearer dialogs.

Instructions:

1. Select Dialog Plus.
2. Drag the slider left or right. Changes can be heard when adjusting the slider.
3. Click the triangle under the slider to confirm the adjustment.
4. Play an audio file with dialogs.

On-Screen Display (OSD)

The on-screen display (OSD) allows you to tune the viewing options of the monitor, such as brightness, contrast, positioning, language, etc.

Mode / Monitor Power Up / Volume Up System Power Menu / Enter Down / Volume Down

1. Press the Menu button to launch the OSD main menu. Use the Up and Down buttons to select the desired function menu and press the Menu button to enter. Use the Up and Down buttons to select or tune the values to suit your personal preferences. After the settings are done, press the Mode button to exit.

Adjusting contrast and brightness

MODE: Exit MENU: Enter Contrast 50 Brightness 80

Adjusting color

MODE: Exit MENU: Enter Warm Cool User

Adjusting phase/focus & clock/pitch

MODE:Exit MENU:Enter Focus 0 Clock 50

Adjusting screen position

MODE:Exit MENU:Enter H. Position 50 U. Position 50 Auto Config

Adjusting signal source

MODE: Exit MENU: Enter HDMI in PC

Adjusting OSD position & timeout

OSD MODE: Exit MENU: Enter H. Position 50 V. Position 50 OSD Timeout 120

Specifying language Scenery mode

MODE: Exit MENU: Enter English Deutsch Español 簡体中文 繁體中文 Français Italiano 日本語

MODE: Exit MENU: Enter Text Game Cinematic User

System Operations (Windows 8)

Resetting system Adjusting wide screen mode

1. Press the Up & Down buttons to adjust the system volume.

2. Press the Mode button to view the signal source. Press it again to select PC/HDMI/ monitor mode.

Whenever any error takes place and incurs abnormal display or volume malfunction, enter the OSD menu and reset your monitor to restore all settings to manufacturer default for optimal performance.

Power Management

Power management of personal computers (PCs) and monitors has the potential to save significant amounts of electricity as well as deliver environmental benefits.

To be energy efficient, turn off your display or set your PC to sleep mode after a period of user inactivity.

Power Management in Windows OS

■ [Power Options] in Windows OS allow you to control the power management features of your display, hard drive, and battery. Go to [Start] > [Control Panel] > [System and Security].

Adjust your computer's settings

System and Security

Review your computer's status

Save backup copies of your files with File History

Find and fix problems

Then click on the [Power Options] link.

Power Options

Require a password when the computer wakes

Change when the computer sleeps

Change what the power buttons do

Select a power plan that suits your personal needs. You may also fine-tune the settings by clicking [Change plan settings].

Power Options Control Panel Home Require a password on wakeup Choose what the power buttons do Create a power plan Choose when to turn off the display Change when the computer sleeps Choose or customize a power plan A power plan is a collection of hardware and system settings (like display brightness, sleep, etc.) that manages how your computer uses power. Tell me more about power plans Preferred plans ● Balanced (recommended) Automatically balances performance with energy consumption on capable narware. ○ Power saver Saves energy by reducing your computer's performance where possible. Change plan settings Change plan settings Show additional plans

■ The Shut Down Computer menu presents the options of Sleep (S3/S4) & Shut Down (S5) for rapid and easy management of your system power.

Sleep Shut down Restart Network Available Notifications Power Keyboard Change PC settings

Power Management through ENERGY STAR qualified monitors (Optional)

The power management feature allows the computer to initiate a low-power or "Sleep" mode after a period of user inactivity. When used with an external ENERGY STAR qualified monitor, this feature also supports similar power management features of the monitor. To take advantage of these potential energy savings, the power management feature has been preset to behave in the following ways when the system is operating on AC power:

■ Turn off the display after 15 minutes
■ Initiate Sleep after 30 minutes

Waking the System Up

The computer shall be able to wake up from power saving mode in response to a command from any of the following:

■ the power button.
■ the network (Wake On LAN),
■ the mouse.
■ the keyboard.

Energy Saving Tips:

■ Turn off the monitor by pressing the LCD power button after a period of user inactivity.
■ Tune the settings in Power Options under Windows OS to optimize your PC's power management.
■ Install power saving software to manage your PC's energy consumption.
■ Always disconnect the AC power cord or switch the wall socket off if your PC would be left unused for a certain time to achieve zero energy consumption.

Creating System Recovery Disc

For the first-time use, it is highly recommended that you create a system recovery disc as the backup solution in the event of a catastrophic disk failure or other accidents. Before moving forward, please make sure your system booting setup is complete and go over the following procedures to get it done.

1. Double-click the "BurnRecovery" - icon on the desktop to launch the Recovery Disc Creation Tool. Please note that it may take a while for the operating system to prepare recovery files.

Burn Recovery Prepare files; please wait_

1. Click [Next] to start the image creation of the recovery disc.

Burn Recovery Thank you for using Recovery Disc Creation Tool The Recovery disc can choose your system back to default settings If you want to create a recovery disc now, please follow the instructions is pressed ? Recovering with the recovery disc and form your hand drive Please click [Next] to continue Next Close msi

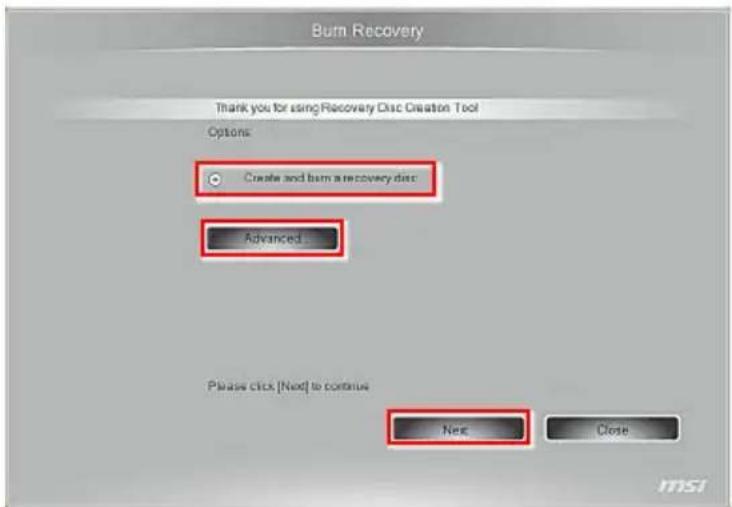

1. Select [Create and burn a recovery disc] and click [Next] to continue. Alternatively, choose [Advanced] to bring forth advanced options.

Burn Recovery Thank you for using Recovery Disc Creation Tool Options: Create and turn a recovery disc Advanced Please click [Next] to continue Next Close MISI

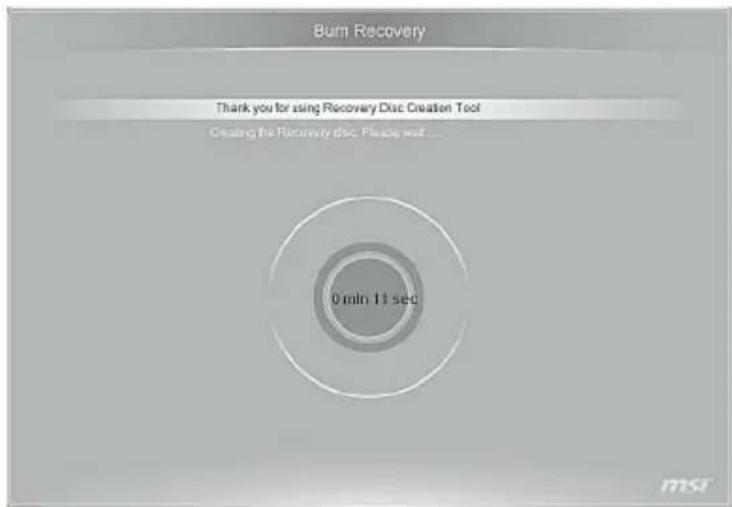

1. The image of recovery disc is being created. It takes some time to finish the processing.

Burn Recovery Thank you for using Recovery Disc Creation Tool Creating the Recovery disc Please wait ... 0 min 11 sec

1. Follow the on-screen instructions to prepare enough number of blank DVD discs. Insert the blank DVD disc into the optical disc drive and click [Next] to continue.

Burn Recovery Thank you for using Recovery Disc Creation Tool Please insert the number 1. blankwithable DVD that prepare to proceed the recovery disc creation I choose withdraw OVCs will be required for this operation Please click [Next] to continue Next Close MTSI

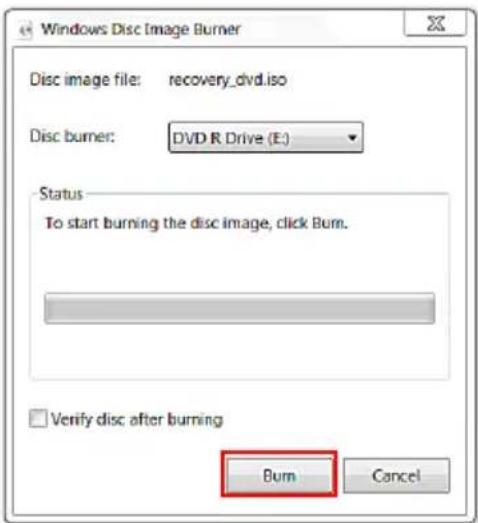

1. The Windows Disc Image Burner pops up. Click [Burn] to start the burning progress. It takes a while to finish the processing.

Windows Disc Image Burner Disc image file: recovery_dvd.iso Disc burner: DVD R Drive (E.) Status To start burning the disc image, click Burn. □ Verify disc after burning Burn Cancel

Windows Disc Image Burner Disc image file: recovery_dvd.iso Disc burner: DVD R Drive (E:) Status Burning disc image to recordable disc... □ Verify disc after burning Burn Cancel

1. On completion of the disc creation, click [Close] to exit and take out the disc. Follow the on-screen instructions to create all recovery discs.

Windows Disc Image Burner Disc image file: recovery_dvd2.iso Disc burner: DVD R Drive (E) Status The disc image has been successfully burned to disc. □ Verify disc after burning Burn Close

1. All recovery discs have been successfully created. Please store the discs carefully and click [Next] to continue.

Burn Recovery Thank you for using Recovery Disc Creation Tool The 3 of 3 recovery disc has been successfully created. Please remove the disc and close if properly. Discs required 3 Discs created 3 Please click [Next] to continue Next Close 1MST

1. Check the following box if you want to remove the temporary files. Click [Finish] to complete recovery disc creation.

Burn Recovery Thank you for using Recovery Disc Creation Tool The recovery disc creation has been completed. □ Do you want to continue the temporary disc? Finish MIST

System Recovery

Important

The System Recovery Function is only available on systems bundled with Windows OS and MSI utilities by default.

The purposes for using the System Recovery Function may include:

• Restore the system back to the initial status of original manufacturer's default settings.
  ■ When some errors have occurred to the operating system in use.
  ■ When the operating system is affected by virus and is not able to work normally.
  ■ When you want to install the OS with other built-in languages.

Before using the System Recovery Function, please backup the important data saved on your system drive to other storage devices.

If the following solution fails to recover your system, please contact the authorized local distributor or service center for further assistance.

> Recovering the System with the Recovery Discs

This section is meant for users to restore your system with the recovery discs that you created beforehand.

Follow the instructions below to continue:

1. Insert the recovery disc into the optical disc drive.

1. Select [Settings] Desktop, then "Change PC settings" to enter PC settings main page > General > Advanced startup, and click [Restart now] to restart the system.

Settings Control Panel Personalizations PC info Help PC settings Activate Windows Personalize Users Notifications Search Share General Privacy Devices Ease of Access Sync your settings HomeGroup Windows Update Spelling Advanced missed words On Highlights missed words On Language Add or change menu methods, keyboard icons, and languages Language preferences Available storage You have the 50 items has how much use your apps using Your are stored Refresh your PC without affecting your files Your PC can running soft, you can refresh without using your photos, music, video, and other personal files. Set started Remove everything and install Windows You want to recycle your PC or start user completely, you can exit into in factory settings Set started Advanced startup Start up from a device or she (such as a USB drive or DVD), change your PCs. Preview settings, change Windows startup settings or restore Windows from a system image. This will restart your PC. Restart new

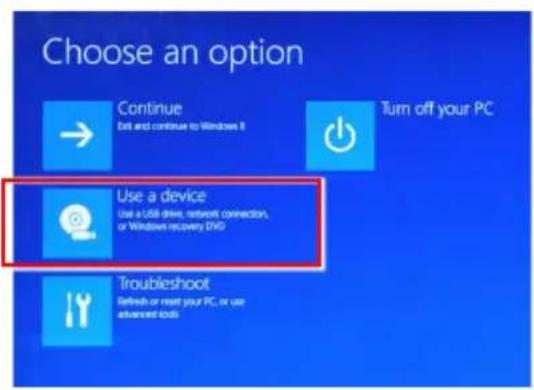

1. After booting up, following screen will pop up, select the [Use a device] to continue.

Choose an option Continue Exit and continue to Windows II Turn off your PC Use a device Use a USB drive, network connection, or Windows recovery DVD Troubleshoot Refresh or next your PC, or use advanced tools

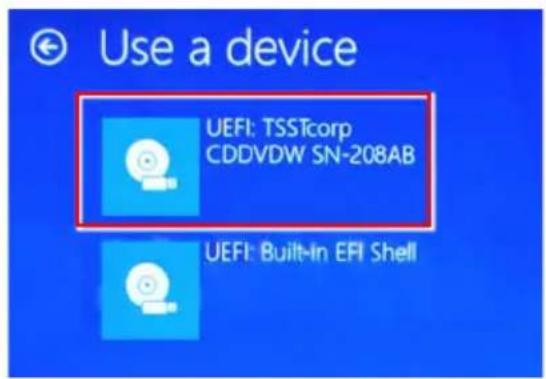

Select recovery disc the boot device. 4.

Use a device UEFI: TSSTcorp CDDVDW SN-208AB UEFI: Built-In EFI Shell

1. Press any key to reconfirm the selection when the following message appears.

Press any key to boot from CD or DVD ...

The Windows OS starts loading files. 6.

Windows is loading files ...

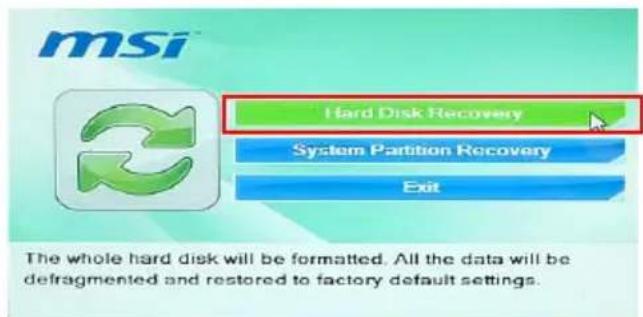

1. The system recovery menu pops up. [Hard Disk Recovery] will format the whole HDD. All data on the HDD will be erased while all settings will be restored to manufacturer default. Select [Hard Disk Recovery] only when your HDD is infected with fatal viruses and no solution can be found except a clear cleanup of the HDD.

msi Hard Disk Recovery System Partition Recovery Exit The whole hard disk will be formatted. All the data will be defragmented and restored to factory default settings.

[System Partition Recovery] will format the C drive only. Only the C drive will be restored to manufacturer default. Other drives will not be affected. It is highly recommended that users select [System Partition Recovery] to restore the system.

1. The system recovery will format your HDD partition. Make sure that the important data have been backed up. Click [YES] to continue; click [NO] to stop the system recovery.

Click [YES] again to reconfirm; click [NO] to stop the system recovery.

1. DO NOT turn off the system power while performing the system recovery function, or it may cause unknown damage to the system.

msi Express Operating System : Windows 7 Elapsed Time : 0 min 36 sec Time Left : 34 min 24 sec Progress : ■

1. The following message indicates successful system recovery. Press [OK] to restart the system and access the Windows operating system as usual.

Recovery Manager Windows 7 Recovery is successful. Please press 'OK' and restart your system. OK

1. If the recovery process is interrupted or failed, please repeat the recovery procedures from the beginning.

▶ Recovery from the Operating System

Refresh PC

The Refresh PC utility checks whether the system files, Windows registry, and other important system components are working fine or not; on finding issues with Windows files, it will attempt to repair your PC. If your PC isn't running well, you can refresh it without losing your personal files.

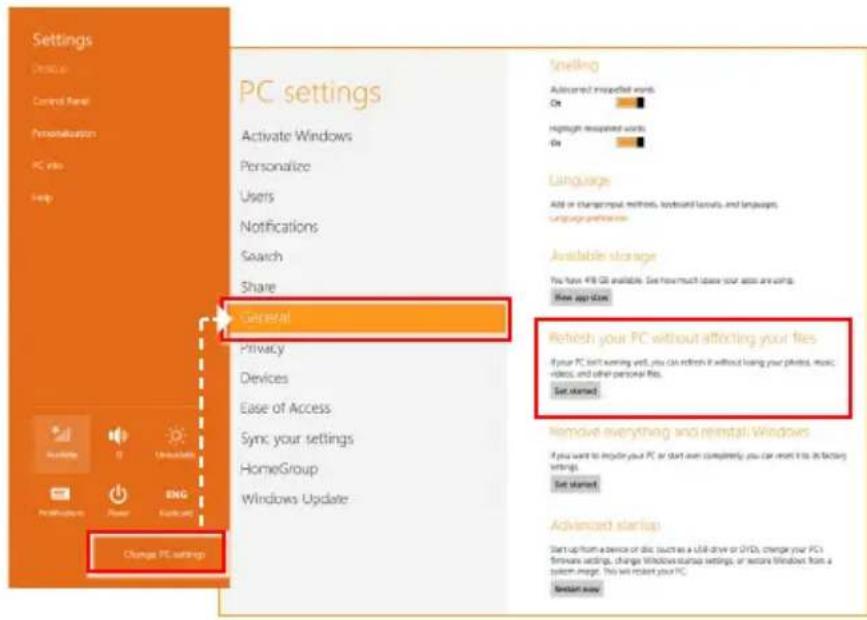

1. Select [Settings] Settings in Desktop, then "Change PC settings" to enter PC settings main page > General > Refresh your PC without affecting your files, and click [Get started].

Settings Control Panel Personalization PC info Help PC settings Activate Windows Personalize Users Notifications Search Share General Privacy Devices Ease of Access Sync your settings HomeGroup Windows Update Snelling Actions impacted words On Highlight replaced words On Language Add or changed manual methods, keyboard shortcuts, and languages. Language preferences Available storage You have PTR GB available. See how much space your files are using. How app store Refresh your PC without affecting your files If your PC isn't coming well, you can refresh if without having your photos, music, videos, and other personal files. Set stored Remove everything and reinstall Windows If you want to ignore your PC or don't even completely, you can insert into its factory settings. Set stored Advanced startup Start up from a device or disk, switches a U-Drive or DVDs, change your PC's software settings, changes Windows startup settings, or restore Windows from a system image. This will retain your PC. Set start now

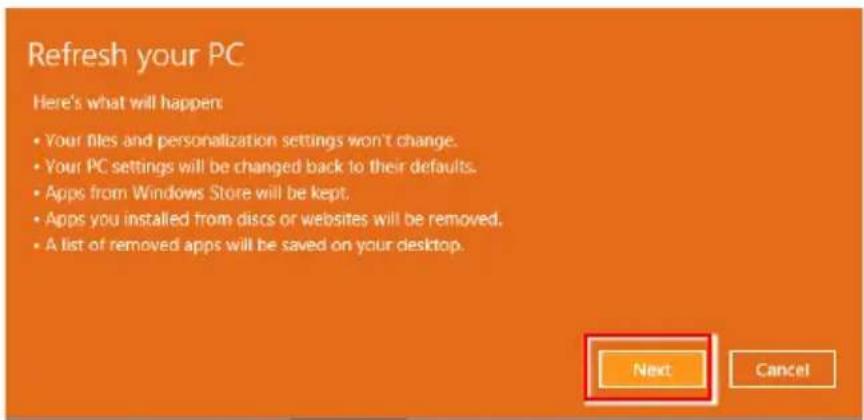

1. It will show the changes which will be made during the process, click [Next] to continue.

Refresh your PC Here's what will happen: • Your files and personalization settings won't change. • Your PC settings will be changed back to their defaults. • Apps from Windows Store will be kept. • Apps you installed from discs or websites will be removed. • A list of removed apps will be saved on your desktop. Next Cancel

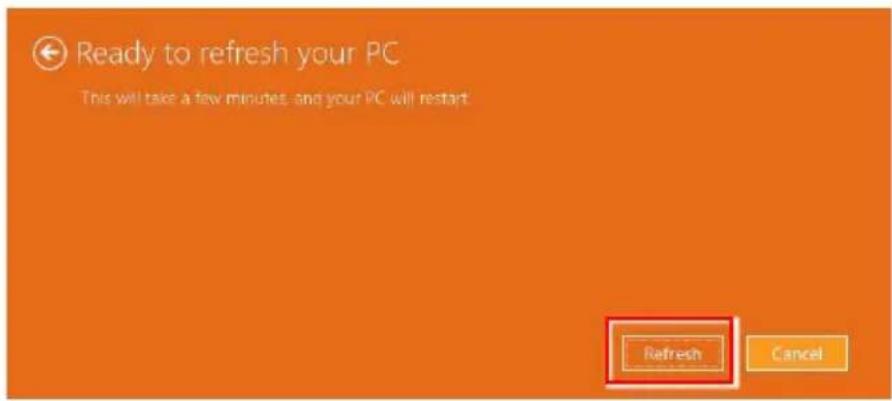

1. A message indicates that your PC is ready to be refreshed, click [refresh] to start. This might take a while.

Ready to refresh your PC This will take a few minutes, and your PC will restart Refresh Cancel

1. After the refresh process ends, you will be back to Windows Start Screen where you can find all default Windows 8 utilities and widgets.

Start Gabe MIS Zoo Mobile Right Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Google Globe

Reset PC

The Reset utility will bring the system back to original factory settings.

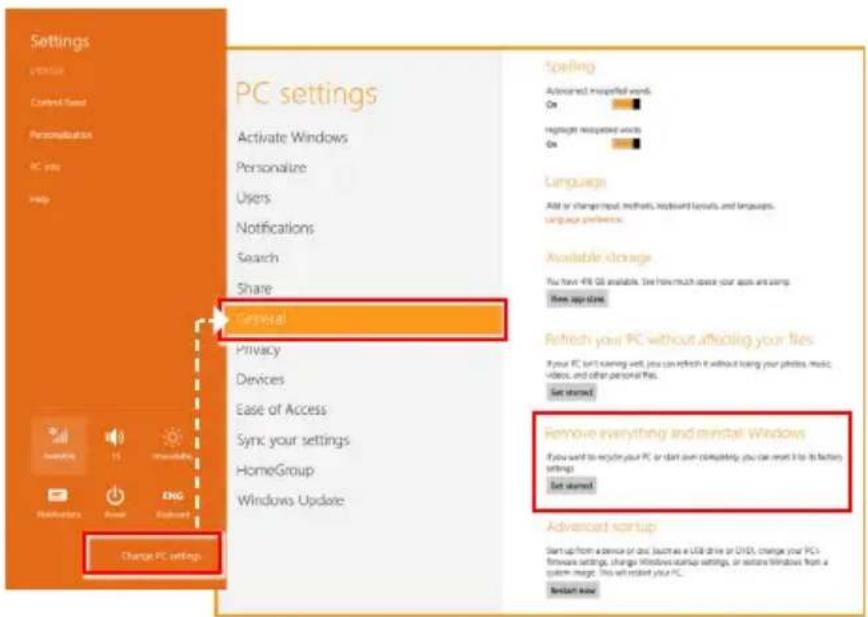

1. Select [Settings] Desktop, then "Change PC settings" to enter PC settings main page > General > Remove everything and reinstall Windows, and click [Get started].

Settings Symbol Control Panel Personalization PC type Help PC settings Activate Windows Personalize Users Notifications Search Share General Privacy Devices Ease of Access Sync your settings HomeGroup Windows Update Spelling Advanced msprapted words On Highlight msprapted words On Language Add or change input, methods, keyboard shortcuts and languages. Language preferences Available storage You have 495 GB available. See how much access your apps are using free app store Refresh your PC without affecting your files If your PC will starting well, you can refresh it without having your photos, music, videos, and other personal files. Set stored Remove everything and mindall Windows If you want to upgrade your PC or start own completely, you can next step to its battery settings Set stored Advanced startup Start up from a device or bus because a USB drive or DVD, change your PC+ forware settings, change Windows startup settings, or restore Windows from a system image. This will restart your PC. Reset new Change PC settings

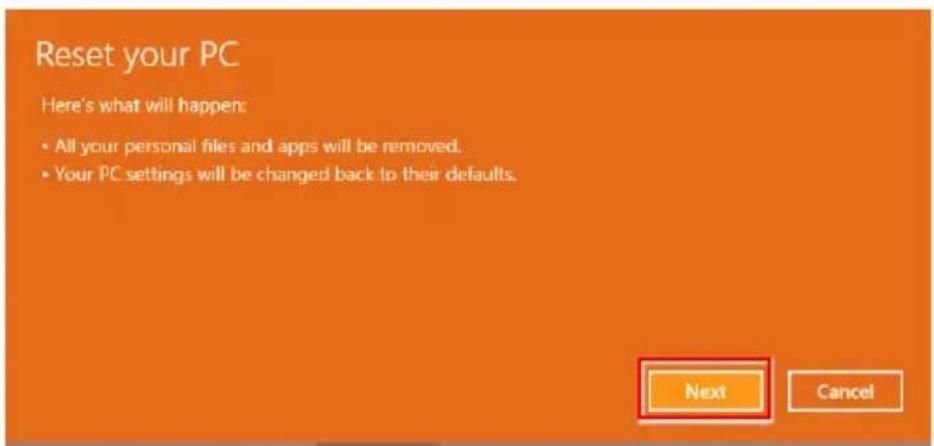

It will show the changes to be made during the process, click [Next] to continue. 2.

Reset your PC Here's what will happen: • All your personal files and apps will be removed. • Your PC settings will be changed back to their defaults. Next Cancel

1. You will be prompted to choose which drive you want to clean for a hard disk with multiple partitions.

Your PC has more than one drive Do you want to remove all files from all drives? Only the drive where Windows is installed All drives Show me the list of drives that will be affected Cancel

Now, select either to remove files or to fully clean drives according to your needs. 4.

Do you want to fully clean your drive? When you remove your files, you can also clean the drive so that the files can't be recovered easily. This is more secure, but it takes much longer. Just remove my files This will take a few moments. Fully clean the drive This will take much more time. Cancel

1. It is now ready to reset your PC, click [Reset] and follow the on-screen instructions to restart your PC.

Ready to reset your PC

This will remove your personal files and apps from your PC and restore all settings to their defaults. If you use File History, make sure the latest versions of your files were copied to your File History drive before you proceed. This will take a few minutes and your PC will restart.

Appendix A

Troubleshooting

My system does not start.

1. Check if the system is connected to an electrical outlet and it is turned on.
2. Check if the power cord and all cables are connected firmly.

When I turn on my computer, the message "Operating System not found" appears or Windows does not start.

1. Check if there is a non-bootable CD/ DVD inside the optical disk drive. If so, remove the CD/ DVD then restart the computer.
2. Check Boot Device Priority settings in the BIOS Setup.

The system can not be shut down.

It is best to shut down your computer using the Shut Down icon in the operating system. Using other methods, including those listed below, may result in data failure. If the Shut Down procedure does not work, choose one of the following steps:

1. Press Ctrl+Alt+Del keys, then choose Shut Down.
2. Press and hold the power button till the system is off.
3. Unplug the power cable from the system.

My microphone does not work.

1. For built-in microphone, please go to Start > Control Panel > Sounds and Audio Devices > Audio to check if it is muted.
2. If you are using an external microphone, check that the microphone is plugged into the Microphone jack.

The Internet connection has problems.

1. If you are having a problem connecting to your Internet Service Provider (ISP), check if the ISP is experiencing technical problems.
2. Check the Network settings and connection and make sure the system is properly configured to Internet access.
3. The wireless LAN data transfer speed is affected by distance and obstructions between devices and access points. To maximize the data transfer speed, choose the access point closest to your system.

System speakers do not work.

1. Check the master volume setting in the Audio Mixer.
2. If you are using an application that has its own volume control, check if the volume is muted.
3. If you have connected an audio cable to the Headphone jack, disconnect it.
4. If the system has OSD function, please adjust the volume of OSD.

I cannot play a CD/ DVD with the DVD-ROM of the system.

1. Make sure the label of the CD/DVD is facing up.
2. If the CD/ DVD requires software, make sure the software is well installed according to the program instructions.
3. If a region code warning appears when you play the DVD, the problem could be that the DVD is incompatible with the DVD-ROM in your system. The region code is listed on the disc packaging.
4. If you see video but cannot hear audio, check the media player. Also, make sure the speakers and the master volume setting in the Audio Mixer are not muted.
5. Check if the drivers are installed properly. Click Start > Control Panel > System > Device Manager.
6. A dirty or scratched disc may cause the computer to hang when it is trying to read the disc. If necessary, reboot the computer, remove the disc, and check if it is dirty or scratched.
7. Please use DVD player software like PowerDVD or WinDVD to play DVD video.

My DVD-ROM drive tray does not open.

1. Make sure the computer is turned on.
2. Press the Eject button on the DVD-ROM drive.
3. If the Eject button does not work, open the tray by inserting a sharp, pointed object into the hole next to the Eject button.

System monitor does not display anything.

1. Check if the system is connected to an electrical outlet and it is turned on.
2. The system may be in Standby mode. Press any key to activate the Display.
