Product Type	Dual Monitor Mount with Crossbar on HD Dynamic Arm
Brand	Atdec
Model	AWMS-RHXB
Monitor Compatibility	Supports two monitors up to 27"
Weight Capacity per Monitor	2 - 7 kg (4.5 - 15 lb)
Max Weight Difference Between Monitors	5 kg (11 lb)
Horizontal Adjustment	444 mm (17.48")
Vertical Adjustment	342 mm (13.46")
Tilt Angle	+/- 20°
Monitor Rotation	360°
Leveling Adjustment	+/- 5°
VESA Mounting	75x75 mm, 100x100 mm
Movement Type	Heavy Duty Dynamic Arm with Crossbar
Vertical Movement	Counterbalanced with tension gauge
Rotation Limiter	Integrated optional 180° rotation limiter
Height Adjustable Handle	Included for effortless repositioning
Cable Management	Generous capacity, guides cables discreetly down the arm
Quick Release	Monitor quick release/attachment mechanism
Warranty	10 years limited
Mounting Options	C-clamp (AWM-FC), Heavy Duty F-clamp (AWM-FH), Grommet clamp (AC-GC)

Frequently Asked Questions - AWMS-RHXB Atdec

What is the maximum monitor size supported by the AWMS-RHXB?

The AWMS-RHXB supports two monitors up to 27 inches each.

What is the weight capacity per monitor?

Each monitor can weigh between 2 to 7 kg (4.5 to 15 lb). The maximum difference between monitors is 5 kg (11 lb).

What VESA patterns are compatible?

The mount is compatible with 75x75 mm and 100x100 mm VESA patterns.

Can I adjust the tilt and rotation of the monitors?

Yes, tilt can be adjusted +/- 20°, and monitors can rotate 360°. There is also a +/- 5° leveling adjustment.

How do I manage cables with this mount?

The mount has generous cable management that guides cables discreetly down the arm to the work surface.

Does the mount allow vertical movement?

Yes, it features counterbalanced vertical movement with a tension gauge for easy adjustment. An optional height-adjustable handle is included.

Is there a rotation limiter to prevent interference?

Yes, there is an integrated optional 180° rotation limiter to prevent interference with desk panels or dividers.

What desk mounting options are available?

The mount can be installed using a C-clamp (AWM-FC), Heavy Duty F-clamp (AWM-FH), or Grommet clamp (AC-GC).

Is there a warranty for the AWMS-RHXB?

Yes, it comes with a 10-year limited warranty.

Are curved monitors or all-in-one PCs supported?

Curved monitors, deep devices, and offset VESA locations may exceed the mount's capacity even if weight is within range. Contact Atdec for details.

USER MANUAL AWMS-RHXB Atdec

Dual Monitor Mount with Crossbar on HD Dynamic Arm

Technical line drawing of a mechanical linkage assembly (no text or symbols)

FEATURES

• Supports two monitors up to 27".
• Monitor quick release/attachment mechanism.
• Counterbalanced vertical movement.
- Tension gauge makes installation of multiple arms faster.
- Integrated, optional 180° rotation limiter to prevent interference with desk mounted panels and dividers.
- Cable management with generous capacity, guides cables discreetly down the arm to the work surface.
- Optional height adjustable handle for effortless repositioning (included).

Monitor weight range

2 - 7kg (4.5 - 15lb)*

Per Monitor

5kg (11lb) max weight difference

Horizontal adjustment

444mm (17.48")

Vertical adjustment

342mm (13.46")

Tilt angle

+/- 20°

Monitor rotation

360°

Levelling adjustment

+/- 5°

VESA mounting

75×75 | 100×100

*Monitor weight should be within the weight range of all modular elements that make up the complete monitor mounting solution. *Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information.

WARRANTY

10 years limited

MOVEMENT - HEAVY DUTY DYNAMIC ARM

MOVEMENT - DUAL CROSSBAR

DIMENSIONS

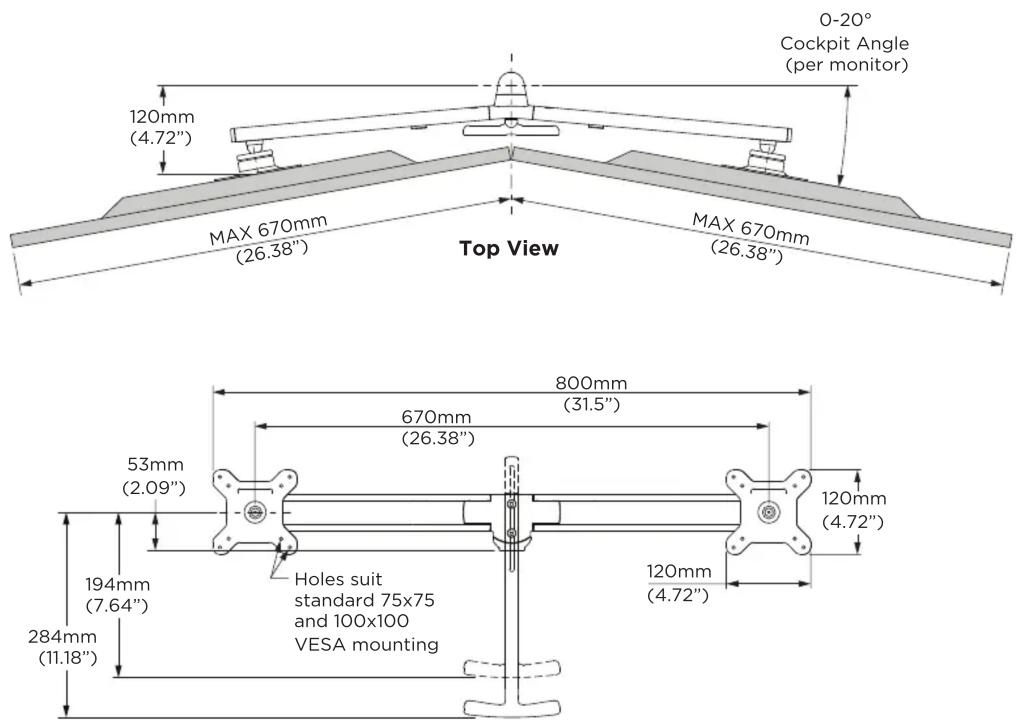

DIMENSIONS - DUAL CROSSBAR

Front View

DESK FIXING OPTIONS

Below are the fixing options available for this solution. For more information and detailed specifications for these products please see the separate Technical Specifications available on the Atdec website. Note: Chosen desk fixing must be added to this solution code when ordering.

C CLAMP AWM-FC

Isometric line drawing of a mechanical component with no text or symbols

Top View Front View

HEAVY DUTY F CLAMP AWM-FH

Technical line drawing of a mechanical clamp or bracket with four bolts and a central screw (no text or symbols)

GROMMET CLAMP AC-GC
Suitable for bolt through installations
