Apex Guide - Bag Salewa - Free user manual and instructions

Product Type	Backpack (45L)
Brand	Salewa
Model	Apex Guide 45
Volume	45 liters
Fabric	Robic® 210D Ripstop
Carrying System	AIR FIT or CONTACT FIT depending on variant
Back Length Adjustment	Custom FIT PRO (male/female sizes with torso measurement)
Main Compartment Access	Top loading with side zipper access
Detachable Hood	Yes (open front and rear buckles)
Ice Axe Fastening	Yes, with protection pocket and bungee cord
Pole Fastening	Yes, with bungee loop and dedicated buckle
Shovel and Probe Compartment	Yes (separate compartment)
Rope Fixation	Yes, with magnetic buckle on top
Parallel Ski Attachment	Yes
Split Shoulder Strap	Yes, for comfort and breathability
Sternum Strap	Yes, elastic for breathing and snug fit
Hydration System Compatible	Yes, with dedicated pouch and hose exit
Additional Volume	EVA pads with 3D channel ventilation
Care Instructions	Clean with water; lubricate zippers occasionally with silicone or oil
Safety Recommendations	Adjust carrying system properly; do not pack more than 70% of volume
Contact	www.salewa.it/it/contacts/

Frequently Asked Questions - Apex Guide Salewa

How do I adjust the back length on my Apex Guide backpack?

Measure your torso length (C7 to iliac crest) and refer to the size chart. The Custom FIT PRO system allows adjustment to Short, Medium, or Large. Loosen shoulder straps and waist belt before adjusting.

What is the correct way to attach an ice axe?

Insert the pick into the dedicated protection pocket, secure the head with the bungee cord and tighten using the cord slopper if present. Fasten the shaft to the bungee loop with the buckle.

Can I remove the hood of the backpack?

Yes, open the two front buckles and the two rear buckles on the hood to detach it for weight savings or climbing freedom.

How do I use the rope fixation with magnetic buckle?

Position your rope in the upper part of the backpack and secure it with the magnetic buckle to keep it in place.

How should I clean my Salewa backpack?

Stains can be cleaned with water. Lubricate zippers occasionally with silicone or oil, but avoid in dusty areas as it attracts dust. Use an old toothbrush for stuck zippers.

What is the maximum load for the Apex Guide 45?

While no specific weight limit is given, it is recommended not to pack more than 70% of the backpack's volume for optimal load distribution and comfort.

How do I attach trekking poles to the backpack?

Insert the pole tips through the strap/bungee cord loop until the plastic stopper. Fix the upper part by hooking the dedicated buckle to the bungee loop.

How do I set up a hydration system?

Place the hydration bladder in the dedicated pouch at the back, fasten with sewn-in hangers or Velcro, thread the hose through the hydration exit, and secure it under the routers on the shoulder straps.

What fabric is the Apex Guide made of?

The backpack uses Robic® 210D Ripstop fabric, which offers high tenacity and 60% greater tear resistance than standard nylon.

How do I adjust the sternum strap?

Slide the sternum strap to the middle of your chest, at sternum height, and tighten for a snug fit. The elastic strap allows effective breathing while stabilizing the pack.

USER MANUAL Apex Guide Salewa

Red hiking backpack with attached harness and lanyard (no visible text or symbols)

APEX GUIDE 45

Congratulations on your purchase of a SALEWA Pack. We want to besure that

you understand and utilize your new SALEWA pack in the best way.

Following you will find a description of all functions the Pack is offering.

APEXGUIDE

3

FEATURES

Close-up of a gray safety harness with yellow safety tags (no visible text or symbols)

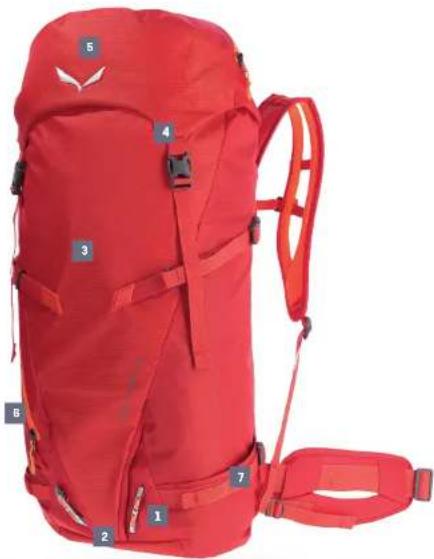

1 ICE AXE FASTENING, WITH PROTECTION POCKET

Insert the axe pick into the dedicated pocket, fix the head in place with the bungee cord and tighten it using the cord slopper, if present. Fosten the shaft to the bungee loop using the dedicated buckle.

Close-up of mechanical components with black rods and yellow connectors, no visible text or symbols

2 POLE FASTENING

Insert the pole tips through the strap/bungee cord loop until the plastic stopper. Fix the upper part hooking the dedicated buckle to the bungee loop.

3 COMPARTMENT FOR SHOVEL AND PROBE

Red hiking backpack with numbered interior features (no text or symbols visible)

4 DETACHABLE HOOD

If you want to save weight or to have more freedom of movement when climbing, you can remove the hood. Open the two buckles of the front and the two at the back of the hood.

5 ROPE FIXATION WITH MAGNETIC BUCKLE

Position your rope in the upper part of the backpack and fix in place.

6 SIDE ZIPPER ACCESS

For quick and easy access into the main compartment without having to open the top.

Close-up of a yellow and gray safety helmet with a yellow strap (no text or symbols visible)

Close-up of a hand adjusting a yellow belt on a gray fabric or cushion (no text or symbols visible)

7 PARALLEL SKI ATTACHMENT

APEXGUIDE

4

FEATURES

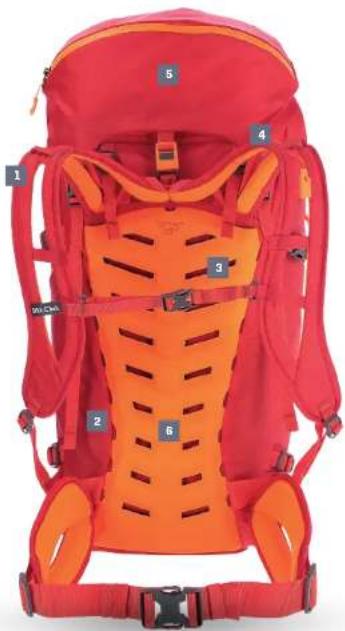

1 SPLIT SHOULDER STRAP

Lightweight, split shoulder straps for comfort and breatheability.

Close-up of yellow and black cable connectors with gray connectors (no text or symbols visible)

2 ROBIC® 210D RIPSTOP FABRIC

High tonacity and 60% greater tear resistance than standard nylon.

3 STERNUM STRAP

Slide the strap in the middle of your sternum to stabilize the pack to your body. The elastic strap promotes effective breathing and a snug fit.

Red and orange hiking backpack with numbered compartments (no text or symbols visible)

4 HYDRATION SYSTEM EXIT

Place the hydration system in the pouch on the back of your pack. Fasten the hydration system either with the sewn in hangers or velcro. Thread the hose through the hydration exit and secure it underneath the routers on the shoulder strips.

Close-up of a gray safety harness with yellow safety belt and black straps (no text or symbols visible)

5 ADDITIONAL VOLUME

EVA PADS WITH 3D CHANNEL VENTILATION

3D channels in the foam pods permit air to flow freely over the back without compromising load control.

APEX GUIDE

5

GENERAL INFORMATION

1. MAIN BENEFITS

We seek to design the best-possible solutions for mountain enthusiasts based on our philosophy of creating strong & light products. We understand our users' needs and provides the right features and benefits for them to enjoy their adventures:

STRENGTH & DURABILITY

Our design team carefully analyses the exact functions of each part of a backpack to define performance requirements, select an optimum combination of materials and engineer the strongest gear for the longest use.

OPTIMAL LOAD DISTRIBUTION

SALEWA trekking backpacks are fitted with Custom FIT and Custom FIT PRO carrying systems. Their easy-adjust torso lengths, mean that even heavy loads can be carried comfortably far long periods. For optimal load distribution, ensure that the carrying system is properly adjusted, including the load control straps. In addition, make sure your pack is set up correctly, both horizontally and vertically.

2. CARRYING SYSTEMS

SALEWA has two different carrying systems. Depending on size and area of use, its backpacks are equipped with an AIR FIT or a CONTACT FIT system. Our AIR FIT system maximizes ventilation and minimizes the backpack surface in contact with the body; the CONTACT FIT system keeps the load borycentre of the backpack close to the body for maximum control on ascents and provides good ventilation through its air channels.

LIGHTWEIGHT DESIGN

Our sophisticated design solutions use the best materials to minimize weight. Lightweight fabrics, buckles, straps and accessories also help keep weight down.

VENTILATION

Sweating cools down the body via evaporation. Conventional backpacks step this happening as their back panels prevent the ventilation sweat requires to evaporate. The wet back panels mean you get chilled. All SALEWA backpack back panels are designed to ensure good ventilation.

APEX GUIDE

B

GENERAL INFORMATION

1. Loosen all straps [shoulder straps, load control straps, waist belt, compression straps] before you load the pack.
2. If your backpack has a back regulation system, follow the instructions in the table to identify your torso length and set the correct back length.
3. Pull in the waist belt so that it sits just above the pelvis. Make sure that your iliac crest is centred between the waist belt padding. Close the buckles. Secure the loose ends of the straps.
4. Tighten (but don't overtighten) the shoulder straps until the carrying system meets the back.

TORSO MEASUREMENT	FIXED BACK LENGTH SIZE	CUSTOM FIT PRO BACK LENGTH MALE	CUSTOM FIT PRO BACK LENGTH FEMALE
38/40cm	SHORT	SHORT
40/45cm SHORT MEDIUM
45/50cm	REGULAR	MEDIUM LARGE
50/53cm LARGE

The attachment point of the shoulder straps should be about one inch below the seventh vertebra [C7]. If necessary, readjust the back length.
5. If your pack has them, tighten the load control straps at the top of the shoulder straps.
6. Close and adjust the length of the chest (sternum) strap, and make sure it sits at the right height (at your sternum). A snug fit will help stabilise the pack. Take care not to create pressure points.
7. Check the load control straps again and ensure that your shoulder straps fit snugly around your shoulders.

We recommend that you never pack more than 70% of your pack's volume. The extra room will come in useful if you have to unpack the contents and quickly pack them again.

• Space is limited, so it makes sense to pack systematically. This also makes your pack easier to carry. We recommend packing as follows: store lighter items, such as your sleeping bag and reserve clothes at the bottom; keep heavy items such as your cooking equipment or tent in the area of your upper back.
• Store valuable item such as documents, money, keys etc. in the dedicated pocket.

• Pack items you want close to hand at the top or in outside pockets: extra clothing, water bottle, maps, compass, snacks, etc.

• Fasten longer items, such as tent poles or trekking poles, to the side of the pack using the compression straps - and store the loose ends away in the side pockets. If required, large and bulky items (sleeping mat, tent, etc.) can be attached on the outside using compression straps.

• Store your cooking equipment, food, spare clothing and other items in the main compartment. Keep your most frequently used gear close to the top. Less frequently used kit [e.g. bivouac sack] can stay at the bottom.
• The separate bottom compartment is meant for your lighter items, such as your sleeping bag or spare base layers.

5. CARE AND MAINTENANCE 6. CONTACT

Backpacks do not need much care and maintenance. Stains can be cleaned off with water. Lubricate the zippers occasionally with silicone or oil. Although, if you use your pack in dusty areas, don't use silicone or oil as they attract dust. If your zippers stick, clean them with an old toothbrush.

Got a question? Need a suggestion? Please contact us at: www.solewa.it/it/contacts/
