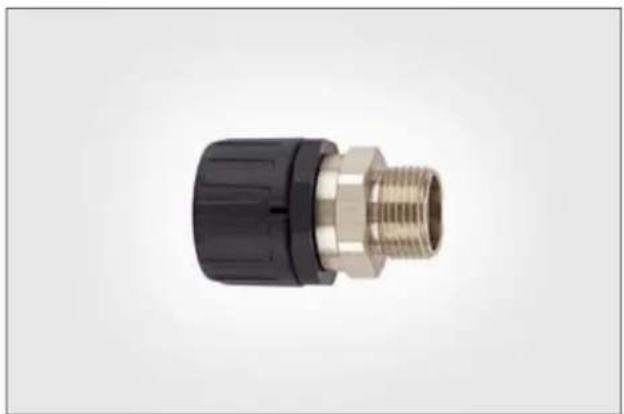

USER MANUAL AFCSS16-SS-ML-10ST HellermannTyton

Close-up of automotive hoses and connectors with metallic fittings, no visible text or symbols

HelaGuard

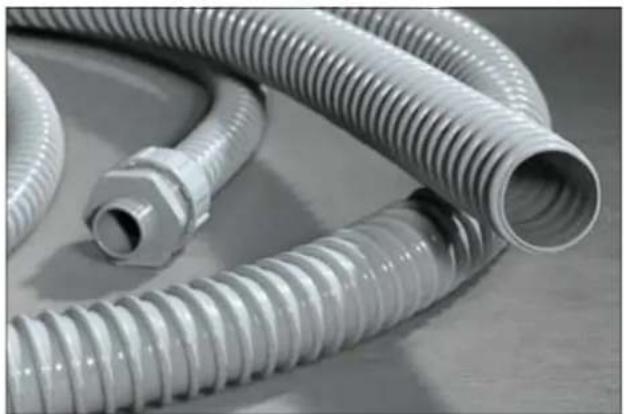

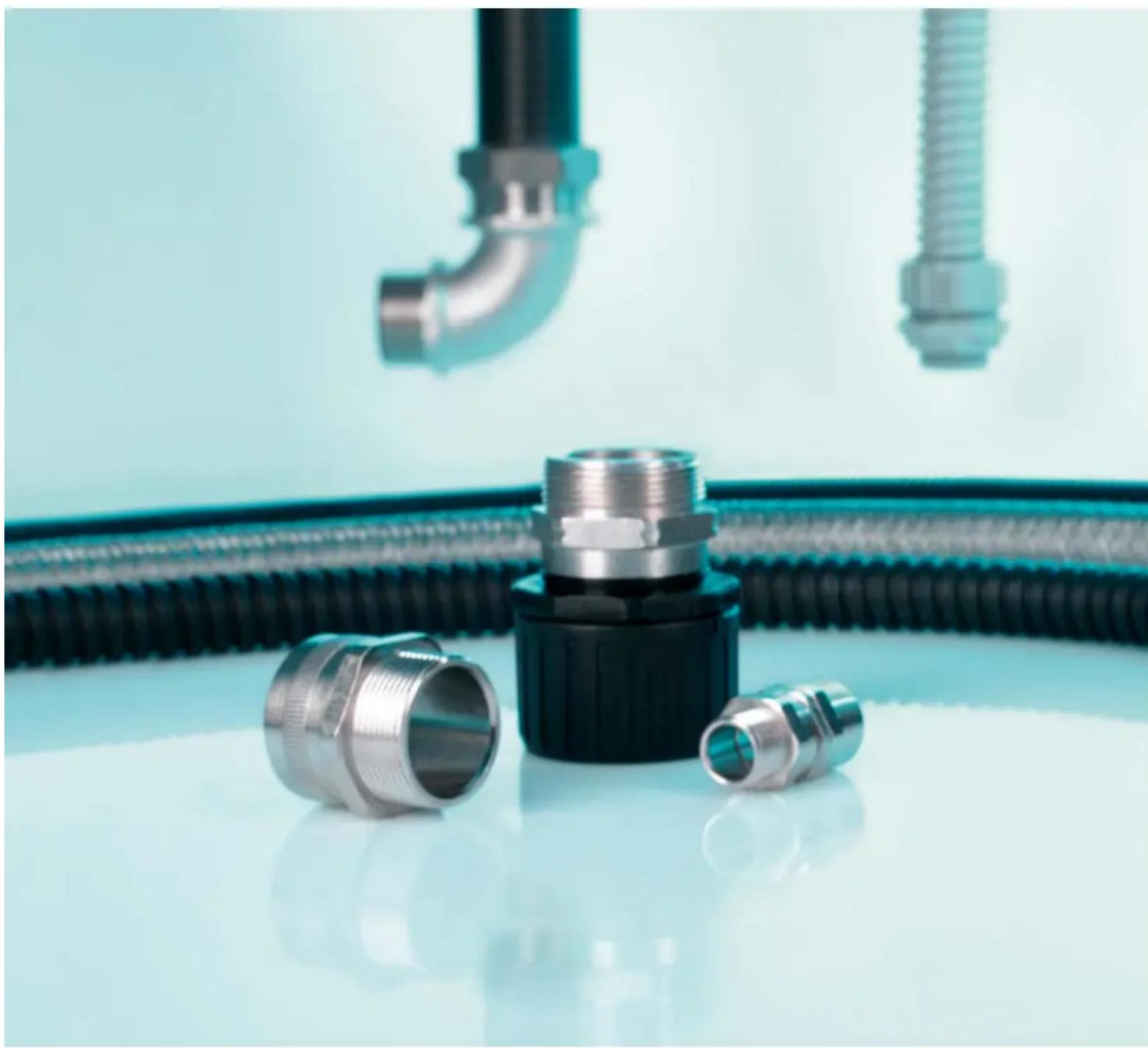

Non-metallic and metallic flexible conduits and fittings

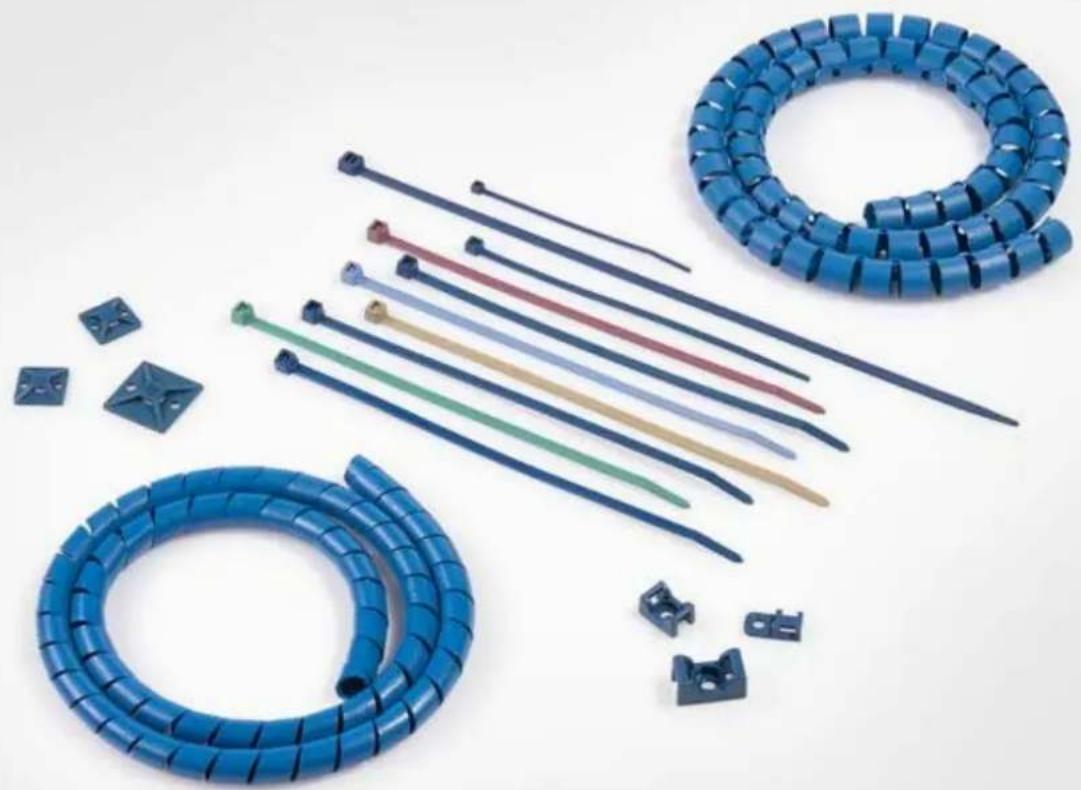

Collage of six technology and electrical components including cables, connectors, and a device (no visible text or symbols)

Engineered for your Industry.

HelaGuard protective conduits and fittings designed to meet your demands

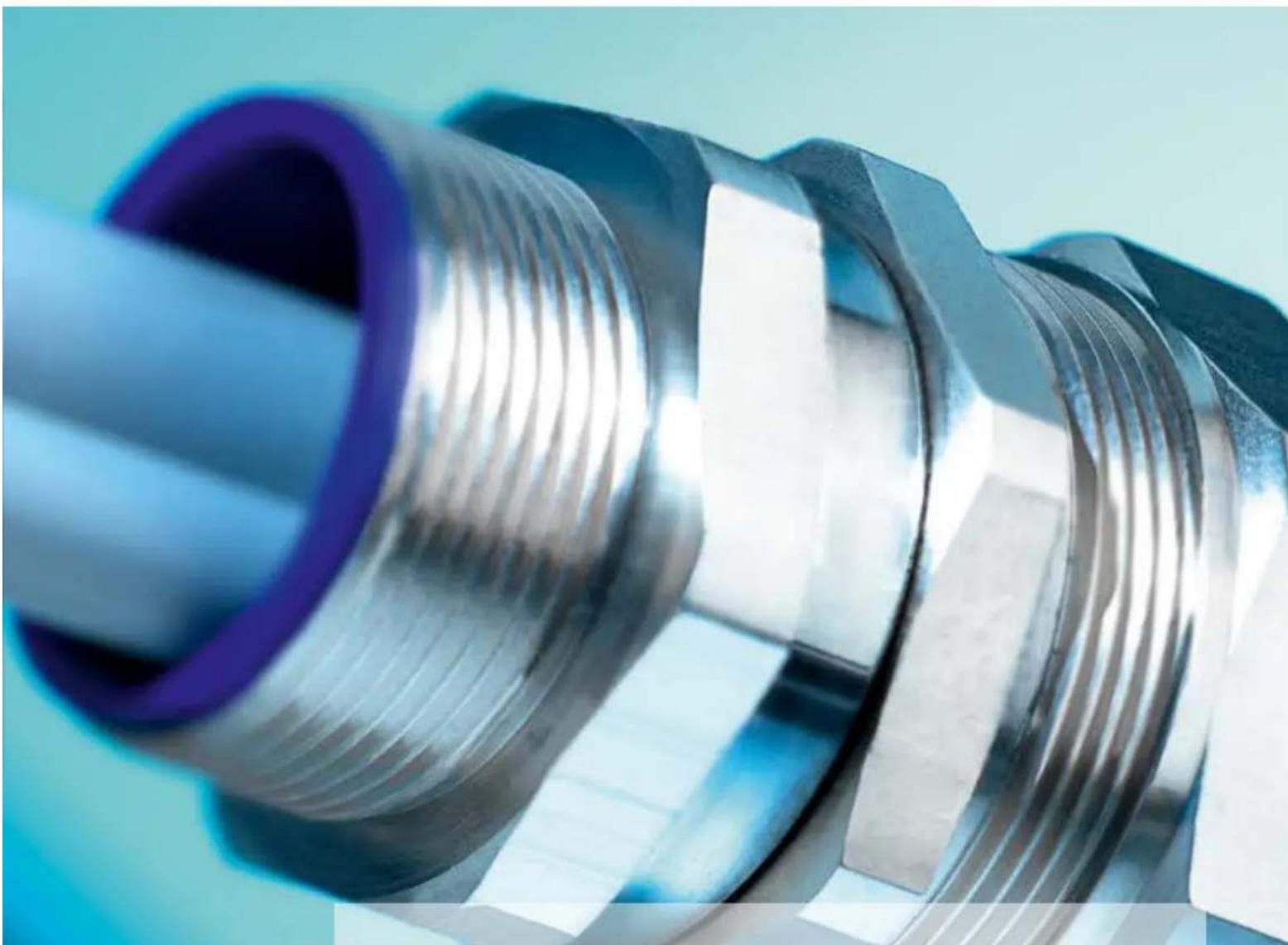

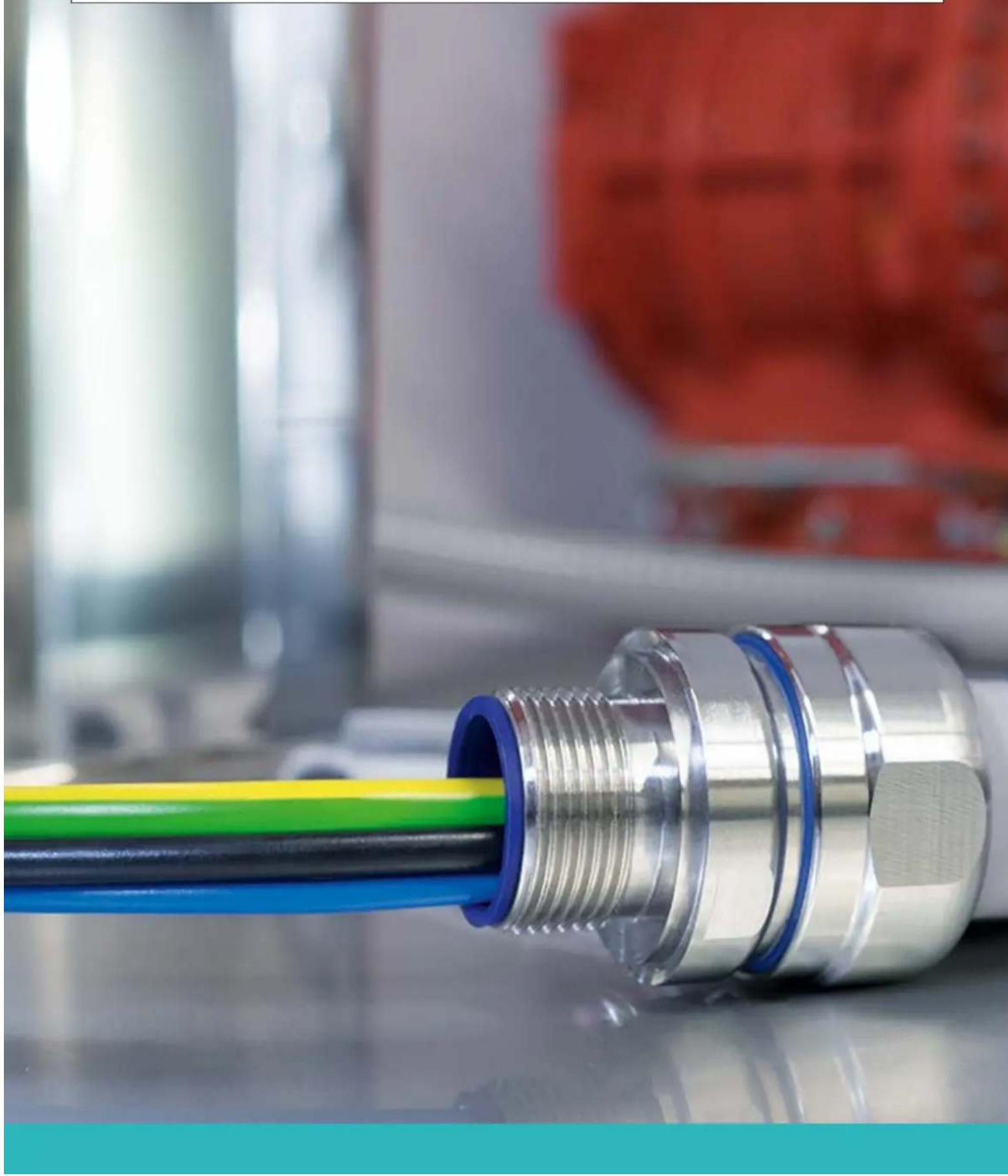

Close-up of a metallic industrial connector with blue and green wires, no visible text or symbols

Our experience in meeting customers' demands in many different industries has been integrated into all of our products.

The HelaGuard range of conduits and fittings meets the requirements of machine building, shipping, offshore, mining, rolling stock, rail infrastructure, chemical industries and many more.

HelaGuard Application Overview

Conduit System	IP rating available*	Compression strength kg/100 mm, 20 mm Φ	Pull-off strength kg, 20 mm Φ	Minimum bend radius 20 mm Φ
HG-SW	IP66, IP67, IP68, IP69k	75 40 45
PA6 corrugated, standard weight
HG-LW	IP66, IP67, IP68, IP69k	60 30 40
PA6 corrugated, light weight
HG-HW	IP66, IP67, IP68, IP69k	120 70 55
PA6 corrugated, heavy weight
HG-FR	IP66, IP67, IP68, IP69k	75 40 45
Flame retardant PA6 corrugated, standard weight
HG-HI	IP66, IP67, IP68, IP69k	45 30 35
PA12 corrugated, standard weight
HG-DC	IP40 60 15 90
PA6 double slit corrugated
HG-PP	IP40, IP66	35 25 40
PP corrugated	IP67, IP68

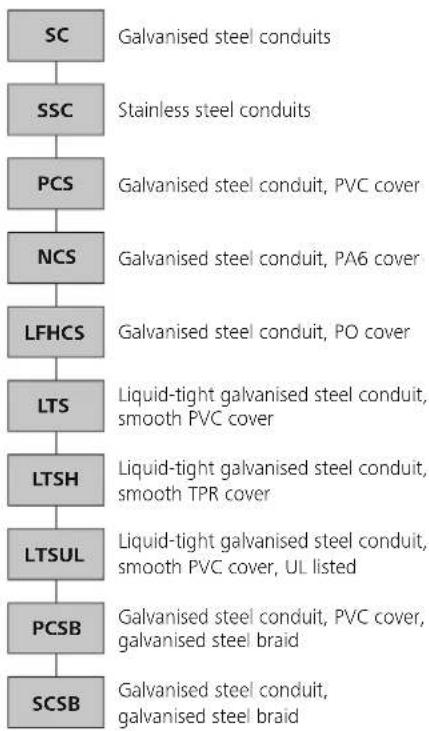

SC	IP40 350 120 45
galvanised steel

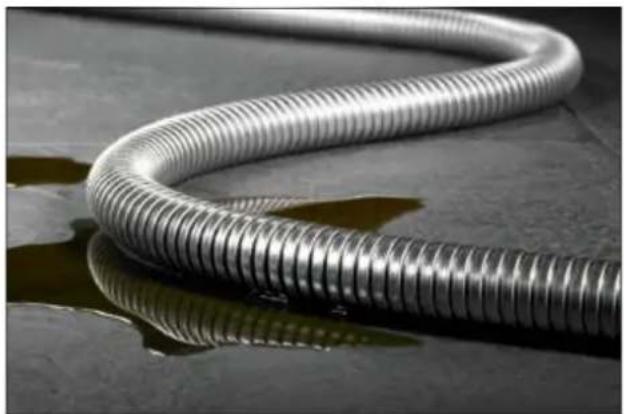

SSC	IP40 400 170 45
stainless steel

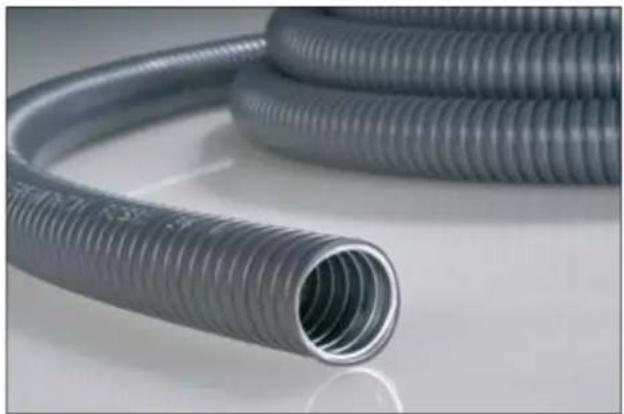

PCS	IP54, IP65 350 120 45
galvanised steel, PVC coated
NCS	IP54, IP65 350 120 45
galvanised steel, PA6 coated
LFHCS	IP54, IP65 350 120 45
galvanised steel, LFH coated

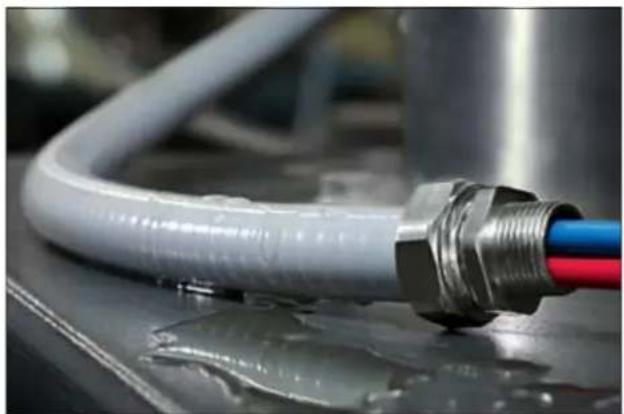

LTS	IP66, IP67, IP68, IP69k	400 130 65
galvanised steel, PVC coated, liquid-tight
LTSH	IP66, IP67, IP68, IP69k	400 130 65
galvanised steel, thermoplastic rubber, liquid-tight
LTSUL	IP66, IP67, IP68, IP69k	500 160 90
galvanised steel, PVC coated, liquid-tight, UL-listed
PCSB	IP54, IP65 350 120,130 45
galvanised steel, PVC coated, galvanised steel overbraid

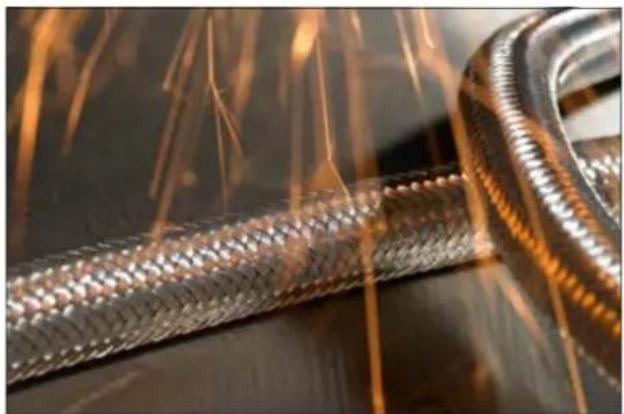

SCSB	IP40 350 120 45
galvanised steel, galvanised steel overbraid
PSR	IP66, IP67 60 25 35
Spiral-reinforced PVC, smooth bore
PSRSC	IP66, IP67, IP68, IP69k	120 70 35
Spiral-reinforced PVC, smooth bore, smooth cover

yes
- no

	High fatigue life
	Temperature range
	Flexible
	Halogen free
	Self-extinguishing
	High abrasion resistance
	High UV resistance (black)
	Page
	-100°C to +70°C	-25°C to +90°C	-40°C to +120°C	-40°C to +120°C	-40°C to +120°C	-40°C to +120°C	-40°C to +120°C
	-100°C to +300°C	-20°C to +105°C	-45°C to +135°C	-45°C to +135°C	-45°C to +135°C	-45°C to +135°C	-45°C to +135°C
	-100°C to +70°C	-15°C to +75°C	-15°C to +75°C	-15°C to +75°C	-15°C to +75°C	-15°C to +75°C	-15°C to +75°C
	-100°C to +300°C	-15°C to +300°C	-15°C to +300°C	-15°C to +300°C	-15°C to +300°C	-15°C to +300°C	-15°C to +300°C
	-100°C to +70°C	-20°C to +70°C	-20°C to +70°C	-20°C to +70°C	-20°C to +70°C	-20°C to +70°C	-20°C to +70°C

* For more information about Ingress Protection (IP) please refer to page 143.

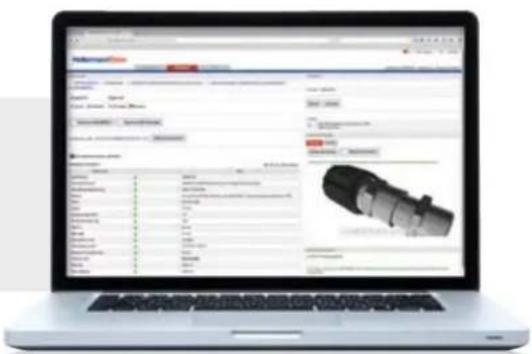

Accelerate your engineering with our 3D CAD models.

Two professionals collaborating around a laptop, one holding a small mechanical component (no visible text or symbols)

• Over 5,000 3D CAD models
- Models available in all standard CAD formats
• Online preview of CAD models
• Free download of high quality 3D and 2D data

NEW! Free 3D CAD download!

In cooperation with

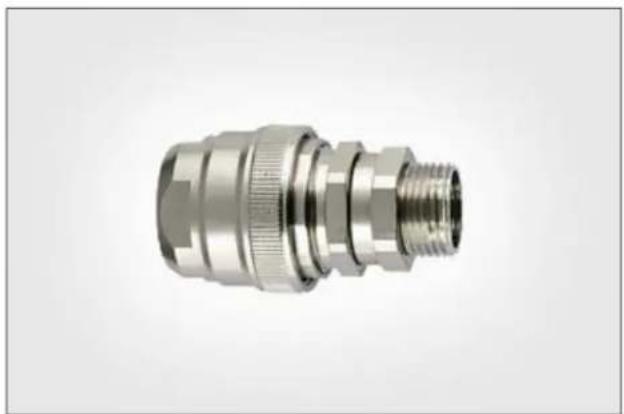

Close-up of a metallic mechanical connector with threaded shaft and blue cap (no visible text or symbols)

HelaGuard

1. Non-Metallic Conduit Systems 9
2. Metallic Conduit Systems 61

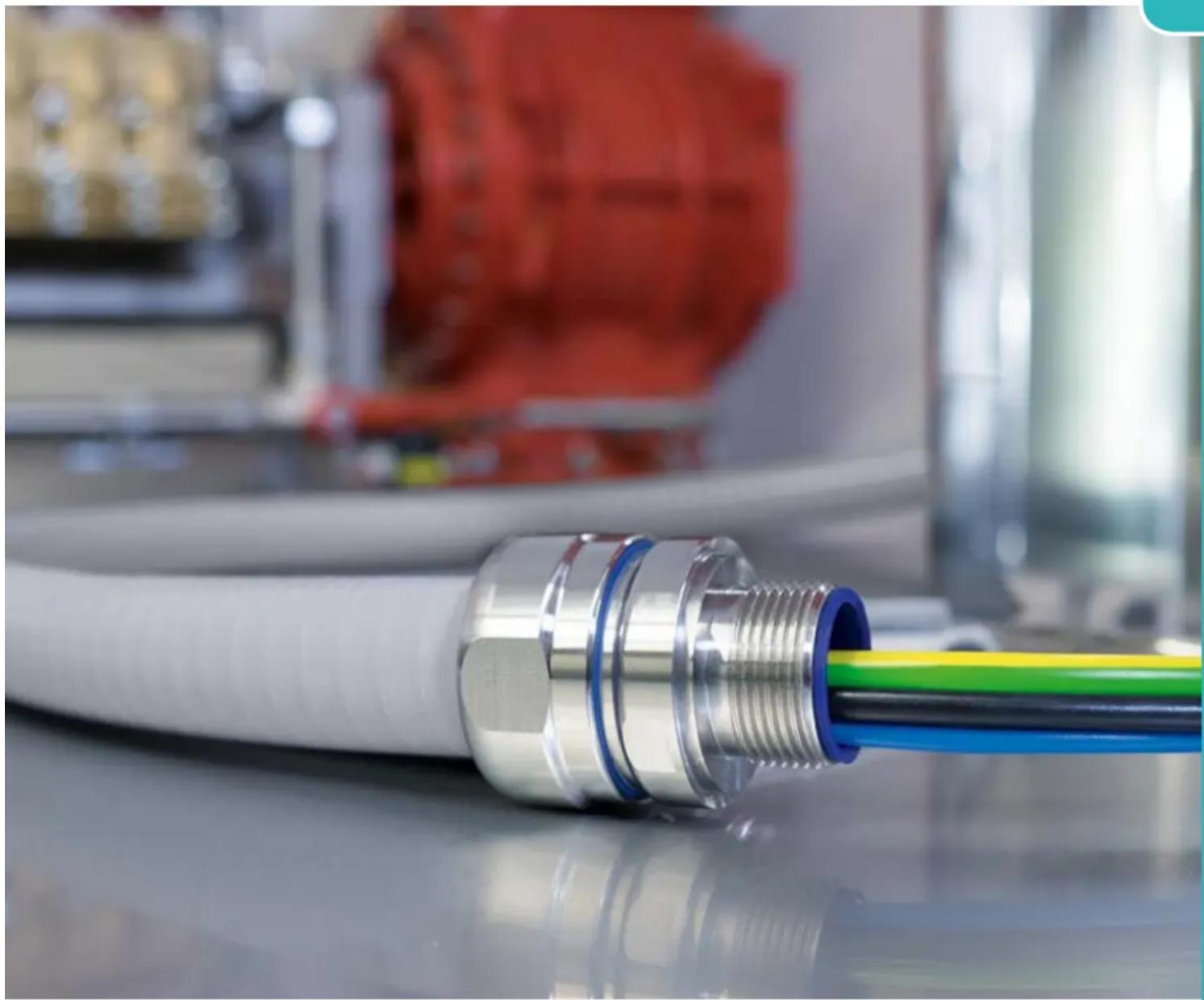

3. Spiral-Reinforced Conduit Systems 107

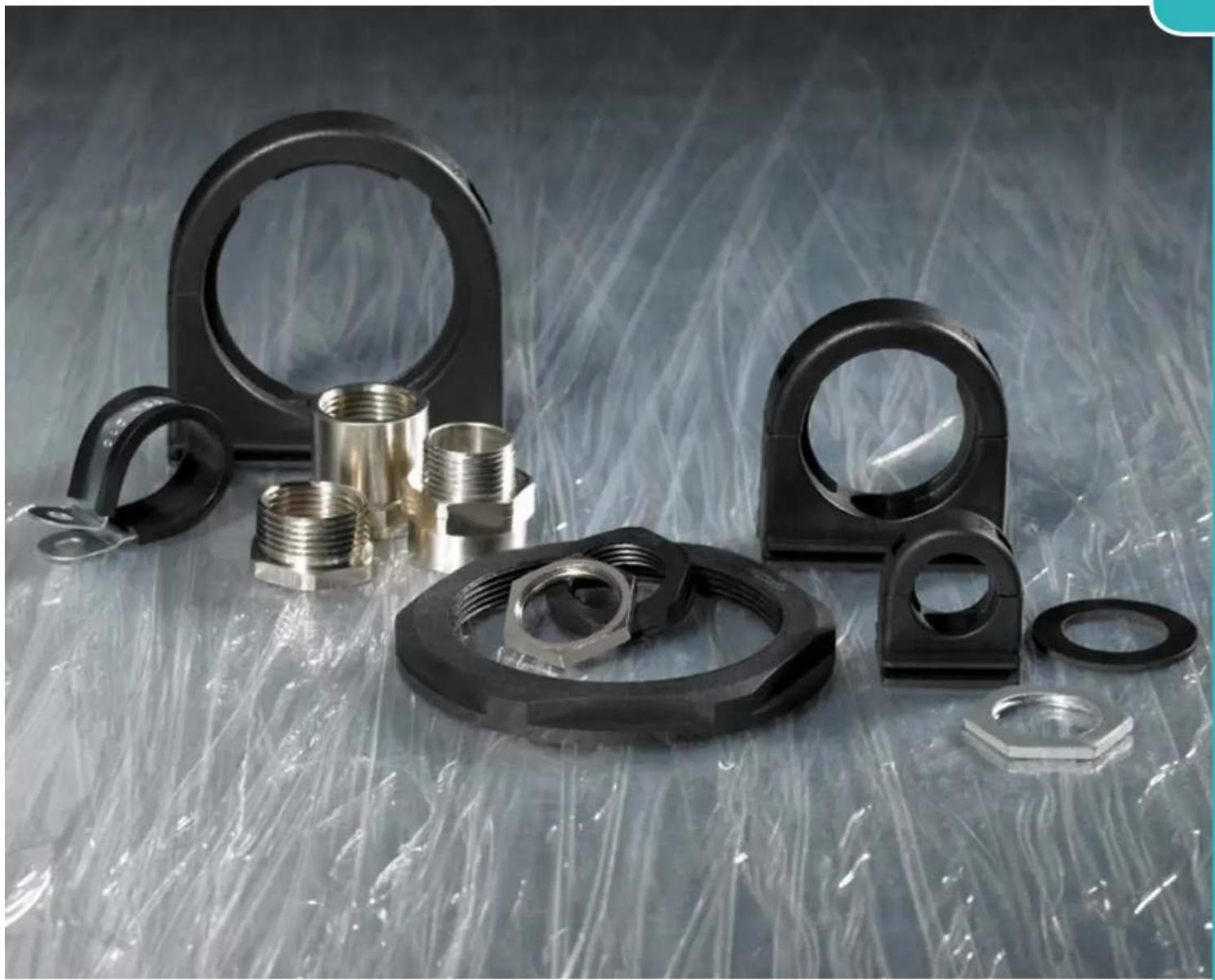

4. Conduit System Accessories 123
5. Appendix 141

HellermannTyton: Locally in 35 countries

Optimal support through our global network

Group photo of business professionals in formal attire (no visible text or symbols)

With over 3,800 employees across the world, we can always respond to your specific demands locally. A contact person who speaks your language and has knowledge and experience in your specific market is always available to assist. This makes communication easy and helps achieve the optimum result from the very start.

Furthermore, our numerous local partners throughout the world support our marketing network and see themselves as your strong partner locally. Use our worldwide strength and the know-how of our employees and partners to your own advantage globally.

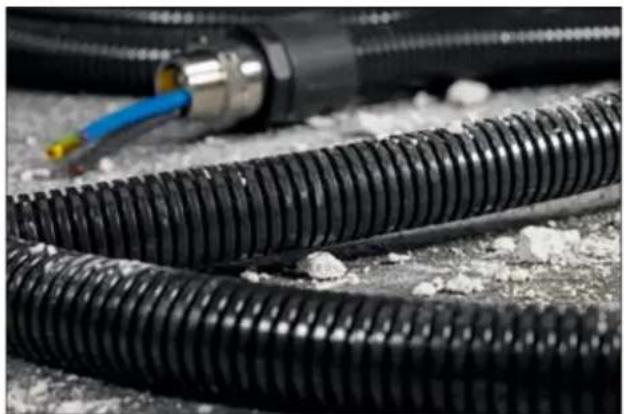

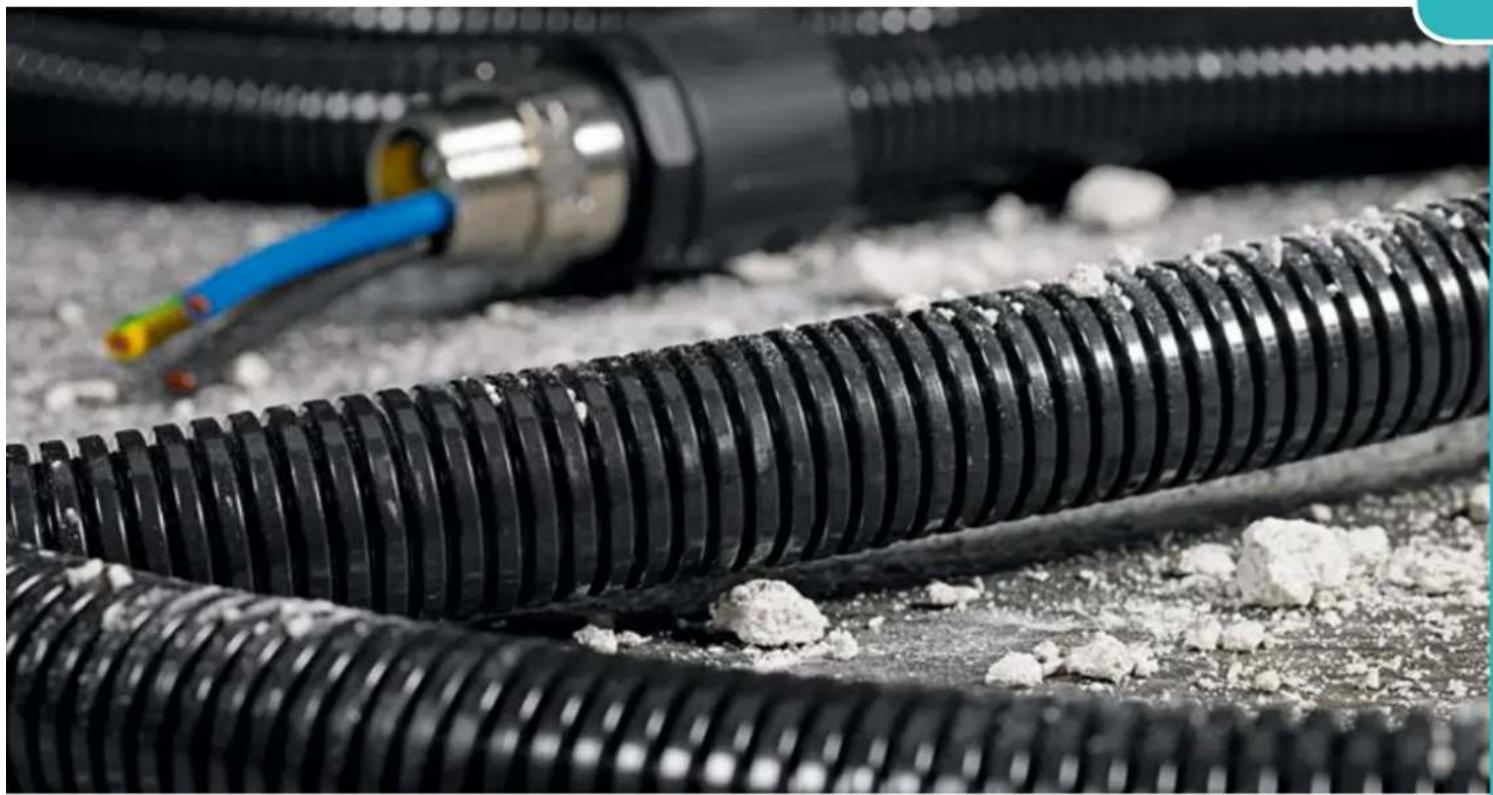

Close-up of black corrugated pipes with white foam and a blue cable, no visible text or symbols

1.1 Non-Metallic Conduit Systems

Product Selection

HelaGuard Nomenclature for Non-Metallic Conduits 10

Non-Metallic Conduits

HG-SW PA6 Standard 11

HG-LW PA6 Light 12

HG-HW PA6 Heavy 13

HG-FR PA6 Flame Retardant 14

HG-HI PA12 Standard 15

HG-DC PA6 Double Slit 16

HG-PP Standard 17

1.2 Fittings for Non-Metallic Conduits

Product Selection
HelaGuard Fitting Finder 18

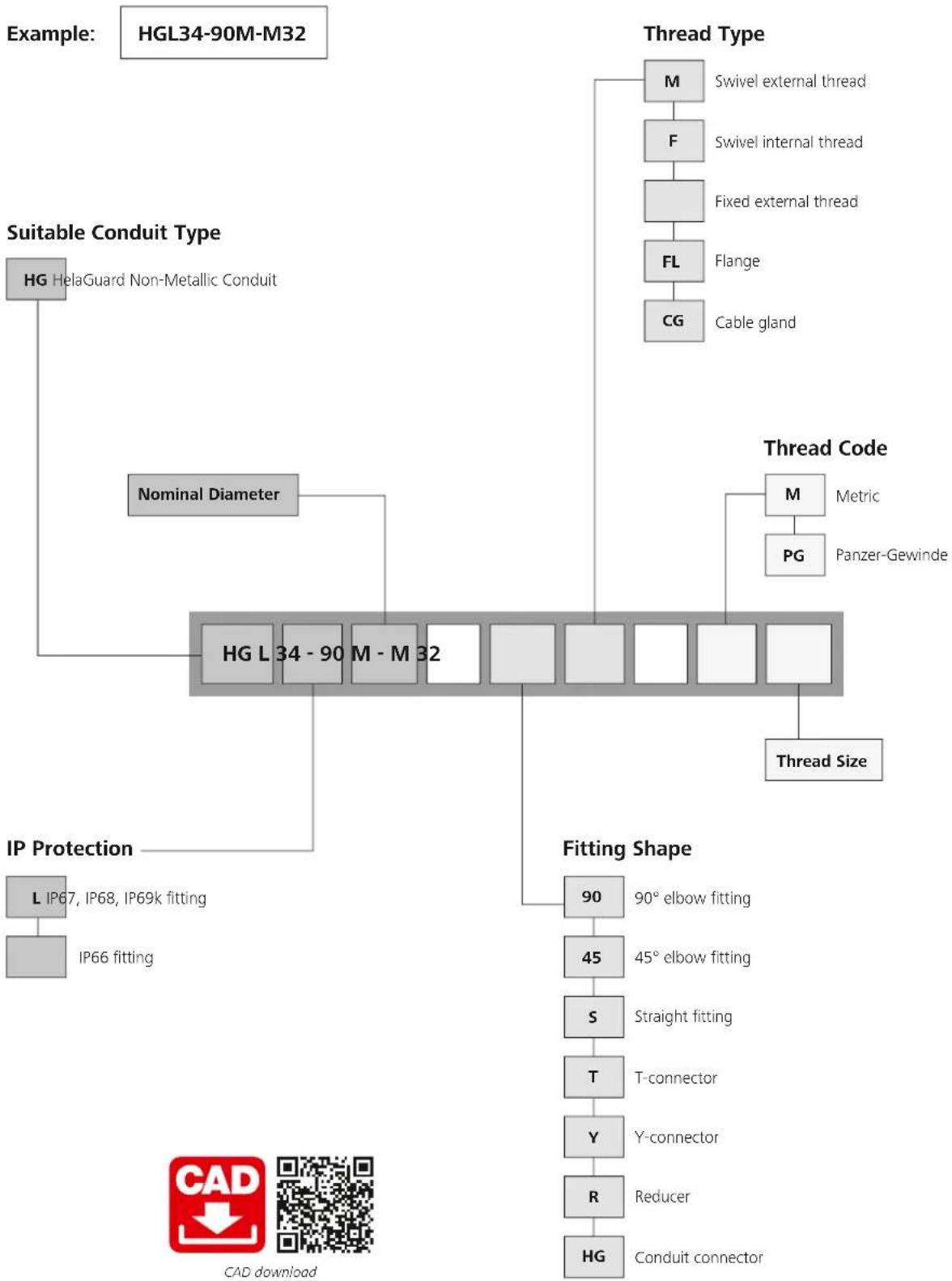

HelaGuard Nomenclature for Non-Metallic Fittings 21
Technical Information

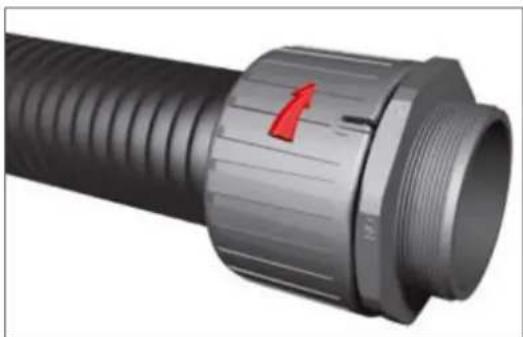

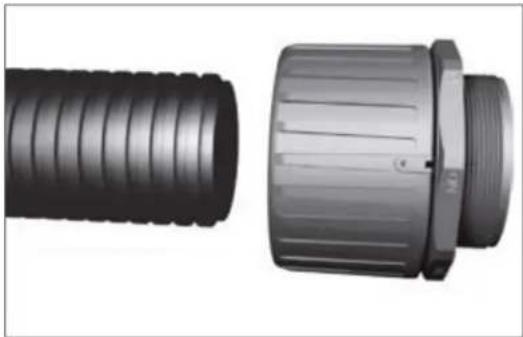

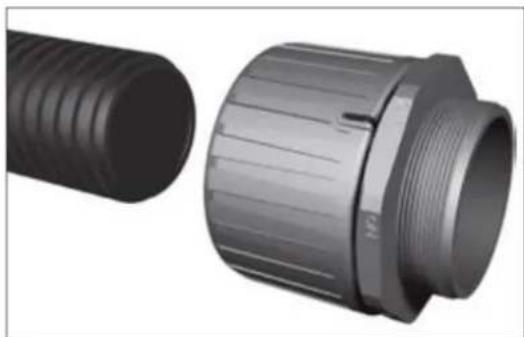

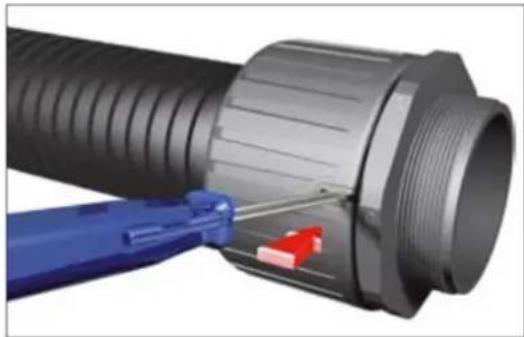

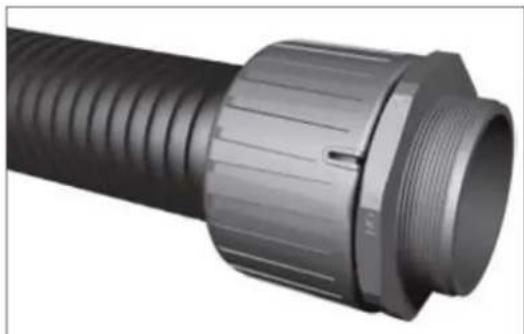

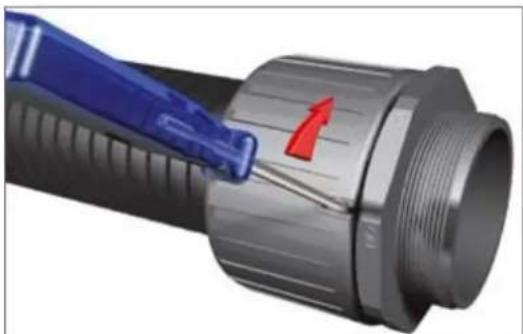

Mounting and Removing HelaGuard Non-Metallic Fittings 20
Fittings for Non-Metallic Conduits

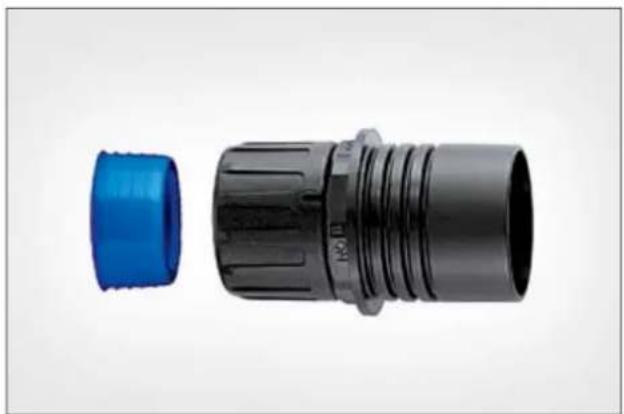

Fixed external thread	HG-S, Straight, IP66 22
	HGL-S, Straight, IP68 24

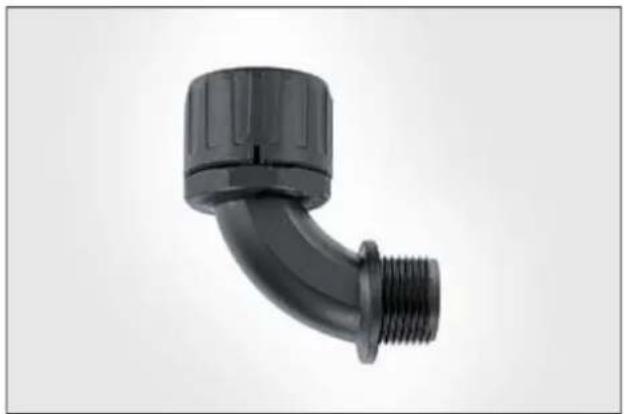

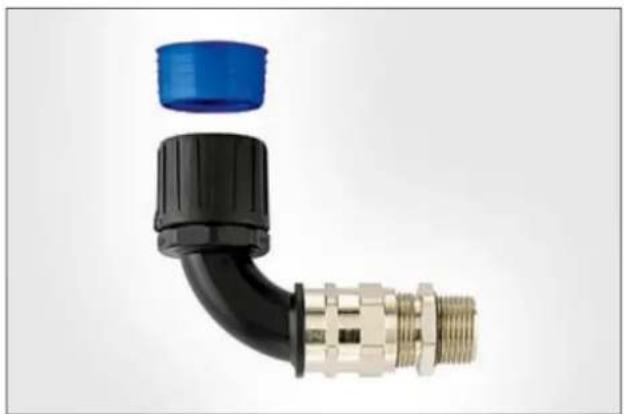

	HG-90, 90° Elbow, IP66 26
	HGL-90, 90° Elbow, IP68 27

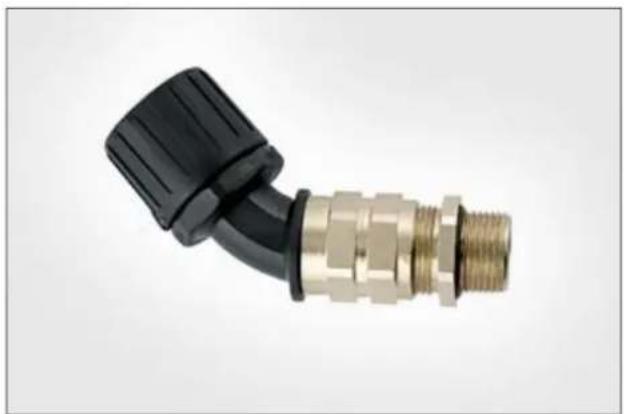

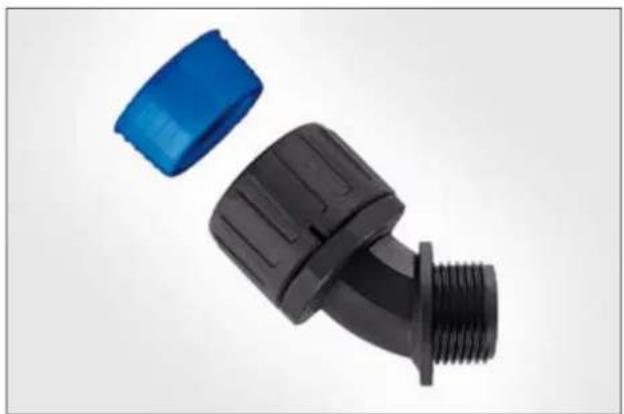

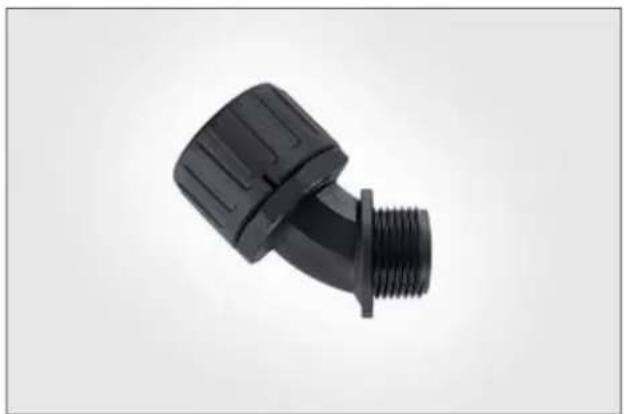

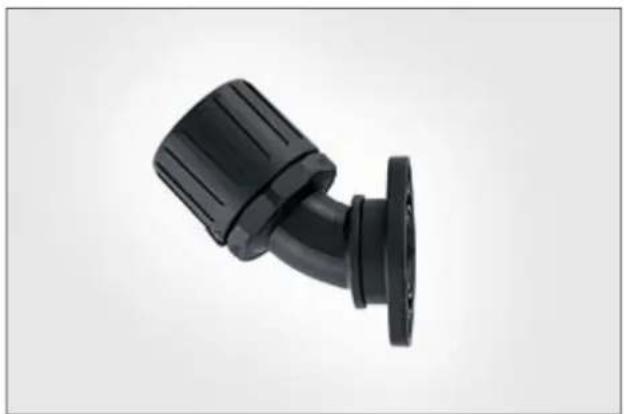

	HG-45, 45° Elbow, IP66 28
	HGL-45, 45° Elbow, IP68 29
Swivel external thread	HG-5M, Straight, IP66	30
	HGL-SM, Straight, IP68	31
	HG-90M, 90° Elbow, IP66	32
	HGL-90M, 90° Elbow, IP68	33
	HG-45M, 45° Elbow, IP66	34
	HGL-45M, 45° Elbow, IP68	35

Swivel internal thread	HG-SF, Straight, IP66	36
	HGL-SF, Straight, IP68	37
	HG-90F, 90° Elbow, IP66	38
	HGL-90F, 90° Elbow, IP68	39
	HG-45F, 45° Elbow, IP66	40
	HGL-45F, 45° Elbow, IP68	41

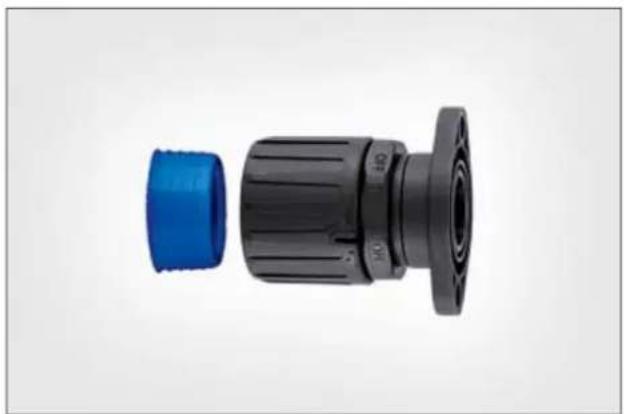

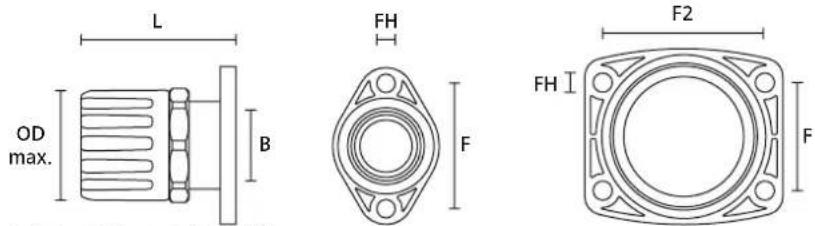

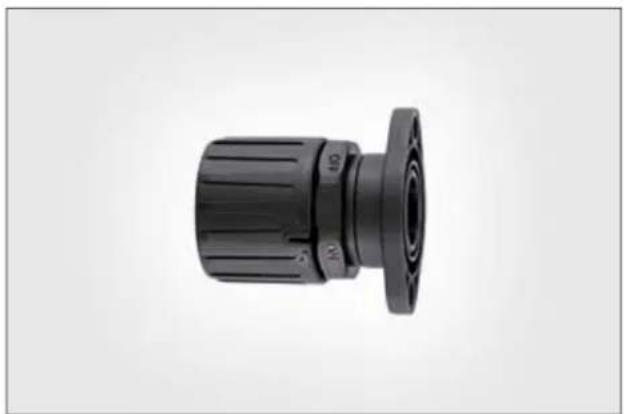

Swivel flange	HG-SFL, Straight, IP66	42
	HGL-SFL, Straight, IP68	43

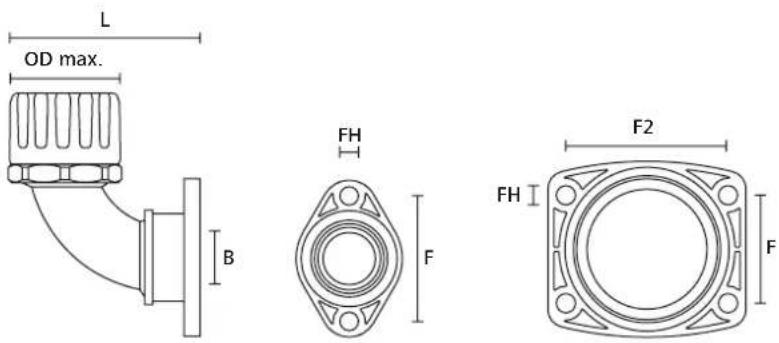

	HG-90FL, 90° Elbow, IP66	44
	HGL-90FL, 90° Elbow, IP68	45
	HG-45FL, 45° Elbow, IP66	46
	HGL-45FL, 45° Elbow, IP68	47

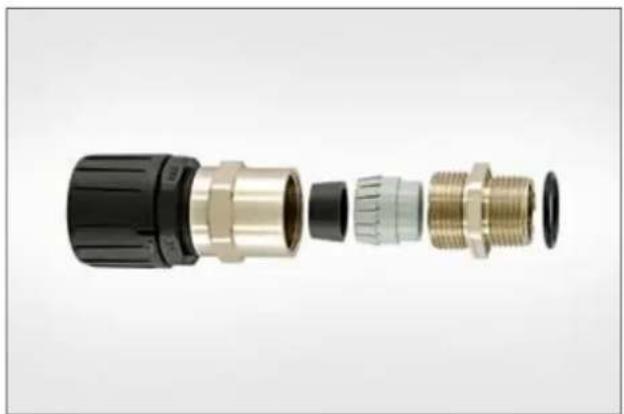

With strain relief and cable seal	HG-SCG, Straight, IP66	48
	HGL-SCG, Straight, IP68 49
	HG-90CG, 90° Elbow, IP66	50
	HGL-90CG, 90° Elbow, IP68	51
	HG-45CG, 45° Elbow, IP66	52
	HGL-45CG, 45° Elbow, IP68	53

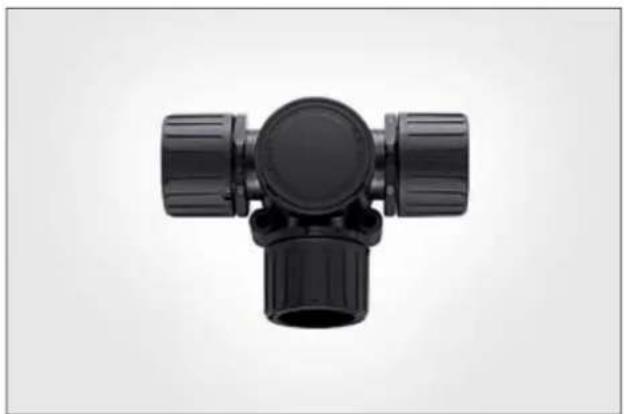

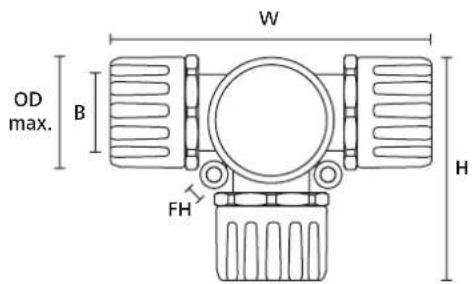

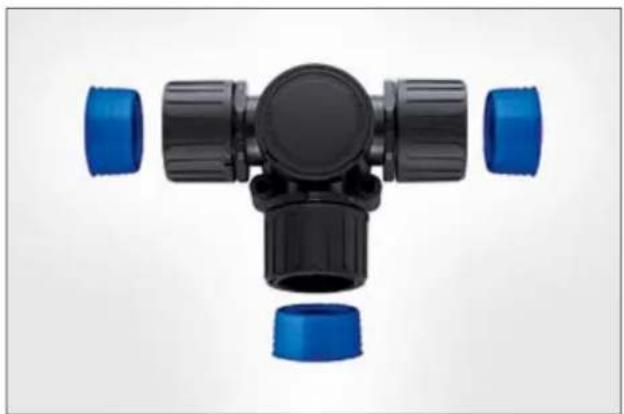

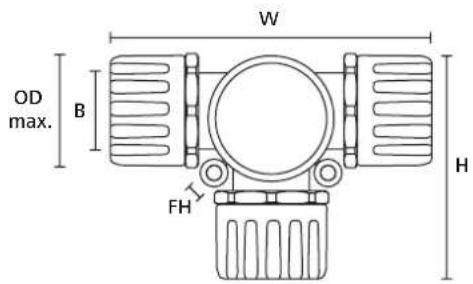

Connectors, reducers and couplers	HG-T, T-Connector, IP66 54
	HGL-T, T-Connector, IP68 55

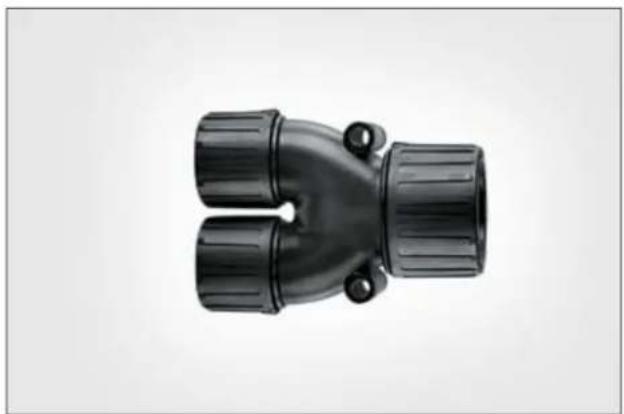

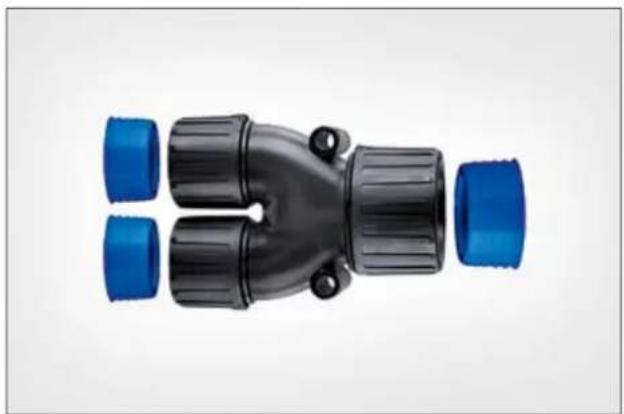

	HG-Y, Y-Connector, IP66	56
	HGL-Y, Y-Connector, IP68	57
	HG-R, Reducer, IP66	58
	HGL-R, Reducer, IP68	59
	HG-HG, Coupler, IP66	60

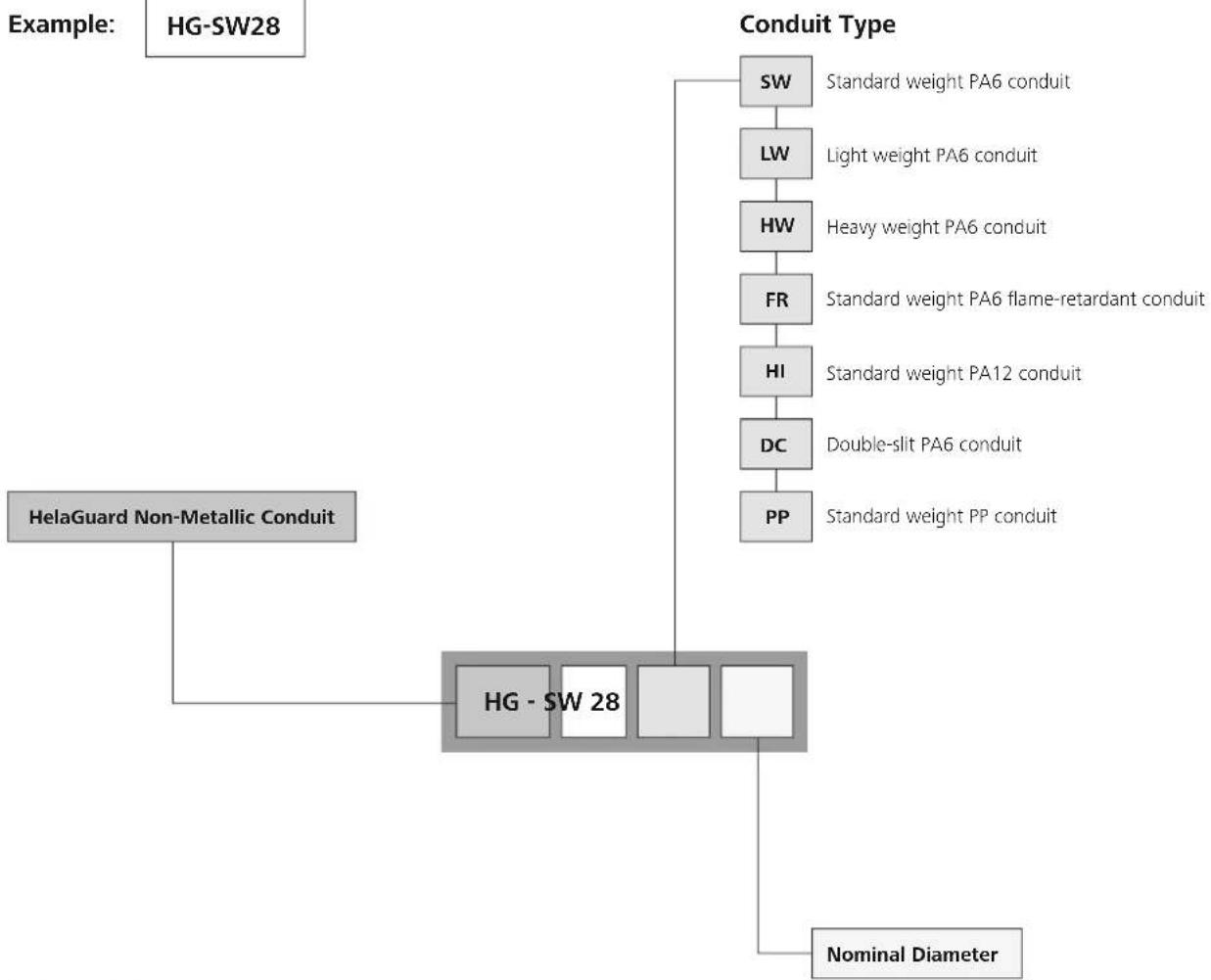

HelaGuard Nomenclature for Non-Metallic Conduits

Example:

HG-SW28

CAD download

The nominal diameters in the product names and data tables of the non-metallic conduits and fittings are closely related to, but not identical with, the exact outside diameter of the conduit. The nominal diameters can be used to identify more easily and quickly which conduits and fittings fit each other.

Some suppliers employ an alternative designation called "Nennweite" ("NW") to identify the size of the conduit. For ease of use, the data tables for the non-metallic conduits contain columns for the nominal diameter, the Nennweite and the exact outside diameter. The Nennweite can therefore be used to determine the nominal diameter.

Machine building, plant construction, control panels, public buildings.

Features and Benefits

• Very flexible and high fatigue life
• Very abrasion resistant
• High impact strength, recovers if crushed
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Low smoke and low toxicity
• Self-extinguishing according to UL94 V2
• Colour: black (UV resistant); grey on request

One Step to the Web!

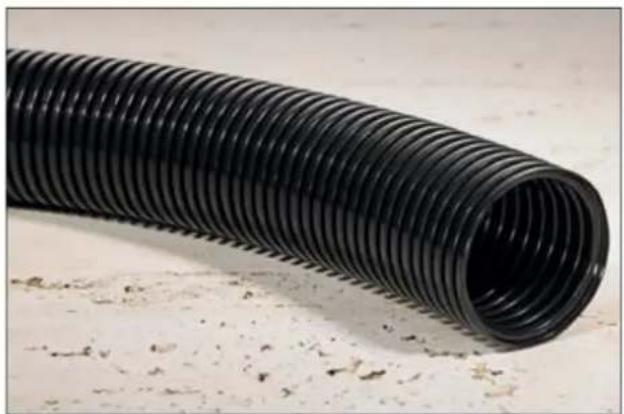

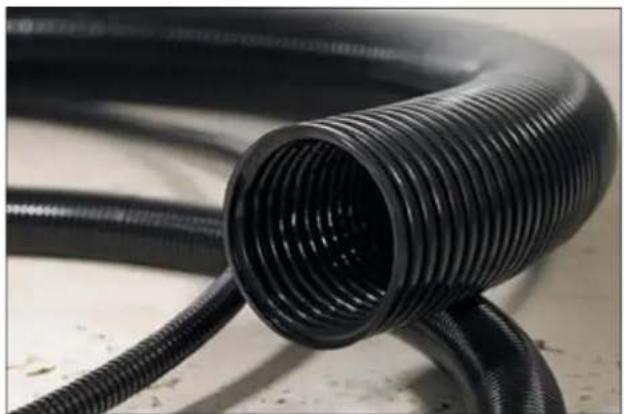

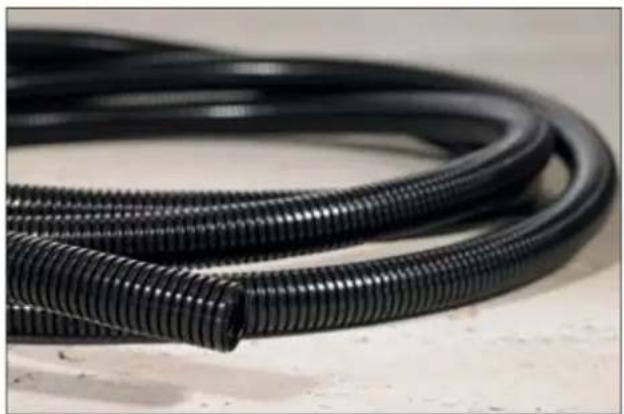

HelaGuard non-metallic conduit

Close-up of black corrugated cables with blue and yellow wires, resting on a textured surface (no text or symbols visible)

HelaGuard PA6 Standard for industrial applications.

MATERIAL	Polyamide 6 (PA6)
Operating Temperature	-40 °C to +120 °C
Operating Temperature Moving	-20 °C to +100 °C
Flammability	UL94 V2
Specifications	IEC 61386, Lloyd's Register, UL-Recognised

HF √ RoHS

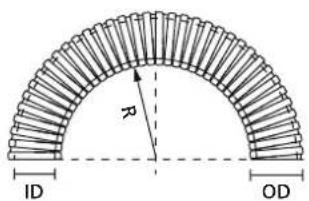

TYPE	Nominal	NW	Outside (OD)	Inside (ID)	Min.Bending Radius(R)	Weight(g/m)	ReelLength Colour Article-No.
HG-SW10 10	7.5 10.0 6.3 15	19 50 m	Black (BK) 166	-11100
HG-SW11 11	8.5 11.5 8.2 20	22 50 m	Black (BK) 166	-11101
HG-SW13 13	10 13.0 9.8 25	28 50 m	Black (BK) 166	-11102
HG-SW16	16 12 15	8 11.8 35	38 25 m Black (BK) 166	-11110
	16 12 15	8 11.8 35	38 50 m Black (BK) 166	-11103
HG-SW21	21 17 21	2 16.7 45	60 25 m Black (BK) 166	-11111
	21 17 21	2 16.7 45	60 50 m Black (BK) 166	-11104
HG-SW28	28 23 28	5 22.8 50	100	25 m Black (BK) 166-11105
	28 23 28	5 22.8 50	100	50 m Black (BK) 166-11112
HG-SW34	34 29 34	5 28.1 60	135	25 m Black (BK) 166-11106
	34 29 34	5 28.1 60	135	50 m Black (BK) 166-11118
HG-SW42 42	36 42.5 35.5 70	165	25 m Black (BK) 166	-1113
HG-SW54 54	48 54.5 47.2 80	235	25 m Black (BK) 166	-1114
HG-SW67	67	56	67.2	56.3	130	365	10 m	Black (BK)	166-11109

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

• HG-LW PA6 Light Weight

Machine building, plant construction, control panels and public buildings, wherever lower mechanical protection is required.

Features and Benefits

• Light weight
  • Very flexible and high fatigue life
• Small bending radius
  • High impact strength and recovers if crushed
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
  • Colour: black; grey (RAL 7031) on request

Close-up of a black corrugated cable with threaded ends, isolated on white surface (no text or symbols visible)

HelaGuard PA6 Light is very flexible and can be used in moving applications.

MATERIAL	Polyamide 6 (PA6)
Operating Temperature	-40 °C to +120 °C
Operating Temperature Moving	-20 °C to +100 °C
Flammability	self-extinguishing according to EN IEC 61386
Specifications IEC 61386,	UL-Recognised

HF RoHS

HelaGuard non-metallic conduit

TYPE	Nominal	NW	Outside (OD)	Inside (ID)	Min.Bending Radius(R)	Weight(g/m)	ReelLength Colour	Colour Article-No.
HG-LW10 10	7.5 10.0 6.5 15	18 50 m	Black (BK) 166-11200
HG-LW11 11	8.5 11.5 8.4 20	22 50 m	Black (BK) 166-11201
HG-LW13 13	10 13.0 9.8 25	24 50 m	Black (BK) 166-11202
HG-LW16 16	12 15.8 11.8 35	36 50 m	Black (BK) 166-11203
HG-LW21 21	17 21.2 16.7 40	56 50 m	Black (BK) 166-11204
HG-LW28 28	23 28.5 23 45	90 50 m B	Black (BK) 166-11205
HG-LW34	34	29	34.5	28.1	55	110	50 m	Black (BK)	166-11206
HG-LW42	42	36	42.5	35.5	65	150	25 m	Black (BK)	166-11207
HG-LW54	54	48	54.5	47.2	80	200	25 m	Black (BK)	166-11208
HG-LW67	67	56	67.2	56.5	110	310	10 m	Black (BK)	166-11209

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

• HG-HW PA6 Heavy Weight

Heavy-duty machine buidling, plant construction, and public buildings, wherever high mechanical strength is required.

Features and Benefits

• Heavy weight
  • High mechanical strength
  • Very abrasion resistant
  • High impact strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
  • Low smoke and low toxicity
  • Self-extinguishing according to UL94 V2
  • Colour: black (UV resistant)

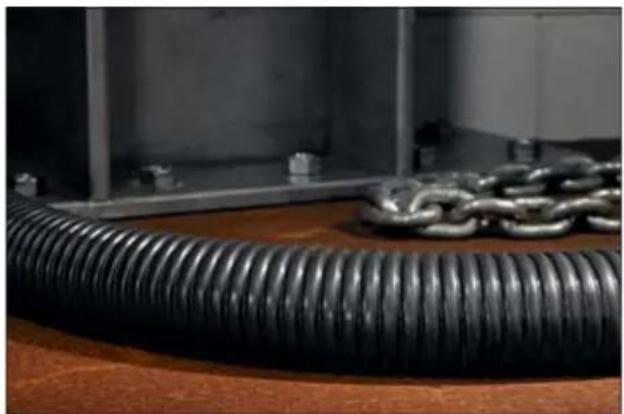

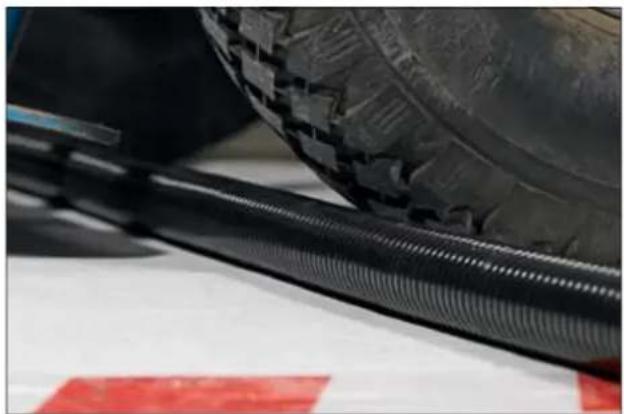

Close-up of a tire and coiled black cable on a red surface, no visible text or symbols

When high mechanical protection is needed: HelaGuard PA6 Heavy.

MATERIAL	Polyamide 6 (PA6)
Operating Temperature	-40 °C to +120 °C
Flammability UL94 V2
Specifications	IEC 61386, UL-Recognised

HF RoHS

HelaGuard non-metallic conduit

TYPE	Nominal	NW	Outside (OD)	Inside (ID)	Min.Bending Radius(R)	Weight(g/m)	ReelLength Colour	Colour Article-No.
HG-HW13 13	10 13.0 9.0 35	37 50 m	Black (BK) 166	-11302
HG-HW16 16	12 15.8 11.5 45	48 50 m	Black (BK) 166	-11303
HG-HW21 21	17 21.2 15.5 55	80 50 m	Black (BK) 166	-11304
HG-HW28 28	23 28.5 21.3 60	130 50	m Black (BK) 166	-11305
HG-HW34 34	29 34.5 26.9 70	170 25	m Black (BK) 166	-11306
HG-HW42 42	36 42.5 34.6 80	200 25	m Black (BK) 166	-11307
HG-HW54 54	48 54.5 46.0 90	270 25	m Black (BK) 166	-11308

All dimensions in mm. Subject to technical changes.
Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

Railway vehicles, railway tunnels, underground stations and public buildings, where high fire protection is required.

Features and Benefits

• Highly flame retardant (UL94 V0)
- Low smoke, low toxicity
• Very flexible and high fatigue life
• High impact strength, recovers if crushed
- Abrasion resistant
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Colour: black (UV resistant)

Close-up of black plastic hoses with threaded connectors, no visible text or symbols

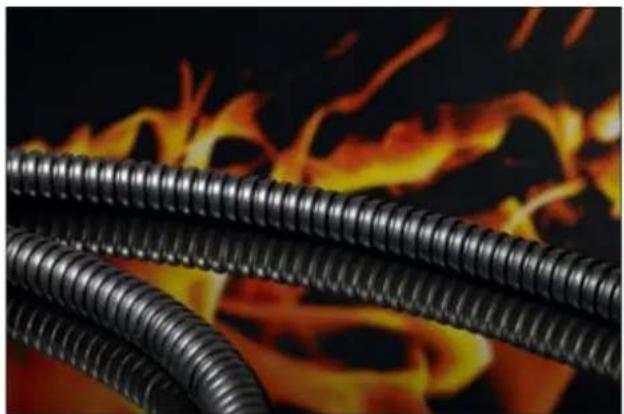

Public buildings often require HelaGuard PA6 Flame Retardant due to its high fire protection properties.

MATERIAL	Polyamide 6, flame retardant (PA6-FR)
Operating Temperature	-40 °C to +120 °C
Operating Temperature Moving	-20 °C to +100 °C
Flammability	UL94 V0
Specifications	CEN TS 45545-2: 2009, IEC 61386, UL-Recognised

HF RoHS

HelaGuard non-metallic conduit

TYPE	Nominal	NW	Outside (OD)	Inside (ID)	Min.Bending Radius(R)	Weight(g/m)	ReelLength Colour	Colour Article-No.
HG-FR10 10	7.5 10.0 6.3 15	19 50 m	Black (BK) 166-11400
HG-FR13 13	10 13.0 9.8 25	28 50 m	Black (BK) 166-11401
HG-FR16 16	12 15.8 11.8 35	38 50 m	Black (BK) 166-11402
HG-FR21 21	17 21.2 16.7 45	60 50 m	Black (BK) 166-11403
HG-FR28 28	23 28.5 21.7 50	100	50 m Black (BK) 166-1	1404
HG-FR34 34	29 34.5 28.1 60	135	50 m Black (BK) 166-1	1405
HG-FR42 42	36 42.5 35.5 70	165	25 m Black (BK) 166-1	1406
HG-FR54 54	48 54.5 47.2 80	235	25 m Black (BK) 166-1	1407

All dimensions in mm. Subject to technical changes.

Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

CEN

IEC

RU®

Please note! Not all products listed on this page may have this approval.

Robots, rail, machine building, plant construction and wherever continual movement and bending are requirements.

Features and Benefits

• Excellent fatigue life
- Very flexible
• Recovers form if crushed
• Good mechanical properties at low temperatures
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Self-extinguishing to IEC 61386
• Colour: black (UV resistant)

Black plastic corrugated pipe with threaded ends, resting on a light surface (no text or symbols visible)

HelaGuard PA12 is ideal for robotics.

MATERIAL	Polyamide 12 (PA12)
Operating Temperature	-50 °C to +110 °C
Operating Temperature Moving	-50 °C to +110 °C
Flammability	self-extinguishing according to EN IEC 61386
Specifications	IEC 61386, UL-Recognised

HF

RoHS

HelaGuard non-metallic conduit

TYPE	Nominal	NW	Outside (OD)	Inside (ID)	Min.Bending Radius(R)	Weight(g/m)	ReelLength Colour Article-No.
HG-HI13 13	10 13.0 9.8 25	26 50 m	Black (BK) 166-11501
HG-HI16 16	12 15.8 11.8 30	35 50 m	Black (BK) 166-11502
HG-HI21 21	17 21.2 16.7 35	55 50 m	Black (BK) 166-11503
HG-HI28 28	23 28.5 21.7 45	92 50 m	Black (BK) 166-11504
HG-HI34 34	29 34.5 28.1 55	120 25 m	Black (BK) 166-11505
HG-HI42 42	36 42.5 35.5 60	160 25 m	Black (BK) 166-11506
HG-HI54 54	48 54.5 47.2 70	220 25 m	Black (BK) 166-11507

All dimensions in mm. Subject to technical changes.
Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

Control panels, machine building, plant construction and wherever retrofitting is a requirement.

Features and Benefits

• Can be opened and closed repeatedly
  • Cables can be inserted laterally
• Abrasion resistant
  • Free of halogen, sulphur and phosphorus
  • Self-extinguishing to IEC 61386
• Colour: black

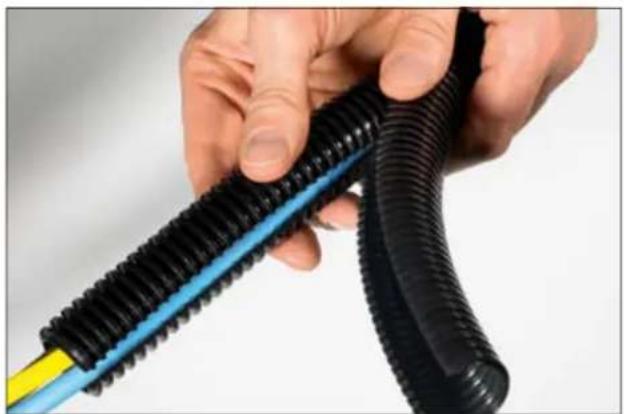

Close-up of hands holding a black flexible hose with blue and yellow tape, no text or symbols visible

HelaGuard HG-DC double slit conduit is ideal for retrofitting.

MATERIAL	Polyamide 6 (PA6)
Operating Temperature	-40 °C to +120 °C
Flammability	UL94 V2
Specifications	IEC 61386

HF RoHS

HelaGuard non-metallic conduit

TYPE	Nominal	NW	Outside (OD)	Inside (ID)	Min.Bending Radius(R)	Weight(g/m)	ReelLength Colour	Colour Article-No.
HG-DC11 11	8.5 11.5 6.2 45	23 50 m	Black (BK) 166	-11800
HG-DC13 13	10 13.0 7.9 55	37 50 m	Black (BK) 166	-11801
HG-DC16 16	12 15.8 10.3 60	41 50 m	Black (BK) 166	-11802
HG-DC21 21	17 21.2 13.9 90	63 50 m	Black (BK) 166	-11803
HG-DC28 28	23 28.5 20.5 105		94 50 m	Black (BK) 166	-11804
HG-DC34	34	29	34.5	26.6	150	118	25 m	Black (BK)
HG-DC42	42	36	42.5	34.8	170	193	25 m	Black (BK)
HG-DC54	54	48	54.5	45.3	170	263	25 m	Black (BK)

All dimensions in mm. Subject to technical changes.

Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

IEC

Please note! Not all products listed on this page may have this approval.

Machine building, electrical installations, buildings, particularly when buried in concrete or plaster.

Features and Benefits

• Very flexible
• Abrasion resistant
  • Resistant to acids and alkalis
  • Self-extinguishing to IEC 61386

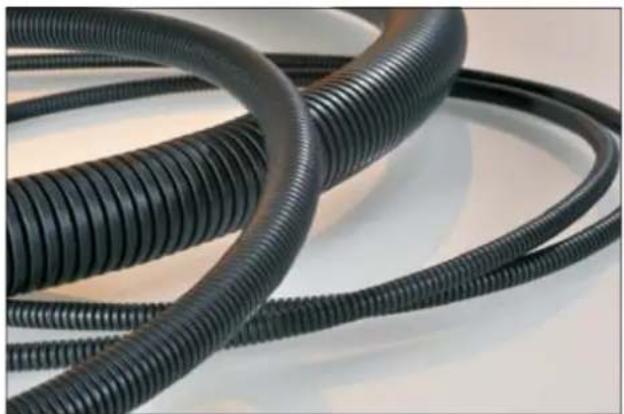

Close-up of coiled black plastic hoses with threaded ends, no text or symbols visible

HelaGuard PP Standard is typically used in electrical installations and buildings, particularly when buried in concrete or plaster.

MATERIAL	Polypropylene (PP)
Operating Temperature	-20 °C to +90 °C
Flammability	self-extinguishing according to EN IEC 61386
Specifications	IEC 61386

RoHS

HelaGuard non-metallic conduit

TYPE	Nominal	NW	Outside (OD)	Inside (ID)	Min.Bending Radius(R)	Weight(g/m)	ReelLength Colour Article-No.
HG-PP10 10	7.5 10.0 6.3 15	16 50 m	Black (BK) 166	-11900
HG-PP13 13	10 13.0 9.8 25	20 50 m	Black (BK) 166	-11901
HG-PP16 16	12 15.8 11.8 35	30 50 m	Black (BK) 166	-11902
HG-PP20 20	16 20.0 14.8 40	45 50 m	Black (BK) 166	-11903
HG-PP21 21	17 21.2 16.7 40	50 50 m	Black (BK) 166	-11904
HG-PP25 25	22 25.0 19.1 50	52 50 m	Black (BK) 166	-11905
HG-PP26 26	22 25.4 21.4 50	52 50 m	Black (BK) 166	-11906
HG-PP28 28	23 28.5 22.8 55	65 50 m	Black (BK) 166	-11907
HG-PP34 34	29 34.5 28.1 65	90 25 m	Black (BK) 166	-11908
HG-PP42 42	36 42.5 35.5 80	120	25 m Black (BK) 166	-11909
HG-PP54	54	48	54.5	47.2	100	150	25 m	Black (BK)	166-11910
HG-PP67	67	56	67.2	56.3	150	250	10 m	Black (BK)	166-11911

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

HelaGuard Fitting Finder

Fixed external thread

HG-SStraightIP66		Page 22
HGL-SStraightIP68		Page 24
HG-9090° ElbowIP66		Page 25
HGL-9090° ElbowIP68		Page 27
HG-4545° ElbowIP66		Page 28
HGL-4545° ElbowIP68		Page 29

Swivel external thread

HG-SM Straight IP66		Page 30
HGL-SM Straight IP68		Page 31
HG-90M 90° Elbow IP66		Page 32

HGL-90M90° ElbowIP68		Page 33
HG-45M45° ElbowIP66		Page 34
HGL-45M45° ElbowIP68		Page 35

Swivel internal thread

HG-SF Straight IP66		Page 36
HGL-SF Straight IP68		Page 37
HG-90F 90° Elbow IP66		Page 38
HGL-90F 90° Elbow IP68		Page 39
HG-45F 45° Elbow IP66		Page 40
HGL-45F 45° Elbow IP68		Page 41

Swivel flange

HG-SFLStraightIP66		Page 42
HGL-SFLStraightIP68		Page 43

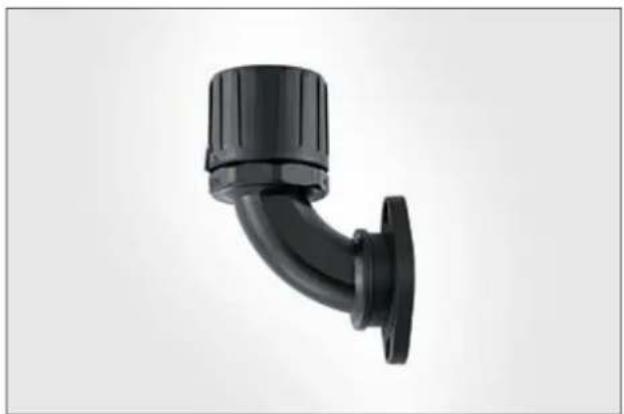

HG-90FL90° ElbowIP66		Page 44
HGL-90FL90° ElbowIP68		Page 45
HG-45FL45° ElbowIP66		Page 46
HGL-45FL45° ElbowIP68		Page 47

With strain relief and cable seal

HG-SCG Straight IP66		Page 48
HGL-SCG Straight IP68		Page 49
HG-90CG 90° Elbow IP66		Page 50

CAD download

HGL-90CG90° ElbowIP68		Page 51
HG-45CG45° ElbowIP66		Page 52
HGL-45CG45° ElbowIP68		Page 53

Connectors, reducers and couplers

HG-TT-ConnectorIP66		Page 54
HGL-TT-ConnectorIP68		Page 55
HG-YY-ConnectorIP66		Page 56
HGL-YY-ConnectorIP68		Page 57
HG-R ReducerIP66		Page 58
HGL-R ReducerIP68		Page 59

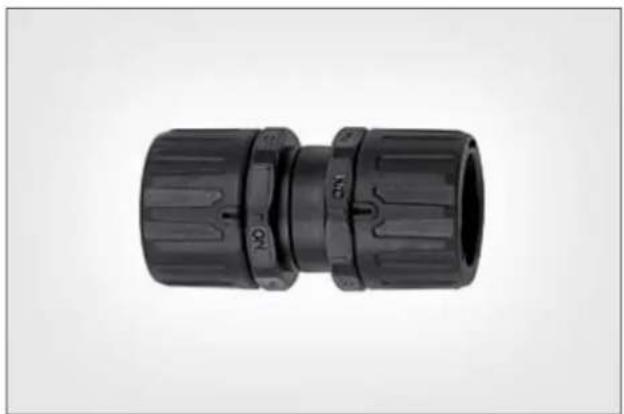

HG-HG CouplerIP66		Page 60

1.2

Cable Protection Systems

Technical Information

Mounting and Removing HelaGuard Non-Metallic Fittings

HelaGuard plastic fittings are mounted simply, quickly and very securely. They offer exceptionally high pull-off strength and are vibration as well as tamper resistant. They can be removed with a screw driver. HelaGuard plastic fittings can be used again and again.

To mount and remove HelaGuard plastic fittings, follow these simple instructions.

Two mechanical components shown from different angles, one with threaded end and the other with flanged top (no text or symbols visible)

1. If the fitting has been used before, be sure that the slit points to the "on" position. To assemble the fitting, push it on to the end of the conduit as far as possible without forcing it and twist it slightly. The fitting is now securely locked.

Close-up of a mechanical component with blue tool and red arrow indicating a force or movement (no text or symbols visible)

1. To remove the fitting, insert a small screw driver into the slit.

Close-up of a mechanical pipe fitting with blue plastic clip and red directional arrow (no text or symbols)

1. Move the handle of the screwdriver towards the "off" position. The capnut will rotate slightly. The locking mechanism is now released.

Close-up of a black threaded hose with ribbed end caps (no text or symbols visible)

1. Remove the screwdriver.

Close-up of a black threaded pipe fitting with a red arrow indicator (no text or symbols)

1. Manually rotate the capnut further towards the "off" position as far as possible.

Close-up of a black threaded pipe fitting with ribbed end, shown from two angles (no text or symbols visible)

1. Simply remove the fitting from the end of the conduit.

To re-use HelaGuard plastic fittings, simply turn the capnut back to the "on" position and mount it on to the end of the conduit.

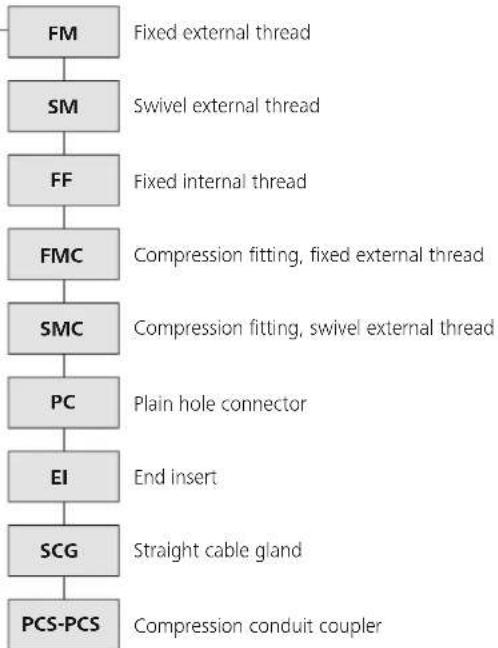

HelaGuard Nomenclature for Non-Metallic Fittings

Fittings with fixed external thread

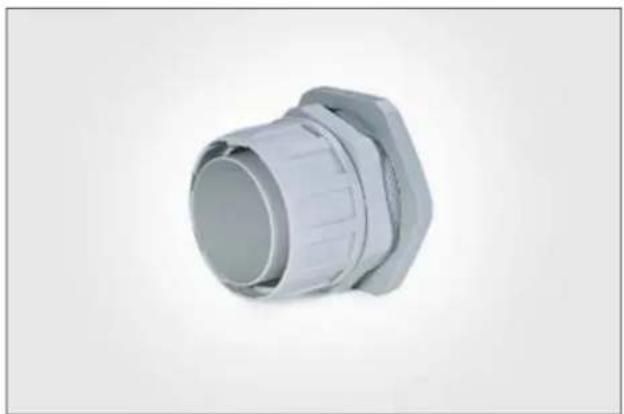

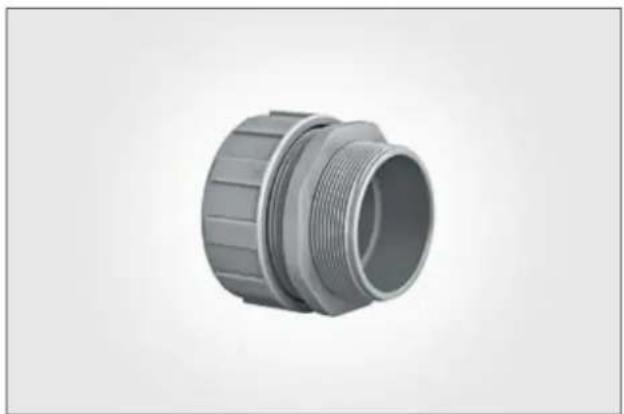

• HG-S Straight, IP66

Straight external thread.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Metric threads supplied with locknuts

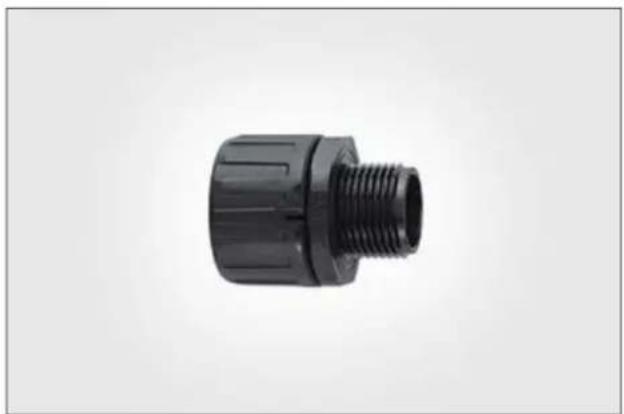

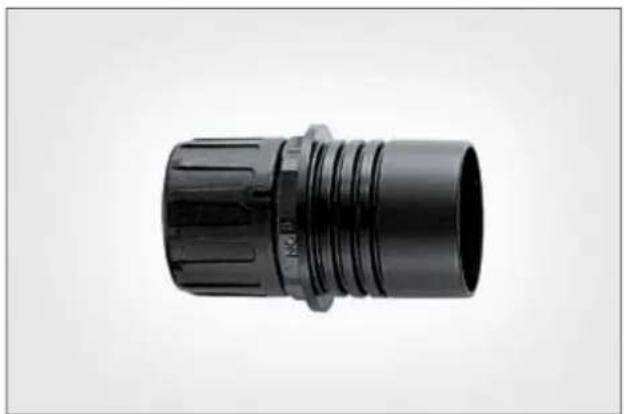

Black threaded connector component on a plain background (no text or symbols)

HelaGuard HG-S Straight, IP66.

MATERIAL	Polyamide 6.6 (PA66)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications UL-Recognised

HF RoHS

HelaGuard fitting, straight with fixed external thread

Fittings with UNEF and NPT threads available on request. Please contact us!

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Body (A/F1)	Thread Length (TL)	Pack Cont.	Colour Article	No.
HG10-S-M12 10	M12 7.5 19	33 19 9 10	pcs. Black (BK)	166-21000
HG10-S-M16 10	M16 9.5 19	35 19 11	0 pcs. Black (BK)	166-21020
HG10-S-PG7 10	PG7 7.5 19 3	33 19 9 10	pcs. Black (BK)	166-21010
HG10-S-PG9 10	PG9 9.5 19 3	35 19 11 10	pcs. Black (BK)	166-21031
HG11-S-M12 11	M12 7.5 19	33 19 9 10	pcs. Black (BK)	166-21021
HG11-S-PG7 11	PG7 7.5 19 3	33 19 9 10	pcs. Black (BK)	166-21032
HG13-S-M12 13	M12 7.5 24	35 23 9 10	pcs. Black (BK)	166-21022
HG13-S-M16 13	M16 11.0		24 37 23 11 10	pcs. Black (BK)	166-21001
HG13-S-M20 13	M20 12.5		24 40 23 14 10	pcs. Black (BK)	166-21023
HG13-S-PG7 13	PG7 7.5 24 3	35 23 9 10	pcs. Black (BK)	166-21033
HG13-S-PG9 13	PG9 11.0		24 37 23 11 10	pcs. Black (BK)	166-21011
HG13-S-PG11	13	PG11	12.5	24	36	23	10	10 pcs.	Black (BK)	166-21034
HG16-S-M16 16	M16 11.0		29 41 28 11 10	pcs. Black (BK)	166-21002
HG16-S-M20 16	M20 14.5		29 34 28 14 10	pcs. Black (BK)	166-21003
HG16-S-PG9 16	PG9 11.0		29 41 28 11 10	pcs. Black (BK)	166-21035

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with fixed external thread

• HG-S Straight, IP66

HelaGuard fitting, straight with fixed external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Body (A/F1)	Thread Length (TL)	Pack Cont.	Colour Article-No.
HG16-S-PG11 16	PG11 14.5	29 40 28 10	10 pcs. Black (BK) 166-21012
HG16-S-PG13 16	PG13.5 14.5	29 40 28	10 10 pcs. Black (BK) 166-21013
HG16-S-PG16 16	PG16 14.5	29 41 28 11	10 pcs. Black (BK) 166-21036
HG20-S-M20 20	M20 14.5 32	44 30 14	10 pcs. Black (BK) 166-21025
HG21-S-M20 21	M20 14.5 32	44 30 14	10 pcs. Black (BK) 166-21004
HG21-S-PG13 21	PG13.5 16.5	32 40 30	10 10 pcs. Black (BK) 166-21039
HG21-S-PG16 21	PG16 18.0	32 41 30 11	10 pcs. Black (BK) 166-21014
HG21-S-PG21 21	PG21 20.5	32 42 30 12	10 pcs. Black (BK) 166-21040
HG25-S-M25 25	M25 19.5 39	49 37 15	10 pcs. Black (BK) 166-21026
HG28-S-M25 28	M25 19.5 44	49 42 15	10 pcs. Black (BK) 166-21005
HG28-S-M32 28	M32 26.5 44	50 42 16	10 pcs. Black (BK) 166-21027
HG28-S-PG21 28	PG21 22.5	44 46 42 12	10 pcs. Black (BK) 166-21015
HG28-S-PG29 28	PG29 27.5	44 46 42 12	10 pcs. Black (BK) 166-21041
HG34-S-M32 34	M32 26.5 51	53 49 16	10 pcs. Black (BK) 166-21006
HG34-S-M40 34	M40 32.5 51	53 49 16	10 pcs. Black (BK) 166-21028
HG34-S-PG29 34	PG29 30.5	51 49 49 12	10 pcs. Black (BK) 166-21016
HG42-S-M40 42	M40 32.5 63	60 60 16	2 pcs. Black (BK) 166-21007
HG42-S-M50 42	M50 40.5 63	60 60 16	2 pcs. Black (BK) 166-21029
HG42-S-PG36 42	PG36 40.0	63 56 60 12	2 pcs. Black (BK) 166-21017
HG54-S-M50 54	M50 42.0 76	65 73 16	2 pcs. Black (BK) 166-21008
HG54-S-M63 54	M63 53.0 76	65 73 16	2 pcs. Black (BK) 166-21030
HG54-S-PG42 54	PG42 47.0	76 61 73 12	2 pcs. Black (BK) 166-21042
HG54-S-PG48 54	PG48 52.0	76 61 73 12	2 pcs. Black (BK) 166-21018
HG67-S-M63	67 M63	56.0 90	70 87 16 1 pcs. Black (BK) 166-2	1009
HG67-S-PG48	67 PG48	52.0 90	66 87 12 1 pcs. Black (BK) 166-2	1019

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with fixed external thread

• HGL-S Straight, IP68

Straight external thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Metric threads supplied with locknuts

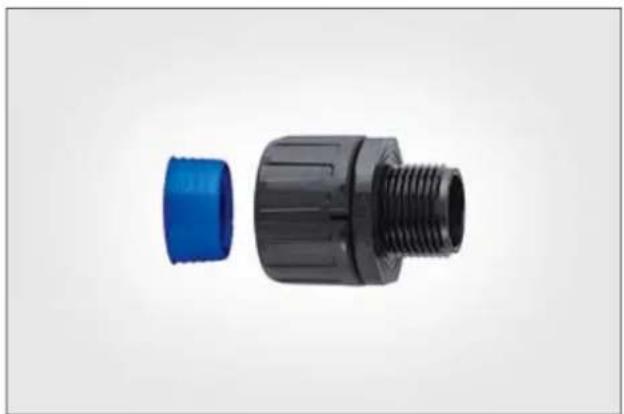

HelaGuard fitting, straight with fixed external thread

Two plastic connectors, one blue and one black, shown against a plain background (no text or symbols)

HelaGuard HGL-S Straight with conduit seal, IP68.

MATERIAL	Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

Fittings with UNEF and NPT threads available on request. Please contact us!

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Body (A/F1)	Thread Length (TL)	Pack Cont.	Colour Article	No.
HGL13-S-M16	13 M16 11.0	24 37 22	11 10 pcs. Black (BK) 166-21600
HGL13-S-PG9	13 PG9 11.5	24 37 23 1	11 10 pcs. Black (BK) 166-21608
HGL16-S-M16	16 M16 11.0	29 41 28	11 10 pcs. Black (BK) 166-21601
HGL16-S-M20	16 M20 14.5	29 44 28	14 10 pcs. Black (BK) 166-21602
HGL16-S-PG9	16 PG9 11.5	29 41 28 1	11 10 pcs. Black (BK) 166-21623
HGL16-S-PG11	16 PG11 14.5	29 40 28	10 10 pcs. Black (BK) 166-21609
HGL16-S-PG13	16	PG13.5	15.0	29	40	28	10	10 pcs.	Black (BK)	166-21610
HGL16-S-PG16	16 PG16 15.0	29 41 28	11 10 pcs. Black (BK) 166-21624
HGL21-S-M20	21 M20 14.5	32 44 30	14 10 pcs. Black (BK) 166-21603
HGL21-S-PG13	21	PG13.5	16.5	32	40	30	10	10 pcs.	Black (BK)	166-21625
HGL21-S-PG16	21 PG16 18.0	32 41 30	11 10 pcs. Black (BK) 166-21611
HGL21-S-PG21	21 PG21 20.5	32 42 30	12 10 pcs. Black (BK) 166-21626
HGL28-S-M25	28 M25 19.5	44 50 42	15 10 pcs. Black (BK) 166-21604
HGL28-S-M32	28 M32 26.5	44 51 42	16 10 pcs. Black (BK) 166-21619
HGL28-S-PG21	28 PG21 22.5	44 46 42	12 10 pcs. Black (BK) 166-21612
HGL28-S-PG29	28 PG29 30.0	44 47 42	12 10 pcs. Black (BK) 166-21627
HGL34-S-M32	34 M32 26.5	51 53 49	16 10 pcs. Black (BK) 166-21605
HGL34-S-M40	34 M40 32.5	51 55 49	16 10 pcs. Black (BK) 166-21620
HGL34-S-PG29	34 PG29 30.0	51 49 49	12 10 pcs. Black (BK) 166-21613

All dimensions in mm. Subject to technical changes. Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with fixed external thread

• HGL-S Straight, IP68

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Body (A/F1)	Thread Length (TL)	Pack Cont.	Colour Article	No.
HGL42-S-M40	42 M40 32.5	63 61 60	16 2 pcs. Black (BK)	166-21606
HGL42-S-M50	42 M50 40.5	63 61 73	16 2 pcs. Black (BK)	166-21621
HGL42-S-PG36	42 PG36 40	0 63 56 60	12 2 pcs. Black (BK)	166-21614
HGL54-S-M50	54 M50 42.0	76 65 73	16 2 pcs. Black (BK)	166-21607
HGL54-S-M63	54 M63 53.0	76 65 73	16 2 pcs. Black (BK)	166-21622
HGL54-S-PG42	54 PG42 47	0 76 61 73	12 2 pcs. Black (BK)	166-21628
HGL54-S-PG48	54 PG48 52	0 76 61 73	12 2 pcs. Black (BK)	166-21616

All dimensions in mm. Subject to technical changes. Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with fixed external thread

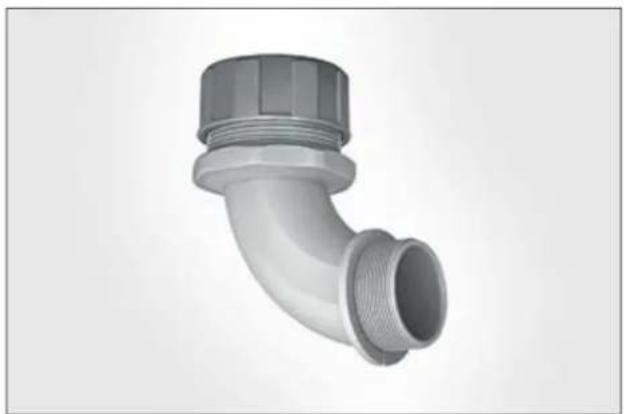

• HG-90 90° Elbow, IP66

90° elbow external thread.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Metric threads supplied with locknuts

HelaGuard fitting, 90° with fixed external thread

Black rubber pipe fitting with threaded end (no text or symbols visible)

HelaGuard HG-90 90° Elbow, IP66.

MATERIAL	Polyamide 6.6 (PA66)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

Fittings with UNEF and NPT threads available on request. Please contact us!

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	Face Diameter (FD)	Thread Length (TL)	Pack Cont.	Colour	Article-No.
HG10-90-M12	10	M12	6.5	19	32	17	8	10 pcs.	Black (BK)	166-22200
HG10-90-PG7	10	PG7	6.5	19	32	16	8	10 pcs.	Black (BK)	166-22210
HG11-90-M12	11	M12	6.5	19	32	17	8	10 pcs.	Black (BK)	166-22220
HG13-90-M16	13	M16	10.5	24	46	22	11	10 pcs.	Black (BK)	166-22201
HG13-90-PG9	13	PG9	10.5	24	46	22	10	10 pcs.	Black (BK)	166-22211

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with fixed external thread

• HG-90 90° Elbow, IP66

HelaGuard fitting, 90° with fixed external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	Face Diameter (FD)	Thread Length (TL)	Pack Cont.	Colour Article-No.
HG16-90-M16	16 M16 10.5	29 49 22	11 10 pcs. Black (BK) 166-22202
HG16-90-M20	16 M20 14.0	29 51 27	13 10 pcs. Black (BK) 166-22203
HG16-90-PG9	16 PG9 10.5	29 49 22	10 10 pcs. Black (BK) 166-22225
HG16-90-PG11	16 PG11	10.5 29	49 24 10 10	pcs. Black (BK) 166-22212
HG16-90-PG13	16 PG1	3.5 14.0	29 51 26 11	10 pcs. Black (BK) 166-22213
HG21-90-M20	21 M20 14.0	32 53 27	13 10 pcs. Black (BK) 166-22204
HG21-90-PG13	21 PG1	3.5 14.0	32 53 26 11	10 pcs. Black (BK) 166-22227
HG21-90-PG16	21 PG16	14.0 32	53 27 11 10	pcs. Black (BK) 166-22214
HG25-90-M25	25 M25 19.0	39 63 32	15 10 pcs. Black (BK) 166-22222
HG28-90-M25	28 M25 19.0	44 66 32	15 10 pcs. Black (BK) 166-22205
HG28-90-PG21	28 PG21	19.0 44	66 35 12 10	pcs. Black (BK) 166-22215
HG34-90-M32	34 M32 24.5	51 75 40	16 10 pcs. Black (BK) 166-22206
HG34-90-PG29	34 PG29	24.5 51	75 44 12 10	pcs. Black (BK) 166-22216
HG42-90-M40	42	M40	32.5	63	98	50	16	2 pcs.	Black (BK)
HG42-90-M50	42	M50	39.0	63	99	60	16	2 pcs.	Black (BK)
HG42-90-PG36	42	PG36	39.0	63	99	57	12	2 pcs.	Black (BK)
HG54-90-M50	54	M50	39.0	76	104	60	16	2 pcs.	Black (BK)
HG54-90-M63	54	M63	49.5	76	104	72	16	2 pcs.	Black (BK)
HG54-90-PG48	54	PG48	49.5	76	104	70	15	2 pcs.	Black (BK)
HG67-90-M63	67	M63	49.5	90	120	72	16	1 pcs.	Black (BK)
HG67-90-PG48	67	PG48	49.5	90	120	70	15	1 pcs.	Black (BK)

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with fixed external thread

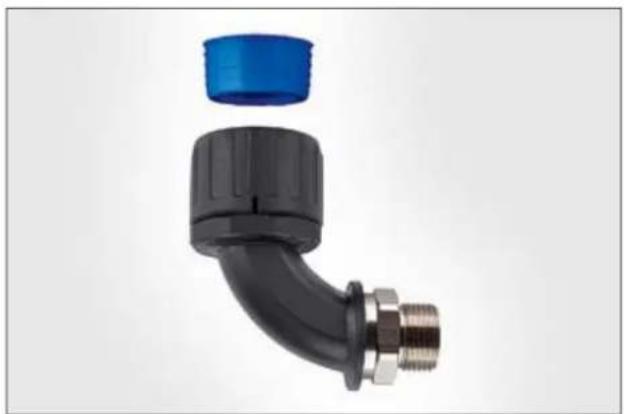

• HGL-90 90° Elbow, IP68

90° elbow, external thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Metric threads supplied with locknuts

HelaGuard fitting, 90° with fixed external thread

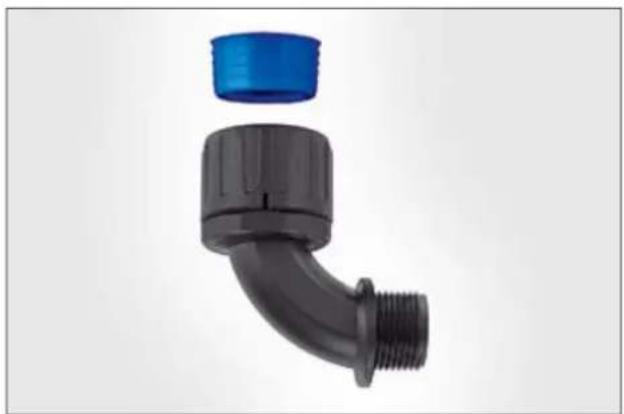

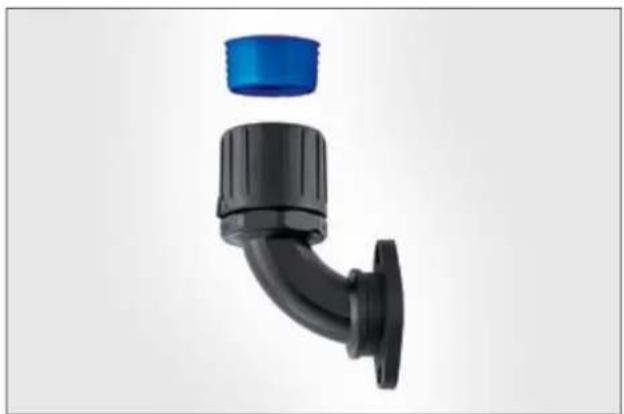

Close-up of a black plastic pipe fitting with a blue cap, shown against a plain background (no text or symbols)

HelaGuard HGL-90 90° Elbow with conduit seal, IP68.

MATERIAL	Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

Fittings with UNEF and NPT threads available on request. Please contact us!

TYPE	Nominal∅	Thread Size	Min. Bore Size (B)	Outside ∅ max (OD max.)	Length (L)	Face Diameter (FD)	Thread Length (TL)	Pack Cont.	Colour Article-No.
HGL13-90-M16 13	M16 10.5	24 46 22	1 10 pcs. Black (BK) 166-22800
HGL13-90-PG9 13	PG9 10.5 2	4 46 22 10	10 pcs. Black (BK) 166-22808
HGL16-90-M16 16	M16 10.5	29 49 22	1 10 pcs. Black (BK) 166-22801
HGL16-90-M20 16	M20 14.0	29 51 27	3 10 pcs. Black (BK) 166-22802
HGL16-90-PG9 16	PG9 10.5 2	9 49 22 10	10 pcs. Black (BK) 166-22820
HGL16-90-PG11 16	PG11 10.5	29 49 24	10 10 pcs. Black (BK) 166-22809
HGL16-90-PG13	16	PG13.5	14.0	29	51	26	11	10 pcs.	Black (BK) 166-22810
HGL21-90-M20 2	M20 14.0	32 53 27	3 10 pcs. Black (BK) 166-22803
HGL21-90-PG13	21	PG13.5	14.0	32	53	26	11	10 pcs.	Black (BK) 166-22821
HGL21-90-PG16 2	PG16 14.0	32 53 26	11 10 pcs. Black (BK) 166-22811
HGL28-90-M25 28	M25 19.0	44 66 32	5 10 pcs. Black (BK) 166-22804
HGL28-90-PG21 28	PG21 19.0	44 66 35	12 10 pcs. Black (BK) 166-22812
HGL34-90-M32 34	M32 24.5	51 75 40	6 10 pcs. Black (BK) 166-22805
HGL34-90-PG29 34	PG29 24.5	51 75 44	12 10 pcs. Black (BK) 166-22813
HGL42-90-M40	42	M40	32.0	63	98	50	16	2 pcs.	Black (BK) 166-22806
HGL42-90-M50	42	M50	39.0	63	99	60	16	2 pcs.	Black (BK) 166-22818
HGL42-90-PG36	42	PG36	39.0	63	99	57	12	2 pcs.	Black (BK) 166-22814
HGL54-90-M50	54	M50	39.0	76	104	60	16	2 pcs.	Black (BK) 166-22807
HGL54-90-M63	54	M63	49.5	76	104	72	16	2 pcs.	Black (BK) 166-22819
HGL54-90-PG48	54	PG48	49.5	76	104	70	15	2 pcs.	Black (BK) 166-22815

All dimensions in mm. Subject to technical changes. Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with fixed external thread

• HG-45 45° Elbow, IP66

45^ elbow external thread.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Metric threads supplied with locknuts

Close-up of a black plastic connector with threaded shaft and flange (no text or symbols visible)

HelaGuard HG-45 45° Elbow, IP66.

MATERIAL	Polyamide 6.6 (PA66)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, 45° with fixed external thread

Fittings with UNEF and NPT threads available on request. Please contact us!

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	Face Diameter (FD)	Thread Length (TL)	Pack Cont.	Colour Article	No.
HG16-45-M20 1	6 M20 14.0	29 58 27	13 10 pcs. Black (BK) 166-23400
HG16-45-PG13	6 PG13.5 1	4.0 29 58	26 11 10 pcs. Black (BK) 166-23406
HG21-45-M20 2	1 M20 14.0	32 61 27	13 10 pcs. Black (BK) 166-23401
HG21-45-PG13	21 PG13.5 1	4.0 32 61	26 11 10 pcs. Black (BK) 166-23407
HG21-45-PG16	21 PG16 14	0 32 61 27	11 10 pcs. Black (BK) 166-23408
HG28-45-M25 2	8 M25 19.0	44 73 32	15 10 pcs. Black (BK) 166-23402
HG28-45-PG21	28 PG21 19	0 44 73 35	12 10 pcs. Black (BK) 166-23409
HG34-45-M32 3	4 M32 24.5	51 81 40	16 10 pcs. Black (BK) 166-23403
HG34-45-PG29	34 PG29 24	5 51 81 44	12 10 pcs. Black (BK) 166-23410
HG42-45-M50 4	2 M50 39.0	63 98 60	16 2 pcs. Black (BK) 166-23404
HG42-45-PG36	42 PG36 39	0 63 98 57	12 2 pcs. Black (BK) 166-23411
HG54-45-M50	54	M50	39.0	76	106	60	16	2 pcs.	Black (BK)	166-23405

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with fixed external thread

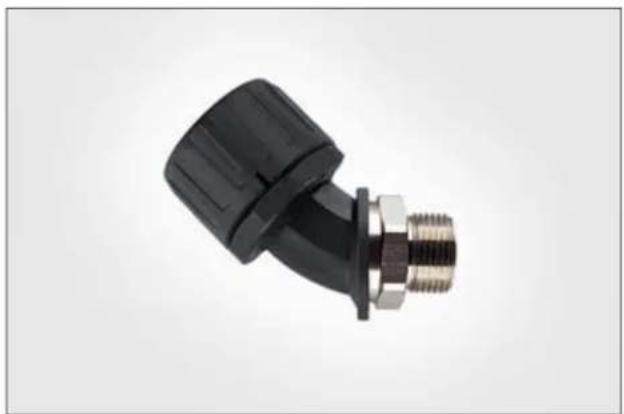

• HGL-45 45° Elbow, IP68

45° elbow external thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Metric threads supplied with locknuts

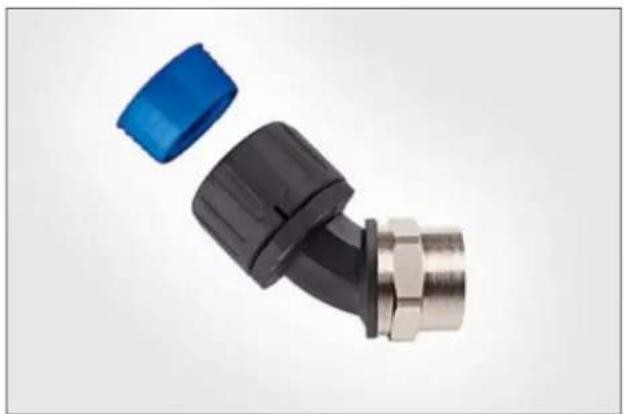

Close-up of a black plastic connector with blue plastic cover, showing threaded shaft and cap (no text or symbols)

HelaGuard HGL-45 45° Elbow with conduit seal, IP68.

MATERIAL	Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, 45° with fixed external thread

Fittings with UNEF and NPT threads available on request. Please contact us!

TYPE	Nominal∅	Thread Size	Min. Bore Size (B)	Outside ∅ max (OD max.)	Length (L)	Face Diameter (FD)	Thread Length (TL)	Pack Cont.	Colour Article	No.
HGL16-45-M20	15 M20 14.0	29 58 27	13 10 pcs. Black (BK) 166-24000
HGL16-45-PG13	16 PG13.5	14.0 29 58	26 11 10 pcs. Black (BK) 166-24006
HGL21-45-M20	21 M20 14.0	32 61 27	13 10 pcs. Black (BK) 166-24001
HGL21-45-PG13	21 PG13.5	14.0 32 61	26 11 10 pcs. Black (BK) 166-24007
HGL21-45-PG16	21 PG16	14.0 32	61 27 11 10 pcs. Black (BK) 166-24008
HGL28-45-M25	23 M25 19.0	44 73 32	15 10 pcs. Black (BK) 166-24002
HGL28-45-PG21	28 PG21	19.0 44	73 35 12 10 pcs. Black (BK) 166-24009
HGL34-45-M32	34 M32 24.5	51 81 40	16 10 pcs. Black (BK) 166-24003
HGL34-45-PG29	34 PG29	24.5 51	81 44 12 10 pcs. Black (BK) 166-24010
HGL42-45-M50	42 M50 39.0	63 98 60	16 2 pcs. Black (BK) 166-24004
HGL42-45-PG36	42	PG36	39.0	63	98	57	12	2 pcs.	Black (BK)	166-24011
HGL54-45-M50	54	M50	39.0	76	107	60	16	2 pcs.	Black (BK)	166-24005

All dimensions in mm. Subject to technical changes.

Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel external thread

• HG-SM Straight Swivel External Thread, IP66

Straight swivel brass external thread.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

Close-up of a black and silver threaded connector (no text or symbols visible)

HelaGuard HG-SM Straight Swivel External Thread, IP66.

MATERIAL	Polyamide 6.6 (PA66), Nickel Plated Brass (NPB)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, straight with swivel external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Thread (A/F2)	Thread Length (TL)	Pack Cont.	Colour Article-No.
HG13-SM-M16	13 M16 11.0	24 51 20	12 10 pcs. Black (BK) 166-21300
HG13-SM-PG9	13 PG9 11.0	24 49 22 10	10 10 pcs. Black (BK) 166-21309
HG16-SM-M16	16 M16 11.0	29 57 20	12 10 pcs. Black (BK) 166-21301
HG16-SM-M20	16 M20 14.5	29 57 24	12 10 pcs. Black (BK) 166-21302
HG16-SM-PG9	16 PG9 11.0	29 50 22 10	10 10 pcs. Black (BK) 166-21310
HG16-SM-PG11	16 PG11 11.0	29 52 24	12 10 pcs. Black (BK) 166-21311
HG21-SM-M20	21 M20 14.5	32 57 24	12 10 pcs. Black (BK) 166-21303
HG21-SM-PG13	21	PG13.5	14.5	32	55	24	10	10 pcs.	Black (BK)
HG21-SM-PG16	21 PG16 14.5	32 58 29	13 10 pcs. Black (BK) 166-21313
HG28-SM-M25	28 M25 19.5	44 62 29	12 10 pcs. Black (BK) 166-21304
HG28-SM-PG21	28 PG21 19.5	44 64 35	14 10 pcs. Black (BK) 166-21314
HG34-SM-M32	34 M32 26.5	51 67 38	13 10 pcs. Black (BK) 166-21305
HG34-SM-PG29	34 PG29 26.5	51 68 42	14 10 pcs. Black (BK) 166-21315
HG42-SM-M40	42 M40 32.5	63 79 50	15 2 pcs. Black (BK) 166-21306
HG54-SM-M50	54 M50 42.0	76 85 58	17 2 pcs. Black (BK) 166-21307

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel external thread

• HGL-SM Straight Swivel External Thread, IP68

Straight swivel brass external thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

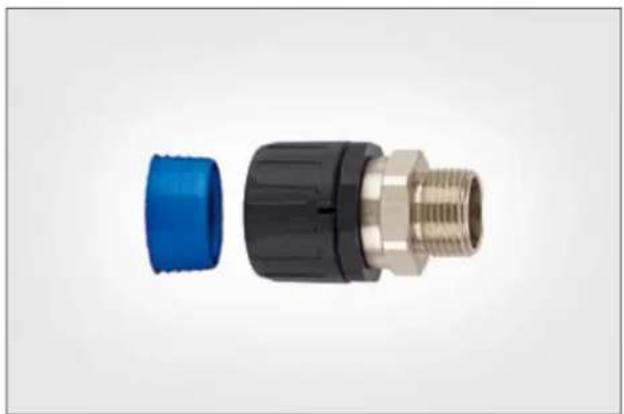

Three types of connectors shown in blue, black, and metallic colors (no text or symbols visible)

HelaGuard HGL-SM Straight Swivel External Thread with conduit seal, IP68.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB),Thermoplastic Elastomer (TPE)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HelaGuard fitting, straight with swivel external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Thread (A/F2)	Thread Length (TL)	Pack Cont.	Colour Article-No.
HGL13-SM-M16	13 M16 11.0	24 51 20	12 10 pcs. Black (BK) 166-21900
HGL13-SM-PG9	13 PG9 11.0	24 49 22	10 10 pcs. Black (BK) 166-21909
HGL16-SM-M16	16 M16 11.0	29 57 20	12 10 pcs. Black (BK) 166-21901
HGL16-SM-M20	16 M20 14.5	29 57 24	12 10 pcs. Black (BK) 166-21902
HGL16-SM-PG9	16 PG9 11.0	29 50 22	10 10 pcs. Black (BK) 166-21910
HGL16-SM-PG11	16	PG11	11.0	29	52	24	12	10 pcs.	Black (BK)
HGL21-SM-M20	21 M20 14.5	32 57 24	12 10 pcs. Black (BK) 166-21903
HGL21-SM-PG13	21	PG13.5	14.5	32	55	24	10	10 pcs.	Black (BK)
HGL21-SM-PG16	21	PG16	14.5	32	58	29	13	10 pcs.	Black (BK)
HGL28-SM-M25	28 M25 19.5	44 62 29	12 10 pcs. Black (BK) 166-21904
HGL28-SM-PG21	28	PG21	19.5	44	64	35	14	10 pcs.	Black (BK)
HGL34-SM-M32	34 M32 26.5	51 67 38	13 10 pcs. Black (BK) 166-21905
HGL34-SM-PG29	34	PG29	26.5	51	68	42	14	10 pcs.	Black (BK)
HGL42-SM-M40	42	M40	32.5	63	79	50	15	2 pcs.	Black (BK)
HGL54-SM-M50	54	M50	42.0	76	85	58	17	2 pcs.	Black (BK)

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel external thread

• HG-90M 90° Elbow Swivel External Thread, IP66

90° elbow swivel brass external thread.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

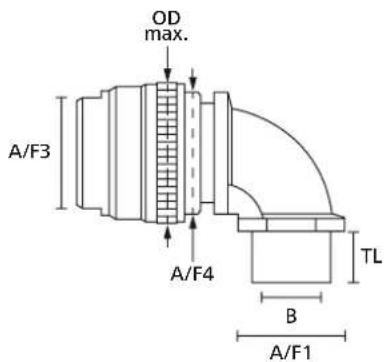

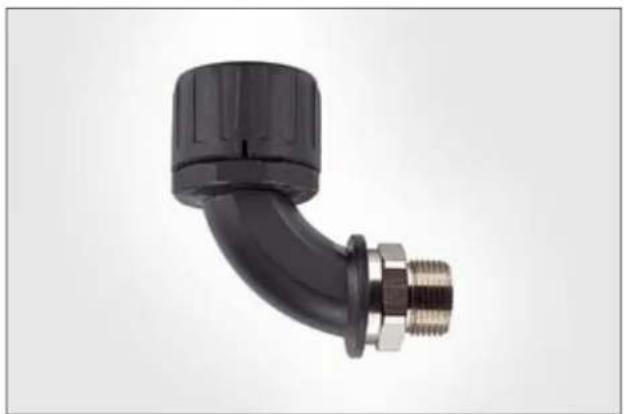

Close-up of a black rubber pipe fitting with threaded end (no text or symbols visible)

HelaGuard HG-90M 90° Elbow Swivel External Thread, IP66.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF

RoHS

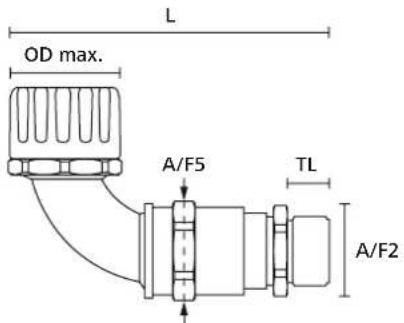

HelaGuard fitting, 90° with swivel external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Thread (A/F2)	Thread Length (TL)	Pack Cont.	Colour Article	No.
HG13-90M-M16	13 M16 10.5	24 60 20	12 10 pcs. Black (BK) 166-22500
HG13-90M-PG9	13 PG9 10.5	24 58 22	10 10 pcs. Black (BK) 166-22509
HG16-90M-M16	16 M16 10.5	29 62 20	12 10 pcs. Black (BK) 166-22501
HG16-90M-M20	16 M20 14.0	29 64 24	12 10 pcs. Black (BK) 166-22502
HG16-90M-PG9	16 PG9 10.5	29 60 22	10 10 pcs. Black (BK) 166-22510
HG16-90M-PG11	16 PG11 10.5	5 29 62 24	12 10 pcs. Black (BK) 166-22511
HG21-90M-M20	21 M20 14.0	32 66 24	12 10 pcs. Black (BK) 166-22503
HG21-90M-PG13	21	PG13.5	14.0	32	64	24	10	10 pcs.	Black (BK)	166-22512
HG21-90M-PG16	21 PG16 14.0	0 32 67 29	13 10 pcs. Black (BK) 166-22513
HG28-90M-M25	28 M25 19.0	44 79 29	12 10 pcs. Black (BK) 166-22504
HG28-90M-PG21	28 PG21 19.0	0 44 81 35	14 10 pcs. Black (BK) 166-22514
HG34-90M-M32	34 M32 24.5	51 88 38	13 10 pcs. Black (BK) 166-22505
HG34-90M-PG29	34 PG29 24.5	5 51 89 42	14 10 pcs. Black (BK) 166-22515
HG42-90M-M40	42	M40	32.5	63	117	50	15	2 pcs.	Black (BK)	166-22506
HG54-90M-M50	54	M50	39.0	76	124	58	17	2 pcs.	Black (BK)	166-22507

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Please note! Not all products listed on this page may have this approval.

Fittings with swivel external thread

• HGL-90M 90° Elbow Swivel External Thread, IP68

90° elbow swivel brass external thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

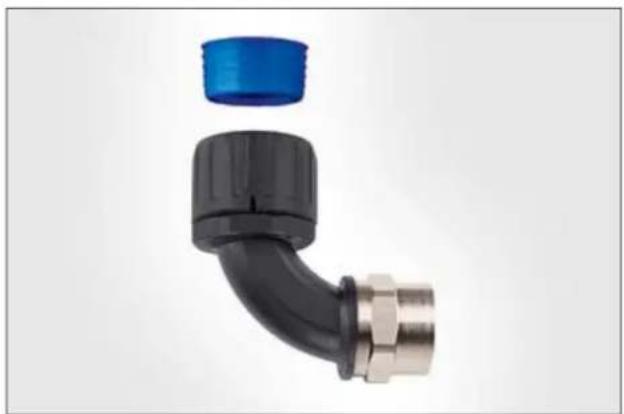

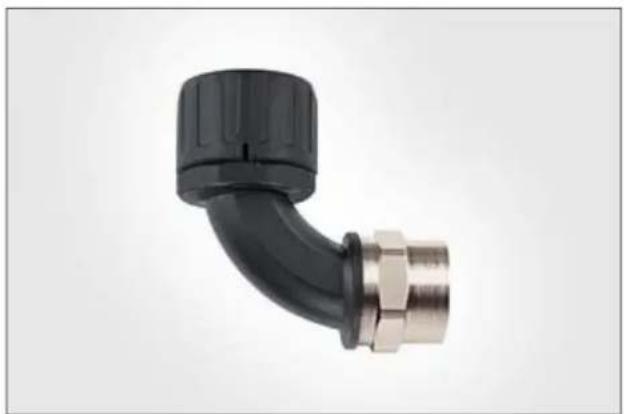

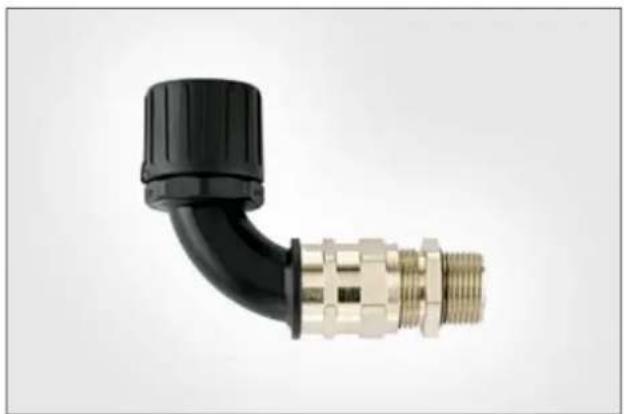

Close-up of a black pipe fitting with blue cap and threaded end (no text or symbols visible)

HelaGuard HGL-90M 90° Elbow Swivel External Thread with conduit seal, IP68.

HelaGuard fitting, 90° with swivel external thread

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB),Thermoplastic Elastomer (TPE)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Thread (A/F2)	Thread Length (TL)	Pack Cont.	Colour Article	No.
HGL13-90M-M16	13 M16 10.5	24 60 20	12 10 pcs. Black (BK) 166-23100
HGL13-90M-PG9	13 PG9 10.5	24 58 22	10 10 pcs. Black (BK) 166-23108
HGL16-90M-M16	15 M16 10.5	29 62 20	12 10 pcs. Black (BK) 166-23101
HGL16-90M-M20	15 M20 14.0	29 64 24	12 10 pcs. Black (BK) 166-23102
HGL16-90M-PG9	16 PG9 10.5	29 60 22	10 10 pcs. Black (BK) 166-23109
HGL16-90M-PG11	6 PG11	10.5 29	62 24 12 10	pcs. Black (BK) 166-23110
HGL21-90M-M20	21 M20 14.0	32 66 24	12 10 pcs. Black (BK) 166-23103
HGL21-90M-PG13	21	PG13.5	14.0	32	64	24	10	10 pcs.	Black (BK)	166-23111
HGL21-90M-PG16	21 PG16	14.0 32	67 29 13 10	pcs. Black (BK) 166-23112
HGL28-90M-M25	23 M25 19.0	44 79 29	12 10 pcs. Black (BK) 166-23104
HGL28-90M-PG21	28 PG21	19.0 44	81 35 14 10	pcs. Black (BK) 166-23113
HGL34-90M-M32	34 M32 24.5	51 88 38	13 10 pcs. Black (BK) 166-23105
HGL34-90M-PG29	34 PG29	24.5 51	89 42 14 10	pcs. Black (BK) 166-23114
HGL42-90M-M40	42	M40	32.5	63	117	50	15	2 pcs.	Black (BK)	166-23106
HGL54-90M-M50	54	M50	39.0	76	124	58	17	2 pcs.	Black (BK)	166-23107

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel external thread

• HG-45M 45° Elbow Swivel External Thread, IP66

45° elbow swivel brass external thread.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

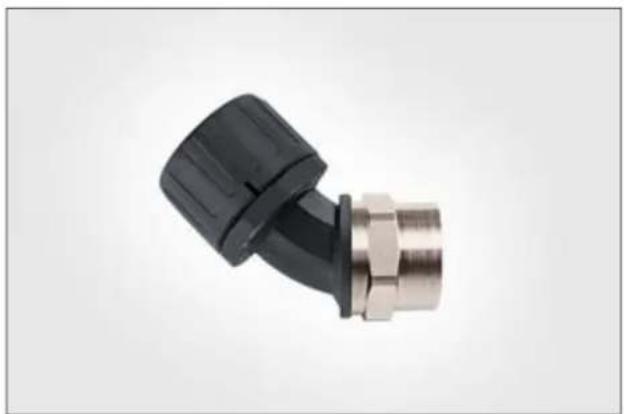

Close-up of a black mechanical connector with threaded shaft and flange (no text or symbols visible)

HelaGuard HG-45M 45° Elbow Swivel External Thread, IP66.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF

RoHS

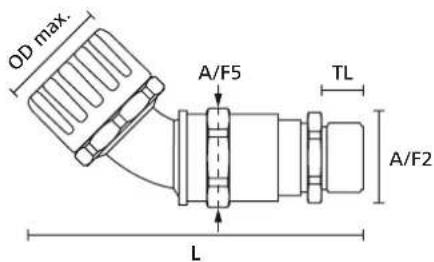

HelaGuard fitting, 45° with swivel external thread

TYPE	Nominal∅	Thread Size	Min. Bore Size (B)	Outside ∅ max (OD max.)	Length (L)	A/F Thread (A/F2)	Thread Length (TL)	Pack Cont.	Colour Article	No.
HG16-45M-M20	16 M20 14.0	29 69 24	12 10 pcs. Black (BK) 166-23700
HG16-45M-PG13	16 PG13.5 1	4.0 29 67	24 10 10 pcs. Black (BK) 166-23706
HG16-45M-PG16	16 PG16	14.0 29	70 29 13 10 pcs. Black (BK) 166-23707
HG21-45M-M20	21 M20 14.0	32 76 24	12 10 pcs. Black (BK) 166-23701
HG21-45M-PG13	21 PG13.5 1	4.0 32 74	24 10 10 pcs. Black (BK) 166-23708
HG21-45M-PG16	21 PG16	14.0 32	77 29 13 10 pcs. Black (BK) 166-23709
HG28-45M-M25	28 M25 19.0	44 90 29	12 10 pcs. Black (BK) 166-23702
HG28-45M-PG21	28 PG21	19.0 44	92 35 14 10 pcs. Black (BK) 166-23710
HG34-45M-M32	34 M32 24.5	51 98 38	13 10 pcs. Black (BK) 166-23703
HG34-45M-PG29	34 PG29	24.5 51	99 42 14 10 pcs. Black (BK) 166-23711
HG42-45M-M50	42	M50	39.0	63	117	58	17	2 pcs.	Black (BK)	166-23704
HG54-45M-M50	54	M50	39.0	76	137	58	17	2 pcs.	Black (BK)	166-23705

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel external thread

• HGL-45M 45° Elbow Swivel External Thread, IP68

45° elbow swivel brass external thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

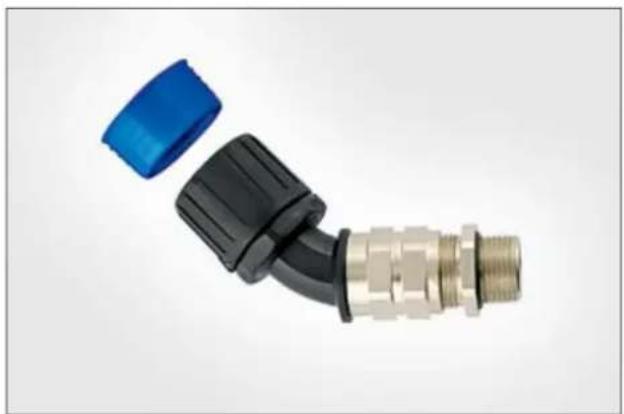

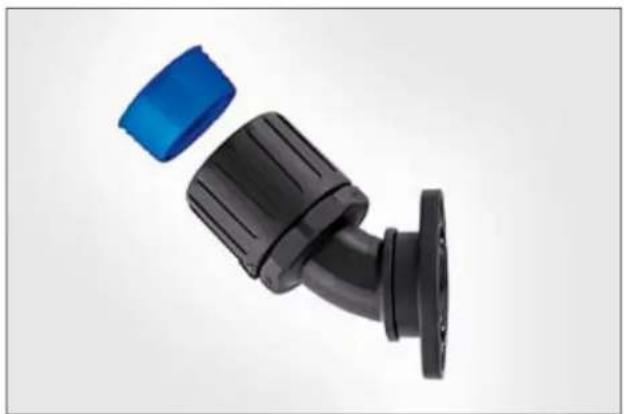

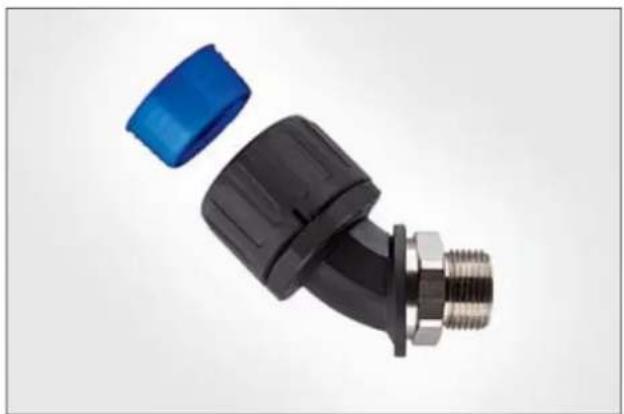

Close-up of a black and blue mechanical connector with threaded shaft (no text or symbols visible)

HelaGuard HGL-45M 45° Elbow Swivel External Thread, IP68.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB),Thermoplastic Elastomer (TPE)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, 45° with swivel external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Thread (A/F2)	Thread Length (TL)	Pack Cont.	Colour Article	No.
HGL16-45M-M20	15 M20 14.0	29 69 24	12 10 pcs. Black (BK) 166-24300
HGL16-45M-PG13	6 PG13.5	14.0 29 67	24 10 10 pcs	Black (BK) 166-24306
HGL16-45M-PG16	6 PG16	14.0 29	70 29 13 10	pcs. Black (BK) 166-24307
HGL21-45M-M20	21 M20 14.0	32 76 24	12 10 pcs. Black (BK) 166-24301
HGL21-45M-PG13	21 PG13.5	14.0 32 74	24 10 10 pcs	Black (BK) 166-24308
HGL21-45M-PG16	21 PG16	14.0 32	77 29 13 10	pcs. Black (BK) 166-24309
HGL28-45M-M25	28 M25 19.0	44 90 29	12 10 pcs. Black (BK) 166-24302
HGL28-45M-PG21	28 PG21	19.0 44	92 35 14 10	pcs. Black (BK) 166-24310
HGL34-45M-M32	34 M32 24.5	51 98 38	13 10 pcs. Black (BK) 166-24303
HGL34-45M-PG29	34 PG29	24.5 51	99 42 14 10	pcs. Black (BK) 166-24311
HGL42-45M-M50	42	M50	39.0	63	117	58	17	2 pcs.	Black (BK)	166-24304
HGL54-45M-M50	54	M50	39.0	76	137	58	17	2 pcs.	Black (BK)	166-24305

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel internal thread

• HG-SF Straight Swivel Internal Thread, IP66

Straight swivel brass internal thread.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

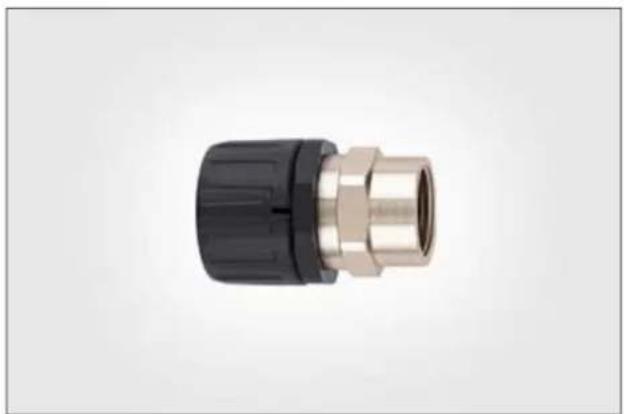

Close-up of a black and silver mechanical connector (no text or symbols visible)

HelaGuard HG-SF Straight Swivel Internal Thread, IP66.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, straight with swivel internal thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Thread (A/F2)	Thread Length (TL)	Pack Cont.	Colour Article-No.
HG13-SF-M16	13 M16 11.0	24 66 22	14 10 pcs. Black (BK) 166-21400
HG13-SF-PG9	13 PG9 11.0	24 66 22	14 10 pcs. Black (BK) 166-21408
HG16-SF-M16	16 M16 11.0	29 69 22	14 10 pcs. Black (BK) 166-21401
HG16-SF-M20	16 M20 14.5	29 69 24	14 10 pcs. Black (BK) 166-21402
HG16-SF-PG11	16 PG11 11.0	29 70 22	14 10 pcs. Black (BK) 166-21409
HG16-SF-PG16	16 PG16 14.5	29 71 24	14 10 pcs. Black (BK) 166-21410
HG21-SF-M20	21 M20 14.5	32 71 24	14 10 pcs. Black (BK) 166-21403
HG21-SF-PG16	21 PG16 14.5	32 71 24	14 10 pcs. Black (BK) 166-21411
HG28-SF-M25	28 M25 19.5	44 78 30	14 10 pcs. Black (BK) 166-21404
HG28-SF-PG21	28 PG21 19.5	44 78 29	14 10 pcs. Black (BK) 166-21412
HG34-SF-M32	34 M32 26.5	51 82 38	14 10 pcs. Black (BK) 166-21405
HG34-SF-PG29	34 PG29 26.5	51 82 38	14 10 pcs. Black (BK) 166-21413
HG42-SF-M40	42 M40 32.5	63 106 52	14 2 pcs. Black (BK) 166-21406
HG54-SF-M50	54 M50 42.0	76 110 52	14 2 pcs. Black (BK) 166-21407

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel internal thread

• HGL-SF Straight Swivel Internal Thread, IP68

Straight swivel brass internal thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

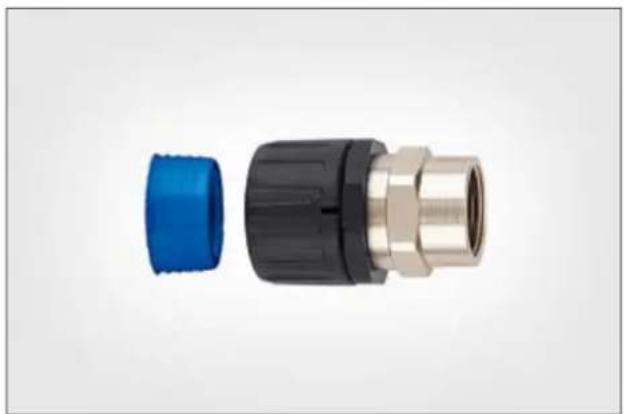

Three types of industrial connectors shown in blue, black, and metallic sections (no text or symbols visible)

HelaGuard HGL-SF Straight Swivel Internal Thread, IP68.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB),Thermoplastic Elastomer (TPE)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, straight with swivel internal thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Thread (A/F2)	Thread Length (TL)	Pack Cont.	Colour Article	No.
HGL13-SF-M16	13 M16 11.0	24 52 22	14 10 pcs. Black (BK) 166-22000
HGL13-SF-PG9	13 PG9 11.0	24 52 22	14 10 pcs. Black (BK) 166-22009
HGL16-SF-M16	16 M16 11.0	29 55 22	14 10 pcs. Black (BK) 166-22001
HGL16-SF-M20	16 M20 14.5	29 55 24	14 10 pcs. Black (BK) 166-22002
HGL16-SF-PG11	16 PG11	11.0 29	56 22 14 10	pcs. Black (BK) 166-22011
HGL16-SF-PG16	16 PG16	14.5 29	57 24 14 10	pcs. Black (BK) 166-22012
HGL21-SF-M20	21 M20 14.5	32 57 24	14 10 pcs. Black (BK) 166-22003
HGL21-SF-PG16	21 PG16	14.5 32	57 24 14 10	pcs. Black (BK) 166-22013
HGL28-SF-M25	28 M25 19.5	44 64 30	14 10 pcs. Black (BK) 166-22004
HGL28-SF-PG21	28 PG21	19.5 44	64 29 14 10	pcs. Black (BK) 166-22014
HGL34-SF-M32	34 M32 26.5	51 68 38	14 10 pcs. Black (BK) 166-22005
HGL34-SF-PG29	34 PG29	26.5 51	68 38 14 10	pcs. Black (BK) 166-22015
HGL42-SF-M40	42 M40 32.5	63 92 52	14 2 pcs. Black (BK) 166-22006
HGL54-SF-M50	54 M50 42.0	76 96 52	14 2 pcs. Black (BK) 166-22007

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel internal thread

• HG-90F 90° Elbow Swivel Internal Thread, IP66

90° elbow swivel brass internal thread.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

Close-up of a black rubber pipe fitting with metallic fittings (no text or symbols visible)

HelaGuard HG-90F 90° Elbow Swivel Internal Thread, IP66.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, 90° with swivel internal thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Thread (A/F2)	Thread Length (TL)	Pack Cont.	Colour Article-No.
HG13-90F-M16	13 M16 10.5	24 61 20	14 10 pcs. Black (BK) 166-22600
HG13-90F-PG9	13 PG9 10.5	24 61 20	14 10 pcs. Black (BK) 166-22608
HG16-90F-M16	15 M16 10.5	29 63 20	14 10 pcs. Black (BK) 166-22601
HG16-90F-M20	16 M20 14.0	29 64 24	14 10 pcs. Black (BK) 166-22602
HG16-90F-PG11	16 PG11	10.5 29	63 20 14 10 pcs. Black (BK) 166-22610
HG21-90F-M20	21 M20 14.0	32 68 24	14 10 pcs. Black (BK) 166-22603
HG21-90F-PG16	21 PG16	14.0 32	68 24 14 10 pcs. Black (BK) 166-22611
HG28-90F-M25	23 M25 19.0	44 81 29	15 10 pcs. Black (BK) 166-22604
HG28-90F-PG21	28 PG21	19.0 44	81 29 15 10 pcs. Black (BK) 166-22612
HG34-90F-M32	34 M32 24.5	51 91 38	16 10 pcs. Black (BK) 166-22605
HG34-90F-PG29	34 PG29	24.5 51	91 38 16 10 pcs. Black (BK) 166-22613
HG42-90F-M40	42	M40	32.5	63	115	52	14	2 pcs.	Black (BK)
HG54-90F-M50	54	M50	39.0	76	117	52	14	2 pcs.	Black (BK)

All dimensions in mm. Subject to technical changes.

Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel internal thread

• HGL-90F 90° Elbow Swivel Internal Thread, IP68

90° elbow swivel brass internal thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

Close-up of a black and blue pipe fitting with a metallic connector (no text or symbols visible)

HelaGuard HGL-90F 90° Elbow Swivel Internal Thread with conduit seal, IP68.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB),Thermoplastic Elastomer (TPE)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HelaGuard fitting, 90° with swivel internal thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Thread (A/F2)	Thread Length (TL)	Pack Cont.	Colour Article-No.
HGL13-90F-M16 1	3 M16 10.5	24 61 20	14 10 pcs. Black (BK) 166-23200
HGL13-90F-PG9 13	PG9 10.5	24 61 20 1	14 10 pcs. Black (BK) 166-23208
HGL16-90F-M16 1	6 M16 10.5	29 63 20	14 10 pcs. Black (BK) 166-23201
HGL16-90F-M20 1	6 M20 14.0	29 64 24	14 10 pcs. Black (BK) 166-23202
HGL16-90F-PG11 1	6 PG11	10.5 29	63 20 14 10 pcs. Black (BK) 166-23210
HGL21-90F-M20 2	1 M20 14.0	32 68 24	14 10 pcs. Black (BK) 166-23203
HGL21-90F-PG16 2	1 PG16	14.0 32	68 24 14 10 pcs. Black (BK) 166-23212
HGL28-90F-M25 2	8 M25 19.0	44 81 29	15 10 pcs. Black (BK) 166-23204
HGL28-90F-PG21 2	8 PG21	19.0 44	81 29 15 10 pcs. Black (BK) 166-23213
HGL34-90F-M32 3	4 M32 24.5	51 91 38	16 10 pcs. Black (BK) 166-23205
HGL34-90F-PG29 3	4 PG29	24.5 51	91 38 16 10 pcs. Black (BK) 166-23214
HGL42-90F-M40	42	M40	32.5	63	115	52	14	2 pcs.	Black (BK) 166-23206
HGL54-90F-M50	54	M50	39.0	76	117	52	14	2 pcs.	Black (BK) 166-23207

All dimensions in mm. Subject to technical changes.

Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel internal thread

• HG-45F 45° Elbow Swivel Internal Thread, IP66

45° elbow swivel brass internal thread.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

Close-up of a black and metallic pipe fitting with a flanged end (no text or symbols visible)

HelaGuard HG-45F 45° Elbow Swivel Internal Thread, IP66.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, 45° with swivel internal thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Thread (A/F2)	Thread Length (TL)	Pack Cont.	Colour Article-No.
HG16-45F-M20	15 M20 14.0	29 68 24	14 10 pcs. Black (BK) 166-23800
HG16-45F-PG16	16 PG16 14.0	29 68 24	14 10 pcs. Black (BK) 166-23807
HG21-45F-M20	21 M20 14.0	32 75 24	14 10 pcs. Black (BK) 166-23801
HG21-45F-PG16	21 PG16 14.0	32 75 24	14 10 pcs. Black (BK) 166-23808
HG28-45F-M25	23 M25 19.0	44 88 29	15 10 pcs. Black (BK) 166-23802
HG28-45F-PG21	28 PG21 19.0	44 88 29	15 10 pcs. Black (BK) 166-23809
HG34-45F-M32	34 M32 24.5	51 99 38	16 10 pcs. Black (BK) 166-23803
HG34-45F-PG29	34 PG29 24.5	51 99 38	16 10 pcs. Black (BK) 166-23810
HG42-45F-M50	42	M50	39.0	63	115	52	14	2 pcs.	Black (BK)
HG54-45F-M50	54	M50	39.0	76	135	52	14	2 pcs.	Black (BK)

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel internal thread

• HGL-45F 45° Elbow Swivel Internal Thread, IP68

45° elbow swivel brass internal thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

Close-up of a black and blue mechanical connector with a metallic threaded shaft (no text or symbols visible)

HelaGuard HGL-45F 45° Elbow Swivel Internal Thread, IP68.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB),Thermoplastic Elastomer (TPE)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, 45° with swivel internal thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Thread (A/F2)	Thread Length (TL)	Pack Cont.	Colour Article	No.
HGL16-45F-M20	16 M20 14.0	29 68 24	14 10 pcs. Black (BK) 166-24400
HGL16-45F-PG16	16 PG16 14.0	29 68 24	14 10 pcs. Black (BK) 166-24407
HGL21-45F-M20	21 M20 14.0	32 75 24	14 10 pcs. Black (BK) 166-24401
HGL21-45F-PG16	21 PG16 14.0	32 75 24	14 10 pcs. Black (BK) 166-24408
HGL28-45F-M25	28 M25 19.0	44 88 29	15 10 pcs. Black (BK) 166-24402
HGL28-45F-PG21	28 PG21 19.0	44 88 29	15 10 pcs. Black (BK) 166-24409
HGL34-45F-M32	34 M32 24.5	51 99 38	16 10 pcs. Black (BK) 166-24403
HGL34-45F-PG29	34 PG29 24.5	51 99 38	16 10 pcs. Black (BK) 166-24410
HGL42-45F-M50	42	M50	39.0	63	115	52	14	2 pcs.	Black (BK)	166-24404
HGL54-45F-M50	54	M50	39.0	76	135	52	14	2 pcs.	Black (BK)	166-24405

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel flange

• HG-SFL Straight Swivel Flange, IP66

Straight swivel flange.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

Close-up of a black mechanical component with flange and threaded end (no visible text or symbols)

HelaGuard HG-SFL Straight Swivel Flange, IP66.

MATERIAL	Polyamide 6.6 (PA66)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

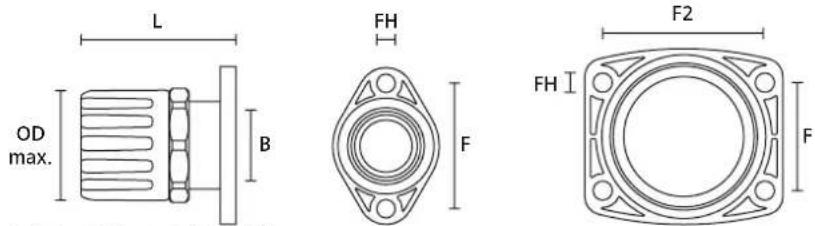

HelaGuard fitting, straight swivel flange

TYPE	Nominal	Min.Bore Size(B)	Outside max(OD max.)	Length(L)	Hole (FH)	FixingHole Centres(F)	Fixing HoleCentres(F2)	PackCont.	Colour Article	No.
HG16-SFL	16 14.5 29 41	5.2 36 - 10	pcs. Black (BK) 1	66-21200
HG21-SFL	21 14.5 34 44	5.2 36 - 10	pcs. Black (BK) 1	66-21201
HG28-SFL	28 19.5 44 49	6.2 53 - 10	pcs. Black (BK) 1	66-21202
HG34-SFL	34 26.5 51 55	6.2 36 54 10	pcs. Black (BK)	166-21203
HG42-SFL	42 42.0 63 63	6.2 36 54 2	pcs. Black (BK)	166-21204

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel flange

• HGL-SFL Straight Swivel Flange, IP68

Straight swivel flange with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

Three mechanical components: a blue threaded cap, a black threaded fitting with flange, and a black housing (no text or symbols visible)

HelaGuard HGL-SFL Straight Swivel Flange with conduit seal, IP68.

MATERIAL	Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE)
Operating Temperature	50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, straight swivel flange

TYPE	Nominal	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	Hole (FH)	Fixing Hole Centres (F)	Fixing Hole Centres (F2)	Pack Cont.	Colour Article	e-No.
HGL16-SFL	16 14.5 29	41 5.2 36 - 10	pcs. Black (BK)	66-21800
HGL21-SFL	21 14.5 34	44 5.2 36 - 10	pcs. Black (BK)	66-21801
HGL28-SFL	28 19.5 44	49 6.2 53 - 10	pcs. Black (BK)	66-21802
HGL34-SFL	34 26.5 51	55 6.2 36 54	10 pcs. Black (BK)	166-21803
HGL42-SFL	42 42.0 63	63 6.2 36 54	2 pcs. Black (BK)	166-21804

All dimensions in mm. Subject to technical changes.

Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel flange

• HG-90FL 90° Elbow Swivel Flange, IP66

90° elbow swivel flange.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

Black pipe fitting with flange and cap (no text or symbols)

HelaGuard HG-90FL 90° Elbow Swivel Flange, IP66.

MATERIAL	Polyamide 6.6 (PA66)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, 90° swivel flange

TYPE	Nominal	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	Hole (FH)	Fixing Hole Centres (F)	Fixing Hole Centres (F2)	Pack Cont.	Colour Article-No.
HG16-90FL	6 14.0 29 5	1 5.2 36 - 10	pcs. Black (BK)	166-22400
HG21-90FL	21 14.0 34 5	3 5.2 36 - 10	pcs. Black (BK)	166-22401
HG28-90FL	28 19.0 44 6	6 6.2 53 - 10	pcs. Black (BK)	166-22402
HG34-90FL	34 24.5 51 7	9 6.2 36 54 10	pcs. Black (BK)	166-22403
HG42-90FL	42	39.0	63	100	6.2	36	54	2 pcs.	Black (BK)

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel flange

• HGL-90FL 90° Elbow Swivel Flange, IP68

90° elbow swivel flange with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

Close-up of a black pipe fitting with a blue cap, no text or symbols visible

HelaGuard HGL-90FL 90° Elbow Swivel Flange, IP68.

MATERIAL	Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, 90° swivel flange

TYPE	Nominal	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	Hole (FH)	Fixing Hole Centres (F)	Fixing Hole Centres (F2)	Pack Cont.	Colour Article	No.
HGL16-90FL	6 14.0 29 51	5.2 36 - 10	pcs. Black (BK)	166-23000
HGL21-90FL	21 14.0 34 53	5.2 36 - 10	pcs. Black (BK)	166-23001
HGL28-90FL	28 19.0 44 66	6.2 53 - 10	pcs. Black (BK)	166-23002
HGL34-90FL	34 24.5 51 79	6.2 36 54	0 pcs. Black (BK)	166-23003
HGL42-90FL	42	39.0	63	100	6.2	36	54	2 pcs.	Black (BK)	166-23004

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel flange

• HG-45FL 45° Elbow Swivel Flange, IP66

45° elbow swivel flange.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

Close-up of a black plastic pipe fitting with flange (no text or symbols visible)

HelaGuard HG-45FL 45° Elbow Swivel Flange, IP66.

MATERIAL	Polyamide 6.6 (PA66)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, 45° swivel flange

TYPE	Nominal	Min.Bore Size(B)	Outside max(OD max.)	Length(L)	Hole (FH)	FixingHole Centres(F)	Fixing HoleCentres(F2)	PackCont.	Colour Article	No.
HG16-45FL	6 14.0 29 5	6 5.2 36 - 10	pcs. Black (BK)	166-23600
HG21-45FL	21 14.0 34 6	3 5.2 36 - 10	pcs. Black (BK)	166-23601
HG28-45FL	28 19.0 44 7	7 6.2 53 - 10	pcs. Black (BK)	166-23602
HG34-45FL	34 24.5 51 8	4 6.2 36 54 10	pcs. Black (BK)	166-23603
HG42-45FL	42 39.0 63 9	8 6.2 36 54 2	pcs. Black (BK)	166-23604

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with swivel flange

• HGL-45FL 45° Elbow Swivel Flange, IP68

45° elbow swivel flange with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus

Close-up of a black plastic pipe fitting with a blue plastic cover, isolated on white background (no text or symbols)

HelaGuard HGL-45FL 45° Elbow Swivel Flange, IP68.

MATERIAL	Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPF)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, 45° swivel flange

TYPE	Nominal	Min.Bore Size(B)	Outside max(OD max.)	Length(L)	Hole (FH)	FixingHole Centres(F)	Fixing HoleCentres(F2)	PackCont.	Colour Article	No.
HGL16-45FL	6 14.0 29	56 5.2 36 - 10	pcs. Black (BK)	166-242	00
HGL21-45FL	21 14.0 34	63 5.2 36 - 10	pcs. Black (BK)	166-242	01
HGL28-45FL	28 19.0 44	77 6.2 53 - 10	pcs. Black (BK)	166-242	02
HGL34-45FL	34 24.5 51	84 6.2 36 54	0 pcs. Black (BK)	166-242	03
HGL42-45FL	42 39.0 63	98 6.2 36 54	2 pcs. Black (BK)	166-242	04

All dimensions in mm. Subject to technical changes.

Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with strain relief and cable seal

• HG-SCG Straight Cable Gland Fitting, IP66

Straight fitting with cable seal and strain relief.

Features and Benefits

• Provides strain relief
  • Seals cable at IP68 and IP69k
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Exploded view diagram of a mechanical connector showing black, metallic, and brass parts (no text or symbols)

HelaGuard HG-SCG Straight Cable Gland Fitting, External Thread, IP66.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, straight cable gland

TYPE	Nominal	Thread Size	Suitable for Cable from/to	Outside max (OD max.)	Length (L)	A/F Thread (A/F2)	A/F Gland Body (A/F5)	Thread Length (TL)	Pack Cont.	Colour Article-No.
HG13-SCG-M16	13 M16 4.5	- 10 24 72	20 20 12 10	pcs. Black (BK)	166-21	500
HG16-SCG-M16	16 M16 4.5	- 10 29 76	20 20 12 10	pcs. Black (BK)	166-21	501
HG16-SCG-M20	16 M20 7 -	13 29 82 24	24 24 12 10	pcs. Black (BK)	166-215	02
HG21-SCG-M20	21 M20 7 -	13 32 82 24	24 24 12 10	pcs. Black (BK)	166-215	03
HG28-SCG-M25	28 M25 9 -	17 44 90 29	29 29 12 10	pcs. Black (BK)	166-215	04
HG34-SCG-M32	34	M32	11 - 21	51	102	36	38	15	10 pcs.	Black (BK)
HG42-SCG-M40	42	M40	19 - 28	63	117	45	50	15	2 pcs.	Black (BK)
HG54-SCG-M50	54	M50	27 - 35	76	125	54	56	15	2 pcs.	Black (BK)

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.
To ensure the protective seal, it is recommended to use a thread sealant on the thread between the cable gland insert and the conduit fitting.

Fittings with strain relief and cable seal

• HGL-SCG Straight Cable Gland Fitting, IP68

Straight fitting with cable seal and strain relief. Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• Provides strain relief
  • Seals cable at IP68 and IP69k
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

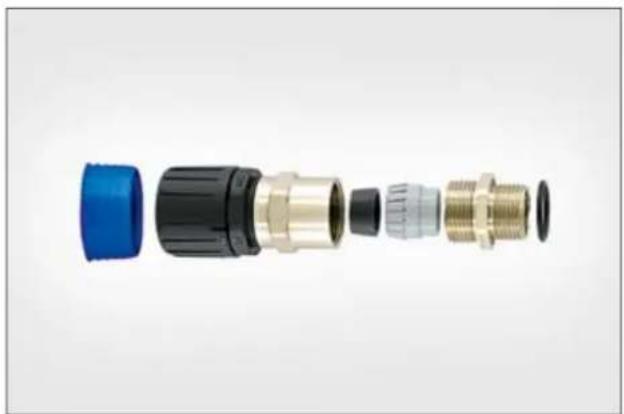

Exploded view of a mechanical connector assembly (no text or symbols visible)

HelaGuard HGL-SCG Straight Cable Gland Fitting, External Thread, IP68.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB),Thermoplastic Elastomer (TPE)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HelaGuard fitting, straight cable gland

TYPE	Nominal	Thread Size	Suitable for Cable from/to	Outside max (OD max.)	Length (L)	A/F Thread (A/F2)	A/F Gland Body (A/F5)	Thread Length (TL)	Pack Cont.	Colour Article-No.
HGL13-SCG-M16	13 M16 4.5	- 10 24 72	20 20 12 10 pcs.	Black (BK)	166-22100
HGL16-SCG-M16	16 M16 4.5	- 10 29 76	20 20 12 10 pcs.	Black (BK)	166-22101
HGL16-SCG-M20	16 M20 7 -	13 29 82	24 24 12 10 pcs.	Black (BK)	166-22102
HGL21-SCG-M20	21 M20 7 -	13 32 82	24 24 12 10 pcs.	Black (BK)	166-22103
HGL28-SCG-M25	28 M25 9 -	17 44 90	29 29 12 10 pcs.	Black (BK)	166-22104
HGL34-SCG-M32	34	M32	11 - 21	51	102	36	38	15	10 pcs.	Black (BK)
HGL42-SCG-M40	42	M40	19 - 28	63	117	45	50	15	2 pcs.	Black (BK)
HGL54-SCG-M50	54	M50	27 - 35	76	125	54	56	15	2 pcs.	Black (BK)

All dimensions in mm. Subject to technical changes.

Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

To ensure the protective seal, it is recommended to use a thread sealant on the thread between the cable gland insert and the conduit fitting.

Fittings with strain relief and cable seal

• HG-90CG 90° Elbow fitting, IP66

90° elbow fitting with cable seal and strain relief.

Features and Benefits

• Provides strain relief
  • Seals cable at IP68 and IP69k
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Close-up of a black rubber pipe fitting with metallic fittings (no text or symbols visible)

HelaGuard HG-90CG 90° Cable Gland Fitting, External Thread, IP66.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF

RoHS

HelaGuard fitting, 90° cable gland

TYPE	Nominal∅	Thread Size	Suitable for Cable ∅ from/to	Outside ∅ max (OD max.)	Length (L)	A/F Thread (A/F2)	A/F Gland Body (A/F5)	Thread Length (TL)	Pack Cont.	Colour Article	No.
HG13-90CG-M16	13 M16 4.5	- 10 24 8	1 20 20 12 10	pcs. Black (BK)	166-23301
HG16-90CG-M16	16 M16 4.5	- 10 29 8	5 20 20 12 10	pcs. Black (BK)	166-23302
HG16-90CG-M20	16 M20 7	- 13 29 91	24 24 12 10	pcs. Black (BK)	166-23303
HG21-90CG-M20	21 M20 7	- 13 32 93	24 24 12 10	pcs. Black (BK)	166-23304
HG28-90CG-M25	28 M25 9	- 17 44 107	29 29 12 10	pcs. Black (BK)	166-23305
HG34-90CG-M32	34	M32	11 - 21	51	125	36	38	15	10 pcs.	Black (BK)	166-23306
HG42-90CG-M40	42	M40	19 - 28	63	140	45	50	15	2 pcs.	Black (BK)	166-23307
HG54-90CG-M50	54	M50	27 - 35	76	146	54	56	15	2 pcs.	Black (BK)	166-23308

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.
To ensure the protective seal, it is recommended to use a thread sealant on the thread between the cable gland insert and the conduit fitting.

Fittings with strain relief and cable seal

• HGL-90CG 90° Elbow fitting, IP68

90° elbow fitting with cable seal and strain relief. Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• Provides strain relief
  • Seals cable at IP68 and IP69k
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Close-up of a black pipe fitting with blue cap and threaded connector (no text or symbols visible)

HelaGuard HGL-90CG 90° Cable Gland Fitting, External Thread, IP68.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB),Thermoplastic Elastomer (TPE)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HelaGuard fitting, 90° cable gland

TYPE	Nominal∅	Thread Size	Suitable for Cable ∅ from/to	Outside ∅ max (OD max.)	Length (L)	A/F Thread (A/F2)	A/F Gland Body (A/F5)	Thread Length (TL)	Pack Cont.	Colour Article	No.
HGL13-90CG-M16	13 M16 4.5	- 10 24 8	20 20 12	10 pcs. Black	BK) 166-2	2701
HGL16-90CG-M16	16 M16 4.5	- 10 29 8	20 20 12	10 pcs. Black	BK) 166-2	2702
HGL16-90CG-M20	16 M20 7	13 29 91	24 24 12 10	pcs. Black (BK)	166-22	703
HGL21-90CG-M20	21 M20 7	13 32 93	24 24 12 10	pcs. Black (BK)	166-22	704
HGL28-90CG-M25	28 M25 9	17 44 107	29 29 12 10	pcs. Black (BK)	166-22	705
HGL34-90CG-M32	34	M32	11 - 21	51	125	36	38	15	10 pcs.	Black (BK)	166-22706
HGL42-90CG-M40	42	M40	19 - 28	63	140	45	50	15	2 pcs.	Black (BK)	166-22707
HGL54-90CG-M50	54	M50	27 - 35	76	146	54	56	15	2 pcs.	Black (BK)	166-22708

All dimensions in mm. Subject to technical changes.

Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

To ensure the protective seal, it is recommended to use a thread sealant on the thread between the cable gland insert and the conduit fitting.

Fittings with strain relief and cable seal

• HG-45CG 45° Elbow fitting, IP66

45° elbow fitting with cable seal and strain relief.

Features and Benefits

• Provides strain relief
  • Seals cable at IP68 and IP69k
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Close-up of a black and metallic pipe fitting with threaded end (no text or symbols visible)

HelaGuard HG-45CG 45° Cable Gland Fitting, External Thread, IP66.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB)
Operating Temperature	50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF

RoHS

HelaGuard fitting, 45° cable gland

TYPE	Nominal	Thread Size	Suitable for Cable from/to	Outside max (OD max.)	Length (L)	A/F Thread (A/F2)	A/F Gland Body (A/F5)	Thread Length (TL)	Pack Cont.	Colour Article	No.
HG16-45CG-M20	16 M20 7 -	13 29 95 2	4 24 12 10 pcs. Black (BK)	66-23903
HG21-45CG-M20	21 M20 7 -	13 32 100	24 24 12 10 pcs. Black (BK)	166-23904
HG28-45CG-M25	28 M25 9 -	17 44 114	29 29 12 10 pcs. Black (BK)	166-23905
HG34-45CG-M32	34 M32 11	21 51 133	36 38 15 10 pcs. Black (BK)	166-23906
HG42-45CG-M40	42	M40	19 - 28	63	140	45	50	15	2 pcs.	Black (BK)	166-23907
HG54-45CG-M50	54	M50	27 - 35	76	164	54	56	15	2 pcs.	Black (BK)	166-23908

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings with strain relief and cable seal

• HGL-45CG 45° Elbow fitting, IP68

45° elbow fitting with cable seal and strain relief. Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• Provides strain relief
  • Seals cable at IP68 and IP69k
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Close-up of a black and blue plastic pipe fitting with threaded end (no text or symbols visible)

HelaGuard HGL-45CG 45° Cable Gland Fitting, External Thread, IP68.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB),Thermoplastic Elastomer (TPE)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, 45° cable gland

TYPE	Nominal	Thread Size	Suitable for Cable from/to	Outside max (OD max.)	Length (L)	A/F Thread (A/F2)	A/F Gland Body (A/F5)	Thread Length (TL)	Pack Cont.	Colour Article	No.
HGL16-45CG-M20	6 M20 7 -	13 29 95	24 24 12 10	pcs. Black (BK)	166-24503
HGL21-45CG-M20	21 M20 7 -	13 32 100	24 24 12 10	pcs. Black (BK)	166-24504
HGL28-45CG-M25	28 M25 9 -	17 44 114	29 29 12 10	pcs. Black (BK)	166-24505
HGL34-45CG-M32	34 M32 11	- 21 51 13	3 36 38 15 10	pcs. Black (BK)	166-24506
HGL42-45CG-M40	42	M40	19 - 28	63	140	45	50	15	2 pcs.	Black (BK)	166-24507
HGL54-45CG-M50	54	M50	27 - 35	76	164	54	56	15	2 pcs.	Black (BK)	166-24508

All dimensions in mm. Subject to technical changes.

Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Connectors, reducers and couplers

• HG-T T-Connector, IP66

Features and Benefits

• Fast fit T-shaped connector
  • Includes removable inspection lid
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Black T-shaped connector component with three flanged ends (no text or symbols visible)

HelaGuard HG-T, T-Connector, IP66.

MATERIAL	Polyamide 6.6 (PA66)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications UL-Recognised

HF RoHS

HelaGuard fitting, T-connector

TYPE	From nominal diameter	To nominal diameter	Min. Bore Size (B)	Outside ∅ max (OD max.)	Width (W)	Height (H)	Hole ∅ (FH)	Pack Cont.	Colour Article	No.
HG16-T	16 16 14.0 33 96 62	6.2 5 pcs. Black (BK) 166-24	800
HG20-T	20 20 19.0 34 99 63	6.2 3 pcs. Black (BK) 166-24	801
HG21-T	21 21 19.0 34 99 63	6.2 3 pcs. Black (BK) 166-24	802
HG28-T	28 28 25.0 45 125	87 6.0 3 pcs. Black (BK) 166-24	803
HG34-T	34 34 33.0 48 130	91 7.2 2 pcs. Black (BK) 166-24	804
HG42-T	42 42 41.0 55 150	110 7.2 1 pcs. Black (BK) 166-24	805

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Connectors, reducers and couplers

• HGL-T T-Connector, IP68

T-connector with conduit seals.

Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• Fast fit T-shaped connector
  • Includes removable inspection lid
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Top-down view of a black and blue T-shaped mechanical connector (no text or symbols visible)

HelaGuard HGL-T, T-Connector with conduit seals.

MATERIAL	Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE)
Operating Temperature	50 °C to +135 °C
Flammability UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, T-connector

TYPE	From nominal diameter	To nominal diameter	Min. Bore Size (B)	Outside ∅ max (OD max.)	Width (W)	Height (H)	Hole ∅ (FH)	Pack Cont.	Colour Article	No.
HGL16-T	16 16 14.0 33 96 6	2 6.2 5 pcs. Black (BK) 166-24900
HGL21-T	21 21 19.0 34 99 6	3 6.2 3 pcs. Black (BK) 166-24901
HGL28-T	28 28 25.0 45 125	87 6.0 3 pcs. Black (BK) 166-24902
HGL34-T	34 34 33.0 48 130	91 7.2 2 pcs. Black (BK) 166-24903
HGL42-T	42 42 41.0 55 150	110 7.2 2 pcs. Black (BK) 166-24904

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Connectors, reducers and couplers

• HG-Y Y-Connector, IP66

Features and Benefits

• Fast fit Y-shaped connector
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Black plastic pipe fitting with two flanged ends and a central V-shaped groove (no text or symbols)

HelaGuard HG-Y, Y-Connector, IP66.

MATERIAL	Polyamide 6.6 (PA66)
Operating Temperature	-50 °C to +135 °C
Flammability UL94 V2
Specifications UL-Recognised

HF RoHS

HelaGuard fitting, Y-connector

TYPE	From nominal diameter	To nominal diameter	Width (W)	Height (H)	Hole ∅ (FH)	Pack Cont. Colour Article-No.
HG16-Y13 16 1	3 49 77 4.0 5 pcs. Black (BK) 166-25801
HG21-Y16 21 1	6 59 89 5.0 3 pcs. Black (BK) 166-25802
HG28-Y21 28 2	1 67 93 6.0 3 pcs. Black (BK) 166-25803
HG34-Y28 34 2	8 90 116 6.5 2 pcs. Black (BK) 166-25804

All dimensions in mm. Subject to technical changes.
Colour grey available on request. Minimum Order Quantity (MOQ) may differ from package content.

Connectors, reducers and couplers

• HGL-Y Y-Connector, IP68

Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• Fast fit Y-shaped connector
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Black and blue plastic pipe fitting with two blue connectors (no text or symbols visible)

HelaGuard HGL-Y, Y-Connector with conduit seals.

MATERIAL	Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE)
Operating Temperature	50 °C to +135 °C
Flammability UL94 V2
Specifications UL-Recognised

HF RoHS

HelaGuard fitting, Y-connector

TYPE	From nominal diameter	To nominal diameter	Width (W)	Height (H)	Hole ∅ (FH)	Pack Cont. Colour Article-No.
HGL16-Y13 16 1	3 49 77 4.0 5 pcs. Black (BK) 166-25901
HGL21-Y16 21 1	6 59 89 5.0 3 pcs. Black (BK) 166-25902
HGL28-Y21 28 2	1 67 93 6.0 3 pcs. Black (BK) 166-25903
HGL34-Y28 34 2	8 90 116 6.5 2 pcs. Black (BK) 166-25904

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Connectors, reducers and couplers

• HG-R Reducer, IP66

Features and Benefits

• Reduce size of connector to attach smaller size conduits
  • Used with T-Connector and Y-Connectors
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Close-up of a black plastic connector with threaded end and flange (no text or symbols visible)

HG-R Reducer.

MATERIAL	Polyamide 6.6 (PA66)
Operating Temperature	-50 °C to +135 °C
Specifications UL-Recognised

HF RoHS

HelaGuard fitting, reducer

TYPE	From nominal diameter	To nominal diameter	Min. Bore Size (B)	Outside ∅ max (OD max.)	Length (L)	Length (L2)	Face Diameter (FD)	Pack Cont.	Colour Article	No.
HG13-R16	16 13 11.7 24 43	17 23 10 pcs.	Black (BK) 166-25000
HG13-R21	21 13 11.7 24 49	23 30 10 pcs.	Black (BK) 166-25001
HG16-R21	21 16 14.5 29 51	23 30 5 pcs.	Black (BK) 166-25002
HG16-R34	34 16 14.5 29 58	30 44 5 pcs.	Black (BK) 166-25005
HG21-R28	28 21 17.5 32 58	29 34 5 pcs.	Black (BK) 166-25004
HG21-R34	34 21 17.5 32 60	30 44 5 pcs.	Black (BK) 166-25007
HG21-R42	42 21 17.5 32 60	30 50 3 pcs.	Black (BK) 166-25010
HG25-R28	28 25 22.5 39 62	29 34 5 pcs.	Black (BK) 166-25003
HG28-R34	34 28 25.7 44 65	30 44 5 pcs.	Black (BK) 166-25006
HG28-R42	42 28 25.7 44 65	30 50 3 pcs.	Black (BK) 166-25009
HG34-R42	42 34 31.5 51 67	30 50 3 pcs.	Black (BK) 166-25008

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Connectors, reducers and couplers

• HGL-R Reducer, IP68

Features and Benefits

• Reduce size of connector to attach smaller size conduits
  • Used with T-Connector and Y-Connectors
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Cross-sectional view of a black plastic connector with blue plastic housing (no text or symbols visible)

HGL-R Reducer with conduit seal, IP68.

MATERIAL	Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE)
Operating Temperature	50 °C to +135 °C
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, reducer

TYPE	From nominal diameter	To nominal diameter	Min. Bore Size (B)	Outside ∅ max (OD max.)	Length (L)	Length (L2)	Face Diameter (FD)	Pack Cont.	Colour Article-No.
HGL13-R16	16 13 11.7 24 43	17 23 10 pcs.	Black (BK) 166-25100
HGL16-R21	21 16 14.5 29 51	23 30 5 pcs.	Black (BK) 166-25101
HGL16-R28	28 16 14.5 29 57	29 34 5 pcs.	Black (BK) 166-25103
HGL16-R34	34 16 14.5 29 58	30 44 5 pcs.	Black (BK) 166-25106
HGL21-R28	28 21 17.5 32 59	29 34 5 pcs.	Black (BK) 166-25102
HGL21-R34	34 21 17.5 32 60	30 44 5 pcs.	Black (BK) 166-25105
HGL21-R42	42 21 17.5 32 60	30 50 3 pcs.	Black (BK) 166-25109
HGL28-R34	34 28 25.7 44 65	30 44 5 pcs.	Black (BK) 166-25104
HGL28-R42	42 28 25.7 44 60	30 50 3 pcs.	Black (BK) 166-25108
HGL34-R42	42 34 31.5 51 67	30 50 3 pcs.	Black (BK) 166-25107

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Connectors, reducers and couplers

• HG-HG Conduit Connector, IP66

Features and Benefits

• One piece, fast fit
- Joins corrugated conduits

Close-up of a black plastic connector with flanged ends and threaded end (no visible text or symbols)

HelaGuard HG-HG Coupler.

MATERIAL	Polyamide 6.6 (PA66)
Operating Temperature	-50 °C to +135 °C
Specifications UL-Recognised

HF RoHS

HelaGuard fitting, coupler

TYPE	From nominal diameter	To nominal diameter	Min. Bore Size (B)	Outside ∅ max (OD max.)	Length (L)	Pack Cont. Colour Article-No.
HG16-HG16 16	16 11.0 29 59 10 pcs.	Black (BK) 166	-24600
HG21-HG21 21	21 14.5 32 71 10 pcs.	Black (BK) 166	-24601
HG28-HG28 28	28 19.5 44 81 10 pcs.	Black (BK) 166	-24602
HG34-HG34 34	34 26.5 51 87 10 pcs.	Black (BK) 166	-24603

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Close-up of metallic coiled wire with visible mesh texture, surrounded by golden rebar (no text or symbols)

2.1 Metallic Conduit Systems

Product Selection

HelaGuard Nomenclature for Metallic Conduits 62

HelaGuard Nomenclature for Metallic Fittings 63

Metallic Conduits

5C stainless steel conduit 64

SSC stainless steel conduit 65

Fittings for Metallic Conduits

5C-FM fixed external thread 66

SSC-FM stainless steel, fixed external thread 67

SC-SM swivel external thread 68

SSC-SM stainless steel, swivel external thread 69

SC-PC plain hole connectors 70

SC-FF fixed internal thread 71

2.2 Metallic Conduits with Plastic Coating

PCS, galvanised steel, PVC coating 72

NCS, galvanised steel, PA6 coating 73

LFHCS, galvanised steel, LFH coating 74

Fittings for Metallic Conduits with Plastic Coating

PCS-FM IP54 fixed external thread 75

PCS-SM IP54 swivel external thread 76

PCS-PC IP54 plain hole connector 77

PCS-FF IP54 fixed internal thread 78

PCS-FMC IP65 compression fitting, fixed thread 79

PCS-SMC IP65 compression fitting, swivel thread 80

PCS-90FMC IP65 compression fitting, 90° elbow 81

PCS-PCS IP65 compression coupler 82

PCS-SCG IP65 cable gland fitting 83

PCS-EI end insert 84

2.3 Metallic Conduits with Liquid-Tight Cover

LTS, galvanised steel, PVC cover	85
LTSH, galvanised steel, thermoplastic cover	86
LT5UL, galvanised steel, PVC cover, UL-listed	87

Fittings for Metallic Conduits with Liquid-Tight Cover

LTS-FMC IP68 compression fitting, fixed thread	88
LTS-SMC IP68 compression fitting, swivel thread	89
LTS-90FMC IP68 compression fitting, 90° elbow	90
LTS-45FMC IP68 compression fitting, 45° elbow	91
LTS-LTS IP68 compression coupler	92
LTS-SCG IP68 cable gland fitting	93
LTS-EI end insert	94

2.4 Metallic Conduits with Plastic Coating and Metallic Overbraid

PCSB, galvanised steel, PVC coating, galvanised steel overbraid	95
Fittings for Metallic Conduits with Plastic Coating and Metallic Overbraid
PCSB-FM IP54 fixed external thread 96
PCSB-SM IP swivel external thread 97
PCSB-PC IP54 plain hole connector	98
PCSB-FMC IP65 compression fitting, fixed thread	99
PCSB-SMC IP65 compression fitting, swivel thread	100
PCSB-90FMC IP65 compression fitting, 90° elbow	101

2.5 Metallic Conduits with Metallic Overbraid

SCSB galvanised steel, galvanised steel overbraid	102
Fittings for Metallic Conduits with Metallic Overbraid
SCSB-FM fixed external thread	103
SCSB-SM swivel external thread	104
SCSB-PC plain hole connector	105

HelaGuard Nomenclature for Metallic Conduits

Example:

SC20

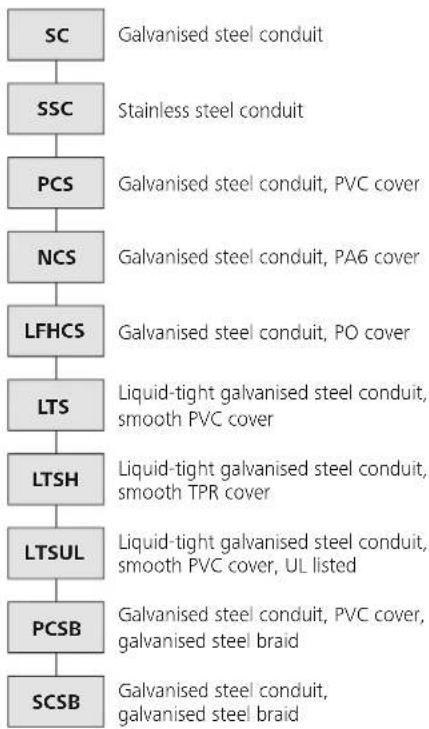

Conduit Type

    A --> K["Galvanised steel conduit"]
    B --> L["Stainless steel conduit"]
    C --> M["Galvanised steel conduit, PVC cover"]
    D --> N["Galvanised steel conduit, PA6 cover"]
    E --> O["Galvanised steel conduit, PO cover"]
    F --> P["Liquid-tight galvanised steel conduit, smooth PVC cover"]
    G --> Q["Liquid-tight galvanised steel conduit, smooth TPR cover"]
    H --> R["Liquid-tight galvanised steel conduit, smooth PVC cover, UL listed"]
    I --> S["Galvanised steel conduit, PVC cover, galvanised steel braid"]
    J --> T["Galvanised steel conduit, galvanised steel braid"]

CAD download

HelaGuard Nomenclature for Metallic Fittings
Example:
PCS32-90FMC-M32
Suitable Conduit Type

Thread Type

Fitting Shape

CAD download

Metallic conduits

General purpose flexible steel conduit offers high mechanical protection and is typically used in machines, plants, underfloor wiring, data cabling and protection of hydraulic or pneumatic conduits.

Features and Benefits

• High compression, tensile and impact strength
- Very flexible

One Step to the Web!

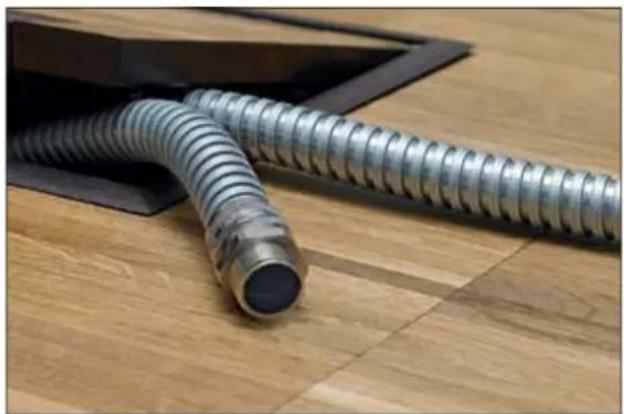

Two metallic corrugated pipes placed on a wooden floor, no text or symbols visible

HelaGuard SC Galvanised Steel Conduit.

MATERIAL	Galvanised Steel (GS)
Operating Temperature	-100 °C to +300 °C

HF

RoHS

HelaGuard metallic conduit

TYPE	Nominal	Outside (OD)	Inside (ID)	Min.BendingRadius (R)	Weight(g/m)	ReelLength Colour Article-No.
SC10	10 9.1 6.8	25 110 10 m	Metal (ML) 166-30110
	10 9.1 6.8	25 110 50 m	Metal (ML) 166-30100
SC12	12 13.2	10.0 30 113 10 m	Metal (ML) 166-30111
	12 13.2	10.0 30 113 50 m	Metal (ML) 166-30101
SC16	16 16.4	12.9 40 152 10 m	Metal (ML) 166-30112
	16 16.4	12.9 40 152 25 m	Metal (ML) 166-30102
SC20	20 20.6	16.9 45 295 10 m	Metal (ML) 166-30113
	20 20.6	16.9 45 295 25 m	Metal (ML) 166-30103
SC25	25 24.6	1.1 55 321 10 m	Metal (ML) 166-30114
	25 24.6	1.1 55 321 25 m	Metal (ML) 166-30104
SC32	32 32.0	28.1 70 450 10 m	Metal (ML) 166-30115
	32 32.0	28.1 70 450 25 m	Metal (ML) 166-30105
SC40	40 42.5	37.6 80 519 10 m	Metal (ML) 166-30116
	40 42.5	37.6 80 519 25 m	Metal (ML) 166-30106
SC50	50 53.2	48.4 90 802 10 m	Metal (ML) 166-30117
	50 53.2	48.4 90 802 25 m	Metal (ML) 166-30107
SC63 63 62.5	57.5 115	836 10 m	Metal (ML) 166-30108
SC75	75	77.0	70.0	150	1,137	10 m	Metal (ML) 166-30109

All dimensions in mm. Subject to technical changes.

Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

Metallic conduits

• SSC Stainless Steel Conduit

Stainless steel, corrosion-resistant flexible conduit used for protection of sensor cables, instrumentation tubing, as well as hydraulic and pneumatic conduits, particularly in corrosive environments. Commonly used in hospitals and clinics.

Features and Benefits

• Highly resistant to rust and corrosion
• High compression, tensile and impact strength
- Very flexible

Coiled metallic hose with reflective surface, no text or symbols visible

The HelaGuard SSC stainless steel conduit offers superior mechanical protection in corrosive environments.

MATERIAL	Stainless Steel (SS316)
Operating Temperature	- 100^ C to + 400^ C

HF RoHS

HelaGuard metallic conduit

TYPE	Nominal	Outside (OD)	Inside (ID)	Min.BendingRadius (R)	Weight(g/m)	ReelLength Colour Article-No.
SSC10 10 9	16.8 25 110 25	m Metal (ML)	166-30200
SSC12 12 12.3 10.0 30 126		25 m Metal (ML)	166-30201
SSC16 16 16.4 13.0 40 162		25 m Metal (ML)	166-30202
SSC20 20 20.4 16.9 45 202		25 m Metal (ML)	166-30203
SSC25 25 24.3 21.1 55 300		25 m Metal (ML)	166-30204
SSC32 32 3	.7 28.1 70 340	25 m Metal (ML)	166-30205
SSC40 40 42.1 37.6 80 410		10 m Metal (ML)	166-30206
SSC50 50 52.8 48.4 90 516		10 m Metal (ML)	166-30207

All dimensions in mm. Subject to technical changes.
Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits

• SC-FM Fixed External Thread

Fixed external thread, nickel plated brass.

Features and Benefits

• Two-part fitting of shell and body with external thread
• Provides tight, reliable hold of conduit
  • Can be secured with locknut

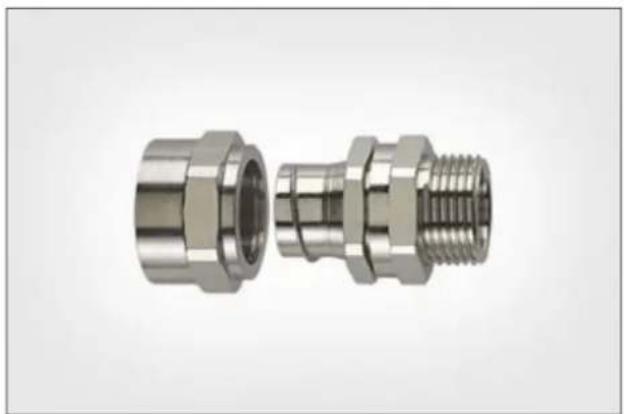

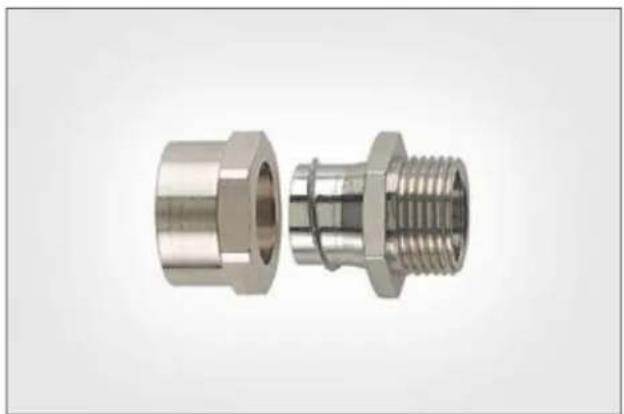

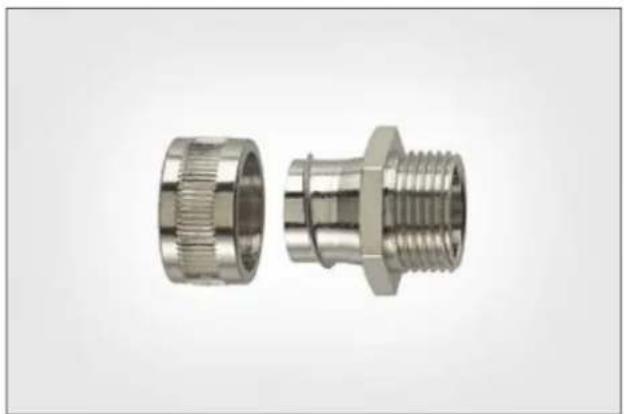

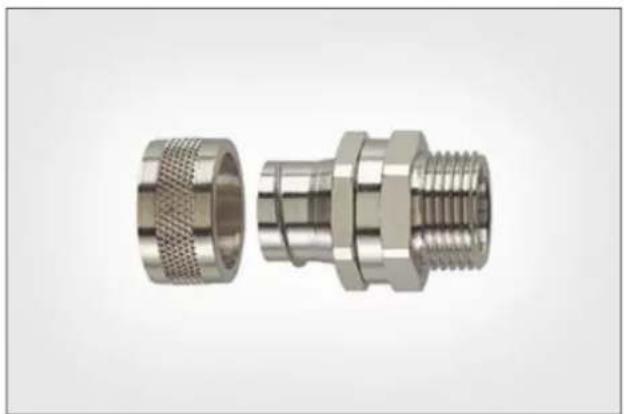

Two metallic threaded connectors shown from an open angle, one with a flanged end and the other with a threaded end (no text or symbols visible)

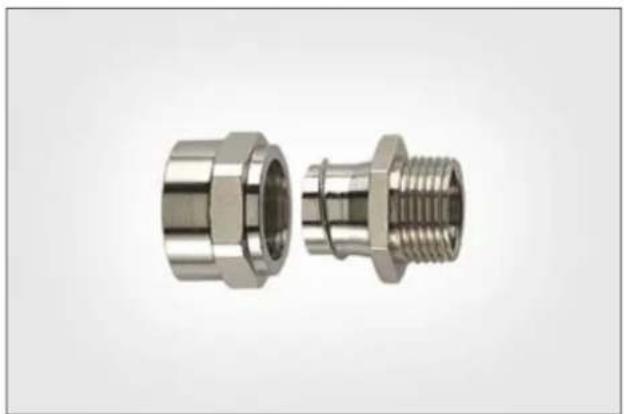

HelaGuard SC-FM Fixed External Thread.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HelaGuard fitting, straight with fixed external thread

TYPE	Nominalø	Thread Size	Min.Bore Size(B)	Length(L)	A/F Body(A/F1)	Thread Length(TL)	Pack Cont.	Colour Article-No.
SC10-FM-M12 10	M12 5.6 21.0	13 7.0 10 pcs.	Metal (ML) 166	30300
SC10-FM-PG7 10	PG7 5.6 21.0	13 8.0 10 pcs.	Metal (ML) 166	30311
SC12-FM-M16 12	M16 8.5 23.0	17 10.0 10 pcs.	Metal (ML) 166	30301
SC16-FM-M16 16	M16 11.5 25	0 20 10.0 10 pcs.	Metal (ML) 166	30302
SC16-FM-M20 16	M20 11.5 25	0 22 10.0 10 pcs.	Metal (ML) 166	30303
SC16-FM-PG11 16	PG11	11.5 25.0 22	10.0 10 pcs.	Metal (ML) 166	30314
SC20-FM-M20 20	M20 15.3 26	3 24 10.0 10 pcs.	Metal (ML) 166	30304
SC20-FM-PG16 20	PG16	15.3 26.3 24	10.0 10 pcs.	Metal (ML) 166	30315
SC25-FM-M25 25	M25 19.1 29	5 29 10.0 10 pcs.	Metal (ML) 166	30305
SC25-FM-PG21 25	PG21	19.1 32.5 29	12.0 10 pcs.	Metal (ML) 166	30316
SC32-FM-M32 32	M32 26.2 36	8 36 13.0 2 pcs.	Metal (ML) 166	30306
SC32-FM-PG29	32	PG29	26.2	36.8	38	13.0	2 pcs.	Metal (ML) 166-30317
SC40-FM-M40 40	M40 34.6 39	0 48 14.0 2 pcs.	Metal (ML) 166	30307
SC40-FM-PG36	40	PG36	34.2	39.0	48	14.0	2 pcs.	Metal (ML) 166-30318
SC50-FM-M50 50	M50 44.7 42	0 58 15.0 1 pcs.	Metal (ML) 166	30308
SC50-FM-PG42	50	PG42	44.8	42.0	58	15.0	1 pcs.	Metal (ML) 166-30319
SC63-FM-M63 63	M63 54.1 50	0 70 18.0 1 pcs.	Metal (ML) 166	30309
SC63-FM-PG48	63	PG48	54.5	48.0	70	16.0	1 pcs.	Metal (ML) 166-30320
SC75-FM-M75 75	M75 66.4 60	0 84 20.0 1 pcs.	Metal (ML) 166	30310

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits

• SSC-FM Fixed External Thread

Fixed external thread, stainless steel (SS316).

Features and Benefits

• Two-part fitting of shell and body with external thread
  • Highly resistant to rust and corrosion
• Provides tight, reliable hold of conduit
• Can be secured with locknut

Two metallic threaded connectors shown from an open angle, one with a flanged end and the other with a central port (no text or symbols visible)

HelaGuard SSC-FM Fixed External Thread.

MATERIAL	Stainless Steel (SS316)
Operating Temperature	-100 °C to +400 °C

HelaGuard fitting, straight with fixed external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	Thread Length (TL)	Pack Cont.	Colour Article	-No.
SSC10-FM-M12	10 M12 5.6 21.0	14 8.0 1 pcs.	Metal (ML) 166-30321
SSC12-FM-M16	12 M16 8.5 23.0	19 8.0 1 pcs.	Metal (ML) 166-30322
SSC16-FM-M16	16 M16 11.5 25.0	19 10.0 1 pcs.	Metal (ML) 166-30323
SSC20-FM-M20	20 M20 15.3 26.3	24 10.0 1 pcs.	Metal (ML) 166-30324
SSC25-FM-M25	25 M25 19.1 32.5	29 10.0 1 pcs.	Metal (ML) 166-30325
SSC32-FM-M32	32 M32 26.2 36.8	38 13.0 1 pcs.	Metal (ML) 166-30326
SSC40-FM-M40	40 M40 34.6 39.0	48 14.0 1 pcs.	Metal (ML) 166-30327
SSC50-FM-M50	50 M50 44.7 44.5	58 15.0 1 pcs.	Metal (ML) 166-30328

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits

• SC-SM Swivel External Thread

Swivel external thread, nickel plated brass.

Features and Benefits

• Two-part fitting of shell and body with external thread
  • External thread swivels about main body
• Provides tight, reliable hold of conduit
• Can be secured with locknut

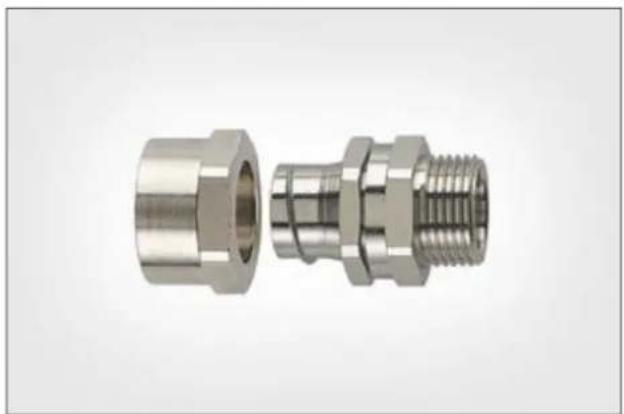

Two views of a metallic connector with threaded end and flange (no text or symbols visible)

HelaGuard SC-SM Swivel External Thread.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HF RoHS

HelaGuard fitting, straight with swivel external thread

TYPE	Nominal∅	Thread Size	Min.Bore Size(B)	Length(L)	A/F Body(A/F1)	A/F Thread(A/F2)	Thread Length(TL)	Pack Cont.	Colour Article	-No.
SC10-SM-M12	10 M12 5.6 30	2 13 13 8.0	10 pcs. Metal (ML) 166-30	400
SC10-SM-PG7	10 PG7 5.6 30	2 13 13 8.0	10 pcs. Metal (ML) 166-30	410
SC12-SM-M16	12 M16 8.5 32	2.2 17 17 8.0	10 pcs. Metal (ML) 166-30	401
SC12-SM-PG9	12 PG9 8.5 32	2 17 17 8.0	10 pcs. Metal (ML) 166-30	411
SC16-SM-M16	16 M16 11.5	34.2 20 20	10.0 10 pcs. Metal (ML) 166-30	402
SC16-SM-M20	16 M20 11.5	34.2 20 22	10.0 10 pcs. Metal (ML) 166-30	403
SC16-SM-PG11	16	PG11	11.5	34.2	20	22	10.0	10 pcs.	Metal (ML)	166-30412
SC20-SM-M20	20 M20 15.3	35.5 24 24	10.0 10 pcs. Metal (ML) 166-30	404
SC20-SM-PG13	20	PG13.5	15.3	35.5	24	24	10.0	10 pcs.	Metal (ML)	166-30413
SC20-SM-PG16	20	PG16	15.3	35.5	24	24	10.0	10 pcs.	Metal (ML)	166-30414
SC25-SM-M25	25 M25 19.1	43.7 29 29	12.0 10 pcs. Metal (ML) 166-30	405
SC25-SM-PG21	25	PG21	19.1	43.7	29	29	12.0	10 pcs.	Metal (ML)	166-30415
SC32-SM-M32	32 M32 26.2	48.0 38 38	13.0 2 pcs. Metal (ML) 166-30	406
SC32-SM-PG29	32	PG29	26.2	48.0	38	38	13.0	2 pcs.	Metal (ML)	166-30416
SC40-SM-M40	40 M40 34.2	51.2 48 48	14.0 2 pcs. Metal (ML) 166-30	407
SC40-SM-PG36	40	PG36	34.2	51.2	48	48	14.0	2 pcs.	Metal (ML)	166-30417
SC50-SM-M50	50 M50 44.8	54.2 58 58	15.0 1 pcs. Metal (ML) 166-30	408
SC50-SM-PG42	50	PG42	44.8	54.2	58	58	15.0	1 pcs.	Metal (ML)	166-30418
SC63-SM-M63	63 M63 54.5	63.2 70 70	18.0 1 pcs. Metal (ML) 166-30	409

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits

• SSC-SM Swivel External Thread

Swivel external thread, stainless steel (SS316).

Features and Benefits

• Two-part fitting of shell and body with external thread
  • Highly resistant to rust and corrosion
  • External thread swivels about main body
• Provides tight, reliable hold of conduit
• Can be secured with locknut

Two metallic threaded connectors shown from an open to closed section (no text or symbols visible)

HelaGuard SSC-SM Swivel External Thread.

MATERIAL	Stainless Steel (SS316)
Operating Temperature	-100 ^ to +400 ^

HF

RoHS

HelaGuard fitting, straight with swivel external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Thread (A/F2)	Thread Length (TL)	Pack Cont.	Colour Article	No.
SSC10-SM-M12	0 M12 5.6 3	0.2 14 14 8.0	1 pcs. Metal	(ML) 166-30	419
SSC12-SM-M16	2 M16 8.5 3	2.2 19 19 8.0	1 pcs. Metal	(ML) 166-30	420
SSC16-SM-M16	6 M16 11.5	34.2 19 19 1	0.0 1 pcs. Metal	(ML) 166	30421
SSC20-SM-M20	20 M20 15.3	35.5 24 24 1	0.0 1 pcs. Metal	(ML) 166	30422
SSC25-SM-M25	25 M25 19.1	43.7 29 29 1	0.0 1 pcs. Metal	(ML) 166	30423
SSC32-SM-M32	32 M32 26.2	48.0 38 38 1	3.0 1 pcs. Metal	(ML) 166	30424

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits

• SC-PC Plain Hole Connector

Plain hole connector, nickel plated brass.

Features and Benefits

• Two part fitting of shell and body without thread
• Acts as a locking device
• The body is fitted to the conduit through the opposite side of the entry
• Provides a smooth entry bush

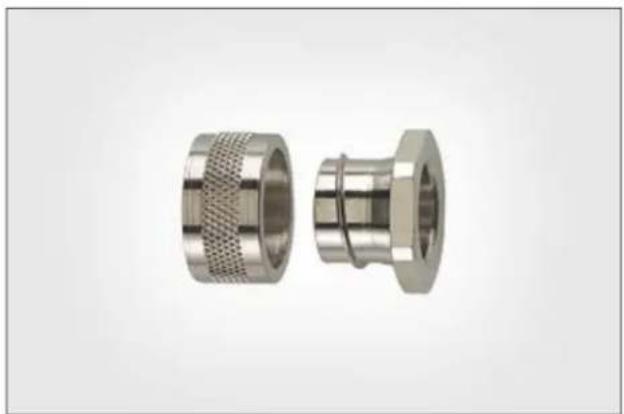

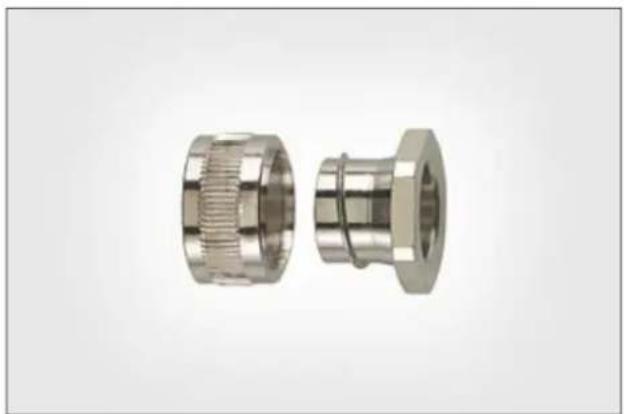

Two metallic mechanical connectors shown from front and side views (no text or symbols visible)

HelaGuard SC-PC Plain Hole Connector.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HF

RoHS

HelaGuard fitting, plain hole connector

TYPE	Nominal	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	Pack Cont. Colour	Article-No.
SC10-PC 10 5.6	15.0 13 10 pcs.	Metal (ML) 166-30500
SC12-PC 12 8.5	15.5 17 10 pcs.	Metal (ML) 166-30501
SC16-PC 16 11.5	20.0 20 10 pcs.	Metal (ML) 166-30502
SC20-PC 20 15.3	16.5 24 10 pcs.	Metal (ML) 166-30503
SC25-PC 25 19.1	20.5 29 10 pcs.	Metal (ML) 166-30504
SC32-PC 32 26.2	23.5 38 2 pcs.	Metal (ML) 166-30505
SC40-PC 40 34.2	24.8 48 2 pcs.	Metal (ML) 166-30506
SC50-PC 50 44.8	30.0 58 1 pcs.	Metal (ML) 166-30507
SC63-PC 63 54.5	33.5 70 1 pcs.	Metal (ML) 166-30508
SC75-PC 75 66.5	42.0 84 1 pcs.	Metal (ML) 166-30509

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits

• SC-FF Fixed Internal Thread

Fixed internal thread, nickel plated brass.

Features and Benefits

• Two-part fitting of shell and body with internal thread
• Provides tight, reliable hold of conduit
• Can be used to couple two conduits together when used with swivel fitting

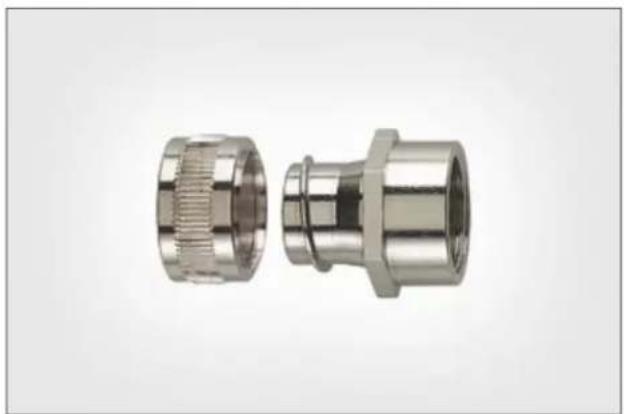

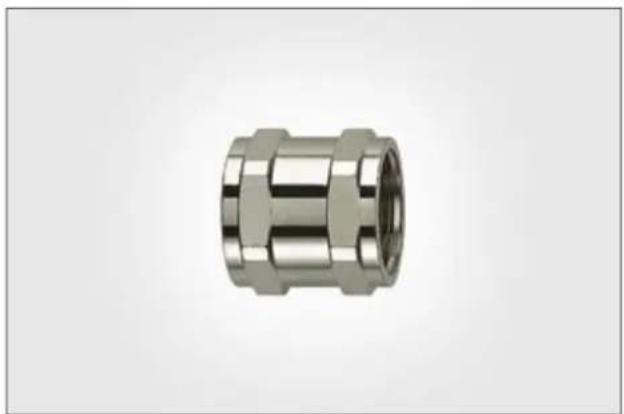

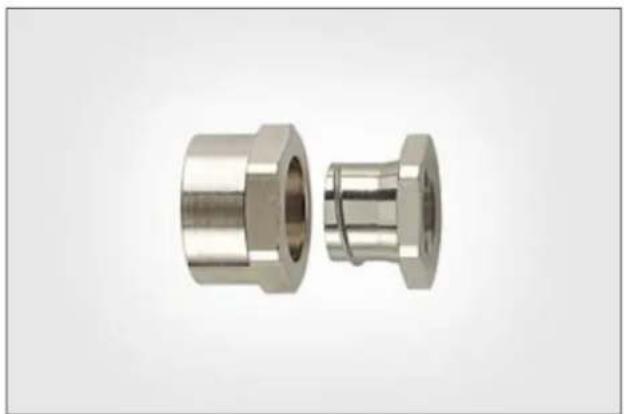

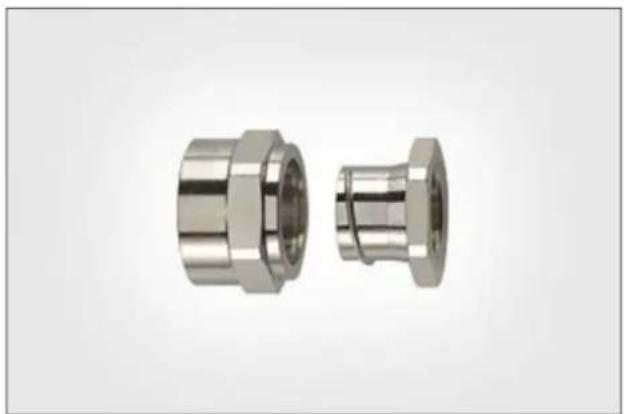

Two metallic pipe connectors shown from different angles, no text or symbols visible

HelaGuard SC-FF Fixed Internal Thread.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	+100 ^ to +300 ^

HF RoHS

HelaGuard fitting, straight with fixed internal thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	Thread Length (TL)	Pack Cont.	Colour Article-No.
SC16-FF-M20	16 M20 11.5 24	.5 22 10.0 10 pcs. Metal (ML)	166-30600
SC20-FF-M20	20 M20 15.3 26	.0 24 10.0 10 pcs. Metal (ML)	166-30601
SC25-FF-M25	25 M25 19.1 30	.0 29 12.0 10 pcs. Metal (ML)	166-30602
SC32-FF-M32	32 M32 26.2 33	.3 36 13.0 2 pcs. Metal (ML)	166-30603

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Metallic conduits with plastic coating

• PCS Galvanised Steel Conduit, PVC Coating

Machines and plants.

Features and Benefits

• High compression, tensile and impact strength
- Very flexible
• Good resistance to alkalis and acids
• Good resistance to chemicals
• Colour: black, grey

Close-up of a black corrugated cable with chain links on a textured surface, next to a metallic frame (no text or symbols visible)

HelaGuard PCS Galvanised Steel Conduit with PVC Coating.

Flexible metallic conduits with polyurethane (PU) cover also available.

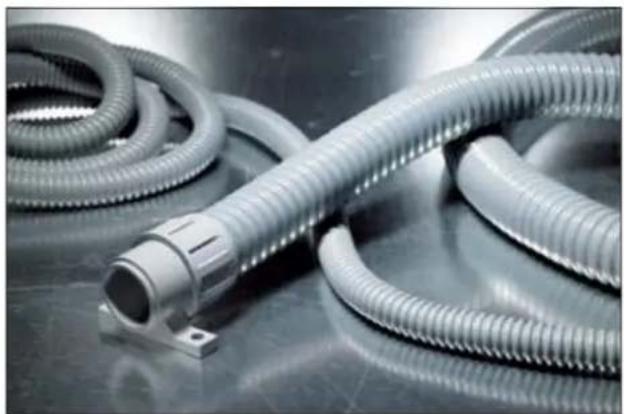

Close-up of coiled metallic tubing with visible internal structure (no text or symbols)

HelaGuard PCS Galvanised Steel Conduit with PVC Coating, 10 m in grey.

HelaGuard metallic conduit, plastic coating

MATERIAL	Galvanised Steel (GS), Polyvinylchloride (PVC)
Operating Temperature	+15 ^ to +70 ^

RoHS

TYPE	Nominal	Outside (OD)	Inside (ID)	Min. Bending Radius (R)	Weight(g/m)	Reel Length Colour Article-No.
PCS10	10 10.1	6.8 25 140 10 m	Grey (GY) 166-30722
	10 10.1	6.8 25 140 50 m	Black (BK) 166-30700
PCS12	12 14.2	10.2	30 143 10 m Grey (GY)	166-30723
	12 14.2	10.2	30 143 50 m Black (BK)	166-30701
PCS16	16 17.0	13.0	40 196 10 m Grey (GY)	166-30724
	16 17.1	13.0	40 196 25 m Black (BK)	166-30702
PCS20	20 21.6	16.9	45 345 10 m Grey (GY)	166-30725
	20 21.6	16.9	45 345 25 m Black (BK)	166-30703
PCS25	25 26.0	21.1	55 411 10 m Grey (GY)	166-30726
	25 26.0	21.1	55 411 25 m Black (BK)	166-30704

All dimensions in mm. Subject to technical changes.

Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

Metallic conduits with plastic coating

• PCS Galvanised Steel Conduit, PVC Coating

TYPE	Nominal	Outside (OD)	Inside (ID)	Min. Bending Radius (R)	Weight(g/m)	Reel Length Colour Article-No.
PCS32	32	34.0	28.1	60	560	10 m	Grey (GY)	166-30727
	32	34.0	28.1	60	560	25 m	Black (BK)	166-30705
PCS40	40	44.2	37.6	80	719	10 m	Grey (GY)	166-30728
	40	44.2	37.6	80	719	25 m	Black (BK)	166-30706
PCS50	50	55.0	48.4	90	1,052	10 m	Grey (GY)	166-30729
	50	55.0	48.4	90	1,052	25 m	Black (BK)	166-30707
PCS63	63	64.5	57.5	115	1,091	10 m	Black (BK)	166-30708
	63	64.5	57.5	115	1,091	10 m	Grey (GY)	166-30730
PCS75	75	79.2	70.0	150	1,459	10 m	Black (BK)	166-30709
	75	79.2	70.0	150	1,459	10 m	Grey (GY)	166-30731

All dimensions in mm. Subject to technical changes.
Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

Metallic conduits with plastic coating

• NCS Galvanised Steel Conduit, PA6 Coating

Demanding applications requiring higher temperatures and high resistance to acids and solvents.

Features and Benefits

• Good resistance to high temperatures
• Good abrasion resistance
• High compression, tensile and impact strength
- Very flexible
• Good resistance to alkalis and acids
• Good resistance to chemicals

HelaGuard metallic conduit, plastic coating

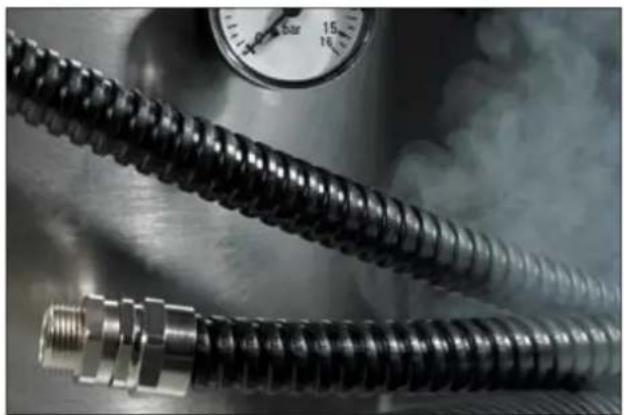

Close-up of two metallic threaded connectors with a pressure gauge in the background (no text or symbols visible)

The HelaGuard NCS galvanised steel conduit with a PA6 coating for higher temperatures and high resistance to acids and solvents.

MATERIAL	Galvanised Steel (GS), Polyamide 6.6 (PA66)
Operating Temperature	-40 °C to +120 °C

HF RoHS

TYPE	Nominal	Outside (OD)	Inside (ID)	Min. Bending Radius (R)	Weight(g/m)	Reel Length Colour Article-No.
NCS16 16 17.1 12.9 40 174		25 m Black (BK)	166-30801
NCS20 20 21.6 16.8 45 345		25 m Black (BK)	166-30802
NCS25 25 26.0 20.9 55 411		25 m Black (BK)	166-30803
NCS32 32 34.0 27.8 60 510		10 m Black (BK)	166-30800

All dimensions in mm. Subject to technical changes.
Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

Metallic conduits with plastic coating

• LFHCS Galvanised Steel Conduit, LFH Coating

Rail industry, underground stations, tunnels, public buildings, wherever high fire protection is required.

Features and Benefits

• Self-extinguishing to UL94 V0
- Low smoke, low toxicity
• High compression, tensile and impact strength
- Very flexible
• Halogen, sulphur and phosphorus free

Close-up of coiled black metal wire against a fiery flame background (no text or symbols)

HelaGuard LFHCS galvanised steel conduit is low smoke, low toxicity, highly flame retardant and halogen free.

HelaGuard metallic conduit, plastic coating

MATERIAL	Galvanised Steel (GS), Polyolefin (PO)
Operating Temperature	-25 °C to +90 °C
Flammability UL94 V0
Specifications Lloyd's Reg ster

HF RoHS

TYPE	Nominal	Outside (OD)	Inside (ID)	Min. Bending Radius (R)	Weight(g/m)	Reel Length Colour	Colour Article-No.
LFHCS12 12 1	4.2 10.0 30 199	25 m Black (BK)	166-30900
LFHCS16 16 1	7.1 12.9 40 216	25 m Black (BK)	166-30901
LFHCS20 20 2	1.6 16.8 45 350	25 m Black (BK)	166-30902
LFHCS25 25 2	5.0 20.9 55 420	25 m Black (BK)	166-30903
LFHCS32 32 3	4.0 27.8 60 571	25 m Black (BK)	166-30904
LFHCS40 40 4	4.2 37.3 80 739	10 m Black (BK)	166-30905
LFHCS50 50 5	5.0 48.0 90 1,077	10 m Black (BK)	166-30906
LFHCS63 63 6	4.5 57.0 115 1,126	10 m Black (BK)	166-30907
LFHCS75 75 7	9.2 69.4 150 1,509	10 m Black (BK)	166-30908

All dimensions in mm. Subject to technical changes.
Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits with plastic coating

• PCS-FM Fixed External Thread, IP54

Fixed external thread, nickel plated brass.

Features and Benefits

• Two-part fitting of shell and body with external thread
• Provides tight, reliable hold of conduit
  • Can be secured with locknut

Two metallic threaded connectors shown from different angles, one with textured outer shell and one with flanged top (no text or symbols)

HelaGuard PCS-FM Fixed External Thread.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HelaGuard fitting, straight with fixed external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	Thread Length (TL)	Pack Cont.	Colour Article-No.
PCS10-FM-M12	10 M12 5.6 21.0	13 8.0 10 pcs.	Metal (ML) 16	6-31000
PCS10-FM-PG7	10 PG7 5.6 21.0	13 8.0 10 pcs.	Metal (ML) 16	6-31010
PCS12-FM-M16	12 M16 8.5 23.0	17 8.0 10 pcs.	Metal (ML) 16	6-31001
PCS12-FM-PG9	12 PG9 8.5 23.0	17 8.0 10 pcs.	Metal (ML) 16	6-31011
PCS16-FM-M16	16 M16 11.5 25	0 20 10.0 10 pcs.	Metal (ML)	166-31002
PCS16-FM-M20	16 M20 11.5 25	0 22 10.0 10 pcs.	Metal (ML)	166-31003
PCS16-FM-PG11	16 PG11	11.5 25.0 22	10.0 10 pcs.	Metal (ML) 16	6-31012
PCS20-FM-M20	20 M20 15.3 26	3 24 10.0 10 pcs.	Metal (ML)	166-31004
PCS20-FM-PG16	20 PG16	15.3 26.3 24	10.0 10 pcs.	Metal (ML) 16	6-31014
PCS25-FM-M25	25 M25 19.1 32	5 29 10.0 10 pcs.	Metal (ML)	166-31005
PCS25-FM-PG21	25	PG21	19.1	32.5	29	12.0	2 pcs.	Metal (ML)
PCS32-FM-M32	32 M32 26.2 36	8 36 13.0 2 pcs.	Metal (ML)	166-31006
PCS32-FM-PG29	32	PG29	26.2	36.8	38	13.0	2 pcs.	Metal (ML)
PCS40-FM-M40	40 M40 34.6 39	0 48 14.0 2 pcs.	Metal (ML)	166-31007
PCS40-FM-PG36	40	PG36	34.2	39.0	48	14.0	2 pcs.	Metal (ML)
PCS50-FM-M50	50 M50 44.7 42	0 58 15.0 1 pcs.	Metal (ML)	166-31008
PCS50-FM-PG42	50	PG42	44.8	42.0	58	15.0	1 pcs.	Metal (ML)
PCS63-FM-M63	63 M63 54.5 50	0 70 18.0 1 pcs.	Metal (ML)	166-31009
PCS75-FM-M75	75 M75 66.5 60	0 84 20.0 1 pcs.	Metal (ML)	166-31019

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits with plastic coating

• PCS-SM Swivel External Thread, IP54

Swivel external thread, nickel plated brass.

Features and Benefits

• Two-part fitting of shell and body with external thread
  • External thread swivels about main body
• Provides tight, reliable hold of conduit
• Can be secured with locknut

Two views of a metallic threaded connector with textured outer shell (no text or symbols)

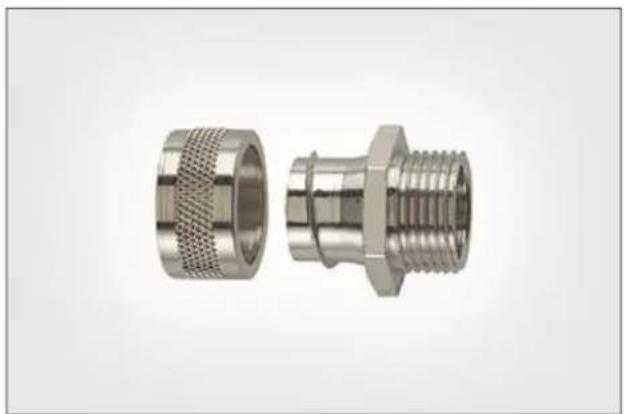

HelaGuard PCS-SM Swivel External Thread.

HelaGuard fitting, straight with swivel external thread

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HF

RoHS

TYPE	Nominalø	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Thread (A/F2)	Thread Length (TL)	Pack Cont.	Colour Article	-No.
PCS10-SM-M12	10 M12 5.6	30.2 13 13	8.0 10 pcs.	Metal (ML)	166-31100
PCS10-SM-PG7	10 PG7 5.6	30.2 13 13	8.0 10 pcs.	Metal (ML)	166-31110
PCS12-SM-M16	12 M16 8.5	32.2 17 17	8.0 10 pcs.	Metal (ML)	166-31101
PCS12-SM-PG9	12 PG9 8.5	32.2 17 17	8.0 10 pcs.	Metal (ML)	166-31111
PCS16-SM-M16	16	M16	11.5	34.2	20	20	10.0	10 pcs.	Metal (ML)	166-31102
PCS16-SM-M20	16	M20	11.5	34.2	20	22	10.0	10 pcs.	Metal (ML)	166-31103
PCS16-SM-PG11	16	PG11	11.5	34.2	20	22	10.0	10 pcs.	Metal (ML)	166-31112
PCS20-SM-M20	20	M20	15.3	35.5	24	24	10.0	10 pcs.	Metal (ML)	166-31104
PCS20-SM-PG13	20	PG13.5	15.3	35.5	24	24	10.0	10 pcs.	Metal (ML)	166-31113
PCS20-SM-PG16	20	PG16	15.3	35.5	24	24	10.0	10 pcs.	Metal (ML)	166-31114
PCS25-SM-M25	25	M25	19.1	43.7	29	29	12.0	10 pcs.	Metal (ML)	166-31105
PCS25-SM-PG21	25	PG21	19.1	43.7	29	29	12.0	10 pcs.	Metal (ML)	166-31115
PCS32-SM-M32	32	M32	26.2	48.0	38	38	13.0	2 pcs.	Metal (ML)	166-31106
PCS32-SM-PG29	32	PG29	26.2	48.0	38	38	13.0	2 pcs.	Metal (ML)	166-31116
PCS40-SM-M40	40	M40	34.2	51.2	48	48	14.0	2 pcs.	Metal (ML)	166-31107
PCS40-SM-PG36	40	PG36	34.2	51.2	48	48	14.0	2 pcs.	Metal (ML)	166-31117
PCS50-SM-M50	50	M50	44.8	54.2	58	58	15.0	1 pcs.	Metal (ML)	166-31108
PCS50-SM-PG42	50	PG42	44.8	54.2	58	58	15.0	1 pcs.	Metal (ML)	166-31118
PCS63-SM-M63	63	M63	54.5	63.2	70	70	18.0	1 pcs.	Metal (ML)	166-31109

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits with plastic coating

• PCS-PC Plain Hole Connector, IP54

Plain hole connector, nickel plated brass.

Features and Benefits

• Two part fitting of shell and body without thread
• Acts as a locking device
• The body is fitted to the conduit through the opposite side of the entry
• Provides a smooth entry bush

Two metallic pipe fittings with textured surfaces, shown from front and side views (no text or symbols visible)

HelaGuard PCS-PC Plain Hole Connector.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HelaGuard fitting, plain hole connector

TYPE	Nominal	Min. Bore Size (B)	Length(L)	A/F Body(A/F1)	PackCont. Colour Article-No.
PCS10-PC 10 5.6	15.0 13 10 pcs.	Metal (ML) 166-31	200
PCS12-PC 12 8.5	15.5 17 10 pcs.	Metal (ML) 166-31	201
PCS16-PC 16 11.5	20.0 20 10 pcs.	Metal (ML) 166-3	202
PCS20-PC 20 15.3	16.5 24 10 pcs.	Metal (ML) 166-3	203
PCS25-PC 25 19.1	20.5 29 10 pcs.	Metal (ML) 166-3	204
PCS32-PC 32 26.2	23.5 38 2 pcs.	Metal (ML) 166-31	205
PCS40-PC 40 34.2	24.8 48 2 pcs.	Metal (ML) 166-31	206
PCS50-PC 50 44.8	30.0 58 1 pcs.	Metal (ML) 166-31	207
PCS63-PC 63 54.5	33.5 70 1 pcs.	Metal (ML) 166-31	208
PCS75-PC 75 66.5	42.0 84 1 pcs.	Metal (ML) 166-31	209

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits with plastic coating

• PCS-FF Fixed Internal Thread, IP54

Fixed internal thread, nickel plated brass.

Features and Benefits

• Two-part fitting of shell and body with external thread
• Provides tight, reliable hold of conduit
• Can be used to couple two conduits together when used with swivel fitting

Two metallic pipe connectors shown from an open to closed section, no text or symbols visible.

HelaGuard PCS-FF Fixed Internal Thread.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 ^ to +300 ^

HF RoHS

HelaGuard fitting, straight with fixed internal thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	Thread Length (TL)	Pack Cont.	Colour Article-No.
PCS16-FF-M20	16 M20 11.5	24.5 22 10.0	10 pcs. Metal (ML)	166-31300
PCS20-FF-M20	20 M20 15.3	26.0 24 10.0	10 pcs. Metal (ML)	166-31301
PCS25-FF-M25	25 M25 19.1	30.0 29 12.0	10 pcs. Metal (ML)	166-31302
PCS32-FF-M32	32 M32 26.2	33.3 36 13.0	10 pcs. Metal (ML)	166-31303

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content

Fittings for metallic conduits with plastic coating

• PCS-FMC Fixed Thread Compression Fitting, IP65

External thread, nickel plated brass.

Fulfils IP65.

Features and Benefits

• Multipart compression fitting including elastomeric seal
• Provides excellent tensile strength
• Can be used for knockouts or threaded entries as fitting rotates until tightened

Close-up of a metallic threaded connector with blue and black cap (no text or symbols visible)

HelaGuard PCS-FMC Compression Fitting.

MATERIAL	Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE)	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	-40 °C to +135 °C

HF RoHS

HelaGuard compression fitting, straight with fixed external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Nut (A/F3)	Thread Length (TL)	Pack Cont.	Colour Article	-No.
PCS10-FMC-M12	10 M12 5.6	29.8 20 20	10.0 10 pcs.	Metal (ML)	166-31400
PCS12-FMC-M16	12 M16 8.6	29.8 20 22	10.0 10 pcs.	Metal (ML)	166-31401
PCS16-FMC-M16	16 M16 11.5	33.0 24 26	12.0 10 pcs.	Metal (ML)	166-31402
PCS16-FMC-M20	16 M20 11.5	33.0 24 26	12.0 10 pcs.	Metal (ML)	166-31403
PCS16-FMC-PG11	16 PG11 11.5	31.0 24	26 10.0 10 pcs.	Metal (ML)	166-31409
PCS20-FMC-M20	20 M20 15.3	33.5 26 29	12.0 10 pcs.	Metal (ML)	166-31404
PCS20-FMC-PG16	20 PG16 15.3	32.5 26	29 11.0 10 pcs.	Metal (ML)	166-31410
PCS25-FMC-M25	25 M25 19.1	40.5 33 35	14.0 10 pcs.	Metal (ML)	166-31405
PCS25-FMC-PG21	25 PG21 19.1	38.5 33	35 12.0 10 pcs.	Metal (ML)	166-31411
PCS32-FMC-M32	32	M32	26.0	45.8	40	42	15.0	2 pcs.	Metal (ML)	166-31406
PCS32-FMC-PG29	32	PG29	26.0	42.8	40	42	12.0	2 pcs.	Metal (ML)	166-31412
PCS40-FMC-M40	40	M40	34.6	47.5	56	58	16.0	2 pcs.	Metal (ML)	166-31407
PCS40-FMC-PG36	40	PG36	34.6	43.5	58	58	12.0	2 pcs.	Metal (ML)	166-31415
PCS50-FMC-M50	50	M50	44.7	51.0	70	70	16.0	1 pcs.	Metal (ML)	166-31408

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MDQ) may differ from package content.

Fittings for metallic conduits with plastic coating

• PCS-SMC Swivel Thread Compression Fitting, IP65

External thread, nickel plated brass.

Fulfils IP65.

Features and Benefits

• Multipart compression fitting including elastomeric seal
• Provides excellent tensile strength
  • External thread swivels about main body even after tightening

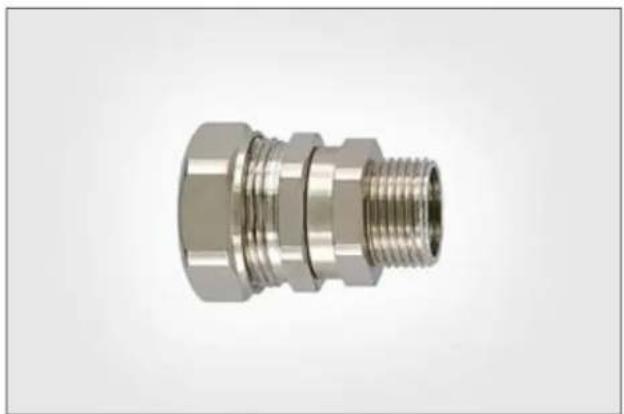

Close-up of a metallic threaded connector component (no text or symbols visible)

HelaGuard PCS-SMC Swivel Compression Fitting.

MATERIAL	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	-40 °C to +135 °C

HF RoHS

HelaGuard compression fitting, straight with swivel external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Thread (A/F2)	A/F Nut (A/F3)	Thread Length (TL)	Pack Cont.	Colour Article	-No.
PCS12-SMC-M16	12 M16 8.6	39.0 20 20	22 10.0 10	pcs. Metal	(ML) 166-3	500
PCS16-SMC-M16	16 M16 11.5	40.9 24	24 26 10.0 10	pcs. Metal	(ML) 166-3	1501
PCS16-SMC-M20	16 M20 11.5	41.0 24	24 26 10.0 10	pcs. Metal	(ML) 166-3	1502
PCS20-SMC-M20	20 M20 15.3	41.8 26	26 29 10.0 10	pcs. Metal	(ML) 166-3	1503
PCS25-SMC-M25	25 M25 19.	50.7 33	29 35 12.0 10	pcs. Metal	(ML) 166-3	1504
PCS32-SMC-M32	32 M32 26.0	56.9 40	38 42 13.0 2	pcs. Metal	(ML) 166-3	1505

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MDQ) may differ from package content.

Fittings for metallic conduits with plastic coating

• PCS-90FMC 90° Elbow Compression Fitting, IP65

External thread, nickel plated brass.

Fulfils IP65.

Features and Benefits

• Multipart 90^ compression fitting including elastomeric seal
• Provides excellent tensile strength

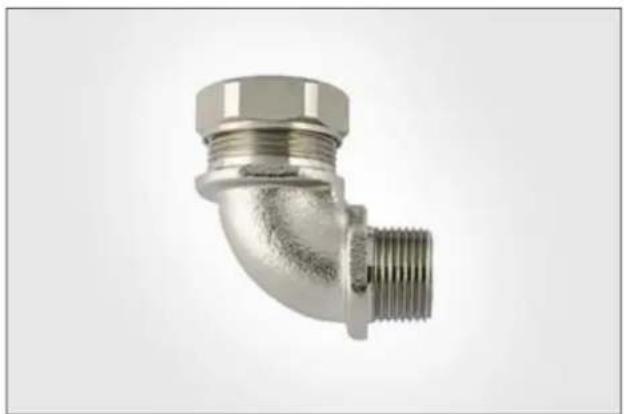

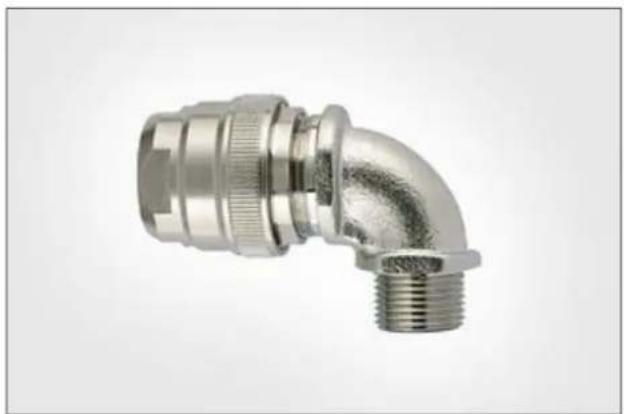

Metal pipe fitting with threaded end and hexagonal head (no text or symbols)

HelaGuard PCS-90FMC 90° Elbow Compression Fitting.

MATERIAL	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	-40 °C to +135 °C

HF RoHS

HelaGuard compression fitting, 90° with fixed external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	A/F Body(A/F1)	A/F Nut(A/F3)	Thread Length (TL)	Pack Cont.	Colour Article-No.
PCS12-90FMC-M16 1	2 M16 8.6 2	20 22 10.0	10 pcs. Metal (ML)	166-31601
PCS16-90FMC-M16 1	6 M16 11.5	20 26 10.0	10 pcs. Metal (ML)	166-31602
PCS16-90FMC-M20 1	6 M20 11.5	24 26 13.0	10 pcs. Metal (ML)	166-31603
PCS20-90FMC-M20 2	20 M20 15.3	24 29 13.0	10 pcs. Metal (ML)	166-31604
PCS25-90FMC-M25 2	5 M25 19.1	30 35 14.0	10 pcs. Metal (ML)	166-31605
PCS32-90FMC-M32 3	32 M32 26.0	36 42 15.0	2 pcs. Metal (ML)	166-31606

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MDQ) may differ from package content.

Fittings for metallic conduits with plastic coating

• PCS-PCS Compression Coupler, IP65

Nickel plated brass.

Fulfils IP65.

Features and Benefits

• Multipart compression coupler including polyamide seal
• Joins two conduits
  • Provides excellent tensile strength

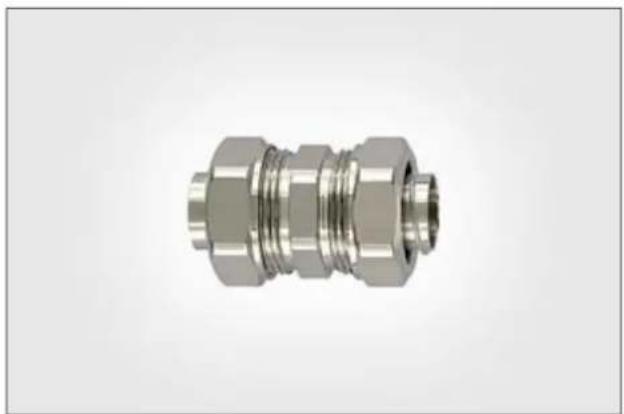

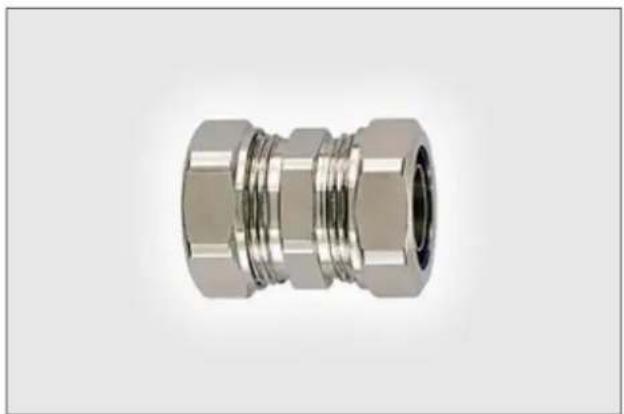

Metallic threaded connector component (no text or symbols visible)

HelaGuard PCS-PCS Compression Coupler.

MATERIAL	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	40 °C to +135 °C

HF RoHS

HelaGuard compression coupler

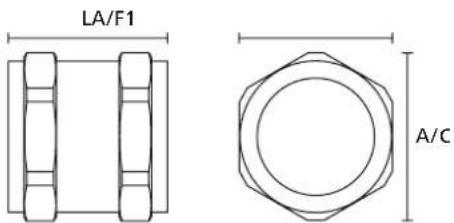

TYPE	Nominal	Min. Bore Size (B)	Length(L)	A/F Body(A/F1)	A/F Nut(A/F3)	PackCont. Colour Article-No.
PCS20-PCS20 20	15.3 39.5 26 29	10 pcs. Metal	(ML) 166-31700
PCS25-PCS25 25	19.1 46.9 33 35	10 pcs. Metal	(ML) 166-31701

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits with plastic coating

• PCS-SCG Straight Cable Gland fitting, IP65

External thread, nickel plated brass.

Fulfils IP65.

Features and Benefits

• Multipart compression fitting including elastomeric seal
  • Powerful strain relief function
  • Seals cable at IP68 and IP69k
• Provides excellent tensile strength

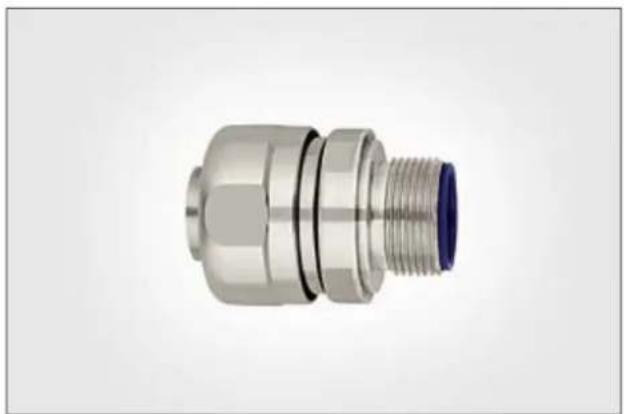

Close-up of a metallic mechanical connector with threaded end (no text or symbols visible)

PCS-SCG Compression Fitting with Strain Relief and Cable Seal.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB),Thermoplastic Elastomer (TPE)
Operating Temperature	-40 °C to +135 °C

HF RoHS

HelaGuard compression fitting, straight cable gland

TYPE	Nominal	Thread Size	Suitable for Cable from/to	Length (L)	A/F Thread (A/F2)	A/F Nut (A/F3)	A/F Gland Body (A/F5)	Thread Length (TL)	Pack Cont.	Colour Article-No.
PCS16-SCG-M16	16 M16 4.5 -	10 55 20	26 22 12.0 10 pcs. Metal (ML)	166-36101
PCS20-SCG-M20	20 M20 7 -	13 58 24 29	26 12.0 10 pcs. Metal (ML)	166-36102
PCS25-SCG-M25	25 M25 9 -	17 65 29 35	33 12.0 10 pcs. Metal (ML)	166-36103
PCS32-SCG-M32	32 M32 11 -	21 78 36	42 40 15.0 2 pcs. Metal (ML)	166-36104

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.
To ensure the protective seal, it is recommended to use a thread sealant on the thread between the cable gland insert and the conduit fitting.

Fittings for metallic conduits with plastic coating

• PCS-EI End Insert

Nickel plated brass.

Features and Benefits

• Single part
• Caps end of conduit

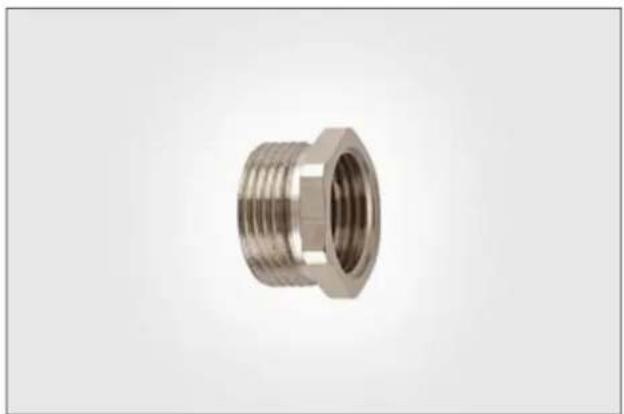

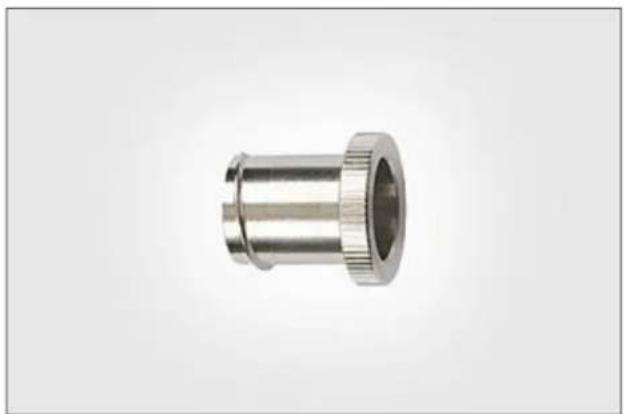

Metal mechanical component with flanged ends and central bore (no text or symbols visible)

HelaGuard PCS-EI End Insert.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HF

RoHS

HelaGuard fitting, end insert

TYPE	Nominal	Min. Bore Size (B)	Length (L)	Outside max (OD max.)	Height (H)	Pack Cont. Colour Article-No.
PCS10-EI 10	5.6 16.3 13.8 3.6	10 pcs. Metal (ML)	166-31800
PCS12-EI 12	8.6 16.3 16.1 3.6	10 pcs. Metal (ML)	166-31801
PCS16-EI 16	11.5 21.3 20.0 4.3	10 pcs. Metal (ML)	166-31802
PCS20-EI 20	15.3 23.0 22.9 4.5	10 pcs. Metal (ML)	166-31803
PCS25-EI 25	19.1 27.5 28.7 6.1	10 pcs. Metal (ML)	166-31804
PCS32-EI 32	26.0 30.0 35.0 6.6	2 pcs. Metal (ML)	166-31805
PCS40-EI 40	34.6 28.0 47.5 9.0	2 pcs. Metal (ML)	166-31805
PCS50-EI 50	44.7 30.0 57.9 10.4	2 pcs. Metal (ML)	166-31807

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Metallic conduits with liquid-tight cover

• LTS Galvanised Steel Conduit, PVC Cover

Machine tools or outdoor installations, wherever liquid-tight (IP68) is a requirement.

Features and Benefits

• Liquid-tight (IP68 and IP69k with LTS fittings)
• High compression, tensile and impact strength
• Good flexibility
- Smooth outer cover does not wrinkle when bent
• Good resistance to acids, petrol, oils and greases
• UV-resistant, suitable for outdoor use
- Colour: black

Liquid-tight conduits with polyurethane (PU) cover also available.

MATERIAL	Galvanised Steel (GS), Polyvinylchloride (PVC)
Operating Temperature	-20 °C to +105 °C
Specifications	Lloyd's Register

HelaGuard liquid-tight metallic conduit, plastic coating

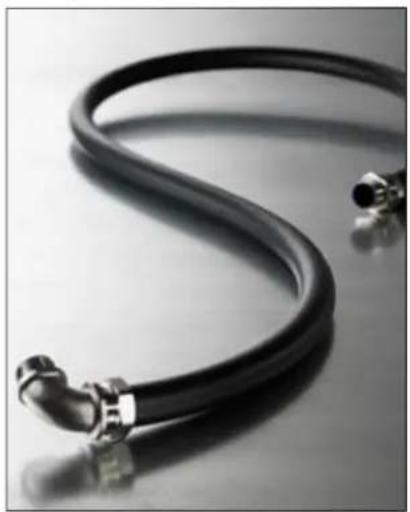

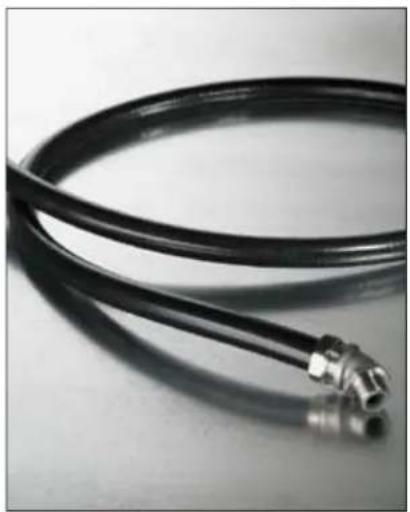

Close-up of a black flexible hose with metallic connectors, lying on a reflective surface (no text or symbols visible)

HelaGuard LTS.

Exterior view of multiple red construction cranes under a blue sky with clouds (no signage or text visible)

HelaGuard LTS galvanised steel conduit with a smooth, liquid-tight PVC cover is ideal for outdoor installations.

TYPE	Nominal	US Trade Size	Outside (OD)	Inside (ID)	Min. Bending Radius (R)	Weight(g/m)	Reel Length	Colour Article-No.
LTS10 10	1/4 " 11.8 7.0	35 185 50 m	Black (BK) 166-3	1900
LTS12 12	5/16 " 14.2 10	0 40 203 25 m	Black (BK) 166-31901
LTS16	16 3/8 "	17.8 12.6 45 3	11 25 m Black (BK) 166-31902
	16 3/8 "	17.8 12.6 45 3	11 25 m Grey (GY) 166-31917
LTS20	20 1/2 "	21.1 16.0 65 4	07 25 m Black (BK) 166-31903
	20 1/2 "	21.1 16.0 65 4	07 25 m Grey (GY) 166-31918
LTS25	25 3/4 "	26.4 21.1 100	503 25 m Black (BK) 166-31904
	25 3/4 "	26.4 21.1 100	503 25 m Grey (GY) 166-31919
LTS32	32	1 "	33.1	26.5	135	732	25 m	Black (BK) 166-31905
	32	1 "	33.1	26.5	135	732	25 m	Grey (GY) 166-31921
LTS40	40 1 1/4 "	41.8	35.4 175	885 25 m Black (BK) 166-3	1906
	40	1 1/4 "	41.8	35.4	175	885	25 m	Grey (GY) 166-31927
LTS50	50	1 1/2 "	47.9	40.4	230	1,240	25 m	Black (BK) 166-31907
LTS63	63	2 "	59.7	51.6	280	1,470	10 m	Black (BK) 166-31908

All dimensions in mm. Subject to technical changes. Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

Metallic conduits with liquid-tight cover

• LTSH Galvanised Steel Conduit, Thermoplastic Cover

Machine tools or outdoor installations wherever flame retardance or low or high temperature resistance is required.

Features and Benefits

• Liquid-tight (IP68 and IP69k with LTS fittings)
- Flame-retardant
• High compression, tensile and impact strength
• Good flexibility
- Smooth outer cover does not wrinkle when bent
• Good resistance to acids, petrol, oils and greases
• UV-resistant, suitable for outdoor use
- Colour: black

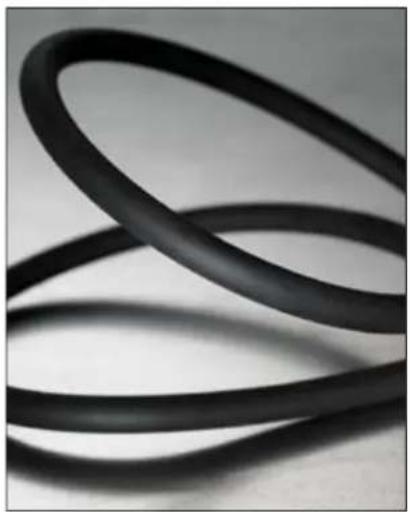

Close-up of two overlapping black rubber loops against a plain background (no text or symbols)

HelaGuard LTSH.

Offshore oil rig complex with multiple cranes and platforms under a clear blue sky (no visible text or symbols)

HelaGuard LTSH galvanised steel conduit with a smooth, liquid-tight thermoplastic rubber cover offers very good resistance to oils, greases, petrol, acids and UV.

HelaGuard liquid-tight metallic conduit, plastic coating

MATERIAL	Galvanised Steel (GS), Thermoplastic Rubber (TPR)
Operating Temperature	-60 °C to +150 °C

TYPE	Nominal	US Trade Size	Outside (OD)	Inside (ID)	Min. Bending Radius (R)	Weight(g/m)	Reel Length	Colour Article-	No.
LTSH12 12	5/16 " 14.2 10	0.0 40 203 25	m Black (BK) 166-32001
LTSH16 16	3/8 " 17.8 12	6 45 311 25 m	Black (BK) 166-32002
LTSH20 20	1/2 " 21.1 16	0 65 407 25 m	Black (BK) 166-32003
LTSH25 25	3/4 " 26.4 21	1 100 445 25	m Black (BK) 166-32004
LTSH32 32	1 " 33.1 26.5	135 666 25 m	Black (BK) 166-32005
LTSH40 40	1 1/4 "	41.8 35.4 17	5 793 10 m Black (BK) 166-32006
LTSH50	50	1 1/2 "	47.9	40.4	230	1,071	10 m	Black (BK)	166-32007

All dimensions in mm. Subject to technical changes.
Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

Metallic conduits with liquid-tight cover

• LTSUL, Galvanised Steel Conduit, PVC Cover, UL Listed

Machine tools or outdoor installations, liquid-tight applications where UL listing is required.

Features and Benefits

• Liquid-tight (IP68 and IP69k with LTS fittings)
• UL-listed and CSA approved
• High compression, tensile and impact strength
• Good flexibility
- Smooth outer cover does not wrinkle when bent
• Good resistance to acids, petrol, oils and greases
• UV-resistant, suitable for outdoor use
- Colour: black

Close-up of a black flexible hose with metallic connectors, isolated on white background (no text or symbols)

HelaGuard LTSUL.

Offshore oil platform structure in the ocean with support vessels and equipment (no visible text or symbols)

The HelaGuard LTSUL galvanised steel conduit with a PVC Cover is UL listed and typically used on drilling platforms.

HelaGuard liquid-light metallic conduit, plastic coating

MATERIAL	Galvanised Steel (GS), Polyvinylchloride (PVC), Copper (CU)
Operating Temperature	-15 °C to +75 °C
Specifications	CSA, UL: Listed

RoHS

TYPE	Nominal	US Trade Size	Outside (OD)	Inside (ID)	Min. Bending Radius (R)	Weight(g/m)	Reel Length	Colour Article-	No.
LTSUL16 16	3/8 " 17.8 12.6	50 432 25 m	Black (BK) 16	6-32100
LTSUL20 20	1/2 " 21.1 16.0	90 477 25 m	Black (BK) 16	6-32101
LTSUL25 25	3/4 " 26.4 21.1	110 789 25 m	Black (BK) 16	6-32102
LTSUL32 32	1 " 33.1 26.5	140 1,221 15 m	Black (BK) 16	6-32103
LTSUL40	40	1 1/4 "	41.8	35.4	180	1,519	15 m	Black (BK)	166-32104
LTSUL50	50	1 1/2 "	47.9	40.4	230	1,846	15 m	Black (BK)	166-32105
LTSUL63 63	2 " 59.7 51.6	280 2,159 15 m	Black (BK) 16	6-32106

All dimensions in mm. Subject to technical changes. Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits with liquid-tight cover

• LTS-FMC Fixed Thread Compression Fitting, IP68

External thread, nickel plated brass.

Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• Multipart compression fitting including elastomeric seal
• Provides excellent tensile strength
• Can be used for knockouts or threaded entries as fitting rotates until tightened

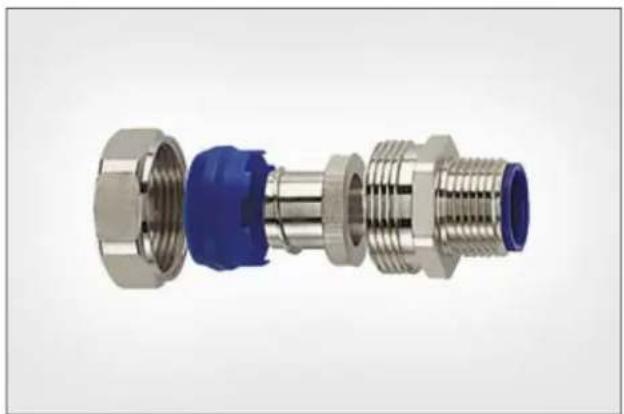

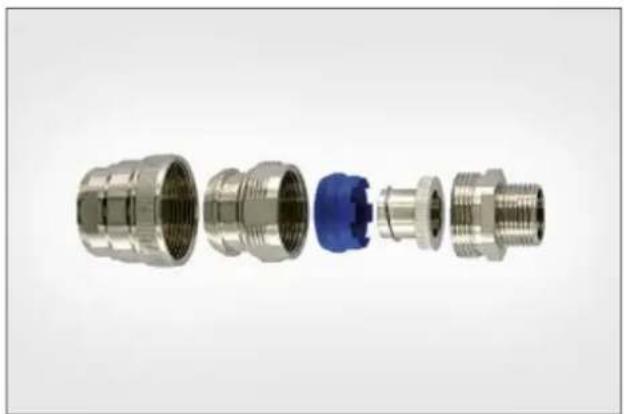

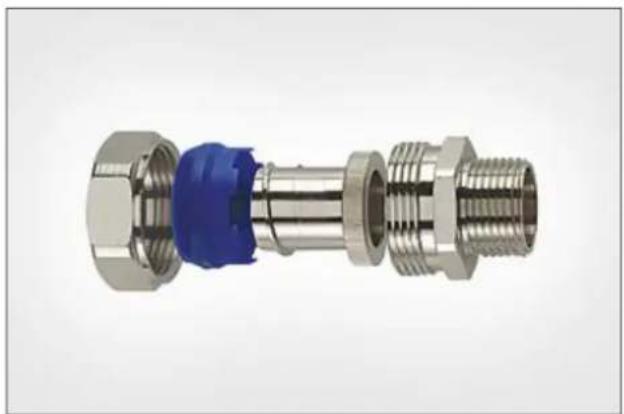

Exploded view of a mechanical connector assembly (no text or symbols visible)

HelaGuard LTS-FMC Compression Fitting.

MATERIAL	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	-40 °C to +135 °C

HF RoHS

HelaGuard compression fitting, straight with fixed external thread

TYPE	Nominalø	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Nut (A/F3)	Thread Length (TL)	Pack Cont. Colour	Colour Article-No.
LTS10-FMC-M12	10 M12 5.6	9.8 20 20	0.0 10 pcs.	Metal (ML)	66-32200
LTS10-FMC-M16	10 M16 5.6	9.8 20 20	0.0 10 pcs.	Metal (ML)	66-32201
LTS12-FMC-M16	12 M16 8.6	9.8 20 22	0.0 10 pcs.	Metal (ML)	66-32203
LTS16-FMC-M16	16 M16 10.7	33.0 24 26	12.0 10 pcs.	Metal (ML)	166-32204
LTS16-FMC-M20	16 M20 10.7	33.0 24 26	12.0 10 pcs.	Metal (ML)	166-32205
LTS16-FMC-PG11	16 PG11 10.	7 31.0 24 26	10.0 10 pcs.	Metal (ML)	166-32212
LTS16-FMC-PG13	16 PG13.5	0.7 31.0 24	26 10.0 10 pcs.	Metal (ML)	166-32216
LTS20-FMC-M20	20 M20 14.5	33.5 26 29	12.0 10 pcs.	Metal (ML)	166-32206
LTS20-FMC-PG16	20 PG16 14.	5 32.5 26 29	11.0 10 pcs.	Metal (ML)	166-32213
LTS25-FMC-M25	25 M25 18.0	40.5 33 35	14.0 10 pcs.	Metal (ML)	166-32207
LTS25-FMC-PG21	25 PG21 18.	0 38.5 33 35	12.0 10 pcs.	Metal (ML)	166-32214
LTS32-FMC-M32	32	M32	24.6	45.8	40	42	15.0	2 pcs.	Metal (ML)
LTS32-FMC-PG29	32	PG29	24.6	42.8	40	42	12.0	2 pcs.	Metal (ML)
LTS40-FMC-M40	40	M40	32.7	47.5	50	52	16.0	1 pcs.	Metal (ML)
LTS50-FMC-M50	50	M50	37.7	53.0	58	58	18.0	1 pcs.	Metal (ML)
LTS63-FMC-M63	63	M63	49.0	58.8	70	70	20.0	1 pcs.	Metal (ML)

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits with liquid-tight cover

• LTS-SMC Swivel Thread Compression Fitting, IP68

External thread, nickel plated brass.

Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• Multipart compression fitting including polyamide seal
• Provides excellent tensile strength
  • External thread swivels about main body even after tightening

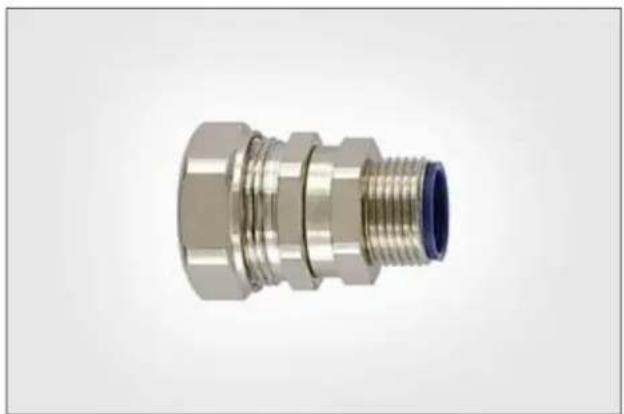

Close-up of a metallic threaded connector with blue cap (no text or symbols visible)

HelaGuard LTS-SMC Swivel Compression Fitting.

MATERIAL	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	-40 °C to +135 °C

HF RoHS

HelaGuard compression fitting, straight with swivel external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Thread (A/F2)	A/F Nut (A/F3)	Thread Length (TL)	Pack Cont.	Colour Article-No.
LTS12-SMC-M16	12 M16 8.6	39.0 20 20	22 10.0 10	pcs. Metal	(ML) 166-	32300
LTS16-SMC-M16	16 M16 10.7	40.9 24	24 26 10.0 10	pcs. Metal	(ML) 166-	32301
LTS16-SMC-M20	16 M20 10.7	41.0 24	24 26 10.0 10	pcs. Metal	(ML) 166-	32302
LTS20-SMC-M20	20 M20 14.5	41.8 26	26 29 10.0 10	pcs. Metal	(ML) 166-	32303
LTS25-SMC-M25	25 M25 18.0	50.7 33	29 35 12.0 10	pcs. Metal	(ML) 166-	32304
LTS32-SMC-M32	32 M32 24.6	56.9 40	38 42 13.0 2	pcs. Metal	(ML) 166-	32305

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits with liquid-tight cover

• LTS-90FMC 90° Elbow compression fitting, IP68

External thread, nickel plated brass.

Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• Multipart 90^ compression fitting including polyamide seal
• Provides excellent tensile strength

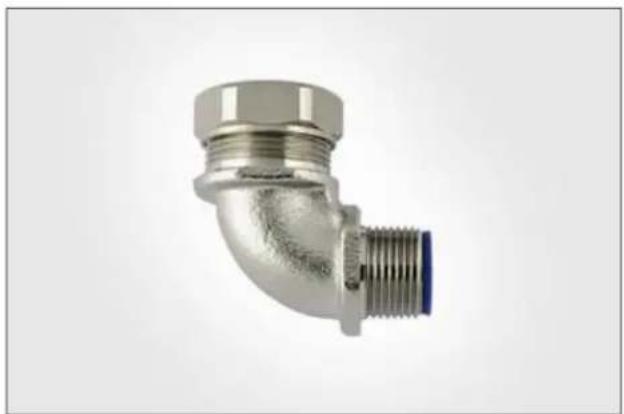

Metal pipe fitting with threaded end and hexagonal head (no text or symbols visible)

HelaGuard LTS-90FMC 90° Elbow Compression Fitting.

MATERIAL	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	40 °C to +135 °C

HF RoHS

HelaGuard compression fitting, 90° with fixed external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	A/F Body(A/F1)	A/F Nut(A/F3)	Thread Length (TL)	Pack Cont.	Colour Article-No.
LTS12-90FMC-M16	2 M16 8.6	20 22 10.0	10 pcs. Metal (ML) 166-32400
LTS16-90FMC-M16	6 M16 10.7	20 26 10.0	10 pcs. Metal (ML) 166-32401
LTS16-90FMC-M20	6 M20 10.7	24 26 13.0	10 pcs. Metal (ML) 166-32402
LTS20-90FMC-M20	20 M20 14.5	24 29 13.0	10 pcs. Metal (ML) 166-32403
LTS25-90FMC-M25	25 M25 18.0	30 35 14.0	10 pcs. Metal (ML) 166-32404
LTS32-90FMC-M32	32 M32 24.6	36 42 15.0	2 pcs. Metal (ML) 166-32405
LTS40-90FMC-M40	40 M40 32.7	46 52 18.0	1 pcs. Metal (ML) 166-32406
LTS50-90FMC-M50	50 M50 37.7	57 58 18.0	1 pcs. Metal (ML) 166-32407
LTS63-90FMC-M63	63 M63 49.0	72 70 20.0	1 pcs. Metal (ML) 166-32408

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits with liquid-tight cover

• LTS-45FMC 45° Elbow Compression Fitting, IP68

External thread, nickel plated brass.

Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• Multipart 45^ compression fitting including polyamide seal
• Provides excellent tensile strength

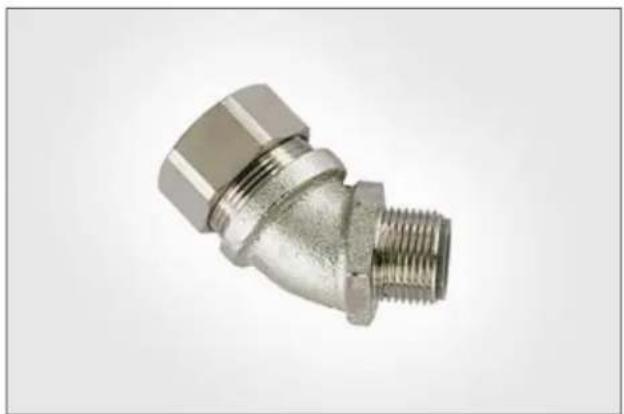

Metal pipe fitting with threaded end and hexagonal head (no text or symbols visible)

HelaGuard LTS-45FMC 45° Elbow Compression Fitting.

MATERIAL	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	-40 °C to +135 °C

HF RoHS

HelaGuard compression fitting, 45° with fixed external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Nut (A/F3)	Thread Length (TL)	Pack Cont.	Colour Article-No.
LTS16-45FMC-M20	6 M20 10.7	44.8 24	26 13.0 10 pcs.	Metal (ML)	166-32500
LTS20-45FMC-M20	20 M20 14.5	49.5 24	29 13.0 10 pcs.	Metal (ML)	166-32501
LTS25-45FMC-M25	25 M25 18.0	63.0 30	35 14.0 10 pcs.	Metal (ML)	166-32502
LTS32-45FMC-M32	32 M32 24.6	76.6 36	42 15.0 2 pcs.	Metal (ML)	166-32503
LTS40-45FMC-M40	40 M40 32.7	86.9 47	57 18.0 1 pcs.	Metal (ML)	166-32504
LTS50-45FMC-M50	50 M50 37.7	93.4 61	62 18.0 1 pcs.	Metal (ML)	166-32505
LTS63-45FMC-M63	63 M63 49.0	111.0 67	76 20.0 1 pcs.	Metal (ML)	166-32506

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits with liquid-tight cover

• LTS-LTS Compression Coupler, IP68

Nickel plated brass.

Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• Multipart compression coupler including polyamide seal
• Joins two conduits
• Provides excellent tensile strength

Close-up of a metallic threaded connector component (no text or symbols visible)

HelaGuard LTS-LTS Compression Coupler.

MATERIAL	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	40 °C to +135 °C

HF RoHS

HelaGuard compression coupler

TYPE	Nominal	Min. Bore Size (B)	Length(L)	A/F Body(A/F1)	A/F Nut(A/F3)	PackCont. Colour	Article-No.
LTS20-LTS20 20	14.5 39.5 26 29	10 pcs. Metal	(ML) 166-32600
LTS25-LTS25 25	18.0 46.9 33 35	10 pcs. Metal	(ML) 166-32601

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MDQ) may differ from package content.

Fittings for metallic conduits with liquid-tight cover

• LTS-SCG Straight cable gland fitting, IP68

External thread, nickle plated brass.

Fulfils IP66, IP67, IP68 and IP69k.

Features and Benefits

• Multipart compression fitting including elastomeric seal
  • Powerful strain relief function
  • Seals cable at IP68 and IP69k
  • Provides excellent tensile strength

Close-up of a metallic threaded connector component (no text or symbols visible)

LTS-SCG Compression Fitting with Strain Relief and Cable Seal.

MATERIAL	Polyamide 6.6 (PA66),Nickel Plated Brass (NPB),Thermoplastic Elastomer (TPE)
Operating Temperature	-40 °C to +135 °C

HelaGuard fitting, straight cable gland

TYPE	Nominal	Thread Size	Suitable for Cable from/to	Length (L)	A/F Thread (A/F2)	A/F Nut (A/F3)	A/F Gland Body (A/F5)	Thread Length (TL)	Pack Cont.	Colour Article	No.
LTS16-SCG-M16	16 M16 4.5	- 10 55 20	26 22 12.0 10	pcs. Meta	(ML) 166-36201
LTS20-SCG-M20	20 M20 7 -	13 58 24 29	26 12.0 10	pcs. Metal (ML)	166-36202
LTS25-SCG-M25	25 M25 9 -	17 65 29 35	33 12.0 10	pcs. Metal (ML)	166-36203
LTS32-SCG-M32	32	M32	11 - 21	78	36	42	40	15.0	2 pcs.	Metal (ML)	166-36204

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content
To ensure the protective seal, it is recommended to use a thread sealant on the thread between the cable gland insert and the conduit fitting.

Fittings for metallic conduits with liquid-tight cover

• LTS-EI End Insert

Nickel plated brass.

Features and Benefits

• Single part
• Caps end of conduit

Close-up of a metallic mechanical connector with flanged end and central bore (no text or symbols visible)

HelaGuard LTS-EI End Insert.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HF

RoHS

HelaGuard fitting, end insert

TYPE	Nominal	Min. Bore Size (B)	Length(L)	Outside max (OD max.)	Height(H)	PackCont. Co	our Article-No.
LTS10-EI 10	5.6 16.3 13.8 3.5	10 pcs. Metal (ML)	166-32700
LTS12-EI 12	8.6 16.3 16.1 3.5	10 pcs. Metal (ML)	166-32701
LTS16-EI 16	10.7 16.5 20.0	4.5 10 pcs. Metal (ML)	166-32702
LTS20-EI 20	14.5 17.0 22.9	4.5 10 pcs. Metal (ML)	166-32703
LTS25-EI 25	18.0 21.5 28.7	6.1 10 pcs. Metal (ML)	166-32704
LTS32-EI 32	24.6 24.0 35.0	6.6 2 pcs. Metal (ML)	166-32705
LTS40-EI 40	32.7 28.0 45.0	8.1 1 pcs. Metal (ML)	166-32706
LTS50-EI 50	37.7 30.0 51.0	8.1 1 pcs. Metal (ML)	166-32707
LTS63-EI 63	49.0 35.0 63.0	10.1	1 pcs. Metal (ML)	166-32708

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Metallic conduits with plastic coating and metallic overbraid

• PCSB Galvanised Steel Conduit, PVC Coating, Galvanised Steel Overbraid

Industrial environments where higher abrasion resistance or EMC screening are required.

Features and Benefits

• High compression, tensile and impact strength
• Very high abrasion resistance
• Very flexible

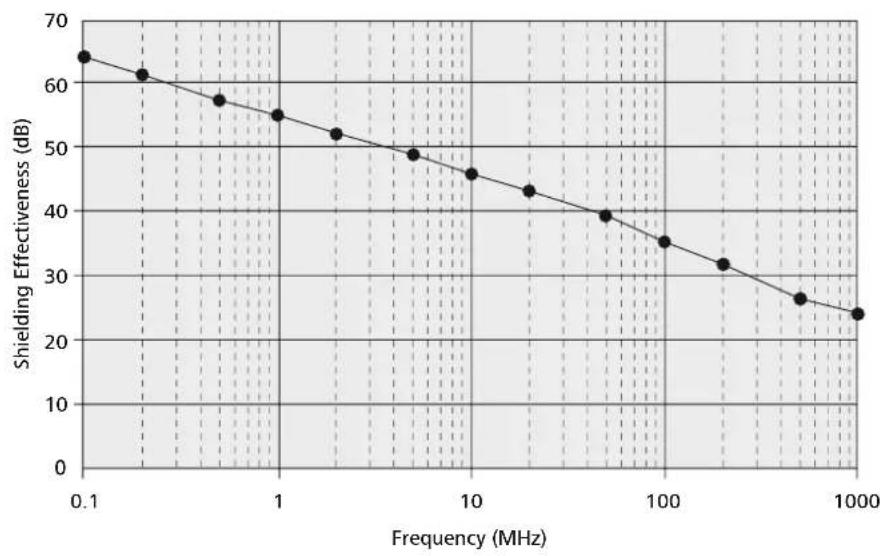

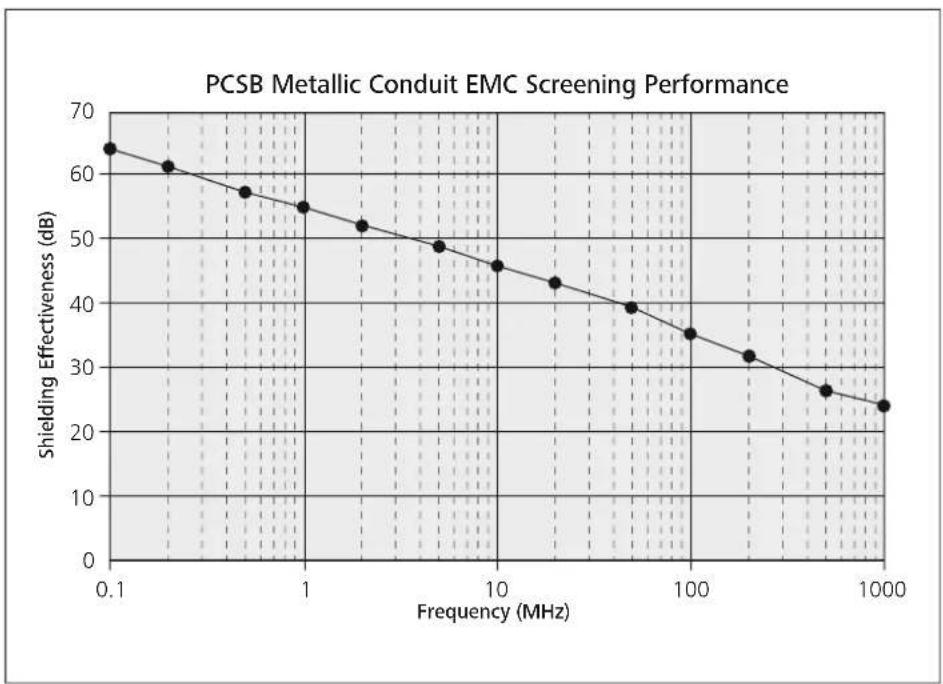

- Provides EMC screening

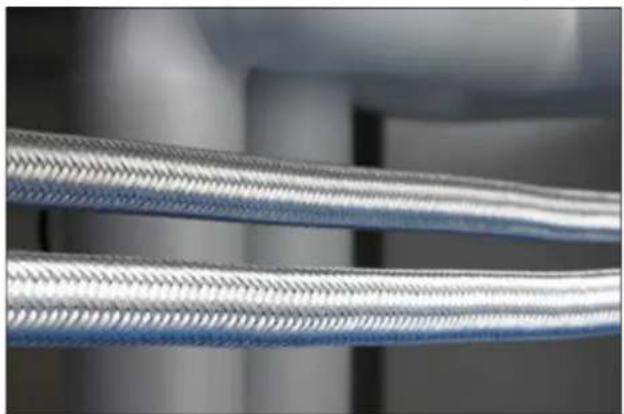

Close-up of two metallic braided cables with visible mesh texture (no text or symbols)

The HelaGuard PCSB galvanised steel conduit with a PVC coating galvanised steel overbraid offers high abrasion resistance and EMC screening.

Stainless steel and tinned copper braiding is also available.

MATERIAL	Galvanised Steel (GS), Polyvinylchloride (PVC)
Operating Temperature	+15 ^ to +70 ^

RoHS

HelaGuard metallic conduit, plastic coating and metallic braid

TYPE	Nominal	Outside (OD)	Inside (ID)	Min. Bending Radius (R)	Weight(g/m)	Reel Length Colour	Colour Article-No.
PCSB12 12 1	5.2 10.2 30 252	25 m Metal (ML)	166-33600
PCSB16 16 1	8.2 13.0 40 348	25 m Metal (ML)	166-33601
PCSB20 20 2	2.7 16.9 45 530	25 m Metal (ML)	166-33602
PCSB25 25 2	7.2 21.1 55 614	25 m Metal (ML)	166-33603
PCSB32 32 3	5.2 28.1 70 832	25 m Metal (ML)	166-33604
PCSB40 40 4	5.7 37.6 80 1,28	6 10 m Metal (ML)	166-33605
PCSB50 50 5	7.7 48.4 90 1,73	6 10 m Metal (ML)	166-33606

All dimensions in mm. Subject to technical changes.

Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits with plastic coating and metallic overbraid

• PCSB-FM Fixed External Thread, IP54

Fixed external thread, nickel plated brass.

Features and Benefits

• Two-part fitting of shell and body with external thread
• Provides tight, reliable hold of conduit
• Can be secured with locknut

Two views of a metallic connector with threaded end and hexagonal head (no text or symbols)

HelaGuard PCSB-FM Fixed External Thread.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HF

RoHS

HelaGuard fitting, straight with fixed external thread

TYPE	Nominal∅	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Nut (A/F3)	Thread Length (TL)	Pack Cont.	Colour Article-No.
PCSB12-FM-M16	12 M16 8.5 2	6.0 17 17	8.0 10 pcs.	Metal (ML)	166-33800
PCSB12-FM-PG9	12 PG9 8.5 26	6.0 17 17	8.0 10 pcs.	Metal (ML)	166-33808
PCSB16-FM-M16	16	M16	11.5	28.0	20	20	10.0	10 pcs.	Metal (ML)
PCSB16-FM-M20	16	M20	11.5	28.0	22	20	10.0	10 pcs.	Metal (ML)
PCSB16-FM-PG11	16	PG11	11.5	28.0	20	20	10.0	10 pcs.	Metal (ML)
PCSB20-FM-M20	20	M20	15.3	30.8	24	26	10.0	10 pcs.	Metal (ML)
PCSB20-FM-PG16	20	PG16	15.3	30.8	24	26	10.0	10 pcs.	Metal (ML)
PCSB25-FM-M25	25	M25	19.1	34.5	29	30	12.0	10 pcs.	Metal (ML)
PCSB32-FM-M32	32	M32	26.2	39.3	38	38	13.0	2 pcs.	Metal (ML)
PCSB25-FM-PG21	25	PG21	19.1	34.5	29	30	12.0	10 pcs.	Metal (ML)
PCSB32-FM-PG29	32	PG29	26.2	39.3	38	38	13.0	2 pcs.	Metal (ML)
PCSB40-FM-M40	40	M40	34.2	42.8	48	50	14.0	1 pcs.	Metal (ML)
PCSB40-FM-PG36	40	PG36	34.2	42.8	48	50	14.0	1 pcs.	Metal (ML)
PCSB50-FM-M50	50	M50	44.8	48.0	58	61	15.0	1 pcs.	Metal (ML)

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits with plastic coating and metallic overbraid

• PCSB-SM Swivel External Thread, IP54

Swivel external thread, nickel plated brass.

Features and Benefits

• Two-part fitting of shell and body with external thread
  • External thread swivels about main body
• Provides tight, reliable hold of conduit
• Can be secured with locknut

Two metallic mechanical connectors shown from different angles, no text or symbols visible

HelaGuard PCSB-SM Swivel External Thread.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HF

RoHS

HelaGuard fitting, straight with swivel external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Thread (A/F2)	A/F Nut (A/F3)	Thread Length (TL)	Pack Cont.	Colour Article	-No.
PCSB12-SM-M16 12	M16 8.5 3	6.2 17 17	17 9.0 10 pcs.	Metal (ML)	166-33	900
PCSB12-SM-PG9 12	PG9 8.5 36	.2 17 17	17 9.0 10 pcs.	Metal (ML)	166-339	908
PCSB16-SM-M16 16	M16 11.5	38.1 20 20	20 10.0 10 pcs.	Metal (ML)	166-33901
PCSB16-SM-M20 16	M20 11.5	38.1 20 22	20 10.0 10 pcs.	Metal (ML)	166-33902
PCSB16-SM-PG11	16	PG11	11.5	38.1	20	20	20	10.0	10 pcs.	Metal (ML)	166-33909
PCSB20-SM-M20 20	M20 15.3	40.0 26 24	24 10.0 10 pcs.	Metal (ML)	166-33903
PCSB20-SM-PG16	20	PG16	15.3	40.0	26	24	24	10.0	10 pcs.	Metal (ML)	166-33910
PCSB25-SM-M25 25	M25 19.1	47.2 30 29	29 12.0 10 pcs.	Metal (ML)	166-33904
PCSB25-SM-PG21	25	PG21	19.1	47.2	30	29	29	12.0	10 pcs.	Metal (ML)	166-33911
PCSB32-SM-M32	32	M32	26.0	52.6	38	38	38	13.0	2 pcs.	Metal (ML)	166-33905
PCSB32-SM-PG29	32	PG29	26.0	52.6	38	38	38	13.0	2 pcs.	Metal (ML)	166-33912
PCSB40-SM-M40	40	M40	34.6	57.8	50	48	48	14.0	1 pcs.	Metal (ML)	166-33906
PCSB40-SM-PG36	40	PG36	34.6	57.8	50	48	48	14.0	1 pcs.	Metal (ML)	166-33913
PCSB50-SM-M50	50	M50	44.7	60.2	60	58	58	15.0	1 pcs.	Metal (ML)	166-33907
PCSB50-SM-PG42	50	PG42	44.7	60.2	60	58	58	15.0	1 pcs.	Metal (ML)	166-33914

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits with plastic coating and metallic overbraid

• PCSB-PC Plain Hole Connector, IP54

Plain hole connector, nickel plated brass.

Features and Benefits

• Two part fitting of shell and body without thread
• Acts as a locking device
• The body is fitted to the conduit through the opposite side of the entry
• Provides a smooth entry bush

Two metallic mechanical connectors shown from front and side views (no text or symbols visible)

HelaGuard PCSB-PC Plain Hole Connector.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HF

RoHS

HelaGuard fitting, plain hole connector

TYPE	Nominal	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Nut (A/F3)	Pack Cont. Colour	Article-No.
PCSB12-PC 12	8.5 18.0 17 17	10 pcs. Metal (ML)	166-34000
PCSB16-PC 16	11.5 18.0 20 20	10 pcs. Metal (ML)	166-34001
PCSB20-PC 20	15.3 21.0 24 26	10 pcs. Metal (ML)	166-34002
PCSB25-PC 25	19.1 23.5 29 30	10 pcs. Metal (ML)	166-34003
PCSB32-PC 32	26.0 26.3 38 38	2 pcs. Metal (ML)	166-34004
PCSB40-PC 40	34.6 28.8 48 50	1 pcs. Metal (ML)	166-34005
PCSB50-PC 50	44.7 33.0 58 60	1 pcs. Metal (ML)	166-34006

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MDQ) may differ from package content.

Fittings for metallic conduits with plastic coating and metallic overbraid

• PCSB-FMC Fixed Thread Compression Fitting, IP65

Fixed external thread, nickel plated brass.

Fulfils IP65.

Features and Benefits

• Multipart compression fitting including elastomeric seal
  • Braid is locked between inner and outer compression nuts
• Provides very good electrical continuity
  • Provides excellent tensile strength
• Can be used for knockouts or threaded entries as fitting rotates until tightened

Exploded view diagram of a multi-colored mechanical connector with no text or symbols

HelaGuard PCSB-FMC Fixed Compression Fitting.

MATERIAL	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	-40 °C to +135 °C

HF RoHS

HelaGuard compression fitting, straight with fixed external thread

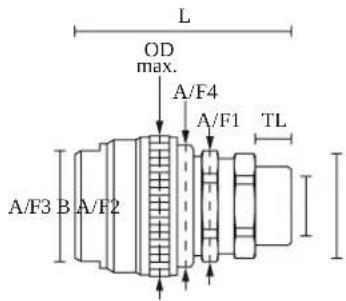

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	Outside max (OD max.)	A/F Body (A/F1)	A/F Nut (A/F3)	A/F Inner Nut (A/F4)	Thread Length (TL)	Pack Cont.	Colour Article-No.
PCSB16-FMC-M16	16 M16 11.5	47.0 32.6	24 24 2	6 12.0 10	pcs.						Metal (ML)	166-34100
PCSB16-FMC-M20	16 M20 11.5	49.0 32.6	24 24 2	6 14.0 10	pcs.						Metal (ML)	166-34101
PCSB16-FMC-PG11	16 PG11 11.5	47.0 32.6	6 24 24	26 12.0 10	pcs.						Metal (ML)	166-34105
PCSB20-FMC-M20	20 M20 15.3	51.0 35.6	26 28 2	9 14.0 10	pcs.						Metal (ML)	166-34102
PCSB20-FMC-PG16	20 PG16 15.3	51.0 35.6	6 26 28	29 14.0 10	pcs.						Metal (ML)	166-34106
PCSB25-FMC-M25	25 M25 19.1	58.0 41.8	33 34 3	6 15.0 10	pcs.						Metal (ML)	166-34103
PCSB25-FMC-PG21	25 PG21 19.1	58.0 41.8	33 34 3	36 15.0 10	pcs.						Metal (ML)	166-34107
PCSB32-FMC-M32	32 M32 26.0	63.0 48.6	40 41 4	2 16.0 2	pcs.						Metal (ML)	166-34104
PCSB32-FMC-PG29	32 PG29 26.0	63.0 48.6	40 41 4	2 16.0 2	pcs.						Metal (ML)	166-34108

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits with plastic coating and metallic overbraid

• PCSB-SMC Swivel Thread Compression Fitting, IP65

Swivel external thread, nickel plated brass.

Fulfils IP65.

Features and Benefits

• Multipart compression fitting including elastomeric seal
  • Braid is locked between inner and outer compression nuts
• Provides very good electrical continuity
  • Provides excellent tensile strength
• Can be used for knockouts or threaded entries as fitting rotates until tightened
  • External thread swivels about main body even after tightening

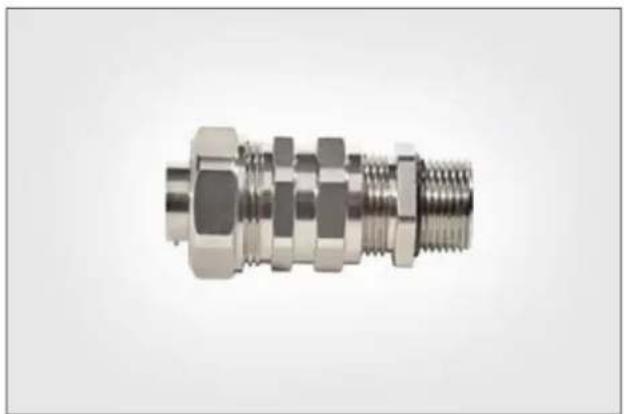

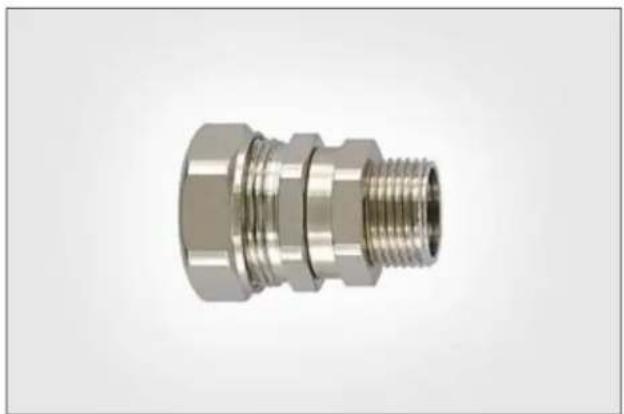

Metallic mechanical connector with threaded shaft and hexagonal end (no text or symbols visible)

HelaGuard PCSB-SMC Swivel Compression Fitting.

MATERIAL	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	40 °C to +135 °C

HF RoHS

HelaGuard compression fitting, straight with swivel external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	Outside max (OD max.)	A/F Body (A/F1)	A/F Thread (A/F2)	A/F Nut (A/F3)	A/F Inner Nut (A/F4)	Thread Length (TL)	Pack Cont.	Colour	Article-No.
PCSB16-SMC-M16	16 M1	6 11.5 55.0	0 32.6	24 20 24 26	10.0						10 pcs.	Metal (ML)	166-34200
PCSB16-SMC-M20	16 M2	0 11.5 55.0	0 32.6	24 24 24 26	10.0						10 pcs.	Metal (ML)	166-34201
PCSB20-SMC-M20	20 M2	0 15.3 57.0	0 35.6	26 26 28 29	10.0						10 pcs.	Metal (ML)	166-34202
PCSB25-SMC-M25	25 M2	5 19.1 65.0	0 41.8	33 33 34 36	12.0						10 pcs.	Metal (ML)	166-34203
PCSB32-SMC-M32	32 M3	2 26.0 71.0	0 48.6	40 40 41 42	13.0 2 pcs.							Metal (ML)	166-34204

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits with plastic coating and metallic overbraid

• PCSB-90FMC 90° Elbow Compression Fitting, IP65

External thread, nickel plated brass.

Fulfils IP65.

Features and Benefits

• Multipart 90^ compression fitting including elastomeric seal
• Braid is locked between inner and outer compression nuts
• Provides very good electrical continuity
• Provides excellent tensile strength

Close-up of a metallic U-bus connector with threaded end (no text or symbols visible)

HelaGuard PCSB-90FMC Swivel Compression Fitting.

MATERIAL	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	40 °C to +135 °C

HF RoHS

HelaGuard compression fitting, 90° with fixed external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	A/F Body (A/F1)	A/F Nut (A/F3)	A/F Inner Nut (A/F4)	Thread Length (TL)	Pack Cont.	Colour	Article-No.
PCSB16-90FMC-M16	16 M16 11.5	32.6 20	24 26 1	0.0 10 pcs.						Metal (ML)	166-34300
PCSB16-90FMC-M20	16 M20 11.5	32.6 24	24 26 1	3.0 10 pcs.						Metal (ML)	166-34301
PCSB20-90FMC-M20	20 M20 15.8	35.6 24	28 29 1	3.0 10 pcs.						Metal (ML)	166-34302
PCSB25-90FMC-M25	25 M25 19.1	41.8 30	34 36 1	4.0 10 pcs.						Metal (ML)	166-34303
PCSB32-90FMC-M32	32 M32 26.0	48.6 36	41 42 1	5.0 2 pcs.						Metal (ML)	166-34304

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Metallic conduits with metallic overbraid

• SCSB Galvanised Steel Conduit, Galvanised Steel Overbraid

Industrial environments and high temperatures.

Features and Benefits

• High compression, tensile and impact strength
• Highly resistant to abrasion
- Very flexible
- Provides EMC screening
• Highly resistant to hot metal swarf and splashes

Close-up of a metallic wire mesh with coiled leads, partially covered by golden fibers (no text or symbols visible)

HelaGuard SCSB galvanised steel conduit with galvanised steel overbraid is highly resistant to hot metal swarf and splashes.

Stainless steel and tinned copper braiding is also available.

MATERIAL	Galvanised Steel (GS)
Operating Temperature	-100 ^ to +300 ^

HF

RoHS

SCSB Metallic Conduit EMC Screening Performance

HelaGuard metallic conduit, metallic braid

TYPE	Nominal	Outside (OD)	Inside (ID)	Min. Bending Radius (R)	Weight(g/m)	Reel Length Colour Article-No.
SCSB12 12 1	1.0 10.2 30 232	25 m Metal (ML)	166-34400
SCSB16 16 1	7.5 13.0 40 298	25 m Metal (ML)	166-34401
SCSB20 20 2	1.5 16.9 45 446	25 m Metal (ML)	166-34402
SCSB25 25 2	6.0 21.1 55 503	25 m Metal (ML)	166-34403
SCSB32 32 3	4.0 28.1 70 702	25 m Metal (ML)	166-34404
SCSB40 40 4	3.5 37.6 80 1,08	6 10 m Metal (ML)	166-34405
SCSB50 50 5	6.0 48.4 90 1,27	0 10 m Metal (ML)	166-34406

All dimensions in mm. Subject to technical changes.

Other reel lengths available on request. Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits and metallic overbraid

• SCSB-FM Fixed External Thread

Fixed external thread, nickel plated brass.

Features and Benefits

• Two-part fitting of shell and body with external thread
• Provides tight, reliable hold of conduit
  • Can be secured with locknut

Two views of a metallic threaded connector with hexagonal flanges (no text or symbols visible)

HelaGuard SCSB-FM Fixed External Thread.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HelaGuard fitting, straight with fixed external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Nut (A/F3)	Thread Length (TL)	Pack Cont.	Colour Article	No.
SCSB12-FM-M16	12 M16 8.5	28.0 17 17	10.0 10 pcs.	Metal (ML)	166-34600
SCSB12-FM-PG9	12 PG9 8.5 28	28.0 17 17	10.0 10 pcs.	Metal (ML)	166-34607
SCSB16-FM-M16	15 M16 11.5	28.0 20 20	10.0 10 pcs.	Metal (ML)	166-34601
SCSB16-FM-M20	15 M20 11.5	28.0 22 20	10.0 10 pcs.	Metal (ML)	166-34602
SCSB16-FM-PG11	16	PG11	11.5	28.0	20	20	10.0	10 pcs.	Metal (ML)	166-34608
SCSB20-FM-M20	20 M20 15.3	30.8 24 26	10.0 10 pcs.	Metal (ML)	166-34603
SCSB20-FM-PG16	20	PG16	15.3	30.8	24	26	10.0	10 pcs.	Metal (ML)	166-34609
SCSB25-FM-M25	25 M25 19.1	32.5 29 29	10.0 10 pcs.	Metal (ML)	166-34604
SCSB25-FM-PG21	25	PG21	19.1	32.5	29	29	10.0	10 pcs.	Metal (ML)	166-34610
SCSB32-FM-M32	32	M32	26.0	39.3	36	38	13.0	2 pcs.	Metal (ML)	166-34605
SCSB32-FM-PG29	32	PG29	26.0	39.3	36	38	13.0	2 pcs.	Metal (ML)	166-34611
SCSB40-FM-M40	40	M40	34.6	42.8	48	48	14.0	1 pcs.	Metal (ML)	166-34606
SCSB40-FM-PG36	40	PG36	34.6	42.8	48	48	14.0	1 pcs.	Metal (ML)	166-34612

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits and metallic overbraid

• SCSB-SM Swivel External Thread

Swivel external thread, nickel plated brass.

Features and Benefits

• Two-part fitting of shell and body with external thread
  • External thread swivels about main body
• Provides tight, reliable hold of conduit
• Can be secured with locknut

Two views of a metallic mechanical connector, one showing internal structure and the other with threaded end (no text or symbols)

HelaGuard SCSB-SM Swivel External Thread.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HF

RoHS

HelaGuard fitting, straight with swivel external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Thread (A/F2)	A/F Nut (A/F3)	Thread Length (TL)	Pack Cont.	Colour Article	-No.
SCSB12-SM-M16 12	M16 8.5 36	2 17 17	17 9.0 10 pcs	Metal (ML)	166-347	00
SCSB12-SM-PG9 12	PG9 8.5 36	2 17 17	17 8.0 10 pcs.	Metal (ML)	166-347	07
SCSB16-SM-M16 16	M16 11.5	38.1 20 20	20 10.0 10 pcs.	Metal (ML)	166-347	01
SCSB16-SM-M20 16	M20 11.5	38.1 20 22	20 10.0 10 pcs.	Metal (ML)	166-347	02
SCSB16-SM-PG11	16	PG11	11.5	38.1	20	20	20	10.0	10 pcs.	Metal (ML)	166-34708
SCSB20-SM-M20	20	M20	15.3	40.0	26	24	24	10.0	10 pcs.	Metal (ML)	166-34703
SCSB20-SM-PG16	20	PG16	15.3	40.0	26	24	24	10.0	10 pcs.	Metal (ML)	166-34709
SCSB25-SM-M25	25	M25	19.1	47.2	29	29	29	12.0	10 pcs.	Metal (ML)	166-34704
SCSB25-SM-PG21	25	PG21	19.1	47.2	29	29	29	12.0	10 pcs.	Metal (ML)	166-34710
SCSB32-SM-M32	32	M32	26.0	52.6	38	38	38	13.0	2 pcs.	Metal (ML)	166-34705
SCSB32-SM-PG29	32	PG29	26.0	52.6	38	38	38	13.0	2 pcs.	Metal (ML)	166-34711
SCSB40-SM-M40	40	M40	34.6	57.8	48	48	48	14.0	1 pcs.	Metal (ML)	166-34706
SCSB40-SM-PG36	40	PG36	34.6	57.8	48	48	48	14.0	1 pcs.	Metal (ML)	166-34712

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for metallic conduits and metallic overbraid

• SCSB-PC Plain Hole Connector

Plain hole connector, nickel plated brass.

Features and Benefits

• Two part fitting of shell and body without thread
• Acts as a locking device
• The body is fitted to the conduit through the opposite side of the entry
• Provides a smooth entry bush

Two metallic mechanical connectors shown from different angles (no text or symbols visible)

HelaGuard SCSB-PC Plain Hole Connector.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 ^ to +300 ^

HF RoHS

HelaGuard fitting, plain hole connector

TYPE	Nominal	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Nut (A/F3)	Pack Cont. Colour Article-No.
SCSB12-PC 12	8.5 18.0 17 17	10 pcs. Metal (ML)	166-34800
SCSB16-PC 16	11.5 18.9 20 20	10 pcs. Metal (ML)	166-34801
SCSB20-PC 20	15.3 21.0 24 26	10 pcs. Metal (ML)	166-34802
SCSB25-PC 25	19.1 23.5 29 29	10 pcs. Metal (ML)	166-34803
SCSB32-PC 32	26.0 26.3 38 38	2 pcs. Metal (ML)	166-34804
SCSB40-PC 40	34.6 28.8 48 48	1 pcs. Metal (ML)	166-34805

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

We brought the first detectable metal content tie onto the market.

Collection of blue plastic cable connectors and accessories laid out on a white surface (no text or symbols visible)

Abstract curved metallic bands arranged in a row (no text or symbols)

Today we are leading the next generation of solutions for a highly automated, highly competitive food and beverage industry.

Find out more about our detectable products for food processing in our brochure.

Close-up of a blue plastic clamp securing an orange cylindrical rod (no text or symbols visible)

Order now!

Spiral-Reinforced Conduit Systems

3

Close-up of a metallic connector with blue and green wires, no visible text or symbols

3.1 Spiral-Reinforced Conduit Systems

Product Selection

HelaGuard Nomenclature for Spiral-Reinforced PVC Conduits 108

Spiral-Reinforced PVC Conduits

PSR smooth bore 109

PSRSC smooth bore, smooth cover 110

Product Selection

HelaGuard Nomenclature for Spiral-Reinforced PVC Fittings 111

Fittings for Spiral-Reinforced PVC Conduits

PSR-S fixed external thread 112

PSR-90 fixed external thread, 90° elbow 113

PSRSC-FMC IP68 compression fitting, fixed thread 114

PSRSC-SMC IP68 compression fitting, swivel thread 115

PSRSC-90FMC IP68 compression fitting, 90° elbow 116

PSRSC-FMCSS IP68 stainless steel compression fitting, fixed thread 117

PSRSC-90FMCSS IP68 stainless steel compression fitting, fixed thread, 90° elbow 118

PSRSC-FMCFFSS food-safety, stainless steel compression fitting, fixed thread 119

3.2 FlexiGuard Conduits & Fittings

FG PVC conduit, steel wire spiral-reinforced 120

FG IP54 fitting, swivel thread 121

FG IP54 fitting with mounting bracket 122

HelaGuard Nomenclature for Spiral-Reinforced PVC Conduits

Example:

PSR20

Conduit Type

PSR

PVC spiral reinforced PVC conduit, smooth bore

PSRSC

PVC spiral reinforced PVC conduit, smooth bore and smooth cover

CAD download

Spiral-reinforced PVC Conduits

- PSR Conduit

Machine building, plant construction, shipbuilding, automation, electrical installations

Features and Benefits

• Extremely flexible
• Withstands torsional movement
• Self-extinguishing
• Easy to feed cables into conduit
  • Can be used with PSR PA66 fittings
  • Colour: grey; black, green (oil resistant) or blue (high temperature resistant) upon request

Close-up of coiled metallic and threaded tubing with a hexagonal connector (no text or symbols visible)

PSR is extremely flexible and allows for easy insertion of cables.

One Step to the Web!

MATERIAL	Polyvinylchloride (PVC)
Operating Temperature	-20 °C to +70 °C
Flammability	self-extinguishing according to EN IEC 61386
Specifications UL-Recognised

RoHS

PSR conduit with higher resistance to oil (color: green) and temperature (colour: blue) available on request.

HelaGuard spiral reinforced conduit

TYPE	Nominal	Outside (OD)	Inside (ID)	Min. Bending Radius (R)	Weight(g/m)	Reel Length Colour Article-No.
PSR12 12 14	14.5 10 25 71 30	m Grey (GY) 166-40001
PSR16 16 16	16.5 12 25 76 30	m Grey (GY) 166-40002
PSR20 20 21	10.16 35 112 30	m Grey (GY) 166-40003
PSR25 25 27	17.5 22 45 153 30	m Grey (GY) 166-40004
PSR32 32 38	13.5 28 60 327 30	m Grey (GY) 166-40005
PSR40 40 41	10.35 80 448 30	m Grey (GY) 166-40006
PSR50 50 46	14.4 40 105 725 30	m Grey (GY) 166-40007
PSR63 63 57	17.0 50 120 948 30	m Grey (GY) 166-40008

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Spiral-reinforced PVC Conduits

- PSRSC Conduit

Machine building, plant construction, shipbuilding, automation, electrical installations

Features and Benefits

• Flexible
• Easy to clean outside surface
• Withstands some torsional movement
• Self-extinguishing
• Easy to feed cables
• Can be used with PSR PA66 fittings and PSRSC metal fittings
• Colour: grey; black, orange (highly flexible), green (oil resistant), blue (high temperature resistant) upon request

Close-up of a metallic pipe fitting with a blue and red connector, placed on a metal surface (no text or symbols visible)

PSRSC allows for easy insertion of cables and clearing of outside surface.

MATERIAL	Polyvinylchloride (PVC)
Operating Temperature	-5 °C to +70 °C
Flammability	self-extinguishing according to EN IEC 61386
Specifications EU 10/2011

RoHS

HelaGuard spiral-reinforced conduit, smooth outer coating

PSRSC conduit with higher flexibility (colour: orange), higher resistance to oil (colour: green) or to temperature (colour: blue) available on request.

TYPE	Nominal	Outside (OD)	Inside (ID)	Min. Bending Radius (R)	Weight(g/m)	Reel Length Colour Article-No.
PSRSC12 12 1	4.2 10.0 50 76 3	0 m Grey (GY)	166-40301
PSRSC16 16 1	7.8 12.0 50 139	30 m Grey (GY)	166-40302
PSRSC20 20 2	1.1 16.0 70 174	30 m Grey (GY)	166-40303
PSRSC25 25 2	5.4 21.0 90 235	30 m Grey (GY)	166-40304
PSRSC32 32 3	3.1 26.5 140 327	30 m Grey (GY)	166-40305
PSRSC40 40 4	1.8 35.4 190 448	30 m Grey (GY)	166-40306
PSRSC50 50 4	7.9 40.0 240 725	30 m Grey (GY)	166-40307
PSRSC63 63 5	9.7 51.3 270 948	30 m Grey (GY)	166-40308

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

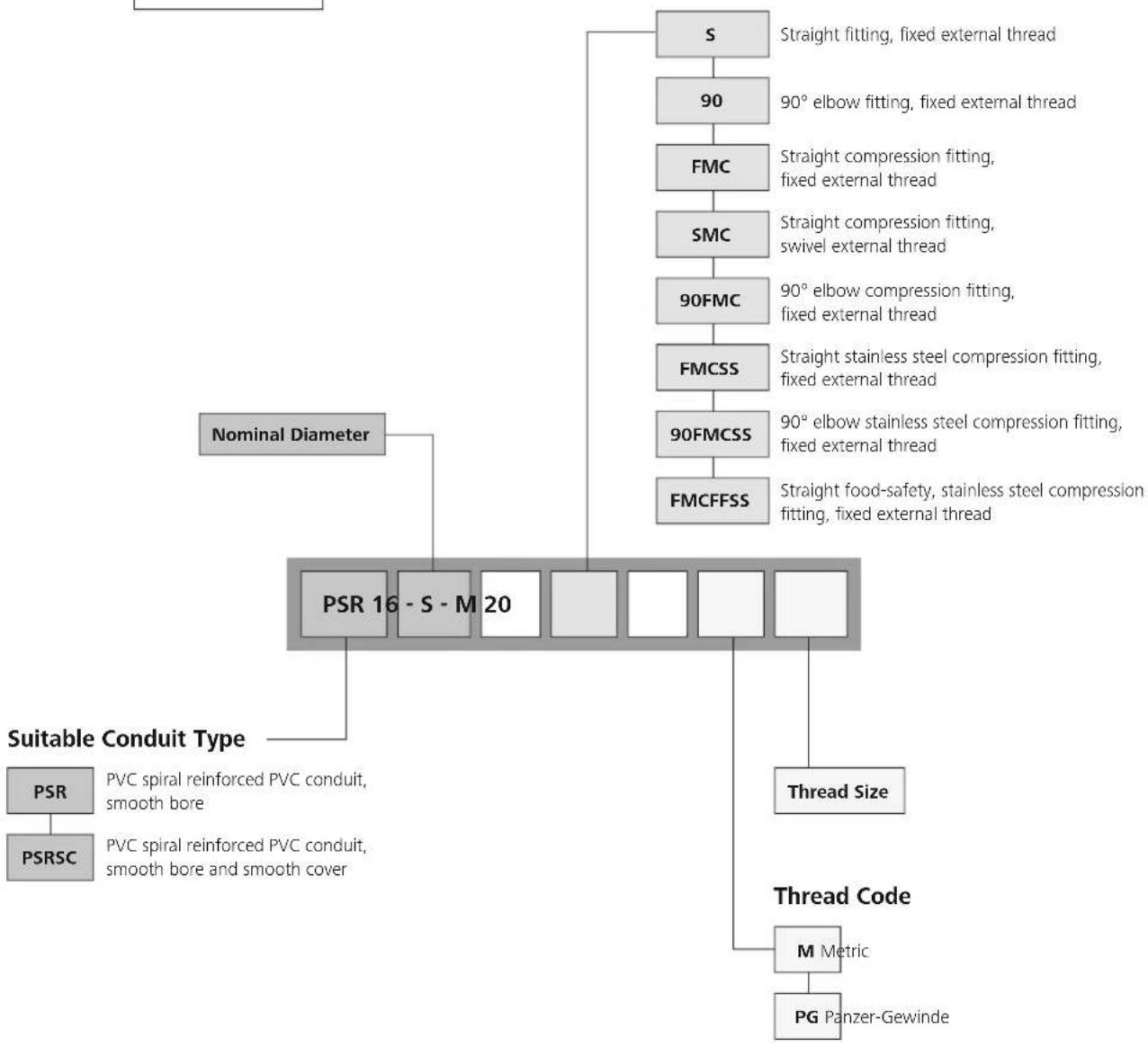

HelaGuard Nomenclature for Spiral-Reinforced PVC Fittings

Example:

PSR16-S-M20

Fitting Shape and Thread Type

CAD download

Fittings for spiral-reinforced PVC Conduits

- PSR-S Straight fitting

Straight PA66 fitting, fixed external thread.

Features and Benefits

• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Metric threads supplied with locknuts
• Fits both PSR and PSRSC conduits

Close-up of a gray plastic hose fitting with threaded end (no text or symbols visible)

PSR-S Straight.

MATERIAL	Polyamide 6.6 (PA66)
Operating Temperature	-50 °C to +135 °C
Flammability	UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, straight with fixed external thread

Fittings with PG-Thread and in 45° available on request.

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	A/F Body (A/F1)	Thread Length (TL)	Pack Cont.	Colour Article-No.
PSR12-S-M16	12 M16 9.0 24	38 23 11 10	pcs. Grey (GY)	166-40701
PSR16-S-M16	16 M16 10.5	28 40 25 11 10	0 pcs. Grey (GY)	166-40702
PSR16-S-M20	16 M20 10.5	28 41 25 14 10	0 pcs. Grey (GY)	166-40703
PSR20-S-M20	20 M20 14.5	33 43 30 14 10	0 pcs. Grey (GY)	166-40704
PSR25-S-M25	25 M25 19.0	42 45 37 15 10	0 pcs. Grey (GY)	166-40705
PSR32-S-M32	32 M32 24.5	48 48 45 16 10	0 pcs. Grey (GY)	166-40706
PSR40-S-M40	40 M40 33.0	60 59 60 16 2	pcs. Grey (GY)	166-40707
PSR50-S-M50	50 M50 39.0	64 55 60 16 2	pcs. Grey (GY)	166-40708
PSR63-S-M63	63 M63 48.0	76 56 73 16 1	pcs. Grey (GY)	166-40709

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for spiral-reinforced PVC Conduits

- PSR-90 90° elbow fitting

90° PA66 fitting, fixed external thread.

Features and Benefits

• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Metric threads supplied with locknuts
• Fits both PSR and PSRSC conduits

3D rendering of a pipe fitting with threaded end and flange (no text or symbols)

PSR-90 90° Elbow.

MATERIAL	Polyamide 6.6 (PA66)
Operating Temperature	-50 °C to +135 °C
Flammability UL94 V2
Specifications	UL-Recognised

HF RoHS

HelaGuard fitting, 90° with fixed external thread

Fittings with PG-Thread and in 45° available on request.

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Outside max (OD max.)	Length (L)	Face Diameter (FD)	Thread Length (TL)	Pack Cont. Article-No.
PSR16-90-M16	16 M16 10.5	28 49 22 11	10 pcs. 166-40	801
PSR16-90-M20	16 M20 10.5	28 51 27 13	10 pcs. 166-40	802
PSR20-90-M20	20 M20 14.5	33 52 27 13	10 pcs. 166-40	803
PSR25-90-M25	25 M25 19.0	42 63 33 15	10 pcs. 166-40	804
PSR32-90-M32	32 M32 24.5	48 74 40 16	2 pcs. 166-40	805
PSR40-90-M40	40 M40 33.0	60 113 50 16	2 pcs. 166-40	806

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for spiral-reinforced PVC Conduits

• PSRSC-FMC compression fitting

Straight fitting, fixed external thread, nickel plated brass.

Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.

Features and Benefits

• Multipart compression fitting including elastomeric seal
• Can be used for knockouts or threaded entries as fitting rotates until tightened
  • Fits PSRSC conduits

Close-up of a metallic threaded connector with blue and metallic housing (no text or symbols visible)

HelaGuard PSRSC-FMC Compression Fitting.

MATERIAL	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	-40 °C to +135 °C

HF RoHS

HelaGuard compression fitting, straight with fixed external thread

PSRSC-FMC-Fittings with PG-Thread available on request.

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Nut (A/F3)	Thread Length (TL)	Pack Cont.	Colour Article	No.
PSRSC12-FMC-M16	12 M16 8.6	29.8 20 22	10.0 10 pcs.	Metal (ML)	166-41001
PSRSC16-FMC-M16	16 M16 10.7	33.0 24	26 12.0 10 pcs.	Metal (ML)	166-41002
PSRSC16-FMC-M20	16 M20 10.7	33.0 24	26 12.0 10 pcs.	Metal (ML)	166-41003
PSRSC20-FMC-M20	20 M20 14.5	33.5 26	29 12.0 10 pcs.	Metal (ML)	166-41004
PSRSC25-FMC-M25	25 M25 18.0	40.5 33	35 14.0 10 pcs.	Metal (ML)	166-41005
PSRSC32-FMC-M32	32 M32 24.6	45.8 40	42 15.0 2 pcs.	Metal (ML)	166-41006
PSRSC40-FMC-M40	40 M40 32.7	47.5 50	52 16.0 1 pcs.	Metal (ML)	166-41007
PSRSC50-FMC-M50	50 M50 37.7	51.0 58	58 16.0 1 pcs.	Metal (ML)	166-41008
PSRSC63-FMC-M63	63 M63 49.0	58.8 70	70 20.0 1 pcs.	Metal (ML)	166-41009

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MDQ) may differ from package content.

Fittings for spiral-reinforced PVC Conduits

• PSRSC-SMC swivel compression fitting

Straight fitting, swivel external thread, nickel plated brass. Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.

Features and Benefits

• Multipart compression fitting including elastomeric seal
• Can be used for knockouts or threaded entries as fitting rotates until tightened
  • Fits PSRSC conduits

Metallic threaded connector component (no text or symbols visible)

HelaGuard PSRSC-SMC Swivel Compression Fitting.

MATERIAL	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	40 °C to +135 °C

HF RoHS

HelaGuard compression fitting, straight with swivel external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Thread (A/F2)	A/F Nut (A/F3)	Thread Length (TL)	Pack Cont.	Colour Article	No.
PSRSC16-SMC-M16	16 M16 10.7	40.9 24	24 26 10.0 10	pcs. Metal (ML) 16	6-41101
PSRSC16-SMC-M20	16 M20 10.7	41.0 24	24 26 10.0 10	pcs. Metal (ML) 16	6-41102
PSRSC20-SMC-M20	20 M20 14.5	41.8 26	26 29 10.0 10	pcs. Metal (ML) 16	6-41103
PSRSC25-SMC-M25	25 M25 18.0	50.7 33	29 35 12.0 10	pcs. Metal (ML) 16	6-41104
PSRSC32-SMC-M32	32 M32 24.6	56.9 40	38 42 13.0 2	pcs. Metal (ML) 16	6-41105

All dimensions in mm. Subject to technical changes. Minimum Order Quantity (MOQ) may differ from package content.

Fittings for spiral-reinforced PVC Conduits

• PSRSC-90FMC 90° compression fitting

90° fitting, fixed external thread, nickel plated brass.

Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.

Features and Benefits

• Multipart 90^ compression fitting including elastomeric
• Can be used for knockouts or threaded entries as fitting rotates until tightened
  • Fits PSRSC conduits

Metal pipe fitting with threaded end and hexagonal head (no text or symbols)

HelaGuard PSRSC-90FMC 90° Elbow Compression Fitting.

MATERIAL	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature	-40 °C to +135 °C

HF RoHS

HelaGuard compression fitting, 90° with fixed external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	A/F Body (A/F1)	A/F Nut (A/F3)	Thread Length (TL)	Pack Cont.	Colour Article	-No.
PSRSC12-90FMC-M16	12 M16 8.6	20 22 10.0	10 pcs. Metal (ML)	166-412	201
PSRSC16-90FMC-M16	16 M16 10.7	20 26 10.0	10 pcs. Metal	(ML) 166-41	202
PSRSC16-90FMC-M20	16 M20 10.7	24 26 13.0	10 pcs. Metal	(ML) 166-41	203
PSRSC20-90FMC-M20	20 M20 14.5	24 29 13.0	10 pcs. Metal	(ML) 166-41	204
PSRSC25-90FMC-M25	25 M25 18.0	30 35 14.0	10 pcs. Metal	(ML) 166-41	205
PSRSC32-90FMC-M32	32 M32 24.6	36 42 15.0	2 pcs. Metal (ML)	166-412	206
PSRSC40-90FMC-M40	40 M40 32.7	46 52 18.0	1 pcs. Metal (ML)	166-412	207
PSRSC50-90FMC-M50	50 M50 37.7	57 58 18.0	1 pcs. Metal (ML)	166-412	208
PSRSC63-90FMC-M63	63 M63 49.0	72 70 20.0	1 pcs. Metal (ML)	166-412	209

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for spiral-reinforced PVC Conduits

• PSRSC-FMCSS compression fitting

Straight fitting, external thread, stainless steel (SS316).

Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.

Features and Benefits

• Multipart stainless steel (SS316) compression fitting including elastomeric seal
• Can be used for knockouts or threaded entries as fitting rotates until tightened
  • Fits PSRSC conduits

Close-up of a metallic threaded connector component (no text or symbols visible)

PSRSC-FMCSS Straight Compression Fitting.

MATERIAL	Stainless Steel (SS316), Polyamide 6 (PA6)
Operating Temperature	40 °C to +135 °C

HF RoHS

HelaGuard compression fitting, straight with fixed external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Nut (A/F3)	Thread Length (TL)	Pack Cont.	Colour Article	e-No.
PSRSC16-FMCSS-M16	16 M16 10.7	33.0 24 2	6 12.0 1 pcs.	Metal (ML)	166-41301
PSRSC16-FMCSS-M20	16 M20 10.7	33.0 24 2	6 12.0 1 pcs.	Metal (ML)	166-41302
PSRSC20-FMCSS-M20	20 M20 14.5	33.5 26 2	9 12.0 1 pcs.	Metal (ML)	166-41303
PSRSC25-FMCSS-M25	25 M25 18.0	40.5 33 3	5 14.0 1 pcs.	Metal (ML)	166-41304
PSRSC32-FMCSS-M32	32 M32 24.6	45.8 40 4	2 15.0 1 pcs.	Metal (ML)	166-41305

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content

Fittings for spiral-reinforced PVC Conduits

• PSRSC-90FMCSS 90° compression fitting

90° fitting, fixed external thread, stainless steel (SS316).

Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.

Features and Benefits

• Multipart 90° stainless steel (SS316) compression fitting including elastomeric seal
• Can be used for knockouts or threaded entries as fitting rotates until tightened
  • Fits PSRSC conduits

Metal pipe fitting with threaded end and hexagonal head (no text or symbols)

HelaGuard PSRSC-90FMCSS 90° Elbow Compression Fitting.

MATERIAL	Stainless Steel (SS316), Polyamide 6 (PA6)
Operating Temperature	-40 ^ to +135 ^

HF RoHS

HelaGuard compression fitting, 90° with fixed external thread

TYPE	Nominal	Thread Size	Min. Bore Size (B)	A/F Body (A/F1)	A/F Nut (A/F3)	Thread Length (TL)	Pack Cont.	Colour Article	e-No.
PSRSC16-90FMCSS-M20	16 M20 10.7	24 26 13	0 1 pcs. Metal (ML)	166-41401
PSRSC20-90FMCSS-M20	20 M20 14.5	24 29 13	0 1 pcs. Metal (ML)	166-41402
PSRSC25-90FMCSS-M25	25 M25 18.0	30 35 14	0 1 pcs. Metal (ML)	166-41403
PSRSC32-90FMCSS-M32	32 M32 24.6	36 42 15	0 1 pcs. Metal (ML)	166-41404

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Fittings for spiral-reinforced PVC conduits

• PSRSC-FMCFFSS compression fitting for food-processing applications

Straight fitting, external thread, stainless steel (SS316).

Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.

Features and Benefits

• Multipart stainless steel (SS316) compression fitting including elastomeric seal
• Rounded edges, smooth surfaces and no crevices where food or other substances can collect or bacteria grow
• Can be used for knockouts or threaded entries as fitting rotates until tightened
• Fits PSRSC conduits

Metal mechanical connector with threaded shaft and hexagonal end (no text or symbols visible)

HelaGuard PSRSC-FMCFFSS stainless steel fittings for applications in the food-processing industry.

MATERIAL	Stainless Steel (SS316),Nickel Plated Brass (NPB),Polyamide 6 (PA6)
Operating Temperature	-50 °C to +135 °C
Specifications EN 1672-2,	EN ISO 14155

HelaGuard compression fitting, straight with fixed external thread

RoHS

TYPE	Nominal	Thread Size	Min. Bore Size (B)	Length (L)	A/F Body (A/F1)	A/F Nut (A/F3)	Thread Length (TL)	Pack Cont.	Colour Article-No.
PSRSC16-FMCFFSS-M16	16 M16 10.7	46.0 27 29	12.0 1 pcs.	Metal (ML)	166-41601
PSRSC20-FMCFFSS-M20	20 M20 14.5	49.3 30 32	12.0 1 pcs.	Metal (ML)	166-41602
PSRSC25-FMCFFSS-M25	25 M25 18.7	53.7 36 38	14.0 1 pcs.	Metal (ML)	166-41603
PSRSC32-FMCFFSS-M32	32 M32 24.6	53.7 42 45	15.0 1 pcs.	Metal (ML)	166-41604
PSRSC40-FMCFFSS-M40	40 M40 32.7	58.4 52 55	16.0 1 pcs.	Metal (ML)	166-41605
PSRSC50-FMCFFSS-M50	50 M50 37.7	63.0 59 62	16.0 1 pcs.	Metal (ML)	166-41606

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

FlexiGuard Conduits & Fittings

• FlexiGuard PVC Protective Conduits

FlexiGuard protective hoses are used to protect cables in machines and plant construction, and robotics as well as leads to switch cabinets.

Features and Benefits

• Extremely flexible
  • Excellent mechanical protection
  • Good resistance to oils, acids and alkalis
  • Good resistance to chemicals
  • Good resistance to UV and ozone

Close-up of coiled industrial hoses with a metallic connector, displayed on a reflective surface (no text or symbols visible)

FlexiGuard FG with FG-UH fitting.

MATERIAL	Flexible Polyvinyl Chloride, cadmium free (PVC), Steel (ST)
Operating Temperature	20 °C to +70 °C, (+80 °C, 200 h)
Flammability UL94 HB

RoHS

FlexiGuard

TYPE ø D		Outsideø (OD)	Min. BendingRadius (R)	ReelLength Colour	Article-No.
FG14 10.0 14.0 14	10 m Grey (GY) 167-00209
FG17 13.0 17.0 17	10 m Grey (GY) 167-00211
FG19 15.0 19.0 19	10 m Grey (GY) 167-00213
FG21 16.0 21.0 21	10 m Grey (GY) 167-00216
FG27 21.0 27.0 27	10 m Grey (GY) 167-00221
FG36 30.0 36.0 36	10 m Grey (GY) 167-00229
FG45 38.0 45.0 45	10 m Grey (GY) 167-00236
FG56 48.0 56.0 56	10 m Grey (GY) 167-00248

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

FlexiGuard Conduits & Fittings

• FG-M Fittings

The TV fittings and TH fasteners are used to protect against dust and moisture, for instance outdoors or wherever dust and moisture are a particular hazard.

Features and Benefits

• One piece, easy fit
- Swivel thread
• Vibration and tension resistant
- Large bore size
• Inner ferrule protects cables
• Good resistance to chemicals
• Good resistance to UV and ozone

Close-up of a gray plastic connector with hexagonal end caps and internal ridges (no text or symbols visible)

FG conduit fitting.

MATERIAL	Polypropylene (PP)
Operating Temperature	-35 °C to +80 °C
Flammability UL94 V2

HF RoHS

FlexiGuard fitting, straight with swivel thread

TYPE	For Hose Outer ∅ D	Thread Size	Min. Bore Size (B)	Length (L)	A/F Thread (A/F2) Colour	Article-No.
FG14-M16 14 M	16 8.8 42.0 20 Grey (GY) 167-00530
FG14-PG9 14	PG9 8.8 42.0 20 Grey (GY) 167-00510
FG17-M20 17 M	20 11.1	45.5 24 Grey (GY) 167-00531
FG17-PG11	17	PG11	11.1	45.5	24	Grey (GY)	167-00511
FG19-PG13	19	PG13	13.0	47.5	27	Grey (GY)	167-00512
FG21-M25 21 M	25 14.8	49.8 30 Grey (GY) 167-00533
FG21-PG16	21	PG16	14.8	49.8	30	Grey (GY)	167-00513
FG27-M32 27 M	32 19.4	52.0 36 Grey (GY) 167-00534
FG27-PG21	27	PG21	19.4	52.0	36	Grey (GY)	167-00514
FG36-M40 36 M	40 27.9	55.0 46 Grey (GY) 167-00535
FG36-PG29	36	PG29	27.9	55.0	46	Grey (GY)	167-00515
FG45-M50 45 M	50 35.6	58.0 55 Grey (GY) 167-00536
FG45-PG36	45	PG36	35.6	58.0	55	Grey (GY)	167-00516
FG56-M63 56 M	63 45.9	60.5 65 Grey (GY) 167-00537
FG56-PG48	56	PG48	45.9	60.5	65	Grey (GY)	167-00517

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

FlexiGuard Conduits & Fittings

• FG-UH Fittings with Bracket

The fittings are used to fix Flexiguard hoses securely and to protect against dust or liquids.

Features and Benefits

• One piece, easy fit
- Swivel bracket
• Vibration and tension resistant
- Large bore size
• Inner ferrule protects cables
• Good resistance to chemicals
• Good resistance to UV and ozone

3D rendered image of a gray plastic mechanical component with a flanged base and mounting bracket (no text or symbols visible)

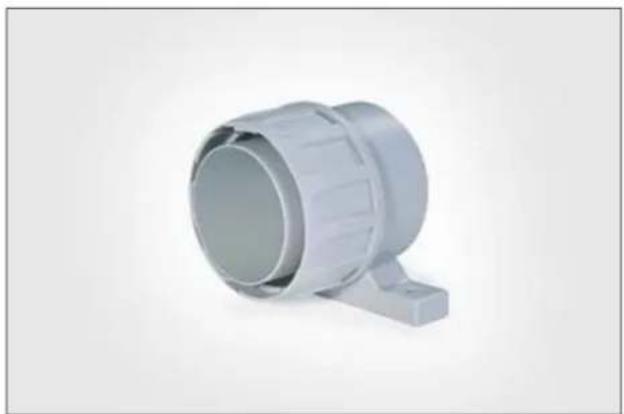

FG-UH fitting with bracket.

MATERIAL	Polypropylene (PP)
Operating Temperature	-35 °C to +80 °C
Flammability UL94 V2

HF RoHS

FlexiGuard fitting, straight with bracket

TYPE	For Hose Outer ∅ D	Min. Bore Size (B)	Length (L)	Width (W)	Height (H)	Hole ∅ (FH)	Fixing Hole Centres (F)	Colour Article-No.
FG14-UH 14	8.8 42.0 10.0	40.0 5.7 29.0	Grey (GY) 167-00520
FG17-UH 17	11.1 45.5 12.0	50.0 5.7 37	0 Grey (GY) 167-00521
FG19-UH 19	13.0 47.5 12.0	50.0 5.7 37	0 Grey (GY) 167-00522
FG21-UH 21	14.8 49.8 12.0	50.0 5.7 37	0 Grey (GY) 167-00523
FG27-UH 27	19.4 52.0 12.5	57.0 5.7 43	0 Grey (GY) 167-00524
FG36-UH 36	27.9 55.0 13.0	67.0 6.7 53	0 Grey (GY) 167-00525
FG45-UH 45	35.6 58.0 14.0	80.0 6.7 65	0 Grey (GY) 167-00526
FG56-UH 56	45.9 60.5 16.5	93.0 6.7 76	0 Grey (GY) 167-00527

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

Assorted metal mechanical components laid out on a plastic sheet, including ring, nuts, and washers (no text or symbols visible)

4.1 Conduit System Accessories

HelaGuard Accessories
Conduit Clips	PACC for corrugated conduits 124
	AFCP for rigid conduits 125
	AFCS plated steel and PVC liner 126
	AFCSS stainless metallic 127
A90FM 90 ^a elbow 128
ACP coupler 129
Locknuts	ALNPB, nickel plated brass 130
	ALSS plated steel 131
	ALSS stainless steel 132
	ALPA PA66 133
Washers	AWS chloroprene 134
	AFWS vulcanised fibre 135

CNV converters 136
PAEC end caps 138
ConClamp conduit clamp	139
ConCutter conduit cutter	139

HelaGuard Accessories

• PACC Clip for Corrugated Conduits

Features and Benefits

• Easy and quick assembly with non-metallic conduits
• Lid is integrated
  • Hole for fastening with screw
  • Inner rib prevents conduit from slipping
  • Can be used in C-shaped DIN rails

One Step to the Web!

Two black plastic pipe fittings with curved and rectangular end caps, displayed against a plain background (no text or symbols visible)

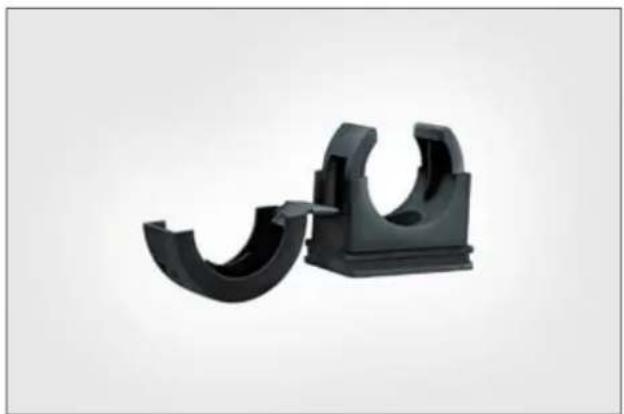

HelaGuard PACC Conduit Clip.

MATERIAL	Polyamide 6.6 (PA66)
Operating Temperature	-50 °C to +135 °C
Flammability UL94 V2

HF RoHS

HelaGuard conduit clip, side views

HelaGuard conduit clip, top view

TYPE	Nominal	Height(H)	Width(W)	Length(L)	Hole (FH)	PackCont. Colour Article-No.
PACC10 10 26	12 23 M5 10 pcs.	Black (BK) 166-25707
PACC13 13 26	12 23 M5 10 pcs.	Black (BK) 166-25700
PACC16 16 30	12 26 M5 10 pcs.	Black (BK) 166-25701
PACC21 21 36	15 32 M6 10 pcs.	Black (BK) 166-25702
PACC28 28 45	15 41 M6 10 pcs.	Black (BK) 166-25703
PACC34 34 51	15 48 M6 10 pcs.	Black (BK) 166-25704
PACC42 42 60	15 57 M6 5 pcs.	Black (BK) 166-25705
PACC54 54 72	15 70 M6 5 pcs.	Black (BK) 166-25706

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

HelaGuard Accessories

• AFCP Clip for Rigid Conduits

Features and Benefits

• Easy and quick assembly with metallic conduits
• Lid is integrated
  • Hole for fastening with screw
  • Can be used in C-shaped DIN rails

Two black plastic pipe fittings with curved and flat ends, displayed against a plain background (no text or symbols)

HelaGuard AFCP Conduit Clip.

MATERIAL	Polyamide 6.6 (PA66)
Operating Temperature	-50 °C to +135 °C
Flammability UL94 V2

HF RoHS

HelaGuard conduit clip, side views

HelaGuard conduit clip, top view

TYPE	Nominal	Height(H)	Width(W)	Length(L)	Hole (FH)	PackCont. Colour Article-No.
AFCP16 16 30	12 26 M5 10 pcs.	Black (BK) 166-50700
AFCP20 20 36	15 32 M6 10 pcs.	Black (BK) 166-50701
AFCP25 25 45	15 41 M6 10 pcs.	Black (BK) 166-50702
AFCP33 32 51	15 48 M6 10 pcs.	Black (BK) 166-50703

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

CAD download

HelaGuard Accessories

• AFCS Fixing Clip, Plated Steel and PVC Liner

The AFCS P-clip is used to secure metallic conduits.

Close-up of a metallic and black plastic cable clamp with a circular end cap (no text or symbols visible)

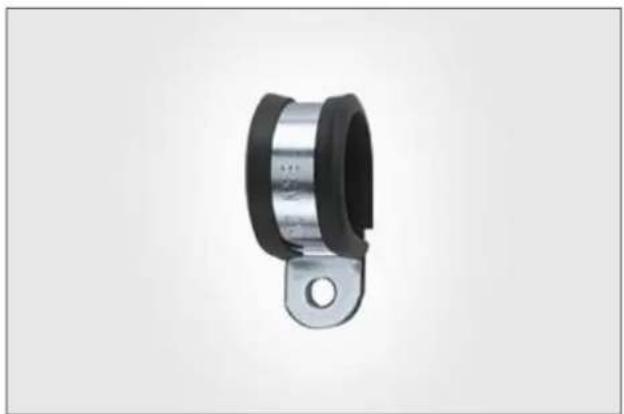

HelaGuard AFCS Fixing Clip, Stainless Steel and PVC Liner.

MATERIAL	Galvanised Steel (GS), Polyvinylchloride (PVC)
Operating Temperature	-20 °C to +105 °C

RoHS

HelaGuard fixing clip, side view

HelaGuard fixing clip, top view

TYPE	Nominal	Inside (ID)	Width(W)	Width(W2)	Hole (FH)	PackCont. Colour Article-No.
AFCS10 10	11.0 12.7 17.4 5	1 10 pcs. Metal (ML), Black (BK) 166-50600
AFCS12 12	14.0 12.7 17.4 5	1 10 pcs. Metal (ML), Black (BK) 166-50601
AFCS16 16	17.0 12.7 17.4 5	1 10 pcs. Metal (ML), Black (BK) 166-50602
AFCS20 20	21.0 12.7 17.4 5	1 10 pcs. Metal (ML), Black (BK) 166-50603
AFCS25 25	25.0 12.7 17.4 5	1 10 pcs. Metal (ML), Black (BK) 166-50604
AFCS32 32	34.0 12.7 17.4 5	1 10 pcs. Metal (ML), Black (BK) 166-50605
AFCS40 40	44.0 25.4 30.5 1	4.2 x 17.5 5	pcs. Metal (ML), Black (BK) 166-50606
AFCS50 50	54.0 25.4 30.5 1	4.2 x 17.5 5	pcs. Metal (ML), Black (BK) 166-50607
AFCS63 63	70.0 25.4 30.5 1	4.2 x 17.5 1	pcs. Metal (ML), Black (BK) 166-50608
AFCS75 75	76.2 25.4 30.5 1	4.2 x 17.5 1	pcs. Metal (ML), Black (BK) 166-50609

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MDQ) may differ from package content.

HelaGuard Accessories

• AFCSS Fixing Clip, Stainless Steel

The AFCSS P-clip is used to secure metallic conduits.

Metallic metal bracket with a circular end and mounting hole (no text or symbols visible)

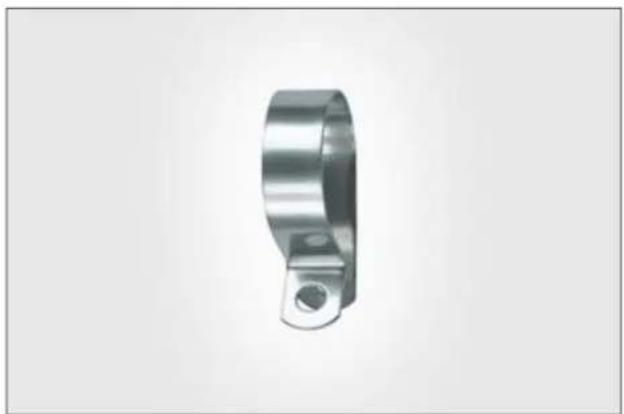

HelaGuard AFCSS Fixing Clip, Stainless Steel.

MATERIAL	Stainless Steel (SS316)
Operating Temperature	+100 ^ to +400 ^

HF RoHS

Pure geometric shape with a curved line and a small protrusion, labeled 'ID' on the left side (no text or symbols within the shape)

HelaGuard fixing clip, side view

HelaGuard fixing clip, top view

TYPE	Nominal	Inside (ID)	Width(W)	Hole (FH)	PackCont. Colour Article-No.
AFCSS10 10 9.5	11.1 5.1 10 pcs. Metal (ML) 166-50610
AFCSS12 12 13.0	11.1 5.1 10 pcs. Metal (ML) 166-50611
AFCSS16 16 16.0	11.1 5.1 10 pcs. Metal (ML) 166-50612
AFCSS20 20 20.5	11.1 5.1 10 pcs. Metal (ML) 166-50613
AFCSS25 25 25.0	11.1 5.1 10 pcs. Metal (ML) 166-50614
AFCSS32 32 32.0	11.1 5.1 10 pcs. Metal (ML) 166-50615
AFCSS40 40 42.5	12.7 7.1 5 pcs. Metal (ML) 166-50616
AFCSS50 50 53.0	12.7 7.1 5 pcs. Metal (ML) 166-50617

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

HelaGuard Accessories

• A90FM 90° Elbow

Internal and external thread, nickel plated brass.

Features and Benefits

• IP68 when used with sealing washers

Metal pipe fitting with threaded end and flange (no text or symbols visible)

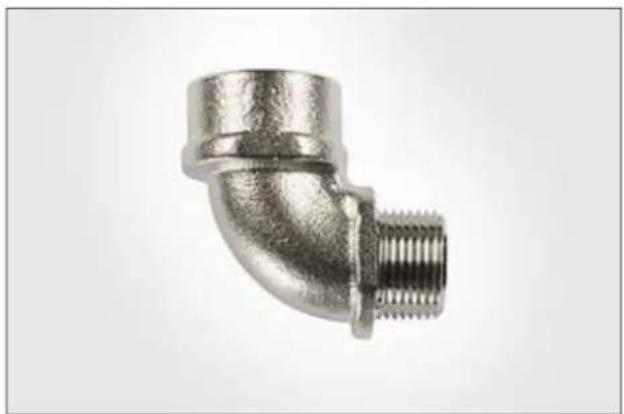

HelaGuard A90FM 90° Elbow.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HF

RoHS

HelaGuard 90° threaded elbow

TYPE	External Thread Size (metric)	Internal Thread Size (metric)	Min. Bore Size (B)	Height (H)	Width (W)	External Thread Length (ETL)	Internal Thread Length (ITL)	Pack Cont.	Colour Article-No.
A90FM-M16	M16 M16 12.0 3	8.0 31.0 10 11	10 pcs. Metal (ML)	166-50001
A90FM-M20	M20 M20 15.8 4	6.0 35.0 13 13	10 pcs. Metal (ML)	166-50002
A90FM-M25	M25 M25 20.4 5	5.8 43.8 14 16	10 pcs. Metal (ML)	166-50003
A90FM-M32	M32 M32 27.0 6	6.6 53.6 15 16	2 pcs. Metal (ML)	166-50004
A90FM-M40	M40 M40 34.6 8	0.4 67.0 18 17	1 pcs. Metal (ML)	166-50005
A90FM-M50	M50 M50 44.6 9	9.0 80.5 18 18	1 pcs. Metal (ML)	166-50006

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content

HelaGuard Accessories

- ACP Couplers

Internally threaded, nickel plated brass.

Features and Benefits

- Can be used to convert from external to internal thread

Metal mechanical connector component (no text or symbols visible)

HelaGuard ACP Couplers.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	+100 ^ to +300 ^

HelaGuard threaded coupler

TYPE	Thread Size	Length (L)	A/F Body (A/F1)	Across Corners (A/C)	Pack Cont. Colour Article-No.
ACP-M16 M16 22.5 20 22 10 pcs. Metal (ML) 166-50400
ACP-M20 M20 25.0 24 27 10 pcs. Metal (ML) 166-50401
ACP-M25 M25 30.0 29 32 10 pcs. Metal (ML) 166-50402
ACP-M32 M32 32.5 35 39 10 pcs. Metal (ML) 166-50403
ACP-M40 M40 34.0 48 53 2 pcs. Metal (ML) 166-50404
ACP-M50 M50 38.0 58 64 1 pcs. Metal (ML) 166-50405
ACP-M63 M63 45.0 70 77 1 pcs. Metal (ML) 166-50406
ACP-M75 M75 45.0 84 93 1 pcs. Metal (ML) 166-50407

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

HelaGuard Accessories

• ALNPB Nickel Plated Brass Locknuts

The ALNPB hexagonal locknut is used to secure fitting.

Close-up of a metallic hexagonal nut with a central bore (no text or symbols visible)

HelaGuard ALNPB Nickel Plated Brass Locknuts.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HF

RoHS

HelaGuard locknut

TYPE	Thread Size	A/F Nut (A/F3)	Across Corners (A/C)	Thickness (T)	Pack Cont. Colour Article-No.
ALNPB-M12 M12	15 17 3.5 10 pcs.	Metal (ML) 166-50100
ALNPB-M16 M16	20 23 3.5 10 pcs.	Metal (ML) 166-50101
ALNPB-M20 M20	24 28 3.5 10 pcs.	Metal (ML) 166-50102
ALNPB-M25 M25	29 33 3.5 10 pcs.	Metal (ML) 166-50103
ALNPB-M32 M32	38 43 4.5 2 pcs.	Metal (ML) 166-50104
ALNPB-M40 M40	48 54 5.0 1 pcs.	Metal (ML) 166-50105
ALNPB-M50 M50	58 66 6.0 1 pcs.	Metal (ML) 166-50106
ALNPB-M63 M63	70 79 6.5 1 pcs.	Metal (ML) 166-50107
ALNPB-M75 M75	84 94 7.0 1 pcs.	Metal (ML) 166-50108
ALNPB-PG7 PG7	15 17 2.8 10 pcs.	Metal (ML) 166-50109
ALNPB-PG9 PG9	20 23 3.5 10 pcs.	Metal (ML) 166-50110
ALNPB-PG11 PG1	1 22 25 3.5 10 pcs.	Metal (ML) 166-50111
ALNPB-PG13	PG13.5	24	28	3.5	10 pcs.	Metal (ML) 166-50112
ALNPB-PG16 PG1	6 26 30 3.6 10 pcs.	Metal (ML) 166-50113
ALNPB-PG21 PG21	33 37 3.7 10 pcs.	Metal (ML) 166-50114
ALNPB-PG29 PG29	42 46 4.0 1 pcs.	Metal (ML) 166-50115
ALNPB-PG36 PG36	52 57 5.0 1 pcs.	Metal (ML) 166-50116
ALNPB-PG42 PG42	60 65 5.0 1 pcs.	Metal (ML) 166-50117
ALNPB-PG48 PG48	64 70 5.0 1 pcs.	Metal (ML) 166-50118

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

HelaGuard Accessories

• ALS Plated Steel Locknuts

The ALS hexagonal locknut is used to secure fitting.

Close-up of a metallic hexagonal nut with a central bore (no text or symbols visible)

HelaGuard ALS Plated Steel Locknuts.

MATERIAL	Galvanised Steel (GS)
Operating Temperature	-100 ^ to +300 ^

HelaGuard locknut

TYPE	Thread Size	A/F Nut (A/F3)	Across Corners (A/C)	Thickness (T)	Pack Cont. Colour	Article-No.
ALS-M16 M16 24	27 3 10 pcs. Metal	(ML) 166-50119
ALS-M20 M20 25	28 3 10 pcs. Metal	(ML) 166-50120
ALS-M25 M25 33	38 3 10 pcs. Metal	(ML) 166-50121
ALS-M32 M32 41	47 3 2 pcs. Metal	(ML) 166-50122
ALS-M40 M40 50	58 4 1 pcs. Metal	(ML) 166-50123
ALS-M50 M50 63	72 4 1 pcs. Metal	(ML) 166-50124
ALS-M63 M63 80	92 5 1 pcs. Metal	(ML) 166-50125

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

HelaGuard Accessories

• ALSS Stainless Steel Locknuts

The ALSS hexagonal locknut is used to secure fitting.

Close-up of a metallic hexagonal bolt head with central bore (no text or symbols visible)

HelaGuard ALSS Stainless Steel Locknuts.

MATERIAL	Stainless Steel (SS316)
Operating Temperature	-100 ^ to +400 ^

HF RoHS

HelaGuard locknut

TYPE	Thread Size	A/F Nut (A/F3)	Across Corners (A/C)	Thickness (T)	Pack Cont. Colour	Article-No.
ALSS-M16 M16 20	23 3.5 10 pcs.	Metal (ML) 166-50126
ALSS-M20 M20 24	28 3.5 10 pcs.	Metal (ML) 166-50127
ALSS-M25 M25 30	34 3.5 10 pcs.	Metal (ML) 166-50128
ALSS-M32 M32 38	43 4.5 2 pcs.	Metal (ML) 166-50129
ALSS-M40 M40 48	53 5.0 1 pcs.	Metal (ML) 166-50130
ALSS-M50 M50 60	65 6.0 1 pcs.	Metal (ML) 166-50131
ALSS-M63 M63 70	76 6.5 1 pcs.	Metal (ML) 166-50132

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

HelaGuard Accessories

• ALPA PA66 Locknuts

The ALPA hexagonal locknut is used to secure fitting.

Black hexagonal nut with threaded hole, isolated on white background (no text or symbols)

HelaGuard ALPA PA66 Locknuts.

MATERIAL	Polyamide 6.6, glass-fibre reinforced (PA66GF30%)
Operating Temperature	-50 °C to +135 °C

HelaGuard locknut

TYPE	Thread Size	A/F Nut (A/F3)	Outside ∅ max (OD max.)	Thickness (T)	Pack Cont. Colour	Article-No.
ALPA-M12 M12	18 20 5 10 pcs. Black (BK) 166-50133
ALPA-M16 M16	22 24 5 10 pcs. Black (BK) 166-50134
ALPA-M20 M20	26 29 6 10 pcs. Black (BK) 166-50135
ALPA-M25 M25	32 35 6 10 pcs. Black (BK) 166-50136
ALPA-M32 M32	41 46 7 2 pcs. Black (BK) 166-50137
ALPA-M40 M40	50 55 7 1 pcs. Black (BK) 166-50138
ALPA-M50 M50	60 66 8 1 pcs. Black (BK) 166-50139
ALPA-M63 M63	75 83 8 1 pcs. Black (BK) 166-50140
ALPA-PG7 PG7	19 21 5 10 pcs. Black (BK) 166-50141
ALPA-PG9 PG9	22 24 5 10 pcs. Black (BK) 166-50142
ALPA-PG11 PG1	1 24 26 5 10 pcs. Black (BK) 166-50143
ALPA-PG13	PG13.5	27	29	6	10 pcs.	Black (BK)	166-50144
ALPA-PG16 PG1	6 30 33 6 10 pcs. Black (BK) 166-50145
ALPA-PG21 PG2	1 36 39 7 10 pcs. Black (BK) 166-50146
ALPA-PG29 PG2	9 46 50 7 1 pcs. Black (BK) 166-50147
ALPA-PG36 PG3	6 60 66 8 1 pcs. Black (BK) 166-50148
ALPA-PG42 PG4	2 65 73 8 1 pcs. Black (BK) 166-50149
ALPA-PG48 PG4	8 70 78 8 1 pcs. Black (BK) 166-50150

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

HelaGuard Accessories

• AWS Chloroprene Sealing Washers

Features and Benefits

• Protects against water and dust
• For PG and metric threads
- Resistant to oil
• 80 Shore A compression strength

HelaGuard sealing washer

HelaGuard AWS Chloroprene Sealing Washers.

MATERIAL	Chloroprene (CR)
Operating Temperature	-40 °C to +135 °C

HF √ RoHS

TYPE	Thread Size	Outside (OD)	Inside (ID)	Thickness(T)	PackCont. Colour Article-No.
AWS-M12 M12 20	11.5 1.5 100 pcs.	Black (BK) 166-50500
AWS-M16 M16 24	15.5 1.5 100 pcs.	Black (BK) 166-50501
AWS-M20 M20 28	19.5 1.5 50 pcs	Black (BK) 166-50502
AWS-M25 M25 34	24.5 1.5 10 pcs	Black (BK) 166-50503
AWS-M32 M32 42	31.5 1.5 10 pcs	Black (BK) 166-50504
AWS-M40 M40 50	39.5 1.5 10 pcs	Black (BK) 166-50505
AWS-M50 M50 60	49.5 1.5 10 pcs	Black (BK) 166-50506
AWS-M63 M63 73	62.5 1.5 10 pcs	Black (BK) 166-50507
AWS-PG7 PG7 20	11.5 1.5 100 pcs	Black (BK) 166-50508
AWS-PG9 PG9 24	14.7 1.5 100 pcs	Black (BK) 166-50509
AWS-PG11 PG11 25	18.1 1.5 100 pcs.	Black (BK) 166-50510
AWS-PG13 PG13.5	28	19.5 1.5 100 pcs.	Black (BK) 166-50511
AWS-PG16 PG16 29	22.0 1.5 50 pcs.	Black (BK) 166-50512
AWS-PG21 PG21 35	27.8 1.5 10 pcs.	Black (BK) 166-50513
AWS-PG29 PG29 44	36.5 1.5 10 pcs.	Black (BK) 166-50514
AWS-PG36 PG36 54	46.5 1.5 10 pcs.	Black (BK) 166-50515
AWS-PG42 PG42 61	53.5 1.5 10 pcs.	Black (BK) 166-50516
AWS-PG48 PG48 70	58.8 1.5 10 pcs.	Black (BK) 166-50517

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

HelaGuard Accessories

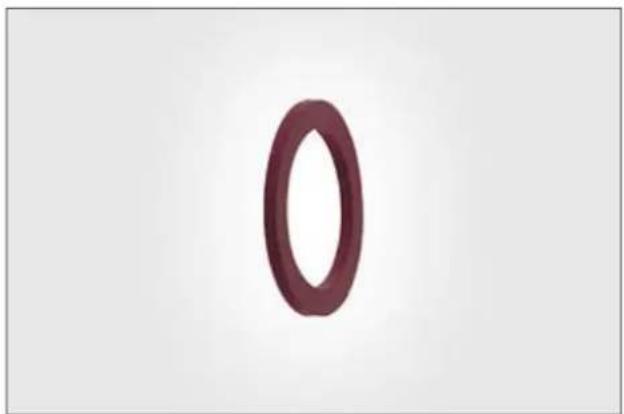

• AFWS Vulcanised Fibre Sealing Washers

Features and Benefits

• Rugged, tough material (78 Shore D Hardness) for tighter seal
• Protects against water and dust
• For PG and metric threads
- Resistant to oil
• 78 Shore D hardness

HelaGuard sealing washer

HelaGuard AFWS Vulcanised Fibre Sealing Washers.

MATERIAL	Vulcanised Fibre (VF)
Operating Temperature	-50 °C to +135 °C

TYPE	Thread Size	Outside (OD)	Inside (ID)	Thickness(T)	PackCont. Colour	Article-No.
AFWS-M12 M12 20	0 12.0 1.6 100	pcs. Red (RD) 166	50518
AFWS-M16 M16 22	0 16.0 1.6 100	pcs. Red (RD) 166	50519
AFWS-M20 M20 26	0 20.0 1.6 50	pcs. Red (RD) 166	50520
AFWS-M25 M25 32	0 25.0 1.6 10	pcs. Red (RD) 166	50521
AFWS-M32 M32 41	2 32.0 1.6 10	pcs. Red (RD) 166	50522
AFWS-M40 M40 50	0 40.0 1.6 10	pcs. Red (RD) 166	50523
AFWS-M50 M50 60	0 50.0 1.6 10	pcs. Red (RD) 166	50524
AFWS-M63 M63 73	0 63.0 1.6 10	pcs. Red (RD) 166	50525
AFWS-PG7 PG7 16.5	12.5 1.6 100	pcs. Red (RD) 166	50526
AFWS-PG9 PG9 21.2	15.2 1.6 100	pcs. Red (RD) 166	50527
AFWS-PG11 PG11 2	4.6 18.2 1.6 100	pcs. Red (RD) 166	50528
AFWS-PG13 PG13.5	26.4 20.4 1.6 100	pcs. Red (RD)	66-50529
AFWS-PG16 PG16 2	8.5 22.5 1.6 50	pcs. Red (RD) 166	50530
AFWS-PG21 PG21 3	4.3 28.3 1.6 10	pcs. Red (RD) 166	50531
AFWS-PG29 PG29 4	3.0 37.0 1.6 10	pcs. Red (RD) 166	50532
AFWS-PG36 PG36 5	3.0 47.0 1.6 10	pcs. Red (RD) 166	50533
AFWS-PG42 PG42 6	0.8 54.0 1.6 10	pcs. Red (RD) 166	50534
AFWS-PG48 PG48 6	7.3 59.3 1.6 10	pcs. Red (RD) 166	50535

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

HelaGuard Accessories

• CNV Converters

Nickel plated brass.

Features and Benefits

• Inner and outer thread
• Reduces or enlarges thread size
• Can convert between metric and PG threads

Close-up of a metallic threaded connector (no text or symbols visible)

HelaGuard CNV Thread converters.

MATERIAL	Nickel Plated Brass (NPB)
Operating Temperature	-100 °C to +300 °C

HF RoHS

TYPE	Thread Size internal	Thread Size external	Pack Cont. Colour	Article-No.
CNV-M20-M16 M16 M20 10	pcs. Metal (ML) 166-50900
CNV-PG7-M16 M16 PG7 10	pcs. Metal (ML) 166-50901
CNV-PG9-M16 M16 PG9 10	pcs. Metal (ML) 166-50902
CNV-PG11-M16 M16 PG11	10 pcs. Metal (ML) 166-50903
CNV-PG13-M16 M16 PG13	5 10 pcs. Metal (ML) 166-50904
CNV-PG16-M16 M16 PG16	10 pcs. Metal (ML) 166-50905
CNV-M16-M20 M20 M16 10	pcs. Metal (ML) 166-50906
CNV-M25-M20 M20 M25 10	pcs. Metal (ML) 166-50907
CNV-PG9-M20 M20 PG9 10	pcs. Metal (ML) 166-50908
CNV-PG11-M20 M20 PG11	10 pcs. Metal (ML) 166-50909
CNV-PG13-M20 M20 PG13	5 10 pcs. Metal (ML) 166-50910
CNV-PG16-M20 M20 PG16	10 pcs. Metal (ML) 166-50911
CNV-PG21-M20 M20 PG21	10 pcs. Metal (ML) 166-50912
CNV-PG29-M20 M20 PG29	2 pcs. Metal (ML) 166-50913
CNV-M20-M25 M25 M20 10	pcs. Metal (ML) 166-50914
CNV-M32-M25 M25 M32 10	pcs. Metal (ML) 166-50915
CNV-M50-M25	M25	M50	1 pcs.	Metal (ML)	166-50917
CNV-PG16-M25 M25 PG16	10 pcs. Metal (ML) 166-50918
CNV-PG21-M25 M25 PG21	10 pcs. Metal (ML) 166-50919
CNV-PG29-M25 M25 PG29	2 pcs. Metal (ML) 166-50920
CNV-M25-M32 M32 M25 10	pcs. Metal (ML) 166-50921
CNV-M40-M32	M32	M40	2 pcs.	Metal (ML)	166-50922
CNV-M50-M32	M32	M50	1 pcs.	Metal (ML)	166-50923
CNV-PG21-M32 M32 PG21	2 pcs. Metal (ML) 166-50924
CNV-PG29-M32 M32 PG29	2 pcs. Metal (ML) 166-50925

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

HelaGuard Accessories

- CNV Converters

TYPE	Thread Size internal	Thread Size external	Pack Cont. Colour	Article-No.
CNV-PG36-M32 M32 PG36	2 pcs. Metal (ML) 166-50926
CNV-M50-M40 M40 M50 1	pcs. Metal (ML) 166-50927
CNV-M63-M40 M40 M63 1	pcs. Metal (ML) 166-50928
CNV-PG29-M40 M40 PG29	1 pcs. Metal (ML) 166-50929
CNV-PG36-M40 M40 PG36	1 pcs. Metal (ML) 166-50930
CNV-M63-M50 M50 M63 1	pcs. Metal (ML) 166-50931
CNV-M16-PG7 PG7 M16 10	pcs. Metal (ML) 166-51000
CNV-M20-PG7 PG7 M20 10	pcs. Metal (ML) 166-51001
CNV-PG9-PG7 PG7	PG9 10 pcs.	Metal (ML) 166-51002
CNV-PG11-PG7	PG7	PG11	10 pcs.	Metal (ML)	166-51003
CNV-PG13-PG7	PG7	PG13.5	10 pcs.	Metal (ML)	166-51004
CNV-PG16-PG7	PG7	PG16	10 pcs.	Metal (ML)	166-51005
CNV-M16-PG9 PG9 M16 10	pcs. Metal (ML) 166-51006
CNV-M20-PG9 PG9 M20 10	pcs. Metal (ML) 166-51007
CNV-PG7-PG9 PG9	PG7 10 pcs.	Metal (ML) 166-51008
CNV-PG11-PG9	PG9	PG11	10 pcs.	Metal (ML)	166-51009
CNV-PG13-PG9	PG9	PG13.5	10 pcs.	Metal (ML)	166-51010
CNV-PG16-PG9	PG9	PG16	10 pcs.	Metal (ML)	166-51011
CNV-M16-PG11	PG11 M16 10	pcs. Metal (ML) 166-51012
CNV-M20-PG11	PG11 M20 10	pcs. Metal (ML) 166-51013
CNV-PG9-PG11	PG11	PG9	10 pcs.	Metal (ML)	166-51014
CNV-PG13-PG11	PG11	PG13.5	10 pcs.	Metal (ML)	166-51015
CNV-PG16-PG11	PG11	PG16	10 pcs.	Metal (ML)	166-51016
CNV-PG21-PG11	PG11	PG21	10 pcs.	Metal (ML)	166-51017
CNV-M20-PG13	PG13.5	M20	10 pcs.	Metal (ML)	166-51018
CNV-PG11-PG13	PG13.5	PG11	10 pcs.	Metal (ML)	166-51019
CNV-PG16-PG13	PG13.5	PG16	10 pcs.	Metal (ML)	166-51020
CNV-PG21-PG13	PG13.5	PG21	10 pcs.	Metal (ML)	166-51021
CNV-M20-PG16	PG16 M20 10	pcs. Metal (ML) 166-51022
CNV-PG13-PG16	PG16	PG13.5	10 pcs.	Metal (ML)	166-51023
CNV-PG21-PG16	PG16	PG21	10 pcs.	Metal (ML)	166-51024
CNV-PG29-PG16 PG16	PG29 2 pcs.	Metal (ML) 166-51025
CNV-M20-PG21	PG21 M20 10	pcs. Metal (ML) 166-51026
CNV-M25-PG21	PG21 M25 10	pcs. Metal (ML) 166-51027
CNV-PG16-PG21	PG21	PG16	10 pcs.	Metal (ML)	166-51028
CNV-PG29-PG21 PG21	PG29 2 pcs.	Metal (ML) 166-51029
CNV-M40-PG29	PG29 M40 1 pcs.	Metal (ML) 166-51030
CNV-PG21-PG29 PG29	PG21 2 pcs.	Metal (ML) 166-51031
CNV-PG36-PG29 PG29	PG36 2 pcs.	Metal (ML) 166-51032
CNV-M50-PG36	PG36 M50 1 pcs.	Metal (ML) 166-51033
CNV-PG29-PG36 PG36	PG29 2 pcs.	Metal (ML) 166-51034
CNV-PG42-PG36 PG36	PG42 2 pcs.	Metal (ML) 166-51035

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

HelaGuard Accessories

• PAEC End Caps for Corrugated Conduits

Features and Benefits

• Fast fit
• Snaps over end of conduit when not terminated with fitting
• Provides smooth entry to prevent damage to cables
  • UV resistant (black)

Black cylindrical mechanical component with grooves, isolated on white background (no text or symbols)

HelaGuard PAEC End Cap.

MATERIAL	Polyamide 6.6 (PA66)
Operating Temperature	-50 °C to +135 °C

HF RoHS

HelaGuard end cap

TYPE	Nominal	Min. Bore Size (B)	Length (L)	Outside max (OD max.)	Pack Cont. Colour Article-No.
PAEC16 16 10	5 19 18.2 10 pcs	Black (BK) 166-50800
PAEC21 21 15	0 19 23.7 10 pcs	Black (BK) 166-50801
PAEC28 28 20	0 22 31.2 10 pcs	Black (BK) 166-50802
PAEC34 34 25	5 23 37.1 10 pcs	Black (BK) 166-50803
PAEC42 42 32	0 24 45.2 10 pcs	Black (BK) 166-50804
PAEC54 54 43	5 25 54.7 10 pcs	Black (BK) 166-50805

All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.

HelaGuard Accessories

- ConClamp Conduit Clamp

Features and Benefits

- Holds metallic conduits and guides hacksaw for a clean cut

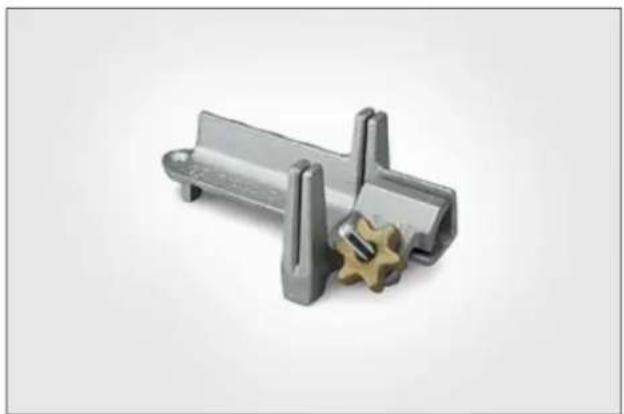

Metal mechanical component with a golden gear-like feature, no visible text or symbols

HelaGuard ConClamp.

TYPE	PackCont. Colour Article-No.
CONCLAMP 1 pcs. Metal (ML) 166-5	100

Subject to technical charges.
Minimum Order Quantity (MOQ) may differ from package content.

HelaGuard Accessories

- ConCutter Conduit Cutters

Features and Benefits

• Cutting tool for non-metallic conduits

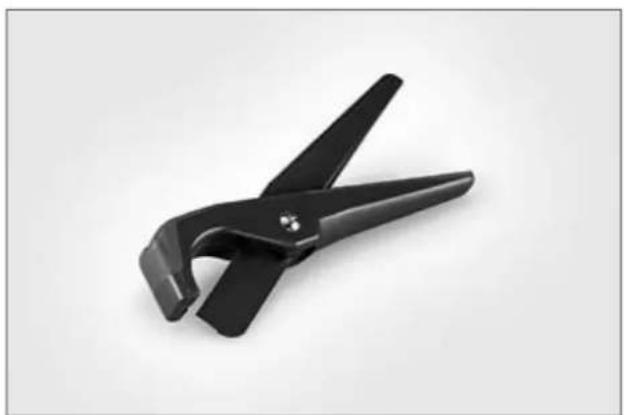

Black metal pliers on a plain white background (no text or symbols)

HelaGuard ConCutter.

TYPE Conduit ∅		PackCont. Colour	Article-No.
CONCUTTER1 for non-metallic conduits up to 34 1 pcs. Black (BK) 166-51101
CONCUTTER2 for non-metallic conduits up to 67 1 pcs. Black (BK) 166-51102

Subject to technical changes.
Minimum Order Quantity (MDQ) may differ from package content.

Accelerate your engineering with our 3D CAD models.

Two professionals collaborating around a laptop in an office setting (no visible text or symbols)

• Over 5,000 3D CAD models
- Models available in all standard CAD formats
• Online preview of CAD models
• Free download of high quality 3D and 2D data

NEW! Free 3D CAD download!

In cooperation with

5.1 Technical Information

Standards Overview 142

Degrees of Protection (IP) according to DIN EN IEC 60529 143

HelaGuard Resistance to Chemicals 146

HelaGuard Thread Standards 148

Product Selection

IEC 61386 Classification for HelaGuard Flexible Conduits 144

5.2 Numerical Index

149

5.3 Alphanumerical Index

156

Standard Overview

EN ISO 9001:2008

HellermannTyton are accredited to EN ISO 9001: 2008 for the design, development, manufacture, stockholding and sale of cable management products.

EN ISO 14001:2004

To guarantee adherence to the guidelines of our environmental policy, HellermannTyton have integrated an intensive environmental management system in accordance with EN ISO 14001:2004 into our business strategies.

EN ISO 50001:2011

HellermannTyton are accredited to EN ISO 50001: 2011 for Energy Management Systems.

CE

HellermannTyton products are marked with the CE mark showing that they comply with the essential requirements of the European Low Voltage Directive.

IEC EN 61386

The HelaGuard conduits have been tested to IEC EN 61386, the current and most complete worldwide standard for conduit systems.

Rail Certifications

HellermannTyton products are constantly being tested to the most current rail fire performance standards in Europe. Please contact HellermannTyton for further information.

UR

Most of HellermannTyton PA6 conduits and fittings have UL (Underwriters Laboratories) recognition for component use within UL listed equipment.

UL

The HellermannTyton LTSUL conduit is UL listed to UL360 and is CSA approved.

Lloyd's Register

Several HelaGuard conduit and fittings systems are approved by Lloyd's Register for marine applications.

Food Safety

The HelaGuard PSRSC conduits and range of fittings conform to EU 10/2011 European food safety regulations.

RoHS

RoHS

HellermannTyton products meet the requirements of the European RoHS Directive, Restriction of Hazardous Substances, prohibiting the use of certain hazardous materials found in electrical and electronic products.

Definition of the degrees of protection according to DIN EN IEC 60529

The levels of protection are indicated by a code made up of two constant letters IP and two characteristic numbers for the degree of protection, e.g. IP54.

Example:

Protection against contact and ingress of foreign objects.

Protection against liquids.

Degree of protection against access and foreign bodies

Index Designation Scope of protection
0	Non-protected No special protection for persons against direct contact with live or moving parts. No protection of the equipment against ingress of solid foreign objects.
1	Protection against large foreign bodies	Protection against accidental contact of large areas with live and internal moving parts, e.g. back of hand, but not protection against deliberate access to the parts. Protection against ingress of solid foreign objects with a diameter greater than 50 mm.
2	Protection against medium-sized foreign bodies	Protection against contact between the finger and live or internal moving parts. Protection against ingress of solid foreign objects with a diameter greater than 12.5 mm.
3	Protection against small foreign bodies	Protection against contact between live or internal moving parts and tools, wires and the like with a thickness greater than 2.5 mm. Protection against ingress of solid foreign objects with a diameter greater than 2.5 mm.
4	Protection against granular foreign objects	Protection against contact between live or internal moving parts and tools, wires and the like with a thickness greater than 1 mm. Protection against ingress of solid foreign objects with a diameter greater than 1 mm.
5	Protection against dust deposits	Complete protection against contact with live or internal moving parts, protection against hazardous dust deposits. The ingress of dust is not completely prevented, but dust may not penetrate in such quantities as to impair the function.
6	Protection against dust entry	Complete protection against contact with live or internal moving parts. Protection against the ingress of dust.

Degrees of protection for water

Index Designation Scope of protection
0	Non-protected No special protection.
1	Protection against vertically dripping water	Water dripping vertically must cause no damage.
2	Protection against dripping water (tilted)	Water dripping at an angle of 15° to the vertical from any direction must cause no damage.
3	Protection against spraying water	Water dripping at an angle of 60° to the vertical from any direction must cause no damage.
4	Protection against splashing water	Water that splashes against the equipment from any direction must cause no damage.
5	Protection against water jets	A water jet from a nozzle that is directed against the equipment from any direction must cause no damage.
6	Protection against flooding	Water must not penetrate the equipment in hazardous quantities in cases of temporary flooding, e.g. due to heavy seas.
7	Protection during temporary immersion	Water must not penetrate the equipment in hazardous quantities if the equipment is immersed in water under the specified conditions of pressure and time (1m for 30 min.).
8	Protection during continuous immersion	Water must not penetrate the equipment in hazardous quantities if the equipment is immersed in water (at least 2 bar for 2 h for HelaGuard IP68 non-metallic fittings and 5 bar for 5 h for HelaGuard IP68 metallic fittings.)
9k	Protection against high pressure/steam jet cleaning	Highly pressurised water directed at the enclosure from any direction must cause no damage.

IEC 61386 Classification for HelaGuard Flexible Conduits

	Compression Resistance (N)	Impact Resistance (I)	Minimum Temperature (°C)	Maximum Temperature (°C)
Non-Metallic Conduits based on nominal conduit size 21 mm
HG-SW	2 4 2 4
PA6 corrugated, standard weight (with HG fittings)
HG-LW	2 4 2 4
PA6 corrugated, light weight (with HG fittings)
HG-HW	2 4 2 4
PA6 corrugated, heavy weight (with HGL fittings)
HG-FR	2 4 2 4
Flame retardant corrugated, standard weight (with HGL fittings)
HG-HI	1 3 5 4
PA12 corrugated, standard weight (with HG fittings)
HG-DC	2 4 2 4
PA6 double slit corrugated
HG-PP	1 2 3 2
PP corrugated, standard weight
Metallic Conduits based on nominal conduit size 20 mm
SC	4 4 5 6
galvanised steel
SSC	4 4 5 6
stainless steel
PCS	4 4 3 1
galvanised steel, PVC coated (with compression fittings)
NCS	4 4 4 4
galvanised steel, PA6 coated
LFHCS	4 4 3 1
galvanised steel, LFH coated
LTS	4 4 3 3
galvanised steel, PVC coated, liquid-tight (with compression fittings)
LTSH	4 4 5 4
galvanised steel, PVC coated, liquid-tight (with compression fittings)
LTSUL	4 4 3 3
galvanised steel, PVC coated, liquid-tight, UL-listed
PCSB	4 4 3 1
galvanised steel, PVC coated, galvanised steel overbraid
SCSB	4 4 5 6
galvanised steel, galvanised steel overbraid
PVC Conduits based on nominal conduit size 20 mm
PSR	2 3 2 1
Spiral-reinforced PVC, smooth bore
PSRSC	2 3 2 1
Spiral-reinforced PVC, smooth bore, smooth cover with PSR fitting
PSRSC	2 3 2 1
Spiral-reinforced PVC, smooth bore, smooth cover with PSR fitting
FlexiGuard and FlexiGuard Plus Conduits
FG	2 2 2 1
PVC-Conduit with spring steel wire

IEC 61386 Classification Key	Compression Resistance (N)	Impact Resistance (J)	Minimum Temperature (°C)	Maximum Temperature (°C)	Bend Resistance	Electrical Properties	IP Rating against solid objects*
0	-	-	-	-	-	non-declared	-
1	125	0.5	5	60	rigid	conducting	-
2	320	1	-5	90	pliable	insulating	-
3	750	2	-15	105	pliable, self-recovering	conducting/insulating	3
4	1250	6	-25	120	flexible	-	4
5	4000	20	-45	150	-	-	5
6	-	-	-	250	-	-	6
7	-	-	-	400	-	-	7

	Bend Resistance	Electrical Properties	IP Rating against solid objects*	IP Rating against water*	Corrosion Resistance	Tensile Strength	Resistance to Flame Propagation	Suspended Load Capacity (N)	Page
	4066-21011
	4066-11012
	4068-31013
	4068-21014
	4066-11015
	4040-21016
	4266422017
	4040141064
	4040441065
	4065241072
	4064241073
	4065241074
	4068441085
	4068441086
	4068441087
	4054241095
	40401410102
	4265-210109
	4267-310110
	4268-310110
	42304111121

	IP Rating against water* Corrosion Resistance		Tensile Strength	Resistance to Flame Propagation	Suspended Load Capacity (N)
	0	-	-	-	non-declared
	1	low inside and outside	100	not flame-propagating	20
	2	medium inside and outside	250	flame-propagating	30
	3	medium inside, high outside	500	-	150
	4	high inside and outside	1000	-	450
	5	-	2500	-	850
	6	-	-	-	-
	7	-	-	-	-

* For more information about Ingress Protection (IP) please refer to page 143.

HelaGuard Resistance to Chemicals

▲ Good Resistance
△ Limited Resistance
○ Poor Resistance
Suitable with stainless steel fittings
These information are valid at 23 °C.
The values shown here are for guidance
only. They should not be regarded as exact
specifications of materials and are not a
substitute for suitability testing. Please see
our datasheets for further details.

HelaGuard Thread Standards

Metric Thread
Standard thread conforming to EN60423

Thread size	External thread outside (mm)	Internal thread inside (mm)	Pitch (mm)
M12 12.0 10.4 1.5
M16 16.0 11.4 1.5
M20 20.0 18.4 1.5
M25 25.0 23.4 1.5
M32 32.0 30.4 1.5
M40 40.0 38.4 1.5
M50 50.0 48.5 1.5
M63 63.0 61.4 1.5
M75 75.0 73.4 1.5

PG Thread
German standard thread conforming to DIN40430

Thread size	External thread outside (mm)	Internal thread inside (mm)	Pitch (mm)
PG7 12.0 11.3 1.27
PG9 15.2 13.9 1.41
PG11 18.6 17.3 1.41
PG13.5 20.4 19.1 1.41
PG16 22.5 21.2 1.41
PG21 28.3 26.8 1.59
PG29 37.0 35.5 1.59
PG36 47.0 45.5 1.59
PG42 54.0 52.5 1.59
PG48 59.3 57.8 1.59

Article-No.TypePage

166-11100 HG-SW10 11

166-11101 HG-SW11 11

166-11102 HG-SW13 11

166-11103 HG-SW16 11

166-11104 HG-SW21 11

166-11105 HG-SW28 11

166-11106 HG-SW34 11

166-11109 HG-SW67 11

166-11110 HG-SW16 11

166-11111 HG-SW21 11

166-11112 HG-SW28 11

166-11113 HG-SW42 11

166-11114 HG-SW54 11

166-11118 HG-SW34 11

166-11200 HG-LW10 12

166-11201 HG-LW11 12

166-11202 HG-LW13 12

166-11203 HG-LW16 12

166-11204 HG-LW21 12

166-11205 HG-LW28 12

166-11206 HG-LW34 12

166-11207 HG-LW42 12

166-11208 HG-LW54 12

166-11209 HG-LW67 12

166-11302 HG-HW13 13

166-11303 HG-HW16 13

166-11304 HG-HW21 13

166-11305 HG-HW28 13

166-11306 HG-HW34 13

166-11307 HG-HW42 13

166-11308 HG-HW54 13

166-11400 HG-FR10 14

166-11401 HG-FR13 14

166-11402 HG-FR16 14

166-11403 HG-FR21 14

166-11404 HG-FR28 14

166-11405 HG-FR34 14

166-11406 HG-FR42 14

166-11407 HG-FR54 14

166-11501 HG-HI13 15

166-11502 HG-HI16 15

166-11503 HG-HI21 15

166-11504 HG-HI28 15

166-11505 HG-HI34 15

166-11506 HG-HI42 15

166-11507 HG-HI54 15

166-11800 HG-DC11 16

166-11801 HG-DC13 16

166-11802 HG-DC16 16

166-11803 HG-DC21 16

166-11804 HG-DC28 16

166-11805 HG-DC34 16

166-11806 HG-DC42 16

166-11807 HG-DC54 16

166-11900 HG-PP10 17

166-11901 HG-PP13 17

166-11902 HG-PP16 17

166-11903 HG-PP20 17

166-11904 HG-PP21 17

166-11905 HG-PP25 17

166-11906 HG-PP26 17

166-11907 HG-PP28 17

Article-No.TypePage

166-11908 HG-PP34 17
166-11909 HG-PP42 17
166-11910 HG-PP54 17
166-11911 HG-PP67 17
166-21000 HG10-S-M12 22
166-21001 HG13-S-M16 22
166-21002 HG16-S-M16 22
166-21003 HG16-S-M20 22
166-21004 HG21-S-M20 23
166-21005 HG28-S-M25 23
166-21006 HG34-S-M32 23
166-21007 HG42-S-M40 23
166-21008 HG54-S-M50 23
166-21009 HG67-S-M63 23
166-21010 HG10-S-PG7 22
166-21011 HG13-S-PG9 22
166-21012 HG16-S-PG11 23
166-21013 HG16-S-PG13 23
166-21014 HG21-S-PG16 23
166-21015 HG28-S-PG21 23
166-21016 HG34-S-PG29 23
166-21017 HG42-S-PG36 23
166-21018 HG54-S-PG48 23
166-21019 HG67-S-PG48	23
166-21020 HG10-S-M16 22
166-21021 HG11-S-M12 22
166-21022 HG13-S-M12 22
166-21023 HG13-S-M20 22
166-21025 HG20-S-M20 23
166-21026 HG25-S-M25 23
166-21027 HG28-S-M32 23
166-21028 HG34-S-M40 23
166-21029 HG42-S-M50 23
166-21030 HG54-S-M63 23
166-21031 HG10-S-PG9 22
166-21032 HG11-S-PG7 22
166-21033 HG13-S-PG7 22
166-21034 HG13-S-PG11 22
166-21035 HG16-S-PG9 22
166-21036 HG16-S-PG16 23
166-21039 HG21-S-PG13 23
166-21040 HG21-S-PG21 23
166-21041 HG28-S-PG29 23
166-21042 HG54-S-PG42 23
166-21200 HG16-SFL 42
166-21201 HG21-SFL 42
166-21202 HG28-SFL 42
166-21203 HG34-SFL 42
166-21204 HG42-SFL 42
166-21300 HG13-SM-M16	30
166-21301 HG16-SM-M16	30
166-21302 HG16-SM-M20	30
166-21303 HG21-SM-M20	30
166-21304 HG28-SM-M25	30
166-21305 HG34-SM-M32	30
166-21306 HG42-SM-M40	30
166-21307 HG54-SM-M50	30
166-21309 HG13-SM-PG9	30
166-21310 HG16-SM-PG9	30
166-21311 HG16-SM-PG11	30
166-21312 HG21-SM-PG13	30
166-21313 HG21-SM-PG16	30

Article-No.TypePage

166-21314 HG28-SM-PG21	30
166-21315 HG34-SM-PG29	30
166-21400 HG13-SF-M16	36
166-21401 HG16-SF-M16	36
166-21402 HG16-SF-M20	36
166-21403 HG21-SF-M20	36
166-21404 HG28-SF-M25	36
166-21405 HG34-SF-M32	36
166-21406 HG42-SF-M40	36
166-21407 HG54-SF-M50	36
166-21408 HG13-SF-PG9	36
166-21409 HG16-SF-PG11	36
166-21410 HG16-SF-PG16	36
166-21411 HG21-SF-PG16	36
166-21412 HG28-SF-PG21	36
166-21413 HG34-SF-PG29	36
166-21500 HG13-SCG-M16	48
166-21501 HG16-SCG-M16	48
166-21502 HG16-SCG-M20	48
166-21503 HG21-SCG-M20	48
166-21504 HG28-SCG-M25	48
166-21505 HG34-SCG-M32	48
166-21506 HG42-SCG-M40	48
166-21507 HG54-SCG-M50	48
166-21600 HGL13-S-M16	24
166-21601 HGL16-S-M16	24
166-21602 HGL16-S-M20	24
166-21603 HGL21-S-M20	24
166-21604 HGL28-S-M25	24
166-21605 HGL34-S-M32	24
166-21606 HGL42-S-M40	25
166-21607 HGL54-S-M50	25
166-21608 HGL13-S-PG9	24
166-21609 HGL16-S-PG11	24
166-21610 HGL16-S-PG13	24
166-21611 HGL21-S-PG16	24
166-21612 HGL28-S-PG21	24
166-21613 HGL34-S-PG29	24
166-21614 HGL42-S-PG36	25
166-21616 HGL54-S-PG48	25
166-21619 HGL28-S-M32	24
166-21620 HGL34-S-M40	24
166-21621 HGL42-S-M50	25
166-21622 HGL54-S-M63	25
166-21623 HGL16-S-PG9	24
166-21624 HGL16-S-PG16	24
166-21625 HGL21-S-PG13	24
166-21626 HGL21-S-PG21	24
166-21627 HGL28-S-PG29	24
166-21628 HGL54-S-PG42	25
166-21800 HGL16-SFL	43
166-21801 HGL21-SFL	43
166-21802 HGL28-SFL	43
166-21803 HGL34-SFL	43
166-21804 HGL42-SFL	43
166-21900 HGL13-SM-M16	31
166-21901 HGL16-SM-M16	31
166-21902 HGL16-SM-M20	31
166-21903 HGL21-SM-M20	31
166-21904 HGL28-SM-M25	31
166-21905 HGL34-SM-M32	31
166-21906 HGL42-SM-M40	31

Article-No.TypePage

166-21907 HGL54-SM-M50 31	166-22501 HG16-90M-M16 32
166-21909 HGL13-SM-PG9 31	166-22502 HG16-90M-M20 32
166-21910 HGL16-SM-PG9 31	166-22503 HG21-90M-M20 32
166-21911 HGL16-SM-PG11 31	166-22504 HG28-90M-M25 32
166-21912 HGL21-SM-PG13 31	166-22505 HG34-90M-M32 32
166-21913 HGL21-SM-PG16 31	166-22506 HG42-90M-M40 32
166-21914 HGL28-SM-PG21 31	166-22507 HG54-90M-M50 32
166-21915 HGL34-SM-PG29 31	166-22509 HG13-90M-PG9 32
166-22000 HGL13-SF-M16 37	166-22510 HG16-90M-PG9 32
166-22001 HGL16-SF-M16 37	166-22511 HG16-90M-PG11 32
166-22002 HGL16-SF-M20 37	166-22512 HG21-90M-PG13 32
166-22003 HGL21-SF-M20 37	166-22513 HG21-90M-PG16 32
166-22004 HGL28-SF-M25 37	166-22514 HG28-90M-PG21 32
166-22005 HGL34-SF-M32 37	166-22515 HG34-90M-PG29 32
166-22006 HGL42-SF-M40 37	166-22600 HG13-90F-M16 38
166-22007 HGL54-SF-M50 37	166-22601 HG16-90F-M16 38
166-22009 HGL13-SF-PG9 37	166-22602 HG16-90F-M20 38
166-22011 HGL16-SF-PG11 37	166-22603 HG21-90F-M20 38
166-22012 HGL16-SF-PG16 37	166-22604 HG28-90F-M25 38
166-22013 HGL21-SF-PG16 37	166-22605 HG34-90F-M32 38
166-22014 HGL28-SF-PG21 37	166-22606 HG42-90F-M40 38
166-22015 HGL34-SF-PG29 37	166-22607 HG54-90F-M50 38
166-22100 HGL13-SCG-M16 49	166-22608 HG13-90F-PG9 38
166-22101 HGL16-SCG-M16 49	166-22610 HG16-90F-PG11 38
166-22102 HGL16-SCG-M20 49	166-22611 HG21-90F-PG16 38
166-22103 HGL21-SCG-M20 49	166-22612 HG28-90F-PG21 38
166-22104 HGL28-SCG-M25 49	166-22613 HG34-90F-PG29 38
166-22105 HGL34-SCG-M32 49	166-22701 HGL13-90CG-M16 51
166-22106 HGL42-SCG-M40 49	166-22702 HGL16-90CG-M16 51
166-22107 HGL54-SCG-M50 49	166-22703 HGL16-90CG-M20 51
166-22200 HG10-90-M12 25	166-22704 HGL21-90CG-M20 51
166-22201 HG13-90-M16 25	166-22705 HGL28-90CG-M25 51
166-22202 HG16-90-M16 26	166-22706 HGL34-90CG-M32 51
166-22203 HG16-90-M20 26	166-22707 HGL42-90CG-M40 51
166-22204 HG21-90-M20 26	166-22708 HGL54-90CG-M50 51
166-22205 HG28-90-M25 26	166-22800 HGL13-90-M16 27
166-22206 HG34-90-M32 26	166-22801 HGL16-90-M16 27
166-22207 HG42-90-M40 26	166-22802 HGL16-90-M20 27
166-22208 HG54-90-M50 26	166-22803 HGL21-90-M20 27
166-22209 HG67-90-M63 26	166-22804 HGL28-90-M25 27
166-22210 HG10-90-PG7 25	166-22805 HGL34-90-M32 27
166-22211 HG13-90-PG9 25	166-22806 HGL42-90-M40 27
166-22212 HG16-90-PG11 26	166-22807 HGL54-90-M50 27
166-22213 HG16-90-PG13 26	166-22808 HGL13-90-PG9 27
166-22214 HG21-90-PG16 26	166-22809 HGL16-90-PG11 27
166-22215 HG28-90-PG21 26	166-22810 HGL16-90-PG13 27
166-22216 HG34-90-PG29 26	166-22811 HGL21-90-PG16 27
166-22217 HG42-90-PG36 26	166-22812 HGL28-90-PG21 27
166-22218 HG54-90-PG48 26	166-22813 HGL34-90-PG29 27
166-22219 HG67-90-PG48 26	166-22814 HGL42-90-PG36 27
166-22220 HG11-90-M12 25	166-22815 HGL54-90-PG48 27
166-22222 HG25-90-M25 26	166-22818 HGL42-90-M50 27
166-22223 HG42-90-M50 26	166-22819 HGL54-90-M63 27
166-22224 HG54-90-M63 26	166-22820 HGL16-90-PG9 27
166-22225 HG16-90-PG9 26	166-22821 HGL21-90-PG13 27
166-22227 HG21-90-PG13 26	166-23000 HGL16-90FL 45
166-22400 HG16-90FL 44	166-23001 HGL21-90FL 45
166-22401 HG21-90FL 44	166-23002 HGL28-90FL 45
166-22402 HG28-90FL 44	166-23003 HGL34-90FL 45
166-22403 HG34-90FL 44	166-23004 HGL42-90FL 45
166-22404 HG42-90FL 44	166-23100 HGL13-90M-M16 33
166-22500 HG13-90M-M16 32	166-23101 HGL16-90M-M16 33

Article-No.TypePage

Article-No.TypePage

166-23102 HGL16-90M-M20	33
166-23103 HGL21-90M-M20	33
166-23104 HGL28-90M-M25	33
166-23105 HGL34-90M-M32	33
166-23106 HGL42-90M-M40	33
166-23107 HGL54-90M-M50	33
166-23108 HGL13-90M-PG9	33
166-23109 HGL16-90M-PG9	33
166-23110 HGL16-90M-PG11	33
166-23111 HGL21-90M-PG13	33
166-23112 HGL21-90M-PG16	33
166-23113 HGL28-90M-PG21	33
166-23114 HGL34-90M-PG29	33
166-23200 HGL13-90F-M16 39
166-23201 HGL16-90F-M16 39
166-23202 HGL16-90F-M20 39
166-23203 HGL21-90F-M20 39
166-23204 HGL28-90F-M25 39
166-23205 HGL34-90F-M32 39
166-23206 HGL42-90F-M40 39
166-23207 HGL54-90F-M50 39
166-23208 HGL13-90F-PG9 39
166-23210 HGL16-90F-PG11	39
166-23212 HGL21-90F-PG16	39
166-23213 HGL28-90F-PG21	39
166-23214 HGL34-90F-PG29	39
166-23301 HG13-90CG-M16	50
166-23302 HG16-90CG-M16	50
166-23303 HG16-90CG-M20	50
166-23304 HG21-90CG-M20	50
166-23305 HG28-90CG-M25	50
166-23306 HG34-90CG-M32	50
166-23307 HG42-90CG-M40	50
166-23308 HG54-90CG-M50	50
166-23400 HG16-45-M20 28
166-23401 HG21-45-M20 28
166-23402 HG28-45-M25 28
166-23403 HG34-45-M32 28
166-23404 HG42-45-M50 28
166-23405 HG54-45-M50 28
166-23406 HG16-45 PG13 28
166-23407 HG21-45-PG13 28
166-23408 HG21-45 PG16 28
166-23409 HG28-45-PG21 28
166-23410 HG34-45 PG29 28
166-23411 HG42-45-PG36 28
166-23600 HG16-45FL 46
166-23601 HG21-45FL 46
166-23602 HG28-45FL 46
166-23603 HG34-45FL 46
166-23604 HG42-45FL 46
166-23700 HG16-45M-M20 34
166-23701 HG21-45M-M20 34
166-23702 HG28-45M-M25 34
166-23703 HG34-45M-M32 34
166-23704 HG42-45M-M50 34
166-23705 HG54-45M-M50 34
166-23706 HG16-45M-PG13	34
166-23707 HG16-45M-PG16	34
166-23708 HG21-45M-PG13	34
166-23709 HG21-45M-PG16	34
166-23710 HG28-45M-PG21	34

Article-No.TypePage

166-23711 HG34-45M-PG29 34

166-23800 HG16-45F-M20 40

166-23801 HG21-45F-M20 40

166-23802 HG28-45F-M25 40

166-23803 HG34-45F-M32 40

166-23804 HG42-45F-M50 40

166-23805 HG54-45F-M50 40

166-23807 HG16-45F-PG16 40

166-23808 HG21-45F-PG16 40

166-23809 HG28-45F-PG21 40

166-23810 HG34-45F-PG29 40

166-23903 HG16-45CG-M20 52

166-23904 HG21-45CG-M20 52

166-23905 HG28-45CG-M25 52

166-23906 HG34-45CG-M32 52

166-23907 HG42-45CG-M40 52

166-23908 HG54-45CG-M50 52

166-24000 HGL16-45-M20 29

166-24001 HGL21-45-M20 29

166-24002 HGL28-45-M25 29

166-24003 HGL34-45-M32 29

166-24004 HGL42-45-M50 29

166-24005 HGL54-45-M50 29

166-24006 HGL16-45-PG13 29

166-24007 HGL21-45-PG13 29

166-24008 HGL21-45-PG16 29

166-24009 HGL28-45-PG21 29

166-24010 HGL34-45-PG29 29

166-24011 HGL42-45-PG36 29

166-24200 HGL16-45FL 47

166-24201 HGL21-45FL 47

166-24202 HGL28-45FL 47

166-24203 HGL34-45FL 47

166-24204 HGL42-45FL 47

166-24300 HGL16-45M-M20 35

166-24301 HGL21-45M-M20 35

166-24302 HGL28-45M-M25 35

166-24303 HGL34-45M-M32 35

166-24304 HGL42-45M-M50 35

166-24305 HGL54-45M-M50 35

166-24306 HGL16-45M-PG13 35

166-24307 HGL16-45M-PG16 35

166-24308 HGL21-45M-PG13 35

166-24309 HGL21-45M-PG16 35

166-24310 HGL28-45M-PG21 35

166-24311 HGL34-45M-PG29 35

166-24400 HGL16-45F-M20 41

166-24401 HGL21-45F-M20 41

166-24402 HGL28-45F-M25 41

166-24403 HGL34-45F-M32 41

166-24404 HGL42-45F-M50 41

166-24405 HGL54-45F-M50 41

166-24407 HGL16-45F-PG16 41

166-24408 HGL21-45F-PG16 41

166-24409 HGL28-45F-PG21 41

166-24410 HGL34-45F-PG29 41

166-24503 HGL16-45CG-M20 53

166-24504 HGL21-45CG-M20 53

166-24505 HGL28-45CG-M25 53

166-24506 HGL34-45CG-M32 53

166-24507 HGL42-45CG-M40 53

166-24508 HGL54-45CG-M50 53

Article-No.TypePage

166-24600 HG16-HG16 60
166-24601 HG21-HG21 60
166-24602 HG28-HG28 60
166-24603 HG34-HG34 60
166-24800 HG16-T 54
166-24801 HG20-T 54
166-24802 HG21-T 54
166-24803 HG28-T 54
166-24804 HG34-T 54
166-24805 HG42-T 54
166-24900 HGL16-T 55
166-24901 HGL21-T 55
166-24902 HGL28-T 55
166-24903 HGL34-T 55
166-24904 HGL42-T 55
166-25000 HG13-R16 58
166-25001 HG13-R21 58
166-25002 HG16-R21 58
166-25003 HG25-R28 58
166-25004 HG21-R28 58
166-25005 HG16-R34 58
166-25006 HG28-R34 58
166-25007 HG21-R34 58
166-25008 HG34-R42 58
166-25009 HG28-R42 58
166-25010 HG21-R42 58
166-25100 HGL13-R16	59
166-25101 HGL16-R21	59
166-25102 HGL21-R28	59
166-25103 HGL16-R28	59
166-25104 HGL28-R34	59
166-25105 HGL21-R34	59
166-25106 HGL16-R34	59
166-25107 HGL34-R42	59
166-25108 HGL28-R42	59
166-25109 HGL21-R42	59
166-25700 PACC13	124
166-25701 PACC16	124
166-25702 PACC21	124
166-25703 PACC28	124
166-25704 PACC34	124
166-25705 PACC42	124
166-25706 PACC54	124
166-25707 PACC10	124
166-25801 HG16-Y13	56
166-25802 HG21-Y16	56
166-25803 HG28-Y21	56
166-25804 HG34-Y28	56
166-25901 HGL16-Y13	57
166-25902 HGL21-Y16	57
166-25903 HGL28-Y21	57
166-25904 HGL34-Y28	57
166-30100 SC10	64
166-30101 SC12	64
166-30102 SC16	64
166-30103 SC20	64
166-30104 SC25	64
166-30105 SC32	64
166-30106 SC40	64
166-30107 SC50	64
166-30108 SC63	64
166-30109 SC75	64

Article-No.TypePage

166-30110 SC10	64
166-30111 SC12	64
166-30112 SC16	64
166-30113 SC20	64
166-30114 SC25	64
166-30115 SC32	64
166-30116 SC40	64
166-30117 SC50	64
166-30200 SSC10	65
166-30201 SSC12	65
166-30202 SSC16	65
166-30203 SSC20	65
166-30204 SSC25	65
166-30205 SSC32	65
166-30206 SSC40	65
166-30207 SSC50	65
166-30300 SC10-FM-M12	66
166-30301 SC12-FM-M16	66
166-30302 SC16-FM-M16	66
166-30303 SC16-FM-M20	66
166-30304 SC20-FM-M20	66
166-30305 SC25-FM-M25	66
166-30306 SC32-FM-M32	66
166-30307 SC40-FM-M40	66
166-30308 SC50-FM-M50	66
166-30309 SC63-FM-M63	66
166-30310 SC75-FM-M75	66
166-30311 SC10-FM-PG7	66
166-30314 SC16-FM-PG11	66
166-30315 SC20-FM-PG16	66
166-30316 SC25-FM-PG21	66
166-30317 SC32-FM-PG29	66
166-30318 SC40-FM-PG36	66
166-30319 SC50-FM-PG42	66
166-30320 SC63-FM-PG48	66
166-30321 SSC10-FM-M12 67
166-30322 SSC12-FM-M16 67
166-30323 SSC16-FM-M16 67
166-30324 SSC20-FM-M20 67
166-30325 SSC25-FM-M25 67
166-30326 SSC32-FM-M32 67
166-30327 SSC40-FM-M40 67
166-30328 SSC50-FM-M50 67
166-30400 SC10-SM-M12	68
166-30401 SC12-SM-M16	68
166-30402 SC16-SM-M16	68
166-30403 SC16-SM-M20	68
166-30404 SC20-SM-M20	68
166-30405 SC25-SM-M25	68
166-30406 SC32-SM-M32	68
166-30407 SC40-SM-M40	68
166-30408 SC50-SM-M50	68
166-30409 SC63-SM-M63	68
166-30410 SC10-SM-PG7	68
166-30411 SC12-SM-PG9	68
166-30412 SC16-SM-PG11	68
166-30413 SC20-SM-PG13	68
166-30414 SC20-SM-PG16	68
166-30415 SC25-SM-PG21	68
166-30416 SC32-SM-PG29	68
166-30417 SC40-SM-PG36	68
166-30418 SC50-SM-PG42	68

Article-No.TypePage

166-30419 SSC10-SM-M12 69

166-30420 SSC12-SM-M16 69

166-30421 SSC16-SM-M16 69

166-30422 SSC20-SM-M20 69

166-30423 SSC25-SM-M25 69

166-30424 SSC32-SM-M32 69

166-30500 SC10-PC 70

166-30501 SC12-PC 70

166-30502 SC16-PC 70

166-30503 SC20-PC 70

166-30504 SC25-PC 70

166-30505 SC32-PC 70

166-30506 SC40-PC 70

166-30507 SC50-PC 70

166-30508 SC63-PC 70

166-30509 SC75-PC 70

166-30600 SC16-FF-M20 71

166-30601 SC20-FF-M20 71

166-30602 SC25-FF-M25 71

166-30603 SC32-FF-M32 71

166-30700 PCS10 72

166-30701 PCS12 72

166-30702 PCS16 72

166-30703 PCS20 72

166-30704 PCS25 72

166-30705 PCS32 73

166-30706 PCS40 73

166-30707 PCS50 73

166-30708 PCS63 73

166-30709 PCS75 73

166-30722 PCS10 72

166-30723 PCS12 72

166-30724 PCS16 72

166-30725 PCS20 72

166-30726 PCS25 72

166-30727 PCS32 73

166-30728 PCS40 73

166-30729 PCS50 73

166-30730 PCS63 73

166-30731 PCS75 73

166-30800 NCS32 73

166-30801 NCS16 73

166-30802 NCS20 73

166-30803 NCS25 73

166-30900 LFHCS12 74

166-30901 LFHCS16 74

166-30902 LFHCS20 74

166-30903 LFHCS25 74

166-30904 LFHCS32 74

166-30905 LFHCS40 74

166-30906 LFHCS50 74

166-30907 LFHCS63 74

166-30908 LFHCS75 74

166-31000 PCS10-FM-M12 75

166-31001 PCS12-FM-M16 75

166-31002 PCS16-FM-M16 75

166-31003 PCS16-FM-M20 75

166-31004 PCS20-FM-M20 75

166-31005 PCS25-FM-M25 75

166-31006 PCS32-FM-M32 75

166-31007 PCS40-FM-M40 75

166-31008 PCS50-FM-M50 75

Article-No.TypePage

166-31009 PCS63-FM-M63 75
166-31010 PCS10-FM-PG7 75
166-31011 PCS12-FM-PG9 75
166-31012 PCS16-FM-PG11 75
166-31014 PCS20-FM-PG16 75
166-31015 PCS25-FM-PG21 75
166-31016 PCS32-FM-PG29 75
166-31017 PCS40-FM-PG36 75
166-31018 PCS50-FM-PG42 75
166-31019 PCS75-FM-M75 75
166-31100 PCS10-SM-M12 76
166-31101 PCS12-SM-M16 76
166-31102 PCS16-SM-M16 76
166-31103 PCS16-SM-M20 76
166-31104 PCS20-SM-M20 76
166-31105 PCS25-SM-M25 76
166-31106 PCS32-SM-M32 76
166-31107 PCS40-SM-M40 76
166-31108 PCS50-SM-M50 76
166-31109 PCS63-SM-M63 76
166-31110 PCS10-SM-PG7 76
166-31111 PCS12-SM-PG9 76
166-31112 PCS16-SM-PG11 76
166-31113 PCS20-SM-PG13 76
166-31114 PCS20-SM-PG16 76
166-31115 PCS25-SM-PG21 76
166-31116 PCS32-SM-PG29 76
166-31117 PCS40-SM-PG36 76
166-31118 PCS50-SM-PG42 76
166-31200 PCS10-PC 77
166-31201 PCS12-PC 77
166-31202 PCS16-PC 77
166-31203 PCS20-PC 77
166-31204 PCS25-PC 77
166-31205 PCS32-PC 77
166-31206 PCS40-PC 77
166-31207 PCS50-PC 77
166-31208 PCS63-PC 77
166-31209 PCS75-PC 77
166-31300 PCS16-FF-M20 78
166-31301 PCS20-FF-M20 78
166-31302 PCS25-FF-M25 78
166-31303 PCS32-FF-M32 78
166-31400 PCS10-FMC-M12 79
166-31401 PCS12-FMC-M16 79
166-31402 PCS16-FMC-M16 79
166-31403 PCS16-FMC-M20 79
166-31404 PCS20-FMC-M20 79
166-31405 PCS25-FMC-M25 79
166-31406 PCS32-FMC-M32 79
166-31407 PCS40-FMC-M40 79
166-31408 PCS50-FMC-M50 79
166-31409 PCS16-FMC-PG11	79
166-31410 PCS20-FMC-PG16	79
166-31411 PCS25-FMC-PG21	79
166-31412 PCS32-FMC-PG29	79
166-31415 PCS40-FMC-PG36	79
166-31500 PCS12-SMC-M16 80
166-31501 PCS16-SMC-M16 80
166-31502 PCS16-SMC-M20 80
166-31503 PCS20-SMC-M20 80
166-31504 PCS25-SMC-M25 80

Article-No.TypePage

166-31505 PCS32-SMC-M32 80
166-31601 PCS12-90FMC-M16	81
166-31602 PCS16-90FMC-M16	81
166-31603 PCS16-90FMC-M20	81
166-31604 PCS20-90FMC-M20	81
166-31605 PCS25-90FMC-M25	81
166-31606 PCS32-90FMC-M32	81
166-31700 PCS20-PCS20 82
166-31701 PCS25-PCS25 82
166-31800 PCS10-EI 84
166-31801 PCS12-EI 84
166-31802 PCS16-EI 84
166-31803 PCS20-EI 84
166-31804 PCS25-EI 84
166-31805 PCS32-EI 84
166-31806 PCS40-EI 84
166-31807 PCS50-EI 84
166-31900 LTS10	85
166-31901 LTS12	85
166-31902 LTS16	85
166-31903 LTS20	85
166-31904 LTS25	85
166-31905 LTS32	85
166-31906 LTS40	85
166-31907 LTS50	85
166-31908 LTS63	85
166-31917 LTS16	85
166-31918 LTS20	85
166-31919 LTS25	85
166-31921 LTS32	85
166-31927 LTS40	85
166-32001 LTSH12	86
166-32002 LTSH16	86
166-32003 LTSH20	86
166-32004 LTSH25	86
166-32005 LTSH32	86
166-32006 LTSH40	86
166-32007 LTSH50	86
166-32100 LTSUL16	87
166-32101 LTSUL20	87
166-32102 LTSUL25	87
166-32103 LTSUL32	87
166-32104 LTSUL40	87
166-32105 LTSUL50	87
166-32106 LTSUL63	87
166-32200 LTS10-FMC-M12	88
166-32201 LTS10-FMC-M16	88
166-32203 LTS12-FMC-M16	88
166-32204 LTS16-FMC-M16	88
166-32205 LTS16-FMC-M20	88
166-32206 LTS20-FMC-M20	88
166-32207 LTS25-FMC-M25	88
166-32208 LTS32-FMC-M32	88
166-32209 LTS40-FMC-M40	88
166-32210 LTS50-FMC-M50	88
166-32211 LTS63-FMC-M63	88
166-32212 LTS16-FMC-PG11	88
166-32213 LTS20-FMC-PG16	88
166-32214 LTS25-FMC-PG21	88
166-32215 LTS32-FMC-PG29	88
166-32216 LTS16-FMC-PG13	88
166-32300 LTS12-SMC-M16	89

Article-No.TypePage

166-32301 LTS16-SMC-M16 89

166-32302 LTS16-SMC-M20 89

166-32303 LTS20-SMC-M20 89

166-32304 LTS25-SMC-M25 89

166-32305 LTS32-SMC-M32 89

166-32400 LTS12-90FMC-M16 90

166-32401 LTS16-90FMC-M16 90

166-32402 LTS16-90FMC-M20 90

166-32403 LTS20-90FMC-M20 90

166-32404 LTS25-90FMC-M25 90

166-32405 LTS32-90FMC-M32 90

166-32406 LTS40-90FMC-M40 90

166-32407 LTS50-90FMC-M50 90

166-32408 LTS63-90FMC-M63 90

166-32500 LTS16-45FMC-M20 91

166-32501 LTS20-45FMC-M20 91

166-32502 LTS25-45FMC-M25 91

166-32503 LTS32-45FMC-M32 91

166-32504 LTS40-45FMC-M40 91

166-32505 LTS50-45FMC-M50 91

166-32506 LTS63-45FMC-M63 91

166-32600 LTS20-LTS20 92

166-32601 LTS25-LTS25 92

166-32700 LTS10-EI 94

166-32701 LTS12-EI 94

166-32702 LTS16-EI 94

166-32703 LTS20-EI 94

166-32704 LTS25-EI 94

166-32705 LTS32-EI 94

166-32706 LTS40-EI 94

166-32707 LTS50-EI 94

166-32708 LTS63-EI 94

166-33600 PCSB12 95

166-33601 PCSB16 95

166-33602 PCSB20 95

166-33603 PCSB25 95

166-33604 PCSB32 95

166-33605 PCSB40 95

166-33606 PCSB50 95

166-33800 PCSB12-FM-M16 96

166-33801 PCSB16-FM-M16 96

166-33802 PCSB16-FM-M20 96

166-33803 PCSB20-FM-M20 96

166-33804 PCSB25-FM-M25 96

166-33805 PCSB32-FM-M32 96

166-33806 PCSB40-FM-M40 96

166-33807 PCSB50-FM-M50 96

166-33808 PCSB12-FM-PG9 96

166-33809 PCSB16-FM-PG11 96

166-33810 PCSB20-FM-PG16 96

166-33811 PCSB25-FM-PG21 96

166-33812 PCSB32-FM-PG29 96

166-33813 PCSB40-FM-PG36 96

166-33900 PCSB12-SM-M16 97

166-33901 PCSB16-SM-M16 97

166-33902 PCSB16-SM-M20 97

166-33903 PCSB20-SM-M20 97

166-33904 PCSB25-SM-M25 97

166-33905 PCSB32-SM-M32 97

166-33906 PCSB40-SM-M40 97

166-33907 PCSB50-SM-M50 97

166-33908 PCSB12-SM-PG9 97

Article-No.TypePage

166-33909 PCSB16-SM-PG11 97
166-33910 PCSB20-SM-PG16 97
166-33911 PCSB25-SM-PG21 97
166-33912 PCSB32-SM-PG29 97
166-33913 PCSB40-SM-PG36 97
166-33914 PCSB50-SM-PG42 97
166-34000 PCSB12-PC 98
166-34001 PCSB16-PC 98
166-34002 PCSB20-PC 98
166-34003 PCSB25-PC 98
166-34004 PCSB32-PC 98
166-34005 PCSB40-PC 98
166-34006 PCSB50-PC 98
166-34100 PCSB16-FMC-M16 99
166-34101 PCSB16-FMC-M20 99
166-34102 PCSB20-FMC-M20 99
166-34103 PCSB25-FMC-M25 99
166-34104 PCSB32-FMC-M32 99
166-34105 PCSB16-FMC-PG11 99
166-34106 PCSB20-FMC-PG16 99
166-34107 PCSB25-FMC-PG21 99
166-34108 PCSB32-FMC-PG29 99
166-34200 PCSB16-SMC-M16 100
166-34201 PCSB16-SMC-M20 100
166-34202 PCSB20-SMC-M20 100
166-34203 PCSB25-SMC-M25 100
166-34204 PCSB32-SMC-M32 100
166-34300 PCSB16-90FMC-M16	101
166-34301 PCSB16-90FMC-M20	101
166-34302 PCSB20-90FMC-M20	101
166-34303 PCSB25-90FMC-M25	101
166-34304 PCSB32-90FMC-M32	101
166-34400 SCSB12	102
166-34401 SCSB16	102
166-34402 SCSB20	102
166-34403 SCSB25	102
166-34404 SCSB32	102
166-34405 SCSB40	102
166-34406 SCSB50	102
166-34600 SCSB12-FM-M16	103
166-34601 SCSB16-FM-M16	103
166-34602 SCSB16-FM-M20	103
166-34603 SCSB20-FM-M20	103
166-34604 SCSB25-FM-M25	103
166-34605 SCSB32-FM-M32	103
166-34606 SCSB40-FM-M40	103
166-34607 SCSB12-FM-PG9 103
166-34608 SCSB16-FM-PG11	103
166-34609 SCSB20-FM-PG16	103
166-34610 SCSB25-FM-PG21	103
166-34611 SCSB32-FM-PG29	103
166-34612 SCSB40-FM-PG36	103
166-34700 SCSB12-SM-M16	104
166-34701 SCSB16-SM-M16	104
166-34702 SCSB16-SM-M20	104
166-34703 SCSB20-SM-M20	104
166-34704 SCSB25-SM-M25	104
166-34705 SCSB32-SM-M32	104
166-34706 SCSB40-SM-M40	104
166-34707 SCSB12-SM-PG9 104
166-34708 SCSB16-SM-PG11 104
166-34709 SCSB20-SM-PG16 104

Article-No.TypePage

166-34710 SCSB25-SM-PG21 104
166-34711 SCSB32-SM-PG29 104
166-34712 SCSB40-SM-PG36 104
166-34800 SCSB12-PC 105
166-34801 SCSB16-PC 105
166-34802 SCSB20-PC 105
166-34803 SCSB25-PC 105
166-34804 SCSB32-PC 105
166-34805 SCSB40-PC 105
166-36101 PCS16-SCG-M16	83
166-36102 PCS20-SCG-M20	83
166-36103 PCS25-SCG-M25	83
166-36104 PCS32-SCG-M32	83
166-36201 LTS16-SCG-M16	93
166-36202 LTS20-SCG-M20	93
166-36203 LTS25-SCG-M25	93
166-36204 LTS32-SCG-M32	93
166-40001 PSR12	109
166-40002 PSR16	109
166-40003 PSR20	109
166-40004 PSR25	109
166-40005 PSR32	109
166-40006 PSR40	109
166-40007 PSR50	109
166-40008 PSR63	109
166-40301 PSRSC12	110
166-40302 PSRSC16	110
166-40303 PSRSC20	110
166-40304 PSRSC25	110
166-40305 PSRSC32	110
166-40306 PSRSC40	110
166-40307 PSRSC50	110
166-40308 PSRSC63	110
166-40701 PSR12-S-M16	112
166-40702 PSR16-S-M16	112
166-40703 PSR16-S-M20	112
166-40704 PSR20-S-M20	112
166-40705 PSR25-S-M25	112
166-40706 PSR32-S-M32	112
166-40707 PSR40-S-M40	112
166-40708 PSR50-S-M50	112
166-40709 PSR63-S-M63	112
166-40801 PSR16-90-M16	113
166-40802 PSR16-90-M20	113
166-40803 PSR20-90-M20	113
166-40804 PSR25-90-M25	113
166-40805 PSR32-90-M32	113
166-40806 PSR40-90-M40	113
166-41001 PSRSC12-FMC-M16	114
166-41002 PSRSC16-FMC-M16	114
166-41003 PSRSC16-FMC-M20	114
166-41004 PSRSC20-FMC-M20	114
166-41005 PSRSC25-FMC-M25	114
166-41006 PSRSC32-FMC-M32	114
166-41007 PSRSC40-FMC-M40	114
166-41008 PSRSC50-FMC-M50	114
166-41009 PSRSC63-FMC-M63	114
166-41101 PSRSC16-SMC-M16	115
166-41102 PSRSC16-SMC-M20	115
166-41103 PSRSC20-SMC-M20	115
166-41104 PSRSC25-SMC-M25	115
166-41105 PSRSC32-SMC-M32	115

Article-No.TypePage

166-41201 PSRSC12-90FMC-M16 116

166-41202 PSRSC16-90FMC-M16 116

166-41203 PSRSC16-90FMC-M20 116

166-41204 PSRSC20-90FMC-M20 116

166-41205 PSRSC25-90FMC-M25 116

166-41206 PSRSC32-90FMC-M32 116

166-41207 PSRSC40-90FMC-M40 116

166-41208 PSRSC50-90FMC-M50 116

166-41209 PSRSC63-90FMC-M63 116

166-41301 PSRSC16-FMCSS-M16 117

166-41302 PSRSC16-FMCSS-M20 117

166-41303 PSRSC20-FMCSS-M20 117

166-41304 PSRSC25-FMCSS-M25 117

166-41305 PSRSC32-FMCSS-M32 117

166-41401 PSRSC16-90FMCSS-M20 118

166-41402 PSRSC20-90FMCSS-M20 118

166-41403 PSRSC25-90FMCSS-M25 118

166-41404 PSRSC32-90FMCSS-M32 118

166-41601 PSRSC16-FMCFFSS-M16 119

166-41602 PSRSC20-FMCFFSS-M20 119

166-41603 PSRSC25-FMCFFSS-M25 119

166-41604 PSRSC32-FMCFFSS-M32 119

166-41605 PSRSC40-FMCFFSS-M40 119

166-41606 PSRSC50-FMCFFSS-M50 119

166-50001 A90FM-M16 128

166-50002 A90FM-M20 128

166-50003 A90FM-M25 128

166-50004 A90FM-M32 128

166-50005 A90FM-M40 128

166-50006 A90FM-M50 128

166-50100 ALNPB-M12 130

166-50101 ALNPB-M16 130

166-50102 ALNPB-M20 130

166-50103 ALNPB-M25 130

166-50104 ALNPB-M32 130

166-50105 ALNPB-M40 130

166-50106 ALNPB-M50 130

166-50107 ALNPB-M63 130

166-50108 ALNPB-M75 130

166-50109 ALNPB-PG7 130

166-50110 ALNPB-PG9 130

166-50111 ALNPB-PG11 130

166-50112 ALNPB-PG13 130

166-50113 ALNPB-PG16 130

166-50114 ALNPB-PG21 130

166-50115 ALNPB-PG29 130

166-50116 ALNPB-PG36 130

166-50117 ALNPB-PG42 130

166-50118 ALNPB-PG48 130

166-50119 ALS-M16 131

166-50120 ALS-M20 131

166-50121 ALS-M25 131

166-50122 ALS-M32 131

166-50123 ALS-M40 131

166-50124 ALS-M50 131

166-50125 ALS-M63 131

166-50126 ALSS-M16 132

166-50127 ALSS-M20 132

166-50128 ALSS-M25 132

166-50129 ALSS-M32 132

166-50130 ALSS-M40 132

166-50131 ALSS-M50 132

Article-No.TypePage

166-50132 ALSS-M63 132
166-50133 ALPA-M12 133
166-50134 ALPA-M16 133
166-50135 ALPA-M20 133
166-50136 ALPA-M25 133
166-50137 ALPA-M32 133
166-50138 ALPA-M40 133
166-50139 ALPA-M50 133
166-50140 ALPA-M63 133
166-50141 ALPA-PG7	133
166-50142 ALPA-PG9	133
166-50143 ALPA-PG11	133
166-50144 ALPA-PG13	133
166-50145 ALPA-PG16	133
166-50146 ALPA-PG21	133
166-50147 ALPA-PG29	133
166-50148 ALPA-PG36	133
166-50149 ALPA-PG42	133
166-50150 ALPA-PG48	133
166-50400 ACP-M16	129
166-50401 ACP-M20	129
166-50402 ACP-M25	129
166-50403 ACP-M32	129
166-50404 ACP-M40	129
166-50405 ACP-M50	129
166-50406 ACP-M63	129
166-50407 ACP-M75	129
166-50500 AWS-M12 134
166-50501 AWS-M16 134
166-50502 AWS-M20 134
166-50503 AWS-M25 134
166-50504 AWS-M32 134
166-50505 AWS-M40 134
166-50506 AWS-M50 134
166-50507 AWS-M63 134
166-50508 AWS-PG7	134
166-50509 AWS-PG9	134
166-50510 AWS-PG11	134
166-50511 AWS-PG13	134
166-50512 AWS-PG16	134
166-50513 AWS-PG21	134
166-50514 AWS-PG29	134
166-50515 AWS-PG36	134
166-50516 AWS-PG42	134
166-50517 AWS-PG48	134
166-50518 AFWS-M12	135
166-50519 AFWS-M16	135
166-50520 AFWS-M20	135
166-50521 AFWS-M25	135
166-50522 AFWS-M32	135
166-50523 AFWS-M40	135
166-50524 AFWS-M50	135
166-50525 AFWS-M63	135
166-50526 AFWS-PG7	135
166-50527 AFWS-PG9	135
166-50528 AFWS-PG11 135
166-50529 AFWS-PG13 135
166-50530 AFWS-PG16 135
166-50531 AFWS-PG21 135
166-50532 AFWS-PG29 135
166-50533 AFWS-PG36 135
166-50534 AFWS-PG42 135

Article-No.TypePage

166-50535 AFWS-PG48 135
166-50600 AFCS10	126
166-50601 AFCS12	126
166-50602 AFCS16	126
166-50603 AFCS20	126
166-50604 AFCS25	126
166-50605 AFCS32	126
166-50606 AFCS40	126
166-50607 AFCS50	126
166-50608 AFCS63	126
166-50609 AFCS75	126
166-50610 AFCSS10	127
166-50611 AFCSS12	127
166-50612 AFCSS16	127
166-50613 AFCSS20	127
166-50614 AFCSS25	127
166-50615 AFCSS32	127
166-50616 AFCSS40	127
166-50617 AFCSS50	127
166-50700 AFCP16	125
166-50701 AFCP20	125
166-50702 AFCP25	125
166-50703 AFCP33	125
166-50800 PAEC16	138
166-50801 PAEC21	138
166-50802 PAEC28	138
166-50803 PAEC34	138
166-50804 PAEC42	138
166-50805 PAEC54	138
166-50900 CNV-M20-M16	136
166-50901 CNV-PG7-M16	136
166-50902 CNV-PG9-M16	136
166-50903 CNV-PG11-M16	136
166-50904 CNV-PG13-M16	136
166-50905 CNV-PG16-M16	136
166-50906 CNV-M16-M20	136
166-50907 CNV-M25-M20	136
166-50908 CNV-PG9-M20	136
166-50909 CNV-PG11-M20	136
166-50910 CNV-PG13-M20	136
166-50911 CNV-PG16-M20	136
166-50912 CNV-PG21-M20	136
166-50913 CNV-PG29-M20	136
166-50914 CNV-M20-M25	136
166-50915 CNV-M32-M25	136
166-50917 CNV-M50-M25	136
166-50918 CNV-PG16-M25	136
166-50919 CNV-PG21-M25	136
166-50920 CNV-PG29-M25	136
166-50921 CNV-M25-M32	136
166-50922 CNV-M40-M32	136
166-50923 CNV-M50-M32	136
166-50924 CNV-PG21-M32	136
166-50925 CNV-PG29-M32	136
166-50926 CNV-PG36-M32	137
166-50927 CNV-M50-M40	137
166-50928 CNV-M63-M40	137
166-50929 CNV-PG29-M40	137
166-50930 CNV-PG36-M40	137
166-50931 CNV-M63-M50	137
166-51000 CNV-M16-PG7	137
166-51001 CNV-M20-PG7	137

Article-No.TypePage

166-51002 CNV-PG9-PG7 137

166-51003 CNV-PG11-PG7 137

166-51004 CNV-PG13-PG7 137

166-51005 CNV-PG16-PG7 137

166-51006 CNV-M16-PG9 137

166-51007 CNV-M20-PG9 137

166-51008 CNV-PG7-PG9 137

166-51009 CNV-PG11-PG9 137

166-51010 CNV-PG13-PG9 137

166-51011 CNV-PG16-PG9 137

166-51012 CNV-M16-PG11 137

166-51013 CNV-M20-PG11 137

166-51014 CNV-PG9-PG11 137

166-51015 CNV-PG13-PG11 137

166-51016 CNV-PG16-PG11 137

166-51017 CNV-PG21-PG11 137

166-51018 CNV-M20-PG13 137

166-51019 CNV-PG11-PG13 137

166-51020 CNV-PG16-PG13 137

166-51021 CNV-PG21-PG13 137

166-51022 CNV-M20-PG16 137

166-51023 CNV-PG13-PG16 137

166-51024 CNV-PG21-PG16 137

166-51025 CNV-PG29-PG16 137

166-51026 CNV-M20-PG21 137

166-51027 CNV-M25-PG21 137

166-51028 CNV-PG16-PG21 137

166-51029 CNV-PG29-PG21 137

166-51030 CNV-M40-PG29 137

166-51031 CNV-PG21-PG29 137

166-51032 CNV-PG36-PG29 137

166-51033 CNV-M50-PG36 137

166-51034 CNV-PG29-PG36 137

166-51035 CNV-PG42-PG36 137

166-51100 CONCLAMP 139

166-51101 CONCUTTER1 139

166-51102 CONCUTTER2 139

167-00209 FG14 120

167-00211 FG17 120

167-00213 FG19 120

167-00216 FG21 120

167-00221 FG27 120

167-00229 FG36 120

167-00236 FG45 120

167-00248 FG56 120

167-00510 FG14-PG9 121

167-00511 FG17-PG11 121

167-00512 FG19-PG13 121

167-00513 FG21-PG16 121

167-00514 FG27-PG21 121

167-00515 FG36-PG29 121

167-00516 FG45-PG36 121

167-00517 FG56-PG48 121

167-00520 FG14-UH 122

167-00521 FG17-UH 122

167-00522 FG19-UH 122

167-00523 FG21-UH 122

167-00524 FG27-UH 122

167-00525 FG36-UH 122

167-00526 FG45-UH 122

167-00527 FG56-UH 122

167-00530 FG14-M16 121

Article-No.TypePage

167-00531 FG17-M20	121
167-00533 FG21-M25	121
167-00534 FG27-M32	121
167-00535 FG36-M40	121
167-00536 FG45-M50	121
167-00537 FG56-M63	121

TypeArticle-No.Page

A90FM-M16 166-50001 128

A90FM-M20 166-50002 128

A90FM-M25 166-50003 128

A90FM-M32 166-50004 128

A90FM-M40 166-50005 128

A90FM-M50 166-50006 128

ACP-M16 166-50400 129

ACP-M20 166-50401 129

ACP-M25 166-50402 129

ACP-M32 166-50403 129

ACP-M40 166-50404 129

ACP-M50 166-50405 129

ACP-M63 166-50406 129

ACP-M75 166-50407 129

AFCP16 166-50700 125

AFCP20 166-50701 125

AFCP25 166-50702 125

AFCP33 166-50703 125

AFCS10 166-50600 126

AFCS12 166-50601 126

AFCS16 166-50602 126

AFCS20 166-50603 126

AFCS25 166-50604 126

AFCS32 166-50605 126

AFCS40 166-50606 126

AFCS50 166-50607 126

AFCS63 166-50608 126

AFCS75 166-50609 126

AFCSS10 166-50610 127

AFCSS12 166-50611 127

AFCSS16 166-50612 127

AFCSS20 166-50613 127

AFCSS25 166-50614 127

AFCSS32 166-50615 127

AFCSS40 166-50616 127

AFCSS50 166-50617 127

AFWS-M12 166-50518 135

AFWS-M16 166-50519 135

AFWS-M20 166-50520 135

APWS-M25 166-50521 135

APWS-M32 166-50522 135

APWS-M40 166-50523 135

APWS-M50 166-50524 135

APWS-M63 166-50525 135

APWS-PG11 166-50528 135

APWS-PG13 166-50529 135

APWS-PG16 166-50530 135

APWS-PG21 166-50531 135

APWS-PG29 166-50532 135

APWS-PG36 166-50533 135

APWS-PG42 166-50534 135

APWS-PG48 166-50535 135

APWS-PG7 166-50526 135

APWS-PG9 166-50527 135

ALNPB-M12 166-50100 130

ALNPB-M16 166-50101 130

ALNPB-M20 166-50102 130

ALNPB-M25 166-50103 130

ALNPB-M32 166-50104 130

ALNPB-M40 166-50105 130

ALNPB-M50 166-50106 130

ALNPB-M63 166-50107 130

TypeArticle-No.Page

ALNPB-M75 166-50108 130
ALNPB-PG11 166-50111 130
ALNPB-PG13 166-50112 130
ALNPB-PG16 166-50113 130
ALNPB-PG21 166-50114 130
ALNPB-PG29 166-50115 130
ALNPB-PG36 166-50116 130
ALNPB-PG42 166-50117 130
ALNPB-PG48 166-50118 130
ALNPB-PG7 166-50109 130
ALNPB-PG9 166-50110 130
ALPA-M12 166-50133 133
ALPA-M16 166-50134 133
ALPA-M20 166-50135 133
ALPA-M25 166-50136 133
ALPA-M32 166-50137 133
ALPA-M40 166-50138 133
ALPA-M50 166-50139 133
ALPA-M63 166-50140 133
ALPA-PG11 166-50143 133
ALPA-PG13 166-50144 133
ALPA-PG16 166-50145 133
ALPA-PG21 166-50146 133
ALPA-PG29 166-50147 133
ALPA-PG36 166-50148 133
ALPA-PG42 166-50149 133
ALPA-PG48 166-50150 133
ALPA-PG7	166-50141 133
ALPA-PG9	166-50142 133
ALS-M16	166-50119 131
ALS-M20	166-50120 131
ALS-M25	166-50121 131
ALS-M32	166-50122 131
ALS-M40	166-50123 131
ALS-M50	166-50124 131
ALS-M63	166-50125 131
ALSS-M16	166-50126 132
ALSS-M20	166-50127 132
ALSS-M25	166-50128 132
ALSS-M32	166-50129 132
ALSS-M40	166-50130 132
ALSS-M50	166-50131 132
ALSS-M63	166-50132 132
AWS-M12	166-50500 134
AWS-M16	166-50501 134
AWS-M20	166-50502 134
AWS-M25	166-50503 134
AWS-M32	166-50504 134
AWS-M40	166-50505 134
AWS-M50	166-50506 134
AWS-M63	166-50507 134
AWS-PG11	166-50510 134
AWS-PG13	166-50511 134
AWS-PG16	166-50512 134
AWS-PG21	166-50513 134
AWS-PG29	166-50514 134
AWS-PG36	166-50515 134
AWS-PG42	166-50516 134
AWS-PG48	166-50517 134
AWS-PG7	166-50508 134
AWS-PG9	166-50509 134
CNV-M16-M20	166-50906 136

TypeArticle-No.Page

CNV-M16-PG11	166-51012 137
CNV-M16-PG7	166-51000 137
CNV-M16-PG9	166-51006 137
CNV-M20-M16	166-50900 136
CNV-M20-M25	166-50914 136
CNV-M20-PG11	166-51013 137
CNV-M20-PG13	166-51018 137
CNV-M20-PG16	166-51022 137
CNV-M20-PG21	166-51026 137
CNV-M20-PG7	166-51001 137
CNV-M20-PG9	166-51007 137
CNV-M25-M20	166-50907 136
CNV-M25-M32	166-50921 136
CNV-M25-PG21	166-51027 137
CNV-M32-M25	166-50915 136
CNV-M40-M32	166-50922 136
CNV-M40-PG29	166-51030 137
CNV-M50-M25	166-50917 136
CNV-M50-M32	166-50923 136
CNV-M50-M40	166-50927 137
CNV-M50-PG36	166-51033 137
CNV-M63-M40	166-50928 137
CNV-M63-M50	166-50931 137
CNV-PG11-M16	166-50903 136
CNV-PG11-M20	166-50909 136
CNV-PG11-PG13	166-51019 137
CNV-PG11-PG7	166-51003 137
CNV-PG11-PG9	166-51009 137
CNV-PG13-M16	166-50904 136
CNV-PG13-M20	166-50910 136
CNV-PG13-PG11	166-51015 137
CNV-PG13-PG16	166-51023 137
CNV-PG13-PG7	166-51004 137
CNV-PG13-PG9	166-51010 137
CNV-PG16-M16	166-50905 136
CNV-PG16-M20	166-50911 136
CNV-PG16-M25	166-50918 136
CNV-PG16-PG11	166-51016 137
CNV-PG16-PG13	166-51020 137
CNV-PG16-PG21	166-51028 137
CNV-PG16-PG7	166-51005 137
CNV-PG16-PG9	166-51011 137
CNV-PG21-M20	166-50912 136
CNV-PG21-M25	166-50919 136
CNV-PG21-M32	166-50924 136
CNV-PG21-PG11	166-51017 137
CNV-PG21-PG13	166-51021 137
CNV-PG21-PG16	166-51024 137
CNV-PG21-PG29	166-51031 137
CNV-PG29-M20	166-50913 136
CNV-PG29-M25	166-50920 136
CNV-PG29-M32	166-50925 136
CNV-PG29-M40	166-50929 137
CNV-PG29-PG16	166-51025 137
CNV-PG29-PG21	166-51029 137
CNV-PG29-PG36	166-51034 137
CNV-PG36-M32	166-50926 137
CNV-PG36-M40	166-50930 137
CNV-PG36-PG29	166-51032 137
CNV-PG42-PG36	166-51035 137
CNV-PG7-M16	166-50901 136
CNV-PG7-PG9	166-51008 137

TypeArticle-No.Page

CNV-PG9-M16 166-50902 136
CNV-PG9-M20 166-50908 136
CNV-PG9-PG11 166-51014 137
CNV-PG9-PG7 166-51002 137
CONCLAMP 166-51100 139
CONCUTTER1 166-51101 139
CONCUTTER2 166-51102 139
FG14 167-00209 120
FG14-M16 167-00530 121
FG14-PG9 167-00510 121
FG14-UH 167-00520 122
FG17 167-00211 120
FG17-M20 167-00531 121
FG17-PG11 167-00511 121
FG17-UH 167-00521 122
FG19 167-00213 120
FG19-PG13 167-00512 121
FG19-UH 167-00522 122
FG21 167-00216 120
FG21-M25 167-00533 121
FG21-PG16 167-00513 121
FG21-UH 167-00523 122
FG27 167-00221 120
FG27-M32 167-00534 121
FG27-PG21 167-00514 121
FG27-UH 167-00524 122
FG36 167-00229 120
FG36-M40 167-00535 121
FG36-PG29 167-00515 121
FG36-UH 167-00525 122
FG45 167-00236 120
FG45-M50 167-00536 121
FG45-PG36 167-00516 121
FG45-UH 167-00526 122
FG56 167-00248 120
FG56-M63 167-00537 121
FG56-PG48 167-00517 121
FG56-UH 167-00527 122
HG10-90-M12 166-22200 25
HG10-90-PG7	166-22210 25
HG10-S-M12	166-21000 22
HG10-S-M16	166-21020 22
HG10-S-PG7	166-21010 22
HG10-S-PG9	166-21031 22
HG11-90-M12 166-22220 25
HG11-S-M12	166-21021 22
HG11-S-PG7	166-21032 22
HG13-90CG-M16	166-23301 50
HG13-90F-M16	166-22600 38
HG13-90F-PG9	166-22608 38
HG13-90-M16 166-22201 25
HG13-90M-M16	166-22500 32
HG13-90M-PG9	166-22509 32
HG13-90-PG9	166-22211 25
HG13-R16	166-25000 58
HG13-R21	166-25001 58
HG13-SCG-M16	166-21500 48
HG13-SF-M16	166-21400 36
HG13-SF-PG9 166-21408 36
HG13-S-M12	166-21022 22
HG13-S-M16	166-21001 22
HG13-S-M20	166-21023 22

TypeArticle-No.Page

HG13-SM-M16	166-21300 30
HG13-SM-PG9 166-21309 30
HG13-S-PG11	166-21034 22
HG13-S-PG7	166-21033 22
HG13-S-PG9	166-21011 22
HG16-45CG-M20	166-23903 52
HG16-45FL	166-23600 46
HG16-45F-M20	166-23800 40
HG16-45F-PG16	166-23807 40
HG16-45-M20 166-23400 28
HG16-45M-M20	166-23700 34
HG16-45M-PG13	166-23706 34
HG16-45M-PG16	166-23707 34
HG16-45-PG13	166-23406 28
HG16-90CG-M16	166-23302 50
HG16-90CG-M20	166-23303 50
HG16-90FL	166-22400 44
HG16-90F-M16	166-22601 38
HG16-90F-M20	166-22602 38
HG16-90F-PG11	166-22610 38
HG16-90-M16 166-22202 26
HG16-90-M20 166-22203 26
HG16-90M-M16	166-22501 32
HG16-90M-M20	166-22502 32
HG16-90M-PG11	166-22511 32
HG16-90M-PG9	166-22510 32
HG16-90-PG11	166-22212 26
HG16-90-PG13	166-22213 26
HG16-90-PG9	166-22225 26
HG16-HG16	166-24600 60
HG16-R21	166-25002 58
HG16-R34	166-25005 58
HG16-SCG-M16	166-21501 48
HG16-SCG-M20	166-21502 48
HG16-SFL	166-21200 42
HG16-SF-M16	166-21401 36
HG16-SF-M20	166-21402 36
HG16-SF-PG11	166-21409 36
HG16-SF-PG16	166-21410 36
HG16-S-M16	166-21002 22
HG16-S-M20	166-21003 22
HG16-SM-M16	166-21301 30
HG16-SM-M20	166-21302 30
HG16-SM-PG11	166-21311 30
HG16-SM-PG9 166-21310 30
HG16-S-PG11	166-21012 23
HG16-S-PG13	166-21013 23
HG16-S-PG16	166-21036 23
HG16-S-PG9	166-21035 22
HG16-T	166-24800 54
HG16-Y13	166-25801 56
HG20-S-M20	166-21025 23
HG20-T	166-24801 54
HG21-45CG-M20	166-23904 52
HG21-45FL	166-23601 46
HG21-45F-M20	166-23801 40
HG21-45F-PG16	166-23808 40
HG21-45-M20 166-23401 28
HG21-45M-M20	166-23701 34
HG21-45M-PG13	166-23708 34
HG21-45M-PG16	166-23709 34
HG21-45-PG13	166-23407 28

TypeArticle-No.Page

HG21-45-PG16	166-23408 28
HG21-90CG-M20	166-23304 50
HG21-90FL	166-22401 44
HG21-90F-M20	166-22603 38
HG21-90F-PG16	166-22611 38
HG21-90-M20 166-22204 26
HG21-90M-M20	166-22503 32
HG21-90M-PG13	166-22512 32
HG21-90M-PG16	166-22513 32
HG21-90-PG13	166-22227 26
HG21-90-PG16	166-22214 26
HG21-HG21	166-24601 60
HG21-R28	166-25004 58
HG21-R34	166-25007 58
HG21-R42	166-25010 58
HG21-SCG-M20	166-21503 48
HG21-SFL	166-21201 42
HG21-SF-M20	166-21403 36
HG21-SF-PG16	166-21411 36
HG21-S-M20	166-21004 23
HG21-SM-M20	166-21303 30
HG21-SM-PG13	166-21312 30
HG21-SM-PG16	166-21313 30
HG21-S-PG13	166-21039 23
HG21-S-PG16	166-21014 23
HG21-S-PG21	166-21040 23
HG21-T	166-24802 54
HG21-Y16	166-25802 56
HG25-90-M25 166-22222 26
HG25-R28	166-25003 58
HG25-S-M25	166-21026 23
HG28-45CG-M25	166-23905 52
HG28-45FL	166-23602 46
HG28-45F-M25	166-23802 40
HG28-45F-PG21	166-23809 40
HG28-45-M25 166-23402 28
HG28-45M-M25	166-23702 34
HG28-45M-PG21	166-23710 34
HG28-45-PG21	166-23409 28
HG28-90CG-M25	166-23305 50
HG28-90FL	166-22402 44
HG28-90F-M25	166-22604 38
HG28-90F-PG21	166-22612 38
HG28-90-M25 166-22205 26
HG28-90M-M25	166-22504 32
HG28-90M-PG21	166-22514 32
HG28-90-PG21	166-22215 26
HG28-HG28	166-24602 60
HG28-R34	166-25006 58
HG28-R42	166-25009 58
HG28-SCG-M25	166-21504 48
HG28-SFL	166-21202 42
HG28-SF-M25	166-21404 36
HG28-SF-PG21	166-21412 36
HG28-S-M25	166-21005 23
HG28-S-M32	166-21027 23
HG28-SM-M25	166-21304 30
HG28-SM-PG21	166-21314 30
HG28-S-PG21	166-21015 23
HG28-S-PG29	166-21041 23
HG28-T	166-24803 54
HG28-Y21	166-25803 56

TypeArticle-No.Page

HG34-45CG-M32 166-23906 52
HG34-45FL 166-23603 46
HG34-45F-M32 166-23803 40
HG34-45F-PG29 166-23810 40
HG34-45-M32 166-23403 28
HG34-45M-M32 166-23703 34
HG34-45M-PG29 166-23711 34
HG34-45-PG29 166-23410 28
HG34-90CG-M32 166-23306 50
HG34-90FL 166-22403 44
HG34-90F-M32 166-22605 38
HG34-90F-PG29 166-22613 38
HG34-90-M32 166-22206 26
HG34-90M-M32 166-22505 32
HG34-90M-PG29 166-22515 32
HG34-90-PG29 166-22216 26
HG34-HG34 166-24603 60
HG34-R42 166-25008 58
HG34-SCG-M32 166-21505 48
HG34-SFL	166-21203 42
HG34-SF-M32	166-21405 36
HG34-SF-PG29	166-21413 36
HG34-S-M32	166-21006 23
HG34-S-M40	166-21028 23
HG34-SM-M32	166-21305 30
HG34-SM-PG29	166-21315 30
HG34-S-PG29	166-21016 23
HG34-T	166-24804 54
HG34-Y28	166-25804 56
HG42-45CG-M40 166-23907 52
HG42-45FL 166-23604 46
HG42-45F-M50 166-23804 40
HG42-45-M50 166-23404 28
HG42-45M-M50 166-23704 34
HG42-45-PG36 166-23411 28
HG42-90CG-M40 166-23307 50
HG42-90FL 166-22404 44
HG42-90F-M40 166-22606 38
HG42-90-M40 166-22207 26
HG42-90-M50 166-22223 26
HG42-90M-M40 166-22506 32
HG42-90-PG36 166-22217 26
HG42-SCG-M40 166-21506 48
HG42-SFL	166-21204 42
HG42-SF-M40	166-21406 36
HG42-S-M40	166-21007 23
HG42-S-M50	166-21029 23
HG42-SM-M40	166-21306 30
HG42-S-PG36	166-21017 23
HG42-T	166-24805 54
HG54-45CG-M50 166-23908 52
HG54-45F-M50 166-23805 40
HG54-45-M50 166-23405 28
HG54-45M-M50 166-23705 34
HG54-90CG-M50 166-23308 50
HG54-90F-M50 166-22607 38
HG54-90-M50 166-22208 26
HG54-90-M63 166-22224 26
HG54-90M-M50 166-22507 32
HG54-90-PG48 166-22218 26
HG54-SCG-M50 166-21507 48
HG54-SF-M50	166-21407 36

TypeArticle-No.Page

HG54-S-M50	166-21008 23
HG54-S-M63	166-21030 23
HG54-SM-M50	166-21307 30
HG54-S-PG42	166-21042 23
HG54-S-PG48	166-21018 23
HG67-90-M63 166-22209 26
HG67-90-PG48 166-22219 26
HG67-S-M63	166-21009 23
HG67-S-PG48	166-21019 23
HG-DC11	166-11800	16
HG-DC13	166-11801	16
HG-DC16	166-11802	16
HG-DC21	166-11803	16
HG-DC28	166-11804	16
HG-DC34	166-11805	16
HG-DC42	166-11806	16
HG-DC54	166-11807	16
HG-FR10	166-11400	14
HG-FR13	166-11401	14
HG-FR16	166-11402	14
HG-FR21	166-11403	14
HG-FR28	166-11404	14
HG-FR34	166-11405	14
HG-FR42	166-11406	14
HG-FR54	166-11407	14
HG-HI13	166-11501	15
HG-HI16	166-11502	15
HG-HI21	166-11503	15
HG-HI28	166-11504	15
HG-HI34	166-11505	15
HG-HI42	166-11506	15
HG-HI54	166-11507	15
HG-HW13	166-11302	13
HG-HW16	166-11303	13
HG-HW21	166-11304	13
HG-HW28	166-11305	13
HG-HW34	166-11306	13
HG-HW42	166-11307	13
HG-HW54	166-11308	13
HGL13-90CG-M16	166-22701 51
HGL13-90F-M16 166-23200 39
HGL13-90F-PG9 166-23208 39
HGL13-90-M16 166-22800 27
HGL13-90M-M16 166-23100 33
HGL13-90M-PG9	166-23108 33
HGL13-90-PG9	166-22808 27
HGL13-R16	166-25100 59
HGL13-SCG-M16	166-22100 49
HGL13-SF-M16 166-22000 37
HGL13-SF-PG9 166-22009 37
HGL13-S-M16	166-21600 24
HGL13-SM-M16 166-21900 31
HGL13-SM-PG9 166-21909 31
HGL13-S-PG9	166-21608 24
HGL16-45CG-M20	166-24503 53
HGL16-45FL 166-24200 47
HGL16-45F-M20 166-24400 41
HGL16-45F-PG16 166-24407 41
HGL16-45-M20 166-24000 29
HGL16-45M-M20 166-24300 35
HGL16-45M-PG13	166-24306 35
HGL16-45M-PG16	166-24307 35

TypeArticle-No.Page

HGL16-45-PG13 166-24006 29
HGL16-90CG-M16	166-22702 51
HGL16-90CG-M20	166-22703 51
HGL16-90FL 166-23000 45
HGL16-90F-M16 166-23201 39
HGL16-90F-M20 166-23202 39
HGL16-90F-PG11 166-23210 39
HGL16-90-M16 166-22801 27
HGL16-90-M20 166-22802 27
HGL16-90M-M16 166-23101 33
HGL16-90M-M20 166-23102 33
HGL16-90M-PG11	166-23110 33
HGL16-90M-PG9	166-23109 33
HGL16-90-PG11 166-22809 27
HGL16-90-PG13 166-22810 27
HGL16-90-PG9	166-22820 27
HGL16-R21	166-25101 59
HGL16-R28	166-25103 59
HGL16-R34	166-25106 59
HGL16-SCG-M16	166-22101 49
HGL16-SCG-M20	166-22102 49
HGL16-SFL	166-21800 43
HGL16-SF-M16 166-22001 37
HGL16-SF-M20 166-22002 37
HGL16-SF-PG11	166-22011 37
HGL16-SF-PG16	166-22012 37
HGL16-S-M16	166-21601 24
HGL16-S-M20	166-21602 24
HGL16-SM-M16 166-21901 31
HGL16-SM-M20 166-21902 31
HGL16-SM-PG11	166-21911 31
HGL16-SM-PG9 166-21910 31
HGL16-S-PG11	166-21609 24
HGL16-S-PG13	166-21610 24
HGL16-S-PG16	166-21624 24
HGL16-S-PG9	166-21623 24
HGL16-T	166-24900 55
HGL16-Y13	166-25901 57
HGL21-45CG-M20	166-24504 53
HGL21-45FL 166-24201 47
HGL21-45F-M20 166-24401 41
HGL21-45F-PG16 166-24408 41
HGL21-45-M20 166-24001 29
HGL21-45M-M20 166-24301 35
HGL21-45M-PG13	166-24308 35
HGL21-45M-PG16	166-24309 35
HGL21-45-PG13 166-24007 29
HGL21-45-PG16 166-24008 29
HGL21-90CG-M20	166-22704 51
HGL21-90FL 166-23001 45
HGL21-90F-M20 166-23203 39
HGL21-90F-PG16 166-23212 39
HGL21-90-M20 166-22803 27
HGL21-90M-M20 166-23103 33
HGL21-90M-PG13	166-23111 33
HGL21-90M-PG16	166-23112 33
HGL21-90-PG13 166-22821 27
HGL21-90-PG16 166-22811 27
HGL21-R28	166-25102 59
HGL21-R34	166-25105 59
HGL21-R42	166-25109 59
HGL21-SCG-M20	166-22103 49

TypeArticle-No.Page

HGL21-SFL 166-21801 43
HGL21-SF-M20 166-22003 37
HGL21-SF-PG16 166-22013 37
HGL21-S-M20 166-21603 24
HGL21-SM-M20 166-21903 31
HGL21-SM-PG13 166-21912 31
HGL21-SM-PG16 166-21913 31
HGL21-S-PG13 166-21625 24
HGL21-S-PG16 166-21611 24
HGL21-S-PG21 166-21626 24
HGL21-T 166-24901 55
HGL21-Y16 166-25902 57
HGL28-45CG-M25 166-24505 53
HGL28-45FL 166-24202 47
HGL28-45F-M25	166-24402 41
HGL28-45F-PG21	166-24409 41
HGL28-45-M25	166-24002 29
HGL28-45M-M25	166-24302 35
HGL28-45M-PG21	166-24310 35
HGL28-45-PG21	166-24009 29
HGL28-90CG-M25 166-22705 51
HGL28-90FL 166-23002 45
HGL28-90F-M25	166-23204 39
HGL28-90F-PG21	166-23213 39
HGL28-90-M25	166-22804 27
HGL28-90M-M25	166-23104 33
HGL28-90M-PG21	166-23113 33
HGL28-90-PG21	166-22812 27
HGL28-R34	166-25104 59
HGL28-R42	166-25108 59
HGL28-SCG-M25	166-22104 49
HGL28-SFL 166-21802 43
HGL28-SF-M25 166-22004 37
HGL28-SF-PG21 166-22014 37
HGL28-S-M25 166-21604 24
HGL28-S-M32 166-21619 24
HGL28-SM-M25 166-21904 31
HGL28-SM-PG21 166-21914 31
HGL28-S-PG21 166-21612 24
HGL28-S-PG29 166-21627 24
HGL28-T 166-24902 55
HGL28-Y21 166-25903 57
HGL34-45CG-M32 166-24506 53
HGL34-45FL 166-24203 47
HGL34-45F-M32	166-24403 41
HGL34-45F-PG29	166-24410 41
HGL34-45-M32	166-24003 29
HGL34-45M-M32	166-24303 35
HGL34-45M-PG29	166-24311 35
HGL34-45-PG29	166-24010 29
HGL34-90CG-M32 166-22706 51
HGL34-90FL 166-23003 45
HGL34-90F-M32	166-23205 39
HGL34-90F-PG29	166-23214 39
HGL34-90-M32	166-22805 27
HGL34-90M-M32	166-23105 33
HGL34-90M-PG29	166-23114 33
HGL34-90-PG29	166-22813 27
HGL34-R42	166-25107 59
HGL34-SCG-M32	166-22105 49
HGL34-SFL 166-21803 43
HGL34-SF-M32 166-22005 37

TypeArticle-No.Page

HGL34-SF-PG29 166-22015 37
HGL34-S-M32 166-21605 24
HGL34-S-M40 166-21620 24
HGL34-SM-M32 166-21905 31
HGL34-SM-PG29 166-21915 31
HGL34-S-PG29 166-21613 24
HGL34-T 166-24903 55
HGL34-Y28 166-25904 57
HGL42-45CG-M40 166-24507 53
HGL42-45FL 166-24204 47
HGL42-45F-M50	166-24404 41
HGL42-45-M50	166-24004 29
HGL42-45M-M50	166-24304 35
HGL42-45-PG36	166-24011 29
HGL42-90CG-M40 166-22707 51
HGL42-90FL 166-23004 45
HGL42-90F-M40	166-23206 39
HGL42-90-M40	166-22806 27
HGL42-90-M50	166-22818 27
HGL42-90M-M40	166-23106 33
HGL42-90-PG36	166-22814 27
HGL42-5CG-M40	166-22106 49
HGL42-SFL 166-21804 43
HGL42-SF-M40 166-22006 37
HGL42-S-M40 166-21606 25
HGL42-S-M50 166-21621 25
HGL42-SM-M40 166-21906 31
HGL42-S-PG36 166-21614 25
HGL42-T 166-24904 55
HGL54-45CG-M50 166-24508 53
HGL54-45F-M50	166-24405 41
HGL54-45-M50	166-24005 29
HGL54-45M-M50	166-24305 35
HGL54-90CG-M50 166-22708 51
HGL54-90F-M50	166-23207 39
HGL54-90-M50	166-22807 27
HGL54-90-M63	166-22819 27
HGL54-90M-M50	166-23107 33
HGL54-90-PG48	166-22815 27
HGL54-SCG-M50	166-22107 49
HGL54-SF-M50 166-22007 37
HGL54-S-M50 166-21607 25
HGL54-S-M63 166-21622 25
HGL54-SM-M50 166-21907 31
HGL54-S-PG42 166-21628 25
HGL54-S-PG48 166-21616 25
HG-LW10	166-11200	12
HG-LW11	166-11201	12
HG-LW13	166-11202	12
HG-LW16	166-11203	12
HG-LW21	166-11204	12
HG-LW28	166-11205	12
HG-LW34	166-11206	12
HG-LW42	166-11207	12
HG-LW54	166-11208	12
HG-LW67	166-11209	12
HG-PP10	166-11900	17
HG-PP13	166-11901	17
HG-PP16	166-11902	17
HG-PP20	166-11903	17
HG-PP21	166-11904	17
HG-PP25	166-11905	17

TypeArticle-No.Page

HG-PP26	166-11906	17
HG-PP28	166-11907	17
HG-PP34	166-11908	17
HG-PP42	166-11909	17
HG-PP54	166-11910	17
HG-PP67	166-11911	17
HG-SW10	166-11100	11
HG-SW11	166-11101	11
HG-SW13	166-11102	11
HG-SW16	166-11103	11
HG-SW16	166-11110	11
HG-SW21	166-11104	11
HG-SW21	166-11111	11
HG-SW28	166-11105	11
HG-SW28	166-11112	11
HG-SW34	166-11106	11
HG-SW34	166-11118	11
HG-SW42	166-11113	11
HG-SW54	166-11114	11
HG-SW67	166-11109	11
LFHCS12	166-30900 74
LFHCS16	166-30901 74
LFHCS20	166-30902 74
LFHCS25	166-30903 74
LFHCS32	166-30904 74
LFHCS40	166-30905 74
LFHCS50	166-30906 74
LFHCS63	166-30907 74
LFHCS75	166-30908 74
LTS10	166-31900 85
LTS10-EI	166-32700 94
LTS10-FMC-M12	166-32200 88
LTS10-FMC-M16	166-32201 88
LTS12	166-31901 85
LTS12-90FMC-M16	166-32400 90
LTS12-EI	166-32701 94
LTS12-FMC-M16	166-32203 88
LTS12-SMC-M16	166-32300 89
LTS16	166-31902 85
LTS16	166-31917 85
LTS16-45FMC-M20	166-32500 91
LTS16-90FMC-M16	166-32401 90
LTS16-90FMC-M20	166-32402 90
LTS16-EI	166-32702 94
LTS16-FMC-M16	166-32204 88
LTS16-FMC-M20	166-32205 88
LTS16-FMC-PG11	166-32212 88
LTS16-FMC-PG13	166-32216 88
LTS16-SCG-M16	166-36201 93
LTS16-SMC-M16	166-32301 89
LTS16-SMC-M20	166-32302 89
LTS20	166-31903 85
LTS20	166-31918 85
LTS20-45FMC-M20	166-32501 91
LTS20-90FMC-M20	166-32403 90
LTS20-EI	166-32703 94
LTS20-FMC-M20	166-32206 88
LTS20-FMC-PG16	166-32213 88
LTS20-LTS20 166-32600 92
LTS20-SCG-M20	166-36202 93
LTS20-SMC-M20	166-32303 89
LTS25	166-31904 85

TypeArticle-No.Page

LTS25 166-31919 85
LTS25-45FMC-M25 166-32502 91
LTS25-90FMC-M25 166-32404 90
LTS25-EI 166-32704 94
LTS25-FMC-M25 166-32207 88
LTS25-FMC-PG21 166-32214 88
LTS25-LTS25 166-32601 92
LTS25-SCG-M25 166-36203 93
LTS25-SMC-M25 166-32304 89
LTS32 166-31905 85
LTS32 166-31921 85
LTS32-45FMC-M32 166-32503 91
LTS32-90FMC-M32 166-32405 90
LTS32-EI 166-32705 94
LTS32-FMC-M32 166-32208 88
LTS32-FMC-PG29 166-32215 88
LTS32-SCG-M32 166-36204 93
LTS32-SMC-M32 166-32305 89
LTS40 166-31906 85
LTS40 166-31927 85
LTS40-45FMC-M40 166-32504 91
LTS40-90FMC-M40 166-32406 90
LTS40-EI 166-32706 94
LTS40-FMC-M40 166-32209 88
LTS50 166-31907 85
LTS50-45FMC-M50 166-32505 91
LTS50-90FMC-M50 166-32407 90
LTS50-EI 166-32707 94
LTS50-FMC-M50 166-32210 88
LTS63 166-31908 85
LTS63-45FMC-M63 166-32506 91
LTS63-90FMC-M63 166-32408 90
LTS63-EI 166-32708 94
LTS63-FMC-M63 166-32211 88
LTSH12 166-32001 86
LTSH16 166-32002 86
LTSH20 166-32003 86
LTSH25 166-32004 86
LTSH32 166-32005 86
LTSH40 166-32006 86
LTSH50 166-32007 86
LTSUL16 166-32100 87
LTSUL20 166-32101 87
LTSUL25 166-32102 87
LTSUL32 166-32103 87
LTSUL40 166-32104 87
LTSUL50 166-32105 87
LTSUL63 166-32106 87
NCS16 166-30801 73
NCS20 166-30802 73
NCS25 166-30803 73
NCS32 166-30800 73
PACC10 166-25707	124
PACC13 166-25700	124
PACC16 166-25701	124
PACC21 166-25702	124
PACC28 166-25703	124
PACC34 166-25704	124
PACC42 166-25705	124
PACC54 166-25706	124
PAEC16	166-50800
PAEC21	166-50801

TypeArticle-No.Page

PAEC28	166-50802	138
PAEC34	166-50803	138
PAEC42	166-50804	138
PAEC54	166-50805	138
PCS10	166-30700 72
PCS10	166-30722 72
PCS10-EI	166-31800 84
PCS10-FMC-M12	166-31400 79
PCS10-FM-M12	166-31000 75
PCS10-FM-PG7	166-31010 75
PCS10-PC	166-31200 77
PCS10-SM-M12	166-31100 76
PCS10-SM-PG7	166-31110 76
PCS12	166-30701 72
PCS12	166-30723 72
PCS12-90FMC-M16	166-31601 81
PCS12-EI	166-31801 84
PCS12-FMC-M16	166-31401 79
PCS12-FM-M16	166-31001 75
PCS12-FM-PG9	166-31011 75
PCS12-PC	166-31201 77
PCS12-SMC-M16 166-31500 80
PCS12-SM-M16	166-31101 76
PCS12-SM-PG9	166-31111 76
PCS16	166-30702 72
PCS16	166-30724 72
PCS16-90FMC-M16	166-31602 81
PCS16-90FMC-M20	166-31603 81
PCS16-EI	166-31802 84
PCS16-FF-M20	166-31300 78
PCS16-FMC-M16	166-31402 79
PCS16-FMC-M20	166-31403 79
PCS16-FMC-PG11	166-31409 79
PCS16-FM-M16	166-31002 75
PCS16-FM-M20	166-31003 75
PCS16-FM-PG11	166-31012 75
PCS16-PC	166-31202 77
PCS16-SCG-M16	166-36101 83
PCS16-SMC-M16 166-31501 80
PCS16-SMC-M20 166-31502 80
PCS16-SM-M16	166-31102 76
PCS16-SM-M20	166-31103 76
PCS16-SM-PG11 166-31112 76
PCS20	166-30703 72
PCS20	166-30725 72
PCS20-90FMC-M20	166-31604 81
PCS20-EI	166-31803 84
PCS20-FF-M20	166-31301 78
PCS20-FMC-M20	166-31404 79
PCS20-FMC-PG16	166-31410 79
PCS20-FM-M20	166-31004 75
PCS20-FM-PG16	166-31014 75
PCS20-PC	166-31203 77
PCS20-PCS20	166-31700 82
PCS20-SCG-M20	166-36102 83
PCS20-SMC-M20 166-31503 80
PCS20-SM-M20	166-31104 76
PCS20-SM-PG13 166-31113 76
PCS20-SM-PG16 166-31114 76
PCS25	166-30704 72
PCS25	166-30726 72
PCS25-90FMC-M25	166-31605 81

TypeArticle-No.Page

PCS25-EI	166-31804 84
PCS25-FF-M25	166-31302 78
PCS25-FMC-M25	166-31405 79
PCS25-FMC-PG21	166-31411 79
PCS25-FM-M25	166-31005 75
PCS25-FM-PG21	166-31015 75
PCS25-PC	166-31204 77
PCS25-PCS25	166-31701 82
PCS25-SCG-M25	166-36103 83
PCS25-SMC-M25 166-31504 80
PCS25-SM-M25	166-31105 76
PCS25-SM-PG21 166-31115 76
PCS32	166-30705 73
PCS32	166-30727 73
PCS32-90FMC-M32	166-31606 81
PCS32-EI	166-31805 84
PCS32-FF-M32	166-31303 78
PCS32-FMC-M32	166-31406 79
PCS32-FMC-PG29	166-31412 79
PCS32-FM-M32	166-31006 75
PCS32-FM-PG29	166-31016 75
PCS32-PC	166-31205 77
PCS32-SCG-M32	166-36104 83
PCS32-SMC-M32 166-31505 80
PCS32-SM-M32	166-31106 76
PCS32-SM-PG29 166-31116 76
PCS40	166-30706 73
PCS40	166-30728 73
PCS40-EI	166-31806 84
PCS40-FMC-M40	166-31407 79
PCS40-FMC-PG36	166-31415 79
PCS40-FM-M40	166-31007 75
PCS40-FM-PG36	166-31017 75
PCS40-PC	166-31206 77
PCS40-SM-M40	166-31107 76
PCS40-SM-PG36 166-31117 76
PCS50	166-30707 73
PCS50	166-30729 73
PCS50-EI	166-31807 84
PCS50-FMC-M50	166-31408 79
PCS50-FM-M50	166-31008 75
PCS50-FM-PG42	166-31018 75
PCS50-PC	166-31207 77
PCS50-SM-M50	166-31108 76
PCS50-SM-PG42 166-31118 76
PCS63	166-30708 73
PCS63	166-30730 73
PCS63-FM-M63	166-31009 75
PCS63-PC	166-31208 77
PCS63-SM-M63	166-31109 76
PCS75	166-30709 73
PCS75	166-30731 73
PCS75-FM-M75	166-31019 75
PCS75-PC	166-31209 77
PCSB12	166-33600 95
PCSB12-FM-M16	166-33800 96
PCSB12-FM-PG9	166-33808 96
PCSB12-PC	166-34000 98
PCSB12-SM-M16	166-33900 97
PCSB12-SM-PG9 166-33908 97
PCSB16	166-33601 95
PCSB16-90FMC-M16	166-34300 101

TypeArticle-No.Page

PCSB16-90FMC-M20 166-34301 101

PCSB16-FMC-M16 166-34100 99

PCSB16-FMC-M20 166-34101 99

PCSB16-FMC-PG11 166-34105 99

PCSB16-FM-M16 166-33801 96

PCSB16-FM-M20 166-33802 96

PCSB16-FM-PG11 166-33809 96

PCSB16-PC 166-34001 98

PCSB16-SMC-M16 166-34200 100

PCSB16-SMC-M20 166-34201 100

PCSB16-SM-M16 166-33901 97

PCSB16-SM-M20 166-33902 97

PCSB16-SM-PG11 166-33909 97

PCSB20 166-33602 95

PCSB20-90FMC-M20 166-34302 101

PCSB20-FMC-M20 166-34102 99

PCSB20-FMC-PG16 166-34106 99

PCSB20-FM-M20 166-33803 96

PCSB20-FM-PG16 166-33810 96

PCSB20-PC 166-34002 98

PCSB20-SMC-M20 166-34202 100

PCSB20-SM-M20 166-33903 97

PCSB20-SM-PG16 166-33910 97

PCSB25 166-33603 95

PCSB25-90FMC-M25 166-34303 101

PCSB25-FMC-M25 166-34103 99

PCSB25-FMC-PG21 166-34107 99

PCSB25-FM-M25 166-33804 96

PCSB25-FM-PG21 166-33811 96

PCSB25-PC 166-34003 98

PCSB25-SMC-M25 166-34203 100

PCSB25-SM-M25 166-33904 97

PCSB25-SM-PG21 166-33911 97

PCSB32 166-33604 95

PCSB32-90FMC-M32 166-34304 101

PCSB32-FMC-M32 166-34104 99

PCSB32-FMC-PG29 166-34108 99

PCSB32-FM-M32 166-33805 96

PCSB32-FM-PG29 166-33812 96

PCSB32-PC 166-34004 98

PCSB32-SMC-M32 166-34204 100

PCSB32-SM-M32 166-33905 97

PCSB32-SM-PG29 166-33912 97

PCSB40 166-33605 95

PCSB40-FM-M40 166-33806 96

PCSB40-FM-PG36 166-33813 96

PCSB40-PC 166-34005 98

PCSB40-SM-M40 166-33906 97

PCSB40-SM-PG36 166-33913 97

PCSB50 166-33606 95

PCSB50-FM-M50 166-33807 96

PCSB50-PC 166-34006 98

PCSB50-SM-M50 166-33907 97

PCSB50-SM-PG42 166-33914 97

PSR12 166-40001 109

PSR12-S-M16 166-40701 112

PSR16 166-40002 109

PSR16-90-M16 166-40801 113

PSR16-90-M20 166-40802 113

PSR16-S-M16 166-40702 112

PSR16-S-M20 166-40703 112

PSR20 166-40003 109

TypeArticle-No.Page

PSR20-90-M20 166-40803 113
PSR20-S-M20 166-40704 112
PSR25 166-40004 109
PSR25-90-M25 166-40804 113
PSR25-S-M25 166-40705 112
PSR32 166-40005 109
PSR32-90-M32 166-40805 113
PSR32-S-M32 166-40706 112
PSR40 166-40006 109
PSR40-90-M40 166-40806 113
PSR40-S-M40 166-40707 112
PSR50 166-40007 109
PSR50-S-M50 166-40708 112
PSR63 166-40008 109
PSR63-S-M63 166-40709 112
PSRSC12	166-40301 110
PSRSC12-90FMC-M16	166-41201 116
PSRSC12-FMC-M16	166-41001 114
PSRSC16	166-40302 110
PSRSC16-90FMC-M16	166-41202 116
PSRSC16-90FMC-M20	166-41203 116
PSRSC16-90FMCSS-M20	166-41401 118
PSRSC16-FMCFFSS-M16	166-41601 119
PSRSC16-FMC-M16	166-41002 114
PSRSC16-FMC-M20	166-41003 114
PSRSC16-FMCSS-M16	166-41301 117
PSRSC16-FMCSS-M20	166-41302 117
PSRSC16-SMC-M16	166-41101 115
PSRSC16-SMC-M20	166-41102 115
PSRSC20	166-40303 110
PSRSC20-90FMC-M20	166-41204 116
PSRSC20-90FMCSS-M20	166-41402 118
PSRSC20-FMCFFSS-M20	166-41602 119
PSRSC20-FMC-M20	166-41004 114
PSRSC20-FMCSS-M20	166-41303 117
PSRSC20-SMC-M20	166-41103 115
PSRSC25	166-40304 110
PSRSC25-90FMC-M25	166-41205 116
PSRSC25-90FMCSS-M25	166-41403 118
PSRSC25-FMCFFSS-M25	166-41603 119
PSRSC25-FMC-M25	166-41005 114
PSRSC25-FMCSS-M25	166-41304 117
PSRSC25-SMC-M25	166-41104 115
PSRSC32	166-40305 110
PSRSC32-90FMC-M32	166-41206 116
PSRSC32-90FMCSS-M32	166-41404 118
PSRSC32-FMCFFSS-M32	166-41604 119
PSRSC32-FMC-M32	166-41006 114
PSRSC32-FMCSS-M32	166-41305 117
PSRSC32-SMC-M32	166-41105 115
PSRSC40	166-40306 110
PSRSC40-90FMC-M40	166-41207 116
PSRSC40-FMCFFSS-M40	166-41605 119
PSRSC40-FMC-M40	166-41007 114
PSRSC50	166-40307 110
PSRSC50-90FMC-M50	166-41208 116
PSRSC50-FMCFFSS-M50	166-41606 119
PSRSC50-FMC-M50	166-41008 114
PSRSC63	166-40308 110
PSRSC63-90FMC-M63	166-41209 116
PSRSC63-FMC-M63	166-41009 114
SC10 166-30100 64

TypeArticle-No.Page

SC10 166-30110 64
SC10-FM-M12	166-30300 66
SC10-FM-PG7	166-30311 66
SC10-PC	166-30500 70
SC10-SM-M12	166-30400 68
SC10-SM-PG7	166-30410 68
SC12 166-30101 64
SC12 166-30111 64
SC12-FM-M16	166-30301 66
SC12-PC	166-30501 70
SC12-SM-M16	166-30401 68
SC12-SM-PG9	166-30411 68
SC16 166-30102 64
SC16 166-30112 64
SC16-FF-M20 166-30600 71
SC16-FM-M16	166-30302 66
SC16-FM-M20	166-30303 66
SC16-FM-PG11	166-30314 66
SC16-PC	166-30502 70
SC16-SM-M16	166-30402 68
SC16-SM-M20	166-30403 68
SC16-SM-PG11	166-30412 68
SC20 166-30103 64
SC20 166-30113 64
SC20-FF-M20 166-30601 71
SC20-FM-M20	166-30304 66
SC20-FM-PG16	166-30315 66
SC20-PC	166-30503 70
SC20-SM-M20	166-30404 68
SC20-SM-PG13	166-30413 68
SC20-SM-PG16	166-30414 68
SC25 166-30104 64
SC25 166-30114 64
SC25-FF-M25 166-30602 71
SC25-FM-M25	166-30305 66
SC25-FM-PG21	166-30316 66
SC25-PC	166-30504 70
SC25-SM-M25	166-30405 68
SC25-SM-PG21	166-30415 68
SC32 166-30105 64
SC32 166-30115 64
SC32-FF-M32 166-30603 71
SC32-FM-M32	166-30306 66
SC32-FM-PG29	166-30317 66
SC32-PC	166-30505 70
SC32-SM-M32	166-30406 68
SC32-SM-PG29	166-30416 68
SC40 166-30106 64
SC40 166-30116 64
SC40-FM-M40	166-30307 66
SC40-FM-PG36	166-30318 66
SC40-PC	166-30506 70
SC40-SM-M40	166-30407 68
SC40-SM-PG36	166-30417 68
SC50 166-30107 64
SC50 166-30117 64
SC50-FM-M50	166-30308 66
SC50-FM-PG42	166-30319 66
SC50-PC	166-30507 70
SC50-SM-M50	166-30408 68
SC50-SM-PG42	166-30418 68
SC63 166-30108 64

TypeArticle-No.Page

SC63-FM-M63 166-30309 66

SC63-FM-PG48 166-30320 66

SC63-PC 166-30508 70

SC63-SM-M63 166-30409 68

SC75 166-30109 64

SC75-FM-M75 166-30310 66

SC75-PC 166-30509 70

SCSB12 166-34400 102

SCSB12-FM-M16 166-34600 103

SCSB12-FM-PG9 166-34607 103

SCSB12-PC 166-34800 105

SCSB12-SM-M16 166-34700 104

SCSB12-SM-PG9 166-34707 104

SCSB16 166-34401 102

SCSB16-FM-M16 166-34601 103

SCSB16-FM-M20 166-34602 103

SCSB16-FM-PG11 166-34608 103

SCSB16-PC 166-34801 105

SCSB16-SM-M16 166-34701 104

SCSB16-SM-M20 166-34702 104

SCSB16-SM-PG11 166-34708 104

SCSB20 166-34402 102

SCSB20-FM-M20 166-34603 103

SCSB20-FM-PG16 166-34609 103

SCSB20-PC 166-34802 105

SCSB20-SM-M20 166-34703 104

SCSB20-SM-PG16 166-34709 104

SCSB25 166-34403 102

SCSB25-FM-M25 166-34604 103

SCSB25-FM-PG21 166-34610 103

SCSB25-PC 166-34803 105

SCSB25-SM-M25 166-34704 104

SCSB25-SM-PG21 166-34710 104

SCSB32 166-34404 102

SCSB32-FM-M32 166-34605 103

SCSB32-FM-PG29 166-34611 103

SCSB32-PC 166-34804 105

SCSB32-SM-M32 166-34705 104

SCSB32-SM-PG29 166-34711 104

SCSB40 166-34405 102

SCSB40-FM-M40 166-34606 103

SCSB40-FM-PG36 166-34612 103

SCSB40-PC 166-34805 105

SCSB40-SM-M40 166-34706 104

SCSB40-SM-PG36 166-34712 104

SCSB50 166-34406 102

SSC10 166-30200 65

SSC10-FM-M12 166-30321 67

SSC10-SM-M12 166-30419 69

SSC12 166-30201 65

SSC12-FM-M16 166-30322 67

SSC12-SM-M16 166-30420 69

SSC16 166-30202 65

SSC16-FM-M16 166-30323 67

SSC16-SM-M16 166-30421 69

SSC20 166-30203 65

SSC20-FM-M20 166-30324 67

SSC20-SM-M20 166-30422 69

SSC25 166-30204 65

SSC25-FM-M25 166-30325 67

SSC25-SM-M25 166-30423 69

SSC32 166-30205 65

TypeArticle-No.Page

SSC32-FM-M32 166-30326 67

SSC32-SM-M32 166-30424 69

SSC40 166-30206 65

SSC40-FM-M40 166-30327 67

SSC50 166-30207 65

SSC50-FM-M50 166-30328 67

Expertise worldwide

You will find your local contact here:

Europe

HellermannTyton – Czech Republic

E-Mail: officeCZ@Hellemann tyton.at

www.Helermannlyton.

HellermannTyton – Denmark

Industrivej 44A.1.

4000 Roskilde

Tel: [phone]

Fax: [phone]

Unit 77 Cherry Orchard

Industrial Estate

Ballyfermot, Dublin 10

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.HeilermannTyton.co.uk

HellermannTyton S.r.l. – Italy

Via Visco, 3/5

35010 Limena (PD)

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.HelermannTyton.it

HellermannTyton B.V. -

Belgium/Netherlands

Vanadiumweg 11-C

3812 PX Amersfoort

Tel: [phone]

Fax: [phone]

E-Mail (NL): [e-mail]

E-Mail (BE): [e-mail]

www.HellermannTyton.nl

www.HellermannTyton.be

HellermannTyton AS - Norway

PO Box 240 Alnabru

0614 Oslo

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.HellermannTyton.no

HellermannTyton Sp. z o.o. – Poland

ul. Berdychów 57A

62 410 Zagórów

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.HellermannTyton.pl

HellermannTyton - Romania

E-Mail: [e-mail]

www.HellermannTyton.at

000 HellermannTyton - Russia

40/4. Pulkovskoe road

BC Technopolis Pulkovo, office A 8081

196158, St. Petersburg

Tel: [phone]

Fax: [phone]

Plymouth International Medical

and Technology Park

Plymouth, Devon PL6 5WR

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.HellermannTyton.co.uk

HellermannTyton Ltd - UK

Sharston Green Business Park

1 Robeson Way

Altrincham Road, Wythenshawe

Manchester M22 4TY

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.HellermannTyton.co.uk

HellermannTyton Ltd - UK

Main Contact for Customer Service

Wharf Approach

Aldridge, Walsall, West Midlands

WS9 8BX

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.HellermannTyton.co.uk

HellermannTyton Data Ltd - UK

Cornwell Business Park

43-45 Salthouse Road, Brackmills

Northampton NN4 7EX

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.htdata.co.uk

Middle East

HellermannTyton - UAE

Email: [e-mail]

www.HellermannTyton.ae

North America

HellermannTyton - Canada

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.HellermannTyton.ca

HellermannTyton - Mexico

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.HellermannTyton.com

HellermannTyton - USA

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.HellermannTyton.com

South America

HellermannTyton - Argentina

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.HellermannTyton.com.ar

HellermannTyton - Brazil

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

A World of Solutions at your Fingertips

Comprehensive product information online

Digital versions of all our publications, plus video clips of products, are available to you in the media centre on our website. You can also download product data in 2D and 3D formats from our product pages.

Extensive portfolio of high-quality products

We make it as easy as possible for you to discover the perfect product that helps you solve your particular electrical installation or engineering challenge. Our printed publications guide you through our extensive portfolio.

Product display of metallic pipe fittings and connectors against a teal background (no text or symbols visible)
