Wreck SP-5065-01 - Montre-bracelet Spin Master - Free user manual and instructions

Product Type	Children's Wristwatch
Brand	Spin Master
Model	Wreck SP-5065-01
Display Type	Digital LCD
Case Material	Plastic
Strap Material	Resin
Dimensions (Case)	Approx. 2.5 x 1.5 x 0.4 inches
Weight	Approx. 30 grams
Power Source	1 x CR2016 coin cell battery (included)
Battery Life	Approx. 12 months with normal use
Functions	Time, date, alarm, stopwatch, backlight
Water Resistance	Not water-resistant; avoid contact with water
Adjustable Strap	Yes, fits wrist sizes 13-18 cm
Safety	Contains small parts; not for children under 3 years
Care Instructions	Clean with a soft dry cloth; remove battery if not used for long periods
Spare Parts	Not available separately
Warranty	Limited 1-year warranty against defects
Intended Age	4 years and up

Frequently Asked Questions - Wreck SP-5065-01 Spin Master

How do I set the time on the Wreck SP-5065-01 watch?

Press and hold the MODE button for 3 seconds until the hour digits flash. Use the START/STOP button to adjust the hour, then press MODE again to adjust minutes. Press MODE to save and exit.

Is this watch waterproof?

No, the Wreck watch is not water-resistant. Avoid contact with water, rain, or sweat to prevent damage.

How do I change the battery?

Use a small screwdriver to open the battery compartment on the back. Remove the old CR2016 battery and insert a new one with the positive (+) side facing up. Close the compartment securely.

Can I adjust the strap length?

Yes, the resin strap has multiple adjustment holes. Simply push the buckle pin through the desired hole to resize.

What does the alarm function do?

The alarm sounds a beep for 30 seconds at the set time. To set it, enter alarm mode by pressing MODE repeatedly, then set the time using the same method as the clock.

Why is the display not showing anything?

First, check the battery. If it's dead, replace it with a new CR2016. Also make sure the battery contacts are clean and the battery is properly inserted.

Is this watch suitable for a 3-year-old?

No, this watch contains small parts and is recommended for children ages 4 and up due to choking hazard.

How do I use the backlight?

Press the LIGHT button (usually the top button) to illuminate the display for 3 seconds. The backlight helps reading in the dark.

What does the stopwatch measure?

The stopwatch measures elapsed time up to 59 minutes and 59 seconds. Press START/STOP to begin/stop, and RESET to clear.

How do I clean the watch?

Wipe the watch with a soft, dry cloth. Do not use chemicals or immerse in water. Remove the battery if storing for a long time.

USER MANUAL Wreck SP-5065-01 Spin Master

HOUR HAND MINUTE HAND SCREW DOWN CROWN WATER RESISTANT AUTOMATIC 7 6 0E 20 02 03 SECOND HAND DATE

AUTOMATIC 3 HANDS WITH DATE

WRECK COLLECTION SP 5085

PLEASE READ THE FOLLOWING BEFORE UNSCREWING THE CROWN:

SCREW-DOWN CROWN

Screw down crowns are used to ensure water resistance. ALWAYS be certain that your crown is securely screwed down (Position [0] is secured. Positions [1], [2] and [3] are not secured for water resistance). Do NOT unscrew your crown while you are in any environment where moisture is present.

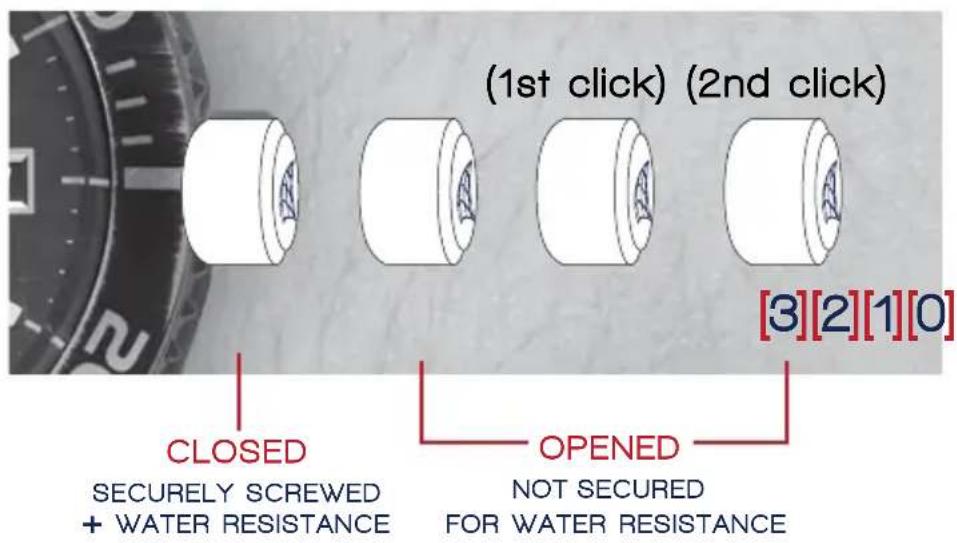

(1st click) (2nd click) CLOSED SECURELY SCREWED + WATER RESISTANCE OPENED NOT SECURED FOR WATER RESISTANCE [3][2][1][0]

DO NOT PULL THE CROWN UNLESS IT IS UNSCREWED FIRST:

Close-up of a white cylindrical component with a red curved arrow indicating rotation (no text or symbols)

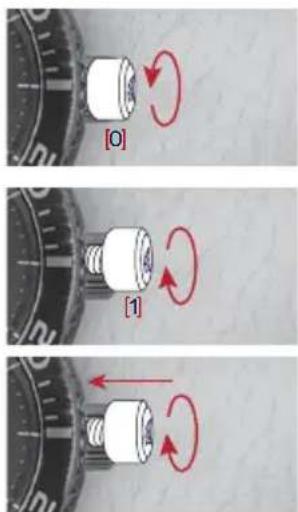

TO UNSCREW: Turn the crown anti-clockwise until it turns freely without tension.

Once the crown is fully unscrewed, it automatically sets itself into position [1]. GENTLY pull the crown out to the other desired positions for watch setting (see specific operating instructions on the following pages).

[1]

TO SCREW: Push the crown ALL THE WAY IN (towards the watch) THEN begin to turn clockwise until it is securely screwed down.

NOTE: Failure to SECURELY screw down the crown after setting the watch may affect its water resistance.

BEFORE YOU USE THIS WATCH, IT IS RECOMMENDED THAT YOU MANUALLY WIND THE MAINSPRING TO START IT MOVING.

THIS WATCH IS AN AUTOMATIC WATCH EQUIPPED WITH A MANUAL WINDING MECHANISM.

[0] [1]

WINDING THE MAINSPRING

1. Unscrew the crown by turning it anti-clockwise.

2. When it is in position [1], turn the crown clockwise to wind. Wind 15-20 times and it will start to move naturally after shaking slightly.

3. Push the crown in then screw it securely.

* This watch MUST be worn for at least 8 (Eight) hours each day to ensure it is fully wound. An automatic watch will only wind when the watch is on your wrist and your arm moves. Winding the watch by the crown will put power on the spring but not enough to allow the watch to function fully. If your watch stops overnight or loses time it means it is not being fully wound.

[O] [3] [O]

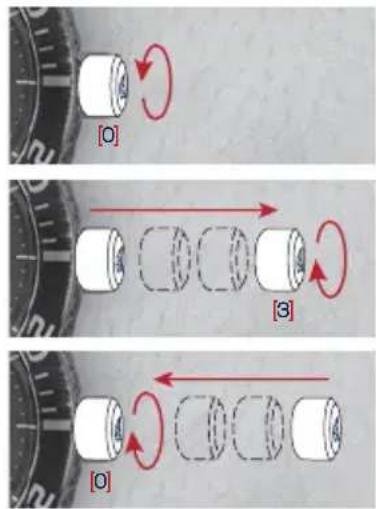

HOW TO SET THE TIME

1. Unscrew the crown and pull it out to position [3].
2. Turn the crown clockwise to set the correct time.
3. Push the crown in then screw it securely.

• Take a.m./p.m. into consideration when setting the hour and minute hands to the desired time.
* Always be certain that your crown is SECURELY SCREWED; this will prevent moisture from entering in.

[0] [2] [0]

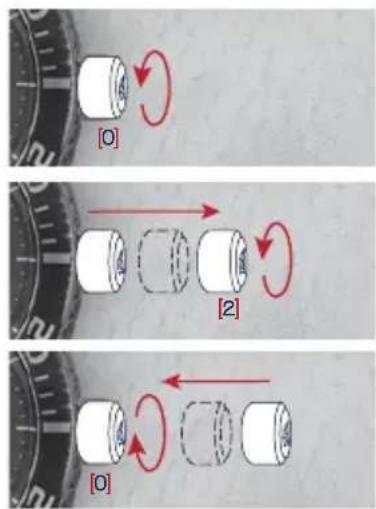

HOW TO SET THE DATE

1. Unscrew the crown and pull it out to position [2].
2. Turn the crown clockwise to set the correct date.
3. Push the crown in then screw it securely.

* Do not set the date between 9:00 P.M. and 4:00 A.M.

WATER RESISTANCE

Note that the water resistance chart serves only as a guide (please refer to the water resistance chart on the next page). Actual water resistance may vary depending on a number of factors including water temperature, water salinity, and use under water.

The water resistance of your timepiece may eventually be compromised over time with general wear and tear and use of your timepiece under adverse conditions.

Always remember to employ the screw down crown if available to maintain the water resistancy of your timepiece. Warranty may be voided if the screw down crown has not been properly employed.

Note that you should never wear your watch in a jacuzzi or steam room where steam may enter the case despite the water tight seals used to protect your watch. This may cause condensation inside your watch which may effect and damage the inner workings of your watch.

*Spinnaker watches, its manufacturer, brand owner or any of its affiliated companies accept no liability for death or injury resulting from use, misuse or failure on the part of this watch.

WATER RESISTANCE CHART

	30M/3ATM	50M/5ATM	100M/10ATM	150M/15ATM	200M/20ATM	300M/30ATM	500M/50ATM	1000M/100ATM
SPLASH/SHOWERING
SWIMMING/BATHING
SWIMMING/SNORKELING/WATER SPORTS
FREEDIVING
SCUBADIVING
PROFESSIONALDEEP SEA DIVING

WATER RESISTANCE: 20ATM
