USER MANUAL 002-443 Marquant

Exterior view of a modern office building (no signage)

3D rendered image of a gray rectangular device with a blue vertical stripe and grid pattern (no text or symbols visible)

SE TRÅDLÖS DÖRRKLOCKA

Bruksanvisning i original

Operating instructions

(Translation of the original instructions)

Important! Read the user instructions carefully before use.

Save them for future reference.

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent/ Producenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Distributör/ Distributør/ Dystrybutor/ Distributor

Jula Poland Sp. z o.o., ul.

EC DECLARATION OF CONFORMITY

EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

EF SAMSVARSERKLÆRING

DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

certify that the design and manufacturing of this product

EN 301489-1 V2.2.0(Draft), EN 301489-3 V2.1.1 (Final Draft)

RoHS Directive 2011/65/EU

EN 50581:2012

This product was CE marked in year -17

Skara 2017-08-22

MATTIAS LIF

BUSINESS AREA MANAGER

1

7 8 9 SIZE AA LRRM SIZE AA LRIM CE

2

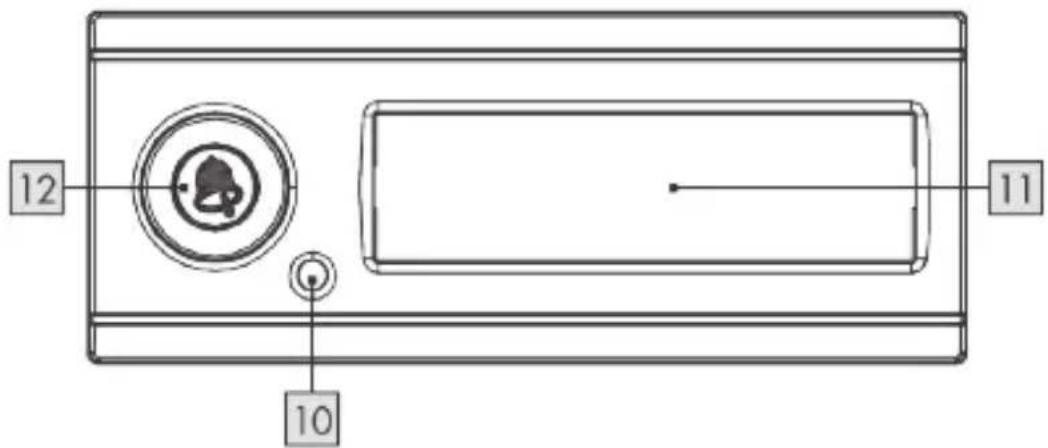

12 10 11

OPEN CR2032 13

Top-down schematic of a rectangular device with two circular components and a numbered label '14' pointing to the right side (no text or symbols on the diagram itself)

3

SÄKERHETSANVISNINGAR

WARNING!

• Failure to follow all the instructions and safety instructions can result in the risk of electric shock, fire and/or serious personal injury.
• Keep the packaging material out of the reach of children and pets – risk of suffocation. Keep children away from the door bell. This is not a toy.
• Swallowing batteries can cause fatal injury. Seek medical attention immediately if anyone has swallowed a battery.
• Never attempt to charge non-rechargeable batteries, never short-circuit batteries, and never attempt to open them – risk of overheating, fire and/or explosion.
• This door bell can be used by children from eight years and upwards and by persons with physical, sensorial or mental disabilities, or persons who lack experience or knowledge, if they are supervised or receive instructions

concerning the safe use of the door bell and understand the risks involved with its use. Do not allow children to play with the door bell. Cleaning and maintenance must not be carried out by children unless they are more than eight years old, and are kept under supervision.

- Keep the door bell and its power cord out of the reach of children under eight years of age.

- Check that all the parts are undamaged. Do not use the door bell if any parts are missing or damaged – risk of personal injury.

- Check that all parts are fitted correctly. Incorrectly fitted parts can result in the risk of personal injury.

- Do not expose the door bell to naked flames or high temperatures.

- Do not expose batteries to naked

flames or water – risk of explosion.

Remove discharged batteries from the door bell at once, otherwise there is a risk of battery leakage.

- Replace all the batteries at the same time. Only use batteries of the recommended type.

- Do not mix old and new batteries, or different types of batteries.

- Recycle used batteries in accordance with local regulations.

- Store batteries out of the reach of children. Do not expose the batteries to fire, never short circuit batteries, and do not attempt to open them.

- Failure to follow these instructions can result in a risk of battery leakage. Remove leaking batteries from the door bell at once, otherwise the door bell can be damaged.

- Avoid contact with the skin, eyes,

and mucous membrane. On contact with battery fluid, rinse immediately with plenty of fresh water and seek medical attention.

• Do not use rechargeable batteries.
• Do not short circuit the battery terminals.
• Do not mix old and new batteries.
• Remove the batteries if the door bell is not going to be used for some time.
• Make sure to insert the batteries with the correct polarity.
• The door bell must only be used as it is intended to be used, and in accordance with these instructions.
• The door bell is intended for wireless transmission of a signal from the door bell.
• The door bell is only intended for household use.

SYMBOLS

Warning of explosion.

TECHNICAL DATA

Range ≤ 100 ~m

Frequency 433 MHz

Battery receiver 2 x 1.5 V AA

Battery transmitter 1 x 3 V AA CR2032

Sound volume (max setting)

min 73 dB (at 1 m from door bell)

Transmitter protection rating IPX4

Audio signals 36

Sound levels 5

Sound settings 3

DESCRIPTION

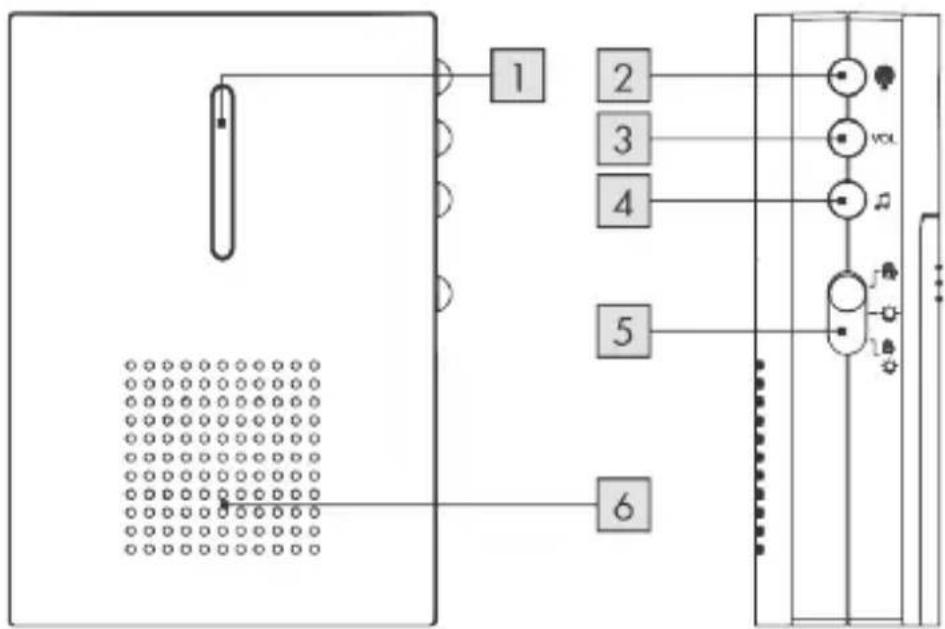

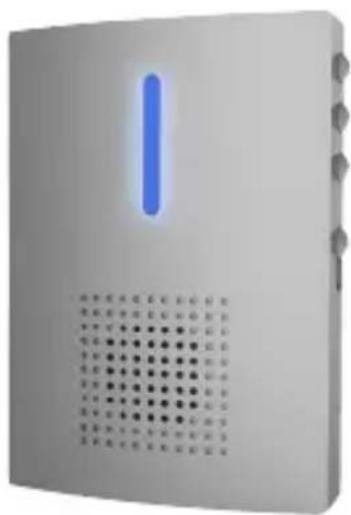

RECEIVER

1. Signal indicator
2. Synchronising
3. Volume
4. Melody
5. Sound setting
6. Speaker

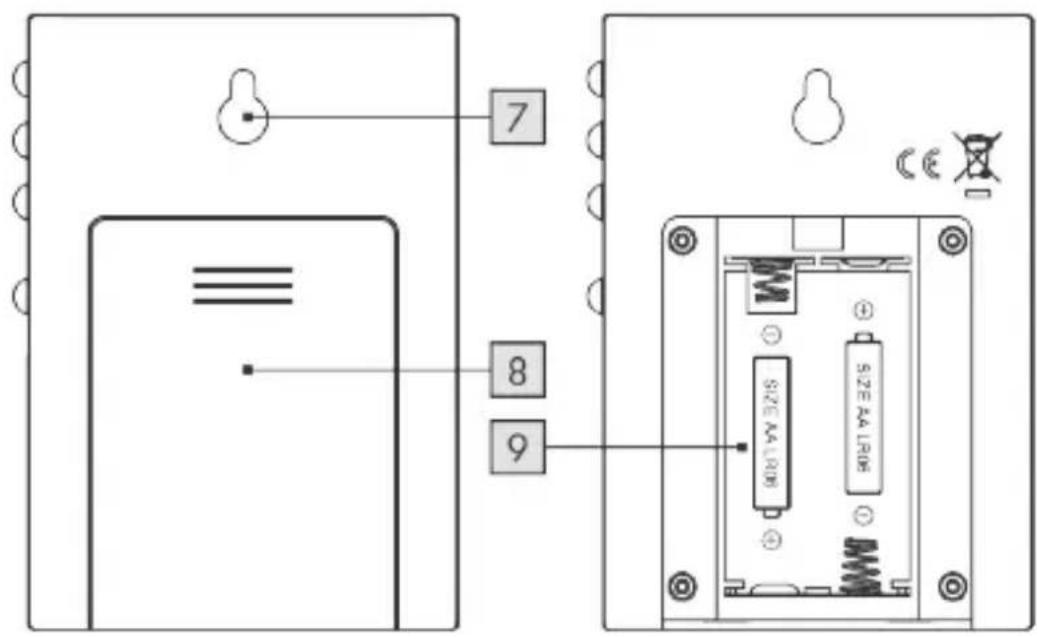

7. Mounting bracket

8. Battery cover

9. Battery compartment

FIG. 1

TRANSMITTER

1. Signal indicator
2. Name plate
3. Ring button
4. Battery compartment

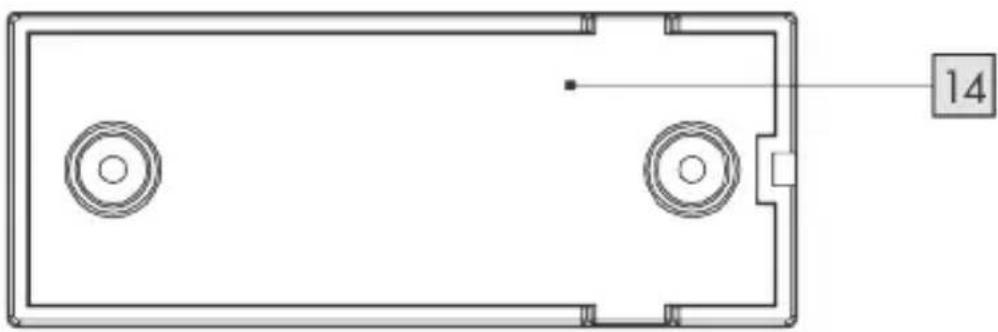

5. Holder (for wall mounting)

FIG. 2

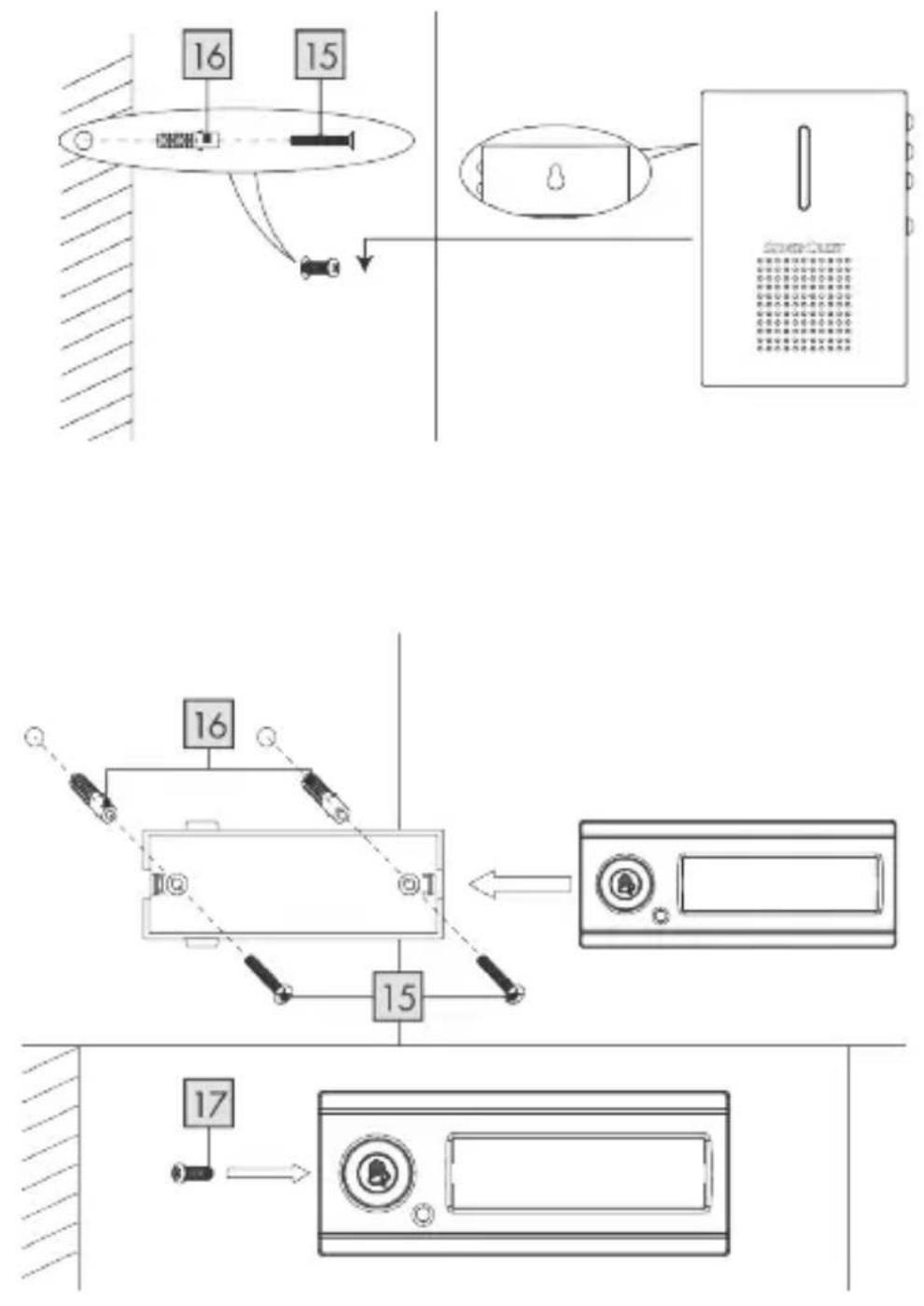

INSTALLATION

NOTE:

• A drill and screwdriver are needed for the installation.

• Only use the supplied screws and plugs for the installation.

• Screw

• Plug
• Screw (for transmitter)

FIG. 3

BATTERY

Receiver

1. Open the battery cover on the back of the door bell.

2. Remove any old batteries.

3. Insert 2 x 1.5 AA batteries with the correct polarity as shown by the markings in the battery compartment.

4. Replace the battery cover.

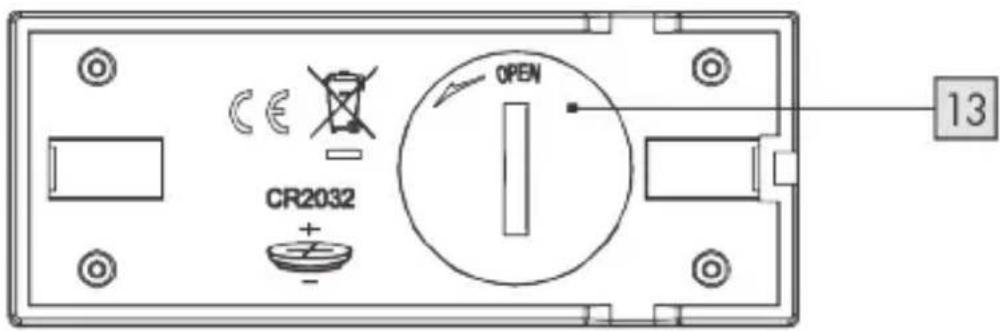

Transmitter

1. Remove the holder on the back of the transmitter.
2. Open the battery compartment by turning the battery cover anticlockwise.
3. Insert 1 x 3 V CR 2032 batteries. The side marked + should point upwards.
4. Replace the battery cover and lock in place by turning it clockwise.
5. Remove the holder on the back of the transmitter.

USE

SYNCHRONISING

1. Press the synchronising button.
2. Press the ring button. The status light flashes red. The programmed audio signal is heard and the status light goes off.
3. If the receiver does not indicate the received signal as above, press the synchronising button again to activate the synchronising function and repeat the synchronising process.
4. The status light on the transmitter flashes briefly to show that a signal has been sent to the receiver.

SOUND SETTINGS

The receiver can indicate received signals optically,

acoustically, or both optically and acoustically.

1. Press the signal button to specify whether the signal is to be indicated optically, acoustically, or both optically and acoustically.

VOLUME

1. Press the volume button to set the required volume. There are 5 volume settings, from almost silent to very high volume.

AUDIO SIGNAL

1. Press the melody button to browse through the audio signals. The last selected audio signal is stored automatically.
2. Continue pressing the melody button to browse through the different melodies.
3. The last selected melody is saved automatically.

MAINTENANCE

Do not use cleaning detergents to clean the door bell.

Clean the door bell by wiping it with a soft cloth.

TROUBLESHOOTING

The door bell can be affected by ambient conditions, e.g. strong electromagnetic fields or the discharge of static electricity. If this happens, remove the batteries from both the transmitter and receiver for about 2 minutes. Insert the batteries again and repeat the process for synchronising the transmitter and receiver.
