USER MANUAL Infinite A 9SC-662EU MSI

Upgrade and Warranty

Acquisition of Replaceable Parts

Technical Support

Green Product Features

Environmental Policy

Chemical Substances Information

Battery Information

Safety Instructions

CE Conformity

FCC-B Radio Frequency Interference Statement

WEEE Statement

RoHS Statement

1. Overview....1-1

Packing Contents

System Overview

1. Getting Started....2-1

Safety & Comfort Tips

Connecting Peripheral Devices

Hardware Setup

1. System Operations ...... 3-1

Power Management

Network Connection (Windows 10)

System Recovery (Windows 10)

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice

Trademarks

All trademarks are the properties of their respective owners

Revision

Revision Date

V1 0 2017/05

Upgrade and Warranty

Please note that certain components preinstalled in the product may be upgradable or replaceable by user's request. For any further information about the product users purchased, please contact the local dealer. Do not attempt to upgrade or replace any component of the product if you are not an authorized dealer or service center, since it may cause the warranty void. It is strongly recommended that you contact the authorized dealer or service center for any upgrade or replace service

Acquisition of Replaceable Parts

Please be noticed that the acquisition of replaceable parts (or compatible ones) of the product users purchased in certain countries or territories may be fulfilled by the manufacturer within 5 years at most since the product has been discontinued, depending on the official regulations declared at the time. Please contact the manufacturer via http://www.msi.com/support/ for the detailed information about the acquisition of spare parts

Technical Support

If a problem arises with your system and no solution can be obtained from the user's manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance. Visit the MSI website for technical guide, BIOS updates, driver updates and other information via http://www.msi.com/support/

Green Product Features

☐ Reduced energy consumption during use and stand-by
Limited use of substances harmful to the environment and health
Easily dismantled and recycled
- Reduced use of natural resources by encouraging recycling
- Extended product lifetime through easy upgrades
- Reduced solid waste production through take-back policy

Environmental Policy

The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life

Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products
Visit the MSI website and locate a nearby distributor for further recycling information
Users may also reach us at gpcontdev@msi com for information regarding proper Disposal, Take-back, Recycling, and Disassembly of MSI products

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at: http://www.msi.com/html/popup/csr/evmtprtt_pcm.html

Battery Information

European Union:

Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations

Taiwan:

For better environmental protection, waste batteries should be collected separately for recycling or special disposal

廢電池請回收

California, USA:

The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California

For further information please visit:

http://www dtsc ca gov/hazardouswaste/perchlorate/

Danger of explosion if battery is incorrectly replaced equivalent type recommended by the manufacturer

Replace only with the same or

Safety Instructions

• Read the safety instructions carefully and thoroughly
  All cautions and warnings on the equipment or user's manual should be noted

Keep the User's Guide that comes with the package for future reference

Keep this equipment away from humidity and high temperature

Lay this equipment on a reliable flat surface before setting it up.

Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100\~240V before connecting the equipment to the power outlet. Do not disable the protective earth pin from the plug. The equipment must be connected to an earthed mains socket-outlet

• Always unplug the AC power cord before installing any add-on card or module to the equipment
  Always disconnect the AC power cord or switch the wall socket off if the equipment would be left unused for a certain time to achieve zero energy consumption
  Rating: 100-240V\~, 47-63Hz, 6-3A (Option 1), 100-240V\~, 47-63Hz, 10-5A (Option 2)

The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating Do not cover the ventilator

Do not leave the equipment in an unconditioned environment with a storage temperature above 60^ C ( 140^ F) or below 0^ C ( 32^ F), which may damage the equipment

NOTE: The maximum operating temperature is around 40^ C.

Never pour any liquid into the opening that could damage or cause electrical shock

Place the power cord in a way that people are unlikely to step on it Do not place anything on the power cord

When installing the coaxial cable to the TV Tuner, it is necessary to ensure that the metal shield is reliably connected to protective earthing system of the building

Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820–93, Grounding of Outer Conductive Shield of a Coaxial Cable

Always keep the strong magnetic or electrical objects away from the equipment

If any of the following situations arises, get the equipment checked by service personnel:

The power cord or plug is damaged
- Liquid has penetrated into the equipment
The equipment has been exposed to moisture
The equipment does not work well or you can not get it work according to user's manual
The equipment has dropped and damaged
The equipment has obvious sign of breakage

1 The optical storage devices are classified as CLASS 1 LASER PRODUCT Use of controls or adjustments or performance of procedures other than those specified is prohibited.
2 Do not touch the lens inside the drive

CE Conformity

Hereby, Micro-Star International CO ^™ , LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below:

■ Reorient or relocate the receiving antenna
■ Increase the separation between the equipment and receiver
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
■ Consult the dealer or an experienced radio/television technician for help

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits

This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:

1 this device may not cause harmful interference, and
2 this device must accept any interference received, including interference that may cause undesired operation

WEEE Statement

Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of “electrical and electronic equipment” cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life

RoHS Statement

Japan JIS C 0950 Material Declaration

A Japanese regulatory requirement, defined by specification JIS C 0950, mandates that manufacturers provide material declarations for certain categories of electronic products offered for sale after July 1, 2006.

http://www msi com/html/popup/csr/cemm_jp html

http://tw msi com/html/popup/csr_tw/cemm_jp html

India RoHS

This product complies with the "India E-waste (Management and Handling) Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0–1 weight % and 0–01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule

Turkey EEE regulation

Conforms to the EEE Regulations of the Republic Of Turkey

Ukraine restriction of hazardous substances

The equipment complies with requirements of the Technical Regulation, approved by the Resolution of Cabinet of Ministry of Ukraine as of December 3, 2008 № 1057, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment

Vietnam RoHS

As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products

1

Overview

Congratulations for purchasing the Infinite Series Personal Computer System. This system is your best PC choice With the fantastic appearance, it can easily be set anywhere The feature packed platform also gives you an exciting PC experience

Packing Contents

Line drawing of a straight electrical plug with two terminal connectors (no text or symbols)

Driver/ Utility DiscAC Power CordSys

Simple line drawing of a closed book with a rectangular cover (no text or symbols)

User Manual & Quick Guide

Simple line drawing of a closed book with a rectangular cover on the front page (no text or symbols)

Warranty Card Warranty Book

Simple line drawing of a closed book with a rectangular cover (no text or symbols)

Line drawing of a cable or connector with two connectors and a central connector (no text or symbols)

HDMI Cable (Optional) (for VR Link Port)

Mouse (Optional)

Front view of a standard computer keyboard layout (no text or symbols visible)

Keyboard (Optional)

Hexagon Screw x4 (Optional)

Hand Screw x4 (Optional)

Physical Tempered Glass (Optional)

* Please contact us immediately if any of the items is damaged or missing
* The illustrations are for reference only and your packing contents may slightly vary depending on the model you purchased

System Overview

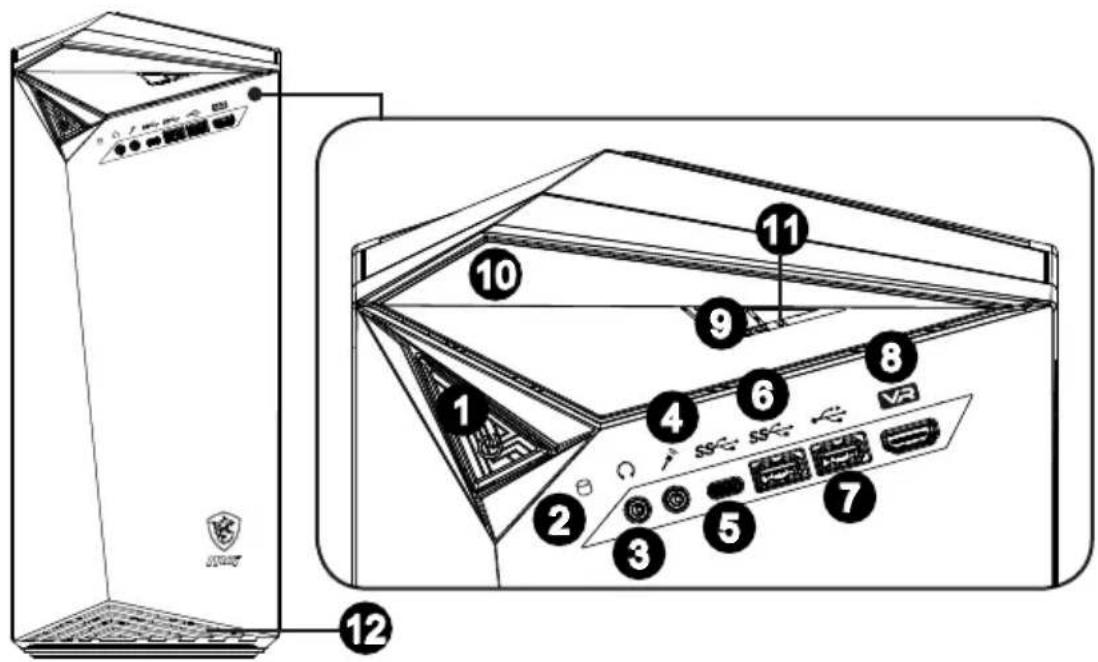

Front View

Diagram of a desktop computer tower with numbered components for identification and assembly reference.

1 Power Button

Press the power button to turn the system on and off.

2 Hard Disk Drive LED

This indicator shows the activity status of the HDD. It flashes when the system is accessing data on the HDD and remains off when no disk activity is detected

3 Headphone Jack This connector is

This connector is provided for headphones or speakers

4 Microphone Jack

This connector is provided for microphones

USB 3.1 Gen1 Port (Type-C)

USB Type-C port is allowing for reversible plug orientation

USB 3.1 Gen1 Port(Type-A)

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices. It supports up to 5Gbit/s (SuperSpeed) data transfer rate. The USB 3 1 Gen1 port is backward-compatible with USB 2 0 devices

7 USB 2.0 Port The USB/Univ

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices. It supports up to 480Mbit/s (Hi-Speed) data transfer rate

8 VR Port (HDMI-Out) (Optional) VR

The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video interface capable of transmitting uncompressed streams

This port will be available for connecting a HDMI device, once the VR Link Port on the rear panel is connected to the HDMI-out port on the graphics card with a HDMI cable

9 ODD Eject Button

Press the button to open the optical disk drive

10 Optical Disk Drive A DVD SuperMuk

A DVD Super-Multi drive is integrated for your home entertainment (Blu-ray is optional)

11 Eject Hole Insert a thi

Insert a thin, straight object (such as a paper clip) into the eject hole to open the optical disk drive manually if the eject button does not work

12 Ventilator The ventil

The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating Do not cover the ventilator

Important

High-speed devices are recommended for USB 3 1 Gen1 ports whereas low-speed devices, such as mouse or keyboard, are suggested to be plugged into the USB 2 0 ports

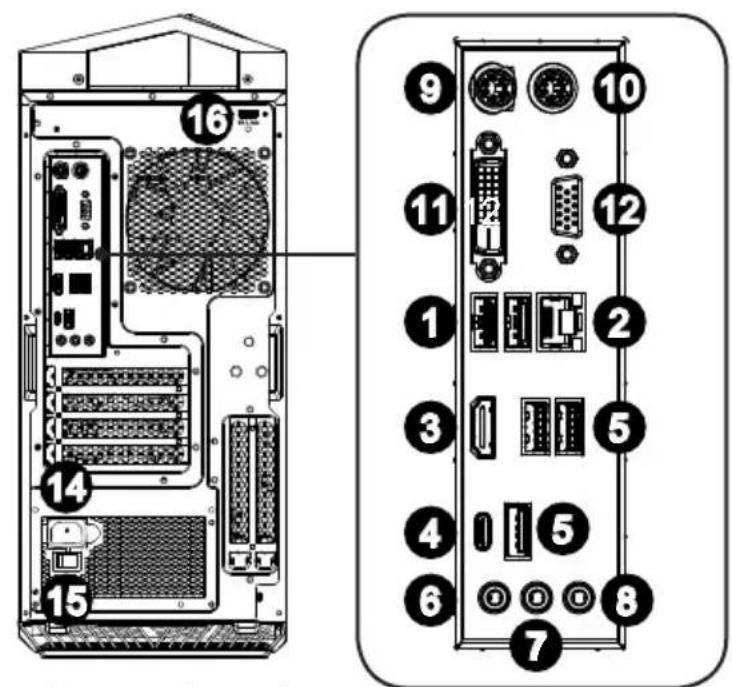

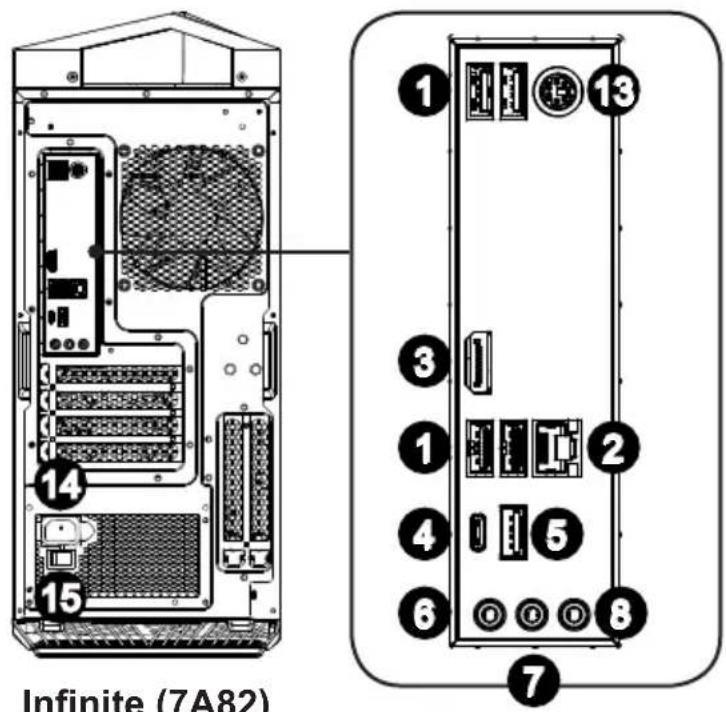

Rear View

Technical diagram of a desktop computer tower with numbered component labels pointing to internal hardware layout.

Infinite A (7A70)

1 13 3 1 2 4 5 6 8 7 Infinite (7A82)

Infinite (7A82)

USB 2.0 Port The USB (Univ

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices. It supports up to 480Mbit/s (Hi-Speed) data transfer rate

2 LAN Jack The stand

The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN) You can connect a network cable to it

Green/ OrangeYellow

LED Color LED State Condition
Left Yellow Off LAN link is not established
			On (steady state) LAN link is established
			On (blinking) The computer is communicating with another computer on the LAN
Right Green Off 10 Mbit/sec data rate is selected
			On 100 Mbit/sec data rate is selected
			Orange On 1000 Mbit/sec data rate is selected

3 HDMI-Out Port HDMI ^TM HIGH-DEFINITION MULTIMEDIA INTERFACE

The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video interface capable of transmitting uncompressed streams HDMI supports all TV format, including standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable

USB 3.1 Gen1 Port (Type-C)

USB Type-C port is allowing for reversible plug orientation

5 USB 3.1 Gen1 Port (Type-A)

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices. It supports up to 5Gbit/s (SuperSpeed) data transfer rate. The USB 3 1 Gen1 port is backward-compatible with USB 2 0 devices

6 Mic (Pink)

Used as a connector for a microphones

7 Line-Out (Green) Used as a connector for speakers or headphones
8 Line-In (Blue) Used for connecting external audio outputting devices
9 PS/2 ^® Keyboard Port The PS/2 ^® keyboard DIN connector for PS/2 ^® keyboard
10 PS/2® Mouse Port The PS/2® mouse DIN connector for PS/2® mouse
11 DVI-D Port The DVI-D (Digital Visual Interface-Digital) connector allows you to connect a LCD monitor. It provides a high-speed digital interconnection between the computer and its display device. To connect an LCD monitor, sim-ply plug your monitor cable into the DVI-D connector, and make sure that the other end of the cable is properly connected to your monitor (refer to your monitor manual for more information.)
12 VGA Port The DB15-pin female port is provided for monitor
13 PS/2® Keyboard/ Mouse Combo Port The PS/2® keyboard/ mouse DIN connector for PS/2® keyboard/ mouse
14 Power Jack Power supplied through this jack supplies power to your system
15 Power Supply Switch Switch this switch to - can turn on the power supply. Switch it to 0 to cut off the power circulation
16 VR Link Port (HDMI-In) (Optional) The VR (Virtual Reality) link port is for attaching VR-compatible graphics cards

2

Getting Started

This chapter provides you with the information on hardware setup procedures While connecting peripheral devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity

Safety & Comfort Tips

The Personal Computer System is a portable platform that allows you to work anywhere. However, choosing a good workspace is important if you have to work with your PC for a long period of time

1 Your work area should have enough illumination
2 Choose the proper desk and chair and adjust their height to fit your posture when operating
3 When sitting on the chair, sit straight and keep a good posture Adjust the chair's back (if available) to support your back comfortably
4 Place you feet flat and naturally on the floor, so that your knees and elbows have the proper position (about 90-degree) when operating
5 Put your hands on the desk naturally to support your wrists
6 Avoid using your PC in a place where discomfort may occur (such as on the bed)
7 The Personal Computer System is an electrical device Please treat it with great care to avoid personal injury

Connecting Peripheral Devices

The I/O (input/output) ports on the rear panel allow you to connect peripheral devices. All devices listed here are for reference only

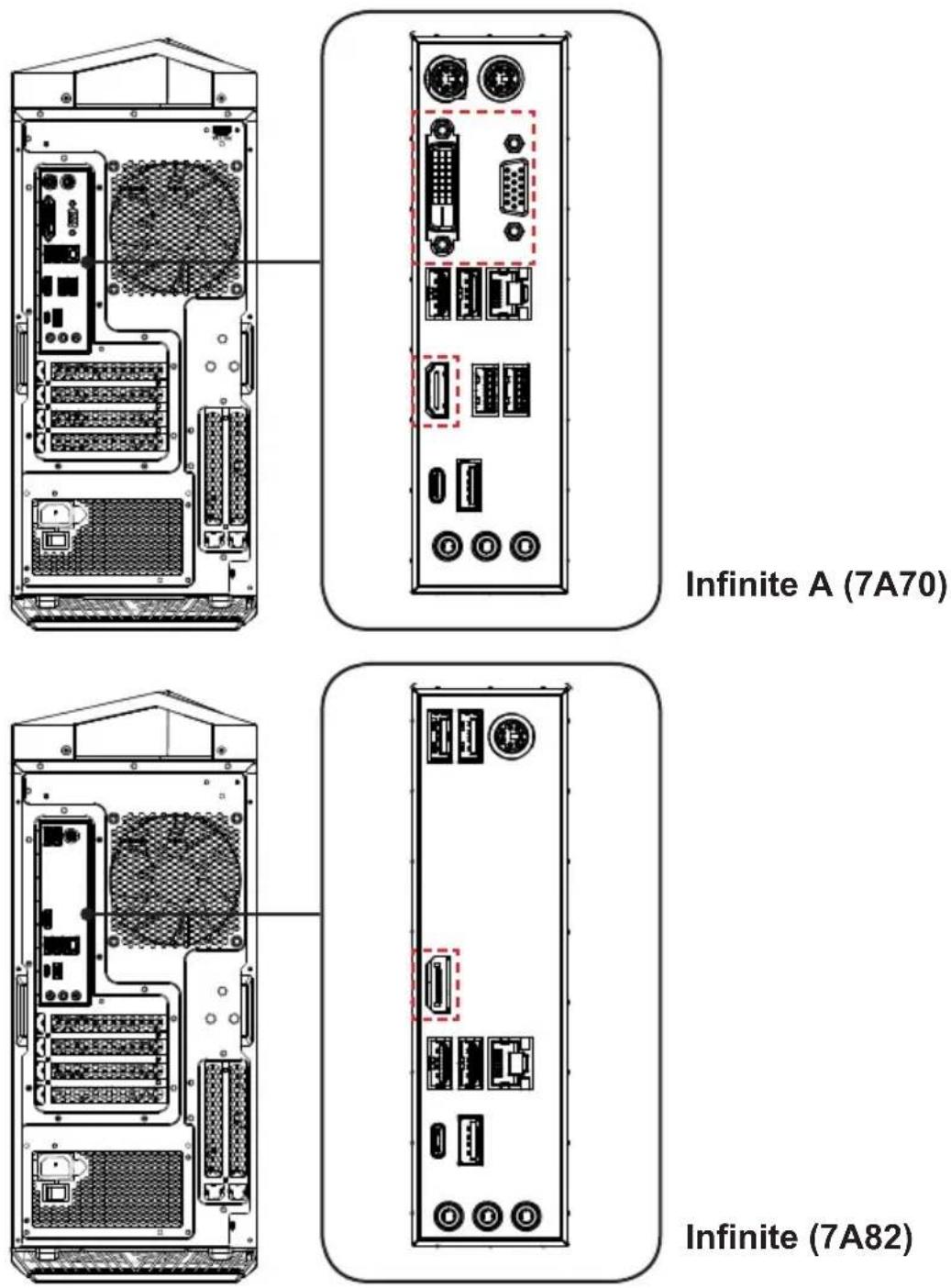

Connecting VGA, DVI-D or HDMI-Out Devices

This Personal Computer System provides VGA, DVI-D or HDMI-Out ports for connection to external monitors, projectors or other output devices To connect the VGA, DVI-D or HDMI-Out device, first make sure the Personal Computer System and the targeted device are both powered off, and then connect the cable of the device to the VGA, DVI-D or HDMI-Out port of your Personal Computer System

Connecting the USB Devices

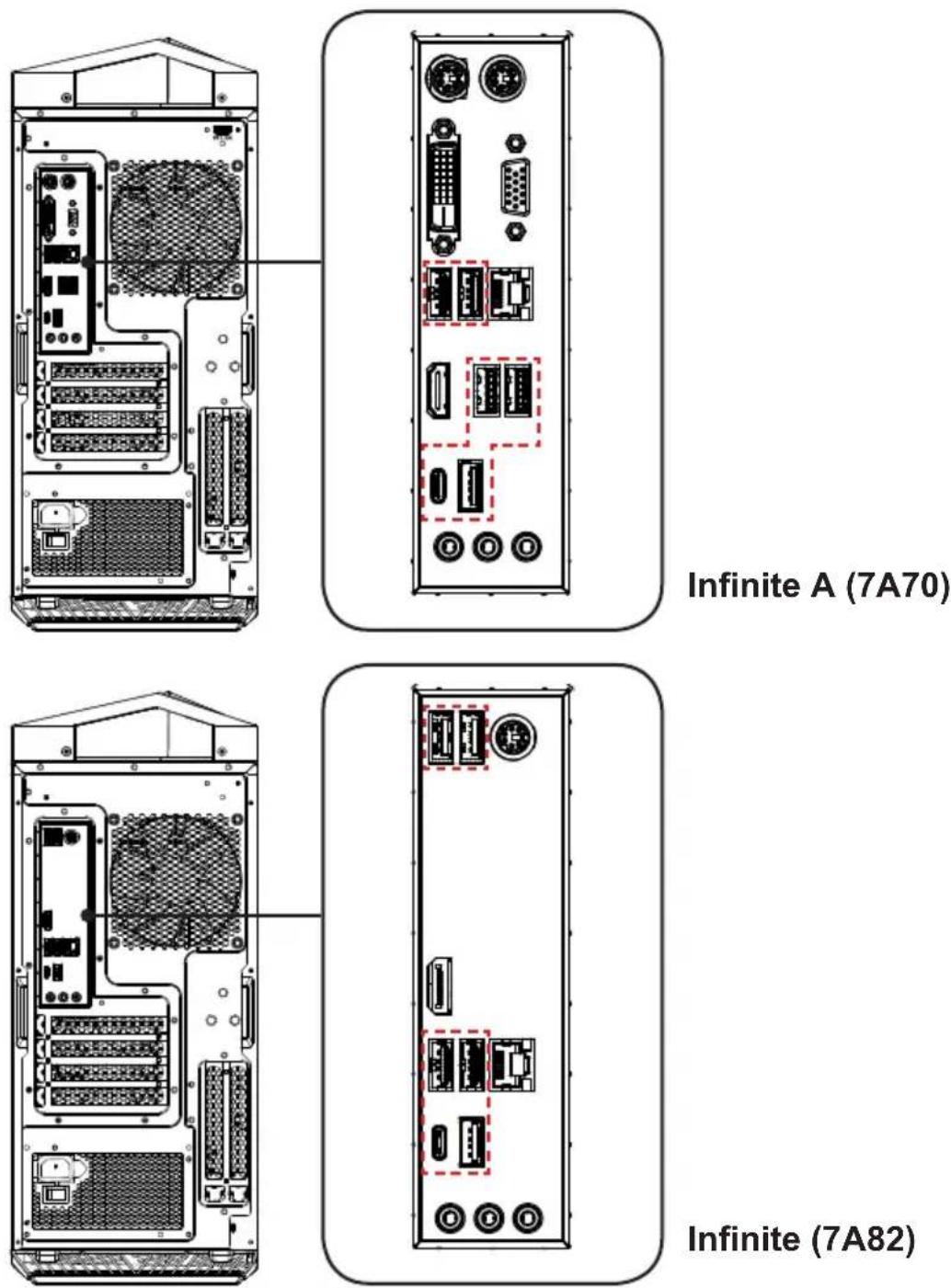

This Personal Computer System provides USB ports for connecting various USB devices, such as mouse, keyboard, digital camera, webcam, printer, external optical storage device, etc. To connect these devices, install the drivers for each device first if necessary, and then connect the device to the Personal Computer System. This Personal Computer System is capable of auto detecting the USB devices installed, and if there is no detection of the devices, please manually enable the USB devices by going to Start Menu / Control Panel / Add Hardware to add the new device

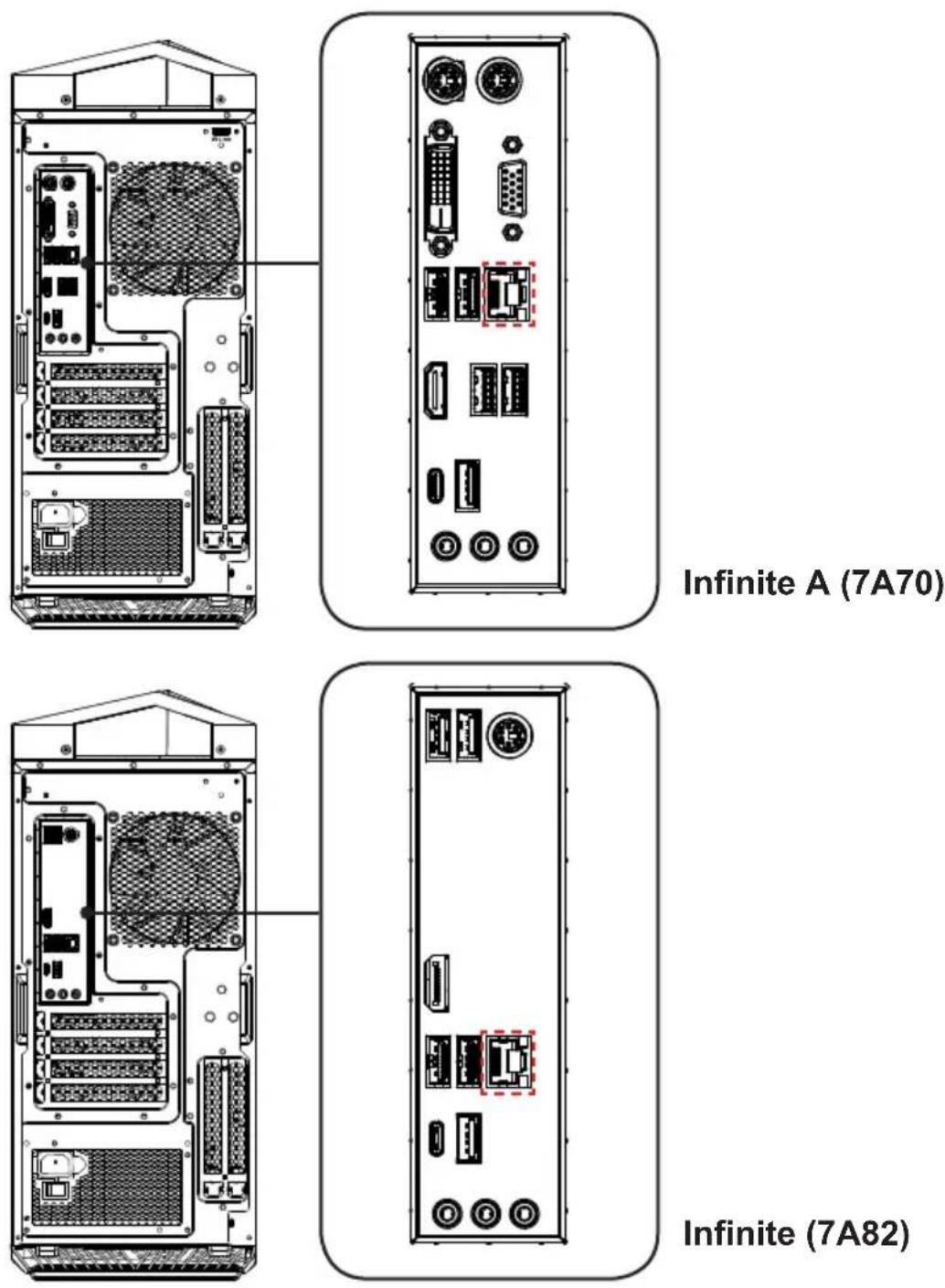

Connecting the Network Device

The RJ-45 connector of the Personal Computer System allows you to connect the LAN (local area network) devices, such as a hub, switch and gateway, to build a network connection. For more instructions or detailed steps on connecting to the LAN, please ask your MIS staff or network manager for help.

Hardware Setup

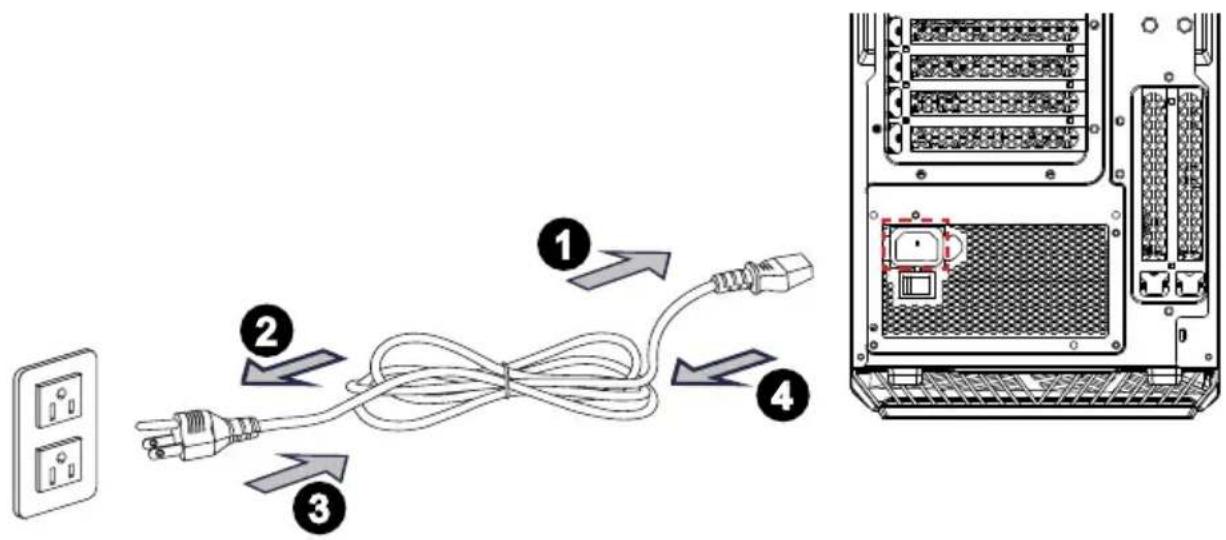

Connecting the AC Power

1 Unpack the package to find the AC power cord. Plug one end of the AC power cord to the Personal Computer System
2 Plug the male end to the electrical outlet

▶ Disconnecting the AC Power

3 Unplug the AC power cord from the electrical outlet first.
4 Unplug the AC power cord from the Personal Computer System

Diagram showing cable connection to server rack with labeled components and directional arrows

Important

When unplugging the AC power cord, always hold the connector part of the cord. Never pull the cord directly

Powering on the System

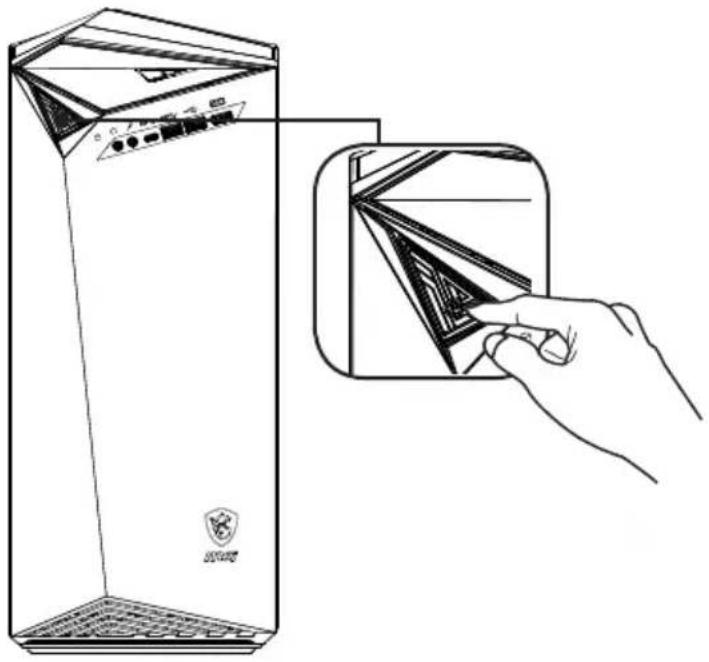

Press the power button to power on the system

Line drawing of a device with a hand inserting a card into a screen (no text or symbols)

3

System Operations

This chapter provides you with essential information on system operations

Important

All information is subject to change without prior notice

Power Management

Power management of personal computers (PCs) and monitors has the potential to save significant amounts of electricity as well as deliver environmental benefits.

To be energy efficient, turn off your display or set your PC to sleep mode after a period of user inactivity

Power Management in Windows 10

■ [Power Options] in Windows OS allow you to control the power management features of your display, hard drive, and battery Right-click [Start] to select [Control Panel] from the list and then click [System and Security]

Adjust your computer's settings

System and Security

Review your computer's status

Save backup copies of your files with File History

Select [Power Options] and choose a power plan that suits your personal needs. You may also fine-tune the settings by clicking [Change plan settings].

■ The Shut Down Computer menu presents the options of Sleep (S3/S4) & Shut Down (S5) for rapid and easy management of your system power

Power Management through ENERGY STAR qualified monitors

The power management feature allows the computer to initiate a low-power or “Sleep” mode after a period of user inactivity. When used with an external ENERGY STAR qualified monitor, this feature also supports similar power management features of the monitor. To take advantage of these potential energy savings, the power management feature has been preset to behave in the following ways when the system is operating on AC power:

ENERGY STAR

■ Turn off the display after 10 minutes
■ Initiate Sleep after 30 minutes

Waking the System Up

The computer shall be able to wake up from power saving mode in response to a command from any of the following:

■ the power button,
■ the network (Wake On LAN),
■ the mouse,
■ the keyboard

Energy Saving Tips:

■ Turn off the monitor by pressing the monitor power button after a period of user inactivity
- Tune the settings in Power Options under Windows OS to optimize your PC's power management
■ Install power saving software to manage your PC's energy consumption
■ Always disconnect the AC power cord or switch the wall socket off if your PC would be left unused for a certain time to achieve zero energy consumption

Network Connection (Windows 10)

Wired Network

1 Right-click [Start] and select [Control Panel] from the list
2 Select [View network status and tasks] under [Network and Internet]

Adjust your computer's settings

View by: Category

System and Security

Review your computer's status

Save backup copies of your files with File History

Backup and Restore (Windows 7)

Find and fix problems

Network and Internet

Connect to the Internet

View network status and tasks

Choose homegroup and sharing options

Hardware and Sound

View devices and printers

Add a device

Adjust commonly used mobility settings

Programs

Uninstall a program

User Accounts

Change account type

Appearance and Personalization

Change the theme

Adjust screen resolution

Clock, Language, and Region

Add a language

Change input methods

Change date, time, or number formats

Ease of Access

Let Windows suggest settings

Optimize visual display

3 Select [Set up a new connection or network]

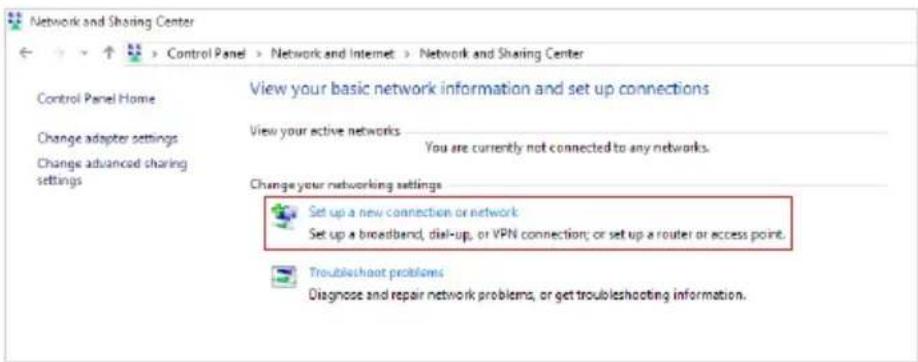

Network and Sharing Center Control Panel Home Change adapter settings Change advanced sharing settings View your basic network information and set up connections View your active networks You are currently not connected to any networks. Change your networking settings Set up a new connection or network Set up a broadband, dial-up, or VPN connection; or set up a router or access point. Troubleshoot problems Diagnose and repair network problems, or get troubleshooting information.

4 Choose [Connect to the Internet] and click [Next]

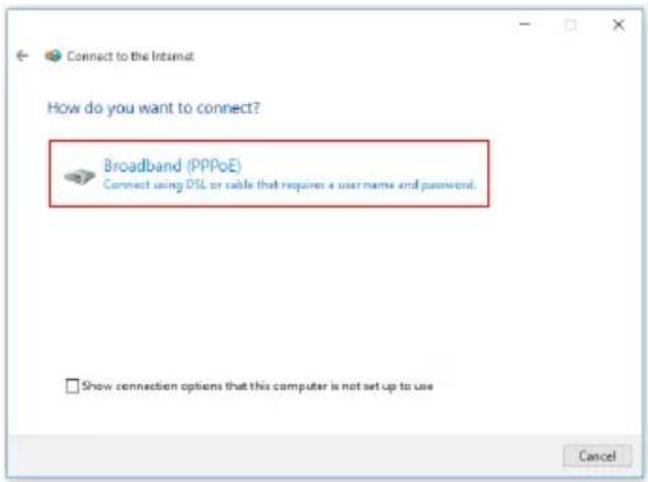

5 Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user name and password

Connect to the Internet How do you want to connect? Broadband (PPPoE) Connect using DSL or cable that requires a username and password. Show connection options that this computer is not set up to use Cancel

6 Type the information from your Internet Service Provider (ISP) and click [Connect] to establish your LAN connection

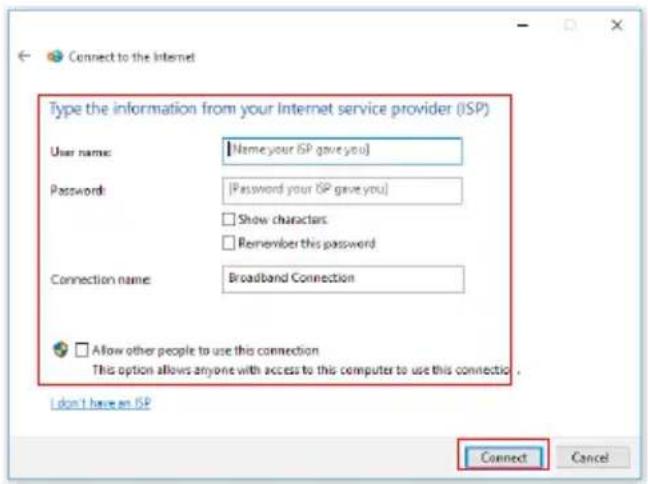

Connect to the Internet Type the information from your Internet service provider (ISP) User name: [Name your ISP gave you] Password: [Password your ISP gave you] Show characters Remember this password Connection name: Broadband Connection Allow other people to use this connection This option allows anyone with access to this computer to use this connection. I don't have an ISP Connect Cancel

Wireless Network

1 Go to [Start] click [Settings] and select [Network and Internet]
2 A list of available WLAN connections pops up Choose a connection from the list
3 To establish a new connection, select [Network and Sharing Center]

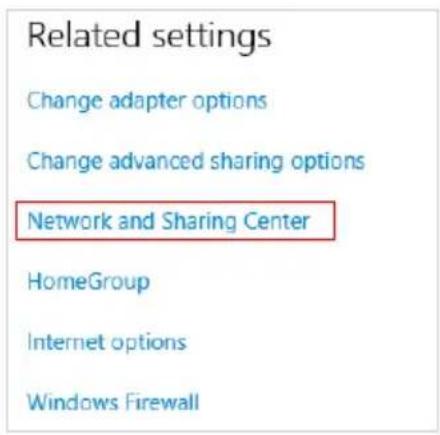

Related settings Change adapter options Change advanced sharing options Network and Sharing Center HomeGroup Internet options Windows Firewall

4 Select [Set up a new connection or network]
5 Followingly, choose [Manually connect to a wireless network] and click [Next] to continue
6 Enter information for the wireless network you intend to add and click [Next] to proceed

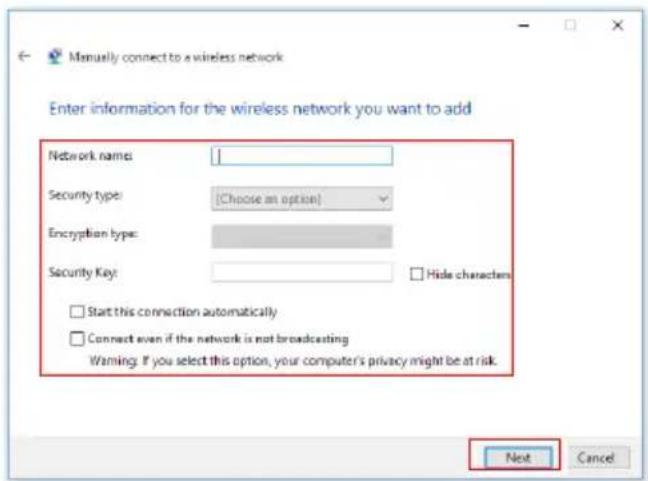

Manually connect to a wireless network Enter information for the wireless network you want to add Network name: Security type: [Choose an option] Encryption type: Security Key: Hide characters Start this connection automatically Connect even if the network is not broadcasting Warning. If you select this option, your computer's privacy might be at risk. Next Cancel

7 A new WLAN connection has been made

System Recovery (Windows 10)

The purposes for using the System Recovery Function may include:

• Restore the system back to the initial status of original manufacturer's default settings
  ■ When some errors have occurred to the operating system in use
  ■ When the operating system is affected by virus and is not able to work normally.
  ■ When you want to install the OS with other built-in languages

Before using the System Recovery Function, please back up the important data saved on your system drive to other storage devices

If the following solution fails to recover your system, please contact the authorized local distributor or service center for further assistance

Reset this PC

1 Go to [Start] click [Settings] and select [Update and security]

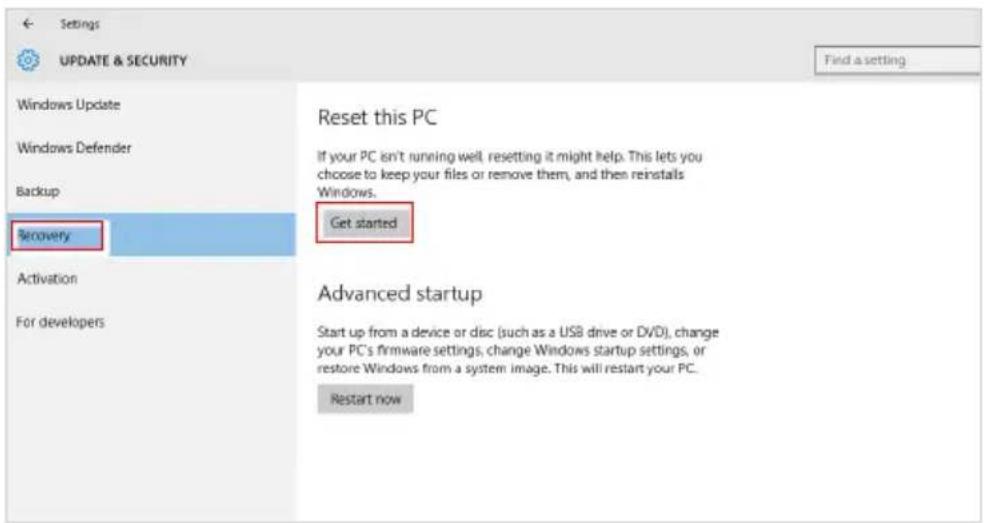

2 Select [Recovery] and click [Get started] under [Reset this PC] to start the system recovery

Settings UPDATE & SECURITY Windows Update Windows Defender Backup Recovery Activation For developers Find a setting Reset this PC If your PC isn't running well, resetting it might help. This lets you choose to keep your files or remove them, and then reinstalls Windows. Get started Advanced startup Start up from a device or disc (such as a USB drive or DVD), change your PC's firmware settings, change Windows startup settings, or restore Windows from a system image. This will restart your PC. Restart now

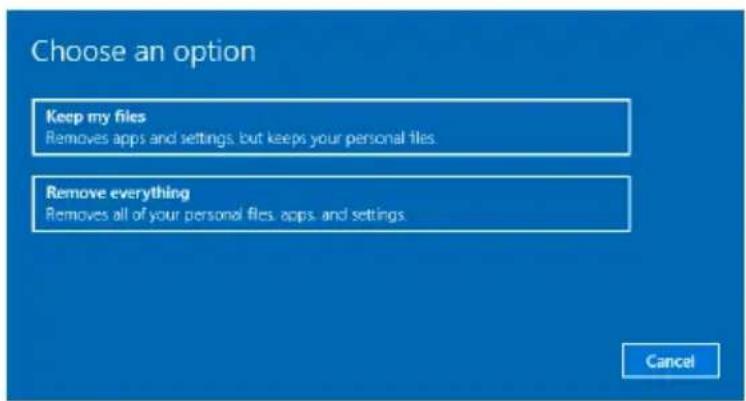

1. The [Choose an option] screen pops up. Choose between [Keep my files] and [Remove everything]

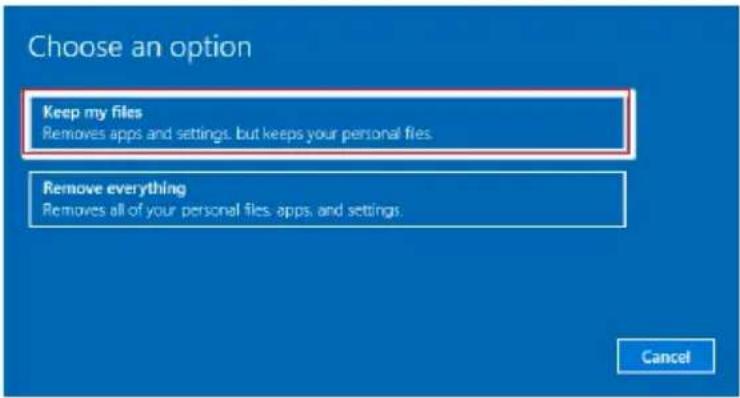

Choose an option Keep my files Removes apps and settings, but keeps your personal files. Remove everything Removes all of your personal files, apps, and settings. Cancel

Reset this PC	Keep my files
	Remove everything	Only the drive where Windows is installed	Just remove my files
			Remove files and clean the drive
		All drives	Just remove my files
			Remove files and clean the drive

Keep my files

1. Select [Keep my files].

Choose an option Keep my files Removes apps and settings, but keeps your personal files. Remove everything Removes all of your personal files, apps, and settings. Cancel

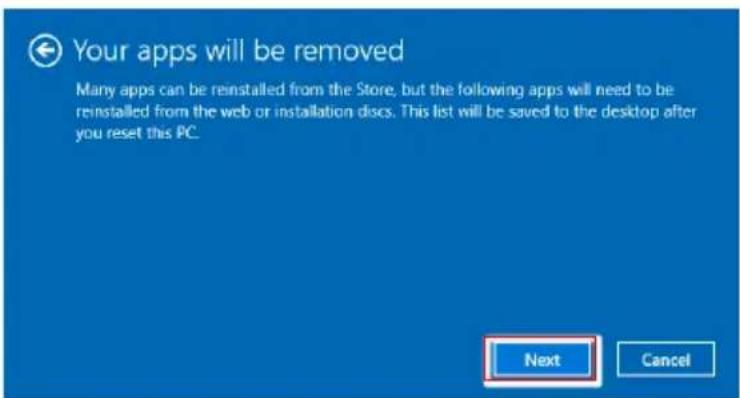

2 The [Your apps will be removed] screen shows a list of apps that will need to be reinstalled from the web or installation discs Click [Next] to continue

Your apps will be removed Many apps can be reinstalled from the Store, but the following apps will need to be reinstalled from the web or installation discs. This list will be saved to the desktop after you reset this PC. Next Cancel

3 The next screen will show the changes to be made during the process Click [Reset] to start the system reset

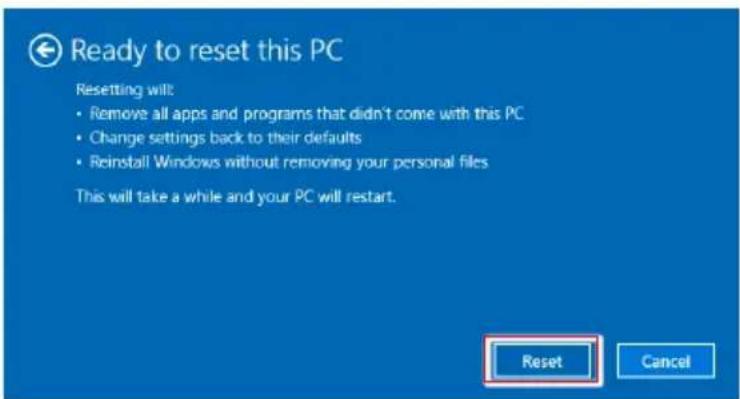

Ready to reset this PC Resetting will: • Remove all apps and programs that didn't come with this PC • Change settings back to their defaults • Reinstall Windows without removing your personal files This will take a while and your PC will restart. Reset Cancel

Remove everything

1 Select [Remove everything]

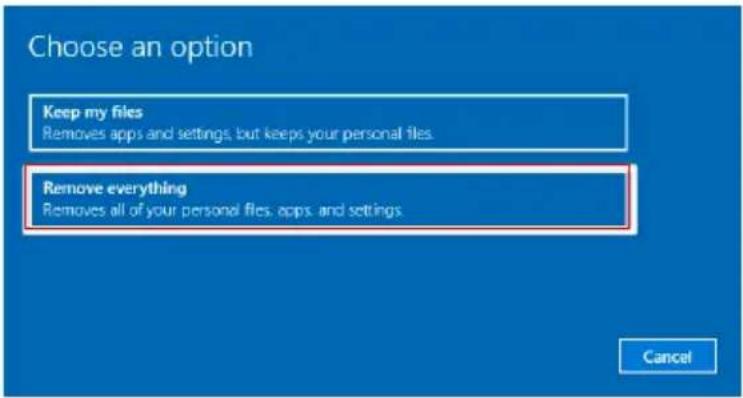

Choose an option Keep my files Removes apps and settings, but keeps your personal files. Remove everything Removes all of your personal files: apps and settings Cancel

2 If you have multiple hard drives, a screen will pop up, asking you to choose between [Only the drive where Windows is installed] and [All drives]
3. Then select between [Just remove my files] and [Remove files and clean the drive].

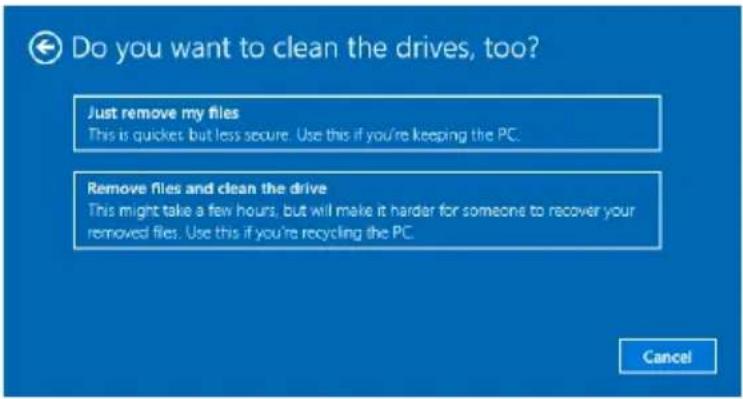

Do you want to clean the drives, too? Just remove my files This is quickes, but less secure. Use this if you're keeping the PC. Remove files and clean the drive This might take a few hours, but will make it harder for someone to recover your removed files. Use this if you're recycling the PC. Cancel

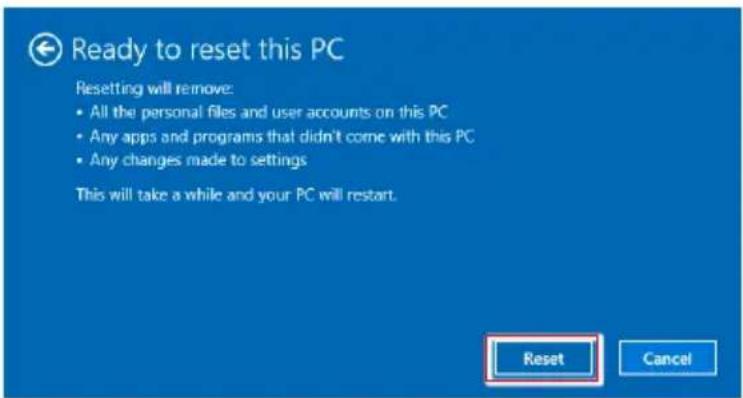

4 The next screen will show the changes to be made during the process Click [Reset] to start the system reset

Ready to reset this PC Resetting will remove: • All the personal files and user accounts on this PC • Any apps and programs that didn't come with this PC • Any changes made to settings This will take a while and your PC will restart. Reset Cancel
