USER MANUAL Ultra Lite Pet Gear

Interior Dimensions: 22L x 11W x 16H

To see our full line of products, visit us online at: www.petgearinc.com

PARTS LIST

Check that you have all the parts shown BEFORE assembling your product. If any parts are missing, call Customer Service.

Illustration of a baby stroller with adjustable arms and legs (no text or symbols)

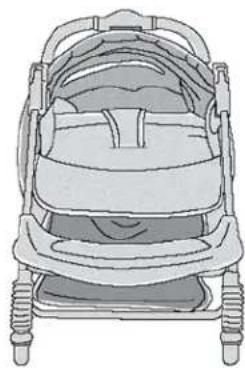

Stroller Frame

Front Wheel Assembly (2)

Rear Wheels (2)

Rear Axle Assemblies

Washer (2)

Cotter Pin (2)

Hub Cap (2)

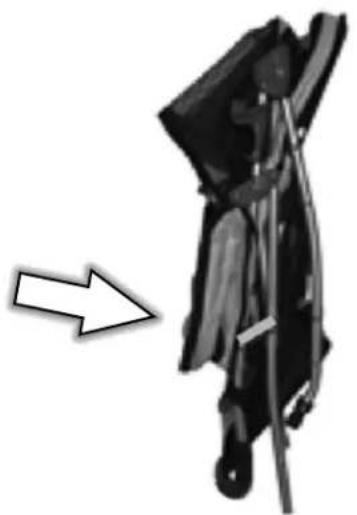

Step 1. Release locking latch

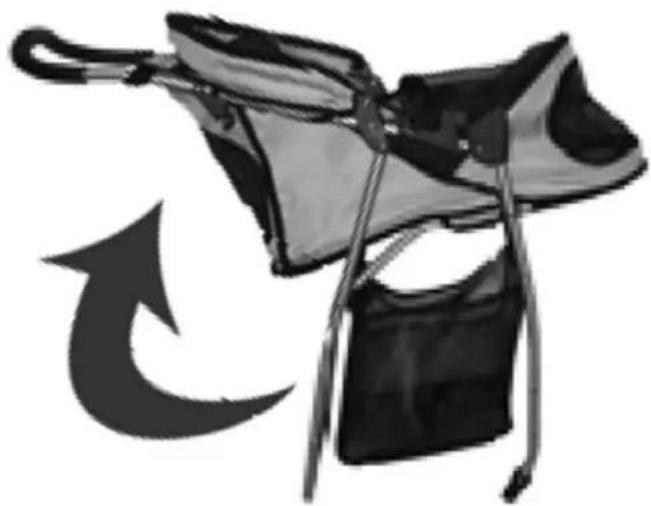

Step 2. Unfold as shown.
Make sure both locks snap into place.

Black-and-white illustration of a horse's seat with a white arrow pointing to it (no text or symbols)

Illustration of a black-and-white sash seat with a curved arrow symbol indicating rotation or change (no text or symbols present)

TO ASSEMBLE FRONT WHEELS

Step 1. Turn stroller over as shown.

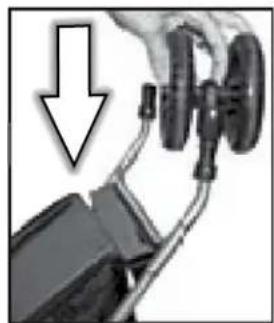

Step 2. Push wheel assembly onto stroller leg until it snaps into place.

Step 3. Repeat for other wheel.

Tug firmly on each wheel assembly to be sure wheels are securely in place.

NOTE: To remove, squeeze tab and pull wheel off.

Close-up of a hand holding a medical device with a downward arrow pointing to it (no text or symbols visible)

Note Direction of Arrow

Mechanical component with two large tires and a handle, no visible text or symbols

TO ASSEMBLE REAR WHEELS

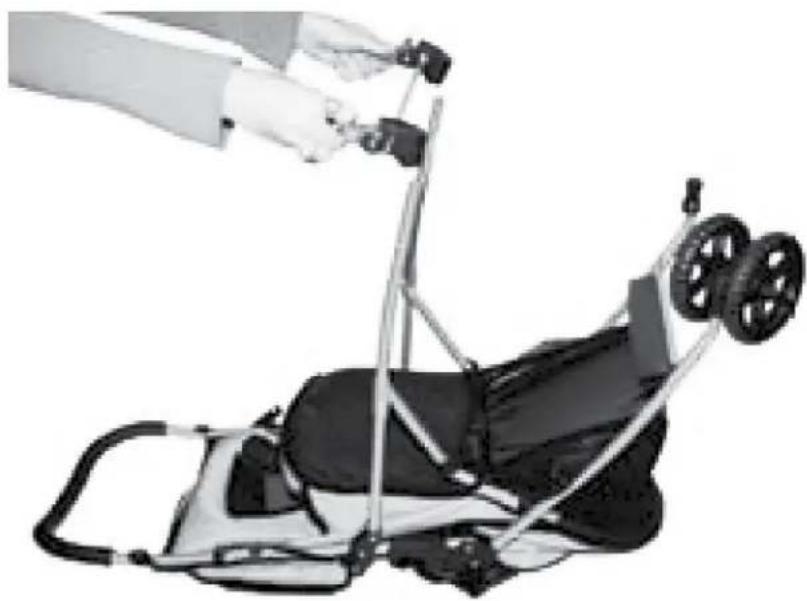

Step 1. Remove and discard protective sleeve from ends of rear axle assembly and rear leg tubes.

Step 2. Position rear axle assembly onto rear leg tubes at the same time.

Person using a medical cart with a leg-mounted device, no visible text or symbols

TO ASSEMBLE REAR WHEELS

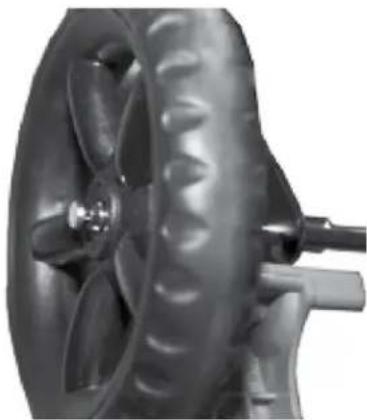

Step 3. Slide wheel onto axle.

Step 4. Slide washer onto axle.

Step 5. Fit straight part of cotter pin through hole on axle.

Step 6. Line up each of the tabs in the hub cap with the slots in the wheel.

Snap hub cap into place.

Fit cover to collet by firmly pressing the cover into place.

Step 7. Repeat for other side.

Close-up of a mechanical component with a propeller and cylindrical shaft (no visible text or symbols)

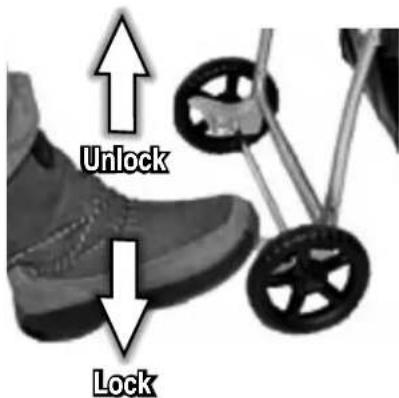

APPLYING THE BRAKES

Step 1. Push levers on both rear wheels down to lock.

Step 2. Pull levers up to unlock.

WARNING: Never leave your stroller parked without applying brakes.

Step 1. Before folding the stroller, lock the brakes and close the canopy.

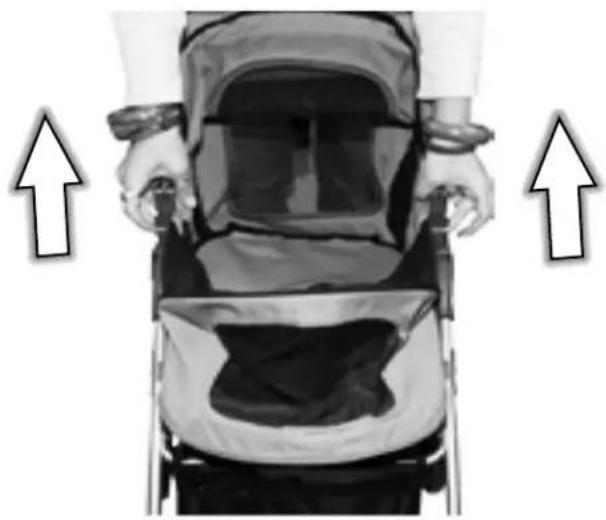

Step 2. Standing behind the stroller, pull up on both side latches.

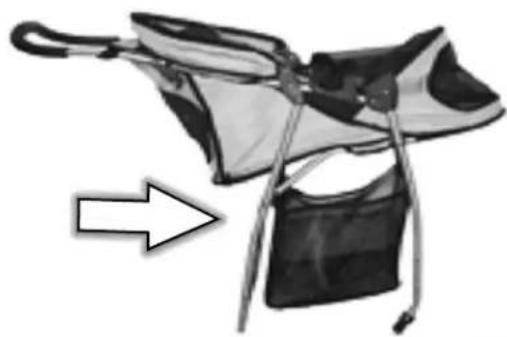

Step 3. Fold as shown.
Step 4. Engage locking latch.

Top-down view of a person in a stroller with hands holding the seat, showing two upward arrows (no text or symbols)

Black-and-white photo of a folding chair with a curved arm and seat, showing an arrow pointing to the side (no text or symbols)

Top-down view of a car chassis with wheels and roof (no text or symbols visible)

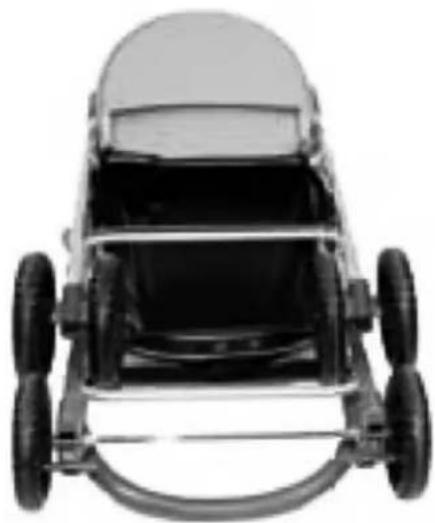

NOTE: Fold stroller so wheels straddle frame.

Black-and-white photo of a vintage typewriter with a large 'no' symbol overlaid on its body, no text or symbols present.

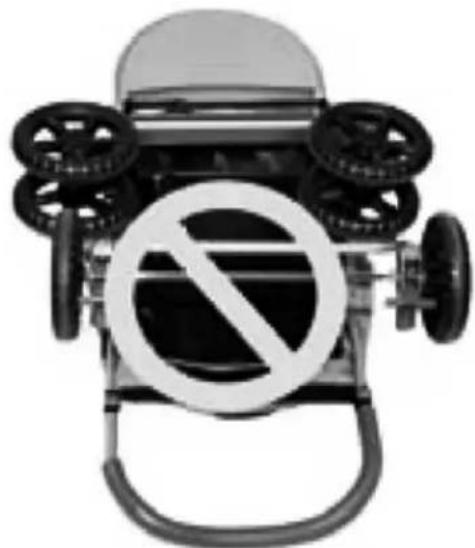

DO NOT allow wheels to press against frame as this may damage tires.

• Always store product in a clean, dry place.
- Not recommended for use on the beach.
- Do not put heavy items on top of the stroller.
- Clean frame by wiping with a lightly oiled cloth.
- Do not use detergent or abrasives. Spot clean fabric with dry cleaning fluid or mild soap and warm water.
- To ensure easy maneuverability and to minimize wear and tear, (especially wheels, axles, and swivels), keep all moving parts clean and lubricated with WD40® or light machine oil.
- NOTE: Do not lubricate brake components or swivel locks.
- Regularly check stroller for loose parts. These should be tightened or replaced.

WHEEL MAINTENANCE

• To clean and lubricate front and rear wheels, push out locking lever under wheel housing to release rear wheel.
• To ensure ease of maneuverability and to minimize wear and tear, keep all moving parts clean and lubricated with WD40® or light machine oil.
• Push wheel sets back on until they click and lock in position; pull on wheel housings to ensure they are secure.
• Push stroller back and forth and rotate swivels around to work in lubricant.
• Clean the rear wheel assembly and the rest of the frame with warm, soapy water; clean off with warm water and dry thoroughly.
• NOTE: Do not lubricate brake components or swivel locks.

WARNING!

FOR PETS ONLY.

Not intended to be used as a restraining device for aggressive or dangerous animals that dig, chew or paw aggressively. Do not leave your pet unattended. PET GEAR is not liable for any damage caused by aggressive, destructive, immature or untrained animals. Do not use near an open or exposed flame. Failure to follow these warnings and the instructions could result in serious injury or death.

• Do not carry additional bags, goods, or accessories in or on stroller except as recommended in the manufacturer's instructions.
• Recommended use of an approved safety restraint correctly fitted and adjusted.
• Do not leave pet unsupervised in stroller.
• Before making adjustments to stroller ensure that pet's body is clear of any moving parts.
  • This stroller is designed for one pet only.
• Do not hang bags from handles as this may cause the product to become unstable.
• Do not use on escalator or stairs; fold stroller and carry.
• Put on brake whenever you park the stroller.
• Ensure stroller is completely erected and check that all locks are engaged before placing pet in stroller.
• Do not overload as stroller may become unstable; maximum weight of pet using this stroller not to exceed 20 lbs.
• Any goods carried in the basket not to exceed 6 lbs.

REPLACEMENT PARTS

Use only PET GEAR replacement parts.

Please have your model number ready before calling.

You can also request parts: http://www.petgearinc.com/main.asp?sel=2

PO Box 99·West Rutland, VT·05777·877-752-9123·www.petgearinc.com
