USER MANUAL PBS28500 Profilo

fitness personal scale

PROFiLO

Exterior view of a modern stainless steel electronic device (no visible text or symbols)

TR KULLANIM KILAVUZU

BANYO TARTISI

2-6

EN USER MANUAL

FITNESS PERSONAL SCALE

7-11

TR

Sayın Müşterimiz!

Simple line drawing of a switch or bracket with a diagonal line crossing through it (no text or symbols)

Vurmayin

Simple line drawing of an umbrella crossed over water with raindrops (no text or symbols)

Two cylindrical batteries with 'AAA' labels, shown in two horizontal positions inside a rounded square frame (no additional text or symbols)

Simple line drawing of a 3D cube with a diagonal line crossing it, no text or symbols present.

Simple line drawing of a container with liquid and a handle, crossed out by a diagonal line (no text or symbols)

Suya sokmayın

Warning sign depicting a person falling with a diagonal line crossing a device, indicating hazard or caution.

PROFILO PROFiLO

PROFiLO E-Nr. PBS2850-01 FD #f#fiio 3 V (2 x 1,5 V/AAA) 100 lb max 100 kg Typo C_QD1950 Made in China CE 6 5 4 6 5

Kontrol paneli

EKRANDAKİ SEMBOLLER

BMI BMR 00:00.0 cm Age KG ST LB % KCAL

Abstract geometric pattern composed of black rectangular blocks on white background (no text or symbols)

Congratulations on your choice of our appliance, and welcome among the users of PROFiLO products.

Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this instruction manual for future reference.

Handling instructions

Pure electrical circuit lines without any symbols

Do not hit

Symbol of an umbrella crossed over water with raindrops, enclosed in a square frame (no text or numbers present)

Do not use or store in humid locations

Two cylindrical batteries with 'AAA' labels, no additional text or symbols visible

Remove batteries if appliance is not to be used for a long period of time

>150km

Avoid overloading

Simple line drawing of a 3D cube with a diagonal line crossing it, no text or symbols present.

Do not place any objects on the surface of the appliance

Simple line drawing of a bowl with a plate and a diagonal line crossing through it (no text or symbols)

Do not immerse in water

Warning sign depicting a person falling with a diagonal line crossing a device, indicating hazard or caution.

Be careful not to slip when you step on the scale

ple with pacemakers should not use scale. In case of doubts ask your advice.

gnant women should use the weight reading function only.

The appliance is intended solely for household use, indoors.

Technical data

Technical parameters are stated on the rating plate. PROFiLO scales meet the requirements of relevant standards. The product is CE marked on the rating plate.

Maximum load: 180 kg / 28 st 8 lb / 400 lb

Graduation: 0,1 kg / 0,2 lb

Battery type: 1,5 V AAA

Height: 80-220 cm, 2'8" - 7'2"

Age: 6-100

12 user memories

Children mode: 6-12 years of age

Athlete mode: 15-50 years of age

Measurement accuracy:

0.1% body fat content
• 0.1% body water content
• 0.1% muscle mass content
1 kcal BMR

the

doctor for

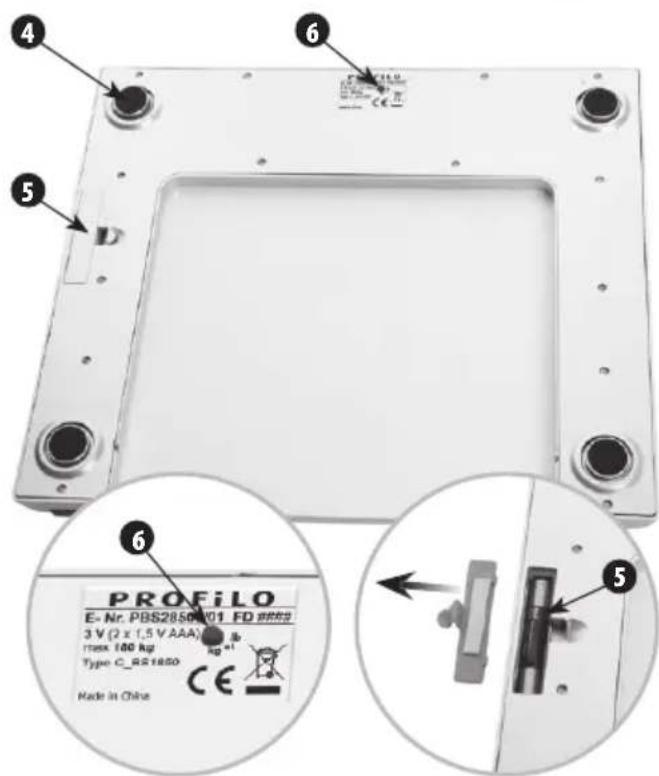

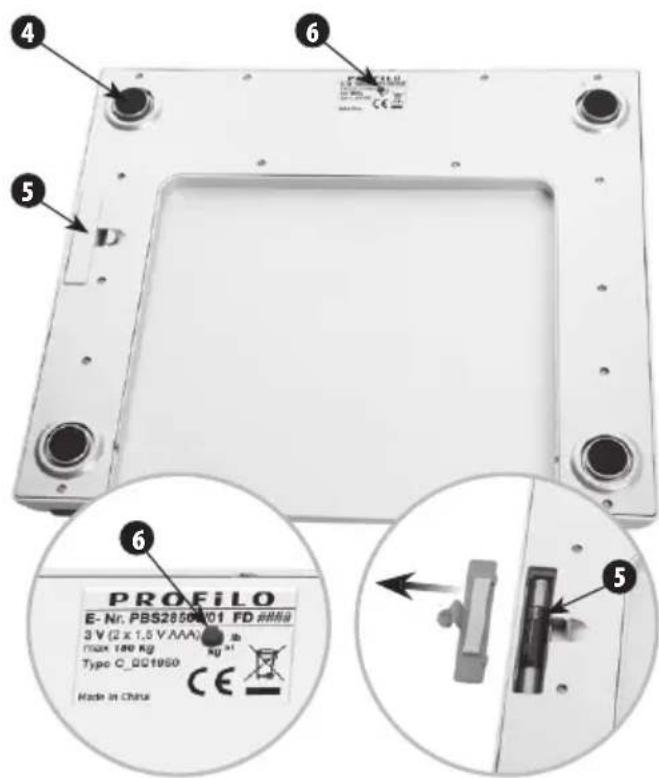

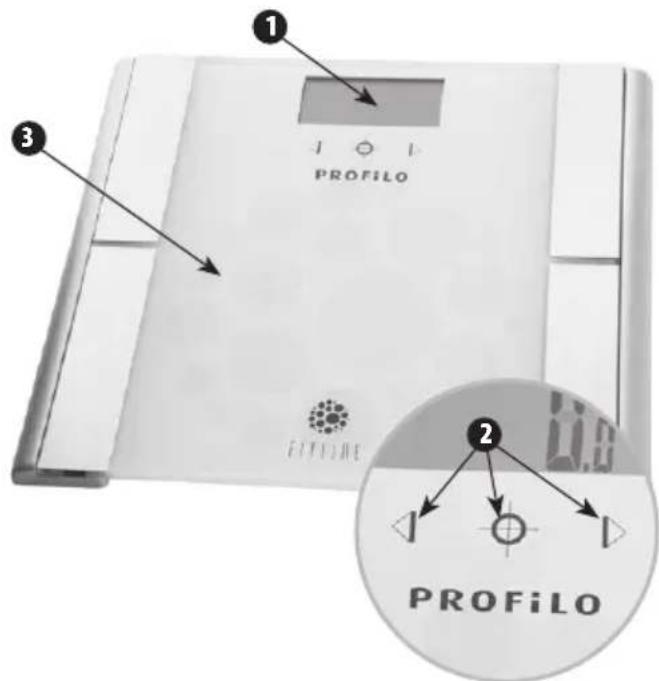

Description of the appliance

1 Electronic display
2 Function buttons
3 Weighing platform with BIA feature (bioelectrical impedance analysis)
4 Rubber feet
5 Battery compartment (2 x 1,5 V AAA)
6 Weighing unit button

PROFILO 1 2 3 PROFiLO

PROFiLO E- Nr. PBS2850X01 FD 88888 3 V (2 x 1,5 V AAA) 1 max 100 kg Type C_651860 Made in China CE 6 5 4 6 5

Control panel

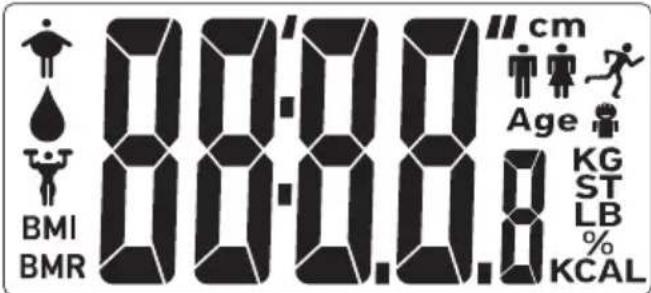

DISPLAY SYMBOLS

BMI BMR 00:00.0 cm Age KG ST LB % KCAL

- gender and body type

- body fat

body water – muscle mass

BMBody Mass Index

BMR – Basal Metabolic Rate

Age - age

KG ST LB % – measurement units

KCAL

FUNCTION BUTTONS

set / confi rm
- increase / select
- decrease / select

Use and functions

HOW TO USE

① Remove the scales from the box.
② Insert batteries into the battery compartment (see "REPLACING BATTERIES").
③ Switch on the scales by stepping on weighing platform.
④ Press the weighing unit button repeatedly until your required weighing unit shows on the display. The weighing unit button is located on the underside of the appliance.
⑤ Enter personal data of the user (see "SELECTING BODY TYPE AND GENDER").

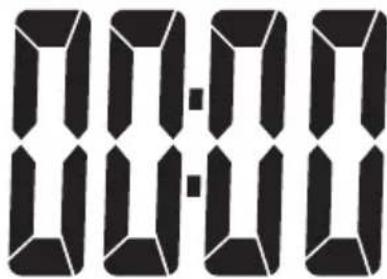

⑥ To start your measurement, wait until the display shows 0. Step on the weighing platform with feet on the metal plates.

7a When the weight is locked, and the user has not been recognized, the reading will be displayed for ca. 5 seconds, and the appliance will switch off automatically (weight measurement function).

83.2 KG

The user will not be identified if isolated from the sensors on the v platform (e.g. by shoes).

⑦b The measurement will start once the reading has stabilised, the persona data of the user has been entered and the user has been identified.

100.00 100.00

In addition to weight the appliance also displays your body fat, muscle and water content, as well as the BMI and BMR indicators.

The readings will be displayed for 3 seconds, one by one, and repeated twice. appliance will switch off automatically.

BMR

1862

In order to obtain accurate and reliable results, wipe your feet with a damp cloth and step on the scale with slightly wet feet.

Compare your results with the results shown in the tables below (see the Reference tables).

REPLACING BATTERIES

The battery compartment is located on the underside of the appliance.

① To replace batteries, open the battery compartment lid and remove the old batteries.

② Insert 2 new 1,5 V AAA batteries.

ake sure to insert the batteries the right way round.

Check the inside of the compartment for correct polarity description.

③ Replace the battery compartment cover.

weighing BODY COMPOSITION ANALYSIS

Based on the data entered (gender, age, height) and the measurements taken, the appliance, in addition to weight, also displays your body fat, muscle and water content, as well as the BMI and BMR indicators.

The device is capable of storing data 12 different users.

To enter personal data, proceed as follows:

SELECTING MEMORY STORAGE NUMBER

① Press ⨁ to enter the settings mode. The flashing icon indicates that the data of the first user can now be entered into the device memory.
② Use 1 buttons to select storage location number.
③ Press ⊕ to confirm your selection and enter the data of the next user.

175 cm 115

SELECTING BODY TYPE AND GENDER

Use arrows ◀, ▶ to select your body type and gender represented by respective symbols.

You can choose one of the following options: male

female ♀, fit male ♀, fit female ♀, child ♀.

To set the remaining parameters, proceed above.

WARNING INDICATORS

Change battery – the display will show „The appliance will switch off after a few seconds.

„[r] the reading has not been locked, body fat content reading failure.

Overload – if the load exceeds 180 kg, the display will show „Remove excess weight to avoid damaging the device.

not exceed maximum load capacity 80 kg.

„” – zero value setting error.

Cleaning and maintenance

Clean with damp cloth. Do not submerge in water. Do not use abrasive detergents.

Ecology – Environment protection

Each user can contribute to protect the environment. It is neither difficult nor expensive. In order to do so:

Return cardboard packages to recycling points.

Throw polyethylene (PE) bags into appropriate containers.

Batteries contain substances harmful to the natural environment. Do not throw them away with other household waste. Return used batteries to recycling points. Before disposing of or returning the appliance to a recycling point make sure to remove the batteries from the battery compartment.

Return a worn out appliance to an appropriate collecting point as the components of the appliance may pose a threat to the environment.

Do not dispose into the domestic waste disposal!!!

Reference tables

BODY FAT CONTENT (%) - MEN

Age	Low	Optimum	Moderate	High
6	≤ 12.4	12.5 - 19.5	19.6 - 22.6	≥ 22.7
7	≤ 12.6	12.7 - 20.4	20.5 - 24.0	≥ 24.1
8	≤ 12.7	12.8 - 21.3	21.4 - 25.4	≥ 25.5
9	≤ 12.8	12.9 - 22.2	22.3 - 26.7	≥ 26.8
10	≤ 12.8	12.9 - 22.8	22.9 - 27.8	≥ 27.9
11	≤ 12.6	12.7 - 23.0	23.1 - 28.2	≥ 28.3
12	≤ 12.1	12.2 - 22.7	22.8 - 27.8	≥ 27.9
13	≤ 11.5	11.6 - 22.0	22.1 - 26.9	≥ 27.0
14	≤ 10.9	11.0 - 21.3	21.4 - 25.8	≥ 25.9
15	≤ 10.4	10.5 - 20.7	20.8 - 24.9	≥ 25.0
16	≤ 10.1	10.2 - 20.3	20.4 - 24.2	≥ 24.3
17	≤ 9.8	9.9 - 20.1 20.2 - 23.8	≥ 23.9
18	≤ 9.6	9.7 - 20.1 20.2 - 23.5	≥ 23.6
19 - 39	≤ 8	8.1 - 19.9	20 - 24.9	≥ 25
40 - 59	≤ 11	11.1 - 21.9	22 - 27.9	≥ 28
60+	≤ 13 13.1 - 24.9	25 - 29.9	≥ 30

BODY FAT CONTENT (%) – WOMEN

Age	Low	Optimum	Moderate	High
6	≤14.4	14.5 - 23.0	23.1 - 26.1	≥26.2
7	≤14.9	15.0 - 24.5	24.6 - 27.9	≥28.0
8	≤15.3	15.4 - 26.0	26.1 - 29.6	≥29.7
9	≤15.7	15.8 - 27.2	27.3 - 31.1	≥31.2
10	≤16.0	16.1 - 28.2	28.3 - 32.1	≥32.2
11	≤16.1	16.2 - 28.8	28.9 - 32.7	≥32.8
12	≤16.1	16.2 - 29.1	29.2 - 33.0	≥33.1
13	≤16.1	16.2 - 29.4	29.5 - 33.2	≥33.3
14	≤16.0	16.1 - 29.6	29.7 - 33.5	≥33.6
15	≤15.7	15.8 - 29.9	30.0 - 33.7	≥33.8
16	≤15.5	15.6 - 30.1	30.2 - 34.0	≥34.1
17	≤15.1	15.2 - 30.1	30.2 - 34.3	≥34.4
18	≤14.7	14.8 - 30.8	30.9 - 34.7	≥34.8
19 - 39	≤21	21.1 - 32.9	33 - 38.9	≥39
40 - 59	≤23	23.1 - 33.9	34 - 39.9	≥40
60+	≤24 24.1 - 35.9		36 - 41.9	≥42

Body fat content (%) ranges presented above are for your information only. Before you change your diet or exercise program you should always consult a physician.

WATER CONTENT DIAGRAM

	BF Range (%) Optimal range % TBW
Men 4 to 14% 70 to	63%
	15 to 21% 63 to 57%
	22 to 24% 57 to 55%
	25 and over 55 to 37%
Women 4 to 20% 70 to 58%
		21 to 29% 58 to 52%
		30 to 32% 52 to 49%
		33 and over 49 to 37%

Body water content (%) ranges pre above are for your information only. you change your diet or exercise program you should always consult a physician.

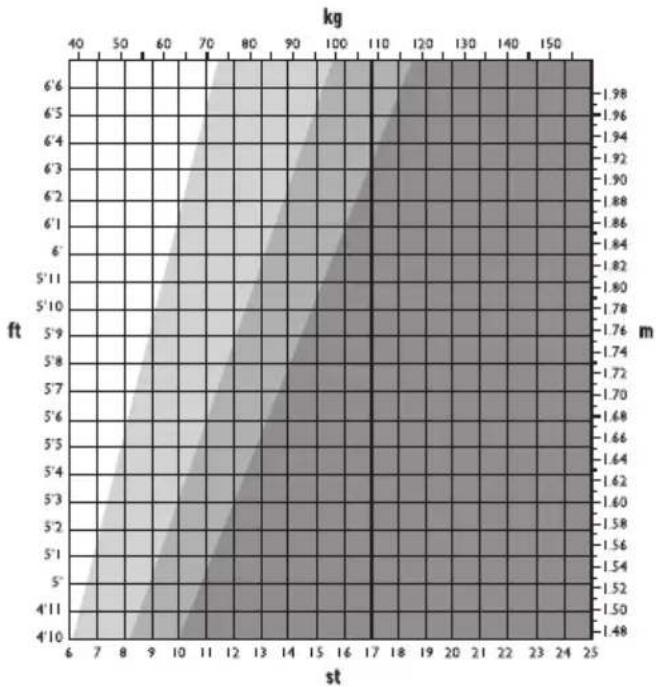

BMI

Body Mass Index (BMI) is a weight-to-height ratio commonly used to classify underweight, overweight and obesity in adults. This scale is capable of calculating your BMI. The BMI categories presented in the diagram and the table below are recognized by WHO (World Health Organization), and they can be used to interpret BMI values.

You can check your BMI category in the table below

BMI category BMI	Value Interpretation	Health problems based on BMI only
< 18.5	Underweight	Moderate
18.6-24.9 Normal weight Low
25-29.9	Overweight Moderate
30+ Obesity		High

If the diagram/table shows that your weight does not fall within the normal weight, you should consult your doctor before taking any actions. BMI categories can only be applied to adults (over 19 years of age).

BMR

Your basal metabolic rate (BMR) is the estimated amount of energy measured in calories that is used by your body at rest to maintain normal functioning of the organism. This continuous work consumes 60-70% of calories, and includes heartbeat, breathing and body temperature maintenance. Numerous factors, including age, weight, height, sex, diet and lifestyle have an impact on the BMR index.

Before

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling. The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.

2 WATER CONTENT MUSCLE MASS FAT MASS

4 180kg max

1. BIA (Bioelectrical Impedance Analysis) advanced through feet measurement system
2. The body composition analysis – know your body fat, muscle and water content
3. Measurements memory for up to 12 individual users (age, sex, height)
4. Maximum load – 180 kg (accuracy of measurement 100 g)
